This document provides instructions for constructing angles and triangles using a protractor, ruler, and pencil given specific measurements. For angles, the steps are to rule a horizontal line, place the protractor at one end with the center, mark the desired degree at the edge, and rule a line from the end of the first line to the mark. For triangles, the steps are to rule lines for the two given side lengths, place the protractor at an end to mark the angle degree, rule the third side to complete the triangle, and label all measurements. Practice exercises are provided to construct various angles and triangles.

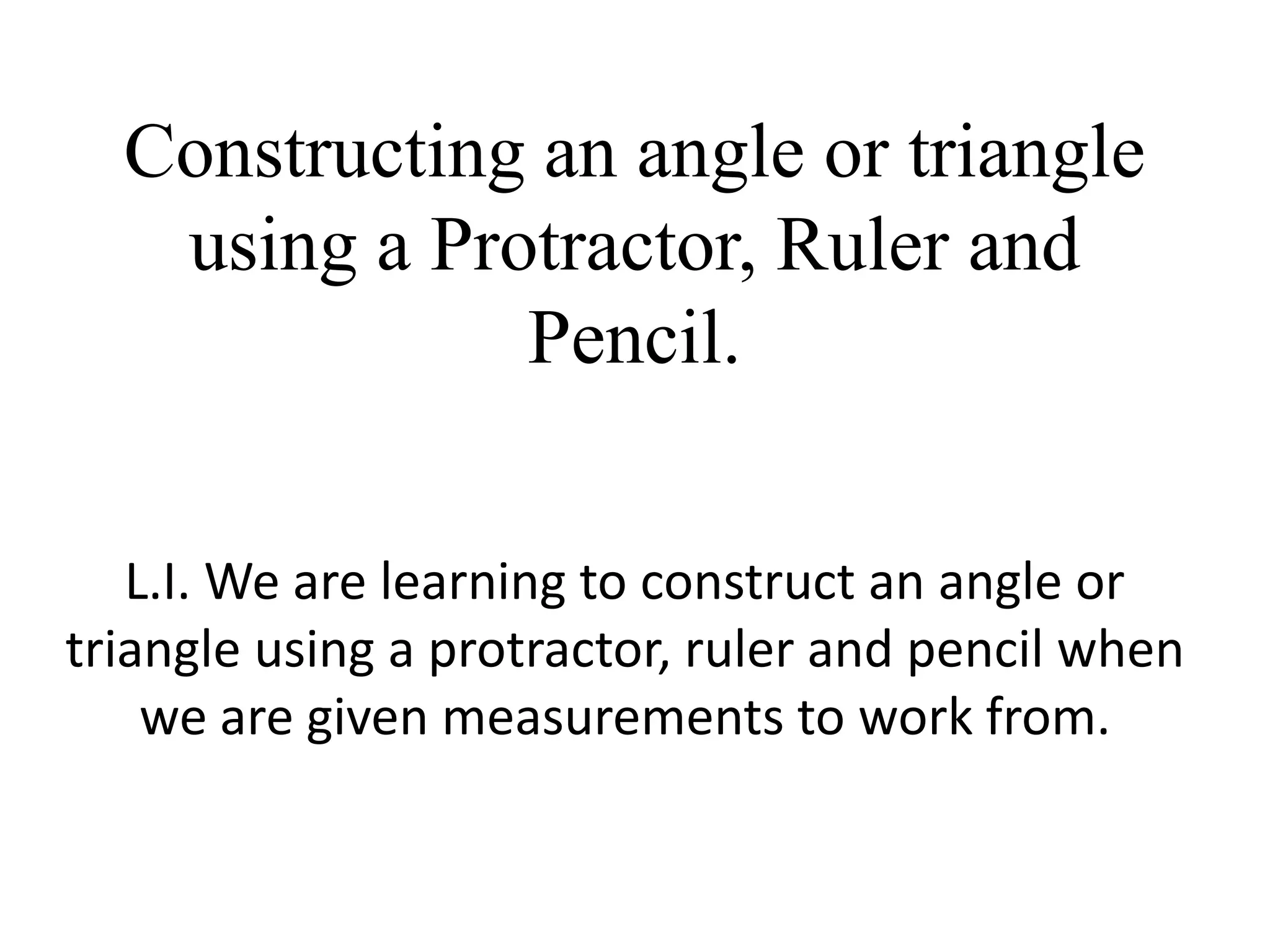

1. Constructing an angle or triangle
using a Protractor, Ruler and
Pencil.
L.I. We are learning to construct an angle or
triangle using a protractor, ruler and pencil when
we are given measurements to work from.

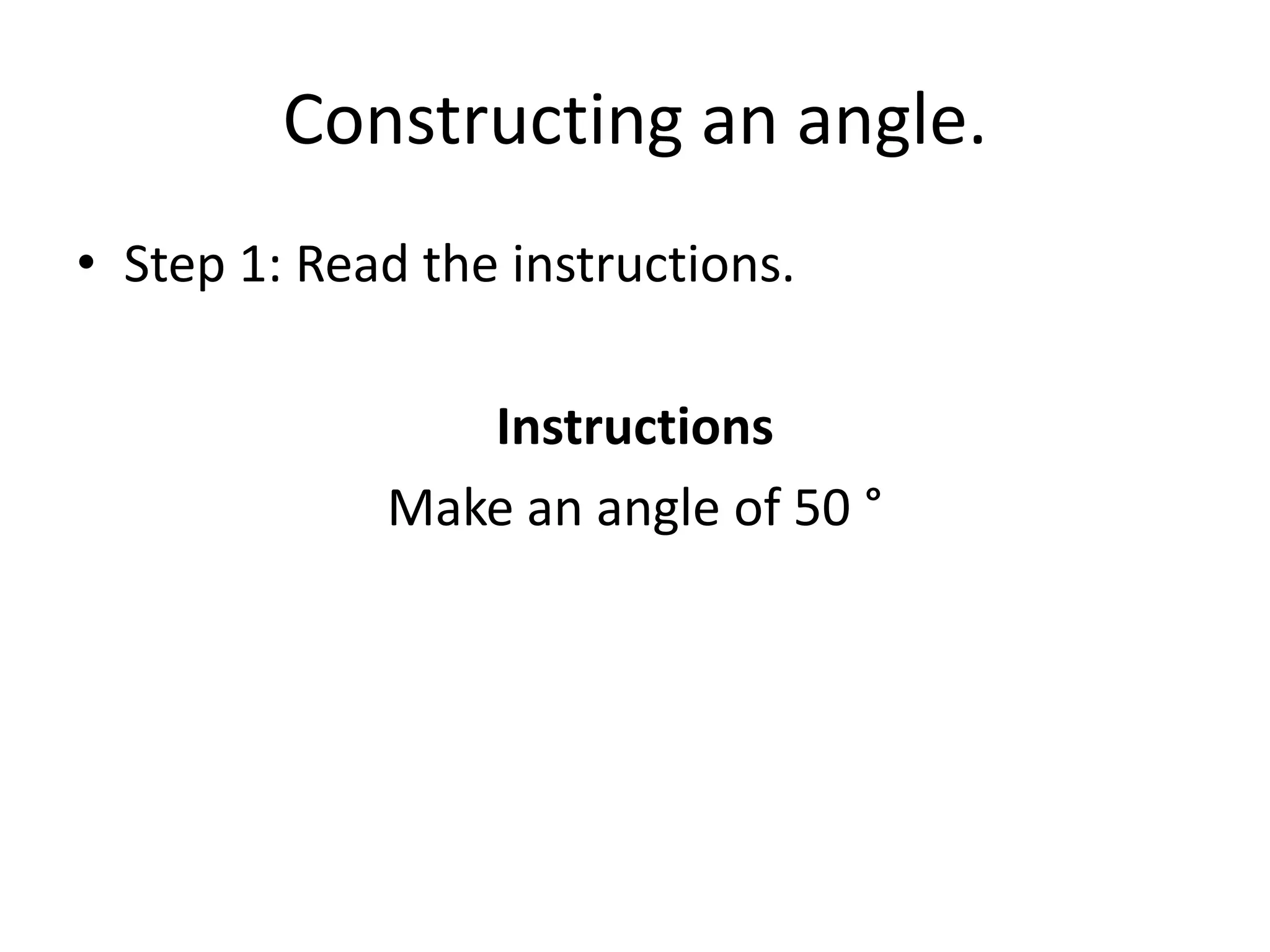

2. Constructing an angle.
• Step 1: Read the instructions.
Instructions
Make an angle of 50 °

3. Constructing an Angle
• Step 2 : Begin by ruling a horizontal line.

4. Constructing an Angle
• Step 3 : Place centre of Protractor at one end
of line

5. Constructing an Angle
• Step 4 : Mark 50 ° at edge of protractor.
X

6. Constructing an Angle
• Step 5 : Rule line from end
of first line to the mark.
X

7. Constructing an Angle
• Step 6 : Label angle that you have created.
X
50 °

8. Now try for yourself
1. Create a 45 ° angle
When you have
2. Create a 90 ° angle
finished swap with
3. Create a 75 ° angle
a partner to measure
4. Create a 30 ° angle
and mark
5. Create a 53 ° angle
6. Create a 120 ° angle
7. Create a 133° angle
8. Create a 17 ° angle
9. Create a 101 ° angle
10. Create a 5 ° angle

9. Constructing a Triangle.
• Step 1: Read the instructions.
Instructions
Make a triangle, 1 side is 7 cm long, 1 side is 4
cm long and there is an angle of 45 °.

10. Constructing a Triangle.
• Step 2 : Begin by ruling a line that is equal to
the longer length.

11. Constructing a Triangle
• Step 3 : Place centre of Protractor at one end
of line

12. Constructing a Triangle
• Step 4 : Mark 45 ° at edge of protractor.
X

13. Constructing a Triangle
• Step 5 : Put 0cm mark on same
end of line and line up with
45 ° mark.
X

14. Constructing a Triangle
• Step 6 : Rule a 4cm line along
the ruler.
X

15. Constructing a Triangle
• Step 7 : Using the ruler connect end of 4cm
line with other end of the 7cm line to
complete the triangle.
X

16. Constructing a Triangle
• Step 8 : Label the lines and angles that you
were given measurements for.
X
4cm
45 °
7cm

17. Now try for yourself
1. Create a triangle with one side 5 cm, one side 10 cm
and an angle of 45 °.
2. Create a triangle with one side 7 cm, one side 8 cm
and an angle of 30 °.
3. Create a triangle with one side 4 cm, one side 9 cm
and an angle of 50 °.
4. Create a triangle with one side 2 cm, one side 7 cm
and an angle of 80 °.
5. Create a triangle with one side 6 cm, one side 9 cm
and an angle of 15 °.
When you have finished swap with
a partner to measure and mark
