This report details the summer office training of Ahmed Zakaria in civil technology at Al-Haramain Company, focusing on concrete mix design and aggregate testing. It includes acknowledgments, a table of contents, and a series of tests performed on fine and coarse aggregates, fundamental for ensuring quality in concrete applications. The report emphasizes best practices, safety factors, and essential calculations involved in concrete mix design, structured according to standards in the Kingdom of Saudi Arabia.

1. Department of
Civil
Technology
Written By: Ahmed Zakaria 1
Summer Office Training Report 2015
AHMED ZAKARIa
BS CIVIL TECHNOLOGY

2. Department of
Civil
Technology
Written By: Ahmed Zakaria 2

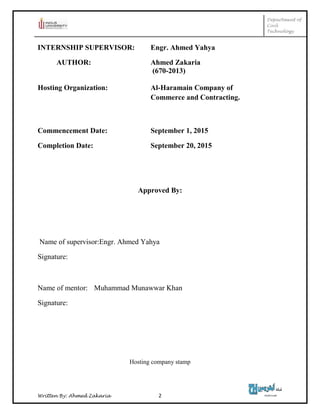

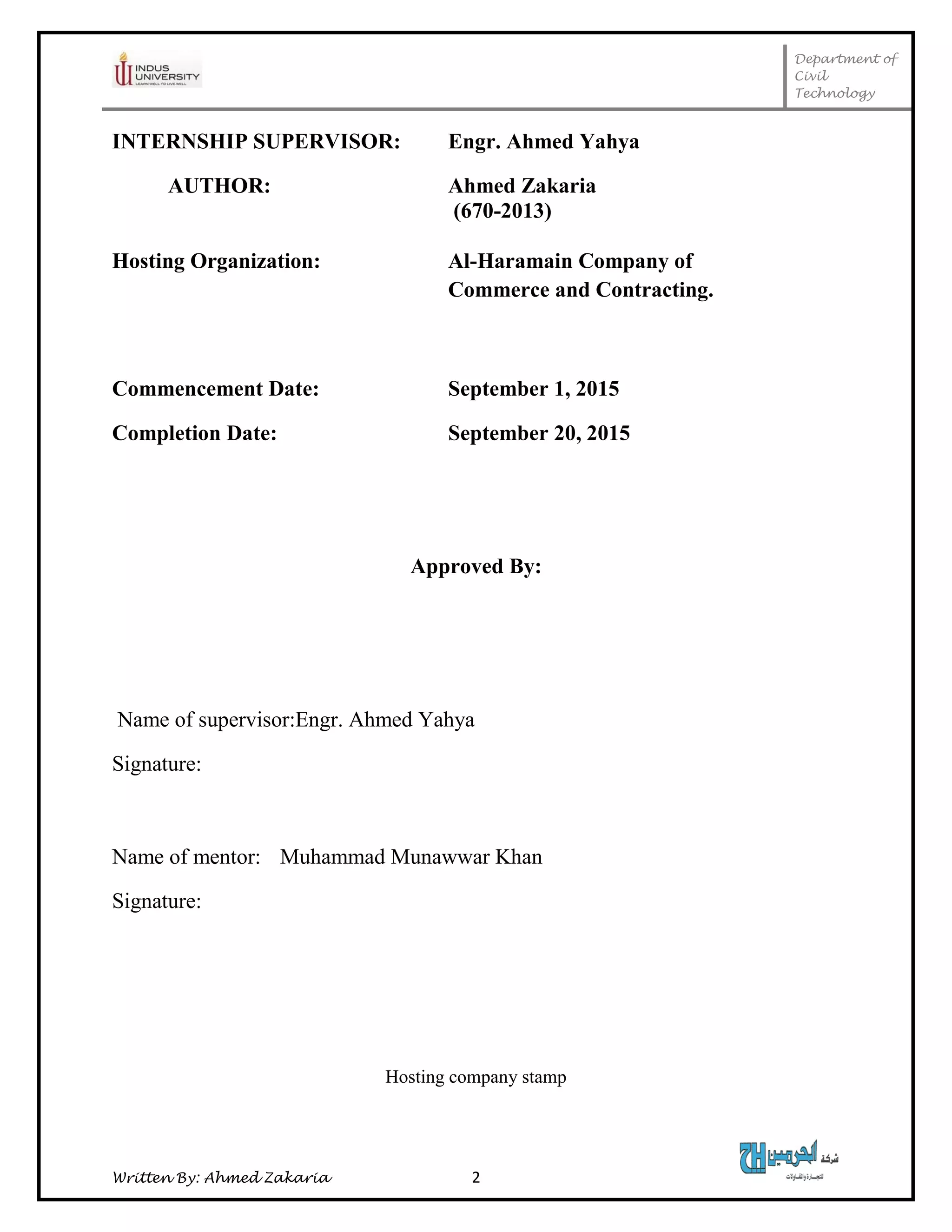

INTERNSHIP SUPERVISOR: Engr. Ahmed Yahya
AUTHOR: Ahmed Zakaria
(670-2013)
Hosting Organization: Al-Haramain Company of
Commerce and Contracting.
Commencement Date: September 1, 2015
Completion Date: September 20, 2015
Approved By:
Name of supervisor:Engr. Ahmed Yahya
Signature:
Name of mentor: Muhammad Munawwar Khan
Signature:
Hosting company stamp

3. Department of
Civil
Technology
Written By: Ahmed Zakaria 3

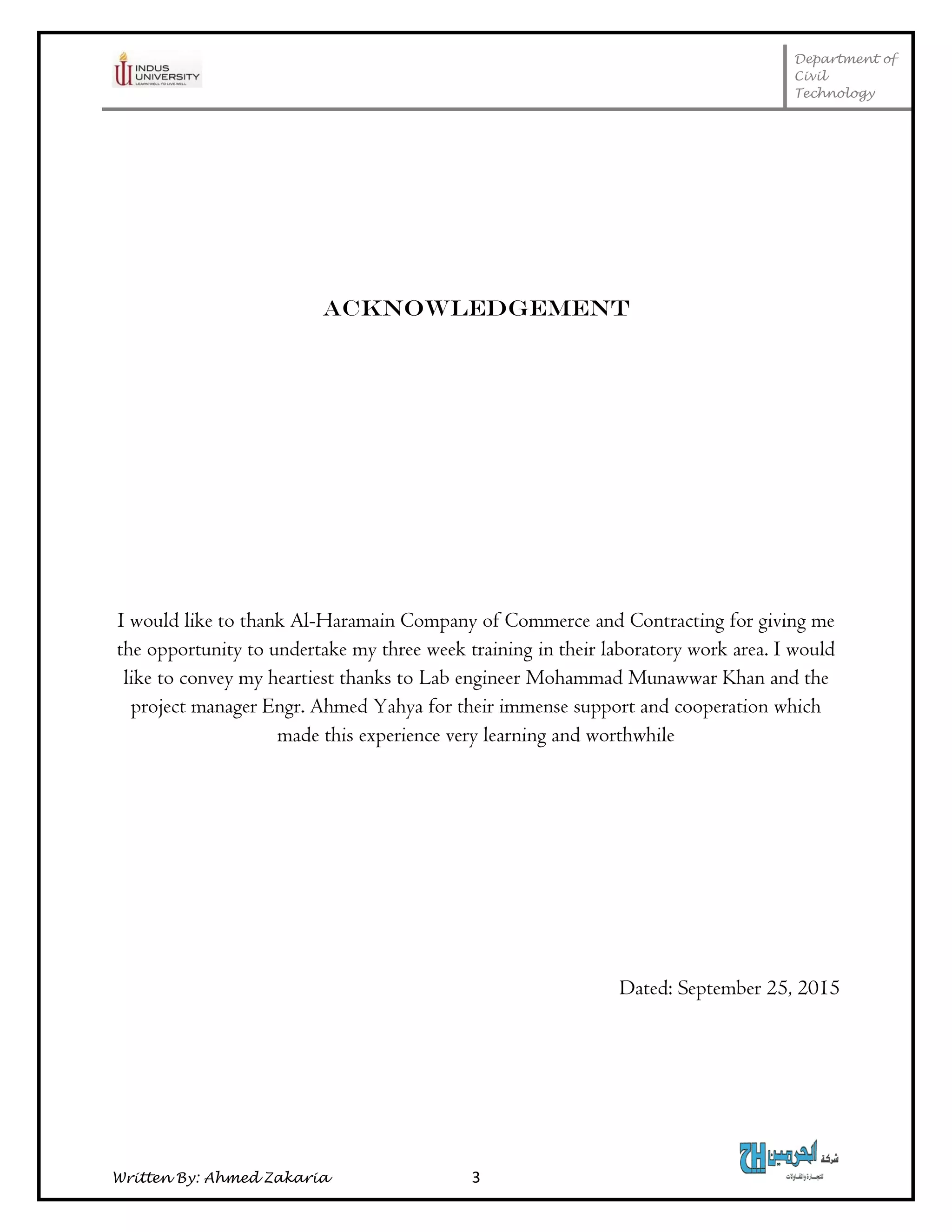

ACKNOWLEDGEMENT
I would like to thank Al-Haramain Company of Commerce and Contracting for giving me
the opportunity to undertake my three week training in their laboratory work area. I would
like to convey my heartiest thanks to Lab engineer Mohammad Munawwar Khan and the
project manager Engr. Ahmed Yahya for their immense support and cooperation which
made this experience very learning and worthwhile
Dated: September 25, 2015

4. Department of
Civil
Technology
Written By: Ahmed Zakaria 4
List of Tables
Table No. Title Page No.
Table 1 F.A Gradation 08

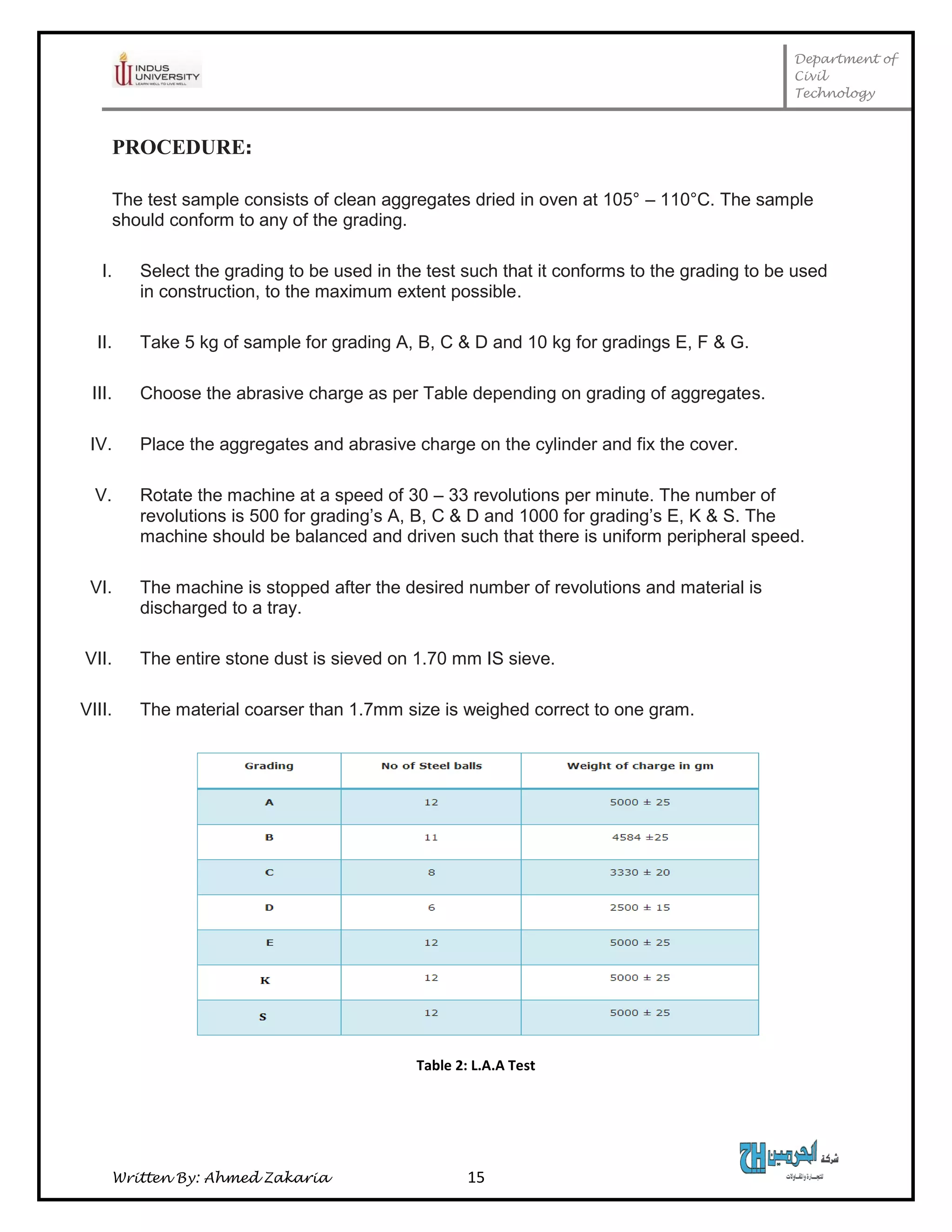

Table 2 L.A.A Test 12
Table 3 Grading of 3/4 Aggregate 16
Table 4 Grading of 3/8
Aggregate
16
Table 5 Aggregate Blend 17
Table 6 Sample for specific
gravity
18

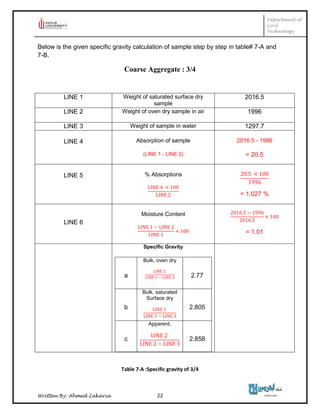

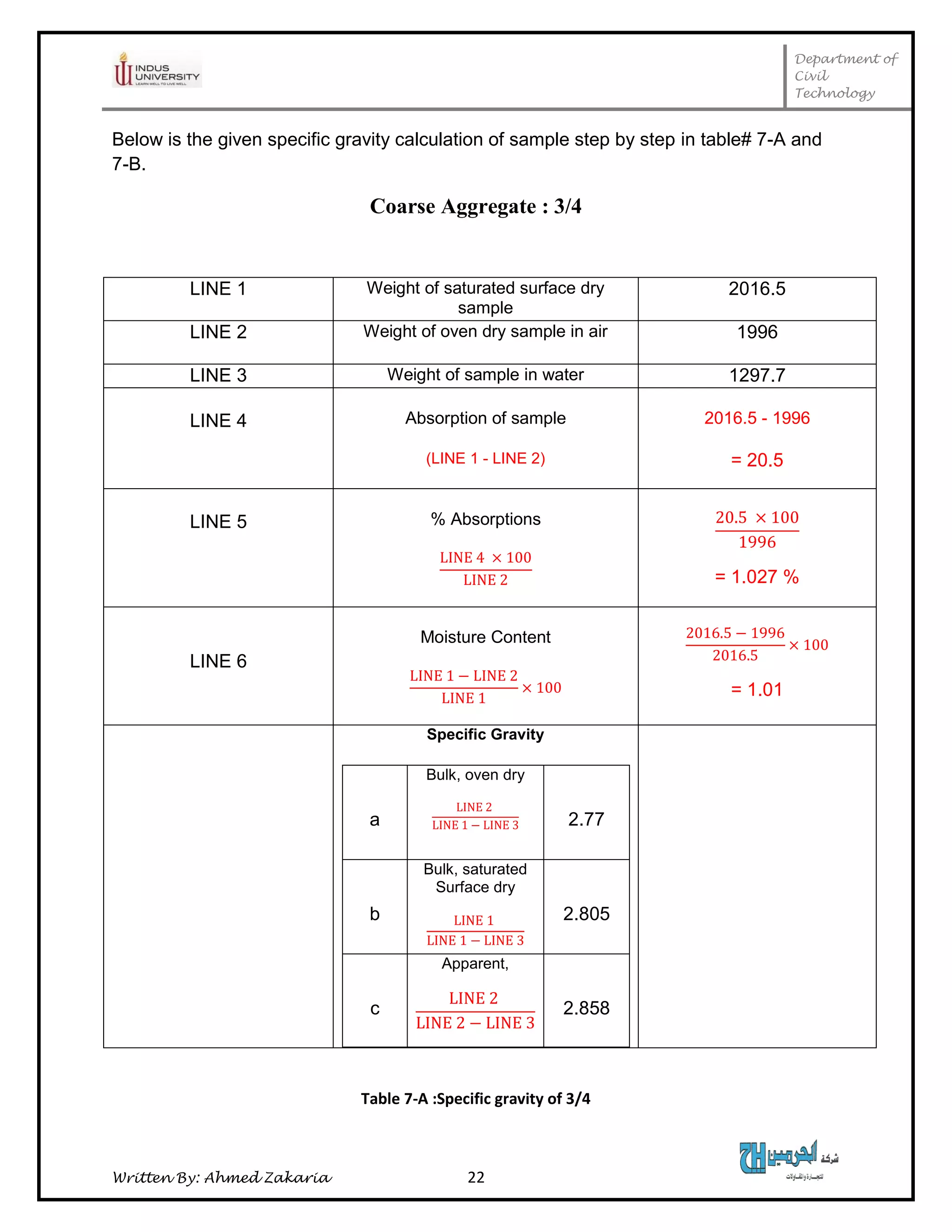

Table 7-A Specific gravity of 3/4 19

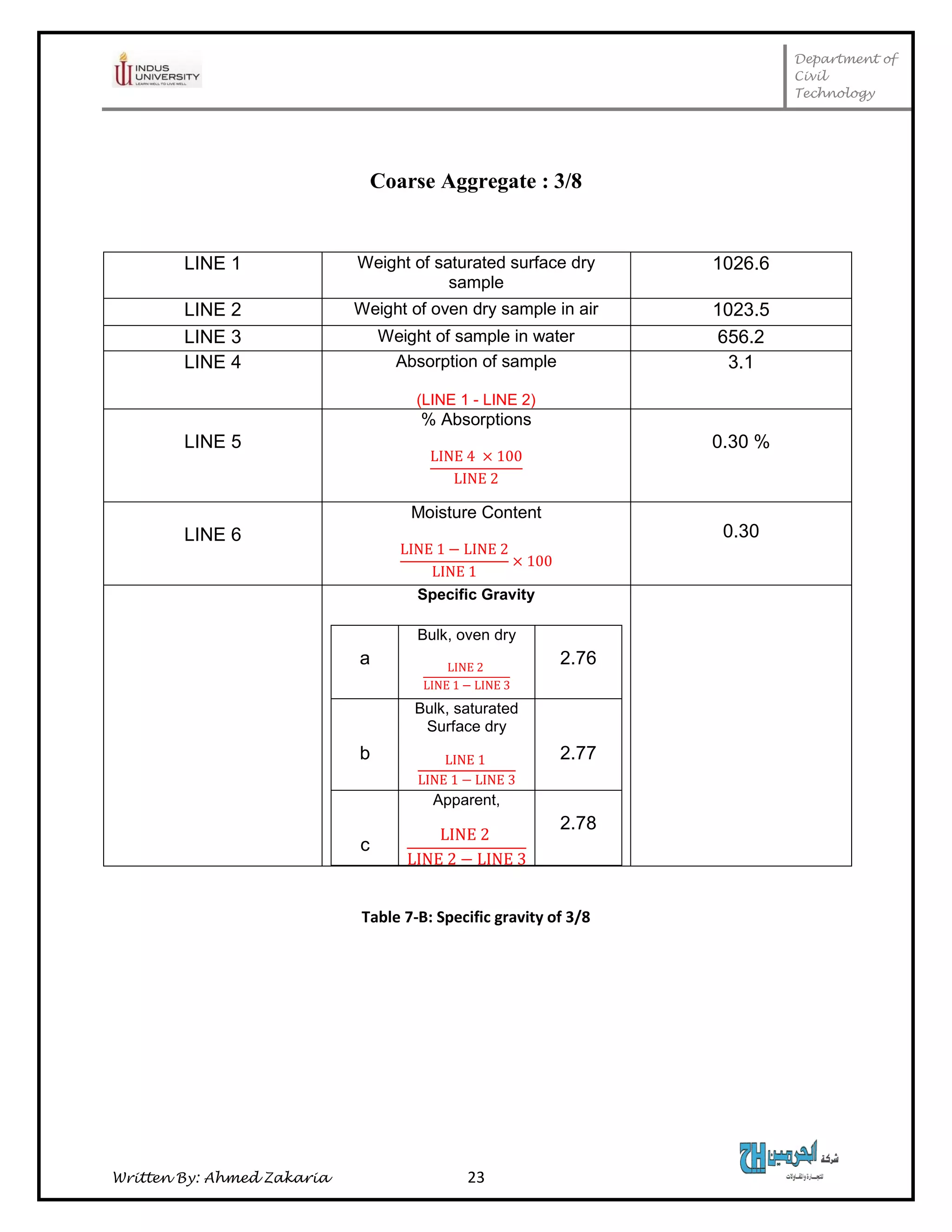

Table 7-B Specific gravity of 3/8 20
Table 8 Specific gravity record 21

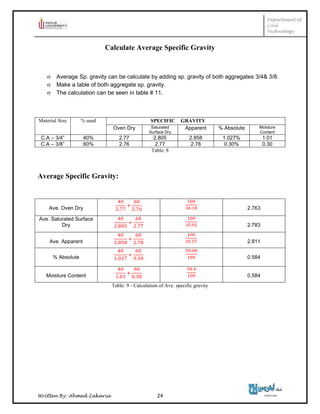

Table 9 Calculation of Ave.
specific gravity
21
Table 10 Nominal Max. Size
conversions
22
Table 11 Gradation standards C.A 23
Table 12 Gradation standards F.A 23

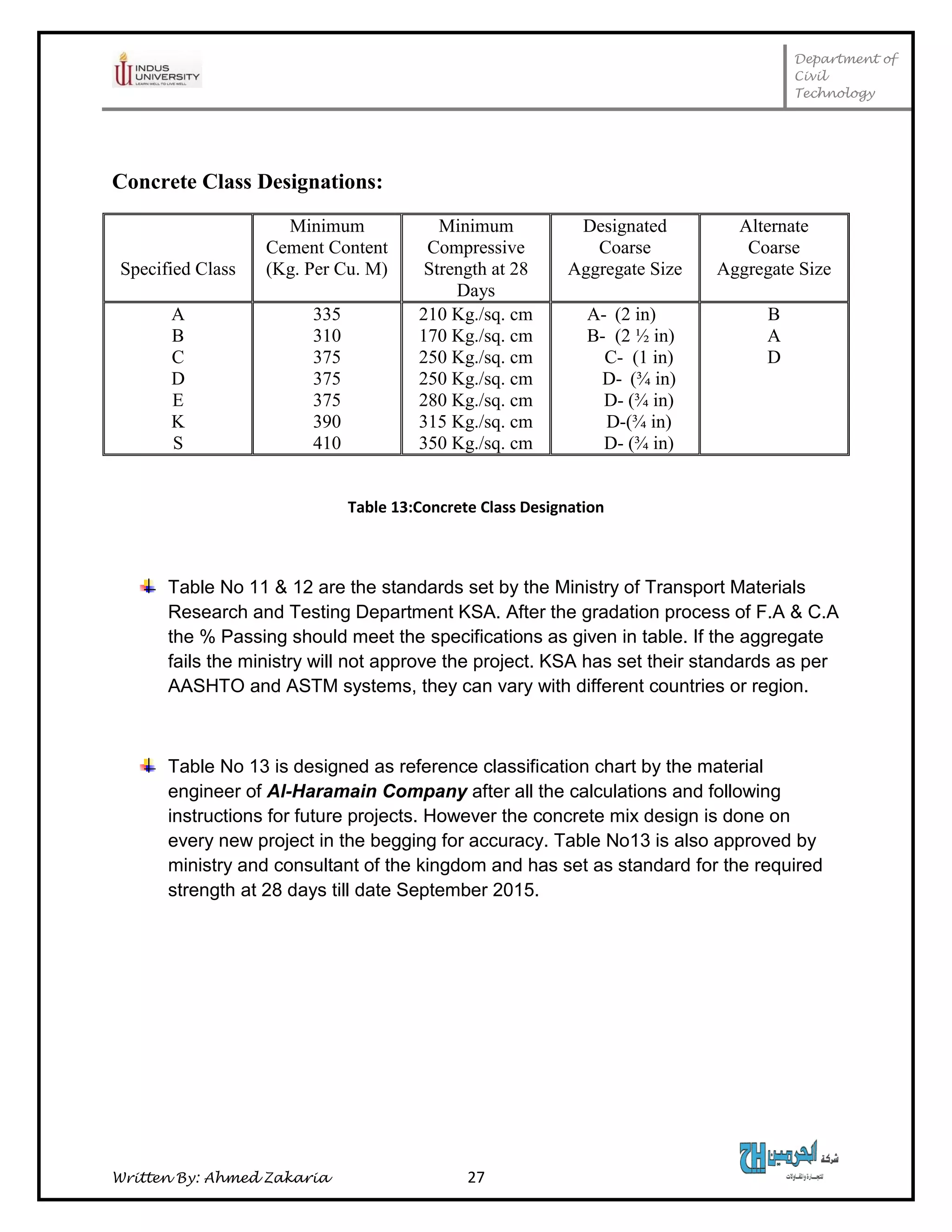

Table 13 Concrete Class
Designation
24
List of Figures
Figure No. Title Page No.

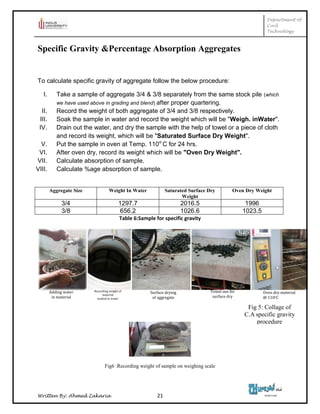

Fig 5
Collage of C.A
specific gravity
procedure
Fig 6 Recording weight of
sample on weighing
scale

5. Department of
Civil
Technology
Written By: Ahmed Zakaria 5

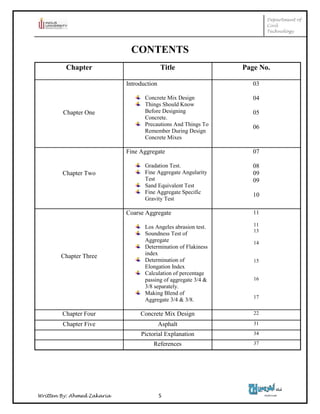

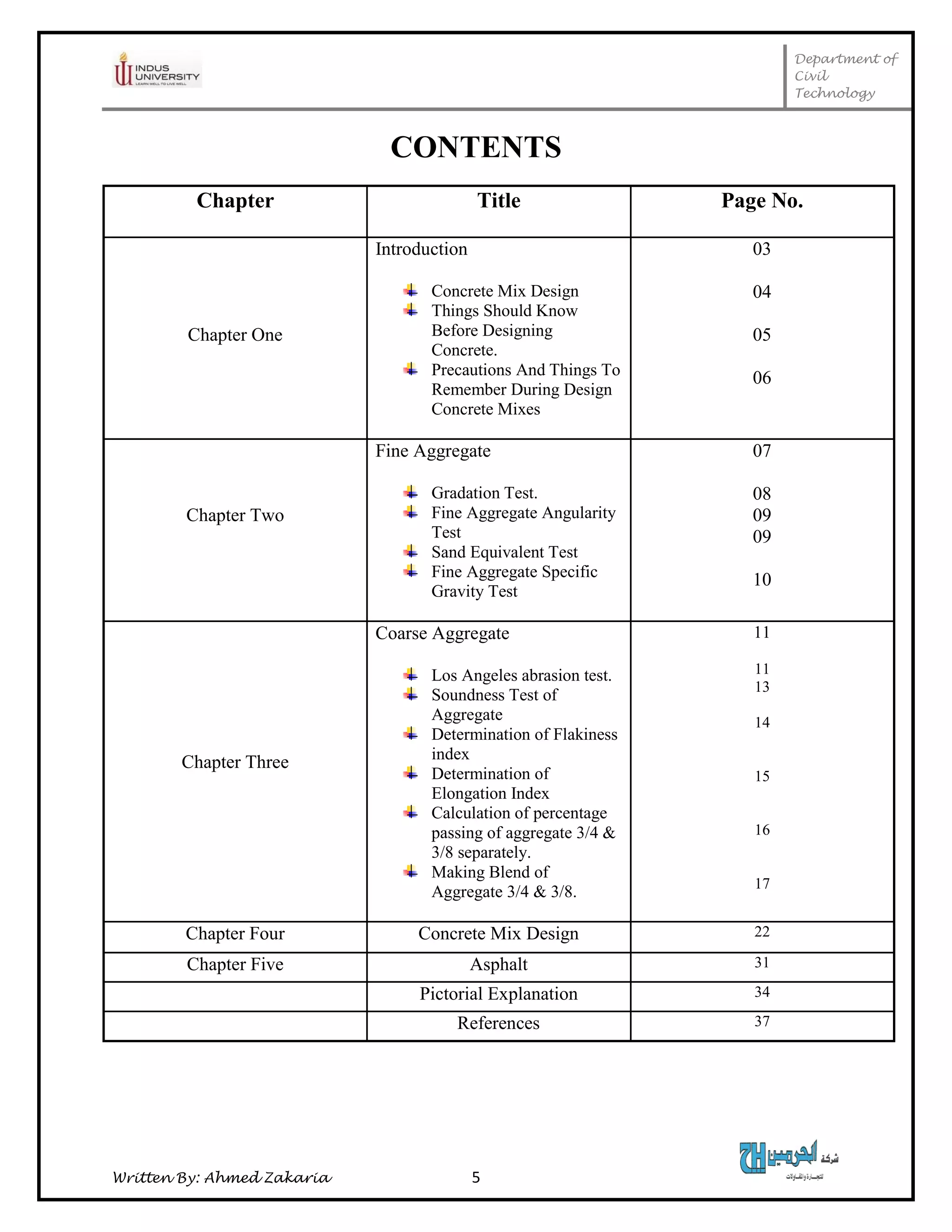

CONTENTS
Chapter Title Page No.
Chapter One
Introduction
Concrete Mix Design
Things Should Know
Before Designing
Concrete.
Precautions And Things To
Remember During Design
Concrete Mixes
03
04
05
06
Chapter Two
Fine Aggregate
Gradation Test.
Fine Aggregate Angularity
Test
Sand Equivalent Test
Fine Aggregate Specific
Gravity Test
07
08
09
09
10
Chapter Three
Coarse Aggregate
Los Angeles abrasion test.

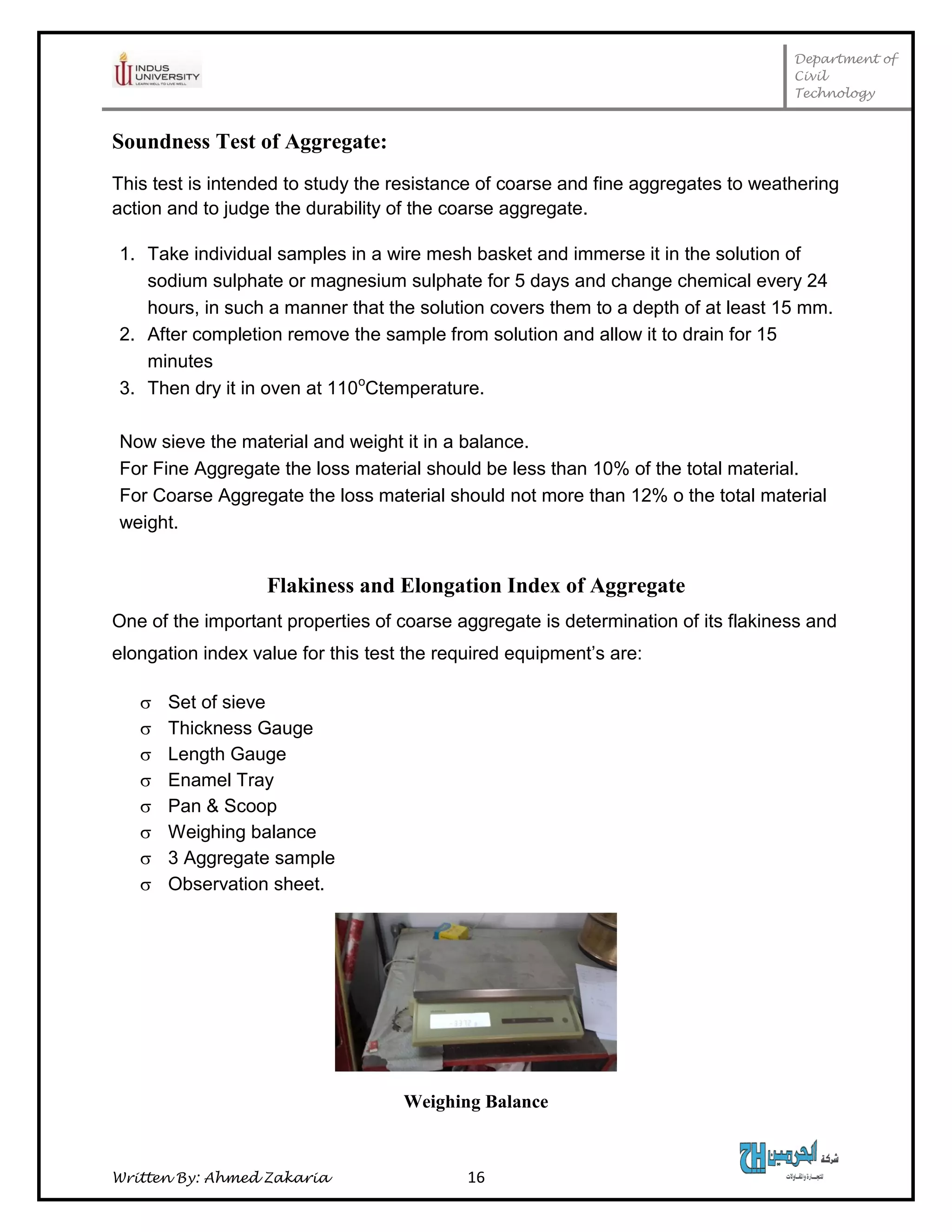

Soundness Test of
Aggregate

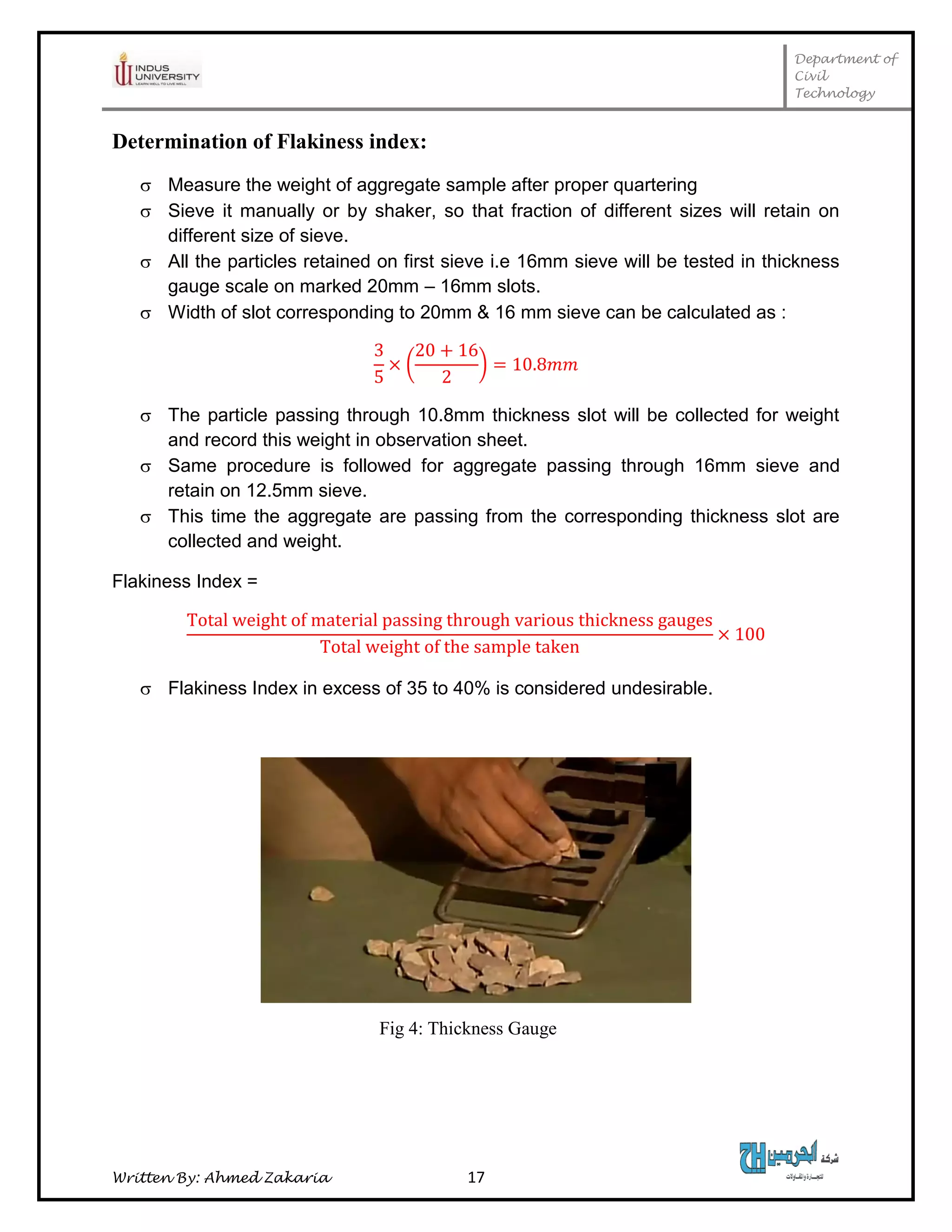

Determination of Flakiness
index

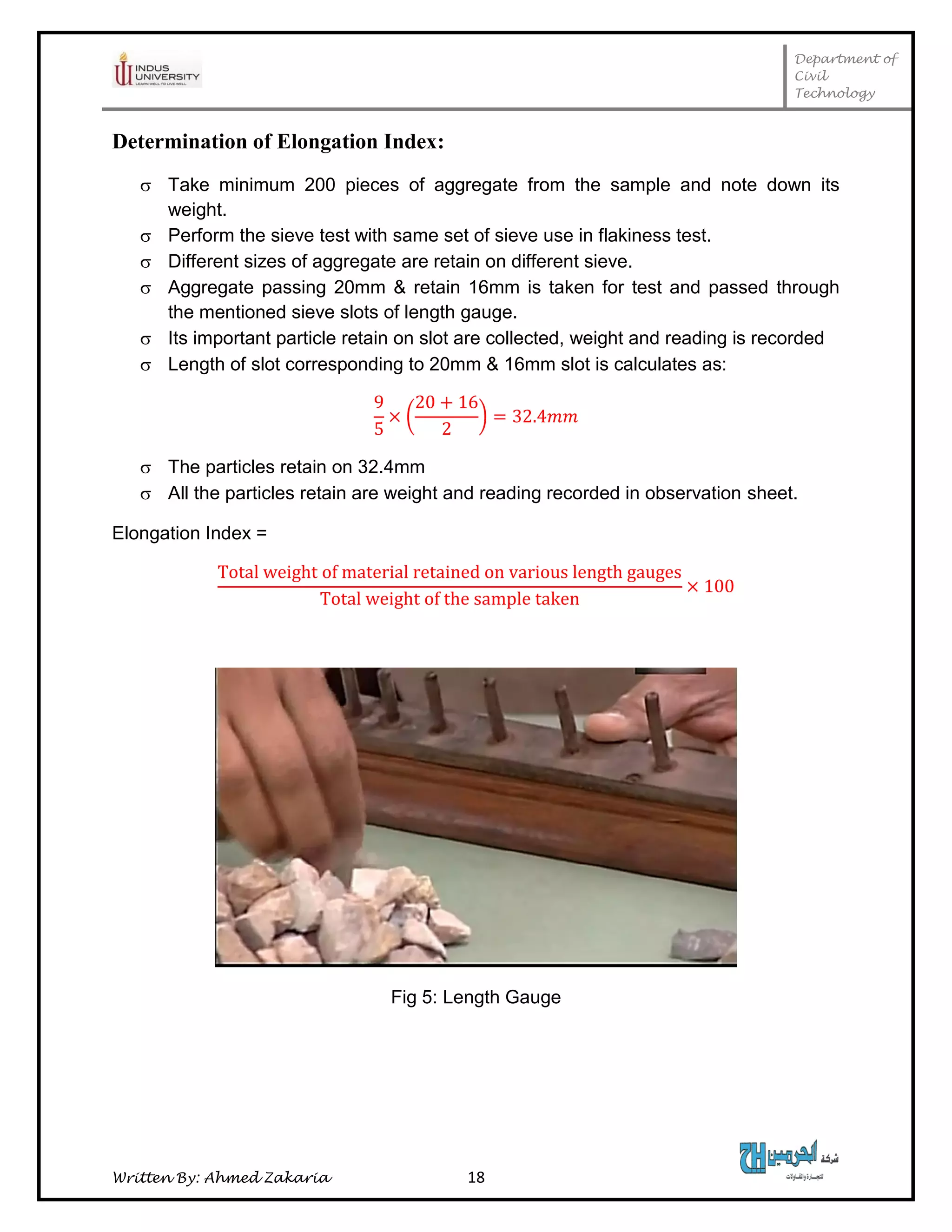

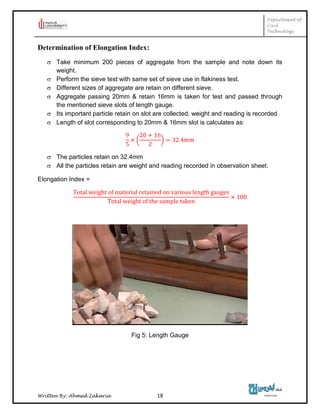

Determination of
Elongation Index

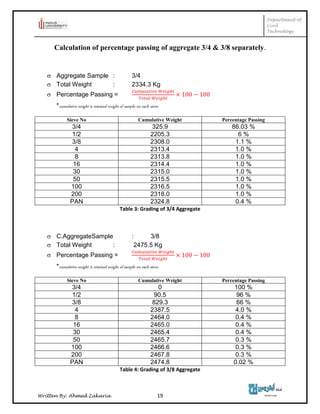

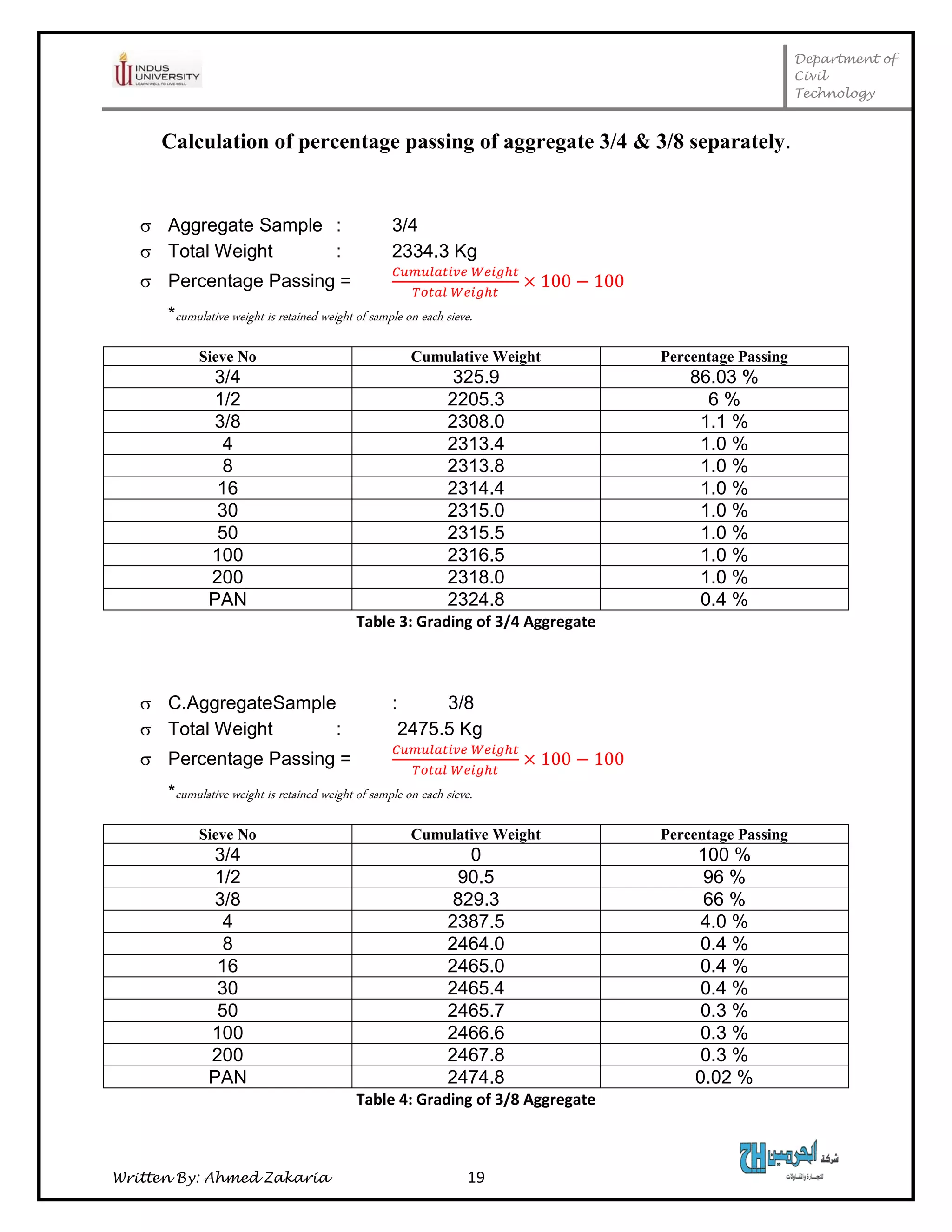

Calculation of percentage
passing of aggregate 3/4 &
3/8 separately.
Making Blend of
Aggregate 3/4 & 3/8.
11
11
13
14
15
16
17

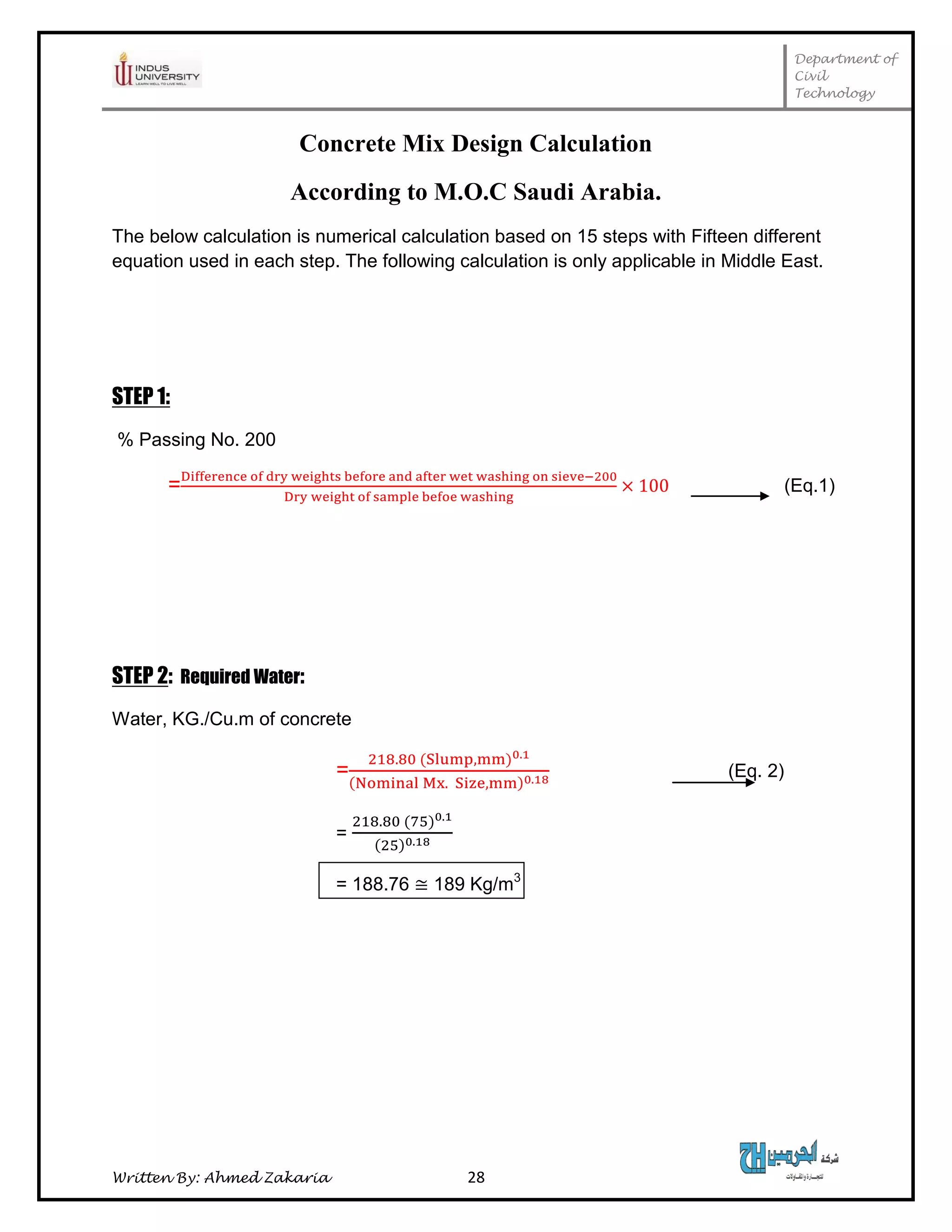

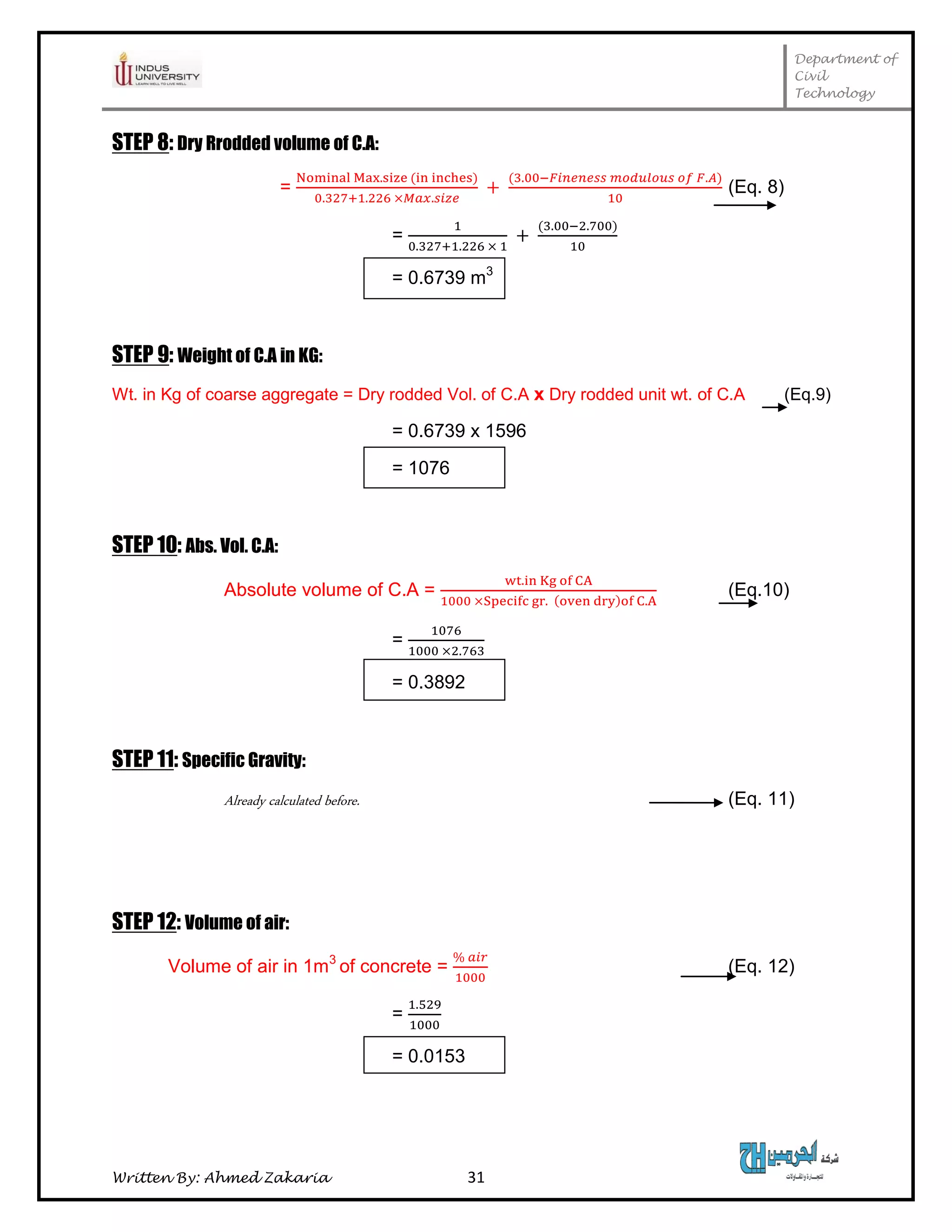

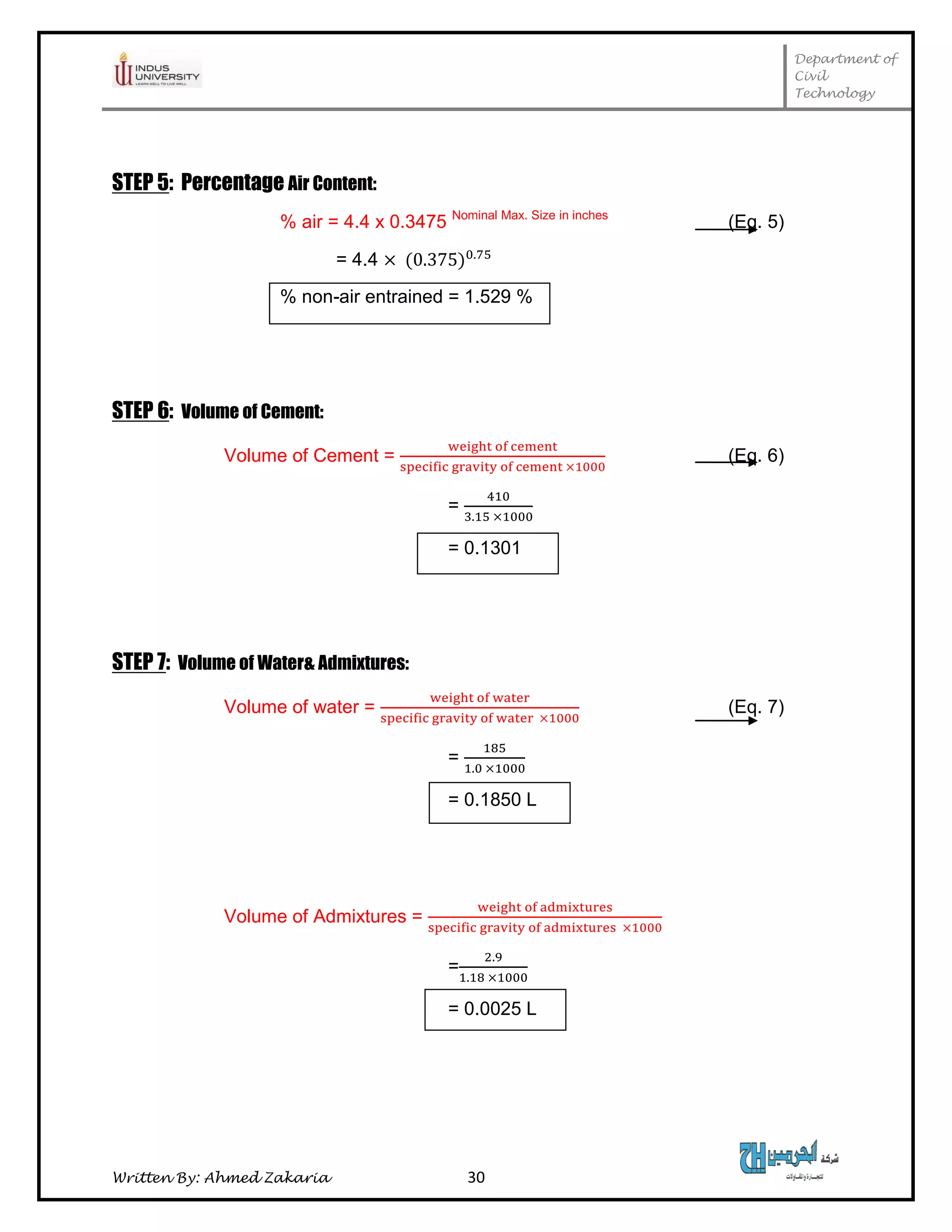

Chapter Four Concrete Mix Design 22

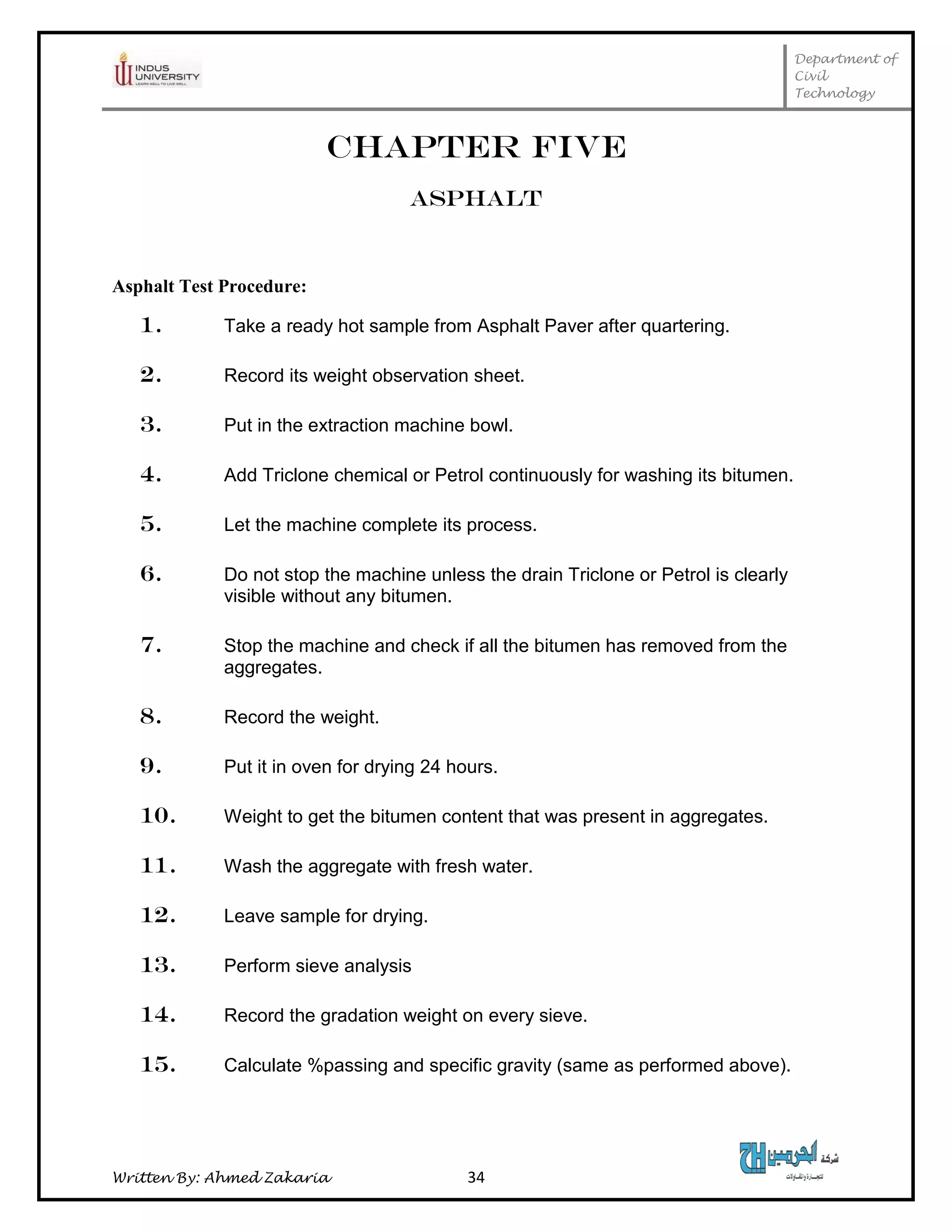

Chapter Five Asphalt 31

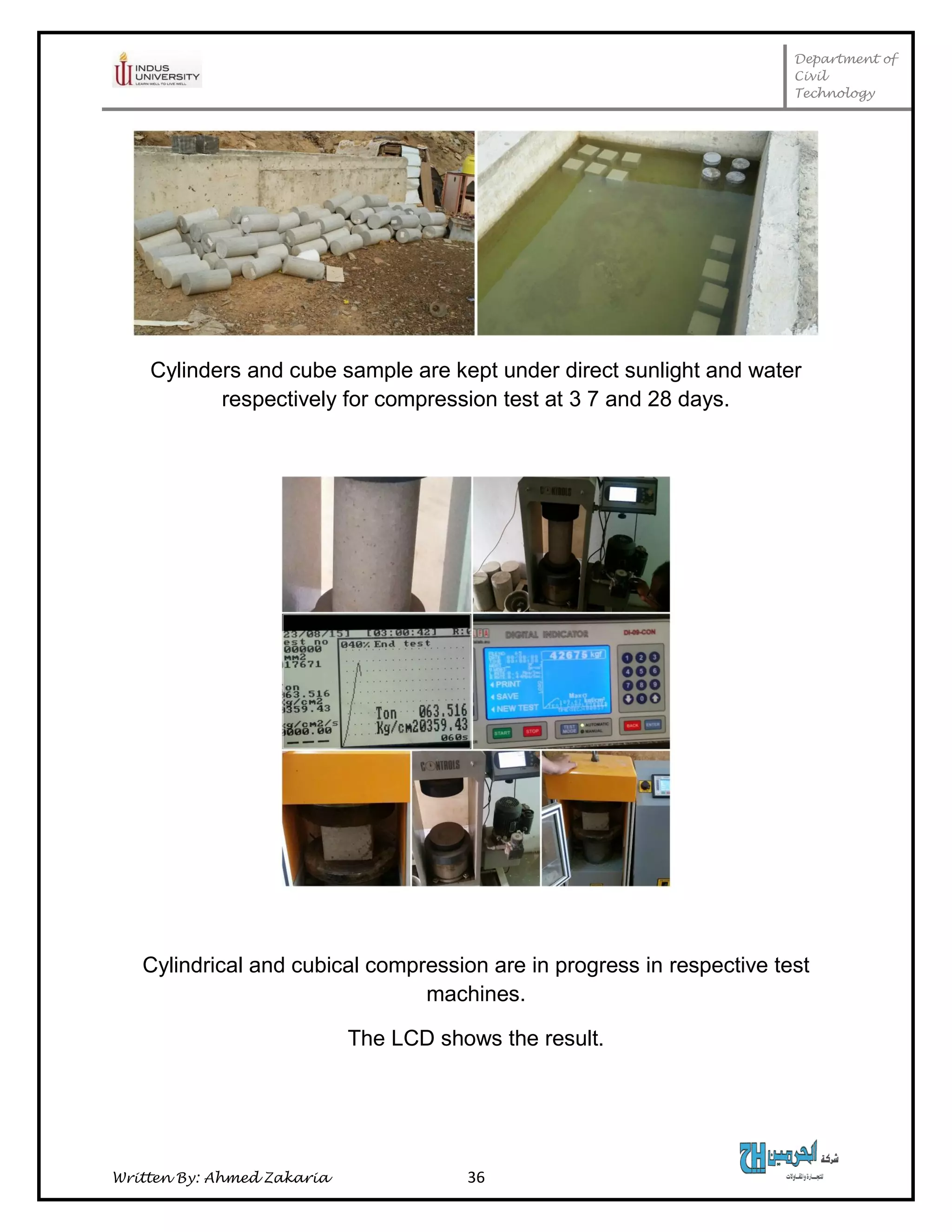

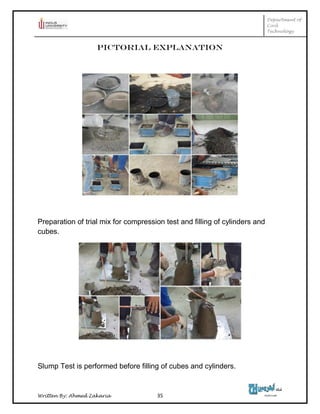

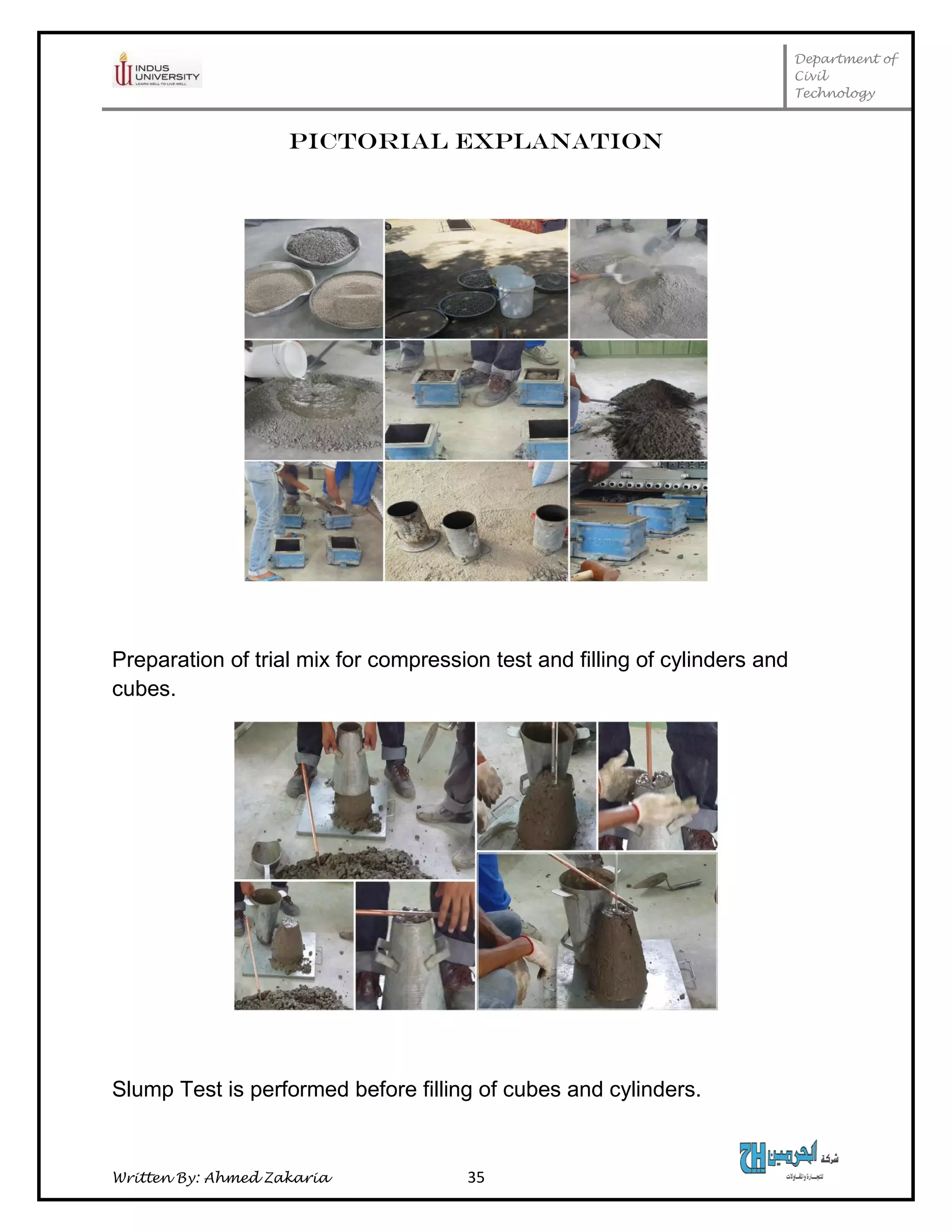

Pictorial Explanation 34
References 37

6. Department of
Civil
Technology
Written By: Ahmed Zakaria 6

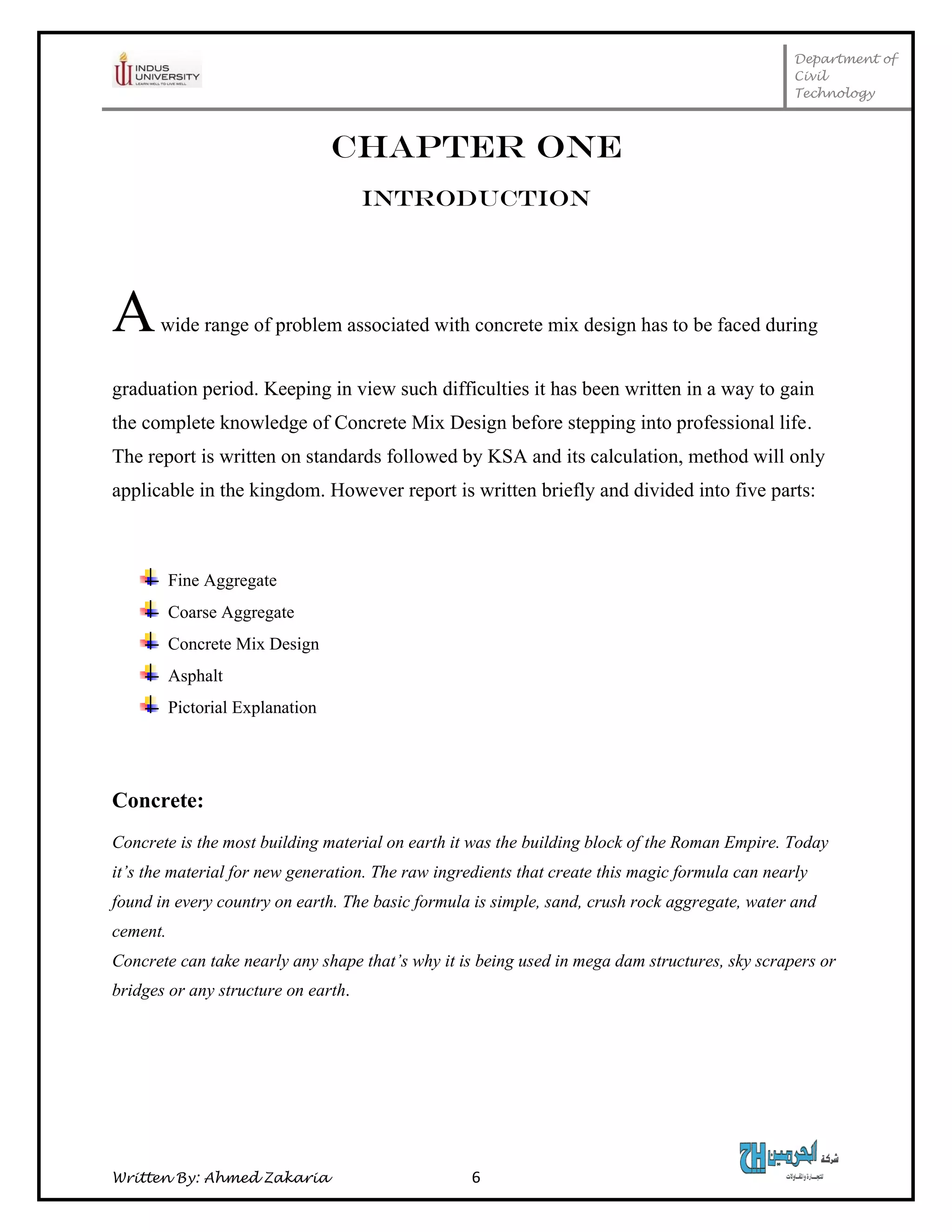

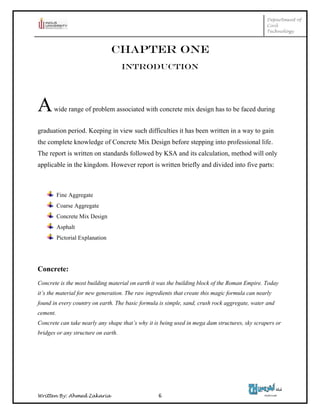

CHAPTER ONE
INTRODUCTION
Awide range of problem associated with concrete mix design has to be faced during
graduation period. Keeping in view such difficulties it has been written in a way to gain
the complete knowledge of Concrete Mix Design before stepping into professional life.
The report is written on standards followed by KSA and its calculation, method will only
applicable in the kingdom. However report is written briefly and divided into five parts:
Fine Aggregate
Coarse Aggregate
Concrete Mix Design
Asphalt
Pictorial Explanation
Concrete:
Concrete is the most building material on earth it was the building block of the Roman Empire. Today
it’s the material for new generation. The raw ingredients that create this magic formula can nearly
found in every country on earth. The basic formula is simple, sand, crush rock aggregate, water and
cement.
Concrete can take nearly any shape that’s why it is being used in mega dam structures, sky scrapers or
bridges or any structure on earth.

7. Department of
Civil
Technology
Written By: Ahmed Zakaria 7

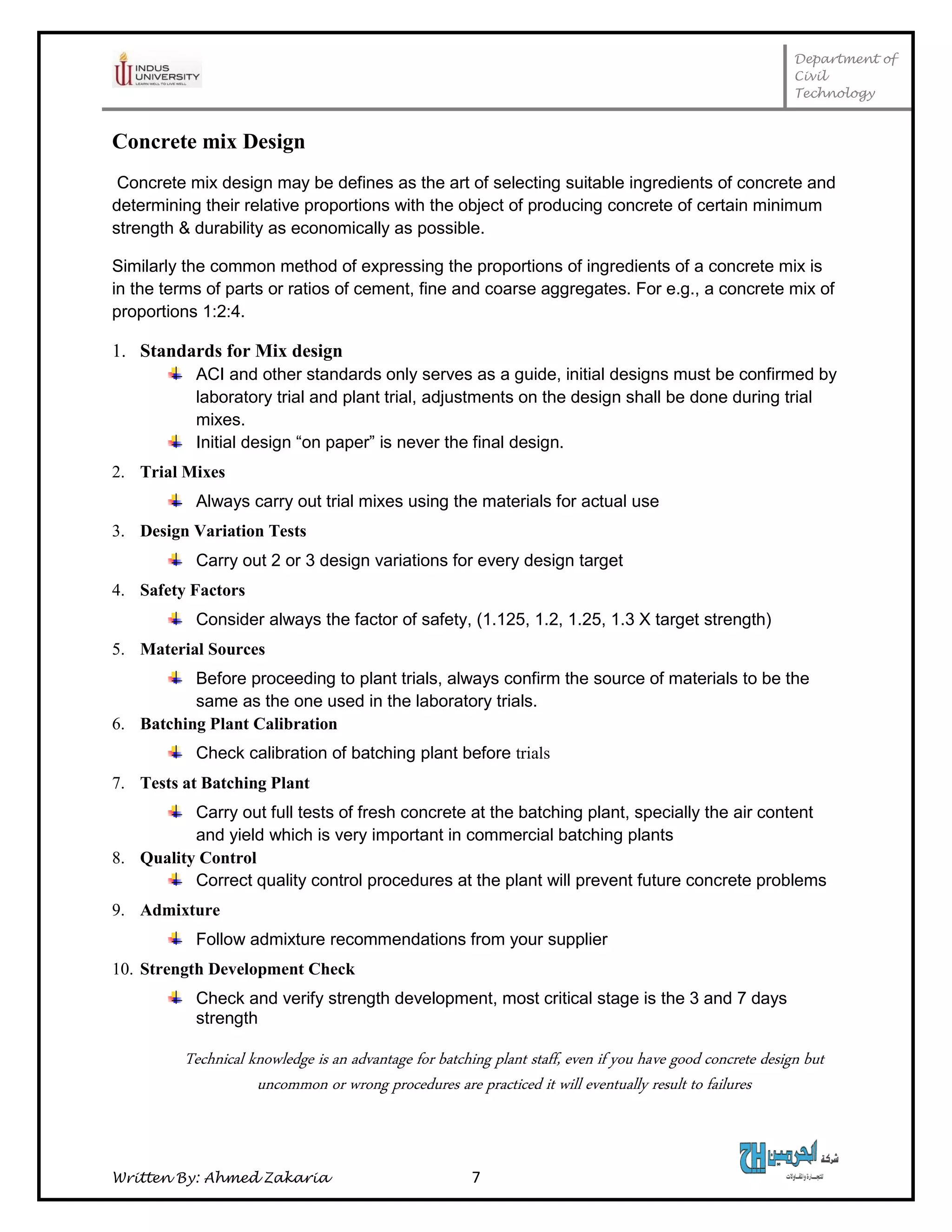

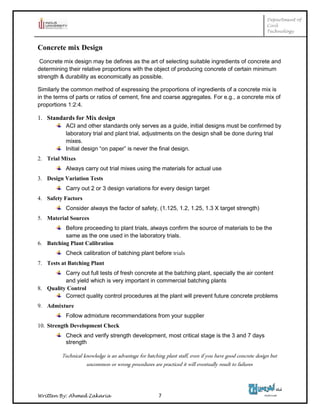

Concrete mix Design
Concrete mix design may be defines as the art of selecting suitable ingredients of concrete and
determining their relative proportions with the object of producing concrete of certain minimum
strength & durability as economically as possible.
Similarly the common method of expressing the proportions of ingredients of a concrete mix is
in the terms of parts or ratios of cement, fine and coarse aggregates. For e.g., a concrete mix of
proportions 1:2:4.
1. Standards for Mix design
ACI and other standards only serves as a guide, initial designs must be confirmed by
laboratory trial and plant trial, adjustments on the design shall be done during trial
mixes.
Initial design “on paper” is never the final design.
2. Trial Mixes
Always carry out trial mixes using the materials for actual use
3. Design Variation Tests
Carry out 2 or 3 design variations for every design target
4. Safety Factors
Consider always the factor of safety, (1.125, 1.2, 1.25, 1.3 X target strength)
5. Material Sources
Before proceeding to plant trials, always confirm the source of materials to be the
same as the one used in the laboratory trials.
6. Batching Plant Calibration
Check calibration of batching plant before trials
7. Tests at Batching Plant
Carry out full tests of fresh concrete at the batching plant, specially the air content
and yield which is very important in commercial batching plants
8. Quality Control
Correct quality control procedures at the plant will prevent future concrete problems
9. Admixture
Follow admixture recommendations from your supplier
10. Strength Development Check
Check and verify strength development, most critical stage is the 3 and 7 days
strength
Technical knowledge is an advantage for batching plant staff, even if you have good concrete design but
uncommon or wrong procedures are practiced it will eventually result to failures

8. Department of
Civil
Technology
Written By: Ahmed Zakaria 8

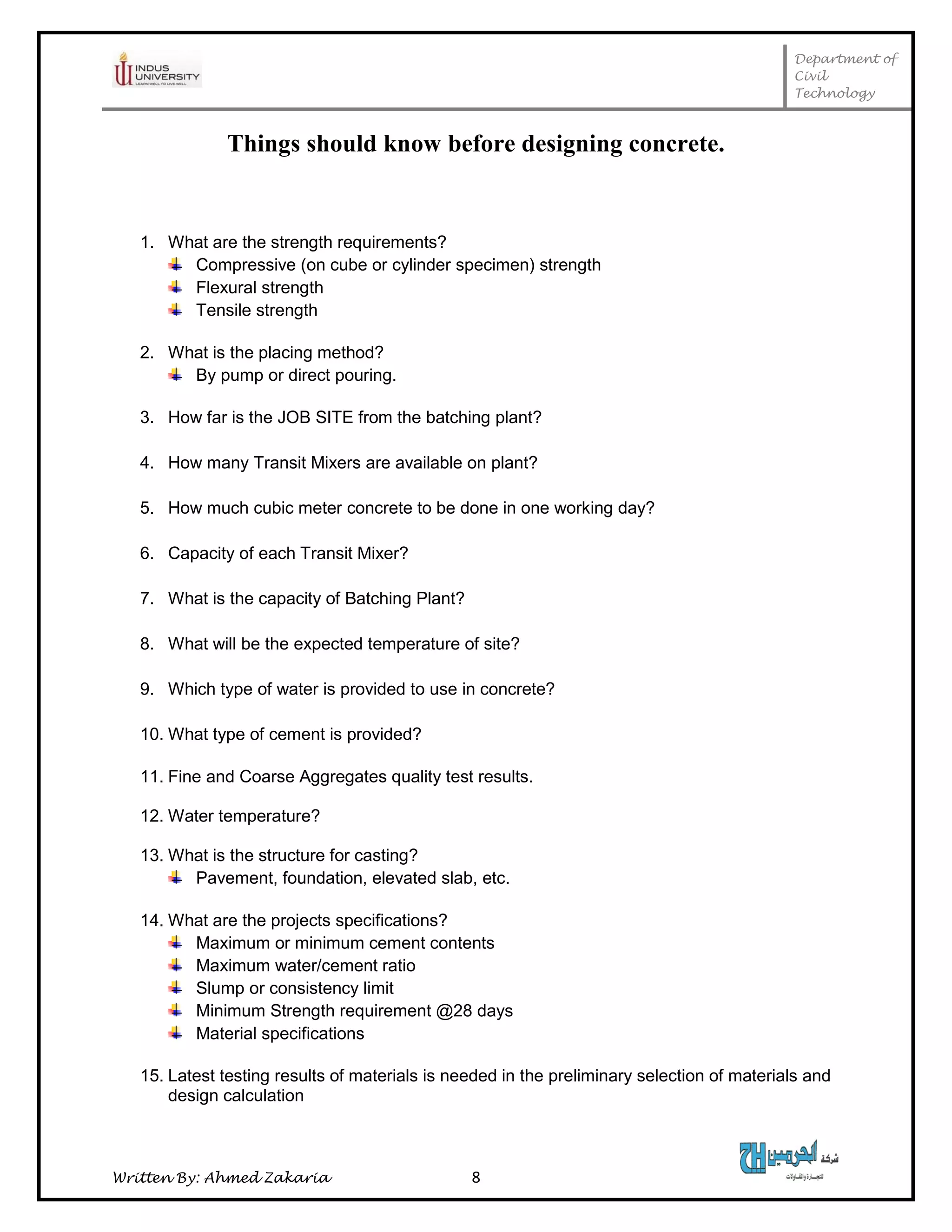

Things should know before designing concrete.
1. What are the strength requirements?
Compressive (on cube or cylinder specimen) strength
Flexural strength
Tensile strength
2. What is the placing method?
By pump or direct pouring.
3. How far is the JOB SITE from the batching plant?
4. How many Transit Mixers are available on plant?
5. How much cubic meter concrete to be done in one working day?
6. Capacity of each Transit Mixer?
7. What is the capacity of Batching Plant?
8. What will be the expected temperature of site?
9. Which type of water is provided to use in concrete?
10. What type of cement is provided?
11. Fine and Coarse Aggregates quality test results.
12. Water temperature?
13. What is the structure for casting?
Pavement, foundation, elevated slab, etc.
14. What are the projects specifications?
Maximum or minimum cement contents
Maximum water/cement ratio
Slump or consistency limit
Minimum Strength requirement @28 days
Material specifications
15. Latest testing results of materials is needed in the preliminary selection of materials and
design calculation

9. Department of
Civil
Technology
Written By: Ahmed Zakaria 9

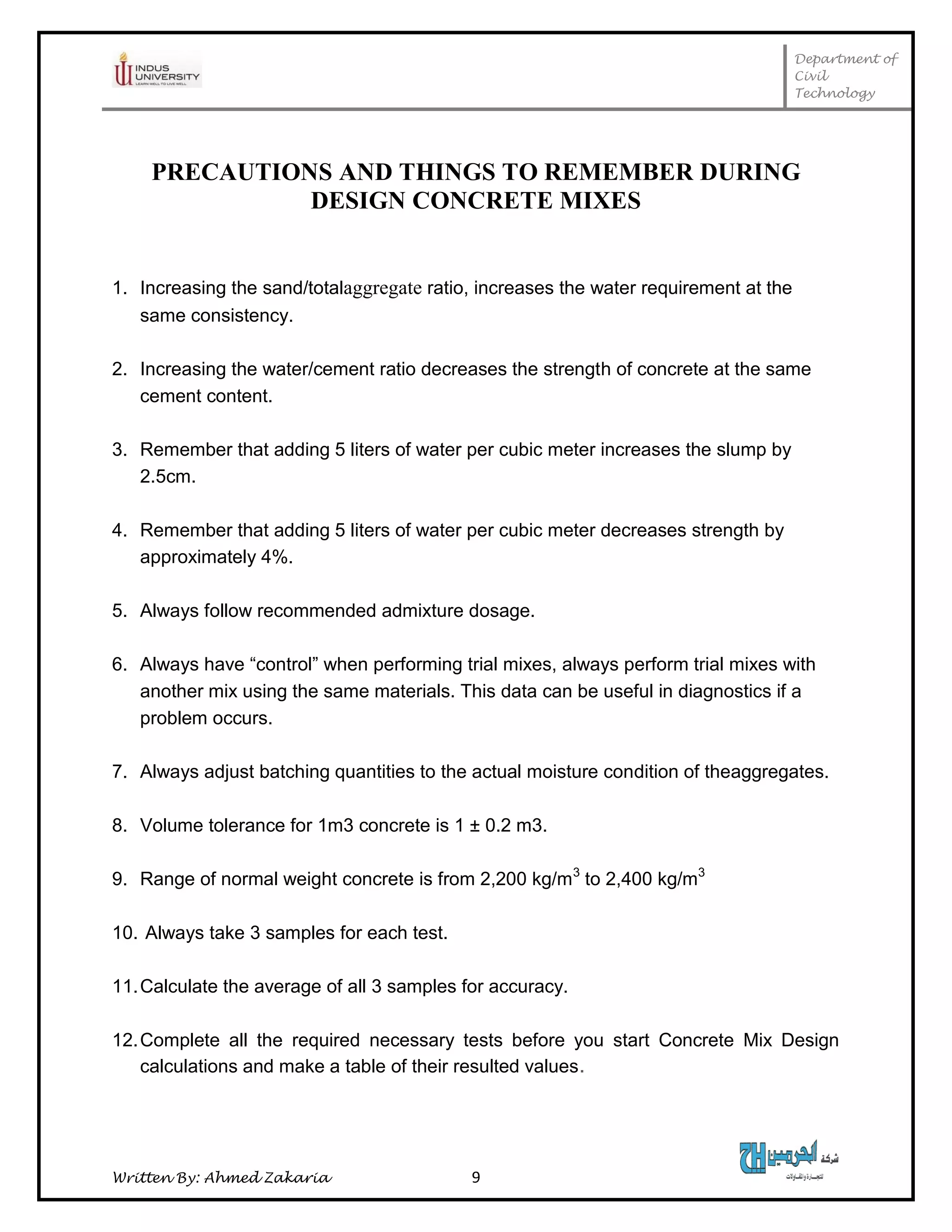

PRECAUTIONS AND THINGS TO REMEMBER DURING
DESIGN CONCRETE MIXES
1. Increasing the sand/totalaggregate ratio, increases the water requirement at the
same consistency.
2. Increasing the water/cement ratio decreases the strength of concrete at the same
cement content.
3. Remember that adding 5 liters of water per cubic meter increases the slump by
2.5cm.
4. Remember that adding 5 liters of water per cubic meter decreases strength by
approximately 4%.
5. Always follow recommended admixture dosage.
6. Always have “control” when performing trial mixes, always perform trial mixes with
another mix using the same materials. This data can be useful in diagnostics if a
problem occurs.
7. Always adjust batching quantities to the actual moisture condition of theaggregates.
8. Volume tolerance for 1m3 concrete is 1 ± 0.2 m3.
9. Range of normal weight concrete is from 2,200 kg/m3
to 2,400 kg/m3
10. Always take 3 samples for each test.
11.Calculate the average of all 3 samples for accuracy.
12.Complete all the required necessary tests before you start Concrete Mix Design
calculations and make a table of their resulted values.

10. Department of
Civil
Technology
Written By: Ahmed Zakaria 10

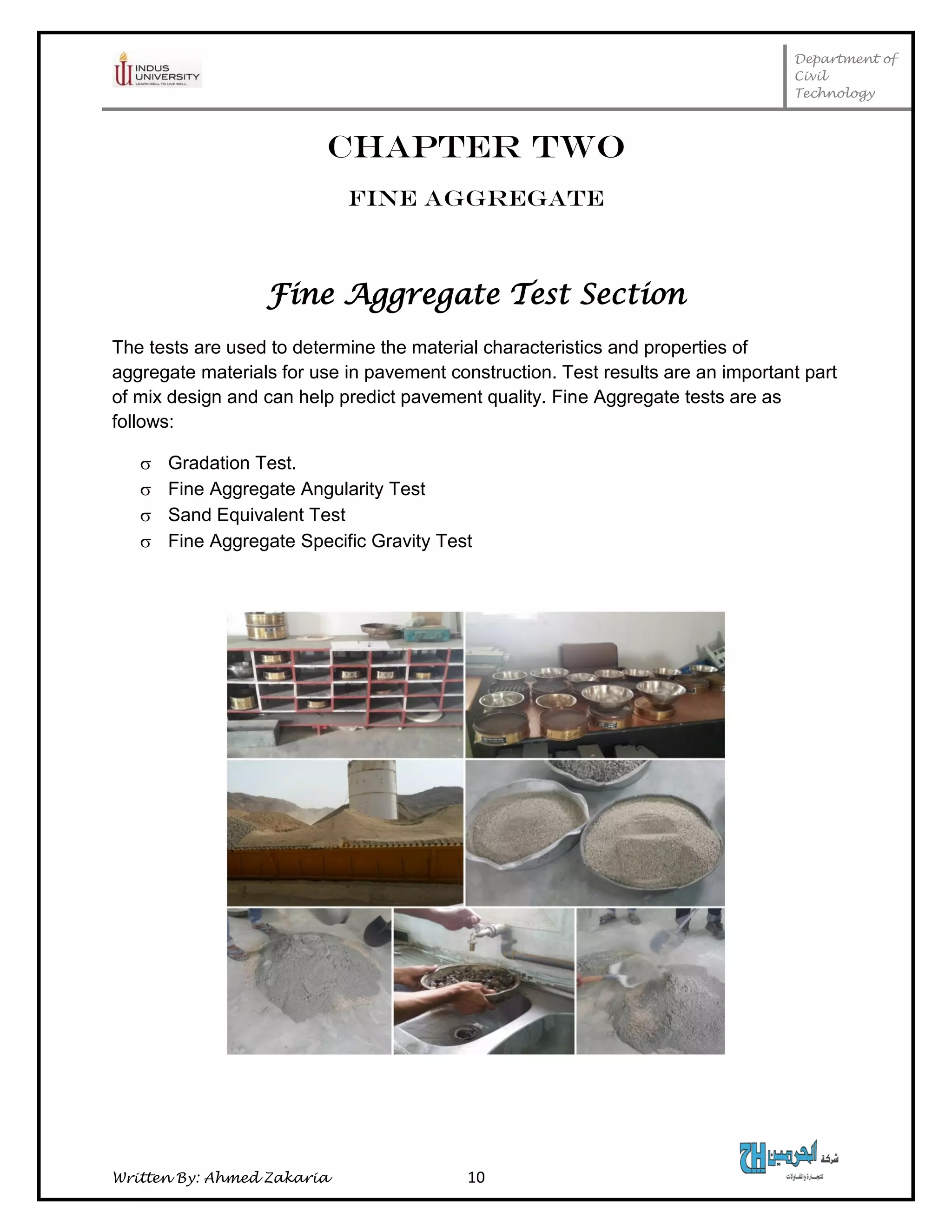

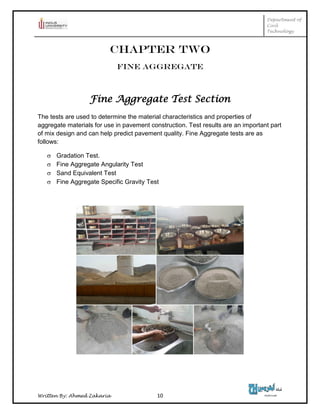

CHAPTER TWO
FINE AGGREGATE
Fine Aggregate Test Section
The tests are used to determine the material characteristics and properties of
aggregate materials for use in pavement construction. Test results are an important part
of mix design and can help predict pavement quality. Fine Aggregate tests are as
follows:
 Gradation Test.
 Fine Aggregate Angularity Test
 Sand Equivalent Test
 Fine Aggregate Specific Gravity Test

11. Department of
Civil
Technology
Written By: Ahmed Zakaria 11

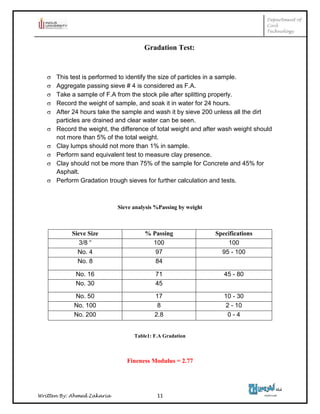

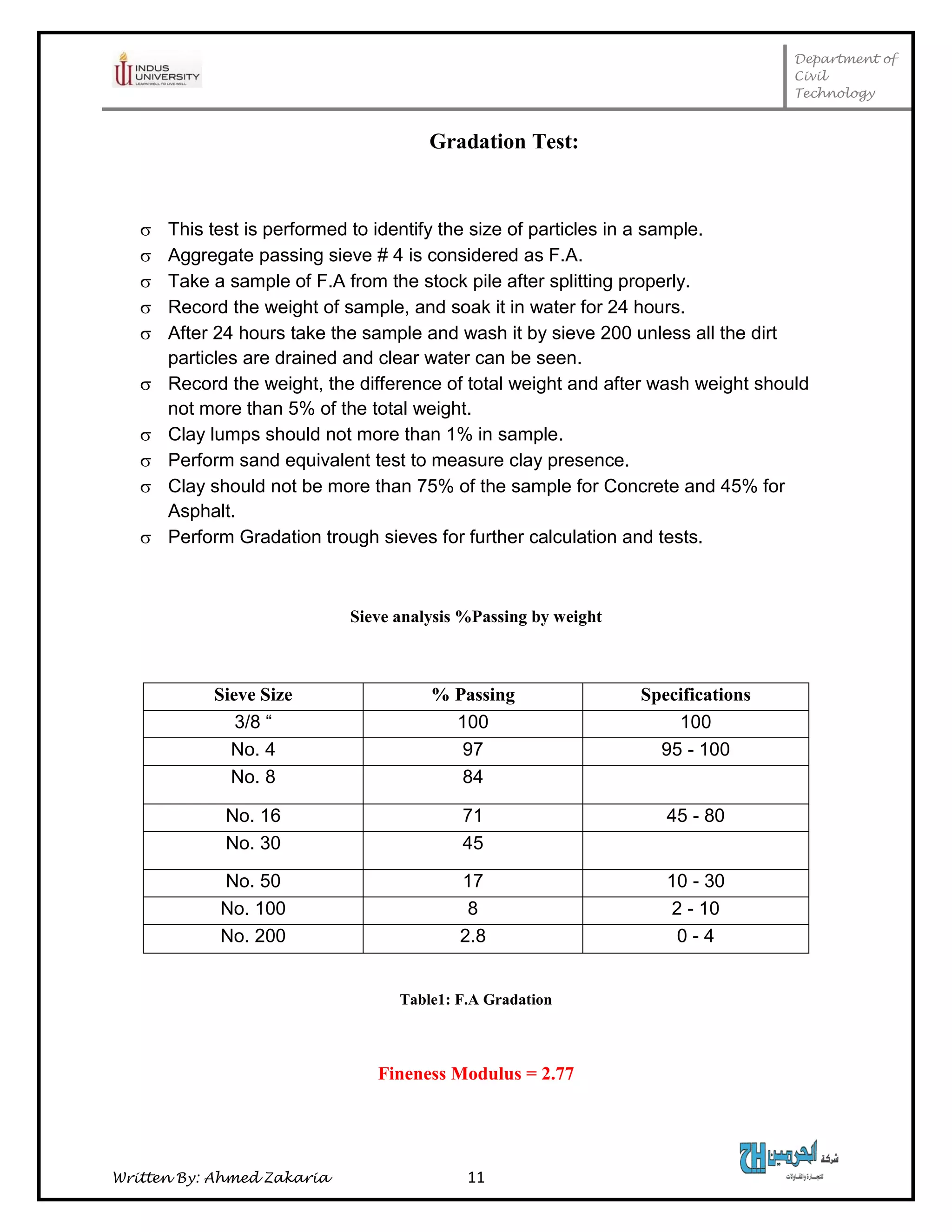

Gradation Test:
 This test is performed to identify the size of particles in a sample.
 Aggregate passing sieve # 4 is considered as F.A.
 Take a sample of F.A from the stock pile after splitting properly.
 Record the weight of sample, and soak it in water for 24 hours.
 After 24 hours take the sample and wash it by sieve 200 unless all the dirt
particles are drained and clear water can be seen.
 Record the weight, the difference of total weight and after wash weight should
not more than 5% of the total weight.
 Clay lumps should not more than 1% in sample.
 Perform sand equivalent test to measure clay presence.
 Clay should not be more than 75% of the sample for Concrete and 45% for
Asphalt.
 Perform Gradation trough sieves for further calculation and tests.
Sieve analysis %Passing by weight
Sieve Size % Passing Specifications
3/8 “ 100 100
No. 4 97 95 - 100
No. 8 84
No. 16 71 45 - 80
No. 30 45
No. 50 17 10 - 30
No. 100 8 2 - 10
No. 200 2.8 0 - 4
Table1: F.A Gradation
Fineness Modulus = 2.77

12. Department of
Civil
Technology
Written By: Ahmed Zakaria 12

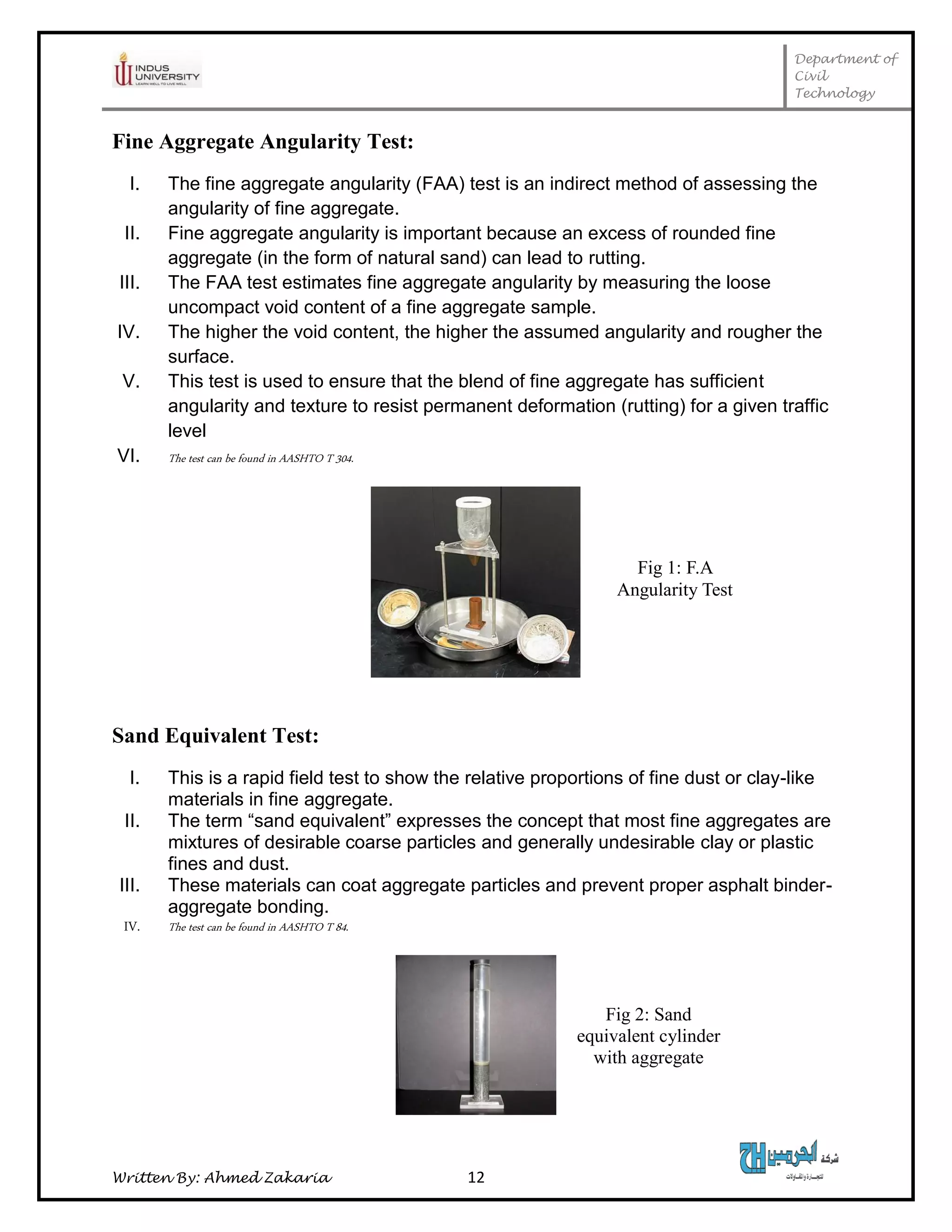

Fine Aggregate Angularity Test:
I. The fine aggregate angularity (FAA) test is an indirect method of assessing the
angularity of fine aggregate.
II. Fine aggregate angularity is important because an excess of rounded fine
aggregate (in the form of natural sand) can lead to rutting.
III. The FAA test estimates fine aggregate angularity by measuring the loose
uncompact void content of a fine aggregate sample.
IV. The higher the void content, the higher the assumed angularity and rougher the
surface.
V. This test is used to ensure that the blend of fine aggregate has sufficient
angularity and texture to resist permanent deformation (rutting) for a given traffic
level
VI. The test can be found in AASHTO T 304.
Sand Equivalent Test:
I. This is a rapid field test to show the relative proportions of fine dust or clay-like
materials in fine aggregate.
II. The term “sand equivalent” expresses the concept that most fine aggregates are
mixtures of desirable coarse particles and generally undesirable clay or plastic
fines and dust.
III. These materials can coat aggregate particles and prevent proper asphalt binder-
aggregate bonding.
IV. The test can be found in AASHTO T 84.
Fig 1: F.A
Angularity Test
Fig 2: Sand
equivalent cylinder
with aggregate
sample

13. Department of
Civil
Technology
Written By: Ahmed Zakaria 13

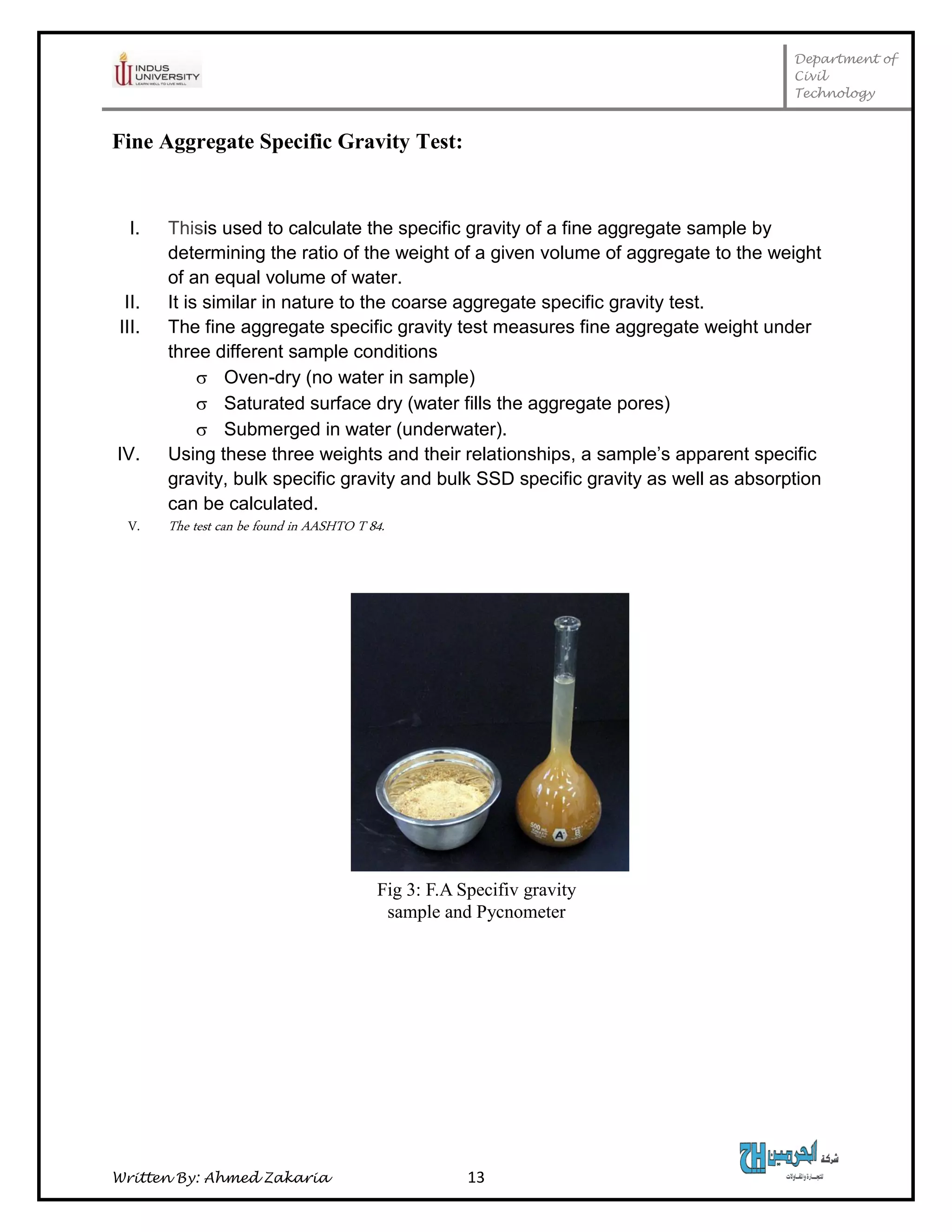

Fine Aggregate Specific Gravity Test:
I. Thisis used to calculate the specific gravity of a fine aggregate sample by
determining the ratio of the weight of a given volume of aggregate to the weight
of an equal volume of water.
II. It is similar in nature to the coarse aggregate specific gravity test.
III. The fine aggregate specific gravity test measures fine aggregate weight under
three different sample conditions
 Oven-dry (no water in sample)
 Saturated surface dry (water fills the aggregate pores)
 Submerged in water (underwater).
IV. Using these three weights and their relationships, a sample’s apparent specific
gravity, bulk specific gravity and bulk SSD specific gravity as well as absorption
can be calculated.
V. The test can be found in AASHTO T 84.
Fig 3: F.A Specifiv gravity
sample and Pycnometer

14. Department of
Civil
Technology
Written By: Ahmed Zakaria 14

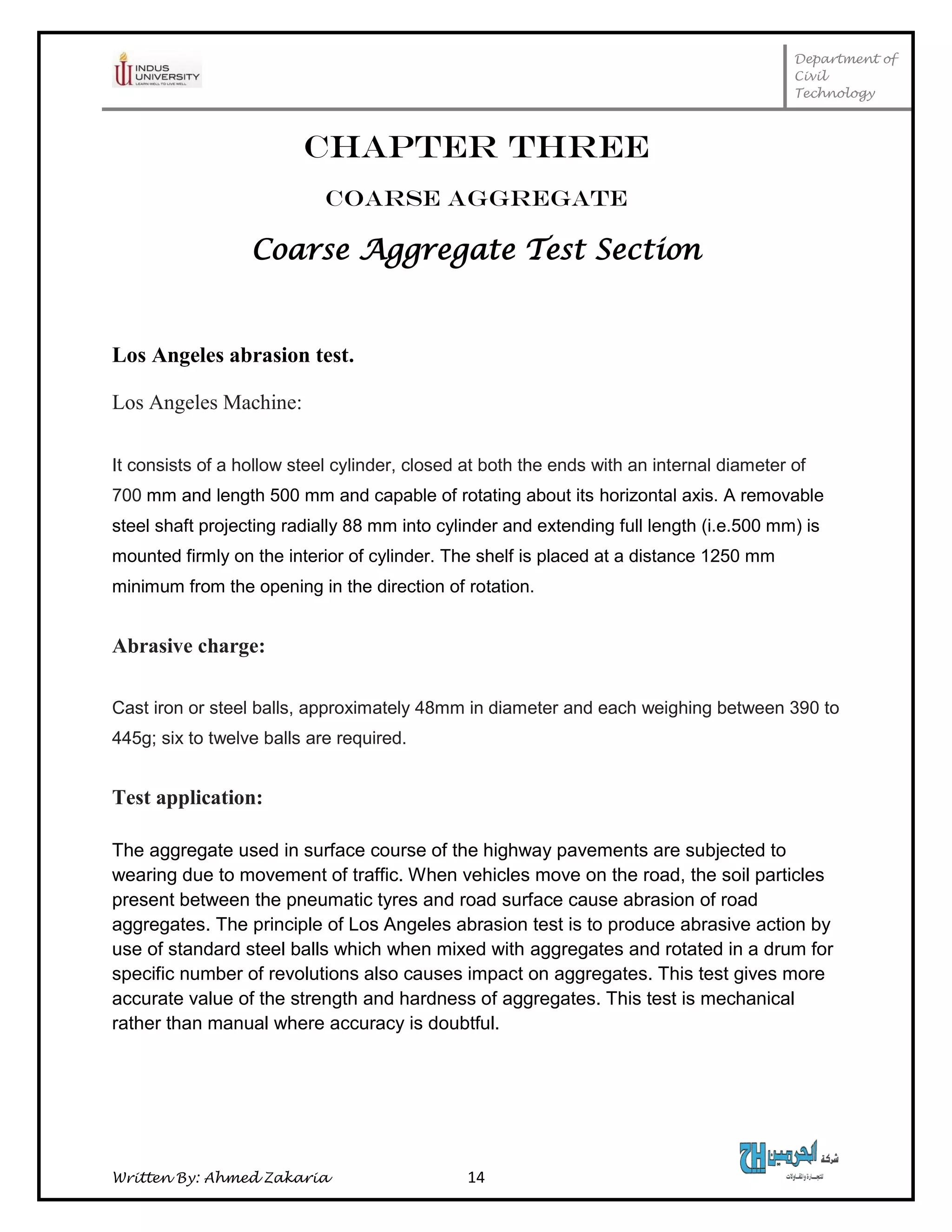

CHAPTER THREE
Coarse AGGREGATE
Coarse Aggregate Test Section
Los Angeles abrasion test.
Los Angeles Machine:
It consists of a hollow steel cylinder, closed at both the ends with an internal diameter of
700 mm and length 500 mm and capable of rotating about its horizontal axis. A removable
steel shaft projecting radially 88 mm into cylinder and extending full length (i.e.500 mm) is
mounted firmly on the interior of cylinder. The shelf is placed at a distance 1250 mm
minimum from the opening in the direction of rotation.
Abrasive charge:
Cast iron or steel balls, approximately 48mm in diameter and each weighing between 390 to
445g; six to twelve balls are required.
Test application:
The aggregate used in surface course of the highway pavements are subjected to
wearing due to movement of traffic. When vehicles move on the road, the soil particles
present between the pneumatic tyres and road surface cause abrasion of road
aggregates. The principle of Los Angeles abrasion test is to produce abrasive action by
use of standard steel balls which when mixed with aggregates and rotated in a drum for
specific number of revolutions also causes impact on aggregates. This test gives more
accurate value of the strength and hardness of aggregates. This test is mechanical
rather than manual where accuracy is doubtful.

15. Department of
Civil
Technology
Written By: Ahmed Zakaria 15
PROCEDURE:
The test sample consists of clean aggregates dried in oven at 105° – 110°C. The sample
should conform to any of the grading.
I. Select the grading to be used in the test such that it conforms to the grading to be used
in construction, to the maximum extent possible.
II. Take 5 kg of sample for grading A, B, C & D and 10 kg for gradings E, F & G.
III. Choose the abrasive charge as per Table depending on grading of aggregates.
IV. Place the aggregates and abrasive charge on the cylinder and fix the cover.
V. Rotate the machine at a speed of 30 – 33 revolutions per minute. The number of
revolutions is 500 for grading’s A, B, C & D and 1000 for grading’s E, K & S. The
machine should be balanced and driven such that there is uniform peripheral speed.
VI. The machine is stopped after the desired number of revolutions and material is
discharged to a tray.
VII. The entire stone dust is sieved on 1.70 mm IS sieve.
VIII. The material coarser than 1.7mm size is weighed correct to one gram.
Table 2: L.A.A Test

16. Department of
Civil
Technology
Written By: Ahmed Zakaria 16

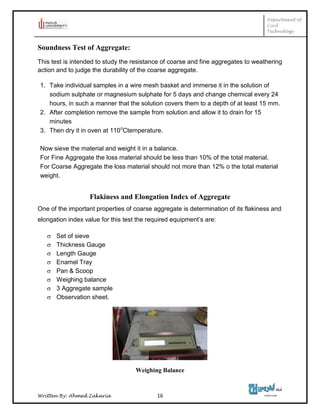

Soundness Test of Aggregate:
This test is intended to study the resistance of coarse and fine aggregates to weathering
action and to judge the durability of the coarse aggregate.
1. Take individual samples in a wire mesh basket and immerse it in the solution of
sodium sulphate or magnesium sulphate for 5 days and change chemical every 24
hours, in such a manner that the solution covers them to a depth of at least 15 mm.
2. After completion remove the sample from solution and allow it to drain for 15
minutes
3. Then dry it in oven at 110o
Ctemperature.
Now sieve the material and weight it in a balance.
For Fine Aggregate the loss material should be less than 10% of the total material.
For Coarse Aggregate the loss material should not more than 12% o the total material
weight.
Flakiness and Elongation Index of Aggregate
One of the important properties of coarse aggregate is determination of its flakiness and
elongation index value for this test the required equipment’s are:
 Set of sieve
 Thickness Gauge
 Length Gauge
 Enamel Tray
 Pan & Scoop
 Weighing balance
 3 Aggregate sample
 Observation sheet.
Weighing Balance

17. Department of
Civil
Technology
Written By: Ahmed Zakaria 17
Determination of Flakiness index:
 Measure the weight of aggregate sample after proper quartering
 Sieve it manually or by shaker, so that fraction of different sizes will retain on
different size of sieve.
 All the particles retained on first sieve i.e 16mm sieve will be tested in thickness
gauge scale on marked 20mm – 16mm slots.
 Width of slot corresponding to 20mm & 16 mm sieve can be calculated as :
( )
 The particle passing through 10.8mm thickness slot will be collected for weight
and record this weight in observation sheet.
 Same procedure is followed for aggregate passing through 16mm sieve and
retain on 12.5mm sieve.
 This time the aggregate are passing from the corresponding thickness slot are
collected and weight.
Flakiness Index =
 Flakiness Index in excess of 35 to 40% is considered undesirable.
Fig 4: Thickness Gauge

18. Department of
Civil
Technology
Written By: Ahmed Zakaria 18
Determination of Elongation Index:
 Take minimum 200 pieces of aggregate from the sample and note down its
weight.
 Perform the sieve test with same set of sieve use in flakiness test.
 Different sizes of aggregate are retain on different sieve.
 Aggregate passing 20mm & retain 16mm is taken for test and passed through
the mentioned sieve slots of length gauge.
 Its important particle retain on slot are collected, weight and reading is recorded
 Length of slot corresponding to 20mm & 16mm slot is calculates as:
( )
 The particles retain on 32.4mm
 All the particles retain are weight and reading recorded in observation sheet.
Elongation Index =
Fig 5: Length Gauge

19. Department of
Civil
Technology
Written By: Ahmed Zakaria 19
Calculation of percentage passing of aggregate 3/4 & 3/8 separately.
 Aggregate Sample : 3/4
 Total Weight : 2334.3 Kg
 Percentage Passing =
*cumulative weight is retained weight of sample on each sieve.
Sieve No Cumulative Weight Percentage Passing
3/4 325.9 86.03 %
1/2 2205.3 6 %
3/8 2308.0 1.1 %
4 2313.4 1.0 %
8 2313.8 1.0 %
16 2314.4 1.0 %
30 2315.0 1.0 %
50 2315.5 1.0 %
100 2316.5 1.0 %
200 2318.0 1.0 %
PAN 2324.8 0.4 %
Table 3: Grading of 3/4 Aggregate
 C.AggregateSample : 3/8
 Total Weight : 2475.5 Kg
 Percentage Passing =
*cumulative weight is retained weight of sample on each sieve.
Sieve No Cumulative Weight Percentage Passing
3/4 0 100 %
1/2 90.5 96 %
3/8 829.3 66 %
4 2387.5 4.0 %
8 2464.0 0.4 %
16 2465.0 0.4 %
30 2465.4 0.4 %
50 2465.7 0.3 %
100 2466.6 0.3 %
200 2467.8 0.3 %
PAN 2474.8 0.02 %
Table 4: Grading of 3/8 Aggregate

20. Department of
Civil
Technology
Written By: Ahmed Zakaria 20

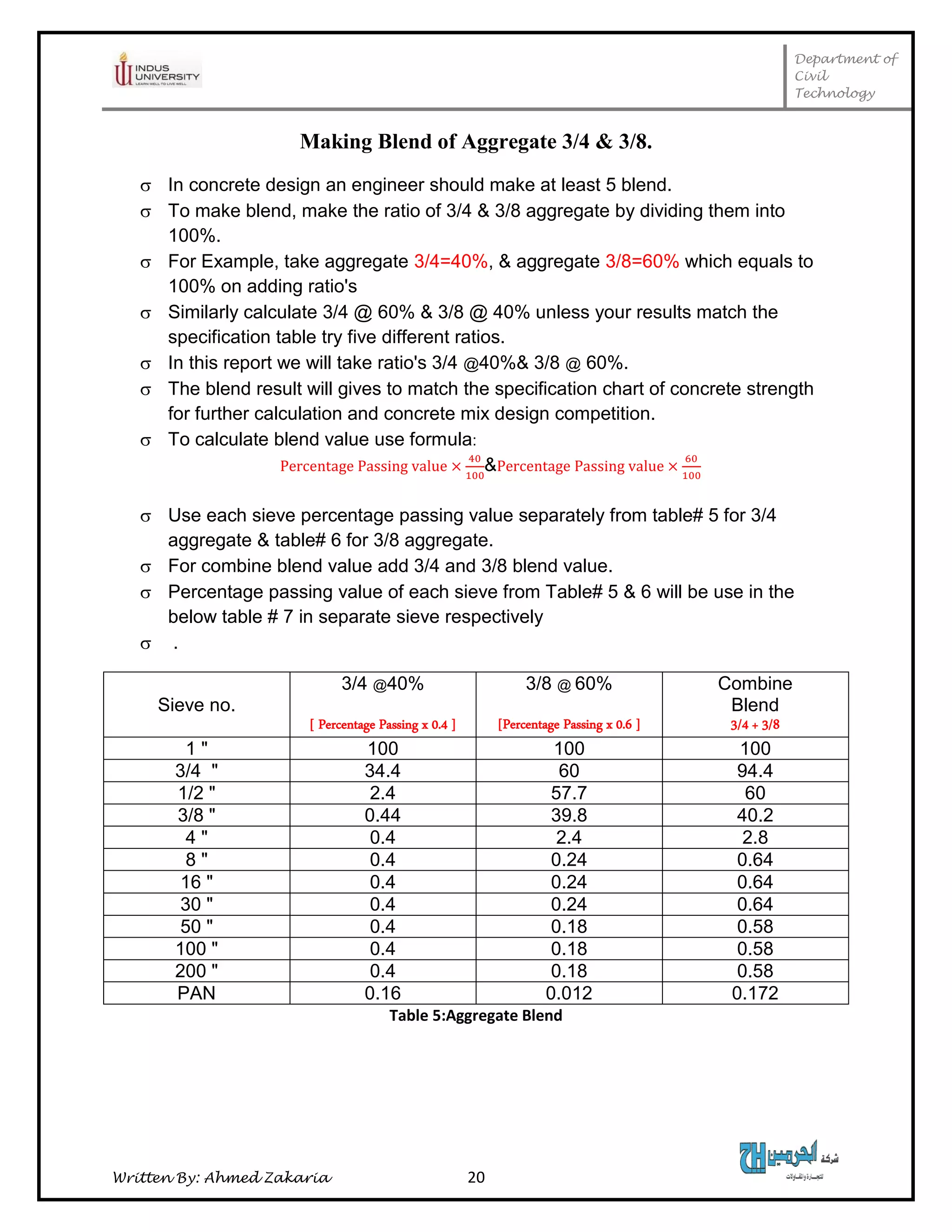

Making Blend of Aggregate 3/4 & 3/8.
 In concrete design an engineer should make at least 5 blend.
 To make blend, make the ratio of 3/4 & 3/8 aggregate by dividing them into
100%.
 For Example, take aggregate 3/4=40%, & aggregate 3/8=60% which equals to
100% on adding ratio's
 Similarly calculate 3/4 @ 60% & 3/8 @ 40% unless your results match the
specification table try five different ratios.
 In this report we will take ratio's 3/4 @40%& 3/8 @ 60%.
 The blend result will gives to match the specification chart of concrete strength
for further calculation and concrete mix design competition.
 To calculate blend value use formula:
&
 Use each sieve percentage passing value separately from table# 5 for 3/4
aggregate & table# 6 for 3/8 aggregate.
 For combine blend value add 3/4 and 3/8 blend value.
 Percentage passing value of each sieve from Table# 5 & 6 will be use in the
below table # 7 in separate sieve respectively
 .
Sieve no.
3/4 @40%
[ Percentage Passing x 0.4 ]
3/8 @ 60%
[Percentage Passing x 0.6 ]
Combine
Blend
3/4 + 3/8
1 " 100 100 100
3/4 " 34.4 60 94.4
1/2 " 2.4 57.7 60
3/8 " 0.44 39.8 40.2
4 " 0.4 2.4 2.8
8 " 0.4 0.24 0.64
16 " 0.4 0.24 0.64
30 " 0.4 0.24 0.64
50 " 0.4 0.18 0.58
100 " 0.4 0.18 0.58
200 " 0.4 0.18 0.58
PAN 0.16 0.012 0.172
Table 5:Aggregate Blend

21. Department of
Civil
Technology
Written By: Ahmed Zakaria 21

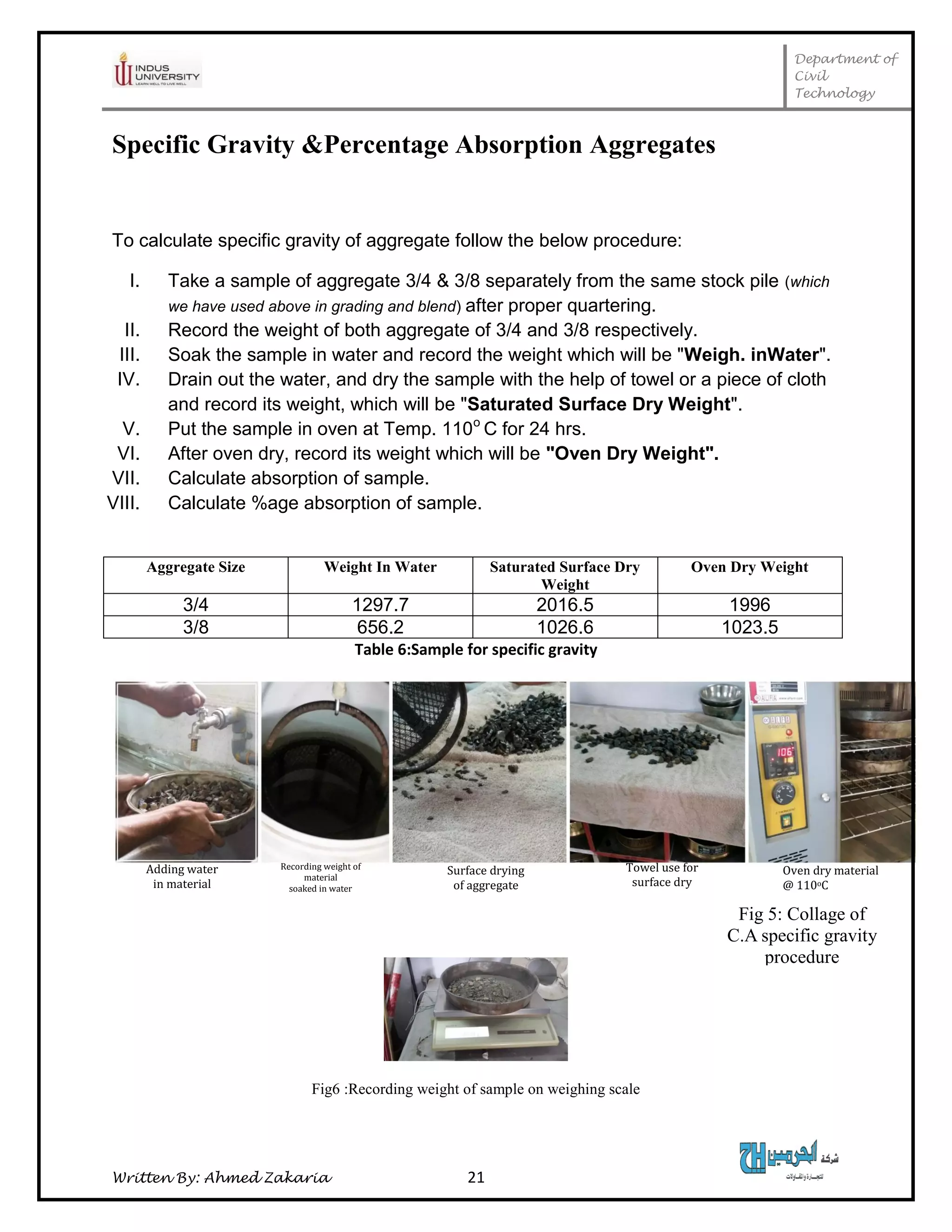

Specific Gravity &Percentage Absorption Aggregates
To calculate specific gravity of aggregate follow the below procedure:
I. Take a sample of aggregate 3/4 & 3/8 separately from the same stock pile (which
we have used above in grading and blend) after proper quartering.
II. Record the weight of both aggregate of 3/4 and 3/8 respectively.
III. Soak the sample in water and record the weight which will be "Weigh. inWater".
IV. Drain out the water, and dry the sample with the help of towel or a piece of cloth
and record its weight, which will be "Saturated Surface Dry Weight".
V. Put the sample in oven at Temp. 110o
C for 24 hrs.
VI. After oven dry, record its weight which will be "Oven Dry Weight".
VII. Calculate absorption of sample.
VIII. Calculate %age absorption of sample.
Aggregate Size Weight In Water Saturated Surface Dry
Weight
Oven Dry Weight
3/4 1297.7 2016.5 1996
3/8 656.2 1026.6 1023.5
Table 6:Sample for specific gravity
Fig6 :Recording weight of sample on weighing scale
Recording weight of
material
soaked in water
Surface drying
of aggregate
Adding water
in material
Towel use for
surface dry
Oven dry material
@ 110oC
Fig 5: Collage of
C.A specific gravity
procedure

22. Department of
Civil
Technology
Written By: Ahmed Zakaria 22
Below is the given specific gravity calculation of sample step by step in table# 7-A and
7-B.
Coarse Aggregate : 3/4
LINE 1 Weight of saturated surface dry
sample
2016.5
LINE 2 Weight of oven dry sample in air 1996
LINE 3 Weight of sample in water 1297.7
LINE 4 Absorption of sample
(LINE 1 - LINE 2)
2016.5 - 1996
= 20.5
LINE 5 % Absorptions
= 1.027 %
LINE 6
Moisture Content
= 1.01
Specific Gravity
a
Bulk, oven dry
2.77
b
Bulk, saturated
Surface dry
2.805
c
Apparent,
2.858
Table 7-A :Specific gravity of 3/4

23. Department of
Civil
Technology
Written By: Ahmed Zakaria 23
Coarse Aggregate : 3/8
LINE 1 Weight of saturated surface dry
sample
1026.6
LINE 2 Weight of oven dry sample in air 1023.5
LINE 3 Weight of sample in water 656.2
LINE 4 Absorption of sample
(LINE 1 - LINE 2)
3.1
LINE 5
% Absorptions
0.30 %
LINE 6
Moisture Content
0.30
Specific Gravity
a
Bulk, oven dry
2.76
b
Bulk, saturated
Surface dry
2.77
c
Apparent,
2.78
Table 7-B: Specific gravity of 3/8

24. Department of
Civil
Technology
Written By: Ahmed Zakaria 24

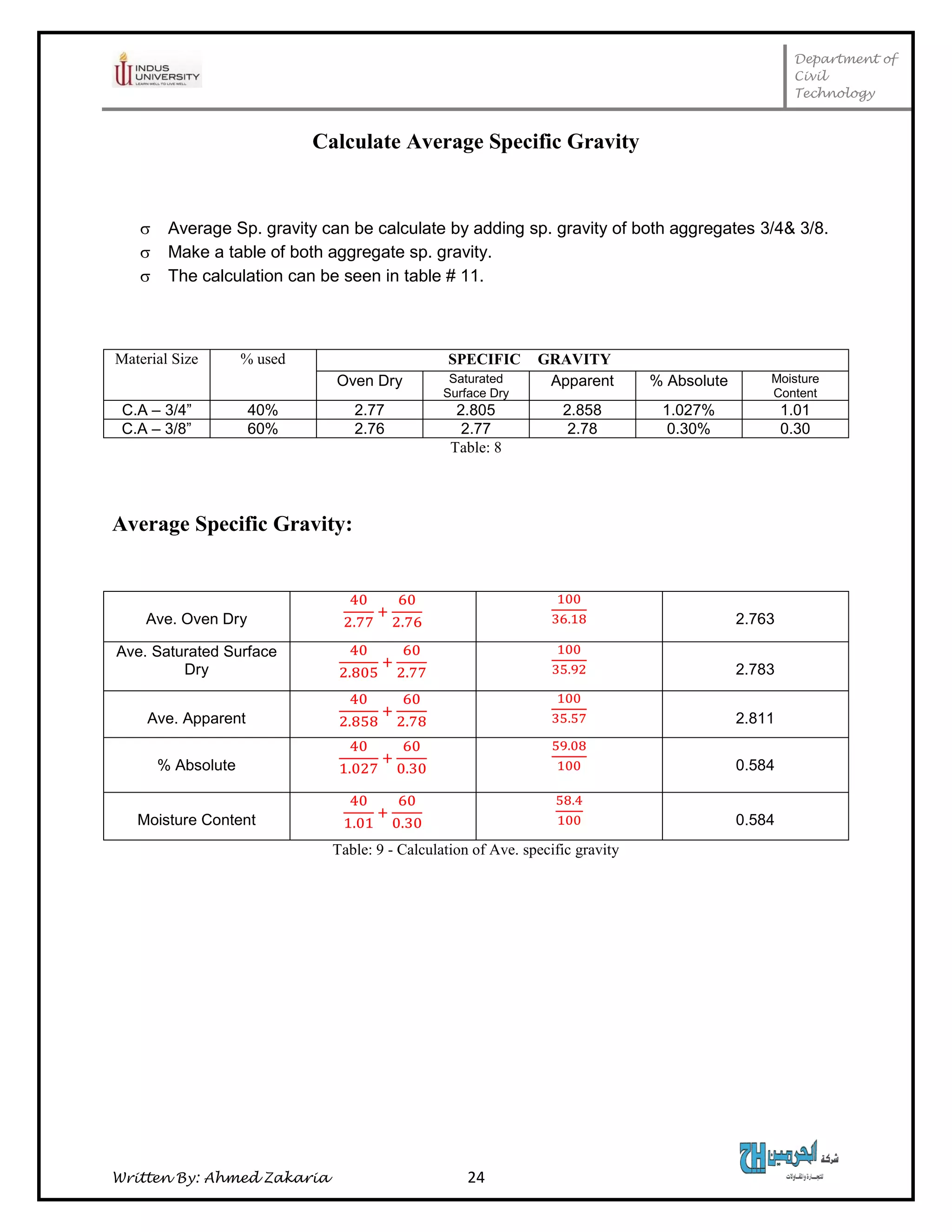

Calculate Average Specific Gravity
 Average Sp. gravity can be calculate by adding sp. gravity of both aggregates 3/4& 3/8.
 Make a table of both aggregate sp. gravity.
 The calculation can be seen in table # 11.
Material Size % used SPECIFIC GRAVITY
Oven Dry Saturated
Surface Dry
Apparent % Absolute Moisture
Content
C.A – 3/4” 40% 2.77 2.805 2.858 1.027% 1.01
C.A – 3/8” 60% 2.76 2.77 2.78 0.30% 0.30
Table: 8
Average Specific Gravity:
Ave. Oven Dry 2.763
Ave. Saturated Surface
Dry 2.783
Ave. Apparent 2.811
% Absolute 0.584
Moisture Content 0.584
Table: 9 - Calculation of Ave. specific gravity

25. Department of
Civil
Technology
Written By: Ahmed Zakaria 25

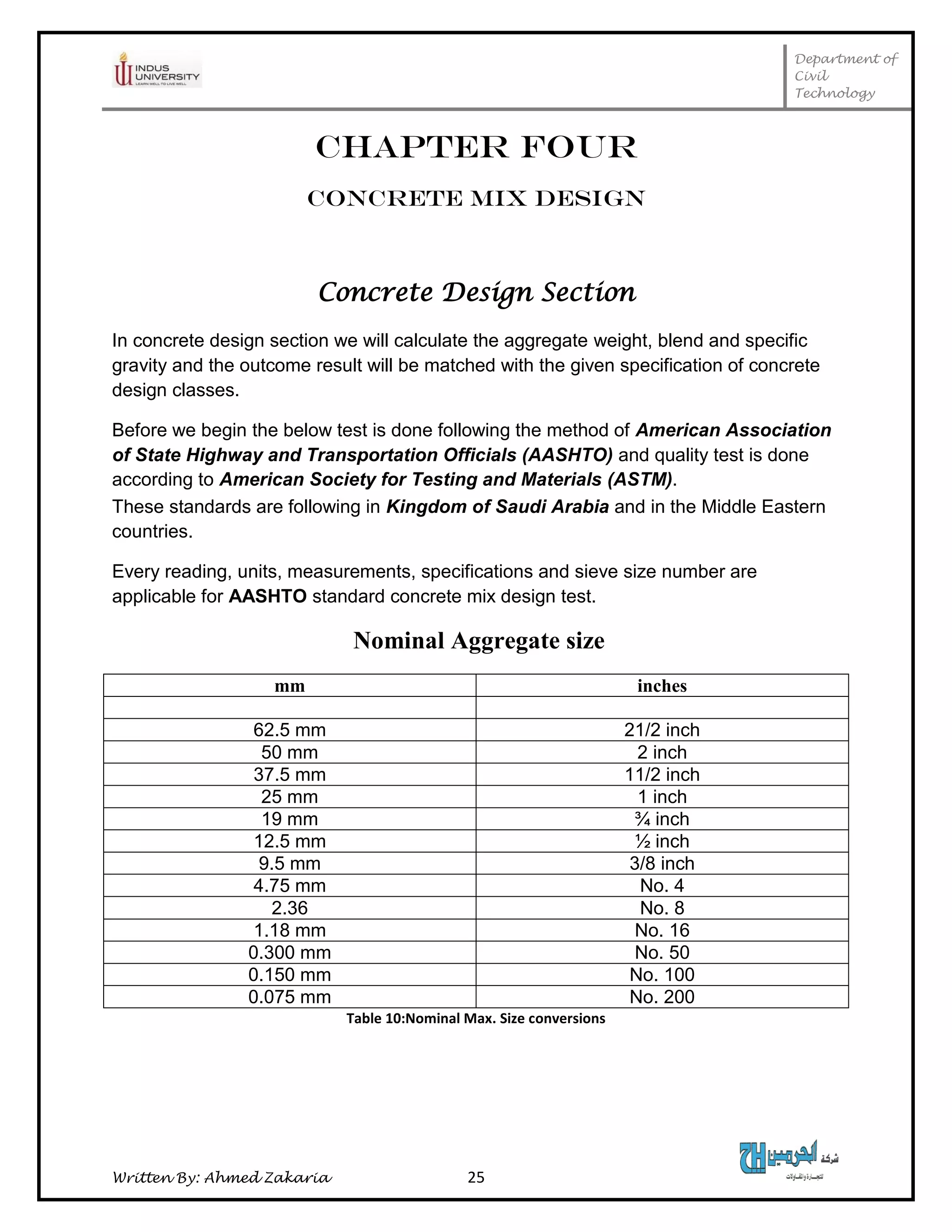

CHAPTER FOUR
CONCRETE MIX DESIGN
Concrete Design Section
In concrete design section we will calculate the aggregate weight, blend and specific
gravity and the outcome result will be matched with the given specification of concrete
design classes.
Before we begin the below test is done following the method of American Association
of State Highway and Transportation Officials (AASHTO) and quality test is done
according to American Society for Testing and Materials (ASTM).
These standards are following in Kingdom of Saudi Arabia and in the Middle Eastern
countries.
Every reading, units, measurements, specifications and sieve size number are
applicable for AASHTO standard concrete mix design test.
Nominal Aggregate size
mm inches
62.5 mm 21/2 inch
50 mm 2 inch
37.5 mm 11/2 inch
25 mm 1 inch
19 mm ¾ inch
12.5 mm ½ inch
9.5 mm 3/8 inch
4.75 mm No. 4
2.36 No. 8
1.18 mm No. 16
0.300 mm No. 50
0.150 mm No. 100
0.075 mm No. 200
Table 10:Nominal Max. Size conversions

26. Department of
Civil
Technology
Written By: Ahmed Zakaria 26

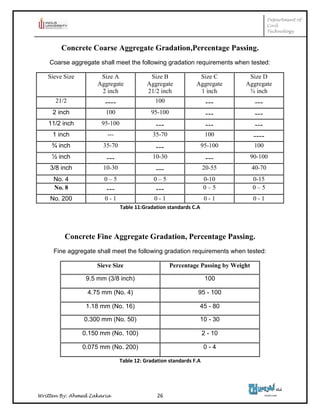

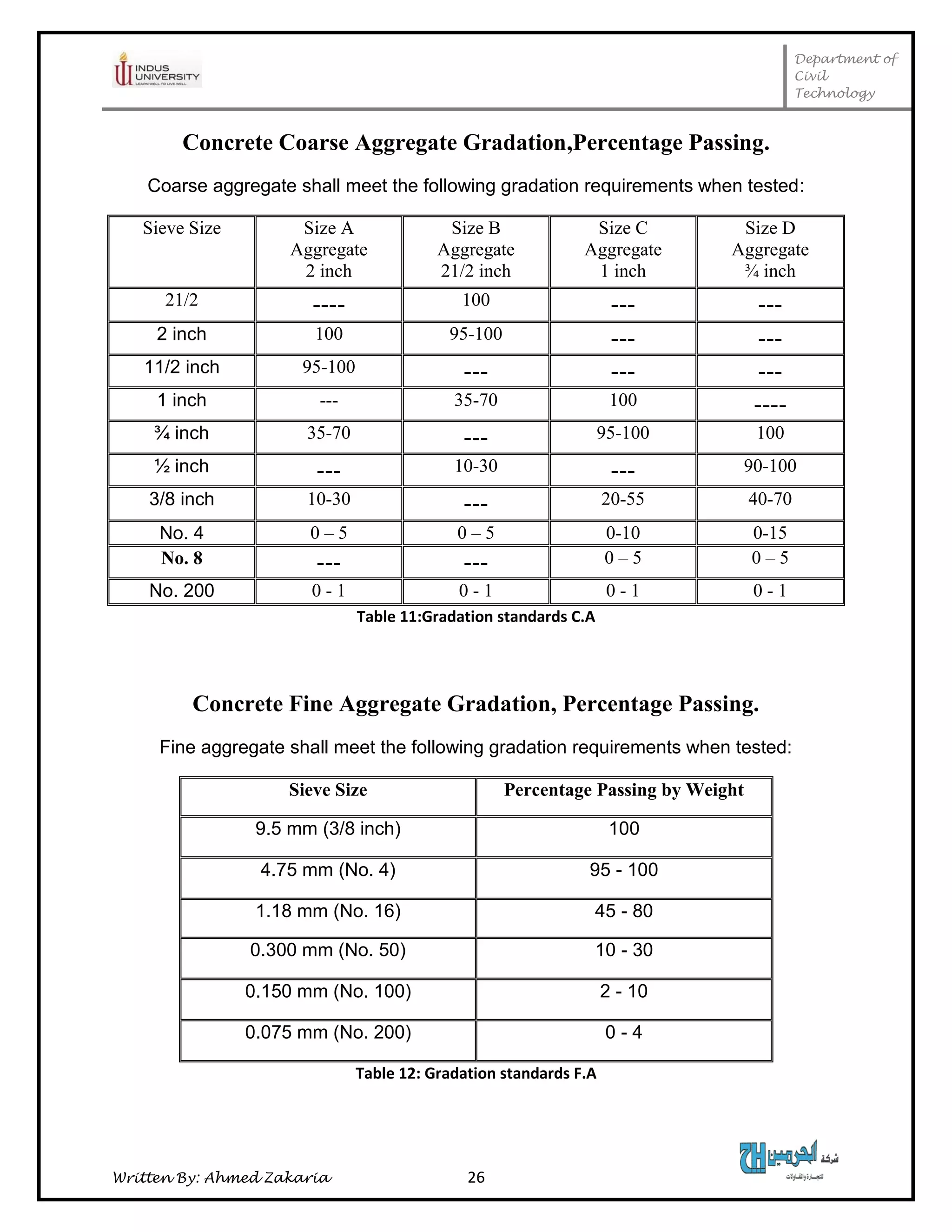

Concrete Coarse Aggregate Gradation,Percentage Passing.
Coarse aggregate shall meet the following gradation requirements when tested:
Sieve Size Size A
Aggregate
2 inch
Size B
Aggregate
21/2 inch
Size C
Aggregate
1 inch
Size D
Aggregate
¾ inch
21/2 ---- 100 --- ---
2 inch 100 95-100 --- ---
11/2 inch 95-100 --- --- ---
1 inch --- 35-70 100 ----
¾ inch 35-70 --- 95-100 100
½ inch --- 10-30 --- 90-100
3/8 inch 10-30 --- 20-55 40-70
No. 4 0 – 5 0 – 5 0-10 0-15
No. 8 --- --- 0 – 5 0 – 5
No. 200 0 - 1 0 - 1 0 - 1 0 - 1
Table 11:Gradation standards C.A
Concrete Fine Aggregate Gradation, Percentage Passing.
Fine aggregate shall meet the following gradation requirements when tested:
Sieve Size Percentage Passing by Weight
9.5 mm (3/8 inch) 100
4.75 mm (No. 4) 95 - 100
1.18 mm (No. 16) 45 - 80
0.300 mm (No. 50) 10 - 30
0.150 mm (No. 100) 2 - 10
0.075 mm (No. 200) 0 - 4
Table 12: Gradation standards F.A

27. Department of
Civil
Technology
Written By: Ahmed Zakaria 27
Concrete Class Designations:
Specified Class
Minimum
Cement Content
(Kg. Per Cu. M)
Minimum
Compressive
Strength at 28
Days
Designated
Coarse
Aggregate Size
Alternate
Coarse
Aggregate Size
A
B
C
D
E
K
S
335
310
375
375
375
390
410
210 Kg./sq. cm
170 Kg./sq. cm
250 Kg./sq. cm
250 Kg./sq. cm
280 Kg./sq. cm
315 Kg./sq. cm
350 Kg./sq. cm
A- (2 in)
B- (2 ½ in)
C- (1 in)
D- (¾ in)
D- (¾ in)
D-(¾ in)
D- (¾ in)
B
A
D
Table 13:Concrete Class Designation
Table No 11 & 12 are the standards set by the Ministry of Transport Materials
Research and Testing Department KSA. After the gradation process of F.A & C.A
the % Passing should meet the specifications as given in table. If the aggregate
fails the ministry will not approve the project. KSA has set their standards as per
AASHTO and ASTM systems, they can vary with different countries or region.
Table No 13 is designed as reference classification chart by the material
engineer of Al-Haramain Company after all the calculations and following
instructions for future projects. However the concrete mix design is done on
every new project in the begging for accuracy. Table No13 is also approved by
ministry and consultant of the kingdom and has set as standard for the required
strength at 28 days till date September 2015.

28. Department of
Civil
Technology
Written By: Ahmed Zakaria 28

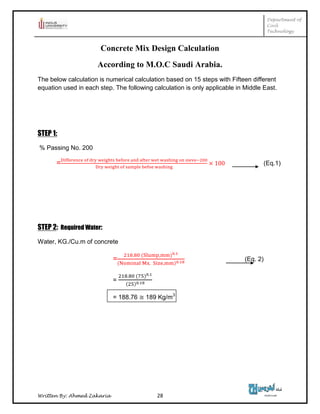

Concrete Mix Design Calculation
According to M.O.C Saudi Arabia.
The below calculation is numerical calculation based on 15 steps with Fifteen different
equation used in each step. The following calculation is only applicable in Middle East.
STEP 1:
% Passing No. 200
= (Eq.1)
STEP 2: Required Water:
Water, KG./Cu.m of concrete
= (Eq. 2)
=
= 188.76 189 Kg/m3

29. Department of
Civil
Technology
Written By: Ahmed Zakaria 29

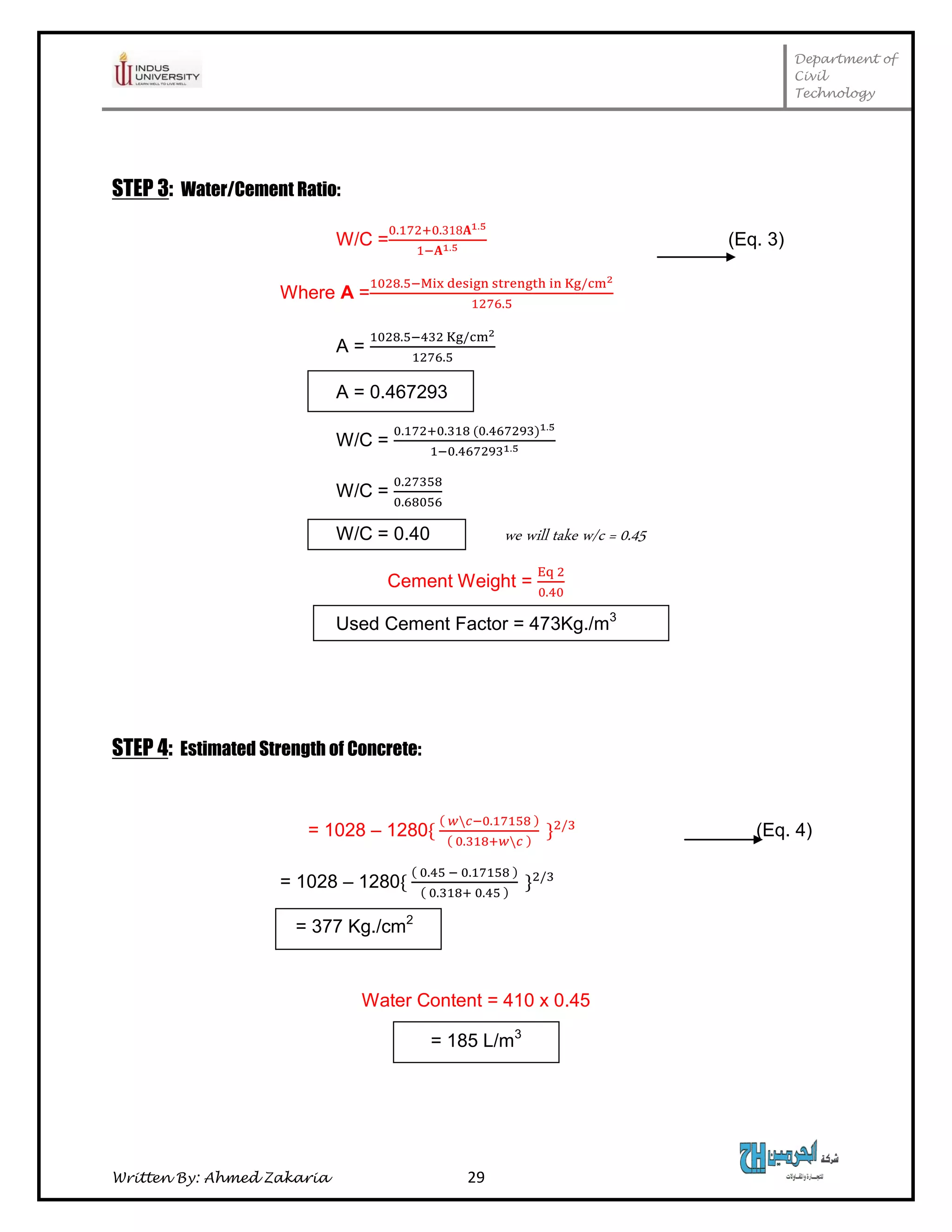

STEP 3: Water/Cement Ratio:
W/C = (Eq. 3)
Where A =
A =
A = 0.467293
W/C =
W/C =
W/C = 0.40 we will take w/c = 0.45
Cement Weight =
Used Cement Factor = 473Kg./m3
STEP 4: Estimated Strength of Concrete:
= 1028 – 1280 (Eq. 4)
= 1028 – 1280
= 377 Kg./cm2
Water Content = 410 x 0.45
= 185 L/m3

30. Department of
Civil
Technology
Written By: Ahmed Zakaria 30
STEP 5: Percentage Air Content:
% air = 4.4 x 0.3475 Nominal Max. Size in inches
(Eq. 5)
= 4.4
% non-air entrained = 1.529 %
STEP 6: Volume of Cement:
Volume of Cement = (Eq. 6)
=
= 0.1301
STEP 7: Volume of Water& Admixtures:
Volume of water = (Eq. 7)
=
= 0.1850 L
Volume of Admixtures =
=
= 0.0025 L

31. Department of
Civil
Technology
Written By: Ahmed Zakaria 31
STEP 8: Dry Rrodded volume of C.A:
= (Eq. 8)
=
= 0.6739 m3
STEP 9: Weight of C.A in KG:
Wt. in Kg of coarse aggregate = Dry rodded Vol. of C.A x Dry rodded unit wt. of C.A (Eq.9)
= 0.6739 x 1596
= 1076
STEP 10: Abs. Vol. C.A:
Absolute volume of C.A = (Eq.10)
=
= 0.3892
STEP 11: Specific Gravity:
Already calculated before. (Eq. 11)
STEP 12: Volume of air:
Volume of air in 1m3
of concrete = (Eq. 12)
=
= 0.0153

32. Department of
Civil
Technology
Written By: Ahmed Zakaria 32

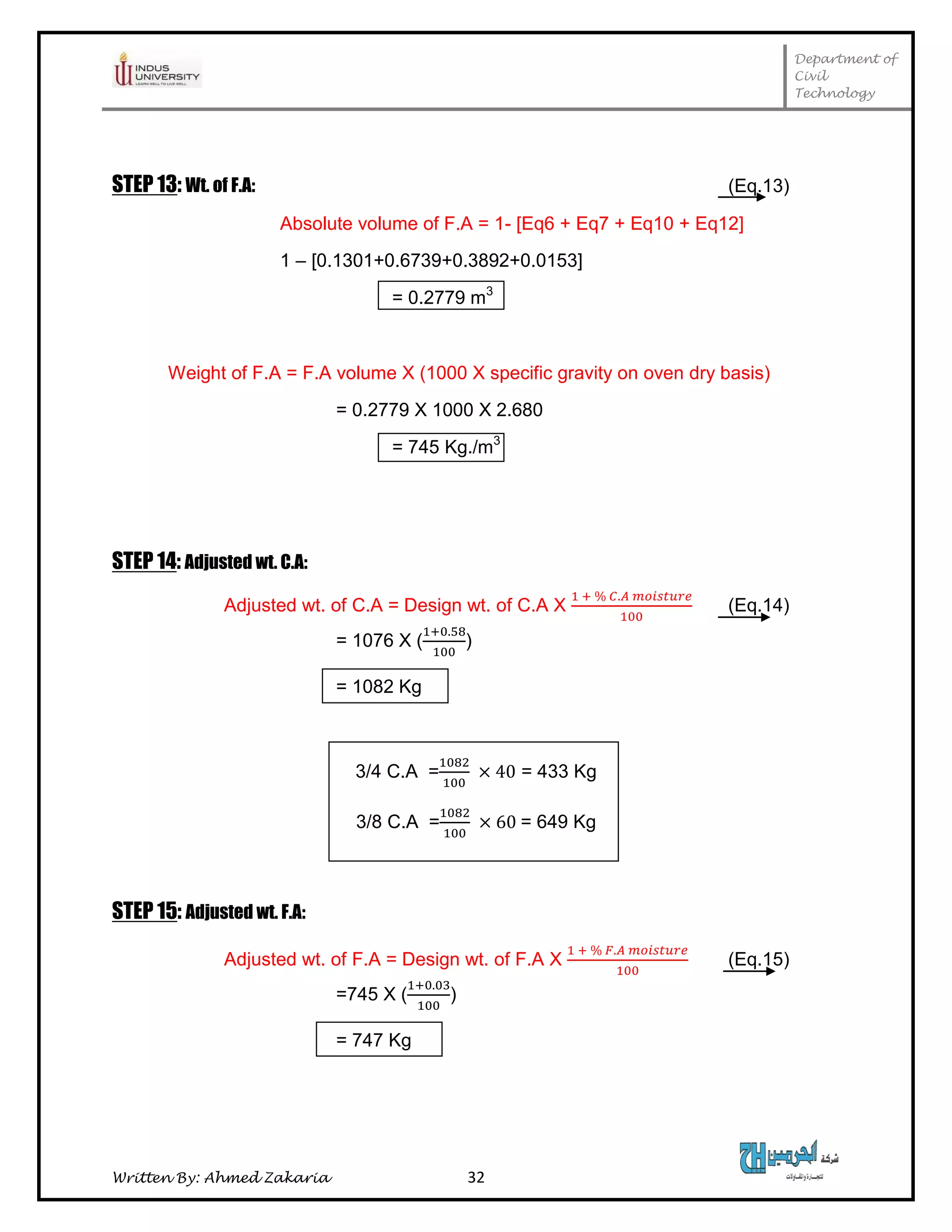

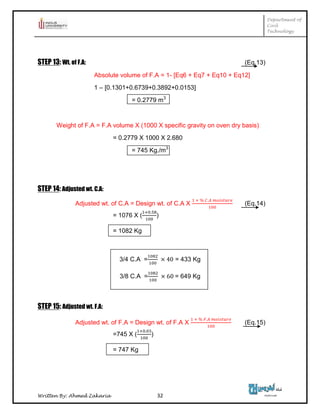

STEP 13: Wt. of F.A: (Eq.13)
Absolute volume of F.A = 1- [Eq6 + Eq7 + Eq10 + Eq12]
1 – [0.1301+0.6739+0.3892+0.0153]
= 0.2779 m3
Weight of F.A = F.A volume X (1000 X specific gravity on oven dry basis)
= 0.2779 X 1000 X 2.680
= 745 Kg./m3
STEP 14: Adjusted wt. C.A:
Adjusted wt. of C.A = Design wt. of C.A X (Eq.14)
= 1076 X ( )
= 1082 Kg
3/4 C.A = = 433 Kg
3/8 C.A = = 649 Kg
STEP 15: Adjusted wt. F.A:
Adjusted wt. of F.A = Design wt. of F.A X (Eq.15)
=745 X ( )
= 747 Kg

33. Department of
Civil
Technology
Written By: Ahmed Zakaria 33

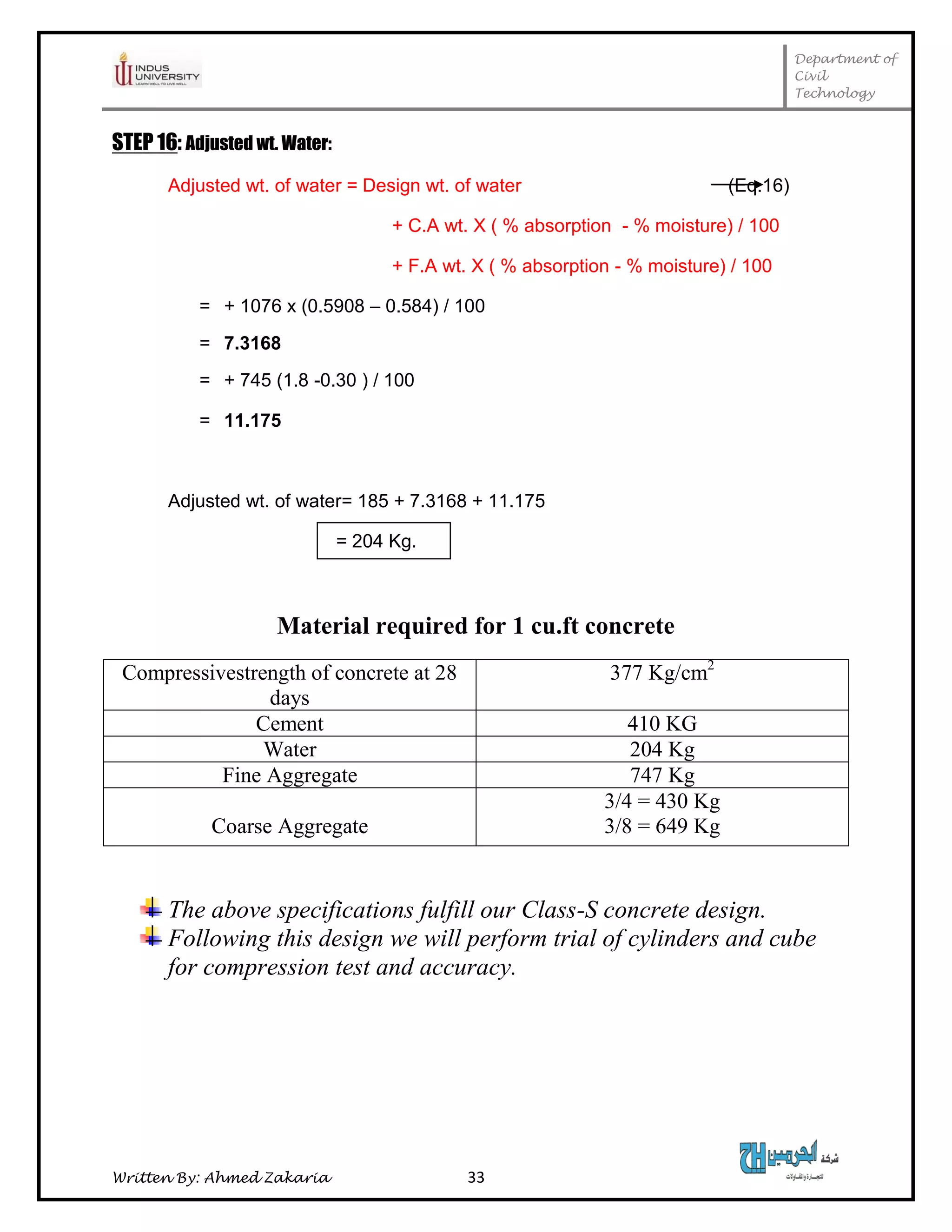

STEP 16: Adjusted wt. Water:
Adjusted wt. of water = Design wt. of water (Eq.16)
+ C.A wt. X ( % absorption - % moisture) / 100
+ F.A wt. X ( % absorption - % moisture) / 100
= + 1076 x (0.5908 – 0.584) / 100
= 7.3168
= + 745 (1.8 -0.30 ) / 100
= 11.175
Adjusted wt. of water= 185 + 7.3168 + 11.175
= 204 Kg.
Material required for 1 cu.ft concrete
Compressivestrength of concrete at 28
days
377 Kg/cm2
Cement 410 KG
Water 204 Kg
Fine Aggregate 747 Kg
Coarse Aggregate
3/4 = 430 Kg
3/8 = 649 Kg
The above specifications fulfill our Class-S concrete design.
Following this design we will perform trial of cylinders and cube
for compression test and accuracy.

34. Department of
Civil
Technology
Written By: Ahmed Zakaria 34
CHAPTER FIVE
Asphalt
Asphalt Test Procedure:
1. Take a ready hot sample from Asphalt Paver after quartering.
2. Record its weight observation sheet.
3. Put in the extraction machine bowl.
4. Add Triclone chemical or Petrol continuously for washing its bitumen.
5. Let the machine complete its process.
6. Do not stop the machine unless the drain Triclone or Petrol is clearly
visible without any bitumen.
7. Stop the machine and check if all the bitumen has removed from the
aggregates.
8. Record the weight.
9. Put it in oven for drying 24 hours.
10. Weight to get the bitumen content that was present in aggregates.
11. Wash the aggregate with fresh water.
12. Leave sample for drying.
13. Perform sieve analysis
14. Record the gradation weight on every sieve.
15. Calculate %passing and specific gravity (same as performed above).

35. Department of
Civil
Technology
Written By: Ahmed Zakaria 35
Pictorial Explanation
Preparation of trial mix for compression test and filling of cylinders and
cubes.
Slump Test is performed before filling of cubes and cylinders.

36. Department of
Civil
Technology
Written By: Ahmed Zakaria 36
Cylinders and cube sample are kept under direct sunlight and water
respectively for compression test at 3 7 and 28 days.
Cylindrical and cubical compression are in progress in respective test
machines.
The LCD shows the result.

37. Department of
Civil
Technology
Written By: Ahmed Zakaria 37

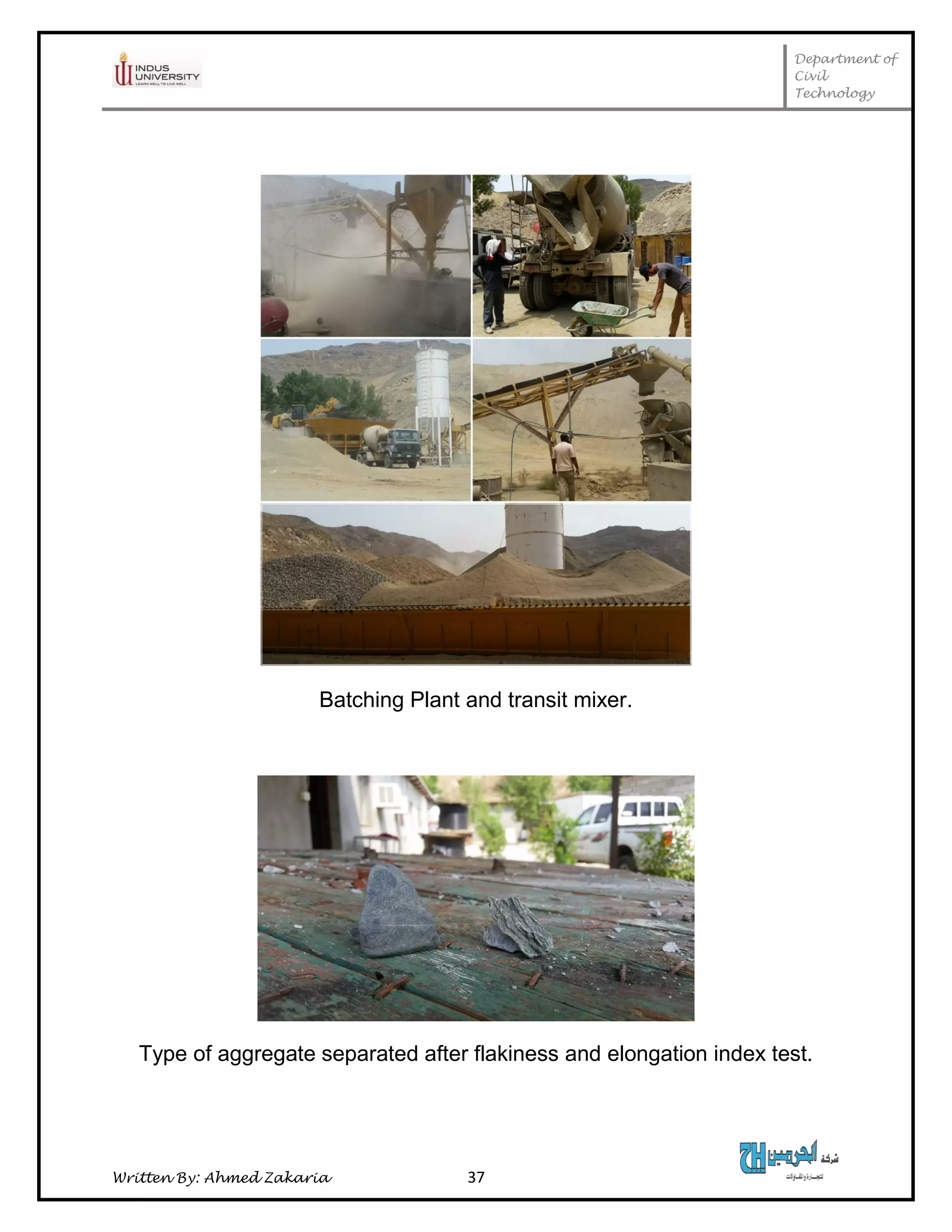

Batching Plant and transit mixer.
Type of aggregate separated after flakiness and elongation index test.

38. Department of
Civil
Technology
Written By: Ahmed Zakaria 38
References
http://www.pavementinteractive.org/article/fine-aggregate-specific-gravity/
http://www.pavementinteractive.org/article/fine-aggregate-angularity/
http://www.pavementinteractive.org/article/sand-equivalent/
