- 1. Al-Bairaq I am DiscoveringMaterials Composites Al-Wakra Sec. School for girls Group Name: Rose Gold Lama Muna Al-anoud Loura

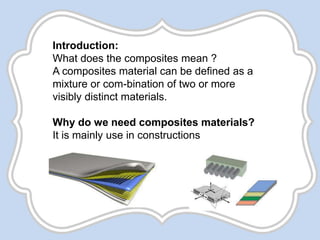

- 2. Introduction: What does thecomposites mean ? A composites material can be defined as a mixture or com-bination of two or more visibly distinct materials. Why do we need composites materials? It is mainly use in constructions

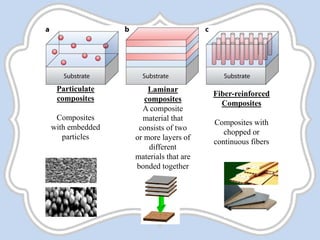

- 3. Fiber-reinforced Composites Composites with chopped or continuousfibers Particulate composites Composites with embedded particles Laminar composites A composite material that consists of two or more layers of different materials that are bonded together
- 4. Activity 1 :- Testingdifferent kinds of ice We test some material : We but the Towel & few of water then we mix it in the blender , Next we but it in a small container , Finally we but it in the fridge to make it ice .
- 5. The next daywe took the ice from the fridge then we remove the composites & the water ice from the container . After that , we put it in the same level in 50 cm , then we dropped it in the floor to see anyone of them was more strong composites We conclude that the composites material stronger than pure material , because we dropped the composites material 3 times in the floor to disintegrate opposite than the pure material that disintegrate in the first drop . Activity 1: Hunting for composites materials

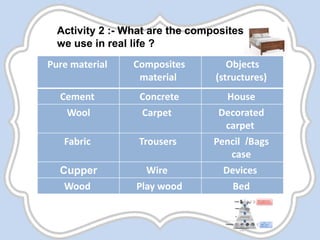

- 6. Activity 2 :-What are the composites we use in real life ? Objects (structures) Composites material Pure material HouseConcreteCement Decorated carpet CarpetWool Bags/Pencil case TrousersFabric DevicesWireCupper BedPlay woodWood
- 7. Activity 3: Exploringthe difference between strength & stiffness ? Strength : the maximum amount of force a material can experience before failing . (weakness) .. Stiffness : The amount of deformation a material can experience and still return to it’s (flexibility) )original shape ).

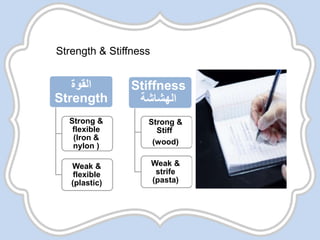

- 8. القوة Strength Strong & flexible (Iron & nylon) Weak & flexible (plastic) Stiffness الهشاشة Strong & Stiff (wood) Weak & strife (pasta) Strength & Stiffness

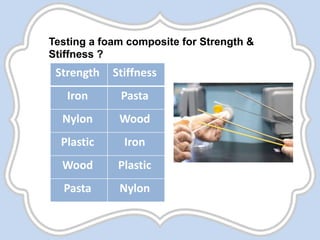

- 9. Testing a foamcomposite for Strength & Stiffness ? StiffnessStrength PastaIron WoodNylon IronPlastic PlasticWood NylonPasta
- 10. Activity 4: Testinga Foam Composite for Strength and Stiffness

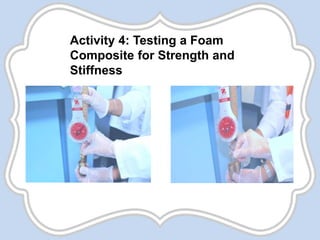

- 11. Activity 4: Testinga Foam Composite for Strength and Stiffness

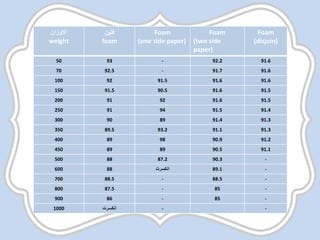

- 12. االوزان weight فلين foam Foam (one side paper) Foam (twoside paper) Foam (disjoin) 50 93 - 92.2 91.6 70 92.5 - 91.7 91.6 100 92 91.5 91.6 91.6 150 91.5 90.5 91.6 91.5 200 91 92 91.6 91.5 250 91 94 91.5 91.4 300 90 89 91.4 91.3 350 89.5 93.2 91.1 91.3 400 89 98 90.9 91.2 450 89 89 90.5 91.1 500 88 87.2 90.3 - 600 88 انكسرت 89.1 - 700 88.5 - 88.5 - 800 87.5 - 85 - 900 86 - 85 - 1000 انكسرت - -
- 13. 0 500 1000 1500 2000 2500 12345678910111213141516 Foam (disjoin) Foam (twoside paper) Foam (one side paper) فلينfoam The line chart of the table above ..

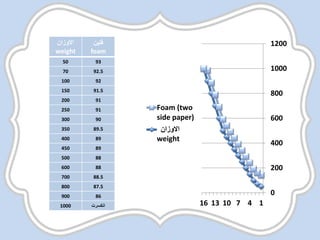

- 14. االوزان weight فلين foam 50 93 70 92.5 10092 150 91.5 200 91 250 91 300 90 350 89.5 400 89 450 89 500 88 600 88 700 88.5 800 87.5 900 86 1000 انكسرت 0 200 400 600 800 1000 1200 147101316 Foam (two side paper) االوزان weight

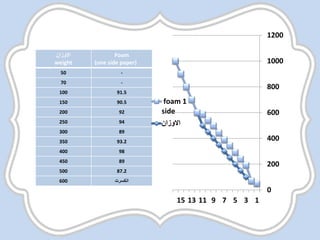

- 15. االوزان weight Foam (one side paper) 50- 70 - 100 91.5 150 90.5 200 92 250 94 300 89 350 93.2 400 98 450 89 500 87.2 600 انكسرت 0 200 400 600 800 1000 1200 13579111315 foam 1 side االوزان
- 16. االوزان weight Foam (two side paper) 5092.2 70 91.7 100 91.6 150 91.6 200 91.6 250 91.5 300 91.4 350 91.1 400 90.9 450 90.5 500 90.3 600 89.1 700 88.5 800 85 900 85 1000 انكسرت 0 200 400 600 800 1000 1200 147101316 Foam (two side paper) االوزان weight

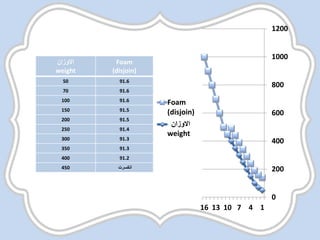

- 17. االوزان weight Foam (disjoin) 50 91.6 70 91.6 10091.6 150 91.5 200 91.5 250 91.4 300 91.3 350 91.3 400 91.2 450 انكسرت 0 200 400 600 800 1000 1200 147101316 Foam (disjoin) االوزان weight

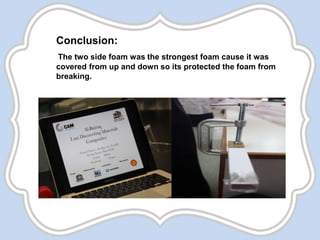

- 18. Conclusion: The two sidefoam was the strongest foam cause it was covered from up and down so its protected the foam from breaking.
- 19. Design Project: Designfishing pole It has to be: STRONG FLEXIABLE REINFORCED

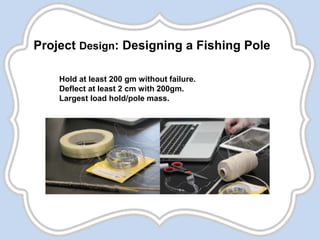

- 20. Project Design: Designinga Fishing Pole Hold at least 200 gm without failure. Deflect at least 2 cm with 200gm. Largest load hold/pole mass.

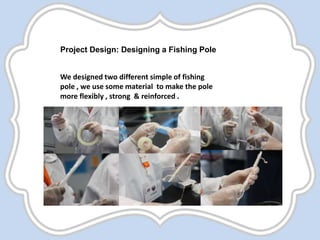

- 21. Project Design: Designinga Fishing Pole We designed two different simple of fishing pole , we use some material to make the pole more flexibly , strong & reinforced .

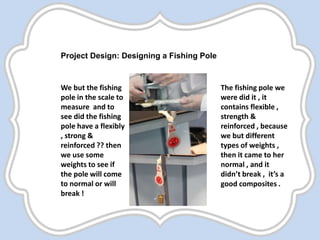

- 22. Project Design: Designinga Fishing Pole We but the fishing pole in the scale to measure and to see did the fishing pole have a flexibly , strong & reinforced ?? then we use some weights to see if the pole will come to normal or will break ! The fishing pole we were did it , it contains flexible , strength & reinforced , because we but different types of weights , then it came to her normal , and it didn’t break , it’s a good composites .

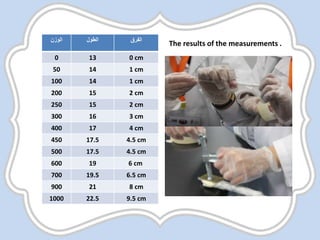

- 23. الفرقالطولالوزن 0 cm130 1 cm1450 1cm14100 2 cm15200 2 cm15250 3 cm16300 4 cm17400 4.5 cm17.5450 4.5 cm17.5500 6 cm19600 6.5 cm19.5700 8 cm21900 9.5 cm22.51000 The results of the measurements .
- 24. Final project: Our projectname is ? Composite + umbrella our project is talking about covering all the houses that is being built or the gardens, coffee shops, that are already built outdoors
- 25. The project’s explanation Umbrellais made of several materials to help cool place in the summer and heating in winter
- 26. The importance ofour project. 1-The project will definitely be useful for Qatar’s hot weather 2- Outdoors places will be protected because it will prevent the sunshine from passing through. 3- The construction workers will no longer struggle with tiredness and exhaustion because this project will warm them up from the heat. 4- People will have the chance to keep their skins natural and protected.
- 27. The advantages ofour project 1-Protect people with skin disease category and get away from all that would be bad for them from the atmosphere 2-Encourage construction workers to finish their work on time 3-Good to go outside at all times and rituals Airborne
- 28. Facing any obstaclesin the project. 1-People are not exposed to sunlight, leading to the loss of vitamin D is necessary for the body 2-Increasing the quantity of injury to a variety of diseases because many scientists who say that the exposure to the sun an important factor in strengthening the immune system
- 29. We hope This projectis going to be spread in Qatar and the whole world as well. We hope that our project be the first, we wish we could be one of the winners Conclusions
- 30. The benefits ofAL-Bairaq 1-We gained a ton of information that will help us to improve our general knowledge. 2-We have learned how to mix materials together, and how to choose them, and know how to distinguish between vehicles. 3-Now we have an idea of how to make a good and useful and valid compound for use of our environment.
- 31. Acknowledgment Many thanks tomy teachers, school and AL-Bairaq team from Center for Advanced Materials (CAM), Qatar University for supporting us during our journey with a AL- Bairaq. Also, we would like to thank the sponsors .
