This document discusses suppository formulation and manufacture. It describes the different types of suppository bases including oleaginous, glycerinated gelatin, PEG polymers, and surfactants. It also covers topics like tempering cocoa butter, fat bloom, insoluble and soluble active pharmaceutical ingredients, drug absorption from oral versus rectal administration, and conclusions about preferred suppository bases.

1. Suppository Formulation andSuppository Formulation and
ManufactureManufacture
Jim McElroy

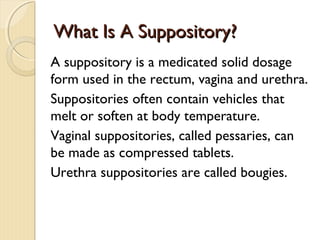

2. What Is A Suppository?What Is A Suppository?
A suppository is a medicated solid dosage
form used in the rectum, vagina and urethra.
Suppositories often contain vehicles that
melt or soften at body temperature.
Vaginal suppositories, called pessaries, can
be made as compressed tablets.
Urethra suppositories are called bougies.

3. Shapes and Weights ofShapes and Weights of
SuppositoriesSuppositories
Rectal suppositories weigh about 2 grams for
adults and 1 gram for children. They are bullet
shaped.
Vaginal suppositories weigh about 3 to 5 grams
and are oval or globular shaped.
Urethral suppositories for males weigh about 4
grams & are 100-150 mm long. Female urethral
suppositories weigh about 2 grams and are 60-
75mm in length. They are pencil shaped and
pointed on one end.

4. Typical SuppositoriesTypical Suppositories

5. Types of Suppository BasesTypes of Suppository Bases
 Oleaginous (i.e. triglycerides)
Lipid based suppositories are typically used for hemorrhoidal
preparations but can be used for vaginal and urethral dosing.
 Glycerinated Gelatin
Used particularly for vaginal suppositories. They are a translucent
gelatinous solid that tend to disperse slowly in mucous secretions
to provide prolonged release of active ingredients.
 Polyethylene Glycol (PEG) polymers
PEG based suppositories offer rapid delivery of the API with
minimal manufacturing issues.
 Surfactants
Surfactant based suppositories offer rapid delivery but cannot be
used for an extended period of time because of irritation.
 Tablets
Used particularly for vaginal suppositories.

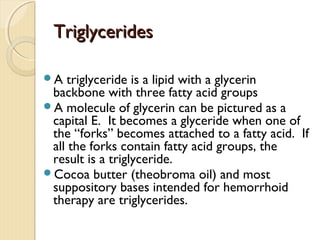

6. TriglyceridesTriglycerides
A triglyceride is a lipid with a glycerin
backbone with three fatty acid groups
A molecule of glycerin can be pictured as a
capital E. It becomes a glyceride when one of
the “forks” becomes attached to a fatty acid. If
all the forks contain fatty acid groups, the
result is a triglyceride.
Cocoa butter (theobroma oil) and most
suppository bases intended for hemorrhoid
therapy are triglycerides.

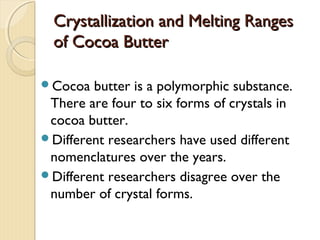

7. Crystallization and Melting RangesCrystallization and Melting Ranges
of Cocoa Butterof Cocoa Butter
Cocoa butter is a polymorphic substance.
There are four to six forms of crystals in
cocoa butter.
Different researchers have used different
nomenclatures over the years.
Different researchers disagree over the
number of crystal forms.

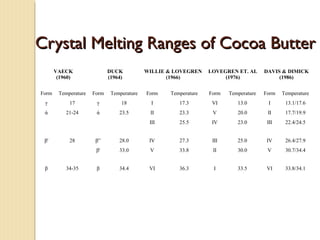

8. Crystal Melting Ranges of Cocoa ButterCrystal Melting Ranges of Cocoa Butter
VAECK
(1960)
DUCK
(1964)
WILLIE & LOVEGREN
(1966)
LOVEGREN ET. AL
(1976)
DAVIS & DIMICK
(1986)
Form Temperature Form Temperature Form Temperature Form Temperature Form Temperature
γ 17 γ 18 I 17.3 VI 13.0 I 13.1/17.6
ά 21-24 ά 23.5 II 23.3 V 20.0 II 17.7/19.9
III 25.5 IV 23.0 III 22.4/24.5
β' 28 β'’ 28.0 IV 27.3 III 25.0 IV 26.4/27.9
β' 33.0 V 33.8 II 30.0 V 30.7/34.4
β 34-35 β 34.4 VI 36.3 I 33.5 VI 33.8/34.1

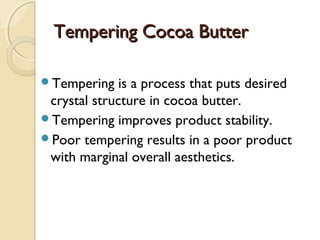

9. Tempering Cocoa ButterTempering Cocoa Butter
Tempering is a process that puts desired
crystal structure in cocoa butter.
Tempering improves product stability.
Poor tempering results in a poor product
with marginal overall aesthetics.

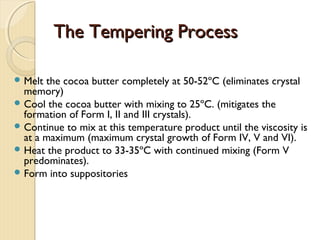

10. The Tempering ProcessThe Tempering Process
 Melt the cocoa butter completely at 50-52ºC (eliminates crystal
memory)
 Cool the cocoa butter with mixing to 25ºC. (mitigates the
formation of Form I, II and III crystals).
 Continue to mix at this temperature product until the viscosity is
at a maximum (maximum crystal growth of Form IV, V and VI).
 Heat the product to 33-35ºC with continued mixing (Form V
predominates).
 Form into suppositories

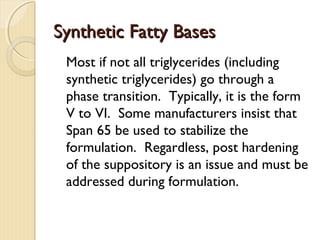

11. Synthetic Fatty BasesSynthetic Fatty Bases
Most if not all triglycerides (including
synthetic triglycerides) go through a
phase transition. Typically, it is the form
V to VI. Some manufacturers insist that
Span 65 be used to stabilize the
formulation. Regardless, post hardening
of the suppository is an issue and must be
addressed during formulation.

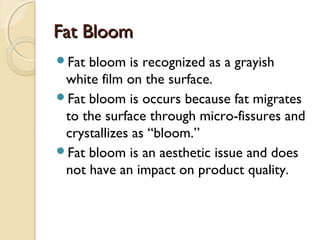

12. Fat BloomFat Bloom
Fat bloom is recognized as a grayish
white film on the surface.
Fat bloom is occurs because fat migrates
to the surface through micro-fissures and
crystallizes as “bloom.”
Fat bloom is an aesthetic issue and does
not have an impact on product quality.

13. Causes of Fat BloomCauses of Fat Bloom
Poor tempering
Bloom can form if cocoa butter is mixed
with incompatible fats
High moisture

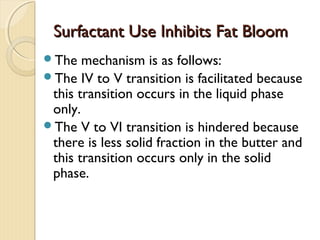

14. Surfactant Use Inhibits Fat BloomSurfactant Use Inhibits Fat Bloom
The mechanism is as follows:
The IV to V transition is facilitated because
this transition occurs in the liquid phase
only.
The V to VI transition is hindered because
there is less solid fraction in the butter and
this transition occurs only in the solid
phase.

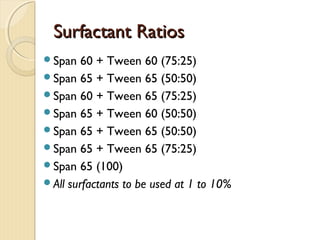

15. Surfactant RatiosSurfactant Ratios
Span 60 + Tween 60 (75:25)
Span 65 + Tween 65 (50:50)
Span 60 + Tween 65 (75:25)
Span 65 + Tween 60 (50:50)
Span 65 + Tween 65 (50:50)
Span 65 + Tween 65 (75:25)
Span 65 (100)
All surfactants to be used at 1 to 10%

16. Surfactants as BioavailabilitySurfactants as Bioavailability
EnhancersEnhancers
Cleansing action caused by the surfactant-
containing vehicle may make additional pore
spaces available for drug absorption.
Drug movement across the rectal
membrane is facilitated.

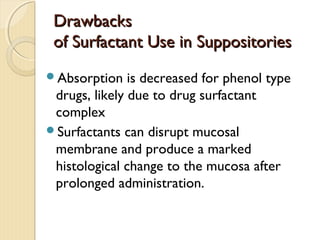

17. DrawbacksDrawbacks
of Surfactant Use in Suppositoriesof Surfactant Use in Suppositories
Absorption is decreased for phenol type
drugs, likely due to drug surfactant
complex
Surfactants can disrupt mucosal
membrane and produce a marked
histological change to the mucosa after
prolonged administration.

18. Insoluble APIsInsoluble APIs
It is difficult to suspend insoluble APIs
while forming suppositories.
Content uniformity is a challenge. Some
commonly used APIs (i.e. phenylephrine
HCl) are present at 0.15%.
Possible formulation strategies include
solubilizing the API and spraying it onto
starch (or other carrier)

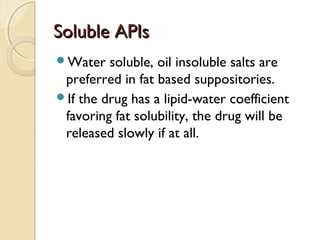

19. Soluble APIsSoluble APIs
Water soluble, oil insoluble salts are
preferred in fat based suppositories.
If the drug has a lipid-water coefficient
favoring fat solubility, the drug will be
released slowly if at all.

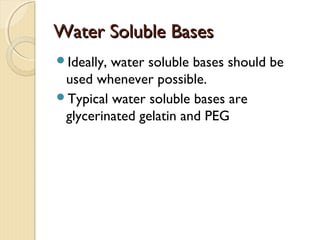

20. Water Soluble BasesWater Soluble Bases
Ideally, water soluble bases should be
used whenever possible.
Typical water soluble bases are
glycerinated gelatin and PEG

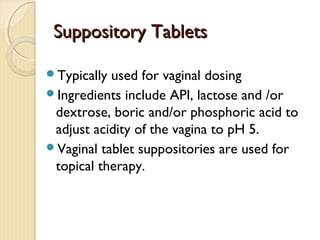

21. Suppository TabletsSuppository Tablets
Typically used for vaginal dosing
Ingredients include API, lactose and /or
dextrose, boric and/or phosphoric acid to
adjust acidity of the vagina to pH 5.
Vaginal tablet suppositories are used for
topical therapy.

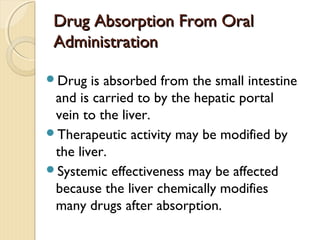

22. Drug Absorption From OralDrug Absorption From Oral
AdministrationAdministration
Drug is absorbed from the small intestine
and is carried to by the hepatic portal
vein to the liver.
Therapeutic activity may be modified by
the liver.
Systemic effectiveness may be affected
because the liver chemically modifies
many drugs after absorption.

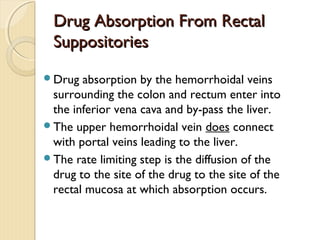

23. Drug Absorption From RectalDrug Absorption From Rectal
SuppositoriesSuppositories
Drug absorption by the hemorrhoidal veins
surrounding the colon and rectum enter into
the inferior vena cava and by-pass the liver.
The upper hemorrhoidal vein does connect
with portal veins leading to the liver.
The rate limiting step is the diffusion of the
drug to the site of the drug to the site of the
rectal mucosa at which absorption occurs.

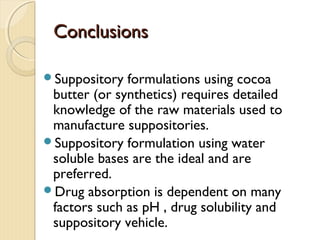

24. ConclusionsConclusions
Suppository formulations using cocoa
butter (or synthetics) requires detailed
knowledge of the raw materials used to
manufacture suppositories.
Suppository formulation using water
soluble bases are the ideal and are
preferred.
Drug absorption is dependent on many
factors such as pH , drug solubility and
suppository vehicle.
