Cluster Analysis

The document provides information about cluster analysis and hierarchical agglomerative clustering. It discusses how hierarchical agglomerative clustering works by successively merging the most similar clusters together based on a distance measure between clusters. It begins with each object as its own cluster and merges them into larger clusters, forming a dendrogram, until all objects are in a single cluster. Different linkage criteria like single, complete, and average linkage can be used to define the distance between clusters.

Embed presentation

Download as PDF, PPTX
Summer School “Achievements and Applications of Contemporary Informatics, Mathematics and Physics” (AACIMP 2011) August 8-20, 2011, Kiev, Ukraine Cluster Analysis Erik Kropat University of the Bundeswehr Munich Institute for Theoretical Computer Science, Mathematics and Operations Research Neubiberg, Germany
The Knowledge Discovery Process

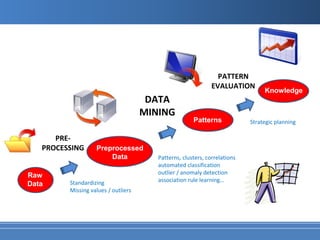

PATTERN EVALUATION Knowledge DATA MINING Patterns Strategic planning PRE- PROCESSING Preprocessed Data Patterns, clusters, correlations automated classification Raw outlier / anomaly detection Standardizing association rule learning… Data Missing values / outliers
Clustering

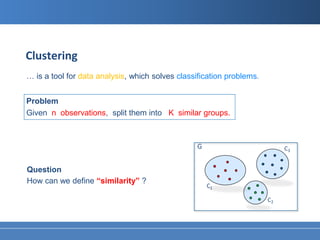

Clustering … is a tool for data analysis, which solves classification problems. Problem Given n observations, split them into K similar groups. Question How can we define “similarity” ?

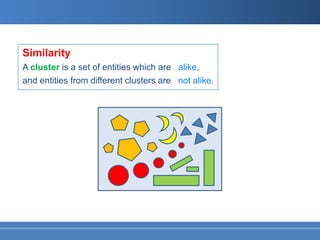

Similarity A cluster is a set of entities which are alike, and entities from different clusters are not alike.

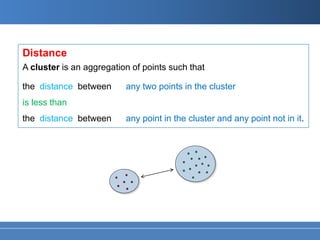

Distance A cluster is an aggregation of points such that the distance between any two points in the cluster is less than the distance between any point in the cluster and any point not in it.

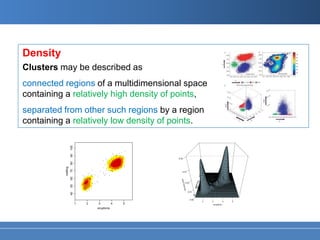

Density Clusters may be described as connected regions of a multidimensional space containing a relatively high density of points, separated from other such regions by a region containing a relatively low density of points.

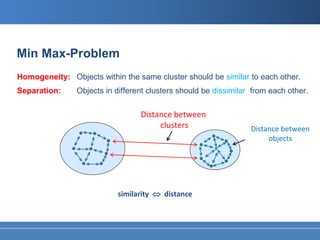

Min Max-Problem Homogeneity: Objects within the same cluster should be similar to each other. Separation: Objects in different clusters should be dissimilar from each other. Distance between clusters Distance between objects similarity ⇔ distance

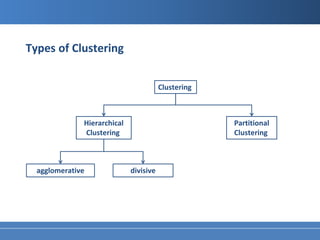

Types of Clustering Clustering Hierarchical Partitional Clustering Clustering agglomerative divisive
Similarity and Distance

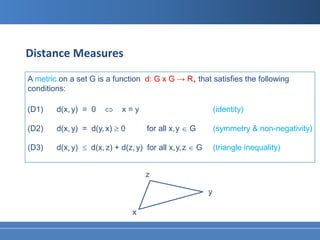

Distance Measures A metric on a set G is a function d: G x G → R+ that satisfies the following conditions: (D1) d(x, y) = 0 ⇔ x=y (identity) (D2) d(x, y) = d(y, x) ≥ 0 for all x, y ∈ G (symmetry & non-negativity) (D3) d(x, y) ≤ d(x, z) + d(z, y) for all x, y, z ∈ G (triangle inequality) z y x

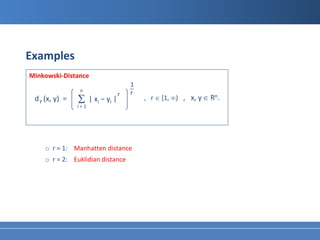

Examples Minkowski-Distance 1 _ n r r d r (x, y) = Σ | xi − yi | i=1 , r ∈ [1, ∞) , x, y ∈ Rn. o r = 1: Manhatten distance o r = 2: Euklidian distance
Euclidean Distance 1 _ n Σ 2 2 d2 (x, y) = ( xi − yi ) , x, y ∈ Rn i=1 y x = (1, 1) y = (4, 3) _ 1 ____ 2 2 2 d2 (x, y) = (1 - 4) + (1 - 3) = √13 x

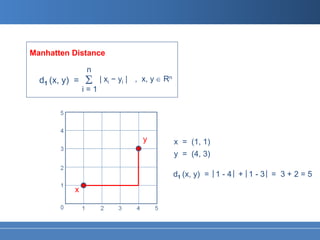

Manhatten Distance n d1 (x, y) = Σ | xi − yi | , x, y ∈ Rn i=1 y x = (1, 1) y = (4, 3) d1 (x, y) = | 1 - 4 | + | 1 - 3 | = 3 + 2 = 5 x

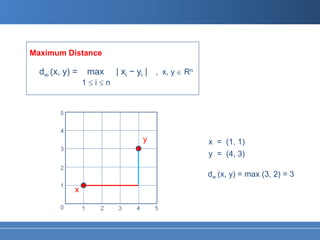

Maximum Distance d∞ (x, y) = max | xi − yi | , x, y ∈ Rn 1≤i≤n y x = (1, 1) y = (4, 3) d∞ (x, y) = max (3, 2) = 3 x

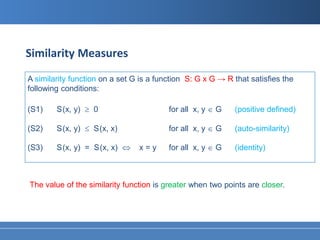

Similarity Measures A similarity function on a set G is a function S: G x G → R that satisfies the following conditions: (S1) S (x, y) ≥ 0 for all x, y ∈ G (positive defined) (S2) S (x, y) ≤ S (x, x) for all x, y ∈ G (auto-similarity) (S3) S (x, y) = S (x, x) ⇔ x=y for all x, y ∈ G (identity) The value of the similarity function is greater when two points are closer.

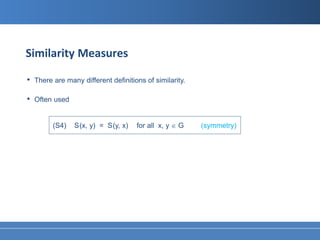

Similarity Measures • There are many different definitions of similarity. • Often used (S4) S (x, y) = S (y, x) for all x, y ∈ G (symmetry)
Hierachical Clustering
Dendrogram Cluster Dendrogram Euclidean distance (complete linkage) Euclidean distance (complete linkage) Gross national product of EU countries – agriculture (1993) www.isa.uni-stuttgart.de/lehre/SAHBD
Hierarchical Clustering Hierarchical clustering creates a hierarchy of clusters of the set G. Hierarchical Clustering agglomerative divisive Agglomerative clustering: Clusters are successively merged together Divisive clustering: Clusters are recursively split

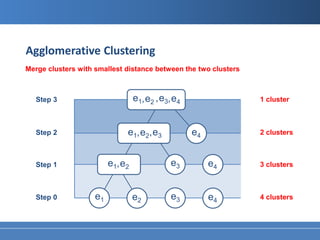

Agglomerative Clustering Merge clusters with smallest distance between the two clusters Step 3 e1, e2 , e3, e4 1 cluster Step 2 e1, e2, e3 e4 2 clusters Step 1 e1, e2 e3 e4 3 clusters Step 0 e1 e2 e3 e4 4 clusters

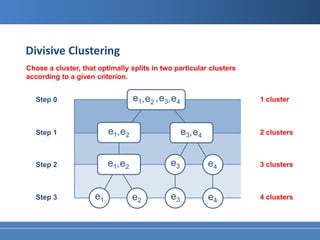

Divisive Clustering Chose a cluster, that optimally splits in two particular clusters according to a given criterion. Step 0 e1, e2 , e3, e4 1 cluster Step 1 e1, e2 e3, e4 2 clusters Step 2 e1, e2 e3 e4 3 clusters Step 3 e1 e2 e3 e4 4 clusters
Agglomerative Clustering

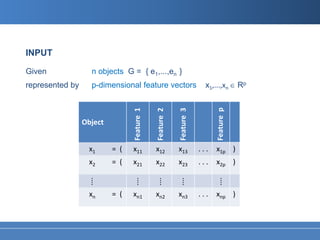

INPUT Given n objects G = { e1,...,en } represented by p-dimensional feature vectors x1,...,xn ∈ Rp Feature p Feature 1 Feature 2 Feature 3 Object x1 = ( x11 x12 x13 ... x1p ) x2 = ( x21 x22 x23 ... x2p ) ⁞ ⁞ ⁞ ⁞ ⁞ xn = ( xn1 xn2 xn3 ... xnp )
Example I An online shop collects data from its customers. For each of the n customers it exists a p-dimensional feature vector Object
Example II In a clinical trial laboratory values of a large number of patients are gathered. For each of the n patients it exists a p-dimensional feature vector

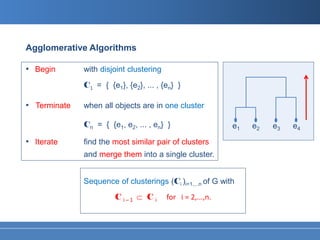

Agglomerative Algorithms • Begin with disjoint clustering C1 = { {e1}, {e2}, ... , {en} } • Terminate when all objects are in one cluster Cn = { {e1, e2, ... , en} } e1 e2 e3 e4 • Iterate find the most similar pair of clusters and merge them into a single cluster. Sequence of clusterings (Ci )i=1,...n of G with Ci ̶ 1 ⊂ Ci for i = 2,...,n.

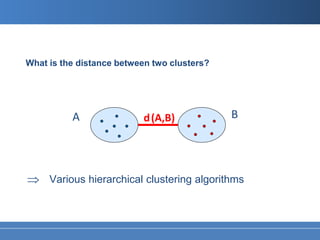

What is the distance between two clusters? A d (A,B) B ⇒ Various hierarchical clustering algorithms

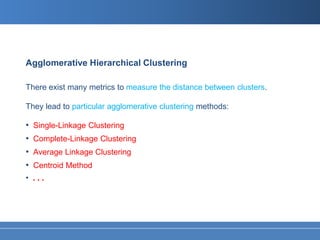

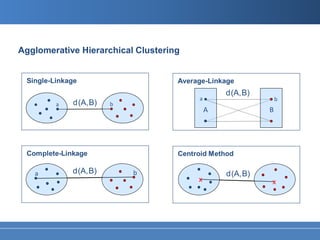

Agglomerative Hierarchical Clustering There exist many metrics to measure the distance between clusters. They lead to particular agglomerative clustering methods: • Single-Linkage Clustering • Complete-Linkage Clustering • Average Linkage Clustering • Centroid Method • ...

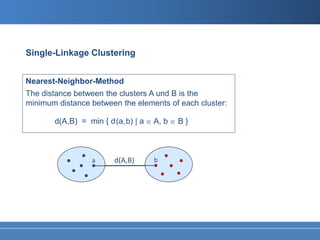

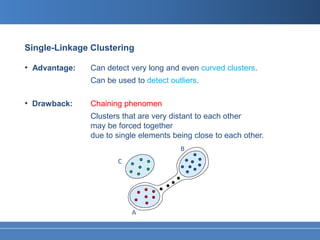

Single-Linkage Clustering Nearest-Neighbor-Method The distance between the clusters A und B is the minimum distance between the elements of each cluster: d(A,B) = min { d (a, b) | a ∈ A, b ∈ B } a d(A,B) b
Single-Linkage Clustering • Advantage: Can detect very long and even curved clusters. Can be used to detect outliers. • Drawback: Chaining phenomen Clusters that are very distant to each other may be forced together due to single elements being close to each other. B C A
Complete-Linkage Clustering Furthest-Neighbor-Method The distance between the clusters A and B is the maximum distance between the elements of each cluster: d(A,B) = max { d(a,b) | a ∈ A, b ∈ B } a d (A, B) b

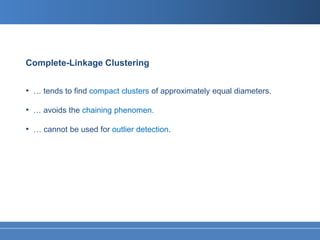

Complete-Linkage Clustering • … tends to find compact clusters of approximately equal diameters. • … avoids the chaining phenomen. • … cannot be used for outlier detection.

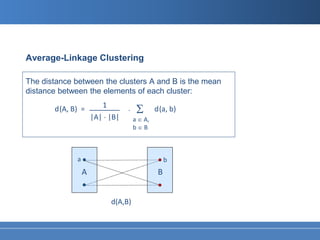

Average-Linkage Clustering The distance between the clusters A and B is the mean distance between the elements of each cluster: 1 d (A, B) = ⋅ Σ d (a, b) |A| ⋅ |B| a ∈ A, b∈B a b A B d(A,B)

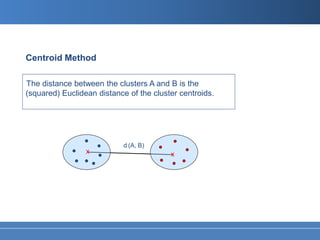

Centroid Method The distance between the clusters A and B is the (squared) Euclidean distance of the cluster centroids. d (A, B) x x
Agglomerative Hierarchical Clustering d (A, B) d (A, B) a d (A, B) d (A, B) b d (A, B) x (A, B) x

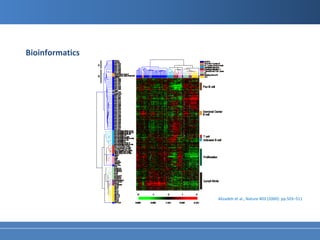

Bioinformatics Alizadeh et al., Nature 403 (2000): pp.503–511
Exercise Berlin Kiev Paris Odessa

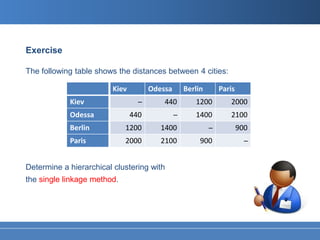

Exercise The following table shows the distances between 4 cities: Kiev Odessa Berlin Paris Kiev ̶ 440 1200 2000 Odessa 440 ̶ 1400 2100 Berlin 1200 1400 ̶ 900 Paris 2000 2100 900 ̶ Determine a hierarchical clustering with the single linkage method.

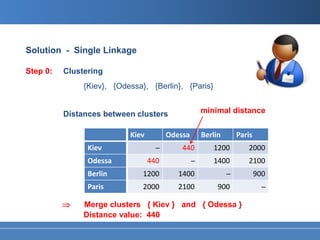

Solution - Single Linkage Step 0: Clustering {Kiev}, {Odessa}, {Berlin}, {Paris} Distances between clusters Kiev Odessa Berlin Paris Kiev ̶ 440 1200 2000 Odessa 440 ̶ 1400 2100 Berlin 1200 1400 ̶ 900 Paris 2000 2100 900 ̶
Solution - Single Linkage Step 0: Clustering {Kiev}, {Odessa}, {Berlin}, {Paris} Distances between clusters minimal distance Kiev Odessa Berlin Paris Kiev ̶ 440 1200 2000 Odessa 440 ̶ 1400 2100 Berlin 1200 1400 ̶ 900 Paris 2000 2100 900 ̶ ⇒ Merge clusters { Kiev } and { Odessa } Distance value: 440

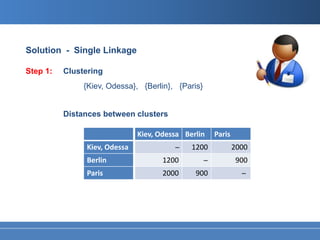

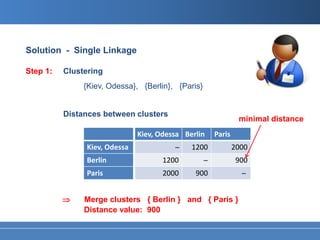

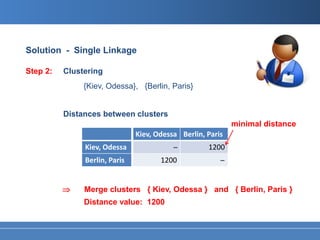

Solution - Single Linkage Step 1: Clustering {Kiev, Odessa}, {Berlin}, {Paris} Distances between clusters Kiev, Odessa Berlin Paris Kiev, Odessa ̶ 1200 2000 Berlin 1200 ̶ 900 Paris 2000 900 ̶
Solution - Single Linkage Step 1: Clustering {Kiev, Odessa}, {Berlin}, {Paris} Distances between clusters minimal distance Kiev, Odessa Berlin Paris Kiev, Odessa ̶ 1200 2000 Berlin 1200 ̶ 900 Paris 2000 900 ̶ ⇒ Merge clusters { Berlin } and { Paris } Distance value: 900
Solution - Single Linkage Step 2: Clustering {Kiev, Odessa}, {Berlin, Paris} Distances between clusters minimal distance Kiev, Odessa Berlin, Paris Kiev, Odessa ̶ 1200 Berlin, Paris 1200 ̶ ⇒ Merge clusters { Kiev, Odessa } and { Berlin, Paris } Distance value: 1200
Solution - Single Linkage Step 3: Clustering {Kiev, Odessa, Berlin, Paris}

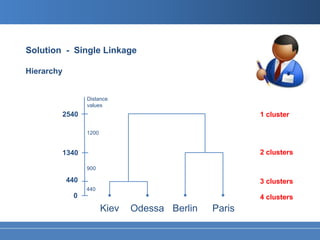

Solution - Single Linkage Hierarchy Distance values 2540 1 cluster 1200 1340 2 clusters 900 440 3 clusters 440 0 4 clusters Kiev Odessa Berlin Paris
Divisive Clustering

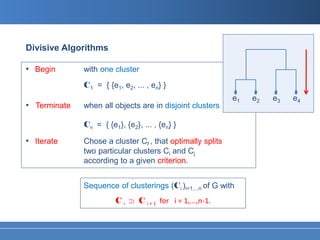

Divisive Algorithms • Begin with one cluster C1 = { {e1, e2, ... , en} } e1 e2 e3 e4 • Terminate when all objects are in disjoint clusters Cn = { {e1}, {e2}, ... , {en} } • Iterate Chose a cluster Cf , that optimally splits two particular clusters Ci and Cj according to a given criterion. Sequence of clusterings (Ci )i=1,...n of G with C i ⊃ C i + 1 for i = 1,...,n-1.

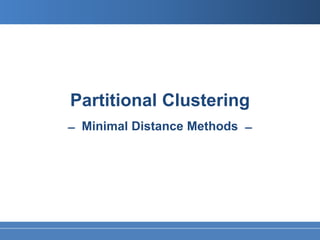

Partitional Clustering ̶ Minimal Distance Methods ̶
Partitional Clustering K=2 • Aims to partition n observations into K clusters. • The number of clusters and initial partition an initial partition are given. • The initial partition is considered as “not optimal“ and should be K=2 iteratively repartitioned. The number of clusters is given !!! final partition

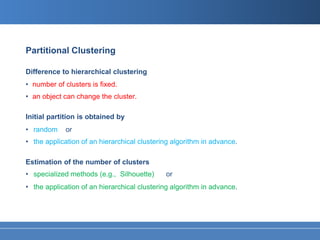

Partitional Clustering Difference to hierarchical clustering • number of clusters is fixed. • an object can change the cluster. Initial partition is obtained by • random or • the application of an hierarchical clustering algorithm in advance. Estimation of the number of clusters • specialized methods (e.g., Silhouette) or • the application of an hierarchical clustering algorithm in advance.
Partitional Clustering - Methods In this course we will introduce the minimal distance methods . . . • K-Means and • Fuzzy-C-Means
K-Means

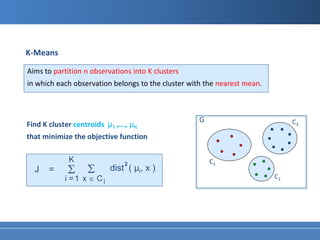

K-Means Aims to partition n observations into K clusters in which each observation belongs to the cluster with the nearest mean. G C3 Find K cluster centroids µ1 ,..., µK that minimize the objective function K C1 Σ Σ 2 J = dist ( µi, x ) i =1 x ∈ Ci C2
K-Means Aims to partition n observations into K clusters in which each observation belongs to the cluster with the nearest mean. G C3 Find K cluster centroids µ1 ,..., µK that minimize the objective function x x K C1 Σ Σ 2 J = dist ( µi, x ) x i =1 x ∈ Ci C2

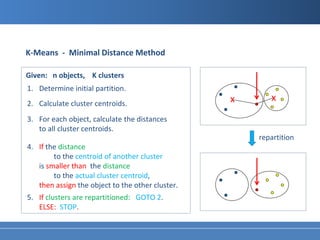

K-Means - Minimal Distance Method Given: n objects, K clusters 1. Determine initial partition. 2. Calculate cluster centroids. x x 3. For each object, calculate the distances to all cluster centroids. repartition 4. If the distance to the centroid of another cluster is smaller than the distance to the actual cluster centroid, then assign the object to the other cluster. 5. If clusters are repartitioned: GOTO 2. ELSE: STOP.
Example ₓ ₓ ₓ ₓ Initial Partition Final Partition

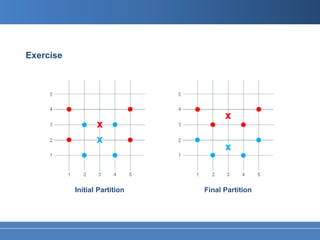

Exercise ₓ ₓ ₓ ₓ Initial Partition Final Partition

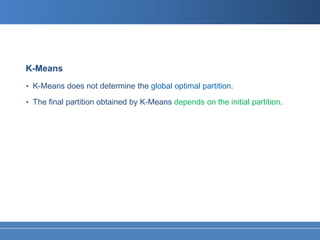

K-Means • K-Means does not determine the global optimal partition. • The final partition obtained by K-Means depends on the initial partition.

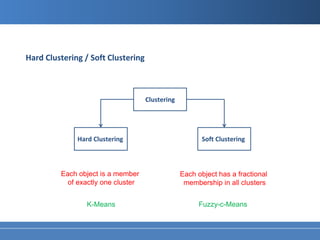

Hard Clustering / Soft Clustering Clustering Hard Clustering Soft Clustering Each object is a member Each object has a fractional of exactly one cluster membership in all clusters K-Means Fuzzy-c-Means
Fuzzy-c-Means

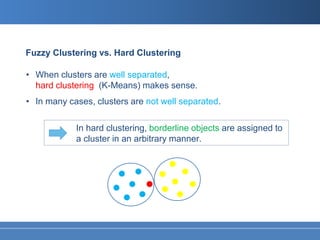

Fuzzy Clustering vs. Hard Clustering • When clusters are well separated, hard clustering (K-Means) makes sense. • In many cases, clusters are not well separated. In hard clustering, borderline objects are assigned to a cluster in an arbitrary manner.
Fuzzy Set Theory • Fuzzy Theory was introduced by Lofti Zadeh in 1965. • An object can belong to a set with a degree of membership between 0 and 1. • Classical set theory is a special case of fuzzy theory that restricts membership values to be either 0 or 1.

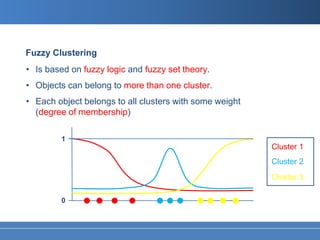

Fuzzy Clustering • Is based on fuzzy logic and fuzzy set theory. • Objects can belong to more than one cluster. • Each object belongs to all clusters with some weight (degree of membership) 1 Cluster 1 Cluster 2 Cluster 3 0

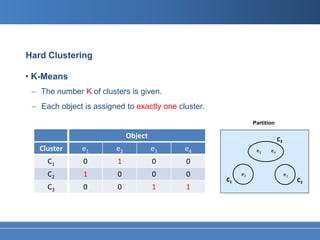

Hard Clustering • K-Means − The number K of clusters is given. − Each object is assigned to exactly one cluster. Partition Object C3 Cluster e1 e2 e3 e4 e3 e4 C1 0 1 0 0 C2 1 0 0 0 e2 e1 C1 C2 C3 0 0 1 1

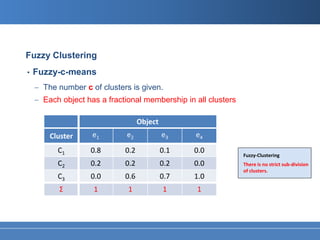

Fuzzy Clustering • Fuzzy-c-means − The number c of clusters is given. − Each object has a fractional membership in all clusters Object Cluster e1 e2 e3 e4 C1 0.8 0.2 0.1 0.0 Fuzzy-Clustering C2 0.2 0.2 0.2 0.0 There is no strict sub-division of clusters. C3 0.0 0.6 0.7 1.0 Σ 1 1 1 1
Fuzzy-c-Means • Membership Matrix U = ( u i k ) ∈ [0, 1]c x n The entry u i k denotes the degree of membership of object k in cluster i . Object 1 Object 2 … Object n Cluster 1 u11 u12 … u1n Cluster 2 u21 u22 … u2n … … … … Cluster c uc1 uc2 … ucn

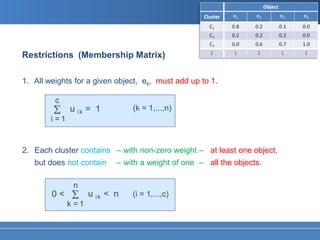

Restrictions (Membership Matrix) 1. All weights for a given object, ek, must add up to 1. c Σ u ik = 1 (k = 1,...,n) i =1 2. Each cluster contains – with non-zero weight – at least one object, but does not contain – with a weight of one – all the objects. n 0< Σ u ik < n (i = 1,...,c) k =1

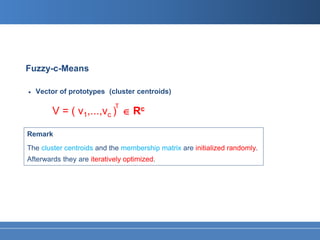

Fuzzy-c-Means • Vector of prototypes (cluster centroids) T V = ( v1,...,vc ) ∈ Rc Remark The cluster centroids and the membership matrix are initialized randomly. Afterwards they are iteratively optimized.

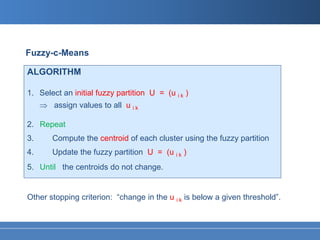

Fuzzy-c-Means ALGORITHM 1. Select an initial fuzzy partition U = (u i k ) ⇒ assign values to all u i k 2. Repeat 3. Compute the centroid of each cluster using the fuzzy partition 4. Update the fuzzy partition U = (u i k ) 5. Until the centroids do not change. Other stopping criterion: “change in the u i k is below a given threshold”.

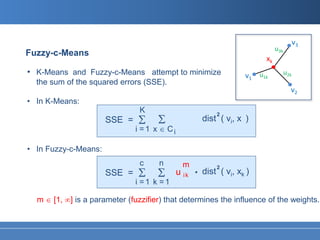

v3 u3k Fuzzy-c-Means xk • K-Means and Fuzzy-c-Means attempt to minimize v1 u1k u2k the sum of the squared errors (SSE). v2 • In K-Means: K Σ Σ 2 SSE = dist ( vi, x ) i =1 x ∈ Ci • In Fuzzy-c-Means: c n m SSE = Σ Σ u ik . 2 dist ( vi, xk ) i =1 k =1 m ∈ [1, ∞] is a parameter (fuzzifier) that determines the influence of the weights.
v3 u3k Computing Cluster Centroids xk • For each cluster i = 1,...,c the centroid is defined by v1 u1k u2k n v2 Σ u m xk k = 1 ik _________________ ( i = 1,...,c ) vi = n m Σ u ik (V) k=1 • This is an extension of the definition of centroids of k-means. • All points are considered and the contribution of each point to the centroid is weighted by its membership degrees.

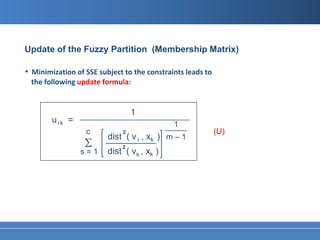

Update of the Fuzzy Partition (Membership Matrix) • Minimization of SSE subject to the constraints leads to the following update formula: 1 ______________________________________ u ik = 1 _____ c 2 (U) dist ( v i , xk ) m – 1 Σ __________ 2 s=1 dist ( vs , xk )

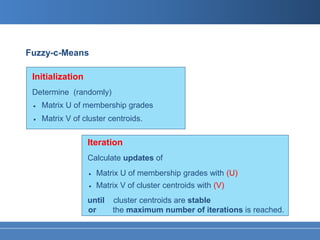

Fuzzy-c-Means Initialization Determine (randomly) • Matrix U of membership grades • Matrix V of cluster centroids. Iteration Calculate updates of • Matrix U of membership grades with (U) • Matrix V of cluster centroids with (V) until cluster centroids are stable or the maximum number of iterations is reached.

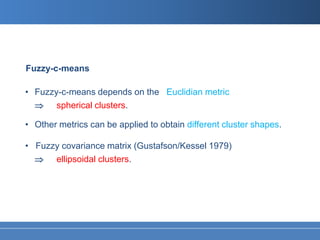

Fuzzy-c-means • Fuzzy-c-means depends on the Euclidian metric ⇒ spherical clusters. • Other metrics can be applied to obtain different cluster shapes. • Fuzzy covariance matrix (Gustafson/Kessel 1979) ⇒ ellipsoidal clusters.
Cluster Validity Indizes

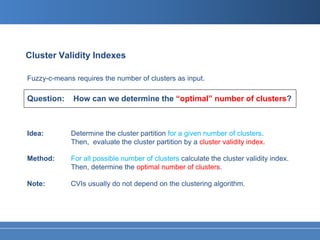

Cluster Validity Indexes Fuzzy-c-means requires the number of clusters as input. Question: How can we determine the “optimal” number of clusters? Idea: Determine the cluster partition for a given number of clusters. Then, evaluate the cluster partition by a cluster validity index. Method: For all possible number of clusters calculate the cluster validity index. Then, determine the optimal number of clusters. Note: CVIs usually do not depend on the clustering algorithm.

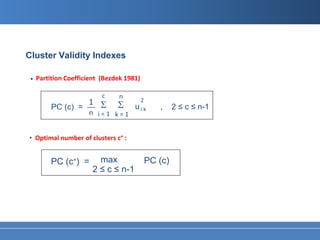

Cluster Validity Indexes • Partition Coefficient (Bezdek 1981) c n 1 2 PC (c) = __ Σ Σ uik , 2 ≤ c ≤ n-1 n i=1 k=1 • Optimal number of clusters c∗ : PC (c∗) = max PC (c) 2 ≤ c ≤ n-1
Cluster Validity Indexes • Partition Entropy (Bezdek 1974) c n 1 PC (c) = _ __ Σ Σ u i k log2 u i k , 2 ≤ c ≤ n-1 n i=1 k=1 • Optimal number of clusters c∗ : PC (c∗) = min PC (c) 2 ≤ c ≤ n-1 • Drawback of PC and PE: Only degrees of memberships are considered. The geometry of the data set is neglected.

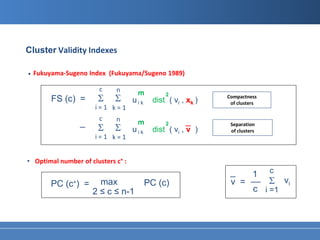

Cluster Validity Indexes • Fukuyama-Sugeno Index (Fukuyama/Sugeno 1989) c n m Σ Σ 2 Compactness FS (c) = uik dist ( vi , xk ) of clusters i=1 k=1 c n _ m _ Σ Σ Separation 2 uik dist ( vi , v ) of clusters i=1 k=1 • Optimal number of clusters c∗ : _ 1 c PC (c∗) = max PC (c) v = __ Σ vi 2 ≤ c ≤ n-1 c i =1
Application

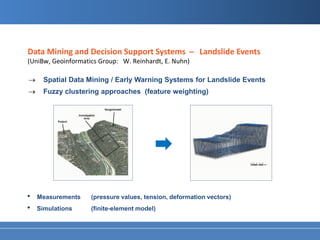

Data Mining and Decision Support Systems ̶ Landslide Events (UniBw, Geoinformatics Group: W. Reinhardt, E. Nuhn) → Spatial Data Mining / Early Warning Systems for Landslide Events → Fuzzy clustering approaches (feature weighting) • Measurements (pressure values, tension, deformation vectors) • Simulations (finite-element model)

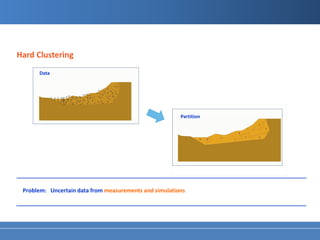

Hard Clustering Data Partition Problem: Uncertain data from measurements and simulations

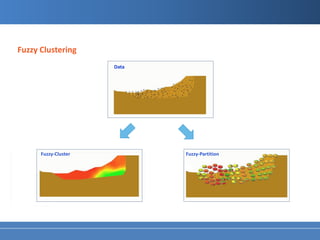

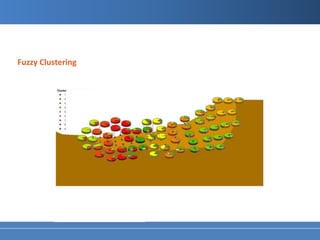

Fuzzy Clustering Data Fuzzy-Cluster Fuzzy-Partition
Fuzzy Clustering

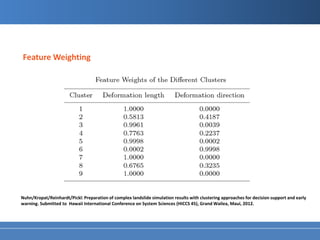

Feature Weighting Nuhn/Kropat/Reinhardt/Pickl: Preparation of complex landslide simulation results with clustering approaches for decision support and early warning. Submitted to Hawaii International Conference on System Sciences (HICCS 45), Grand Wailea, Maui, 2012.
