Cloud Foundry and OpenStack – Marriage Made in Heaven !
Apps
Animesh Singh, Egle Sigler, Jason Anderson
@animeshsingh, @eglute, @andersonljason
CF Summit, San Francisco
June 9-11

2. 2

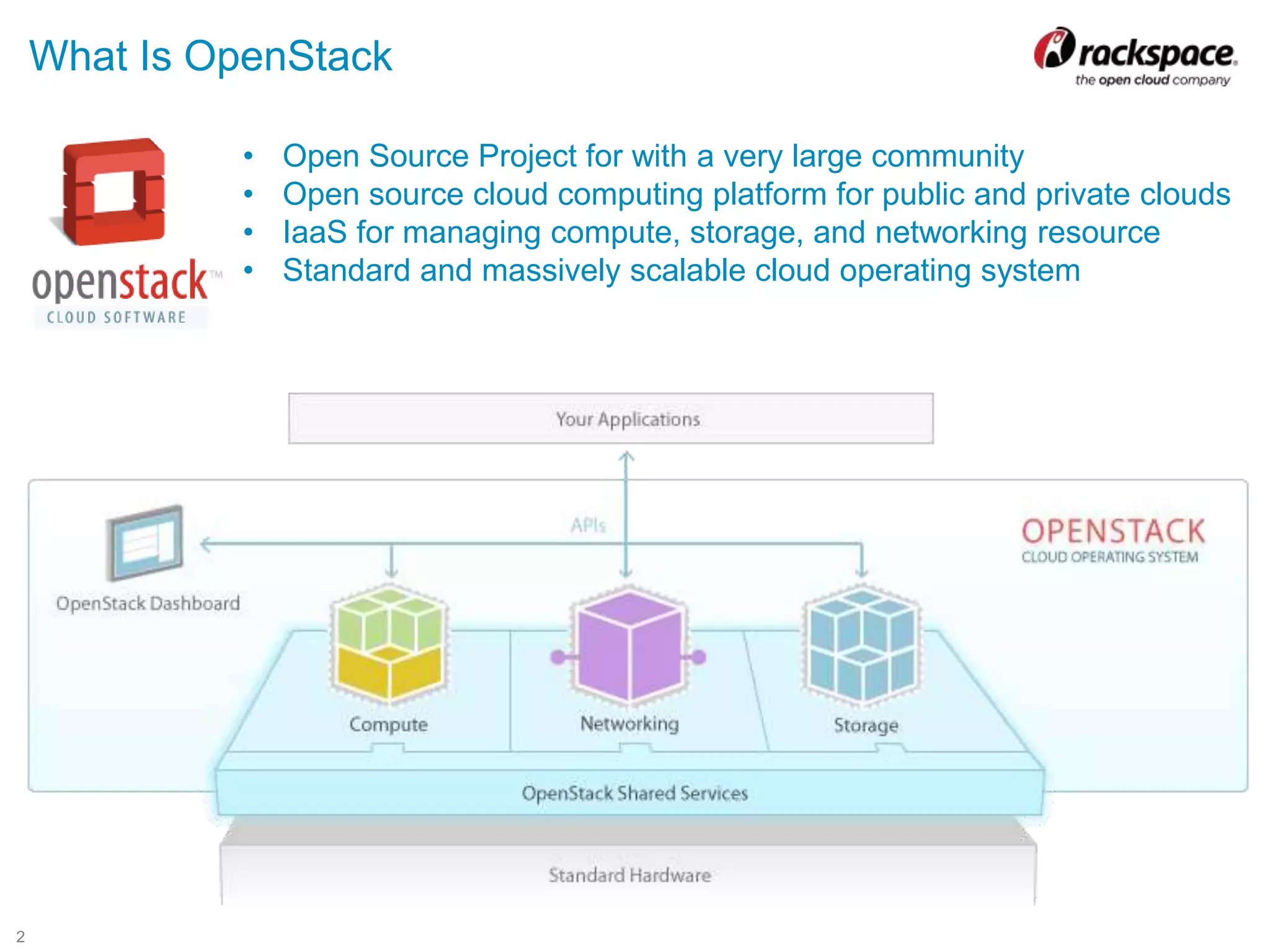

What Is OpenStack
• Open Source Project for with a very large community
• Open source cloud computing platform for public and private clouds
• IaaS for managing compute, storage, and networking resource
• Standard and massively scalable cloud operating system

3. 3
Who Is OpenStack
• Founded by Rackspace and NASA in 2010
• Open Source global community of developers, testers, operators, and users

4. 4

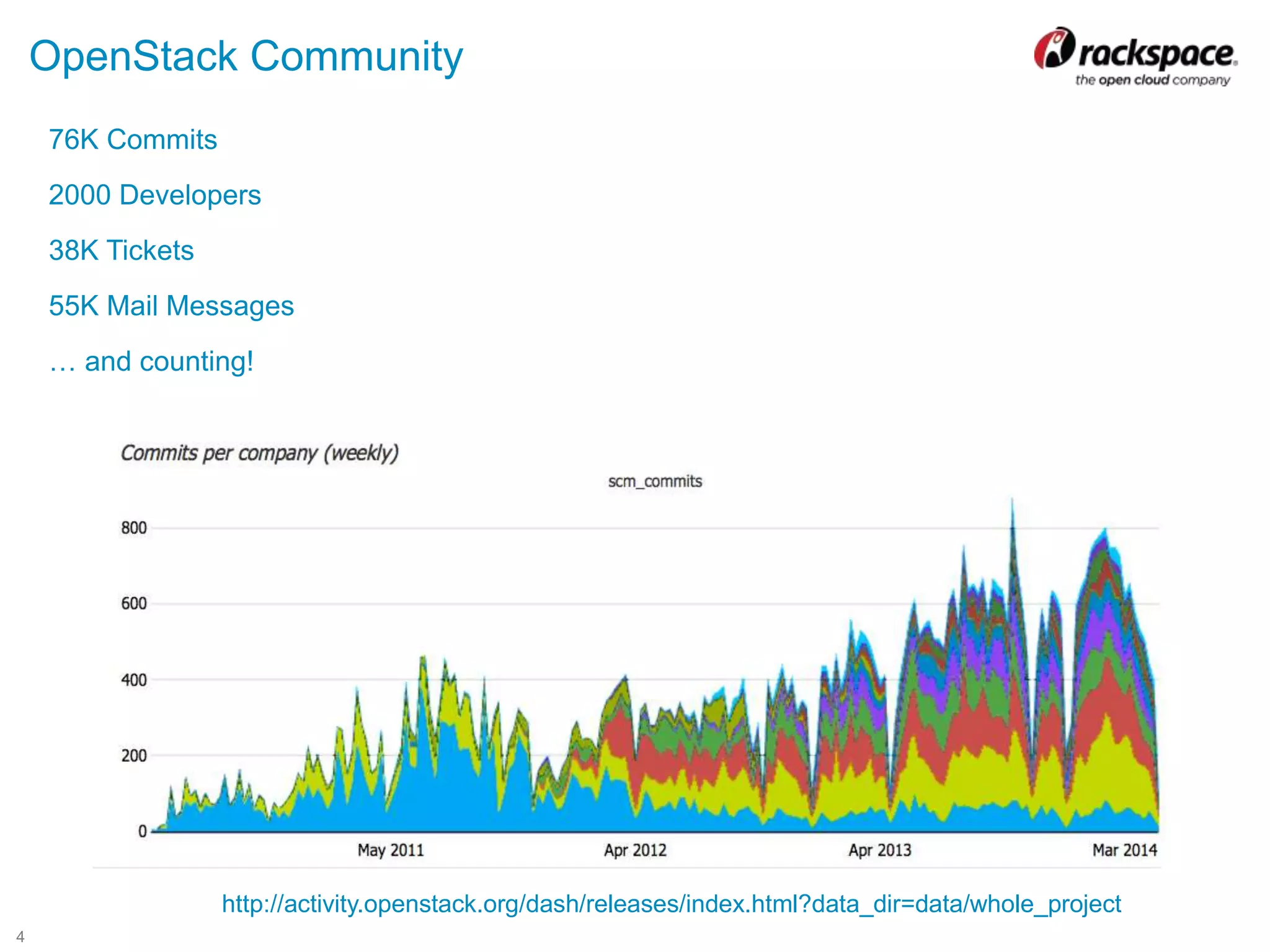

OpenStack Community
76K Commits
2000 Developers
38K Tickets
55K Mail Messages
… and counting!
http://activity.openstack.org/dash/releases/index.html?data_dir=data/whole_project

5. 5

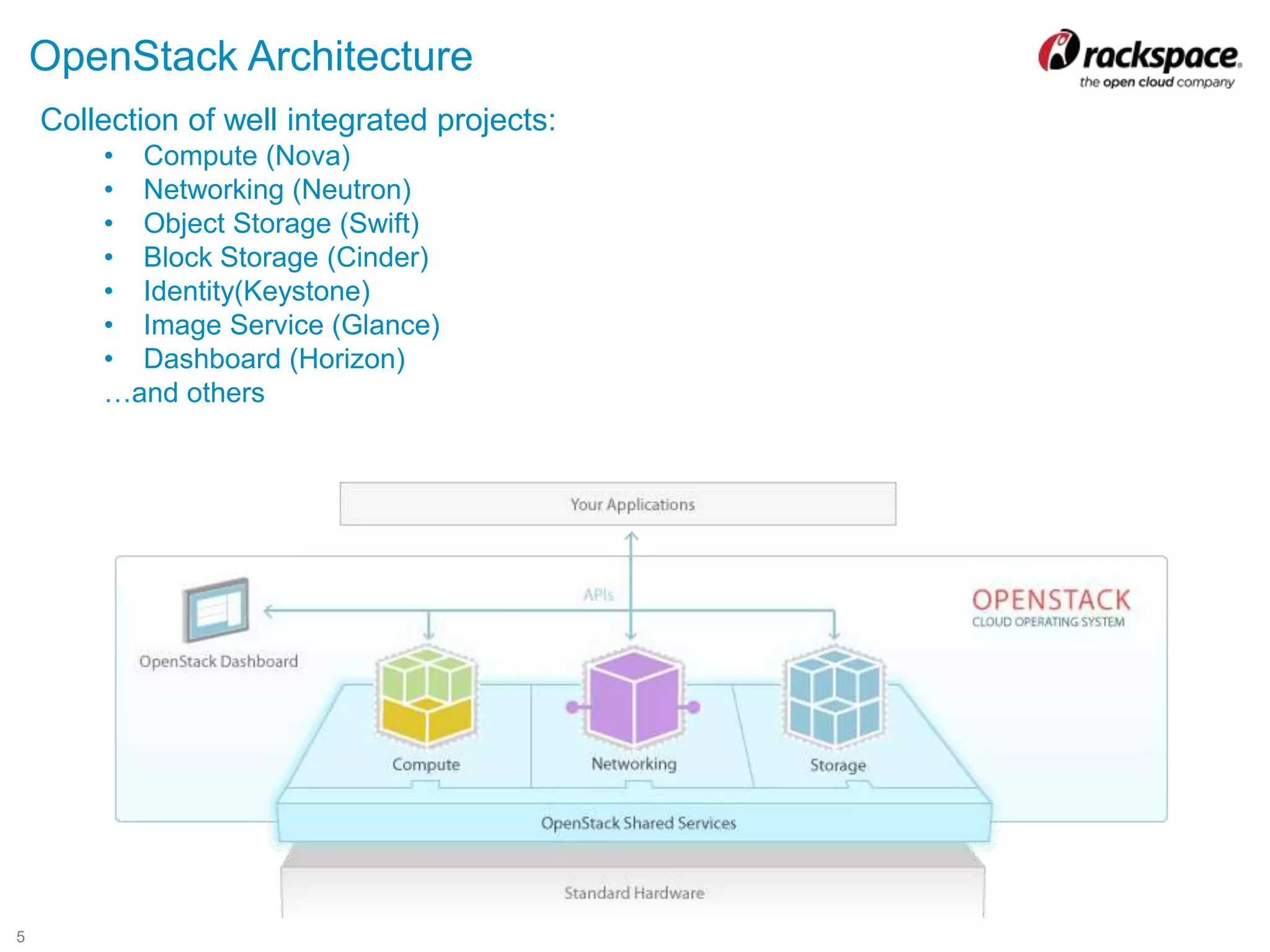

OpenStack Architecture
Collection of well integrated projects:
• Compute (Nova)
• Networking (Neutron)
• Object Storage (Swift)
• Block Storage (Cinder)
• Identity(Keystone)
• Image Service (Glance)
• Dashboard (Horizon)
…and others

6. 6

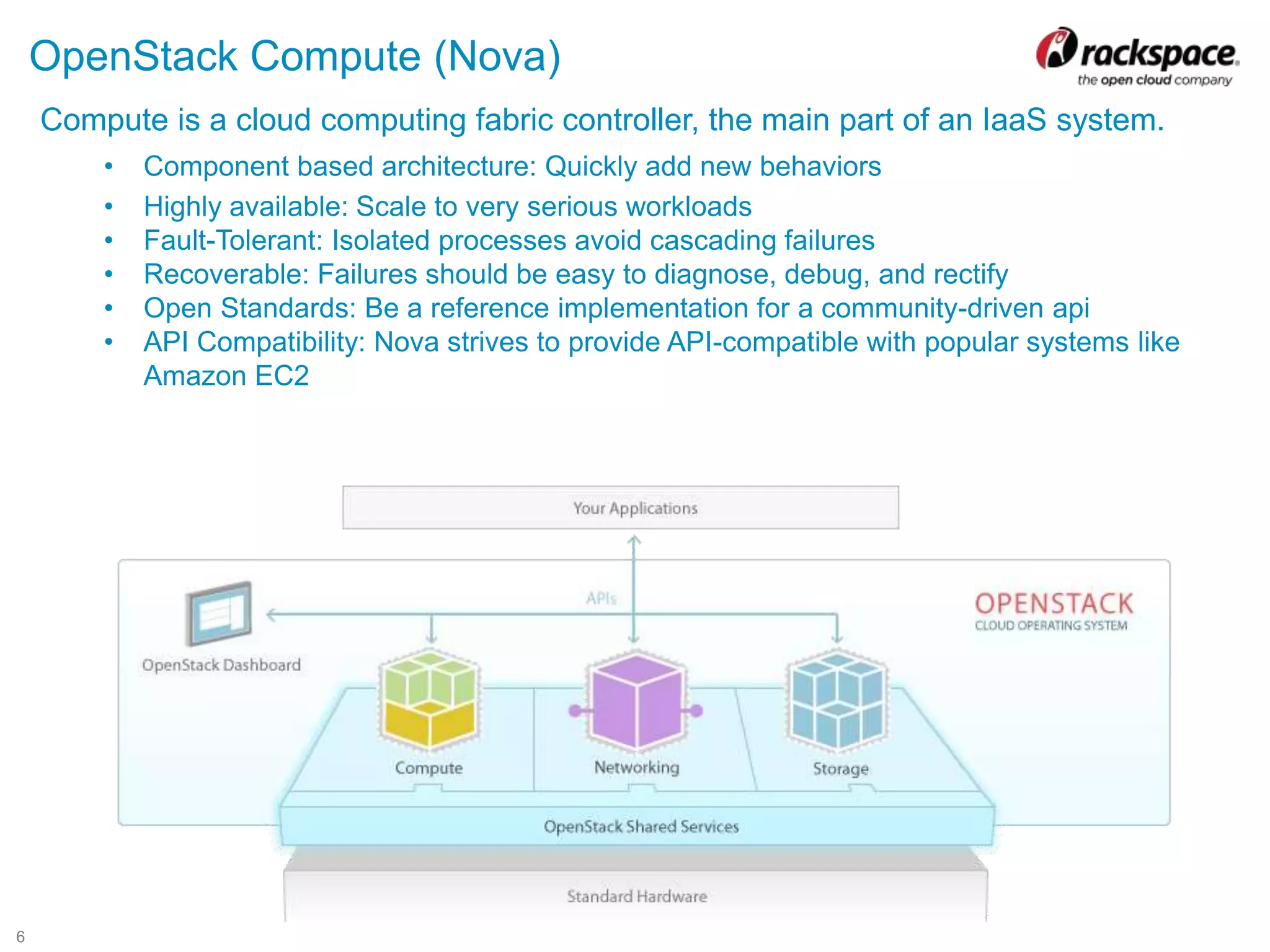

OpenStack Compute (Nova)
Compute is a cloud computing fabric controller, the main part of an IaaS system.
• Component based architecture: Quickly add new behaviors
• Highly available: Scale to very serious workloads
• Fault-Tolerant: Isolated processes avoid cascading failures
• Recoverable: Failures should be easy to diagnose, debug, and rectify
• Open Standards: Be a reference implementation for a community-driven api
• API Compatibility: Nova strives to provide API-compatible with popular systems like
Amazon EC2

7. 7

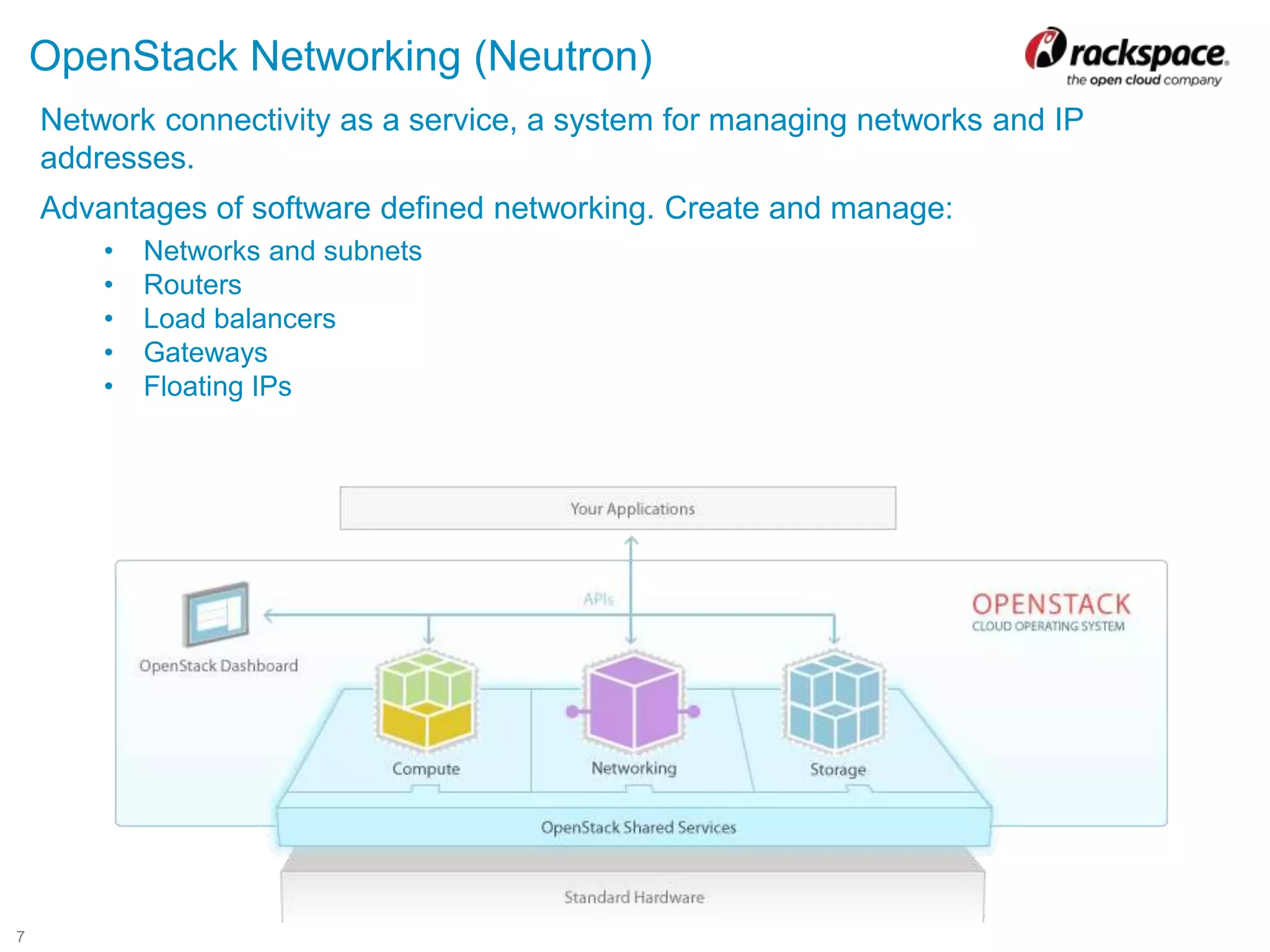

OpenStack Networking (Neutron)
Network connectivity as a service, a system for managing networks and IP
addresses.
Advantages of software defined networking. Create and manage:
• Networks and subnets
• Routers
• Load balancers
• Gateways
• Floating IPs

8. 8

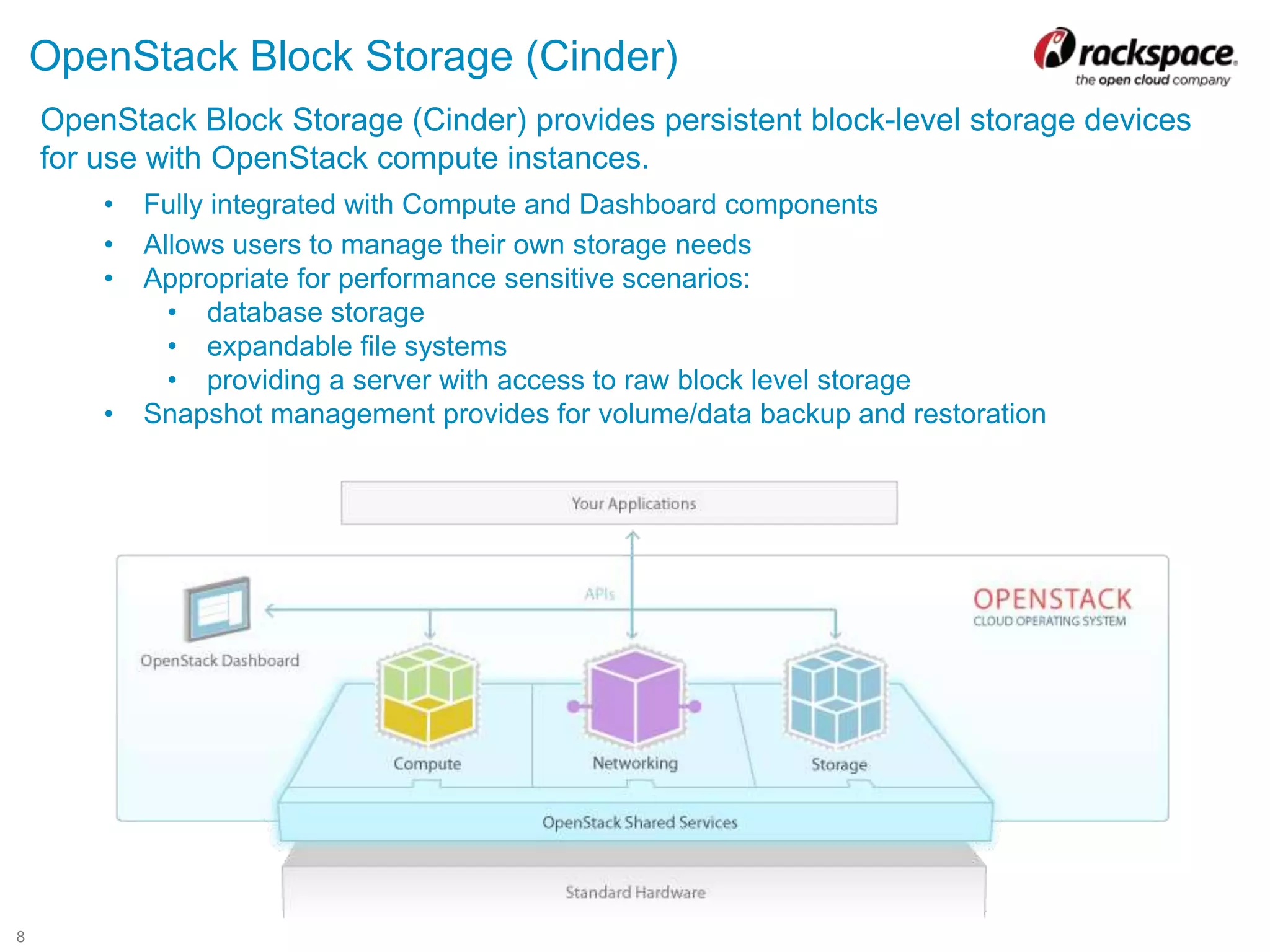

OpenStack Block Storage (Cinder)
OpenStack Block Storage (Cinder) provides persistent block-level storage devices
for use with OpenStack compute instances.
• Fully integrated with Compute and Dashboard components
• Allows users to manage their own storage needs
• Appropriate for performance sensitive scenarios:
• database storage
• expandable file systems
• providing a server with access to raw block level storage
• Snapshot management provides for volume/data backup and restoration

9. 9

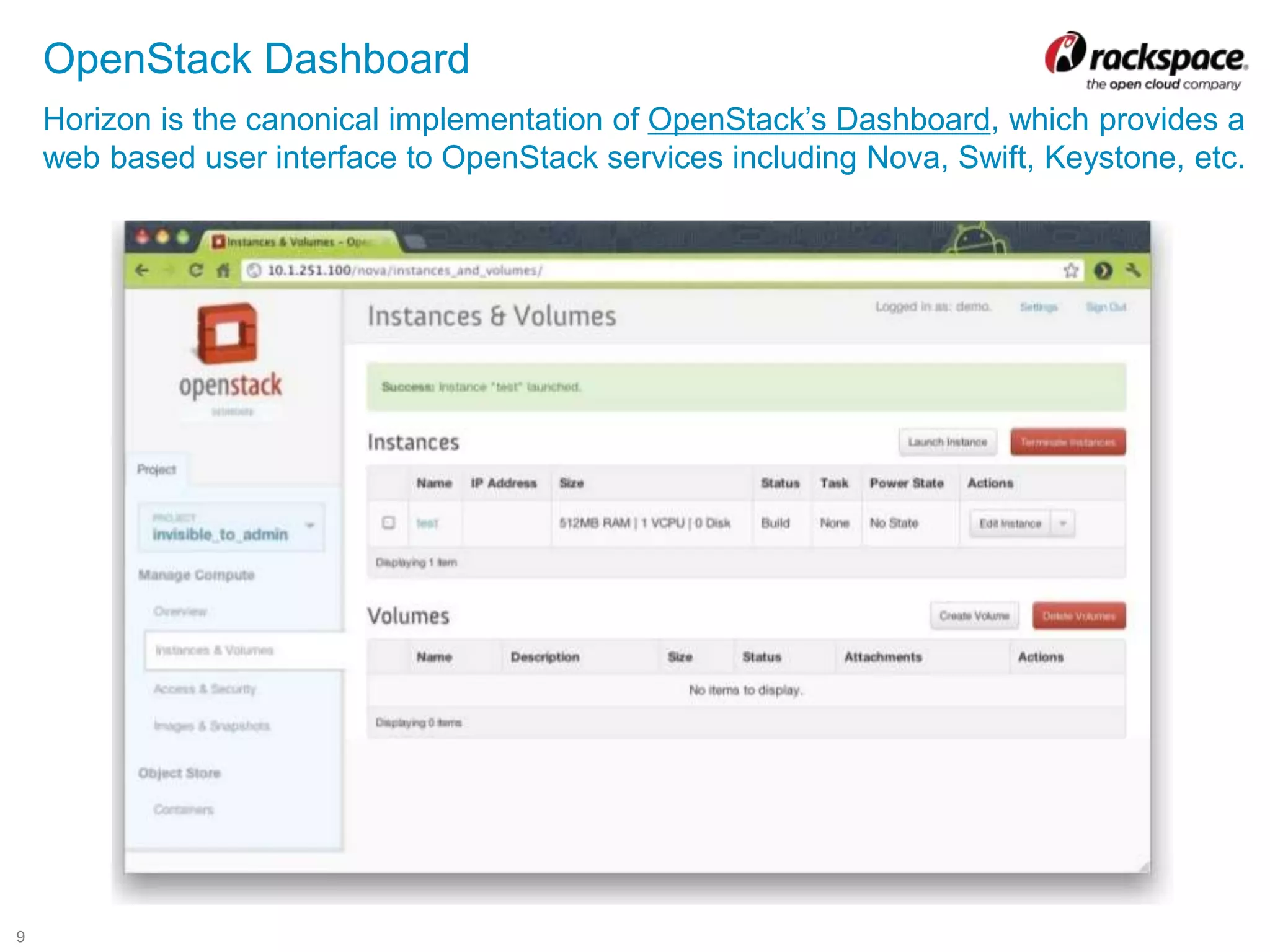

OpenStack Dashboard
Horizon is the canonical implementation of OpenStack’s Dashboard, which provides a
web based user interface to OpenStack services including Nova, Swift, Keystone, etc.

10. 10

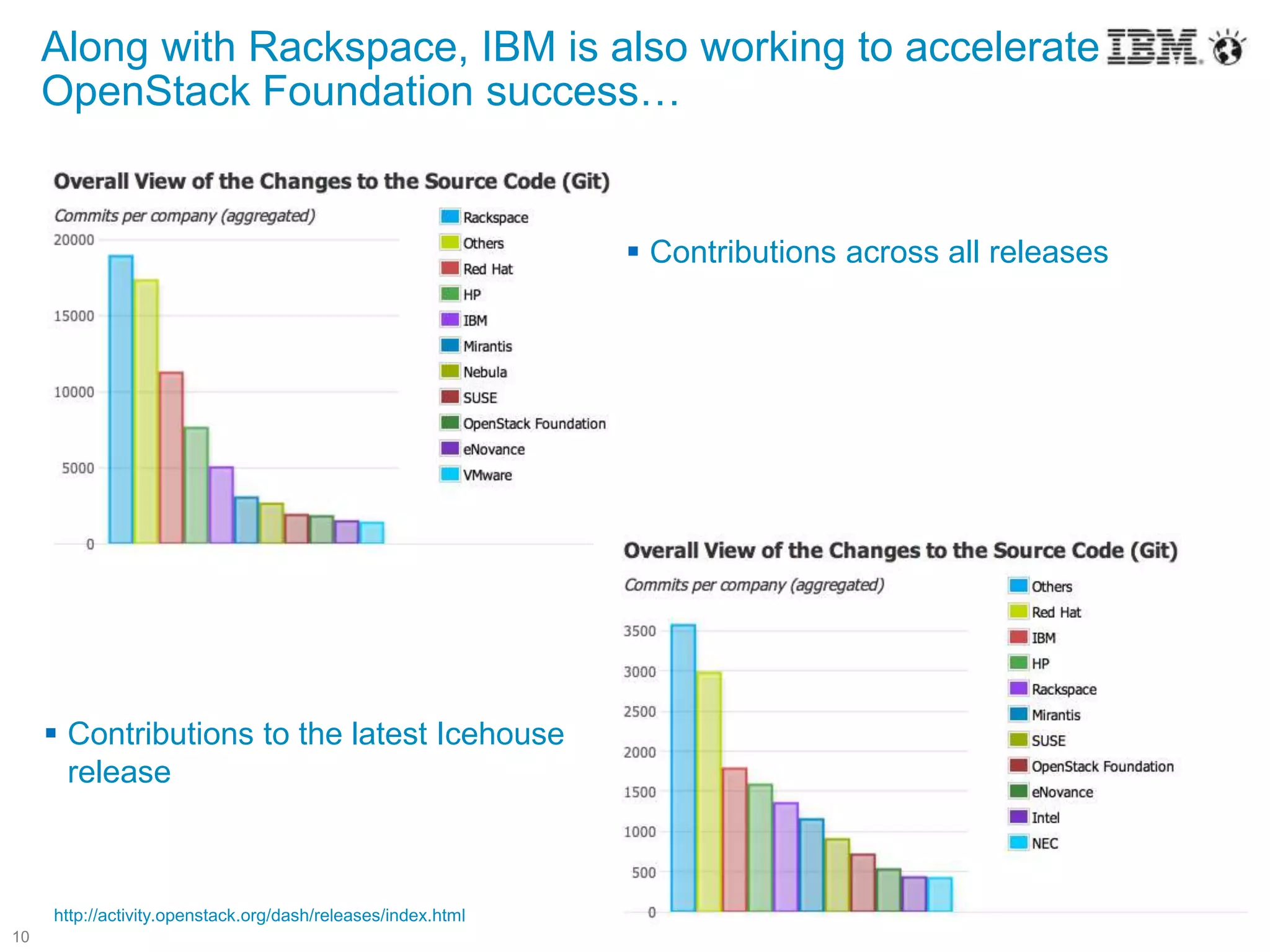

Along with Rackspace, IBM is also working to accelerate
OpenStack Foundation success…
 Contributions across all releases
 Contributions to the latest Icehouse
release
http://activity.openstack.org/dash/releases/index.html

11. 11

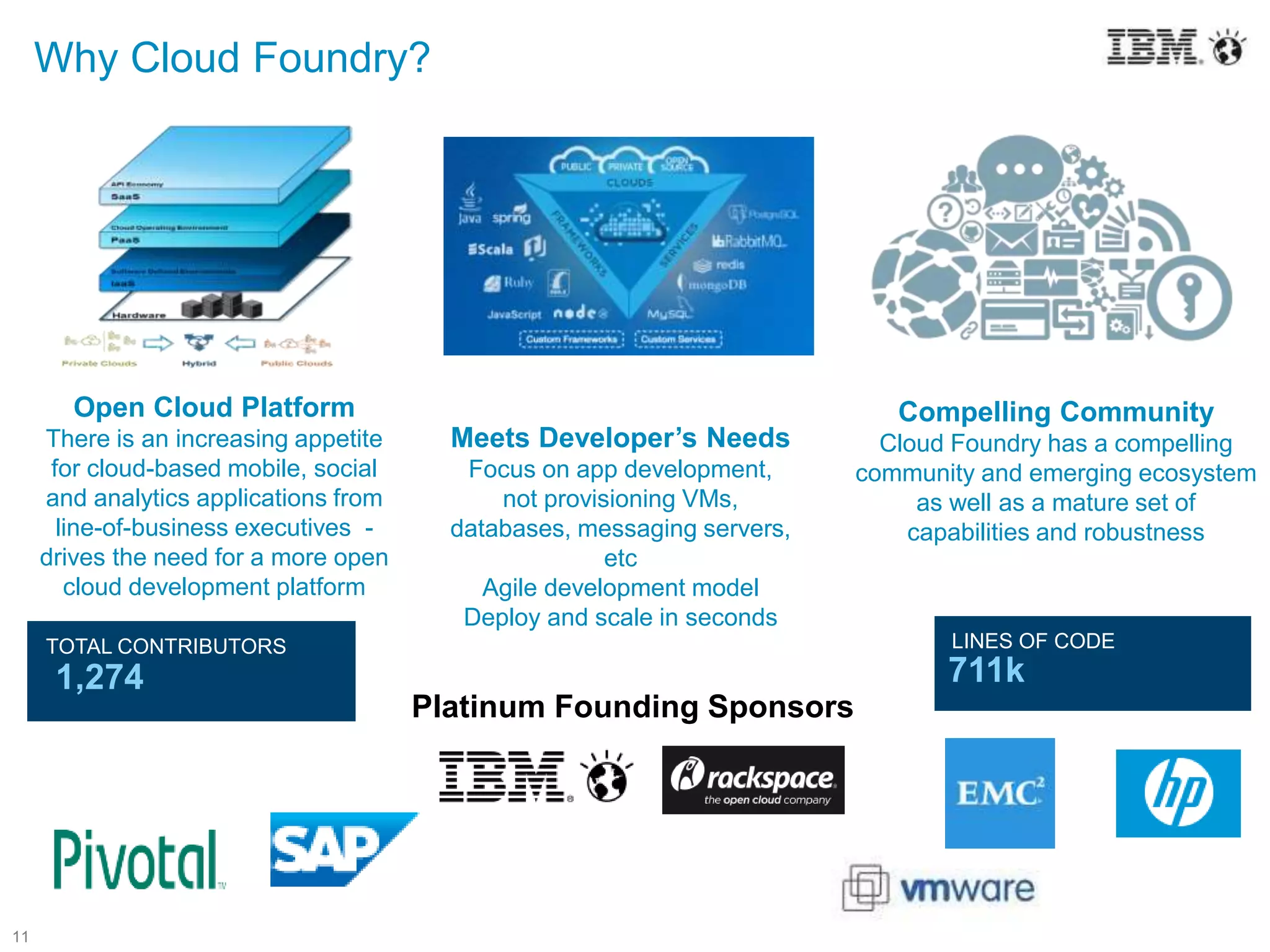

Why Cloud Foundry?
Meets Developer’s Needs
Focus on app development,
not provisioning VMs,
databases, messaging servers,
etc
Agile development model
Deploy and scale in seconds
Open Cloud Platform
There is an increasing appetite
for cloud-based mobile, social
and analytics applications from
line-of-business executives -
drives the need for a more open
cloud development platform
Compelling Community
Cloud Foundry has a compelling
community and emerging ecosystem
as well as a mature set of
capabilities and robustness
Platinum Founding Sponsors
1,274 711k
LINES OF CODETOTAL CONTRIBUTORS

12. 12

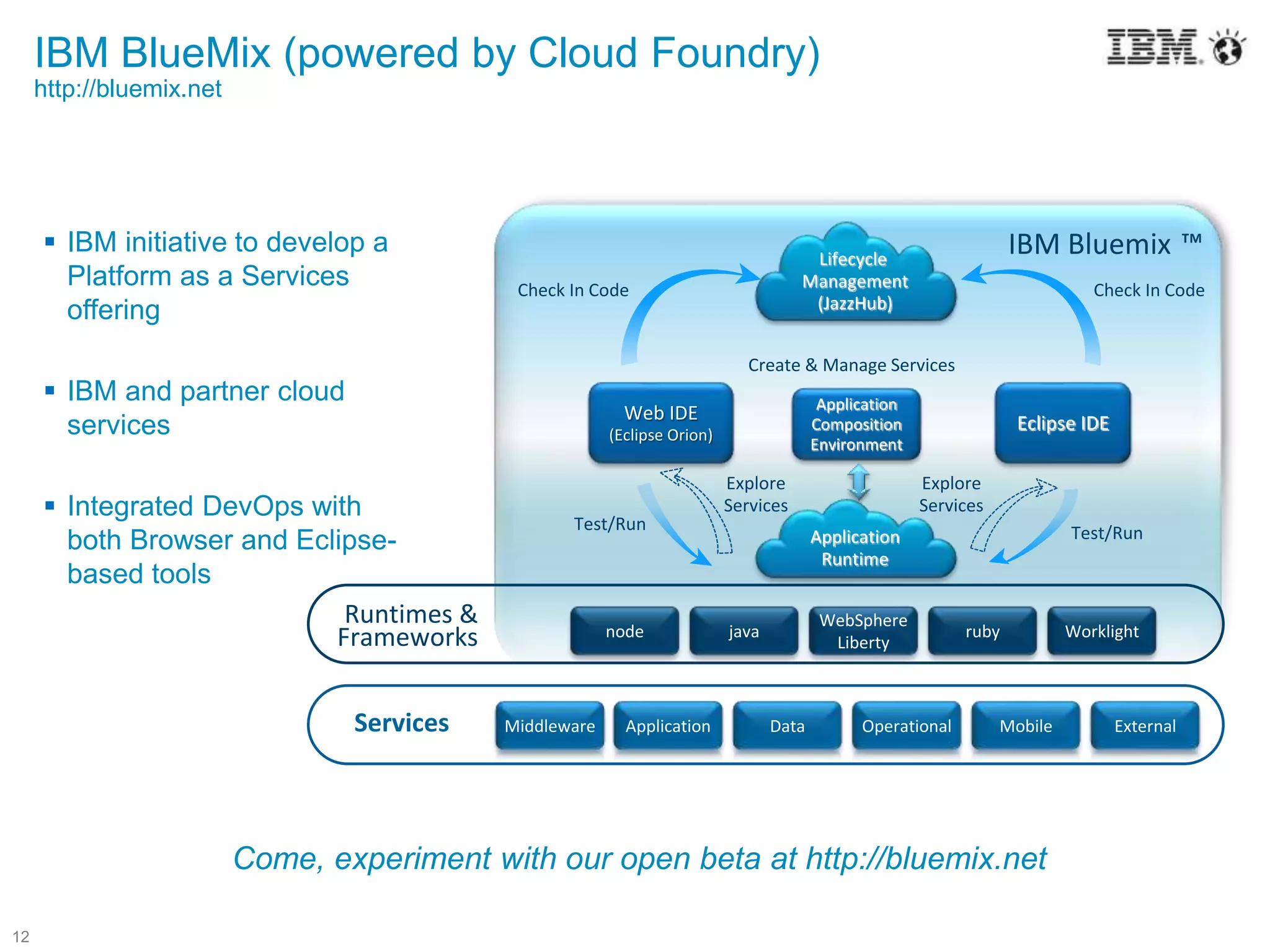

IBM BlueMix (powered by Cloud Foundry)
http://bluemix.net
 IBM initiative to develop a
Platform as a Services
offering
 IBM and partner cloud
services
 Integrated DevOps with
both Browser and Eclipse-
based tools
Services
Lifecycle
Management
(JazzHub)
Application
Runtime
Runtimes &
Frameworks
Middleware Application Operational Mobile ExternalData
node java ruby Worklight
WebSphere
Liberty
Web IDE
(Eclipse Orion)
Eclipse IDE
Application
Composition
Environment
Create & Manage Services
Test/Run Test/Run
Explore
Services
Explore
Services
IBM Bluemix ™
Check In Code Check In Code
Come, experiment with our open beta at http://bluemix.net

13. 13
Integrate !

14. 14
PaaS

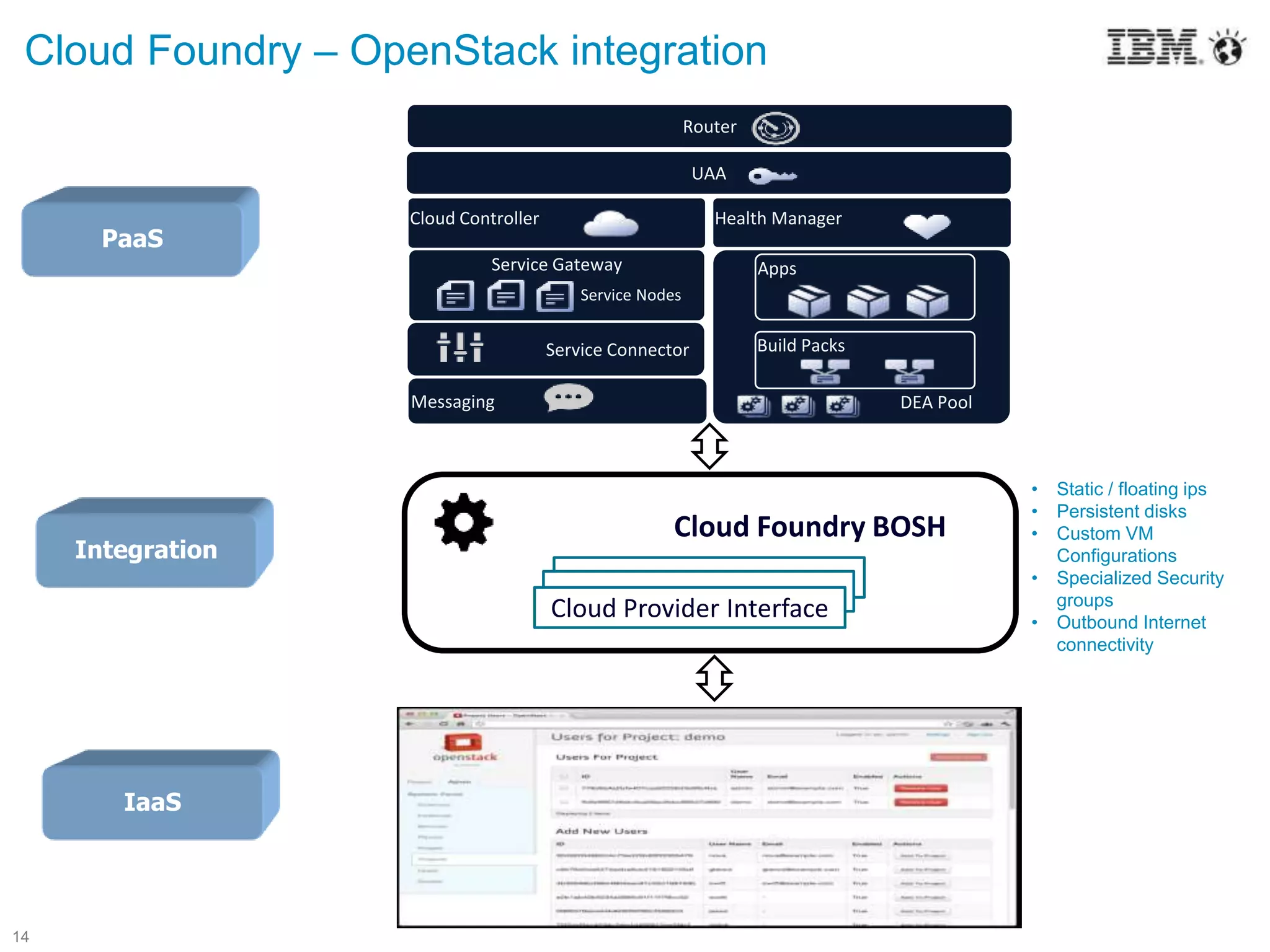

Cloud Foundry – OpenStack integration
Cloud
Integration
IaaS
UAA
Router
DEA Pool
Service Gateway Apps
Service Connector
Health Manager
Messaging
Cloud Controller
Build Packs
Service Nodes
Cloud Foundry BOSH
Cloud Provider Interface
• Static / floating ips
• Persistent disks
• Custom VM
Configurations
• Specialized Security
groups
• Outbound Internet
connectivity

15. 15

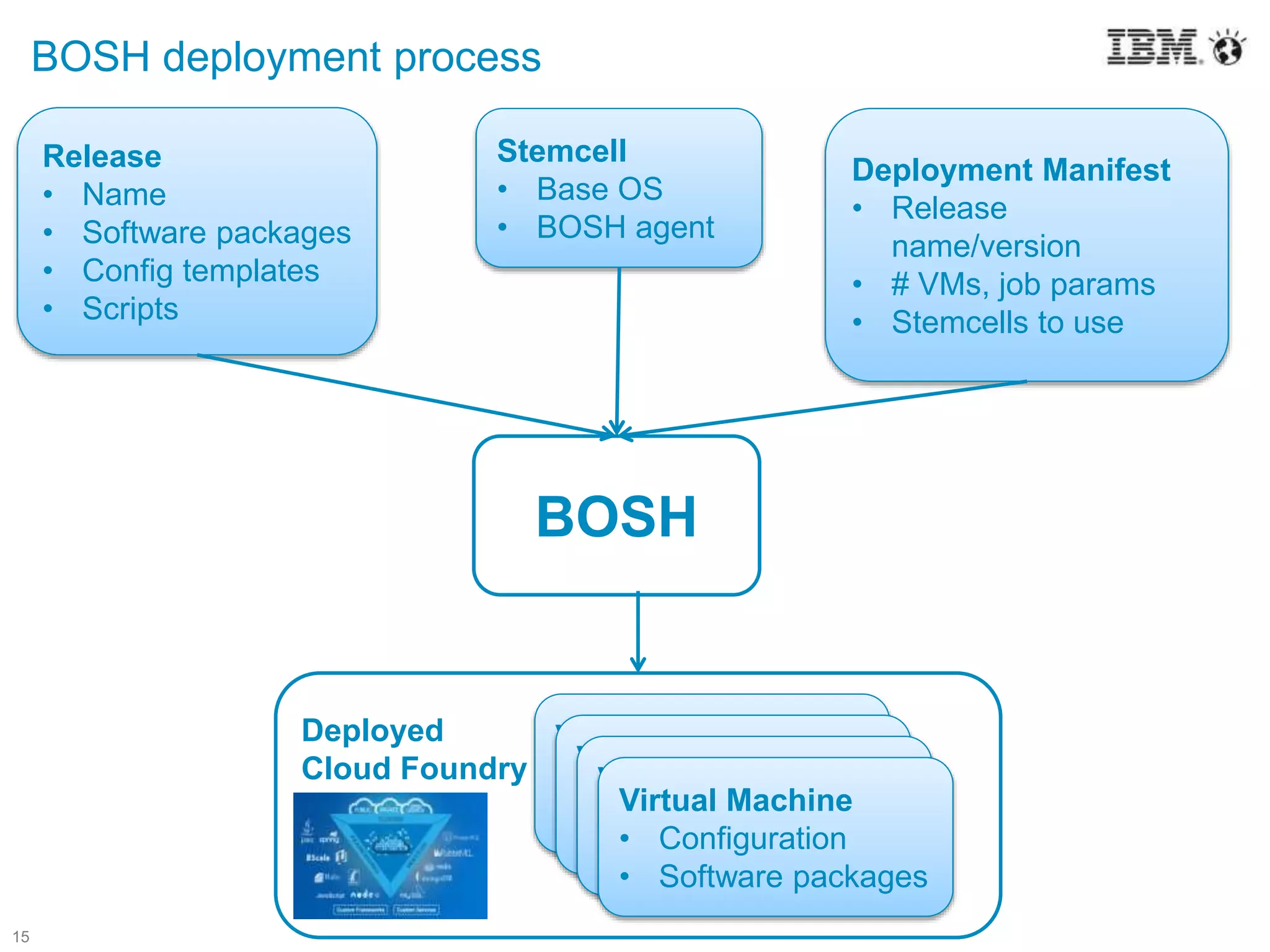

BOSH deployment process
Deployment Manifest
• Release
name/version
• # VMs, job params
• Stemcells to use
Stemcell
• Base OS
• BOSH agent
Release
• Name
• Software packages
• Config templates
• Scripts
BOSH
Deployed
Cloud Foundry
Virtual Machine
• Configuration
• Software Packages
Virtual Machine
• Configuration
• Software Packages
Virtual Machine
• Configuration
• Software Packages
Virtual Machine
• Configuration
• Software packages

16. 16
Automate (Leverage the power of community) !

17. 17

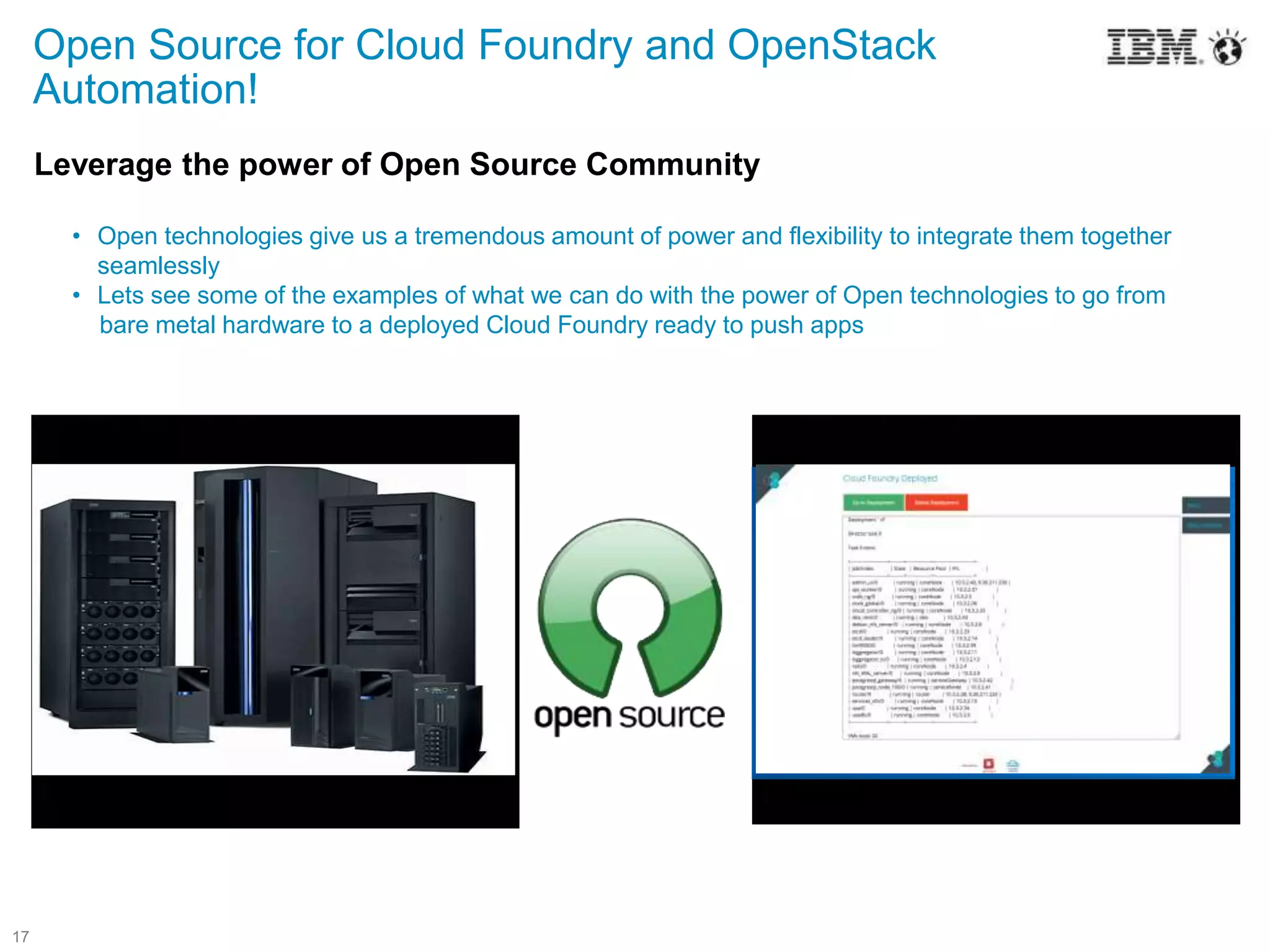

Leverage the power of Open Source Community
• Open technologies give us a tremendous amount of power and flexibility to integrate them together
seamlessly
• Lets see some of the examples of what we can do with the power of Open technologies to go from
bare metal hardware to a deployed Cloud Foundry ready to push apps
Open Source for Cloud Foundry and OpenStack
Automation!

18. 18

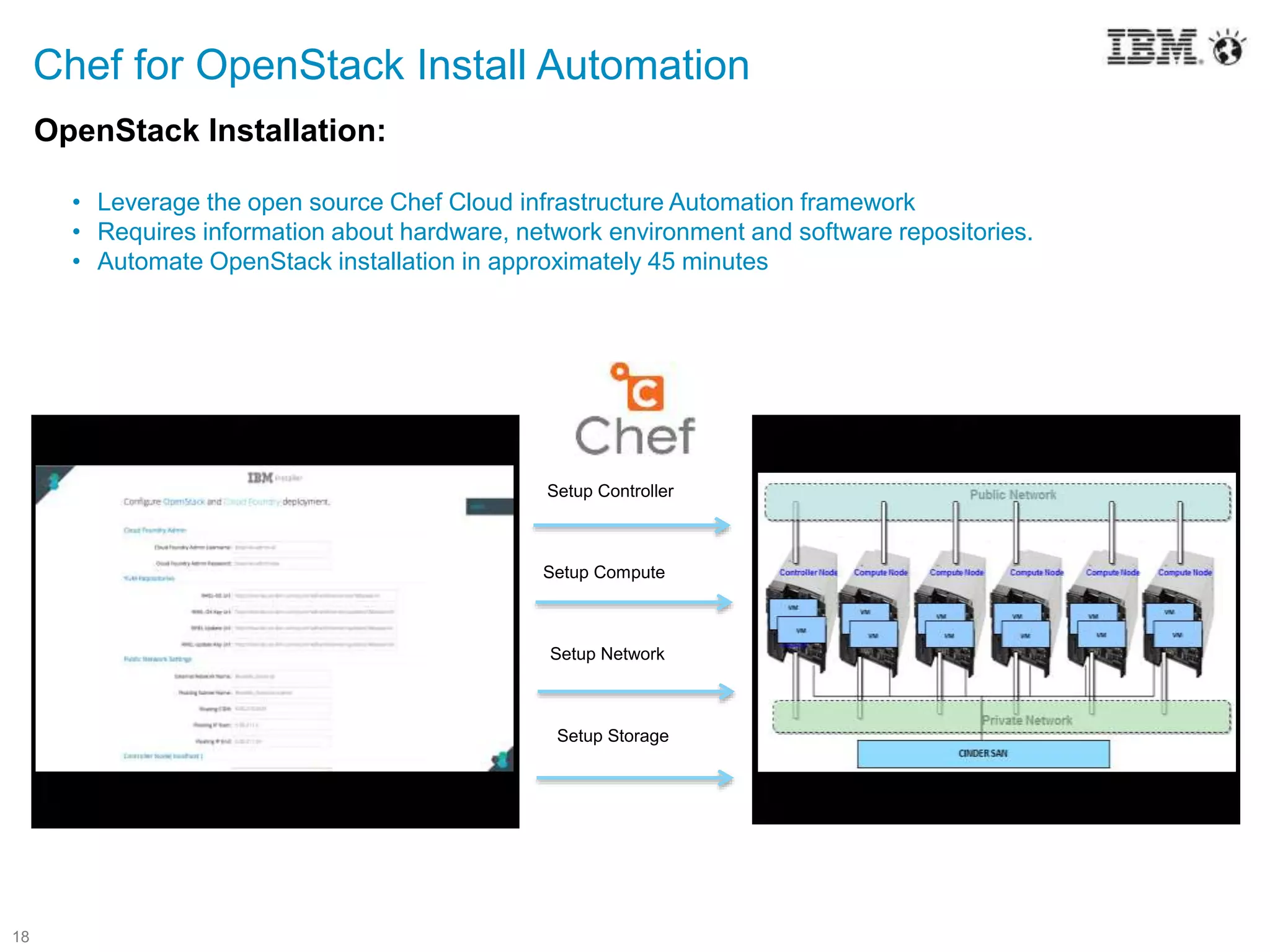

OpenStack Installation:
• Leverage the open source Chef Cloud infrastructure Automation framework
• Requires information about hardware, network environment and software repositories.
• Automate OpenStack installation in approximately 45 minutes
Chef for OpenStack Install Automation
Setup Compute
Setup Network
Setup Controller
Setup Storage

19. 19

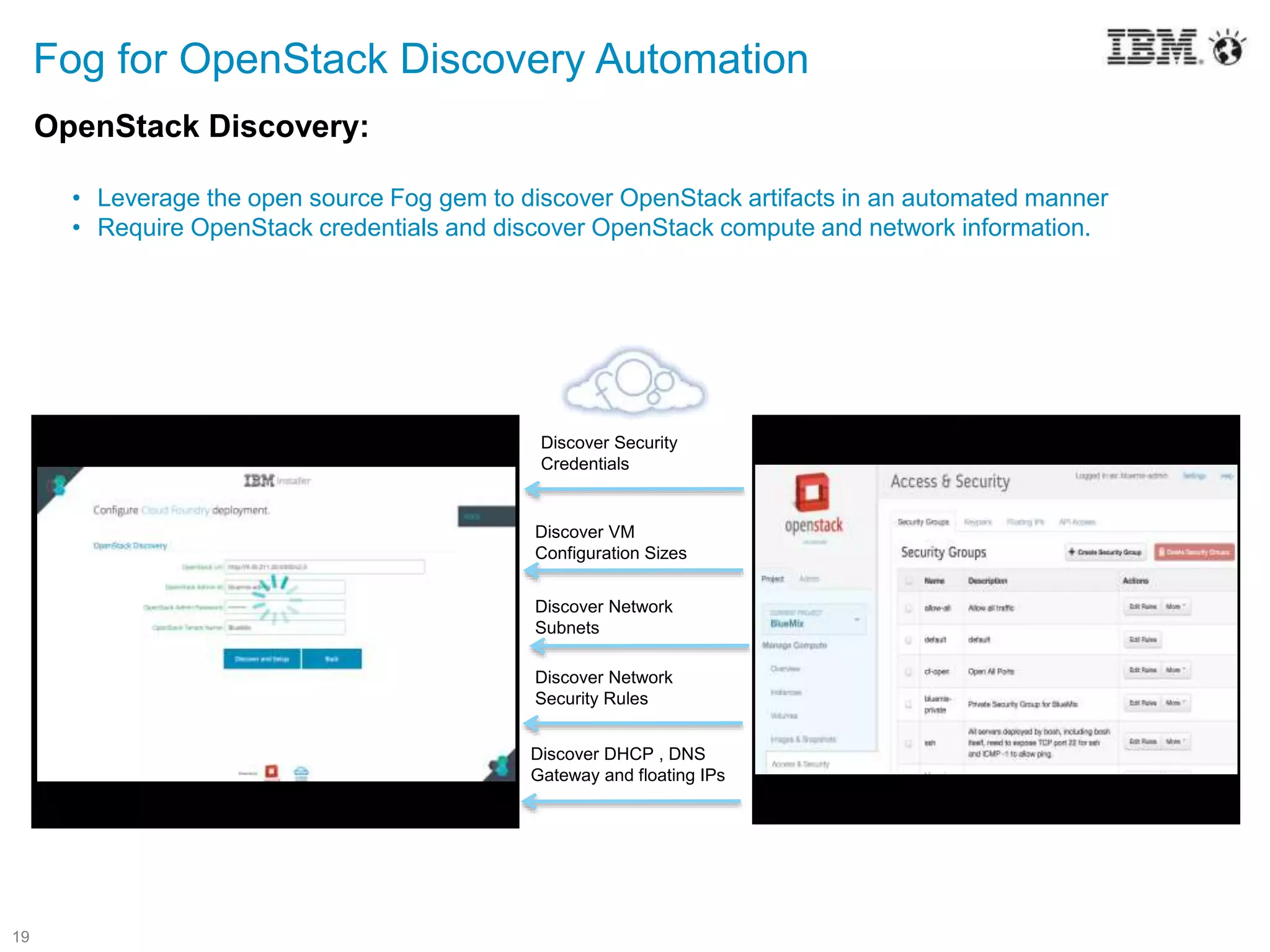

OpenStack Discovery:
• Leverage the open source Fog gem to discover OpenStack artifacts in an automated manner
• Require OpenStack credentials and discover OpenStack compute and network information.
Fog for OpenStack Discovery Automation
Discover VM
Configuration Sizes
Discover Network
Subnets
Discover Network
Security Rules
Discover DHCP , DNS
Gateway and floating IPs
Discover Security
Credentials

20. 20

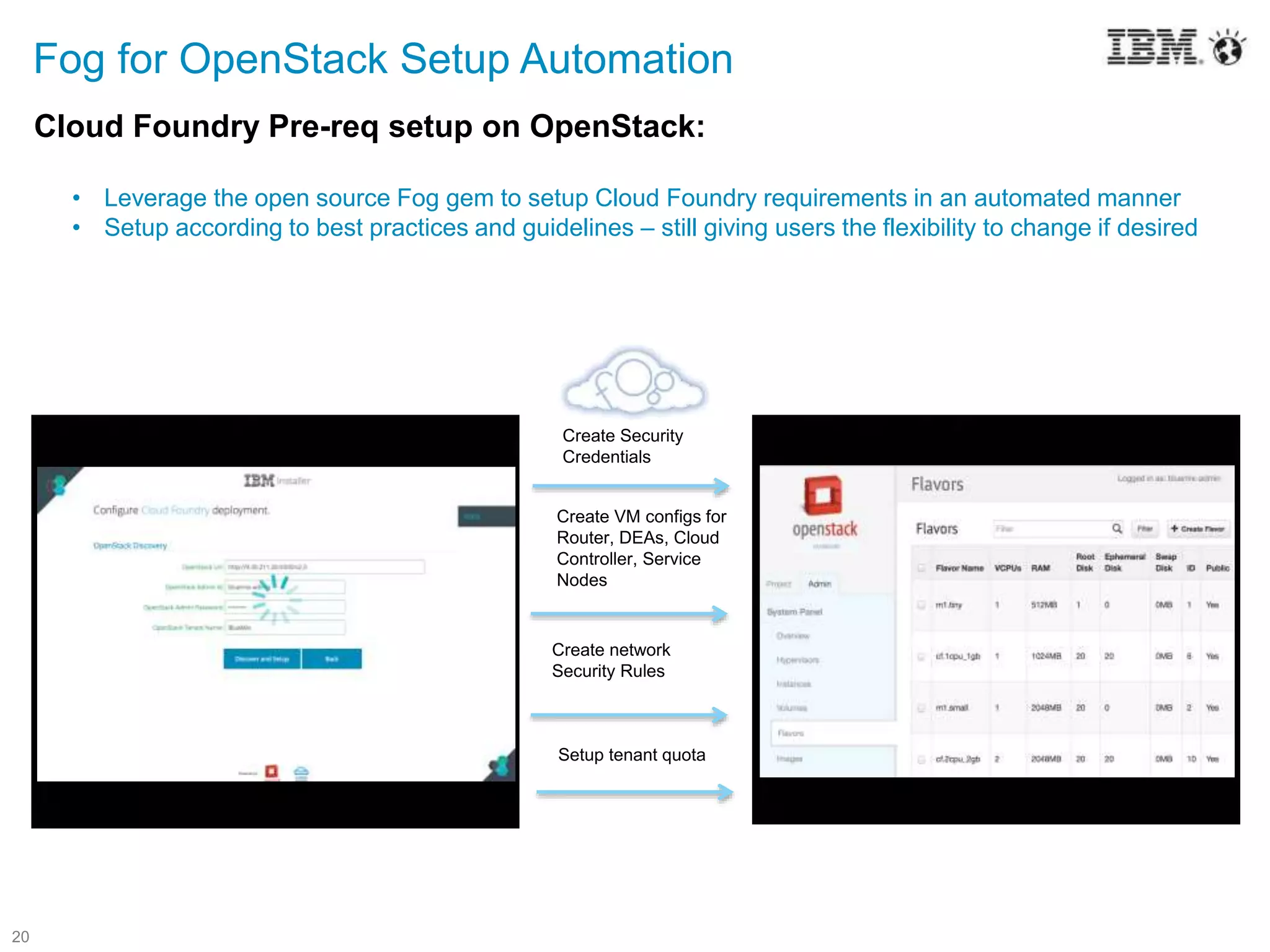

Fog for OpenStack Setup Automation
Cloud Foundry Pre-req setup on OpenStack:
• Leverage the open source Fog gem to setup Cloud Foundry requirements in an automated manner
• Setup according to best practices and guidelines – still giving users the flexibility to change if desired
Create Security
Credentials
Create VM configs for
Router, DEAs, Cloud
Controller, Service
Nodes
Create network
Security Rules
Setup tenant quota

21. 21
RUBY

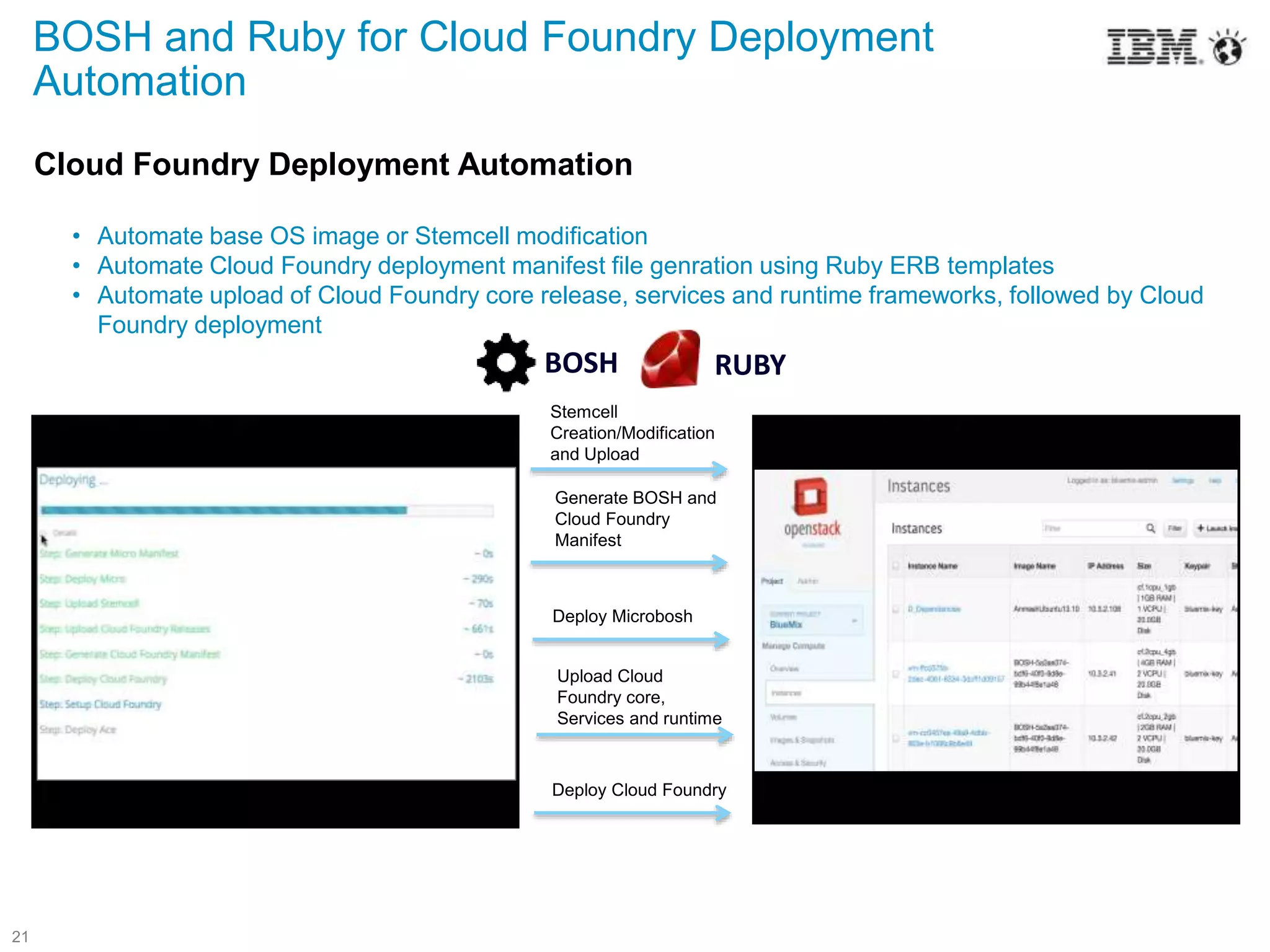

BOSH and Ruby for Cloud Foundry Deployment
Automation
Cloud Foundry Deployment Automation
• Automate base OS image or Stemcell modification
• Automate Cloud Foundry deployment manifest file genration using Ruby ERB templates
• Automate upload of Cloud Foundry core release, services and runtime frameworks, followed by Cloud
Foundry deployment
Stemcell
Creation/Modification
and Upload
Generate BOSH and
Cloud Foundry
Manifest
Upload Cloud
Foundry core,
Services and runtime
Deploy Cloud Foundry
Deploy Microbosh
BOSH

22. 22

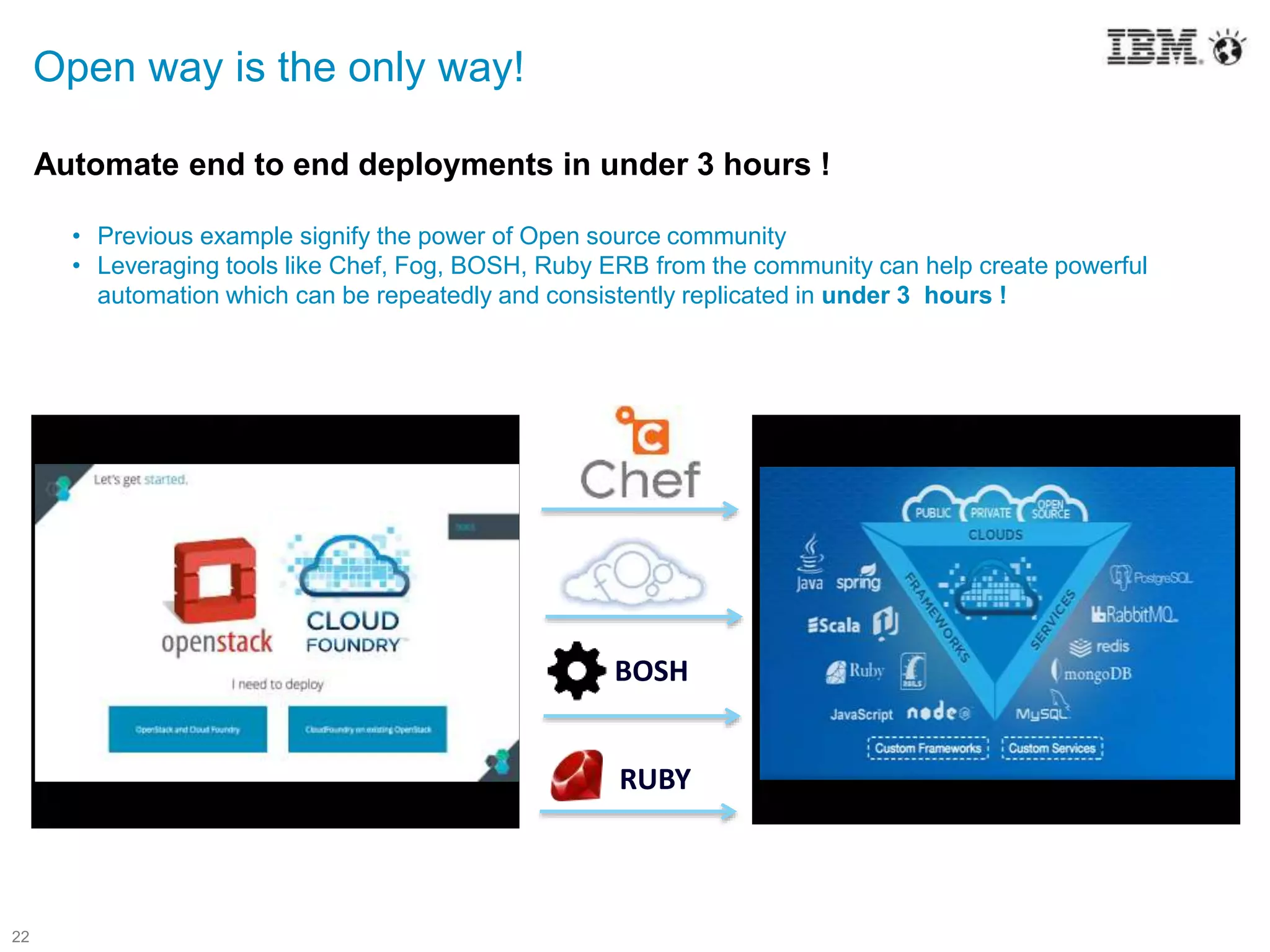

Automate end to end deployments in under 3 hours !
• Previous example signify the power of Open source community
• Leveraging tools like Chef, Fog, BOSH, Ruby ERB from the community can help create powerful
automation which can be repeatedly and consistently replicated in under 3 hours !
Open way is the only way!
BOSH
RUBY

23. 23
Scale!

24. 24

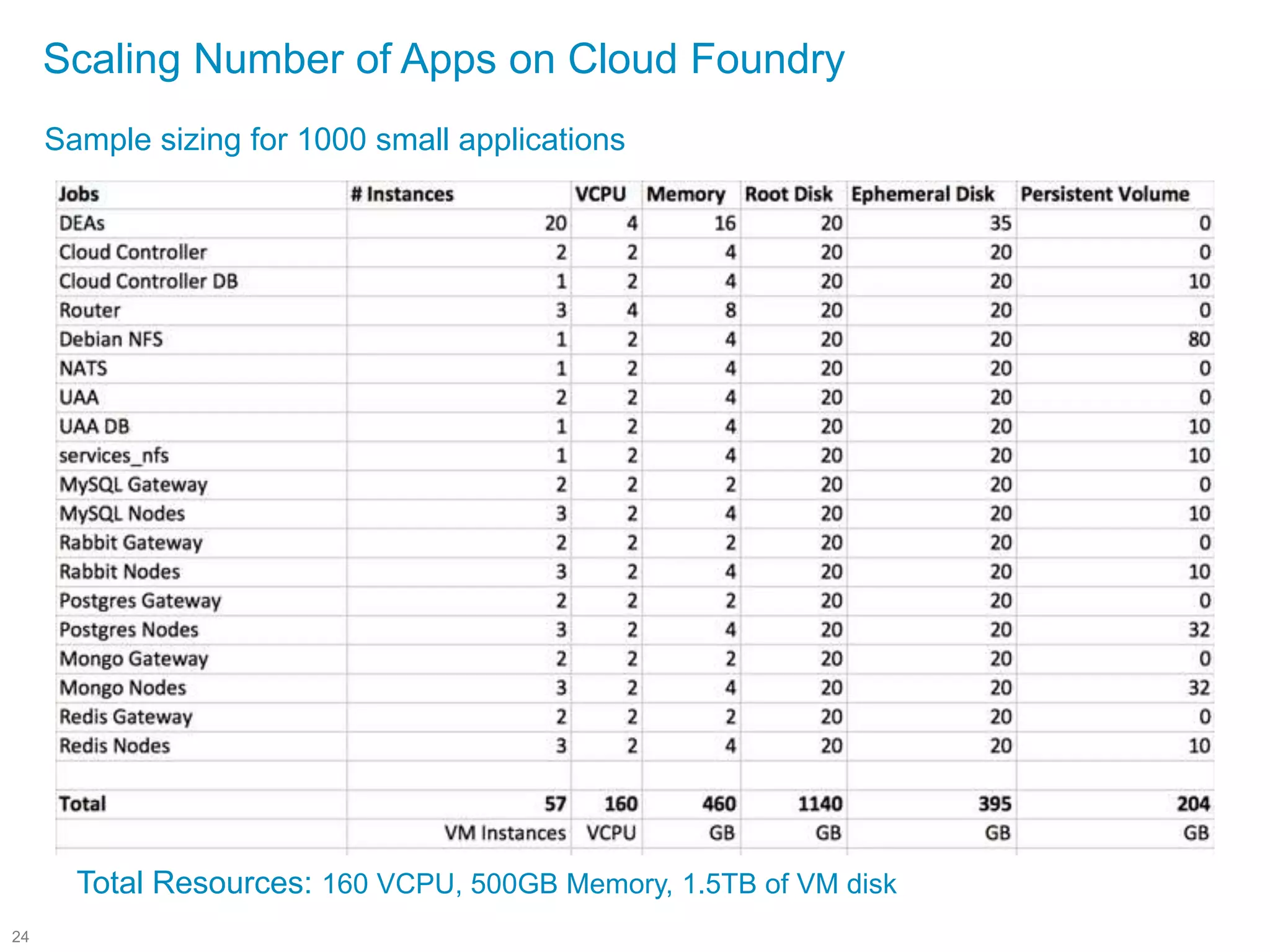

Scaling Number of Apps on Cloud Foundry
Sample sizing for 1000 small applications
Total Resources: 160 VCPU, 500GB Memory, 1.5TB of VM disk

25. 25

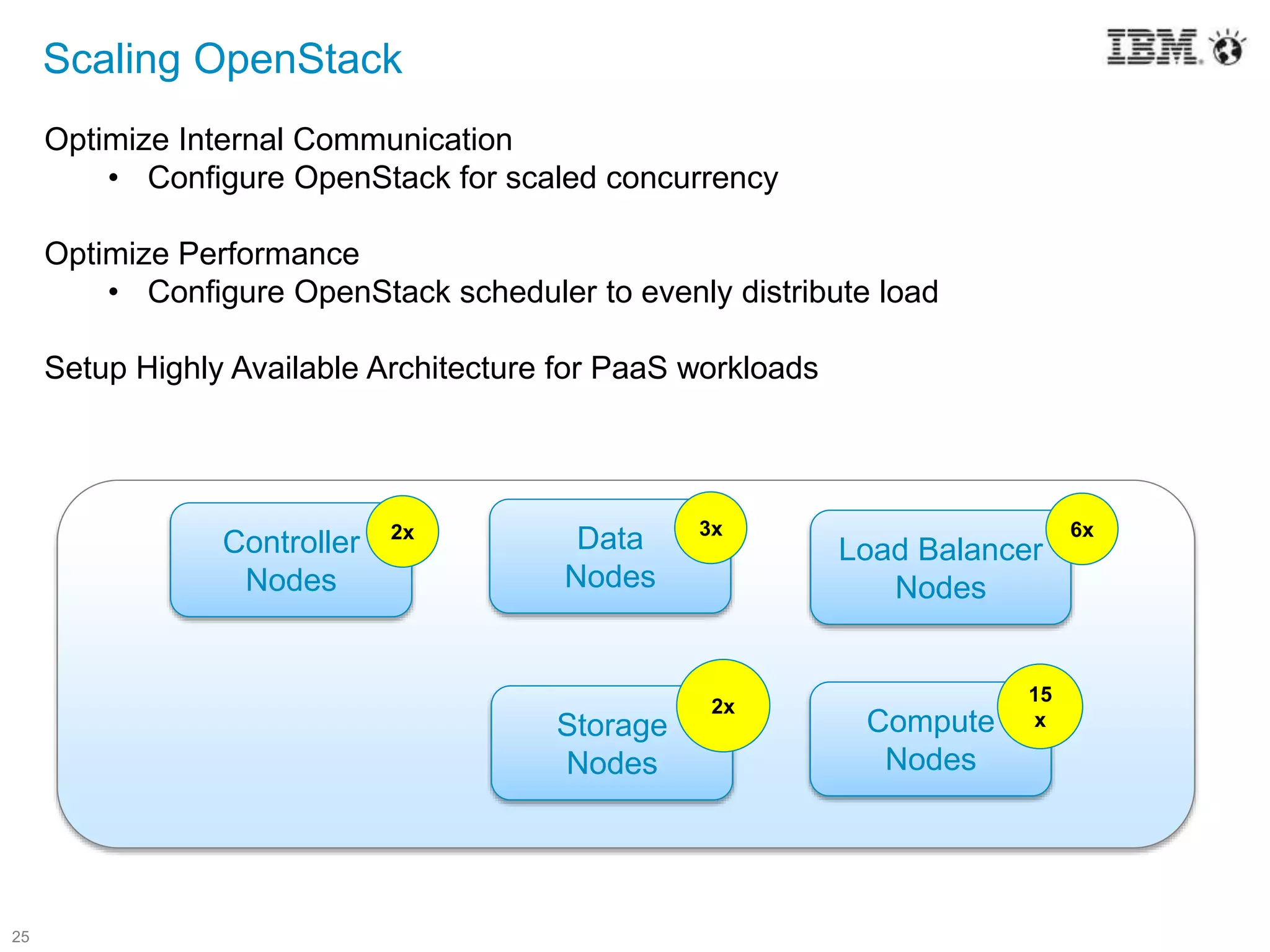

Scaling OpenStack
Optimize Internal Communication
• Configure OpenStack for scaled concurrency
Optimize Performance
• Configure OpenStack scheduler to evenly distribute load
Setup Highly Available Architecture for PaaS workloads
Load Balancer
Nodes
Data
Nodes
3x
Compute
Nodes
15
xStorage
Nodes
2x
Controller
Nodes
2x 6x

26. 26

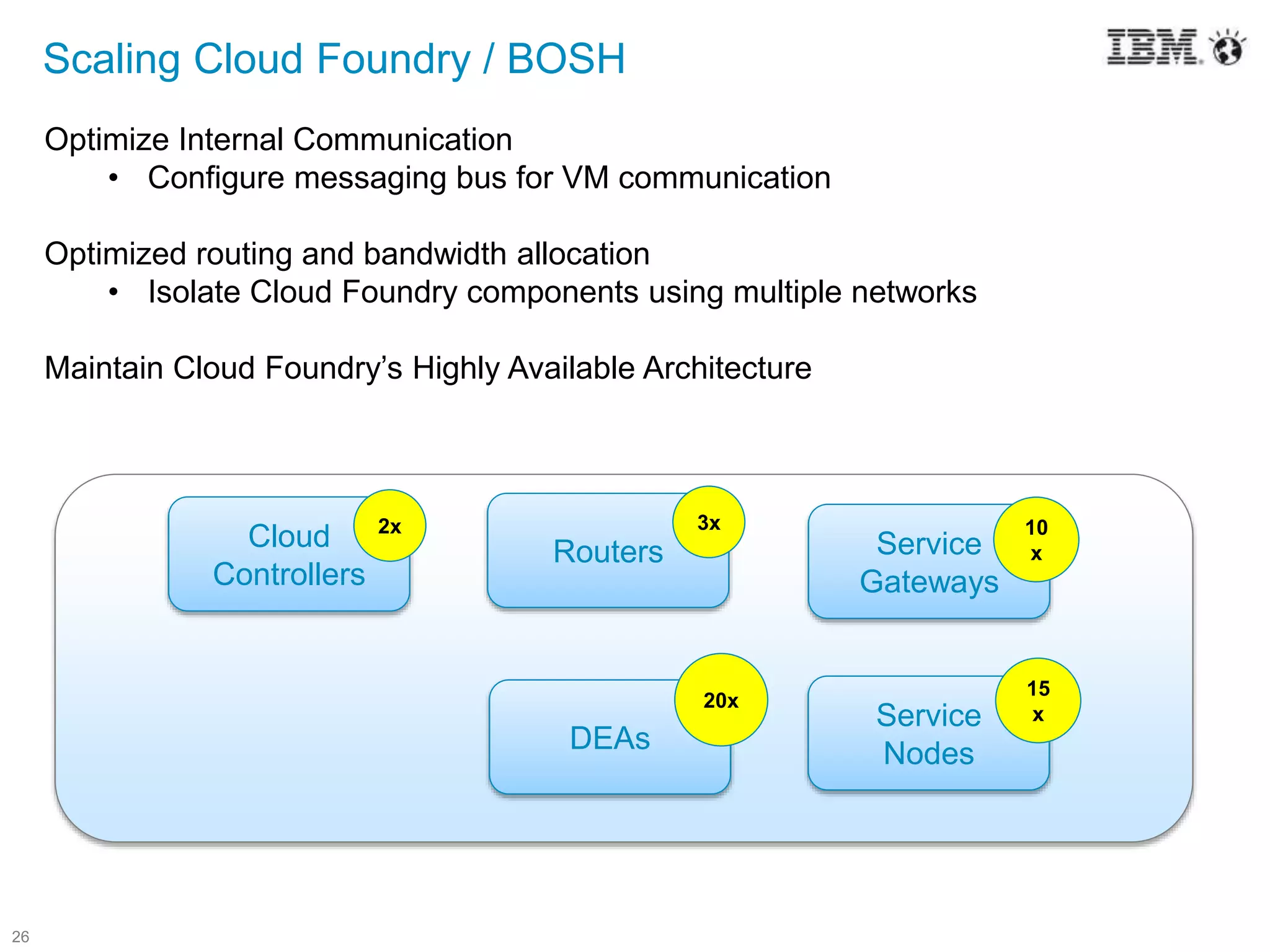

Scaling Cloud Foundry / BOSH
Optimize Internal Communication
• Configure messaging bus for VM communication
Optimized routing and bandwidth allocation
• Isolate Cloud Foundry components using multiple networks
Maintain Cloud Foundry’s Highly Available Architecture
Service
Gateways
10
xRouters
3x
Service
Nodes
15
x
DEAs
20x
Cloud
Controllers
2x

27. 27

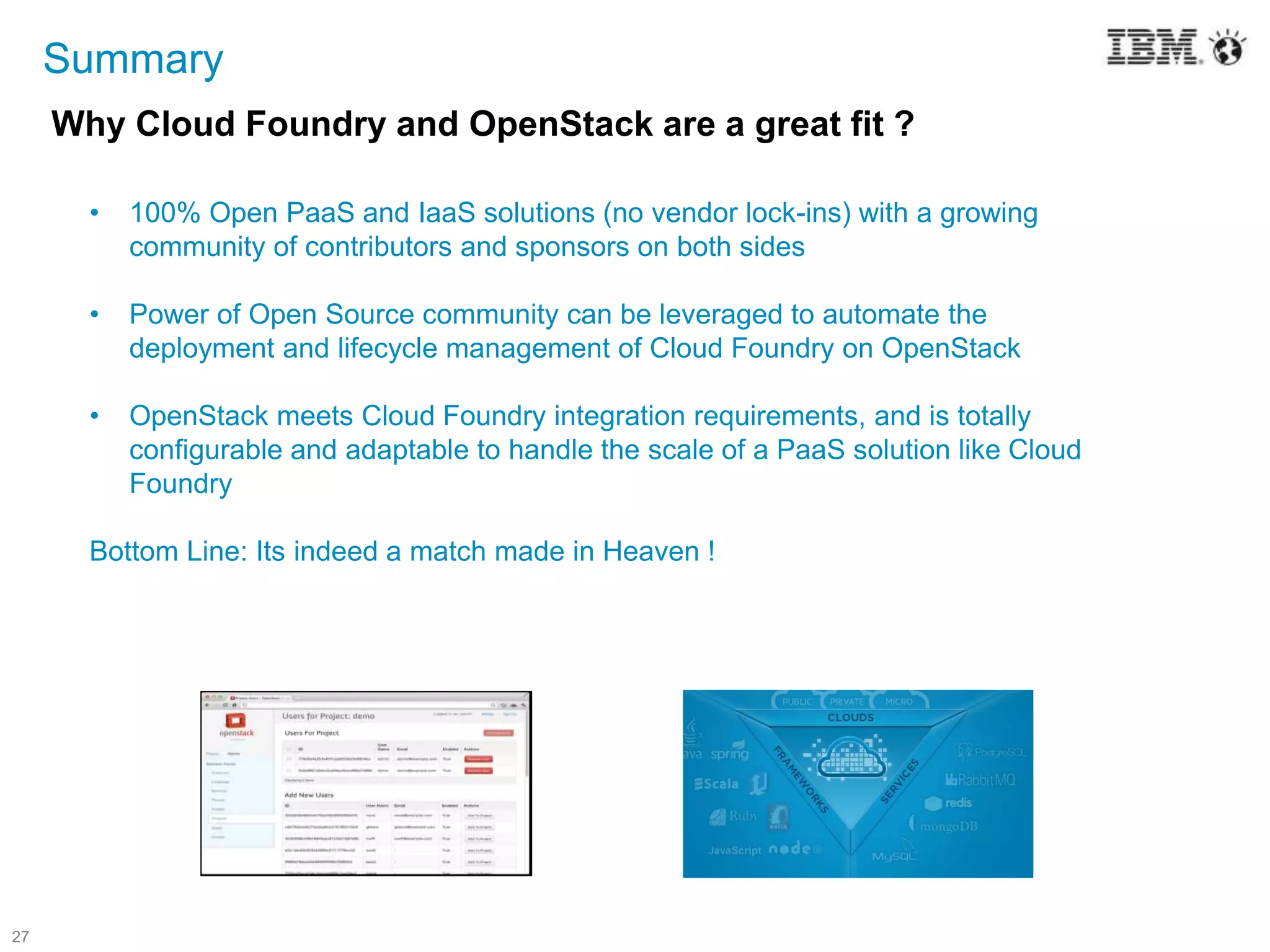

Summary
Why Cloud Foundry and OpenStack are a great fit ?
• 100% Open PaaS and IaaS solutions (no vendor lock-ins) with a growing
community of contributors and sponsors on both sides
• Power of Open Source community can be leveraged to automate the
deployment and lifecycle management of Cloud Foundry on OpenStack
• OpenStack meets Cloud Foundry integration requirements, and is totally
configurable and adaptable to handle the scale of a PaaS solution like Cloud
Foundry
Bottom Line: Its indeed a match made in Heaven !

28. 28

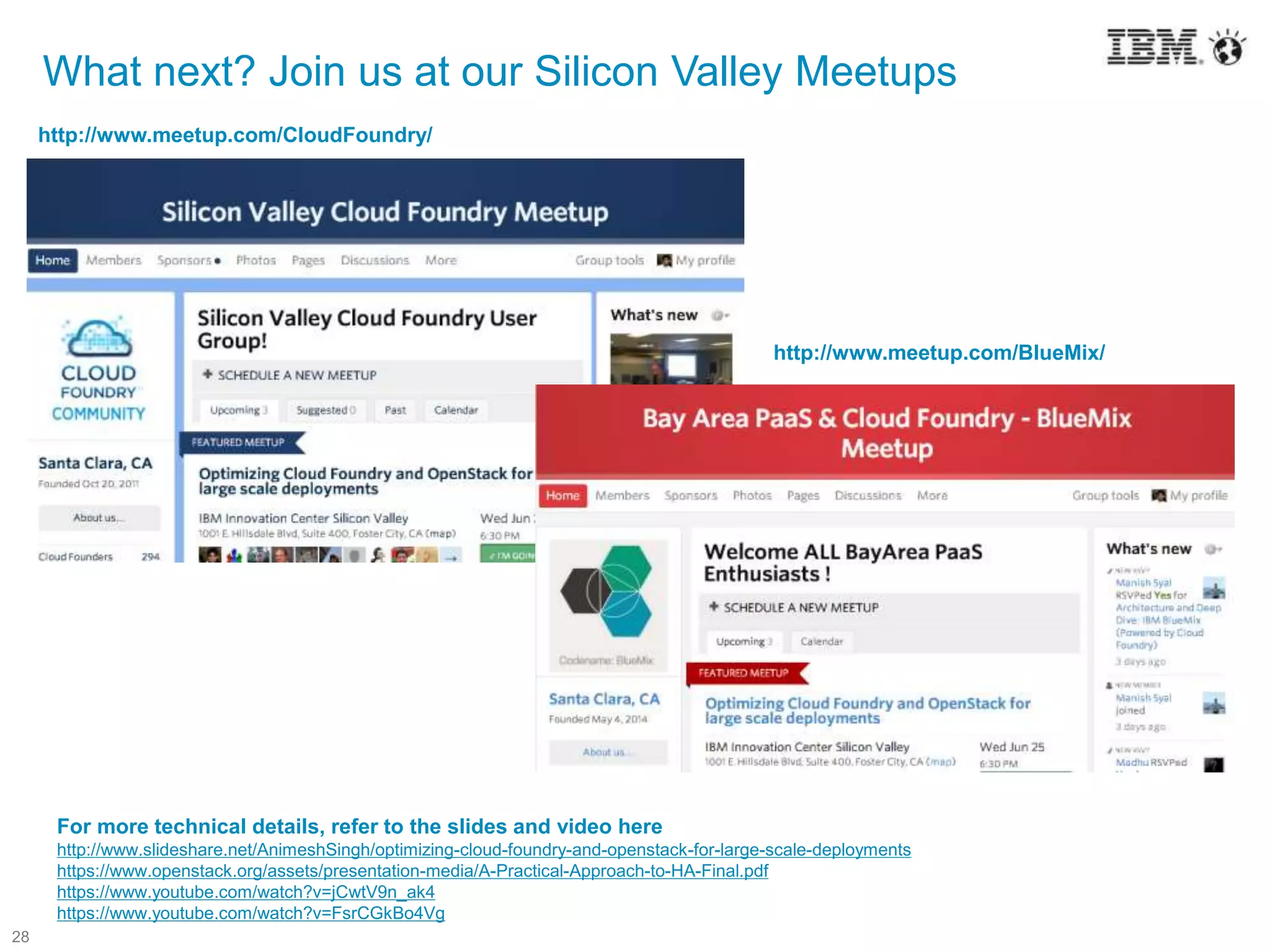

What next? Join us at our Silicon Valley Meetups
http://www.meetup.com/BlueMix/
http://www.meetup.com/CloudFoundry/
For more technical details, refer to the slides and video here
http://www.slideshare.net/AnimeshSingh/optimizing-cloud-foundry-and-openstack-for-large-scale-deployments
https://www.openstack.org/assets/presentation-media/A-Practical-Approach-to-HA-Final.pdf
https://www.youtube.com/watch?v=jCwtV9n_ak4
https://www.youtube.com/watch?v=FsrCGkBo4Vg
