This document provides an overview of Cloud Foundry, including: 1. Cloud Foundry is an open source platform as a service that allows developers to build, test, deploy and scale applications. 2. Cloud Foundry uses a distributed architecture that is self-healing with no single point of failure to allow for horizontal scaling. 3. The Cloud Foundry architecture includes layers like the cloud controller, stager, DEA execution agents, services, router, and uses BOSH for automated virtual infrastructure deployment and management of Cloud Foundry clusters.

1. Cloud Foundry
Overview
Compiled by Rajdeep Dua
Director
Developer Relations VMware India
twitter : @rajdeepdua
Thursday, February 21, 13

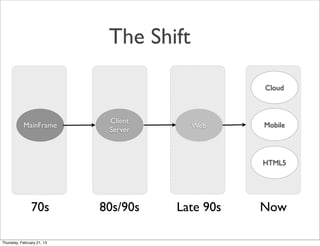

2. The Shift
Cloud
Client
MainFrame Web Mobile
Server
HTML5
70s 80s/90s Late 90s Now
Thursday, February 21, 13

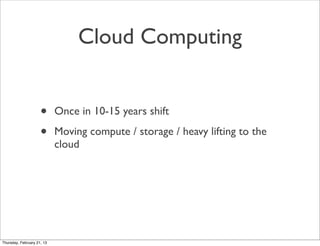

3. Cloud Computing
• Once in 10-15 years shift
• Moving compute / storage / heavy lifting to the
cloud
Thursday, February 21, 13

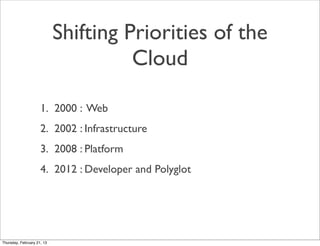

4. Shifting Priorities of the
Cloud
1. 2000 : Web
2. 2002 : Infrastructure
3. 2008 : Platform
4. 2012 : Developer and Polyglot
Thursday, February 21, 13

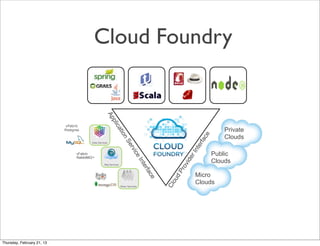

5. Cloud Foundry
Ap
pli
vFabric
ca
Postgres Private
tio
ce
Clouds
n
rfa
Se
Data Services
nte
rvi
Public
rI
vFabric
ce
RabbitMQTM
ide
Clouds
Int
v
Msg Services
e
ro
rfa
dP Micro
ce
ou
Clouds
Cl
Other Services
Thursday, February 21, 13

6. cloudfoundry.com
Thursday, February 21, 13

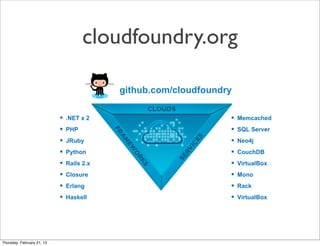

7. cloudfoundry.org
github.com/cloudfoundry
! .NET x 2 ! Memcached
! PHP ! SQL Server
! JRuby ! Neo4j
! Python ! CouchDB
! Rails 2.x ! VirtualBox
! Closure ! Mono
! Erlang ! Rack
! Haskell ! VirtualBox
Thursday, February 21, 13

8. Cloud Foundry
Architecture
Thursday, February 21, 13

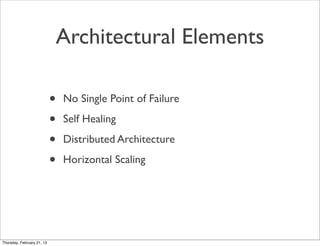

9. Architectural Elements
• No Single Point of Failure
• Self Healing
• Distributed Architecture
• Horizontal Scaling
Thursday, February 21, 13

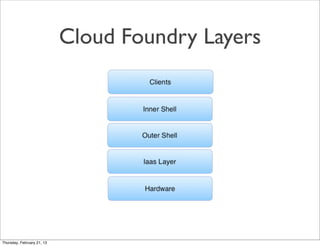

10. Cloud Foundry Layers
Thursday, February 21, 13

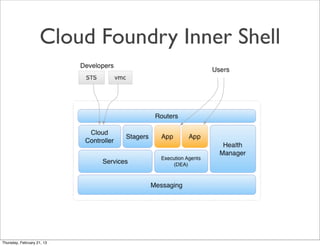

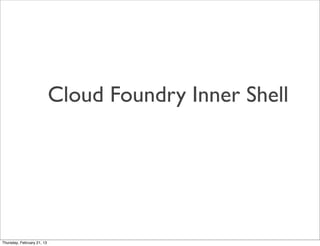

11. Cloud Foundry Inner Shell
Thursday, February 21, 13

12. Cloud Foundry Inner Shell
Thursday, February 21, 13

13. Cloud Controller
• Interfaces with VMC, STS
and Portal
• Rails Application
• Provides Rest Interfaces
for
• Apps
• Services
• Orgs
• Spaces
Thursday, February 21, 13

14. Cloud Controller..contd
Thursday, February 21, 13

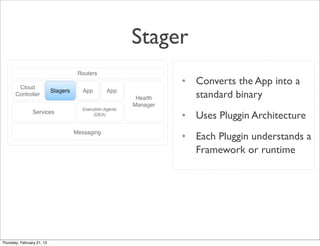

15. Stager
• Converts the App into a
standard binary
• Uses Pluggin Architecture
• Each Pluggin understands a
Framework or runtime
Thursday, February 21, 13

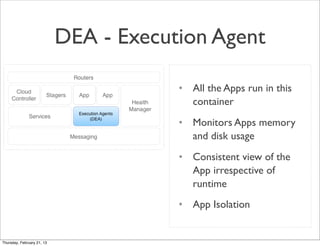

16. DEA - Execution Agent
• All the Apps run in this
container
• Monitors Apps memory
and disk usage
• Consistent view of the
App irrespective of
runtime
• App Isolation
Thursday, February 21, 13

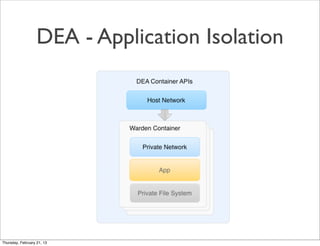

17. DEA - Application Isolation
Thursday, February 21, 13

18. Services
• Interfaces between the
Controller and the Service
Nodes.
• Service Gateway for each
type of Service
• Services deployed in
separate VMs
Thursday, February 21, 13

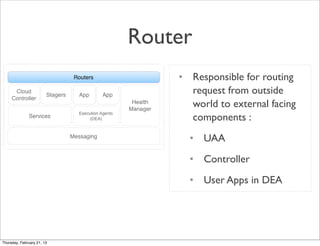

19. Router
• Responsible for routing
request from outside
world to external facing
components :
• UAA
• Controller
• User Apps in DEA
Thursday, February 21, 13

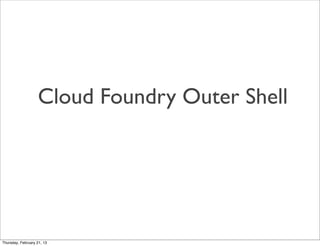

20. Cloud Foundry Outer Shell
Thursday, February 21, 13

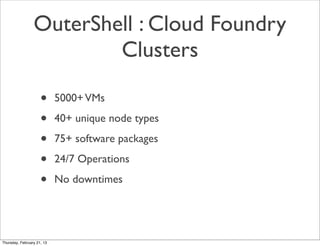

21. OuterShell : Cloud Foundry
Clusters
• 5000+ VMs
• 40+ unique node types
• 75+ software packages
• 24/7 Operations
• No downtimes
Thursday, February 21, 13

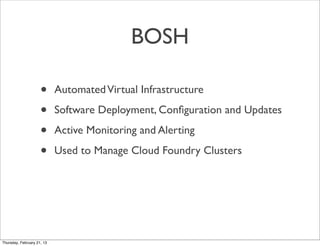

22. BOSH
• Automated Virtual Infrastructure
• Software Deployment, Configuration and Updates
• Active Monitoring and Alerting
• Used to Manage Cloud Foundry Clusters
Thursday, February 21, 13

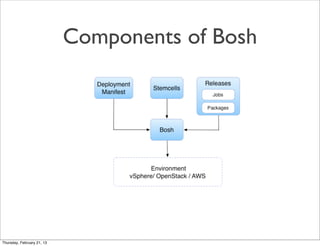

23. Components of Bosh
Thursday, February 21, 13

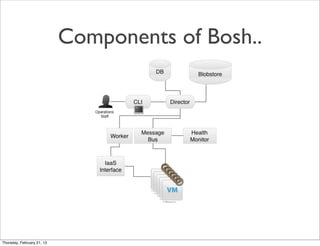

24. Components of Bosh..
Thursday, February 21, 13

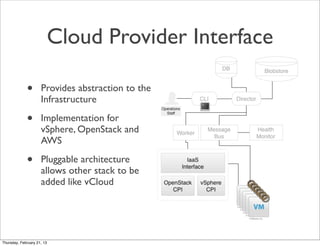

25. Cloud Provider Interface
• Provides abstraction to the
Infrastructure
• Implementation for
vSphere, OpenStack and
AWS
• Pluggable architecture
allows other stack to be
added like vCloud
Thursday, February 21, 13

26. Deployment on vSphere
Thursday, February 21, 13

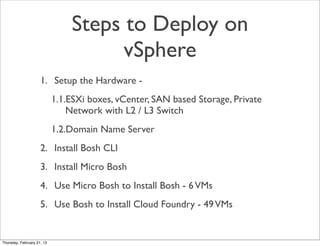

27. Steps to Deploy on
vSphere
1. Setup the Hardware -
1.1.ESXi boxes, vCenter, SAN based Storage, Private
Network with L2 / L3 Switch
1.2.Domain Name Server
2. Install Bosh CLI
3. Install Micro Bosh
4. Use Micro Bosh to Install Bosh - 6 VMs
5. Use Bosh to Install Cloud Foundry - 49 VMs
Thursday, February 21, 13

28. Summary
• Cloud Foundry is a Polyglot Open Source Paas
• Can be run on Public or Private Cloud
• It is Iaas agnostic : Supports vSphere, AWS,
OpenStack
• Avoids vendor lock-in
Thursday, February 21, 13

29. To Get Started
Signup at
http://www.cloudfoundry.com
To Setup Cloud Foundry
http://github.com/cloudfoundry
Thursday, February 21, 13
