OpenStack and Cloud Foundry - Pair the leading open source IaaS and PaaS
1. ‹#›

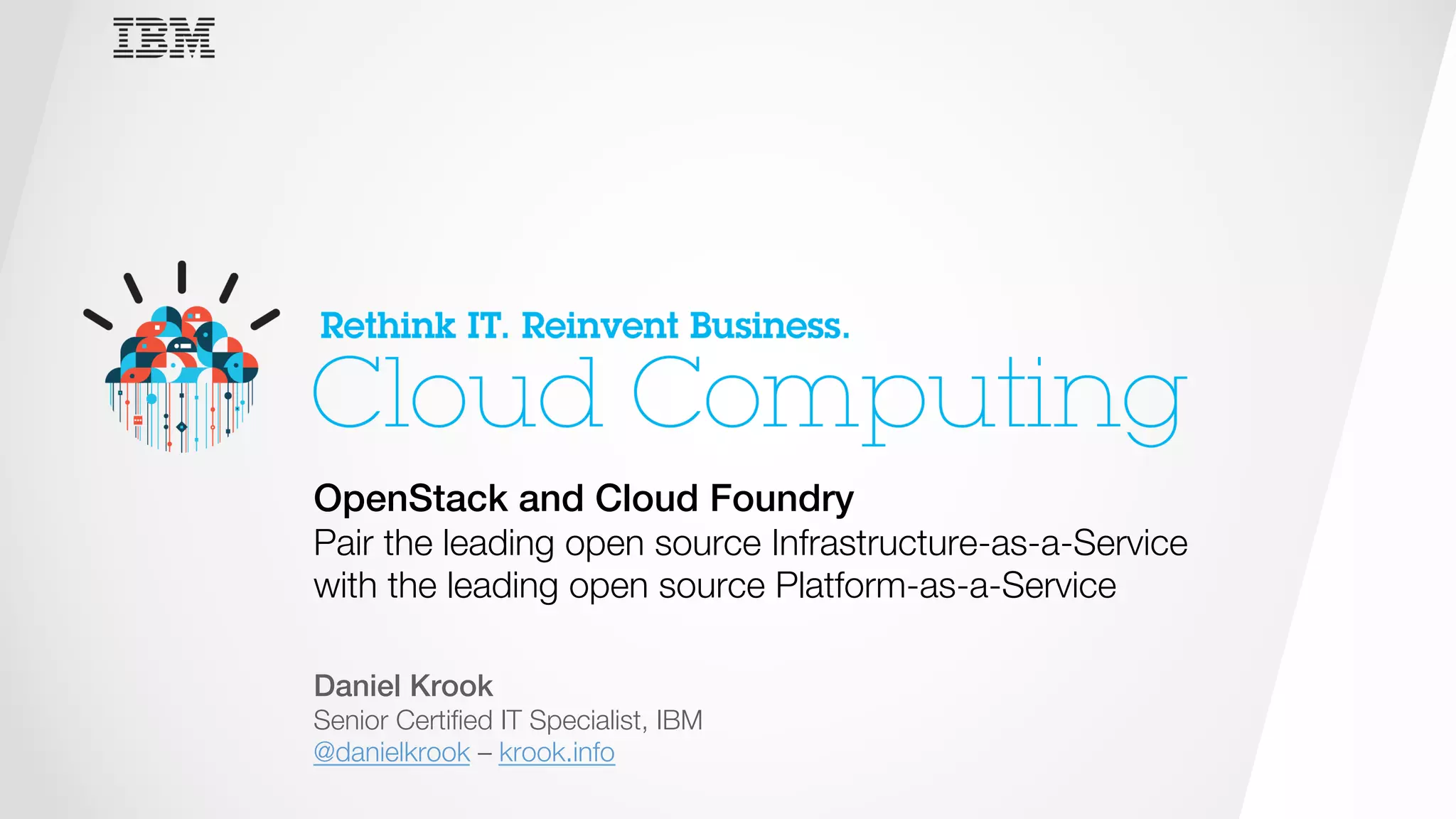

OpenStack and Cloud Foundry!
Pair the leading open source Infrastructure-as-a-Service!
with the leading open source Platform-as-a-Service!
Daniel Krook!
Senior Certified IT Specialist, IBM!
@danielkrook – krook.info
3. Meet OpenStack
and Cloud
Foundry!
See why they’re
a great choice
for your next
project!
Learn how they
can be
integrated to run
your apps!
Join the
community and
learn more!
Then maybe OpenStack and Cloud Foundry are the right tools for you
10. SaaS: the API economy
Networking!
Storage!
Servers!
Virtualization!
O/S!
Middleware!
Runtime!
Data!
Applications!
API economy!
Software!
Biz!
OAuth
11.
12. The OpenStack mission is to produce the ubiquitous open source cloud
computing platform that will meet the needs of public and private clouds
regardless of size, by being simple to implement and massively scalable.
13. OpenStack is designed around several core tenets
• Simple to implement, massively scalable, elastic, and feature rich
• Architected to provide flexibility as you design your cloud
• No proprietary hardware or software requirements
• Able to integrate with legacy systems and third party technologies
• Share-nothing architecture – composable stand-alone services
• API driven and command line accessible
• Stateless and asynchronous
• Flexible networking models to suit the needs of different applications or user groups
14. OpenStack is composed of a core set of projects
Compute (Nova)
Provision and manage virtual machines
Dashboard (Horizon)
Self-service portal
Image (Glance)
Catalog and manage server images
Identity (Keystone)
Unified authentication, integrates with
existing systems
Object Storage (Swift)
Scalable, secure, reliable object storage
Network (Neutron)
Provides flexible networking-as-a-service
Block Storage (Cinder)
Allows block devices to be exposed and
connected to compute instances
And more… Metering (Ceilometer),
Orchestration (Heat), DBaaS (Trove),
MapReduce (Sahara)
Network Dashboard
Compute Image Object
Storage
IdentityBlock
Storage
16. Accumulated Community
Population
Accumulated Developer
Population
Monthly number of
participants
Monthly GIT contributors
ActivityCommunity
Source: Qingye Jiang’s Blog:: CY14-Q1 Community
Analysis — OpenStack vs OpenNebula vs Eucalyptus vs
CloudStack-www.qyjohn.net/?p=3522
CURRENT CONTRIBUTORS
AVERAGE MONTHLY CONTRIBUTORS
2,130
466
382
17,210
INDIVIDUAL MEMBERS
ORGANIZATIONS
PATCHES MERGED
17,209
COUNTRIES
139
OpenStack is the largest open source project, let alone IaaS
RELEASES
Icehouse – 4/14
Havana – 10/13
Grizzly – 4/13
Folsom – 9/12
Essex – 4/12
Diablo – 9/11
Cactus – 4/11
Bexar – 2/11
Austin – 10/10
17. Only Platinum and Gold members are shown
There are dozens of others
The OpenStack Foundation
18. The most recent OpenStack Summit attracted nearly 5,000 people
Proof point of OpenStack’s momentum & focus !
§ 4,600+ in attendance (>30% growth)
§ 65% are new attendees to the Summit
§ Overall increase in product strategy roles
§ Voice of the user continues to shape software
§ Broad ecosystem support ensures rapid innovation
§ Focus on enterprise features in Icehouse and Juno accelerates maturity
A"endee
Roles
19. Starting simple with three types of node
Controller Node
Compute Nodes
Compute Nodes
Compute Node
Nova Compute
Nova Network
Storage Node
Cinder (volume)
Glance (image)
1x
20x
Dedicated !
Servers !
(bare metal)
Nova API
Nova Scheduler
Keystone
Horizon
Database (MySQL)
Messaging (Qpid)
1x
20. Moving towards a resilient model
Compute Nodes
Compute Nodes
Compute Node
Nova Compute
Cloud Controller
Data Node
database (mysql)
messaging (qpid)
Cloud Controller
Master Node
nova-api
nova-scheduler
Keystone
Horizon
Cloud Controller
Data Node
database (MySql)
messaging (Qpid)
Cloud Controller
Storage Node
Cinder (volume)
Glance (image) Nova Network
Controller Node
Nova API
Nova Scheduler
Keystone
Horizon
Storage Node
Cinder (volume)
Glance (image)
2x
Data Node
Database (MySQL)
Messaging (RabbitMQ)
2x 15x
Load Balancer
Node
HA Proxy
Keepalive
Load Balancer
Node
HA Proxy
Keepalive
Load Balancer
Node
HA Proxy
KeepAlive
6x3xVirtual
Machines!
(VMs)
Dedicated !
Servers !
(bare metal)
21.
22. Cloud Foundry is the industry’s Open PaaS and provides a choice of clouds, frameworks and
application services. Its unique vision is to foster contributions from a broad community of developers,
users, customers, partners and ISVs while advancing development of the platform at extreme velocity.
23. Cloud Foundry is built on a highly scalable distributed architecture
Routes incoming traffic to
the appropriate component;
generally the Cloud
Controller or application
Identity management service
for the platform. Acts as an
OAuth2 and SCIM provider.
Monitors the state of
applications and ensures
that the correct number of
instances are running
Exposes a REST API to the
system. Manages a
database of apps, services,
service instances, etc
End user provided code
that is “pushed” to the
cloud and packaged to run
in warden container
Advertises service offerings
to the Cloud Controller and
handles requests to create,
bind, unbind, and delete
service instances.
Managed by the service
gateway, these nodes host
service instances.
A broker that can expose a
service instance to a service
managed outside of the
cloud
A collection of code that is
responsible for transforming
pushed app artifacts into a
ready to run droplet
A pub-sub message bus
implemented with NATS
that’s used for cross
component communication
Droplet Execution Agent –
Advertises capacity to
execute droplets created by
a build pack
A distributed deployment
install and management tool
that abstracts the details of
the IaaS layer
25. Buildpacks and services lend Cloud Foundry its extensibility
Buildpacks
bin/detect
bin/compile
bin/release
bin/package
The detect script is used to determine
whether or not to apply the buildpack to an
application.
The compile script builds the droplet that
will be run by the DEA and will therefore
contain all the components necessary to
run the application.
The release script provides feedback
metadata back to Cloud Foundry indicating
how the application should be executed.
The package script provides artifacts, which are
provided to Cloud Foundry as system buildpacks.
package is intended to provide a way for developers
to package a buildpack with its dependencies.
26. But Cloud Foundry is more than just the code
Meets Developer’s Needs
Focus on app development, not
provisioning VMs, databases,
messaging servers, etc.
Agile development model
Deploy and scale in seconds
Open Cloud Platform
There is an increasing appetite for
cloud-based mobile, social and
analytics applications from line-of-
business executives - drives the
need for a more open cloud
development platform
Compelling Community
Cloud Foundry has a compelling
community and emerging ecosystem
as well as a mature set of capabilities
and robustness
28. The second Cloud Foundry Summit attracted almost 1,000 people
• 5100+ mentions of #CFSummit, CF Summit &
Cloud Foundry Summit!
• 3246 mentions of Cloud Foundry!
• 5000+ mentions of #PaaS during Summit!
Cloud
Foundry
Summit
Twi4er
sen7ment
Summit growth signals dynamic ecosystem!
§ 904 in attendance (100% growth)
§ 179 developers signed up for Java & CF Meet Ups
§ Bluemix a major summit feature w/ a successful signup drive
§ 67 speakers delivered 60 keynotes, panels, talks & sessions
§ Conference organizers encountered many new dev candidates
29. A sizing to support 1,000 apps on Cloud Foundry
• 60 virtual machines:
o 20 high memory DEAs
o 11 CF fabric components
o 26 service broker and service nodes
• 160 CPU
• 500 GB memory
• 1.5 TB VM disk
• 200 GB block storage
• 10 floating IPs
31. BOSH deploys and manages Cloud Foundry clusters
Deployment Manifest
• Release name/version
• # VMs, Job params
• Stemcells to use
Stemcell
• Base OS
• BOSH Agent
Release
• Name
Jobs
• Software Packages
• Config Templates
• Scripts
Deployed
Environment irtual Machine
• Configuration
• Software Packages
Virtual Machine
• Configuration
• Software Packages
Virtual Machine
• Configuration
• Software Packages
Virtual Machine
• Configuration
• Software Packages
Stemcells
In a cloud platform, VMs are usually cloned from a
template. A stemcell is a VM template containing a
standard Ubuntu distribution. A BOSH agent is also
embedded in the template so that BOSH can take
control of VMs cloned from the stemcell.
Jobs
A job is a collection of software which serves a
particular purpose (e.g. MySQL or the Cloud
Controller). At deployment time, each job will be
install on its own stemcell VM.
Releases
A release contains a number of jobs which can be
deployed into the target environment. A deployment
can consist of more than one release and not every
job in a release must be deployed.
32. The BOSH Cloud Provider Interface (CPI) manages the IaaS resources that Cloud Foundry needs
Stemcells
create_stemcell(image, cloud_properties)
delete_stemcell(stemcell)
Virtual Machines
create_vm(agent_id, stemcell, resource_pool, networks, disk_locality, env)
delete_vm(vm)
reboot_vm(vm)
configure_networks(vm, networks)
Disks
create_disk(size, vm_locality)
delete_disk(disk)
attach_disk(vm, disk)
detach_disk(vm, disk)
33. Configure OpenStack for Cloud Foundry
§ Pool of static / floating IP addresses!
§ Support for persistent disks using Cinder backed by SAN!
§ VMs require outbound Internet connectivity!
§ Increased tenant quota for instances needed by Cloud Foundry (~50)!
§ Public/private key pairs !
§ Custom flavors (VM configurations) created according the CF specs!
§ Appropriate security groups for network ports!
34. Scaling the OpenStack configuration
Optimize internal communication!
• Configure OpenStack for scaled concurrency!
!
Optimize performance!
• Configure OpenStack scheduler to evenly distribute load!
Setup highly available architecture for PaaS workloads!
Load Balancer
Nodes
Data
Nodes
3x
Compute
Nodes
15x
Storage
Nodes
2x
Controller
Nodes
2x 6x
35. Scaling the Cloud Foundry configuration
Optimize internal communication!
• Configure messaging bus for VM communication!
!
Optimized routing and bandwidth allocation!
• Isolate Cloud Foundry components using multiple networks!
!
Maintain Cloud Foundry’s highly available architecture!
Service
Gateways
10x
Routers
3x
Service
Nodes
15x
DEAs
20x
Cloud
Controllers
2x
37. OpenStack
§ Join the community, see the docs
http://openstack.org
http://docs.openstack.org
§ Get started
http://www.openstack.org/software/start/
§ DevStack for local evaluation
http://devstack.org
§ Optimizing OpenStack and Cloud Foundry for
large deployments - My team’s talk from
OpenStack Atlanta
https://ibm.biz/BdFHAH
Cloud Foundry
§ Join the community, see the docs
http://cloudfoundry.org
http://docs.cloudfoundry.org
§ Browse the source
http://github.com/cloudfoundry
§ BOSH-lite for local evaluation
https://github.com/cloudfoundry/bosh-lite
§ OpenStack and Cloud Foundry, a match
made in heaven - My team’s talk from CF
Summit
https://ibm.biz/BdFHAr
38. OpenStack and Cloud Foundry!
Pair the leading open source Infrastructure-as-a-Service!
with the leading open source Platform-as-a-Service!
Daniel Krook!
Senior Certified IT Specialist, IBM!
@danielkrook – krook.info
