Chapter 8: Erosional Forces

       Section 3: Wind

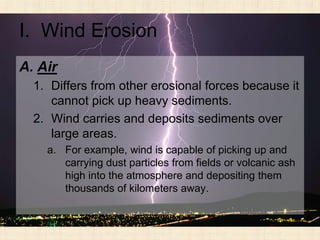

I. Wind Erosion
A. Air
  1. Differs from other erosional forces because it
     cannot pick up heavy sediments.
  2. Wind carries and deposits sediments over
     large areas.
    a. For example, wind is capable of picking up and
       carrying dust particles from fields or volcanic ash
       high into the atmosphere and depositing them
       thousands of kilometers away.
I. Wind Erosion
B. Deflation and Abrasion
  1. Wind erodes Earth’s surface by deflation and
     abrasion.
  2. When wind erodes by deflation, it blows
     across loose sediment, removing small
     particles such as silt and sand.
    a. The heavier, coarser material is left behind.

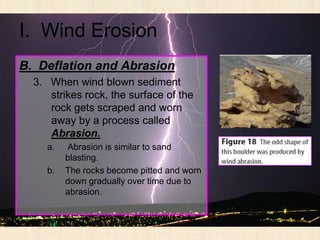

I. Wind Erosion
B. Deflation and Abrasion
  3. When wind blown sediment
     strikes rock, the surface of the
     rock gets scraped and worn
     away by a process called
     Abrasion.
     a.   Abrasion is similar to sand
          blasting.
     b.   The rocks become pitted and worn
          down gradually over time due to
          abrasion.
I. Wind Erosion
B. Deflation and Abrasion
   4. Deflation and Abrasion happen to all land surfaces
       but occur mostly in deserts, beaches, and plowed
       fields.
      a. These areas have fewer vegetation to hold the
           soil in place; so when wind blows over them, they
           can be eroded rapidly.
      b. Grasslands or pasture lands have many plants to
           hold the soil in place, therefore there is little soil
           erosion caused by the wind.
I. Wind Erosion
C. Sandstorms
  1. Even when the wind blows strongly, it seldom
      carries sand grains higher than 0.5 m from the
      ground.
     a. However sand storms do occur when the wind
         blows forcefully in the sandy parts of the
         deserts; sand grains bounce along and hit
         other sands grains, causing more and more
         grains to rise into the air.
  2. Most sandstorms occur in deserts, but they can
      occur in other arid regions.
I. Wind Erosion
D. Dust Storms
  1. When soil is moist, it stays packed on the ground,
      but when it dries out, it can be eroded by wind.
  2. Because soil is composed largely of silt and clay
      sized particles they are less dense than the same
      sized sand particles, so wind can move them high
      into the air.
  3. When silt and clay particles stick together; a faster
      wind is needed to lift these fine particles of soil than
      is needed to lift grains of sand.
     a. However after they are airborne, the wind can
          carry them long distances because they are less
          dense.

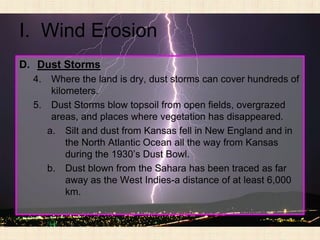

I. Wind Erosion
D. Dust Storms
  4.  Where the land is dry, dust storms can cover hundreds of
      kilometers.
  5. Dust Storms blow topsoil from open fields, overgrazed
      areas, and places where vegetation has disappeared.
     a. Silt and dust from Kansas fell in New England and in
          the North Atlantic Ocean all the way from Kansas
          during the 1930’s Dust Bowl.
     b. Dust blown from the Sahara has been traced as far
          away as the West Indies-a distance of at least 6,000
          km.

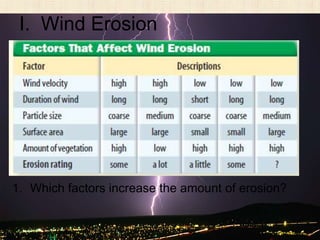

I. Wind Erosion




1. Which factors increase the amount of erosion?
I. Wind Erosion




2. Which factors decrease the amount of erosion.

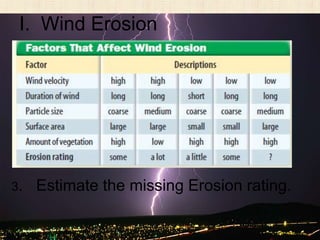

I. Wind Erosion




3.   Estimate the missing Erosion rating.

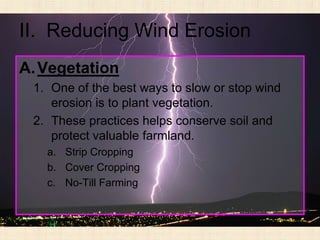

II. Reducing Wind Erosion
A. Vegetation
 1. One of the best ways to slow or stop wind
    erosion is to plant vegetation.
 2. These practices helps conserve soil and
    protect valuable farmland.
   a. Strip Cropping
   b. Cover Cropping
   c. No-Till Farming

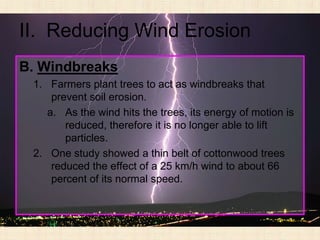

II. Reducing Wind Erosion
B. Windbreaks
 1. Farmers plant trees to act as windbreaks that
     prevent soil erosion.
    a. As the wind hits the trees, its energy of motion is
        reduced, therefore it is no longer able to lift
        particles.
 2. One study showed a thin belt of cottonwood trees
     reduced the effect of a 25 km/h wind to about 66
     percent of its normal speed.
II. Reducing Wind Erosion
B. Windbreaks
 3. Tree belts also trap snow and hold it on land.
   a. This increases the moisture level of the
      soil, which helps prevent further erosion.

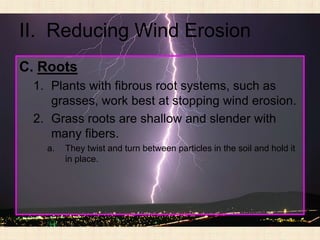

II. Reducing Wind Erosion
C. Roots
 1. Plants with fibrous root systems, such as
    grasses, work best at stopping wind erosion.
 2. Grass roots are shallow and slender with
    many fibers.
   a.   They twist and turn between particles in the soil and hold it
        in place.

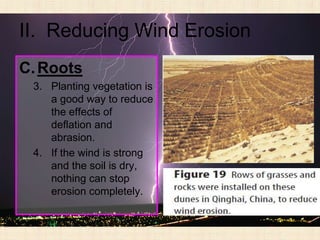

II. Reducing Wind Erosion
C. Roots
 3. Planting vegetation is
    a good way to reduce
    the effects of
    deflation and
    abrasion.
 4. If the wind is strong
    and the soil is dry,
    nothing can stop
    erosion completely.

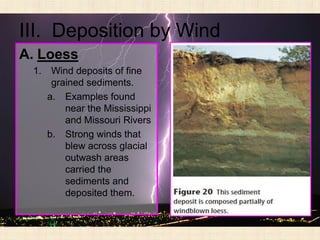

III. Deposition by Wind
A. Loess
 1.    Wind deposits of fine
       grained sediments.
      a. Examples found
          near the Mississippi
          and Missouri Rivers
      b. Strong winds that
          blew across glacial
          outwash areas
          carried the
          sediments and
          deposited them.

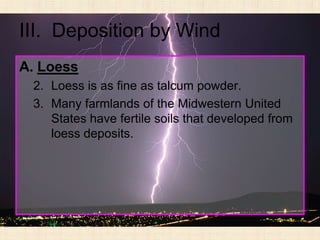

III. Deposition by Wind
A. Loess
 2. Loess is as fine as talcum powder.
 3. Many farmlands of the Midwestern United
    States have fertile soils that developed from
    loess deposits.

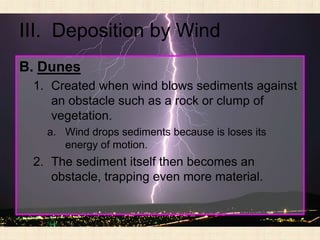

III. Deposition by Wind
B. Dunes
 1. Created when wind blows sediments against
    an obstacle such as a rock or clump of
    vegetation.
   a. Wind drops sediments because is loses its
      energy of motion.
 2. The sediment itself then becomes an
    obstacle, trapping even more material.
III. Deposition by Wind
B. Dunes
  3. If the wind blows
     long enough, the
     mound will
     become a dune.
  4. A DUNE is a
     mound of
     sediments drifted
     by the wind.
III. Deposition by Wind
B. Dunes
 4. Dunes are common in desert regions.
 5. Also along the shores of oceans, seas, or
    lakes.
   a. Sand or other sediment will continue to build up
      and form a dune until the sediment runs out or
      the obstruction is removed.
   b. Some desert sand dunes can grow to 300 feet
      high (100 meters), but most are much shorter.

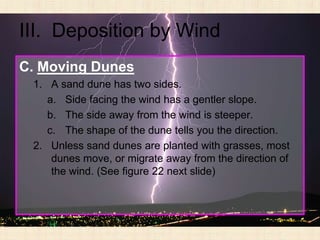

III. Deposition by Wind
C. Moving Dunes
 1. A sand dune has two sides.
    a. Side facing the wind has a gentler slope.
    b. The side away from the wind is steeper.
    c. The shape of the dune tells you the direction.
 2. Unless sand dunes are planted with grasses, most
     dunes move, or migrate away from the direction of
     the wind. (See figure 22 next slide)
III. Deposition by Wind
C. Moving Dunes
  3. Some dunes are known as traveling dunes
     because they move rapidly across desert areas.
III. Deposition by Wind
III. Deposition by Wind
III. Deposition by Wind
D. Dune Shape
  1. The shape of the dune
     depends on the
     amount of sand or
     other sediment
     available, the wind
     speed and direction,
     and the amount of
     vegetation present.

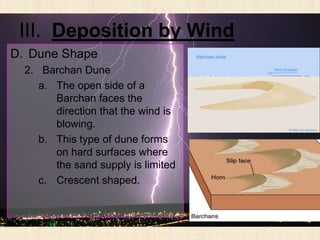

III. Deposition by Wind
D. Dune Shape
  2. Barchan Dune
     a. The open side of a
        Barchan faces the
        direction that the wind is
        blowing.
     b. This type of dune forms
        on hard surfaces where
        the sand supply is limited
     c. Crescent shaped.

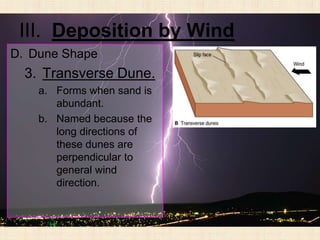

III. Deposition by Wind
D. Dune Shape
  3. Transverse Dune.
    a. Forms when sand is
       abundant.
    b. Named because the
       long directions of
       these dunes are
       perpendicular to
       general wind
       direction.
III. Deposition by Wind
D. Dune Shape
  4. Star Dune
    a. Found in areas where
       wind direction
       changes.
