Computer Networks: TCP Congestion Control
Chapter 3
TCP/IP and Congestion Control

TCP/IP Protocol Suite

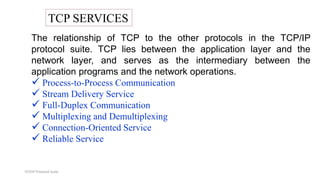

TCP SERVICES
The relationship of TCP to the other protocols in the TCP/IP
protocol suite. TCP lies between the application layer and the
network layer, and serves as the intermediary between the
application programs and the network operations.
 Process-to-Process Communication
 Stream Delivery Service
 Full-Duplex Communication
 Multiplexing and Demultiplexing
 Connection-Oriented Service
 Reliable Service

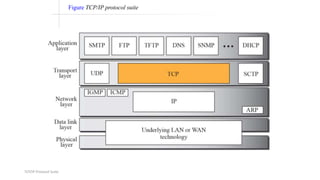

Figure TCP/IP protocol suite

TCP FEATURES
To provide the services mentioned in the previous
section, TCP has several features that are briefly
summarized in this section and discussed later in
detail.
 Numbering System
 Flow Control
 Error Control
 Congestion Control

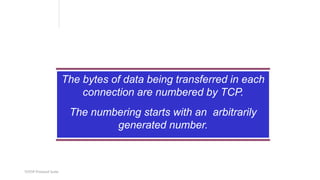

The bytes of data being transferred in each
connection are numbered by TCP.
The numbering starts with an arbitrarily
generated number.

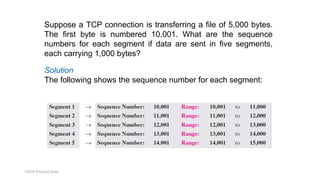

Suppose a TCP connection is transferring a file of 5,000 bytes.
The first byte is numbered 10,001. What are the sequence
numbers for each segment if data are sent in five segments,
each carrying 1,000 bytes?
Solution
The following shows the sequence number for each segment:

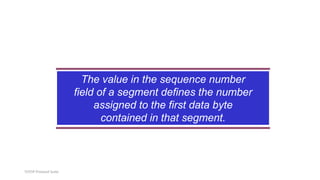

The value in the sequence number
field of a segment defines the number
assigned to the first data byte
contained in that segment.

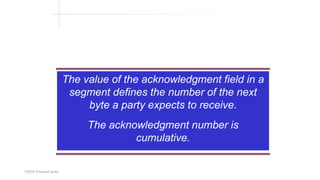

The value of the acknowledgment field in a
segment defines the number of the next
byte a party expects to receive.
The acknowledgment number is
cumulative.

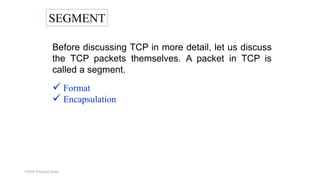

SEGMENT
Before discussing TCP in more detail, let us discuss
the TCP packets themselves. A packet in TCP is
called a segment.
 Format
 Encapsulation

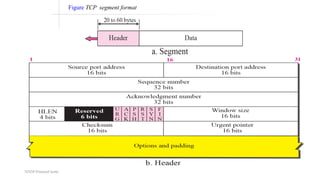

Figure TCP segment format

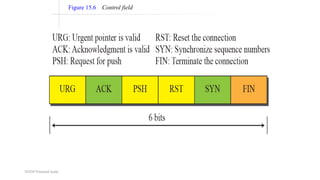

Figure 15.6 Control field

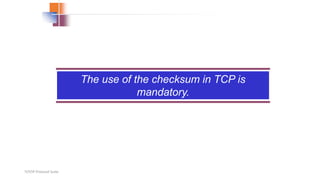

The use of the checksum in TCP is
mandatory.

Frame
header
IP
header

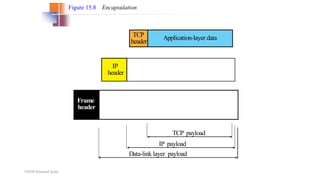

Figure 15.8 Encapsulation
Application-layer data
TCP
header
Data-link layer payload
IP payload
TCP payload

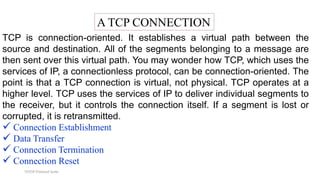

A TCP CONNECTION
TCP is connection-oriented. It establishes a virtual path between the
source and destination. All of the segments belonging to a message are
then sent over this virtual path. You may wonder how TCP, which uses the
services of IP, a connectionless protocol, can be connection-oriented. The
point is that a TCP connection is virtual, not physical. TCP operates at a
higher level. TCP uses the services of IP to deliver individual segments to
the receiver, but it controls the connection itself. If a segment is lost or
corrupted, it is retransmitted.
 Connection Establishment
 Data Transfer
 Connection Termination
 Connection Reset

Figure Connection establishment using three-way handshake
SYN
U A P R S F
seq: 8000
SYN + ACK
U A P R S F
seq: 15000
ack: 8001
rwnd: 5000
ACK
U A P R S F
seq: 8000
ack: 15001
rwnd: 10000

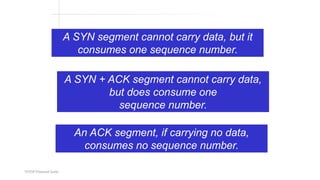

A SYN segment cannot carry data, but it
consumes one sequence number.
A SYN + ACK segment cannot carry data,
but does consume one
sequence number.
An ACK segment, if carrying no data,
consumes no sequence number.

23.
Figure Connection establishment using three-way handshaking

23.

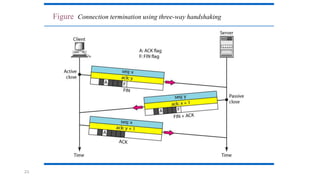

Figure Connection termination using three-way handshaking

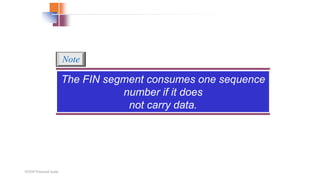

The FIN segment consumes one sequence
number if it does
not carry data.
Note

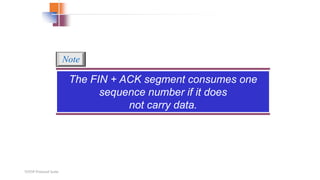

The FIN + ACK segment consumes one
sequence number if it does
not carry data.
Note

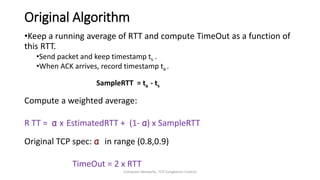

Original Algorithm
•Keep a running average of RTT and compute TimeOut as a function of
this RTT.
•Send packet and keep timestamp ts .
•When ACK arrives, record timestamp ta .
SampleRTT = ta - ts
Compute a weighted average:
R TT = α x EstimatedRTT + (1- α) x SampleRTT
Original TCP spec: α in range (0.8,0.9)
TimeOut = 2 x RTT

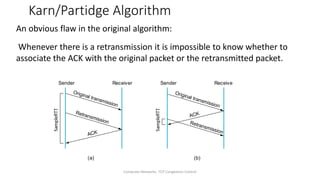

Karn/Partidge Algorithm
An obvious flaw in the original algorithm:
Whenever there is a retransmission it is impossible to know whether to
associate the ACK with the original packet or the retransmitted packet.
Sender Receiver
Original transmission
ACK
Retransmission
Sender Receiver
Original transmission
ACK
Retransmission
(a) (b)

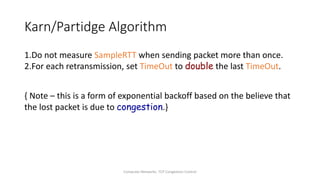

Karn/Partidge Algorithm
1.Do not measure SampleRTT when sending packet more than once.
2.For each retransmission, set TimeOut to double the last TimeOut.
{ Note – this is a form of exponential backoff based on the believe that
the lost packet is due to congestion.}

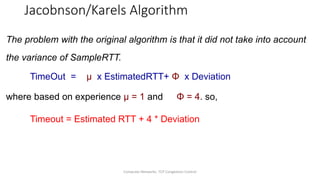

Jacobnson/Karels Algorithm
The problem with the original algorithm is that it did not take into account
the variance of SampleRTT.
TimeOut = µ x EstimatedRTT+ Φ x Deviation
where based on experience µ = 1 and Φ = 4. so,
Timeout = Estimated RTT + 4 * Deviation

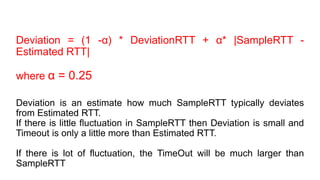

Deviation = (1 -α) * DeviationRTT + α* |SampleRTT -
Estimated RTT|
where α = 0.25
Deviation is an estimate how much SampleRTT typically deviates
from Estimated RTT.
If there is little fluctuation in SampleRTT then Deviation is small and
Timeout is only a little more than Estimated RTT.
If there is lot of fluctuation, the TimeOut will be much larger than
SampleRTT

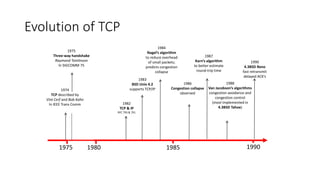

Evolution of TCP
1975 1980 1985 1990
1982
TCP & IP
RFC 793 & 791
1974
TCP described by
Vint Cerf and Bob Kahn
In IEEE Trans Comm
1983
BSD Unix 4.2
supports TCP/IP
1984
Nagel’s algorithm
to reduce overhead
of small packets;
predicts congestion
collapse
1987
Karn’s algorithm
to better estimate
round-trip time
1986
Congestion collapse
observed
1988
Van Jacobson’s algorithms
congestion avoidance and
congestion control
(most implemented in
4.3BSD Tahoe)
1990
4.3BSD Reno
fast retransmit
delayed ACK’s
1975
Three-way handshake
Raymond Tomlinson
In SIGCOMM 75

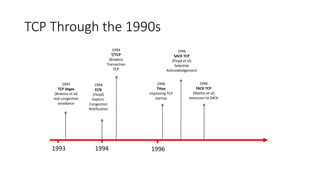

TCP Through the 1990s
1993 1994 1996
1994
ECN
(Floyd)
Explicit
Congestion
Notification
1993
TCP Vegas
(Brakmo et al)
real congestion
avoidance
1994
T/TCP
(Braden)
Transaction
TCP
1996
SACK TCP
(Floyd et al)
Selective
Acknowledgement
1996
THoe
Improving TCP
startup
1996
FACK TCP
(Mathis et al)
extension to SACK

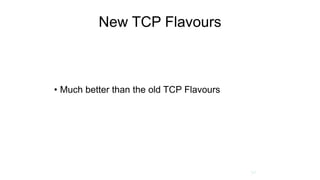

New TCP Flavours
• Much better than the old TCP Flavours
30

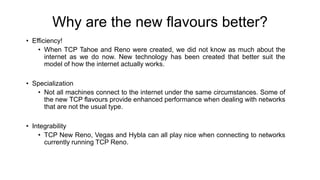

Why are the new flavours better?
• Efficiency!
• When TCP Tahoe and Reno were created, we did not know as much about the
internet as we do now. New technology has been created that better suit the
model of how the internet actually works.
• Specialization
• Not all machines connect to the internet under the same circumstances. Some of
the new TCP flavours provide enhanced performance when dealing with networks
that are not the usual type.
• Integrability
• TCP New Reno, Vegas and Hybla can all play nice when connecting to networks
currently running TCP Reno.

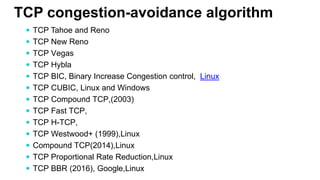

TCP congestion-avoidance algorithm
 TCP Tahoe and Reno
 TCP New Reno
 TCP Vegas
 TCP Hybla
 TCP BIC, Binary Increase Congestion control, Linux
 TCP CUBIC, Linux and Windows
 TCP Compound TCP,(2003)
 TCP Fast TCP,
 TCP H-TCP,
 TCP Westwood+ (1999),Linux
 Compound TCP(2014),Linux
 TCP Proportional Rate Reduction,Linux
 TCP BBR (2016), Google,Linux

Congestion Window
Algorithm

•Congestion control algorithm. A modification to the algorithm for
increasing TCP's congestion window (cwnd) that improves both
performance and security.
•Rather than increasing a TCP's congestion window based on the number of
acknowledgments (ACKs) that arrive at the data sender, the congestion
window is increased based on the number of bytes acknowledged by the
arriving ACKs.
•The algorithm improves performance by mitigating (justifying) the impact
of delayed ACKs on the growth of cwnd.

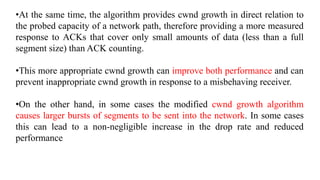

•At the same time, the algorithm provides cwnd growth in direct relation to
the probed capacity of a network path, therefore providing a more measured
response to ACKs that cover only small amounts of data (less than a full
segment size) than ACK counting.
•This more appropriate cwnd growth can improve both performance and can
prevent inappropriate cwnd growth in response to a misbehaving receiver.
•On the other hand, in some cases the modified cwnd growth algorithm
causes larger bursts of segments to be sent into the network. In some cases
this can lead to a non-negligible increase in the drop rate and reduced
performance

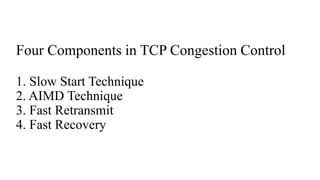

Four Components in TCP Congestion Control
1. Slow Start Technique
2. AIMD Technique
3. Fast Retransmit
4. Fast Recovery

Congestion policy in TCP –
Slow Start Phase: starts slowly increment is exponential to
threshold (exponential increment)
Congestion Avoidance Phase: After reaching the threshold
increment is by 1 (additive increment)
Congestion Detection Phase: Sender goes back to Slow
start phase or Congestion avoidance phase. (multiplicative
decrement)

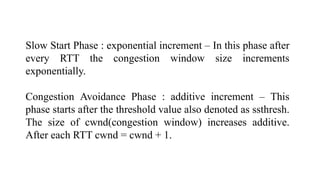

Slow Start Phase : exponential increment – In this phase after
every RTT the congestion window size increments
exponentially.
Congestion Avoidance Phase : additive increment – This
phase starts after the threshold value also denoted as ssthresh.
The size of cwnd(congestion window) increases additive.
After each RTT cwnd = cwnd + 1.

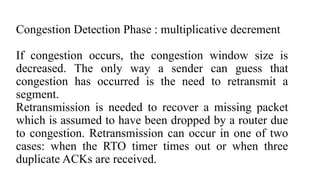

Congestion Detection Phase : multiplicative decrement
If congestion occurs, the congestion window size is
decreased. The only way a sender can guess that
congestion has occurred is the need to retransmit a
segment.
Retransmission is needed to recover a missing packet
which is assumed to have been dropped by a router due
to congestion. Retransmission can occur in one of two
cases: when the RTO timer times out or when three
duplicate ACKs are received.

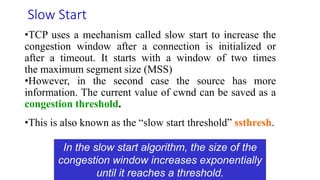

Slow Start
•TCP uses a mechanism called slow start to increase the
congestion window after a connection is initialized or
after a timeout. It starts with a window of two times
the maximum segment size (MSS)
•However, in the second case the source has more
information. The current value of cwnd can be saved as a
congestion threshold.
•This is also known as the “slow start threshold” ssthresh.
In the slow start algorithm, the size of the
congestion window increases exponentially
until it reaches a threshold.

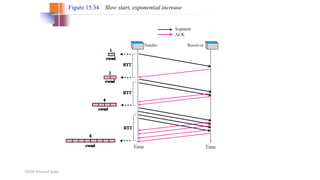

Figure 15.34 Slow start, exponential increase

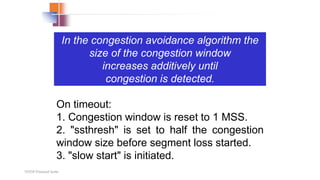

In the congestion avoidance algorithm the
size of the congestion window
increases additively until
congestion is detected.
On timeout:
1. Congestion window is reset to 1 MSS.
2. "ssthresh" is set to half the congestion
window size before segment loss started.
3. "slow start" is initiated.

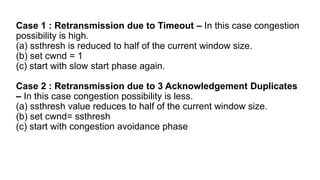

Case 1 : Retransmission due to Timeout – In this case congestion
possibility is high.
(a) ssthresh is reduced to half of the current window size.
(b) set cwnd = 1
(c) start with slow start phase again.
Case 2 : Retransmission due to 3 Acknowledgement Duplicates
– In this case congestion possibility is less.
(a) ssthresh value reduces to half of the current window size.
(b) set cwnd= ssthresh
(c) start with congestion avoidance phase

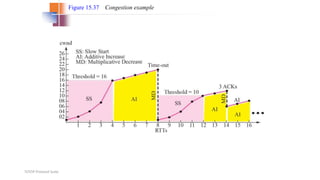

Figure 15.37 Congestion example

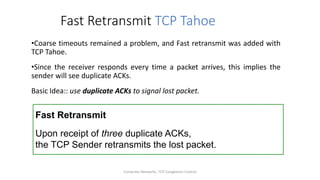

Fast Retransmit TCP Tahoe
•Coarse timeouts remained a problem, and Fast retransmit was added with
TCP Tahoe.
•Since the receiver responds every time a packet arrives, this implies the
sender will see duplicate ACKs.
Basic Idea:: use duplicate ACKs to signal lost packet.
Fast Retransmit
Upon receipt of three duplicate ACKs,
the TCP Sender retransmits the lost packet.

Fast Retransmit
Packet 1
Packet 2
Packet 3
Packet 4
Packet 5
Packet 6
Retransmit
packet 3
ACK 1
ACK 2
ACK 2
ACK 2
ACK 6
ACK 2
Sender Receiver
Fast Retransmit
Based on three
duplicate ACKs

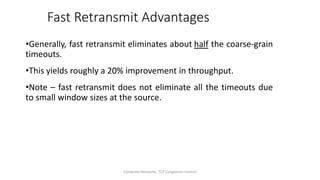

Fast Retransmit Advantages
•Generally, fast retransmit eliminates about half the coarse-grain
timeouts.
•This yields roughly a 20% improvement in throughput.
•Note – fast retransmit does not eliminate all the timeouts due
to small window sizes at the source.

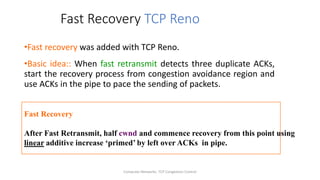

Fast Recovery TCP Reno
•Fast recovery was added with TCP Reno.
•Basic idea:: When fast retransmit detects three duplicate ACKs,
start the recovery process from congestion avoidance region and
use ACKs in the pipe to pace the sending of packets.
Fast Recovery
After Fast Retransmit, half cwnd and commence recovery from this point using
linear additive increase ‘primed’ by left over ACKs in pipe.

chapter 3.2 TCP.pptx

More Related Content

What's hot

Similar to chapter 3.2 TCP.pptx

More from Tekle12

Recently uploaded

chapter 3.2 TCP.pptx
