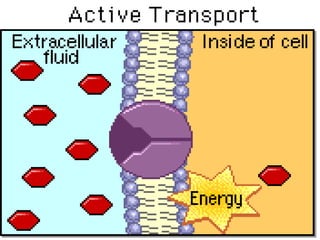

Active transport
Types of Active Transport
Primary Active transport
Sodium-Potassium pump
secondary Active transport
uniport, Symport, Antiport
Endocytosis
Types of endocytosis
Phagocytosis
Pinocytosis
Receptor-mediated endocytosis
Exocytosis
Purposes of Endocytosis and Exocytosis
Passive Transport
Types of Passive Transport
Diffusion
Osmosis
Facilitated Diffusion
What causes diffusion?
Why is diffusion useful?
Supercritical fluid

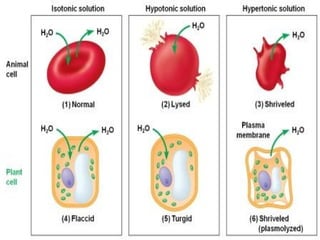

Osmotic Solutions
Isotonic Solution
Hypertonic Solution
Hypotonic Solution
Types of Osmosis
Difference Between Endosmosis And Exosmosis
Significance of Osmosis
Factors Affecting Facilitated Diffusion
Importance of Facilitated Diffusion
Transmembrane Proteins
Channel Proteins and carrier protein
This slide presentations contains about the transport system of the cell.
*selective permeability
*diffusion
*osmosis
*the cell environment
(isotonic, hypotonic, hypertonic solutions)
*active transport
*passive transport (facilitated diffusion)
Active transport
Types of Active Transport
Primary Active transport
Sodium-Potassium pump
secondary Active transport
uniport, Symport, Antiport
Endocytosis
Types of endocytosis
Phagocytosis
Pinocytosis
Receptor-mediated endocytosis
Exocytosis
Purposes of Endocytosis and Exocytosis
Passive Transport
Types of Passive Transport
Diffusion
Osmosis
Facilitated Diffusion
What causes diffusion?
Why is diffusion useful?
Supercritical fluid
Osmotic Solutions
Isotonic Solution
Hypertonic Solution
Hypotonic Solution
Types of Osmosis
Difference Between Endosmosis And Exosmosis
Significance of Osmosis
Factors Affecting Facilitated Diffusion
Importance of Facilitated Diffusion
Transmembrane Proteins
Channel Proteins and carrier protein
Accelerate your Kubernetes clusters with Varnish CachingThijs Feryn
Ā
A presentation about the usage and availability of Varnish on Kubernetes. This talk explores the capabilities of Varnish caching and shows how to use the Varnish Helm chart to deploy it to Kubernetes.
This presentation was delivered at K8SUG Singapore. See https://feryn.eu/presentations/accelerate-your-kubernetes-clusters-with-varnish-caching-k8sug-singapore-28-2024 for more details.
GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using Deplo...James Anderson
Ā
Effective Application Security in Software Delivery lifecycle using Deployment Firewall and DBOM
The modern software delivery process (or the CI/CD process) includes many tools, distributed teams, open-source code, and cloud platforms. Constant focus on speed to release software to market, along with the traditional slow and manual security checks has caused gaps in continuous security as an important piece in the software supply chain. Today organizations feel more susceptible to external and internal cyber threats due to the vast attack surface in their applications supply chain and the lack of end-to-end governance and risk management.
The software team must secure its software delivery process to avoid vulnerability and security breaches. This needs to be achieved with existing tool chains and without extensive rework of the delivery processes. This talk will present strategies and techniques for providing visibility into the true risk of the existing vulnerabilities, preventing the introduction of security issues in the software, resolving vulnerabilities in production environments quickly, and capturing the deployment bill of materials (DBOM).
Speakers:
Bob Boule
Robert Boule is a technology enthusiast with PASSION for technology and making things work along with a knack for helping others understand how things work. He comes with around 20 years of solution engineering experience in application security, software continuous delivery, and SaaS platforms. He is known for his dynamic presentations in CI/CD and application security integrated in software delivery lifecycle.
Gopinath Rebala
Gopinath Rebala is the CTO of OpsMx, where he has overall responsibility for the machine learning and data processing architectures for Secure Software Delivery. Gopi also has a strong connection with our customers, leading design and architecture for strategic implementations. Gopi is a frequent speaker and well-known leader in continuous delivery and integrating security into software delivery.
Builder.ai Founder Sachin Dev Duggal's Strategic Approach to Create an Innova...Ramesh Iyer
Ā
In today's fast-changing business world, Companies that adapt and embrace new ideas often need help to keep up with the competition. However, fostering a culture of innovation takes much work. It takes vision, leadership and willingness to take risks in the right proportion. Sachin Dev Duggal, co-founder of Builder.ai, has perfected the art of this balance, creating a company culture where creativity and growth are nurtured at each stage.
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf91mobiles
Ā
91mobiles recently conducted a Smart TV Buyer Insights Survey in which we asked over 3,000 respondents about the TV they own, aspects they look at on a new TV, and their TV buying preferences.
Software Delivery At the Speed of AI: Inflectra Invests In AI-Powered QualityInflectra
Ā
In this insightful webinar, Inflectra explores how artificial intelligence (AI) is transforming software development and testing. Discover how AI-powered tools are revolutionizing every stage of the software development lifecycle (SDLC), from design and prototyping to testing, deployment, and monitoring.
Learn about:
ā¢ The Future of Testing: How AI is shifting testing towards verification, analysis, and higher-level skills, while reducing repetitive tasks.
ā¢ Test Automation: How AI-powered test case generation, optimization, and self-healing tests are making testing more efficient and effective.
ā¢ Visual Testing: Explore the emerging capabilities of AI in visual testing and how it's set to revolutionize UI verification.
ā¢ Inflectra's AI Solutions: See demonstrations of Inflectra's cutting-edge AI tools like the ChatGPT plugin and Azure Open AI platform, designed to streamline your testing process.
Whether you're a developer, tester, or QA professional, this webinar will give you valuable insights into how AI is shaping the future of software delivery.
GraphRAG is All You need? LLM & Knowledge GraphGuy Korland
Ā
Guy Korland, CEO and Co-founder of FalkorDB, will review two articles on the integration of language models with knowledge graphs.
1. Unifying Large Language Models and Knowledge Graphs: A Roadmap.
https://arxiv.org/abs/2306.08302
2. Microsoft Research's GraphRAG paper and a review paper on various uses of knowledge graphs:
https://www.microsoft.com/en-us/research/blog/graphrag-unlocking-llm-discovery-on-narrative-private-data/
Essentials of Automations: Optimizing FME Workflows with ParametersSafe Software
Ā
Are you looking to streamline your workflows and boost your projectsā efficiency? Do you find yourself searching for ways to add flexibility and control over your FME workflows? If so, youāre in the right place.
Join us for an insightful dive into the world of FME parameters, a critical element in optimizing workflow efficiency. This webinar marks the beginning of our three-part āEssentials of Automationā series. This first webinar is designed to equip you with the knowledge and skills to utilize parameters effectively: enhancing the flexibility, maintainability, and user control of your FME projects.
Hereās what youāll gain:
- Essentials of FME Parameters: Understand the pivotal role of parameters, including Reader/Writer, Transformer, User, and FME Flow categories. Discover how they are the key to unlocking automation and optimization within your workflows.
- Practical Applications in FME Form: Delve into key user parameter types including choice, connections, and file URLs. Allow users to control how a workflow runs, making your workflows more reusable. Learn to import values and deliver the best user experience for your workflows while enhancing accuracy.
- Optimization Strategies in FME Flow: Explore the creation and strategic deployment of parameters in FME Flow, including the use of deployment and geometry parameters, to maximize workflow efficiency.
- Pro Tips for Success: Gain insights on parameterizing connections and leveraging new features like Conditional Visibility for clarity and simplicity.
Weāll wrap up with a glimpse into future webinars, followed by a Q&A session to address your specific questions surrounding this topic.
Donāt miss this opportunity to elevate your FME expertise and drive your projects to new heights of efficiency.
Key Trends Shaping the Future of Infrastructure.pdfCheryl Hung
Ā
Keynote at DIGIT West Expo, Glasgow on 29 May 2024.
Cheryl Hung, ochery.com
Sr Director, Infrastructure Ecosystem, Arm.
The key trends across hardware, cloud and open-source; exploring how these areas are likely to mature and develop over the short and long-term, and then considering how organisations can position themselves to adapt and thrive.
UiPath Test Automation using UiPath Test Suite series, part 3DianaGray10
Ā
Welcome to UiPath Test Automation using UiPath Test Suite series part 3. In this session, we will cover desktop automation along with UI automation.
Topics covered:
UI automation Introduction,
UI automation Sample
Desktop automation flow
Pradeep Chinnala, Senior Consultant Automation Developer @WonderBotz and UiPath MVP
Deepak Rai, Automation Practice Lead, Boundaryless Group and UiPath MVP
Slack (or Teams) Automation for Bonterra Impact Management (fka Social Soluti...Jeffrey Haguewood
Ā
Sidekick Solutions uses Bonterra Impact Management (fka Social Solutions Apricot) and automation solutions to integrate data for business workflows.
We believe integration and automation are essential to user experience and the promise of efficient work through technology. Automation is the critical ingredient to realizing that full vision. We develop integration products and services for Bonterra Case Management software to support the deployment of automations for a variety of use cases.
This video focuses on the notifications, alerts, and approval requests using Slack for Bonterra Impact Management. The solutions covered in this webinar can also be deployed for Microsoft Teams.
Interested in deploying notification automations for Bonterra Impact Management? Contact us at sales@sidekicksolutionsllc.com to discuss next steps.
JMeter webinar - integration with InfluxDB and GrafanaRTTS
Ā
Watch this recorded webinar about real-time monitoring of application performance. See how to integrate Apache JMeter, the open-source leader in performance testing, with InfluxDB, the open-source time-series database, and Grafana, the open-source analytics and visualization application.
In this webinar, we will review the benefits of leveraging InfluxDB and Grafana when executing load tests and demonstrate how these tools are used to visualize performance metrics.
Length: 30 minutes
Session Overviewā
-------------------------------------------
During this webinar, we will cover the following topics while demonstrating the integrations of JMeter, InfluxDB and Grafana:
- What out-of-the-box solutions are available for real-time monitoring JMeter tests?
- What are the benefits of integrating InfluxDB and Grafana into the load testing stack?
- Which features are provided by Grafana?
- Demonstration of InfluxDB and Grafana using a practice web application
To view the webinar recording, go to:
https://www.rttsweb.com/jmeter-integration-webinar
AI for Every Business: Unlocking Your Product's Universal Potential by VP of ...
Ā
Cell transportation combined
1.
2. ļ” the life function that involves
theĀ absorption (taking in)
and circulation (moving around) of materials
throughout an organism.

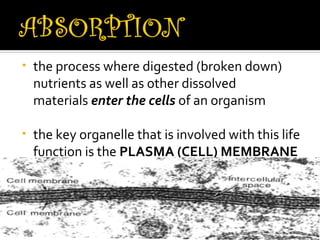

3. ā¢ the process where digested (broken down)
nutrients as well as other dissolved
materials enter the cells of an organism
ā¢ the key organelle that is involved with this life
function is the PLASMA (CELL) MEMBRANE
4. Polar heads Fluid Mosaic
love water Model of the
& dissolve. cell membrane
Non-polar
Membrane move
tails hide
from water.
Carbohydrate cell
markers
Proteins

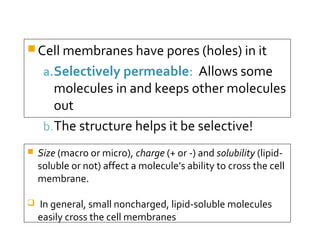

5. ļ” Cell membranes have pores (holes) in it
a.Selectively permeable: Allows some
molecules in and keeps other molecules
out
b. The structure helps it be selective!
ļ” Size (macro or micro), charge (+ or -) and solubility (lipid-
soluble or not) affect a moleculeās ability to cross the cell
membrane.
ļ± In general, small noncharged, lipid-soluble molecules
easily cross the cell membranes
6. Remember. it is a
double lipid layer with
floating proteins...
We also can call the plasma
membrane the fluid mosaic model.
Fluid because the double layer
moves around, it never is motionless.
A mosaic because that is how it
appears--a mosaic is a piece of art
that is made up of lots of little pieces
put together.
7. a. Phosphate head is polar
(hydrophilic or water loving)
b. Fatty acid tails non-polar
(hydrophobic or water
fearing)
c. Proteins embedded in
membrane

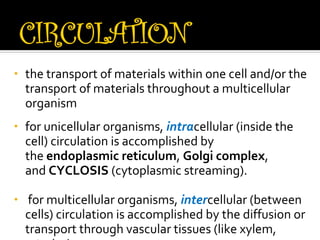

8. ā¢ the transport of materials within one cell and/or the
transport of materials throughout a multicellular
organism
ā¢ for unicellular organisms, intracellular (inside the
cell) circulation is accomplished by
the endoplasmic reticulum, Golgi complex,
and CYCLOSIS (cytoplasmic streaming).
ā¢ for multicellular organisms, intercellular (between
cells) circulation is accomplished by the diffusion or
transport through vascular tissues (like xylem,
9.
10.

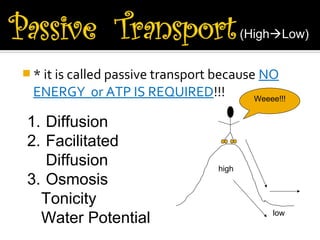

11. (Highļ Low)
ļ” * it is called passive transport because NO
ENERGY or ATP IS REQUIRED!!! Weeee!!!
1. Diffusion
2. Facilitated
Diffusion high
3. Osmosis
Tonicity
low
Water Potential

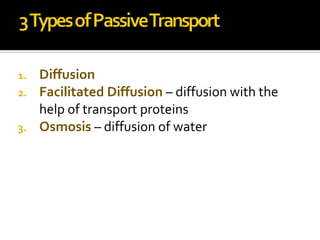

12. 1. Diffusion
2. Facilitated Diffusion ā diffusion with the
help of transport proteins
3. Osmosis ā diffusion of water
13. ā¢ *diffusion is where very small
particles move from a regionĀ ofĀ highĀ concentration (a large
amount) to a regionĀ ofĀ lowerĀ concentration (a smaller
amount).
ā¢ * molecules move in straight lines in a random direction
ā¢ * diffusion usually happens untilĀ theĀ concentrationĀ isĀ theĀ
sameĀ throughout; this is called EQUILIBRIUM (a balanced
state-- HOMEOSTASIS!)
ā¢ Note: molecules will still move around but stay spread out.
14. ļ” Occurs in liquid or gas medium
Diffusion of a solute within a solvent is affected
by several factors:
ļ± Temperature
ļ± Pressure
ļ± Density of the solvent
ļ± Concentration Gradient
ļ± Solubility of the solute
http://bio.winona.edu/berg/Free.htm
15.
16.

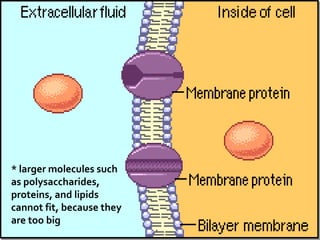

17. * larger molecules such
as polysaccharides,
proteins, and lipids
cannot fit, because they
are too big

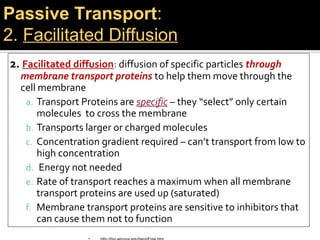

18. Passive Transport:
2. Facilitated Diffusion
2. Facilitated diffusion: diffusion of specific particles through
membrane transport proteins to help them move through the
cell membrane
a. Transport Proteins are specificĀ ā they āselectā only certain
molecules to cross the membrane
b. Transports larger or charged molecules
c. Concentration gradient required ā canāt transport from low to
high concentration
d. Energy not needed
e. Rate of transport reaches a maximum when all membrane
transport proteins are used up (saturated)
f. Membrane transport proteins are sensitive to inhibitors that
can cause them not to function
19. Passive Transport:
2. Facilitated Diffusion A B
There are 2 types of membrane
transport proteins involved:
ļ± Channel proteins ā contain
tunnels/openings that serve as Facilitated
passageways of molecules Diffusion
diffusion (Lipid Bilayer)
(Channel
ļ± Carrier proteins ā undergo
Protein)
temporary binding to the
molecule it carries resulting in
conformational change that
moves the molecule through
the membrane Carrier Protein

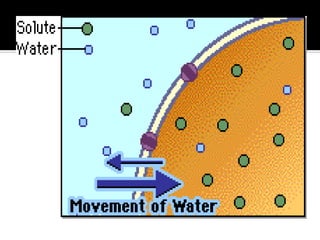

20. ļ” the diffusion of water through a semi-permeable
membrane
22. Water Potential ā term for movement of water
molecules as it undergoes osmosis
- The measure of the difference between the āforceā
that pushes water molecules and the āforceā exerted
by the membrane
Water solution with less solute (more diluted solution because of more water) =
higher water potential
Water solution with more solute (more concentrated solution) = lower water
potential
Water Potential Gradient - when 2 solutions of different water potentials are
separated by a semipermeable membrane, thus allowing osmosis to occur
Osmotic Pressure ā āforceā that moves water molecules through a semi-
permeable membrane
23.
24. If the concentration of solute (salt) is equal on both sides, the water will
move back in forth but it won't have any result on the overall amount of
water on either side.
"ISO" means the same
25.
26. "HYPO" means less
In this case there are less solute
(salt) molecules outside the cell,
since salt sucks, water will move
into the cell, causing it to swell.
The cell will gain water and grow
larger. As osmosis continues,
osmotic pressure builds up inside
the cell causing cell lysis.
In plant cells, the vacuoles will fill and the plant becomes stiff and rigid.
The pressure exerted by the water molecule is called TURGOR
PRESSURE, and the phenomenon TURGIDITY. The turgor pressure in
plants will not result in cell lysis as the cell wall keeps the plant from
bursting.
TURGIDITY is important in maintaining the firm and erect position of a
plant.
27. ā¢ Osmosis
Animations for
isotonic, hypertonic,
and hypotonic
solutions
Hypotonic: The solution has a lower concentration of
solutes and a higher concentration of water than
inside the cell. (Low solute; High water)
Result: Water moves from the solution to inside the
cell): Cell Swells and bursts open (cytolysis)!
28.

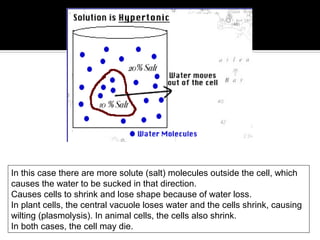

29. "HYPER" means more
In this case there are more solute (salt) molecules outside the cell, which
causes the water to be sucked in that direction.
Causes cells to shrink and lose shape because of water loss.
In plant cells, the central vacuole loses water and the cells shrink, causing
wilting (plasmolysis). In animal cells, the cells also shrink.
In both cases, the cell may die.
30. ā¢ Osmosis
Animations for
isotonic, hypertonic,
and hypotonic
solutions

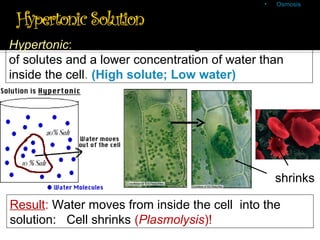

Hypertonic: The solution has a higher concentration
of solutes and a lower concentration of water than
inside the cell. (High solute; Low water)
shrinks
Result: Water moves from inside the cell into the
solution: Cell shrinks (Plasmolysis)!
31.

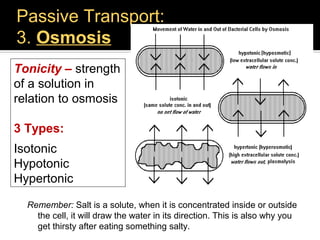

32. Passive Transport:
3. Osmosis
Tonicity ā strength
of a solution in
relation to osmosis
3 Types:
Isotonic
Hypotonic
Hypertonic
Remember: Salt is a solute, when it is concentrated inside or outside
the cell, it will draw the water in its direction. This is also why you
get thirsty after eating something salty.
33.

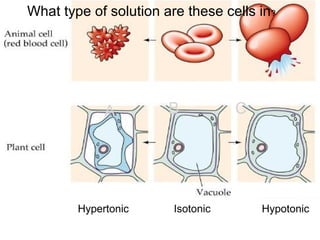

34. What type of solution are these cells in ?
A B C
Hypertonic Isotonic Hypotonic
35. ā¢Bacteria and plants have cell walls that prevent them
from over-expanding. In plants the pressure exerted on
the cell wall is called tugor pressure.
ā¢A protist like paramecium has contractile vacuoles that
collect water flowing in and pump it out to prevent them
from over-expanding.
ā¢Salt water fish pump salt out of their specialized gills so
they do not dehydrate.
ā¢Animal cells are bathed in blood. Kidneys keep the
blood isotonic by remove excess salt and water.
36. ļ” * a process where a cell USES ENERGY or
ATP to move molecules fromĀ aĀ regionĀ ofĀ
lowĀ concentrationĀ toĀ aĀ regionĀ ofĀ highĀ
concentration
ļ” * special proteins called carrier proteins
This is
often called pumps are used to move gonna
be hard
molecules from one side of the membrane work!!
high
to the other
low
37. Example: Sodium
-Potassium Pumps
are important in nerve
responses. They
transfer Na and K
ions in and out of the
nerve and muscle
cells.

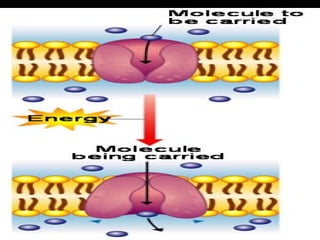

Protein changes shape to move molecules:
this requires energy!

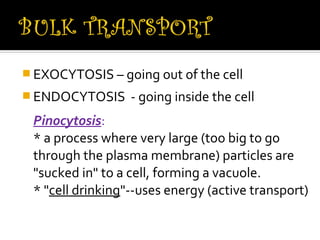

43. ļ” EXOCYTOSIS ā going out of the cell
ļ” ENDOCYTOSIS - going inside the cell
Pinocytosis:
* a process where very large (too big to go
through the plasma membrane) particles are
"sucked in" to a cell, forming a vacuole.
* "cell drinking"--uses energy (active transport)

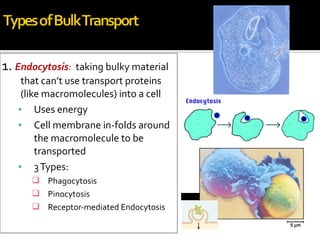

44. 1. Endocytosis:Ā taking bulky material
that canāt use transport proteins
(like macromolecules) into a cell
ā¢ Uses energy
ā¢ Cell membrane in-folds around
the macromolecule to be
transported
ā¢ 3 Types:
ļ± Phagocytosis
ļ± Pinocytosis
ļ± Receptor-mediated Endocytosis
45.
46. ļ” ENDOCYTOSIS - going inside the cell
Phagocytosis:
* a process where a cell engulfs large
undissolved particles, forming a vacuole
* "cell eating"--uses energy (active transport)
47.
48. Receptor-mediated EndocytosisĀ ā ācell drinkingā
- Compared to pinocytosis, is very specific. The plasma membrane
becomes indented and forms a pit. The pit lined with receptor
proteins picks specific molecules from its surroundings. The pit will
close and pinch off to form a vesicle which will carry the molecules
inside the cytoplasm.
49. 2. Exocytosis:Ā Forces material
out of cell in bulk
ā¢ membrane surrounding the
material fuses with cell
membrane
ā¢ Cell changes shape ā
requires energy
ā¢ EX: Hormones or wastes
released from cell
