C22 non metals

Chapter 22: Non-metals

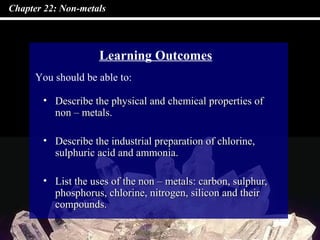

Learning Outcomes
You should be able to:

• Describe the physical and chemical properties of
non – metals.

• Describe the industrial preparation of chlorine,
sulphuric acid and ammonia.

• List the uses of the non – metals: carbon, sulphur,
phosphorus, chlorine, nitrogen, silicon and their
compounds.

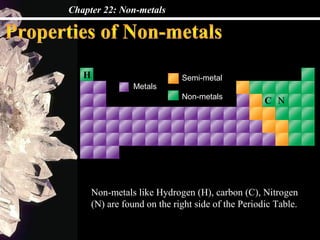

H Semi-metal
Metals
Non-metals
C N

Non-metals like Hydrogen (H), carbon (C), Nitrogen
(N) are found on the right side of the Periodic Table.


Differences between metals and non-metals
Metals Non-Metals
Malleable and ductile Brittle, neither ductile nor
malleable
Good conductors of Poor conductors of heat and
electricity and heat electricity except graphite
Lustrous and can be Non-lustrous and cannot be
polished polished, except graphite and
iodine which are lustrous non-
metals
Solids at room May be solids, liquids or gases at
temperature, except room temperature
mercury

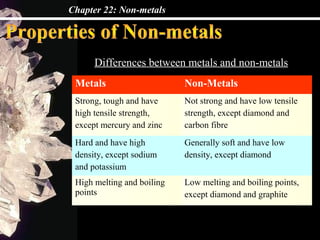

Differences between metals and non-metals
Metals Non-Metals
Strong, tough and have Not strong and have low tensile
high tensile strength, strength, except diamond and
except mercury and zinc carbon fibre
Hard and have high Generally soft and have low
density, except sodium density, except diamond
and potassium
High melting and boiling Low melting and boiling points,
points except diamond and graphite

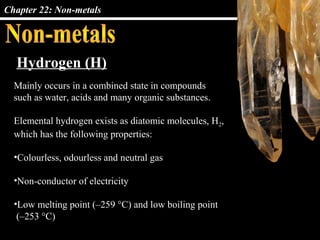

Hydrogen (H)
Mainly occurs in a combined state in compounds
such as water, acids and many organic substances.

Elemental hydrogen exists as diatomic molecules, H2,
which has the following properties:

•Colourless, odourless and neutral gas

•Non-conductor of electricity

•Low melting point (–259 °C) and low boiling point
(–253 °C)

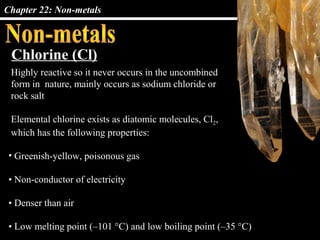

Chlorine (Cl)
Highly reactive so it never occurs in the uncombined
form in nature, mainly occurs as sodium chloride or
rock salt

Elemental chlorine exists as diatomic molecules, Cl2,

• Greenish-yellow, poisonous gas

• Non-conductor of electricity

• Denser than air

• Low melting point (–101 °C) and low boiling point (–35 °C)


Oxygen (O)
Nearly half the mass of the Earth’s crust comprises
oxygen in a combined state in compounds such as
water, silicates, oxides and salts. Elemental form
exists in the air, forming 21% of air by volume.

Elemental oxygen exists mainly as diatomic
molecules, O2, which has the following properties:

• Colourless, odourless and neutral gas


• Low melting point (–218 °C) and low boiling point
(–183 °C)

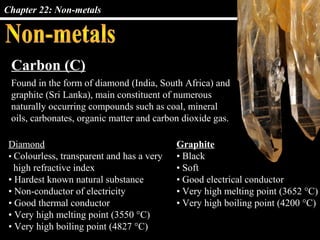

Carbon (C)
Found in the form of diamond (India, South Africa) and
graphite (Sri Lanka), main constituent of numerous
naturally occurring compounds such as coal, mineral
oils, carbonates, organic matter and carbon dioxide gas.

Diamond Graphite
• Colourless, transparent and has a very • Black
high refractive index • Soft
• Hardest known natural substance • Good electrical conductor
• Non-conductor of electricity • Very high melting point (3652 °C)
• Good thermal conductor • Very high boiling point (4200 °C)
• Very high melting point (3550 °C)
• Very high boiling point (4827 °C)

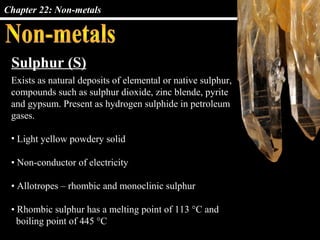

Sulphur (S)
Exists as natural deposits of elemental or native sulphur,
compounds such as sulphur dioxide, zinc blende, pyrite
and gypsum. Present as hydrogen sulphide in petroleum
gases.

• Light yellow powdery solid


• Allotropes – rhombic and monoclinic sulphur

• Rhombic sulphur has a melting point of 113 °C and
boiling point of 445 °C

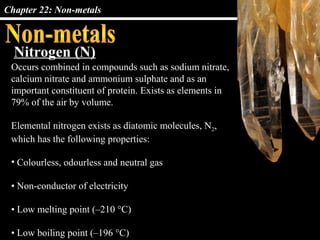

Nitrogen (N)
Occurs combined in compounds such as sodium nitrate,
calcium nitrate and ammonium sulphate and as an
important constituent of protein. Exists as elements in
79% of the air by volume.

Elemental nitrogen exists as diatomic molecules, N2,

• Colourless, odourless and neutral gas


• Low melting point (–210 °C)

• Low boiling point (–196 °C)

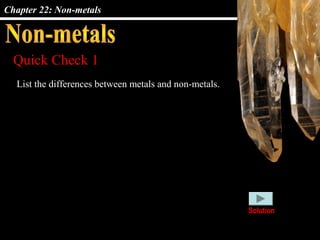

Quick Check 1
List the differences between metals and non-metals.

Solution

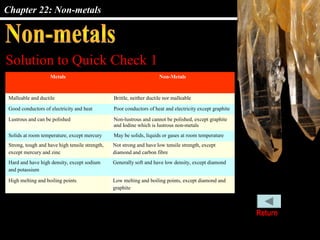

Solution to Quick Check 1
Metals Non-Metals

Malleable and ductile Brittle, neither ductile nor malleable

Good conductors of electricity and heat Poor conductors of heat and electricity except graphite

Lustrous and can be polished Non-lustrous and cannot be polished, except graphite
and Iodine which is lustrous non-metals
Solids at room temperature, except mercury May be solids, liquids or gases at room temperature
Strong, tough and have high tensile strength, Not strong and have low tensile strength, except
except mercury and zinc diamond and carbon fibre
Hard and have high density, except sodium Generally soft and have low density, except diamond
and potassium

High melting and boiling points Low melting and boiling points, except diamond and
graphite

Return

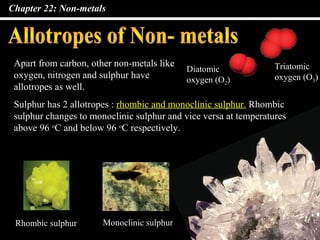

Apart from carbon, other non-metals like Triatomic
Diatomic
oxygen, nitrogen and sulphur have oxygen (O2) oxygen (O3)
allotropes as well.
Sulphur has 2 allotropes : rhombic and monoclinic sulphur. Rhombic
sulphur changes to monoclinic sulphur and vice versa at temperatures
above 96 oC and below 96 oC respectively.

Rhombic sulphur Monoclinic sulphur

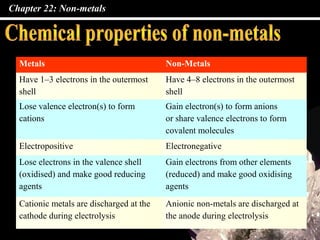

Metals Non-Metals
Have 1–3 electrons in the outermost Have 4–8 electrons in the outermost
shell shell
Lose valence electron(s) to form Gain electron(s) to form anions
cations or share valence electrons to form
covalent molecules
Electropositive Electronegative
Lose electrons in the valence shell Gain electrons from other elements
(oxidised) and make good reducing (reduced) and make good oxidising
agents agents
Cationic metals are discharged at the Anionic non-metals are discharged at
cathode during electrolysis the anode during electrolysis

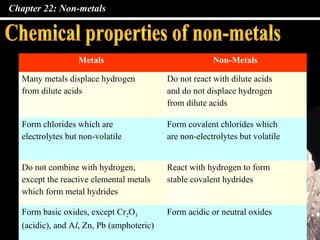

Metals Non-Metals

Many metals displace hydrogen Do not react with dilute acids
from dilute acids and do not displace hydrogen
from dilute acids

Form chlorides which are Form covalent chlorides which
electrolytes but non-volatile are non-electrolytes but volatile

Do not combine with hydrogen, React with hydrogen to form
except the reactive elemental metals stable covalent hydrides
which form metal hydrides

Form basic oxides, except Cr2O3 Form acidic or neutral oxides
(acidic), and Al, Zn, Pb (amphoteric)


Colourless,
stable liquid

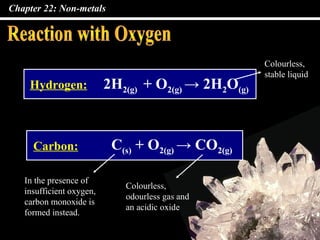

Hydrogen: 2H2(g) + O2(g) → 2H2O(g)

Carbon: C(s) + O2(g) → CO2(g)

In the presence of
Colourless,
insufficient oxygen,
odourless gas and
carbon monoxide is
an acidic oxide
formed instead.

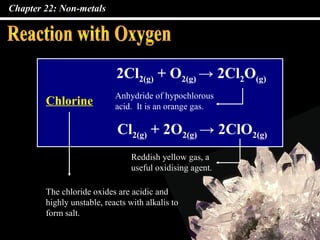

2Cl2(g) + O2(g) → 2Cl2O(g)
Anhydride of hypochlorous
Chlorine acid. It is an orange gas.

Cl2(g) + 2O2(g) → 2ClO2(g)
Reddish yellow gas, a
useful oxidising agent.

The chloride oxides are acidic and
highly unstable, reacts with alkalis to
form salt.


Colourless gas

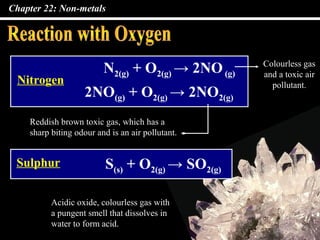

N2(g) + O2(g) → 2NO (g) and a toxic air
Nitrogen pollutant.
2NO(g) + O2(g) → 2NO2(g)
Reddish brown toxic gas, which has a
sharp biting odour and is an air pollutant.

Sulphur S(s) + O2(g) → SO2(g)

Acidic oxide, colourless gas with
a pungent smell that dissolves in
water to form acid.

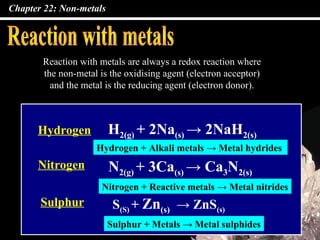

Reaction with metals are always a redox reaction where
the non-metal is the oxidising agent (electron acceptor)
and the metal is the reducing agent (electron donor).

Hydrogen H2(g) + 2Na(s) → 2NaH2(s)
Hydrogen + Alkali metals → Metal hydrides
Nitrogen N2(g) + 3Ca(s) → Ca3N2(s)
Nitrogen + Reactive metals → Metal nitrides
Sulphur S(S) + Zn(s) → ZnS(s)
Sulphur + Metals → Metal sulphides

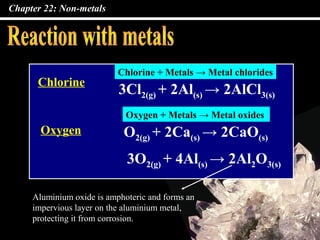

Chlorine + Metals → Metal chlorides
Chlorine
3Cl2(g) + 2Al(s) → 2AlCl3(s)
Oxygen + Metals → Metal oxides
Oxygen O2(g) + 2Ca(s) → 2CaO(s)
3O2(g) + 4Al(s) → 2Al2O3(s)

Aluminium oxide is amphoteric and forms an
impervious layer on the aluminium metal,
protecting it from corrosion.


Oxidising power increases
Electronegativity increases
Electronegativity increases
Oxidising power increases

Semi-metal
Metals
Non-metals

Nitrogen, oxygen, bromine, chlorine and
fluorine are all good oxidising agents
with fluorine being the strongest.

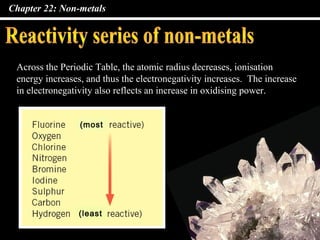

Across the Periodic Table, the atomic radius decreases, ionisation
energy increases, and thus the electronegativity increases. The increase
in electronegativity also reflects an increase in oxidising power.

(most

(least

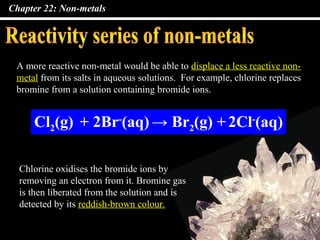

A more reactive non-metal would be able to displace a less reactive non-
metal from its salts in aqueous solutions. For example, chlorine replaces
bromine from a solution containing bromide ions.

Cl2(g) + 2Br-(aq) → Br2(g) + 2Cl-(aq)

Chlorine oxidises the bromide ions by
removing an electron from it. Bromine gas
is then liberated from the solution and is
detected by its reddish-brown colour.

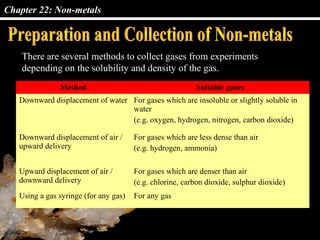

There are several methods to collect gases from experiments
depending on the solubility and density of the gas.
Method Suitable gases
Downward displacement of water For gases which are insoluble or slightly soluble in
water
(e.g. oxygen, hydrogen, nitrogen, carbon dioxide)

Downward displacement of air / For gases which are less dense than air
upward delivery (e.g. hydrogen, ammonia)

Upward displacement of air / For gases which are denser than air
downward delivery (e.g. chlorine, carbon dioxide, sulphur dioxide)
Using a gas syringe (for any gas) For any gas


Moderately active metals, such as zinc, are used to react with mineral
acids to produce hydrogen gas.

Zn(s) + 2HCl(aq) → ZnCl2(aq) + H2(g)
The liberated hydrogen gas
is then bubbled through a
solution of concentrated
sulphuric acid.

Concentrated sulphuric acid
acts as a drying agent as it
removes any water
molecules present in the gas.

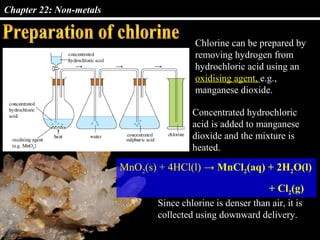

Chlorine can be prepared by
removing hydrogen from
hydrochloric acid using an
oxidising agent, e.g.,
manganese dioxide.

Concentrated hydrochloric
acid is added to manganese
dioxide and the mixture is
heated.

MnO2(s) + 4HCl(l) → MnCl2(aq) + 2H2O(l)
+ Cl2(g)
Since chlorine is denser than air, it is
collected using downward delivery.

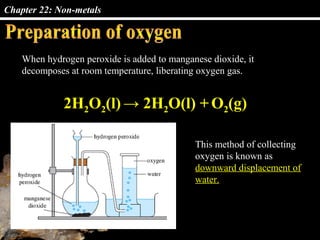

When hydrogen peroxide is added to manganese dioxide, it
decomposes at room temperature, liberating oxygen gas.

2H2O2(l) → 2H2O(l) + O2(g)

This method of collecting
oxygen is known as
downward displacement of
water.

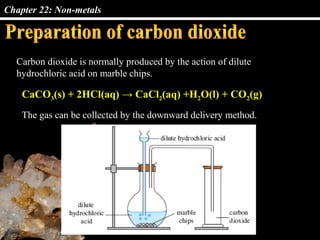

Carbon dioxide is normally produced by the action of dilute
hydrochloric acid on marble chips.

CaCO3(s) + 2HCl(aq) → CaCl2(aq) +H2O(l) + CO2(g)
The gas can be collected by the downward delivery method.

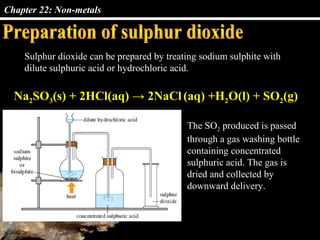

Sulphur dioxide can be prepared by treating sodium sulphite with
dilute sulphuric acid or hydrochloric acid.

Na2SO3(s) + 2HCl(aq) → 2NaCl (aq) +H2O(l) + SO2(g)

The SO2 produced is passed
through a gas washing bottle
containing concentrated
sulphuric acid. The gas is
dried and collected by
downward delivery.

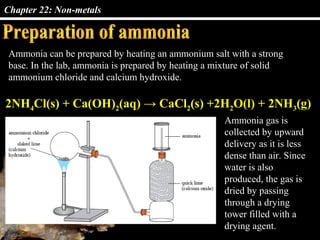

Ammonia can be prepared by heating an ammonium salt with a strong
base. In the lab, ammonia is prepared by heating a mixture of solid
ammonium chloride and calcium hydroxide.

2NH4Cl(s) + Ca(OH)2(aq) → CaCl2(s) +2H2O(l) + 2NH3(g)
Ammonia gas is
collected by upward
delivery as it is less
dense than air. Since
water is also
produced, the gas is
dried by passing
through a drying
tower filled with a
drying agent.


Steam is mixed with methane (the main constituent of natural gas),
with a nickel catalyst at a temperature of 1200 °C and 50 atm
pressure to produce hydrogen gas.

CH4(g) + H2O(g) → CO(g) + 3H2(g)

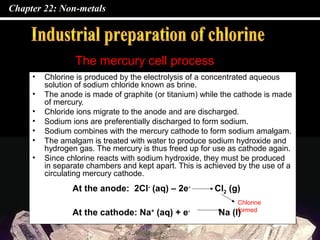

The mercury cell process
• Chlorine is produced by the electrolysis of a concentrated aqueous
solution of sodium chloride known as brine.
• The anode is made of graphite (or titanium) while the cathode is made
of mercury.
• Chloride ions migrate to the anode and are discharged.
• Sodium ions are preferentially discharged to form sodium.
• Sodium combines with the mercury cathode to form sodium amalgam.
• The amalgam is treated with water to produce sodium hydroxide and
hydrogen gas. The mercury is thus freed up for use as cathode again.
• Since chlorine reacts with sodium hydroxide, they must be produced
in separate chambers and kept apart. This is achieved by the use of a
circulating mercury cathode.
At the anode: 2Cl- (aq) – 2e- Cl2 (g)
Chlorine
formed
At the cathode: Na+ (aq) + e- Na (l)

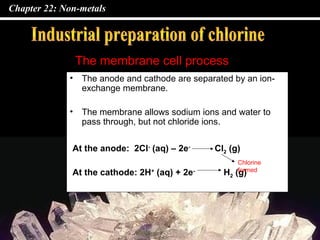

The membrane cell process
• The anode and cathode are separated by an ion-
exchange membrane.

• The membrane allows sodium ions and water to
pass through, but not chloride ions.

At the anode: 2Cl- (aq) – 2e- Cl2 (g)
Chlorine
formed
At the cathode: 2H+ (aq) + 2e- H2 (g)

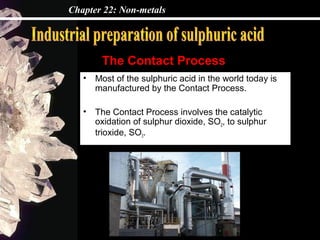

The Contact Process
• Most of the sulphuric acid in the world today is
manufactured by the Contact Process.

• The Contact Process involves the catalytic
oxidation of sulphur dioxide, SO2, to sulphur
trioxide, SO3.

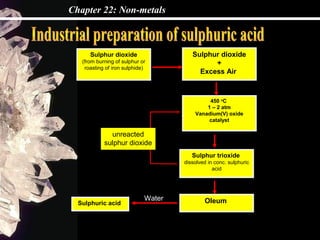

Sulphur dioxide Sulphur dioxide
(from burning of sulphur or +
roasting of iron sulphide)
Excess Air

450 oC
o

1 – 2 atm
Vanadium(V) oxide
catalyst

unreacted
sulphur dioxide
Sulphur trioxide
dissolved in conc. sulphuric
acid

Water Oleum
Sulphuric acid

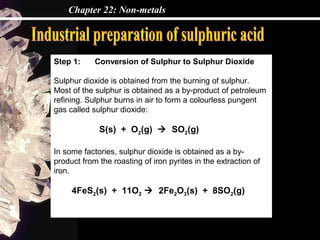

Step 1: Conversion of Sulphur to Sulphur Dioxide

Sulphur dioxide is obtained from the burning of sulphur.
Most of the sulphur is obtained as a by-product of petroleum
refining. Sulphur burns in air to form a colourless pungent
gas called sulphur dioxide:

S(s) + O2(g)  SO2(g)

In some factories, sulphur dioxide is obtained as a by-
product from the roasting of iron pyrites in the extraction of
iron.

4FeS2(s) + 11O2  2Fe2O3(s) + 8SO2(g)


Step2: Conversion of Sulphur Dioxide to Sulphur Trioxide

The sulphur dioxide is mixed with excess air and passed through a
filter to remove impurities and particles before entering the reaction
chamber.
The reaction chamber (converter) contains finely divided vanadium(V)
oxide as a catalyst at a temperature of about 450 °C – 500 °C. The
conversion of sulphur dioxide to sulphur trioxide occurs.

2SO2(g) + O2(g) 2SO3(g) ∆H = -189 kJmol-1

The heat evolved in the exothermic reaction maintains the
temperature of the catalyst. By using several converters in series and a
slight excess of oxygen, about 98% conversion of sulphur dioxide into
sulphur trioxide is achieved.


Step 3: Conversion of Sulphur Trioxide into Oleum
The sulphur trioxide is dissolved in concentrated sulphuric acid to form
a fuming liquid called oleum:

SO3(g) + H2SO4(l)  H2S2O7(l)

Sulphur trioxide is not dissolved directly in water because the reaction is
extremely vigorous and will result in the production of a mist of fine
sulphuric acid particles which is damaging to health.

Step 4: Conversion of Oleum to Sulphuric Acid
The oleum obtained is carefully diluted with the correct amount of water
to form concentrated sulphuric acid:

H2S2O7(l) + H2O(l)  2H2SO4(l)

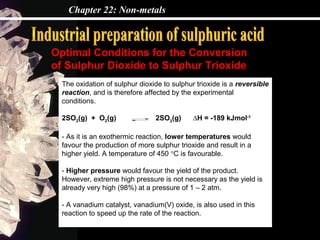

Optimal Conditions for the Conversion
of Sulphur Dioxide to Sulphur Trioxide
The oxidation of sulphur dioxide to sulphur trioxide is a reversible
reaction, and is therefore affected by the experimental
conditions.

2SO2(g) + O2(g) 2SO3(g) ∆H = -189 kJmol-1

- As it is an exothermic reaction, lower temperatures would
favour the production of more sulphur trioxide and result in a
higher yield. A temperature of 450 °C is favourable.

- Higher pressure would favour the yield of the product.
However, extreme high pressure is not necessary as the yield is
already very high (98%) at a pressure of 1 – 2 atm.

- A vanadium catalyst, vanadium(V) oxide, is also used in this
reaction to speed up the rate of the reaction.

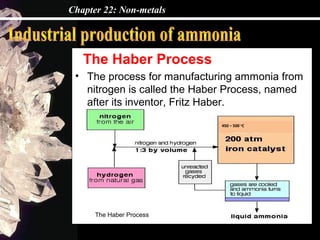

The Haber Process
• The process for manufacturing ammonia from
nitrogen is called the Haber Process, named
after its inventor, Fritz Haber.

450 – 500 oC

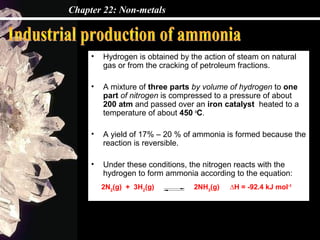

The Haber Process


• Hydrogen is obtained by the action of steam on natural
gas or from the cracking of petroleum fractions.

• A mixture of three parts by volume of hydrogen to one
part of nitrogen is compressed to a pressure of about
200 atm and passed over an iron catalyst heated to a
temperature of about 450 oC.

• A yield of 17% – 20 % of ammonia is formed because the
reaction is reversible.

• Under these conditions, the nitrogen reacts with the
hydrogen to form ammonia according to the equation:
2N2(g) + 3H2(g) 2NH3(g) ∆H = -92.4 kJ mol-1

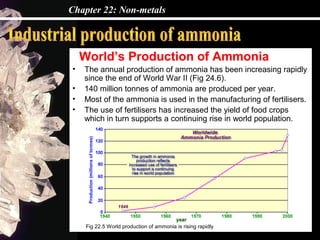

World’s Production of Ammonia
• The annual production of ammonia has been increasing rapidly
since the end of World War II (Fig 24.6).
• 140 million tonnes of ammonia are produced per year.
• Most of the ammonia is used in the manufacturing of fertilisers.
• The use of fertilisers has increased the yield of food crops
which in turn supports a continuing rise in world population.

Fig 22.5 World production of ammonia is rising rapidly

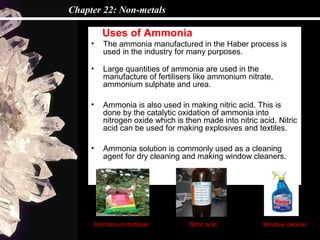

Uses of Ammonia
• The ammonia manufactured in the Haber process is
used in the industry for many purposes.

• Large quantities of ammonia are used in the
manufacture of fertilisers like ammonium nitrate,
ammonium sulphate and urea.

• Ammonia is also used in making nitric acid. This is
done by the catalytic oxidation of ammonia into
nitrogen oxide which is then made into nitric acid. Nitric
acid can be used for making explosives and textiles.

• Ammonia solution is commonly used as a cleaning
agent for dry cleaning and making window cleaners.

Ammonium fertiliser Nitric acid Window cleaner

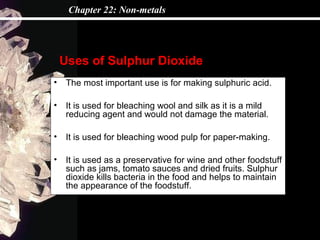

Uses of Sulphur Dioxide
• The most important use is for making sulphuric acid.

• It is used for bleaching wool and silk as it is a mild
reducing agent and would not damage the material.

• It is used for bleaching wood pulp for paper-making.

• It is used as a preservative for wine and other foodstuff
such as jams, tomato sauces and dried fruits. Sulphur
dioxide kills bacteria in the food and helps to maintain
the appearance of the foodstuff.

Chapter 22 22: Non-metals
Chapter

Preparations and collectives
of Non-metals

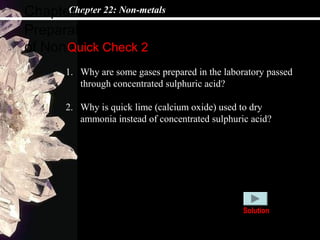

Quick Check 2
1. Why are some gases prepared in the laboratory passed
through concentrated sulphuric acid?

2. Why is quick lime (calcium oxide) used to dry
ammonia instead of concentrated sulphuric acid?

Solution

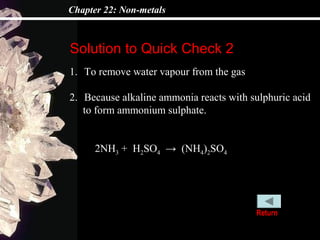

Solution to Quick Check 2
1. To remove water vapour from the gas

2. Because alkaline ammonia reacts with sulphuric acid
to form ammonium sulphate.

2NH3 + H2SO4 → (NH4)2SO4

Return

C22 non metals

More Related Content

What's hot

Similar to C22 non metals

More from Chemrcwss

C22 non metals
