The document discusses the architecture for real-time ETL processing, including using GoldenGate for change data capture from source databases, Kafka as the messaging system, and Spark jobs for streaming reconciliation and joining of data. It also covers requirements for the reconciler component like supporting idempotency, immutability, and schema evolution. Challenges with handling out-of-order events in Spark streaming and the data model used to address issues like idempotency and schema evolution are also described.

1. Real Time ETL processing
By Veeramani Moorthy

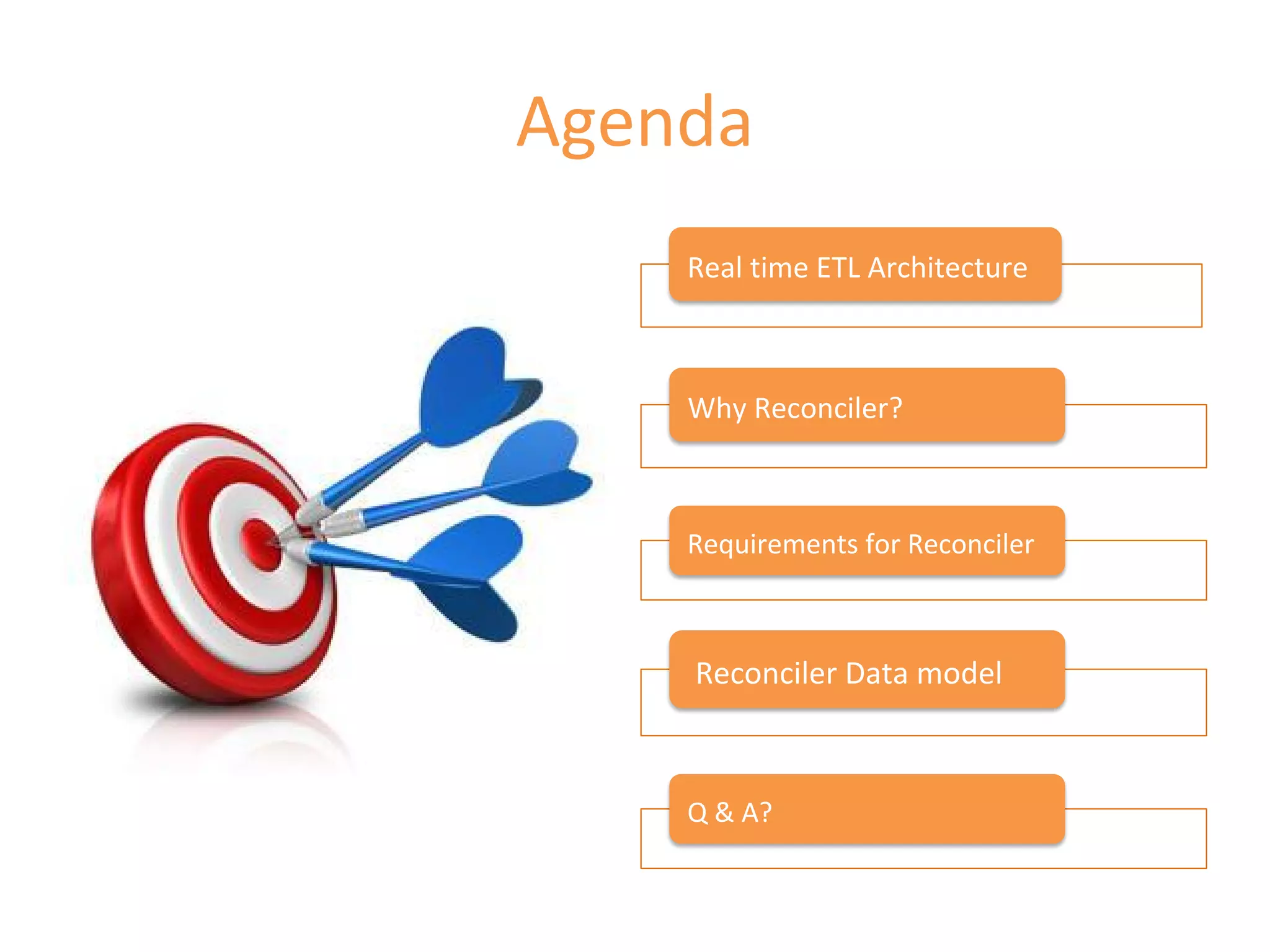

2. Agenda
Real time ETL Architecture
Why Reconciler?
Reconciler Data model
Q & A?
Requirements for Reconciler

3. [1.2.1]JDBCFetchTableSchema
Trail
Files
Adapter
Read
GoldenGate
Schema
Registry
[1.1] Data
Pump
• Schema Registry is a repository of ALL schemas which are versioned.
• GoldenGate captures the table change events
• Kafka – Distributed Messaging system
• CDC – Change Data Capture
[2.1] CDC
Events to
broker
Spark Reconciler Spark Joiner
Get Table Schema Get Table Schema
Streaming
Reconciler
job
Write
output
Reconciled
Companies Topic
Source
DB
Golden
Gate
[1.0] Data
Extract
[1.2]Get/Create/UpdateSchema

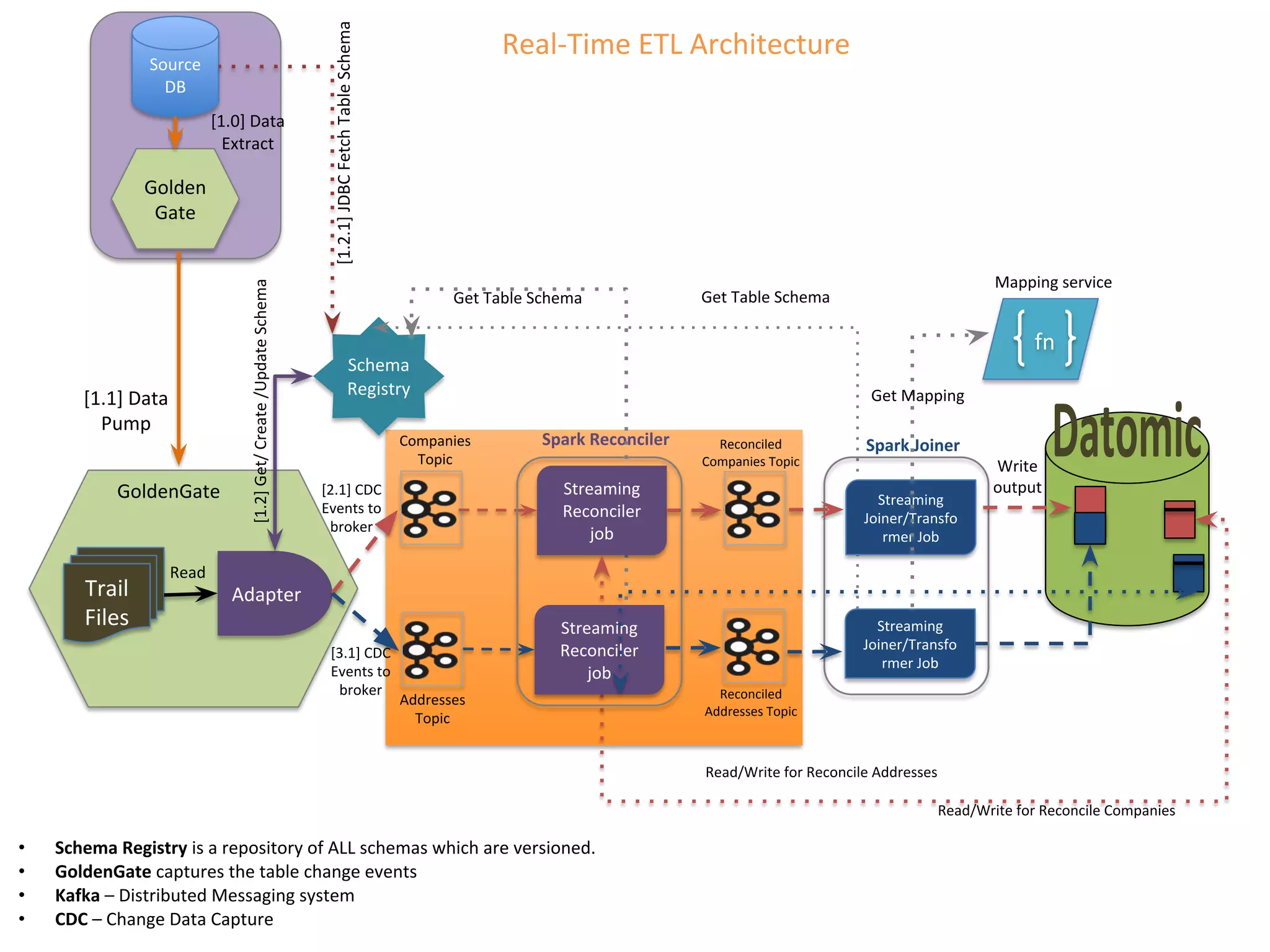

Real-Time ETL Architecture
Companies
Topic
Addresses
Topic
Streaming
Joiner/Transfo
rmer Job
Streaming
Reconciler
job
Reconciled
Addresses Topic
Read/Write for Reconcile Addresses
Read/Write for Reconcile Companies
[3.1] CDC
Events to
broker
Streaming
Joiner/Transfo
rmer Job
fn
Mapping service
Get Mapping

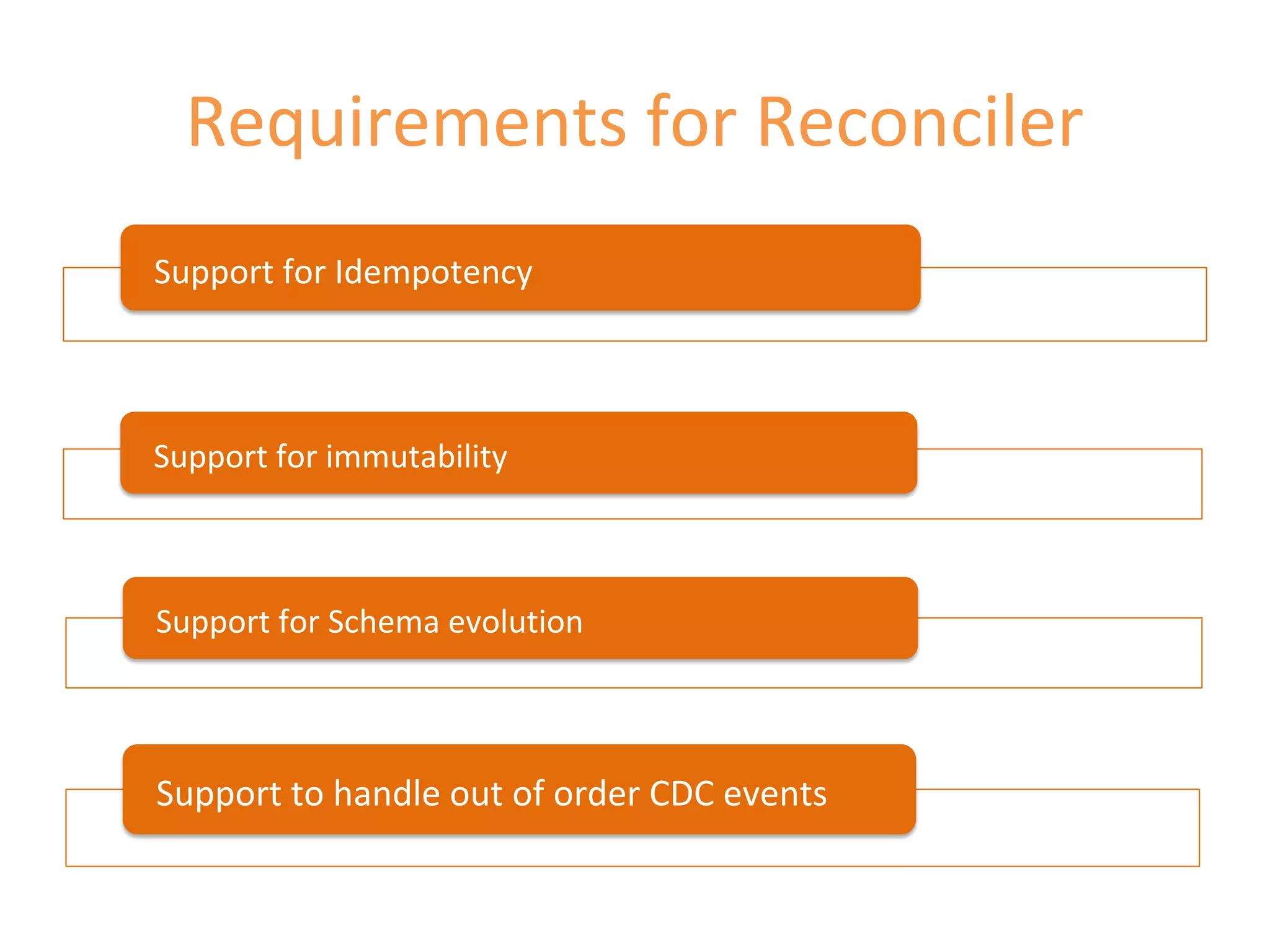

4. Requirements for Reconciler
Support for Idempotency
Support for immutability
Support for Schema evolution
Support to handle out of order CDC events

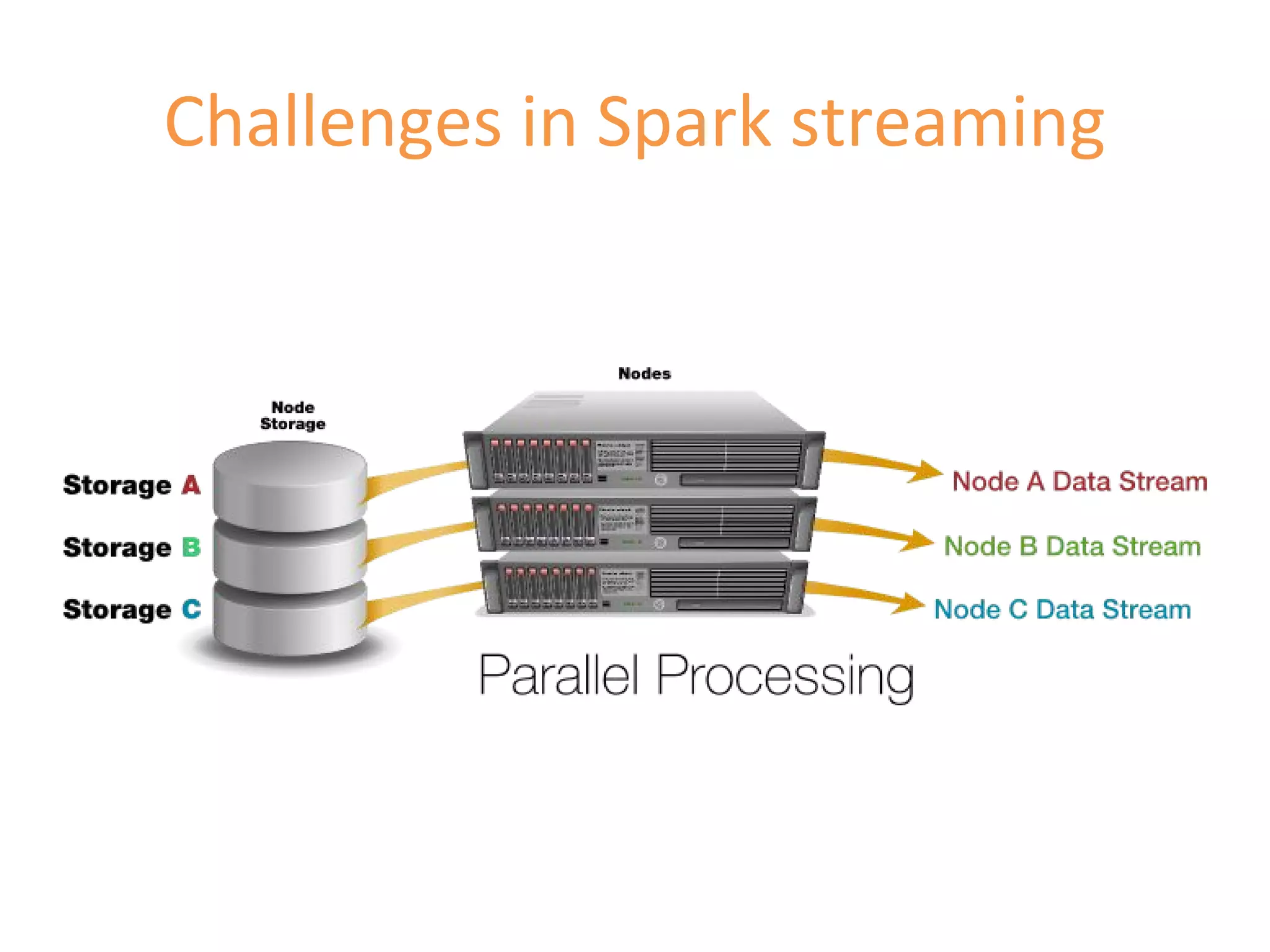

5. Challenges in Spark streaming

6. Out of sequence
UPDATE comes first INSERT comes later

7. Challenges in Spark streaming …

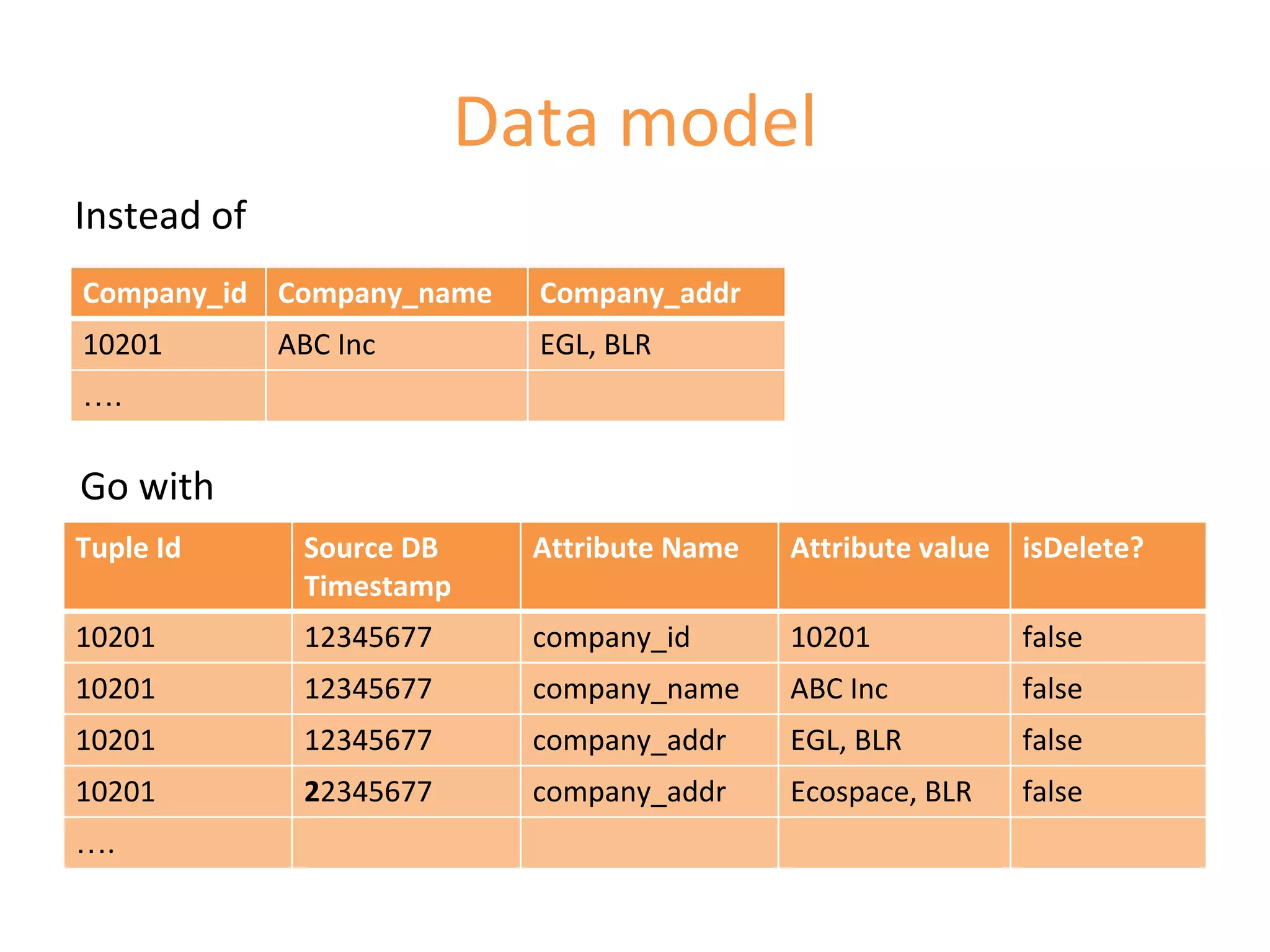

8. Data model
Tuple Id Source DB
Timestamp
Attribute Name Attribute value isDelete?
10201 12345677 company_id 10201 false
10201 12345677 company_name ABC Inc false
10201 12345677 company_addr EGL, BLR false
10201 22345677 company_addr Ecospace, BLR false
….
Company_id Company_name Company_addr
10201 ABC Inc EGL, BLR
….
Instead of
Go with

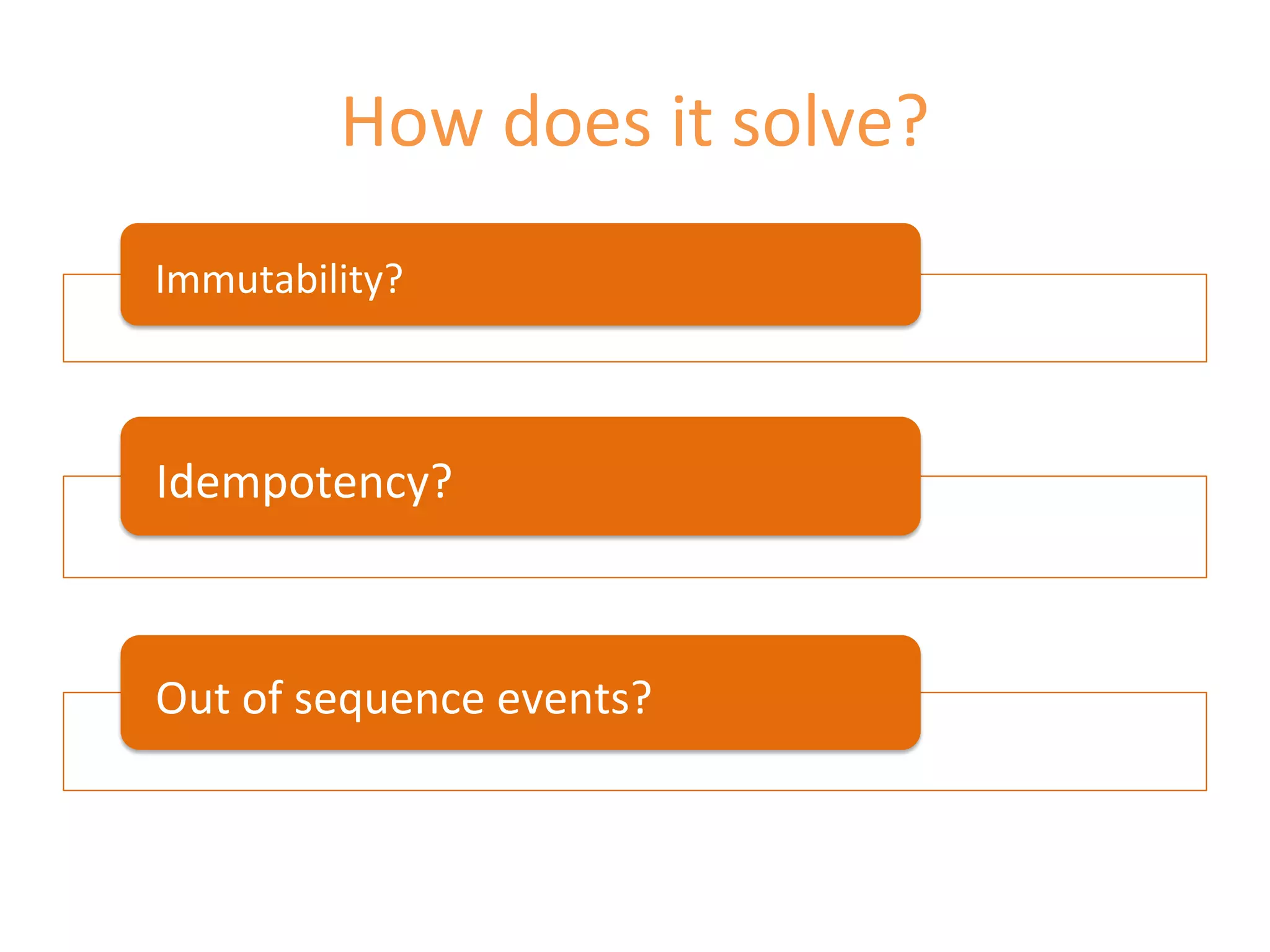

9. How does it solve?
Immutability?
Idempotency?
Out of sequence events?

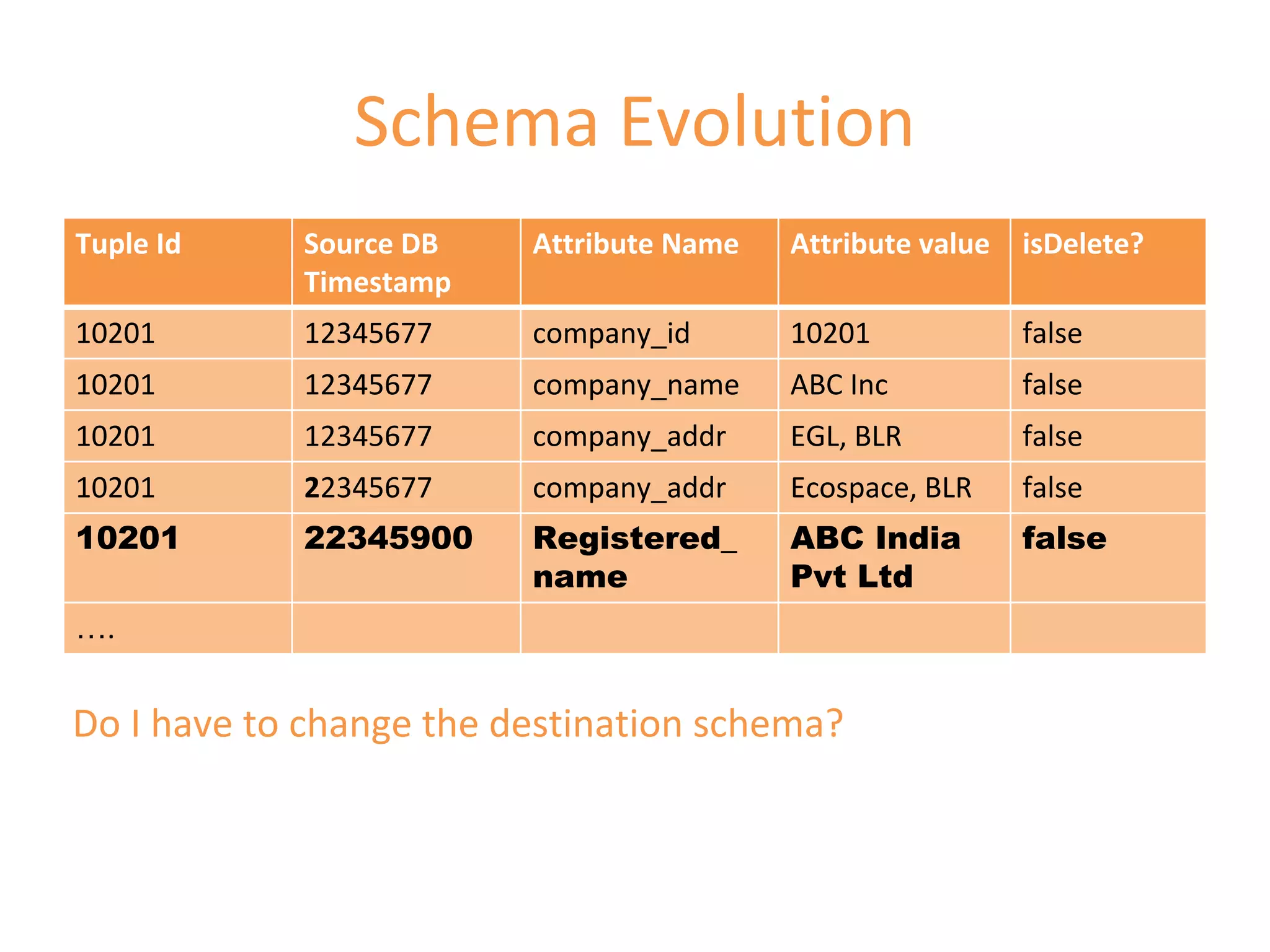

10. Schema Evolution
Tuple Id Source DB
Timestamp
Attribute Name Attribute value isDelete?
10201 12345677 company_id 10201 false
10201 12345677 company_name ABC Inc false
10201 12345677 company_addr EGL, BLR false
10201 22345677 company_addr Ecospace, BLR false
10201 22345900 Registered_
name
ABC India
Pvt Ltd
false
….
Do I have to change the destination schema?

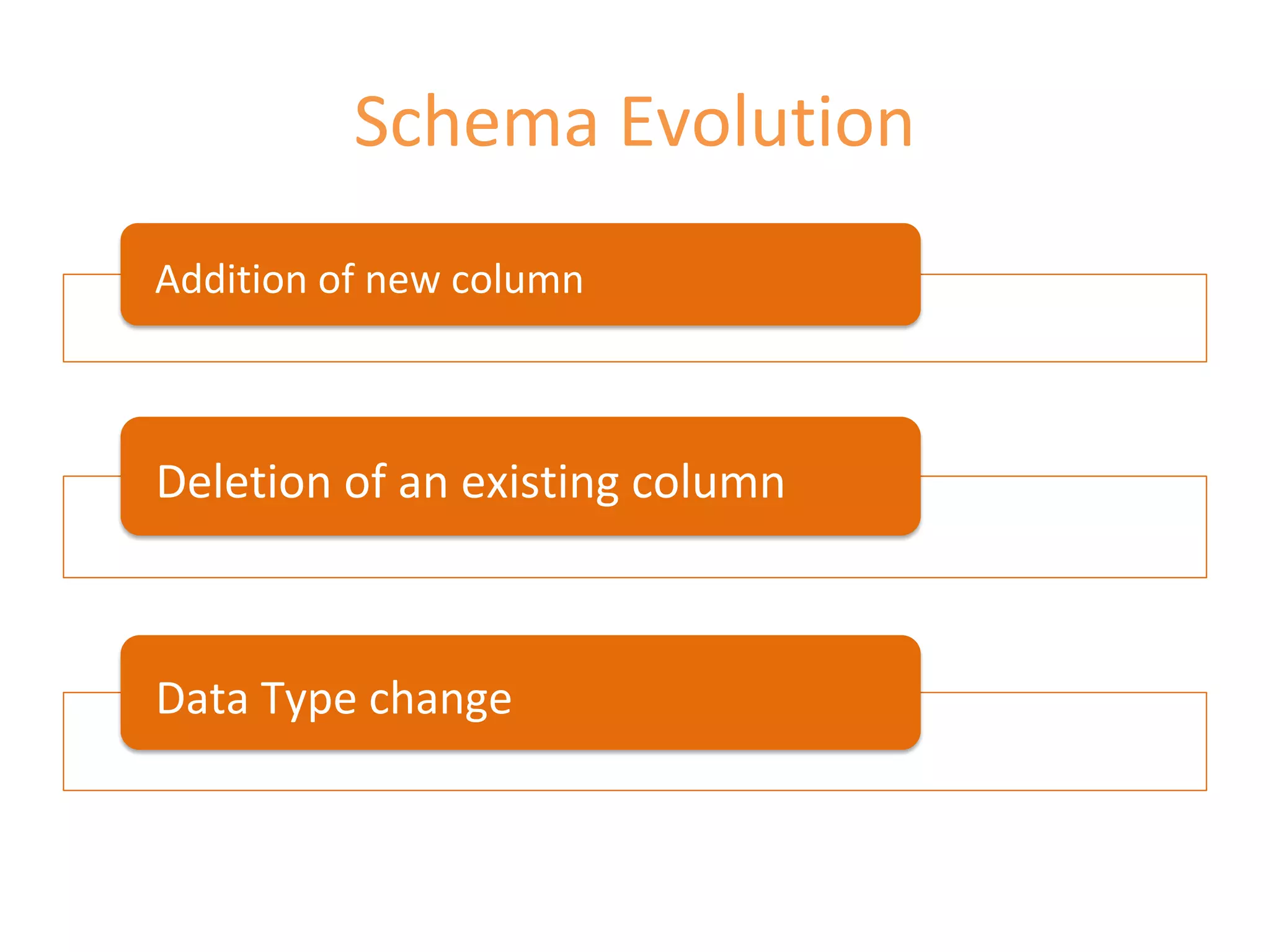

11. Schema Evolution
Addition of new column
Deletion of an existing column
Data Type change
