ITS A PPT ON BRUSHLESS DIRECT CURRENT MOTOR GIVING YOU A GENERAL INFORMATION ABOUT THE WOKING OF THE BLDC MOTOR AND COMPARISON WITH CONVENTIONAL DC MOTORS
BLDC motors are used widely due to various advantages.

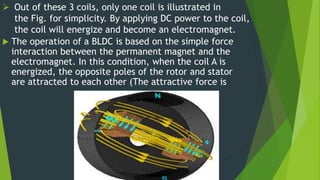

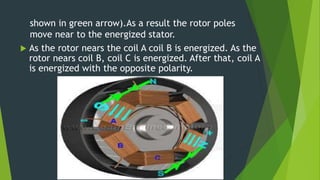

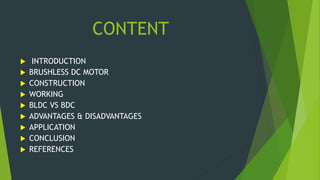

This slide includes construction, working, modes of operation and braking, and applications. We also compare it with Brushed DC motor and Induction Motor.

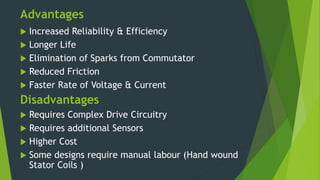

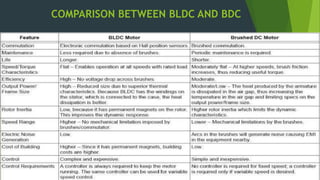

BLDC motors operate more reliably and efficiently than brushed DC motors due to their brushless design. A BLDC motor's rotor contains permanent magnets while the stator contains coils arranged in a pattern. The motor works by using an electronic controller and sensor to determine rotor position and energize the appropriate coils in sequence, causing the rotor to rotate in a continuous motion similar to a donkey chasing a carrot. BLDC motors can be modified to energize two coils at a time, improving torque and power output.

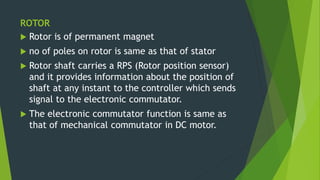

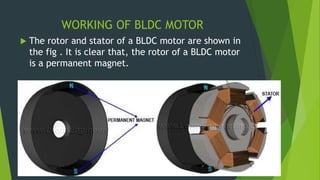

Brushless DC motors (BLDCMs) have a rotor with permanent magnets and a stator with coils. They are constructed with magnets on the rotor and electromagnets on the stator in a cross pattern. A controller uses Hall sensors to sense the rotor position and commutate current through the stator coils accordingly. BLDCMs are suitable for applications requiring variable or constant speed control such as industrial equipment, consumer goods, vehicles, and medical devices due to their speed-torque characteristics and lack of brush maintenance.
Brushless DC motors have magnets inside the rotor and coils outside in the stator. They use electronic commutation rather than brushes to switch the current through the coils to rotate the motor. They have advantages over brushed DC motors like increased reliability, efficiency, and lifespan due to eliminating sparks from the commutator. However, they require more complex drive circuitry and position sensors. Applications include consumer goods like fans, tools, and toys as well as medical devices like artificial hearts and surgical tools.
This predefined speed control of BLDC motor runs a motor at user desired speed by using EEPROM for storing speed. It is an effective speed control method.
This document summarizes brushless DC motors (BLDCM). It describes that BLDCMs have permanent magnets on the rotor and electronically-controlled windings on the stator. Hall sensors detect rotor position for electronic commutation of the winding currents. BLDCMs have advantages over brushed DC motors like higher efficiency, longer lifetime, and less noise, making them suitable for a wide range of applications from small devices to large industrial systems. The document provides details on the construction, working principle, speed-torque characteristics, and pros and cons of BLDCMs.
