This document provides steps for setting up Solr on HDFS for indexing data from Hive: 1. Create a Solr instance directory, then create a collection within that instance. This sets up the necessary directories in HDFS for the Solr index and data. 2. Generate CSV data from a Hive database with properly formatted fields, and upload it to HDFS. 3. Run a MapReduce job that uses a Morphline configuration to read the CSV from HDFS, index it into Solr, and go live with the new index data in Solr. 4. Verify the indexing was successful by searching from the Solr admin interface using primary keys.

1. BIG DATA
Kulandaivel Ramalingam
ESB Architect

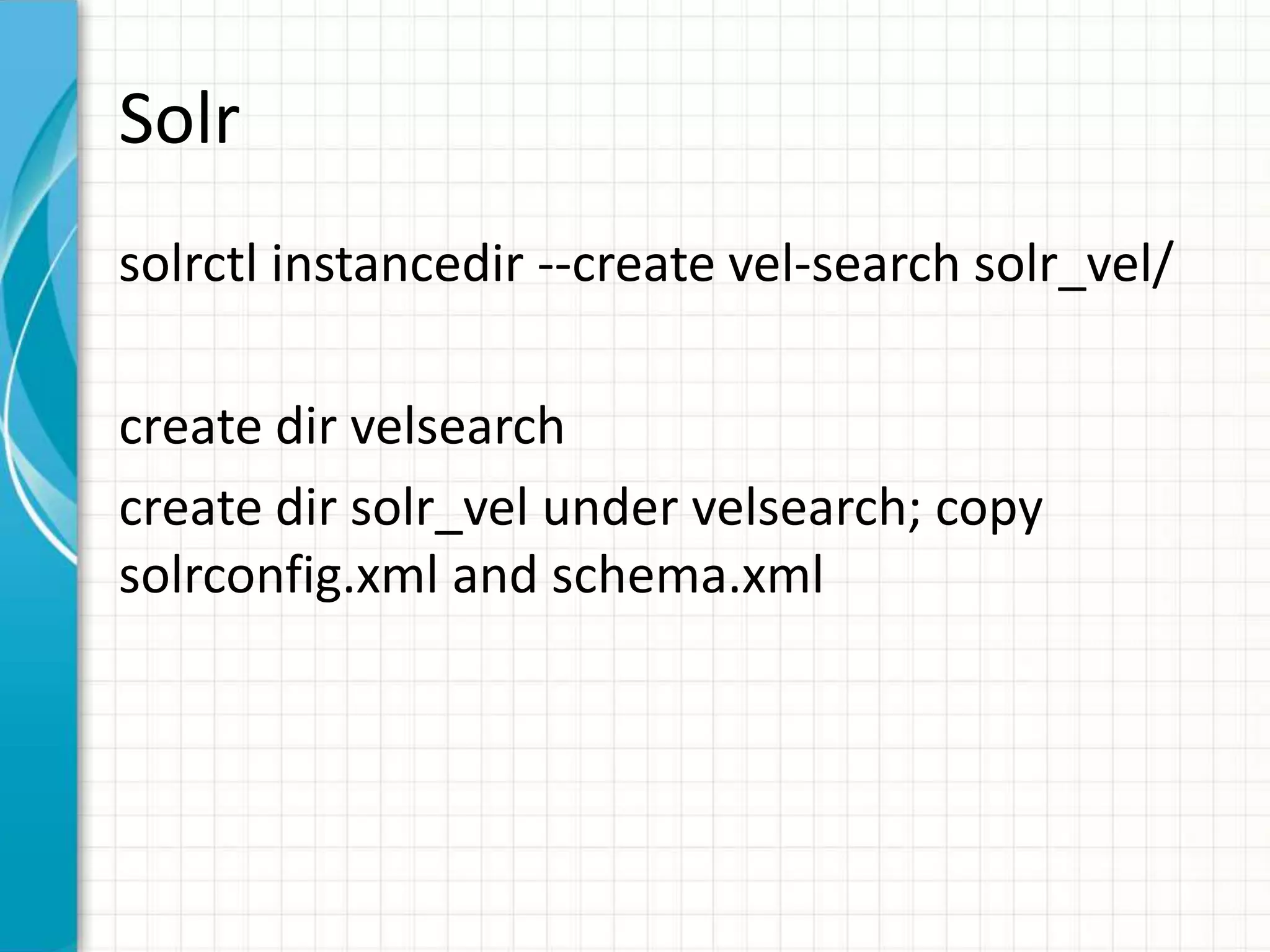

2. Solr
create directory eg: velsearch
create directory solr_vel under velsearch
copy solrconfig.xml and schema.xml to solr_vel
Create Instance Directory eg: vel-search :
solrctl instancedir --create vel-search solr_vel/
The below output would appear:
Uploading configs from solr_vel//conf to
<hostname>:<port>/solr. This may take up to a minute.

3. Solr
Create collection:
solrctl collection --create vel-search -s 1
Now data directory created in HDFS:
Instance:
/var/lib/solr/vel-search_shard1_replica1
Data:
hdfs://<hostname>:<port>/solr/vel-search/core_node1/data
Index:
hdfs://<hostname>:<port>/solr/vel-search/core_node1/data/index

4. Solr
Generate data in csv format from Hive database
Make sure that "" in each column is appeared
as in the example below:
id,name,location
"1","Vel","India"
"2","Ram","US"
"3","Kul","UK"

5. Solr
Upload it to HDFS
Ensure that reviews.conf has the below values:
commands : [
{
readCSV {
separator : ","
columns : [id,name,location]
ignoreFirstLine : true
quoteChar : """
trim : true
charset : UTF-8
}
}

6. Solr
Run the below indexing command:
hadoop jar /usr/lib/solr/contrib/mr/search-mr-*-job.jar
org.apache.solr.hadoop.MapReduceIndexerTool -D
'mapred.child.java.opts=-Xmx500m' --log4j
/usr/share/doc/search*/examples/solr-nrt/
log4j.properties --morphline-file reviews.conf --
output-dir hdfs://<hostname>:<port>/tmp/load --
verbose --go-live --zk-host <hostname>:<port>/solr --
collection vel-search
hdfs://<hostname>:<port>/user/cloudera/query_result_
copy.csv

7. Solr
The below message wil appear at the end of the executionof the above command:
37097 [main] INFO org.apache.solr.client.solrj.impl.HttpClientUtil - Creating new http client, config:
37119 [main] INFO org.apache.solr.common.cloud.ConnectionManager - Waiting for client to connect to ZooKeeper
37121 [main-EventThread] INFO org.apache.solr.common.cloud.ConnectionManager - Watcher
org.apache.solr.common.cloud.ConnectionManager@dd606a name:ZooKeeperConnection
Watcher:localhost:2181/solr got event WatchedEvent state:SyncConnected type:None path:null path:null type:None
37121 [main] INFO org.apache.solr.common.cloud.ConnectionManager - Client is connected to ZooKeeper
37122 [main] INFO org.apache.solr.common.cloud.ZkStateReader - Updating cluster state from ZooKeeper...
37957 [main] INFO org.apache.solr.hadoop.GoLive - Done committing live merge
37958 [main] INFO org.apache.solr.hadoop.GoLive - Live merging of index shards into Solr cluster took 2.032 secs
37958 [main] INFO org.apache.solr.hadoop.GoLive - Live merging completed successfully
37958 [main] INFO org.apache.solr.hadoop.MapReduceIndexerTool - Succeeded with job: jobName:
org.apache.solr.hadoop.MapReduceIndexerTool/MorphlineMapper, jobId: job_1409686197310_0004
37958 [main] INFO org.apache.solr.hadoop.MapReduceIndexerTool - Success. Done. Program took 38.025 secs.
Goodbye.

8. Solr
Go to Solr admin for testing:
http://192.168.137.134:8983/solr/#/vel-search_
shard1_replica1/query
Give the primary key as query for search:

9. QUESTIONS & THANKS
