This document provides instructions for using Filebeat, Logstash, Elasticsearch, and Kibana to monitor MySQL slow query logs. It describes installing and configuring each component, with Filebeat installed on database servers to collect slow query logs, Logstash to parse and index the logs, Elasticsearch for storage, and Kibana for visualization and dashboards. Key steps include configuring Filebeat to ship logs to Logstash, using grok filters in Logstash to parse the log fields, outputting to Elasticsearch, and visualizing slow queries and creating sample dashboards in Kibana.

1. using Beats & ELK
MySQL Slow Query log Monitoring

2. About me
2
dba.kim@gmail.com

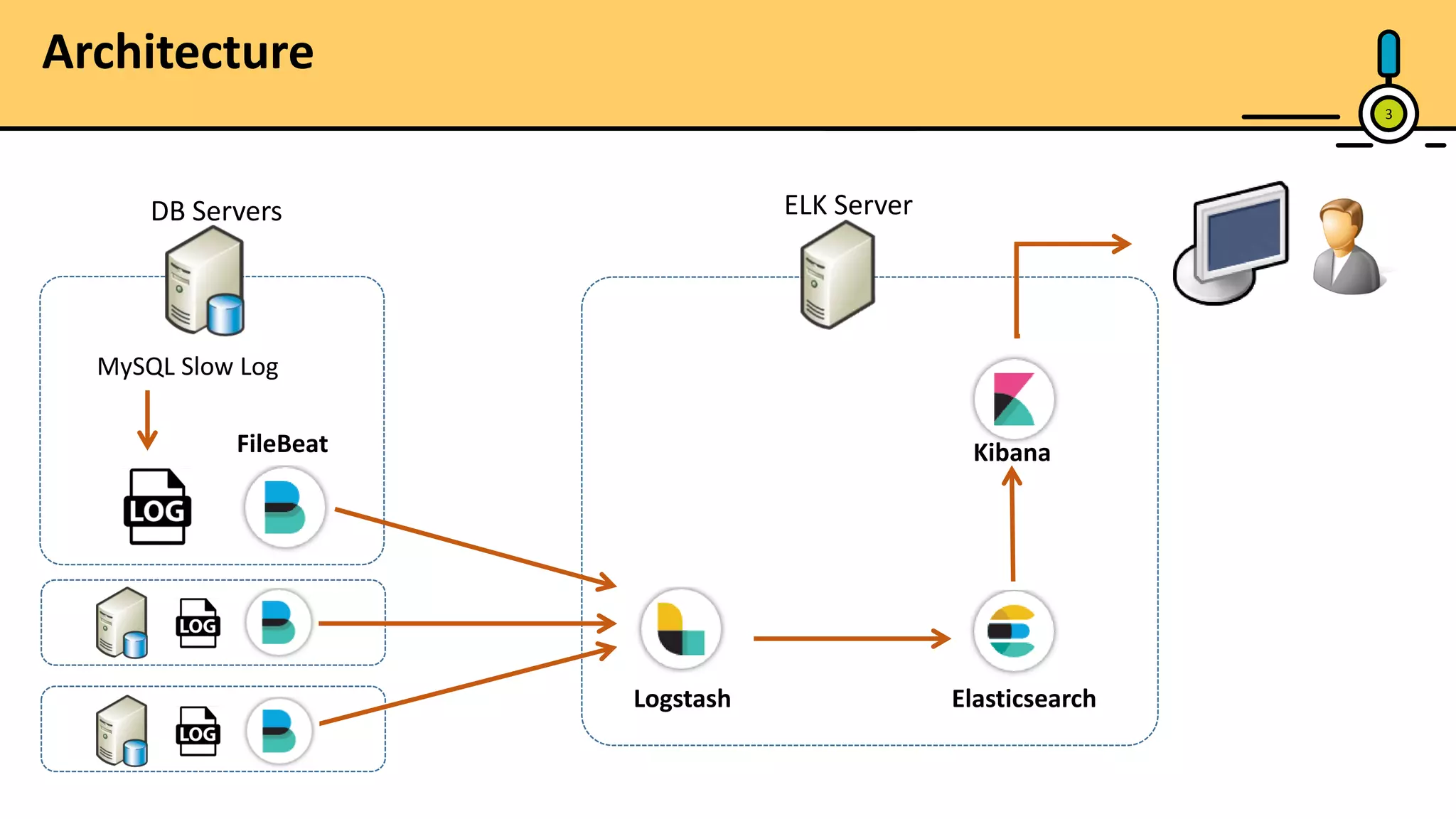

3. Architecture
MySQL Slow Log
DB Servers ELK Server
Logstash Elasticsearch
FileBeat Kibana
3

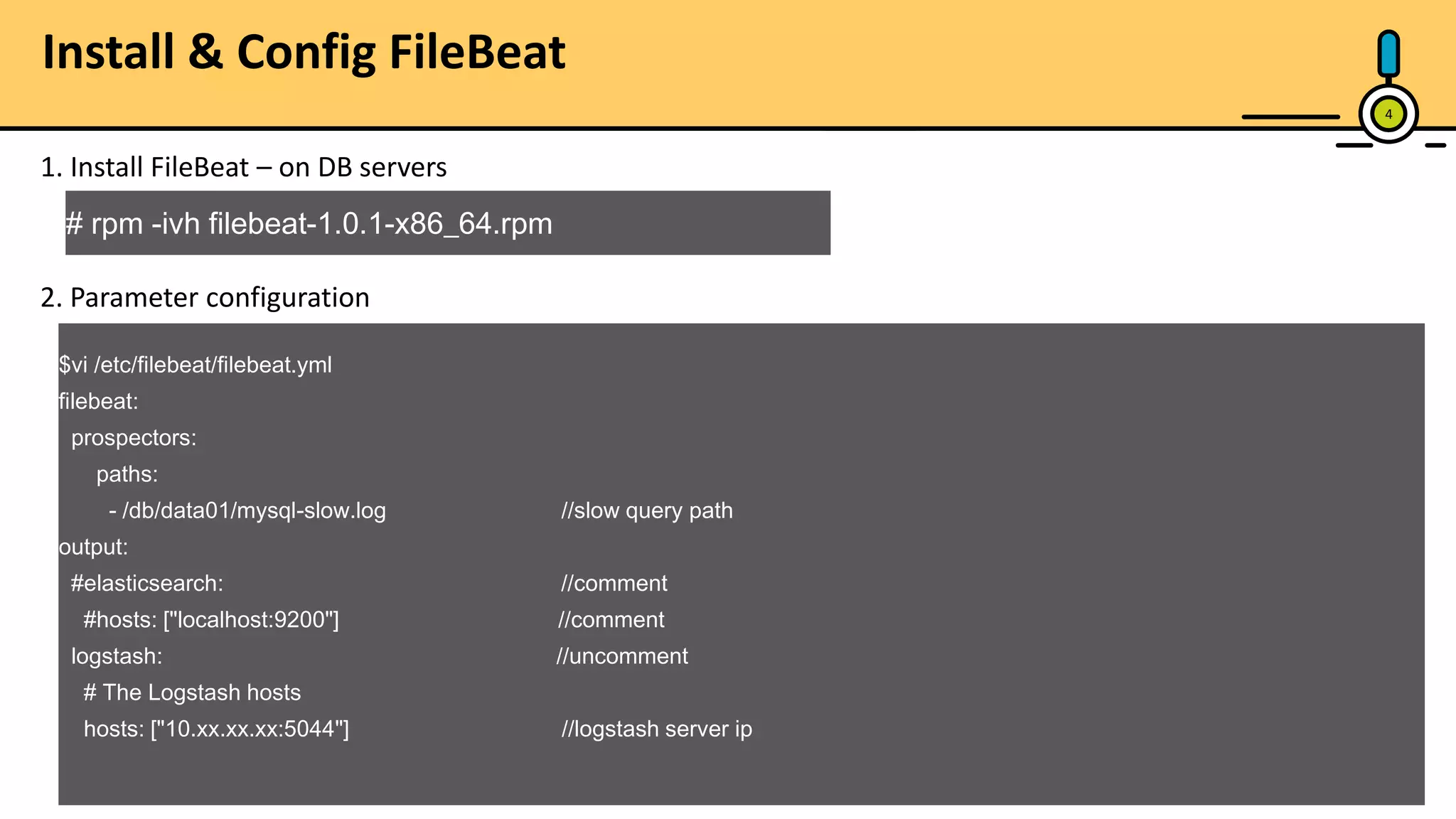

4. Install & Config FileBeat
4
# rpm -ivh filebeat-1.0.1-x86_64.rpm
$vi /etc/filebeat/filebeat.yml
filebeat:
prospectors:
paths:
- /db/data01/mysql-slow.log //slow query path
output:
#elasticsearch: //comment
#hosts: ["localhost:9200"] //comment
logstash: //uncomment
# The Logstash hosts
hosts: ["10.xx.xx.xx:5044"] //logstash server ip
1. Install FileBeat – on DB servers
2. Parameter configuration

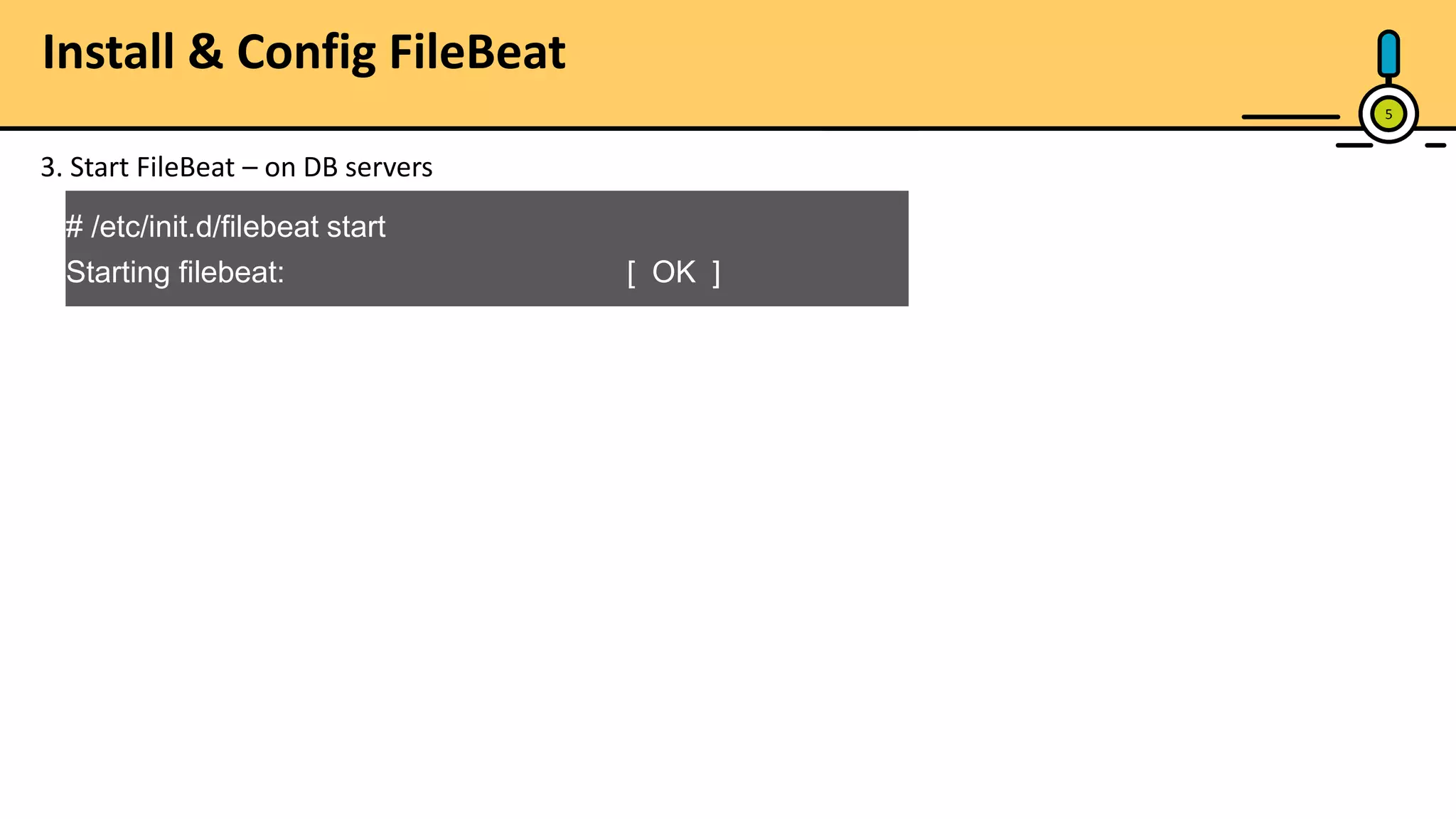

5. 5
# /etc/init.d/filebeat start
Starting filebeat: [ OK ]
3. Start FileBeat – on DB servers
Install & Config FileBeat

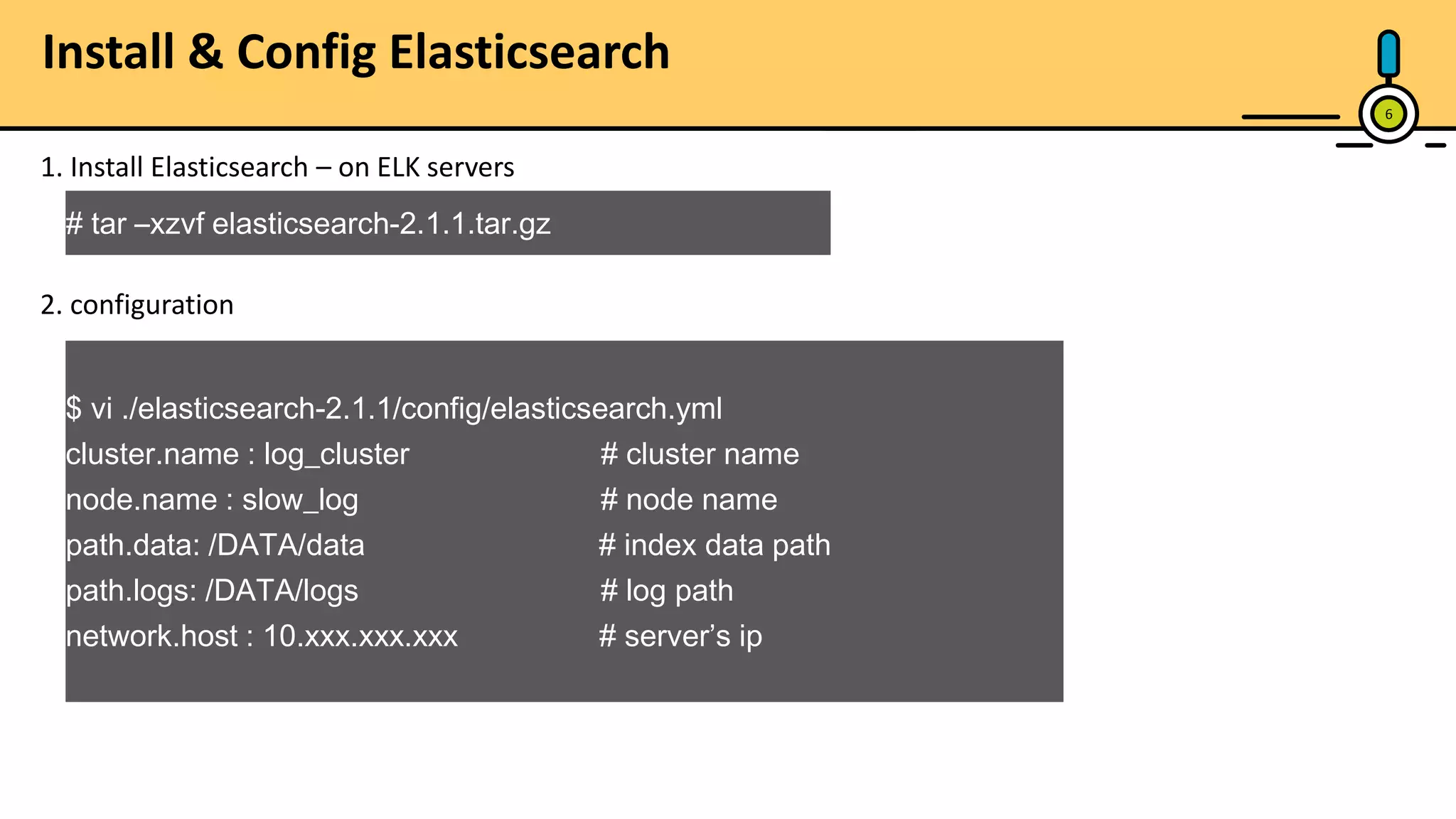

6. Install & Config Elasticsearch
6
# tar –xzvf elasticsearch-2.1.1.tar.gz
1. Install Elasticsearch – on ELK servers
2. configuration
$ vi ./elasticsearch-2.1.1/config/elasticsearch.yml
cluster.name : log_cluster # cluster name
node.name : slow_log # node name
path.data: /DATA/data # index data path
path.logs: /DATA/logs # log path
network.host : 10.xxx.xxx.xxx # server’s ip

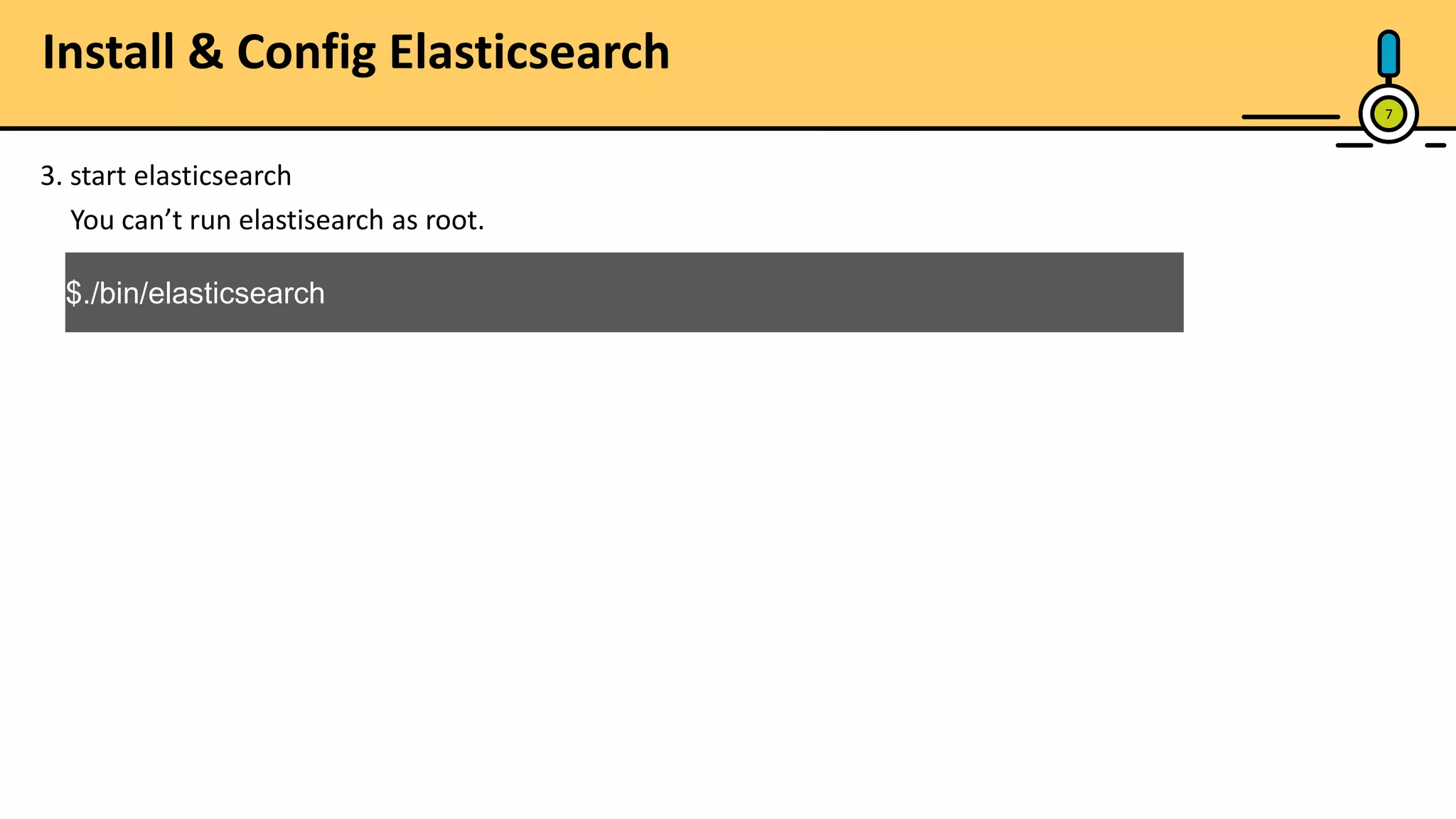

7. 7
3. start elasticsearch
$./bin/elasticsearch
You can’t run elastisearch as root.
Install & Config Elasticsearch

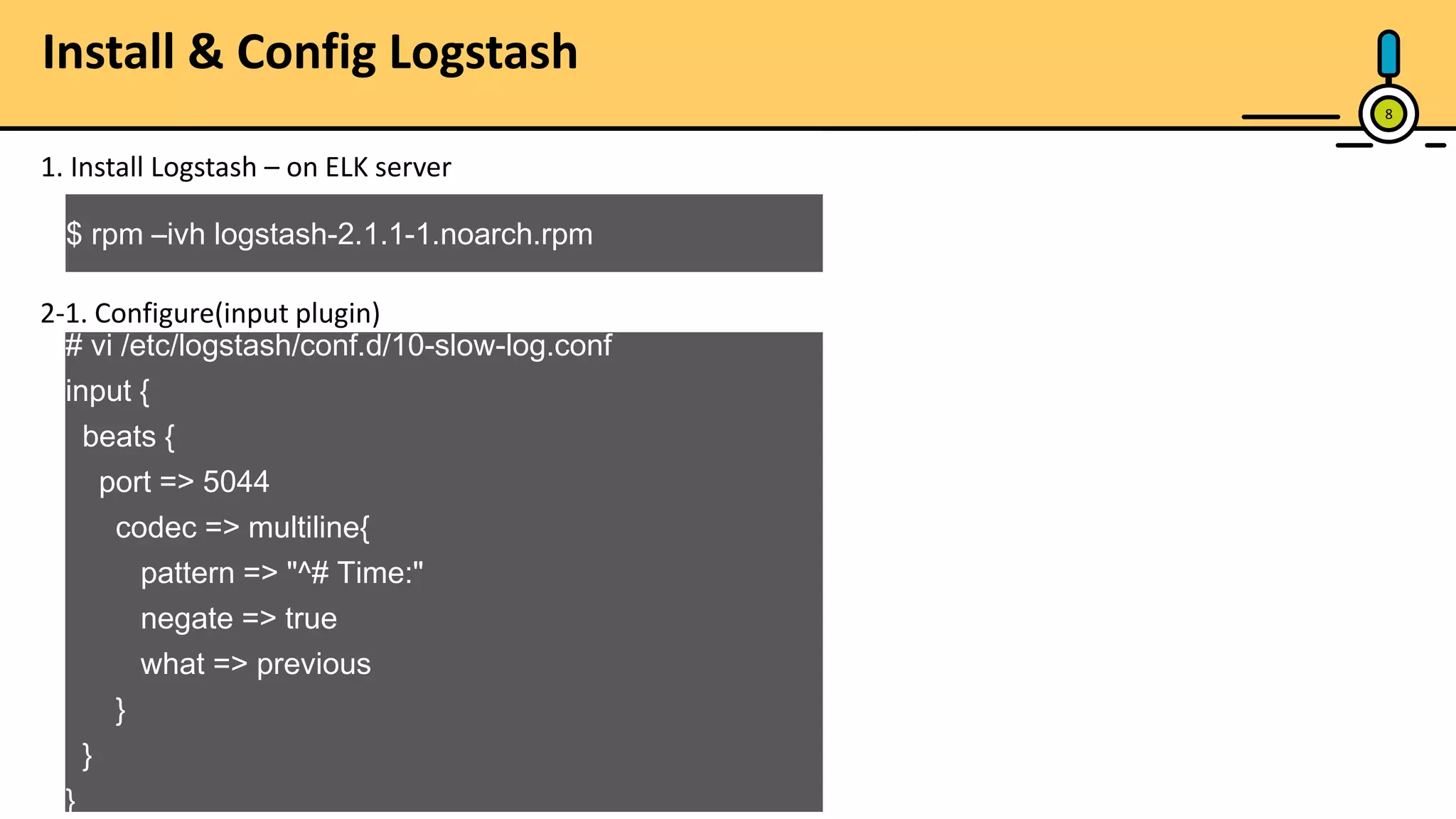

8. Install & Config Logstash
8
1. Install Logstash – on ELK server
$ rpm –ivh logstash-2.1.1-1.noarch.rpm
2-1. Configure(input plugin)
# vi /etc/logstash/conf.d/10-slow-log.conf
input {
beats {
port => 5044
codec => multiline{
pattern => "^# Time:"
negate => true
what => previous
}
}
}

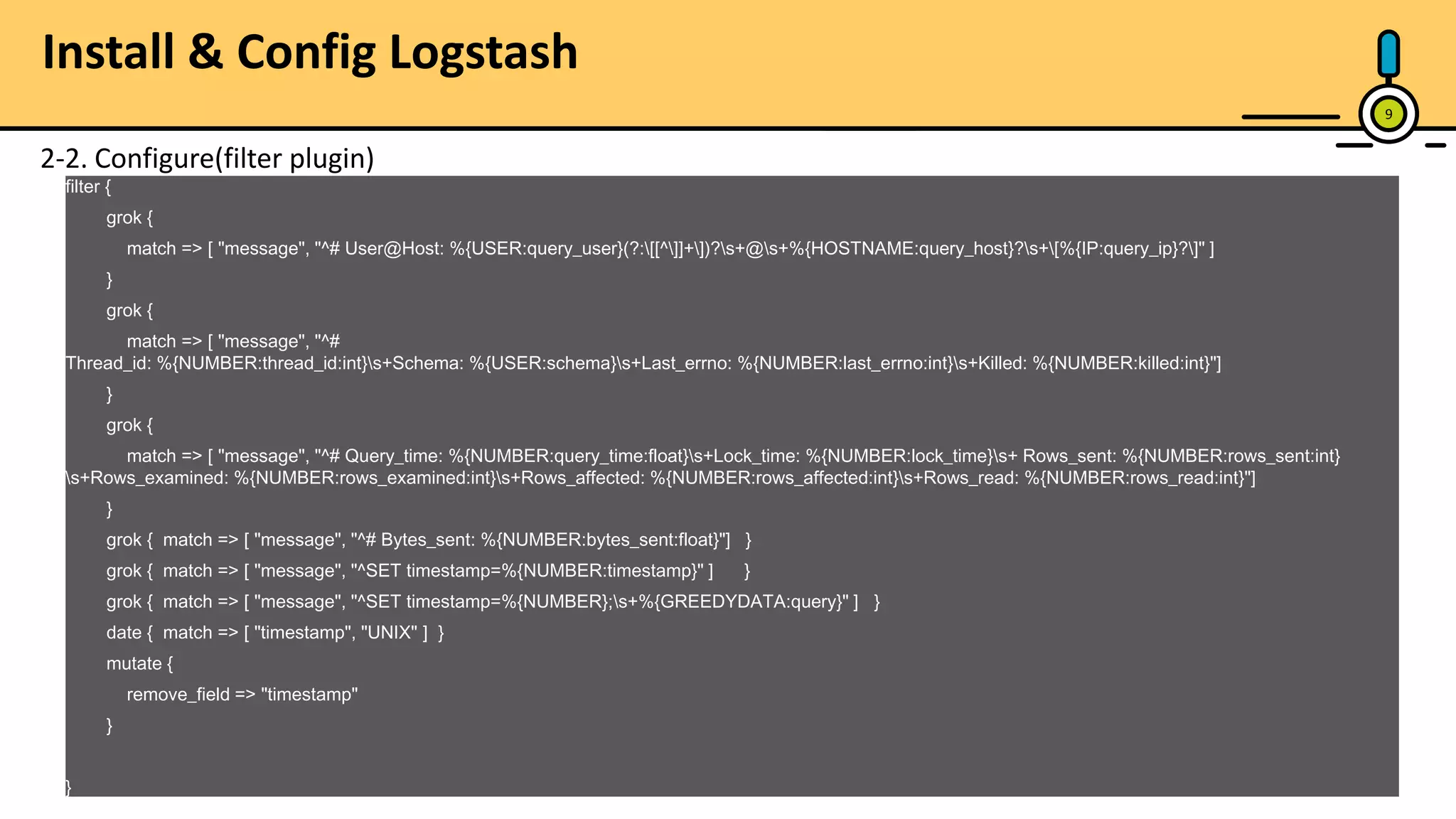

9. 9
2-2. Configure(filter plugin)
filter {
grok {
match => [ "message", "^# User@Host: %{USER:query_user}(?:[[^]]+])?s+@s+%{HOSTNAME:query_host}?s+[%{IP:query_ip}?]" ]
}
grok {
match => [ "message", "^#
Thread_id: %{NUMBER:thread_id:int}s+Schema: %{USER:schema}s+Last_errno: %{NUMBER:last_errno:int}s+Killed: %{NUMBER:killed:int}"]
}
grok {
match => [ "message", "^# Query_time: %{NUMBER:query_time:float}s+Lock_time: %{NUMBER:lock_time}s+ Rows_sent: %{NUMBER:rows_sent:int}
s+Rows_examined: %{NUMBER:rows_examined:int}s+Rows_affected: %{NUMBER:rows_affected:int}s+Rows_read: %{NUMBER:rows_read:int}"]
}
grok { match => [ "message", "^# Bytes_sent: %{NUMBER:bytes_sent:float}"] }
grok { match => [ "message", "^SET timestamp=%{NUMBER:timestamp}" ] }
grok { match => [ "message", "^SET timestamp=%{NUMBER};s+%{GREEDYDATA:query}" ] }
date { match => [ "timestamp", "UNIX" ] }
mutate {
remove_field => "timestamp"
}
}
Install & Config Logstash

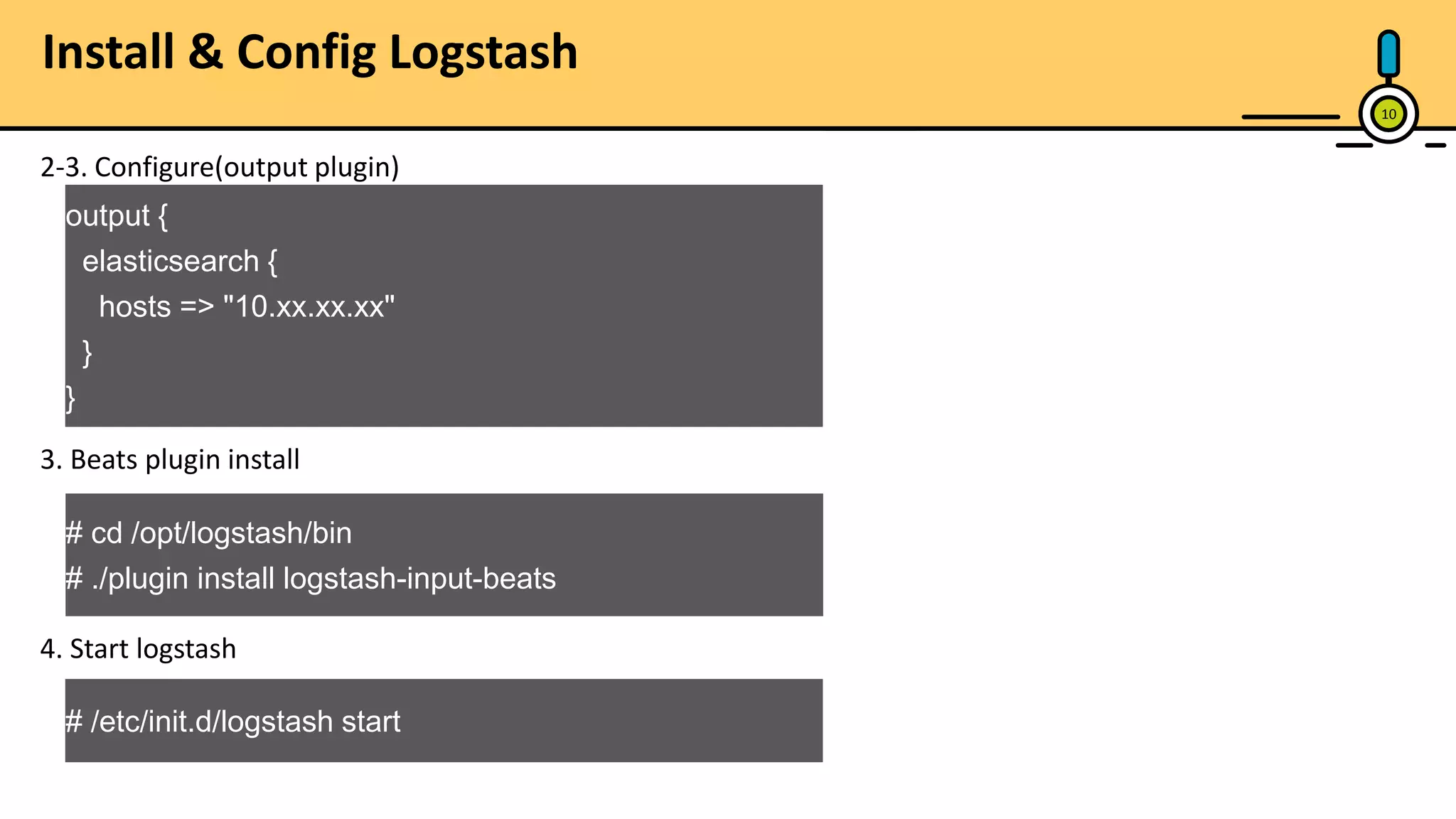

10. 10
2-3. Configure(output plugin)
output {
elasticsearch {
hosts => "10.xx.xx.xx"
}
}
3. Beats plugin install
# cd /opt/logstash/bin
# ./plugin install logstash-input-beats
4. Start logstash
# /etc/init.d/logstash start
Install & Config Logstash

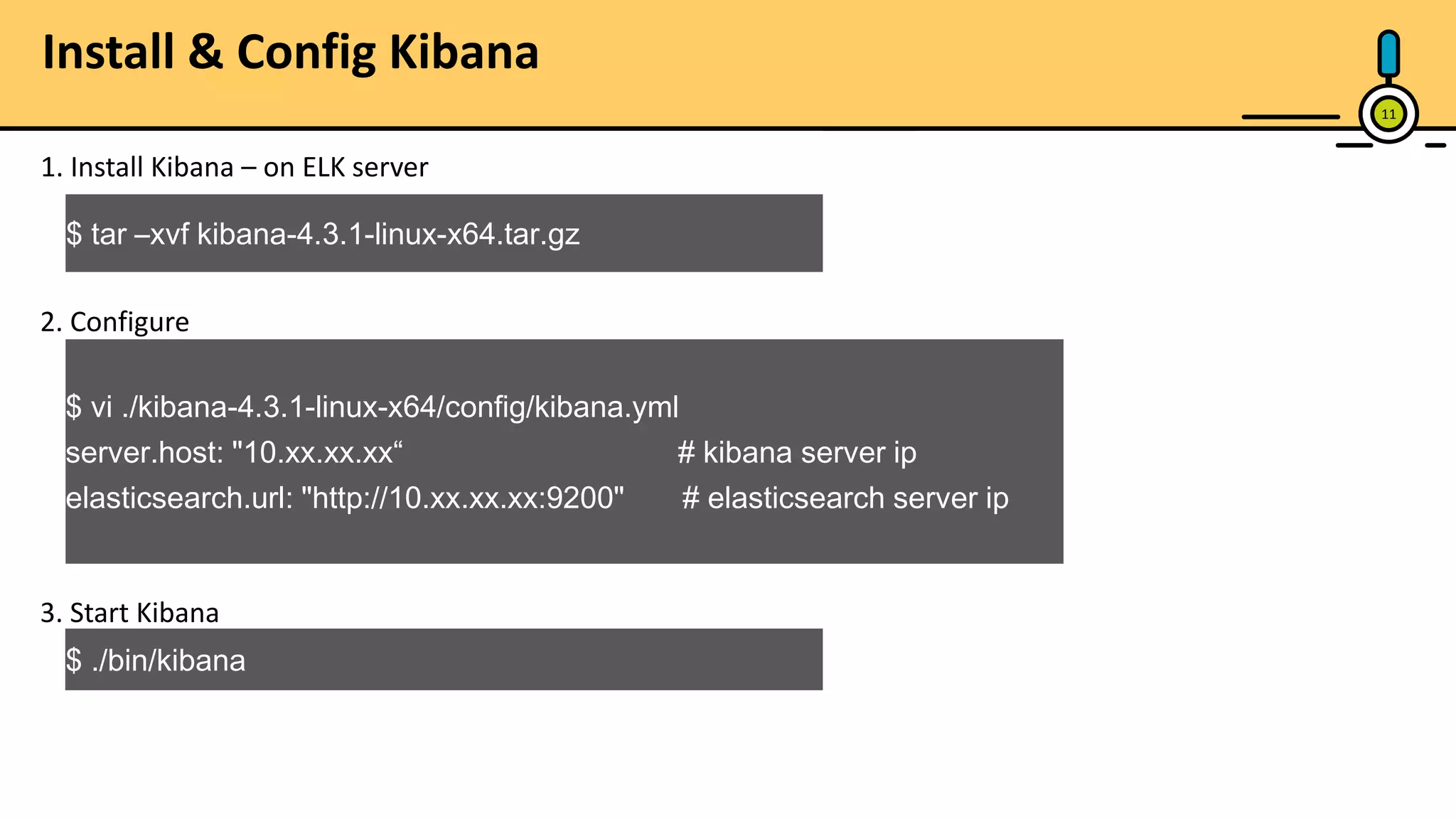

11. Install & Config Kibana
11
1. Install Kibana – on ELK server
$ tar –xvf kibana-4.3.1-linux-x64.tar.gz
2. Configure
$ vi ./kibana-4.3.1-linux-x64/config/kibana.yml
server.host: "10.xx.xx.xx“ # kibana server ip
elasticsearch.url: "http://10.xx.xx.xx:9200" # elasticsearch server ip
3. Start Kibana
$ ./bin/kibana

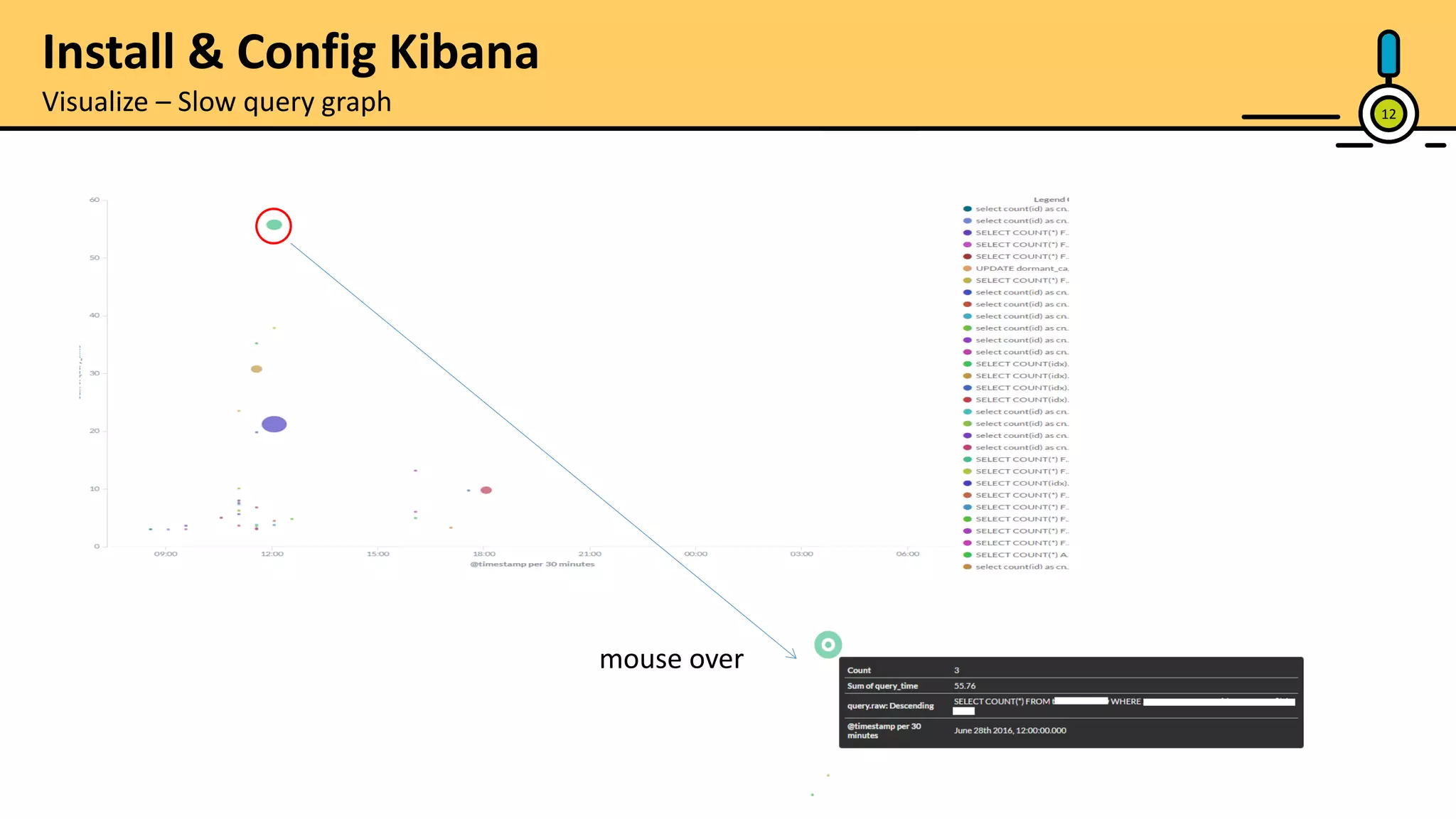

12. Visualize – Slow query graph 12
mouse over
Install & Config Kibana

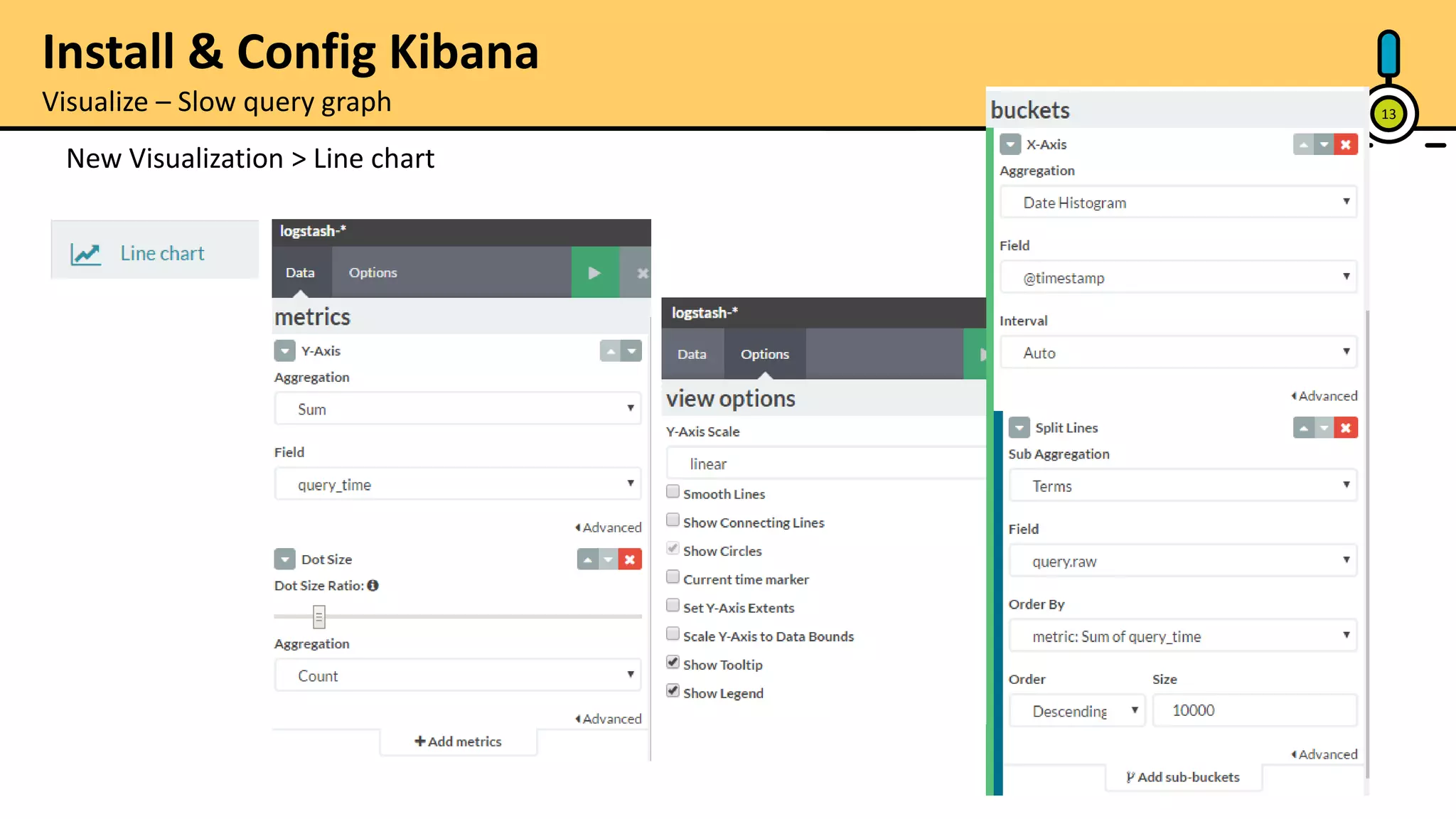

13. 13
New Visualization > Line chart
Install & Config Kibana
Visualize – Slow query graph

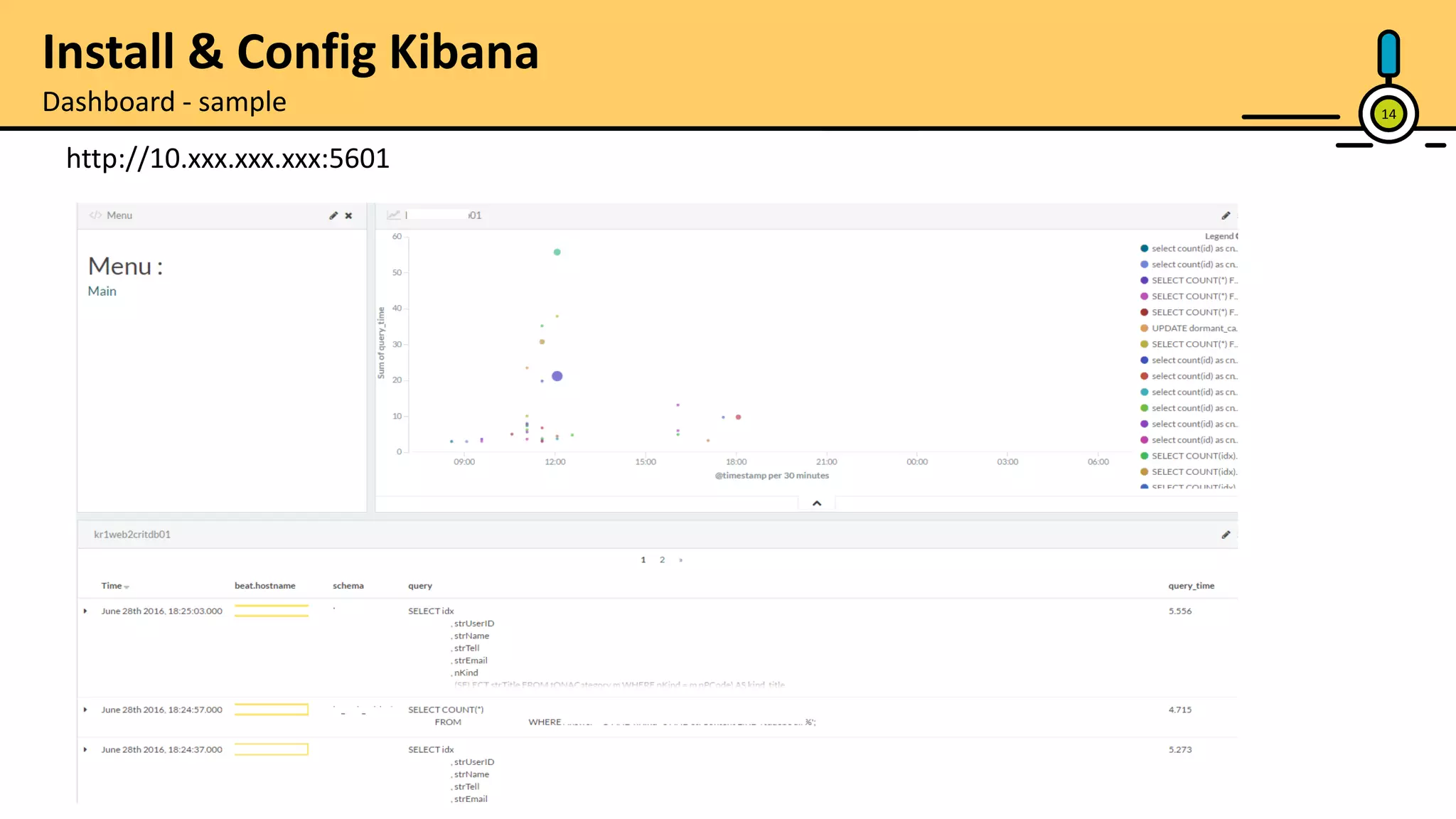

14. Dashboard - sample 14
http://10.xxx.xxx.xxx:5601
Install & Config Kibana

15. Thank You
