1. Administering and Monitoring SolrCloud
Rafał Kuć – Sematext Group, Inc.
@kucrafal @sematext sematext.com

2. Ta me…
Sematext consultant & engineer
Solr.pl co-founder
Father and husband 

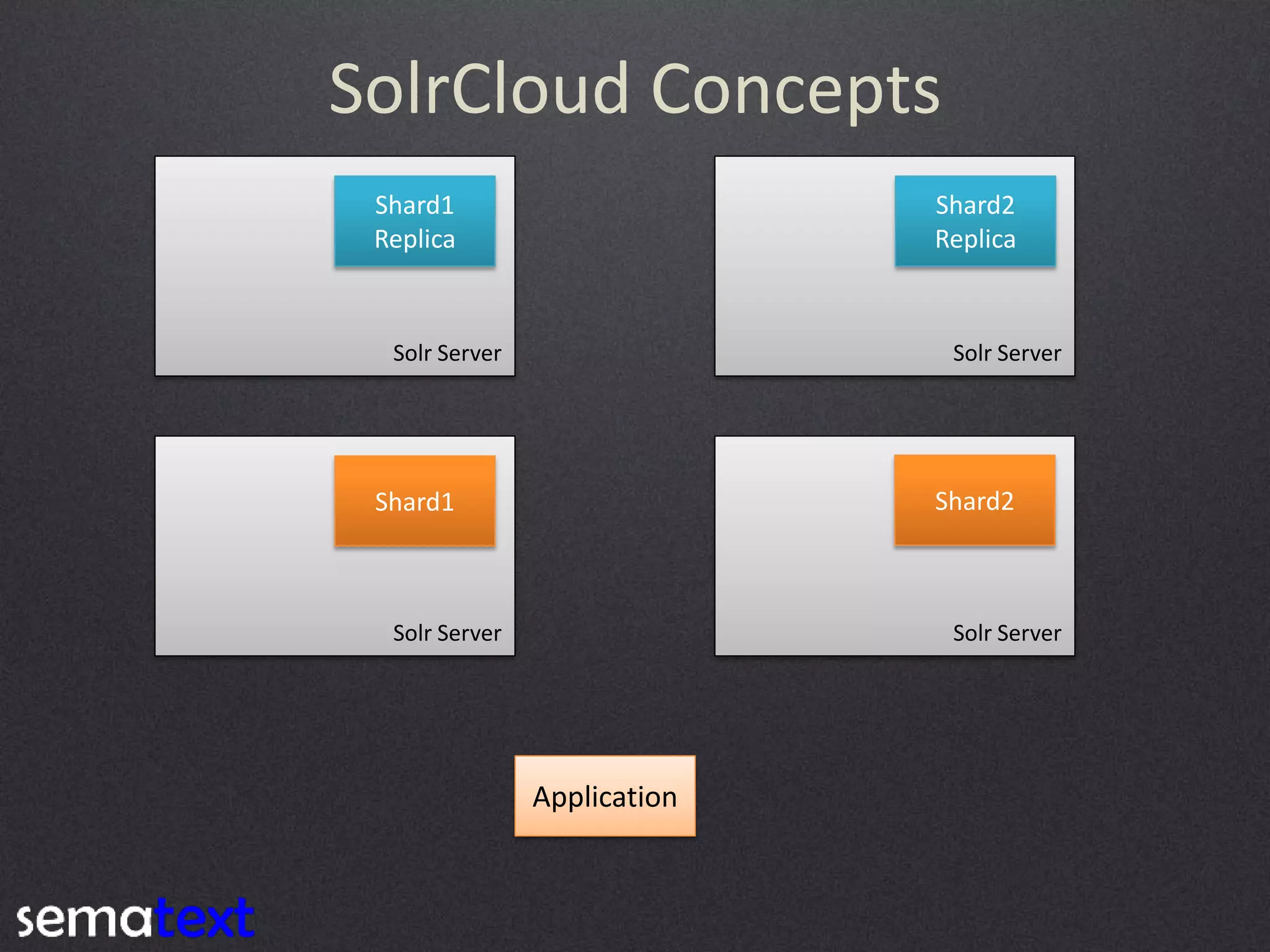

3. SolrCloud Concepts
Shard1
Replica
Shard2
Replica
Solr Server
Solr Server
Shard2
Shard1
Solr Server
Solr Server
Application

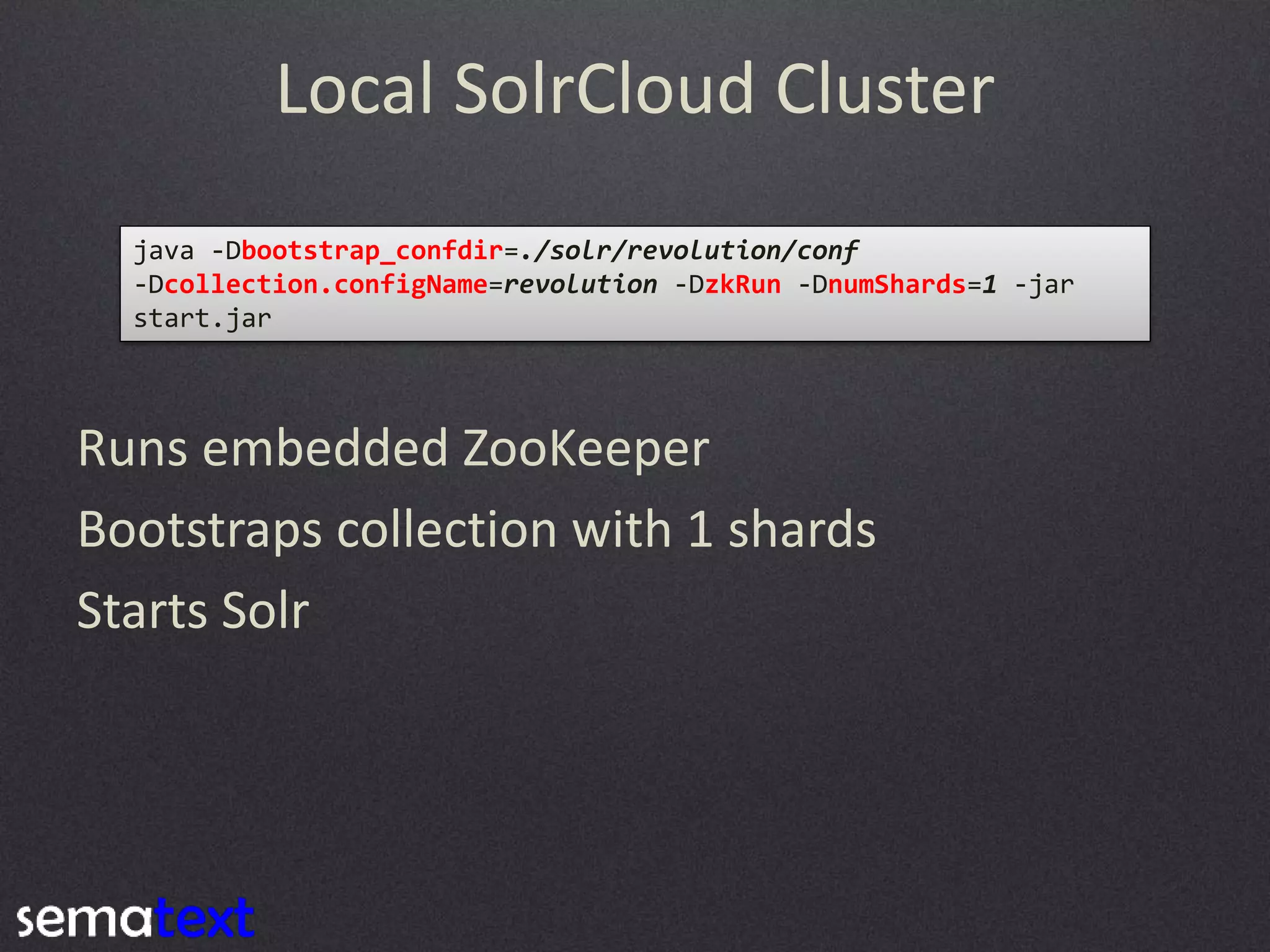

4. Local SolrCloud Cluster
java -Dbootstrap_confdir=./solr/revolution/conf
-Dcollection.configName=revolution -DzkRun -DnumShards=1 -jar
start.jar
Runs embedded ZooKeeper
Bootstraps collection with 1 shards
Starts Solr

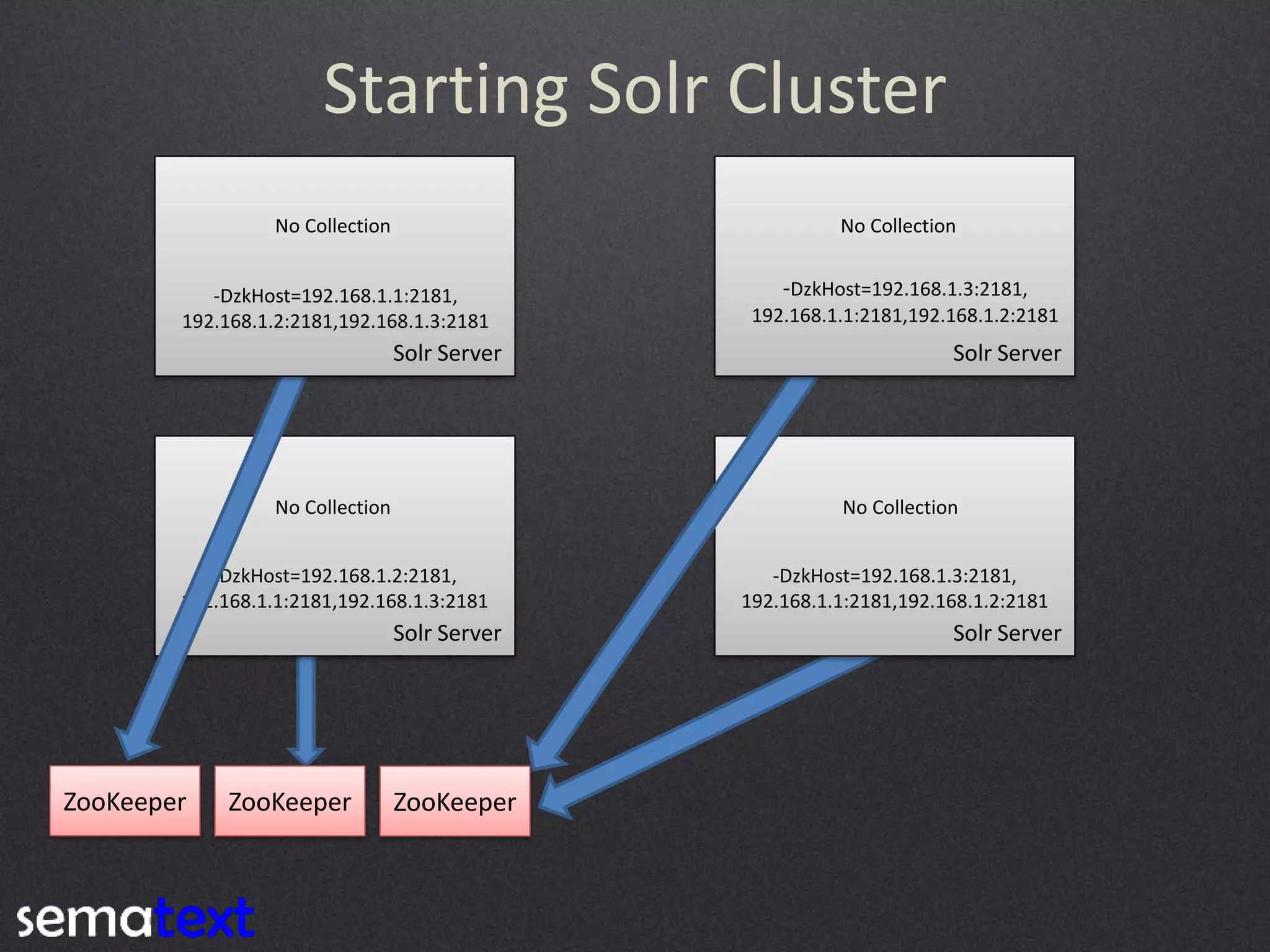

5. Starting Solr Cluster
No Collection
No Collection
-DzkHost=192.168.1.1:2181,
192.168.1.2:2181,192.168.1.3:2181
Solr Server
-DzkHost=192.168.1.3:2181,
192.168.1.1:2181,192.168.1.2:2181
Solr Server
No Collection
No Collection
-DzkHost=192.168.1.2:2181,
192.168.1.1:2181,192.168.1.3:2181
-DzkHost=192.168.1.3:2181,
192.168.1.1:2181,192.168.1.2:2181
Solr Server
ZooKeeper
ZooKeeper
ZooKeeper
Solr Server

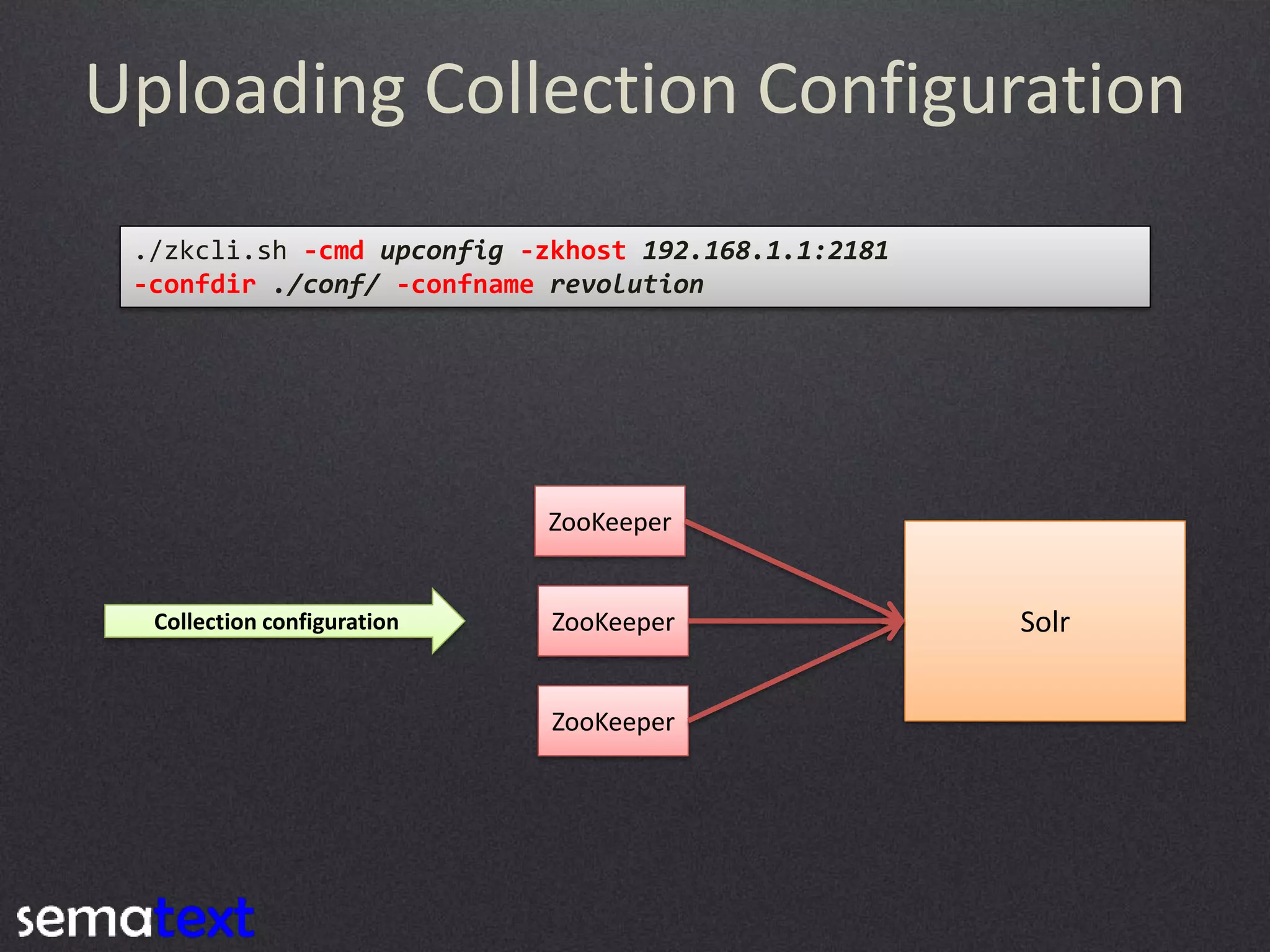

6. Uploading Collection Configuration
./zkcli.sh -cmd upconfig -zkhost 192.168.1.1:2181
-confdir ./conf/ -confname revolution
ZooKeeper
Collection configuration
ZooKeeper
ZooKeeper
Solr

7. Collections API
Create
Delete
Reload
Split
Create Alias
Delete Alias
Shard Creation/Deletion
http://wiki.apache.org/solr/SolrCloud

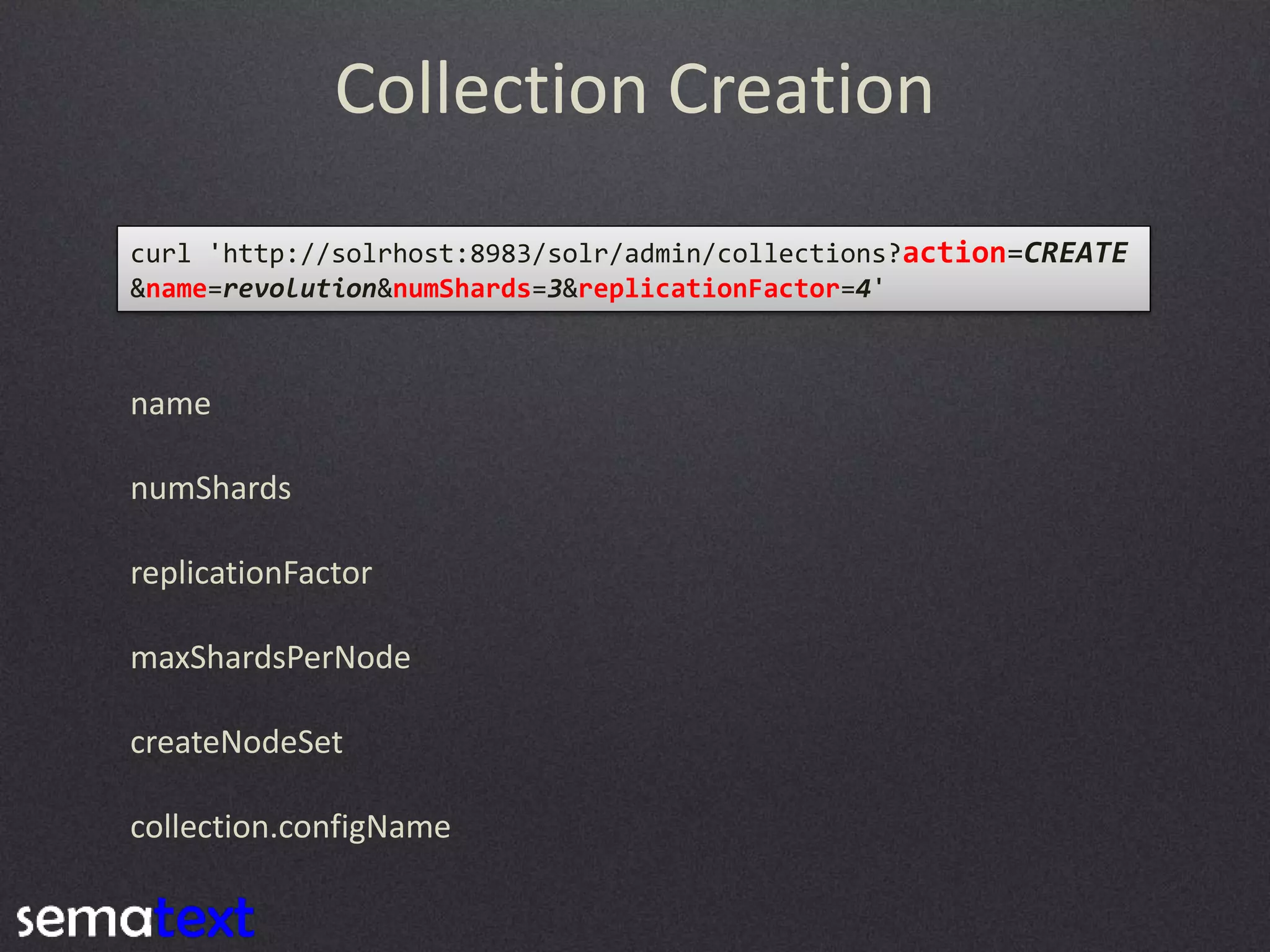

8. Collection Creation
curl 'http://solrhost:8983/solr/admin/collections?action=CREATE
&name=revolution&numShards=3&replicationFactor=4'
name
numShards
replicationFactor
maxShardsPerNode
createNodeSet
collection.configName

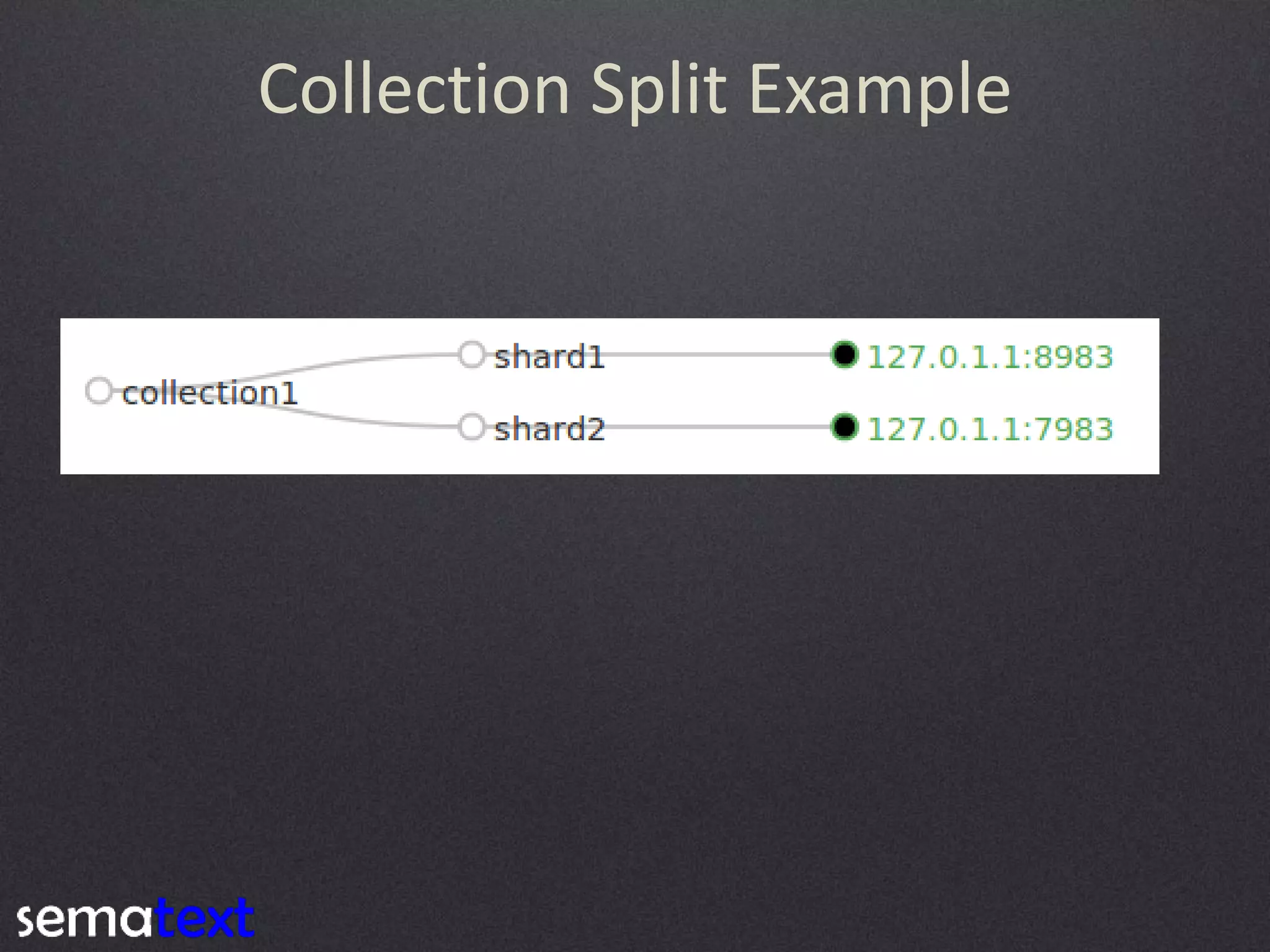

9. Collection Split Example
$ curl
'http://solr1:8983/solr/admin/collections?action=CREATE&
name=collection1&numShards=2&replicationFactor=1'

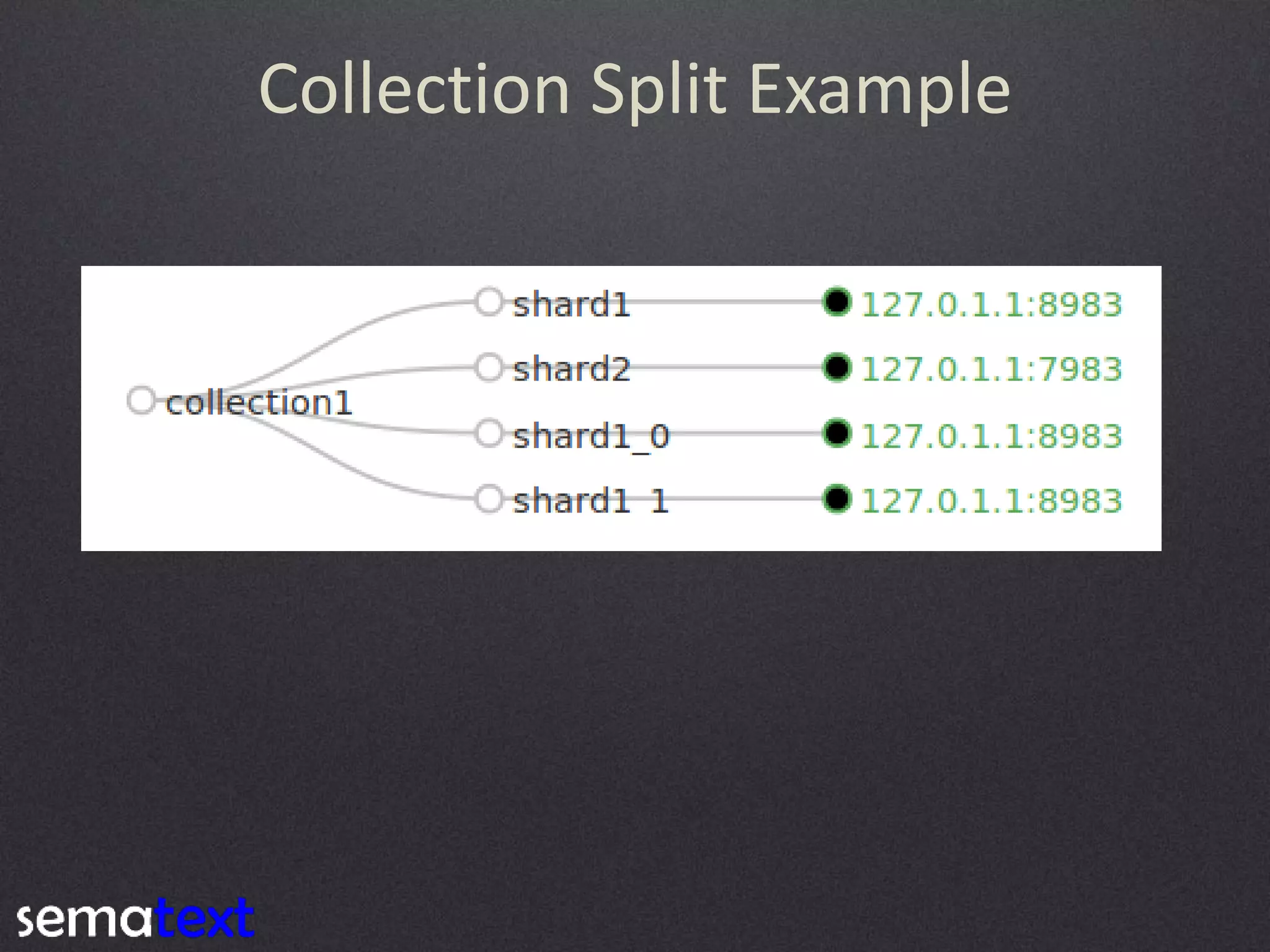

10. Collection Split Example
$ curl 'http://localhost:8983/solr/admin/collections?
action=SPLITSHARD&collection=collection1&shard=shard1'

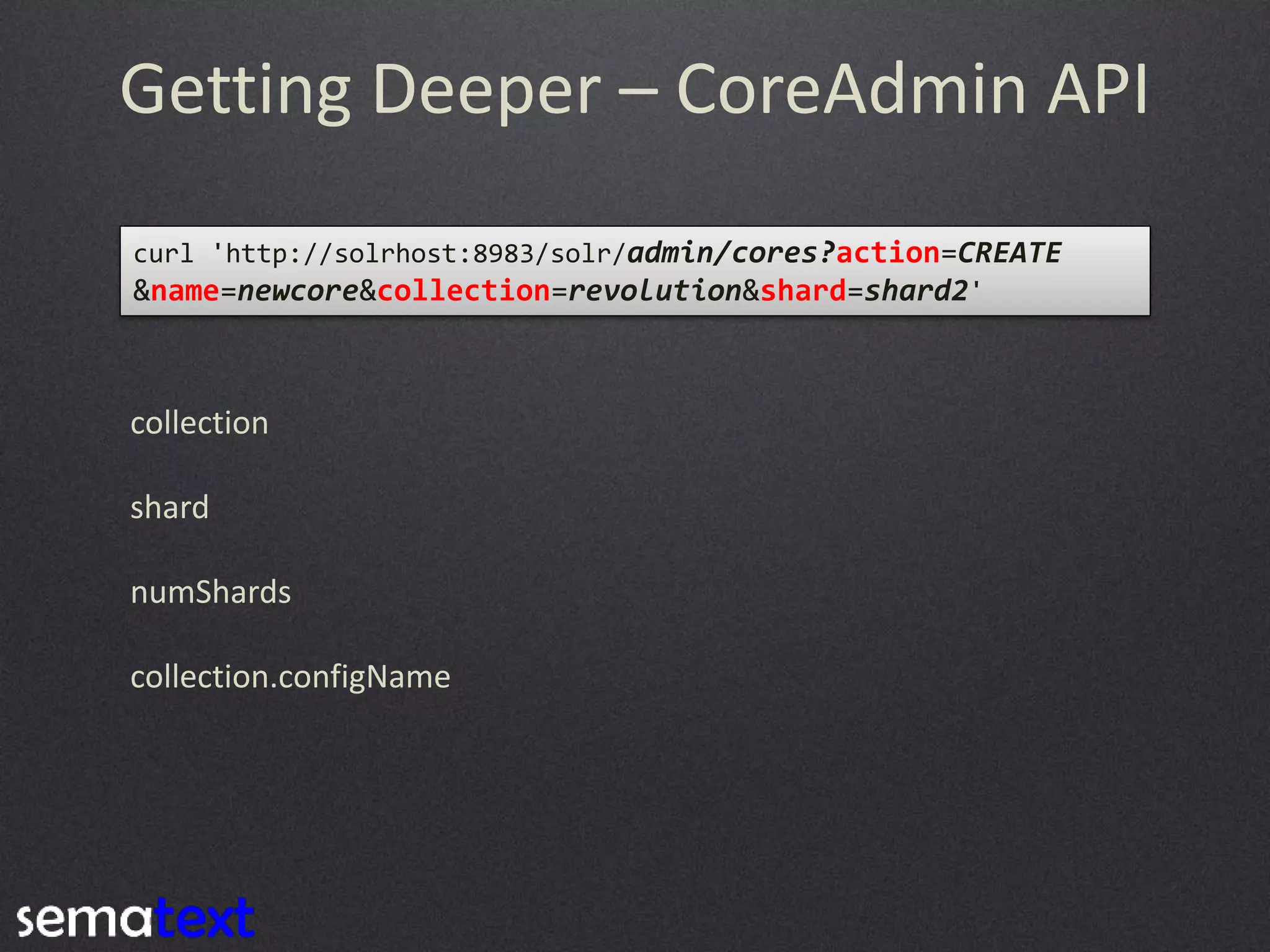

11. Getting Deeper – CoreAdmin API
curl 'http://solrhost:8983/solr/admin/cores?action=CREATE
&name=newcore&collection=revolution&shard=shard2'
collection
shard
numShards
collection.configName

12. Schema – the API
Reading (Solr 4.2)
Fields
Dynamic fields
Types
Copy fields
Name (4.3)
Version (4.3)
Unique Key (4.3)
Similarity (4.3)
Writing (Solr 4.4)
Adding new fields
Adding copy fields

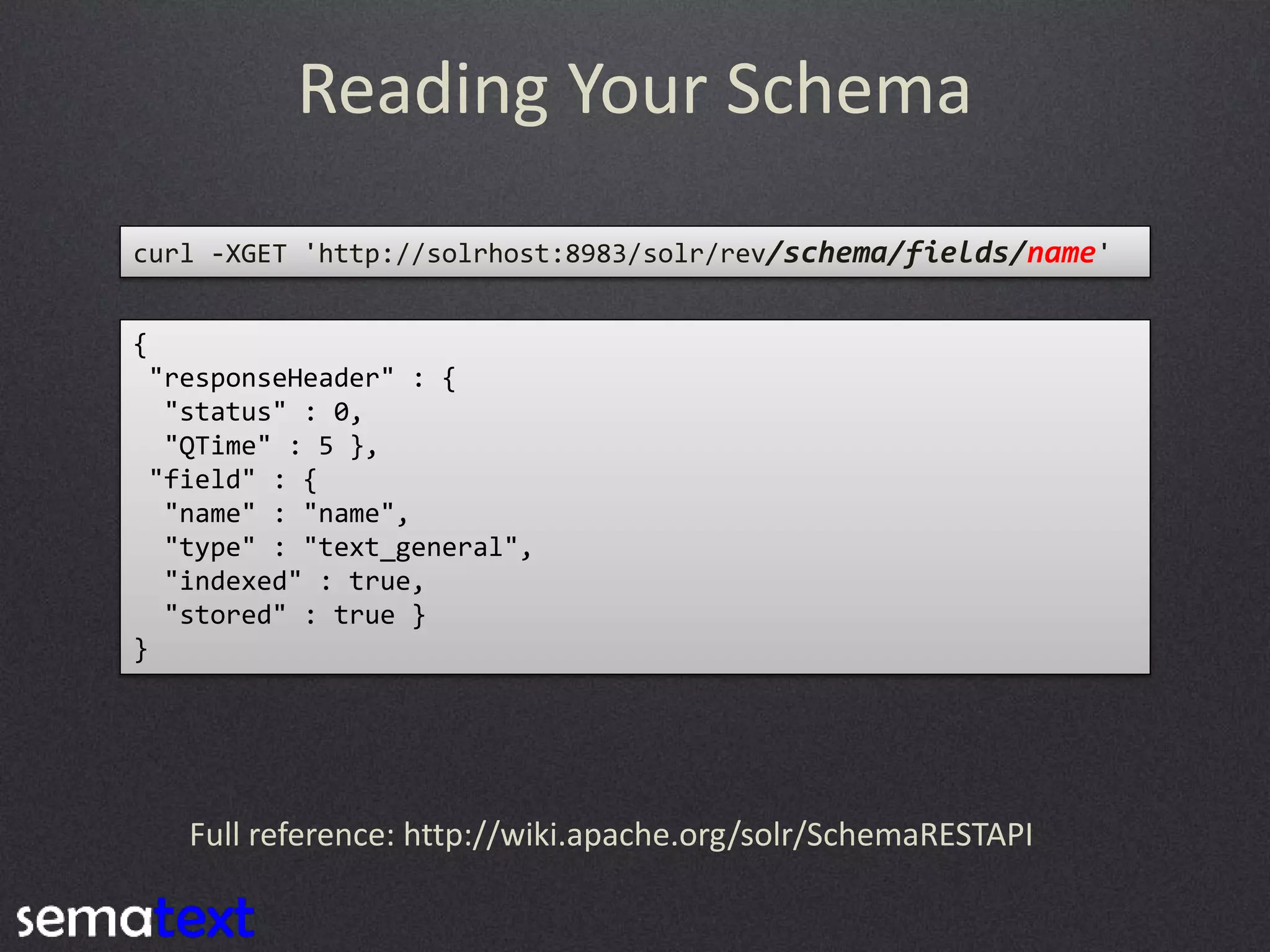

13. Reading Your Schema
curl -XGET 'http://solrhost:8983/solr/rev/schema/fields/name'
{
"responseHeader" : {
"status" : 0,
"QTime" : 5 },
"field" : {
"name" : "name",
"type" : "text_general",
"indexed" : true,
"stored" : true }
}
Full reference: http://wiki.apache.org/solr/SchemaRESTAPI

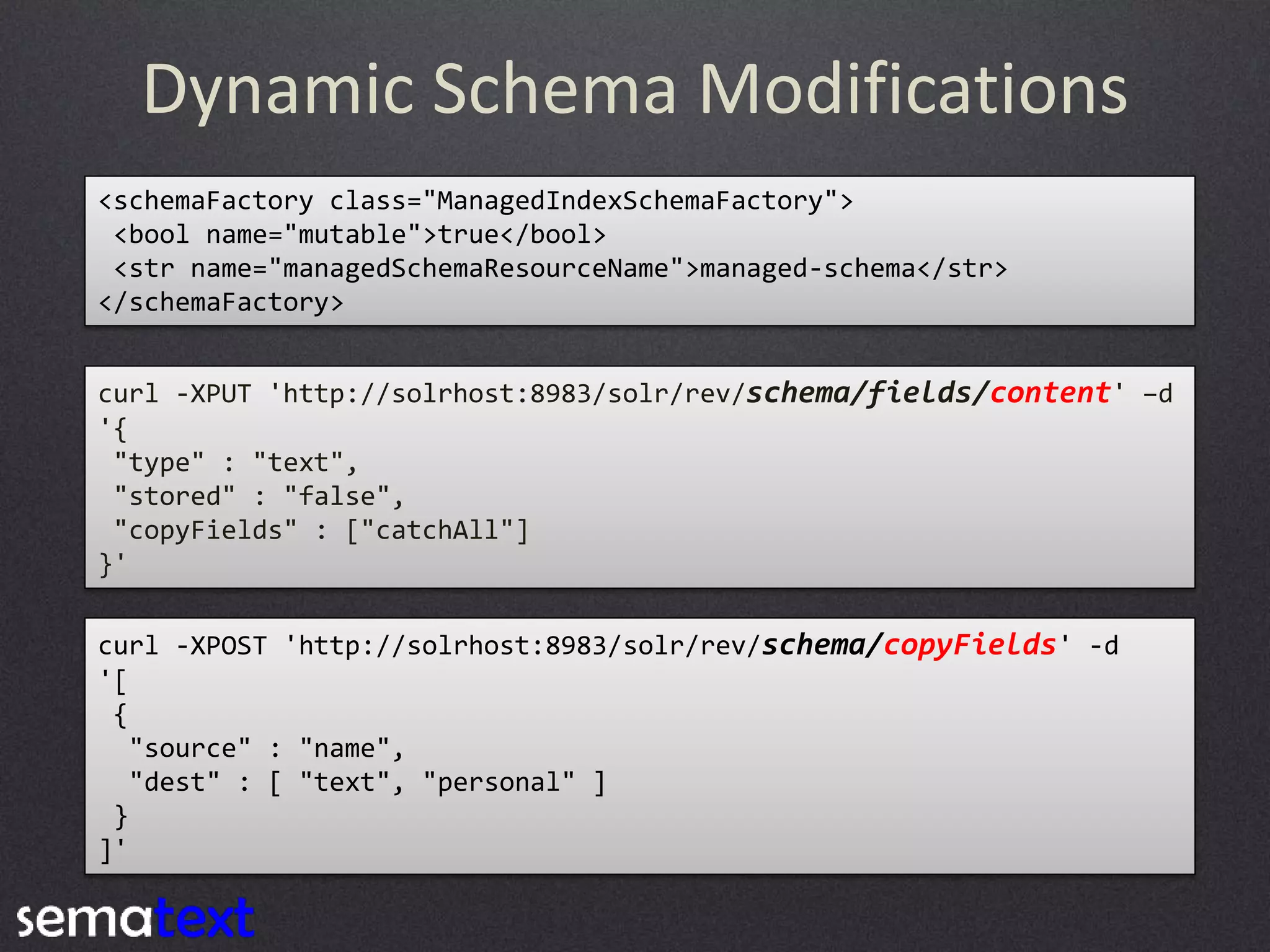

14. Dynamic Schema Modifications
<schemaFactory class="ManagedIndexSchemaFactory">
<bool name="mutable">true</bool>
<str name="managedSchemaResourceName">managed-schema</str>
</schemaFactory>
curl -XPUT 'http://solrhost:8983/solr/rev/schema/fields/content' –d
'{
"type" : "text",
"stored" : "false",
"copyFields" : ["catchAll"]
}'
curl -XPOST 'http://solrhost:8983/solr/rev/schema/copyFields' -d
'[
{
"source" : "name",
"dest" : [ "text", "personal" ]
}
]'

15. The Right Directory
StandardDirectory
SimpleFSDirectory
NIOFSDirectory
MMapDirectory
_0.fdt
_0.fdx _0.fnm _0.nvd
_1.fdt
_1.fdx _1.fnm _1.nvd
NRTCachingDirectory
RAMDirectory
<directoryFactory name="DirectoryFactory"
class="solr.NRTCachingDirectoryFactory" />

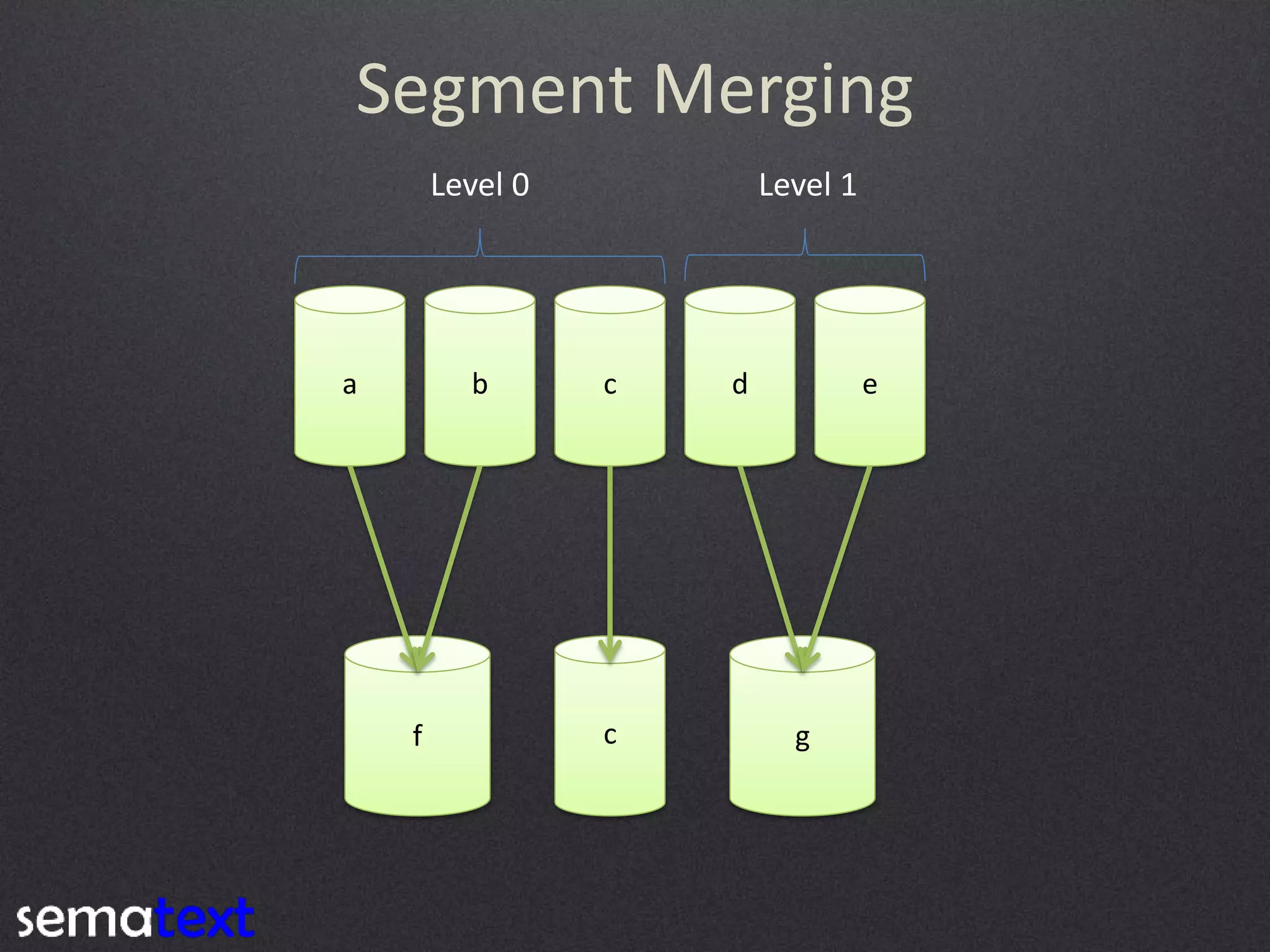

16. Segment Merging
Level 0
a
b
f
Level 1
c
c
d
e
g

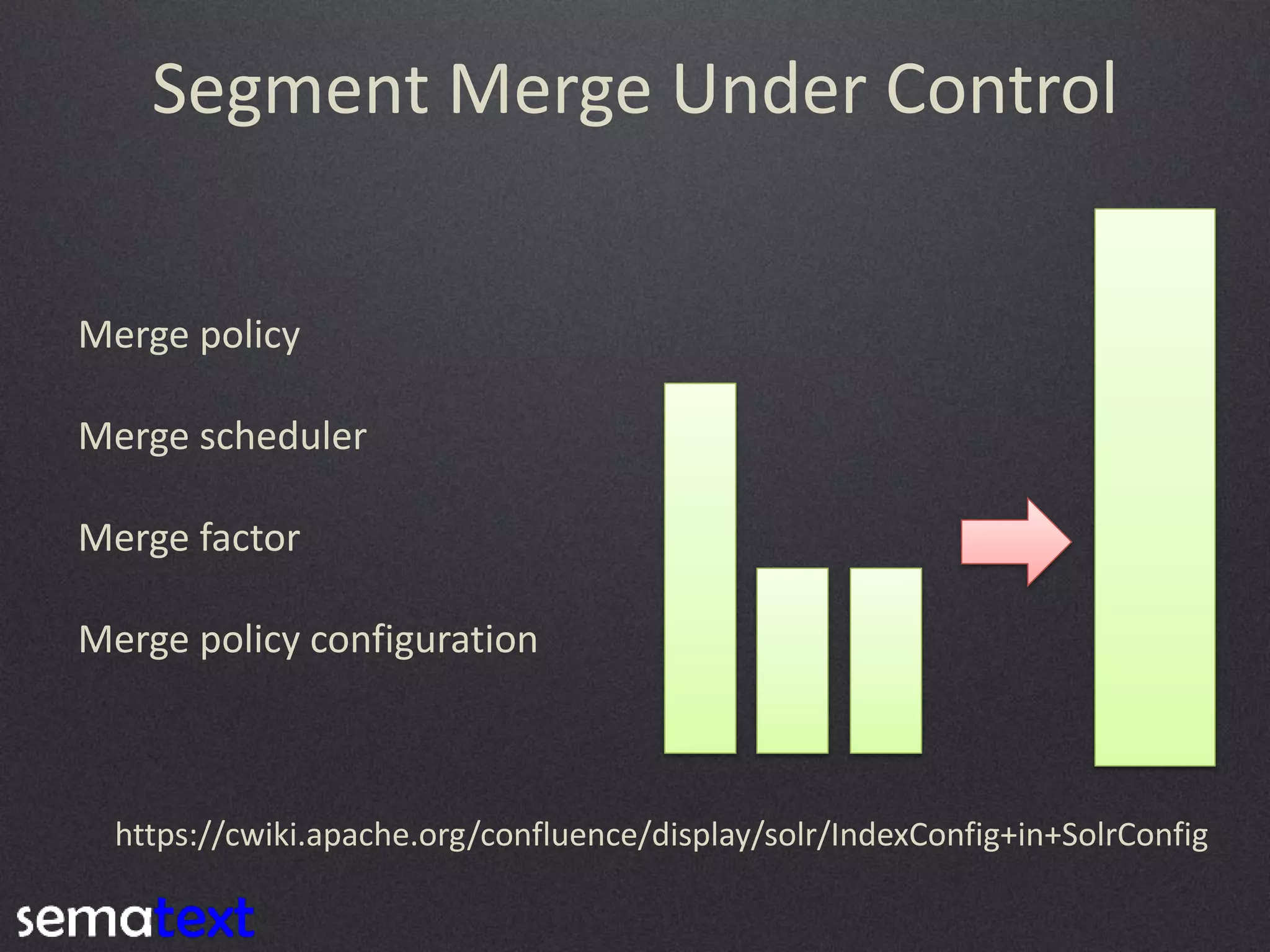

17. Segment Merge Under Control
Merge policy
Merge scheduler
Merge factor
Merge policy configuration
https://cwiki.apache.org/confluence/display/solr/IndexConfig+in+SolrConfig

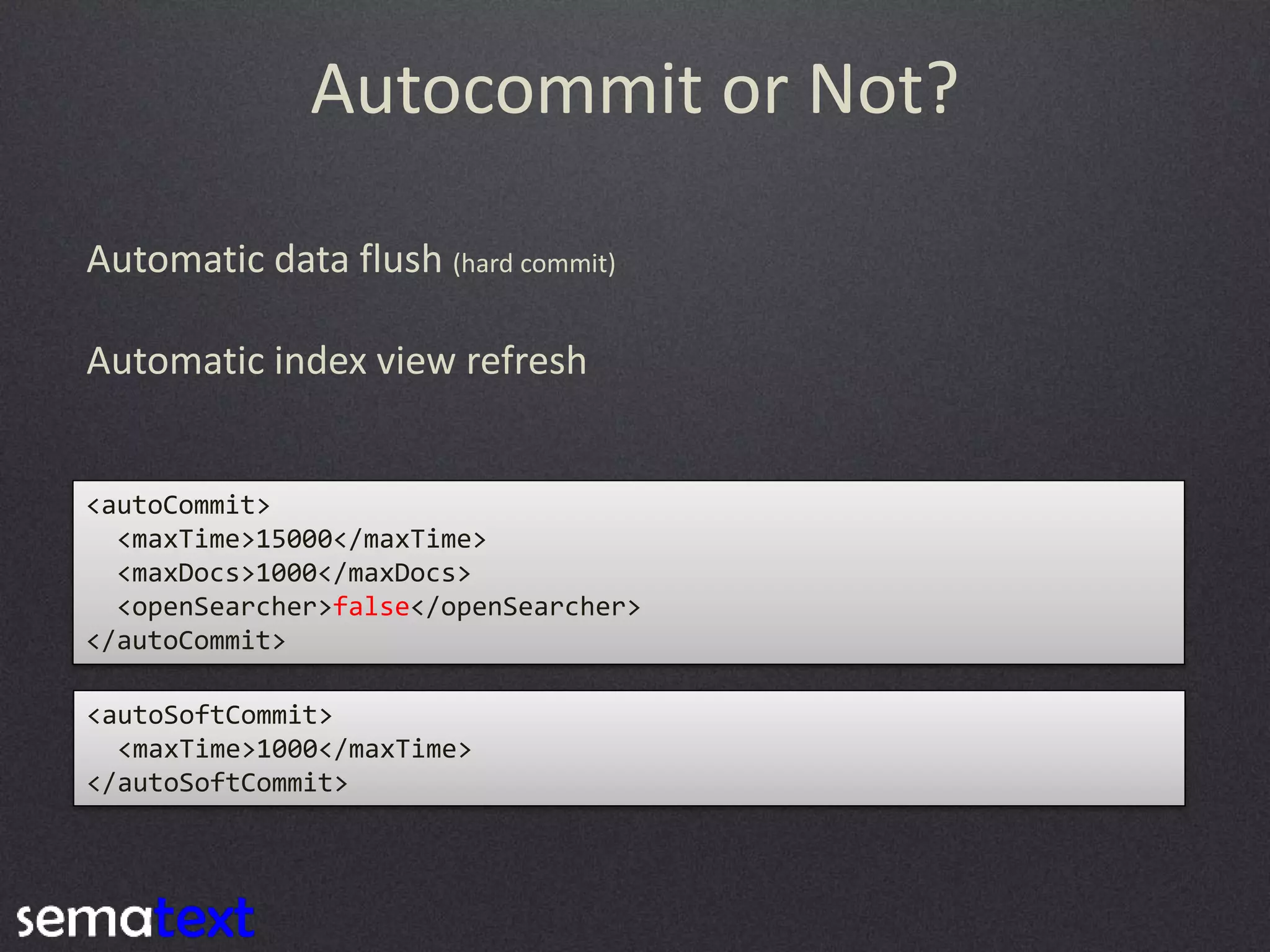

18. Autocommit or Not?
Automatic data flush (hard commit)
Automatic index view refresh
<autoCommit>
<maxTime>15000</maxTime>
<maxDocs>1000</maxDocs>
<openSearcher>false</openSearcher>
</autoCommit>
<autoSoftCommit>
<maxTime>1000</maxTime>
</autoSoftCommit>

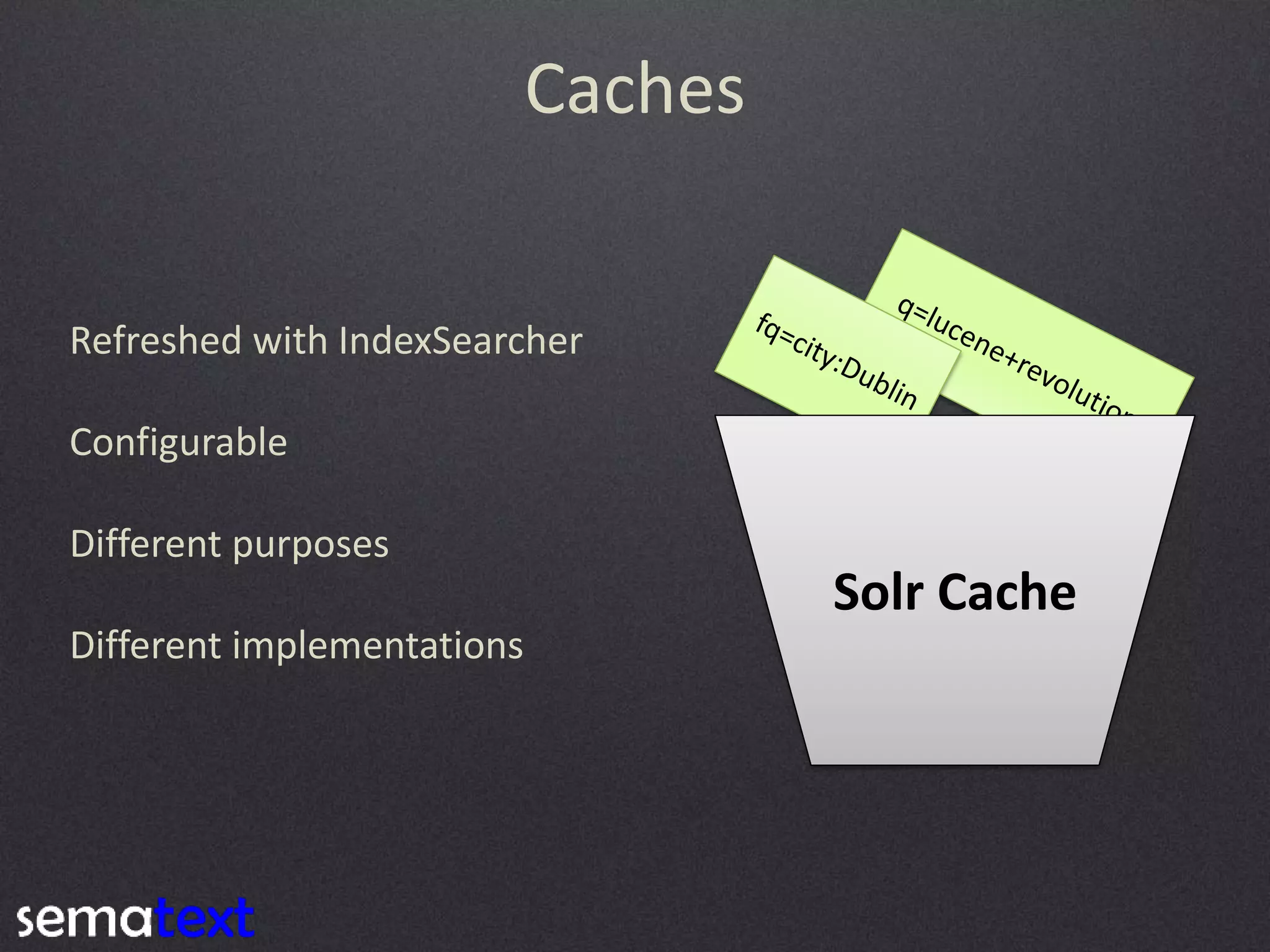

19. Caches
Refreshed with IndexSearcher
Configurable
Different purposes
Different implementations
Solr Cache

20. Monitoring Importance

21. What to Pay Attention to?

22. Cluster State
Health
Shards and replica status
Shard placement
Failing nodes

23. Indexing Related Metrics
Index throughput
Document distribution
I/O subsystem metrics
Merging

24. Search - related Metrics
Count
Latency
Distribution among nodes
Anomalies and spikes

25. Monitoring Memory and GC
Heap details
Pool size
Pool utilization
Garbage collection count
Garbage collection time

26. Monitoring OS Related Metrics
CPU details
Load
I/O activity
Network usage

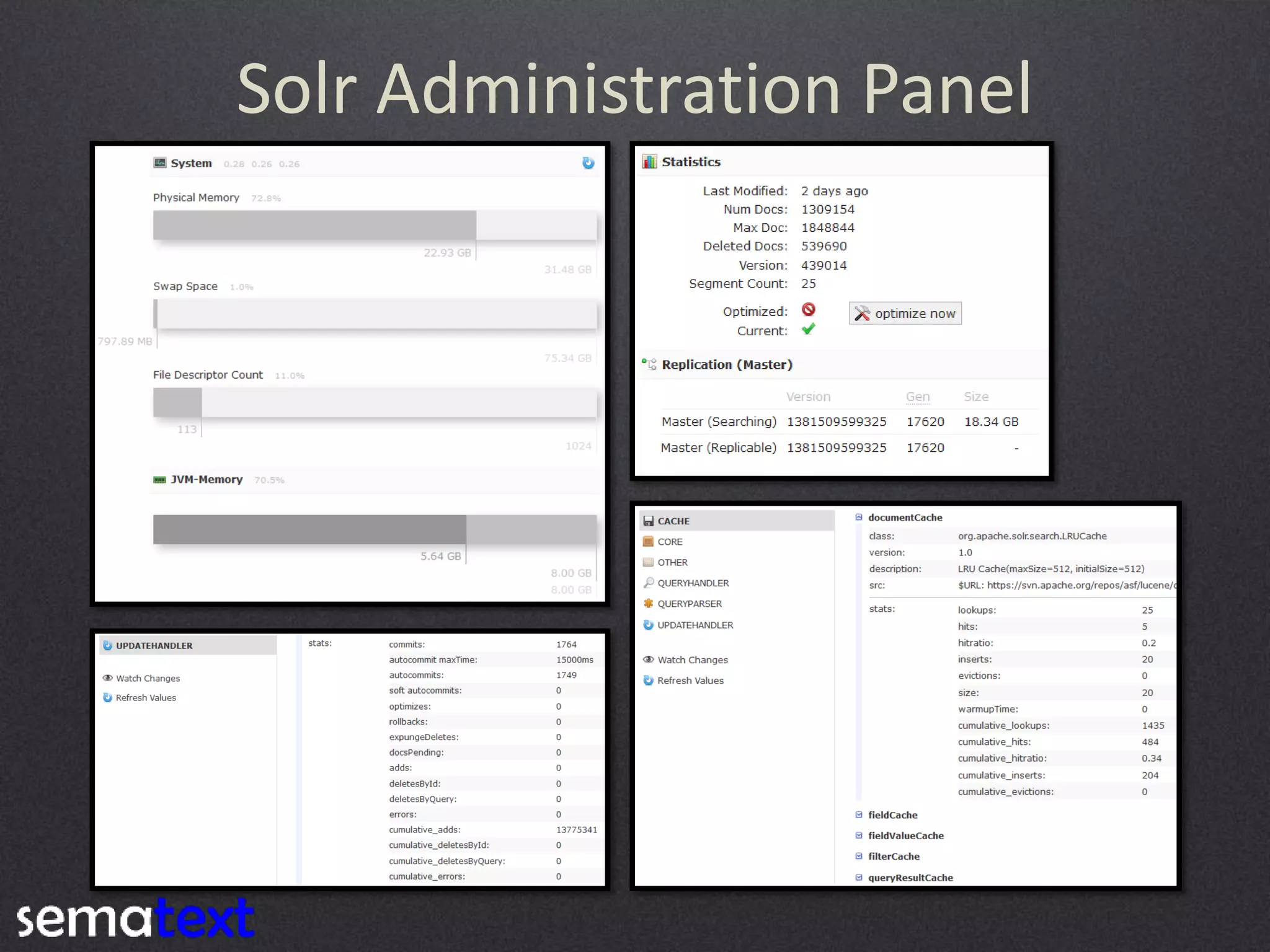

27. Solr Administration Panel

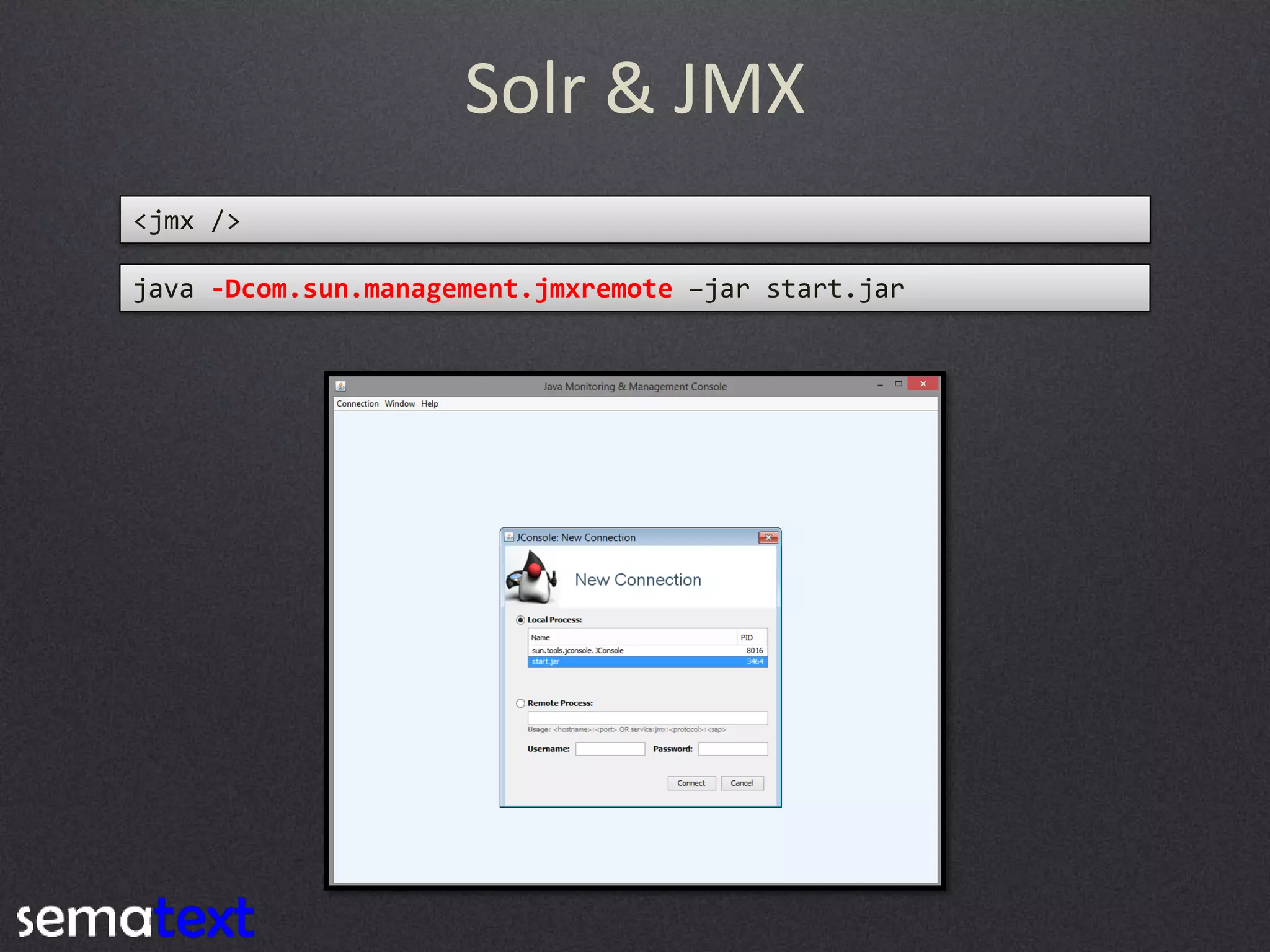

28. Solr & JMX
<jmx />
java -Dcom.sun.management.jmxremote –jar start.jar

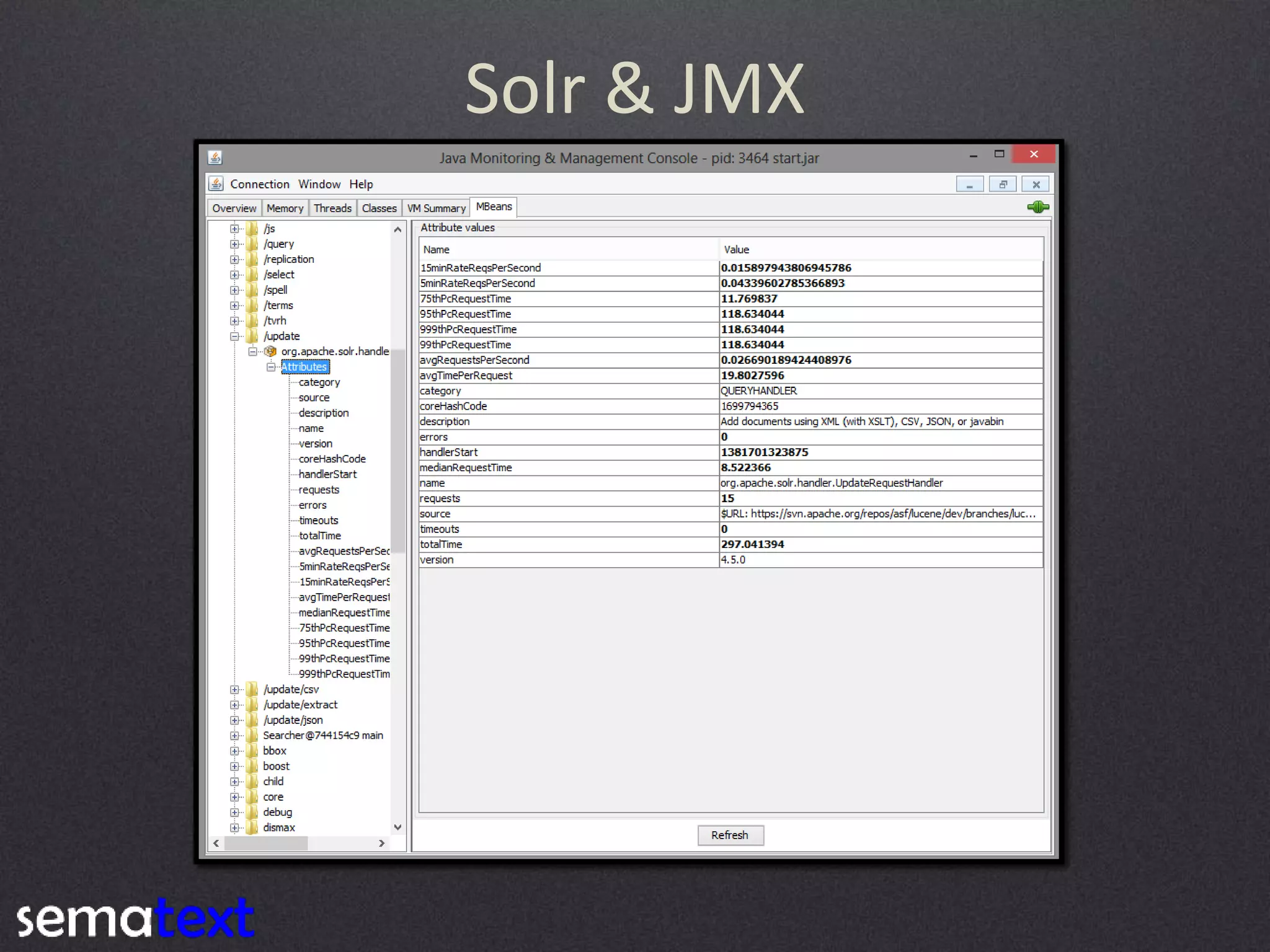

29. Solr & JMX

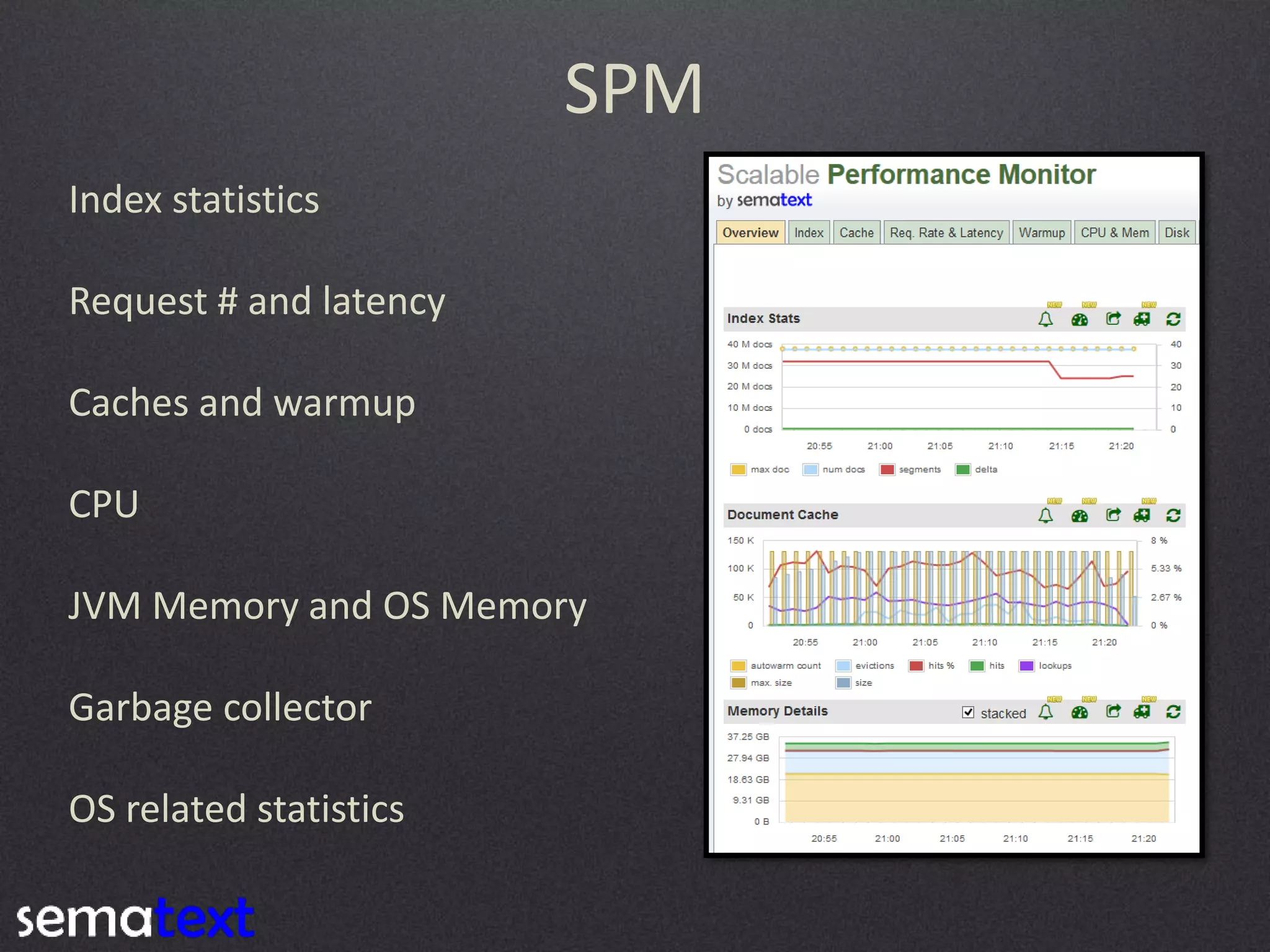

30. SPM
Index statistics
Request # and latency
Caches and warmup
CPU
JVM Memory and OS Memory
Garbage collector
OS related statistics

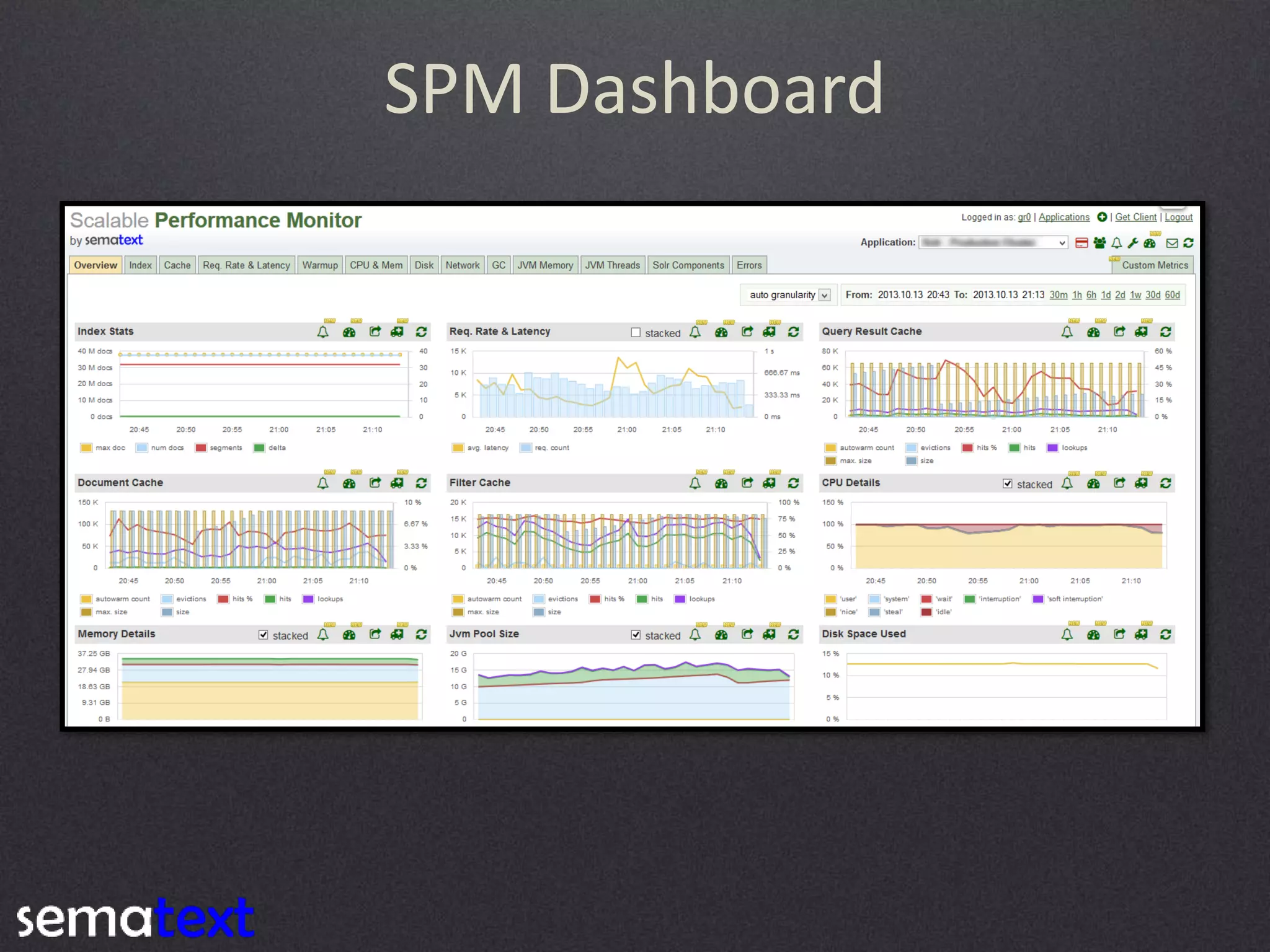

31. SPM Dashboard

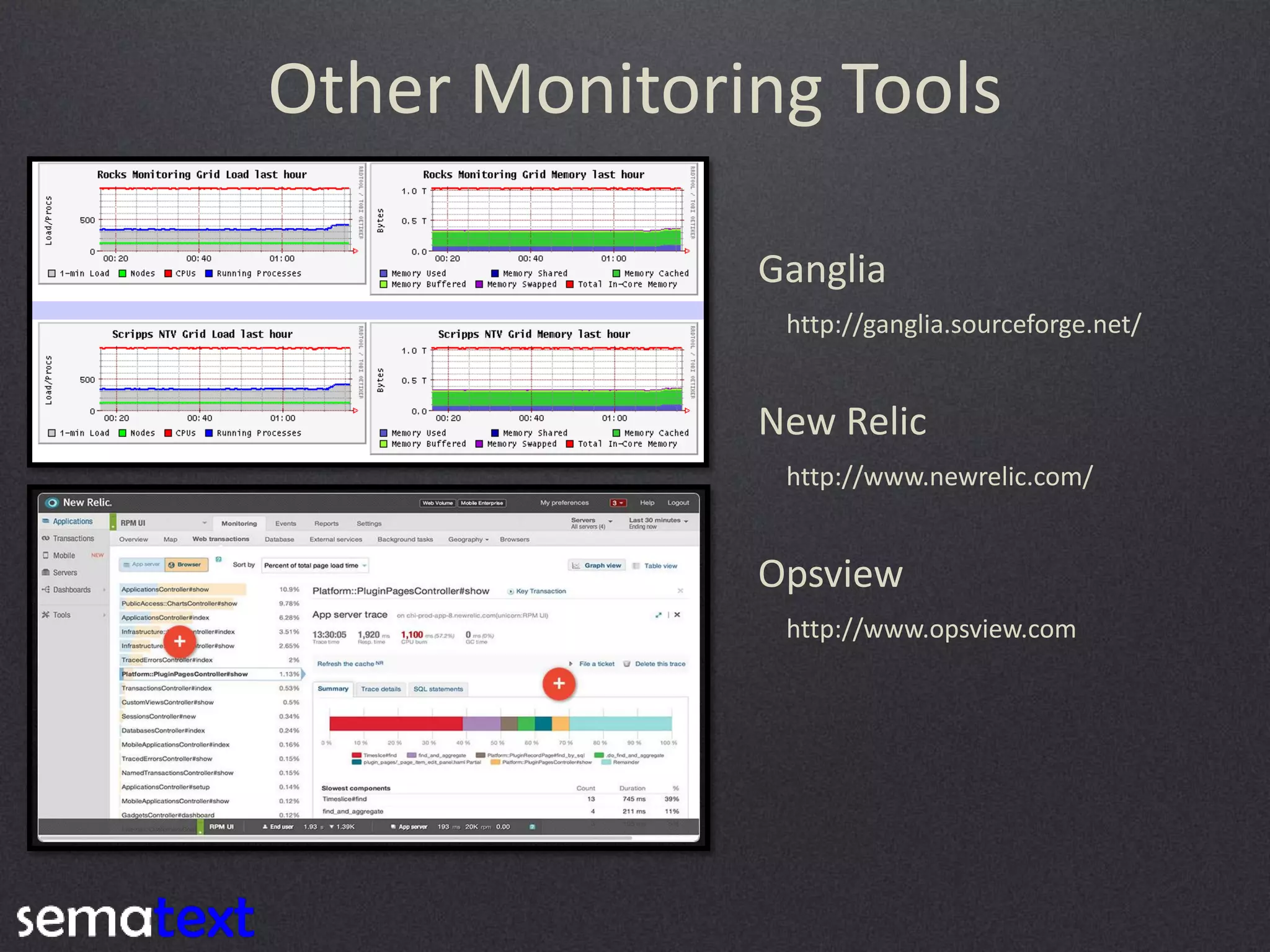

32. Other Monitoring Tools
Ganglia
http://ganglia.sourceforge.net/
New Relic
http://www.newrelic.com/
Opsview
http://www.opsview.com

33. Too much is too much

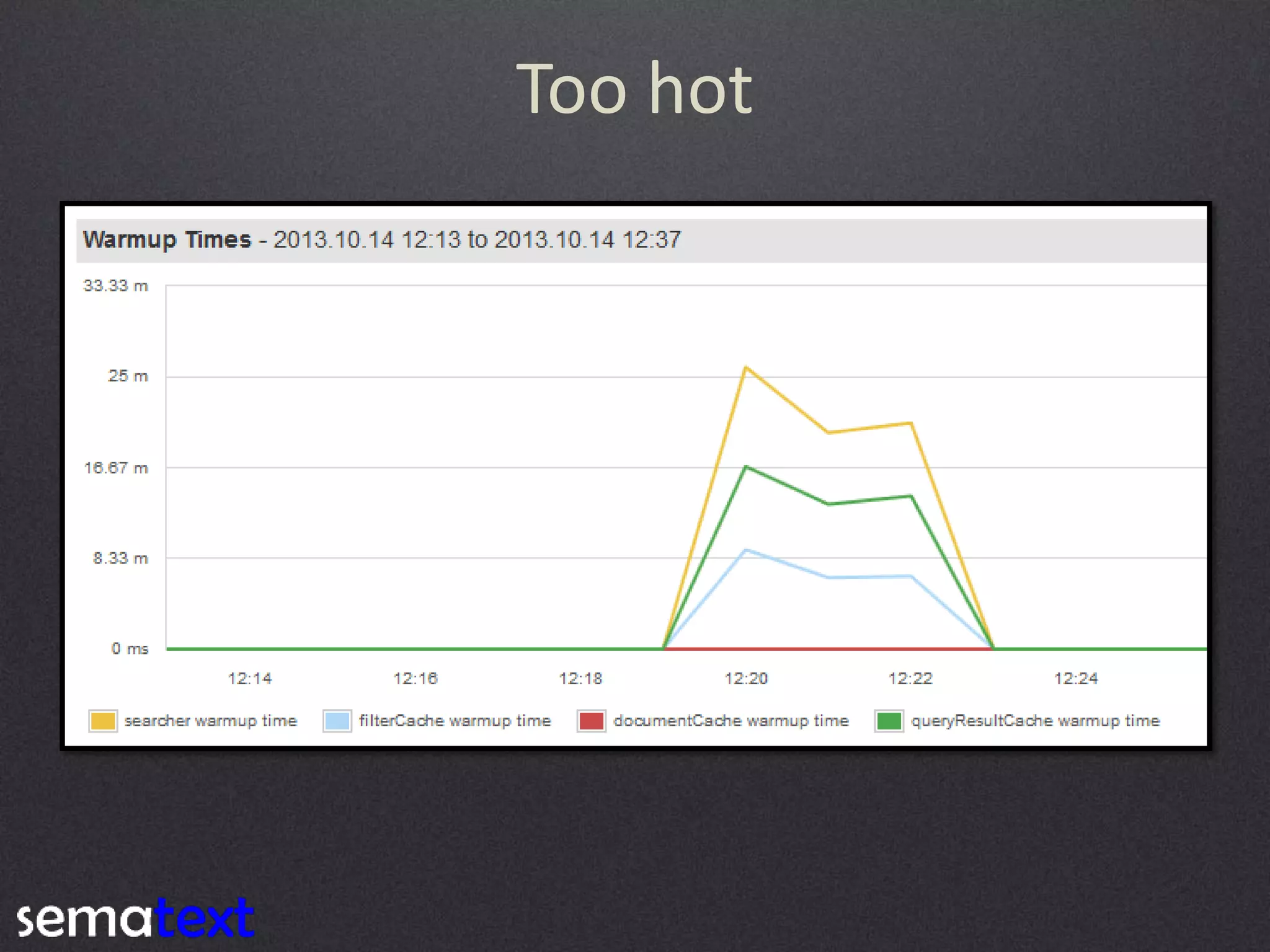

34. Too hot

35. Caches

36. We Are Hiring !
Dig Search ?
Dig Analytics ?
Dig Big Data ?
Dig Performance ?
Dig working with and in open – source ?
We’re hiring world – wide !
http://sematext.com/about/jobs.html
