The document describes flowchart algorithms, emphasizing the need for a structured format with a single begin and end for each program, including subprograms. It explains the use of symbols for user input, output processes, decision-making (using diamond shapes for conditions), and different paths (case statements for multi-way selection). Additionally, it addresses the implementation of loops for repetition based on conditions.

1. Flowchart Algorithm Description

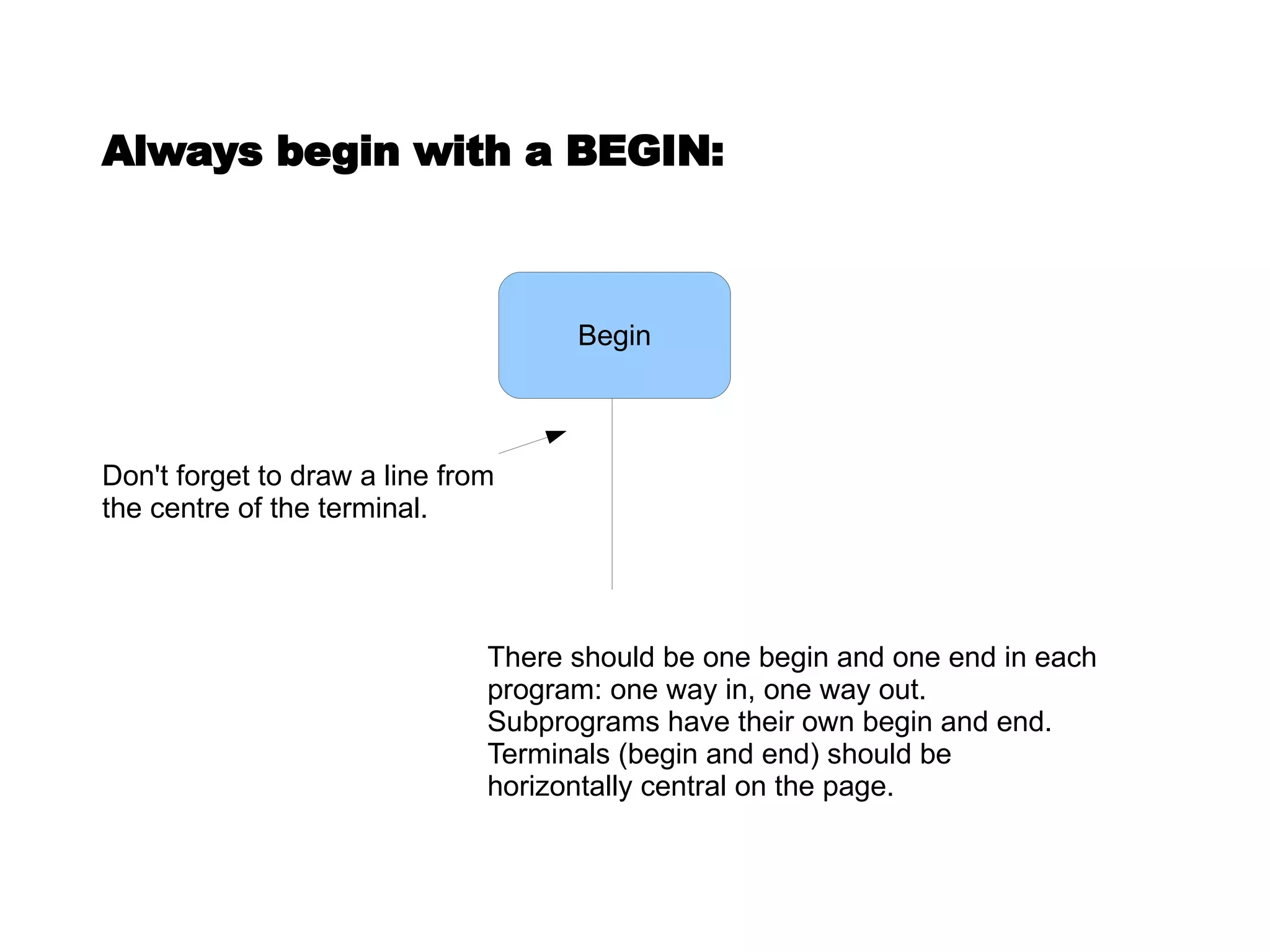

2. Always begin with a BEGIN: There should be one begin and one end in each program: one way in, one way out. Subprograms have their own begin and end. Terminals (begin and end) should be horizontally central on the page. Don't forget to draw a line from the centre of the terminal. Begin

3. You probably need to communicate with the user. Give the user instructions and accept input from the user with this symbol. Don't forget the line! Input / Output: Begin Input / Output

4. Process: You can set the value of a variable or perform a calculation in a process. Begin Input / Output Process

5. Example: a basic conversion algorithm The input / output symbol is used to show the user the results of the calculation. REMEMBER: one BEGIN and one END. You now have enough symbols to accept input, perform a calculation on it and display the result. Begin Cm = inches * 2.54 Get Inches Display cm End

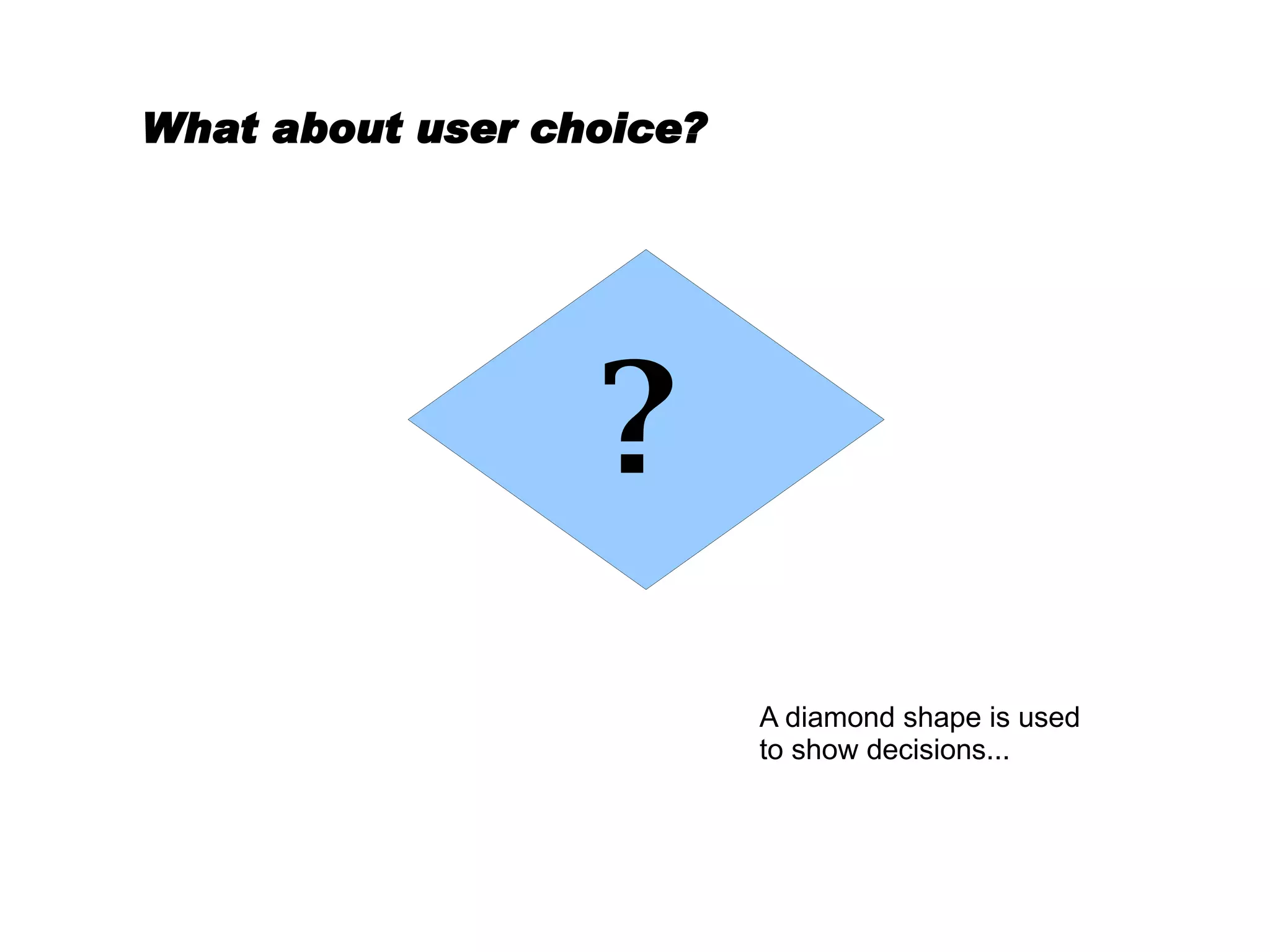

6. What about user choice? A diamond shape is used to show decisions... ?

7. Selection allows the program to run different paths depending on a condition. The condition (question) resolves to TRUE or FALSE. True False Using Selection: Begin Display menu: 1. Inches to cm 2. cm to inches Get choice Choice = 1 End Convert cm Convert Inches

8. Multi-way Selection: CASE statements allow different paths depending on the value of a testing variable.

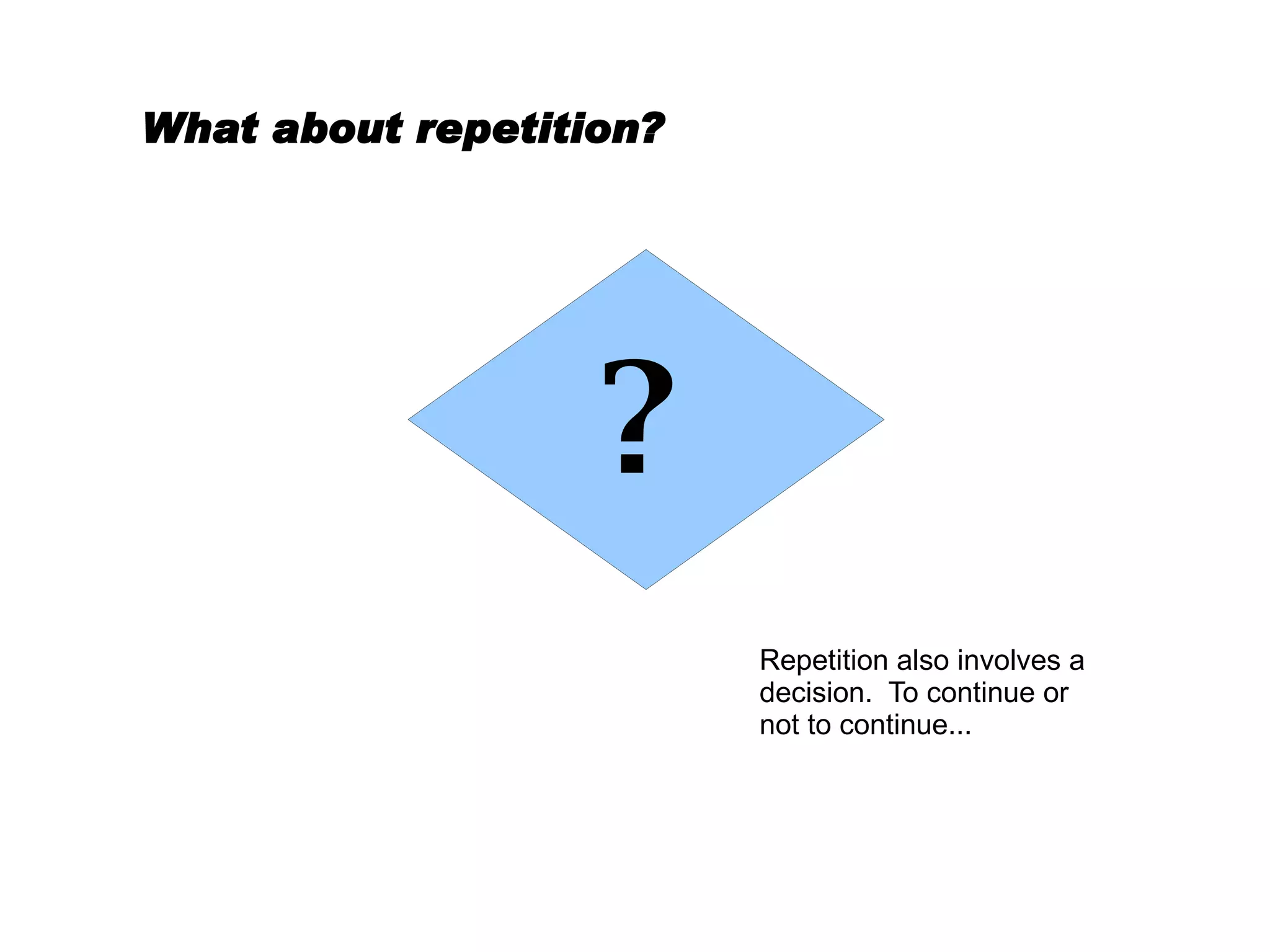

9. What about repetition? Repetition also involves a decision. To continue or not to continue... ?

10. Guarded loops: If the condition is true, the loop executes. True False Note: the up line has an arrow! ?

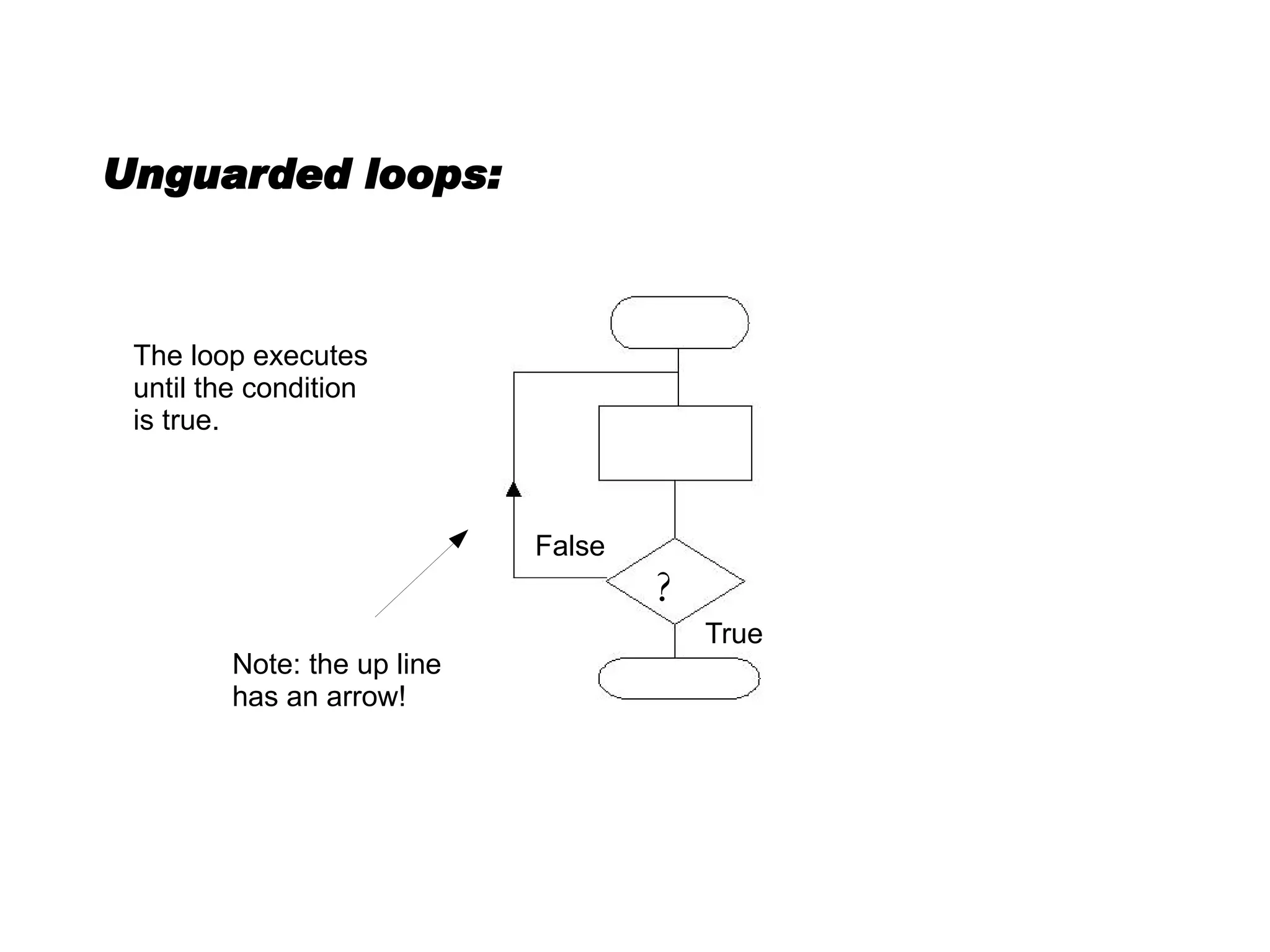

11. Unguarded loops: Note: the up line has an arrow! The loop executes until the condition is true. True False ?

12. The End
