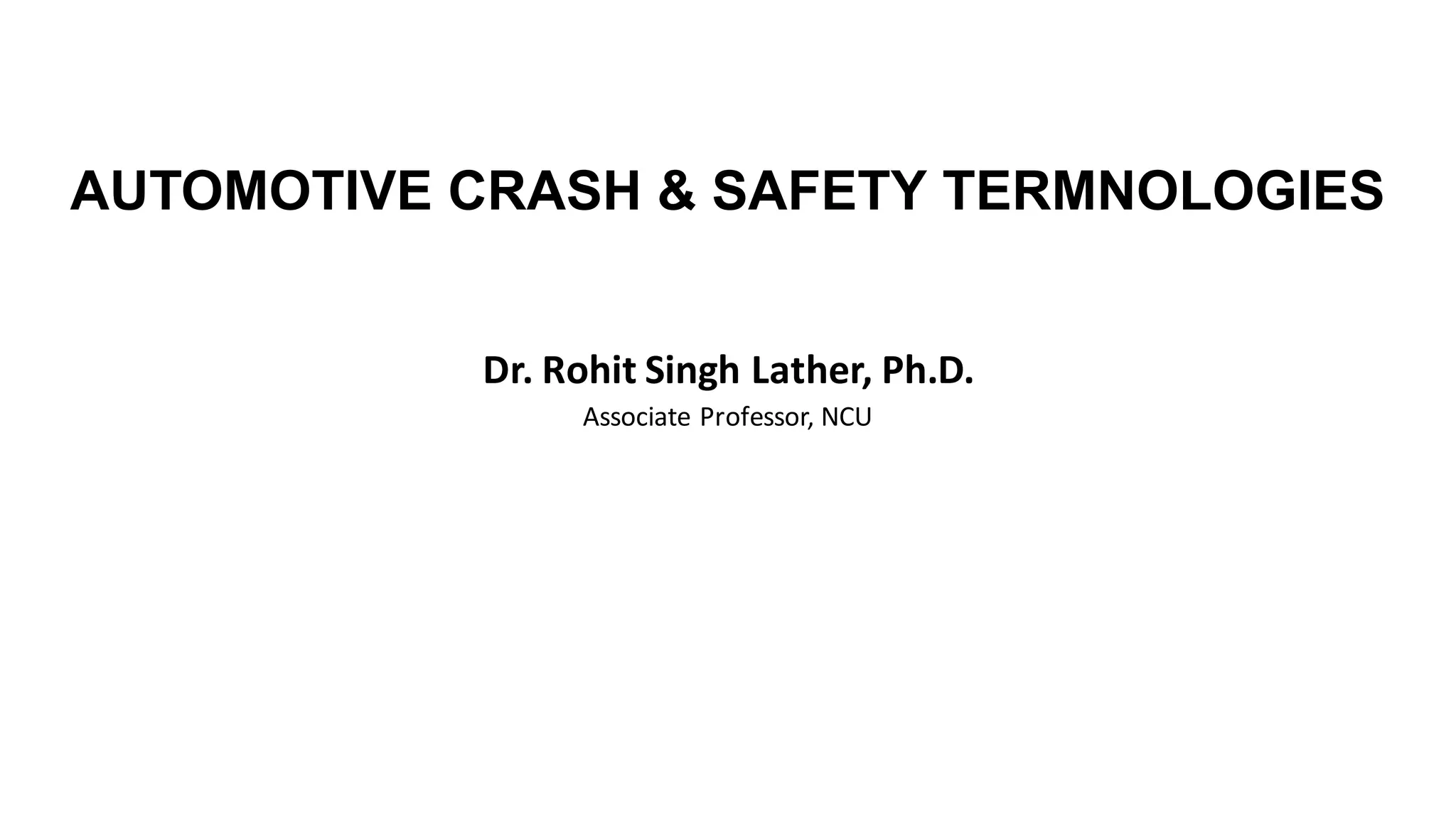

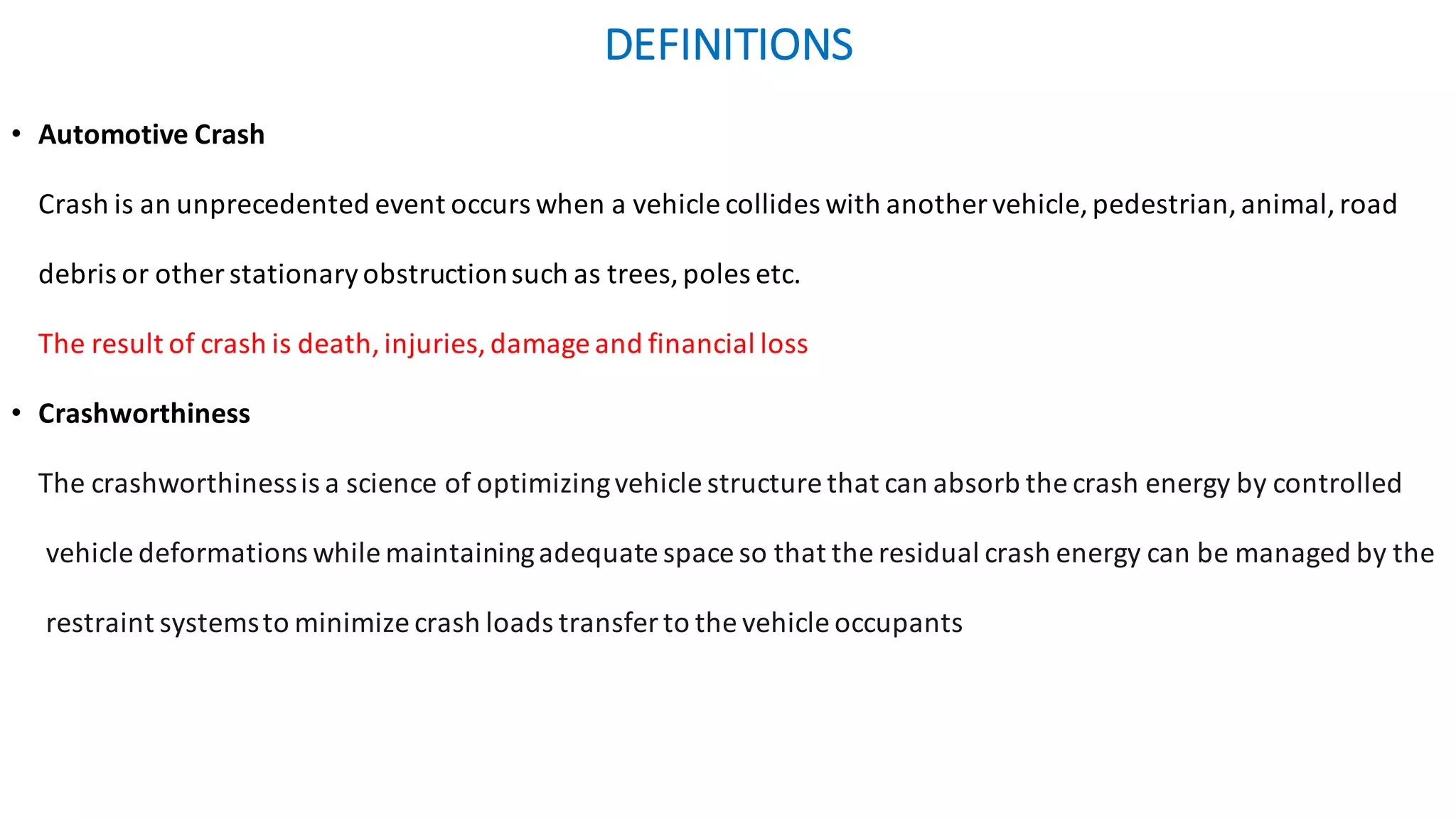

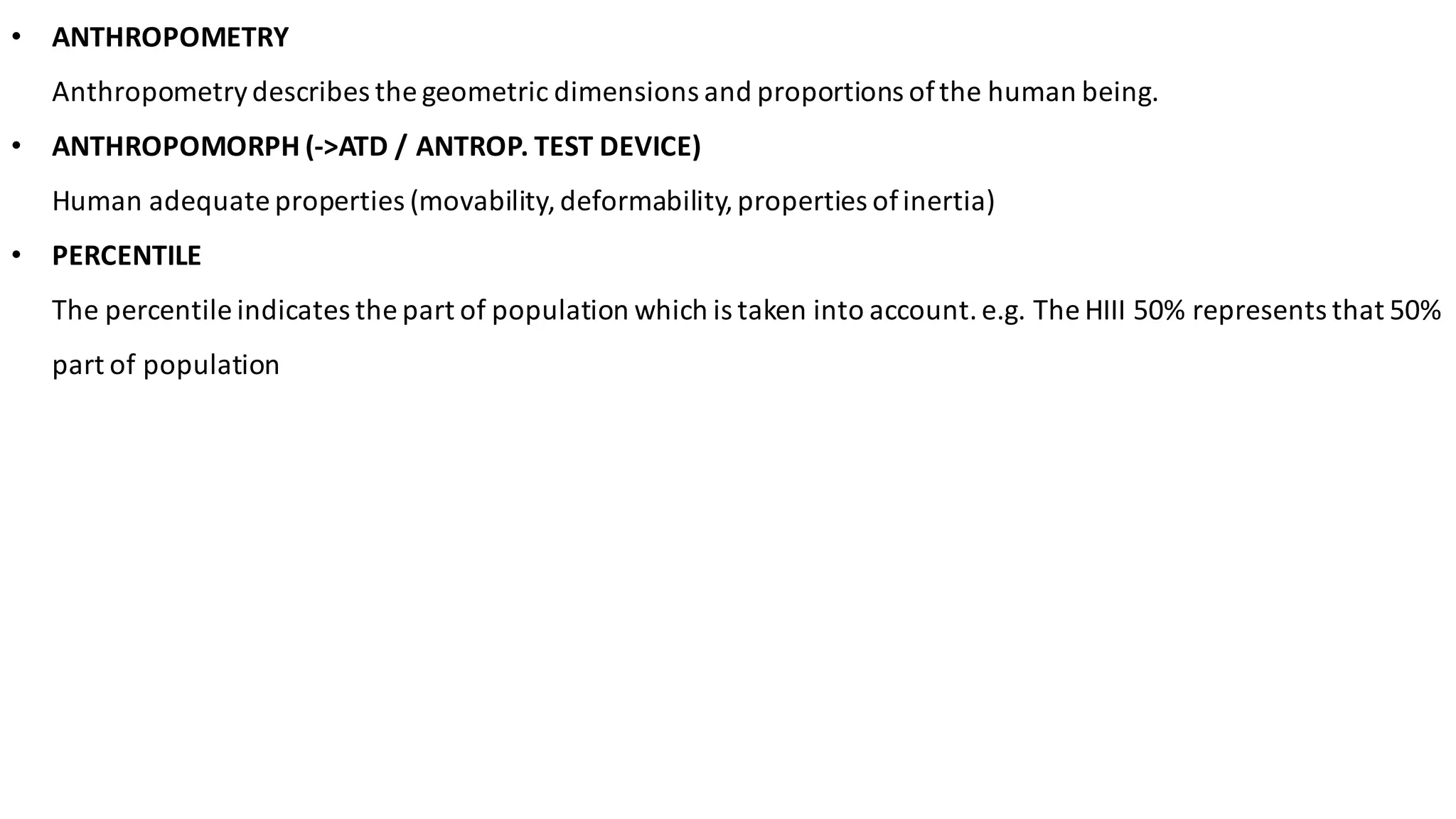

This document defines various automotive crash and safety terms and concepts. It discusses vehicle classifications, weight classifications, crashworthiness requirements, and injury reference points like H-point and R-point. It also covers topics like vehicle coordinate systems, deformable crash structures, restraint systems, and anthropometric test devices that represent human characteristics and percentiles.
Introduction : Basic Feature of an Automobile
Car Body Details
Types of Vehicle
Body Engineering Terminology
Morphology of Vehicle Body ( Structural ) Design
Design Considerations
Optimization for Frontal Impact under section FMVSS-208 and IIHS criteria in which analysis carried on Fixed barrier with 100%, 40% collision and small offset rigid barrier with 25% collision. Done simulation to see how well a passenger vehicle would protect its occupants in the event of a serious real-world frontal crash.
Study and Analysis of Automotive Seating System Riser Design & Development fo...ijsrd.com
Seat is a sub system of automobile or vehicle. It is the main aggregate in a vehicle, which impacts the visibility, comfort, safety for the occupant. H-point plays vital role in seat system design & occupant safety. As a part of vehicle development, requirement raised is to have elevated H-point to have better visibility & control for occupant. Use of carryover seat with minimum part alterations is a challenge. After studying all relative factors, it has been decided to integrate carry over seat with BIW by addition of seat riser member. This paper speaks about design and development of seat riser member for automotive seat.
Introduction : Basic Feature of an Automobile
Car Body Details
Types of Vehicle
Body Engineering Terminology
Morphology of Vehicle Body ( Structural ) Design
Design Considerations
Optimization for Frontal Impact under section FMVSS-208 and IIHS criteria in which analysis carried on Fixed barrier with 100%, 40% collision and small offset rigid barrier with 25% collision. Done simulation to see how well a passenger vehicle would protect its occupants in the event of a serious real-world frontal crash.
Study and Analysis of Automotive Seating System Riser Design & Development fo...ijsrd.com
Seat is a sub system of automobile or vehicle. It is the main aggregate in a vehicle, which impacts the visibility, comfort, safety for the occupant. H-point plays vital role in seat system design & occupant safety. As a part of vehicle development, requirement raised is to have elevated H-point to have better visibility & control for occupant. Use of carryover seat with minimum part alterations is a challenge. After studying all relative factors, it has been decided to integrate carry over seat with BIW by addition of seat riser member. This paper speaks about design and development of seat riser member for automotive seat.
WHY WE NEED TO DESIGN SEATS
FACTOR FOR SEAT DESIGN
GEOMETRIC FEATURES OF SEAT DESIGN
ERGONOMICS,SIMULATION AND MODELING
VIBRATION APPROACH
PRESSURE APPROACH
Full Frontal, 40% & 20% Offset Impact Analysis on Ford Econoline.Vaibhav porwal
Full Frontal, 40%, and 20% impact analysis of Ford Econoline using LS-PrePost and LS-DYNA, including front airbags, side curtain airbag and a seatbelted to reduce the fatal injuries.
J. D. Power survey reports seats in car are next to last in satisfaction despite historical high in quality. Add-on content to basic seat design does not change satisfaction rank. Since seats are for sitting, drivers must not be able to sit as they prefer. Car seat design guidelines must improve accommodation for variation in sitting postures.
Chassis is the main support structure of the vehicle which is also known as ‘Carrying Unit’. It bears all the stresses on the vehicle in both static and dynamic conditions.”
What is a Chassis?
Different Types of Chassis
Ladder frame chassis
Tubular space frame chassis
Aluminum space frame
ULSAB Monocoque chassis
Back bone frame chassis
Introduction to Monocoque Design
What is Monocoque construction?
Where is this used?
Origin of Monocoque design
History of Monocoque Frame
Design parameters of driver seat in an automobileeSAT Journals
Abstract Driver seat is an important system of any automobile, it is also complicated system consists of so many parts, adjustments as well as safety systems. A seat adjustment includes height adjustment, fore and aft adjustment, back recline adjustments. Safety systems include seat belts, air bags and advanced head restraints. Generally professional driver works more than eight hours per day of a week, therefore driver seat must be designed by considering all the parameters. Also uneven road condition induces the vibration in a vehicle transmitted to driver body. Poorly designed driver seat affects the driver health and psychological conditions of mind. Three main objectives of any driver seats are safety, health and comfort of driver. This paper presents all the parameters of driver seat such as anthropometry of human, ergonomics related parameters, seat materials, safety related parameters, comfort related parameters as well as weight and aesthetics with classifications and basics of driver seat. Keywords: Driver Seat, Comfort, Safety, Health, Adjustments.
WHY WE NEED TO DESIGN SEATS
FACTOR FOR SEAT DESIGN
GEOMETRIC FEATURES OF SEAT DESIGN
ERGONOMICS,SIMULATION AND MODELING
VIBRATION APPROACH
PRESSURE APPROACH
Full Frontal, 40% & 20% Offset Impact Analysis on Ford Econoline.Vaibhav porwal
Full Frontal, 40%, and 20% impact analysis of Ford Econoline using LS-PrePost and LS-DYNA, including front airbags, side curtain airbag and a seatbelted to reduce the fatal injuries.
J. D. Power survey reports seats in car are next to last in satisfaction despite historical high in quality. Add-on content to basic seat design does not change satisfaction rank. Since seats are for sitting, drivers must not be able to sit as they prefer. Car seat design guidelines must improve accommodation for variation in sitting postures.
Chassis is the main support structure of the vehicle which is also known as ‘Carrying Unit’. It bears all the stresses on the vehicle in both static and dynamic conditions.”
What is a Chassis?
Different Types of Chassis
Ladder frame chassis
Tubular space frame chassis
Aluminum space frame
ULSAB Monocoque chassis
Back bone frame chassis
Introduction to Monocoque Design
What is Monocoque construction?
Where is this used?
Origin of Monocoque design
History of Monocoque Frame
Design parameters of driver seat in an automobileeSAT Journals
Abstract Driver seat is an important system of any automobile, it is also complicated system consists of so many parts, adjustments as well as safety systems. A seat adjustment includes height adjustment, fore and aft adjustment, back recline adjustments. Safety systems include seat belts, air bags and advanced head restraints. Generally professional driver works more than eight hours per day of a week, therefore driver seat must be designed by considering all the parameters. Also uneven road condition induces the vibration in a vehicle transmitted to driver body. Poorly designed driver seat affects the driver health and psychological conditions of mind. Three main objectives of any driver seats are safety, health and comfort of driver. This paper presents all the parameters of driver seat such as anthropometry of human, ergonomics related parameters, seat materials, safety related parameters, comfort related parameters as well as weight and aesthetics with classifications and basics of driver seat. Keywords: Driver Seat, Comfort, Safety, Health, Adjustments.
Formula One is the highest class of single-seater auto racing sanctioned by the Fédération Internationale de l'Automobile and owned by the Formula One Group. To Organize such a sporting event with high risk of death is a big challenge and to face and overcome such challenge Science & Engineering come forward.
Texas A&M Transportation Institute (TTI) researchers performing crash testing work closely with public agencies and private sector companies on the design, construction, testing and evaluation of highway-safety and perimeter-security devices. TTI is recognized as a national leader, having conducted more than 2,000 full-scale crash tests, with vehicles weighing from 1,200 to 80,000 pounds.
Core technology of Hyundai Motor Group's EV platform 'E-GMP'Hyundai Motor Group
What’s the force behind Hyundai Motor Group's EV performance and quality?
Maximized driving performance and quick charging time through high-density battery pack and fast charging technology and applicable to various vehicle types!
Discover more about Hyundai Motor Group’s EV platform ‘E-GMP’!
Comprehensive program for Agricultural Finance, the Automotive Sector, and Empowerment . We will define the full scope and provide a detailed two-week plan for identifying strategic partners in each area within Limpopo, including target areas.:
1. Agricultural : Supporting Primary and Secondary Agriculture
• Scope: Provide support solutions to enhance agricultural productivity and sustainability.
• Target Areas: Polokwane, Tzaneen, Thohoyandou, Makhado, and Giyani.
2. Automotive Sector: Partnerships with Mechanics and Panel Beater Shops
• Scope: Develop collaborations with automotive service providers to improve service quality and business operations.
• Target Areas: Polokwane, Lephalale, Mokopane, Phalaborwa, and Bela-Bela.
3. Empowerment : Focusing on Women Empowerment
• Scope: Provide business support support and training to women-owned businesses, promoting economic inclusion.
• Target Areas: Polokwane, Thohoyandou, Musina, Burgersfort, and Louis Trichardt.
We will also prioritize Industrial Economic Zone areas and their priorities.
Sign up on https://profilesmes.online/welcome/
To be eligible:
1. You must have a registered business and operate in Limpopo
2. Generate revenue
3. Sectors : Agriculture ( primary and secondary) and Automative
Women and Youth are encouraged to apply even if you don't fall in those sectors.
Symptoms like intermittent starting and key recognition errors signal potential problems with your Mercedes’ EIS. Use diagnostic steps like error code checks and spare key tests. Professional diagnosis and solutions like EIS replacement ensure safe driving. Consult a qualified technician for accurate diagnosis and repair.
What Exactly Is The Common Rail Direct Injection System & How Does It WorkMotor Cars International
Learn about Common Rail Direct Injection (CRDi) - the revolutionary technology that has made diesel engines more efficient. Explore its workings, advantages like enhanced fuel efficiency and increased power output, along with drawbacks such as complexity and higher initial cost. Compare CRDi with traditional diesel engines and discover why it's the preferred choice for modern engines.
"Trans Failsafe Prog" on your BMW X5 indicates potential transmission issues requiring immediate action. This safety feature activates in response to abnormalities like low fluid levels, leaks, faulty sensors, electrical or mechanical failures, and overheating.
Things to remember while upgrading the brakes of your carjennifermiller8137
Upgrading the brakes of your car? Keep these things in mind before doing so. Additionally, start using an OBD 2 GPS tracker so that you never miss a vehicle maintenance appointment. On top of this, a car GPS tracker will also let you master good driving habits that will let you increase the operational life of your car’s brakes.
5 Warning Signs Your BMW's Intelligent Battery Sensor Needs AttentionBertini's German Motors
IBS monitors and manages your BMW’s battery performance. If it malfunctions, you will have to deal with an array of electrical issues in your vehicle. Recognize warning signs like dimming headlights, frequent battery replacements, and electrical malfunctions to address potential IBS issues promptly.
In this presentation, we have discussed a very important feature of BMW X5 cars… the Comfort Access. Things that can significantly limit its functionality. And things that you can try to restore the functionality of such a convenient feature of your vehicle.
Why Is Your BMW X3 Hood Not Responding To Release CommandsDart Auto
Experiencing difficulty opening your BMW X3's hood? This guide explores potential issues like mechanical obstruction, hood release mechanism failure, electrical problems, and emergency release malfunctions. Troubleshooting tips include basic checks, clearing obstructions, applying pressure, and using the emergency release.
What Does the PARKTRONIC Inoperative, See Owner's Manual Message Mean for You...Autohaus Service and Sales
Learn what "PARKTRONIC Inoperative, See Owner's Manual" means for your Mercedes-Benz. This message indicates a malfunction in the parking assistance system, potentially due to sensor issues or electrical faults. Prompt attention is crucial to ensure safety and functionality. Follow steps outlined for diagnosis and repair in the owner's manual.
What Does the Active Steering Malfunction Warning Mean for Your BMWTanner Motors
Discover the reasons why your BMW’s Active Steering malfunction warning might come on. From electrical glitches to mechanical failures and software anomalies, addressing these promptly with professional inspection and maintenance ensures continued safety and performance on the road, maintaining the integrity of your driving experience.
𝘼𝙣𝙩𝙞𝙦𝙪𝙚 𝙋𝙡𝙖𝙨𝙩𝙞𝙘 𝙏𝙧𝙖𝙙𝙚𝙧𝙨 𝙞𝙨 𝙫𝙚𝙧𝙮 𝙛𝙖𝙢𝙤𝙪𝙨 𝙛𝙤𝙧 𝙢𝙖𝙣𝙪𝙛𝙖𝙘𝙩𝙪𝙧𝙞𝙣𝙜 𝙩𝙝𝙚𝙞𝙧 𝙥𝙧𝙤𝙙𝙪𝙘𝙩𝙨. 𝙒𝙚 𝙝𝙖𝙫𝙚 𝙖𝙡𝙡 𝙩𝙝𝙚 𝙥𝙡𝙖𝙨𝙩𝙞𝙘 𝙜𝙧𝙖𝙣𝙪𝙡𝙚𝙨 𝙪𝙨𝙚𝙙 𝙞𝙣 𝙖𝙪𝙩𝙤𝙢𝙤𝙩𝙞𝙫𝙚 𝙖𝙣𝙙 𝙖𝙪𝙩𝙤 𝙥𝙖𝙧𝙩𝙨 𝙖𝙣𝙙 𝙖𝙡𝙡 𝙩𝙝𝙚 𝙛𝙖𝙢𝙤𝙪𝙨 𝙘𝙤𝙢𝙥𝙖𝙣𝙞𝙚𝙨 𝙗𝙪𝙮 𝙩𝙝𝙚 𝙜𝙧𝙖𝙣𝙪𝙡𝙚𝙨 𝙛𝙧𝙤𝙢 𝙪𝙨.
Over the 10 years, we have gained a strong foothold in the market due to our range's high quality, competitive prices, and time-lined delivery schedules.

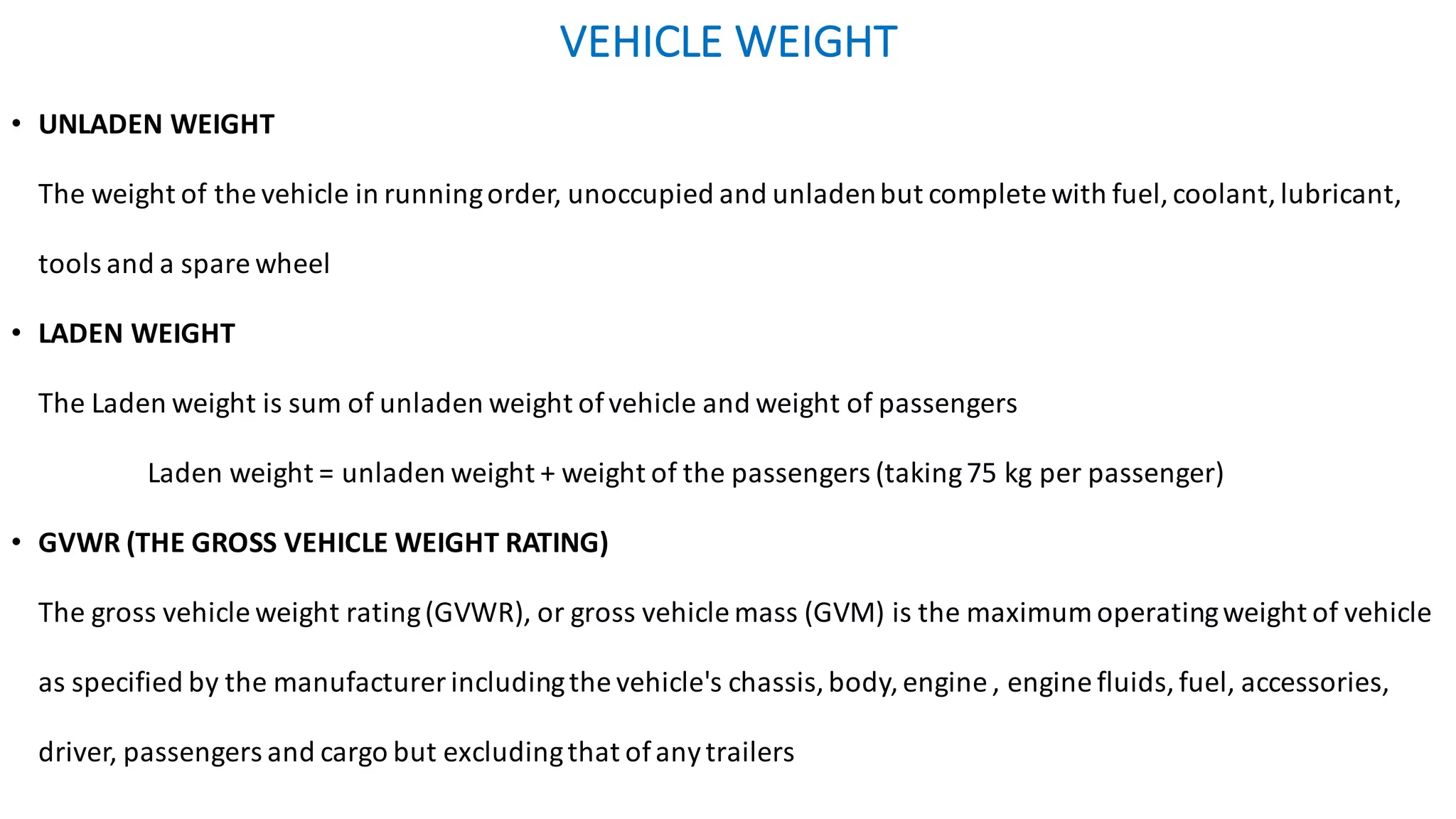

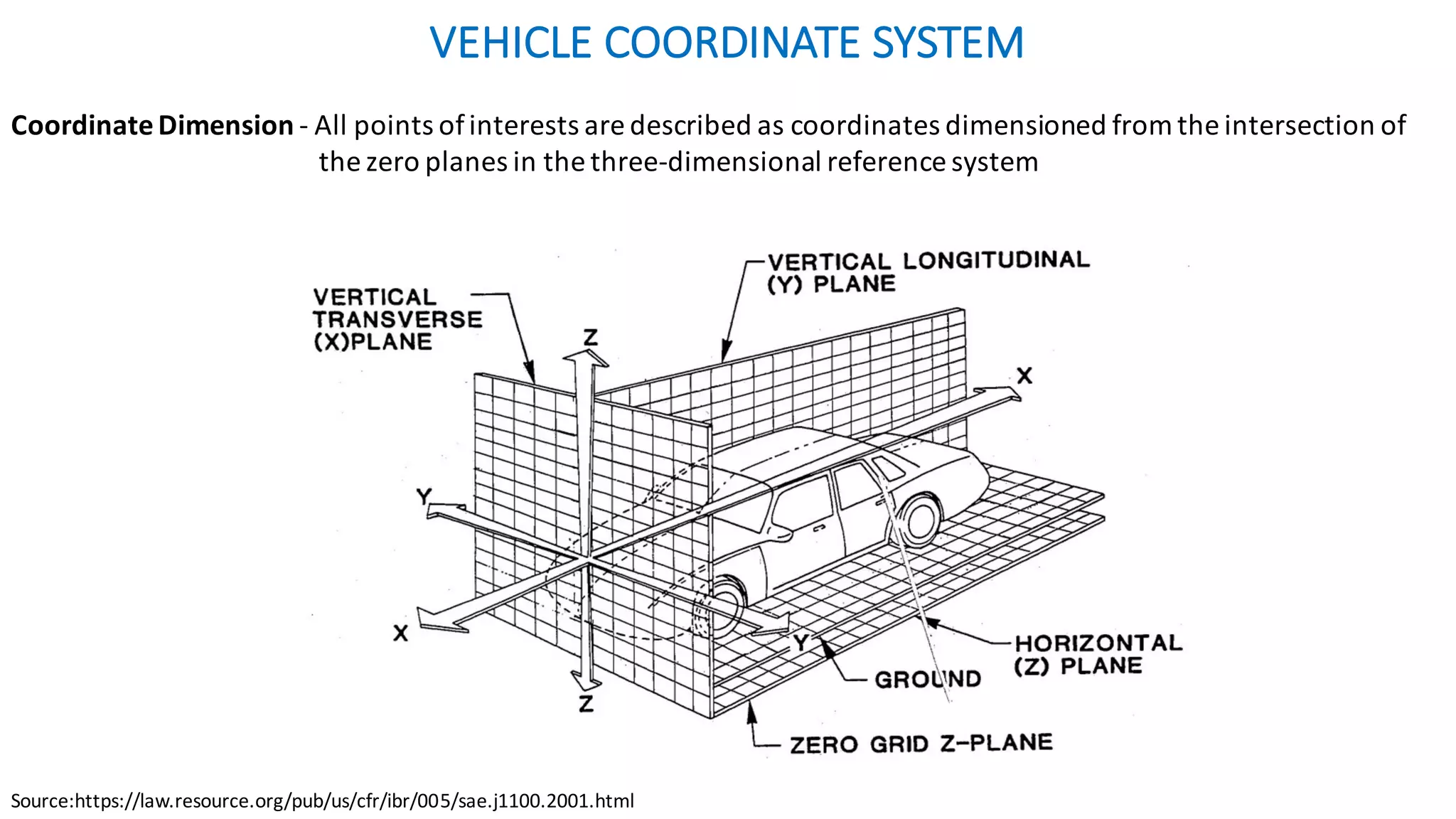

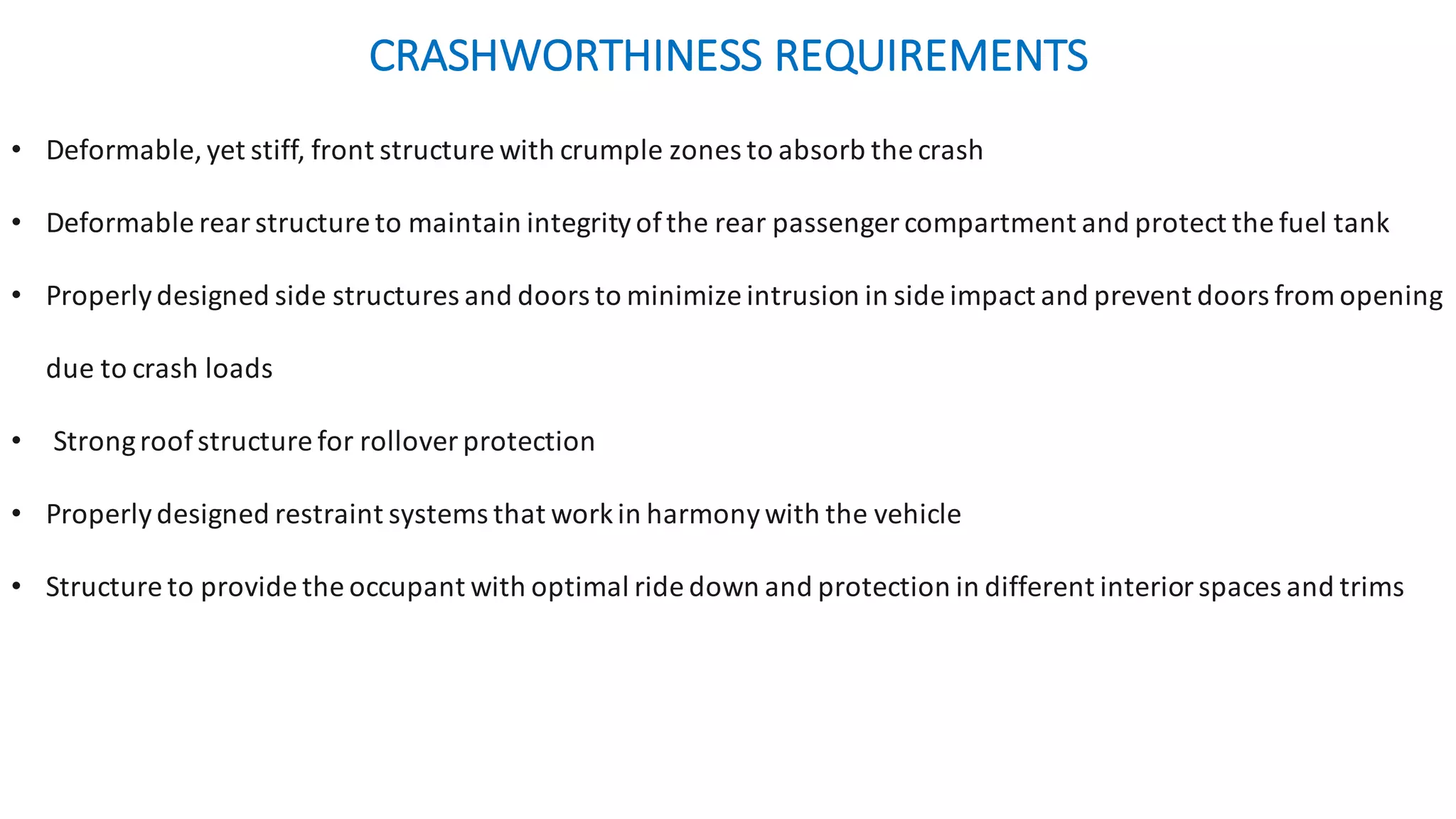

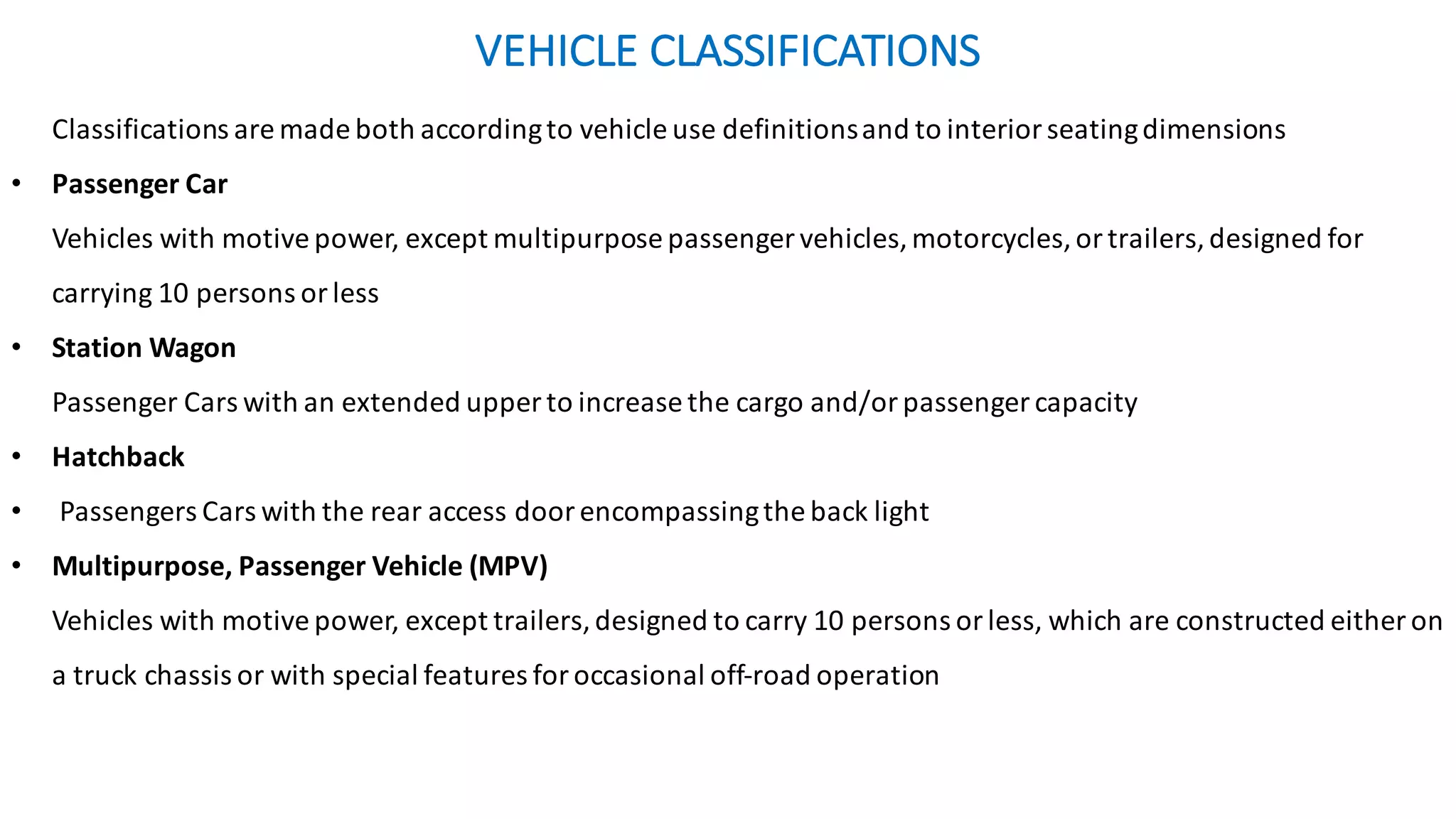

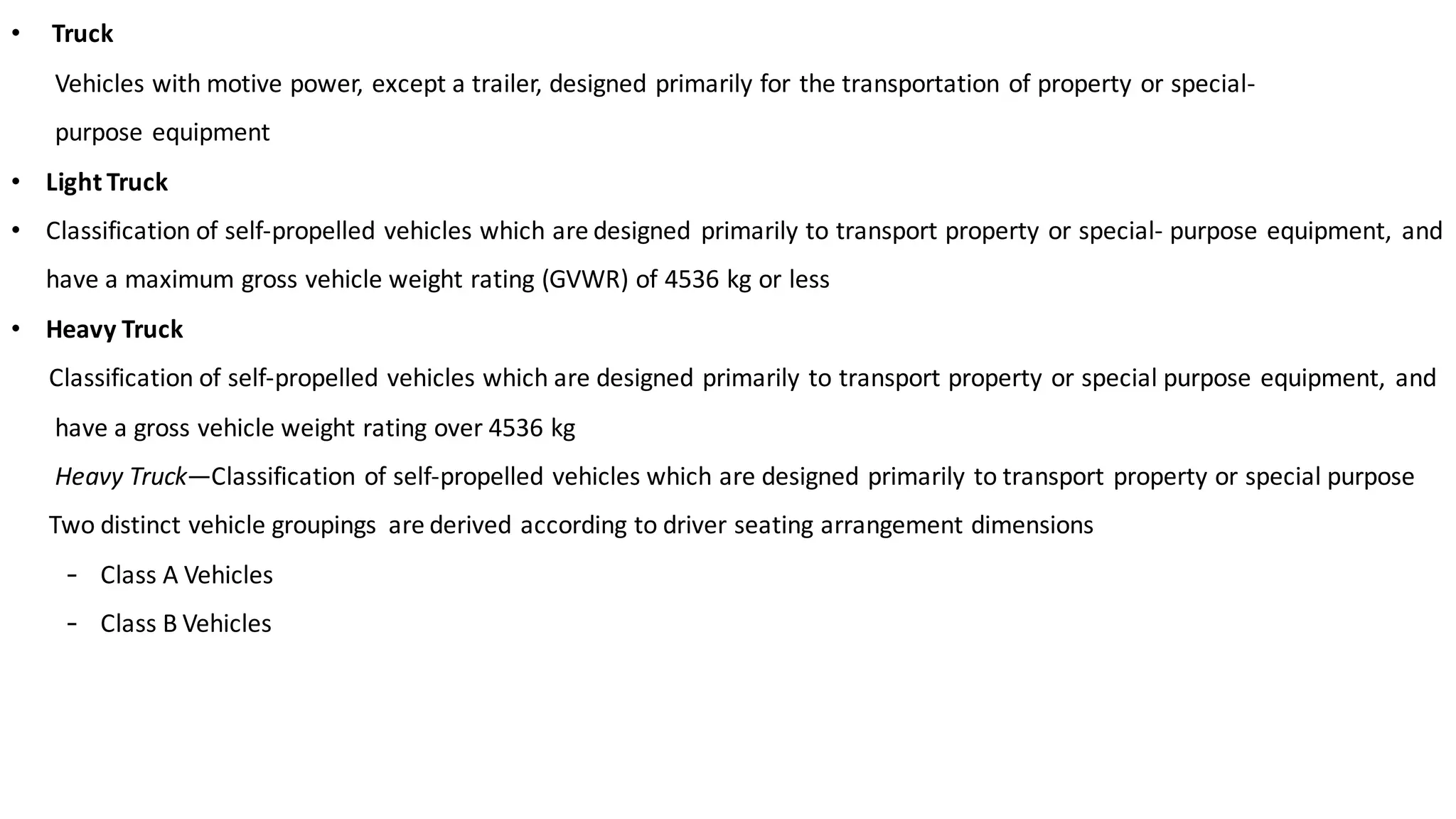

7. • Truck
Vehicles with motive power, except a trailer, designed primarily for the transportation of property or special-
purpose equipment
• Light Truck
• Classification of self-propelled vehicles which are designed primarily to transport property or special- purpose equipment, and
have a maximum gross vehicle weight rating (GVWR) of 4536 kg or less
• Heavy Truck
Classification of self-propelled vehicles which are designed primarily to transport property or special purpose equipment, and
have a gross vehicle weight rating over 4536 kg
Heavy Truck—Classification of self-propelled vehicles which are designed primarily to transport property or special purpose
Two distinct vehicle groupings are derived according to driver seating arrangement dimensions
- Class A Vehicles
- Class B Vehicles

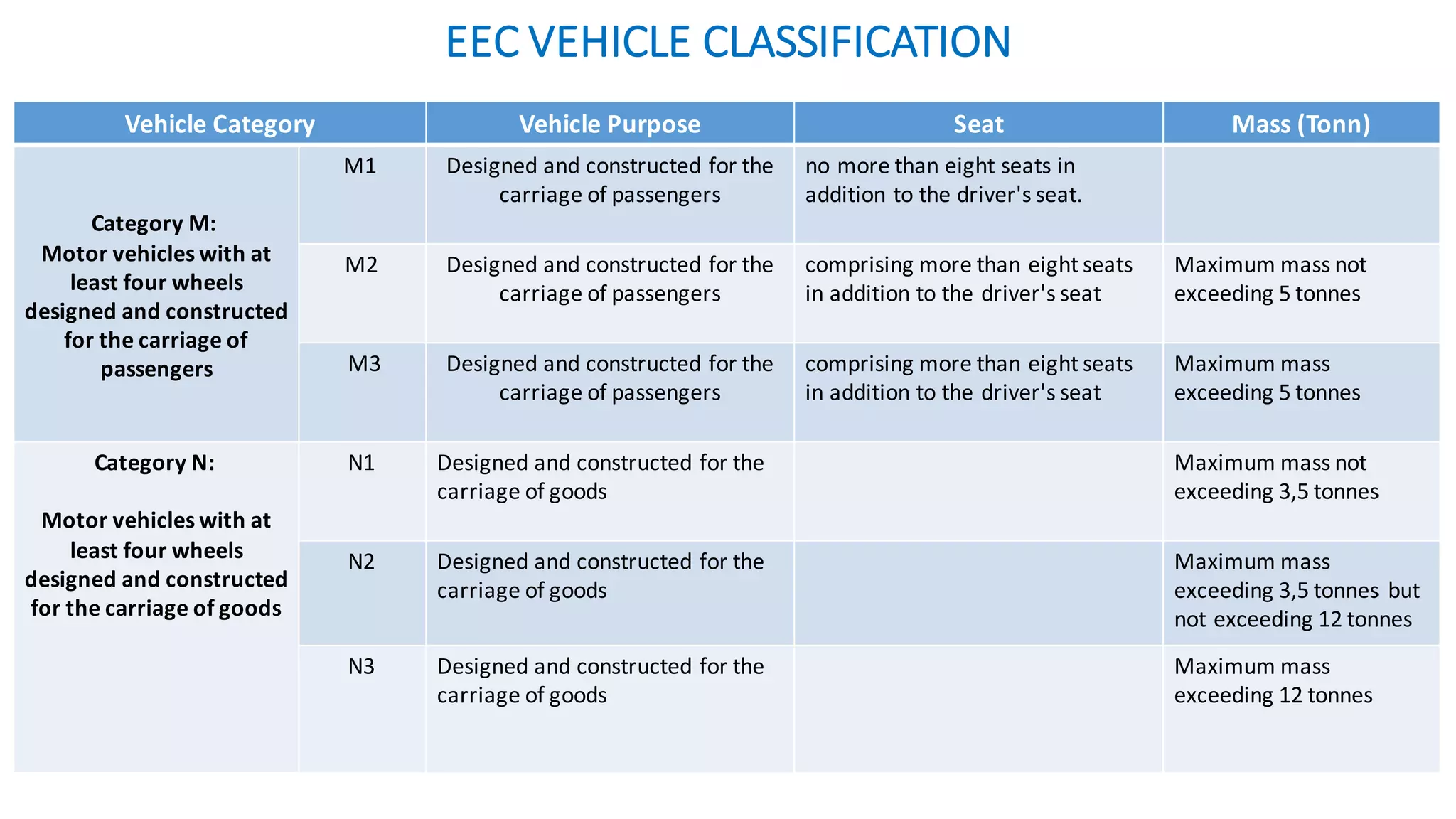

8. EEC VEHICLE CLASSIFICATION
Vehicle Category Vehicle Purpose Seat Mass (Tonn)
Category M:
Motor vehicles with at
least four wheels
designed and constructed
for the carriage of
passengers
M1 Designed and constructed for the
carriage of passengers
no more than eight seats in
addition to the driver's seat.
M2 Designed and constructed for the
carriage of passengers
comprising more than eight seats
in addition to the driver's seat
Maximum mass not
exceeding 5 tonnes
M3 Designed and constructed for the
carriage of passengers
comprising more than eight seats
in addition to the driver's seat
Maximum mass
exceeding 5 tonnes
Category N:
Motor vehicles with at
least four wheels
designed and constructed
for the carriage of goods
N1 Designed and constructed for the
carriage of goods
Maximum mass not
exceeding 3,5 tonnes
N2 Designed and constructed for the
carriage of goods
Maximum mass
exceeding 3,5 tonnes but
not exceeding 12 tonnes
N3 Designed and constructed for the
carriage of goods
Maximum mass
exceeding 12 tonnes

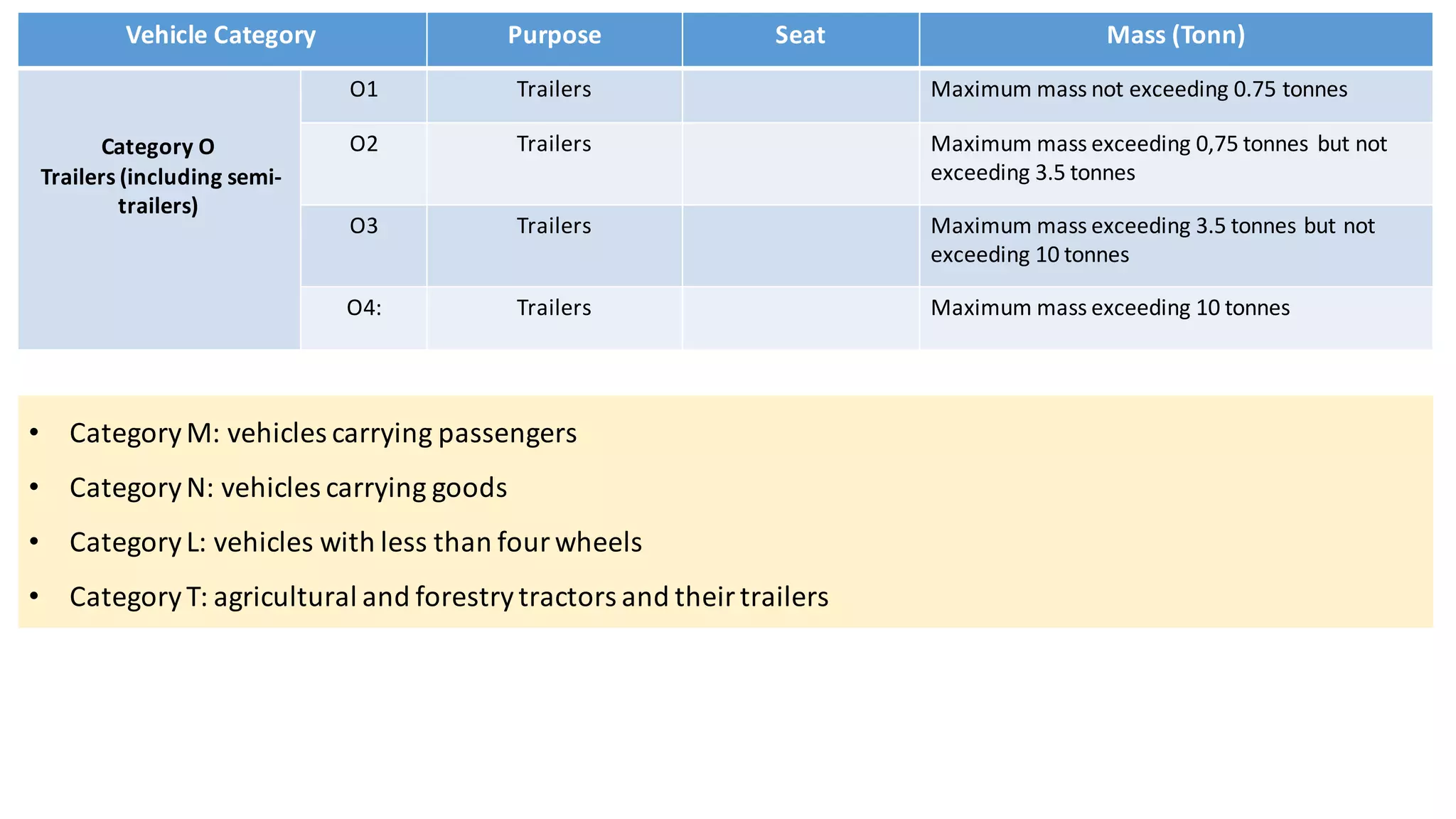

9. Vehicle Category Purpose Seat Mass (Tonn)
Category O
Trailers (including semi-
trailers)
O1 Trailers Maximum mass not exceeding 0.75 tonnes
O2 Trailers Maximum mass exceeding 0,75 tonnes but not
exceeding 3.5 tonnes
O3 Trailers Maximum mass exceeding 3.5 tonnes but not
exceeding 10 tonnes
O4: Trailers Maximum mass exceeding 10 tonnes
• Category M: vehicles carrying passengers
• Category N: vehicles carrying goods
• Category L: vehicles with less than four wheels
• Category T: agricultural and forestry tractors and their trailers

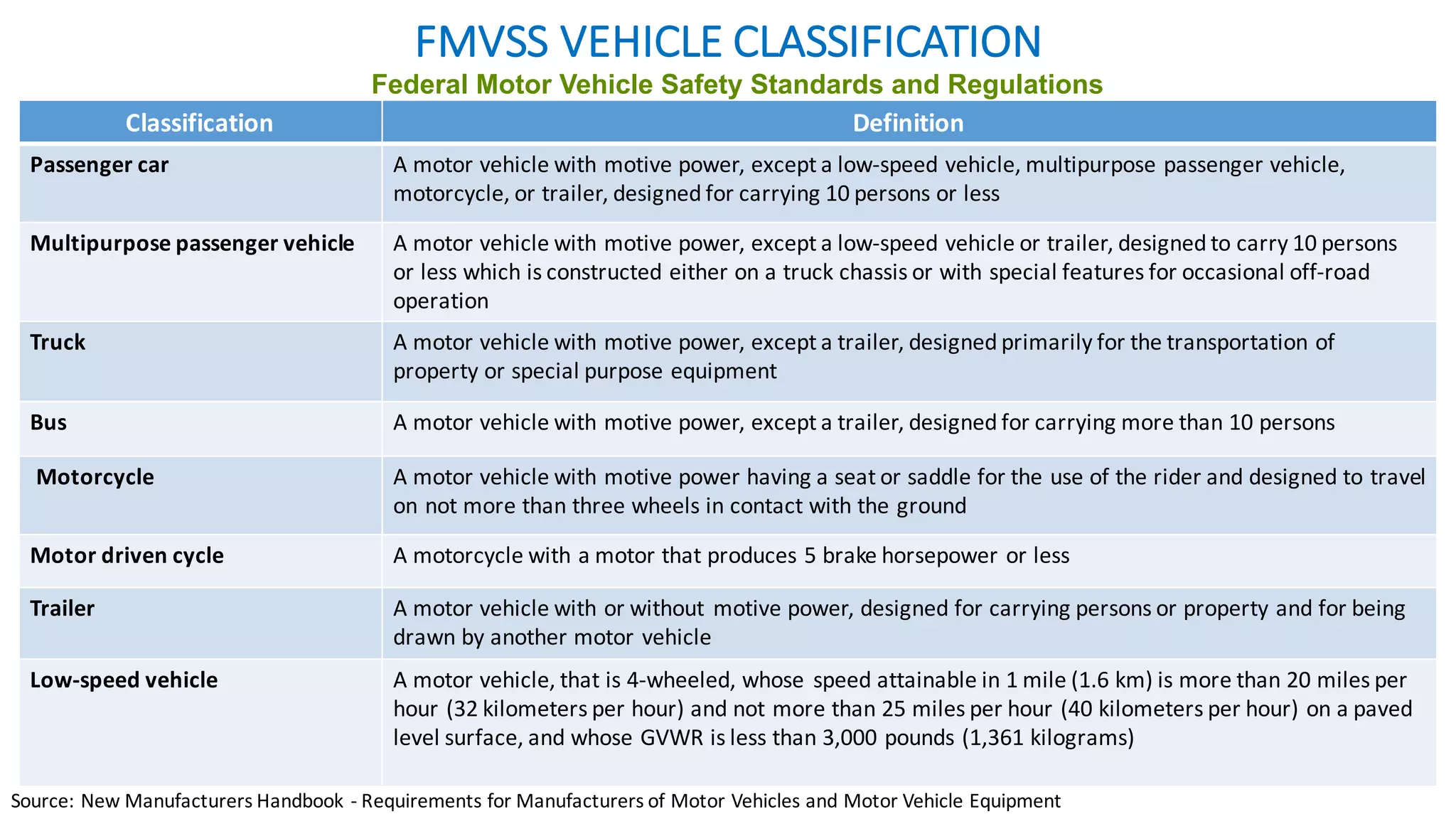

10. FMVSS VEHICLE CLASSIFICATION
Classification Definition
Passenger car A motor vehicle with motive power, except a low-speed vehicle, multipurpose passenger vehicle,
motorcycle, or trailer, designed for carrying 10 persons or less
Multipurpose passenger vehicle A motor vehicle with motive power, except a low-speed vehicle or trailer, designed to carry 10 persons
or less which is constructed either on a truck chassis or with special features for occasional off-road
operation
Truck A motor vehicle with motive power, except a trailer, designed primarily for the transportation of
property or special purpose equipment
Bus A motor vehicle with motive power, except a trailer, designed for carrying more than 10 persons
Motorcycle A motor vehicle with motive power having a seat or saddle for the use of the rider and designed to travel
on not more than three wheels in contact with the ground
Motor driven cycle A motorcycle with a motor that produces 5 brake horsepower or less
Trailer A motor vehicle with or without motive power, designed for carrying persons or property and for being
drawn by another motor vehicle
Low-speed vehicle A motor vehicle, that is 4-wheeled, whose speed attainable in 1 mile (1.6 km) is more than 20 miles per
hour (32 kilometers per hour) and not more than 25 miles per hour (40 kilometers per hour) on a paved
level surface, and whose GVWR is less than 3,000 pounds (1,361 kilograms)
Source: New Manufacturers Handbook - Requirements for Manufacturers of Motor Vehicles and Motor Vehicle Equipment
Federal Motor Vehicle Safety Standards and Regulations

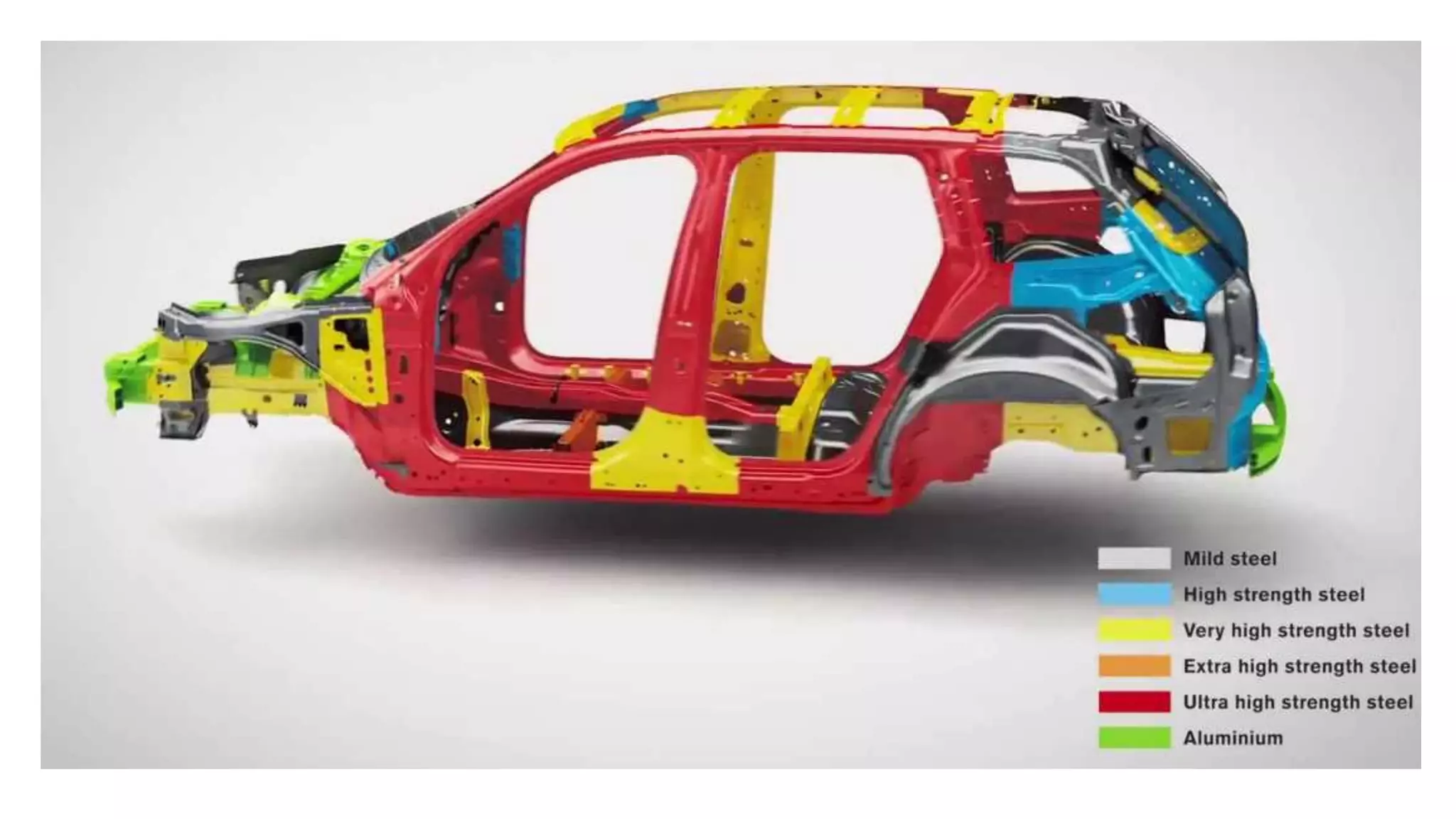

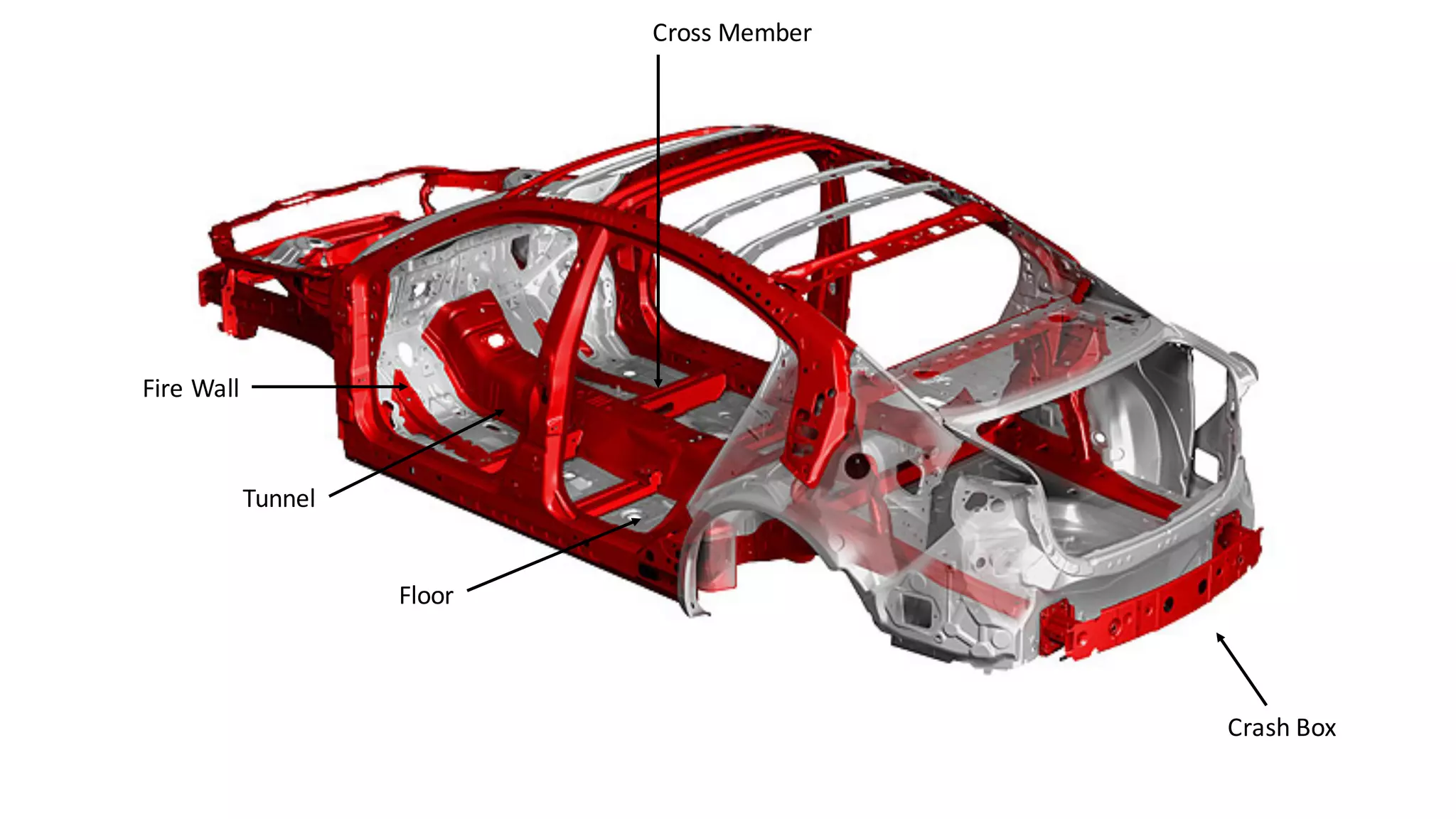

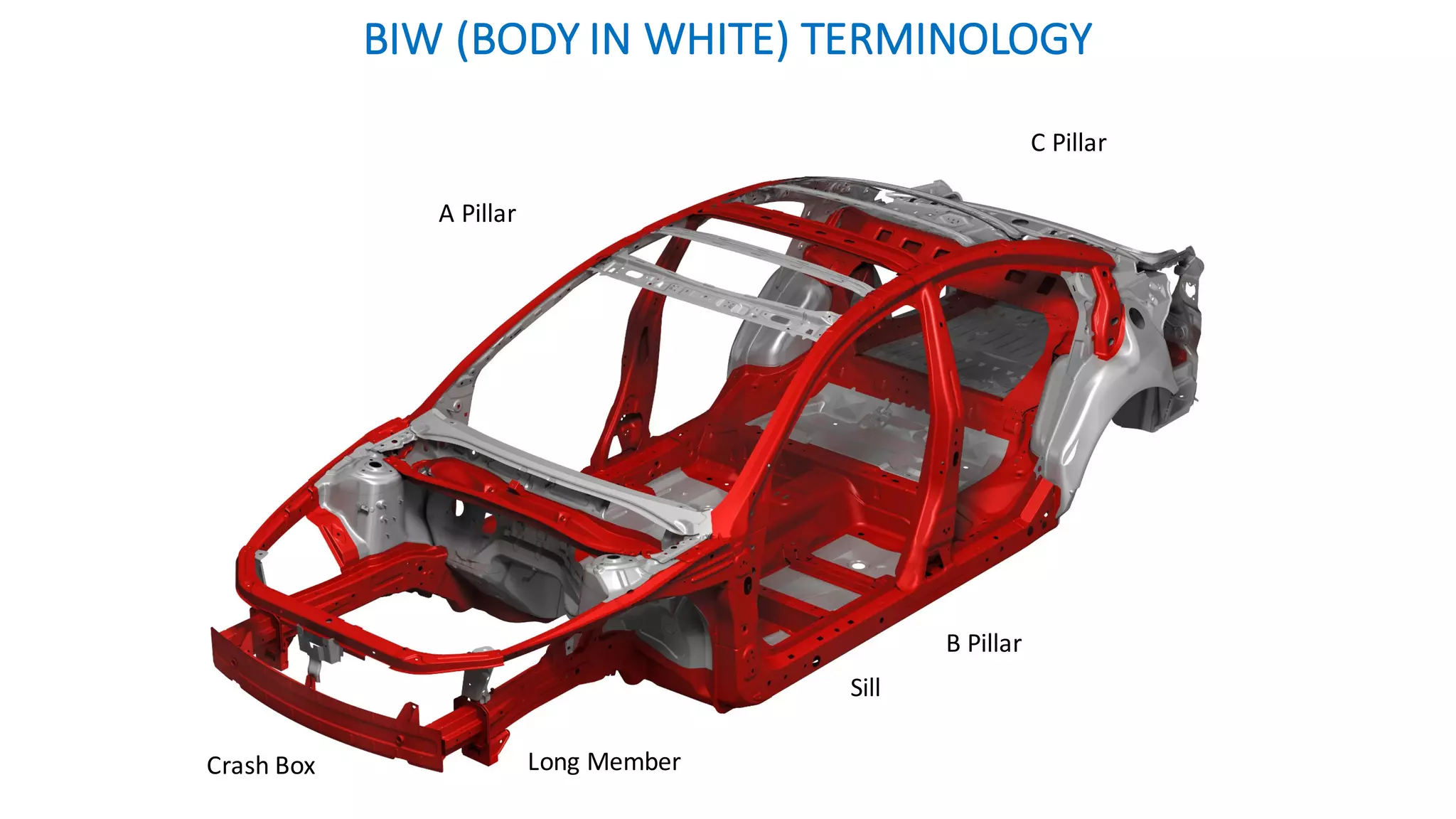

14. H POINT & R POINT

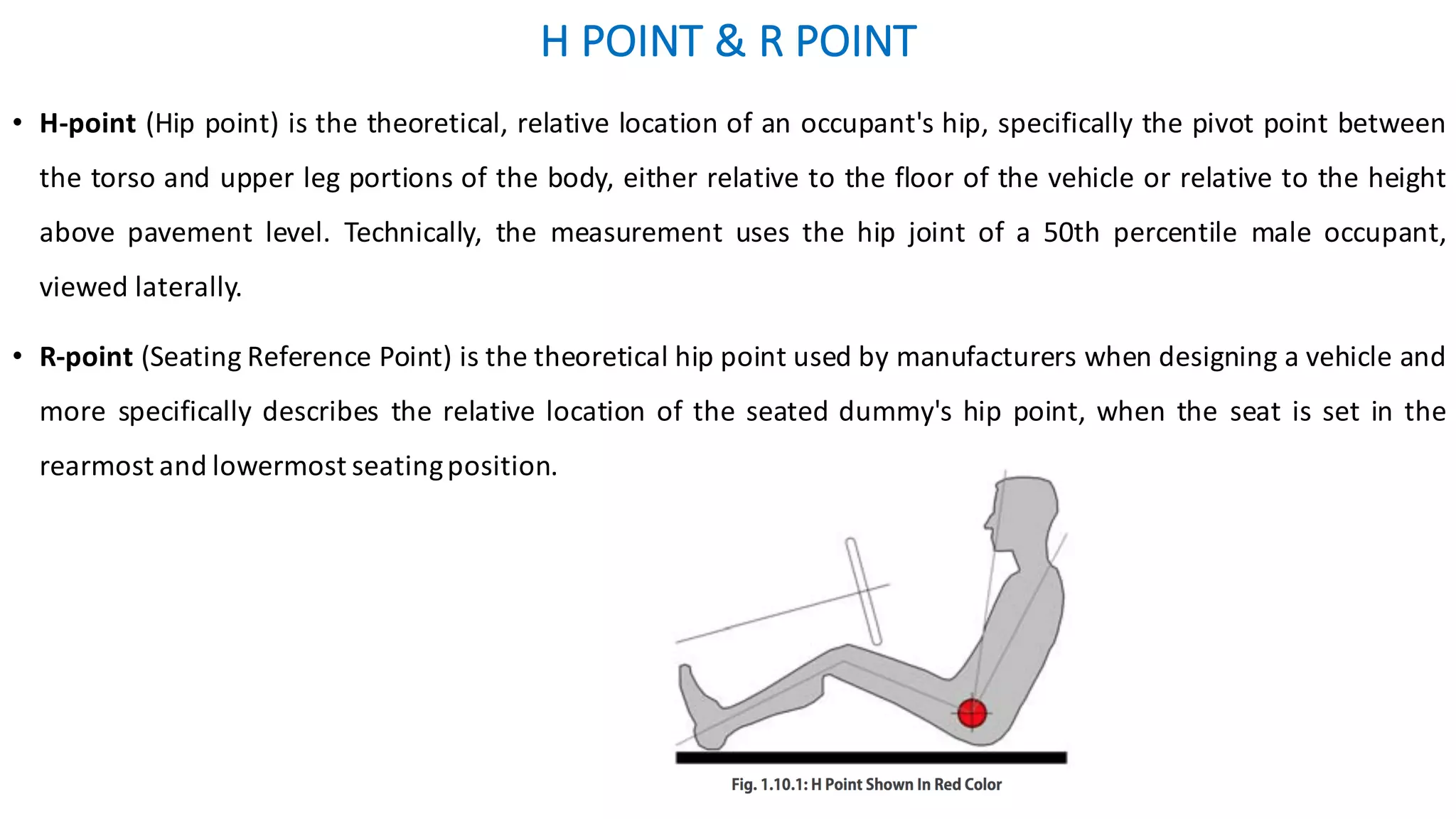

• H-point (Hip point) is the theoretical, relative location of an occupant's hip, specifically the pivot point between
the torso and upper leg portions of the body, either relative to the floor of the vehicle or relative to the height
above pavement level. Technically, the measurement uses the hip joint of a 50th percentile male occupant,
viewed laterally.
• R-point (Seating Reference Point) is the theoretical hip point used by manufacturers when designing a vehicle and
more specifically describes the relative location of the seated dummy's hip point, when the seat is set in the
rearmost and lowermost seatingposition.
