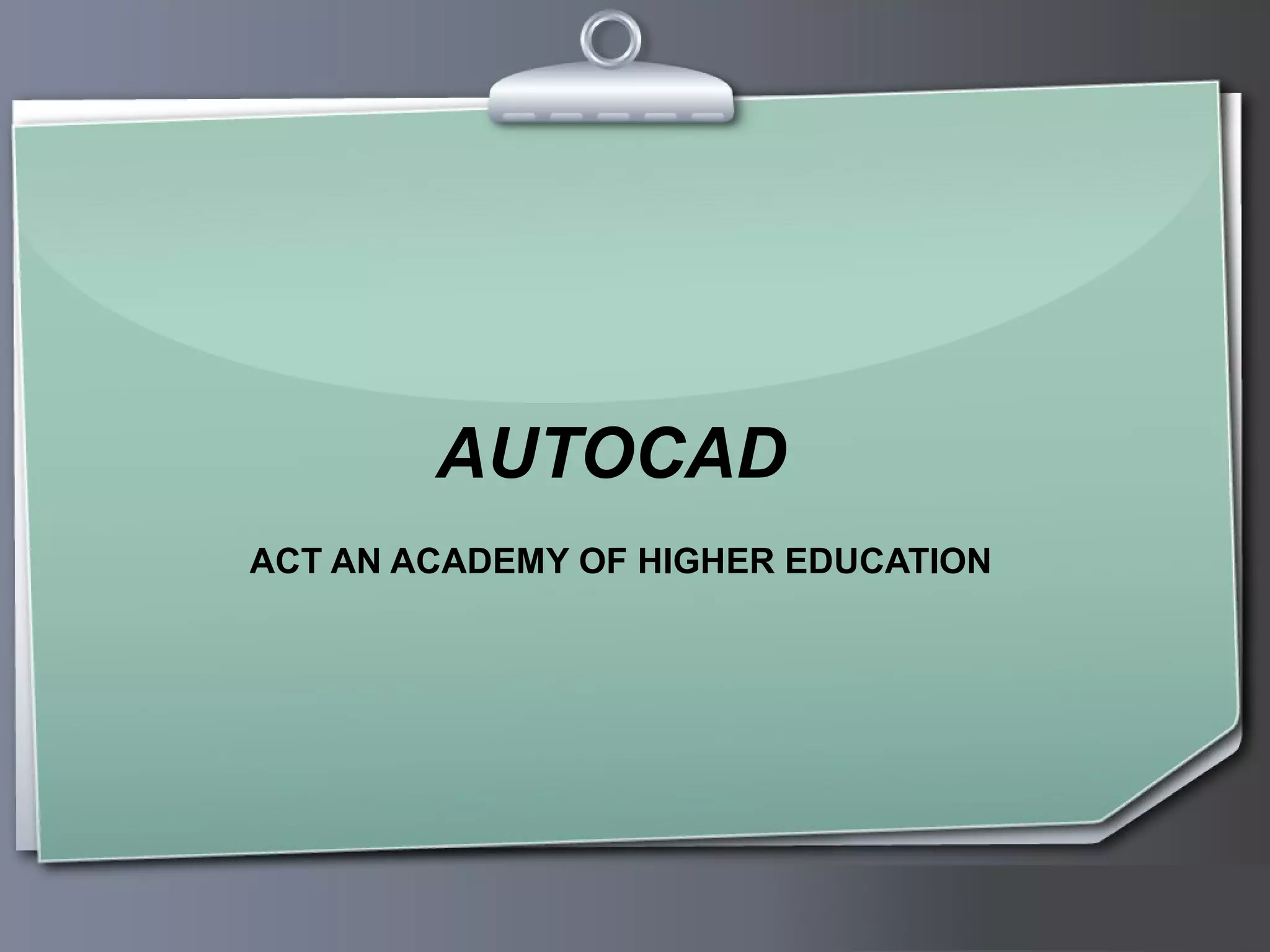

AUTOCAD
ACT AN ACADEMY OF HIGHER EDUCATION

2. Your LogoHere comes your footer  Page 2

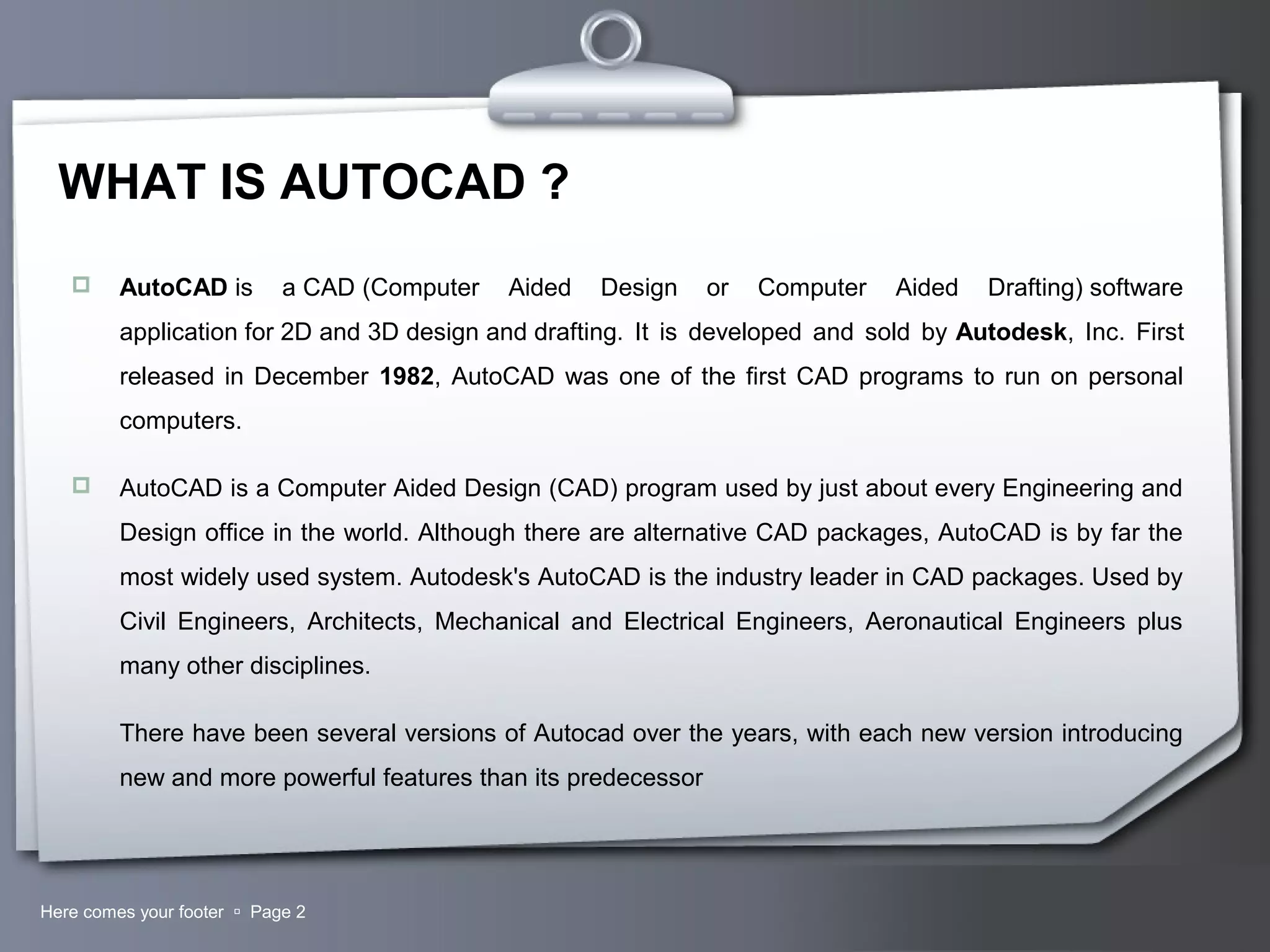

WHAT IS AUTOCAD ?
 AutoCAD is a CAD (Computer Aided Design or Computer Aided Drafting) software
application for 2D and 3D design and drafting. It is developed and sold by Autodesk, Inc. First
released in December 1982, AutoCAD was one of the first CAD programs to run on personal
computers.
 AutoCAD is a Computer Aided Design (CAD) program used by just about every Engineering and
Design office in the world. Although there are alternative CAD packages, AutoCAD is by far the
most widely used system. Autodesk's AutoCAD is the industry leader in CAD packages. Used by
Civil Engineers, Architects, Mechanical and Electrical Engineers, Aeronautical Engineers plus
many other disciplines.
There have been several versions of Autocad over the years, with each new version introducing
new and more powerful features than its predecessor

3. Your LogoHere comes your footer  Page 3

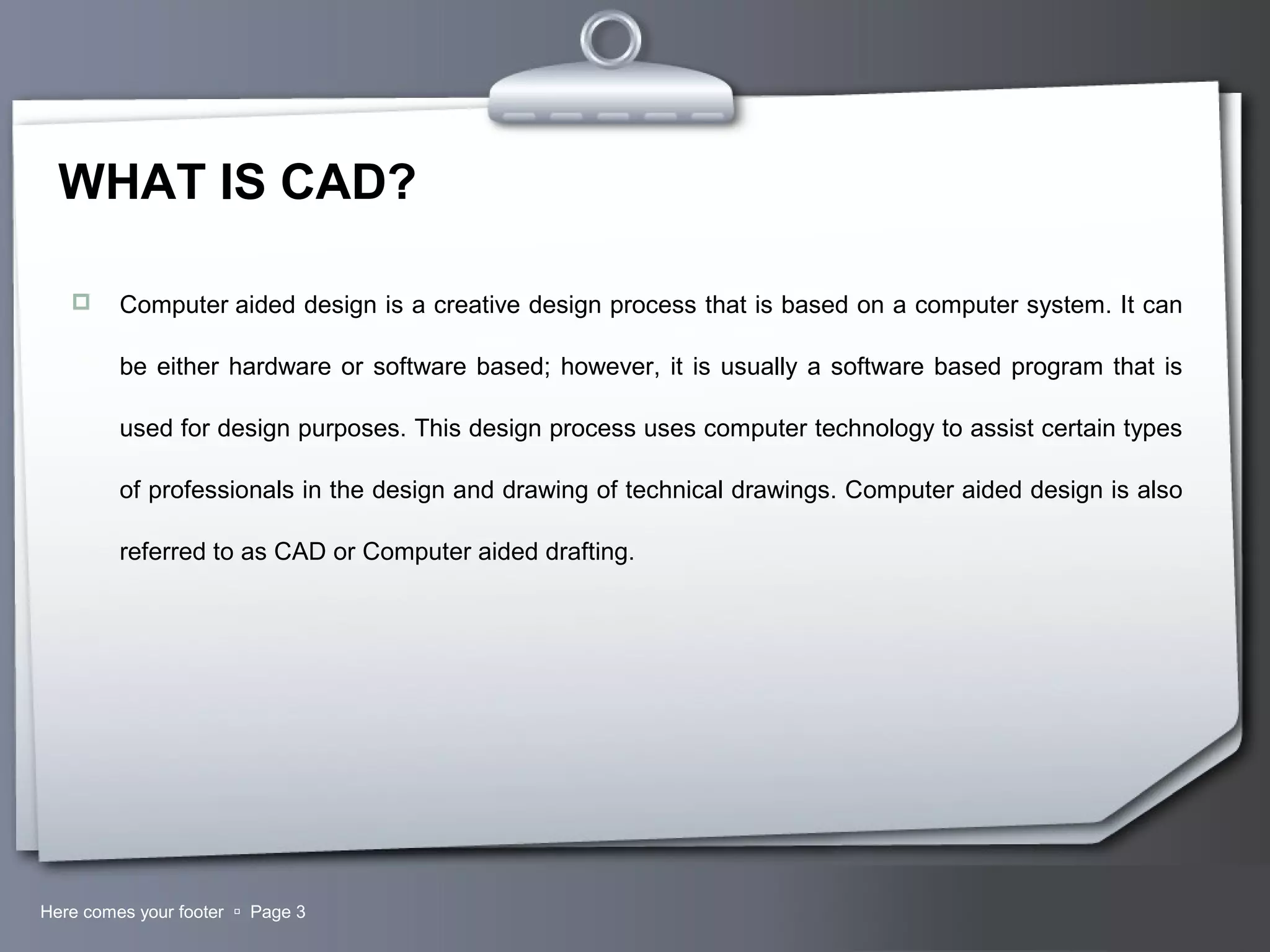

WHAT IS CAD?
 Computer aided design is a creative design process that is based on a computer system. It can
be either hardware or software based; however, it is usually a software based program that is
used for design purposes. This design process uses computer technology to assist certain types
of professionals in the design and drawing of technical drawings. Computer aided design is also
referred to as CAD or Computer aided drafting.

4. Your LogoHere comes your footer  Page 4
Coordinate
Display
Status Line
Cursor
Drawing Name
Pull-down Menu
Headings
Standard Toolbar Object Properties
Toolbar Optional Toolbar
Locations

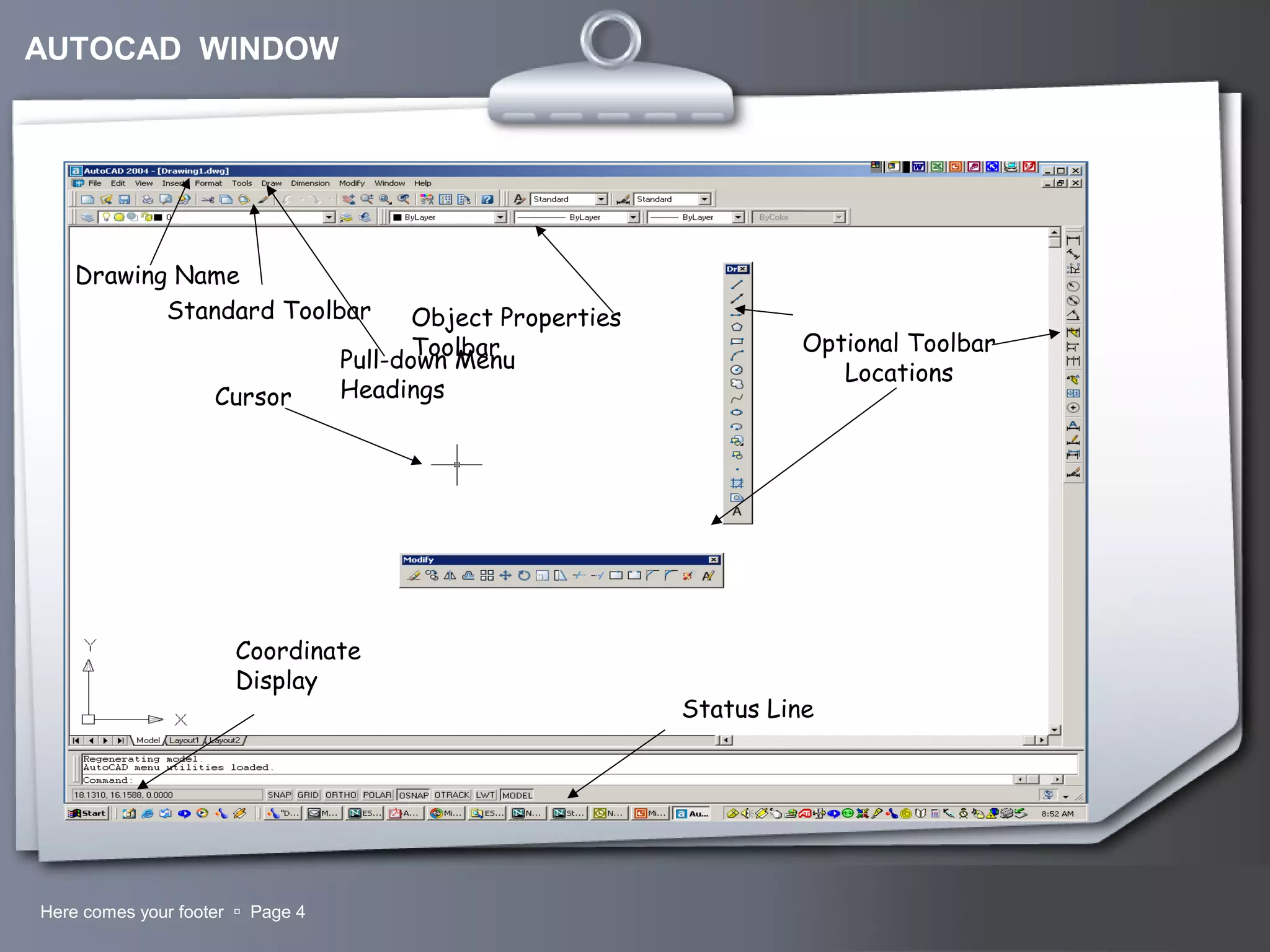

AUTOCAD WINDOW

5. Your LogoHere comes your footer  Page 5

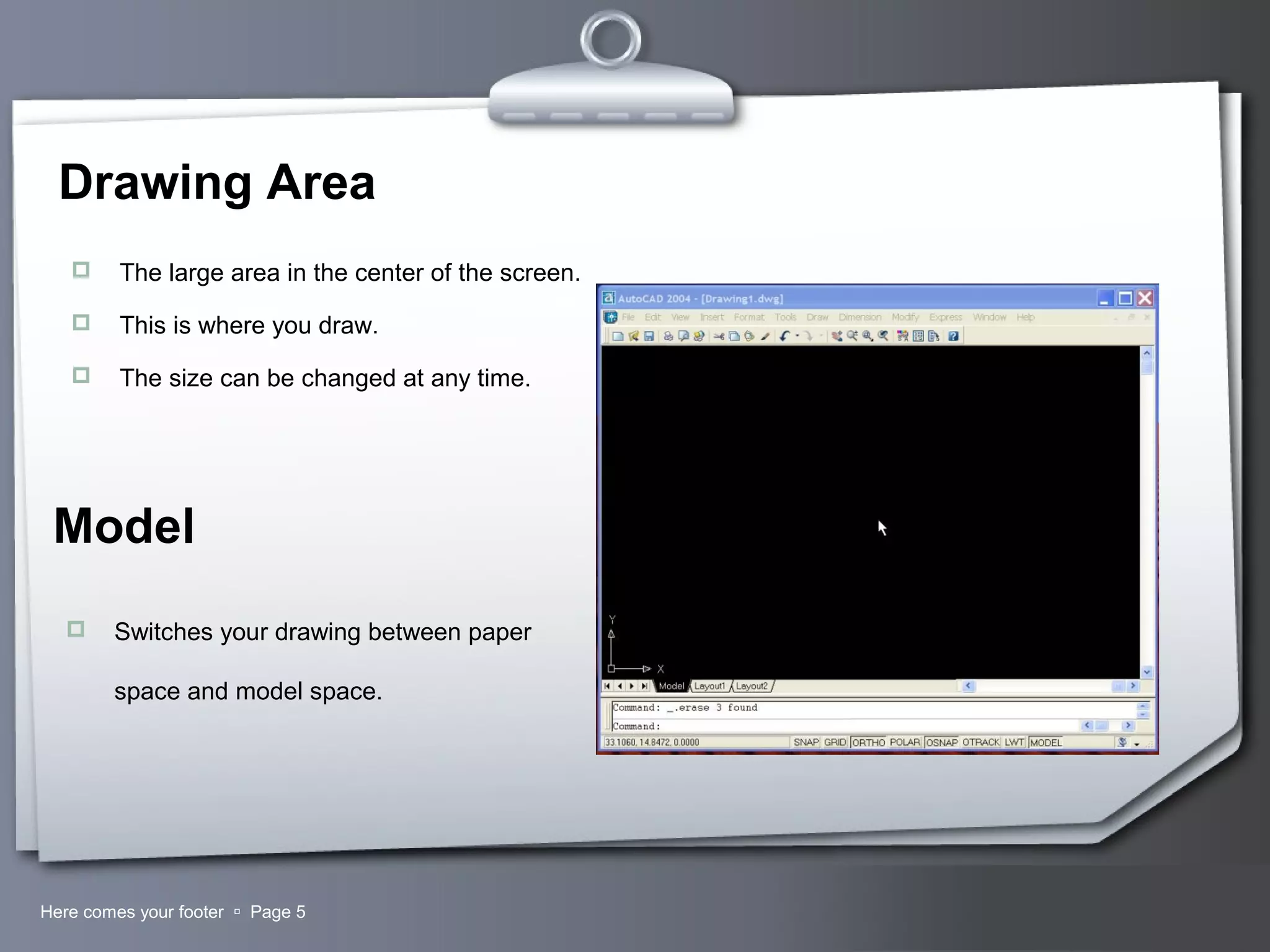

Drawing Area
 The large area in the center of the screen.
 This is where you draw.
 The size can be changed at any time.
Model
 Switches your drawing between paper
space and model space.

6. Your LogoHere comes your footer  Page 6

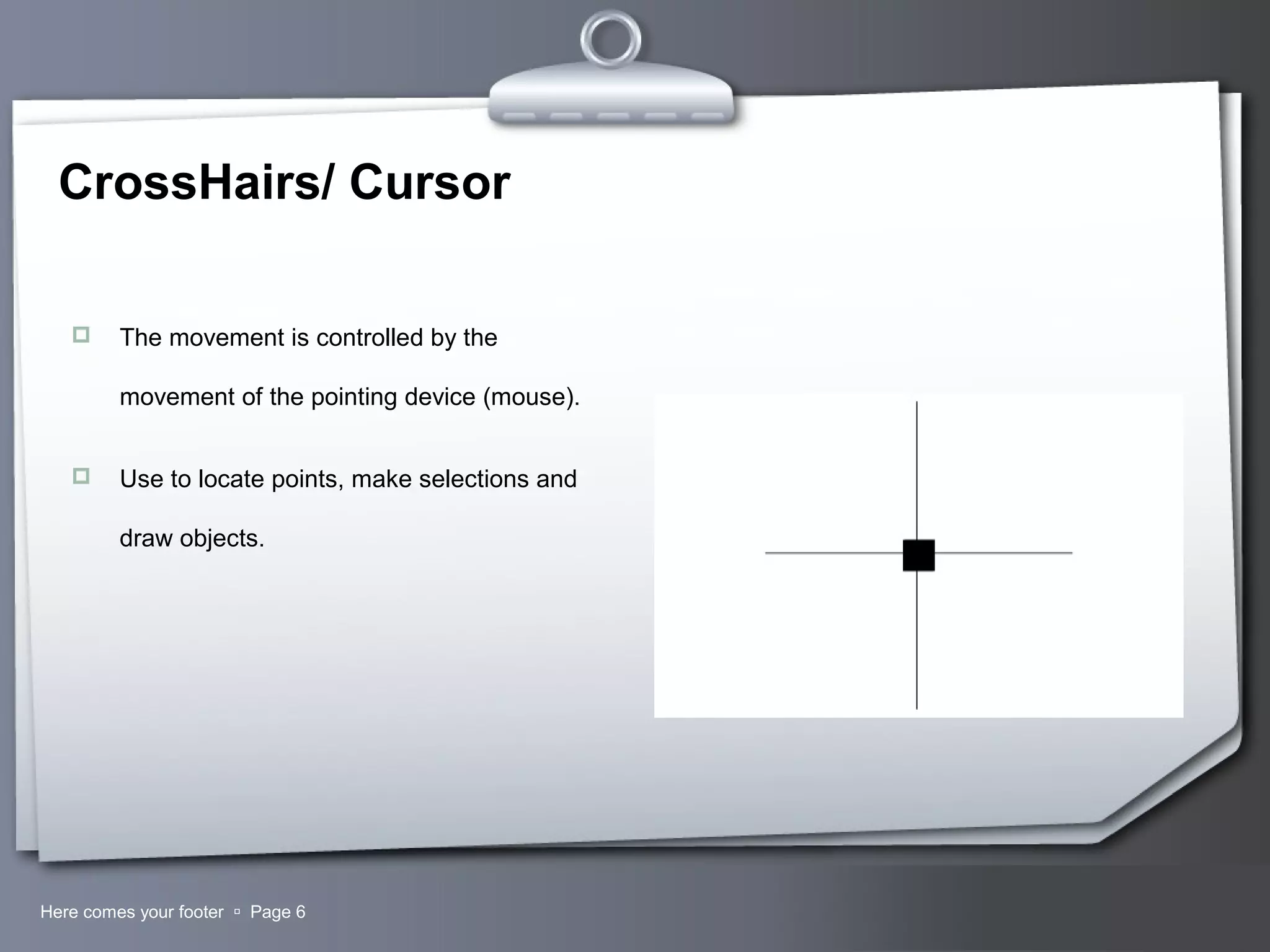

CrossHairs/ Cursor
 The movement is controlled by the
movement of the pointing device (mouse).
 Use to locate points, make selections and
draw objects.

7. Your LogoHere comes your footer  Page 7

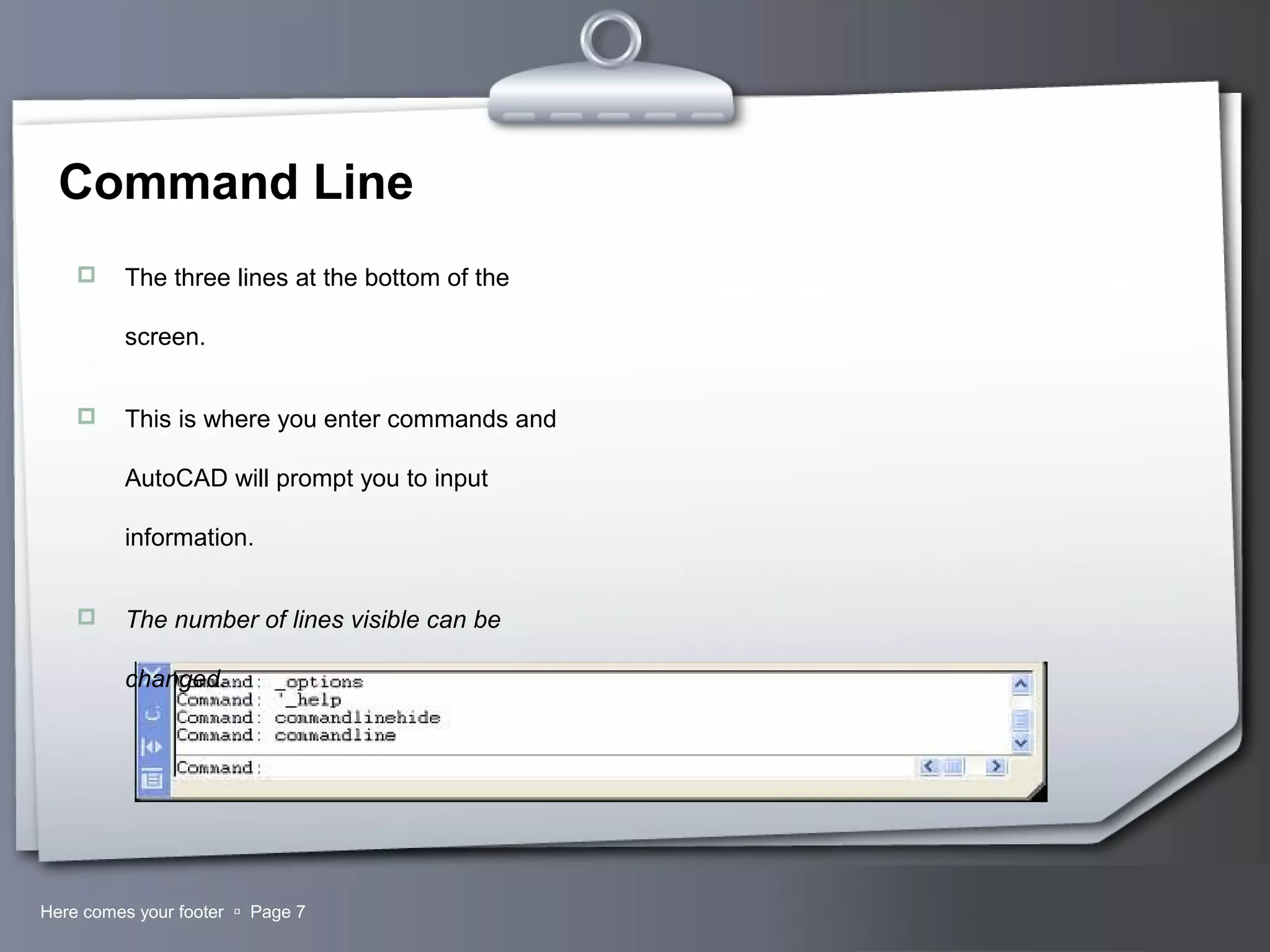

Command Line
 The three lines at the bottom of the
screen.
 This is where you enter commands and
AutoCAD will prompt you to input
information.
 The number of lines visible can be
changed.

8. Your LogoHere comes your footer  Page 8

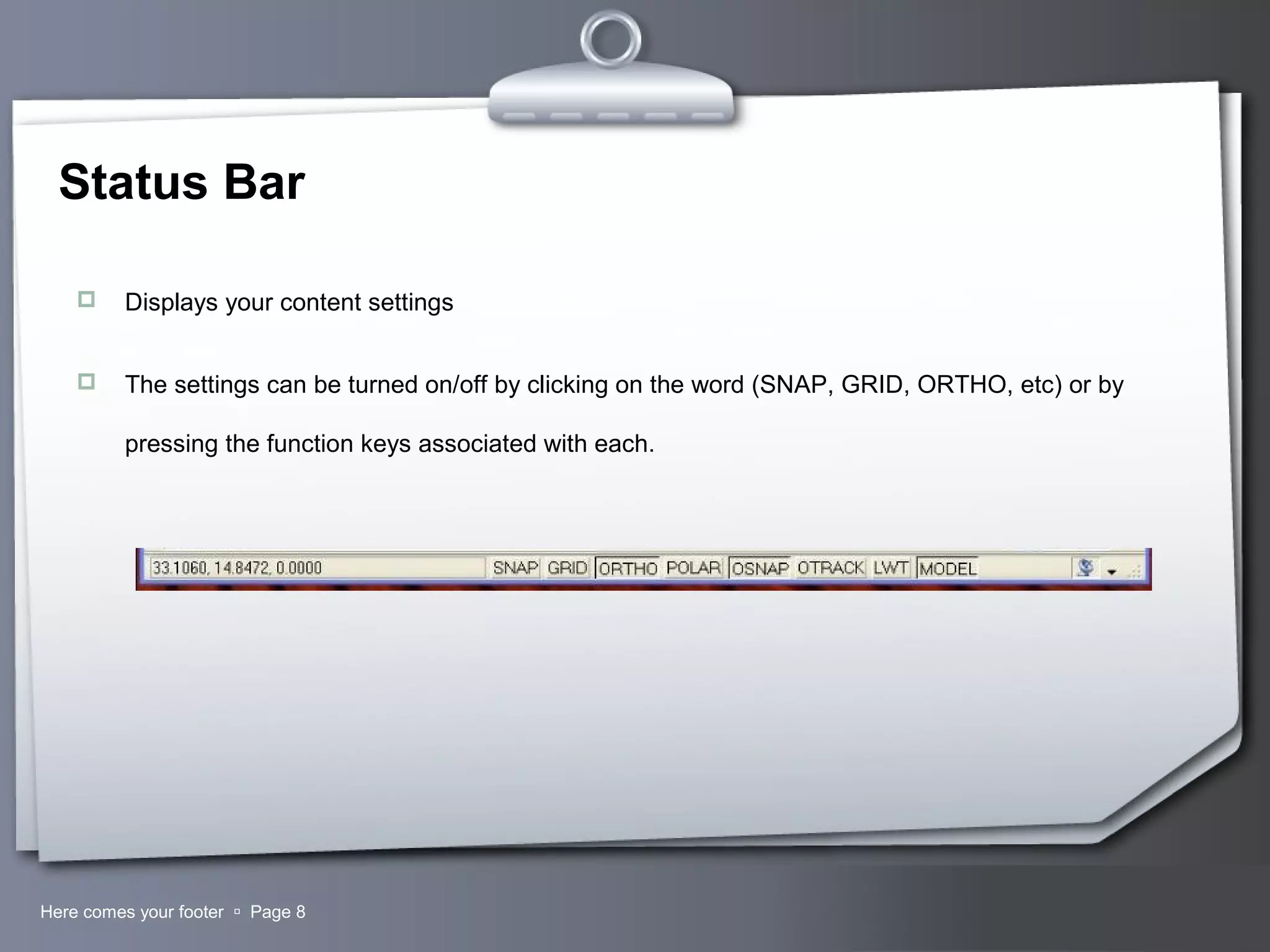

Status Bar
 Displays your content settings
 The settings can be turned on/off by clicking on the word (SNAP, GRID, ORTHO, etc) or by
pressing the function keys associated with each.

9. Your LogoHere comes your footer  Page 9

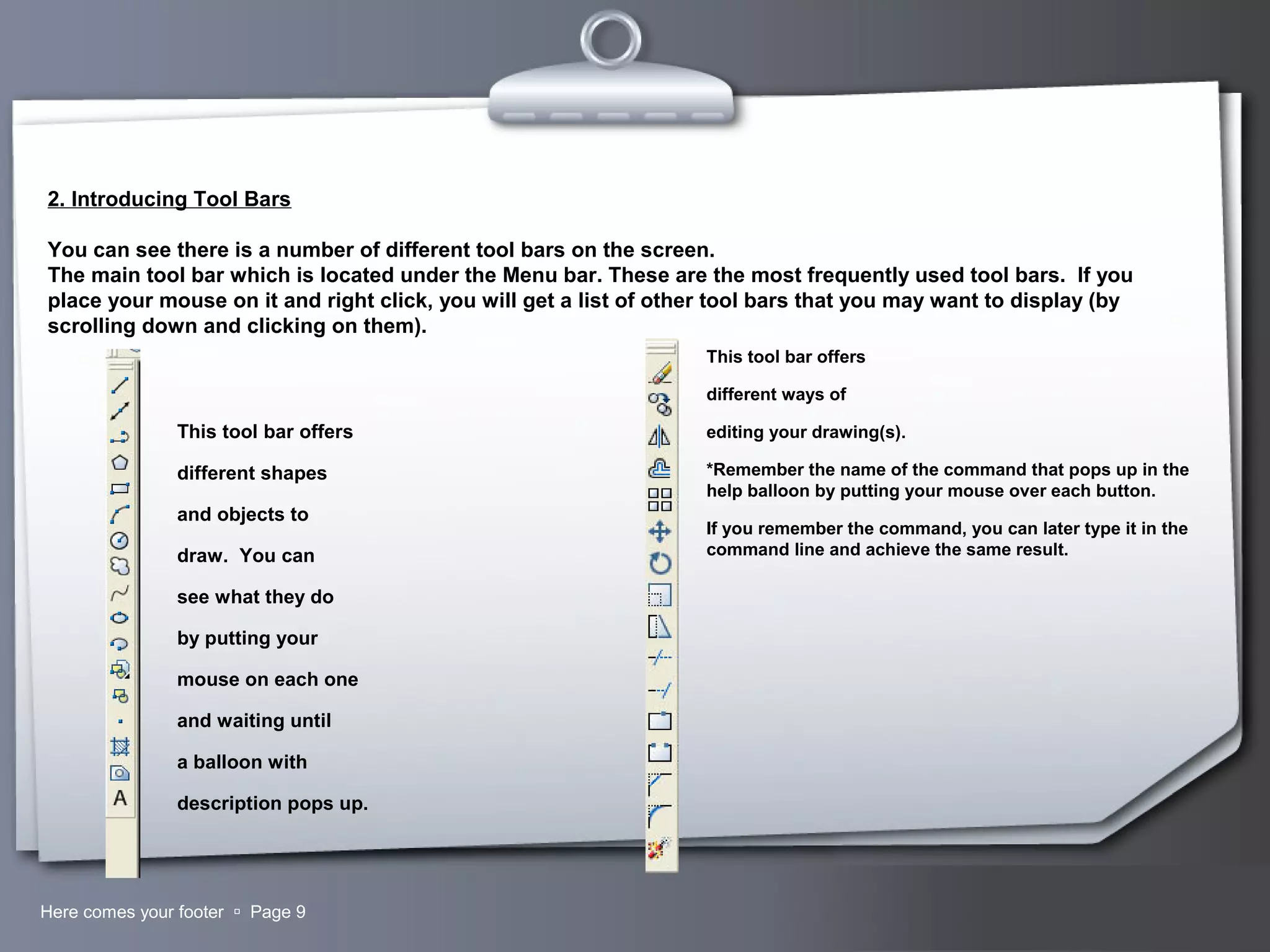

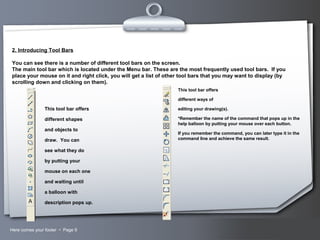

2. Introducing Tool Bars
You can see there is a number of different tool bars on the screen.
The main tool bar which is located under the Menu bar. These are the most frequently used tool bars. If you
place your mouse on it and right click, you will get a list of other tool bars that you may want to display (by
scrolling down and clicking on them).
This tool bar offers
different shapes
and objects to
draw. You can
see what they do
by putting your
mouse on each one
and waiting until
a balloon with
description pops up.
This tool bar offers
different ways of
editing your drawing(s).
*Remember the name of the command that pops up in the
help balloon by putting your mouse over each button.
If you remember the command, you can later type it in the
command line and achieve the same result.

10. Your LogoHere comes your footer  Page 10

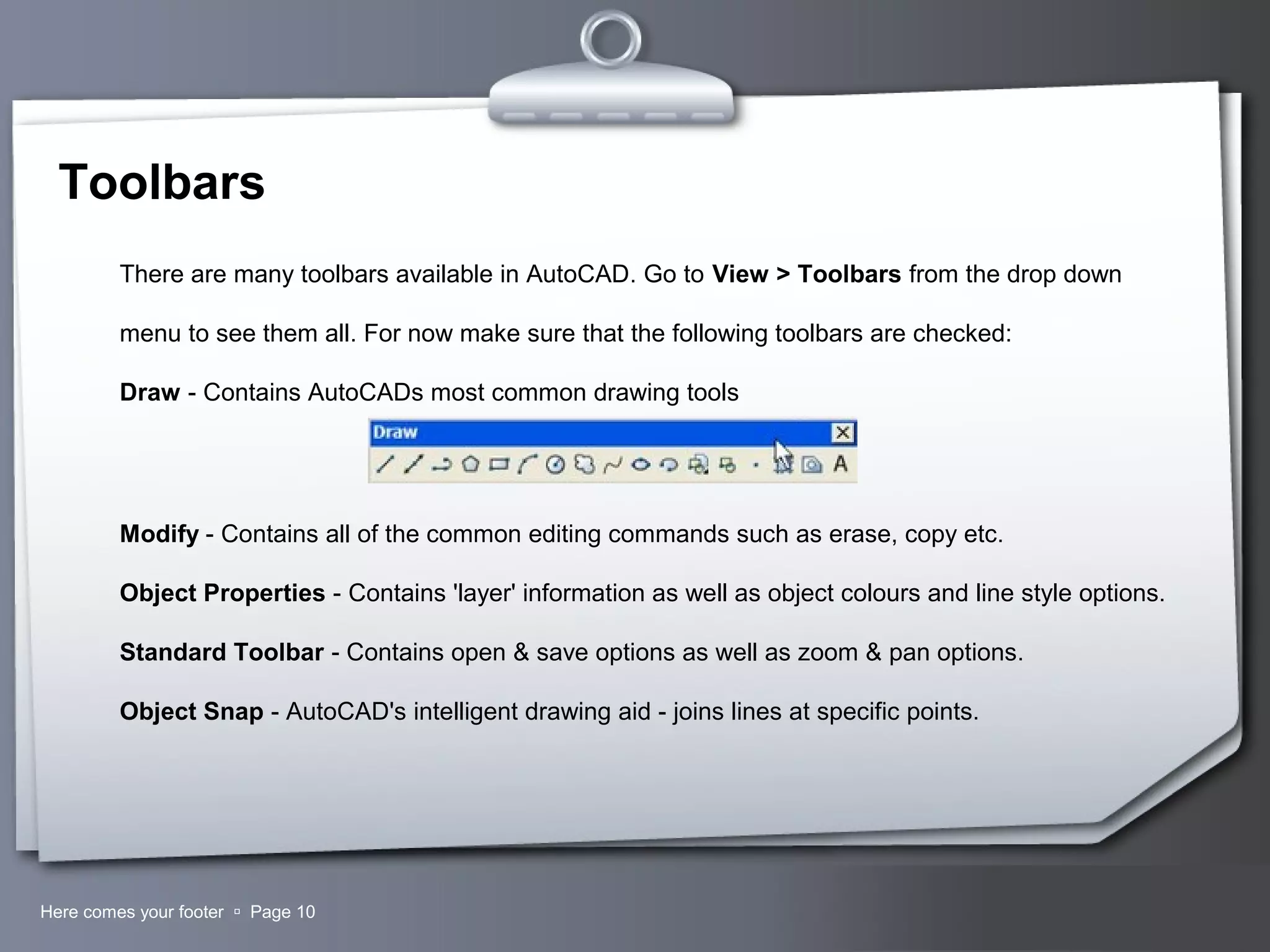

Toolbars
There are many toolbars available in AutoCAD. Go to View > Toolbars from the drop down
menu to see them all. For now make sure that the following toolbars are checked:
Draw - Contains AutoCADs most common drawing tools
Modify - Contains all of the common editing commands such as erase, copy etc.
Object Properties - Contains 'layer' information as well as object colours and line style options.
Standard Toolbar - Contains open & save options as well as zoom & pan options.
Object Snap - AutoCAD's intelligent drawing aid - joins lines at specific points.

11. Your LogoHere comes your footer  Page 11

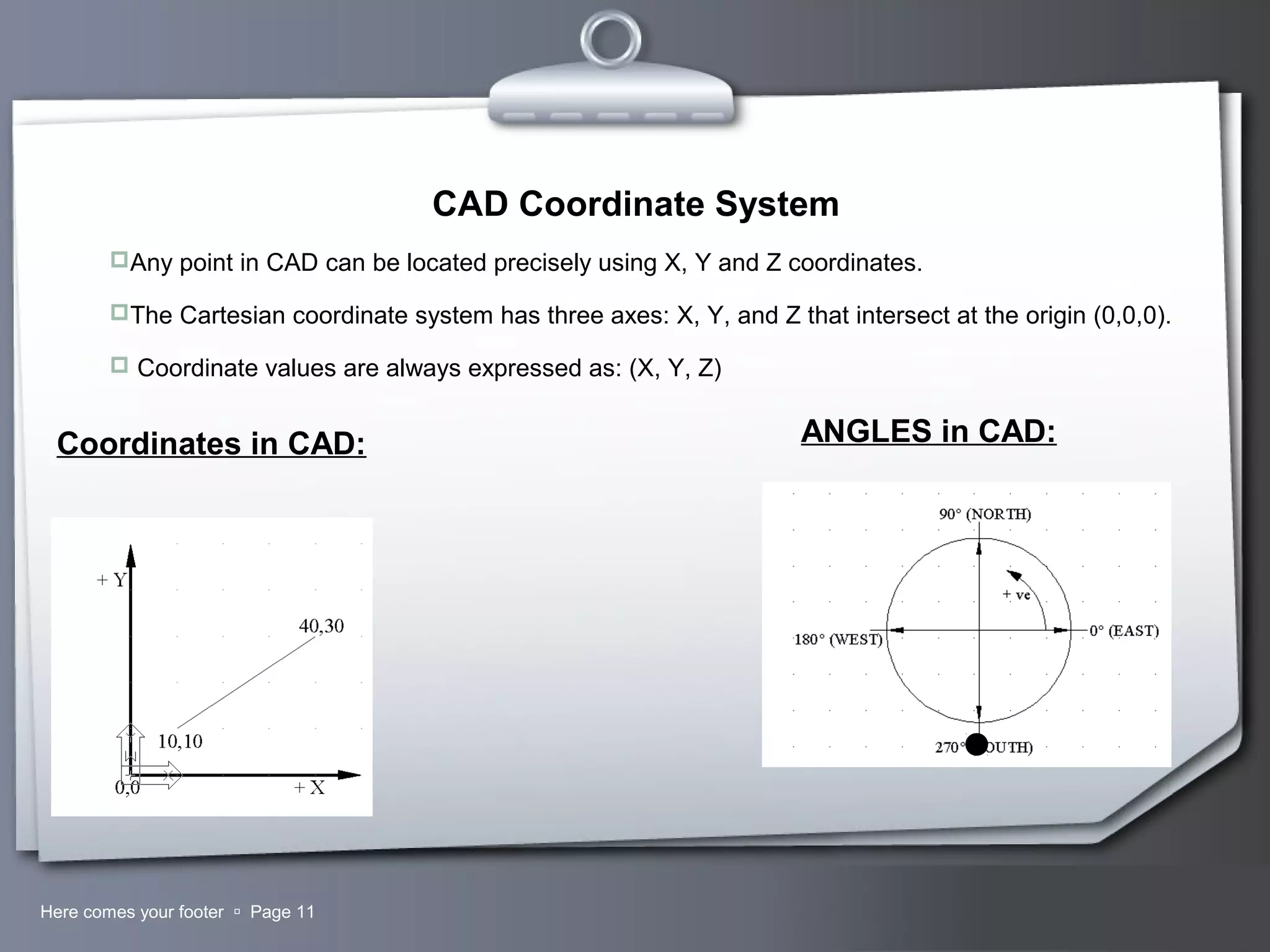

CAD Coordinate System
Any point in CAD can be located precisely using X, Y and Z coordinates.
The Cartesian coordinate system has three axes: X, Y, and Z that intersect at the origin (0,0,0).
 Coordinate values are always expressed as: (X, Y, Z)
ANGLES in CAD:Coordinates in CAD:

12. Your LogoHere comes your footer  Page 12

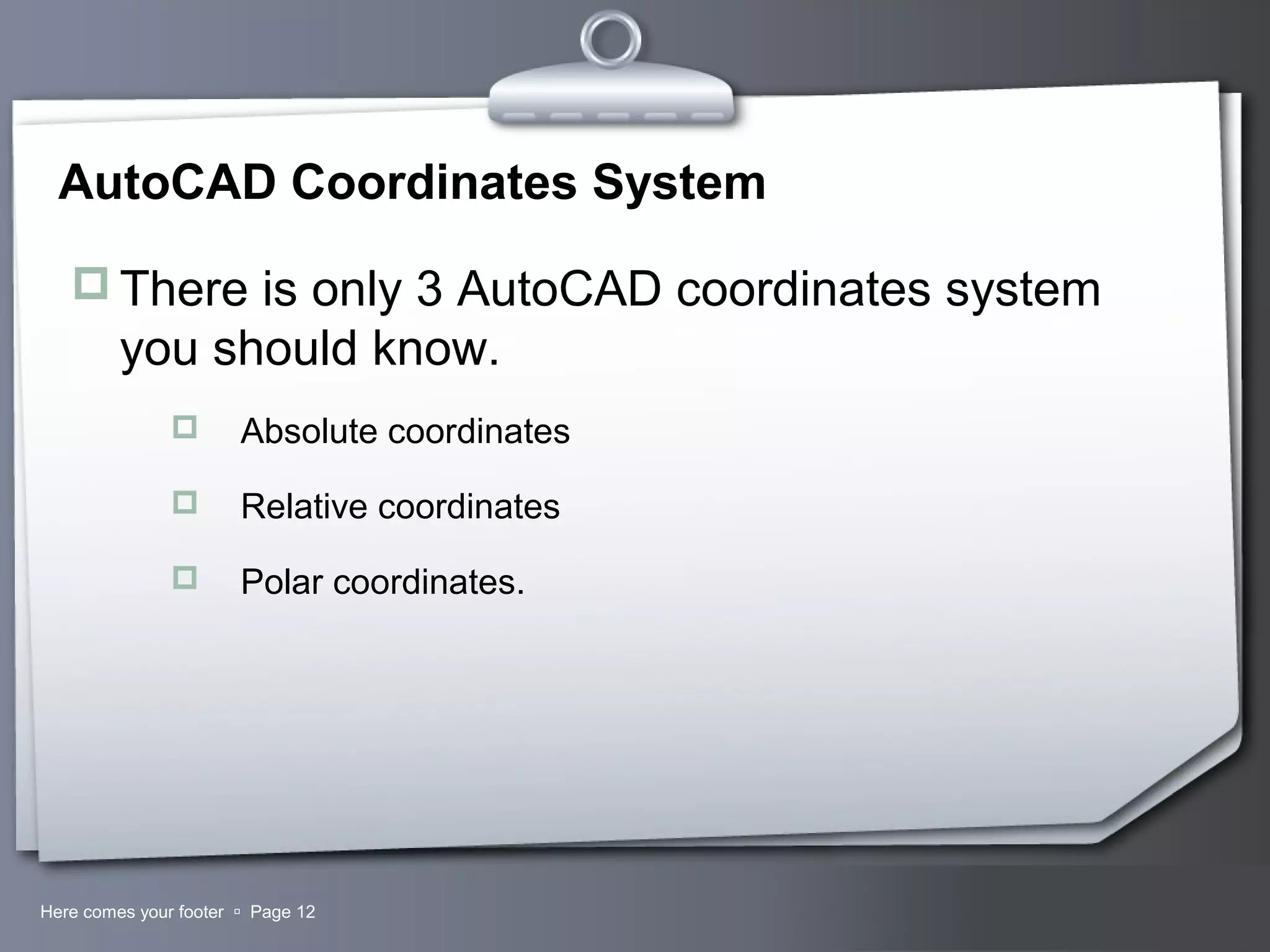

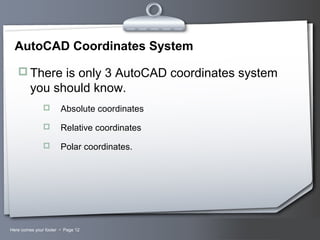

AutoCAD Coordinates System
 There is only 3 AutoCAD coordinates system
you should know.
 Absolute coordinates
 Relative coordinates
 Polar coordinates.

13. Your LogoHere comes your footer  Page 13

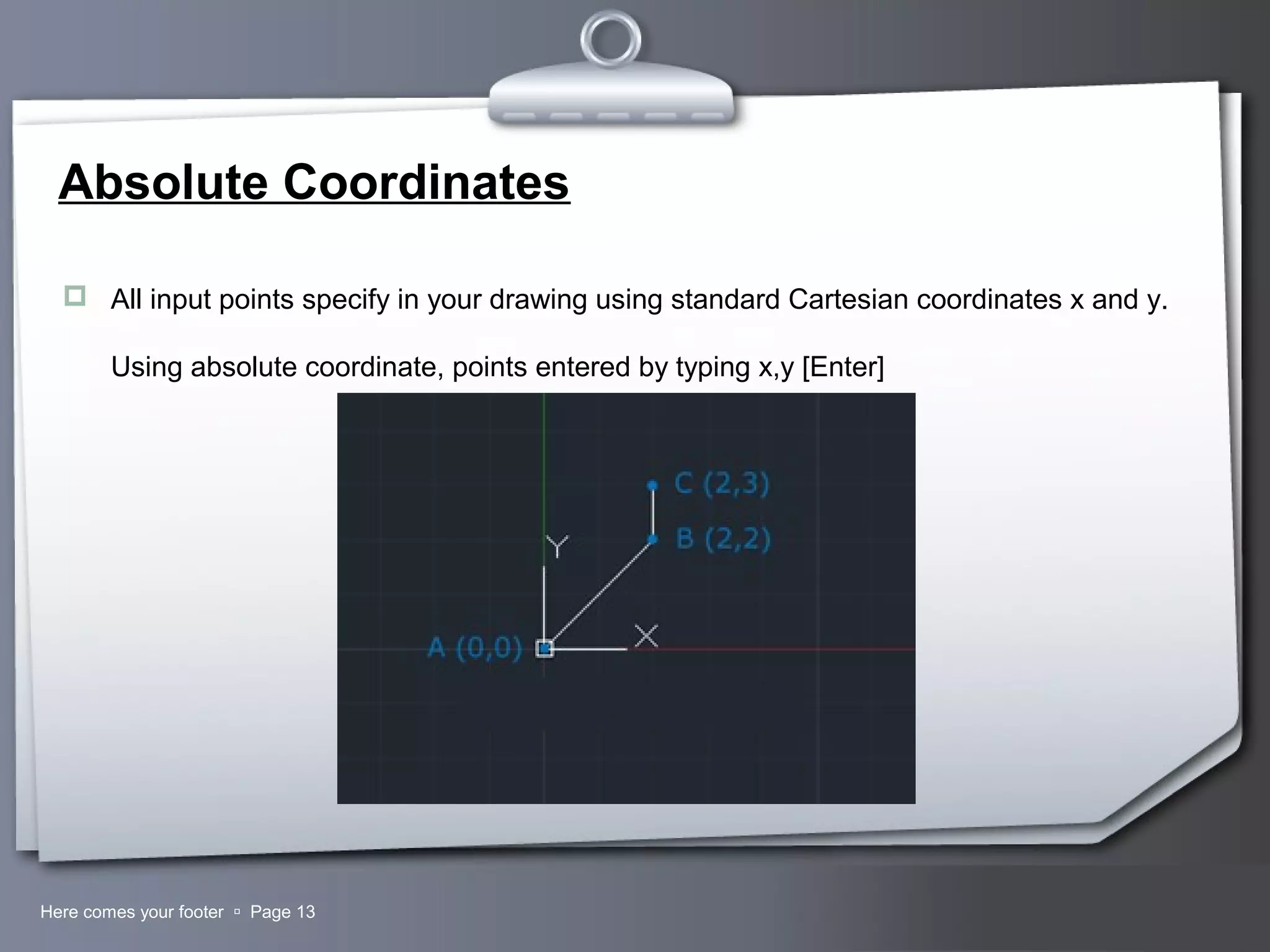

Absolute Coordinates
 All input points specify in your drawing using standard Cartesian coordinates x and y.
Using absolute coordinate, points entered by typing x,y [Enter]

14. Your LogoHere comes your footer  Page 14

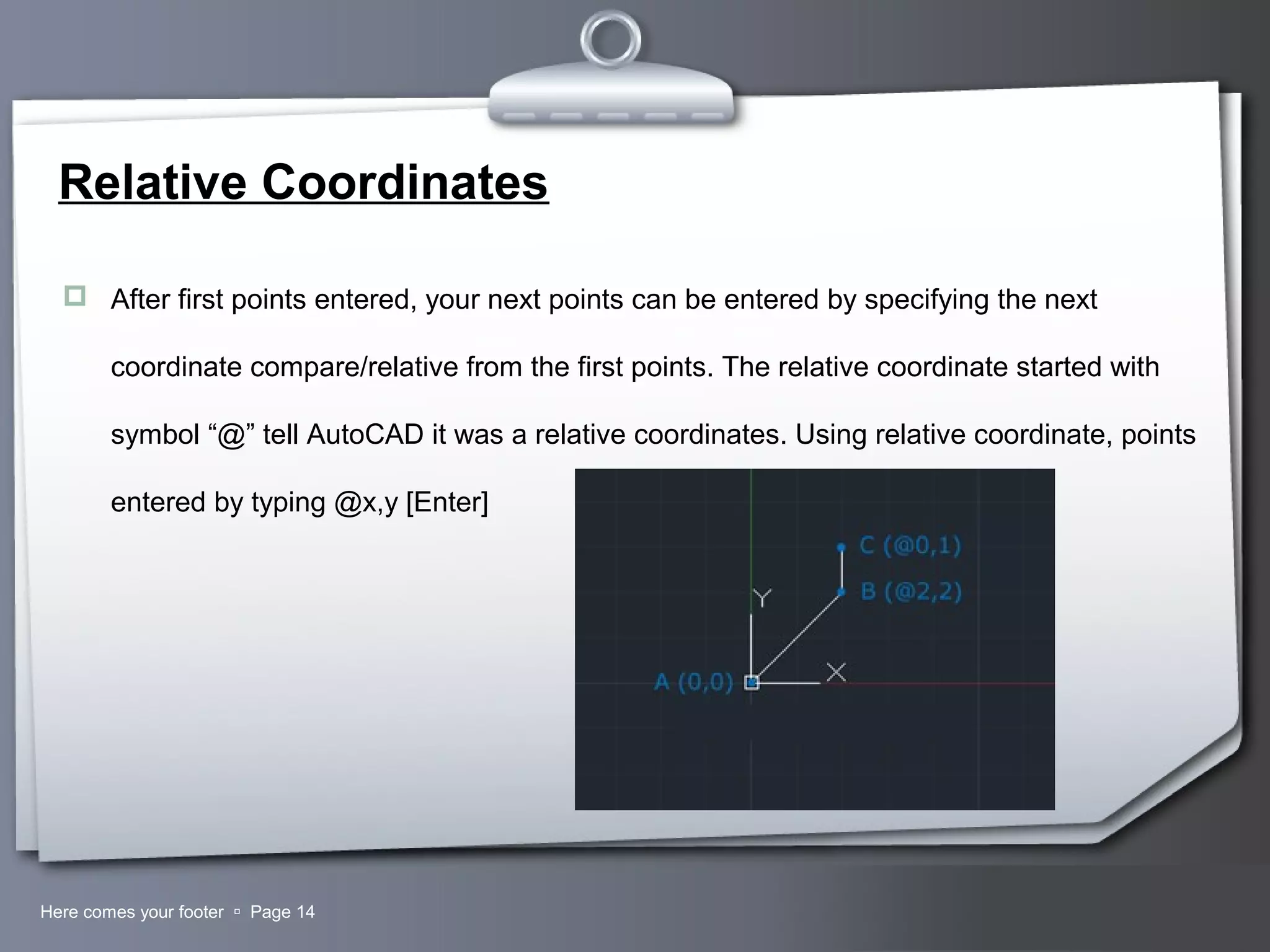

Relative Coordinates
 After first points entered, your next points can be entered by specifying the next
coordinate compare/relative from the first points. The relative coordinate started with
symbol “@” tell AutoCAD it was a relative coordinates. Using relative coordinate, points
entered by typing @x,y [Enter]

15. Your LogoHere comes your footer  Page 15

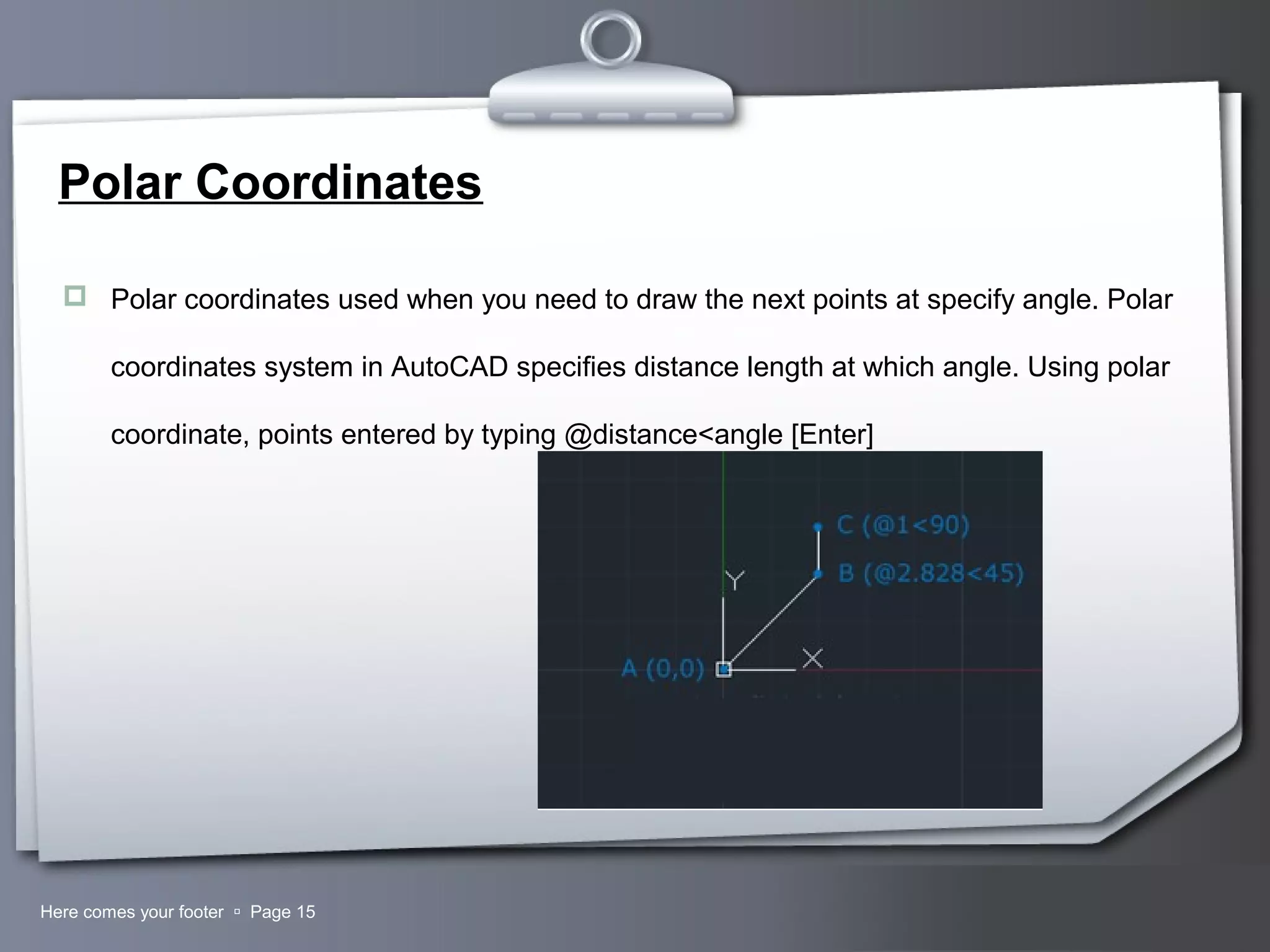

Polar Coordinates
 Polar coordinates used when you need to draw the next points at specify angle. Polar
coordinates system in AutoCAD specifies distance length at which angle. Using polar
coordinate, points entered by typing @distance<angle [Enter]

16. Your LogoHere comes your footer  Page 16

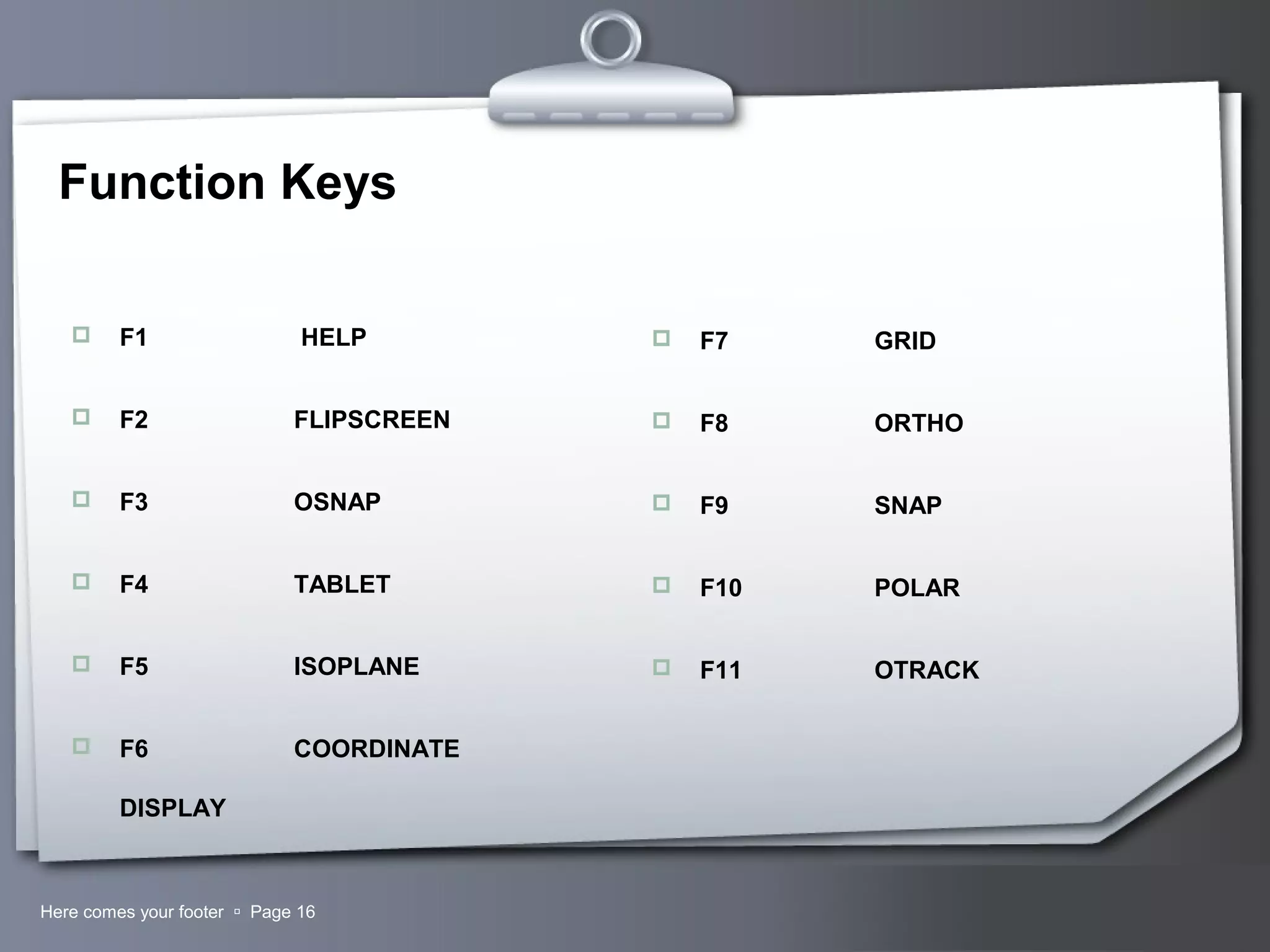

Function Keys
 F1 HELP
 F2 FLIPSCREEN
 F3 OSNAP
 F4 TABLET
 F5 ISOPLANE
 F6 COORDINATE
DISPLAY
 F7 GRID
 F8 ORTHO
 F9 SNAP
 F10 POLAR
 F11 OTRACK

17. Your LogoHere comes your footer  Page 17

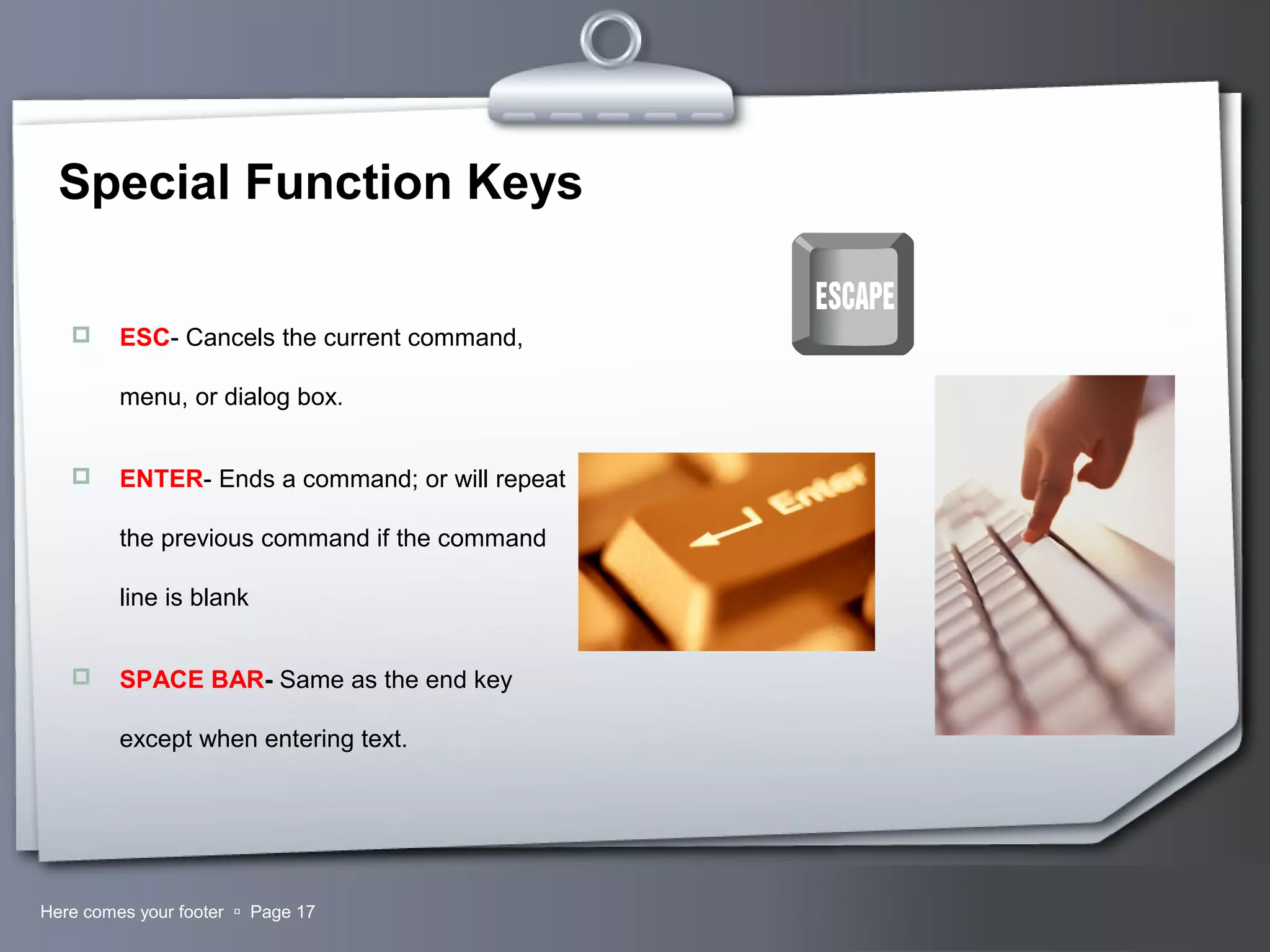

Special Function Keys
 ESC- Cancels the current command,
menu, or dialog box.
 ENTER- Ends a command; or will repeat
the previous command if the command
line is blank
 SPACE BAR- Same as the end key
except when entering text.

18. Your LogoHere comes your footer  Page 18

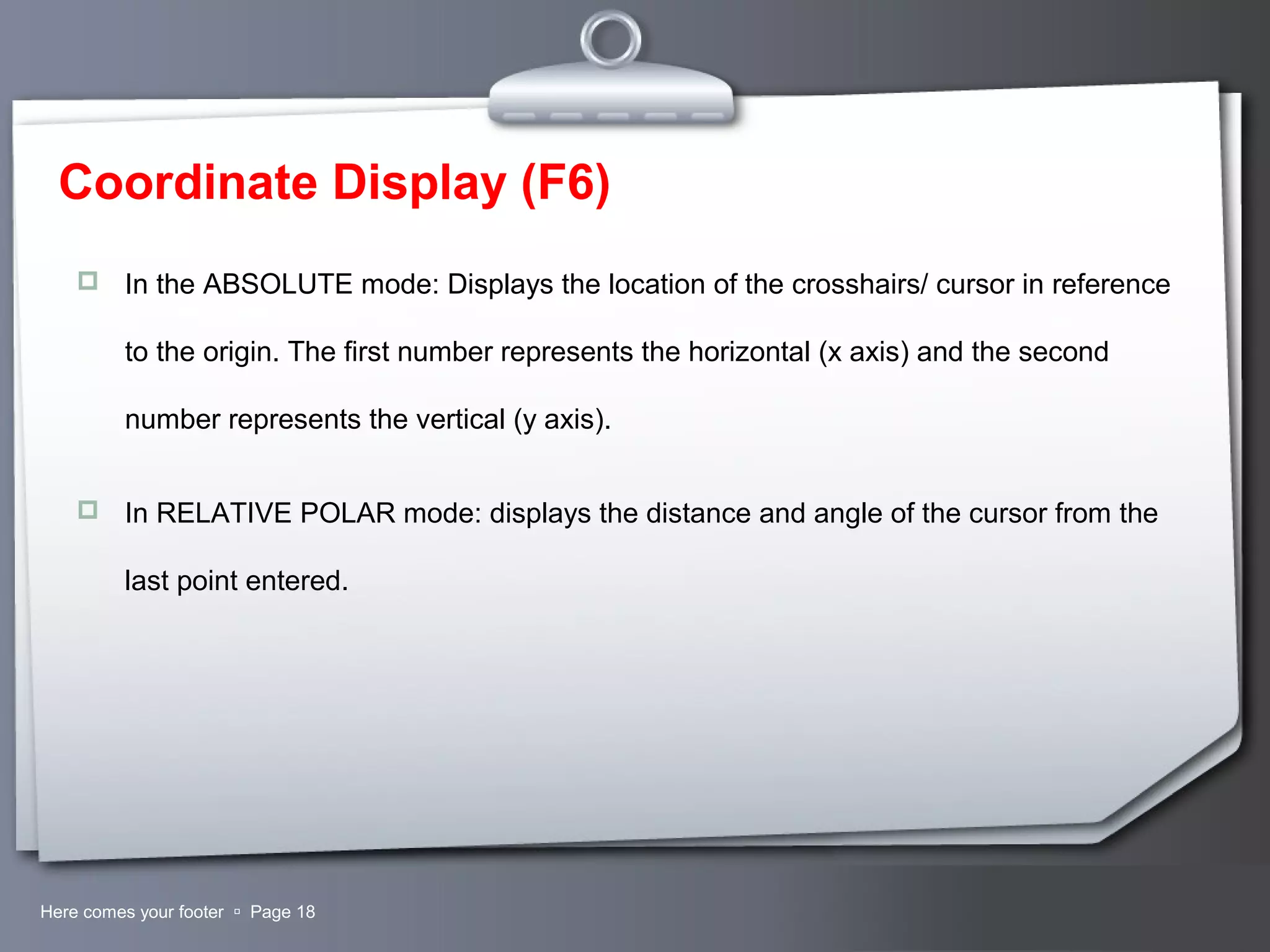

Coordinate Display (F6)
 In the ABSOLUTE mode: Displays the location of the crosshairs/ cursor in reference
to the origin. The first number represents the horizontal (x axis) and the second
number represents the vertical (y axis).
 In RELATIVE POLAR mode: displays the distance and angle of the cursor from the
last point entered.

19. Your LogoHere comes your footer  Page 19

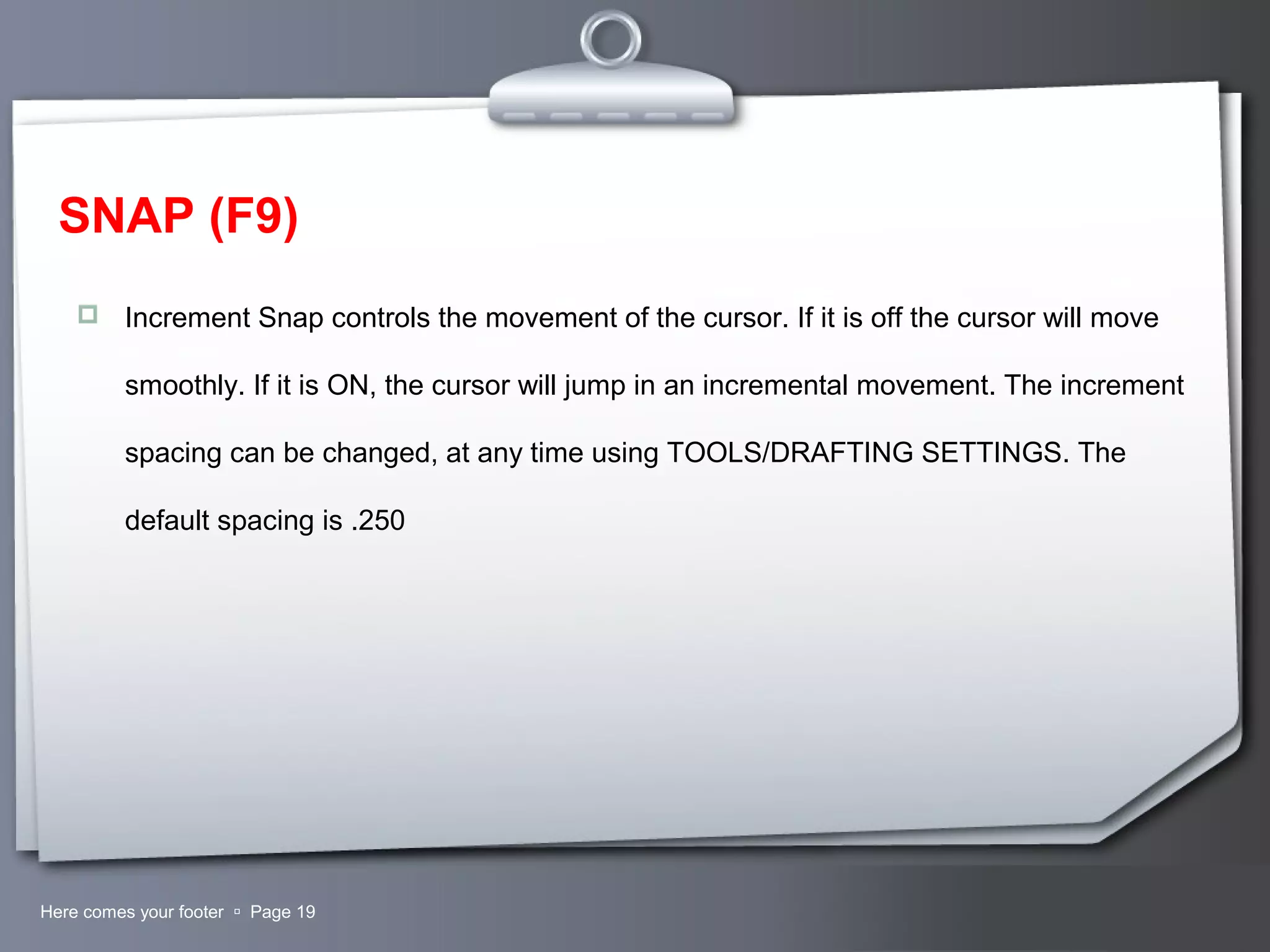

SNAP (F9)
 Increment Snap controls the movement of the cursor. If it is off the cursor will move
smoothly. If it is ON, the cursor will jump in an incremental movement. The increment
spacing can be changed, at any time using TOOLS/DRAFTING SETTINGS. The
default spacing is .250

20. Your LogoHere comes your footer  Page 20

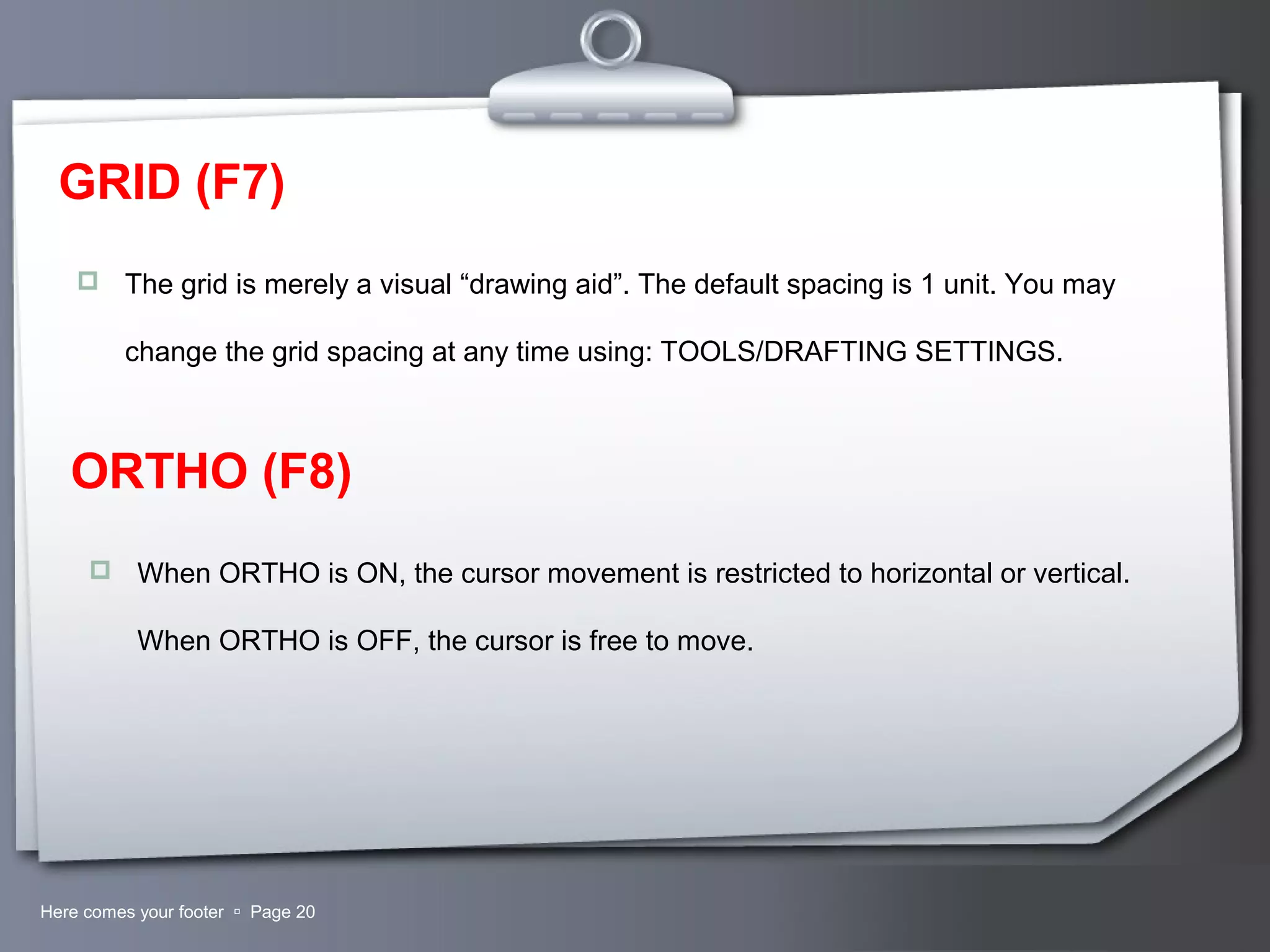

GRID (F7)
 The grid is merely a visual “drawing aid”. The default spacing is 1 unit. You may
change the grid spacing at any time using: TOOLS/DRAFTING SETTINGS.
ORTHO (F8)
 When ORTHO is ON, the cursor movement is restricted to horizontal or vertical.
When ORTHO is OFF, the cursor is free to move.

21. Your LogoHere comes your footer  Page 21

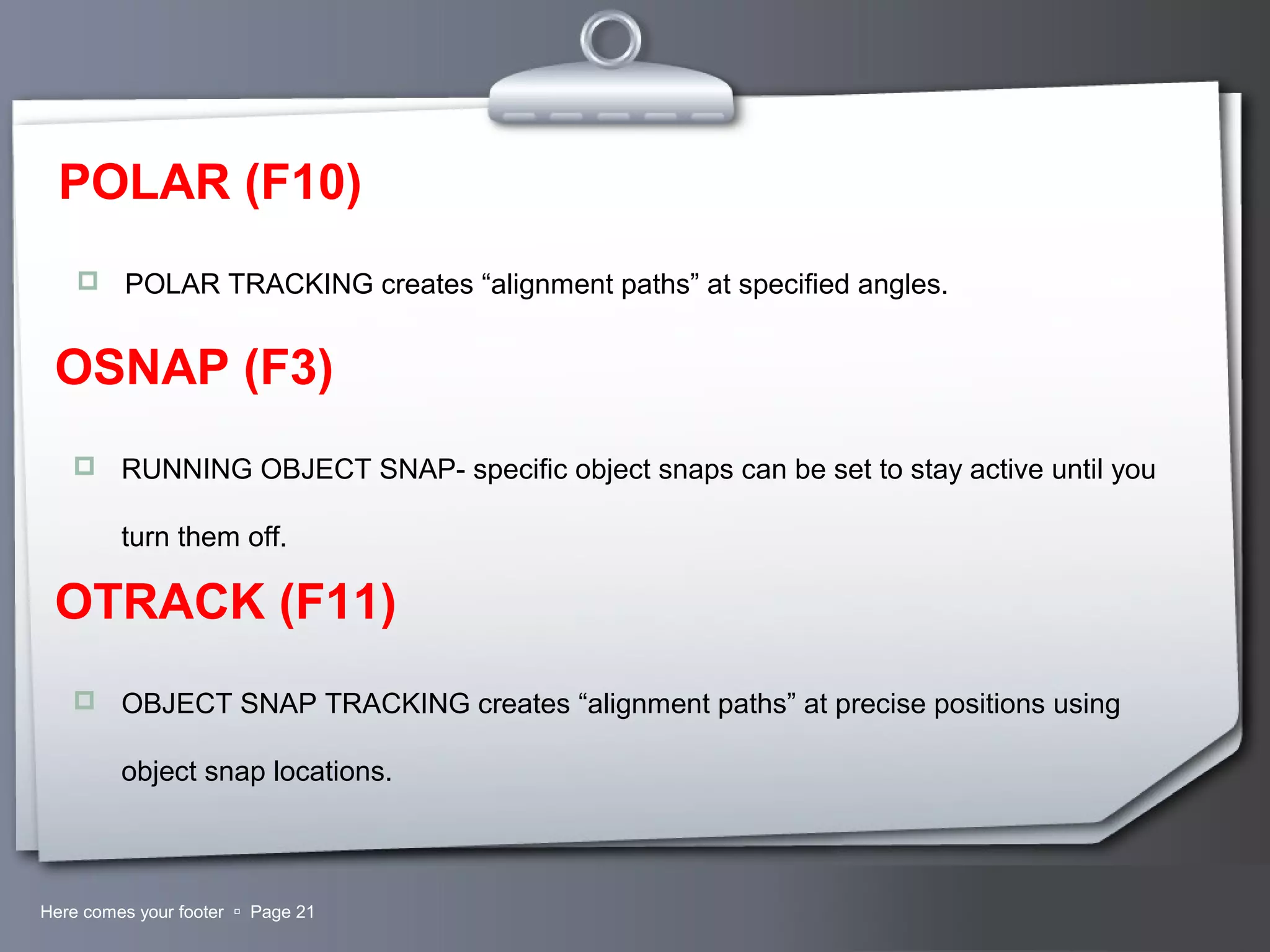

POLAR (F10)
 POLAR TRACKING creates “alignment paths” at specified angles.
OSNAP (F3)
 RUNNING OBJECT SNAP- specific object snaps can be set to stay active until you
turn them off.
OTRACK (F11)
 OBJECT SNAP TRACKING creates “alignment paths” at precise positions using
object snap locations.

22. Your LogoHere comes your footer  Page 22

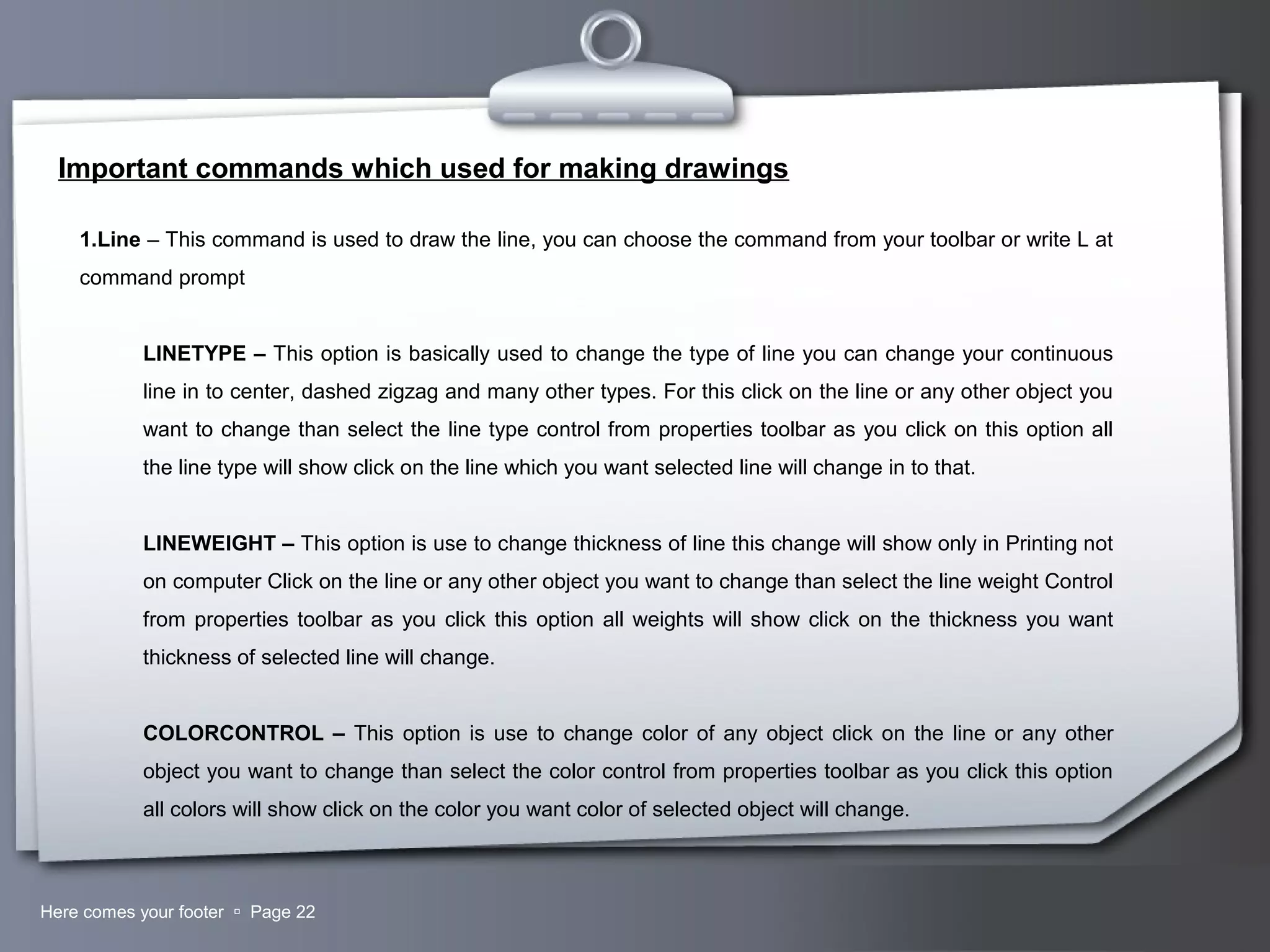

Important commands which used for making drawings
1.Line – This command is used to draw the line, you can choose the command from your toolbar or write L at
command prompt
LINETYPE – This option is basically used to change the type of line you can change your continuous
line in to center, dashed zigzag and many other types. For this click on the line or any other object you
want to change than select the line type control from properties toolbar as you click on this option all
the line type will show click on the line which you want selected line will change in to that.
LINEWEIGHT – This option is use to change thickness of line this change will show only in Printing not
on computer Click on the line or any other object you want to change than select the line weight Control
from properties toolbar as you click this option all weights will show click on the thickness you want
thickness of selected line will change.
COLORCONTROL – This option is use to change color of any object click on the line or any other
object you want to change than select the color control from properties toolbar as you click this option
all colors will show click on the color you want color of selected object will change.

23. Your LogoHere comes your footer  Page 23

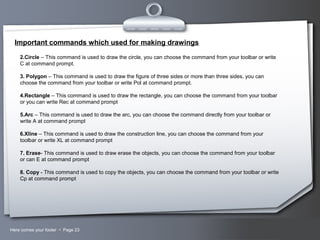

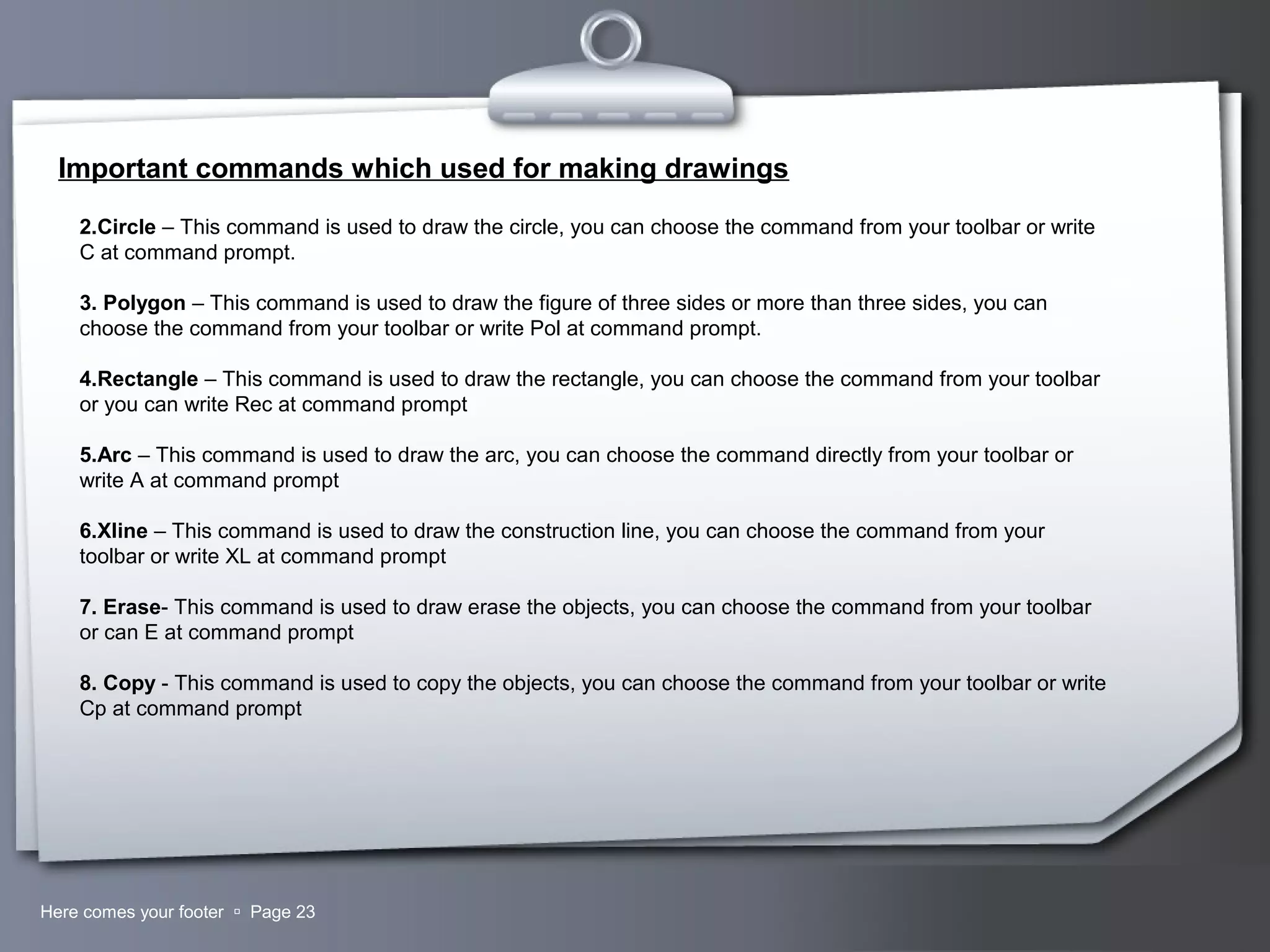

Important commands which used for making drawings
2.Circle – This command is used to draw the circle, you can choose the command from your toolbar or write
C at command prompt.
3. Polygon – This command is used to draw the figure of three sides or more than three sides, you can
choose the command from your toolbar or write Pol at command prompt.
4.Rectangle – This command is used to draw the rectangle, you can choose the command from your toolbar
or you can write Rec at command prompt
5.Arc – This command is used to draw the arc, you can choose the command directly from your toolbar or
write A at command prompt
6.Xline – This command is used to draw the construction line, you can choose the command from your
toolbar or write XL at command prompt
7. Erase- This command is used to draw erase the objects, you can choose the command from your toolbar
or can E at command prompt
8. Copy - This command is used to copy the objects, you can choose the command from your toolbar or write
Cp at command prompt

24. Your LogoHere comes your footer  Page 24

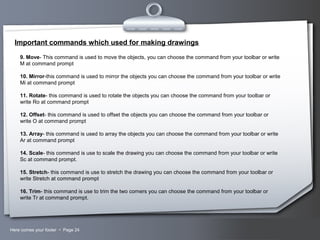

Important commands which used for making drawings
9. Move- This command is used to move the objects, you can choose the command from your toolbar or write
M at command prompt
10. Mirror-this command is used to mirror the objects you can choose the command from your toolbar or write
Mi at command prompt
11. Rotate- this command is used to rotate the objects you can choose the command from your toolbar or
write Ro at command prompt
12. Offset- this command is used to offset the objects you can choose the command from your toolbar or
write O at command prompt
13. Array- this command is used to array the objects you can choose the command from your toolbar or write
Ar at command prompt
14. Scale- this command is use to scale the drawing you can choose the command from your toolbar or write
Sc at command prompt.
15. Stretch- this command is use to stretch the drawing you can choose the command from your toolbar or
write Stretch at command prompt
16. Trim- this command is use to trim the two corners you can choose the command from your toolbar or
write Tr at command prompt.

25. Your LogoHere comes your footer  Page 25
Important commands which used for making drawings

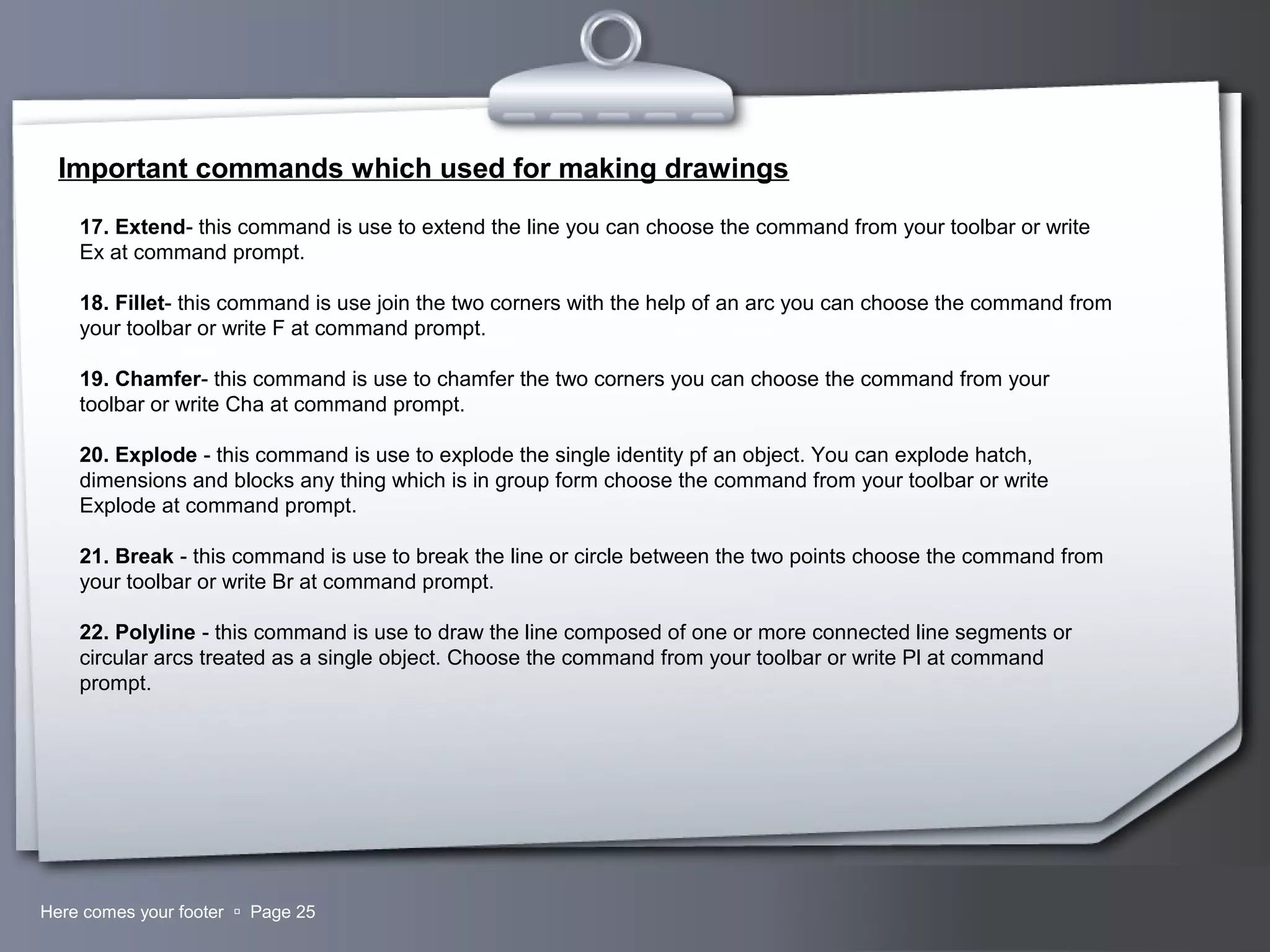

17. Extend- this command is use to extend the line you can choose the command from your toolbar or write
Ex at command prompt.
18. Fillet- this command is use join the two corners with the help of an arc you can choose the command from
your toolbar or write F at command prompt.
19. Chamfer- this command is use to chamfer the two corners you can choose the command from your
toolbar or write Cha at command prompt.
20. Explode - this command is use to explode the single identity pf an object. You can explode hatch,
dimensions and blocks any thing which is in group form choose the command from your toolbar or write
Explode at command prompt.
21. Break - this command is use to break the line or circle between the two points choose the command from
your toolbar or write Br at command prompt.
22. Polyline - this command is use to draw the line composed of one or more connected line segments or
circular arcs treated as a single object. Choose the command from your toolbar or write Pl at command
prompt.

26. Your LogoHere comes your footer  Page 26
Important commands which used for making drawings

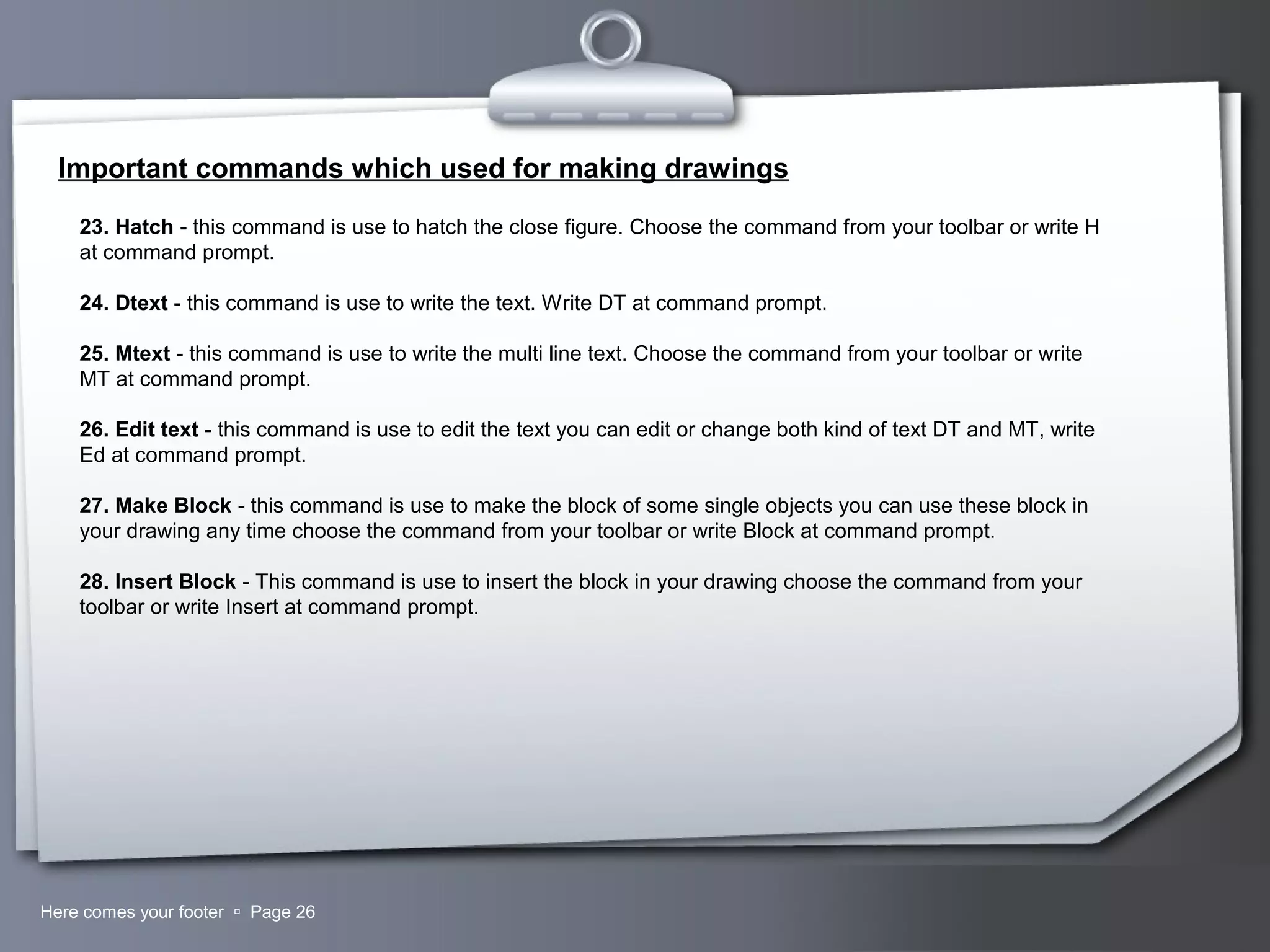

23. Hatch - this command is use to hatch the close figure. Choose the command from your toolbar or write H
at command prompt.
24. Dtext - this command is use to write the text. Write DT at command prompt.
25. Mtext - this command is use to write the multi line text. Choose the command from your toolbar or write
MT at command prompt.
26. Edit text - this command is use to edit the text you can edit or change both kind of text DT and MT, write
Ed at command prompt.
27. Make Block - this command is use to make the block of some single objects you can use these block in
your drawing any time choose the command from your toolbar or write Block at command prompt.
28. Insert Block - This command is use to insert the block in your drawing choose the command from your
toolbar or write Insert at command prompt.

27. Your LogoHere comes your footer  Page 27

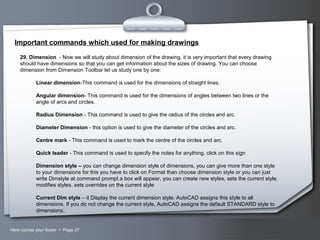

Important commands which used for making drawings

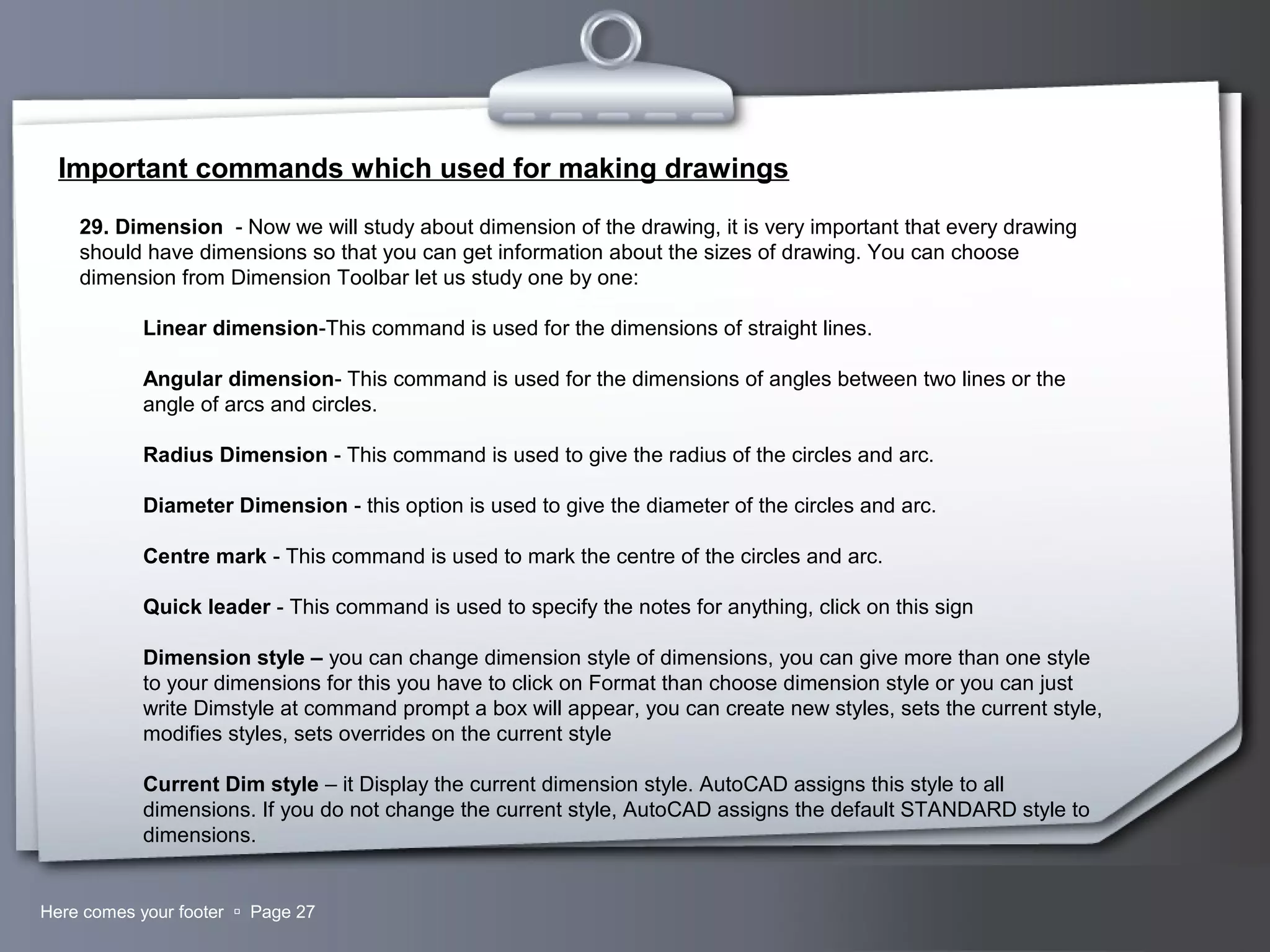

29. Dimension - Now we will study about dimension of the drawing, it is very important that every drawing
should have dimensions so that you can get information about the sizes of drawing. You can choose
dimension from Dimension Toolbar let us study one by one:
Linear dimension-This command is used for the dimensions of straight lines.
Angular dimension- This command is used for the dimensions of angles between two lines or the
angle of arcs and circles.
Radius Dimension - This command is used to give the radius of the circles and arc.
Diameter Dimension - this option is used to give the diameter of the circles and arc.
Centre mark - This command is used to mark the centre of the circles and arc.
Quick leader - This command is used to specify the notes for anything, click on this sign
Dimension style – you can change dimension style of dimensions, you can give more than one style
to your dimensions for this you have to click on Format than choose dimension style or you can just
write Dimstyle at command prompt a box will appear, you can create new styles, sets the current style,
modifies styles, sets overrides on the current style
Current Dim style – it Display the current dimension style. AutoCAD assigns this style to all
dimensions. If you do not change the current style, AutoCAD assigns the default STANDARD style to
dimensions.

28. Your LogoHere comes your footer  Page 28
Important commands which used for making drawings

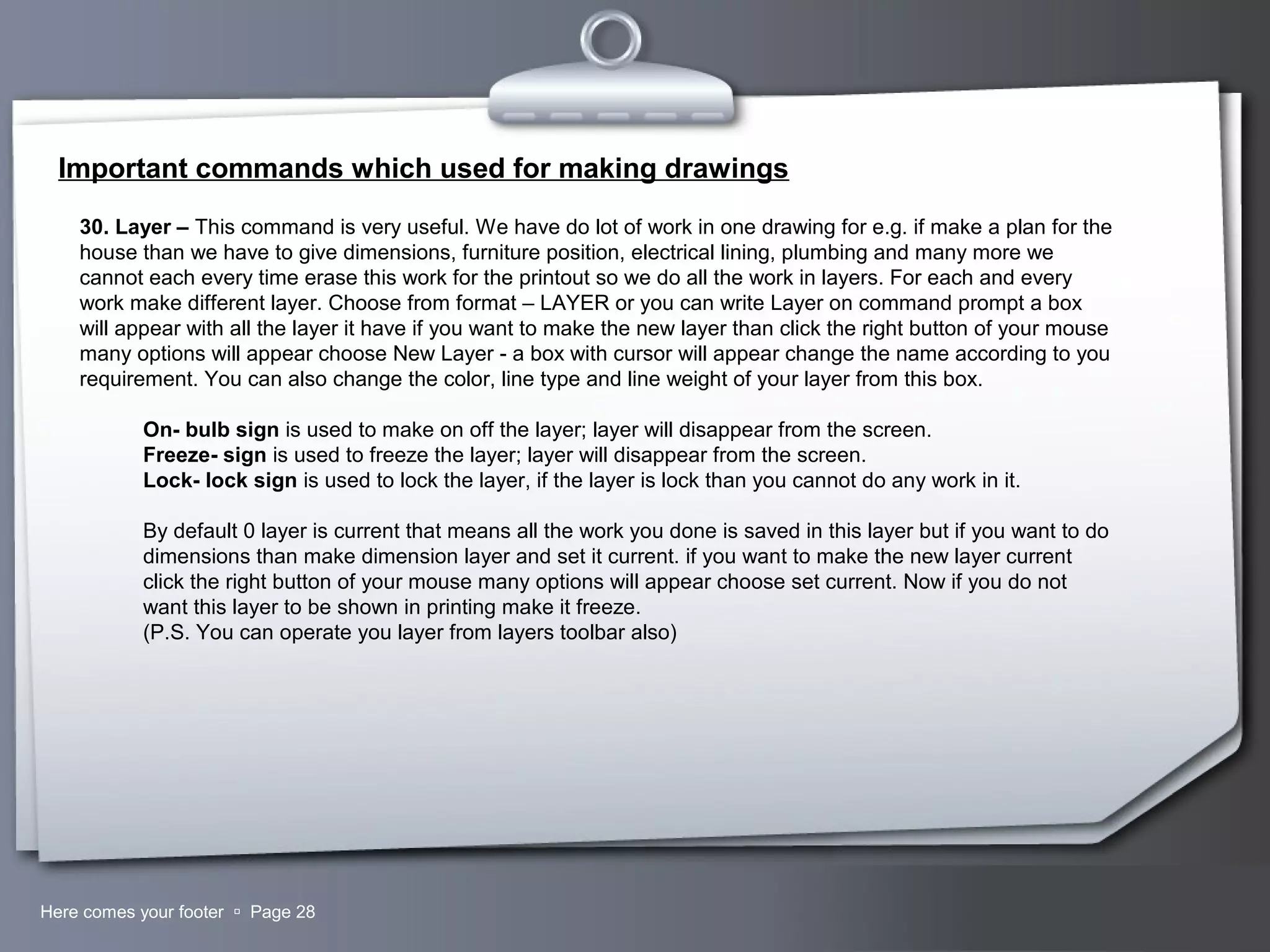

30. Layer – This command is very useful. We have do lot of work in one drawing for e.g. if make a plan for the
house than we have to give dimensions, furniture position, electrical lining, plumbing and many more we
cannot each every time erase this work for the printout so we do all the work in layers. For each and every
work make different layer. Choose from format – LAYER or you can write Layer on command prompt a box
will appear with all the layer it have if you want to make the new layer than click the right button of your mouse
many options will appear choose New Layer - a box with cursor will appear change the name according to you
requirement. You can also change the color, line type and line weight of your layer from this box.
On- bulb sign is used to make on off the layer; layer will disappear from the screen.
Freeze- sign is used to freeze the layer; layer will disappear from the screen.
Lock- lock sign is used to lock the layer, if the layer is lock than you cannot do any work in it.
By default 0 layer is current that means all the work you done is saved in this layer but if you want to do
dimensions than make dimension layer and set it current. if you want to make the new layer current
click the right button of your mouse many options will appear choose set current. Now if you do not
want this layer to be shown in printing make it freeze.
(P.S. You can operate you layer from layers toolbar also)

29. Your LogoHere comes your footer  Page 29
Important commands which used for making drawings

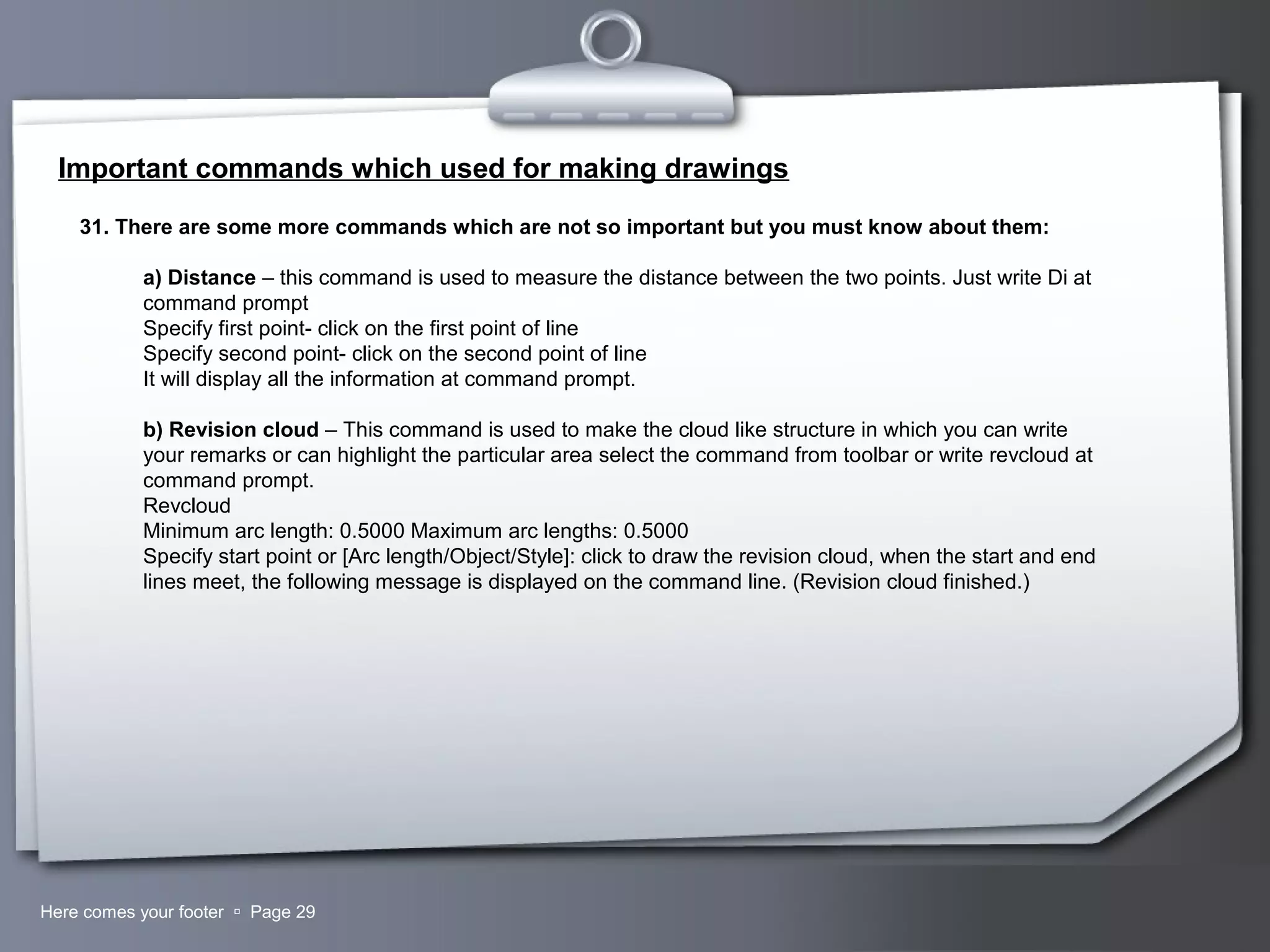

31. There are some more commands which are not so important but you must know about them:
a) Distance – this command is used to measure the distance between the two points. Just write Di at
command prompt
Specify first point- click on the first point of line
Specify second point- click on the second point of line
It will display all the information at command prompt.
b) Revision cloud – This command is used to make the cloud like structure in which you can write
your remarks or can highlight the particular area select the command from toolbar or write revcloud at
command prompt.
Revcloud
Minimum arc length: 0.5000 Maximum arc lengths: 0.5000
Specify start point or [Arc length/Object/Style]: click to draw the revision cloud, when the start and end
lines meet, the following message is displayed on the command line. (Revision cloud finished.)

30. Your LogoHere comes your footer  Page 30
Important commands which used for making drawings

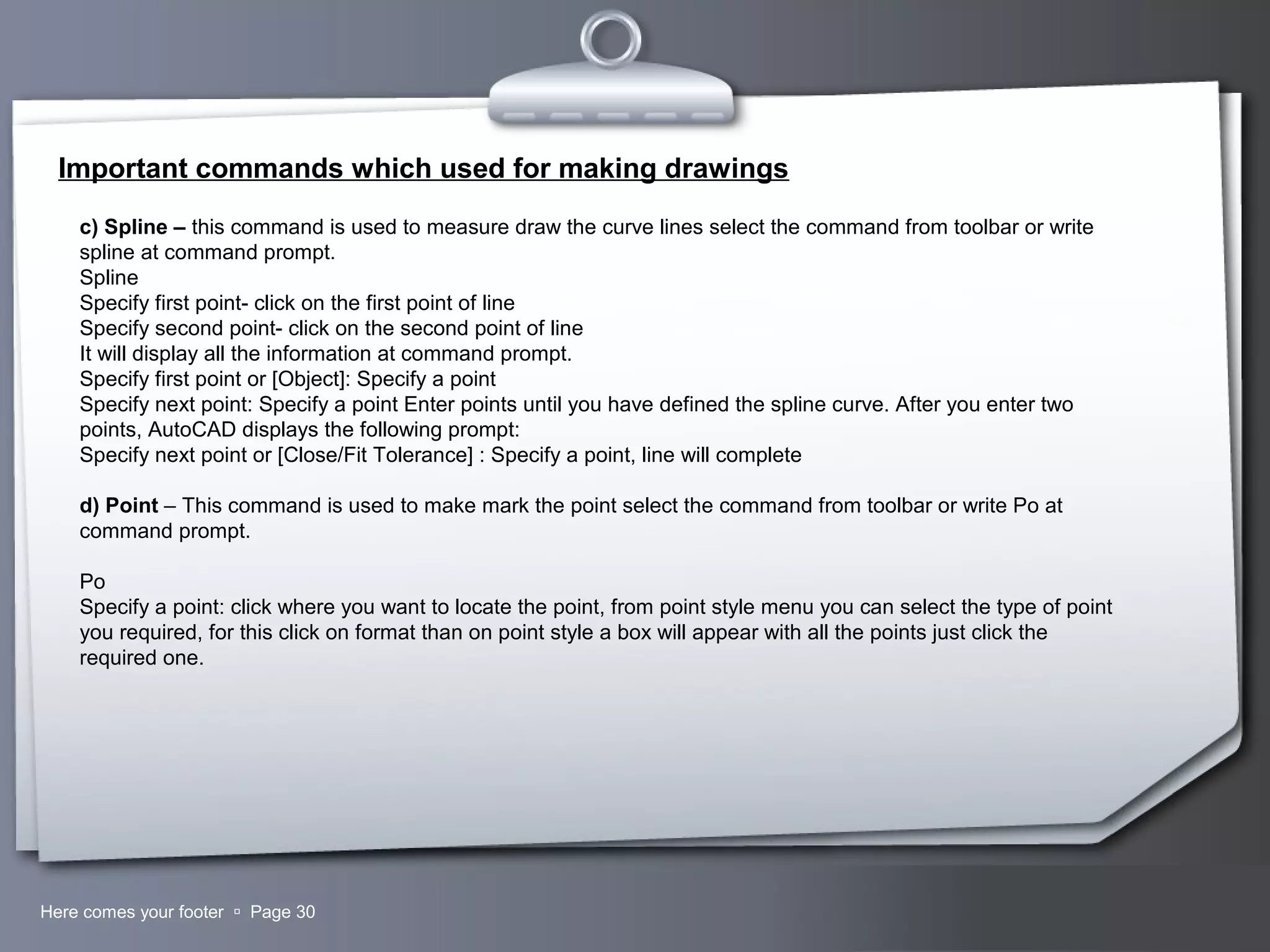

c) Spline – this command is used to measure draw the curve lines select the command from toolbar or write
spline at command prompt.
Spline
Specify first point- click on the first point of line
Specify second point- click on the second point of line
It will display all the information at command prompt.
Specify first point or [Object]: Specify a point
Specify next point: Specify a point Enter points until you have defined the spline curve. After you enter two
points, AutoCAD displays the following prompt:
Specify next point or [Close/Fit Tolerance] : Specify a point, line will complete
d) Point – This command is used to make mark the point select the command from toolbar or write Po at
command prompt.
Po
Specify a point: click where you want to locate the point, from point style menu you can select the type of point
you required, for this click on format than on point style a box will appear with all the points just click the
required one.

31. Your LogoHere comes your footer  Page 31

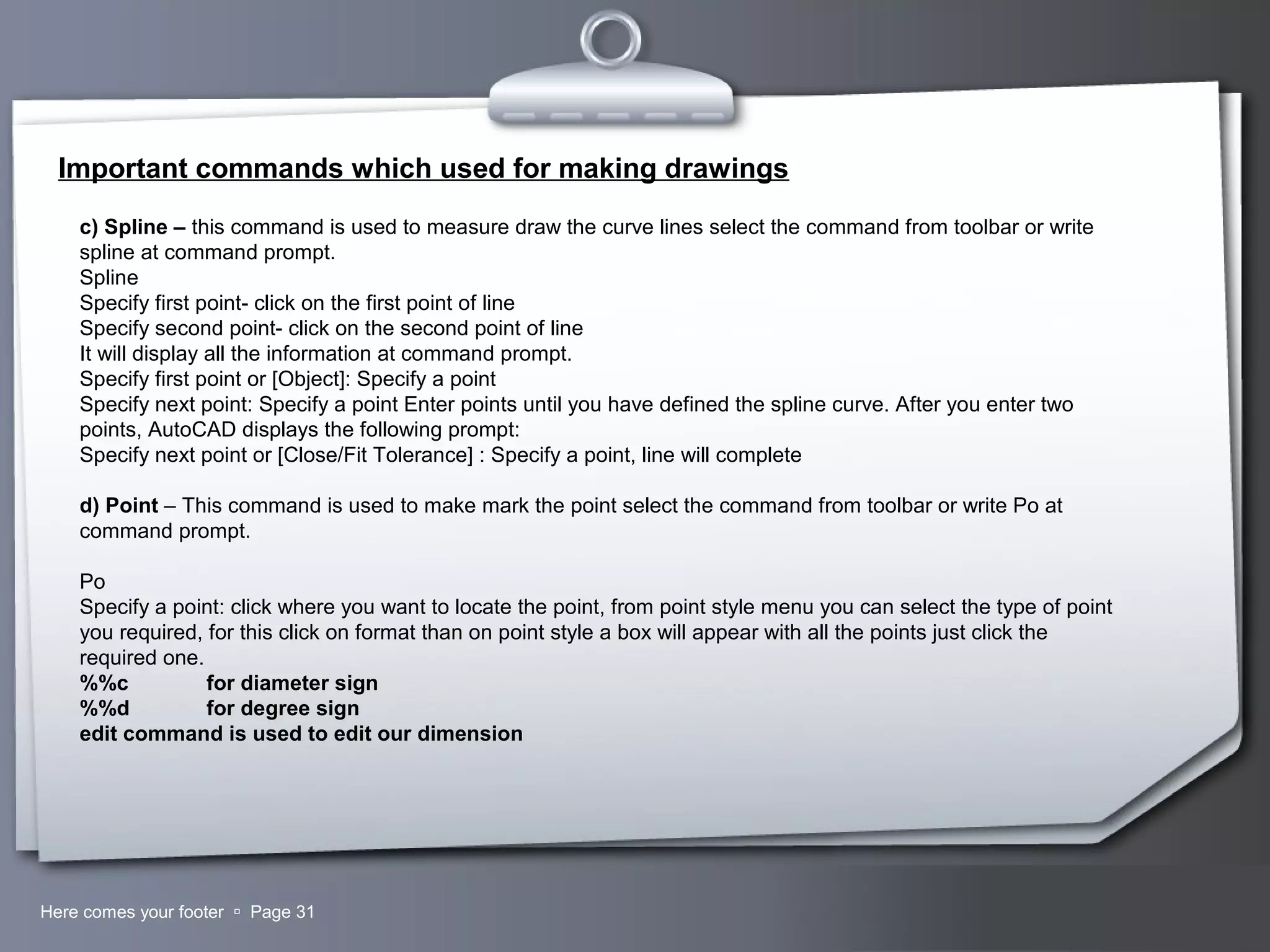

Important commands which used for making drawings
c) Spline – this command is used to measure draw the curve lines select the command from toolbar or write
spline at command prompt.
Spline
Specify first point- click on the first point of line
Specify second point- click on the second point of line
It will display all the information at command prompt.
Specify first point or [Object]: Specify a point
Specify next point: Specify a point Enter points until you have defined the spline curve. After you enter two
points, AutoCAD displays the following prompt:
Specify next point or [Close/Fit Tolerance] : Specify a point, line will complete
d) Point – This command is used to make mark the point select the command from toolbar or write Po at
command prompt.
Po
Specify a point: click where you want to locate the point, from point style menu you can select the type of point
you required, for this click on format than on point style a box will appear with all the points just click the
required one.
%%c for diameter sign
%%d for degree sign
edit command is used to edit our dimension

32. Your LogoHere comes your footer  Page 32
Important commands which used for making drawings

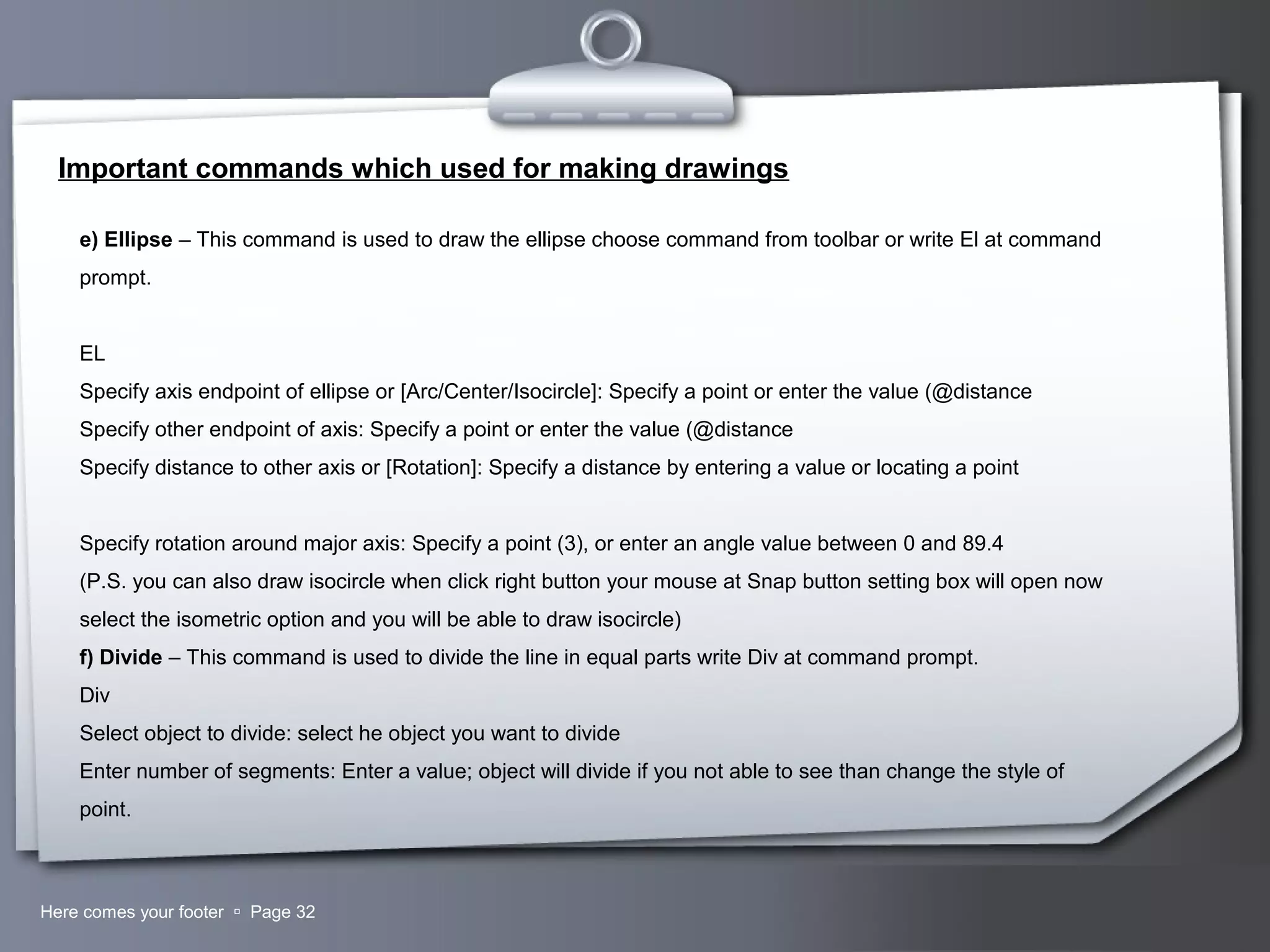

e) Ellipse – This command is used to draw the ellipse choose command from toolbar or write El at command
prompt.
EL
Specify axis endpoint of ellipse or [Arc/Center/Isocircle]: Specify a point or enter the value (@distance
Specify other endpoint of axis: Specify a point or enter the value (@distance
Specify distance to other axis or [Rotation]: Specify a distance by entering a value or locating a point
Specify rotation around major axis: Specify a point (3), or enter an angle value between 0 and 89.4
(P.S. you can also draw isocircle when click right button your mouse at Snap button setting box will open now
select the isometric option and you will be able to draw isocircle)
f) Divide – This command is used to divide the line in equal parts write Div at command prompt.
Div
Select object to divide: select he object you want to divide
Enter number of segments: Enter a value; object will divide if you not able to see than change the style of
point.

33. Your LogoHere comes your footer  Page 33

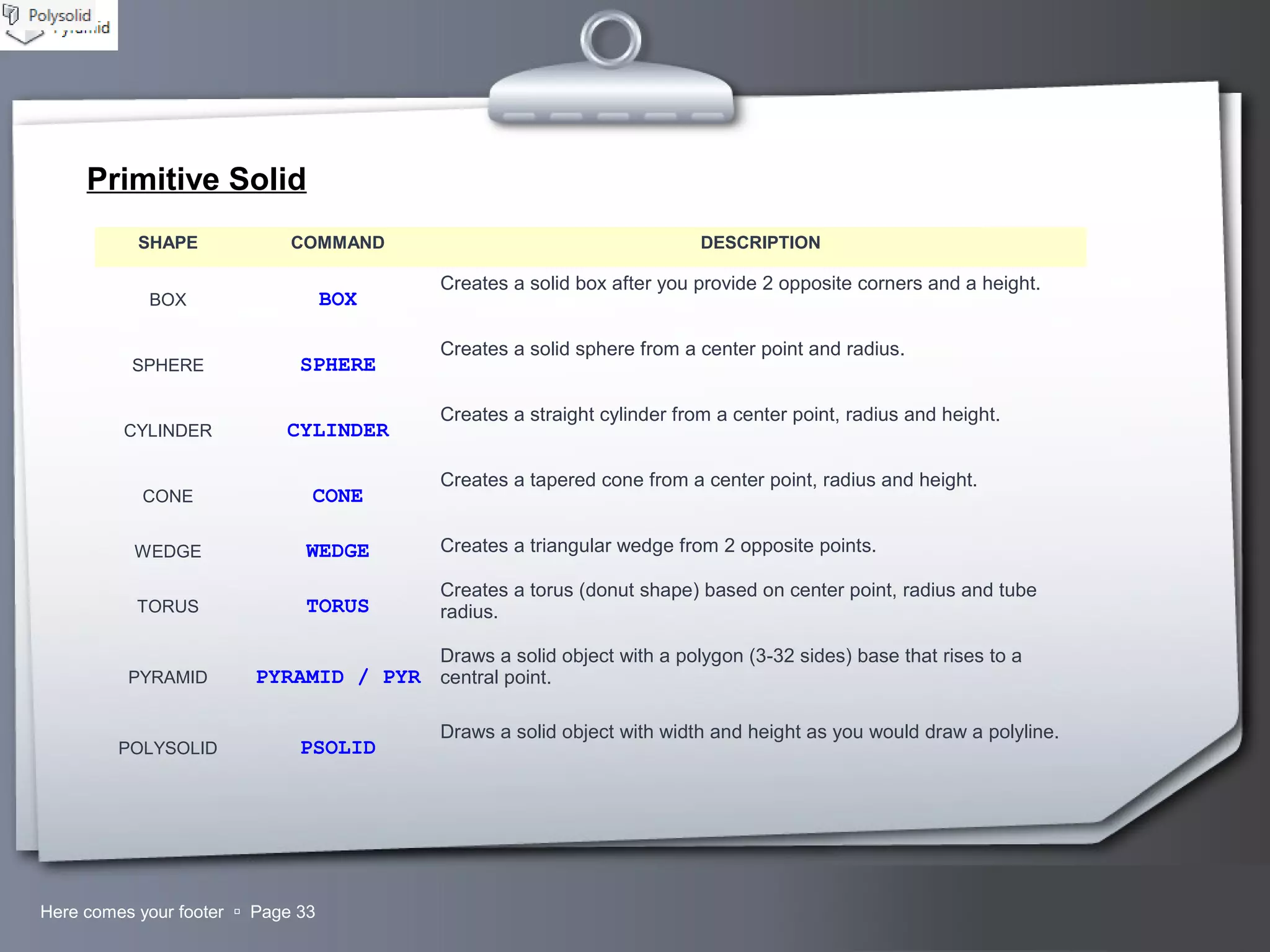

SHAPE COMMAND DESCRIPTION
BOX BOX
Creates a solid box after you provide 2 opposite corners and a height.
SPHERE SPHERE
Creates a solid sphere from a center point and radius.
CYLINDER CYLINDER
Creates a straight cylinder from a center point, radius and height.
CONE CONE
Creates a tapered cone from a center point, radius and height.
WEDGE WEDGE Creates a triangular wedge from 2 opposite points.
TORUS TORUS
Creates a torus (donut shape) based on center point, radius and tube
radius.
PYRAMID PYRAMID / PYR
Draws a solid object with a polygon (3-32 sides) base that rises to a
central point.
POLYSOLID PSOLID
Draws a solid object with width and height as you would draw a polyline.
Primitive Solid

34. Your LogoHere comes your footer  Page 34

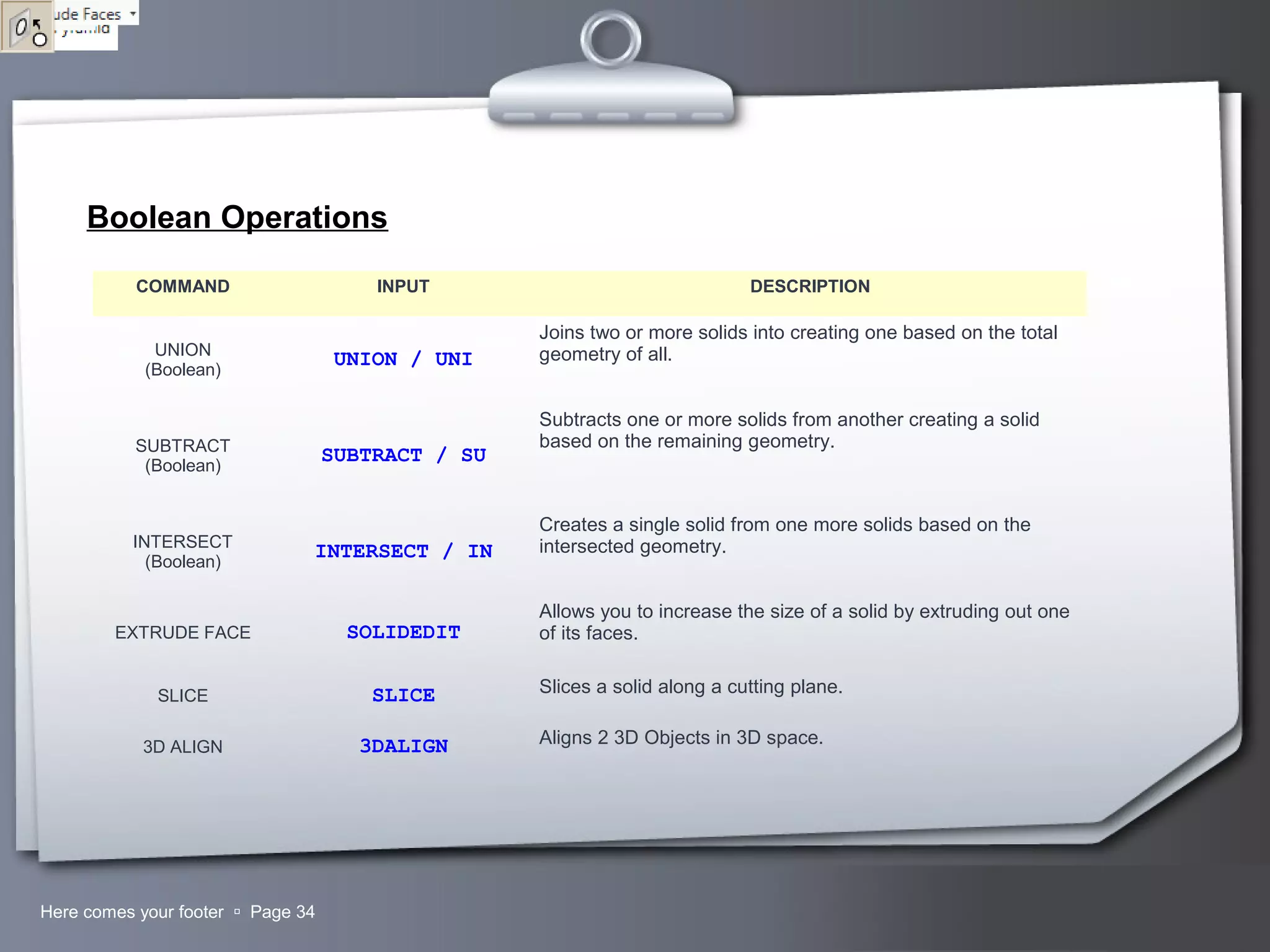

Boolean Operations
COMMAND INPUT DESCRIPTION
UNION
(Boolean)
UNION / UNI
Joins two or more solids into creating one based on the total
geometry of all.
SUBTRACT
(Boolean)
SUBTRACT / SU
Subtracts one or more solids from another creating a solid
based on the remaining geometry.
INTERSECT
(Boolean)
INTERSECT / IN
Creates a single solid from one more solids based on the
intersected geometry.
EXTRUDE FACE SOLIDEDIT
Allows you to increase the size of a solid by extruding out one
of its faces.
SLICE SLICE Slices a solid along a cutting plane.
3D ALIGN 3DALIGN Aligns 2 3D Objects in 3D space.

35. Your LogoHere comes your footer  Page 35

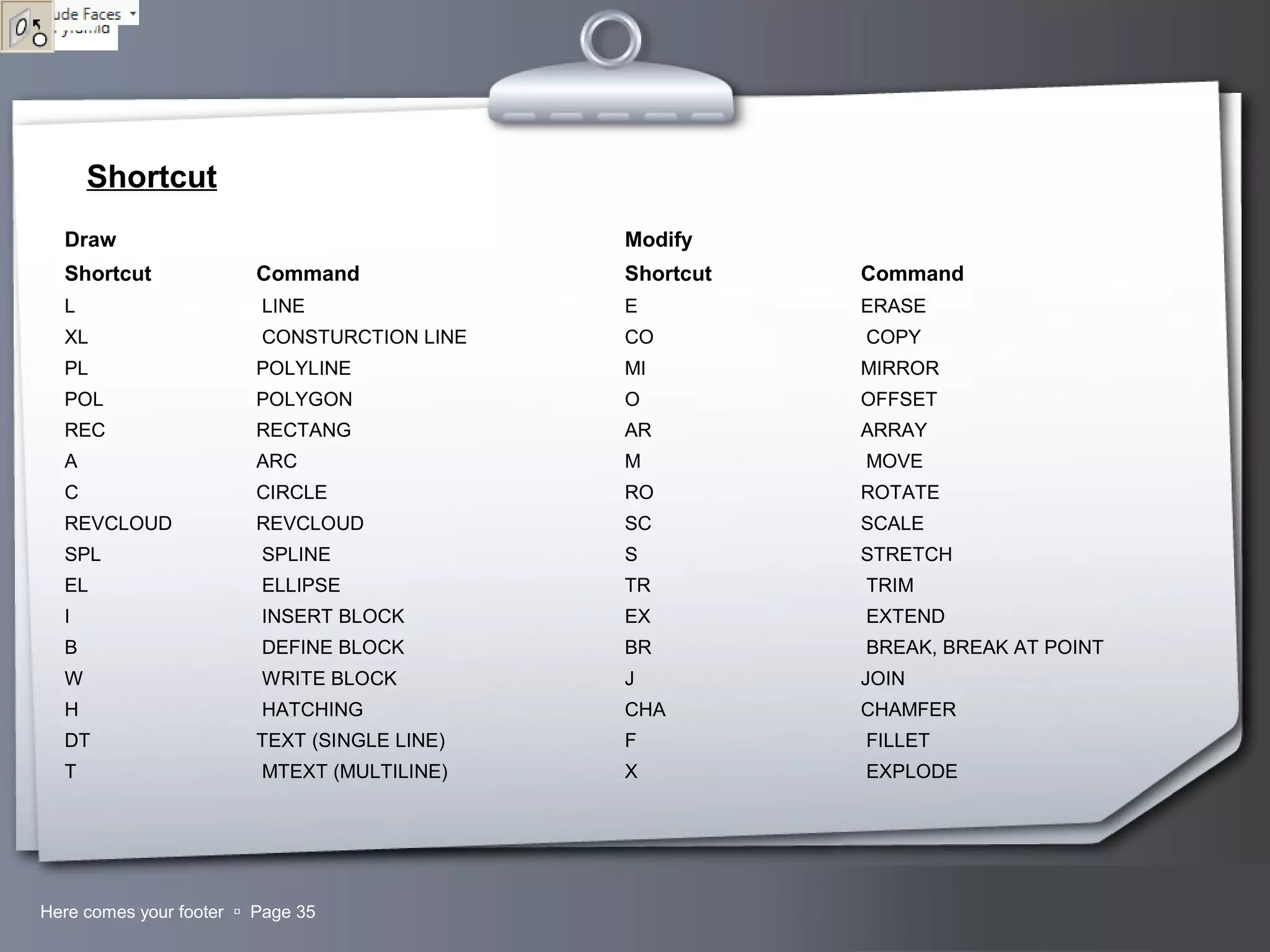

Shortcut
Draw Modify
Shortcut Command Shortcut Command
L LINE E ERASE
XL CONSTURCTION LINE CO COPY
PL POLYLINE MI MIRROR
POL POLYGON O OFFSET
REC RECTANG AR ARRAY
A ARC M MOVE
C CIRCLE RO ROTATE
REVCLOUD REVCLOUD SC SCALE
SPL SPLINE S STRETCH
EL ELLIPSE TR TRIM
I INSERT BLOCK EX EXTEND
B DEFINE BLOCK BR BREAK, BREAK AT POINT
W WRITE BLOCK J JOIN
H HATCHING CHA CHAMFER
DT TEXT (SINGLE LINE) F FILLET
T MTEXT (MULTILINE) X EXPLODE

36. Your LogoHere comes your footer  Page 36

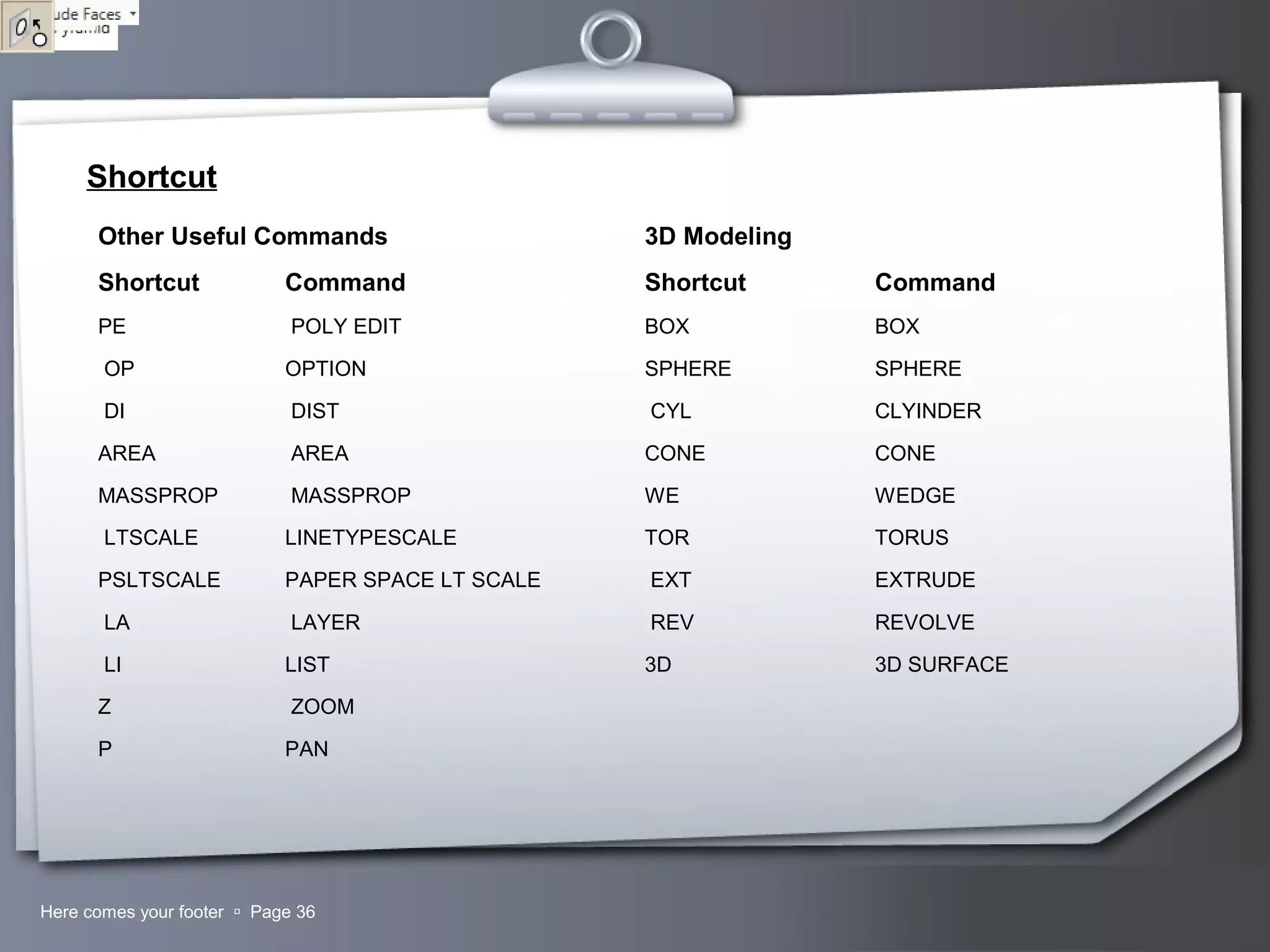

Shortcut
Other Useful Commands 3D Modeling
Shortcut Command Shortcut Command
PE POLY EDIT BOX BOX
OP OPTION SPHERE SPHERE
DI DIST CYL CLYINDER
AREA AREA CONE CONE
MASSPROP MASSPROP WE WEDGE
LTSCALE LINETYPESCALE TOR TORUS
PSLTSCALE PAPER SPACE LT SCALE EXT EXTRUDE
LA LAYER REV REVOLVE
LI LIST 3D 3D SURFACE
Z ZOOM
P PAN

37. Your LogoHere comes your footer  Page 37

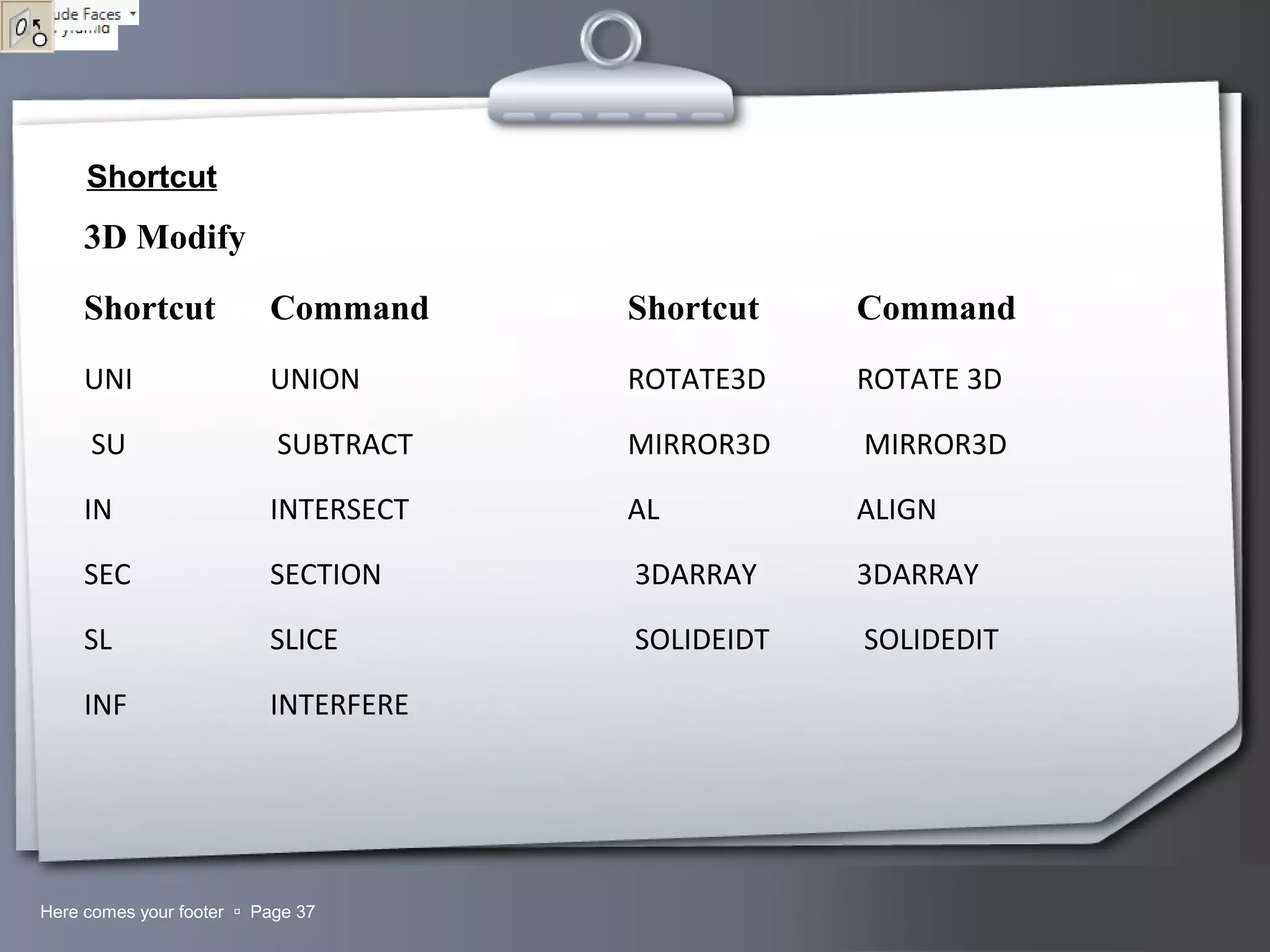

Shortcut
3D Modify
Shortcut Command Shortcut Command
UNI UNION ROTATE3D ROTATE 3D
SU SUBTRACT MIRROR3D MIRROR3D
IN INTERSECT AL ALIGN
SEC SECTION 3DARRAY 3DARRAY
SL SLICE SOLIDEIDT SOLIDEDIT
INF INTERFERE
