1. approach to cervical spine
dr himanshu soni

2. applied anatomy
• 7 vertebrae
• these segments are connected by an
extensive coplex of viscoelastic structures
to form a single flexible but constrained
column serving both neuroprotective and
structural function
• thorough understanding of the normal
relationshiops between these osseous,
discoligamentous and neural elements is
essential for safe and effective surgical
intervention

3. osseous elements
• C1
sulcus arteriosus
genu of vertebral artery - 1.5 to 2 cm from the midline on dorsal arch

4. • C2
– odoontoid process
– synovial joint
– apical ligament
– alar ligaments
– tr. AA ligament
– neck of the O. P.
• common site of fracture
– articular surfaces
– pars interartericularis
– sup and inf articulating surfaces - coronally offset
– forceful hyperextension, pars interartercularis breaks
• hangman's fracture
– foramen tranversarium
– C2 foramen is angulated 45 degrees laterally - VA is partially roofed by
artericular surface

9. • subaxial vertebra
– vertebral bodies
– uncovertebral joint - not a true joint
– transverse process
• foramen
• groove on superior surface - spinal
nerves
• tubercles - attachment of dorsal
musculature
– pedicles - connect the dorsal arch
angled medially between 38 to 48
degrees from saggital plane
– pedicles - range 6 to 6.5 mm
diameter
• thinnest along lateral wall, exposing
the risk of vertebral aftery damage
while screwig

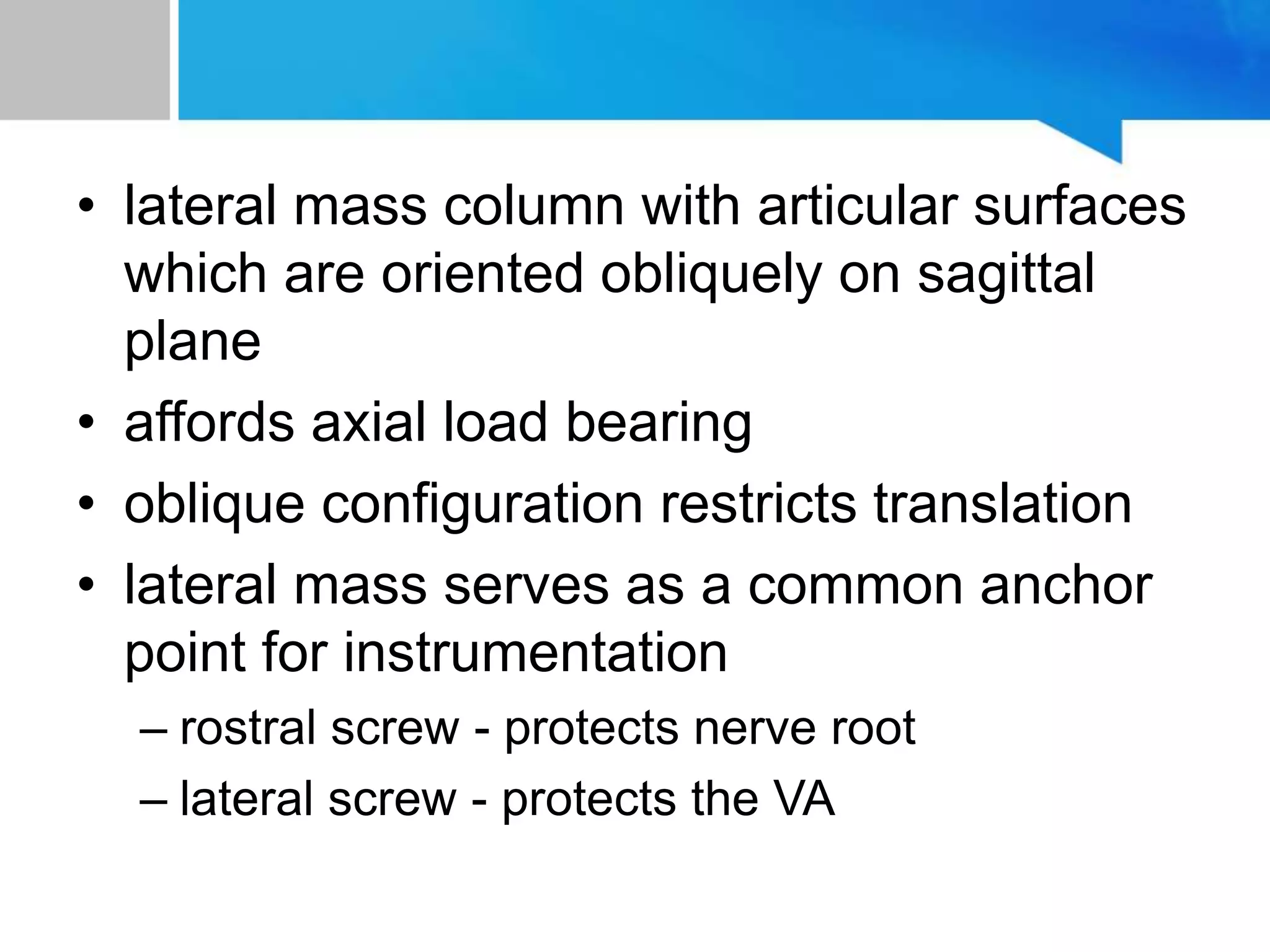

11. • lateral mass column with articular surfaces
which are oriented obliquely on sagittal
plane
• affords axial load bearing
• oblique configuration restricts translation
• lateral mass serves as a common anchor
point for instrumentation
– rostral screw - protects nerve root
– lateral screw - protects the VA

18. discoligamentous structures
• disc space
– inferior endplate is concave causing taller disc
space at midbody
– discs constitute 20% of height
– height increases consecutively from C3-4 to
C7-T1 and space depth increases
– approx 16mm at C3 to 20mm at C7
– nucleus pulposus - 88% water at birth
– 64% at seventh decade
– nutrition by diffusion
– immune - isolated avascular space
– Sharpey fibers

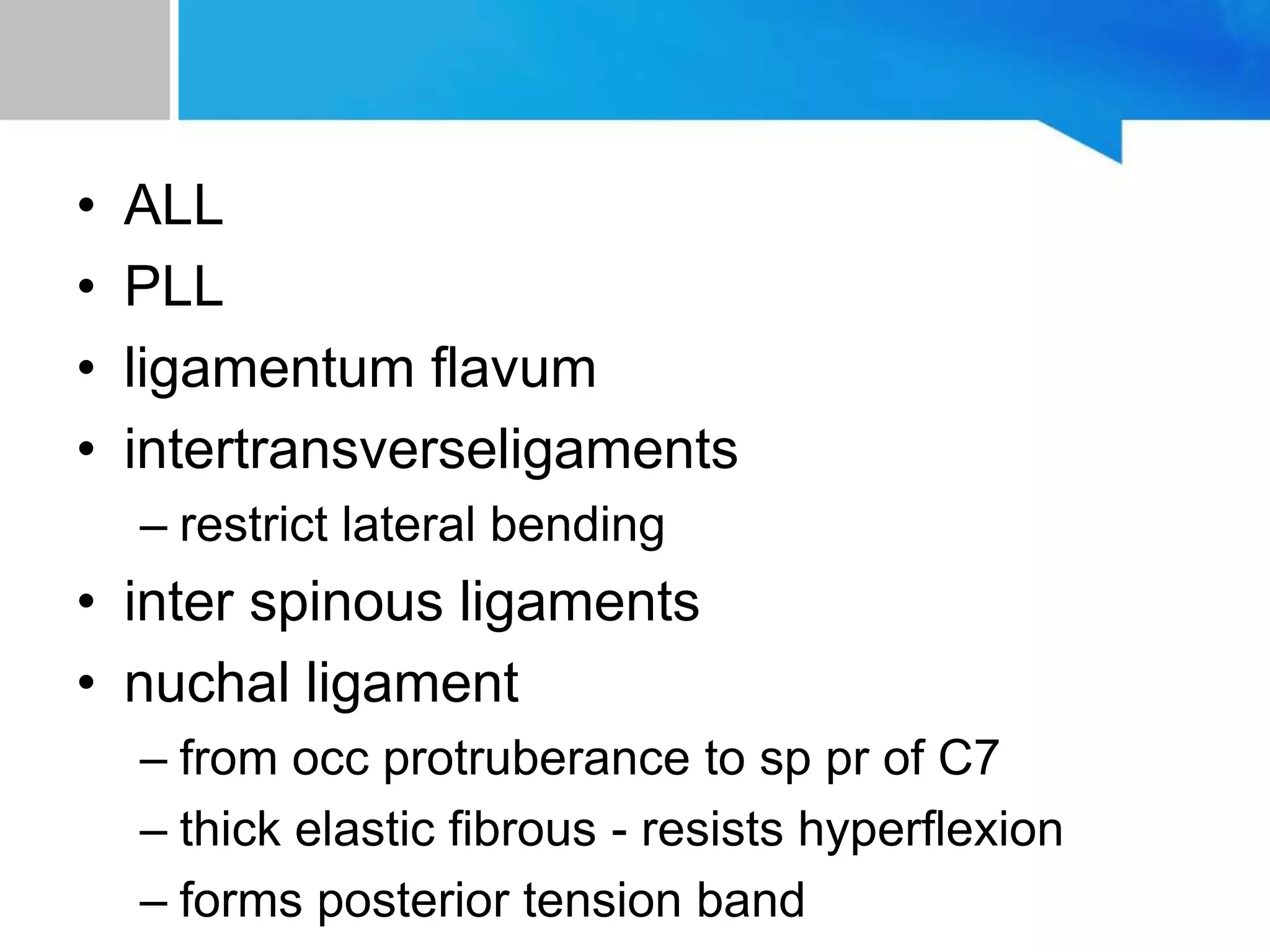

20. • ALL
• PLL
• ligamentum flavum
• intertransverseligaments
– restrict lateral bending
• inter spinous ligaments
• nuchal ligament
– from occ protruberance to sp pr of C7
– thick elastic fibrous - resists hyperflexion
– forms posterior tension band

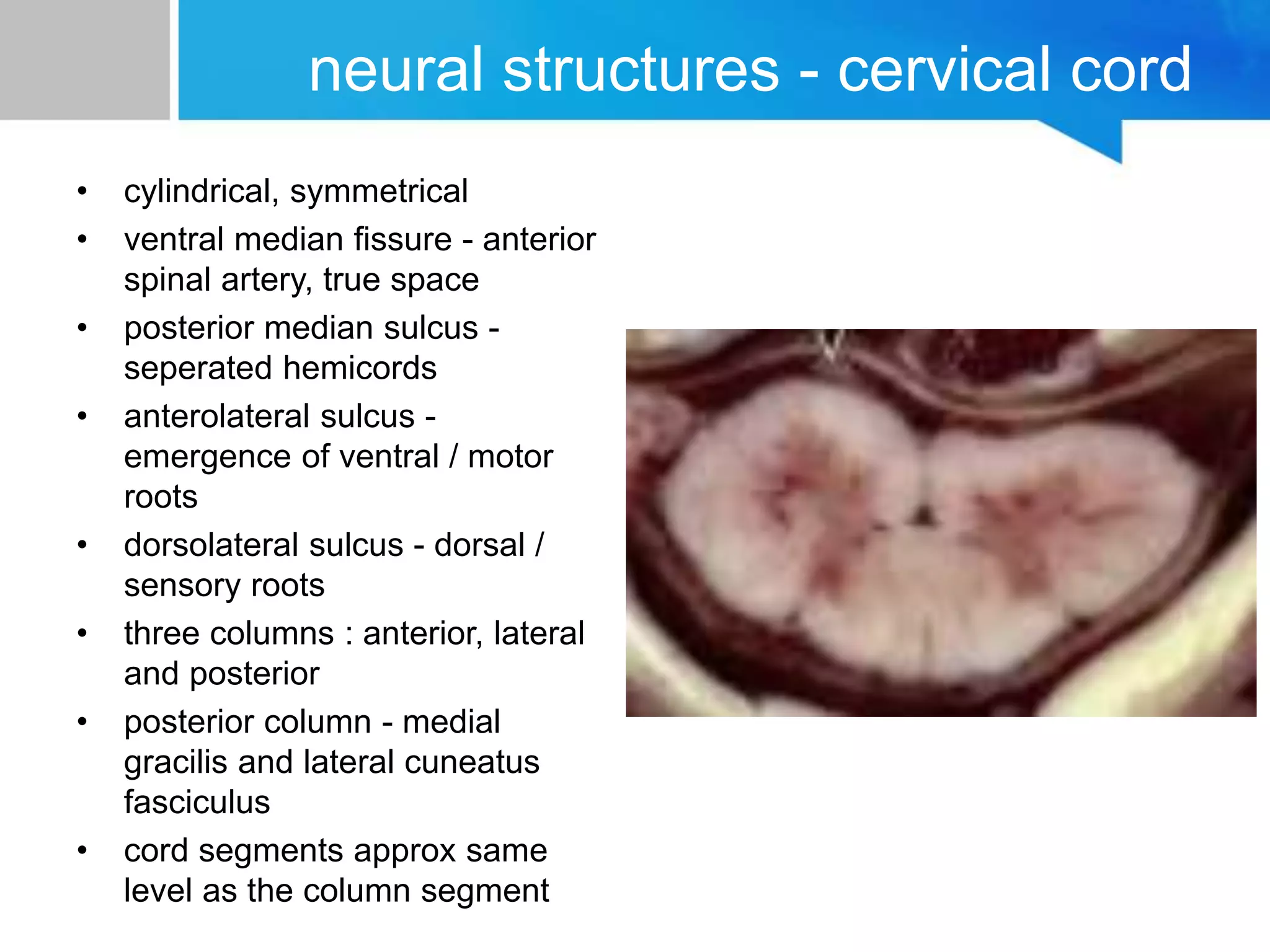

23. neural structures - cervical cord
• cylindrical, symmetrical
• ventral median fissure - anterior
spinal artery, true space
• posterior median sulcus -
seperated hemicords
• anterolateral sulcus -
emergence of ventral / motor
roots
• dorsolateral sulcus - dorsal /
sensory roots
• three columns : anterior, lateral
and posterior
• posterior column - medial
gracilis and lateral cuneatus
fasciculus
• cord segments approx same
level as the column segment

24. neural structures - spinal nerves
• anterolateral sulcus - 1-3 mm lateral to midline
– multiple rootlets
– allows intradural anastomosis causing atypical
distribution of radiculopathies
• dorsal rootlets
– proprioceptive large fibres run medially and
ventrally
– small pain fibres located laterally and dorsally
• both traverse the intervertebral foramen above
the same pedicle ( C5 through C4-5 foramen
above C5 pedicle )
• C1 has no DRG and hence no dermatome

25. intervertebral foramen
• dorsal roots more rostrally hence comprression affects
disproportionately
• exiting root - oblique with a ventrolateral trajectory
• at origin
– bounded ventromedially by the UV joint
– laterally, the nerve root and DRG abut the VA
– UV hypertrophy and lateral discs cause radiculopathy
– UV hypertrophy also distorts the VA causing secondary
compression on the exiting root or DRG
• dorsolateral wall
– superior and inf articular processes, hence facet hypertrophy
triggers radiculopathy
– basis of Spurling's maneuver
• the roots lie more caudally, abutting the subjacent pedicle

28. VASCULAR ANATOMY
• SPINAL CORD PERFUSION
• three principal arteries
– the anterior spinal artery
– paired posterio spinal arteries
• none of these vessels represent single
vessels that traverse teh entire length of
spinal cord
• they are anastomotic, interrupted,tudinal
vessels, drawing supply from numerous
segments.

29. • spinal cord perfusion is achieved by
– two indenpendent vasular systems :
• the centripetal ssytem
– runs along the perimeter of the spinal cord in
perimedullary plexus
– gives rise to arteries that penetrate radially into the cord
parenchyma
• the centrifugal system
– originates deep within the anterior median fissure from
branches of the ASA
– the centripetal system perfuses the white
matter
– centrifugal system perfuses the gray matter

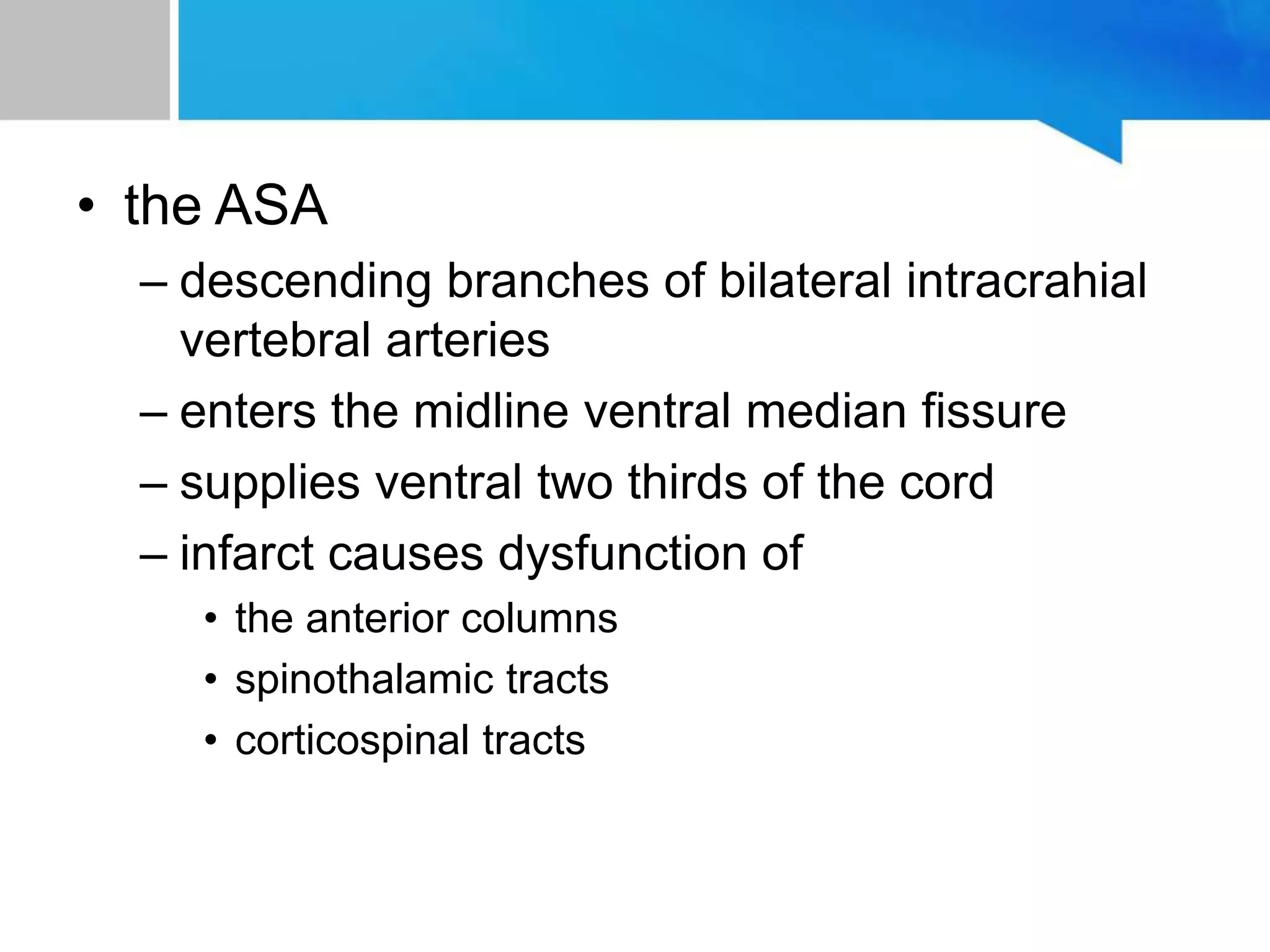

30. • the ASA
– descending branches of bilateral intracrahial
vertebral arteries
– enters the midline ventral median fissure
– supplies ventral two thirds of the cord
– infarct causes dysfunction of
• the anterior columns
• spinothalamic tracts
• corticospinal tracts

31. • the PSAs
– intracranial vertebral arterires or teh PICAs
– run in the dorsolateral sulci
– form a peripheral anastomotic plexus
– perfuses the dorsal one third.

32. • cervical segmental vessels
– paired, arise from the verterberaltery and
branches of the cubclavian arteries
– perfuse the spinal roots and DRG before
entering the intervertebral foramen
– 3 branches
• the dural - perfuses spinal dura and nerve
root sleeve
• radicular - dura and ventral and dorsal
nerve roots
• medullary - anastomoses with the ASA
within one or two levels of origin

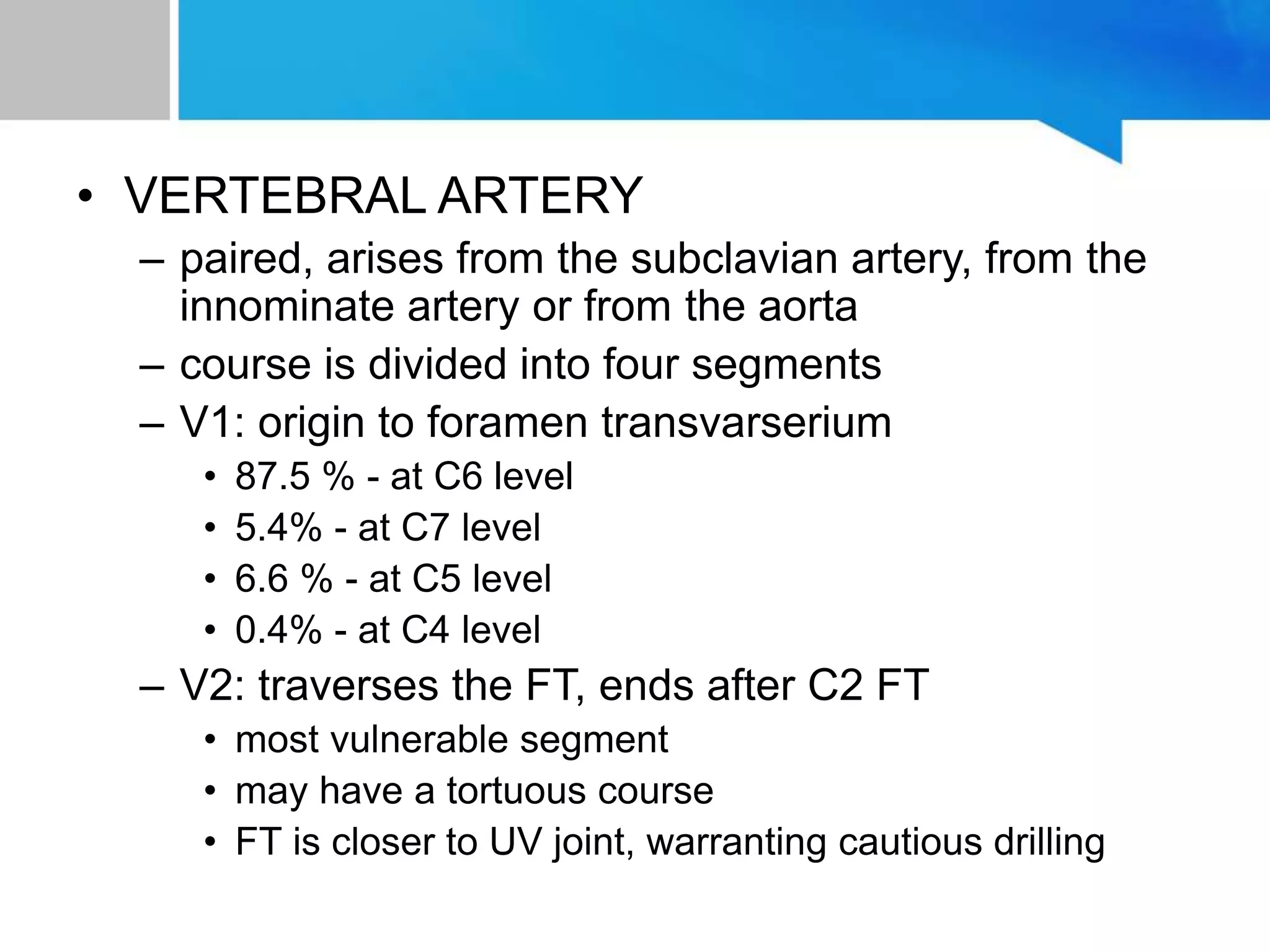

33. • VERTEBRAL ARTERY
– paired, arises from the subclavian artery, from the
innominate artery or from the aorta
– course is divided into four segments
– V1: origin to foramen transvarserium
• 87.5 % - at C6 level
• 5.4% - at C7 level
• 6.6 % - at C5 level
• 0.4% - at C4 level
– V2: traverses the FT, ends after C2 FT
• most vulnerable segment
• may have a tortuous course
• FT is closer to UV joint, warranting cautious drilling

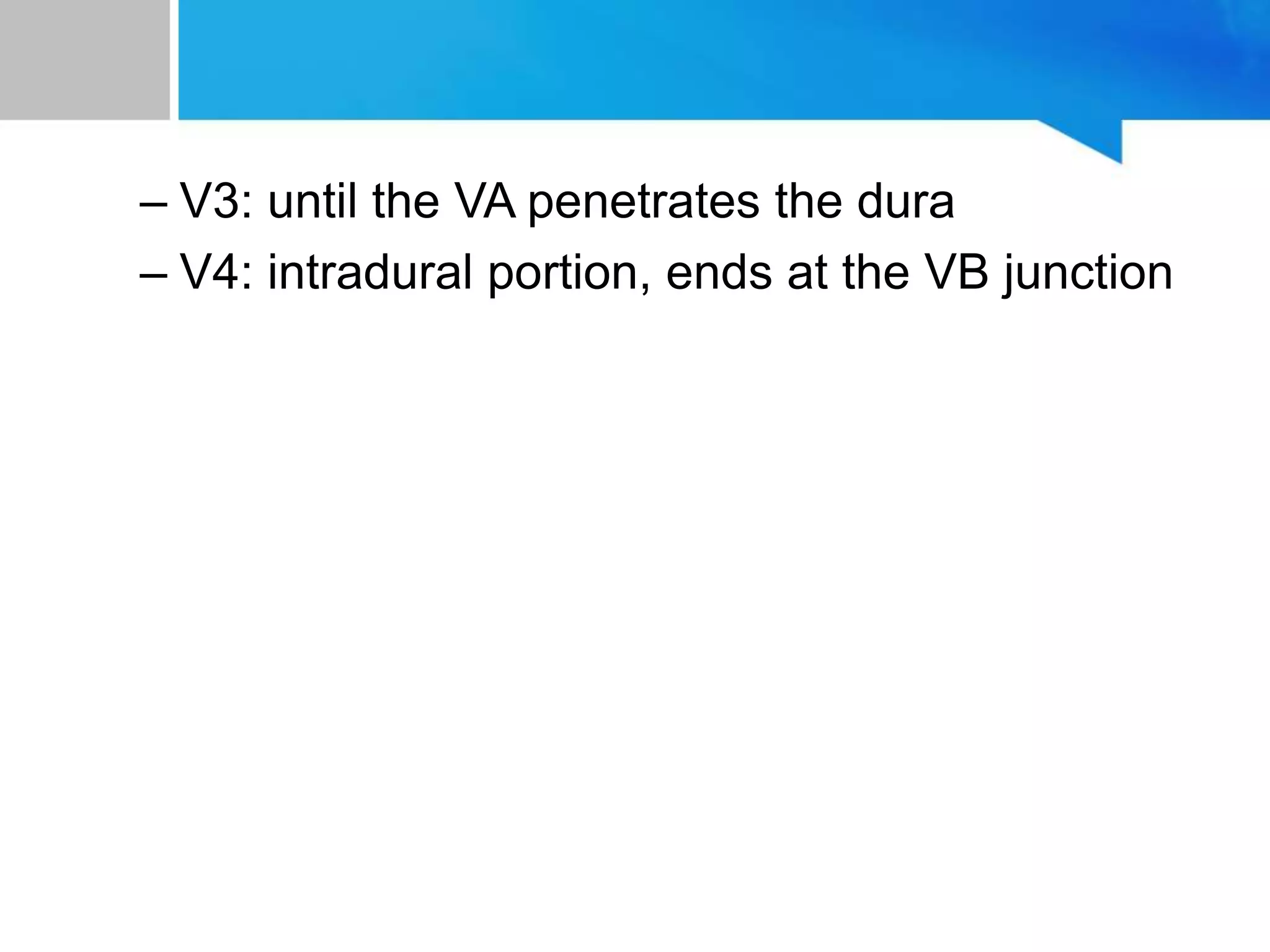

34. – V3: until the VA penetrates the dura
– V4: intradural portion, ends at the VB junction

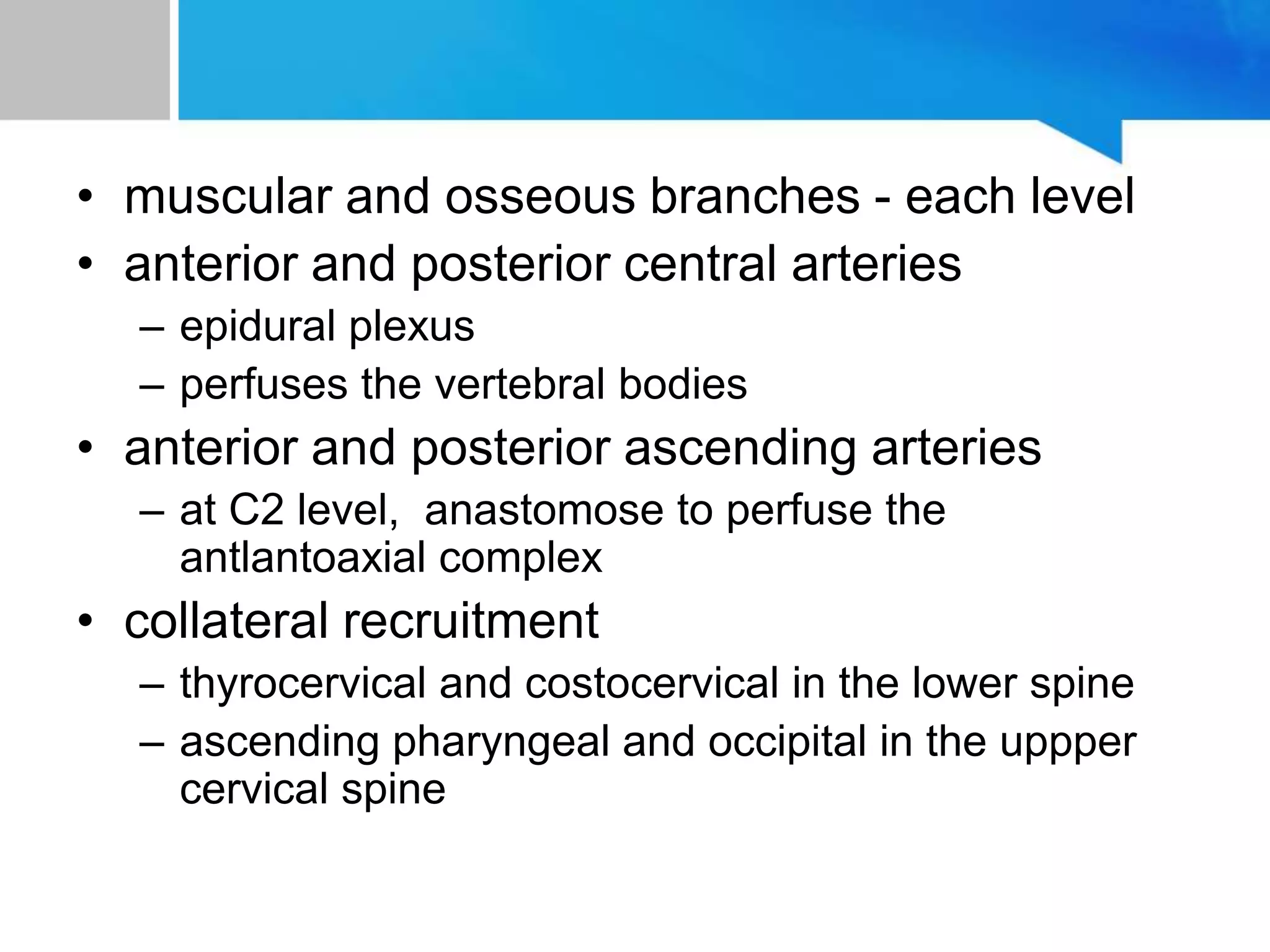

35. • muscular and osseous branches - each level
• anterior and posterior central arteries
– epidural plexus
– perfuses the vertebral bodies
• anterior and posterior ascending arteries
– at C2 level, anastomose to perfuse the
antlantoaxial complex
• collateral recruitment
– thyrocervical and costocervical in the lower spine
– ascending pharyngeal and occipital in the uppper
cervical spine

36. • odontoid process
– base - ascending branches of the VA
– tip - apical artery of the OP, branch from the
hypoglossal artery

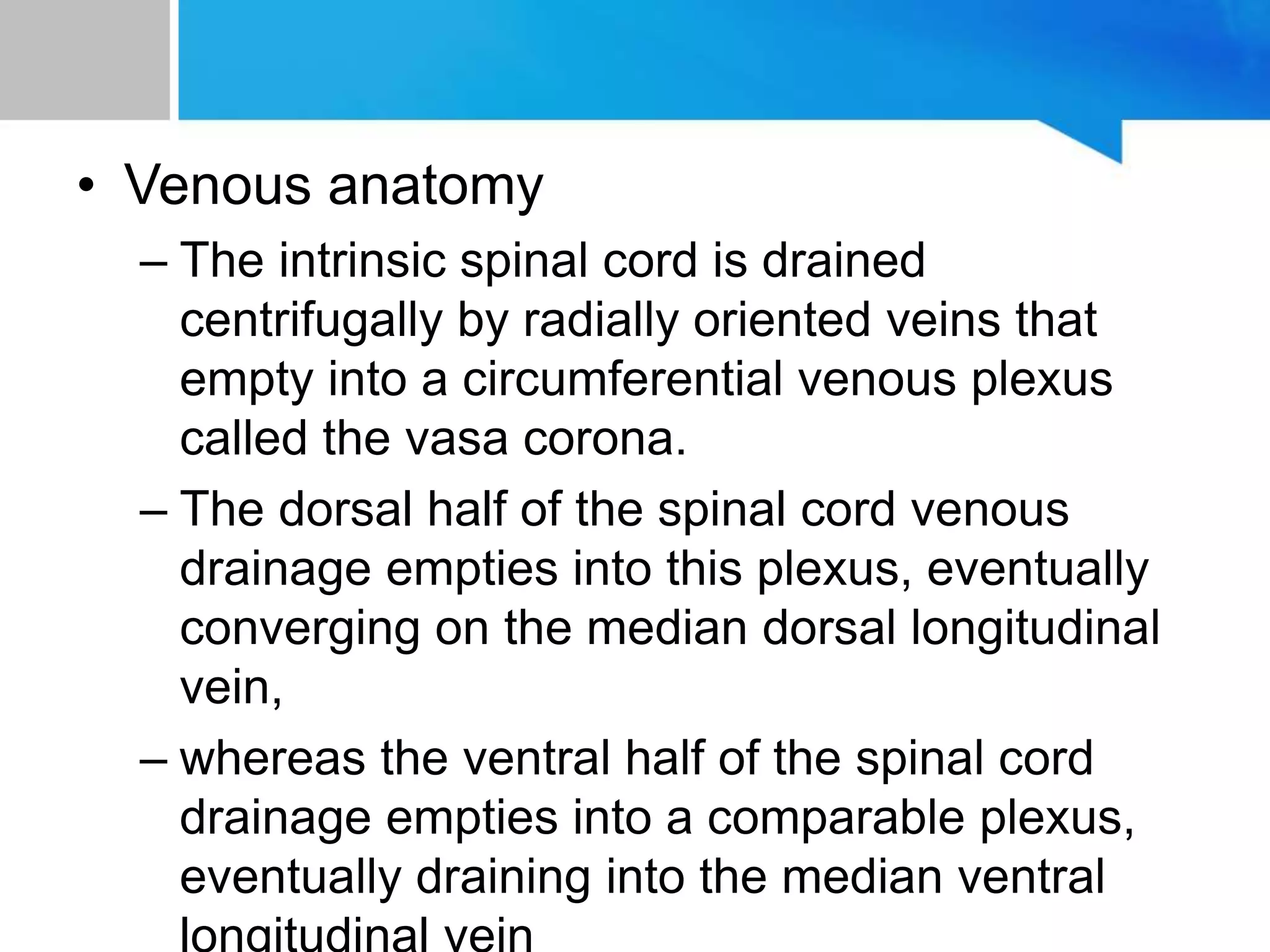

37. • Venous anatomy
– The intrinsic spinal cord is drained
centrifugally by radially oriented veins that
empty into a circumferential venous plexus
called the vasa corona.
– The dorsal half of the spinal cord venous
drainage empties into this plexus, eventually
converging on the median dorsal longitudinal
vein,
– whereas the ventral half of the spinal cord
drainage empties into a comparable plexus,
eventually draining into the median ventral
