Ant Colony Optimization: Routing
1. TEMPLATE: ADRIAN WILKE
Ant Colony Optimization
University of Paderborn
Bio-Inspired Networking Seminar
January 18, 2011
Adrian Wilke
2. Ant Colony Optimization
Talk focus: Routing
TEMPLATE: ADRIAN WILKE
Ant Colony Optimization - Adrian Wilke January 18, 2011 2

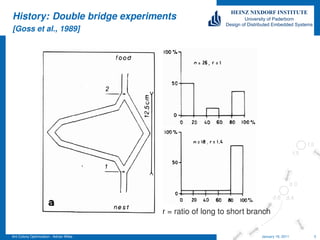

3. History: Double bridge experiments
[Goss et al., 1989]
TEMPLATE: ADRIAN WILKE
r = ratio of long to short branch
Ant Colony Optimization - Adrian Wilke January 18, 2011 3
4. History: Double bridge experiments
[Deneubourg et al., 1990]
TEMPLATE: ADRIAN WILKE
Analogy
Students on
a campus:
The more a
point is passed,
the more the
vegetation is
trampled.
Ant Colony Optimization - Adrian Wilke January 18, 2011 4
5. From real behaviour to artificial systems
TEMPLATE: ADRIAN WILKE
• Stigmergy: Indirect • Possible fields?
communication through Optimization problems,
modifications in environment routing
[Caro and Dorigo, 1998]
• Routing: Direct data flow
• Where to store pheromone from source to destination
in distributed systems? (Shortest path)
• Evaporation? (Pheromone • Congestion?
decreases over time) (Too much load)
Ant Colony Optimization - Adrian Wilke January 18, 2011 5
6. Introductory example
Positive feedback
TEMPLATE: ADRIAN WILKE
(a) (b) (c) (d)
Exploring Pheromone Additional Shortest
trail node path
Ant Colony Optimization - Adrian Wilke January 18, 2011 6
7. Ant System
[Dorigo et al., 1996]
TEMPLATE: ADRIAN WILKE
“A new general-purpose heuristic algorithm [...]
to solve different optimization problems”
Covered topics
• Path selection: Choice of the next node
• Updating pheromone
• Ant System algorithm
Ant Colony Optimization - Adrian Wilke January 18, 2011 7
8. Ant System: Transition probability
Path selection
TEMPLATE: ADRIAN WILKE
??
Ant Colony Optimization - Adrian Wilke January 18, 2011 8

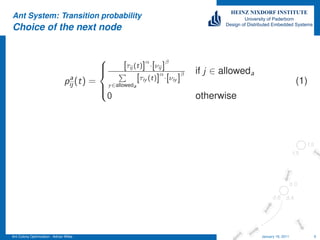

9. Ant System: Transition probability
Choice of the next node
TEMPLATE: ADRIAN WILKE
α β
[τij (t)] ·[νij ]
α β if j ∈ alloweda
a
pij (t) = [τiy (t)] ·[νiy ] (1)
y ∈alloweda
0 otherwise
Ant Colony Optimization - Adrian Wilke January 18, 2011 9
10. Ant System: Transition probability
Choice of the next node
TEMPLATE: ADRIAN WILKE
α β
[τij (t)] ·[νij ]
α β if j ∈ alloweda
a
pij (t) = [τiy (t)] ·[νiy ] (1)
y ∈alloweda
0 otherwise
τij (t) is the intensity of trail on edge (i, j) at time t.
Ant Colony Optimization - Adrian Wilke January 18, 2011 9
11. Ant System: Transition probability
Choice of the next node
TEMPLATE: ADRIAN WILKE
α β
[τij (t)] ·[νij ]
α β if j ∈ alloweda
a
pij (t) = [τiy (t)] ·[νiy ] (1)
y ∈alloweda
0 otherwise
τij (t) is the intensity of trail on edge (i, j) at time t.
dij is the euclidean distance i − j between two nodes i and j.
1
νij = dij
is called the visibility. Smaller distance → higher visibility.
Ant Colony Optimization - Adrian Wilke January 18, 2011 9
12. Ant System: Transition probability
Choice of the next node
TEMPLATE: ADRIAN WILKE
α β
[τij (t)] ·[νij ]
α β if j ∈ alloweda
a
pij (t) = [τiy (t)] ·[νiy ] (1)
y ∈alloweda
0 otherwise
τij (t) is the intensity of trail on edge (i, j) at time t.
dij is the euclidean distance i − j between two nodes i and j.
1
νij = dij
is called the visibility. Smaller distance → higher visibility.
α is the weight of the trail (Simulation: α = 1).
β is the weight of the visibility (Simulation: β = 5).
Ant Colony Optimization - Adrian Wilke January 18, 2011 9
13. Ant System: Transition probability
Choice of the next node
TEMPLATE: ADRIAN WILKE
α β
[τij (t)] ·[νij ]
α β if j ∈ alloweda
a
pij (t) = [τiy (t)] ·[νiy ] (1)
y ∈alloweda
0 otherwise
τij (t) is the intensity of trail on edge (i, j) at time t.
dij is the euclidean distance i − j between two nodes i and j.
1
νij = dij
is called the visibility. Smaller distance → higher visibility.
α is the weight of the trail (Simulation: α = 1).
β is the weight of the visibility (Simulation: β = 5).
a
Denominator of fraction ensures that pij (t) = 1.
j∈N
Ant Colony Optimization - Adrian Wilke January 18, 2011 9
14. Ant System: Transition probability
Choice of the next node
TEMPLATE: ADRIAN WILKE
α β
[τij (t)] ·[νij ]
α β if j ∈ alloweda
a
pij (t) = [τiy (t)] ·[νiy ] (1)
y ∈alloweda
0 otherwise
τij (t) is the intensity of trail on edge (i, j) at time t.
dij is the euclidean distance i − j between two nodes i and j.
1
νij = dij
is called the visibility. Smaller distance → higher visibility.
α is the weight of the trail (Simulation: α = 1).
β is the weight of the visibility (Simulation: β = 5).
a
Denominator of fraction ensures that pij (t) = 1.
j∈N
tabua is the tabu list of nodes, which were alredy visited by the ath ant.
alloweda N − tabua is the list of nodes, which were not visited by the ath ant.
Ant Colony Optimization - Adrian Wilke January 18, 2011 9
15. Ant System: Transition probability
Choice of the next node
TEMPLATE: ADRIAN WILKE
α β
[τij (t)] ·[νij ]
... = α β
α=1
[τiy (t)] ·[νiy ]
y ∈alloweda
β=5
Greedy:
??
Ant Colony Optimization - Adrian Wilke January 18, 2011 10
16. Ant System: Transition probability
Choice of the next node
TEMPLATE: ADRIAN WILKE
α β
[τij (t)] ·[νij ]
... = α β
α=1
[τiy (t)] ·[νiy ]
y ∈alloweda
β=5
Greedy:
??
(Image source: [Dorigo et al., 1996])
Ant Colony Optimization - Adrian Wilke January 18, 2011 10
17. Ant System
Updating pheromone
TEMPLATE: ADRIAN WILKE
S S
?
? S
D D D
Ant Colony Optimization - Adrian Wilke January 18, 2011 11
18. Ant System
Updating pheromone
TEMPLATE: ADRIAN WILKE
Q
a La if ath ant uses edge (i, j) in its tour
∆τij = (2)
0 otherwise
Q is a constant, “its influence was found to be negligible.”
La is the length of the tour of the ath ant.
Ant Colony Optimization - Adrian Wilke January 18, 2011 12
19. Ant System
Updating pheromone
TEMPLATE: ADRIAN WILKE
Q
a La if ath ant uses edge (i, j) in its tour
∆τij = (2)
0 otherwise
Q is a constant, “its influence was found to be negligible.”
La is the length of the tour of the ath ant.
m
a
∆τij = ∆τij (3)
a=1
Ant Colony Optimization - Adrian Wilke January 18, 2011 12
20. Ant System
Updating pheromone
TEMPLATE: ADRIAN WILKE
Q
a La if ath ant uses edge (i, j) in its tour
∆τij = (2)
0 otherwise
Q is a constant, “its influence was found to be negligible.”
La is the length of the tour of the ath ant.
m
a
∆τij = ∆τij (3)
a=1
τij (t + n) = ρ · τij (t) + ∆τij (4)
ρ ρ < 1 is a constant , which represents the evaporation of trail.
Ant Colony Optimization - Adrian Wilke January 18, 2011 12
21. Ant System
Algorithm: All together
TEMPLATE: ADRIAN WILKE
Require: NCMAX
NC ← 0 and t ← 0 and s ← 1
∆τij ← 0
τij (t) ← c
shortestTour ← ∞
for all ants a = 1 to m do
tabua (s) = choose start node
end for
Ant Colony Optimization - Adrian Wilke January 18, 2011 13
22. Ant System
Algorithm: All together
TEMPLATE: ADRIAN WILKE
Require: NCMAX
NC ← 0 and t ← 0 and s ← 1
∆τij ← 0
τij (t) ← c
shortestTour ← ∞
for all ants a = 1 to m do
tabua (s) = choose start node
end for
repeat { // Each cycle
repeat
s ←s +1
for all ants a = 1 to m do
a
move a to next node j by pij (t)
insert node j in tabua (s)
end for
until s = n
Ant Colony Optimization - Adrian Wilke January 18, 2011 13
23. Ant System
Algorithm: All together
TEMPLATE: ADRIAN WILKE
Require: NCMAX for all ants a = 1 to m do
NC ← 0 and t ← 0 and s ← 1 compute length La of tabua
∆τij ← 0 shortestTour ← update(tabua , La )
τij (t) ← c end for
shortestTour ← ∞
for all edges (i, j) and all ants a = 1 to m do
for all ants a = 1 to m do compute ∆τij a
tabua (s) = choose start node compute ∆τij
end for end for
repeat { // Each cycle for all edges (i, j) do
compute τij (t + n)
repeat ∆τij ← 0
s ←s +1 end for
for all ants a = 1 to m do
a
move a to next node j by pij (t)
insert node j in tabua (s)
end for
until s = n
Ant Colony Optimization - Adrian Wilke January 18, 2011 13
24. Ant System
Algorithm: All together
TEMPLATE: ADRIAN WILKE
Require: NCMAX for all ants a = 1 to m do
NC ← 0 and t ← 0 and s ← 1 compute length La of tabua
∆τij ← 0 shortestTour ← update(tabua , La )
τij (t) ← c end for
shortestTour ← ∞
for all edges (i, j) and all ants a = 1 to m do
for all ants a = 1 to m do compute ∆τij a
tabua (s) = choose start node compute ∆τij
end for end for
repeat { // Each cycle for all edges (i, j) do
compute τij (t + n)
repeat ∆τij ← 0
s ←s +1 end for
for all ants a = 1 to m do
a
move a to next node j by pij (t) NC ← NC + 1 and t ← t + n
insert node j in tabua (s) move a to tabua (1) and clear tabua (2 . . . n)
end for
until s = n } until NC < NCMAX and no stagnation
return shortestTour
Ant Colony Optimization - Adrian Wilke January 18, 2011 13
25. Ant System
Some results
TEMPLATE: ADRIAN WILKE
• Oliver30 problem
(30 nodes TSP)
• Columns: basic
heuristic and
improvements
• Entries: Solutions
• Ant System outperformed 2-opt
But: Longer computational time
• Best-known solution in less than 400 cycles,
100 cycles for values under 430
• As effective or better than some general-purpose heuristics
Ant Colony Optimization - Adrian Wilke January 18, 2011 14
26. From Ant System to AntNet
TEMPLATE: ADRIAN WILKE
Ant System AntNet
• Focus: General-purpose • Focus: Internet Protocol
heuristic with irregular topology
• Global data structure • Routing table
Ant Colony Optimization - Adrian Wilke January 18, 2011 15
27. AntNet: Data structures
[Caro and Dorigo, 1998]
TEMPLATE: ADRIAN WILKE
Routing table Traffic model Queues
destinations destinations low priority
mean
neighbours
variance - data packets
time - forward ants
high priority
probabilistic
traffic distribution
desirability backward ants
node identifiers s k x
elapsed time 0 5 8 x
Ant Colony Optimization - Adrian Wilke January 18, 2011 16
28. AntNet
Algorithm in short
TEMPLATE: ADRIAN WILKE
• At time intervals: Forward ant is launched to a destination
Choice of destination: Data flow to possible targets
• Next node on a tour is chosen by
the routing table entries and queue lengths of neighbours
• At nodes on path, forward ant memorizes
the current node ID and the time from source node
• At a destination the forward ant is destroyed and a
backward ant is launched
• Backward ants use the known paths back and
update the routing table entries and
the traffic model on path nodes
Ant Colony Optimization - Adrian Wilke January 18, 2011 17
29. From AntNet to Mobile ad hoc networks
TEMPLATE: ADRIAN WILKE
AntNet
• Introduced: Routing tables
• Approach works for IP
• What about dynamic networks
with leaving nodes
Ant Colony Optimization - Adrian Wilke January 18, 2011 18
30. From AntNet to Mobile ad hoc networks
TEMPLATE: ADRIAN WILKE
AntNet MANETs
• Introduced: Routing tables • Mobile ad hoc networks
• Approach works for IP • Restriction:
Limited bandwidth
• No central component,
no fixed infractructure
• Dynamic structure:
Nodes are joining
and leaving
→ Paths can
become useless
• What about dynamic networks
with leaving nodes
Ant Colony Optimization - Adrian Wilke January 18, 2011 18
31. AntHocNet
[Di Caro et al., 2005]
TEMPLATE: ADRIAN WILKE
An approach for MANETs
• Hybrid approach:
• Reactive path setup phase
• Proactive maintenance
• Also of interest:
• Pheromone updates
Ant Colony Optimization - Adrian Wilke January 18, 2011 19
32. AntHocNet
Reactive path setup
TEMPLATE: ADRIAN WILKE
• Node s wants to reach d • Same generation: only best
• Unicast, if pheromone • First hop different:
available. Else: broadcast Acceptance factor 0.9
Ant Colony Optimization - Adrian Wilke January 18, 2011 20
33. AntHocNet
Pheromone updates
TEMPLATE: ADRIAN WILKE
Pheromone calculated by backward ants
using a known Path P
Mathematical Informal
ˆi ˆi i
Tmac = α · Tmac + (1 − α) · tmac Time to send a packet form a
node i (Running average)
ˆi i ˆi
Ti+1 = (Qmac + 1) · Tmac Time for packets in queue (+1)
ˆ n−1 ˆ i
TP = i=1 Ti+1 Time for whole path
ˆ
T i +h·T
i
τd = d 2 hop Consider unloaded conditions
i i
Tnd = γ · Tnd + i
(1 − γ) · τd Final routing table entry
(Running average)
Ant Colony Optimization - Adrian Wilke January 18, 2011 21
34. AntHocNet
Proactive probing & exploration
TEMPLATE: ADRIAN WILKE
• No broadcast:
• Probe of path
• Broadcast:
• Improve paths
• Path variations
Ant Colony Optimization - Adrian Wilke January 18, 2011 22
35. AntHocNet
Proactive maintenance
TEMPLATE: ADRIAN WILKE
HelloMessages Link failures
• Every 1 sec: HelloMessage • Neighbors which lost best
(Just senders address) path: Also broadcast
• Received HelloMessage LinkFailureNotification
→ Add in routing table Failed transmission
Link failures • Broadcast PathRepairAnt
• 2 HelloMessages missing: (like reactive forward ant)
• Remove from routing table • But: Max. 2 broadcasts
• Broadcast
LinkFailureNotification
• LinkFailureNotification: List
of destinations to which best
path lost & new best delay
Ant Colony Optimization - Adrian Wilke January 18, 2011 23
36. AntHocNet
Proactive maintenance
TEMPLATE: ADRIAN WILKE
HelloMessages Link failures
• Every 1 sec: HelloMessage • Neighbors which lost best
(Just senders address) path: Also broadcast
• Received HelloMessage LinkFailureNotification
→ Add in routing table Failed transmission
Link failures • Broadcast PathRepairAnt
• 2 HelloMessages missing: (like reactive forward ant)
• Remove from routing table • But: Max. 2 broadcasts
• Broadcast
LinkFailureNotification Task for you:
• LinkFailureNotification: List • Count the broadcasts
of destinations to which best on this page!
path lost & new best delay
Ant Colony Optimization - Adrian Wilke January 18, 2011 23
37. From AntHocNet to HOPNET
TEMPLATE: ADRIAN WILKE
AntHocNet HOPNET
• Reactive path setup phase • Hybrid approach
• Proactive maintenance • Avoid overhead and
• Results: Better than AODVa achieve scalability
except for overhead • Idea: Use Zones
• Inside zones:
Proactively maintained
• Between zones:
Reactive part, on demand
a
AODV: Ad-hoc on-demand distance vector routing,
“reference algorithm in area”
Ant Colony Optimization - Adrian Wilke January 18, 2011 24
38. HOPNET: Routing tables
[Wang et al., 2009]
TEMPLATE: ADRIAN WILKE
Intrazone routing table Interzone routing table
• Inside zones • Between zones
• Proactively maintained • Reactive part, on demand
• Size: Nodes in zone × • Used, if destination not in
Node degree (neighbours) Intrazone routing table
Pheromone Destination
Visited times Sequence number
Hops Between node and Path
nodes in zone Expire
Sequence number
Incremented each time
f./b.-ants are generated
Ant Colony Optimization - Adrian Wilke January 18, 2011 25
39. HOPNET example
TEMPLATE: ADRIAN WILKE
S wants to send data to T.
(Reworked example from paper)
Ant Colony Optimization - Adrian Wilke January 18, 2011 26
40. HOPNET example
TEMPLATE: ADRIAN WILKE
T not in zone.
S sends external forward ant to pheripheral nodes.
Ant Colony Optimization - Adrian Wilke January 18, 2011 27
41. HOPNET example
TEMPLATE: ADRIAN WILKE
D sends external forward ant to K and M,
the other ants are destroyed.
Ant Colony Optimization - Adrian Wilke January 18, 2011 28
42. HOPNET example
TEMPLATE: ADRIAN WILKE
M sends external forward ant to pheripheral nodes,
except of S and A.
Ant Colony Optimization - Adrian Wilke January 18, 2011 29
43. HOPNET example
TEMPLATE: ADRIAN WILKE
T is in intrazone routing tables.
Two paths were found.
A backward ant is launched.
Ant Colony Optimization - Adrian Wilke January 18, 2011 30
44. HOPNET: Pheromone updates I
Source update algorithm
TEMPLATE: ADRIAN WILKE
Internal forward ants update pheromone during movement
vs
Vs Vi Vj vi
vl
ϕ(vi , vs ) = ϕ(vi , vs ) +
T (vs , vi ) + w (vi , vj )
constant
Pheromone(neighbor , source)+ =
time(vs , vi ) + timeOnLink
ϕ(vl , vs ) = ϕ(vl , vs ) · (1 − E ), ∀ l = i
Ant Colony Optimization - Adrian Wilke January 18, 2011 31
45. HOPNET: Pheromone updates II
Updates by backward ants
TEMPLATE: ADRIAN WILKE
Backward ants update pheromone
vD
vb VS Vk Vb VD
vl
ϕ(vb , vD ) = ϕ(vb , vD ) +
T (vS , vD ) − T (vS , vk )
ϕ(vl , vD ) = ϕ(vl , vD ) · (1 − E ), ∀ l = b
Ant Colony Optimization - Adrian Wilke January 18, 2011 32
46. HOPNET
Results: Overhead and Scalability
TEMPLATE: ADRIAN WILKE
Ant Colony Optimization - Adrian Wilke January 18, 2011 33
47. Ant Colony Optimization
Summary
TEMPLATE: ADRIAN WILKE
Overview
• History: Double bridge experiments
• Ant System: First approach
• AntNet: Wired IP networks
• AntHocNet: First MANET approach
• HOPNET: MANET with zones
To take away
• Stigmergy: Indirect communication through
modifications in environment
• Routing table for pheromone
• Proactive and reactive parts
Ant Colony Optimization - Adrian Wilke January 18, 2011 34
48. Thank you for your attention
TEMPLATE: ADRIAN WILKE
1
1
Source: http://xkcd.com/638/, Found: http://www.idsia.ch/˜gianni/
Ant Colony Optimization - Adrian Wilke January 18, 2011 35
49. References I
TEMPLATE: ADRIAN WILKE
[Bonabeau et al., 1999] Bonabeau, E., Dorigo, M., and Theraulz, G. (1999).
Swarm Intelligence.
Oxford University Prress.
[Caro and Dorigo, 1998] Caro, G. D. and Dorigo, M. (1998).
AntNet: Distributed Stigmergetic Control for Communications Networks.
Journal of Artificial Intelligence Research, 9:317–365.
[Deneubourg et al., 1990] Deneubourg, J.-L., Aron, S., Goss, S., and Pasteels, J. M. (1990).
The Self-Organizing Exploratory Pattern of the Argentine Ant.
Journal of lnsect Behavior, 3(2).
[Di Caro et al., 2005] Di Caro, G., Ducatelle, F., and Gambardella, L. M. (2005).
AntHocNet: an adaptive nature-inspired algorithm for routing in mobile ad hoc networks.
European Transactions on Telecommunications, 16(5):443–455.
[Dorigo et al., 1996] Dorigo, M., Maniezzo, V., and Colorni, A. (1996).
Ant system: optimization by a colony of cooperating agents.
Systems, Man, and Cybernetics, Part B: Cybernetics, IEEE Transactions on, 26(1):29–41.
[Dorigo and Stutzle, 2004] Dorigo, M. and Stutzle, T. (2004).
¨ ¨
Ant Colony Optimization.
MIT press.
Ant Colony Optimization - Adrian Wilke January 18, 2011 36
50. References II
TEMPLATE: ADRIAN WILKE
[Dressler and Akan, 2010] Dressler, F. and Akan, O. B. (2010).
A survey on bio-inspired networking.
Computer Networks, 54(6):881–900.
[Goss et al., 1989] Goss, S., Aron, S., Deneubourg, J. L., and Pasteels, J. M. (1989).
Self-organized Shortcuts in the Argentine Ant.
Naturwissenschaften, 76:579–581.
[Wang et al., 2009] Wang, J., Osagie, E., Thulasiraman, P., and Thulasiram, R. K. (2009).
HOPNET: A hybrid ant colony optimization routing algorithm for mobile ad hoc network.
Ad Hoc Networks, 7(4):690–705.
Ant Colony Optimization - Adrian Wilke January 18, 2011 37
