Simplifying the Network with Ansible
&
Cumulus® Linux®
Sep 3rd 2014

2. Introduction
Michael DeHaan
CTO, Ansible Inc.
Meena Sankaran
Ecosystem & Solutions
Cumulus Networks

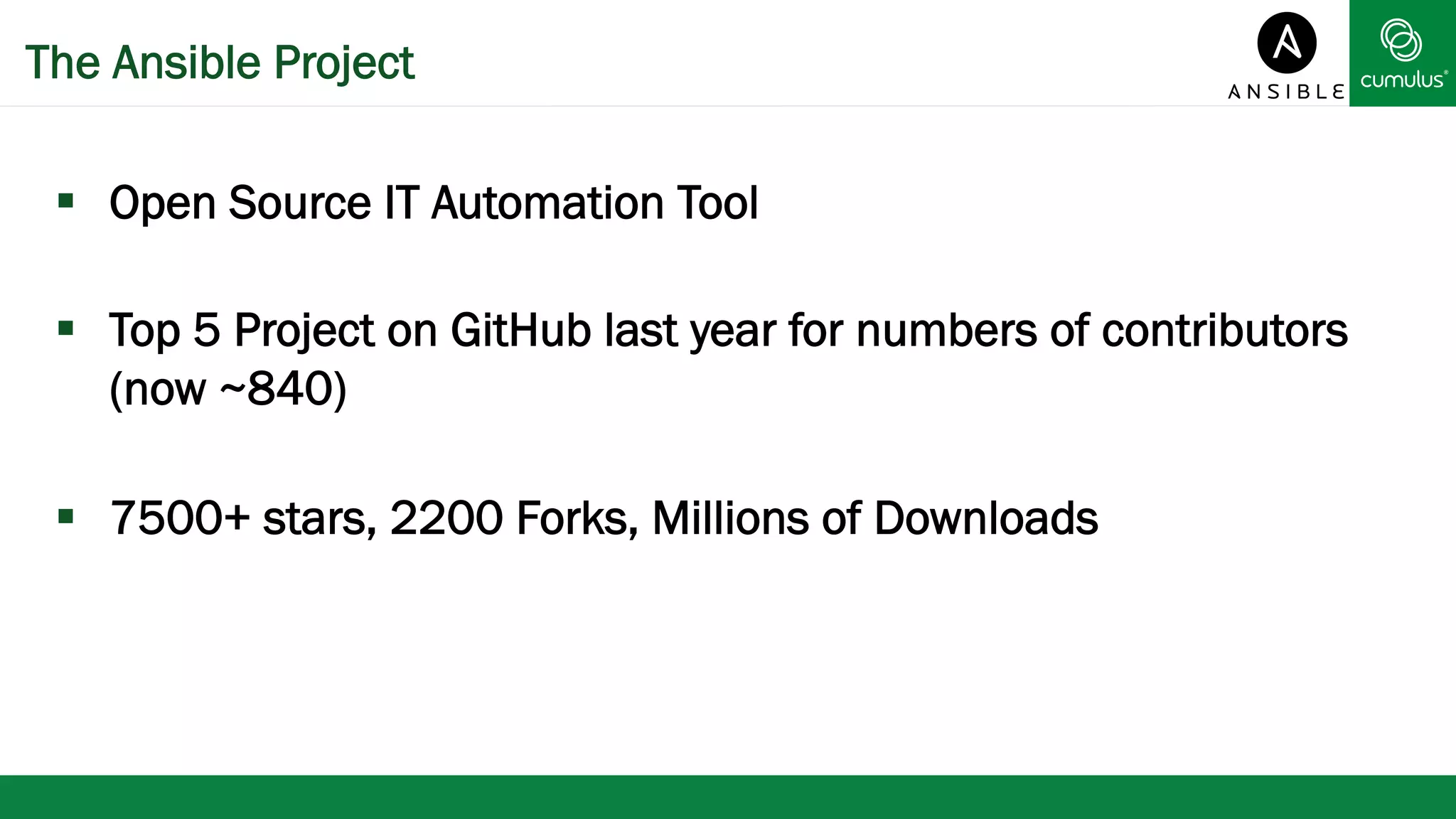

3. The Ansible Project
§ Open Source IT Automation Tool
§ Top 5 Project on GitHub last year for numbers of contributors
(now ~840)
§ 7500+ stars, 2200 Forks, Millions of Downloads

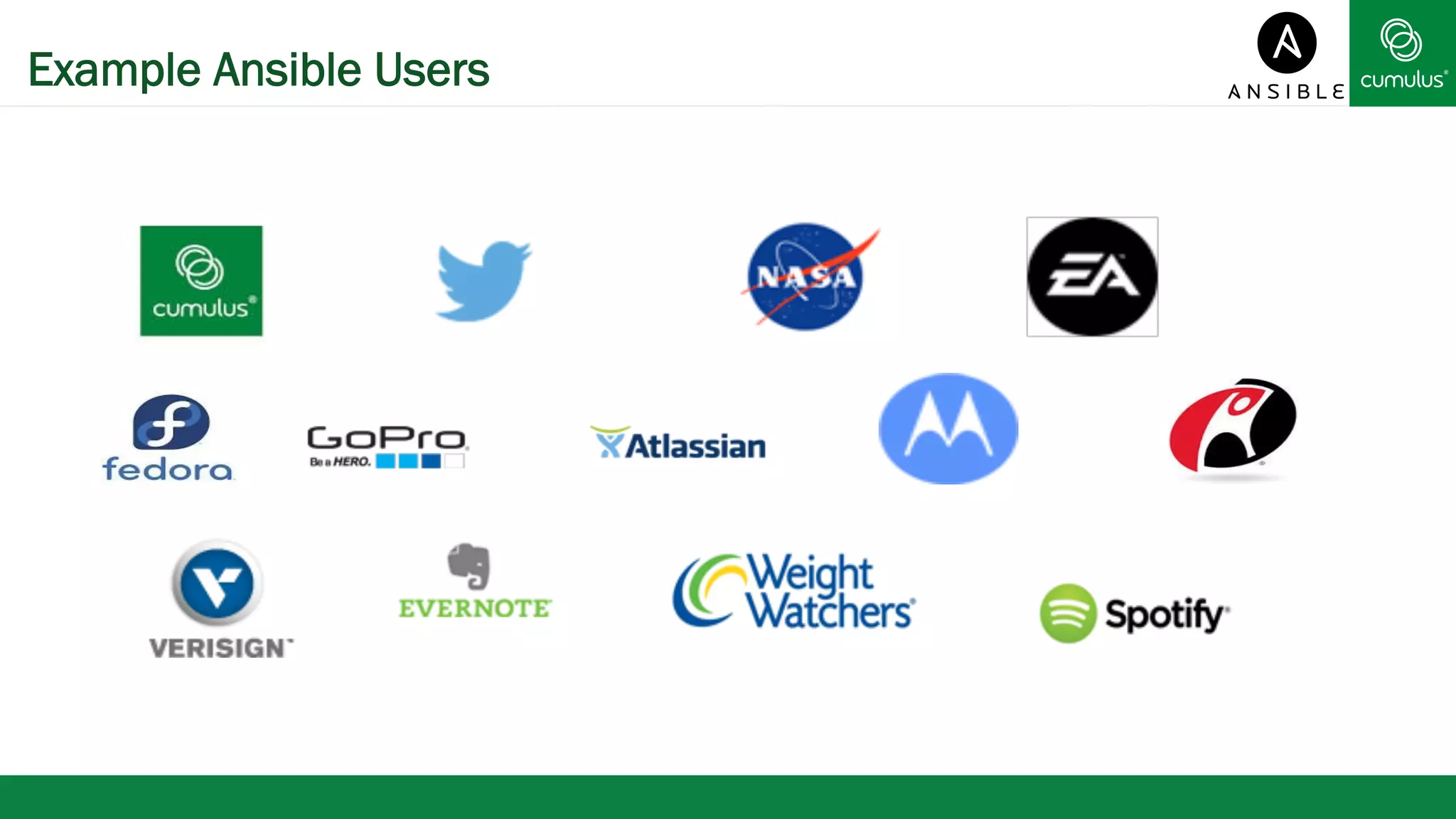

4. Example Ansible Users

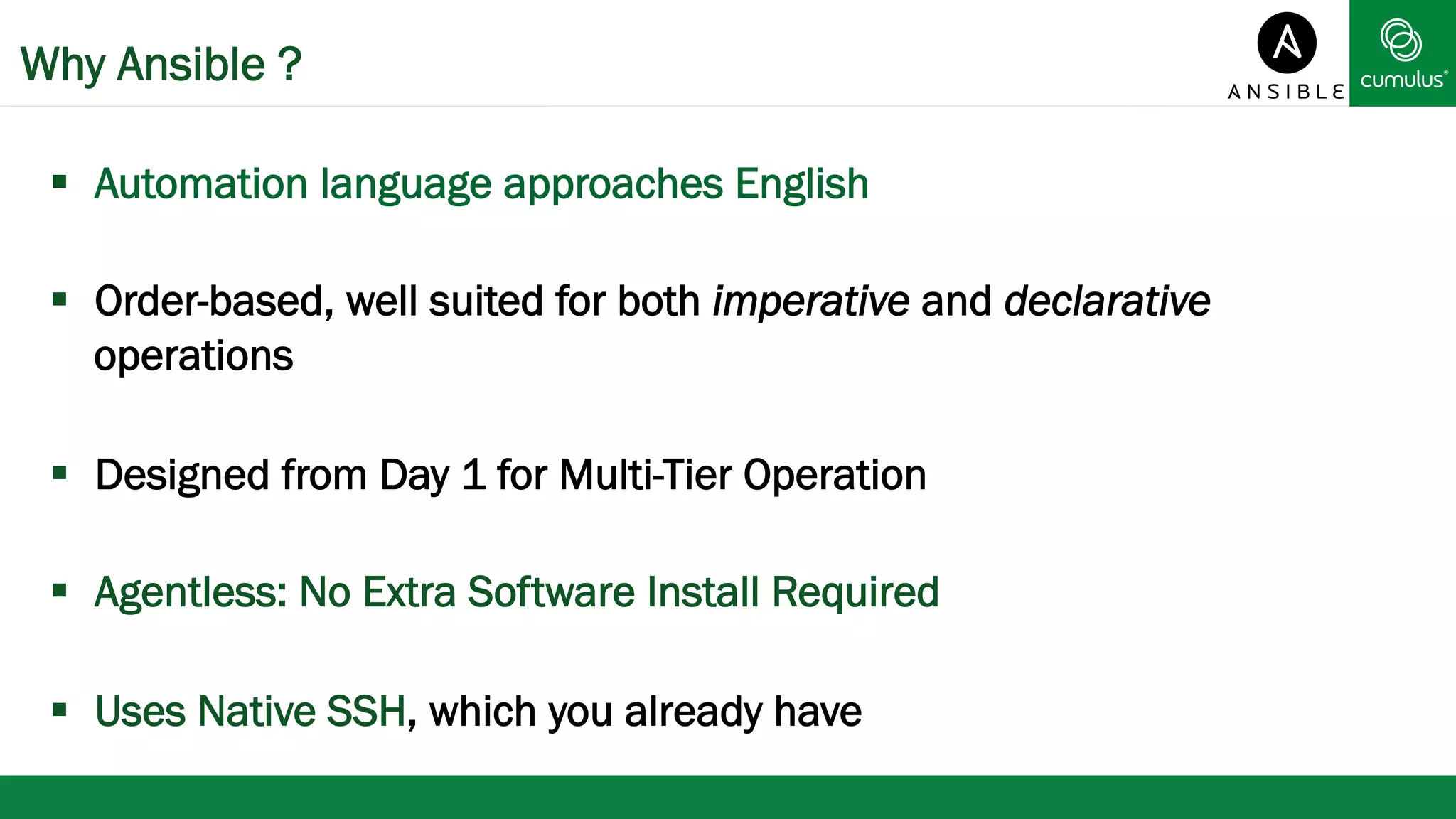

5. Why Ansible ?
§ Automation language approaches English
§ Order-based, well suited for both imperative and declarative
operations
§ Designed from Day 1 for Multi-Tier Operation
§ Agentless: No Extra Software Install Required
§ Uses Native SSH, which you already have

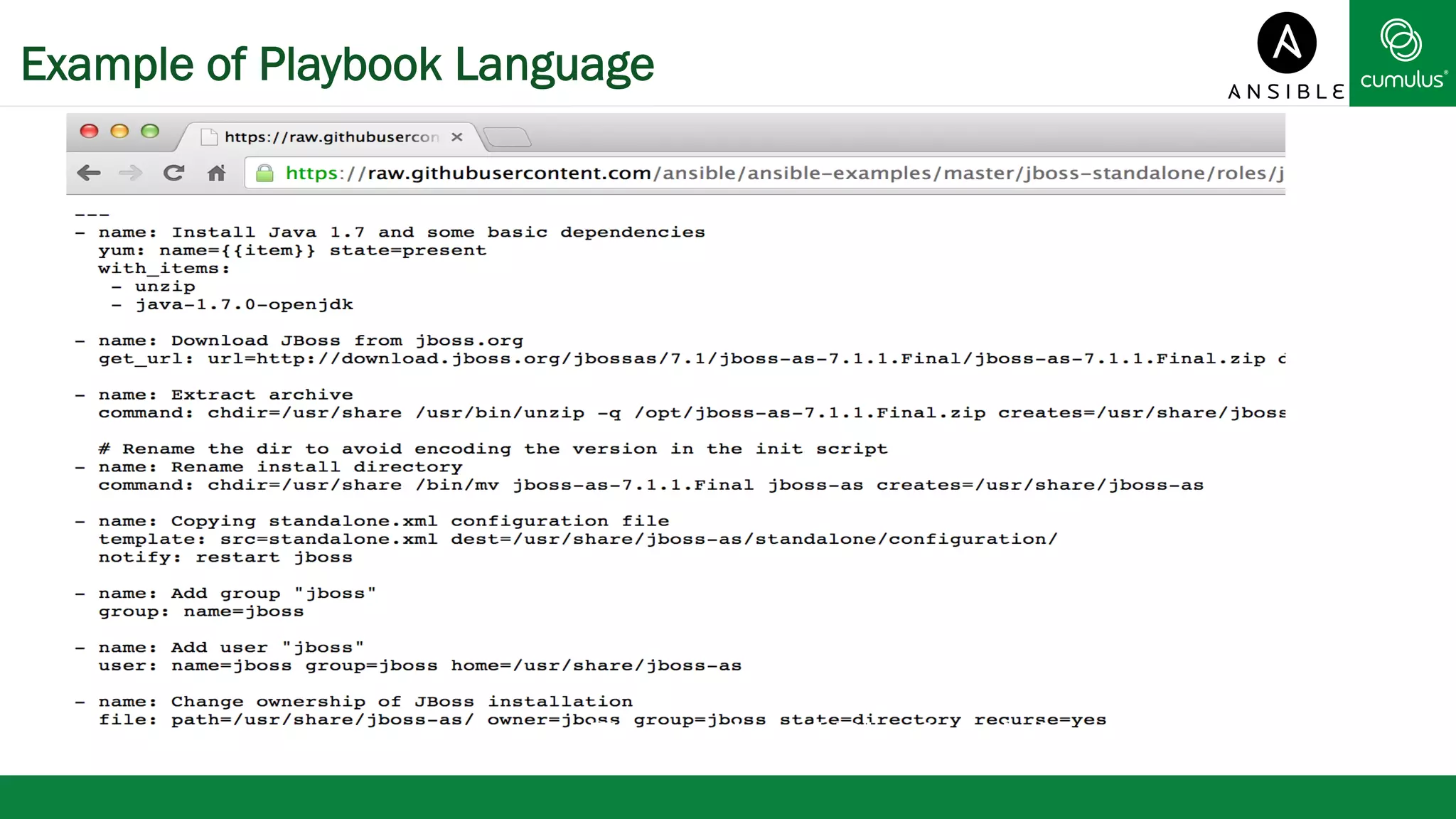

6. Example of Playbook Language
Example of Playbook Language

7. Ansible, Inc.
§ Company behind Ansible
§ Produces Ansible-Tower, a GUI and Central Server automation solution for
Ansible, also offers support/services

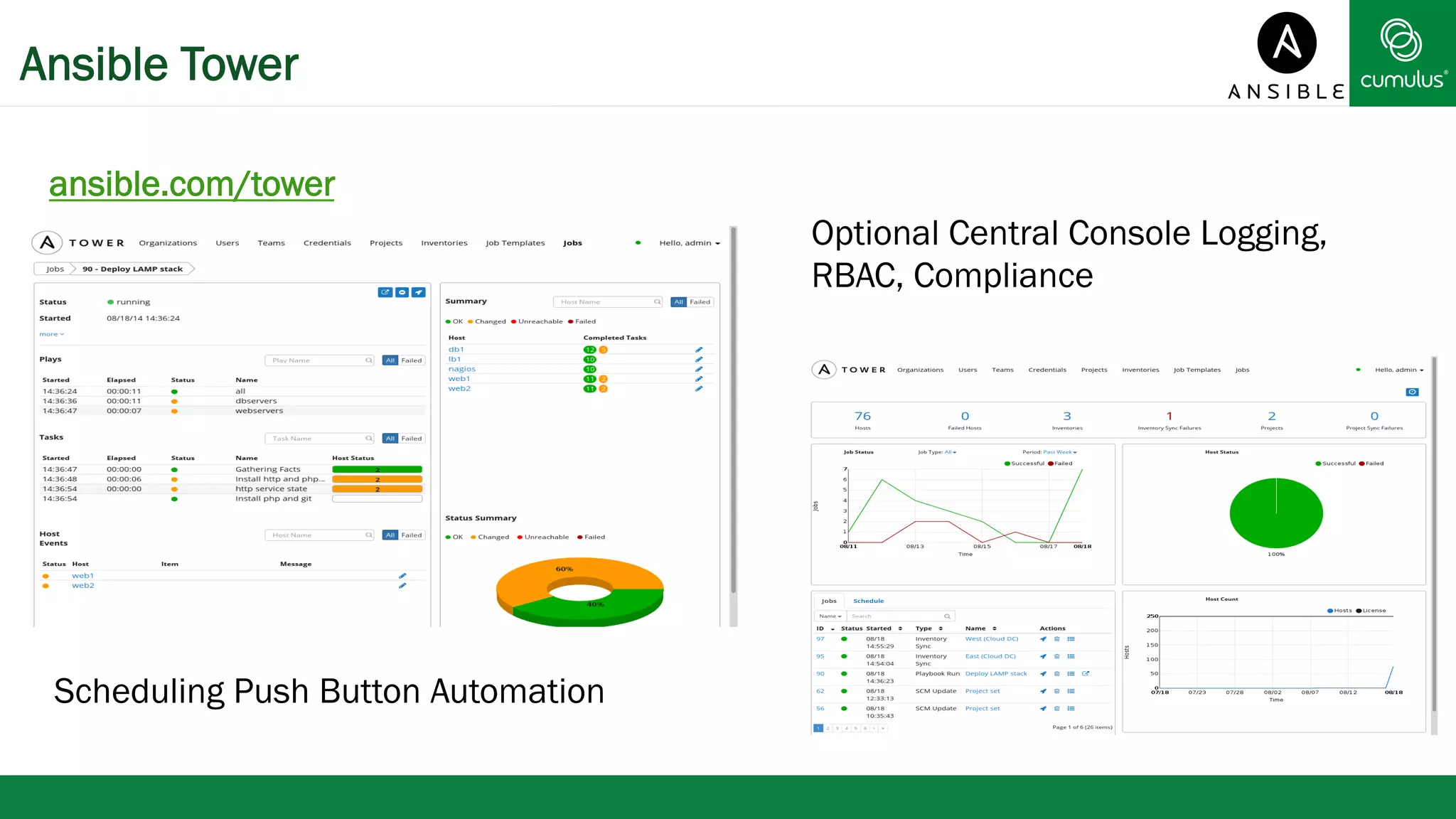

8. A nsible Tower
ansible.com/tower
Optional Central Console Logging,
RBAC, Compliance
Scheduling Push Button Automation

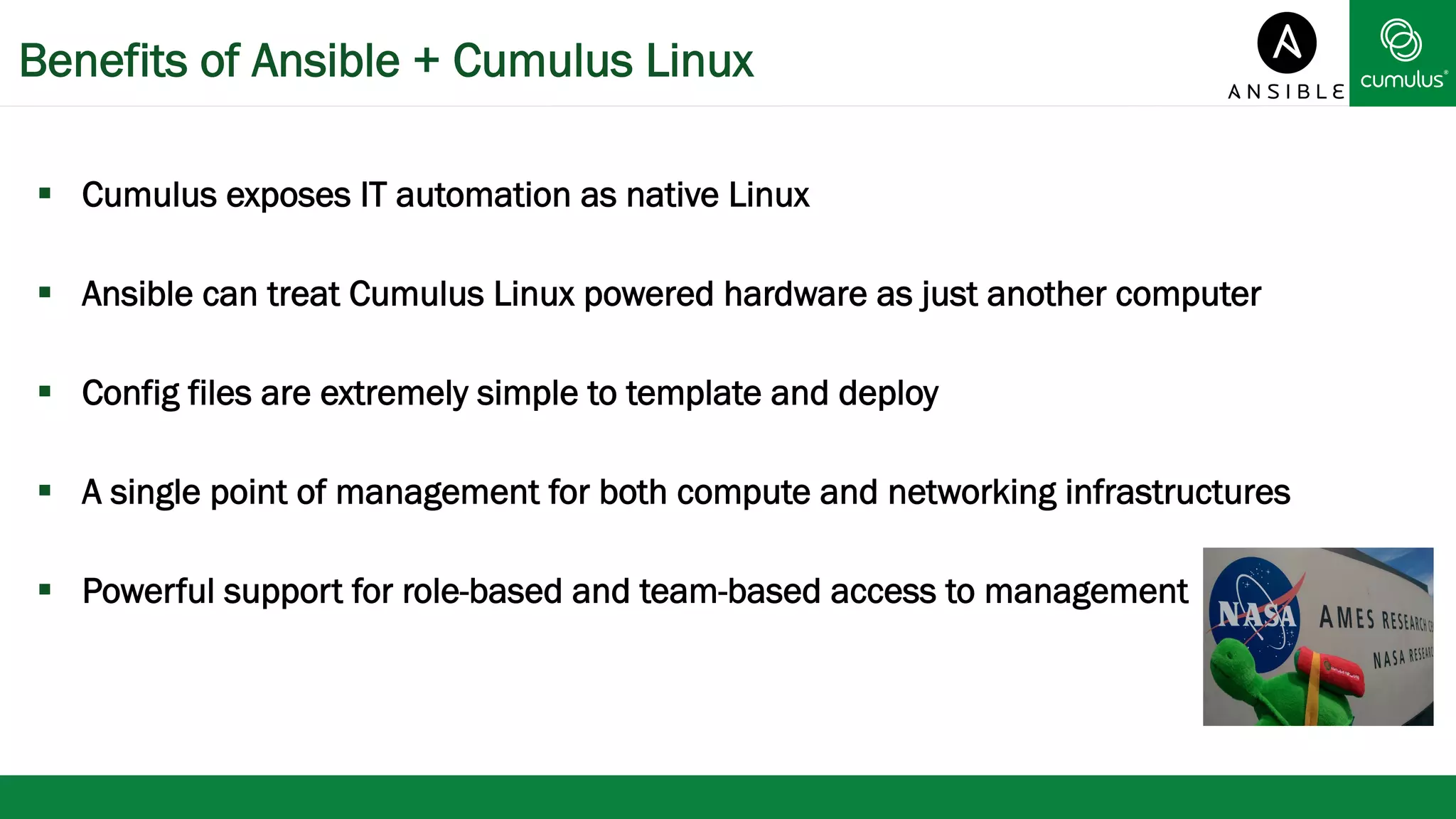

9. Benefits of Ansible + Cumulus Linux
§ Cumulus exposes IT automation as native Linux
§ Ansible can treat Cumulus Linux powered hardware as just another computer
§ Config files are extremely simple to template and deploy
§ A single point of management for both compute and networking infrastructures
§ Powerful support for role-based and team-based access to management

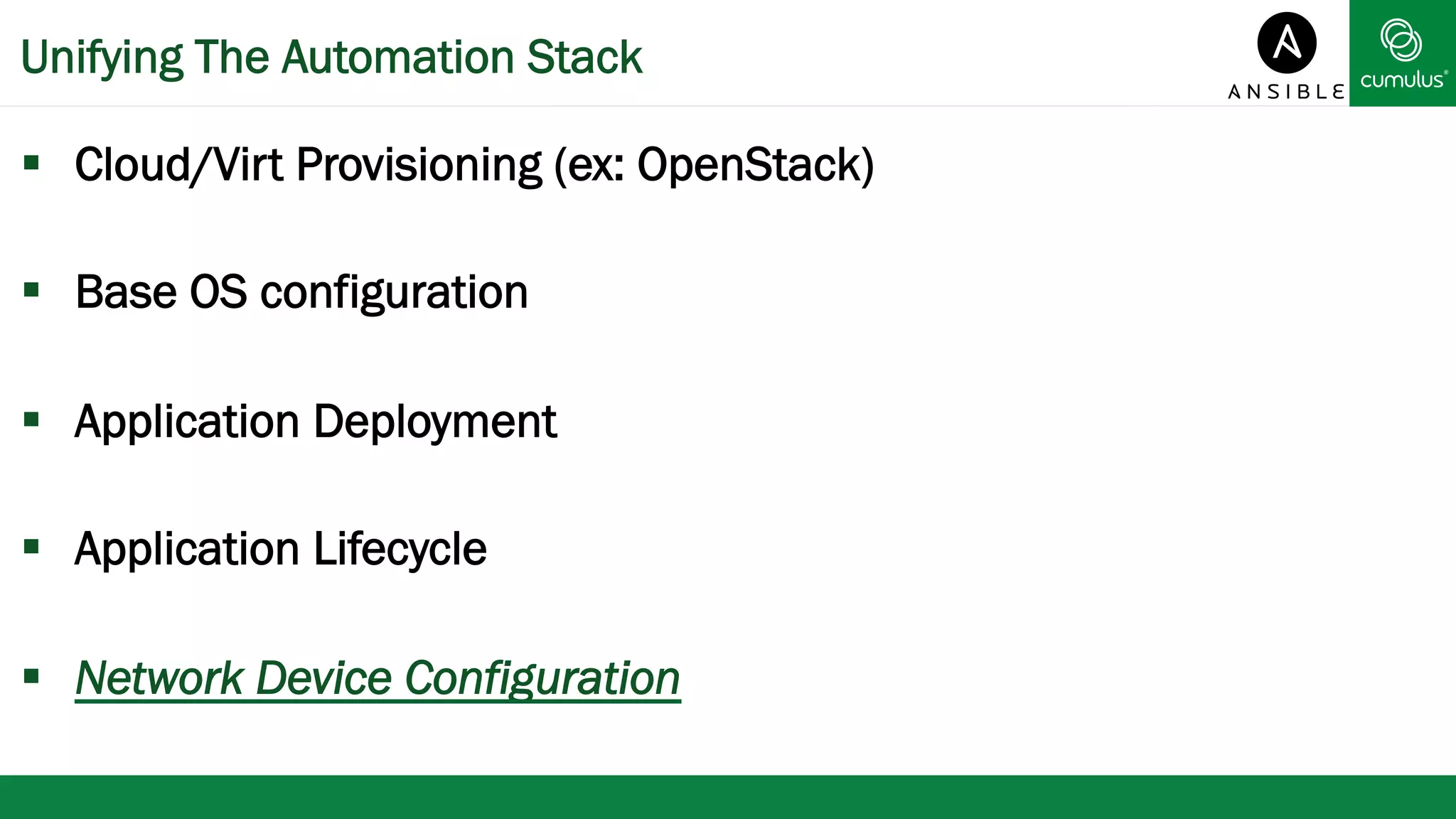

10. Unifying The Automation Stack
§ Cloud/Virt Provisioning (ex: OpenStack)
§ Base OS configuration
§ Application Deployment
§ Application Lifecycle
§ Network Device Configuration

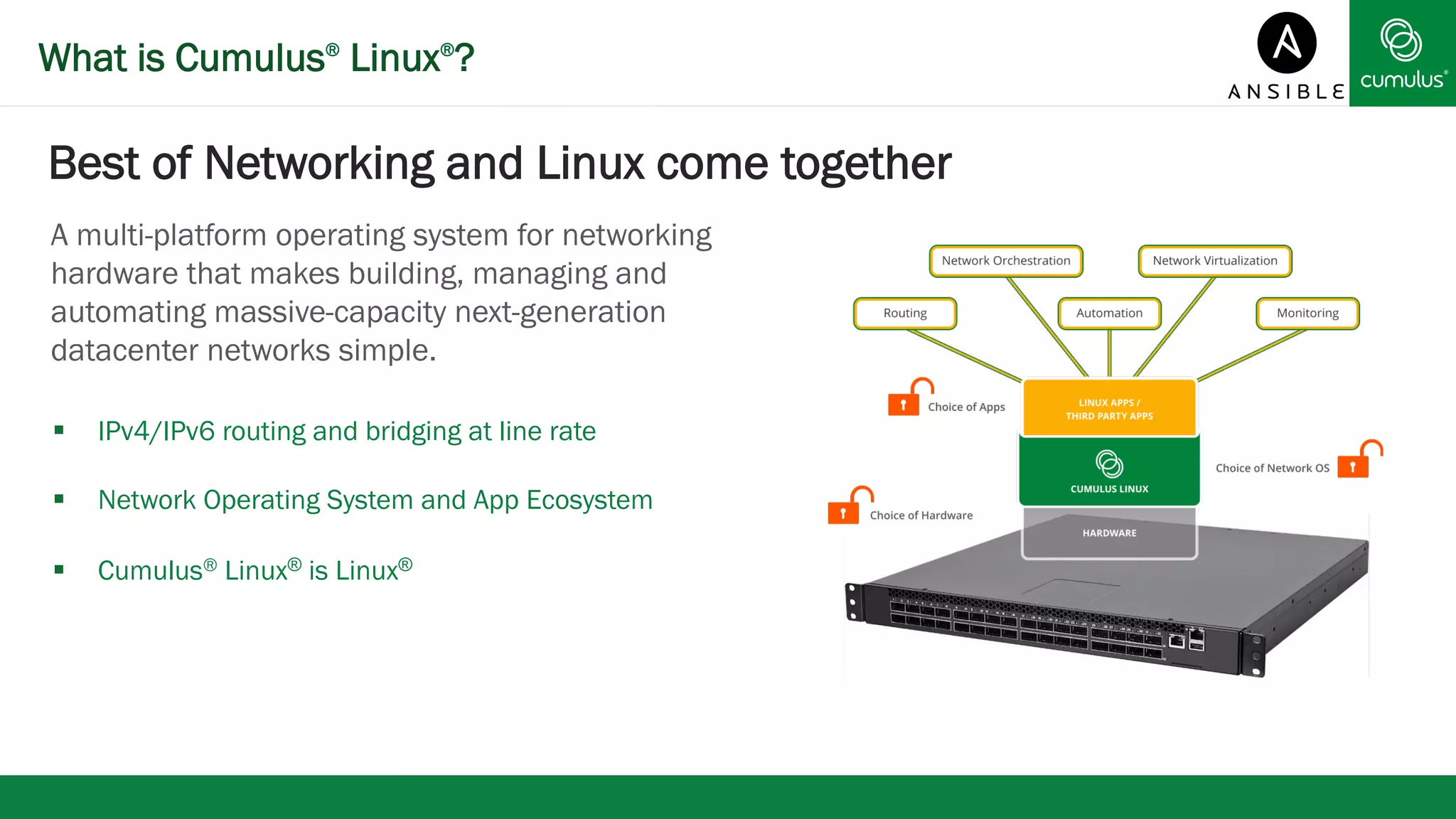

11. What is Cumulus® Linux®?
Best of Networking and Linux come together
A multi-platform operating system for networking
hardware that makes building, managing and
automating massive-capacity next-generation
datacenter networks simple.
§ IPv4/IPv6 routing and bridging at line rate
§ Network Operating System and App Ecosystem
§ Cumulus® Linux® is Linux®

12. ®

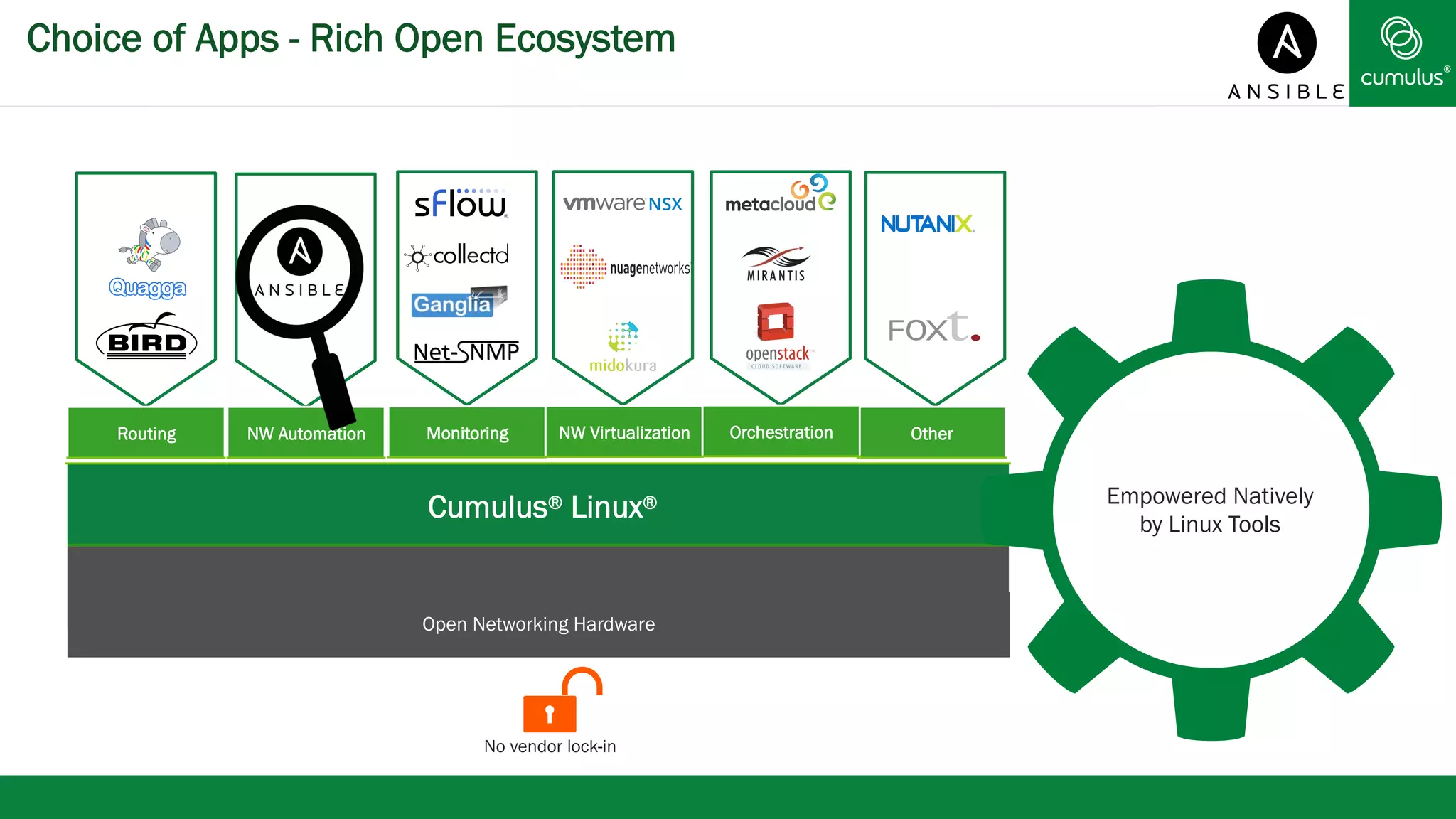

Choice of Apps - Rich Open Ecosystem
Routing NW Automation Monitoring NW Virtualization Orchestration Other
Cumulus® Linux®
Open Networking Hardware
Empowered Natively
by Linux Tools
v
No vendor lock-in

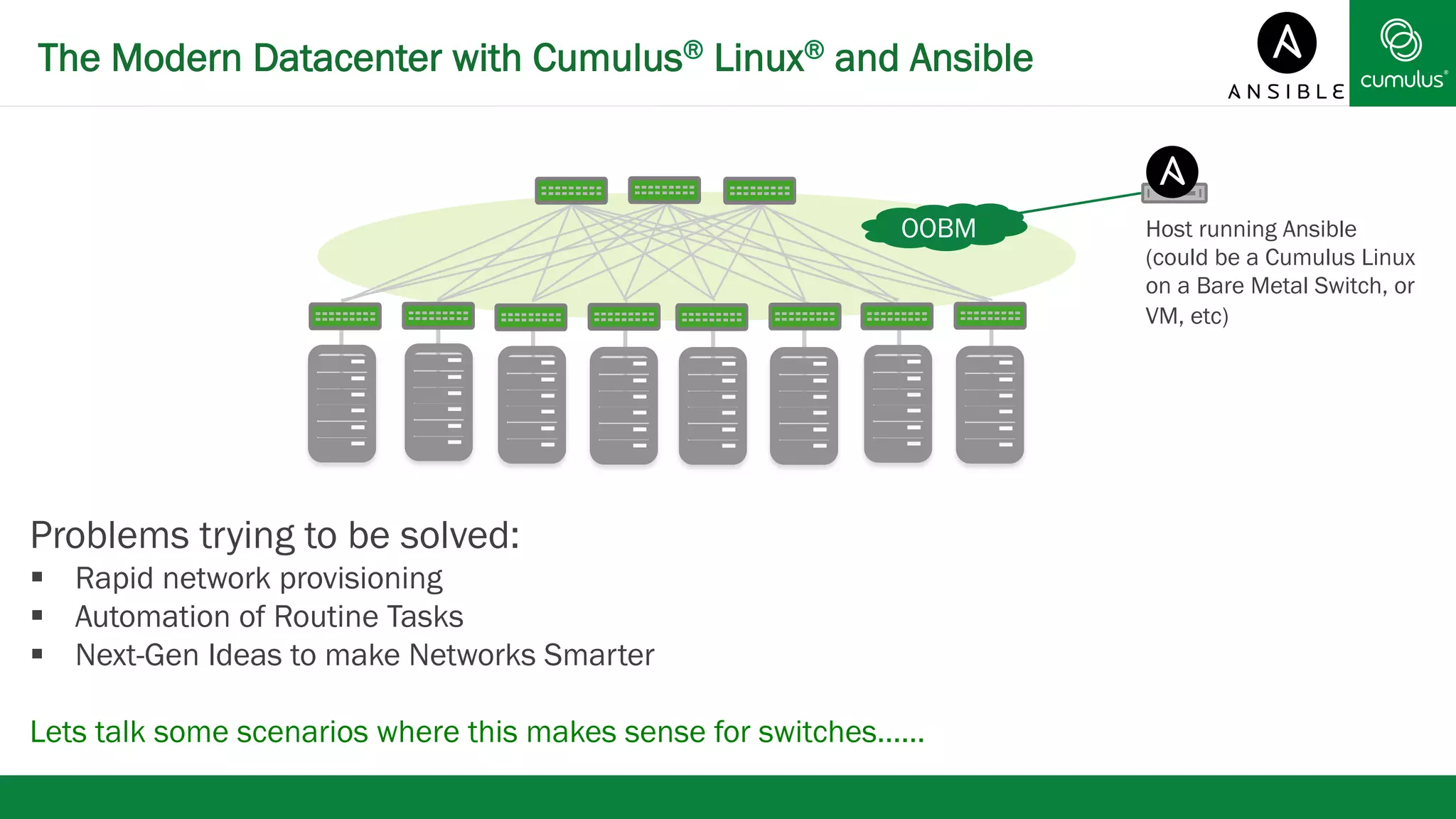

13. The Modern Datacenter with Cumulus® Linux® and Ansible
Problems trying to be solved:
§ Rapid network provisioning
§ Automation of Routine Tasks
§ Next-Gen Ideas to make Networks Smarter
Lets talk some scenarios where this makes sense for switches……
Host running Ansible
(could be a Cumulus Linux
on a Bare Metal Switch, or
VM, etc)
OOBM

14. The Modern Datacenter with Cumulus® Linux® and Ansible
OOBM

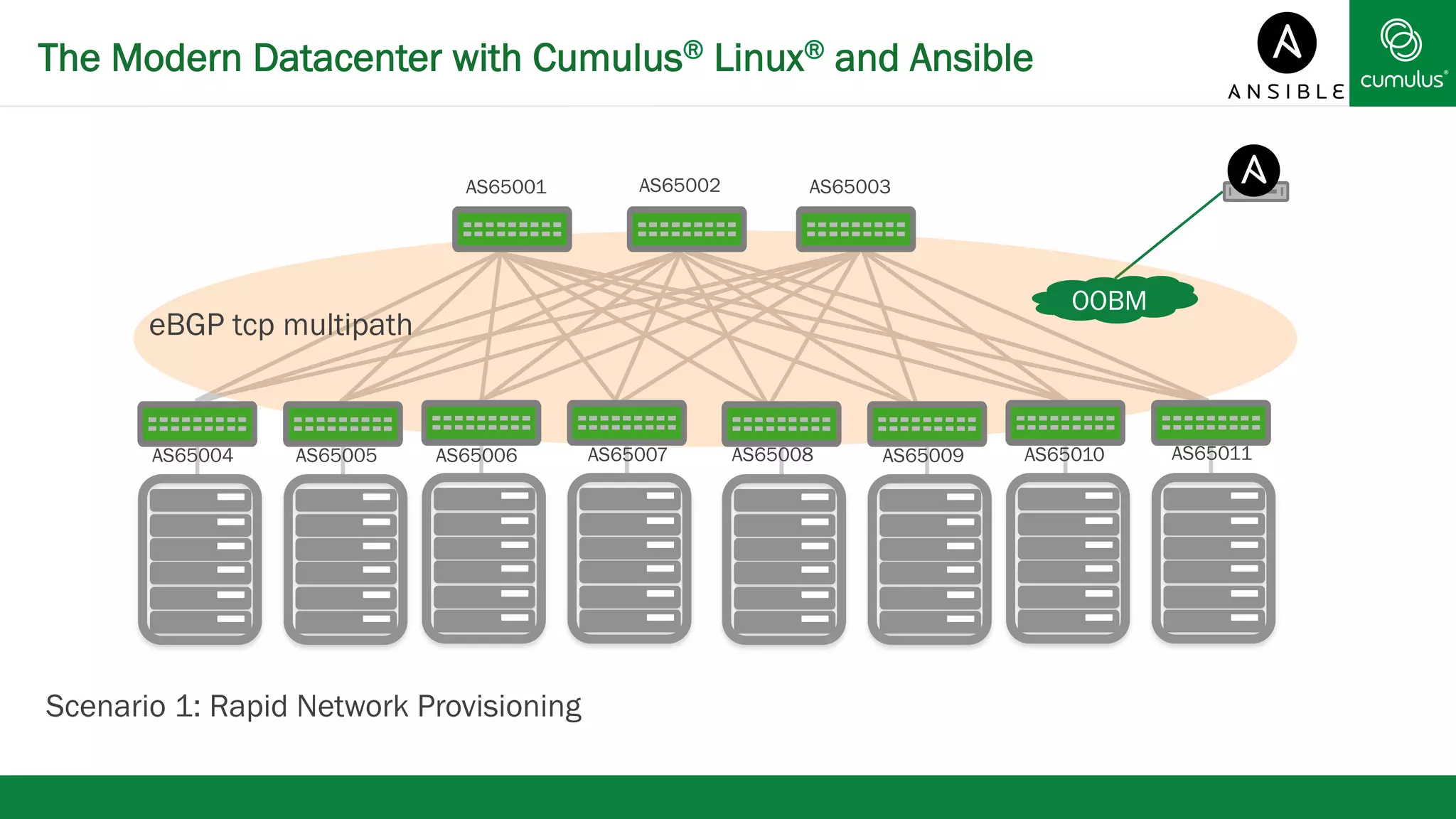

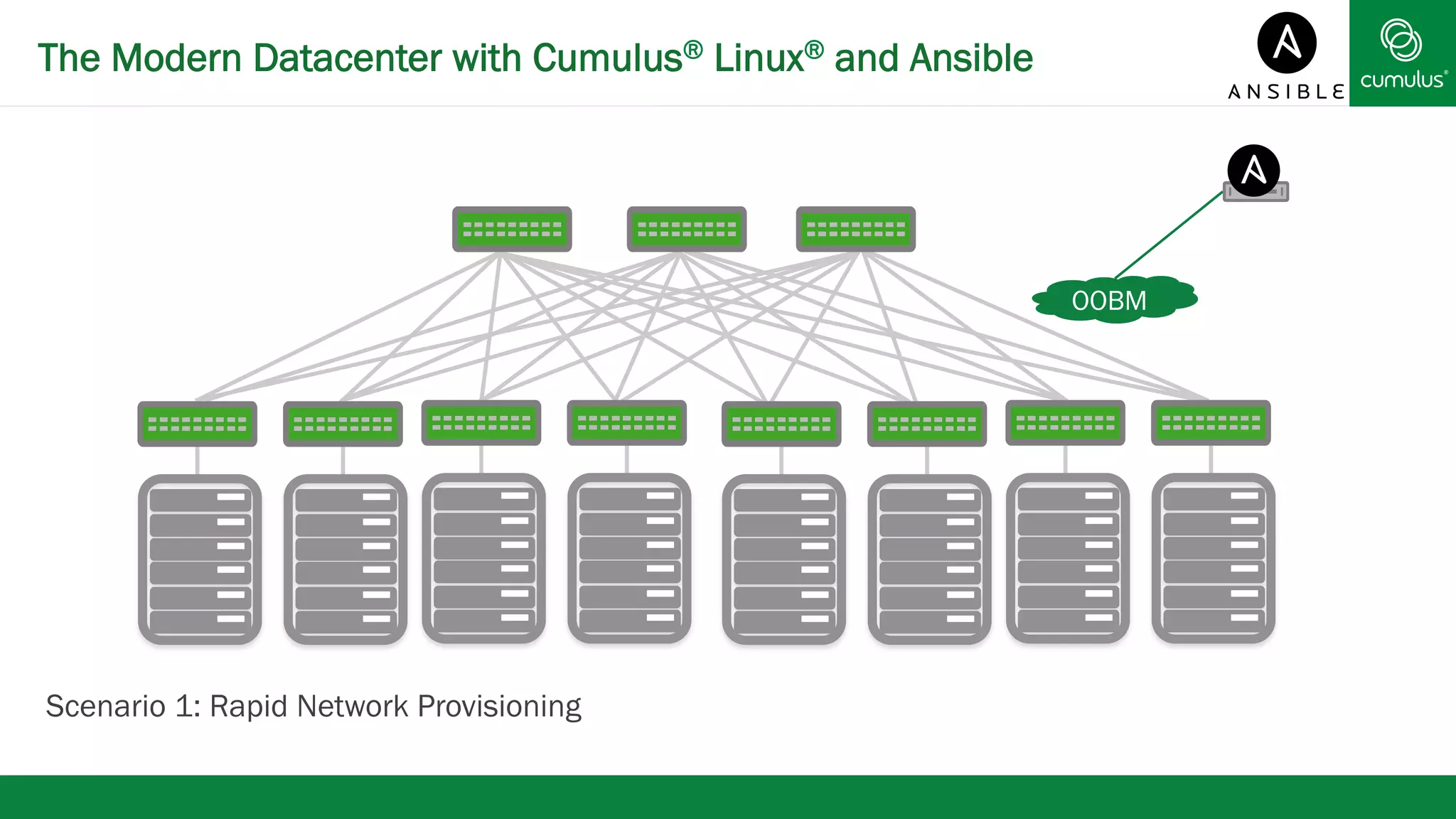

Scenario 1: Rapid Network Provisioning

15. The Modern Datacenter with Cumulus® Linux® and Ansible
OOBM
eBGP tcp multipath
AS65001
Scenario 1: Rapid Network Provisioning
AS65002
AS65003
AS65004
AS65005
AS65006
AS65007
AS65008 AS65009 AS65010 AS65011

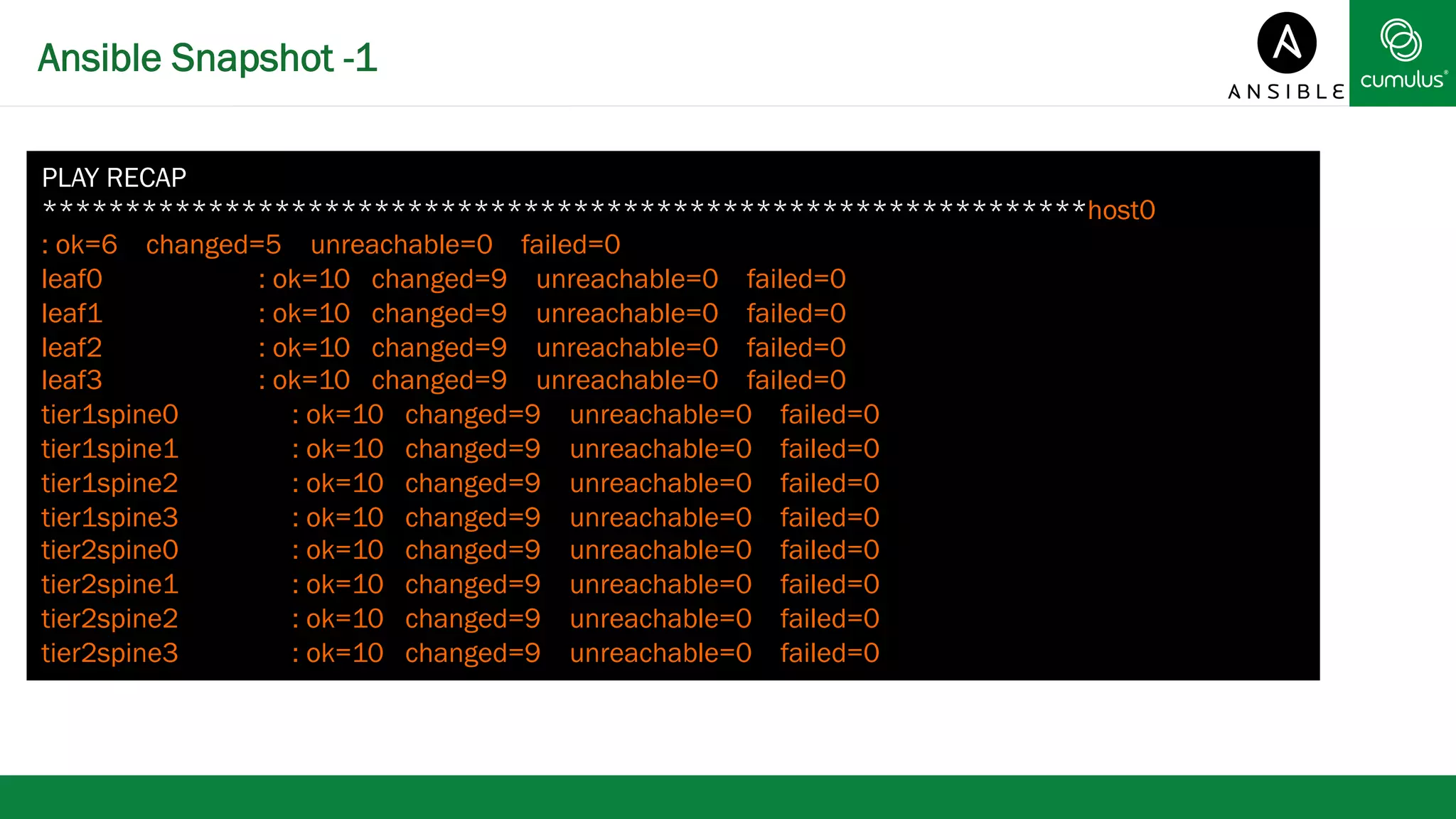

16. Ansible Snapshot -1
PLAY RECAP
***************************************************************host0
: ok=6 changed=5 unreachable=0 failed=0
leaf0 : ok=10 changed=9 unreachable=0 failed=0
leaf1 : ok=10 changed=9 unreachable=0 failed=0
leaf2 : ok=10 changed=9 unreachable=0 failed=0
leaf3 : ok=10 changed=9 unreachable=0 failed=0
tier1spine0 : ok=10 changed=9 unreachable=0 failed=0
tier1spine1 : ok=10 changed=9 unreachable=0 failed=0
tier1spine2 : ok=10 changed=9 unreachable=0 failed=0
tier1spine3 : ok=10 changed=9 unreachable=0 failed=0
tier2spine0 : ok=10 changed=9 unreachable=0 failed=0
tier2spine1 : ok=10 changed=9 unreachable=0 failed=0
tier2spine2 : ok=10 changed=9 unreachable=0 failed=0
tier2spine3 : ok=10 changed=9 unreachable=0 failed=0

17. The Modern Datacenter with Cumulus® Linux® and Ansible
OOBM

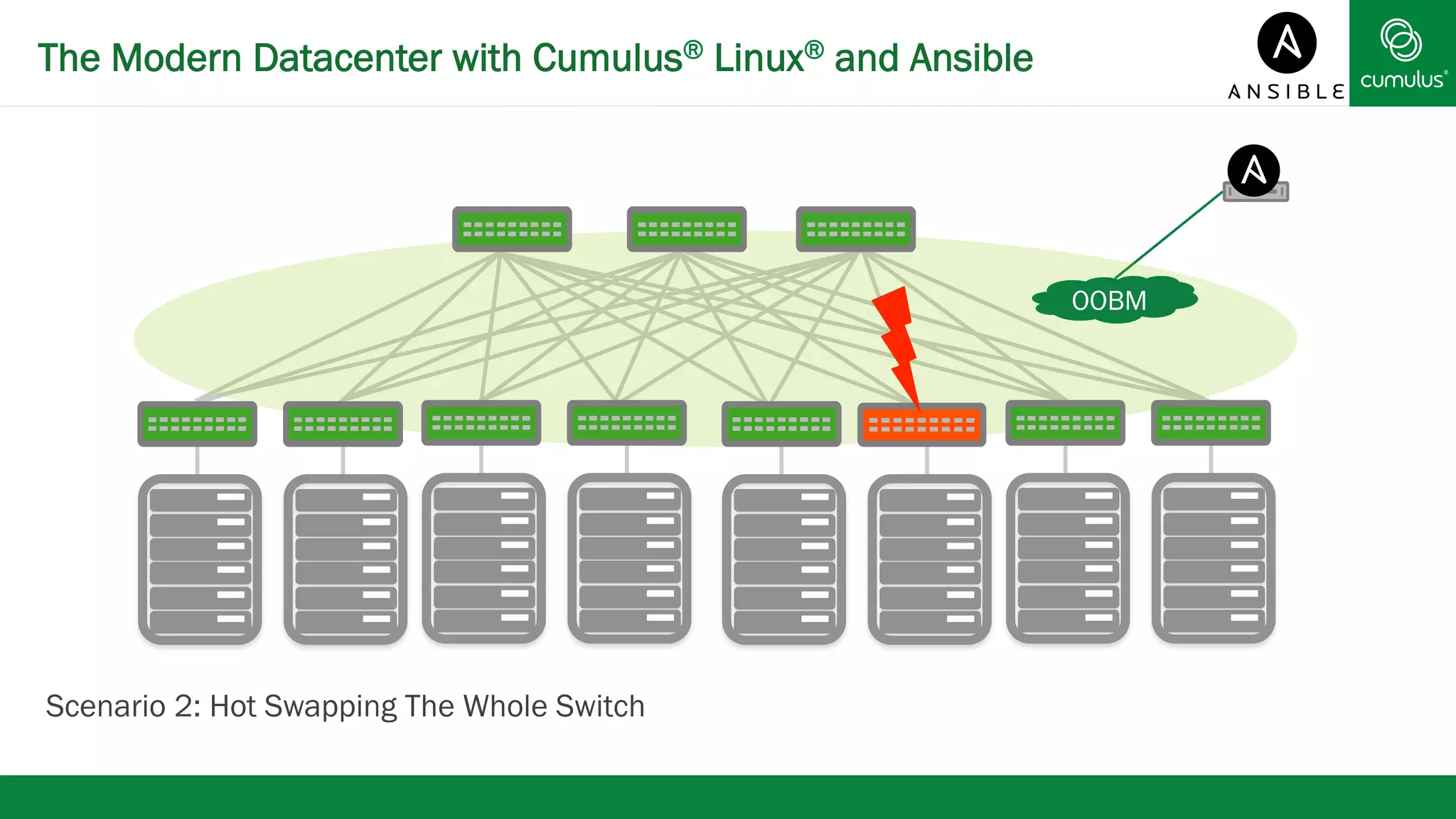

Scenario 2: Hot Swapping The Whole Switch

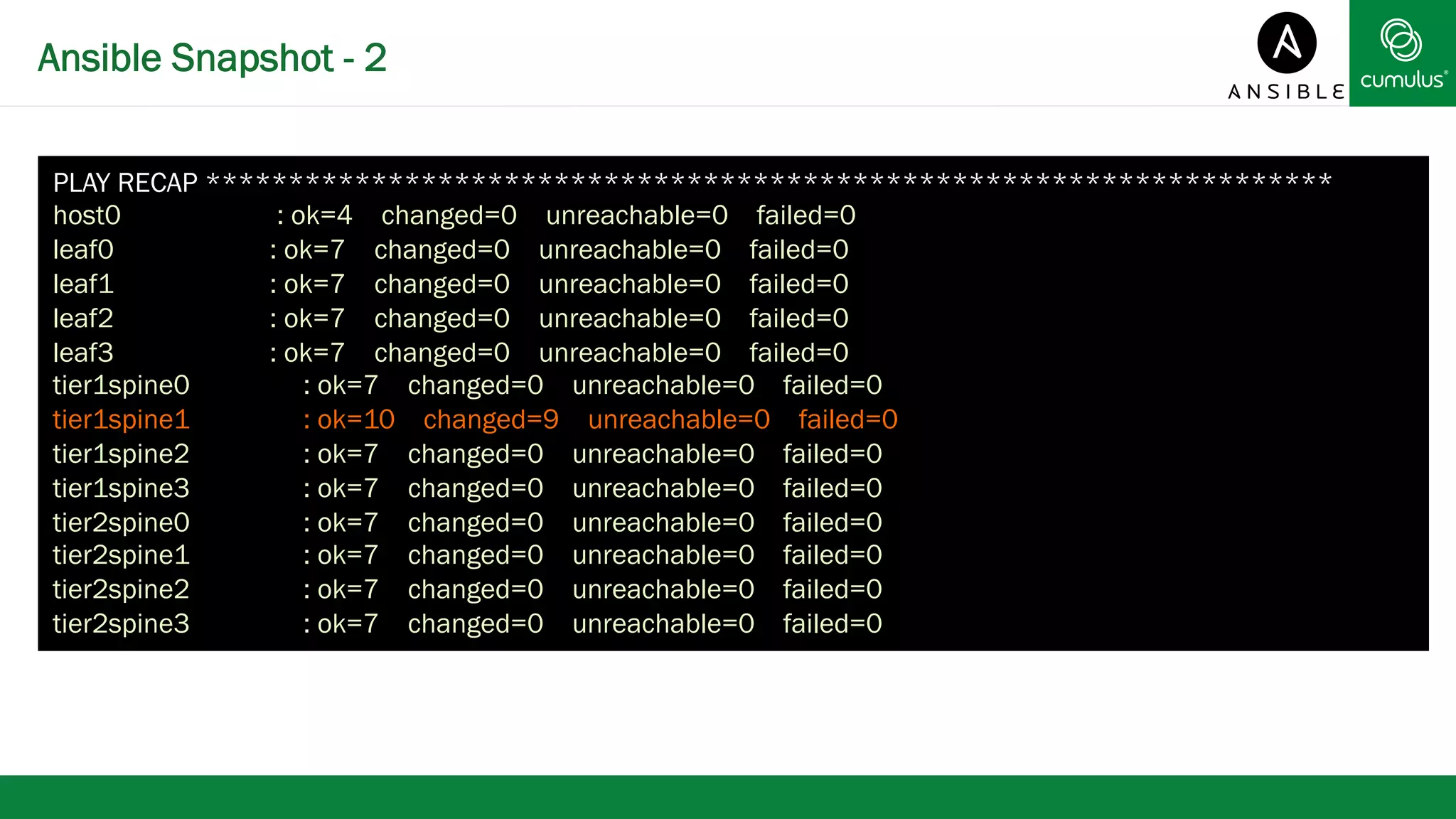

18. Ansible Snapshot - 2
PLAY RECAP ********************************************************************
host0 : ok=4 changed=0 unreachable=0 failed=0
leaf0 : ok=7 changed=0 unreachable=0 failed=0
leaf1 : ok=7 changed=0 unreachable=0 failed=0
leaf2 : ok=7 changed=0 unreachable=0 failed=0
leaf3 : ok=7 changed=0 unreachable=0 failed=0
tier1spine0 : ok=7 changed=0 unreachable=0 failed=0
tier1spine1 : ok=10 changed=9 unreachable=0 failed=0
tier1spine2 : ok=7 changed=0 unreachable=0 failed=0
tier1spine3 : ok=7 changed=0 unreachable=0 failed=0
tier2spine0 : ok=7 changed=0 unreachable=0 failed=0
tier2spine1 : ok=7 changed=0 unreachable=0 failed=0
tier2spine2 : ok=7 changed=0 unreachable=0 failed=0
tier2spine3 : ok=7 changed=0 unreachable=0 failed=0

19. The Modern Datacenter with Cumulus® Linux® and Ansible
OOBM

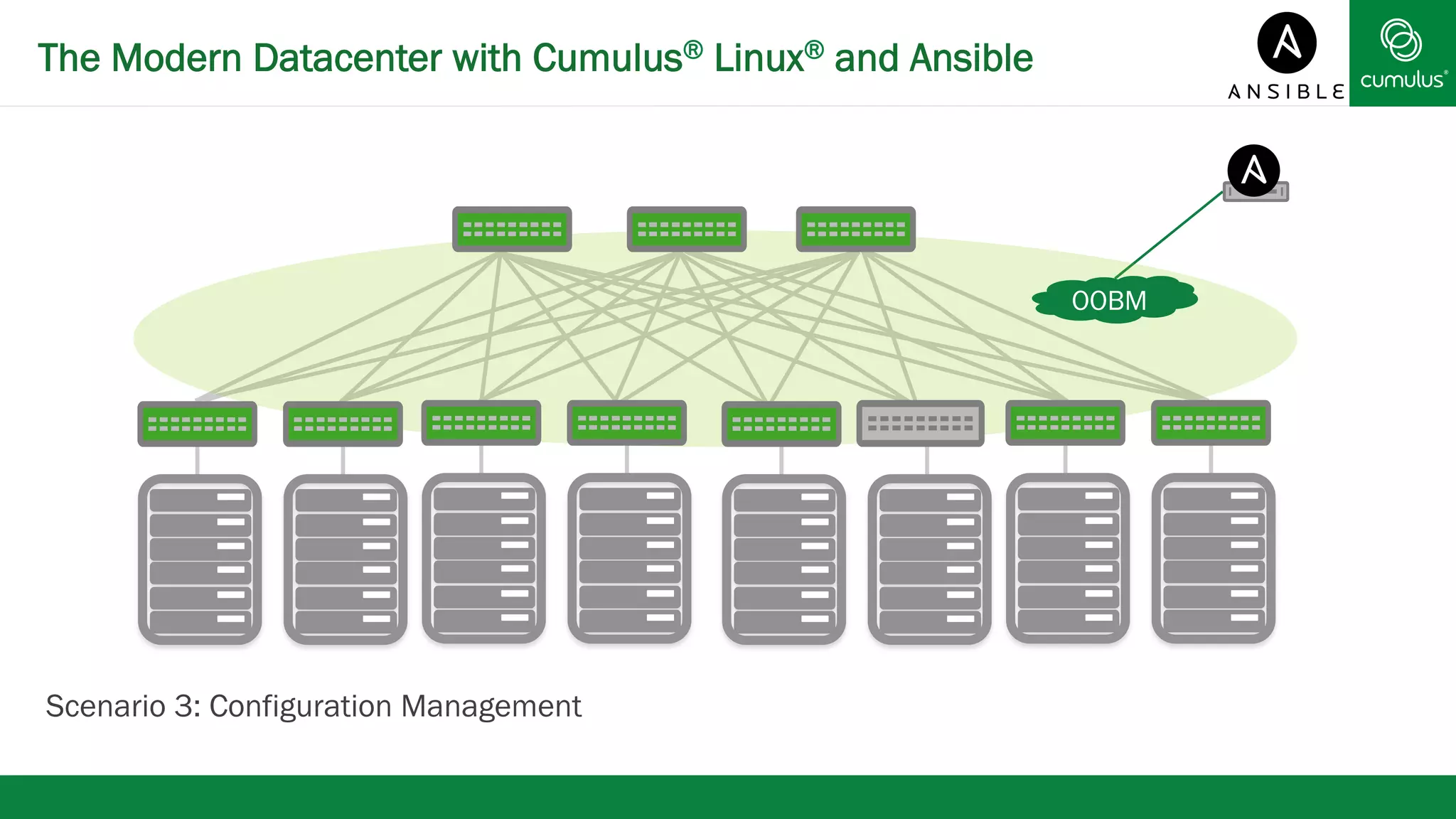

Scenario 3: Configuration Management

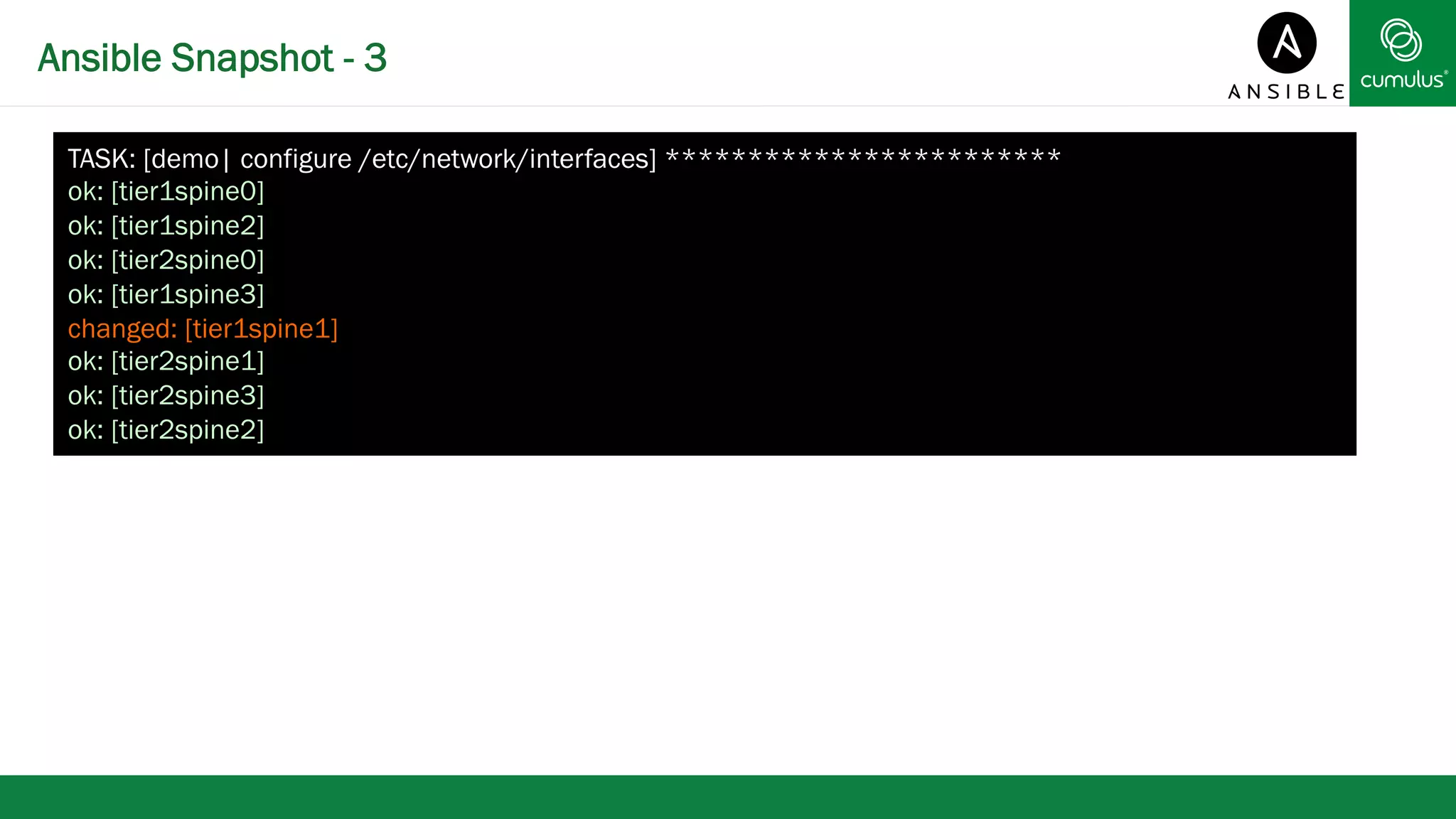

20. Ansible Snapshot - 3
TASK: [demo| configure /etc/network/interfaces] ************************
ok: [tier1spine0]
ok: [tier1spine2]
ok: [tier2spine0]
ok: [tier1spine3]
changed: [tier1spine1]
ok: [tier2spine1]
ok: [tier2spine3]
ok: [tier2spine2]

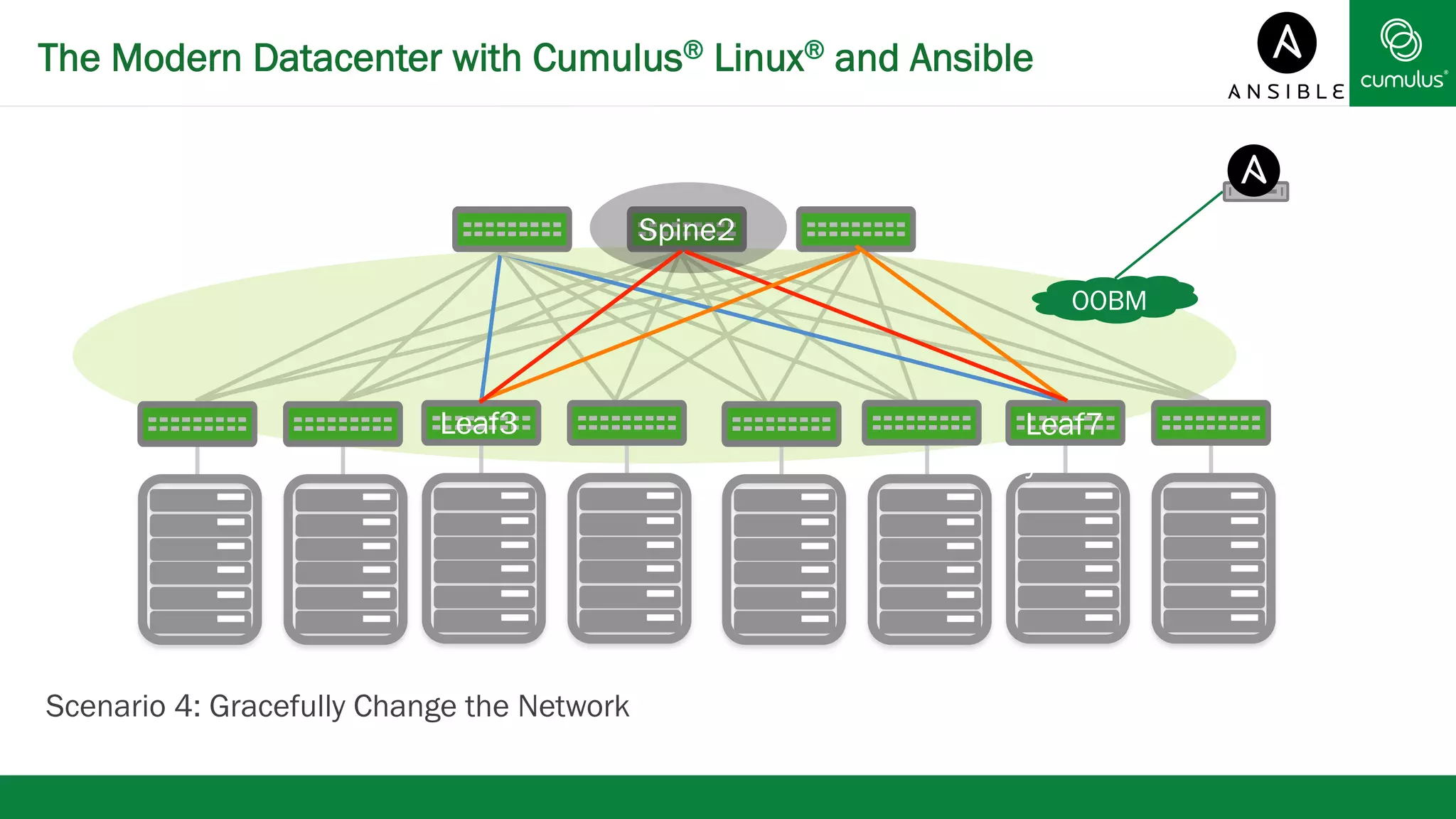

21. The Modern Datacenter with Cumulus® Linux® and Ansible
OOBM
Leaf3 Leaf7
Scenario 4: Gracefully Change the Network
y
Spine2

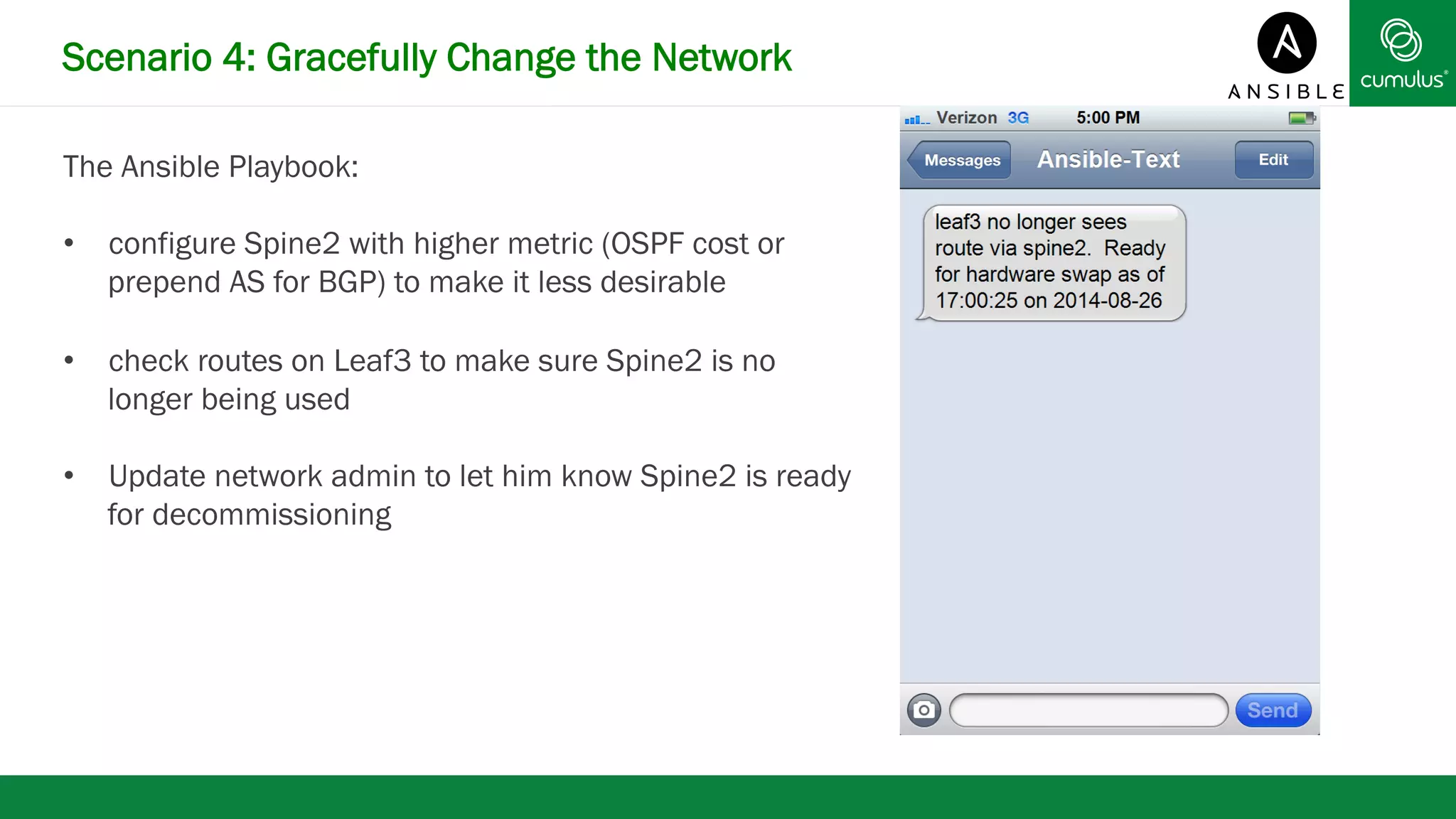

22. Scenario 4: Gracefully Change the Network
The Ansible Playbook:
• configure Spine2 with higher metric (OSPF cost or
prepend AS for BGP) to make it less desirable
• check routes on Leaf3 to make sure Spine2 is no
longer being used
• Update network admin to let him know Spine2 is ready
for decommissioning

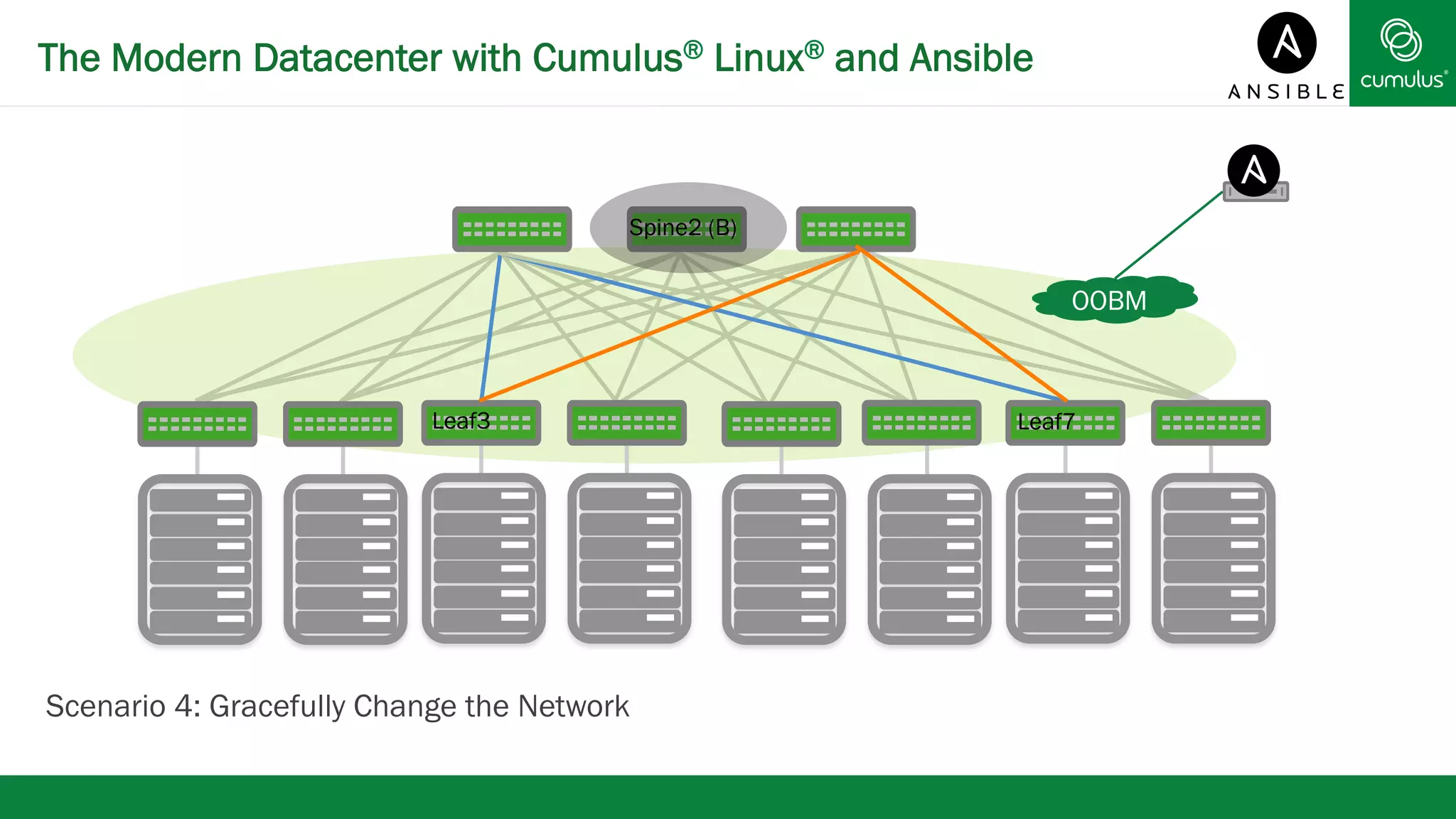

23. The Modern Datacenter with Cumulus® Linux® and Ansible
OOBM
Spine2 (B)
Leaf3 Leaf7
Scenario 4: Gracefully Change the Network

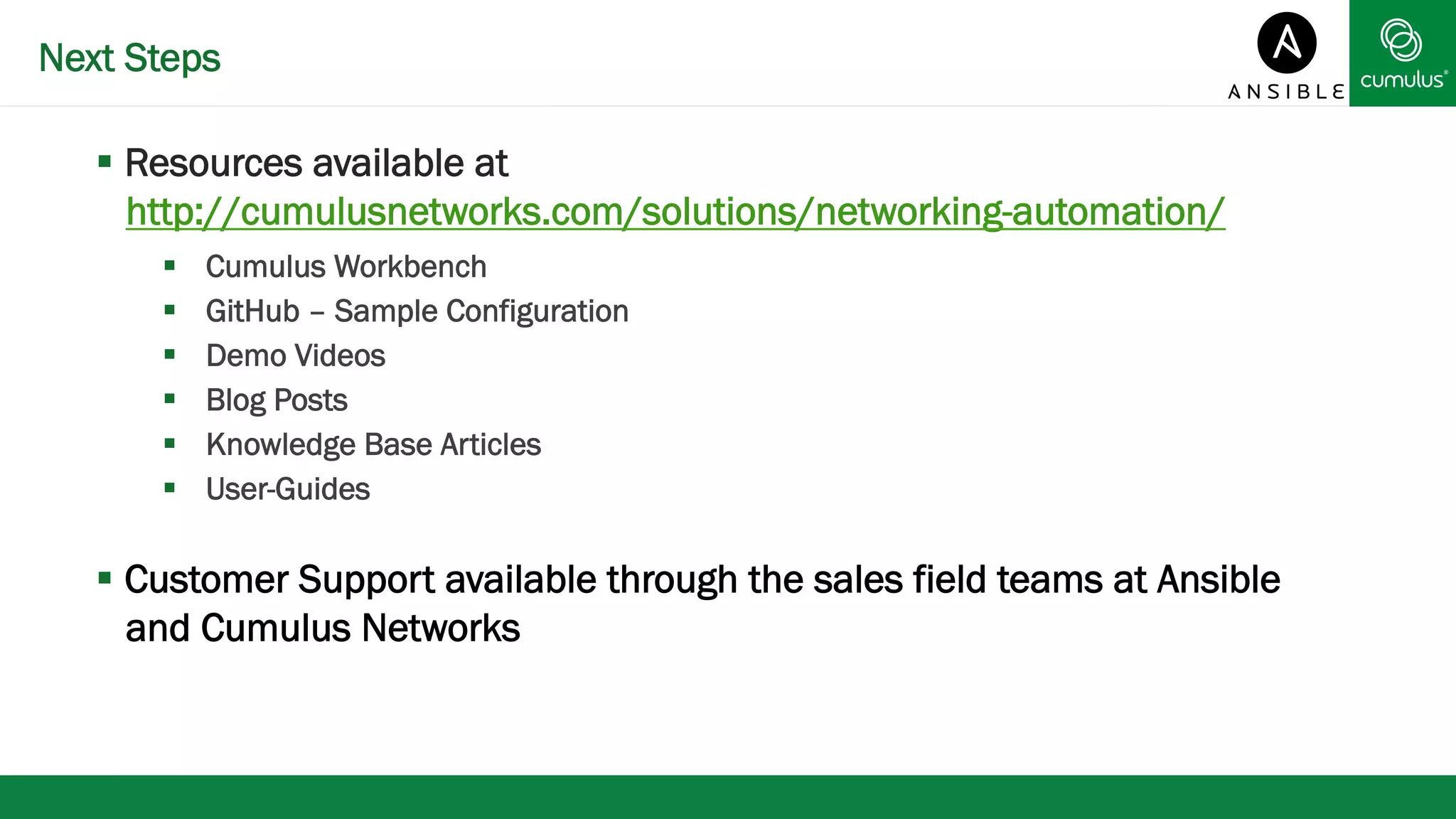

24. Next Steps
§ Resources available at
http://cumulusnetworks.com/solutions/networking-automation/
§ Cumulus Workbench
§ GitHub – Sample Configuration
§ Demo Videos
§ Blog Posts
§ Knowledge Base Articles
§ User-Guides
§ Customer Support available through the sales field teams at Ansible
and Cumulus Networks

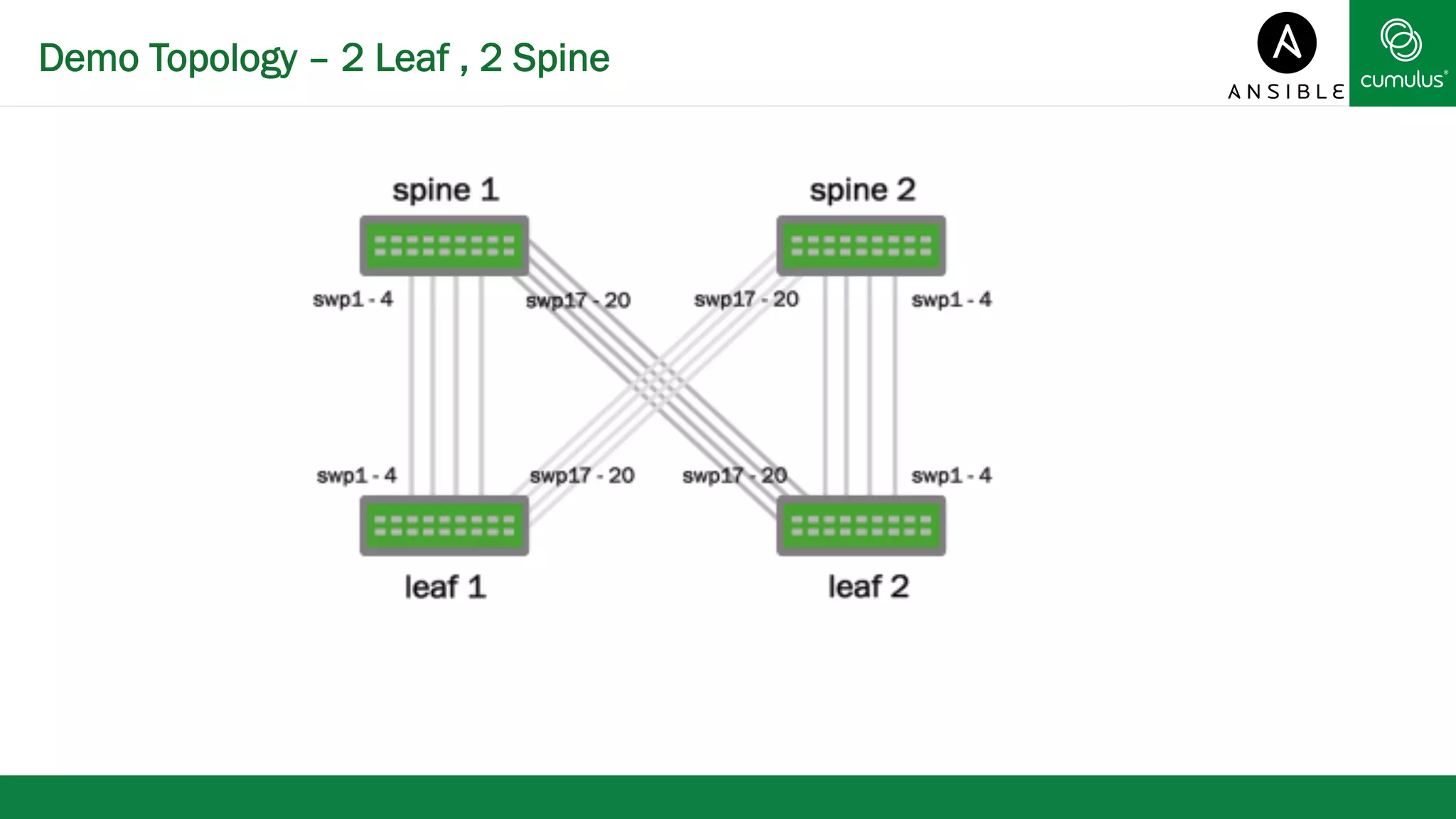

25. Demo Topology – 2 Leaf , 2 Spine

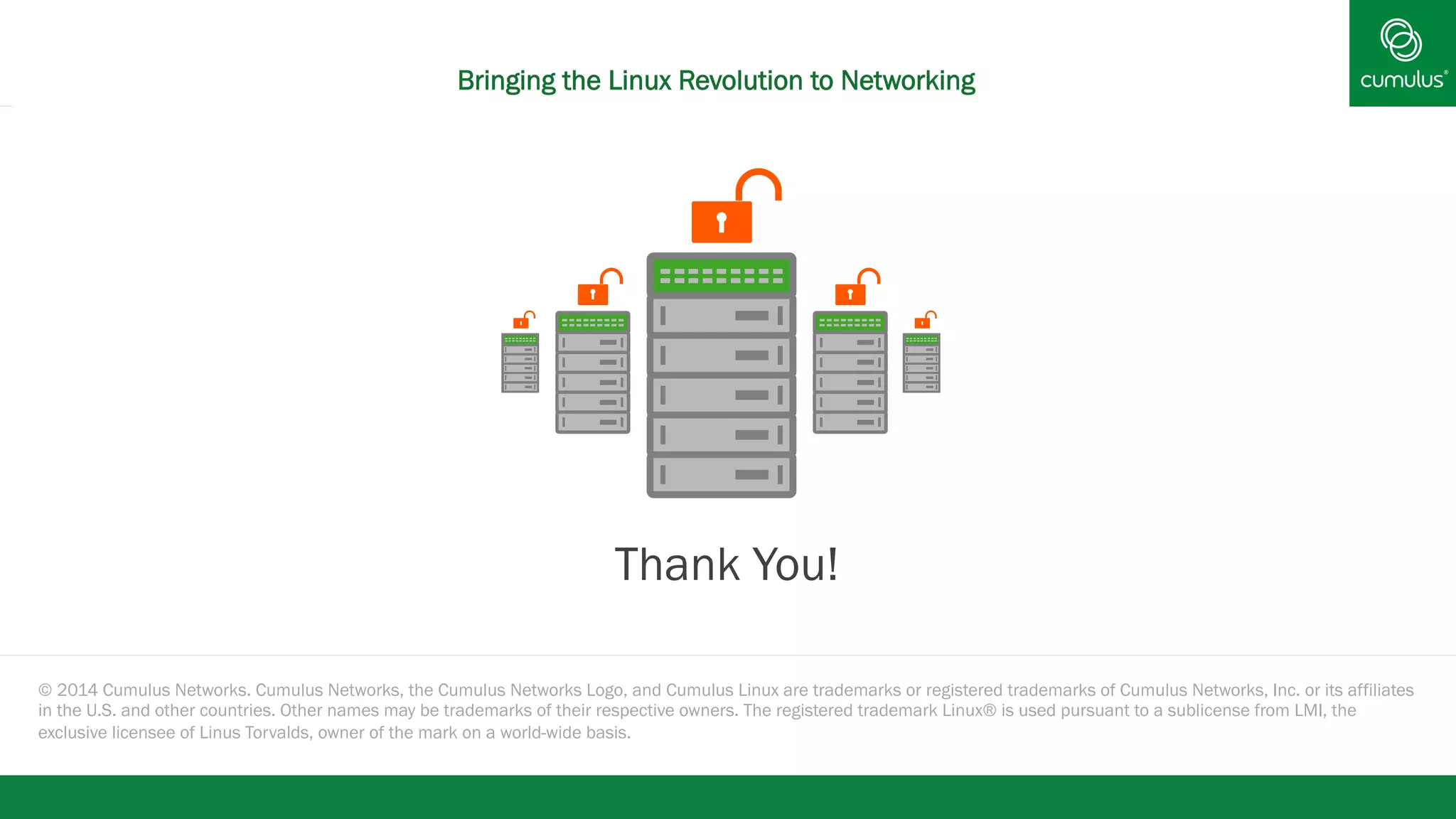

27. Bringing the Linux Revolution to Networking
§ Thank You!
