![# TIAD@ tiadparis
Under the hood
8
NAT NATBastion
eu-west-1a
Public subnets
Private subnets
eu-west-1b
Public subnets
Private subnets
"VPC" : {
"Type" : "AWS::EC2::VPC",
"Properties" : {
"CidrBlock" : "10.100.0.0/16"
}
”PublicSubnet1" : {
"Type" : "AWS::EC2::Subnet",
"Properties" : {
"VpcId" : { "Ref" : "VPC" },
"AvailabilityZone" : "eu-west-1a"
"CidrBlock” : "10.100.1.0/25”
}
}
"NatInstance1" : {
"Type" : "AWS::EC2::Instance",
"Properties" : {
"ImageId" : "ami-6e7bd919",
"InstanceType" : "t2.micro"
"SourceDestCheck" : "False",
"UserData” :
{ "Fn::Base64" : { "Fn::Join" : [”n", [
"#!/bin/bash",
"echo "net.ipv4.ip_forward = 1" >> /etc/sysctl.conf",
"sysctl -p,
"iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE",
"iptables-save > /etc/sysconfig/iptables"
]]}}
}
}](https://image.slidesharecdn.com/tiadlifecycleautomation-150327044130-conversion-gate01/85/TIAD-Automating-the-aplication-lifecycle-12-320.jpg)
![# TIAD@ tiadparis
Difficulty: managing variables, again
12
VPC Addresses
Subnets
Instance types
Infra template Backend template
VPC Id
Subnet Ids
DB Name
Outputs
Application template
Instance Types
DB Name
WEB
DynamoDB
?
"UserData” :
{ "Fn::Base64" : { "Fn::Join" : ["", [
"#!/bin/bashn",
"echo ", { "Ref" : "Properties" } ," >> /var/www/html/application.propertiesn”
]]}}
Properties
Properties](https://image.slidesharecdn.com/tiadlifecycleautomation-150327044130-conversion-gate01/85/TIAD-Automating-the-aplication-lifecycle-26-320.jpg)
![# TIAD@ tiadparis
Packer
18
"builders": [{
"type": "amazon-ebs",
"region": ”eu-west-1",
"source_ami": "ami-f0b11187",
"instance_type": "t2.small",
"ssh_username": "ubuntu",
"ami_name": "demo-{{isotime "2006-01-02T15-04-05"}}"
}],
"provisioners": [
{
"type": "file",
"source": "/jenkins_workspace/site",
"destination": "/tmp/www"
},
{
"type": "shell",
"inline": [
"sudo apt-get update",
"sudo apt-get install -y apache2 php5 libapache2-mod-php5 php5-curl php5-mysql",
"sudo rm /var/www/html/*",
"sudo mv /tmp/www/* /var/www/html",
"sudo service apache2 restart"
]
}]](https://image.slidesharecdn.com/tiadlifecycleautomation-150327044130-conversion-gate01/85/TIAD-Automating-the-aplication-lifecycle-35-320.jpg)
Uploaded byThe Incredible Automation Day
TIAD : Automating the aplication lifecycle
This document discusses automating the application lifecycle using infrastructure as code principles. It demonstrates building infrastructure like VPCs and databases automatically with CloudFormation templates. It then shows deploying application components like load balancers and servers from templates. It discusses updating applications by building new server images from code changes rather than modifying existing servers. This allows deploying updates instantly by replacing server instances. The talk concludes that automating infrastructure and deployments in this way allows integrating new applications or changes much faster.
More Related Content
![DevOps : mission [im]possible ?](https://cdn.slidesharecdn.com/ss_thumbnails/devops-mission-impossible-final-150729142355-lva1-app6891-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to TIAD : Automating the aplication lifecycle
More from The Incredible Automation Day
TIAD : Automating the aplication lifecycle
- 1. Automating the applicationlifecycle 19 mars 2015 . #TIAD . @tiadparis
- 2. # TIAD@ tiadparis Whoam I? 2 Laurent Bernaille @d2si • Linux background • Cloud enthousiast • Opensource advocate • Love discovering, building (and breaking…) new things • Passionate about the ongoing IT transformations @lbernail

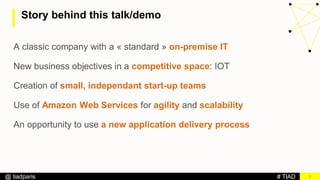

- 3. # TIAD@ tiadparis Storybehind this talk/demo 3 A classic company with a « standard » on-premise IT New business objectives in a competitive space: IOT Creation of small, independant start-up teams Use of Amazon Web Services for agility and scalability An opportunity to use a new application delivery process

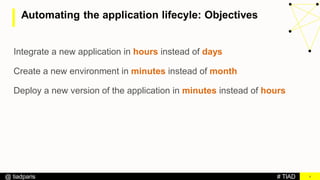

- 4. # TIAD@ tiadparis Automatingthe application lifecyle: Objectives 4 Integrate a new application in hours instead of days Create a new environment in minutes instead of month Deploy a new version of the application in minutes instead of hours

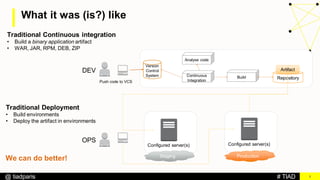

- 5. # TIAD@ tiadparis Whatit was (is?) like 5 DEV Version Control System Continuous Integration Analyse code Build Repository Push code to VCS Traditional Continuous integration • Build a binary application artifact • WAR, JAR, RPM, DEB, ZIP Artifact Traditional Deployment • Build environments • Deploy the artifact in environments OPS Configured server(s) Staging Configured server(s) Production We can do better!
- 6. # TIAD@ tiadparis Demooutline 6 1. Infrastructure build 1. Creation of application back-ends 2. Deployment of the application 3. New release

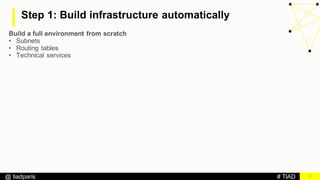

- 7. # TIAD@ tiadparis Step1: Build infrastructure automatically 7 Build a full environment from scratch • Subnets • Routing tables • Technical services

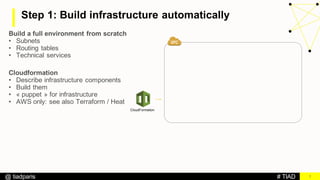

- 8. # TIAD@ tiadparis Step1: Build infrastructure automatically 7 CloudFormation Build a full environment from scratch • Subnets • Routing tables • Technical services Cloudformation • Describe infrastructure components • Build them • « puppet » for infrastructure • AWS only: see also Terraform / Heat
- 9. # TIAD@ tiadparis Step1: Build infrastructure automatically 7 CloudFormation Build a full environment from scratch • Subnets • Routing tables • Technical services eu-west-1a Public subnets Private subnets eu-west-1b Public subnets Private subnets Cloudformation • Describe infrastructure components • Build them • « puppet » for infrastructure • AWS only: see also Terraform / Heat
- 10. # TIAD@ tiadparis Step1: Build infrastructure automatically 7 CloudFormation NAT NATBastion Build a full environment from scratch • Subnets • Routing tables • Technical services eu-west-1a Public subnets Private subnets eu-west-1b Public subnets Private subnets Cloudformation • Describe infrastructure components • Build them • « puppet » for infrastructure • AWS only: see also Terraform / Heat

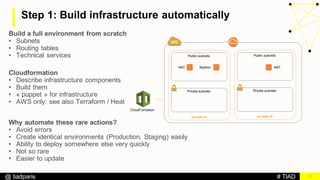

- 11. # TIAD@ tiadparis Step1: Build infrastructure automatically 7 CloudFormation NAT NATBastion Build a full environment from scratch • Subnets • Routing tables • Technical services eu-west-1a Public subnets Private subnets eu-west-1b Public subnets Private subnets Why automate these rare actions? • Avoid errors • Create identical environments (Production, Staging) easily • Ability to deploy somewhere else very quickly • Not so rare • Easier to update Cloudformation • Describe infrastructure components • Build them • « puppet » for infrastructure • AWS only: see also Terraform / Heat

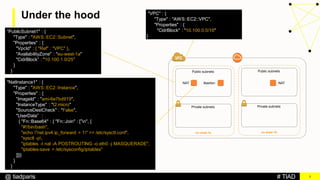

- 12. # TIAD@ tiadparis Underthe hood 8 NAT NATBastion eu-west-1a Public subnets Private subnets eu-west-1b Public subnets Private subnets "VPC" : { "Type" : "AWS::EC2::VPC", "Properties" : { "CidrBlock" : "10.100.0.0/16" } ”PublicSubnet1" : { "Type" : "AWS::EC2::Subnet", "Properties" : { "VpcId" : { "Ref" : "VPC" }, "AvailabilityZone" : "eu-west-1a" "CidrBlock” : "10.100.1.0/25” } } "NatInstance1" : { "Type" : "AWS::EC2::Instance", "Properties" : { "ImageId" : "ami-6e7bd919", "InstanceType" : "t2.micro" "SourceDestCheck" : "False", "UserData” : { "Fn::Base64" : { "Fn::Join" : [”n", [ "#!/bin/bash", "echo "net.ipv4.ip_forward = 1" >> /etc/sysctl.conf", "sysctl -p, "iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE", "iptables-save > /etc/sysconfig/iptables" ]]}} } }

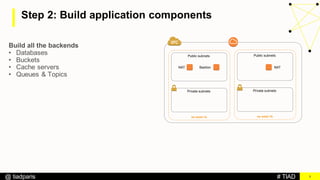

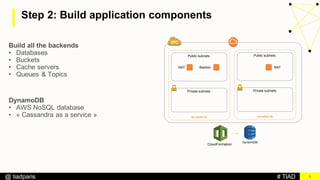

- 13. # TIAD@ tiadparis Step2: Build application components 9 Build all the backends • Databases • Buckets • Cache servers • Queues & Topics NAT NATBastion eu-west-1a Public subnets Private subnets eu-west-1b Public subnets Private subnets

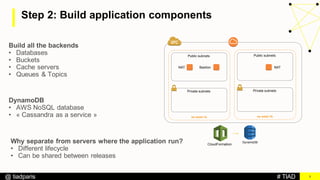

- 14. # TIAD@ tiadparis Step2: Build application components 9 CloudFormation Build all the backends • Databases • Buckets • Cache servers • Queues & Topics NAT NATBastion eu-west-1a Public subnets Private subnets eu-west-1b Public subnets Private subnets DynamoDB DynamoDB • AWS NoSQL database • « Cassandra as a service »
- 15. # TIAD@ tiadparis Step2: Build application components 9 CloudFormation Build all the backends • Databases • Buckets • Cache servers • Queues & Topics NAT NATBastion eu-west-1a Public subnets Private subnets eu-west-1b Public subnets Private subnets Why separate from servers where the application run? • Different lifecycle • Can be shared between releases DynamoDB DynamoDB • AWS NoSQL database • « Cassandra as a service »

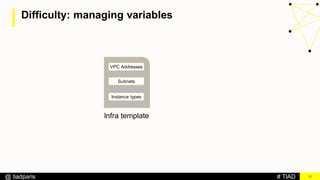

- 16. # TIAD@ tiadparis Difficulty:managing variables 10 VPC Addresses Subnets Instance types Infra template

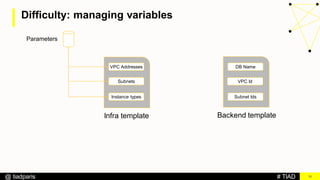

- 17. # TIAD@ tiadparis Difficulty:managing variables 10 VPC Addresses Subnets Instance types Infra template Parameters
- 18. # TIAD@ tiadparis Difficulty:managing variables 10 VPC Addresses Subnets Instance types Infra template Parameters Backend template VPC Id Subnet Ids DB Name
- 19. # TIAD@ tiadparis Difficulty:managing variables 10 VPC Addresses Subnets Instance types Infra template Parameters Backend template VPC Id Subnet Ids DB Name

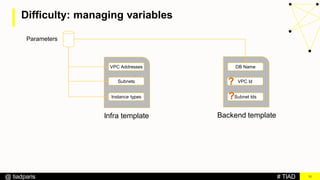

- 20. # TIAD@ tiadparis Difficulty:managing variables 10 VPC Addresses Subnets Instance types Infra template Parameters Backend template VPC Id Subnet Ids DB Name ? ?

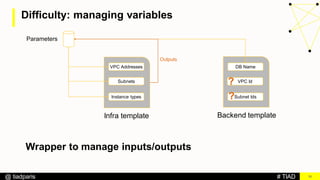

- 21. # TIAD@ tiadparis Difficulty:managing variables 10 VPC Addresses Subnets Instance types Infra template Parameters Backend template VPC Id Subnet Ids DB Name ? ? Wrapper to manage inputs/outputs Outputs

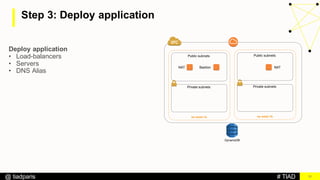

- 22. # TIAD@ tiadparis Step3: Deploy application 11 Deploy application • Load-balancers • Servers • DNS Alias NAT NATBastion eu-west-1a Public subnets Private subnets eu-west-1b Public subnets Private subnets DynamoDB

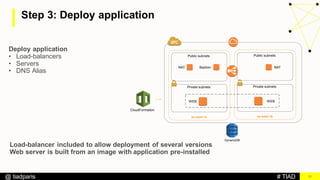

- 23. # TIAD@ tiadparis Step3: Deploy application 11 CloudFormation Deploy application • Load-balancers • Servers • DNS Alias NAT NATBastion eu-west-1a Public subnets Private subnets eu-west-1b Public subnets Private subnets DynamoDB WEB WEB Load-balancer included to allow deployment of several versions Web server is built from an image with application pre-installed

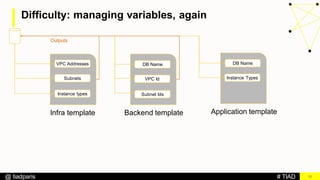

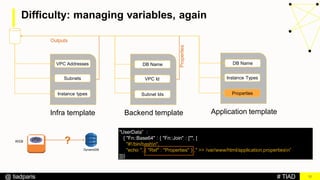

- 24. # TIAD@ tiadparis Difficulty:managing variables, again 12 VPC Addresses Subnets Instance types Infra template Backend template VPC Id Subnet Ids DB Name Outputs Application template Instance Types DB Name
- 25. # TIAD@ tiadparis Difficulty:managing variables, again 12 VPC Addresses Subnets Instance types Infra template Backend template VPC Id Subnet Ids DB Name Outputs Application template Instance Types DB Name WEB DynamoDB ?
- 26. # TIAD@ tiadparis Difficulty:managing variables, again 12 VPC Addresses Subnets Instance types Infra template Backend template VPC Id Subnet Ids DB Name Outputs Application template Instance Types DB Name WEB DynamoDB ? "UserData” : { "Fn::Base64" : { "Fn::Join" : ["", [ "#!/bin/bashn", "echo ", { "Ref" : "Properties" } ," >> /var/www/html/application.propertiesn” ]]}} Properties Properties

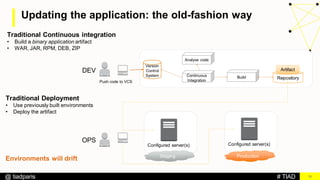

- 27. # TIAD@ tiadparis Updatingthe application: the old-fashion way 13 DEV Version Control System Continuous Integration Analyse code Build Repository Push code to VCS Traditional Continuous integration • Build a binary application artifact • WAR, JAR, RPM, DEB, ZIP Artifact Traditional Deployment • Use previously built environments • Deploy the artifact OPS Configured server(s) Staging Configured server(s) Production Environments will drift

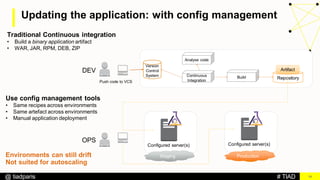

- 28. # TIAD@ tiadparis Updatingthe application: with config management 14 Environments can still drift Not suited for autoscaling DEV Version Control System Continuous Integration Analyse code Build Repository Push code to VCS Traditional Continuous integration • Build a binary application artifact • WAR, JAR, RPM, DEB, ZIP Artifact Use config management tools • Same recipes across environments • Same artefact across environments • Manual application deployment OPS Configured server(s) Staging Configured server(s) Production
- 29. # TIAD@ tiadparis Updatingthe application: in the cloud 15 Building can take a while Some drift still possible DEV Version Control System Continuous Integration Analyse code Build Repository Push code to VCS Traditional Continuous integration • Build a binary application artifact • WAR, JAR, RPM, DEB, ZIP Artifact Use config management tools • Same recipes across environments • Same artefact across environments • Deploy application at server start OPS Configured server(s) Staging Configured server(s) Production

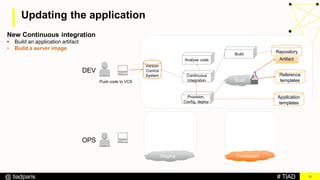

- 30. # TIAD@ tiadparis Updatingthe application 16 DEV Version Control System Continuous Integration Analyse code Build Repository Push code to VCS New Continuous integration • Build an application artifact • Build a server image Artifact OPS Staging Production
- 31. # TIAD@ tiadparis Updatingthe application 16 DEV Version Control System Continuous Integration Analyse code Build Repository Push code to VCS New Continuous integration • Build an application artifact • Build a server image Artifact OPS Staging Production Provision, Config, deploy Reference templatesBuild Application templates
- 32. # TIAD@ tiadparis Updatingthe application 16 DEV Version Control System Continuous Integration Analyse code Build Repository Push code to VCS New Continuous integration • Build an application artifact • Build a server image Artifact OPS Configured server(s) Staging Configured server(s) Production Provision, Config, deploy Reference templatesBuild Application templates

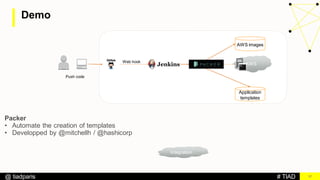

- 33. # TIAD@ tiadparis Demo 17 Pushcode Integration AWS images AWS Application templates Web hook Packer • Automate the creation of templates • Developped by @mitchellh / @hashicorp

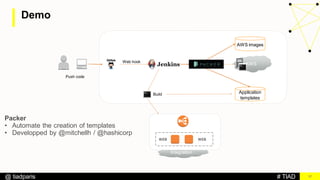

- 34. # TIAD@ tiadparis Demo 17 Pushcode Integration AWS images AWS Application templates Web hook Build WEB WEB Packer • Automate the creation of templates • Developped by @mitchellh / @hashicorp

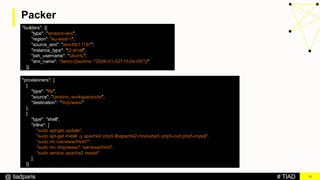

- 35. # TIAD@ tiadparis Packer 18 "builders":[{ "type": "amazon-ebs", "region": ”eu-west-1", "source_ami": "ami-f0b11187", "instance_type": "t2.small", "ssh_username": "ubuntu", "ami_name": "demo-{{isotime "2006-01-02T15-04-05"}}" }], "provisioners": [ { "type": "file", "source": "/jenkins_workspace/site", "destination": "/tmp/www" }, { "type": "shell", "inline": [ "sudo apt-get update", "sudo apt-get install -y apache2 php5 libapache2-mod-php5 php5-curl php5-mysql", "sudo rm /var/www/html/*", "sudo mv /tmp/www/* /var/www/html", "sudo service apache2 restart" ] }]

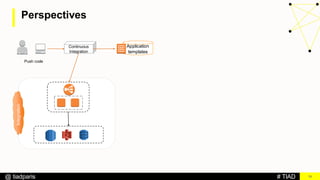

- 36. # TIAD@ tiadparis19 Push code Continuous Integration Application templates IntegrationPerspectives

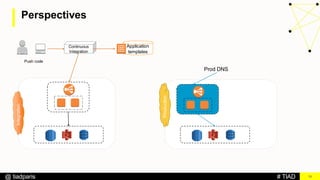

- 37. # TIAD@ tiadparis19 Production Push code Continuous Integration Application templates Integration Prod DNS Perspectives
- 38. # TIAD@ tiadparis19 Production Push code Continuous Integration Application templates Integration Prod DNS Perspectives

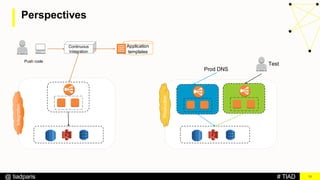

- 39. # TIAD@ tiadparis19 Production Test Push code Continuous Integration Application templates Integration Prod DNS Perspectives
- 40. # TIAD@ tiadparis19 Production Test Push code Continuous Integration Application templates Integration Prod DNS Perspectives

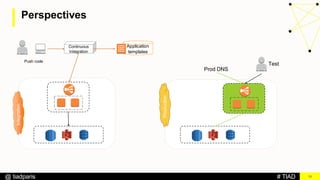

- 41. # TIAD@ tiadparis19 Production Test Push code Continuous Integration Application templates Integration Prod DNS Perspectives
- 42. # TIAD@ tiadparis Keytake-aways 20 Everything can be automated Very important change: Immutable servers • New application artifact: Images / Containers • Very challenging for organizations
- 43. # TIAD@ tiadparis Thankyou @lbernail Fork the code of this demo on github https://github.com/lbernail/demo
