This document describes the architecture of the Angelos web application framework. It discusses how Angelos uses a PSGI engine to handle requests and responses through a pluggable dispatcher and controller system. It also describes how Angelos implements hooks to add functionality before and after controller actions are executed.

1. YAPC::Asia 2009 2009/09/10
dann
techmemo@gmail.com
Angelos github.com/dann dann

2. Angelos github.com/dann dann

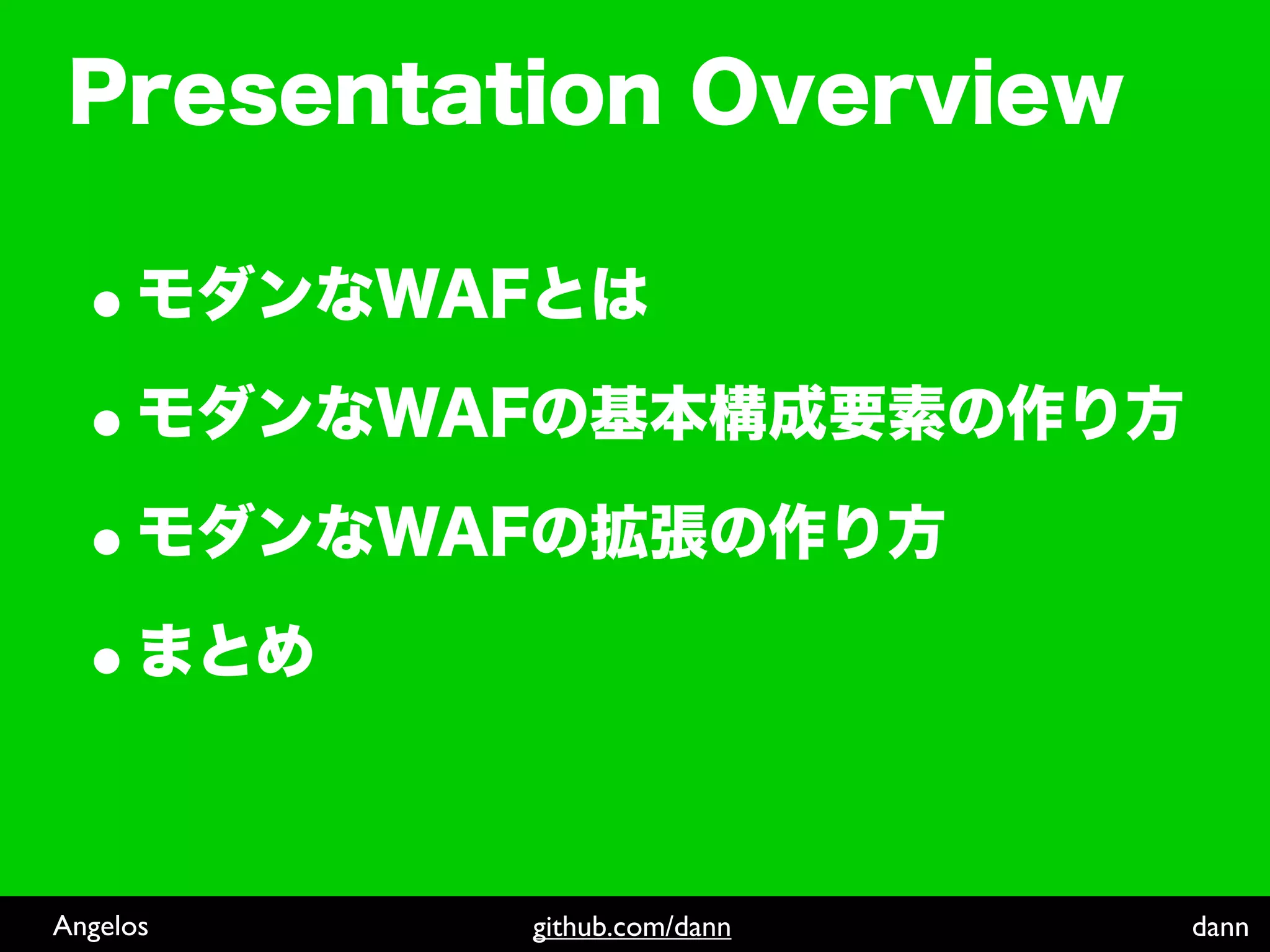

3. Angelos github.com/dann dann

4. Angelos github.com/dann dann

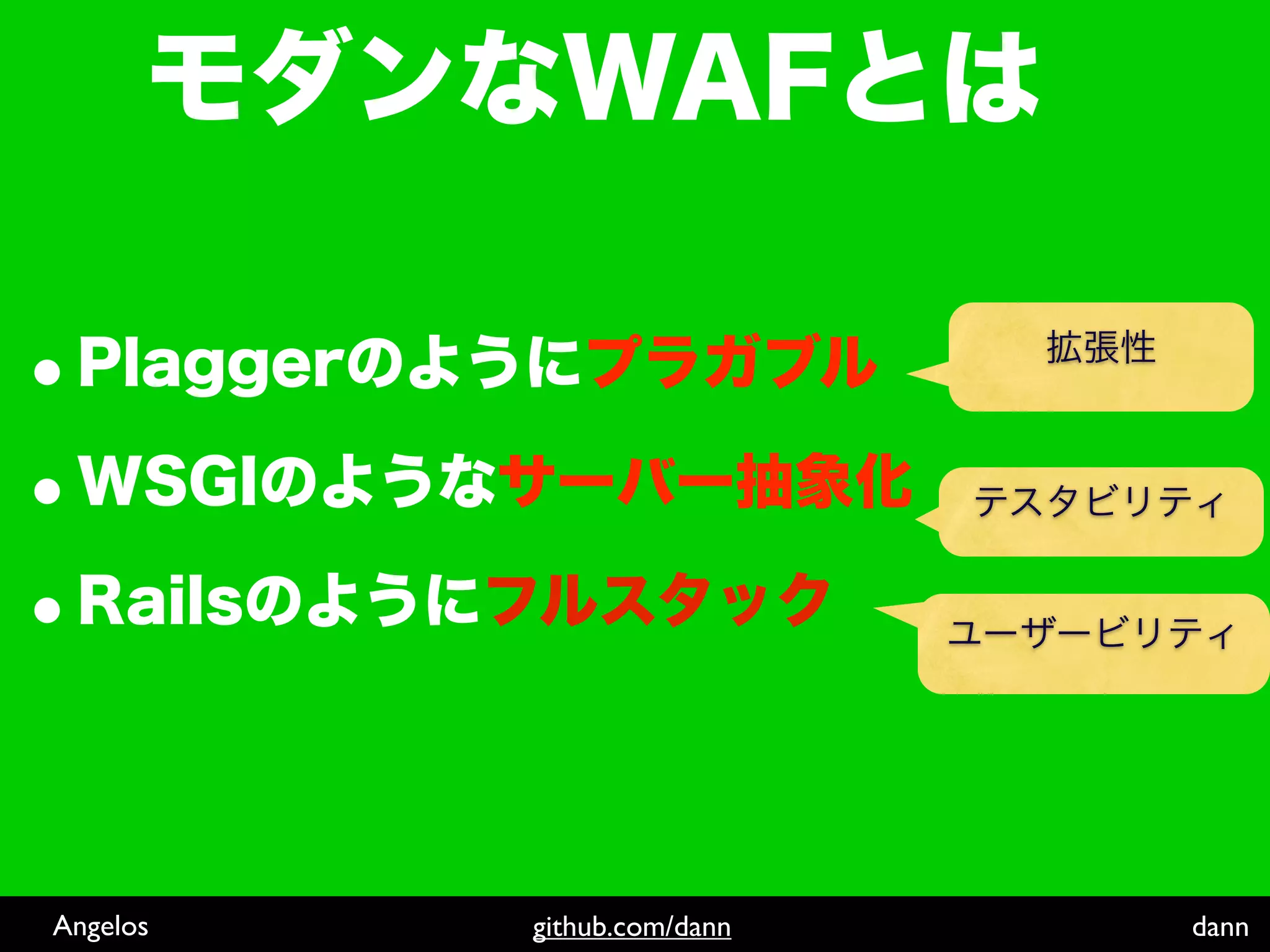

5. Angelos github.com/dann dann

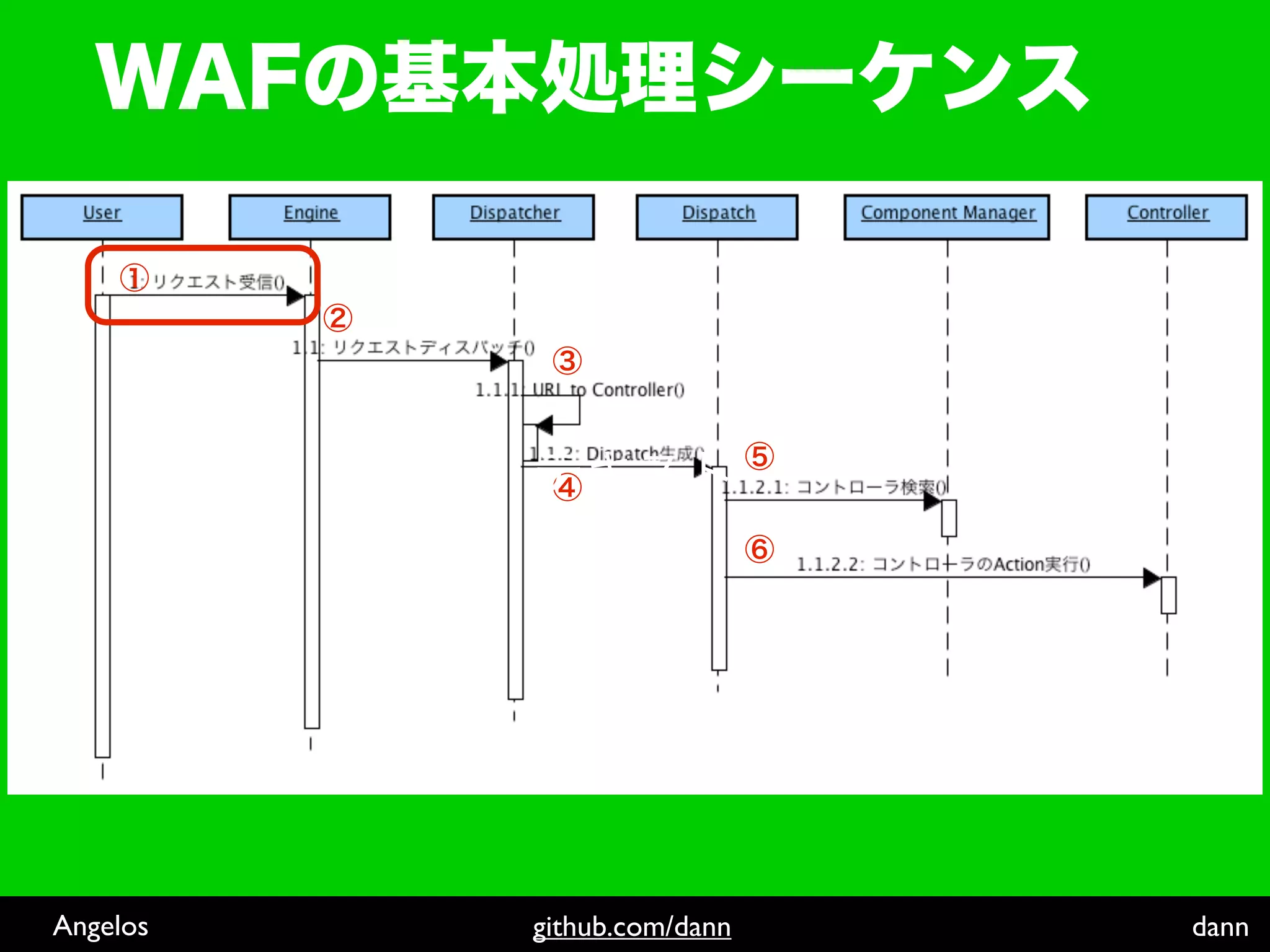

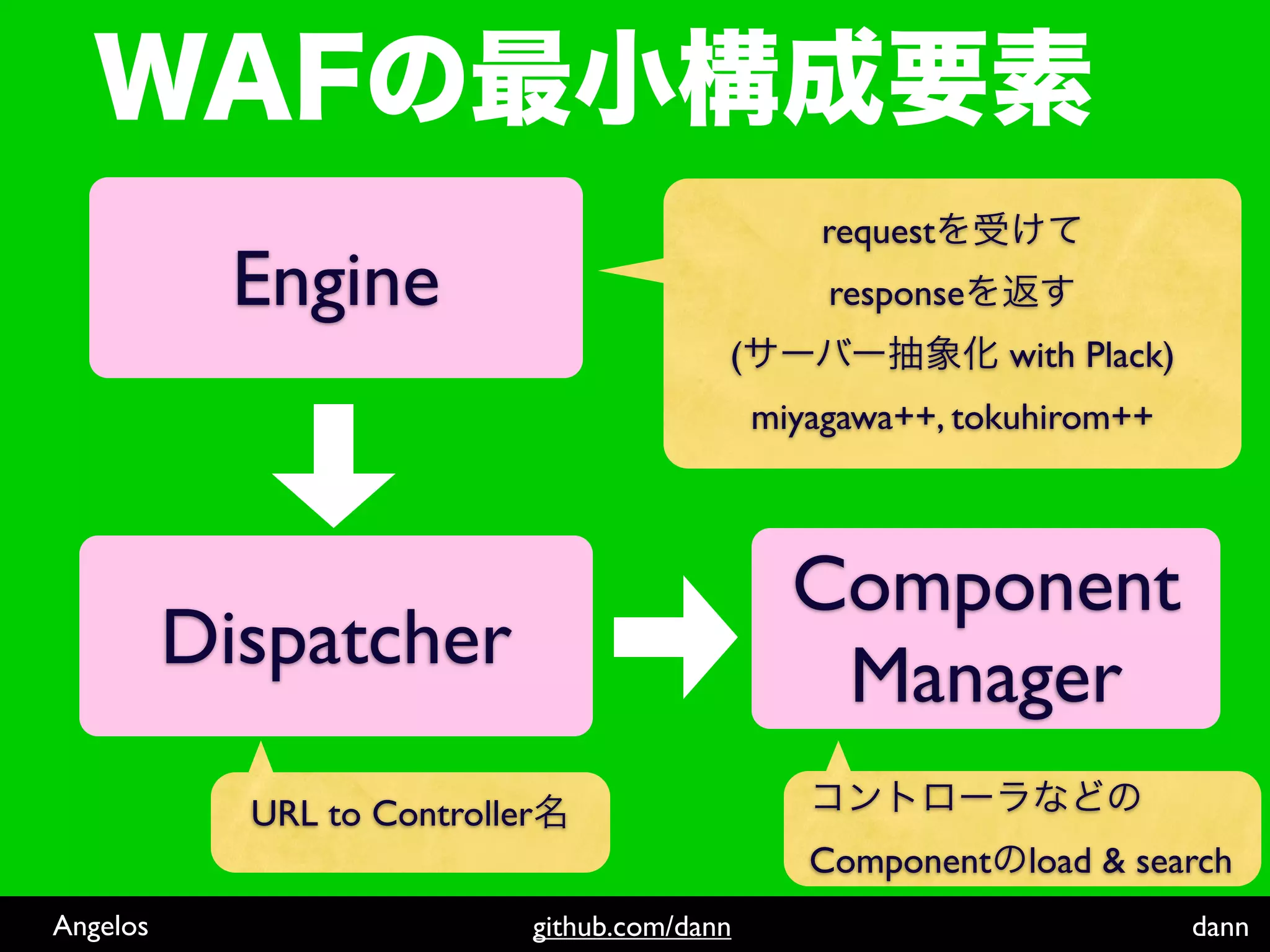

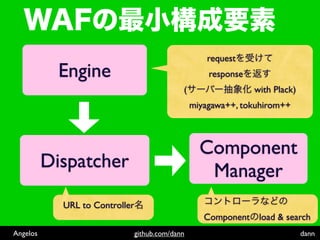

6. request
Engine response
( with Plack)
miyagawa++, tokuhirom++
Component
Dispatcher Manager
URL to Controller
Component load & search
Angelos github.com/dann dann

7. Angelos github.com/dann dann

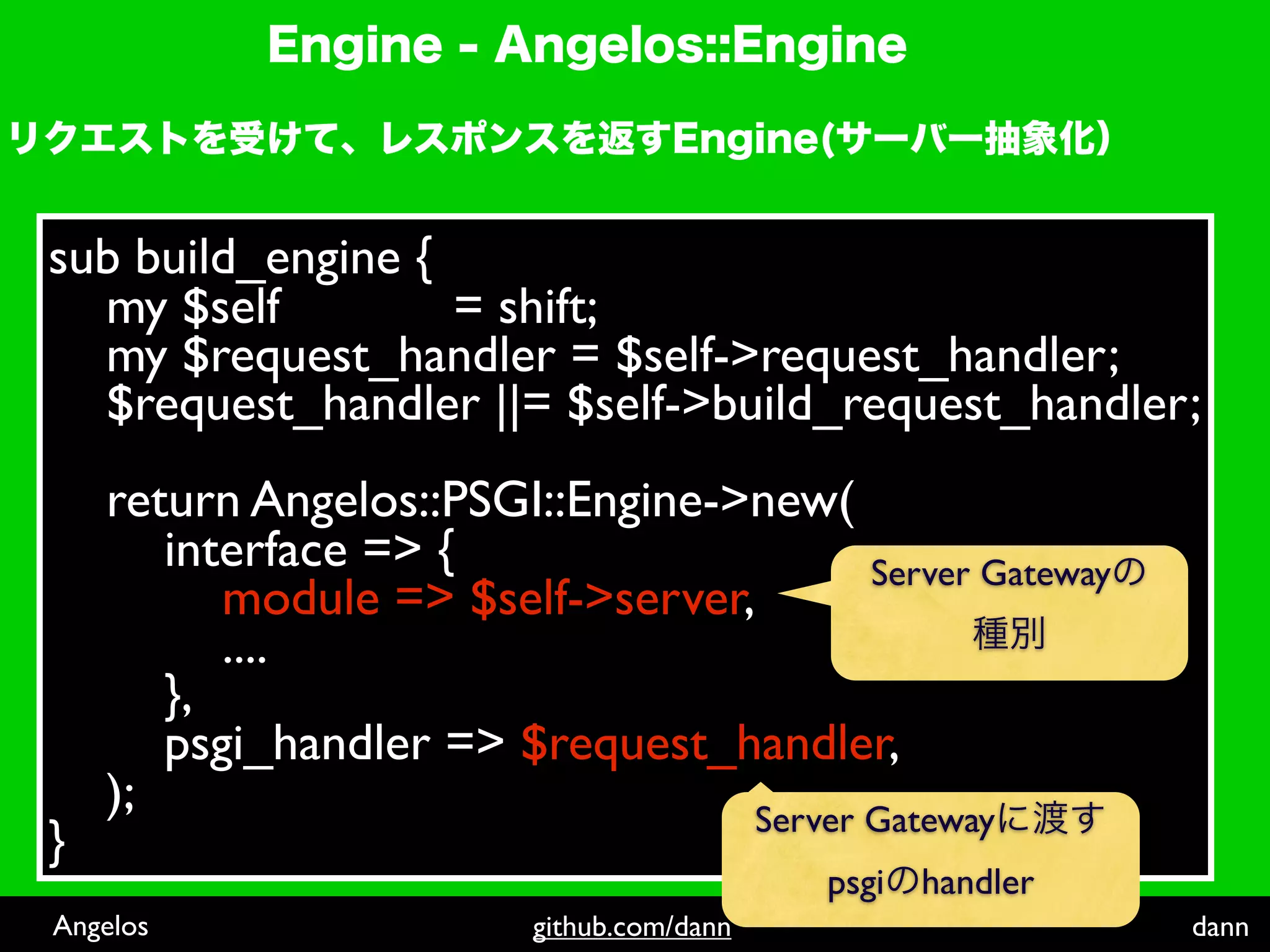

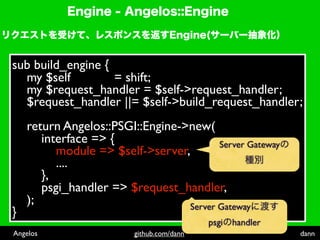

8. sub build_engine {
my $self = shift;
my $request_handler = $self->request_handler;
$request_handler ||= $self->build_request_handler;
return Angelos::PSGI::Engine->new(
interface => { Server Gateway
module => $self->server,
....
},
psgi_handler => $request_handler,
); Server Gateway
}
psgi handler
Angelos github.com/dann dann

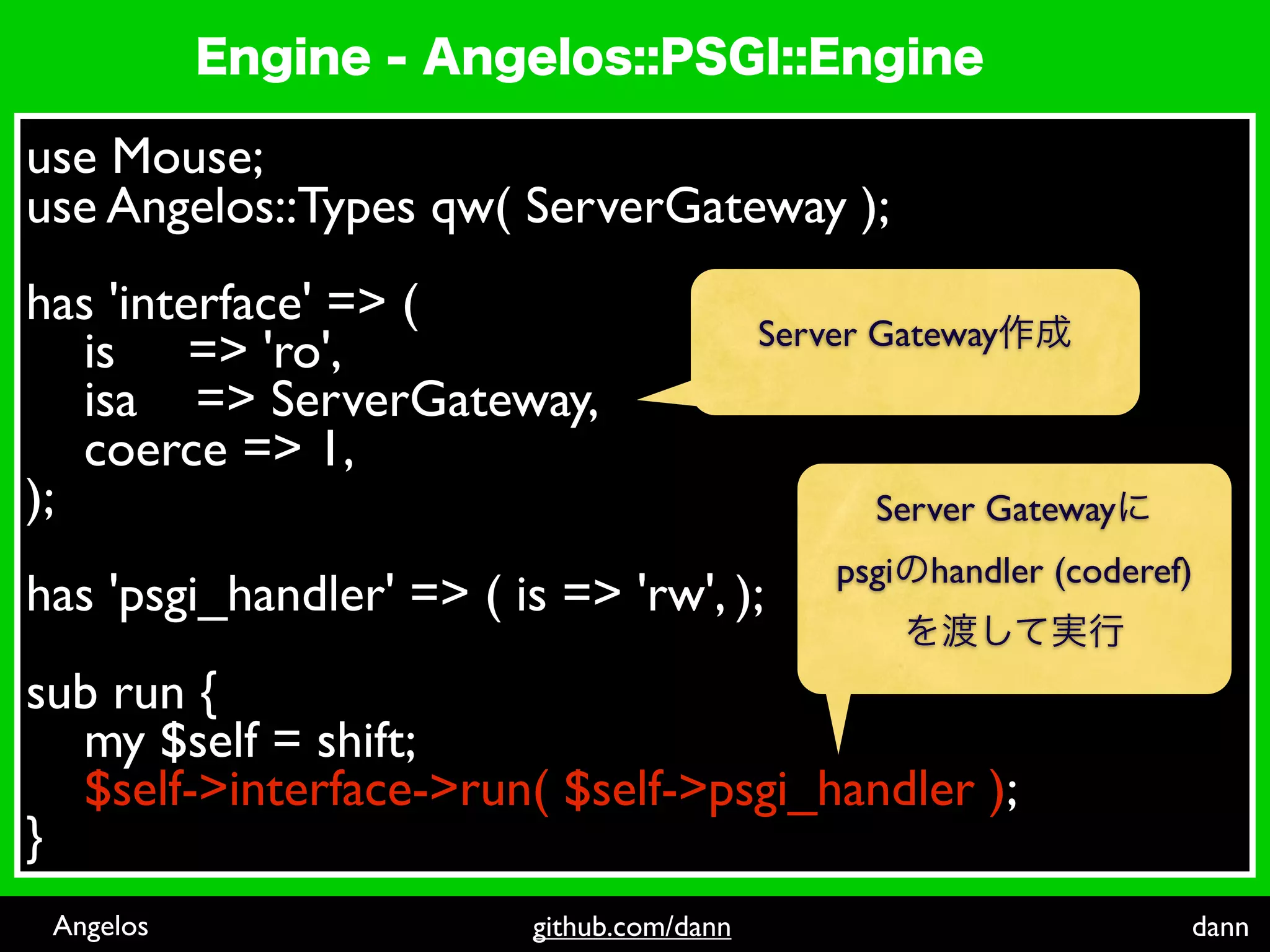

9. use Mouse;
use Angelos::Types qw( ServerGateway );
has 'interface' => (
Server Gateway
is => 'ro',
isa => ServerGateway,
coerce => 1,
); Server Gateway
psgi handler (coderef)
has 'psgi_handler' => ( is => 'rw', );
sub run {
my $self = shift;
$self->interface->run( $self->psgi_handler );
}
Angelos github.com/dann dann

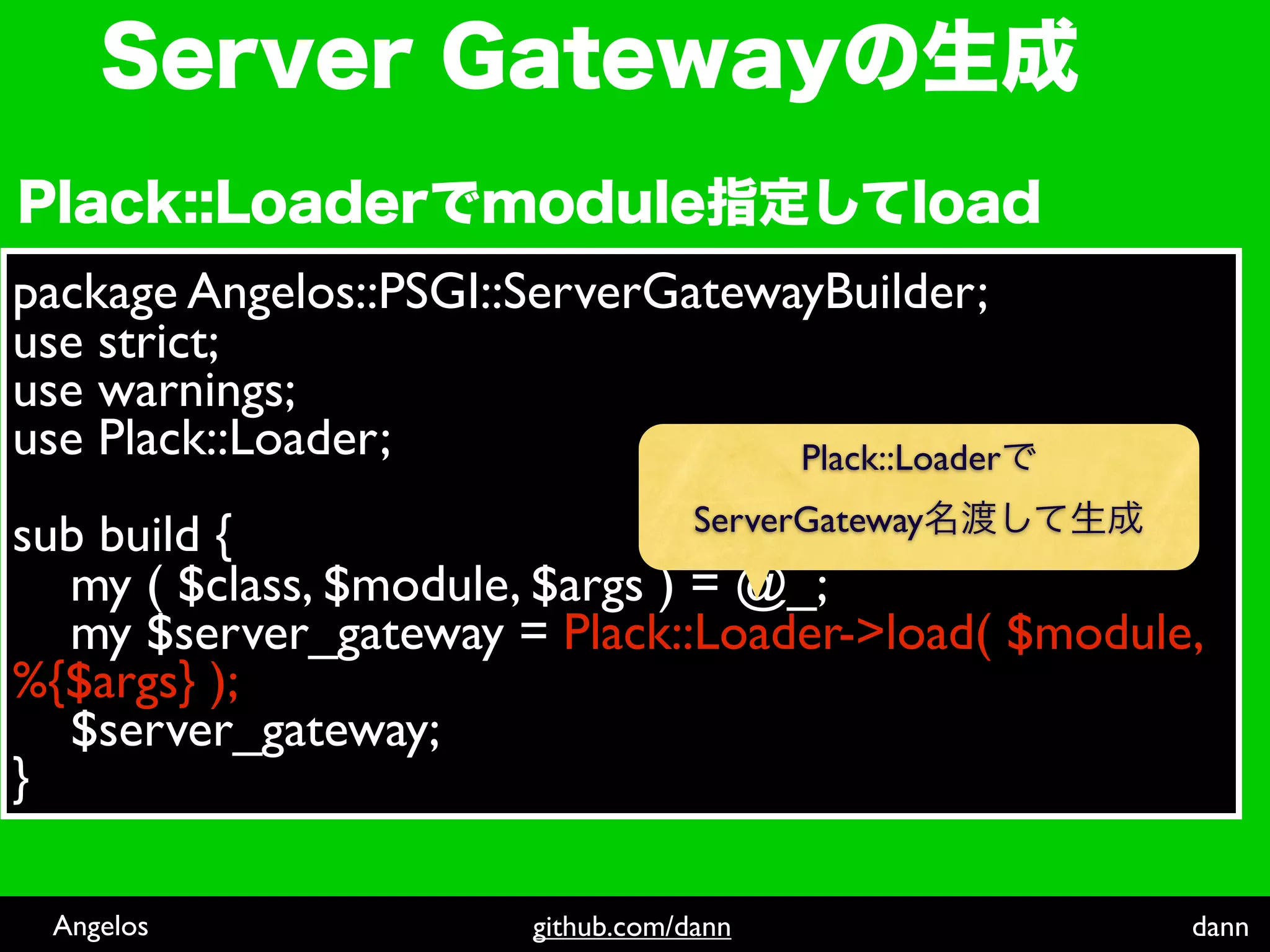

10. package Angelos::PSGI::ServerGatewayBuilder;
use strict;
use warnings;
use Plack::Loader; Plack::Loader
ServerGateway
sub build {
my ( $class, $module, $args ) = @_;
my $server_gateway = Plack::Loader->load( $module,
%{$args} );
$server_gateway;
}
Angelos github.com/dann dann

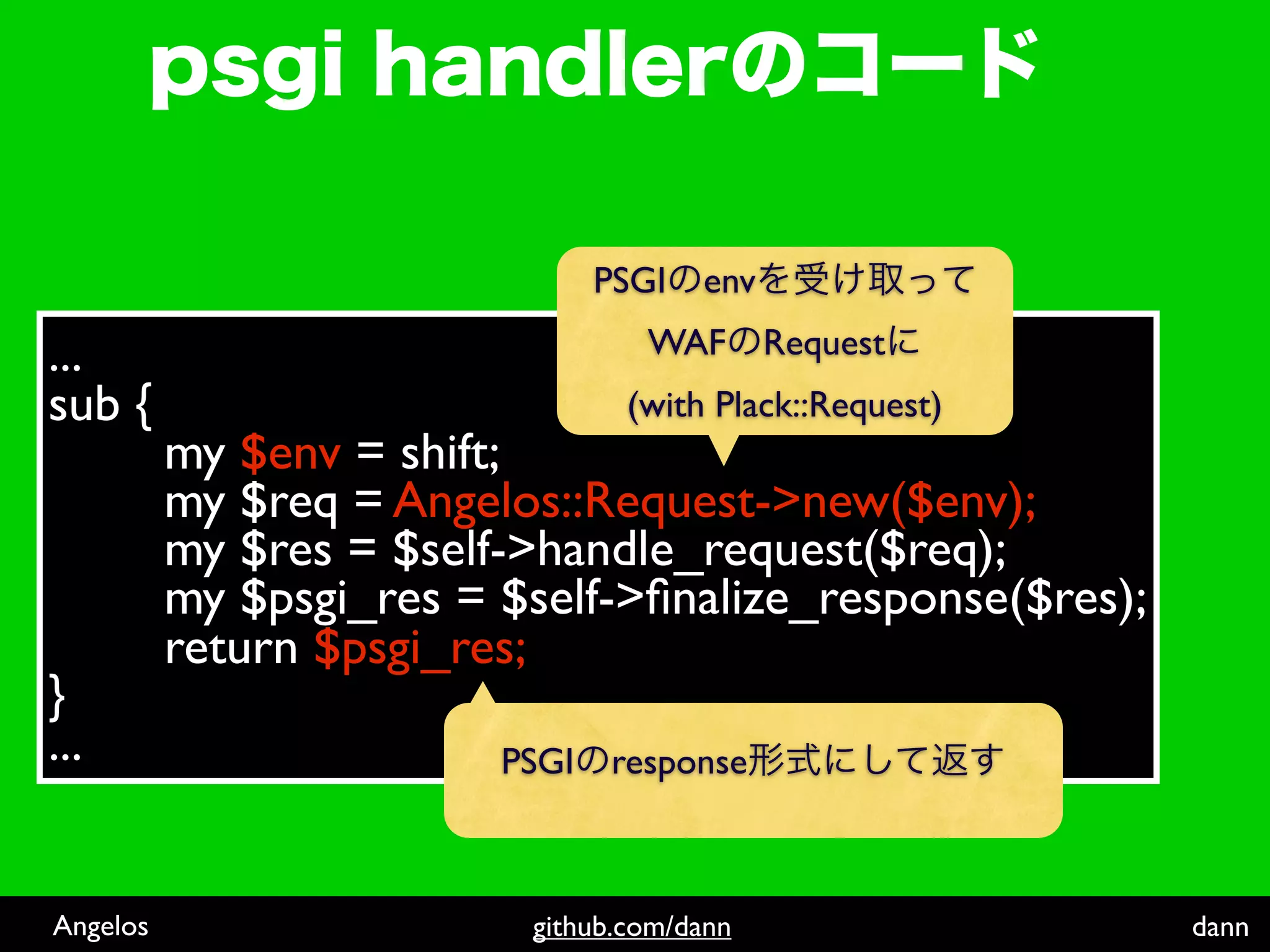

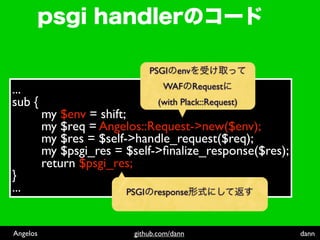

11. PSGI env
... WAF Request
sub { (with Plack::Request)
my $env = shift;
my $req = Angelos::Request->new($env);
my $res = $self->handle_request($req);
my $psgi_res = $self->finalize_response($res);
return $psgi_res;
}
... PSGI response
Angelos github.com/dann dann

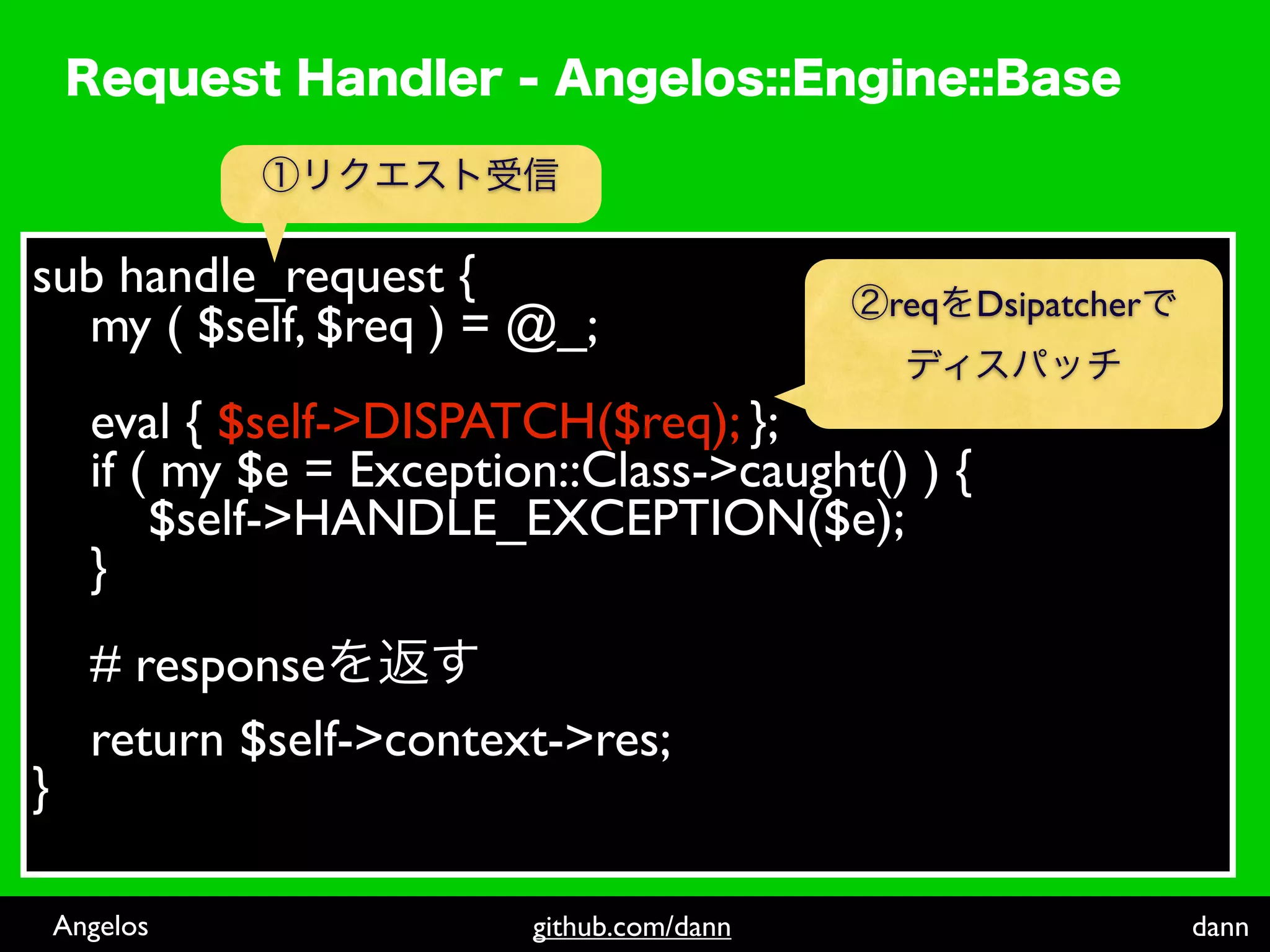

12. sub handle_request { req Dsipatcher
my ( $self, $req ) = @_;
eval { $self->DISPATCH($req); };
if ( my $e = Exception::Class->caught() ) {
$self->HANDLE_EXCEPTION($e);
}
# response
return $self->context->res;
}
Angelos github.com/dann dann

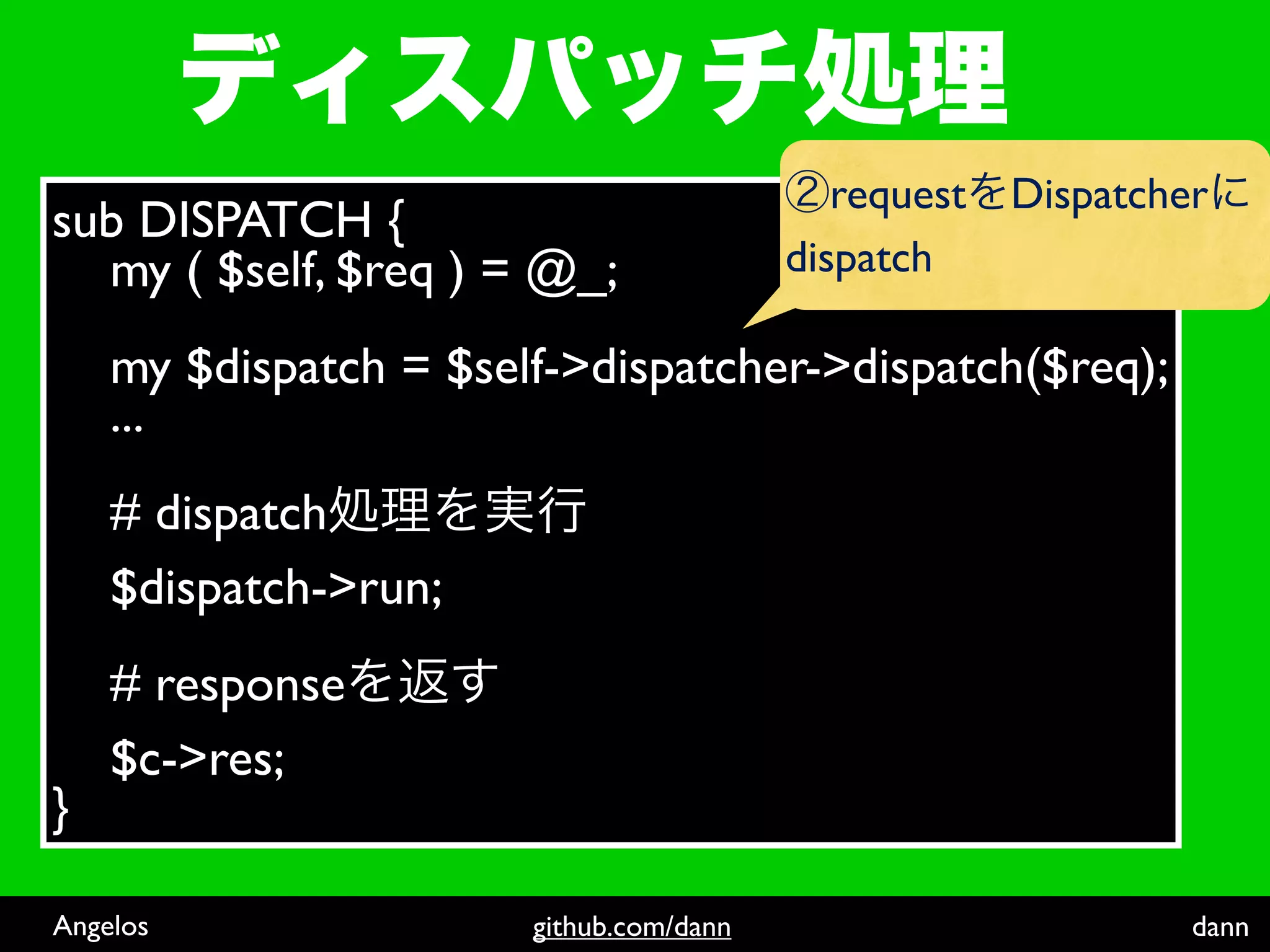

13. request Dispatcher
sub DISPATCH {
my ( $self, $req ) = @_; dispatch
my $dispatch = $self->dispatcher->dispatch($req);
...
# dispatch
$dispatch->run;
# response
$c->res;
}
Angelos github.com/dann dann

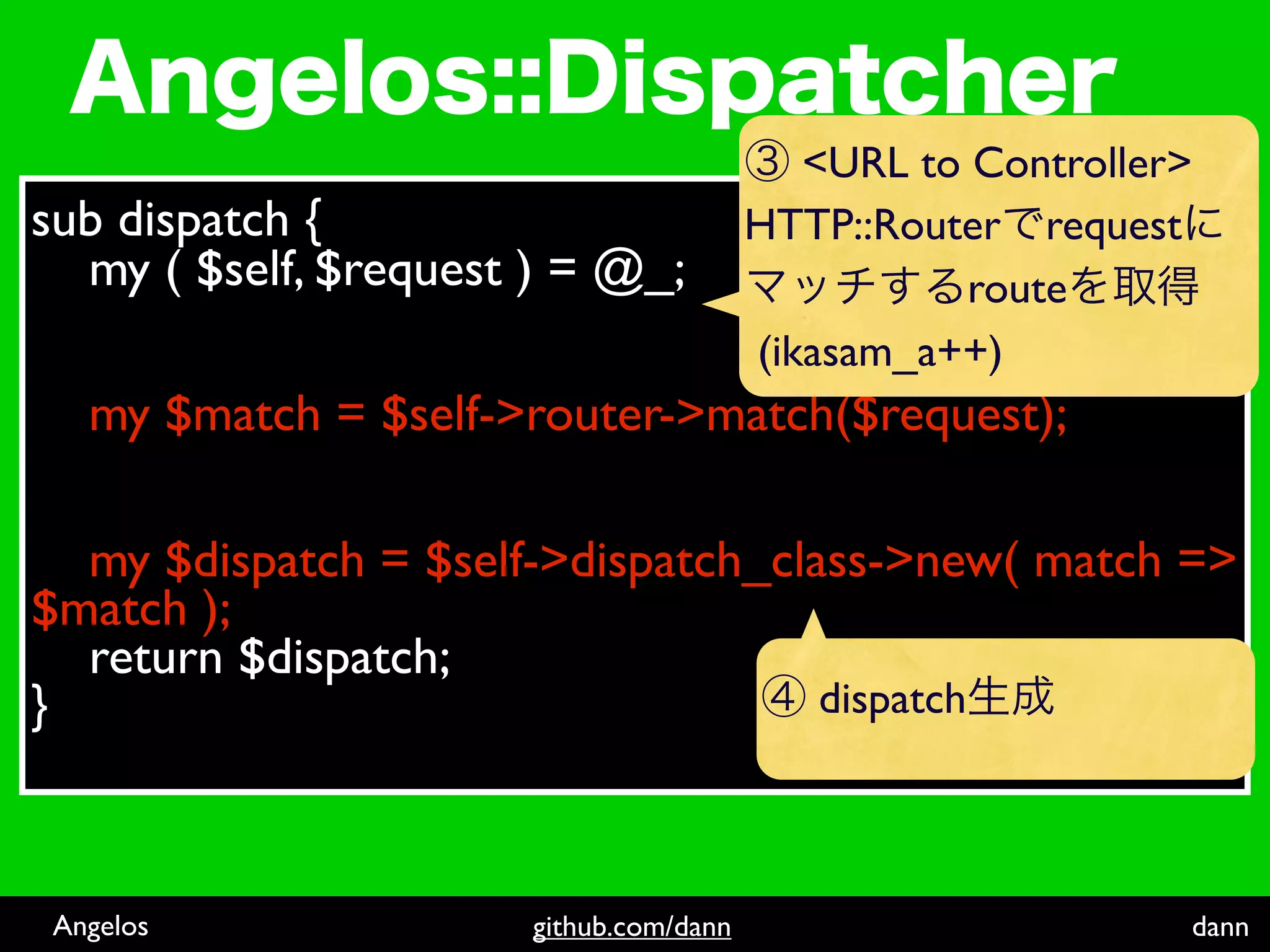

14. <URL to Controller>
sub dispatch { HTTP::Router request
my ( $self, $request ) = @_; route
(ikasam_a++)
my $match = $self->router->match($request);
my $dispatch = $self->dispatch_class->new( match =>
$match );
return $dispatch;
} dispatch
Angelos github.com/dann dann

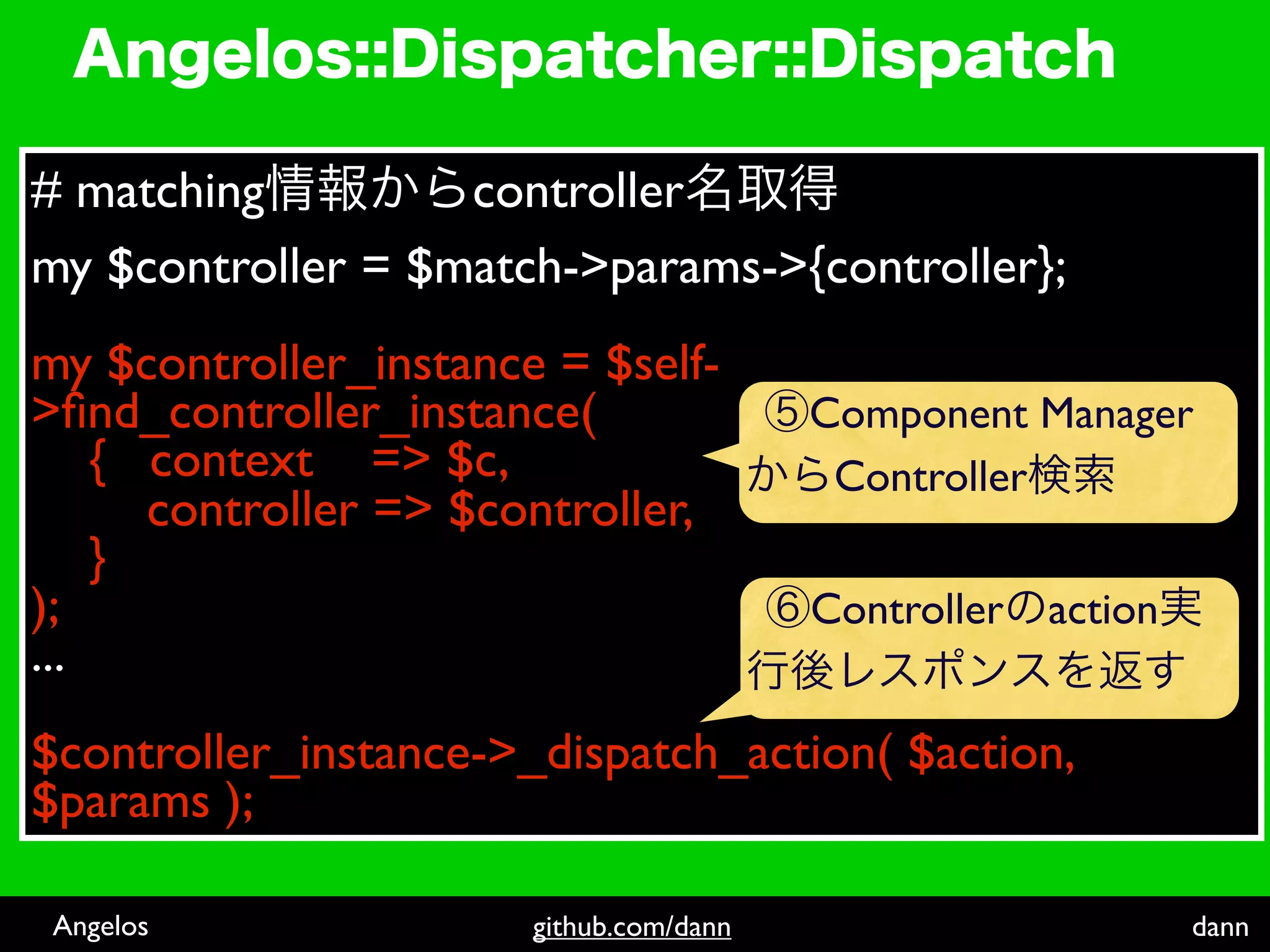

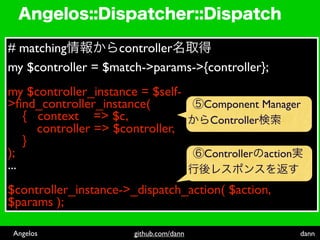

15. # matching controller
my $controller = $match->params->{controller};
my $controller_instance = $self-
>find_controller_instance( Component Manager
{ context => $c, Controller
controller => $controller,
}
); Controller action
...
$controller_instance->_dispatch_action( $action,
$params );
Angelos github.com/dann dann

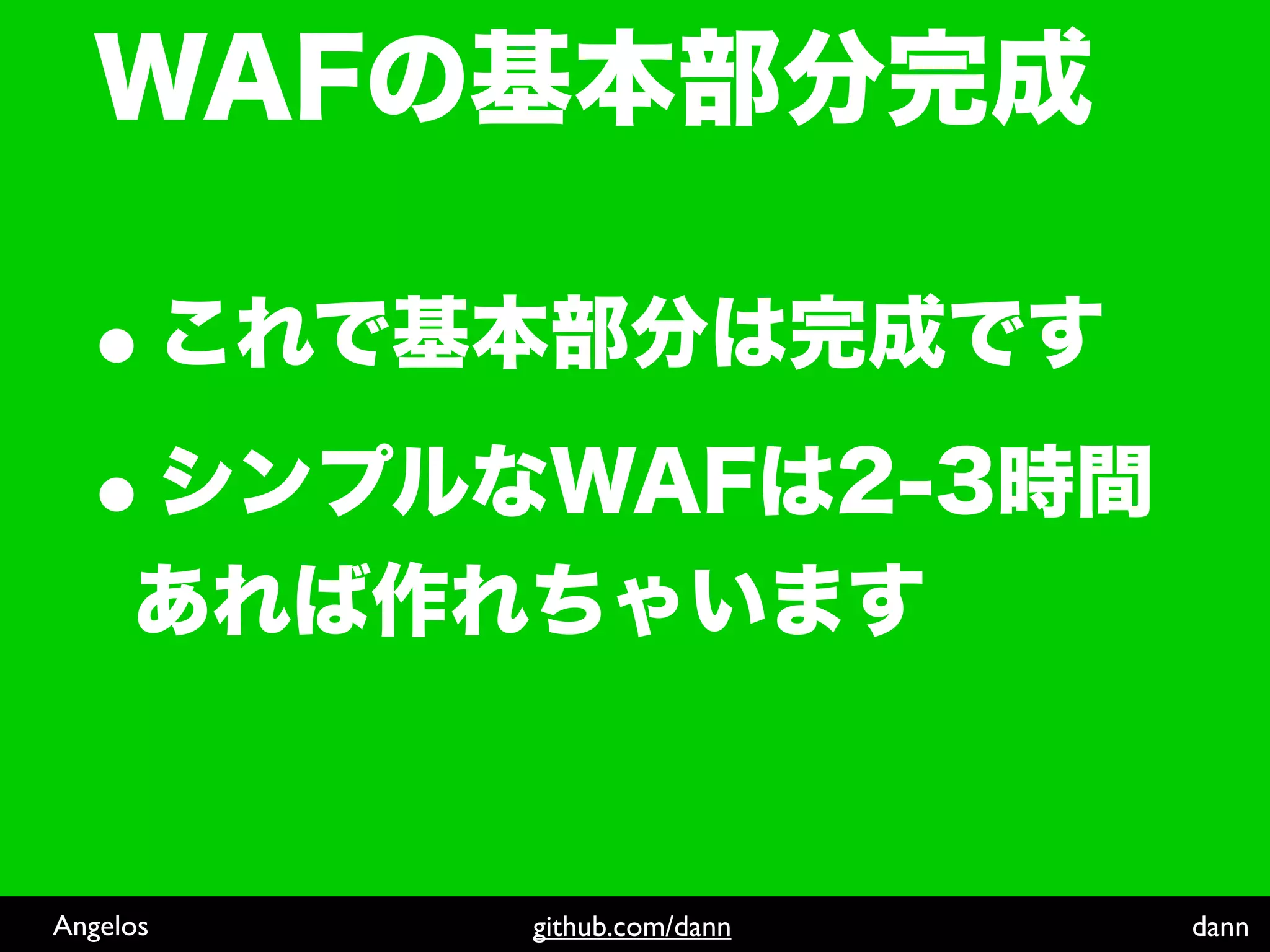

16. Angelos github.com/dann dann

17. Angelos github.com/dann dann

18. Angelos github.com/dann dann

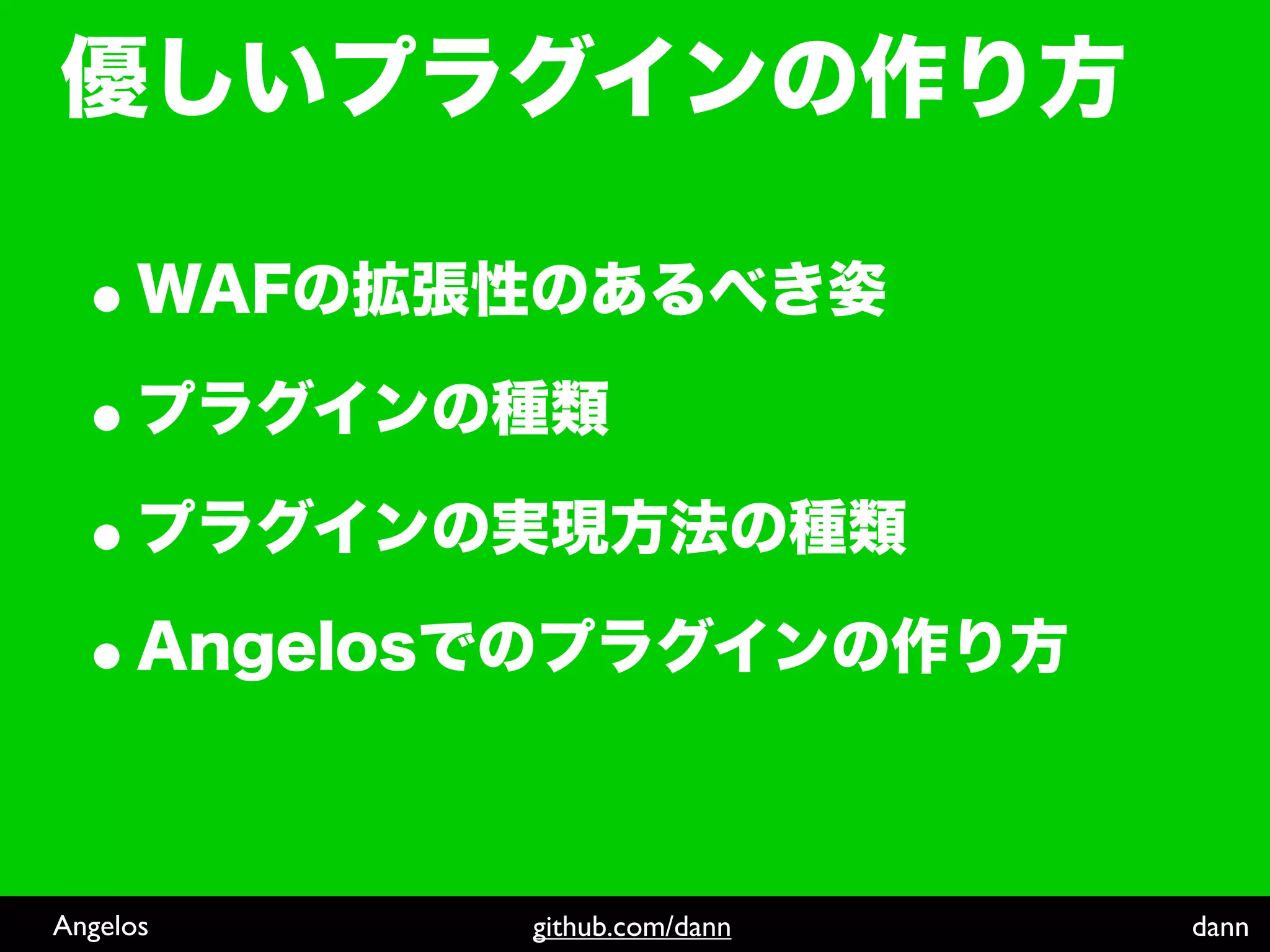

19. Angelos github.com/dann dann

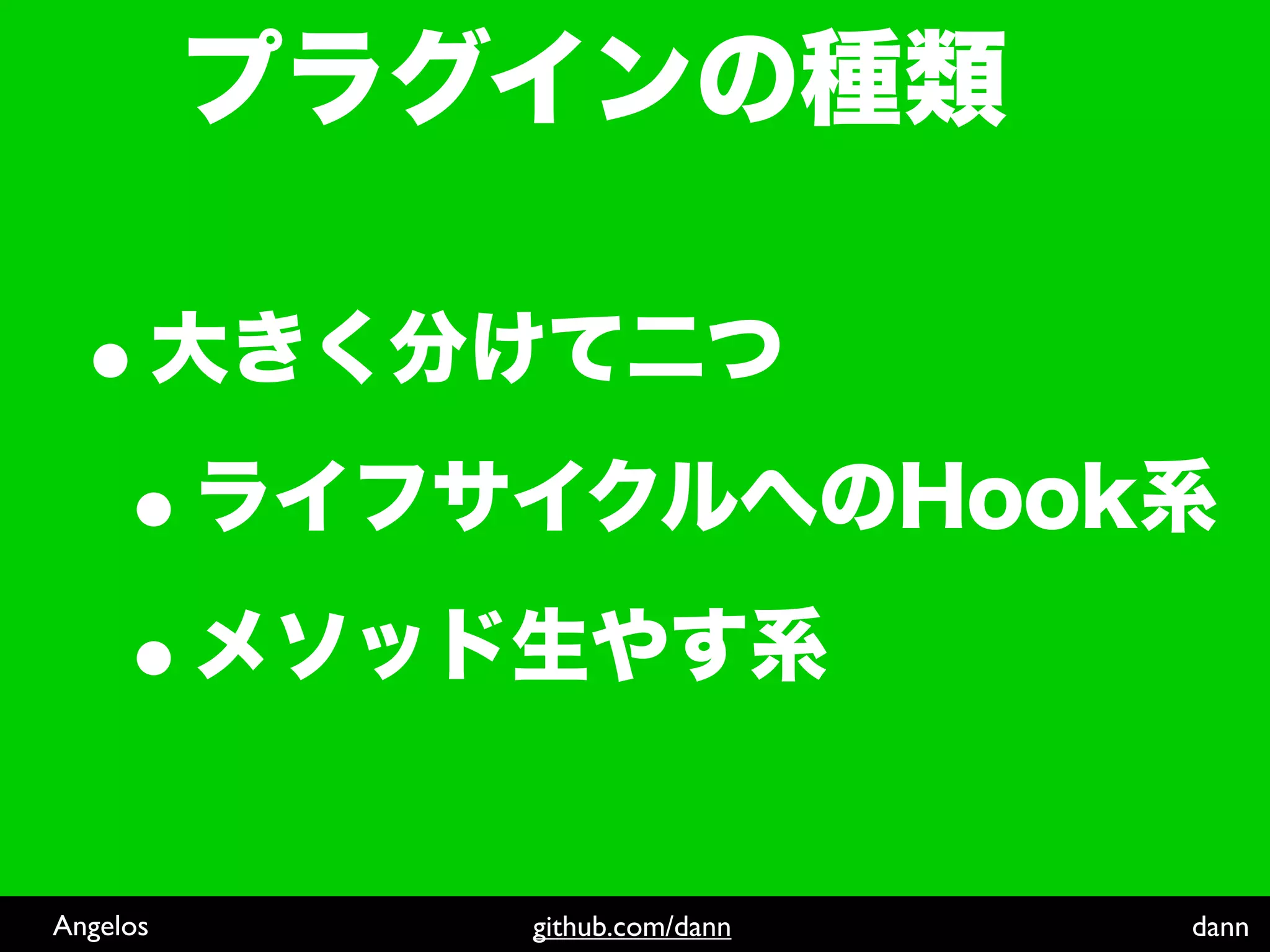

20. Angelos github.com/dann dann

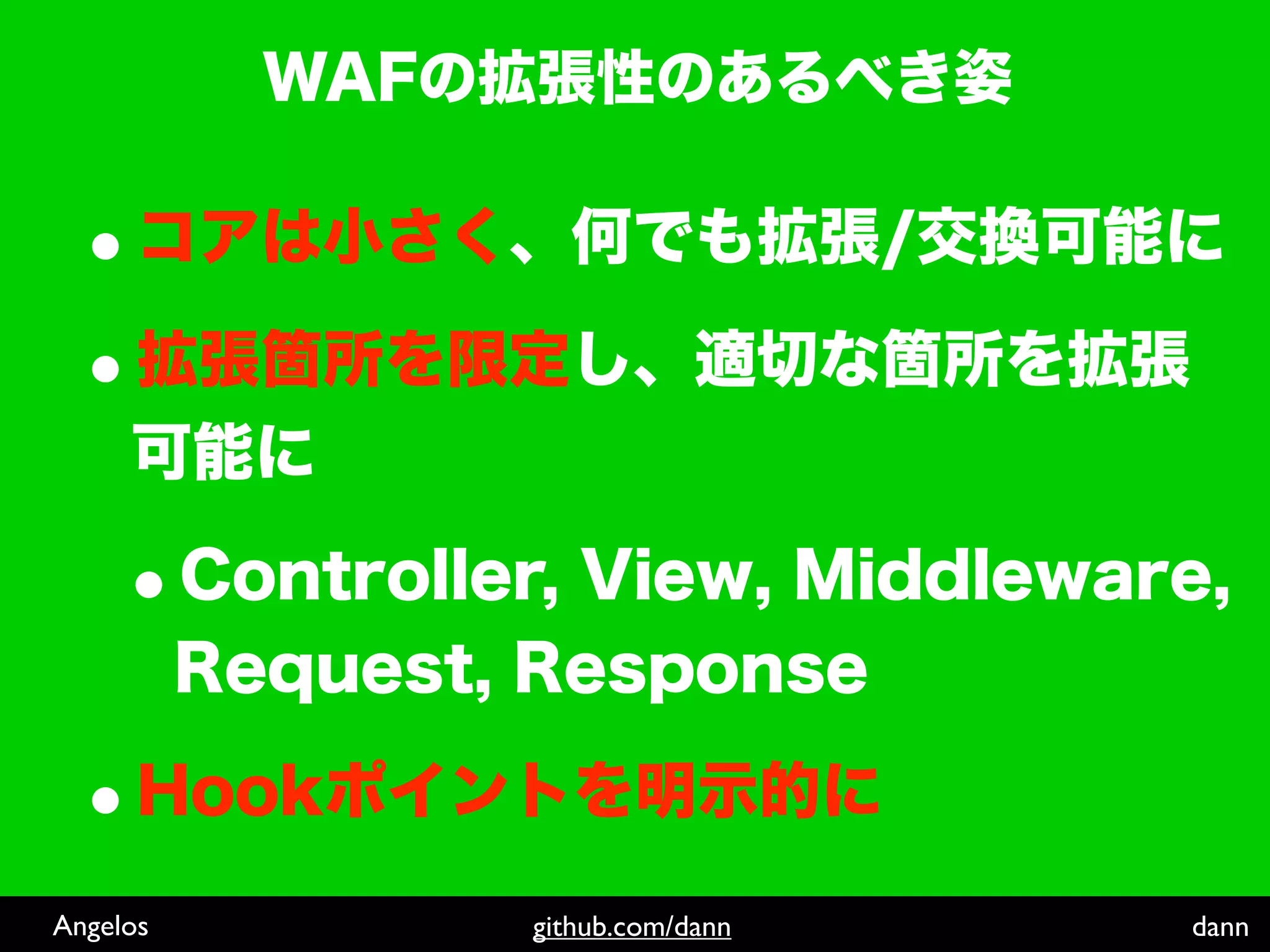

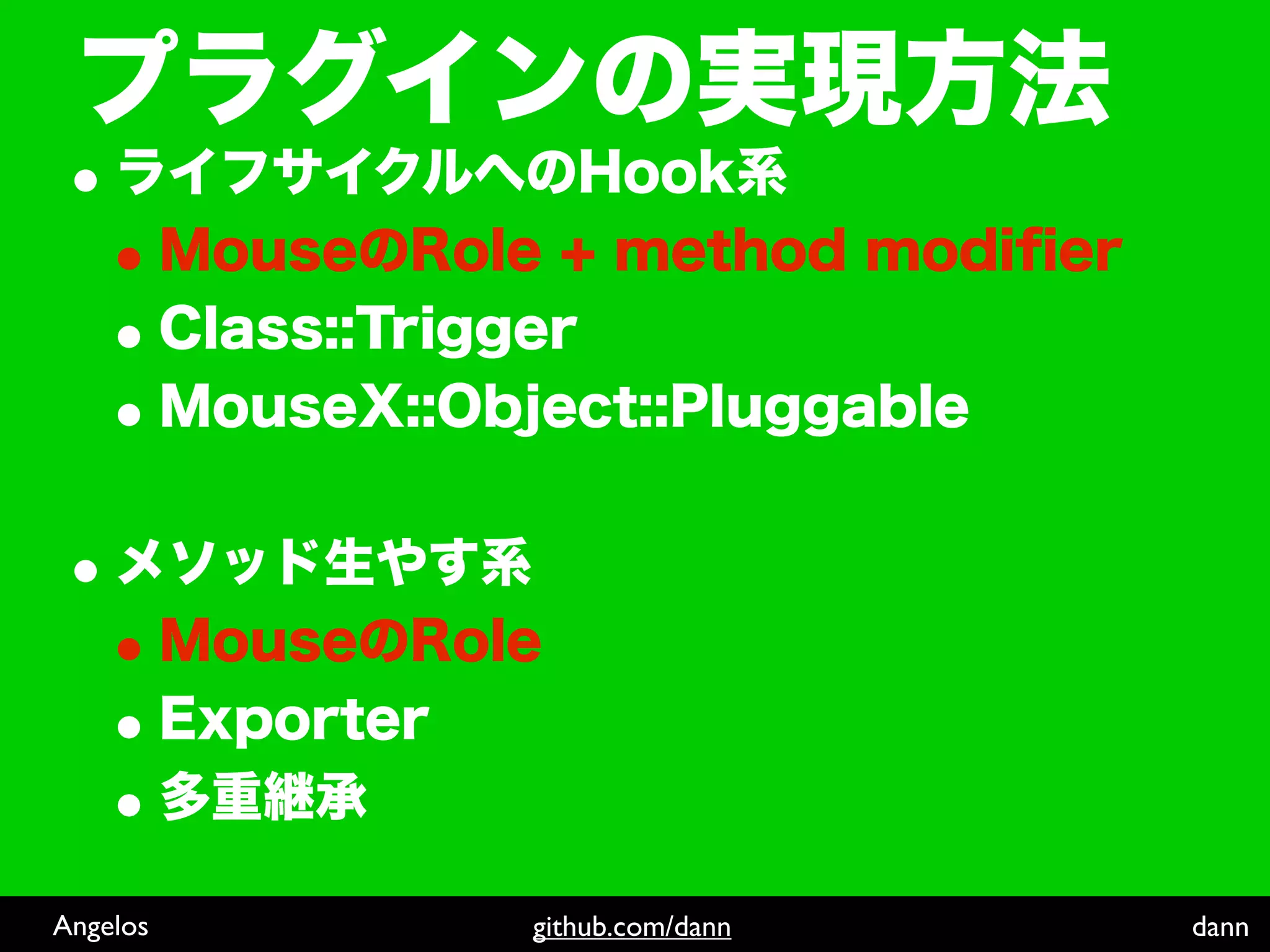

21. Angelos github.com/dann dann

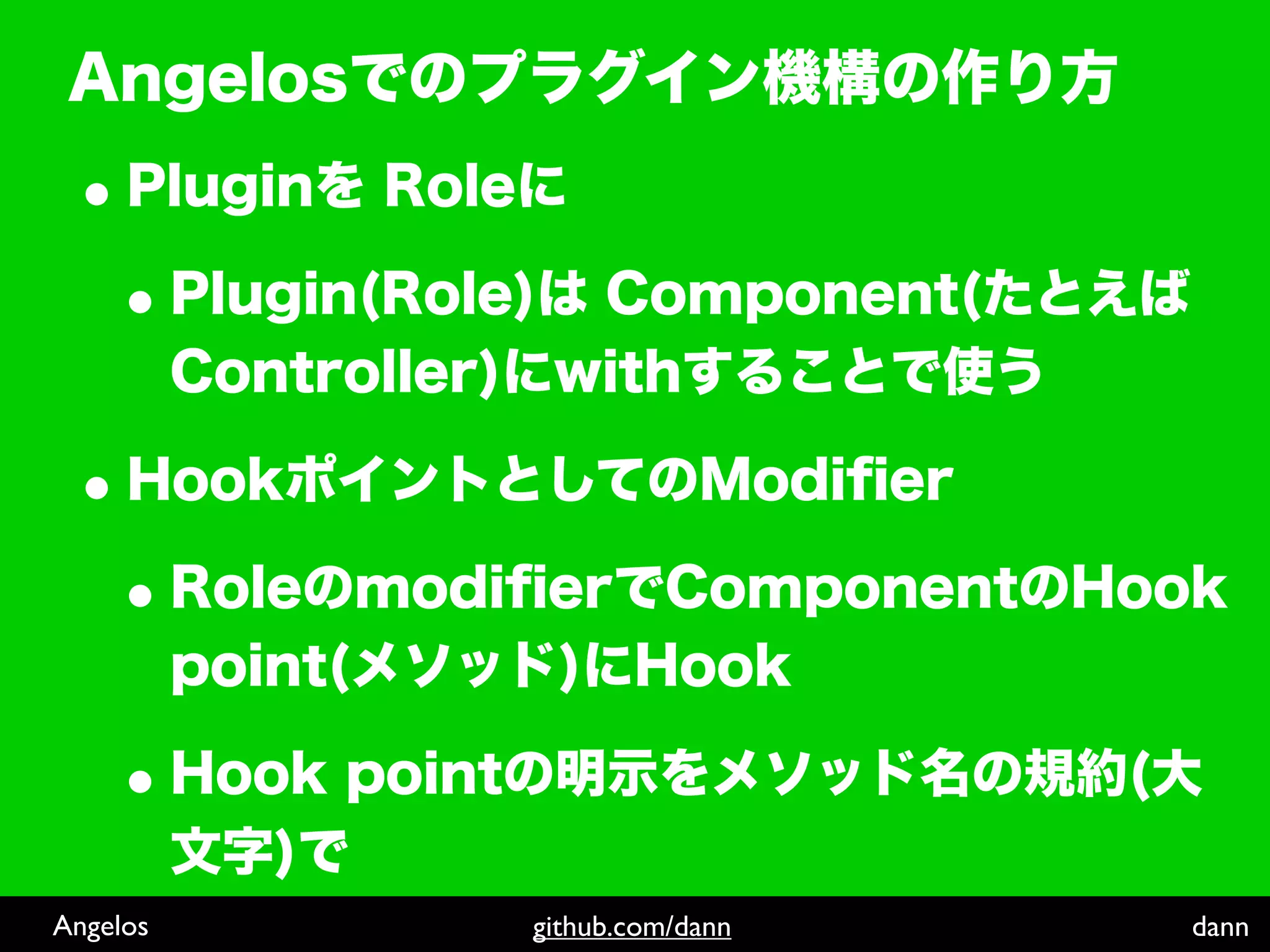

22. Angelos github.com/dann dann

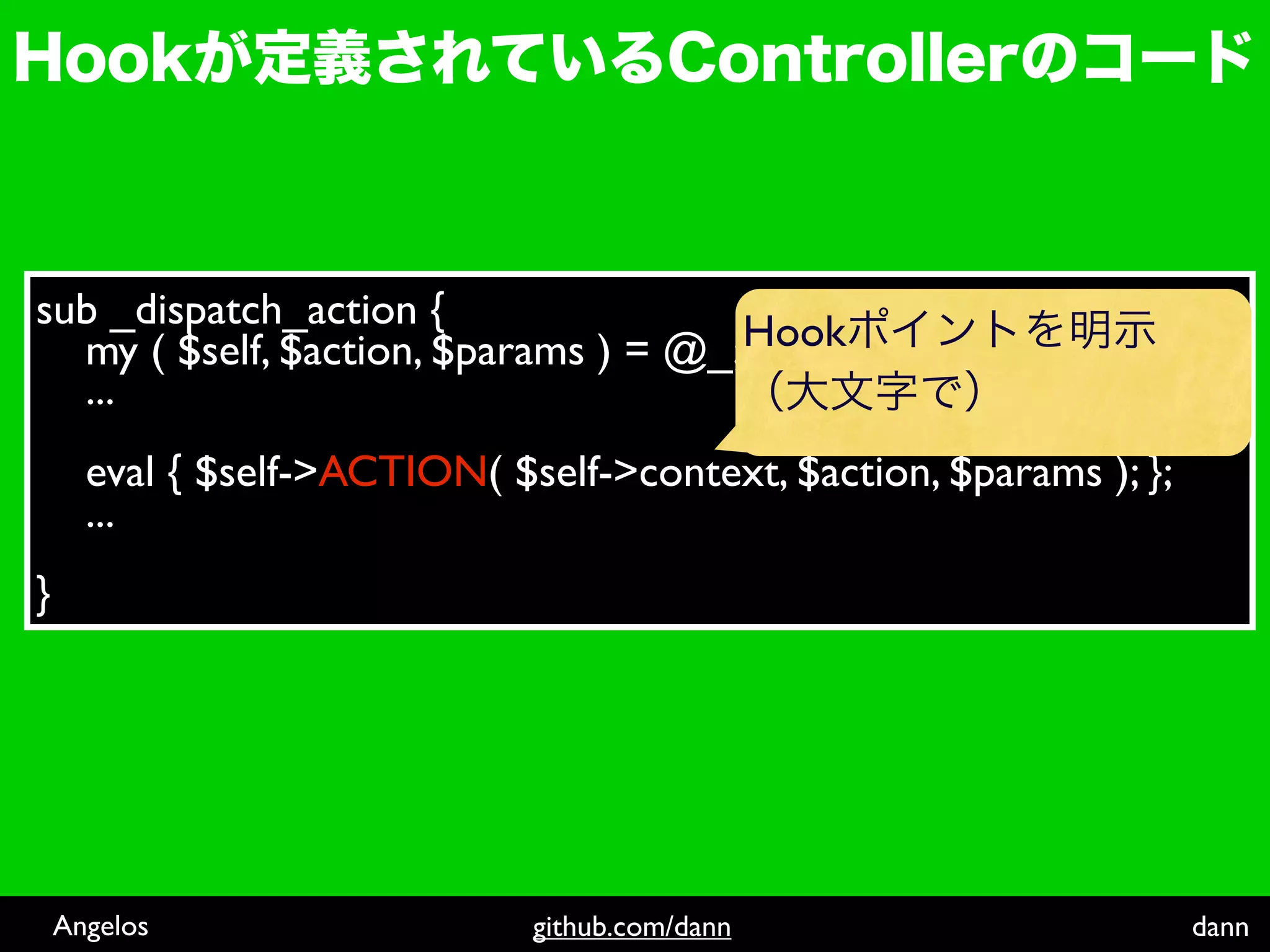

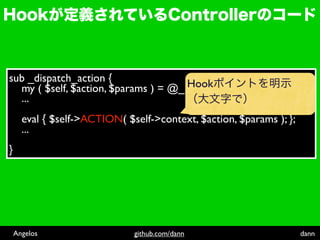

23. sub _dispatch_action {
my ( $self, $action, $params ) = @_; Hook
...
eval { $self->ACTION( $self->context, $action, $params ); };
...
}
Angelos github.com/dann dann

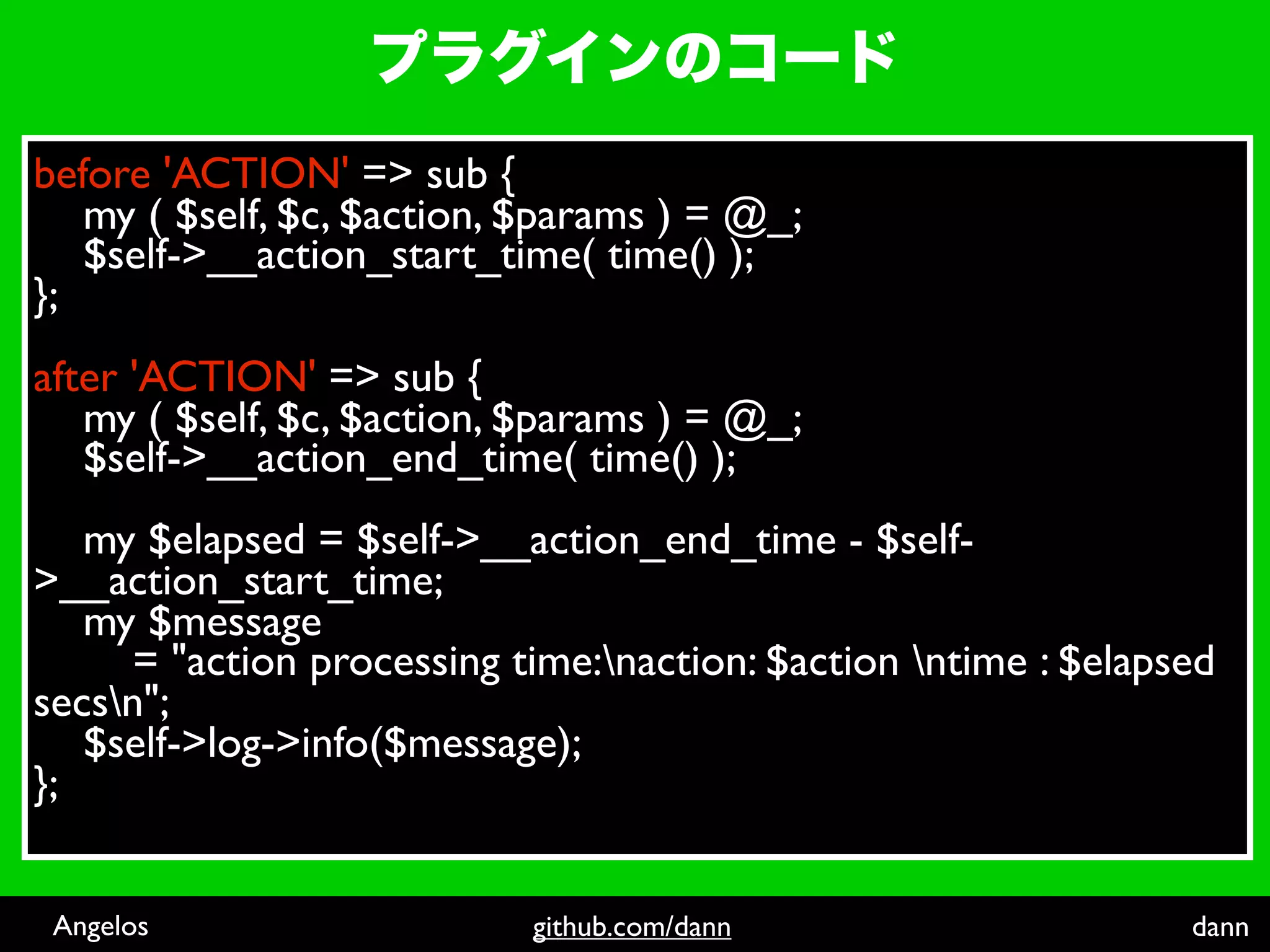

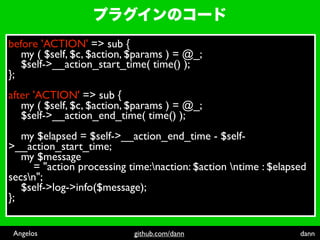

24. before 'ACTION' => sub {
my ( $self, $c, $action, $params ) = @_;
$self->__action_start_time( time() );
};
after 'ACTION' => sub {
my ( $self, $c, $action, $params ) = @_;
$self->__action_end_time( time() );
my $elapsed = $self->__action_end_time - $self-
>__action_start_time;
my $message
= "action processing time:naction: $action ntime : $elapsed
secsn";
$self->log->info($message);
};
Angelos github.com/dann dann

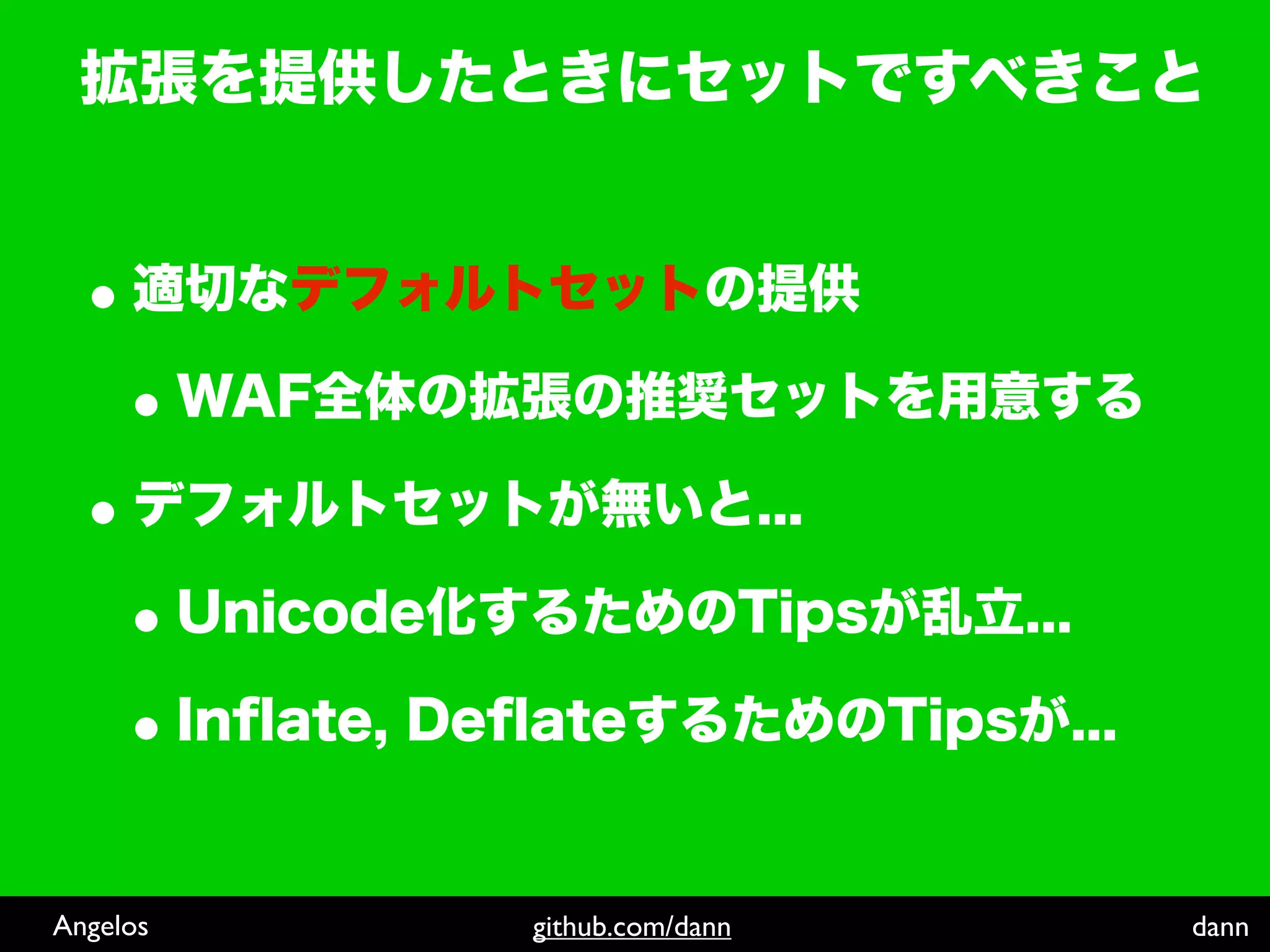

25. Angelos github.com/dann dann

26. Angelos github.com/dann dann

27. Angelos github.com/dann dann
