1. Network automation with
Ansible and Python
Oliver Elliott, network architect, University of Bristol

2. What’s this all about?
Managing Campus and Data Centre networks

3. Why Automate?
3
Do more things Do things faster Create things
consistently
Check and
validate the
network
Improve
troubleshooting

4. Which Tools?
4
• Python
• Defacto standard programming
language
• Ansible
• Easy to learn
• Compatibility with most network OS’

5. Why not Vendor tools?
5
• Take advantage of vast experience of
open source community
• Flexibility for multi-vendor environments

6. Example
6
New DC network using Dell & Cumulus Linux
Spine01
S5232F
Leaf01
S5248F
Leaf02
S5248F
Spine02
S5232F
Leaf03
S5248F
Leaf04
S5248F
Leaf05
S5248F
Leaf06
S5248F
exit01
S5248F
exit02
S5248F

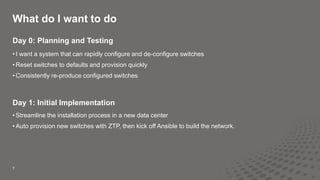

7. What do I want to do
7
Day 0: Planning and Testing
• I want a system that can rapidly configure and de-configure switches
• Reset switches to defaults and provision quickly
• Consistently re-produce configured switches
Day 1: Initial Implementation
• Streamline the installation process in a new data center
• Auto provision new switches with ZTP, then kick off Ansible to build the network.

8. 8
Day 2: Running it as “business as usual”
• Make it easy
• Easy changes
• Easy Validation
• Make changes consistent – Ease the change control process
• Idempotence
• Crucial!
• Challenges:
• Now you have to run automation AND switches.

9. How does it work?
9
A workflow for a single Ansible task:
Source Data
(YAML or
DB)
Jinja
template
Configuration
File
Copied to
destination
Restart
process

10. 10
---
- name: Configure Cumulus Linux Switches
hosts: all
become: yes
gather_facts: False
pre_tasks:
- name: Create ports.conf list for 100G switch
set_fact: ports_list_qsfp="{{ ports_40g | ports_list_100G }}"
when: ports_40g is defined
- name: Create ports.conf list for 25G switch
set_fact: ports_list_sfp="{{ ports_10g | ports_list_25G }}"
when: ports_10g is defined
- name: Create vlan_range used in jinja2 later
set_fact:
vlan_range: "{{ vlans | json_query('[*].number') | list_to_range }}"
when: vlans is defined
roles:
# Only required on first installation
# - base_config
# Normal roles
- ports_configuration
- interface_configuration
- routing_configuration
Run on all hosts
“sudo”
Run these
things first
Variable with a filter
Inherit other tasks
and variables
Example Playbook:
Configures a Cumulus
Leaf & Spine Network

11. 11
filter_plugins/custom_filters.py:
#!/usr/bin/env python
# [1, 3, 4, 7, 8, 9] becomes "1 3-4 7-9"
def list_to_range(numlist):
newlist = sorted(set(numlist))
output = ''
i = 0
while i < len(newlist):
nextval = ''
if i + 1 < len(newlist) and newlist[i + 1] == newlist[i] + 1:
nextval += (str(newlist[i]) + '-')
while(i + 1 < len(newlist) and newlist[i + 1] == newlist[i] + 1):
i += 1
nextval += (str(newlist[i]) + ' ')
i += 1
output += nextval
return(output[:-1])
class FilterModule(object):
def filters(self):
return {
'list_to_range': list_to_range
}
Python in Ansible
“filter_plugin”

12. 12
roles/interface_configuration/tasks/main.yml:
---
- name: Configure interfaces
template:
src: templates/interfaces.j2
dest: /etc/network/interfaces
backup: yes
notify: Reload Interfaces
become: yes
Role
Directory name is role name as
called in playbook
Standard Ansible Module
Jinja2 template file (described later)
Where generated file should be copied
Make local timestamped backup file
If this file is changed, run a “handler” to reload daemon
Roles are ways of automatically loading vars_files, tasks, and
handlers

13. 13
roles/ports_configuration/handlers/main.yml:
---
- name: Reload Interfaces
shell: nohup bash -c 'sleep 2 && /sbin/ifreload -a > /tmp/ifreload.out 2>&1' &
async: 1
poll: 0
changed_when: false
notify: Wait for SSH
# Wait 5 seconds for SSH port to Reopen and contain "OpenSSH" In The Connection String
- name: Wait for SSH
wait_for:
port: 22
host: '{{ ansible_host }}'
search_regex: OpenSSH
delay: 5
connection: local
become: false
Handler
As called in the role
Run this shell command
Allow disconnection
Don’t report as changed
Re-establish SSH session

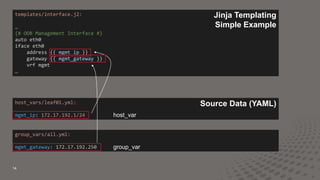

14. 14
templates/interface.j2:
…
{# OOB Management Interface #}
auto eth0
iface eth0
address {{ mgmt_ip }}
gateway {{ mgmt_gateway }}
vrf mgmt
…
host_vars/leaf01.yml:
mgmt_ip: 172.17.192.1/24
group_vars/all.yml:
mgmt_gateway: 172.17.192.250
Source Data (YAML)
Jinja Templating
Simple Example
host_var
group_var

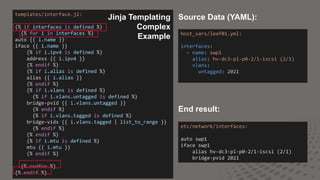

15. 15
templates/interface.j2:
{% if interfaces is defined %}
{% for i in interfaces %}
auto {{ i.name }}
iface {{ i.name }}
{% if i.ipv4 is defined %}
address {{ i.ipv4 }}
{% endif %}
{% if i.alias is defined %}
alias {{ i.alias }}
{% endif %}
{% if i.vlans is defined %}
{% if i.vlans.untagged is defined %}
bridge-pvid {{ i.vlans.untagged }}
{% endif %}
{% if i.vlans.tagged is defined %}
bridge-vids {{ i.vlans.tagged | list_to_range }}
{% endif %}
{% endif %}
{% if i.mtu is defined %}
mtu {{ i.mtu }}
{% endif %}
{% endfor %}
{% endif %}
host_vars/leaf01.yml:
interfaces:
- name: swp1
alias: hv-dc3-pl-p0-2/1-iscsi (2/1)
vlans:
untagged: 2021
etc/network/interfaces:
auto swp1
iface swp1
alias hv-dc3-pl-p0-2/1-iscsi (2/1)
bridge-pvid 2021
Source Data (YAML):
End result:
Jinja Templating
Complex
Example

16. 16
group_vars/leaves.yml:
vlan_groups:
HyperV_Prod:
untagged: 3100
tagged:
- 3105
- 3112
etc/network/interfaces:
auto bond01
iface bond01
alias hv-dc3-pl-p0-service
bond-lacp-bypass-allow yes
bond-slaves swp2
bridge-pvid 3100
bridge-vids 3105 3112
clag-id 01
mstpctl-bpduguard yes
mstpctl-portadminedge yes
auto bond02
iface bond02
alias hv-dc3-pl-p1-service
bond-lacp-bypass-allow yes
bond-slaves swp4
bridge-pvid 3100
bridge-vids 3105 3112
clag-id 02
mstpctl-bpduguard yes
mstpctl-portadminedge yes
host_vars/leaf01.yml:
- name: bond01
alias: hv-dc3-pl-p0-service
slaves:
- swp2
vlans: '{{ vlan_groups.HyperV_Prod }}'
- name: bond02
alias: hv-dc3-pl-p1-service
slaves:
- swp4
vlans: '{{ vlan_groups.HyperV_Prod }}'
Using variables within variables

17. • Group Variables (group_vars)
• Common attributes for multiple
devices
• Groups of groups, eg “leaves”
and “spines” both belong to “all”
• Host Variables (host_vars)
• Unique to this device
Variables
17
hosts.yml:
all:
children:
leaves:
children:
rack_a:
hosts:
leaf01.nwid.bris.ac.uk:
leaf02.nwid.bris.ac.uk:
rack_b:
hosts:
leaf03.nwid.bris.ac.uk:
leaf04.nwid.bris.ac.uk:
spines:
hosts:
spine01.nwid.bris.ac.uk:
spine02.nwid.bris.ac.uk:

18. Live Demo!
18

19. Improvements
19
• ZTP
• Get the switches to a point where Ansible can configure them
• CI/CD Pipeline in Gitlab to automate tests
• Linting of YAML – catch typos
• Apply config to virtual test system
•Test for application errors
•Catch Ansible errors
•End to end testing with VMs representing services
• Source data in a database, eg Netbox
• AWX
• GUI
• Scheduling
• Eventual self-service for Server Systems teams
