Extending Cloud Automation: When OpenStack Meets Ansible

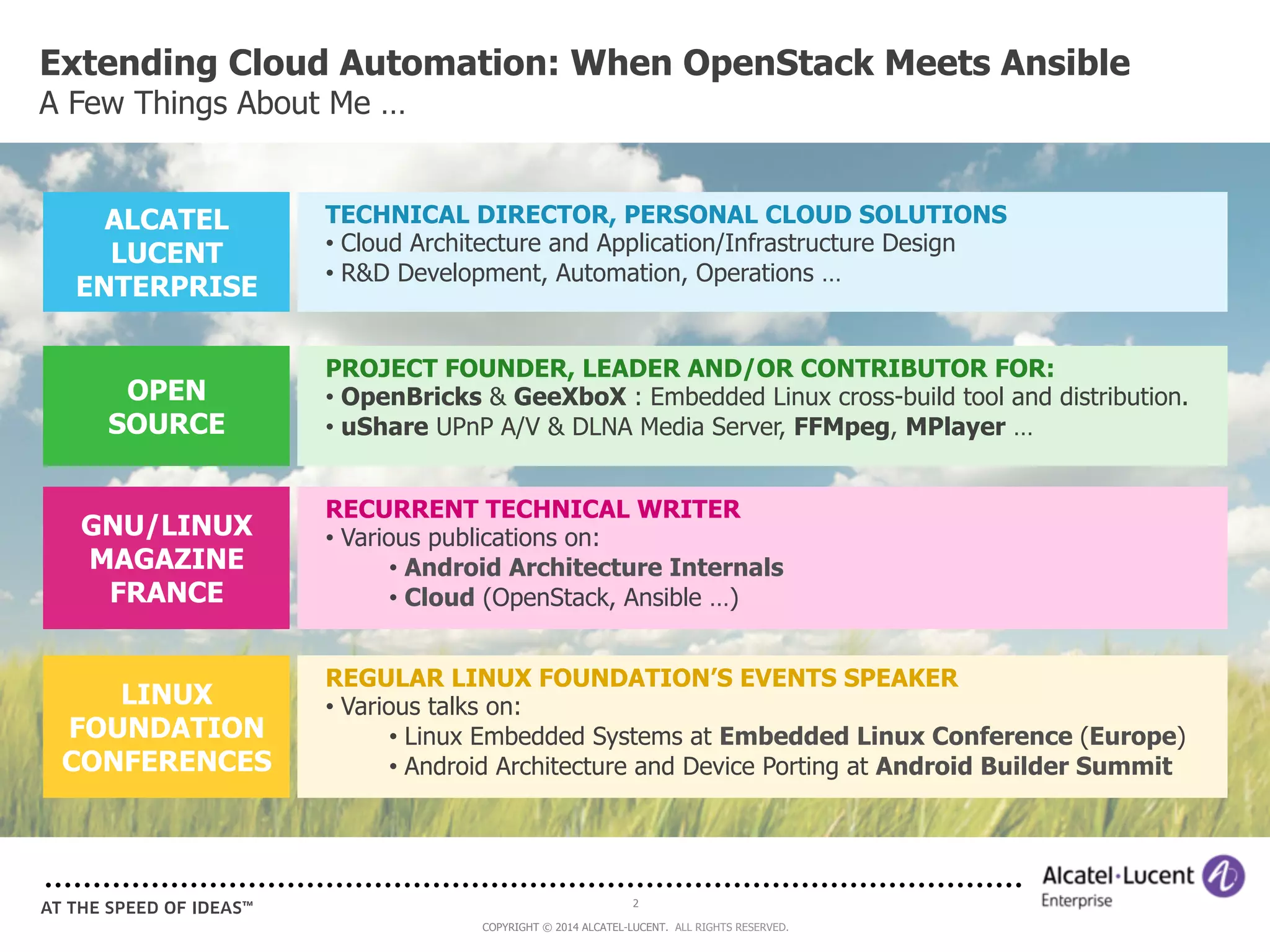

A Few Things About Me …
2
ALCATEL
LUCENT
ENTERPRISE
TECHNICAL DIRECTOR, PERSONAL CLOUD SOLUTIONS
• Cloud Architecture and Application/Infrastructure Design
• R&D Development, Automation, Operations …
OPEN
SOURCE
PROJECT FOUNDER, LEADER AND/OR CONTRIBUTOR FOR:
• OpenBricks & GeeXboX : Embedded Linux cross-build tool and distribution.
• uShare UPnP A/V & DLNA Media Server, FFMpeg, MPlayer …
LINUX
FOUNDATION
CONFERENCES
REGULAR LINUX FOUNDATION’S EVENTS SPEAKER
• Various talks on:
• Linux Embedded Systems at Embedded Linux Conference (Europe)
• Android Architecture and Device Porting at Android Builder Summit
GNU/LINUX
MAGAZINE
FRANCE
RECURRENT TECHNICAL WRITER
• Various publications on:
• Android Architecture Internals
• Cloud (OpenStack, Ansible …)

Self-Promotion Time !
Android 4: Fondements Internes
Benjamin Zores, Ed. Diamond – Sept. 2014
3
Series of articles published in
GNU/Linux Magazine France

4

Why we’re here ?
5

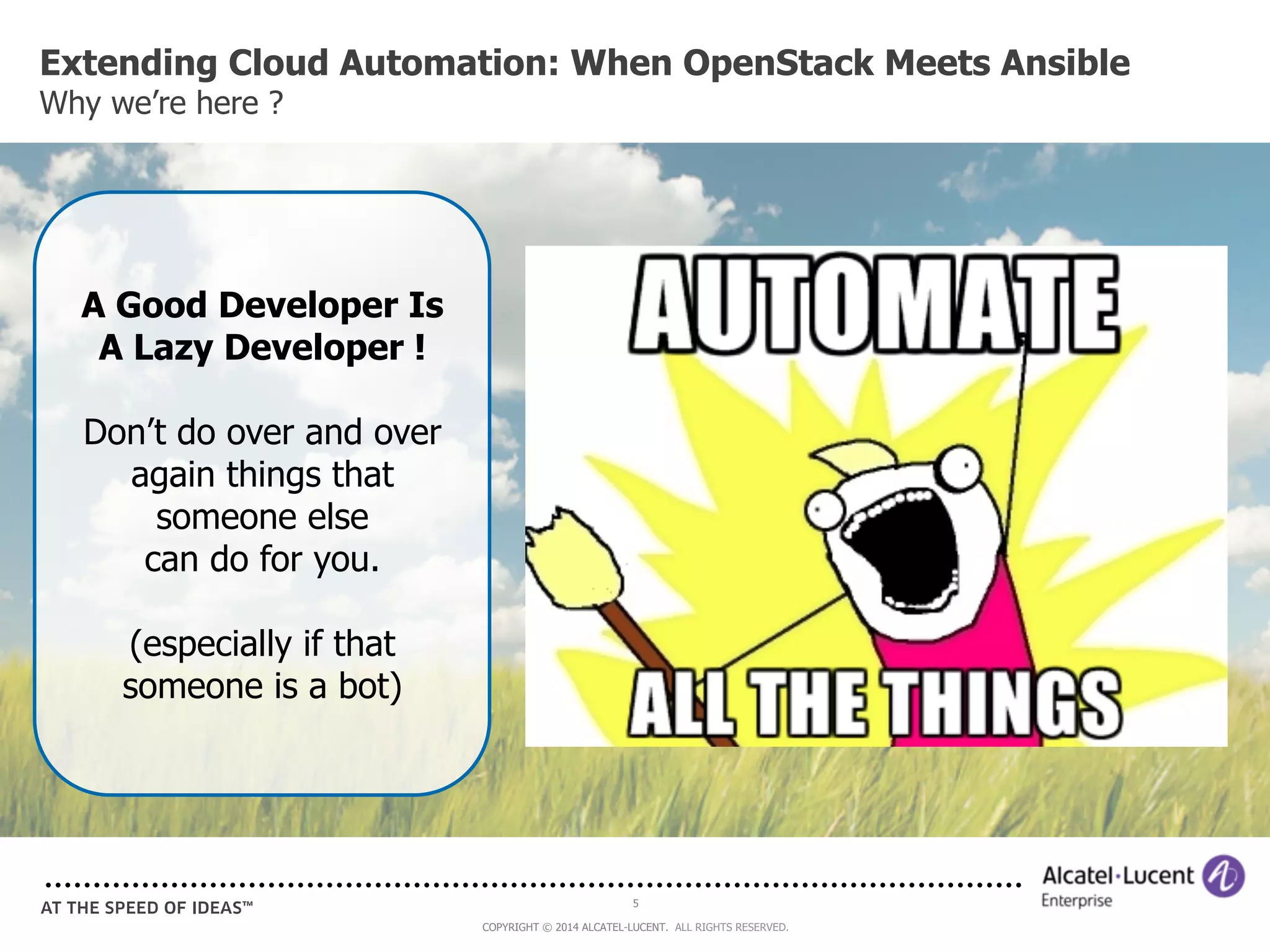

A Good Developer Is
A Lazy Developer !
Don’t do over and over
again things that
someone else
can do for you.
(especially if that
someone is a bot)

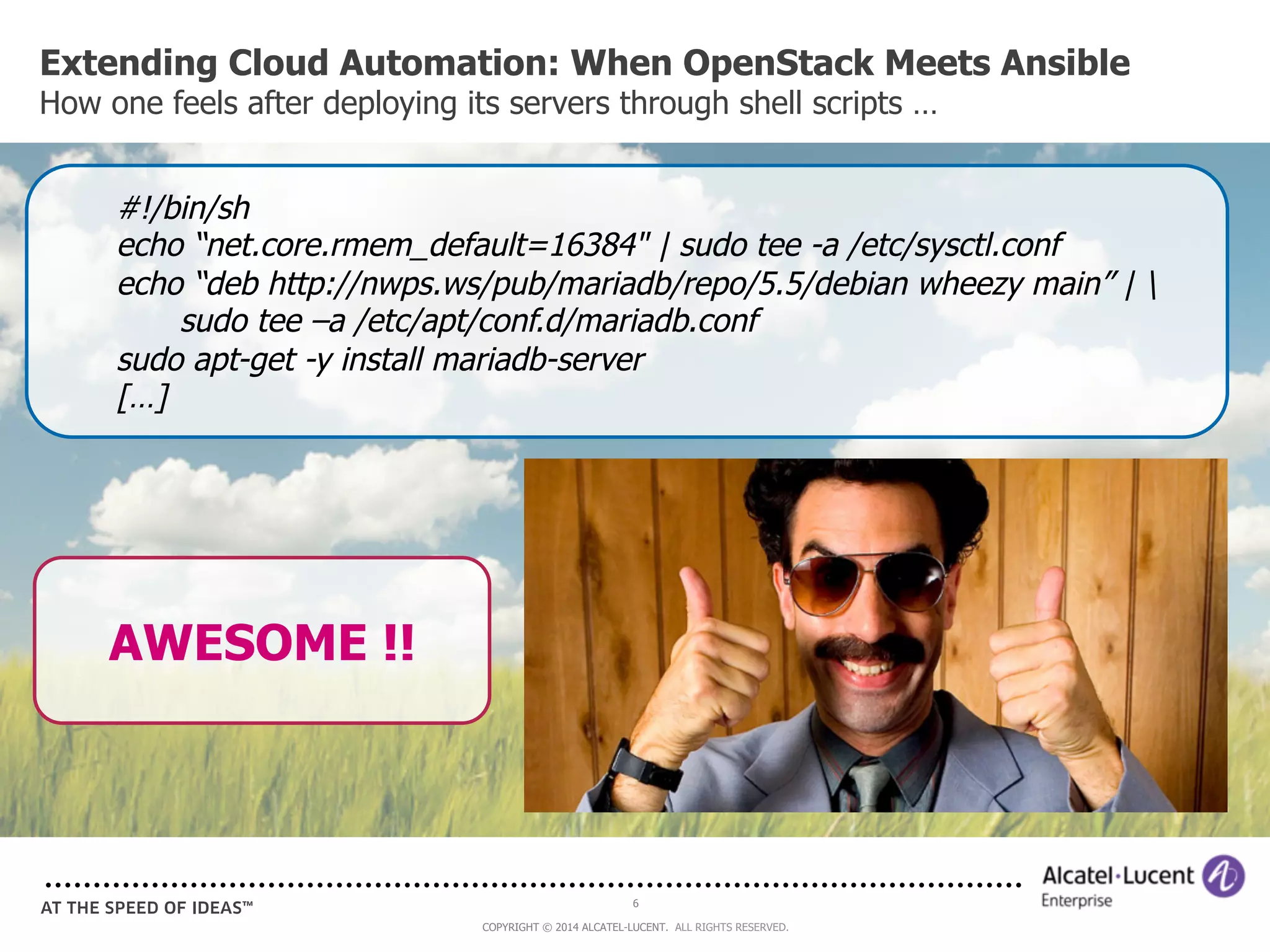

How one feels after deploying its servers through shell scripts …
#!/bin/sh
echo “net.core.rmem_default=16384" | sudo tee -a /etc/sysctl.conf
echo “deb http://nwps.ws/pub/mariadb/repo/5.5/debian wheezy main” |
sudo tee –a /etc/apt/conf.d/mariadb.conf
sudo apt-get -y install mariadb-server
[…]
6
AWESOME !!

Shell Scripts + Money = ? ( © John Lynch, http://goo.gl/gkmKGN )
“Model-driven orchestration frameworks
for complex infrastructure
management and automation”
7

8

State of the Art
9
Original Rockstars !
- Great Tools
- Field Pioneers
But just incredibly
complex to start with,
even for simple cases.
Not everyone is
managing 500 servers
in the cloud after all …

10

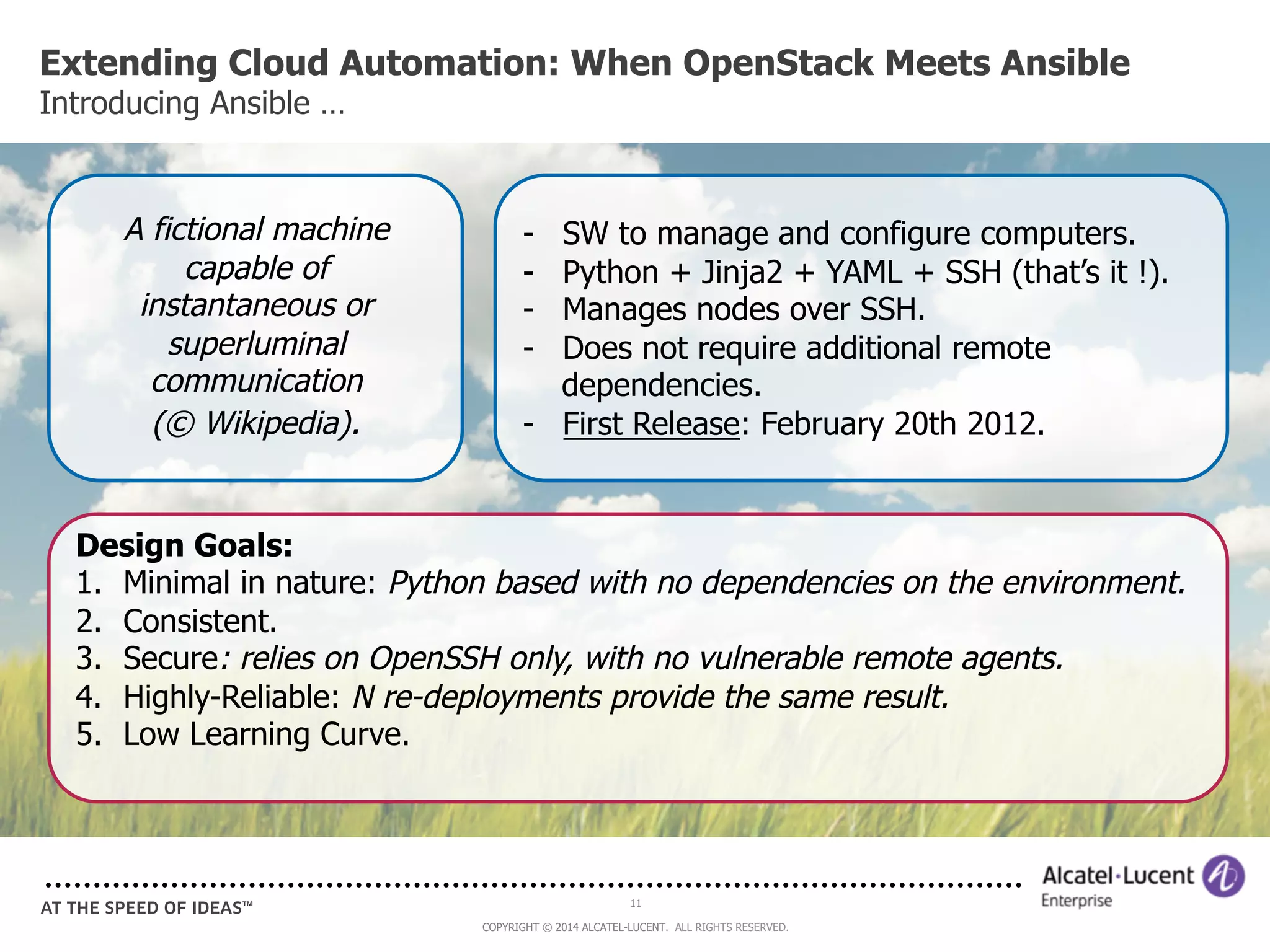

Introducing Ansible …
- SW to manage and configure computers.
- Python + Jinja2 + YAML + SSH (that’s it !).
- Manages nodes over SSH.
- Does not require additional remote
dependencies.
- First Release: February 20th 2012.
11
A fictional machine
capable of
instantaneous or
superluminal
communication
(© Wikipedia).
Design Goals:
1. Minimal in nature: Python based with no dependencies on the environment.
2. Consistent.
3. Secure: relies on OpenSSH only, with no vulnerable remote agents.
4. Highly-Reliable: N re-deployments provide the same result.
5. Low Learning Curve.

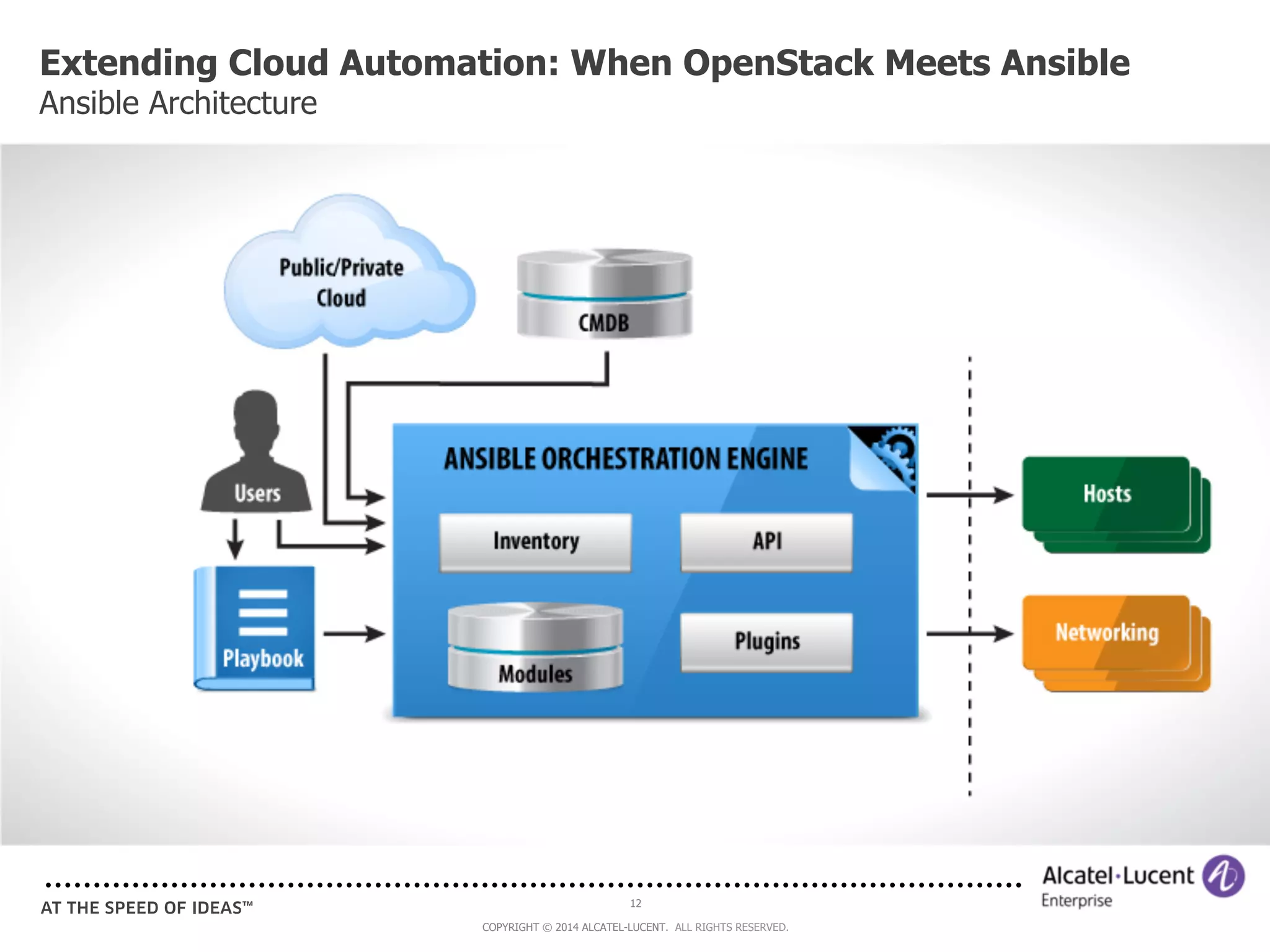

Ansible Architecture
12

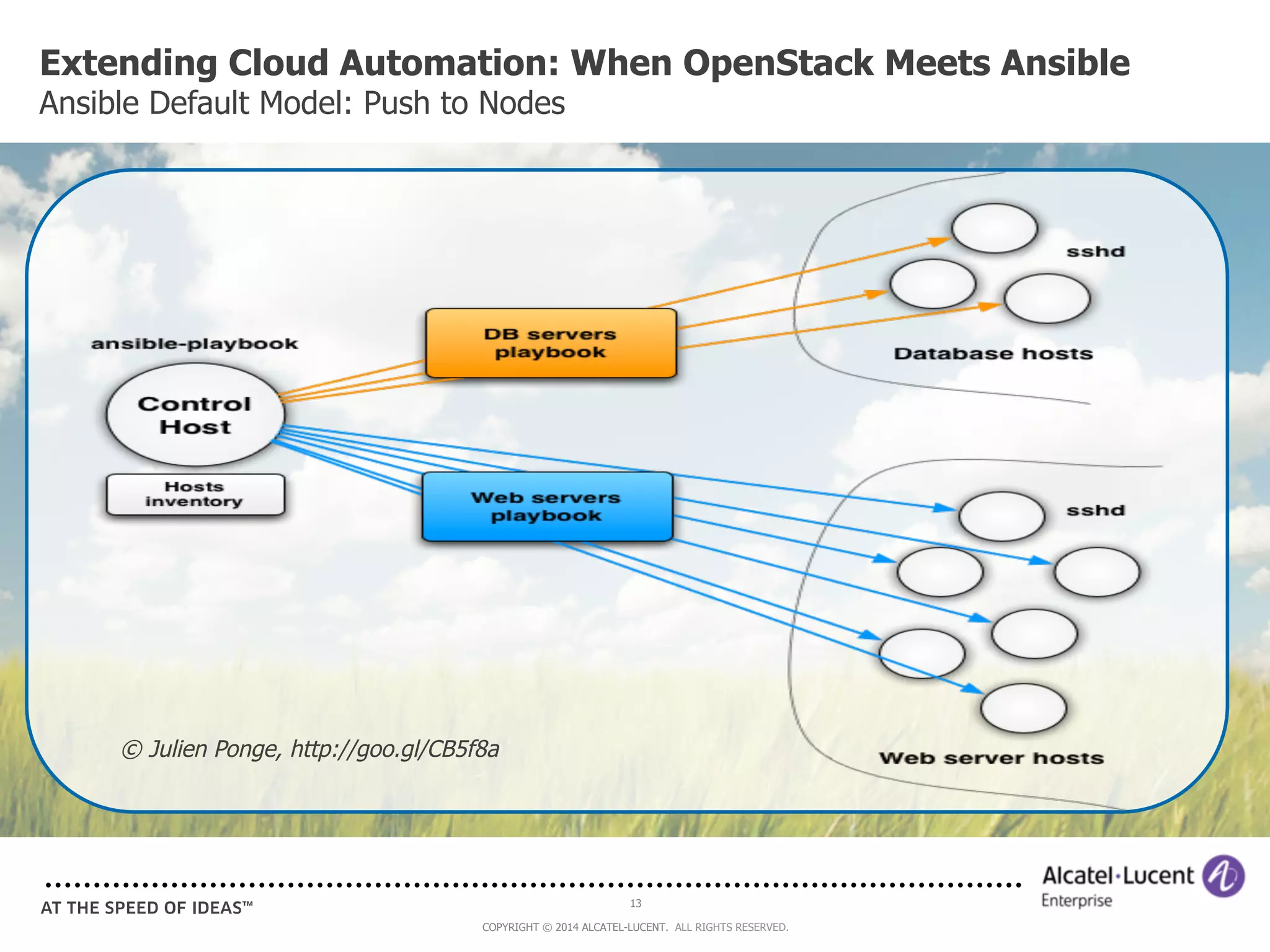

Ansible Default Model: Push to Nodes
13
© Julien Ponge, http://goo.gl/CB5f8a

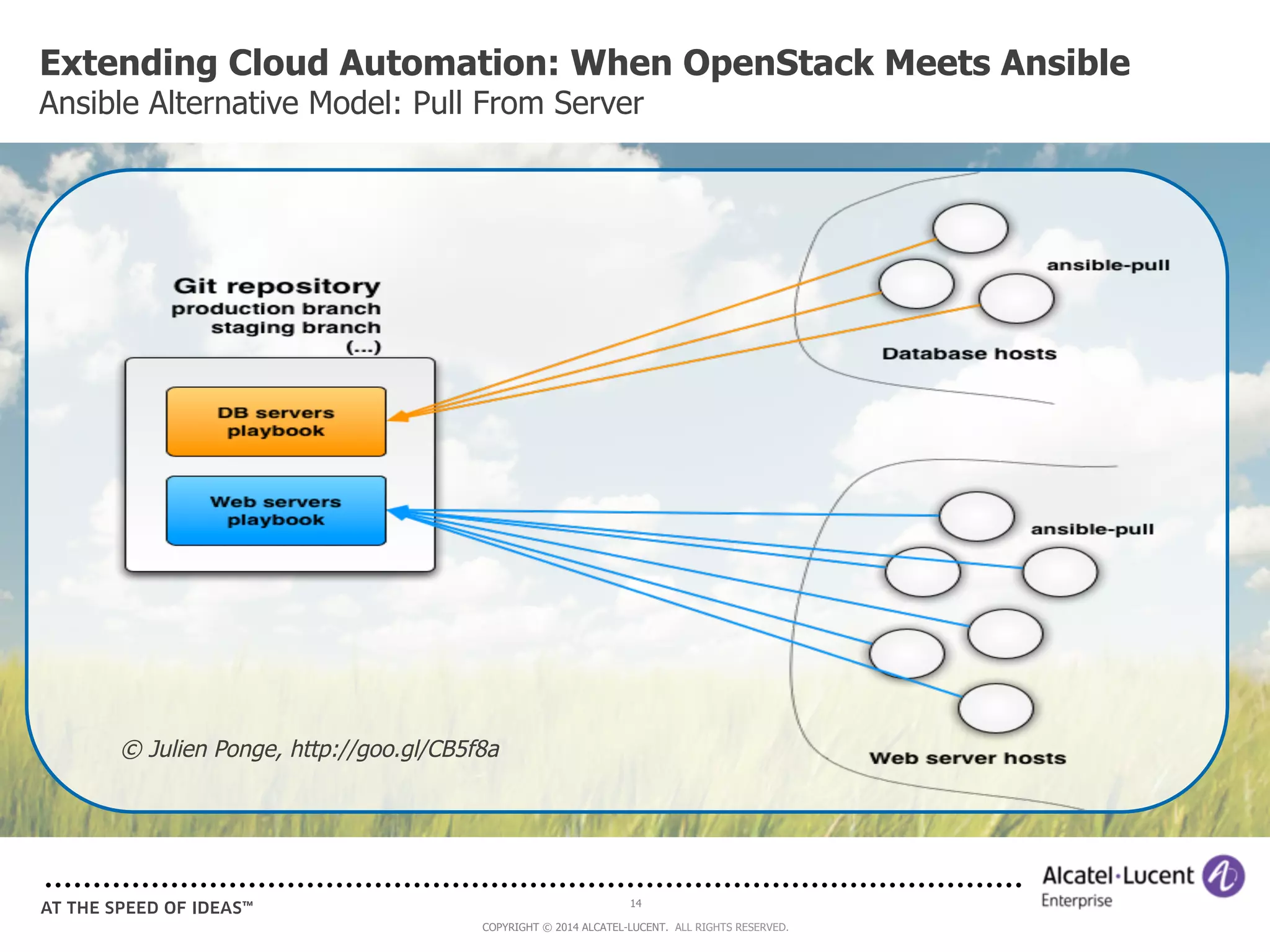

Ansible Alternative Model: Pull From Server
14
© Julien Ponge, http://goo.gl/CB5f8a

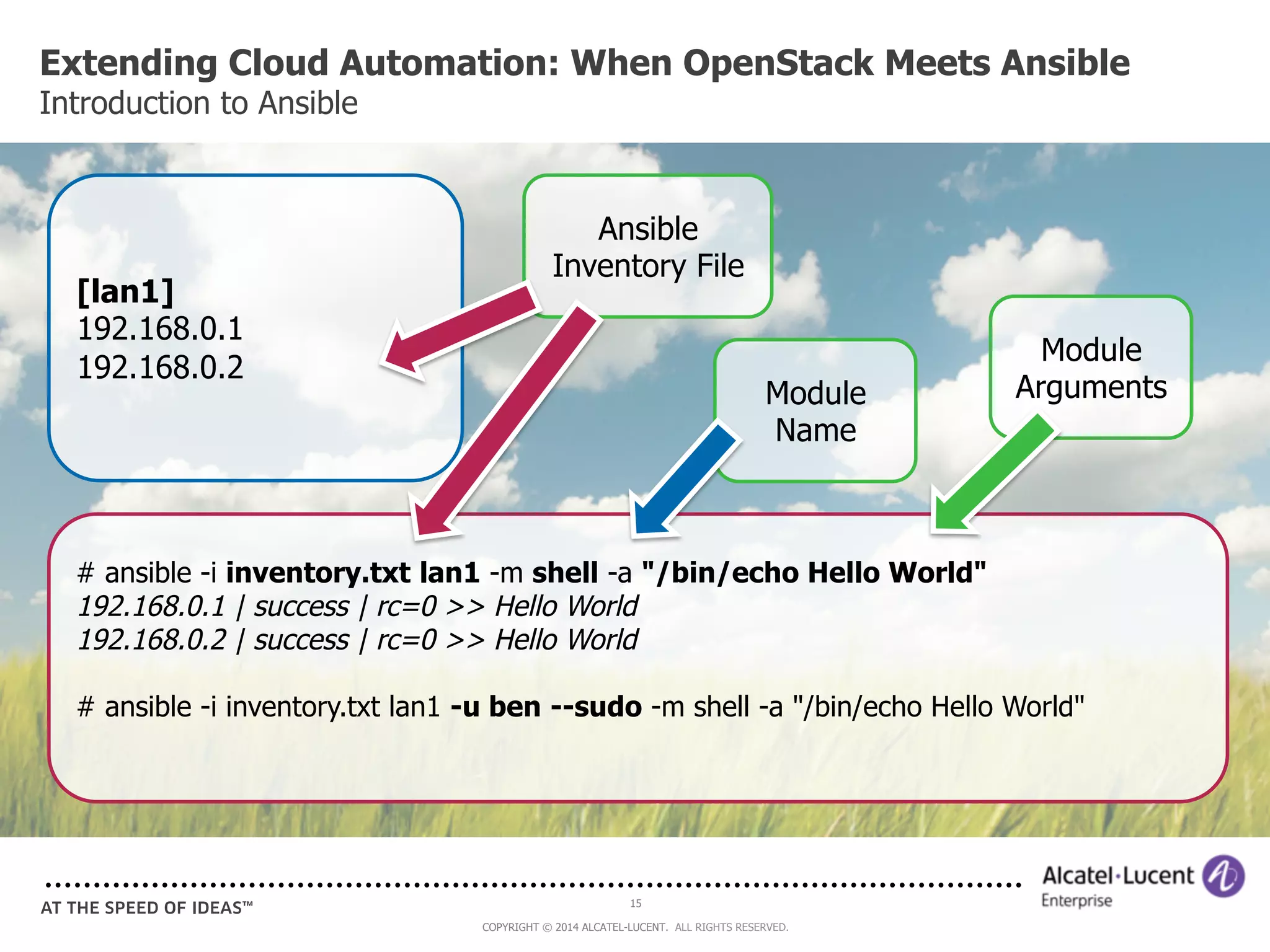

Introduction to Ansible
Ansible
Inventory File
15
Module Arguments
Name
[lan1]
192.168.0.1
192.168.0.2
Module
# ansible -i inventory.txt lan1 -m shell -a "/bin/echo Hello World"
192.168.0.1 | success | rc=0 >> Hello World
192.168.0.2 | success | rc=0 >> Hello World
# ansible -i inventory.txt lan1 -u ben --sudo -m shell -a "/bin/echo Hello World"

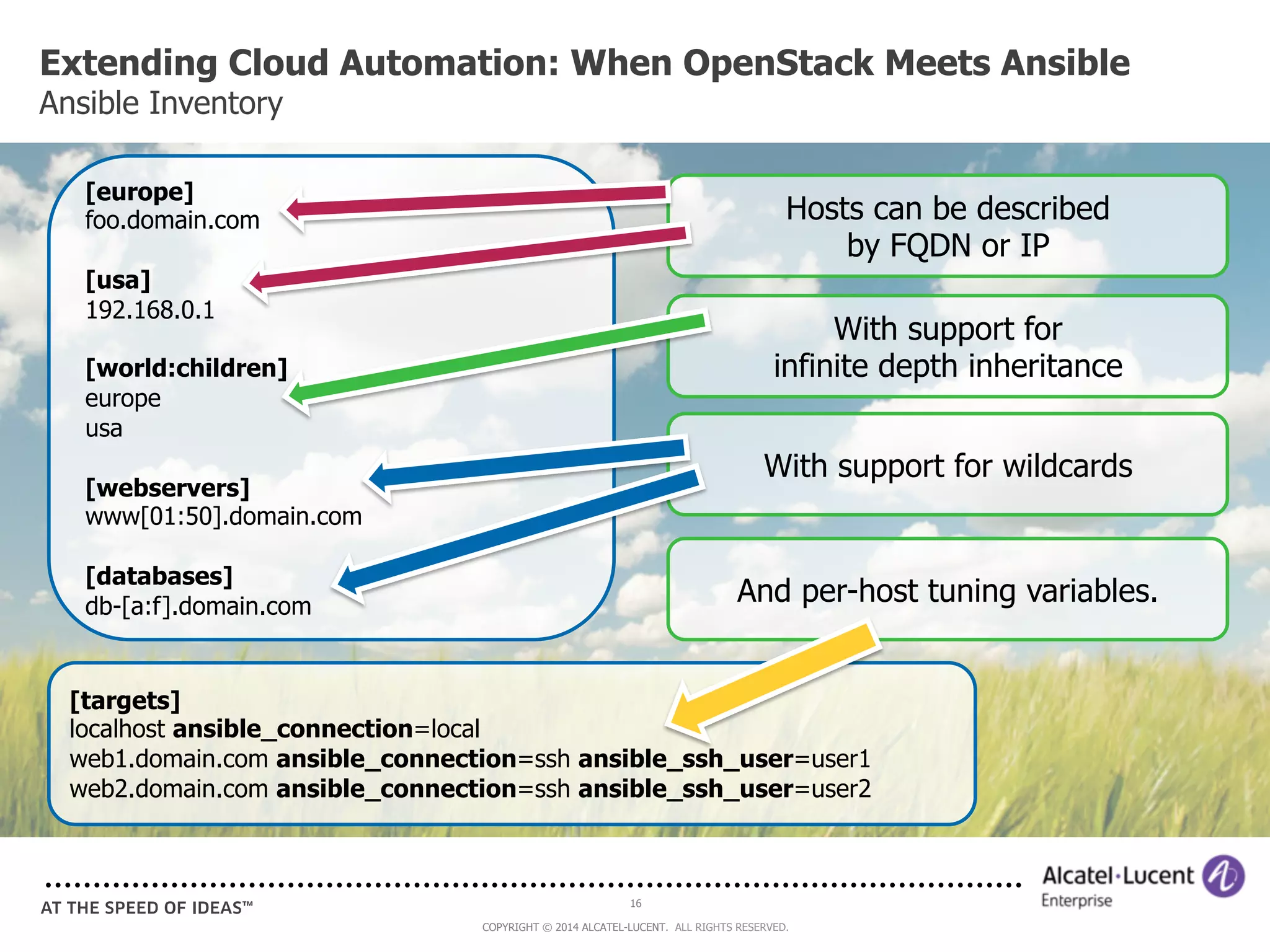

Ansible Inventory
16
With support for wildcards
And per-host tuning variables.
[europe]
foo.domain.com
[usa]
192.168.0.1
[world:children]
europe
usa
[webservers]
www[01:50].domain.com
[databases]
db-[a:f].domain.com
Hosts can be described
by FQDN or IP
With support for
infinite depth inheritance
[targets]
localhost ansible_connection=local
web1.domain.com ansible_connection=ssh ansible_ssh_user=user1
web2.domain.com ansible_connection=ssh ansible_ssh_user=user2

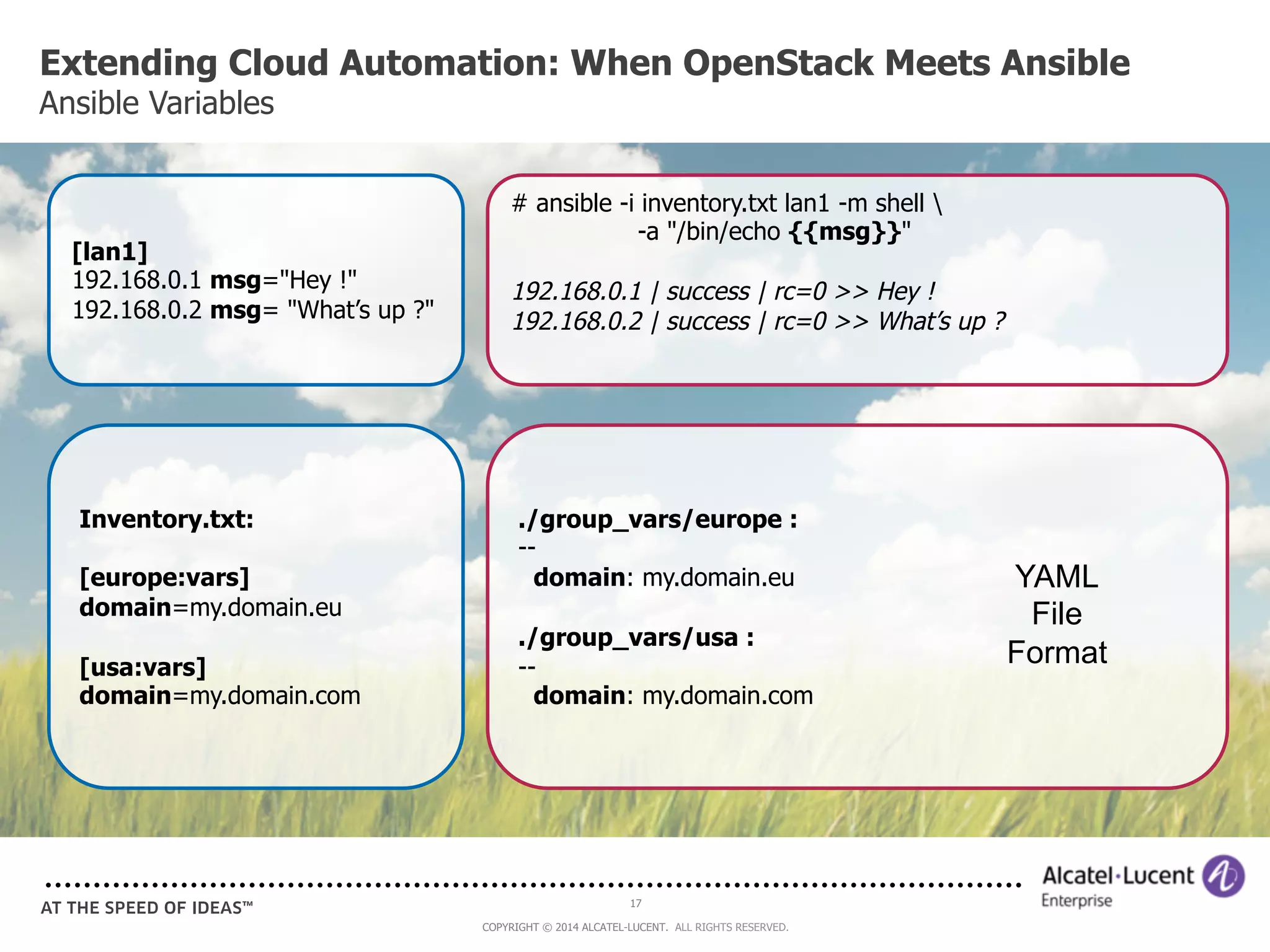

Ansible Variables
17
[lan1]
192.168.0.1 msg="Hey !"
192.168.0.2 msg= "What’s up ?"
# ansible -i inventory.txt lan1 -m shell
-a "/bin/echo {{msg}}"
192.168.0.1 | success | rc=0 >> Hey !
192.168.0.2 | success | rc=0 >> What’s up ?
Inventory.txt:
[europe:vars]
domain=my.domain.eu
[usa:vars]
domain=my.domain.com
./group_vars/europe :
--
domain: my.domain.eu
./group_vars/usa :
--
domain: my.domain.com
YAML
File
Format

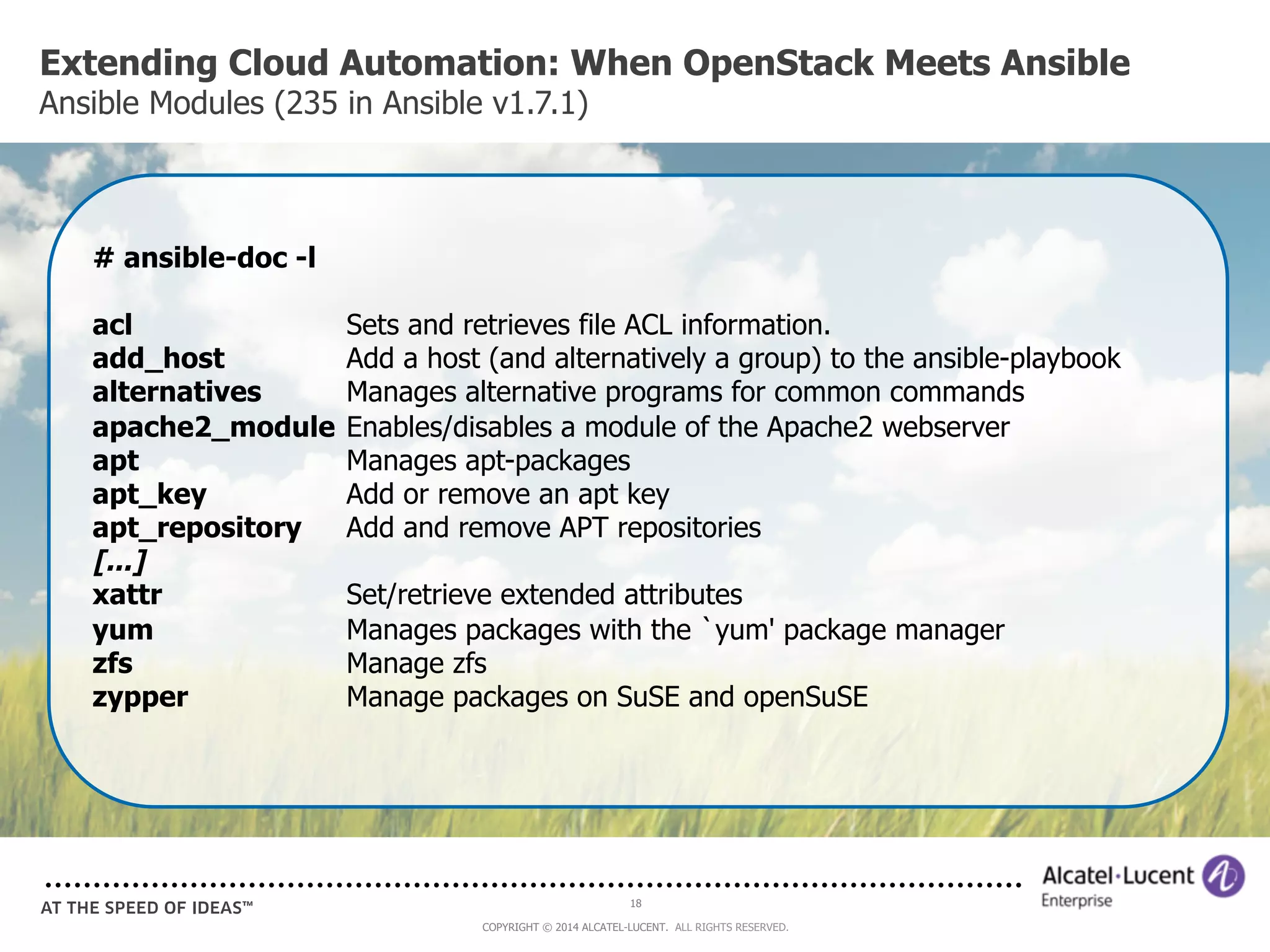

Ansible Modules (235 in Ansible v1.7.1)
# ansible-doc -l
acl Sets and retrieves file ACL information.
add_host Add a host (and alternatively a group) to the ansible-playbook
alternatives Manages alternative programs for common commands
apache2_module Enables/disables a module of the Apache2 webserver
apt Manages apt-packages
apt_key Add or remove an apt key
apt_repository Add and remove APT repositories
[...]
xattr Set/retrieve extended attributes
yum Manages packages with the `yum' package manager
zfs Manage zfs
zypper Manage packages on SuSE and openSuSE
18

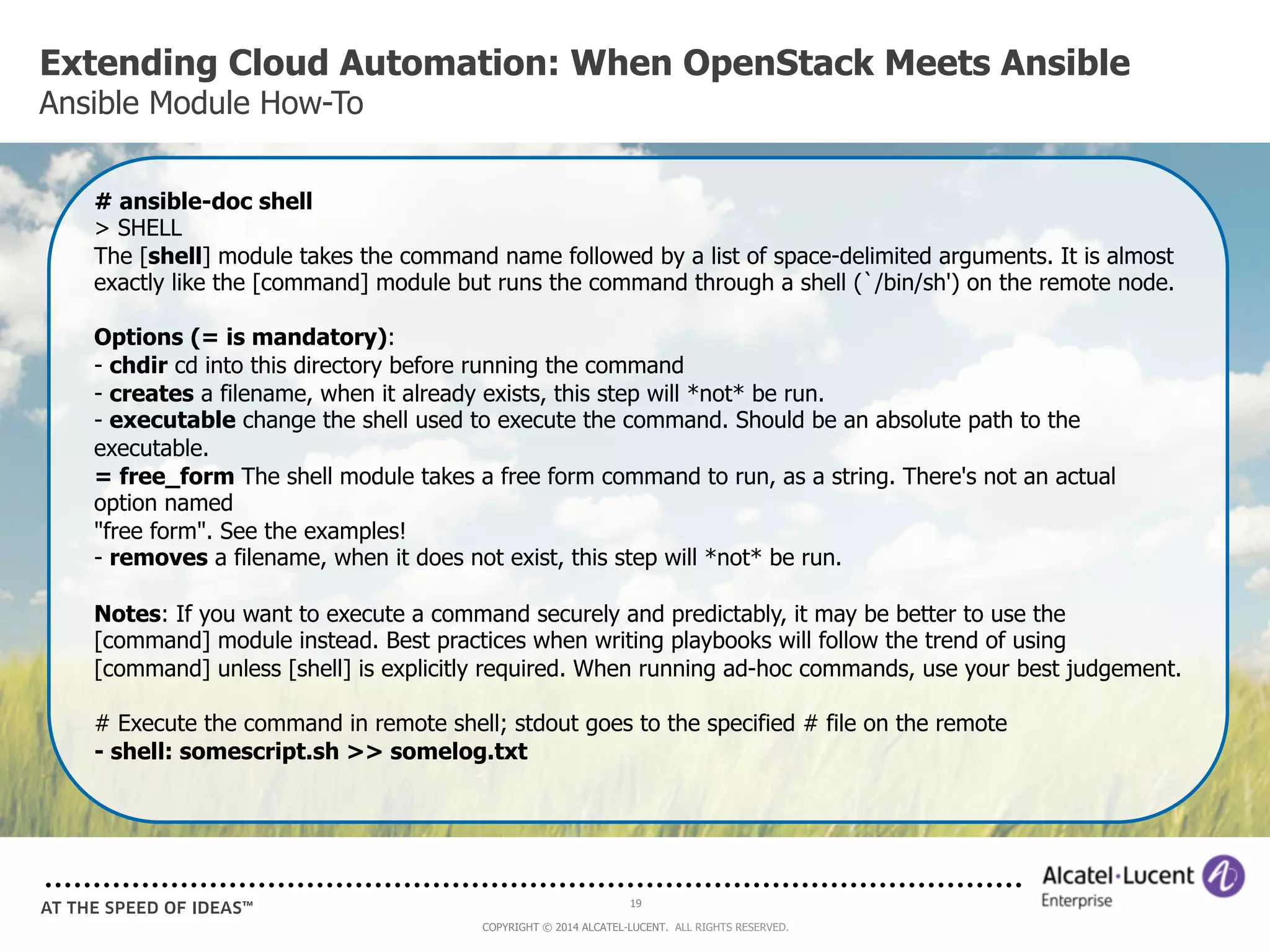

Ansible Module How-To
# ansible-doc shell
> SHELL
The [shell] module takes the command name followed by a list of space-delimited arguments. It is almost
exactly like the [command] module but runs the command through a shell (`/bin/sh') on the remote node.
Options (= is mandatory):
- chdir cd into this directory before running the command
- creates a filename, when it already exists, this step will *not* be run.
- executable change the shell used to execute the command. Should be an absolute path to the
executable.
= free_form The shell module takes a free form command to run, as a string. There's not an actual
option named
"free form". See the examples!
- removes a filename, when it does not exist, this step will *not* be run.
Notes: If you want to execute a command securely and predictably, it may be better to use the
[command] module instead. Best practices when writing playbooks will follow the trend of using
[command] unless [shell] is explicitly required. When running ad-hoc commands, use your best judgement.
# Execute the command in remote shell; stdout goes to the specified # file on the remote
- shell: somescript.sh >> somelog.txt
19

Ansible Playbooks
20
As appealing as they are,
they’ve got nothing to do
with this !

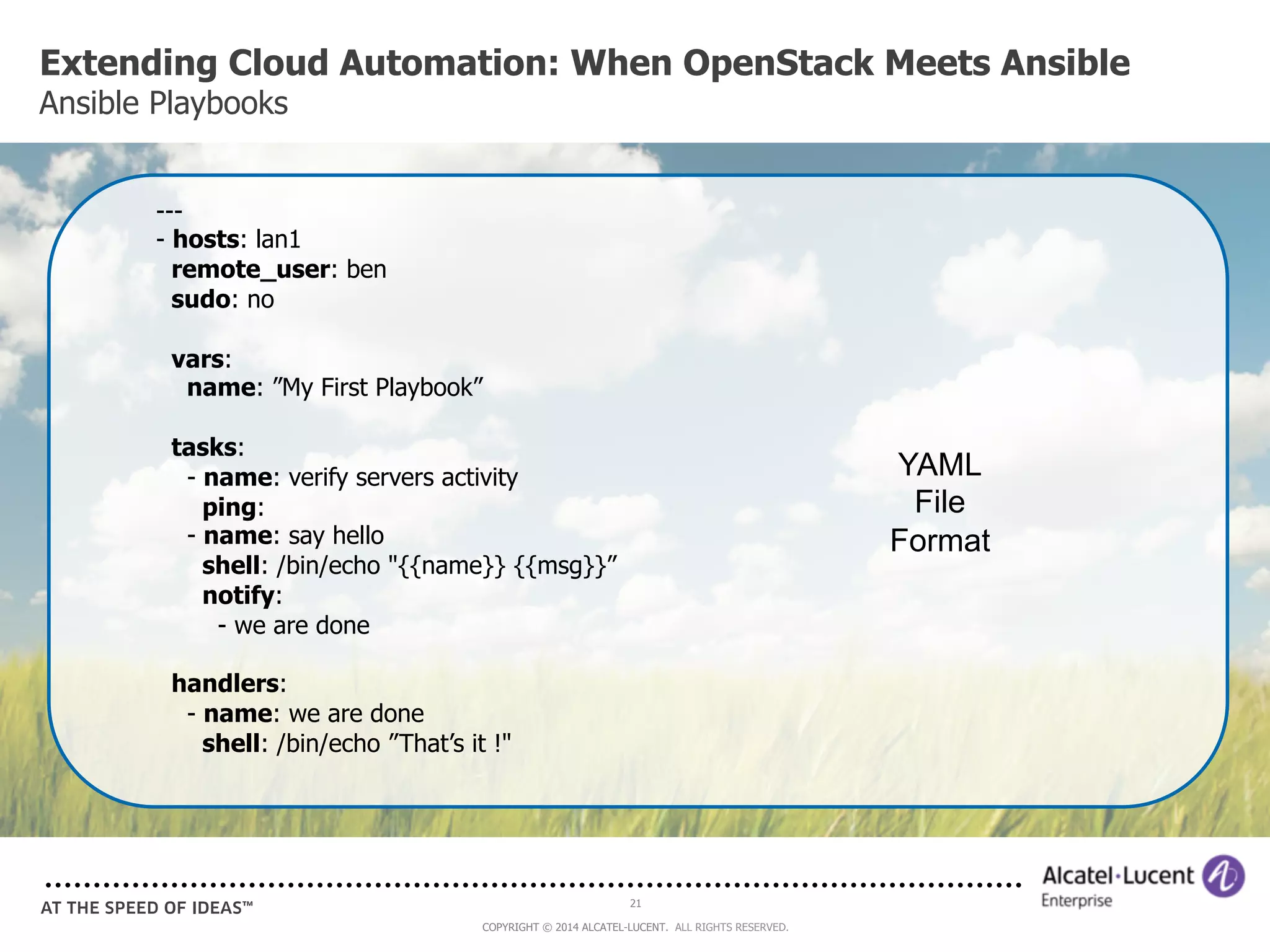

Ansible Playbooks
21
---
- hosts: lan1
remote_user: ben
sudo: no
vars:
name: ”My First Playbook”
tasks:
- name: verify servers activity
ping:
- name: say hello
shell: /bin/echo "{{name}} {{msg}}”
notify:
- we are done
handlers:
- name: we are done
shell: /bin/echo ”That’s it !"
YAML
File
Format

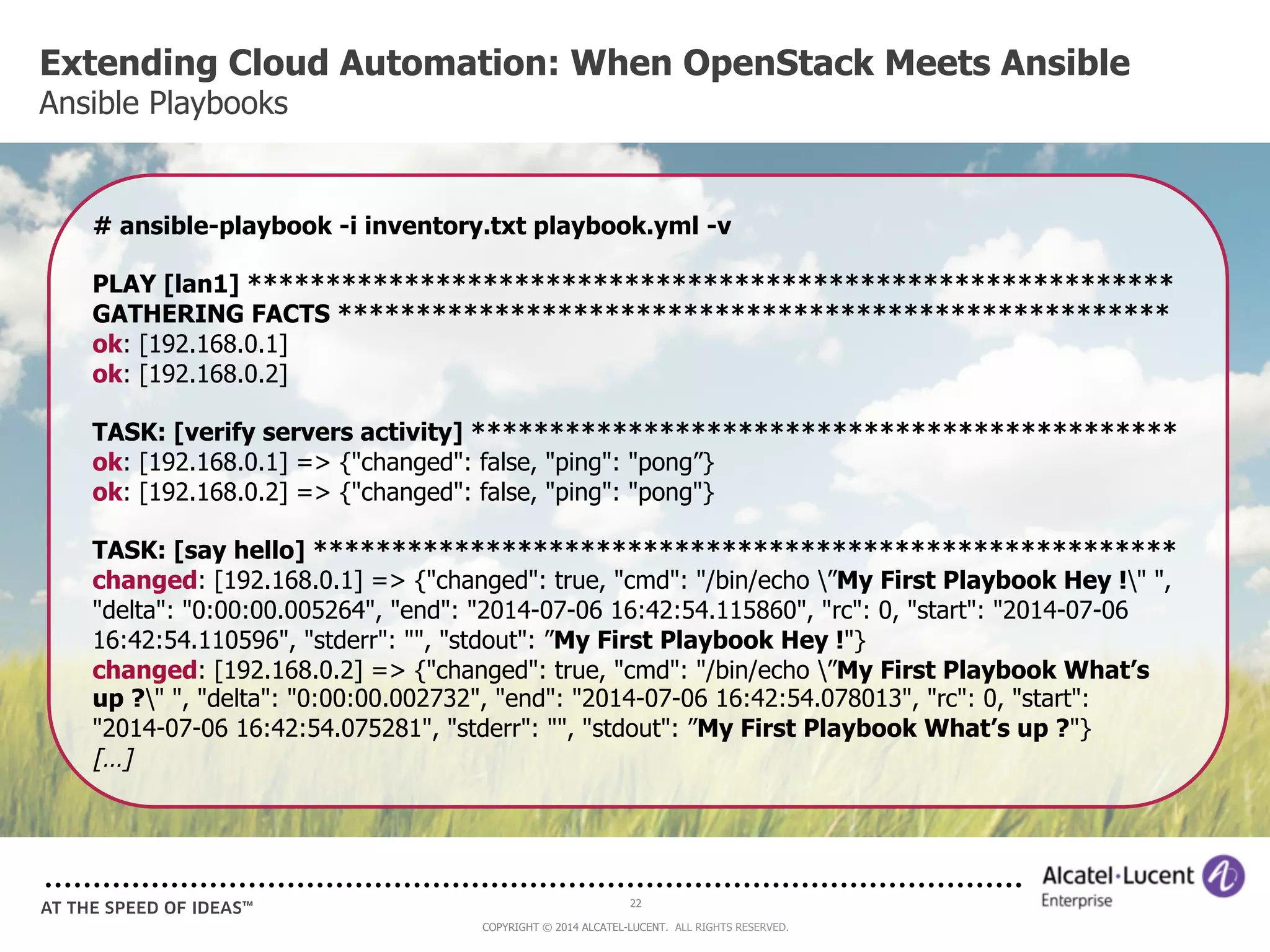

Ansible Playbooks
# ansible-playbook -i inventory.txt playbook.yml -v
PLAY [lan1] ***********************************************************
GATHERING FACTS *****************************************************
ok: [192.168.0.1]
ok: [192.168.0.2]
TASK: [verify servers activity] *********************************************
ok: [192.168.0.1] => {"changed": false, "ping": "pong”}
ok: [192.168.0.2] => {"changed": false, "ping": "pong"}
TASK: [say hello] *******************************************************
changed: [192.168.0.1] => {"changed": true, "cmd": "/bin/echo ”My First Playbook Hey !" ",
"delta": "0:00:00.005264", "end": "2014-07-06 16:42:54.115860", "rc": 0, "start": "2014-07-06
16:42:54.110596", "stderr": "", "stdout": ”My First Playbook Hey !"}
changed: [192.168.0.2] => {"changed": true, "cmd": "/bin/echo ”My First Playbook What’s
up ?" ", "delta": "0:00:00.002732", "end": "2014-07-06 16:42:54.078013", "rc": 0, "start":
"2014-07-06 16:42:54.075281", "stderr": "", "stdout": ”My First Playbook What’s up ?"}
[…]
22

Ansible Playbooks

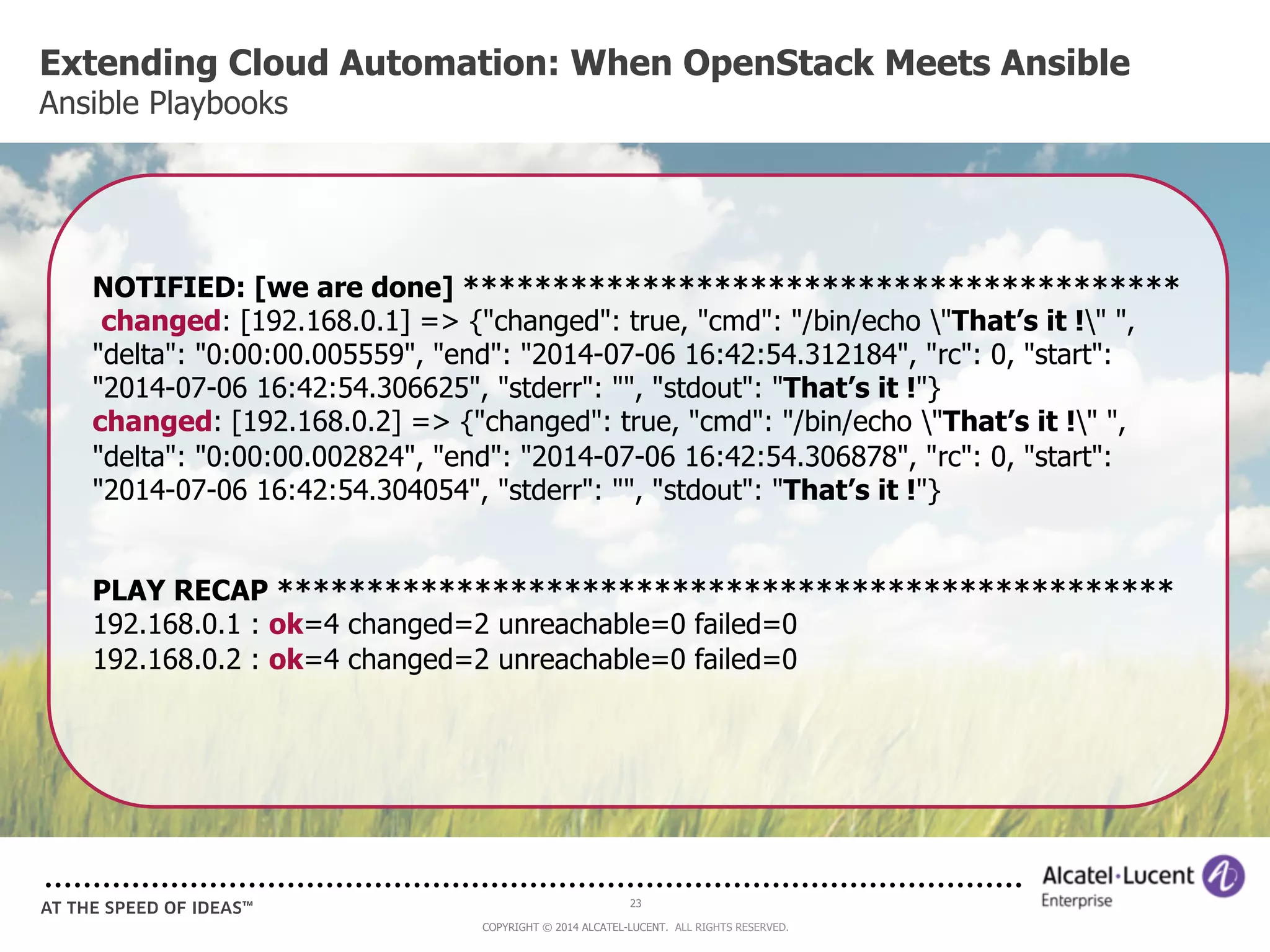

NOTIFIED: [we are done] ****************************************
changed: [192.168.0.1] => {"changed": true, "cmd": "/bin/echo "That’s it !" ",
"delta": "0:00:00.005559", "end": "2014-07-06 16:42:54.312184", "rc": 0, "start":
"2014-07-06 16:42:54.306625", "stderr": "", "stdout": "That’s it !"}
changed: [192.168.0.2] => {"changed": true, "cmd": "/bin/echo "That’s it !" ",
"delta": "0:00:00.002824", "end": "2014-07-06 16:42:54.306878", "rc": 0, "start":
"2014-07-06 16:42:54.304054", "stderr": "", "stdout": "That’s it !"}
PLAY RECAP **************************************************
192.168.0.1 : ok=4 changed=2 unreachable=0 failed=0
192.168.0.2 : ok=4 changed=2 unreachable=0 failed=0
23

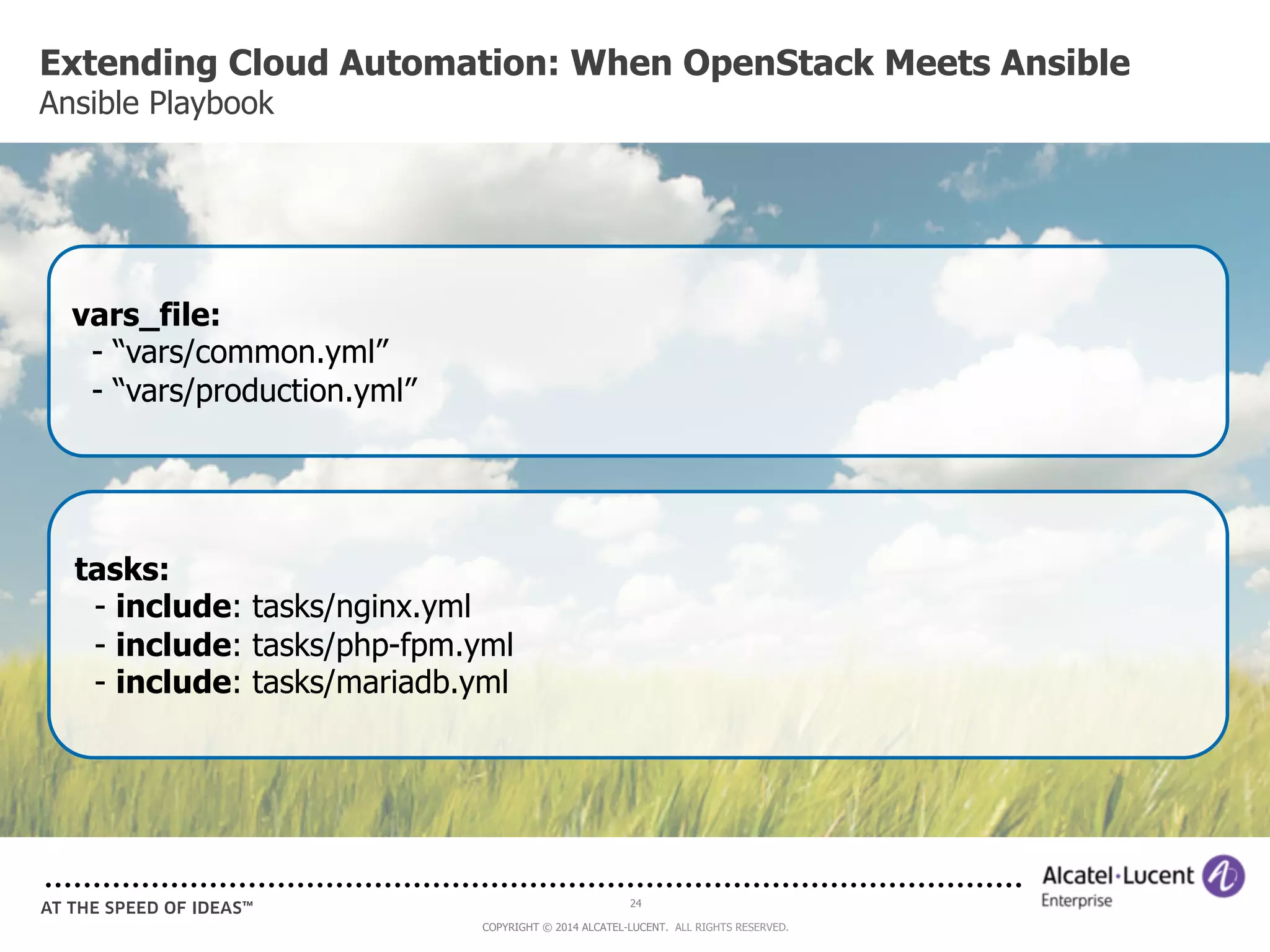

Ansible Playbook
24
vars_file:
- “vars/common.yml”
- “vars/production.yml”
tasks:
- include: tasks/nginx.yml
- include: tasks/php-fpm.yml
- include: tasks/mariadb.yml

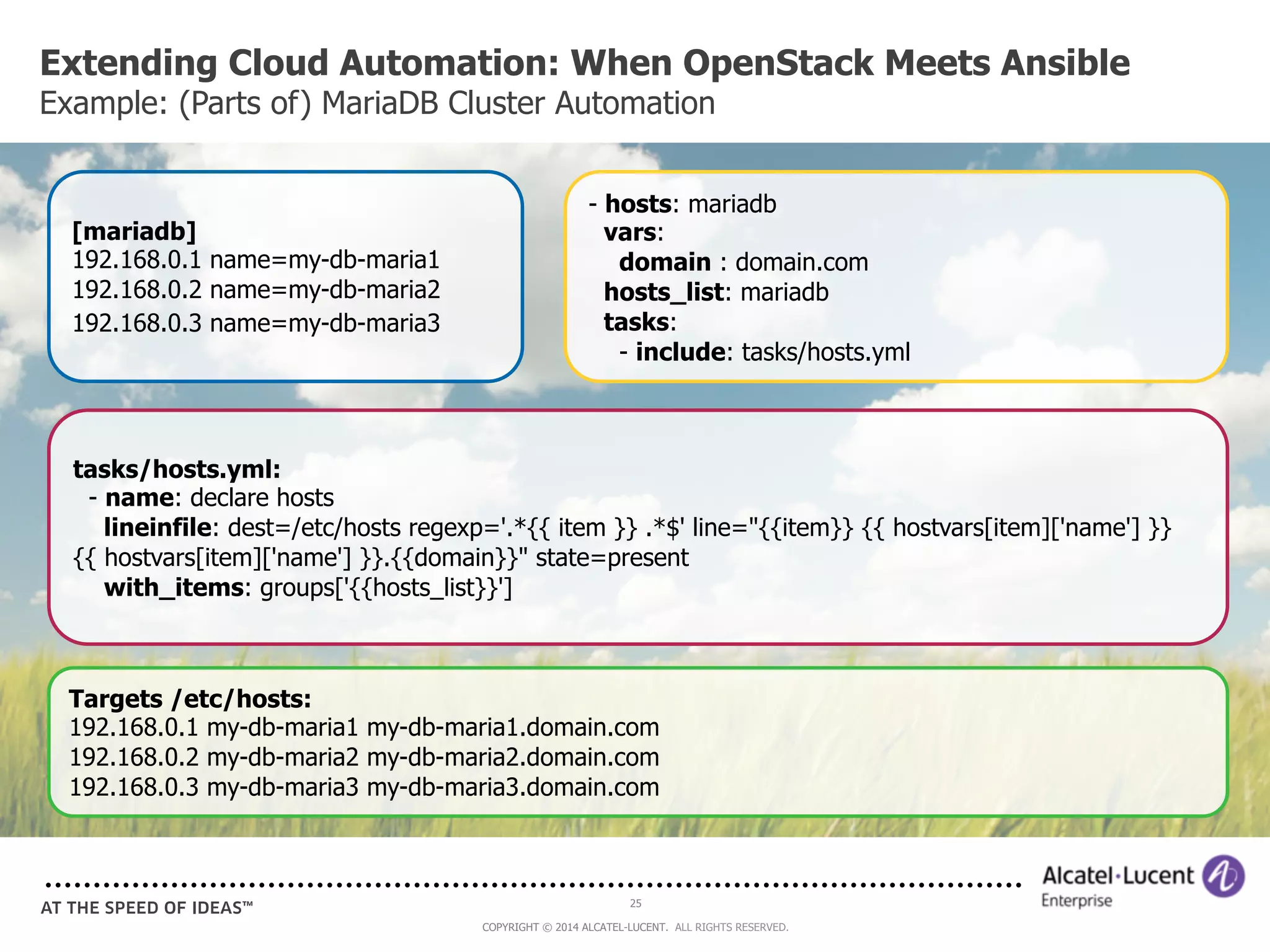

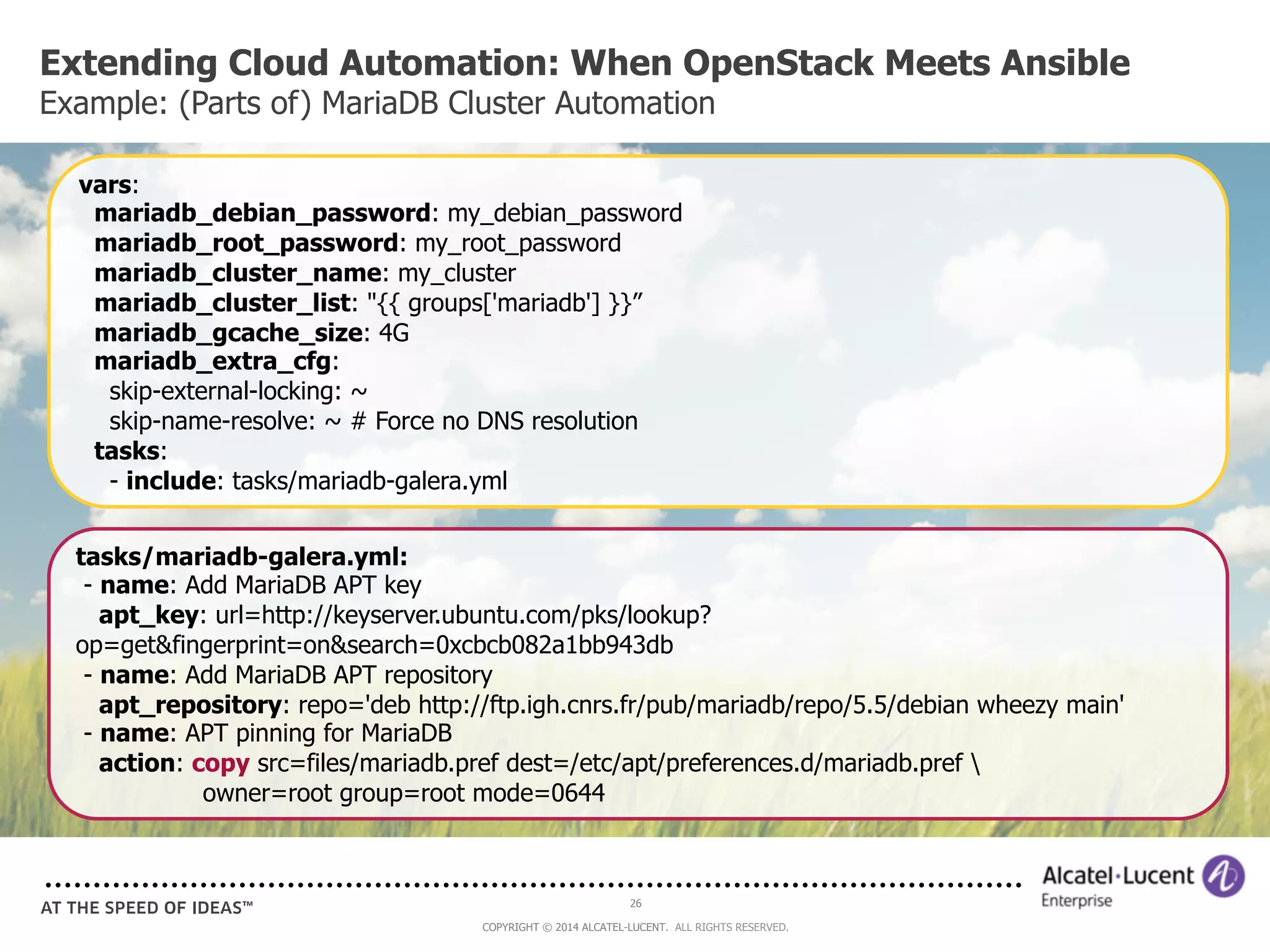

Example: (Parts of) MariaDB Cluster Automation
- hosts: mariadb
vars:
domain : domain.com
hosts_list: mariadb
tasks:
- include: tasks/hosts.yml
25
[mariadb]
192.168.0.1 name=my-db-maria1
tasks/hosts.yml:
- name: declare hosts
lineinfile: dest=/etc/hosts regexp='.*{{ item }} .*$' line="{{item}} {{ hostvars[item]['name'] }}
{{ hostvars[item]['name'] }}.{{domain}}" state=present
with_items: groups['{{hosts_list}}']
Targets /etc/hosts:
192.168.0.1 my-db-maria1 my-db-maria1.domain.com

vars:
mariadb_debian_password: my_debian_password
mariadb_root_password: my_root_password
mariadb_cluster_name: my_cluster
mariadb_cluster_list: "{{ groups['mariadb'] }}”
mariadb_gcache_size: 4G
mariadb_extra_cfg:
skip-external-locking: ~
skip-name-resolve: ~ # Force no DNS resolution
tasks:
- include: tasks/mariadb-galera.yml
tasks/mariadb-galera.yml:
- name: Add MariaDB APT key
apt_key: url=http://keyserver.ubuntu.com/pks/lookup?
op=get&fingerprint=on&search=0xcbcb082a1bb943db
- name: Add MariaDB APT repository
apt_repository: repo='deb http://ftp.igh.cnrs.fr/pub/mariadb/repo/5.5/debian wheezy main'
- name: APT pinning for MariaDB
action: copy src=files/mariadb.pref dest=/etc/apt/preferences.d/mariadb.pref
26
owner=root group=root mode=0644

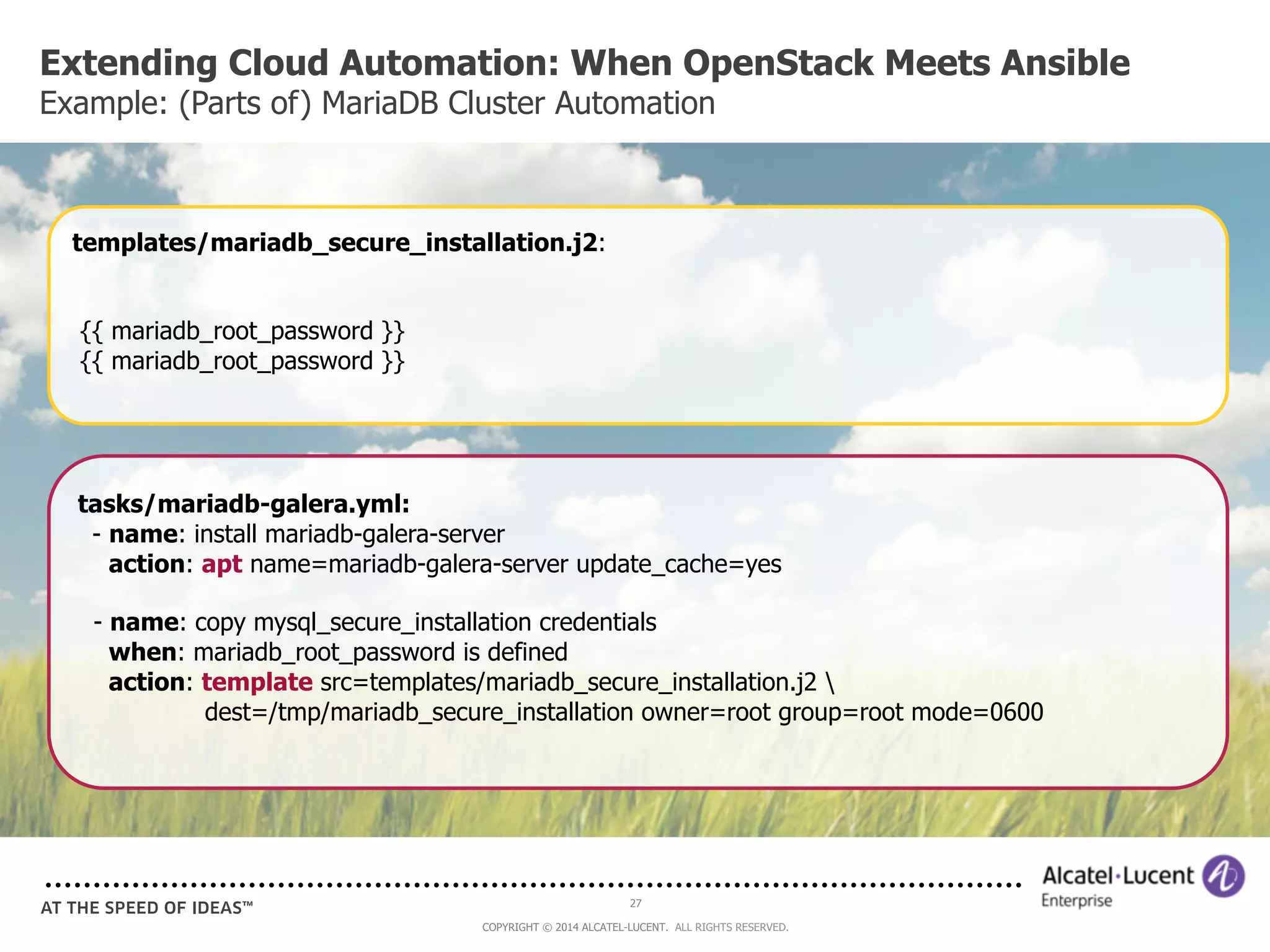

templates/mariadb_secure_installation.j2:
- name: install mariadb-galera-server
action: apt name=mariadb-galera-server update_cache=yes
- name: copy mysql_secure_installation credentials
when: mariadb_root_password is defined
action: template src=templates/mariadb_secure_installation.j2
dest=/tmp/mariadb_secure_installation owner=root group=root mode=0600
27
{{ mariadb_root_password }}
{{ mariadb_root_password }}

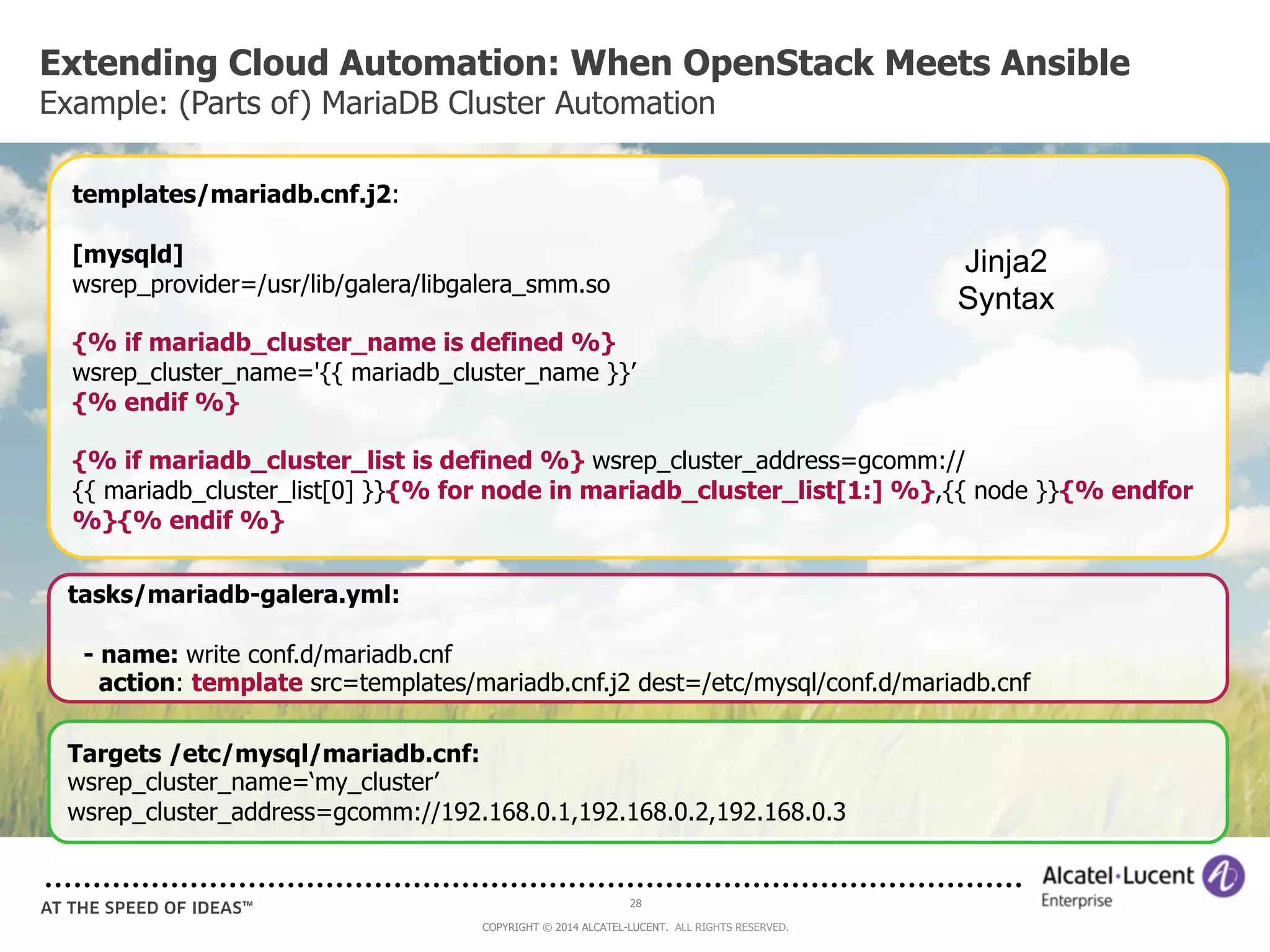

templates/mariadb.cnf.j2:
[mysqld]
wsrep_provider=/usr/lib/galera/libgalera_smm.so
{% if mariadb_cluster_name is defined %}
wsrep_cluster_name='{{ mariadb_cluster_name }}’
{% endif %}
{% if mariadb_cluster_list is defined %} wsrep_cluster_address=gcomm://
{{ mariadb_cluster_list[0] }}{% for node in mariadb_cluster_list[1:] %},{{ node }}{% endfor
%}{% endif %}
- name: write conf.d/mariadb.cnf
action: template src=templates/mariadb.cnf.j2 dest=/etc/mysql/conf.d/mariadb.cnf
Targets /etc/mysql/mariadb.cnf:
wsrep_cluster_name=‘my_cluster’
wsrep_cluster_address=gcomm://192.168.0.1,192.168.0.2,192.168.0.3
28

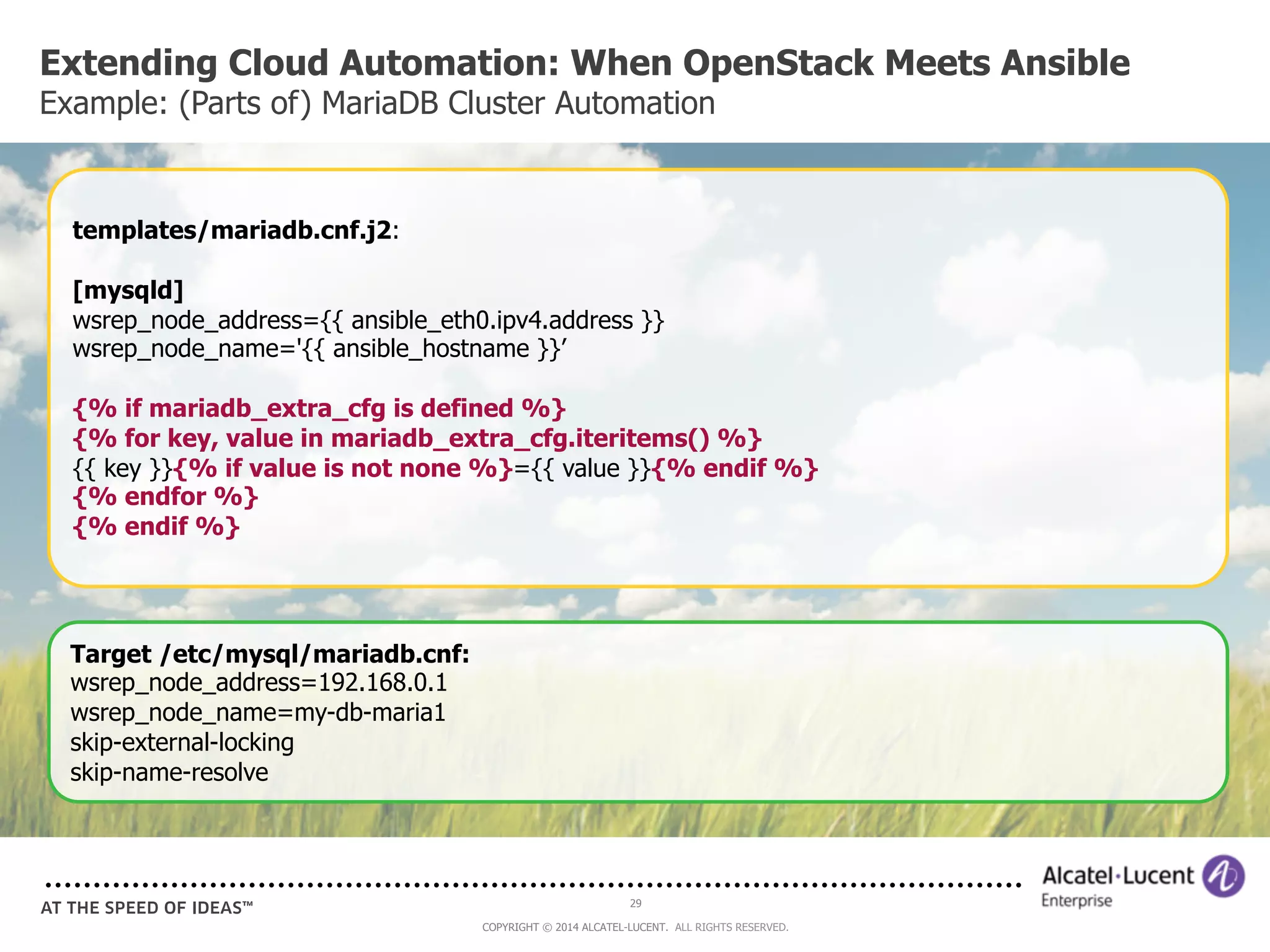

Jinja2
Syntax

templates/mariadb.cnf.j2:
[mysqld]
wsrep_node_address={{ ansible_eth0.ipv4.address }}
wsrep_node_name='{{ ansible_hostname }}’
{% if mariadb_extra_cfg is defined %}
{% for key, value in mariadb_extra_cfg.iteritems() %}
{{ key }}{% if value is not none %}={{ value }}{% endif %}
{% endfor %}
{% endif %}
29
Target /etc/mysql/mariadb.cnf:
wsrep_node_address=192.168.0.1
wsrep_node_name=my-db-maria1
skip-external-locking
skip-name-resolve

30

OpenStack in a Nutshell
- #1 (most widely adopted) Open-Source IaaS project.
- Awesome REST Management API.
- Perfect for instant spawning of new Virtual Machines (VMs)
- But VMs yet to be configured ...
31
What if I
could connect
OpenStack VMs
with Ansible
for nightly CI ?

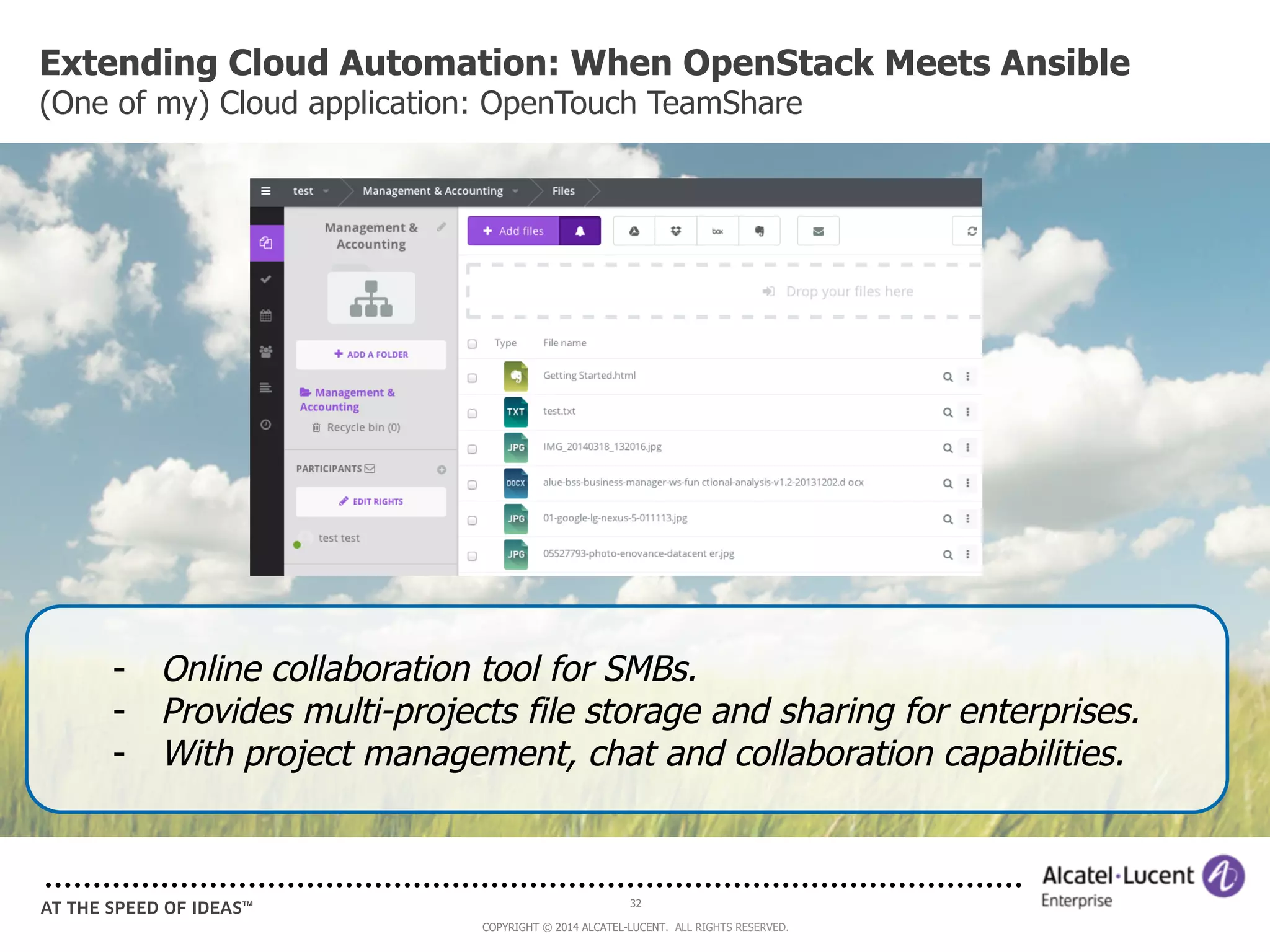

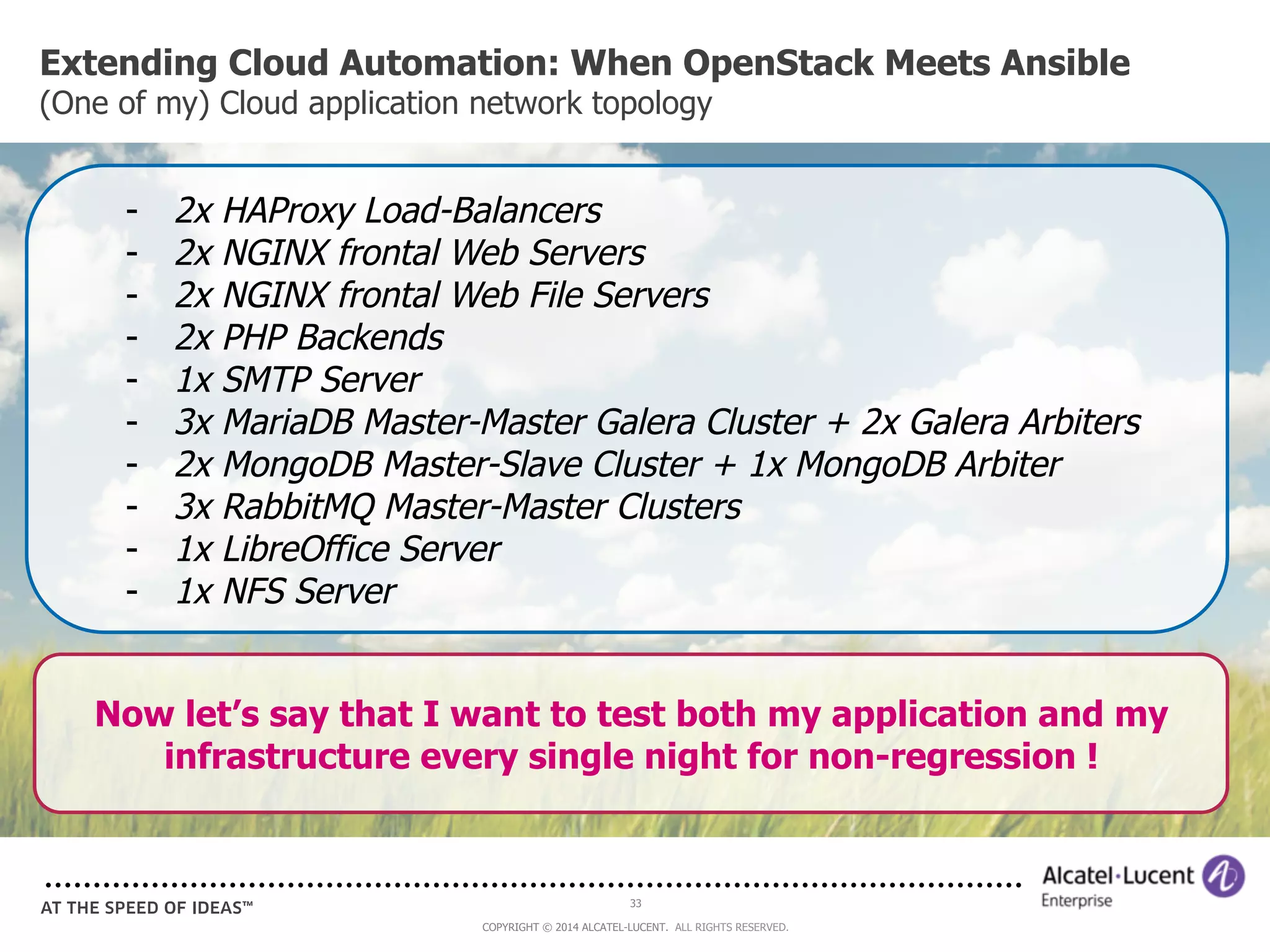

(One of my) Cloud application: OpenTouch TeamShare
- Online collaboration tool for SMBs.
- Provides multi-projects file storage and sharing for enterprises.
- With project management, chat and collaboration capabilities.
32

(One of my) Cloud application network topology
- 2x HAProxy Load-Balancers
- 2x NGINX frontal Web Servers
- 2x NGINX frontal Web File Servers
- 2x PHP Backends
- 1x SMTP Server
- 3x MariaDB Master-Master Galera Cluster + 2x Galera Arbiters
- 2x MongoDB Master-Slave Cluster + 1x MongoDB Arbiter
- 3x RabbitMQ Master-Master Clusters
- 1x LibreOffice Server
- 1x NFS Server
Now let’s say that I want to test both my application and my
infrastructure every single night for non-regression !
33

34

AvOID: Ansible OpenStack Instances Deployer
- Open Source software by Alcatel-Lucent Enterprise.
- Written in Python with dependencies to OpenStack Nova/Neutron APIs.
- Relies on Ansible with IaaS bindings:
- Currently OpenStack only
- But wide open to support many much more … who knows …
- Comes as a library with both CLI and Web clients.
How it works:
1. Describe your infrastructure topology in a YAML file once and for all.
2. Run avoid-cli. Grab a coffee, that’s it.
How it (internally) works:
1. Parses your topology file.
2. Optionally terminates (all) OpenStack VMs and spawn new ones and build Ansible inventory file.
3. Creates VMs dependency graph for parallelized post-configuration by Ansible.
4. Post-configure VMs through Ansible playbooks (continuous-integration style).
35

AvOID: Ansible OpenStack Instances Deployer

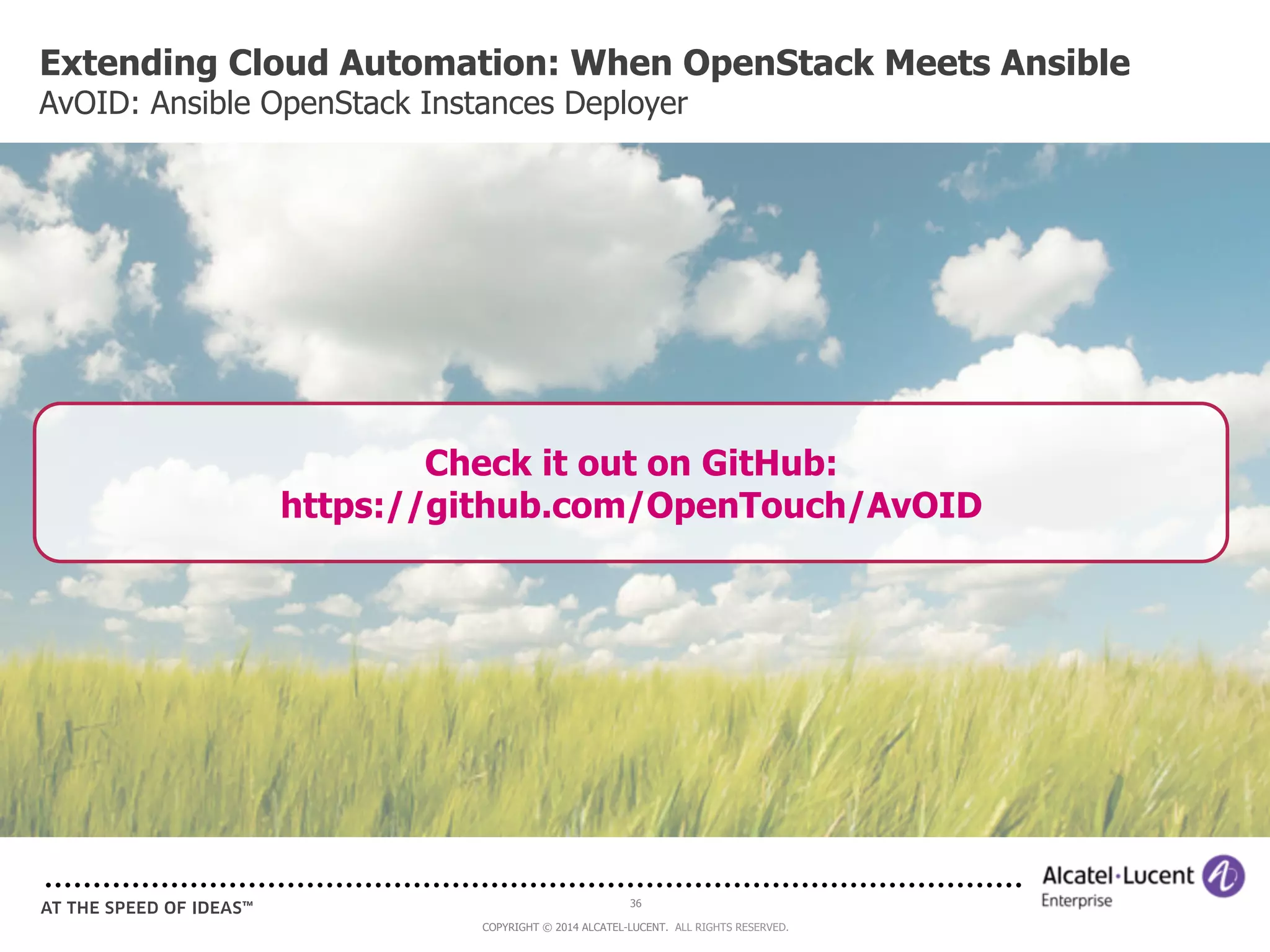

Check it out on GitHub:
https://github.com/OpenTouch/AvOID
36

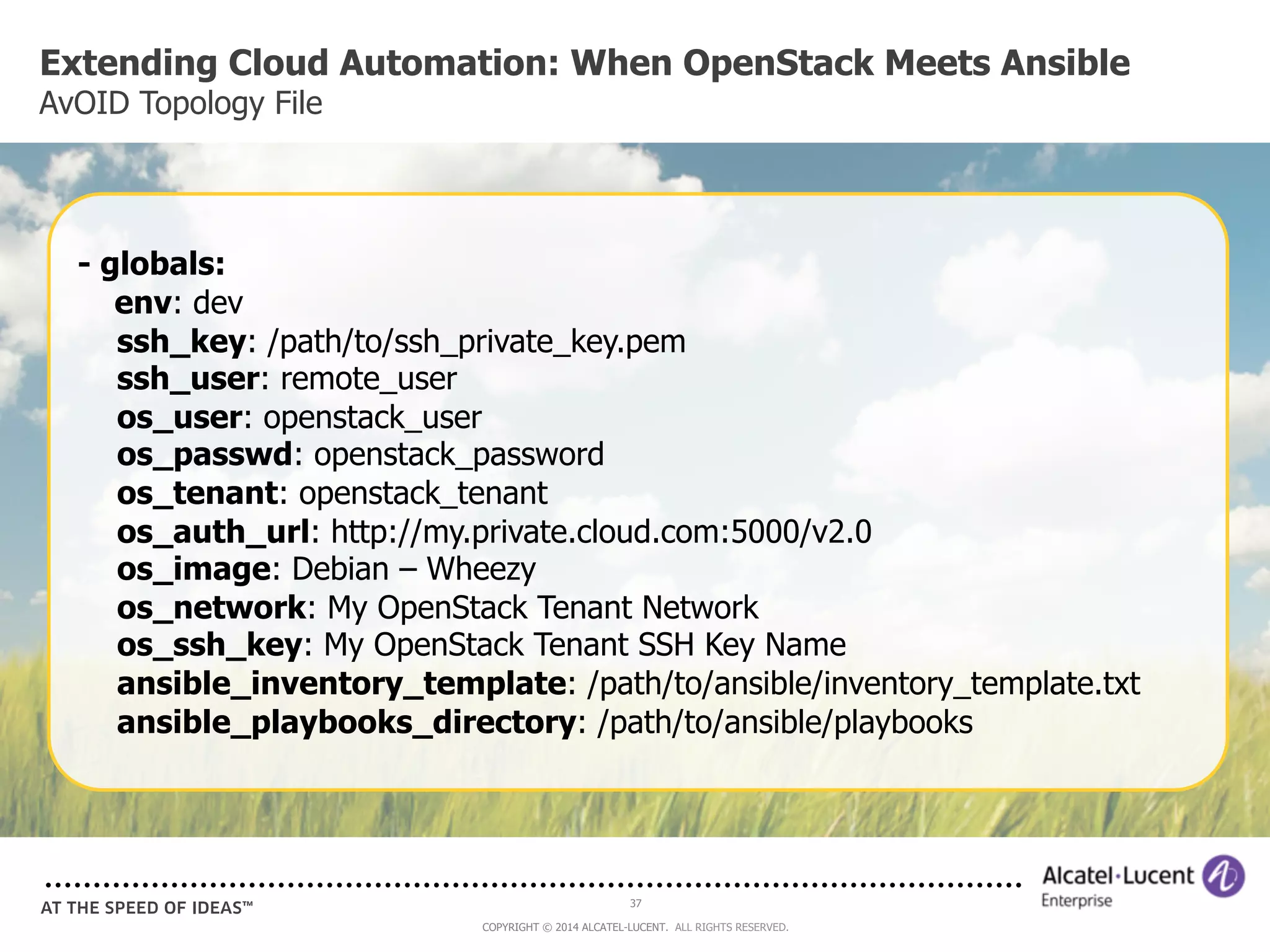

AvOID Topology File
- globals:
env: dev
ssh_key: /path/to/ssh_private_key.pem
ssh_user: remote_user
os_user: openstack_user
os_passwd: openstack_password
os_tenant: openstack_tenant
os_auth_url: http://my.private.cloud.com:5000/v2.0
os_image: Debian – Wheezy
os_network: My OpenStack Tenant Network
os_ssh_key: My OpenStack Tenant SSH Key Name
ansible_inventory_template: /path/to/ansible/inventory_template.txt
ansible_playbooks_directory: /path/to/ansible/playbooks
37

AvOID Topology File
38

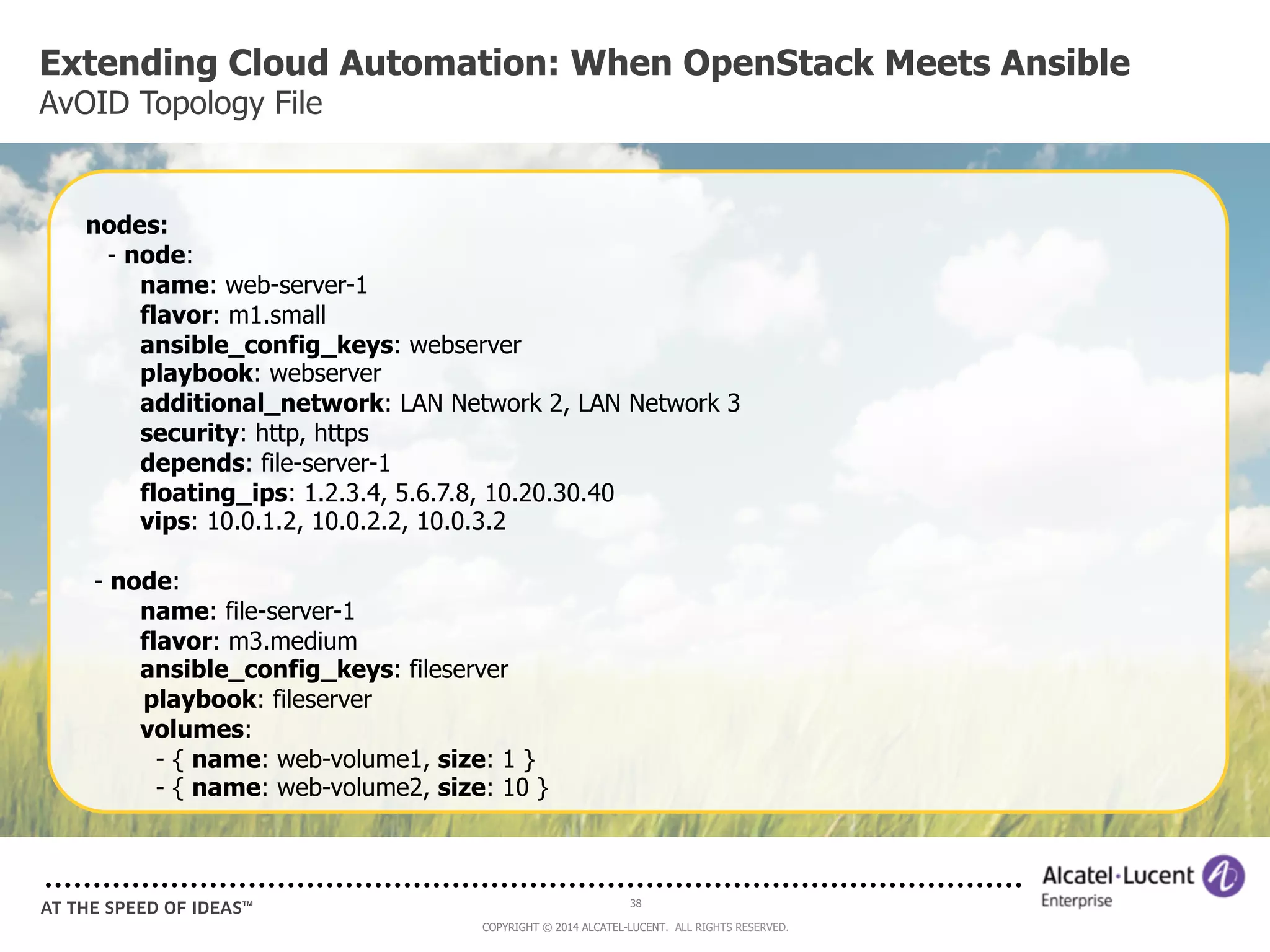

nodes:
- node:
name: web-server-1
flavor: m1.small
ansible_config_keys: webserver
playbook: webserver
additional_network: LAN Network 2, LAN Network 3
security: http, https
depends: file-server-1
floating_ips: 1.2.3.4, 5.6.7.8, 10.20.30.40
vips: 10.0.1.2, 10.0.2.2, 10.0.3.2
- node:
name: file-server-1
flavor: m3.medium
ansible_config_keys: fileserver
playbook: fileserver
volumes:
- { name: web-volume1, size: 1 }
- { name: web-volume2, size: 10 }

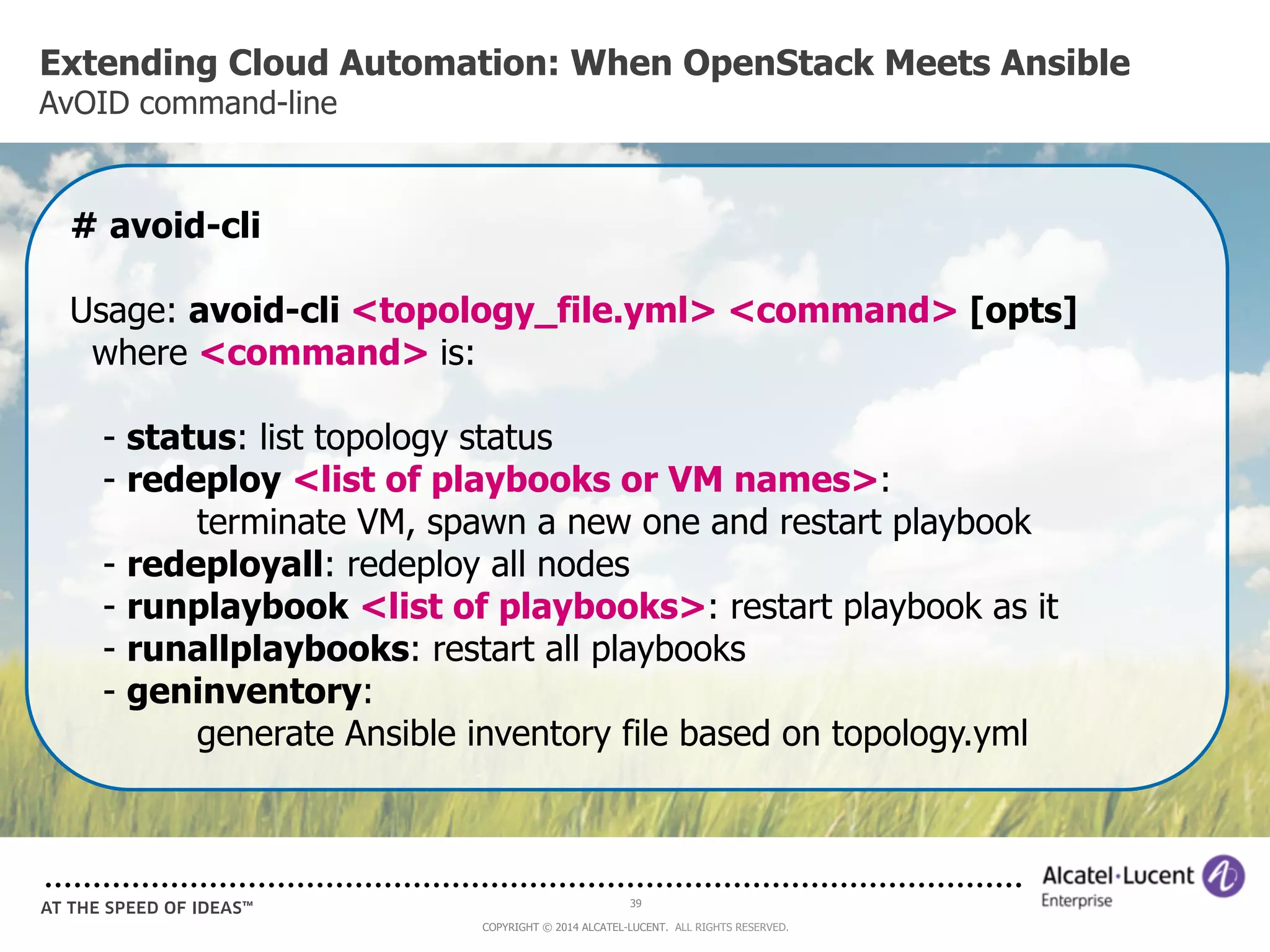

AvOID command-line
# avoid-cli
Usage: avoid-cli <topology_file.yml> <command> [opts]
where <command> is:
- status: list topology status
- redeploy <list of playbooks or VM names>:
terminate VM, spawn a new one and restart playbook
- redeployall: redeploy all nodes
- runplaybook <list of playbooks>: restart playbook as it
- runallplaybooks: restart all playbooks
- geninventory:
generate Ansible inventory file based on topology.yml
39

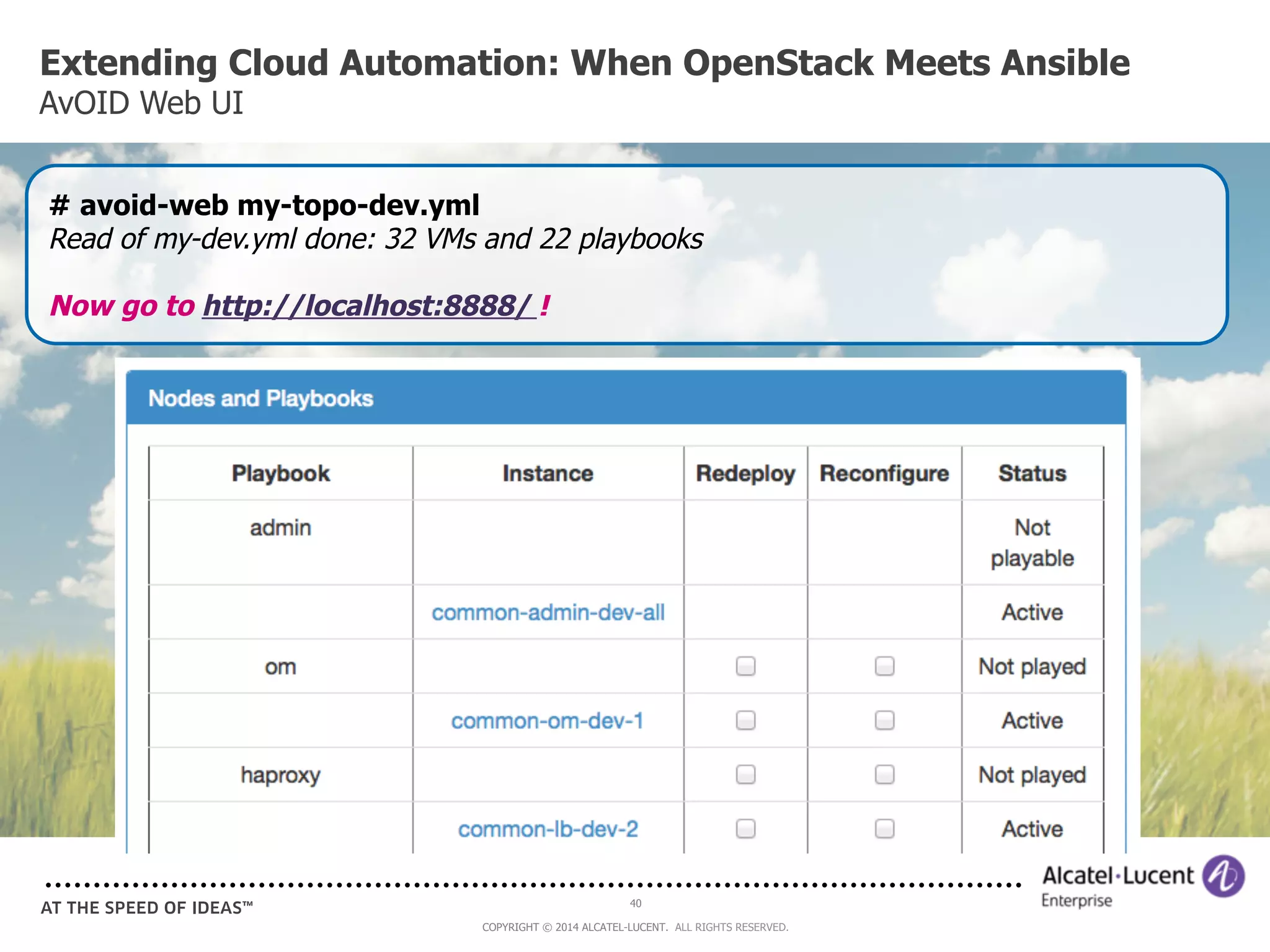

AvOID Web UI
# avoid-web my-topo-dev.yml
Read of my-dev.yml done: 32 VMs and 22 playbooks
Now go to http://localhost:8888/ !
40

32 VMs fully deployed in 19mn40s
(5mn40s for OpenStack and 14mn and
for Ansible post-configuration)
41

42

Let’s keep in touch …
43
benjaminzores
@gxben
#Benjamin Zores

CloudOpen 2014 - Extending Cloud Automation, When OpenStack Meets Ansible

More Related Content

What's hot

Viewers also liked

Similar to CloudOpen 2014 - Extending Cloud Automation, When OpenStack Meets Ansible

Recently uploaded

CloudOpen 2014 - Extending Cloud Automation, When OpenStack Meets Ansible
