1. v
Linux Networking: Why Should You Care
Shrijeet Mukherjee & Dinesh G Dutt
May 23, 2016

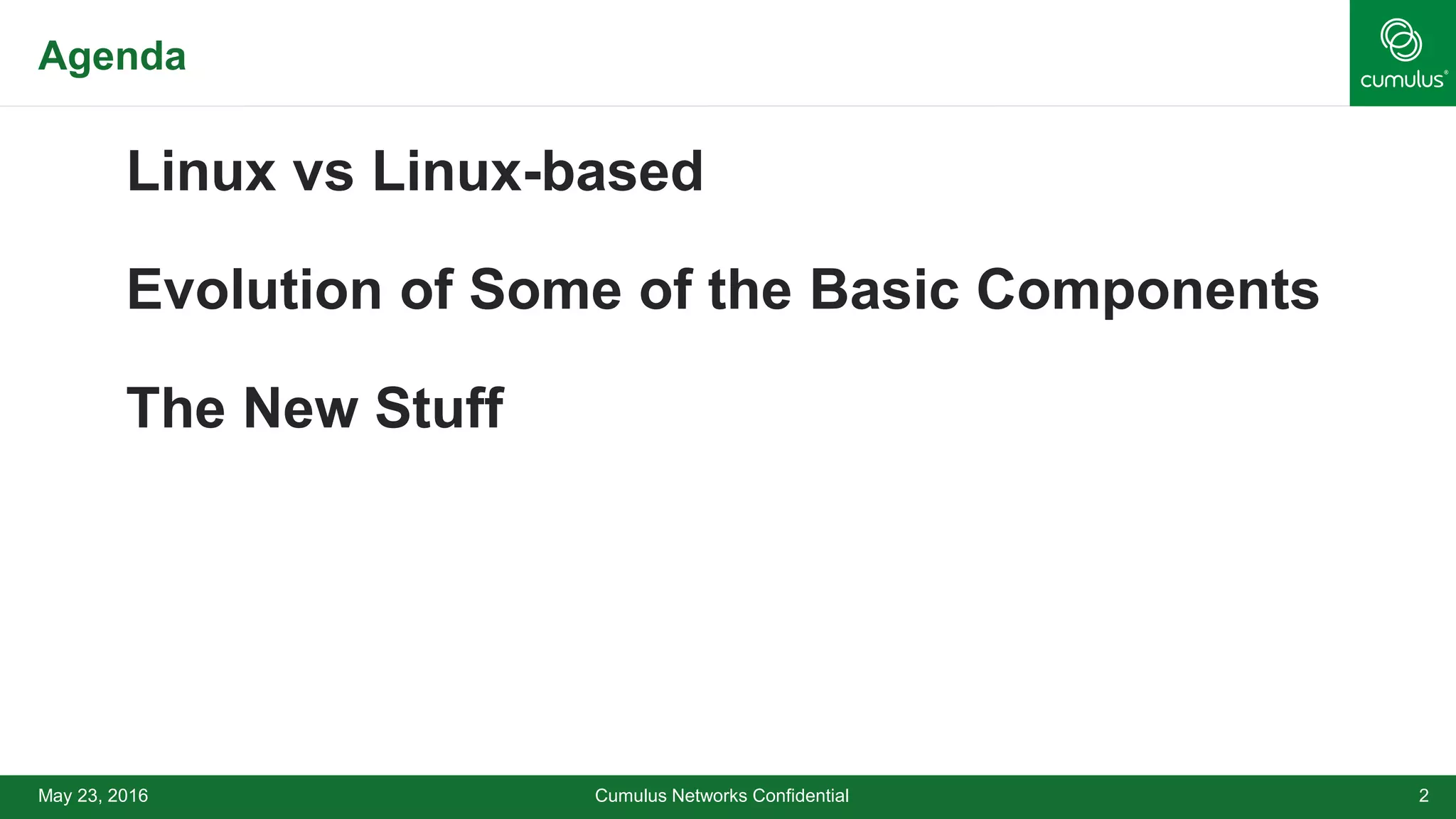

2. Agenda
Linux vs Linux-based
Evolution of Some of the Basic Components
The New Stuff
May 23, 2016 Cumulus Networks Confidential 2

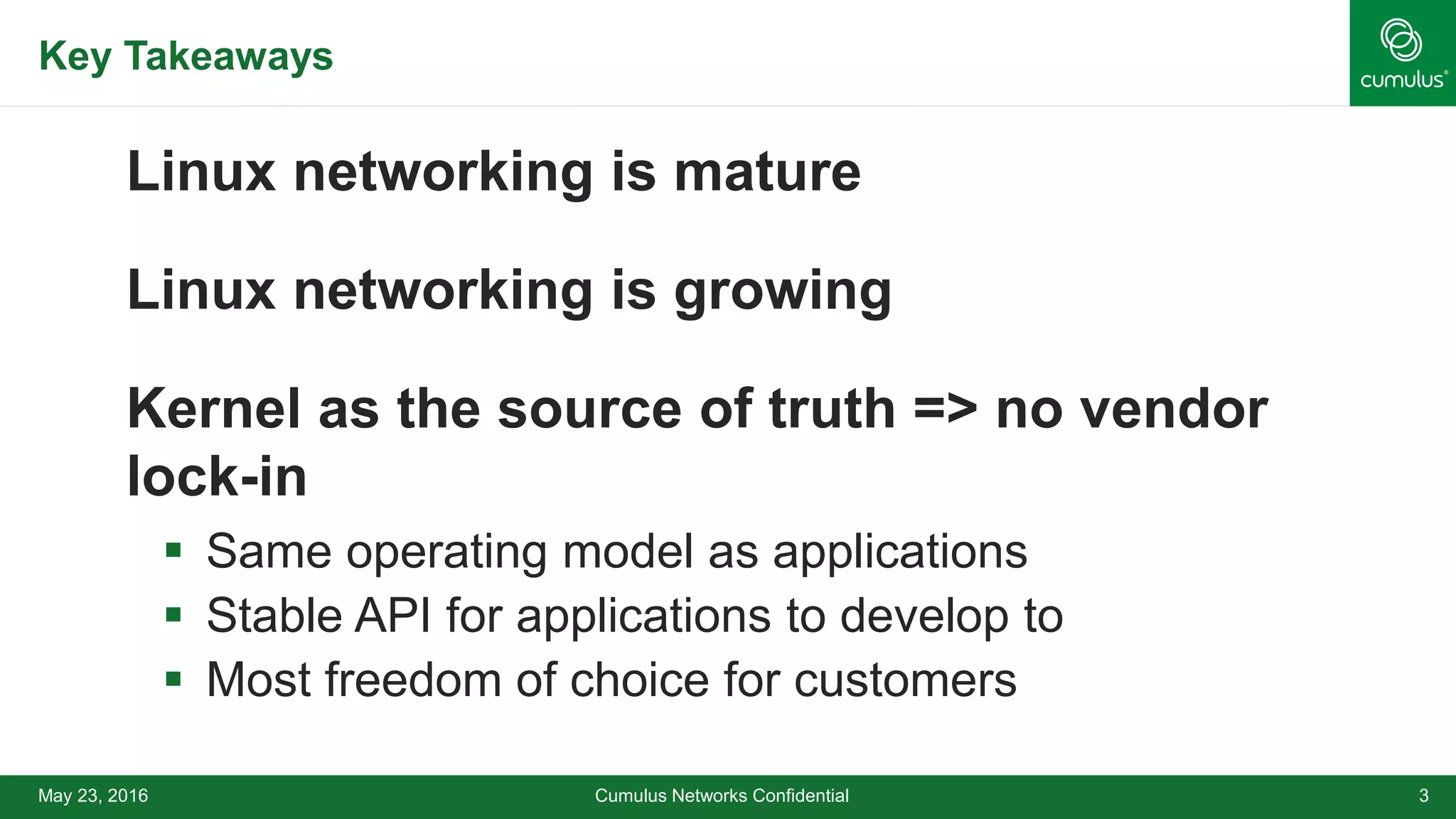

3. Key Takeaways
Linux networking is mature
Linux networking is growing
Kernel as the source of truth => no vendor
lock-in
 Same operating model as applications
 Stable API for applications to develop to
 Most freedom of choice for customers
May 23, 2016 Cumulus Networks Confidential 3

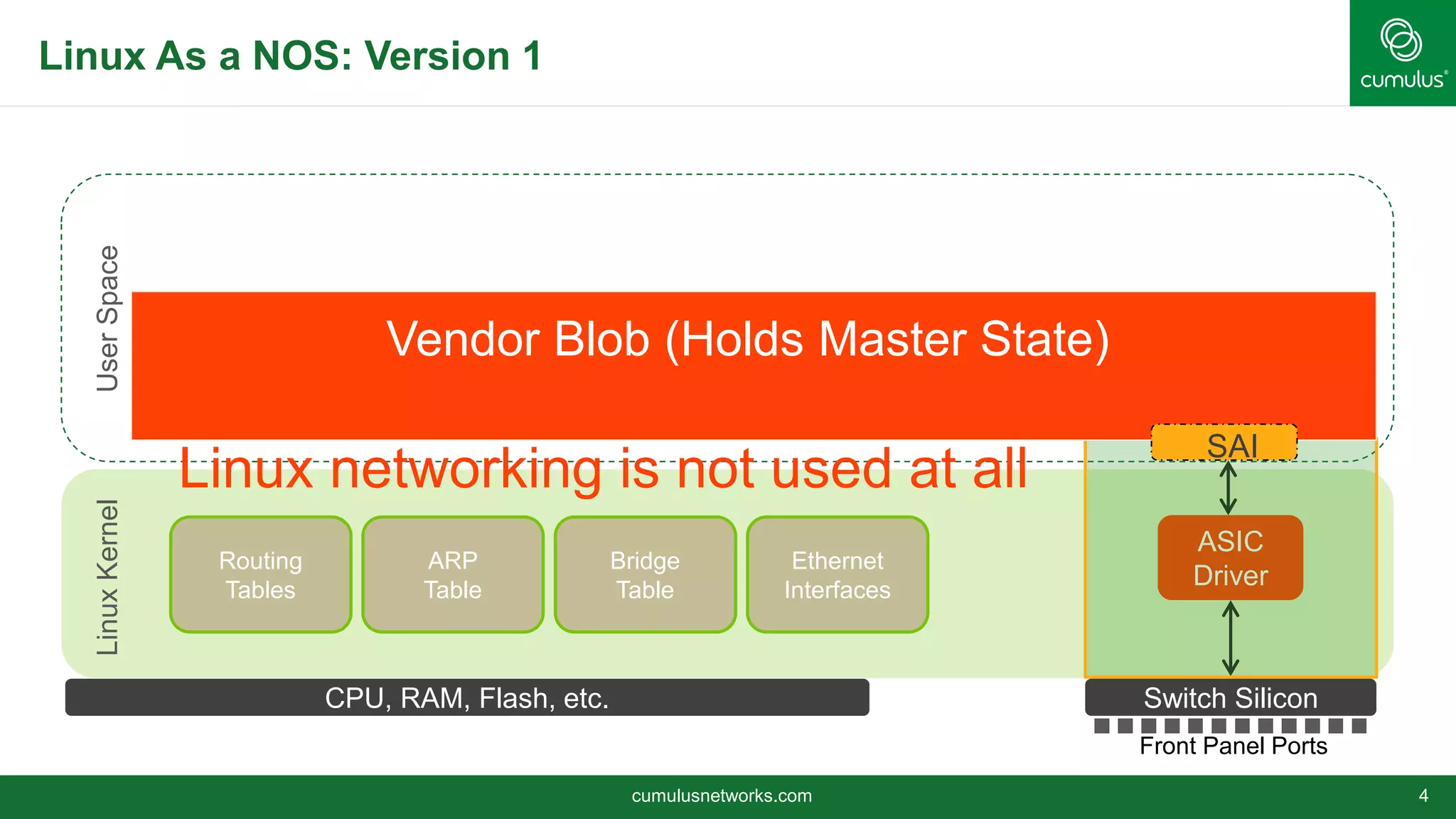

4. Linux As a NOS: Version 1
cumulusnetworks.com 4
CPU, RAM, Flash, etc. Switch Silicon
Front Panel Ports
UserSpaceLinuxKernel
ASIC
Driver
Routing
Tables
ARP
Table
Bridge
Table
Ethernet
Interfaces
Vendor Blob (Holds Master State)
Linux networking is not used at all
SAI

5. Linux As a NOS: Version 2
cumulusnetworks.com 5
CPU, RAM, Flash, etc. Switch Silicon
Front Panel Ports
UserSpaceLinuxKernel
ASIC
Driver
Partial Kernel
sync
Apps
Linux kernel networking is used partially
Vendor Blob (Holds Master State)
Routing
Tables
ARP
Table
Bridge
Table
Ethernet
Interfaces
SAI

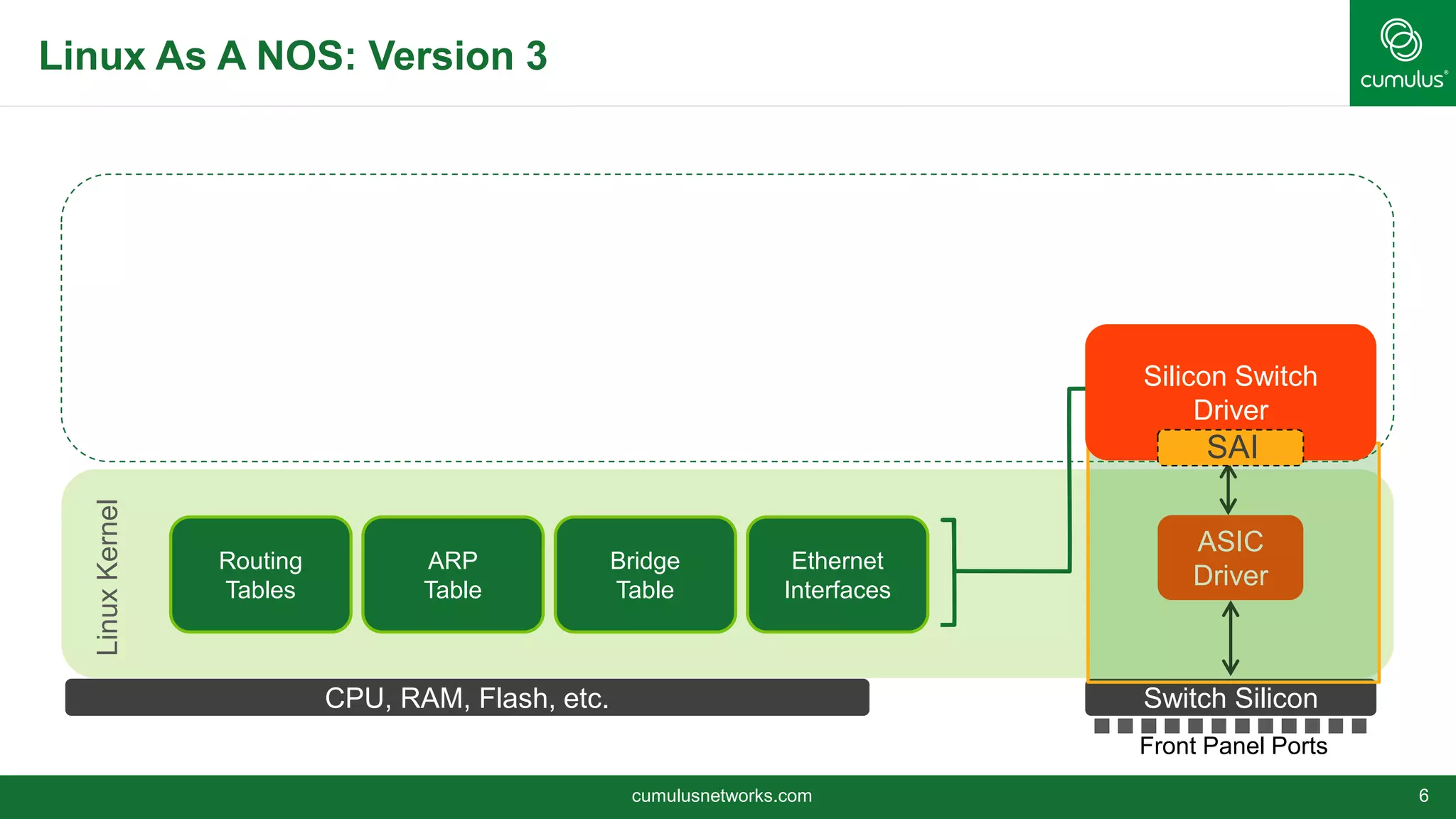

6. Linux As A NOS: Version 3
cumulusnetworks.com 6
CPU, RAM, Flash, etc. Switch Silicon
Front Panel Ports
LinuxKernel
ASIC
Driver
Routing
Tables
ARP
Table
Bridge
Table
Ethernet
Interfaces
Silicon Switch
Driver
SAI

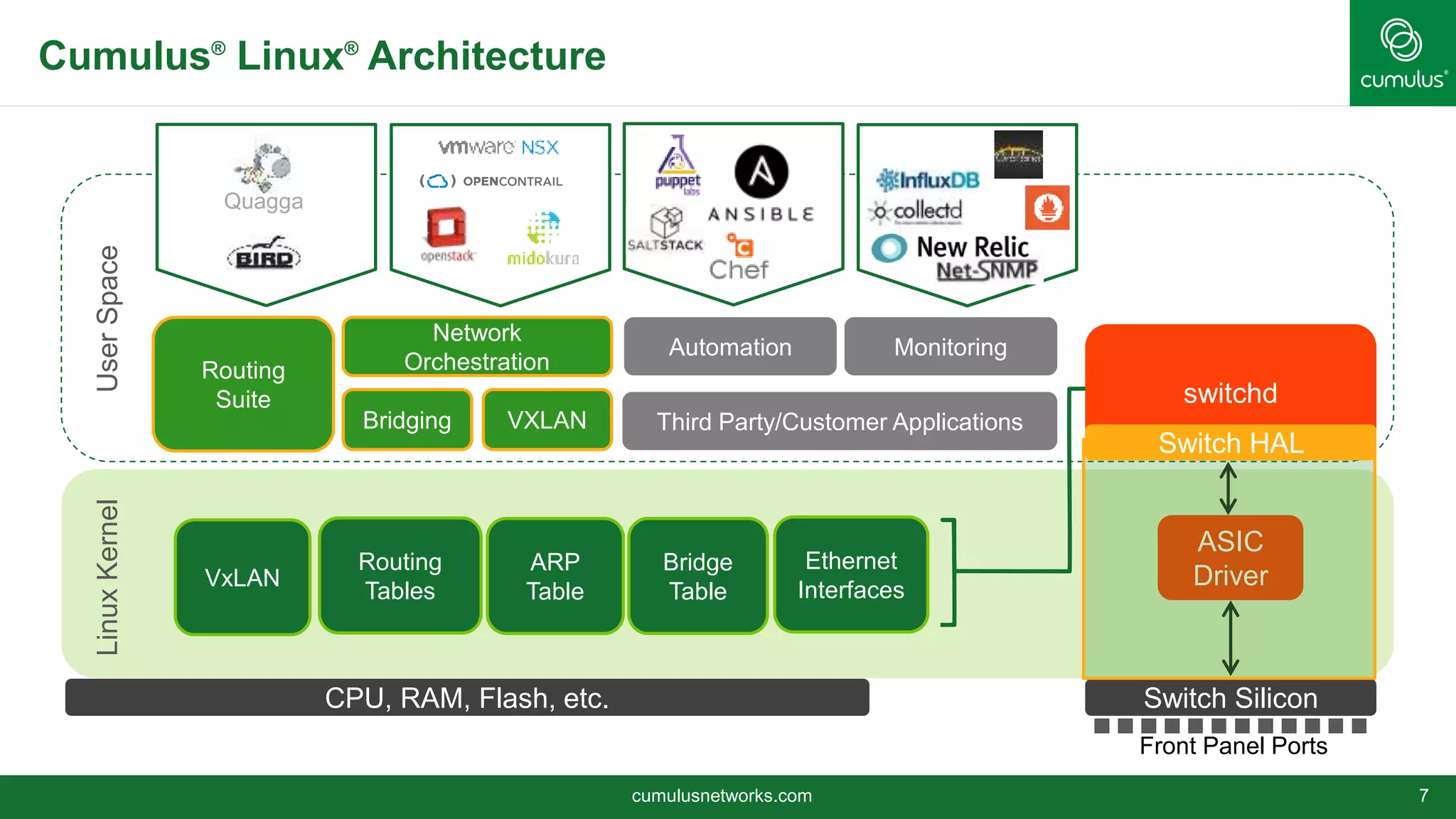

7. Cumulus®
Linux®
Architecture
cumulusnetworks.com 7
CPU, RAM, Flash, etc. Switch Silicon
Front Panel Ports
UserSpaceLinuxKernel
ASIC
Driver
Routing
Tables
ARP
Table
Bridge
Table
Ethernet
Interfaces
Automation Monitoring
Third Party/Customer Applications
Network
OrchestrationRouting
Suite
Bridging VXLAN
Quagga
VxLAN
switchd
Switch HAL

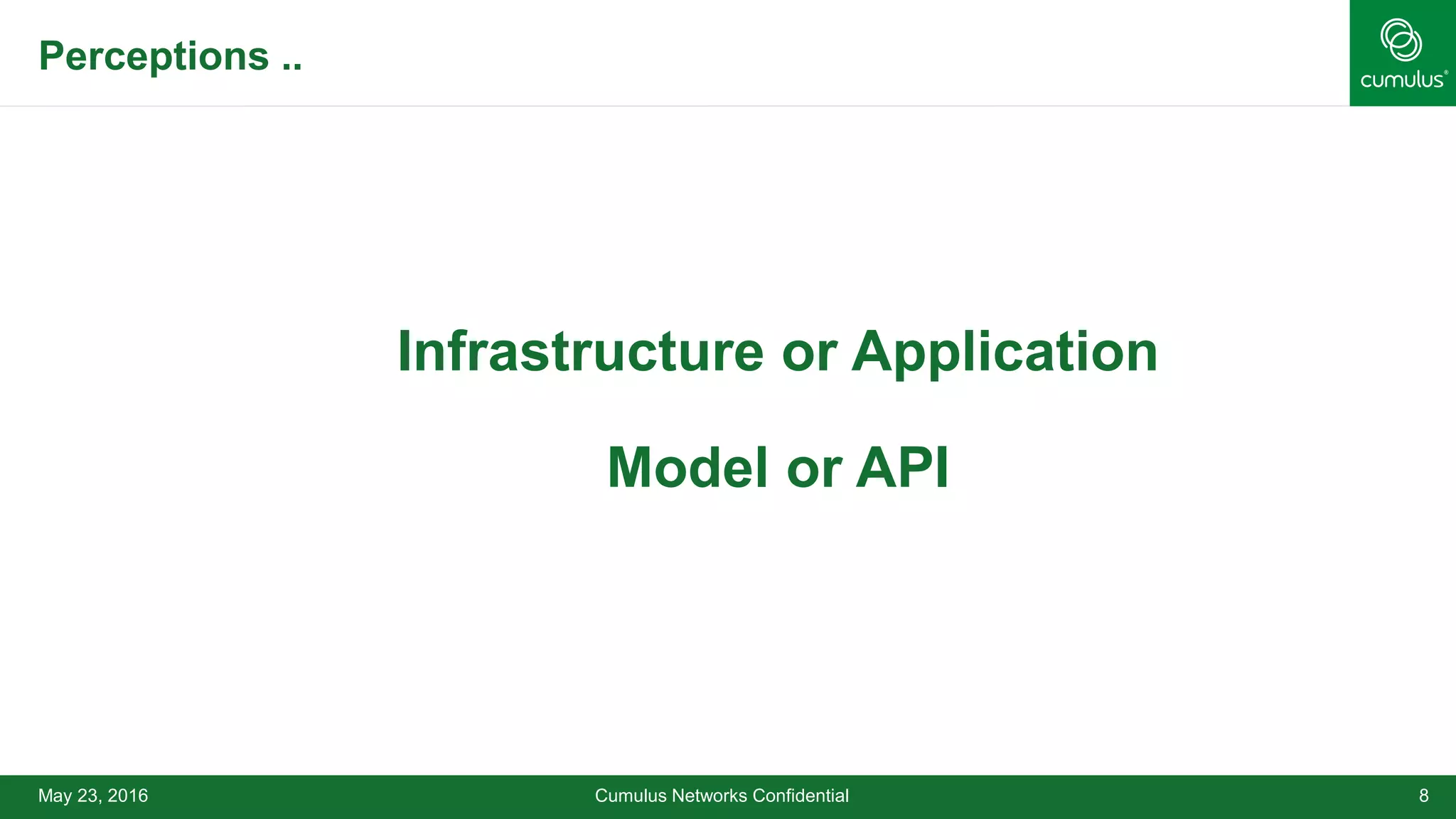

8. May 23, 2016 Cumulus Networks Confidential 8
•Infrastructure or Application
•Model or API
Perceptions ..

9. May 23, 2016 Cumulus Networks Confidential 9

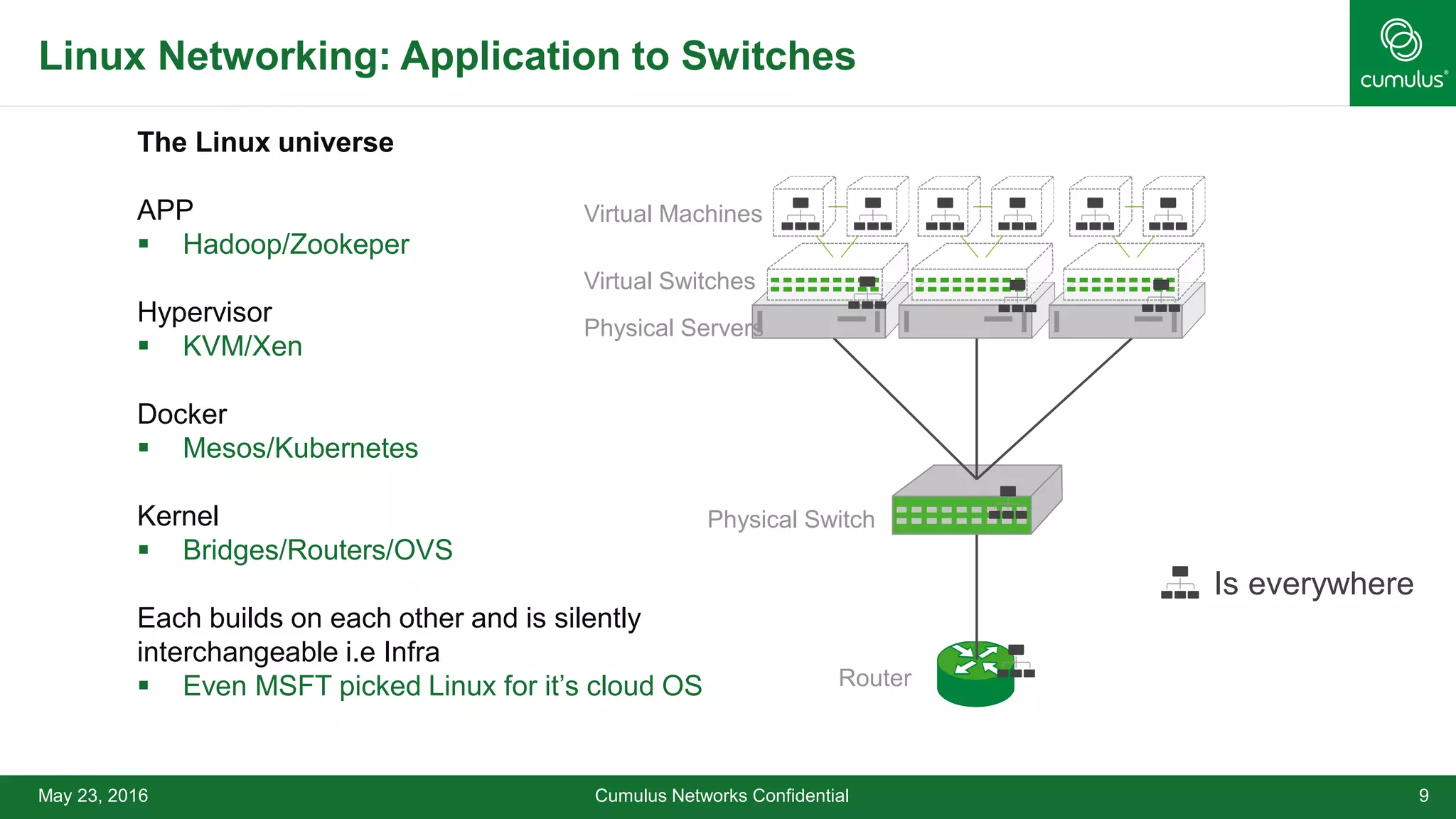

Linux Networking: Application to Switches
The Linux universe
APP
 Hadoop/Zookeper
Hypervisor
 KVM/Xen
Docker
 Mesos/Kubernetes
Kernel
 Bridges/Routers/OVS
Each builds on each other and is silently
interchangeable i.e Infra
 Even MSFT picked Linux for it’s cloud OS
Virtual Machines
Virtual Switches
Physical Servers
Physical Switch
Router
Is everywhere

10. A General Note On Innovation & Platforms
May 23, 2016 Cumulus Networks Confidential 10
 Application interface, Portable
and maintainable apps can use
this layer
Innovation here leads to hair
pulling
 Low level device interface;
Simplifies system software
developers, but only useful in the
context of the full system around it
Innovation and change here is
good

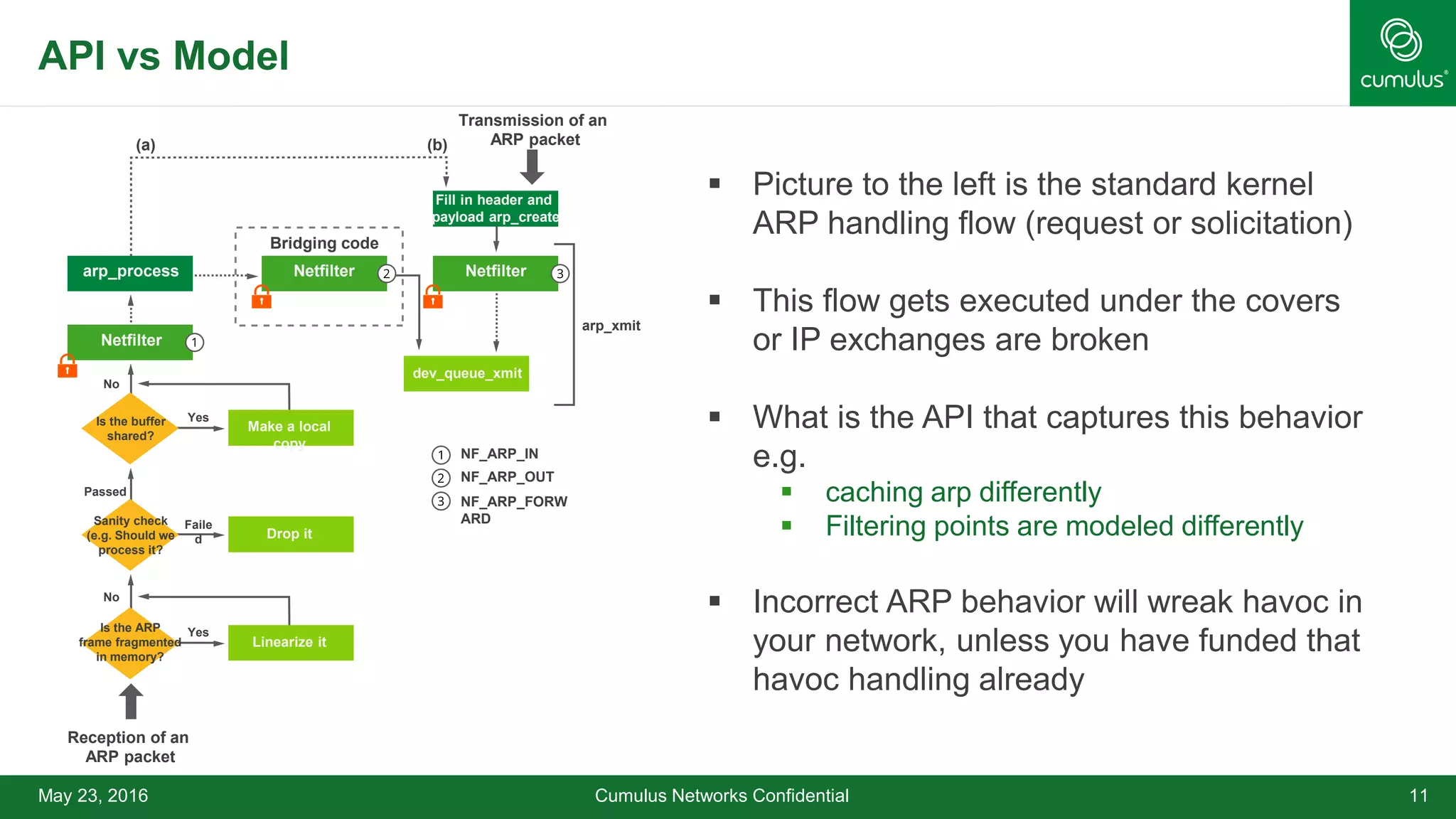

11. API vs Model
Cumulus Networks Confidential 11
 Picture to the left is the standard kernel
ARP handling flow (request or solicitation)
 This flow gets executed under the covers
or IP exchanges are broken
 What is the API that captures this behavior
e.g.
 caching arp differently
 Filtering points are modeled differently
 Incorrect ARP behavior will wreak havoc in
your network, unless you have funded that
havoc handling already
May 23, 2016
(a) (b)
arp_process Netfilter
Transmission of an
ARP packet
Bridging code
Netfilter
Netfilter
Make a local
copy
Drop it
Linearize it
Is the buffer
shared?
Sanity check
(e.g. Should we
process it?
Is the ARP
frame fragmented
in memory?
Reception of an
ARP packet
Yes
Yes
Faile
d
No
Passed
No
dev_queue_xmit
arp_xmit
NF_ARP_IN
NF_ARP_OUT
NF_ARP_FORW
ARD
Fill in header and
payload arp_create

12. Is Kernel Development Fast Enough ?
May 23, 2016 Cumulus Networks Confidential 12
Grey : Traditional
Stack
Red : Special
pathways
What is the Ratio ?
So the linux
kernel is getting
in your way ?
https://en.wikipedia.org/wiki/Troy_McClure

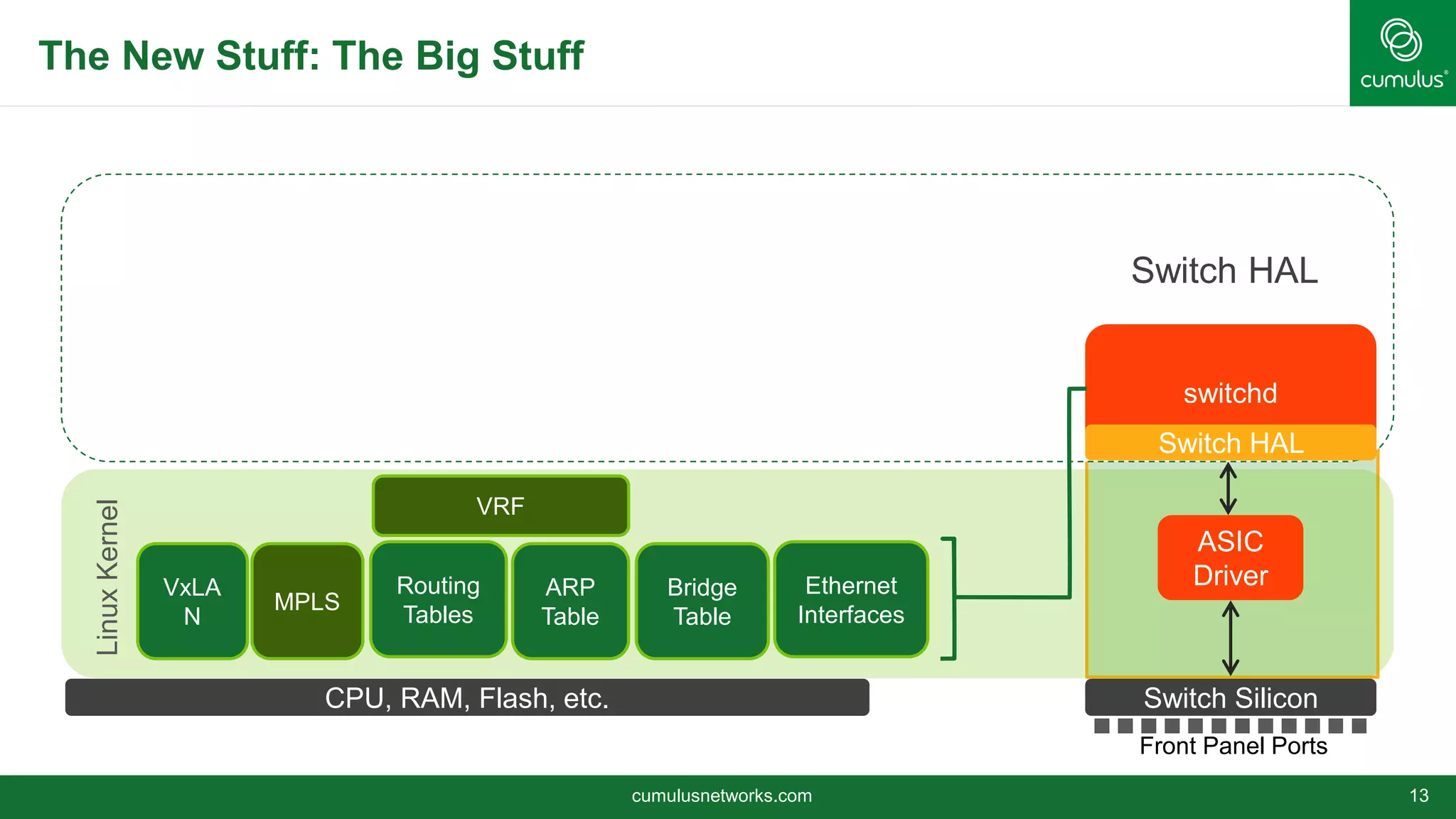

13. The New Stuff: The Big Stuff
cumulusnetworks.com 13
CPU, RAM, Flash, etc. Switch Silicon
Front Panel Ports
LinuxKernel
switchd
Switch HAL
ASIC
DriverRouting
Tables
ARP
Table
Bridge
Table
Ethernet
Interfaces
MPLS
VRF
VxLA
N
Switch HAL

14. Linux Networking State of the Union: End 2015
Cumulus Networks Confidential 14
 Nftables
 EBPF
 TC integration
 New Bridge driver
 VXLAN driver
enhancements
 VRF
 LWT (infra for MPLS)
 Link state management
 Optimize IPv4 FIB lookup,
route driven congestion
algorithm selection
 Switchdev support for Mellanox
Switch, DSA devices
 NetCP (network coproc) driver
support
 TCP fingerprinting
May 23, 2016

15. Linux Infrastructure: Enabling Technology Adoption
 Infrastructure
components
 VXLan & Geneve
 Foo over UDP
 DCTCP
 OVS
Cumulus Networks Confidential 15May 23, 2016
 Userland Upgrades
 Quagga
 iproute2
 ethtool
 lldpd
 libnl
 ifupdown2

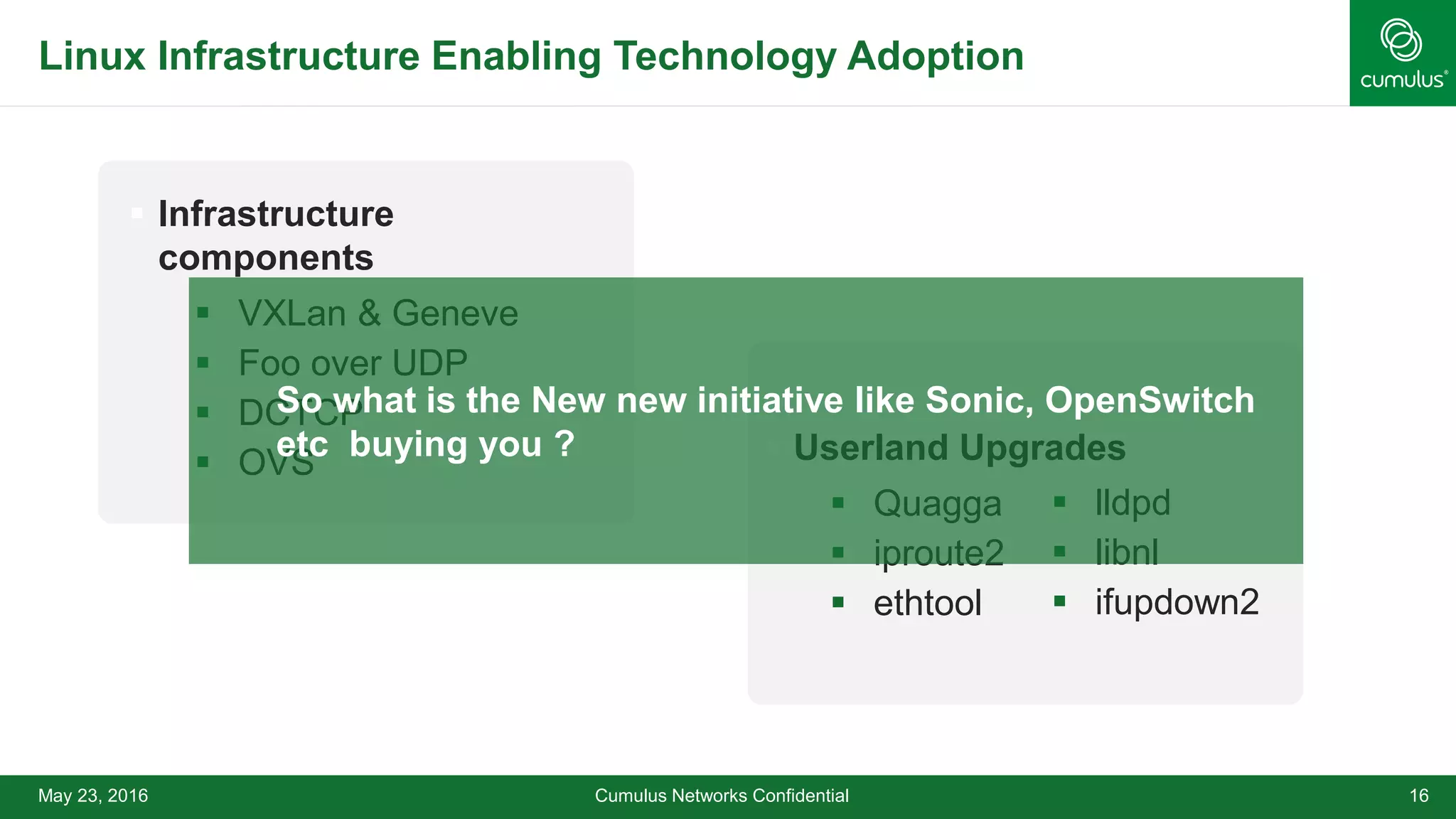

16. Linux Infrastructure Enabling Technology Adoption
 Infrastructure
components
 VXLan & Geneve
 Foo over UDP
 DCTCP
 OVS
Cumulus Networks Confidential 16May 23, 2016
 Userland Upgrades
 Quagga
 iproute2
 ethtool
 lldpd
 libnl
 ifupdown2
So what is the New new initiative like Sonic, OpenSwitch
etc buying you ?

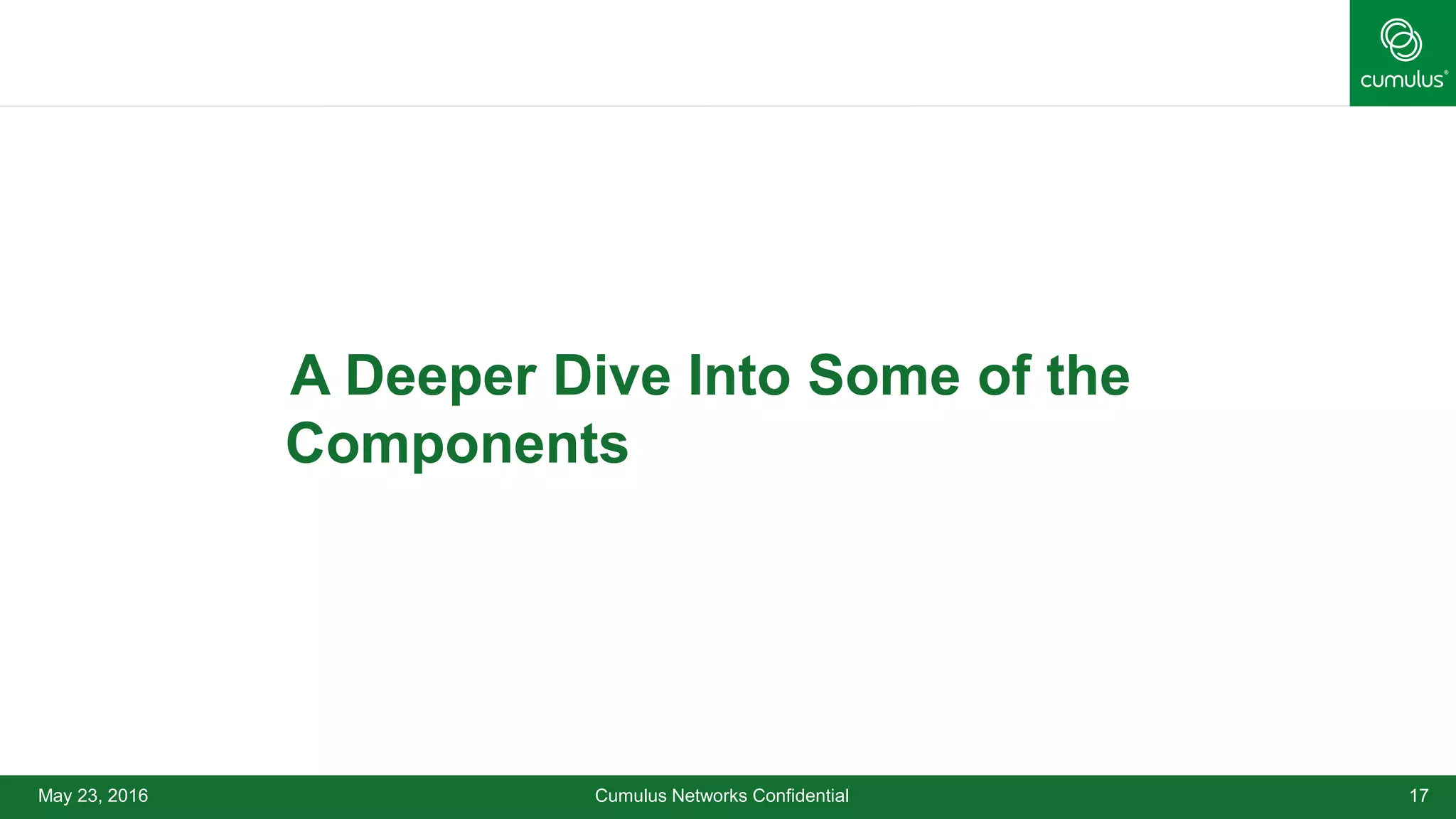

17. May 23, 2016 Cumulus Networks Confidential 17
•A Deeper Dive Into Some of the
Components

18. Packet flow in Netfilter and General Networking
Cumulus Networks Confidential 18May 23, 2016
FORWARD PATH OUTPUT PATHINPUT PATH
Application Layer
Protocol Layer
Network Layer
Link Layer
clone packet
clonepacket
clonepacket
no clone to
AF_PACKET
Xtables (ip, ip6)
ebtables
Other NF parts
Other Networking
Jan Engelhardt network PNG

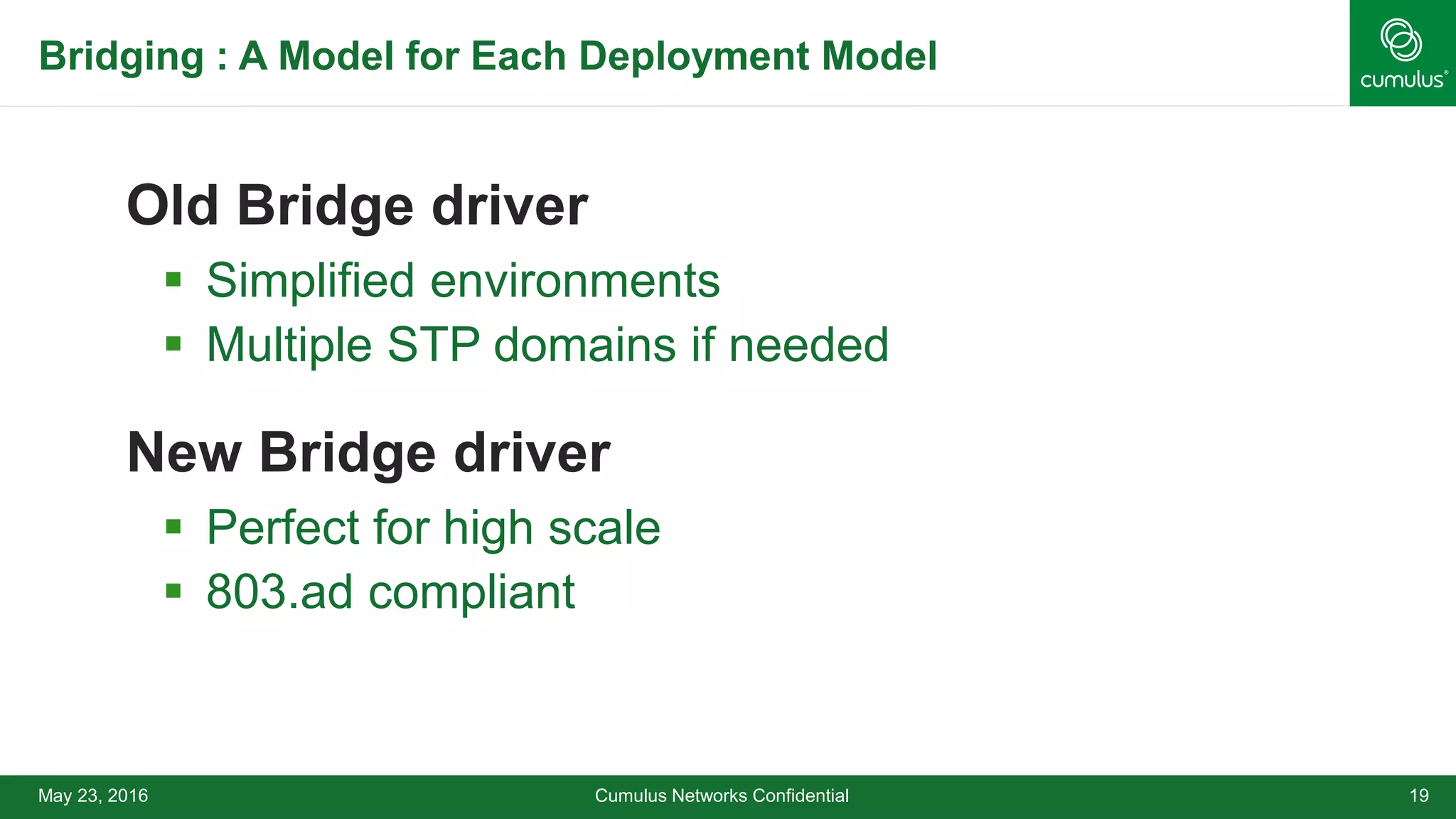

19. Bridging : A Model for Each Deployment Model
Old Bridge driver
 Simplified environments
 Multiple STP domains if needed
New Bridge driver
 Perfect for high scale
 803.ad compliant
Cumulus Networks Confidential 19May 23, 2016

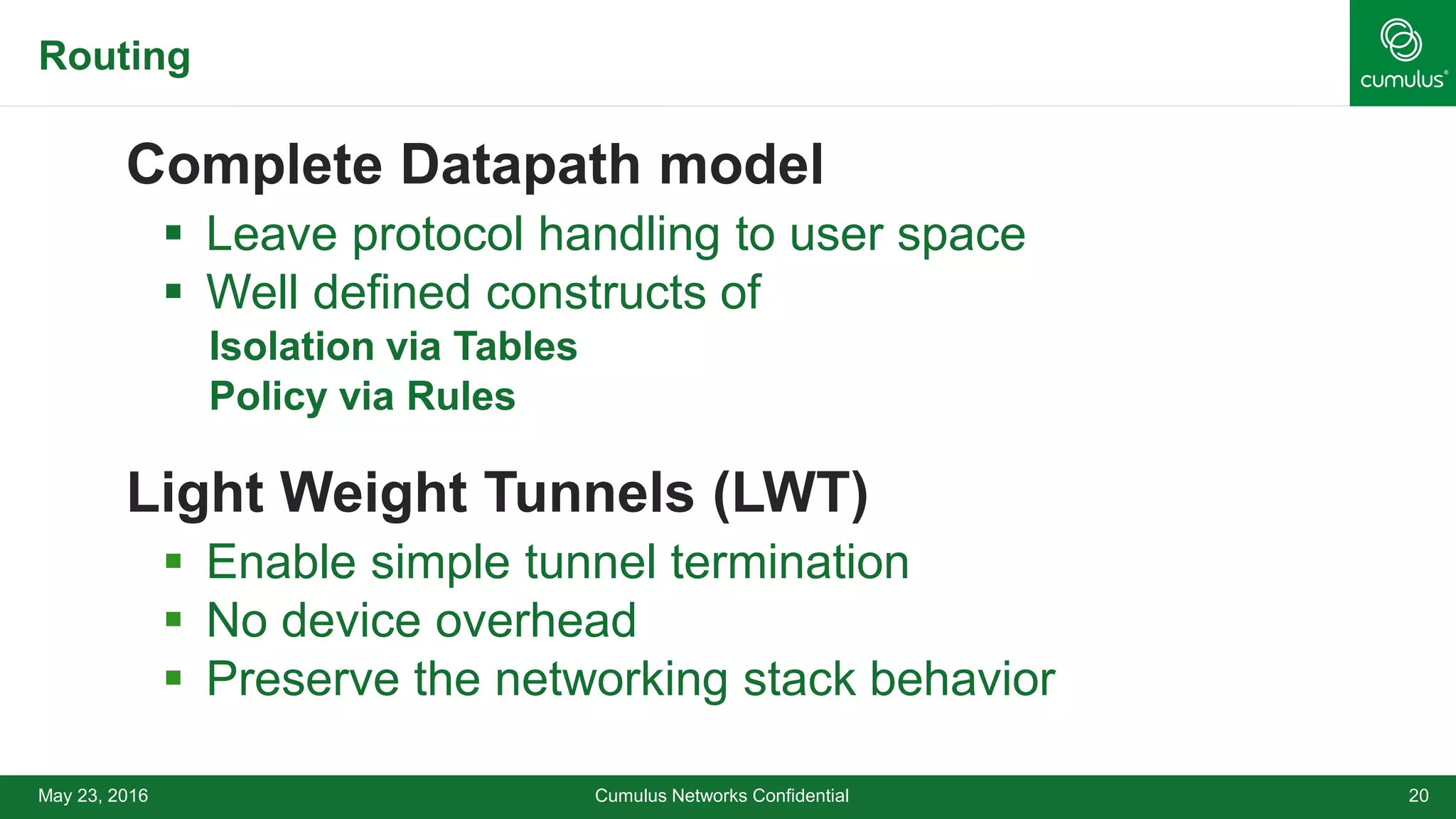

20. Routing
Complete Datapath model
 Leave protocol handling to user space
 Well defined constructs of
• Isolation via Tables
• Policy via Rules
Light Weight Tunnels (LWT)
 Enable simple tunnel termination
 No device overhead
 Preserve the networking stack behavior
Cumulus Networks Confidential 20May 23, 2016

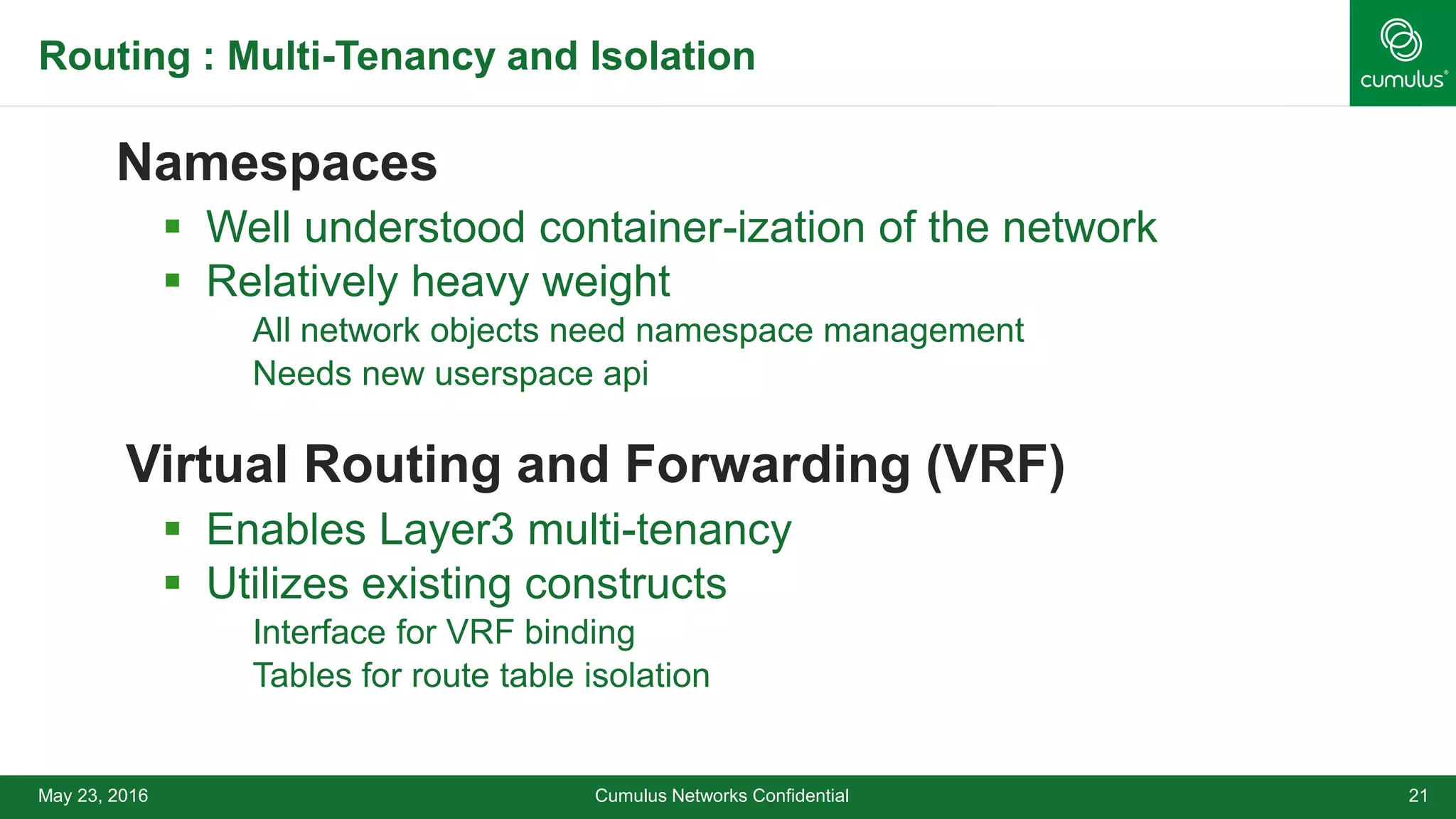

21. Routing : Multi-Tenancy and Isolation
Namespaces
 Well understood container-ization of the network
 Relatively heavy weight
All network objects need namespace management
Needs new userspace api
Virtual Routing and Forwarding (VRF)
 Enables Layer3 multi-tenancy
 Utilizes existing constructs
Interface for VRF binding
Tables for route table isolation
Cumulus Networks Confidential 21May 23, 2016

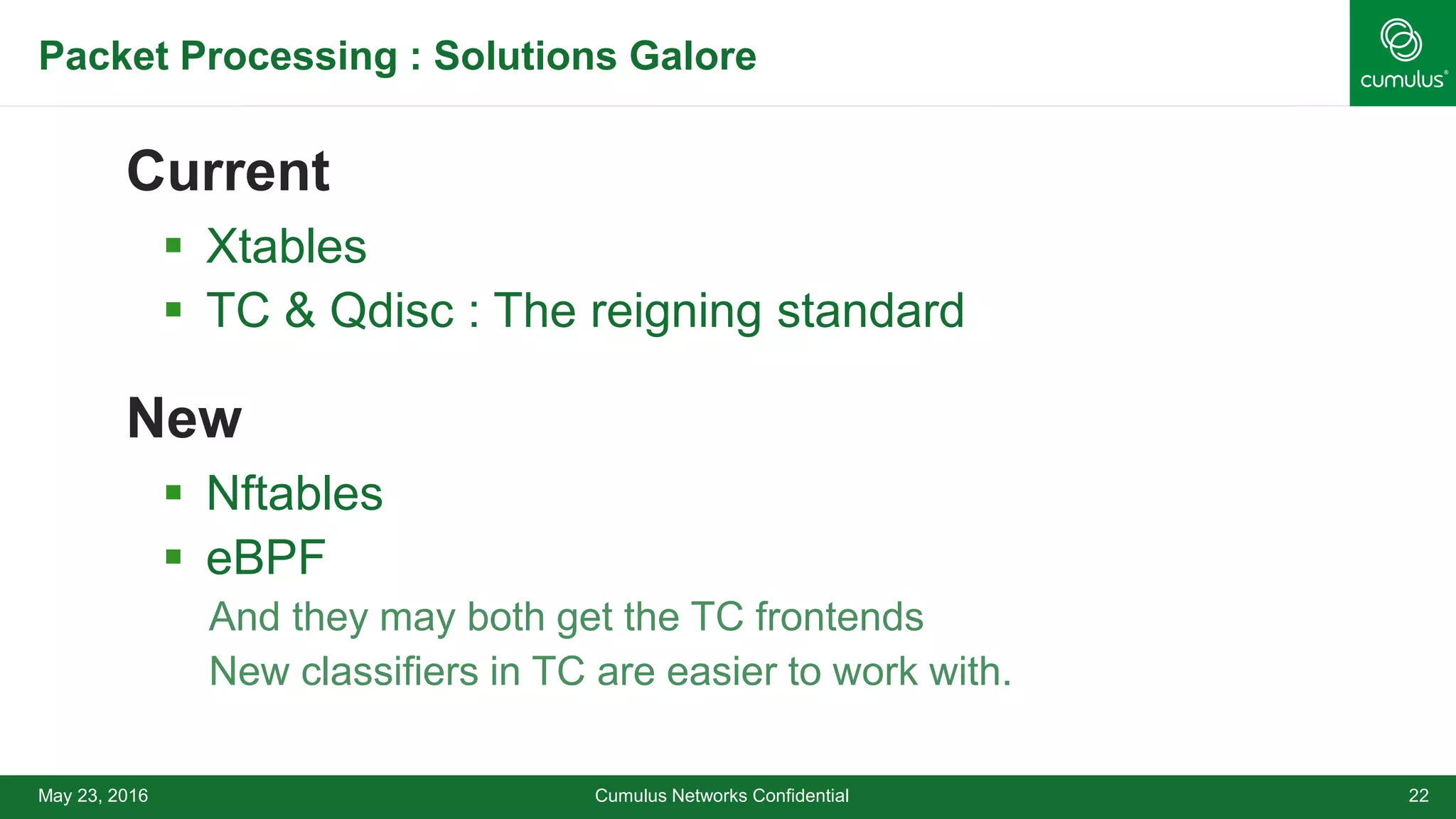

22. Packet Processing : Solutions Galore
Current
 Xtables
 TC & Qdisc : The reigning standard
New
 Nftables
 eBPF
• And they may both get the TC frontends
• New classifiers in TC are easier to work with.
Cumulus Networks Confidential 22May 23, 2016

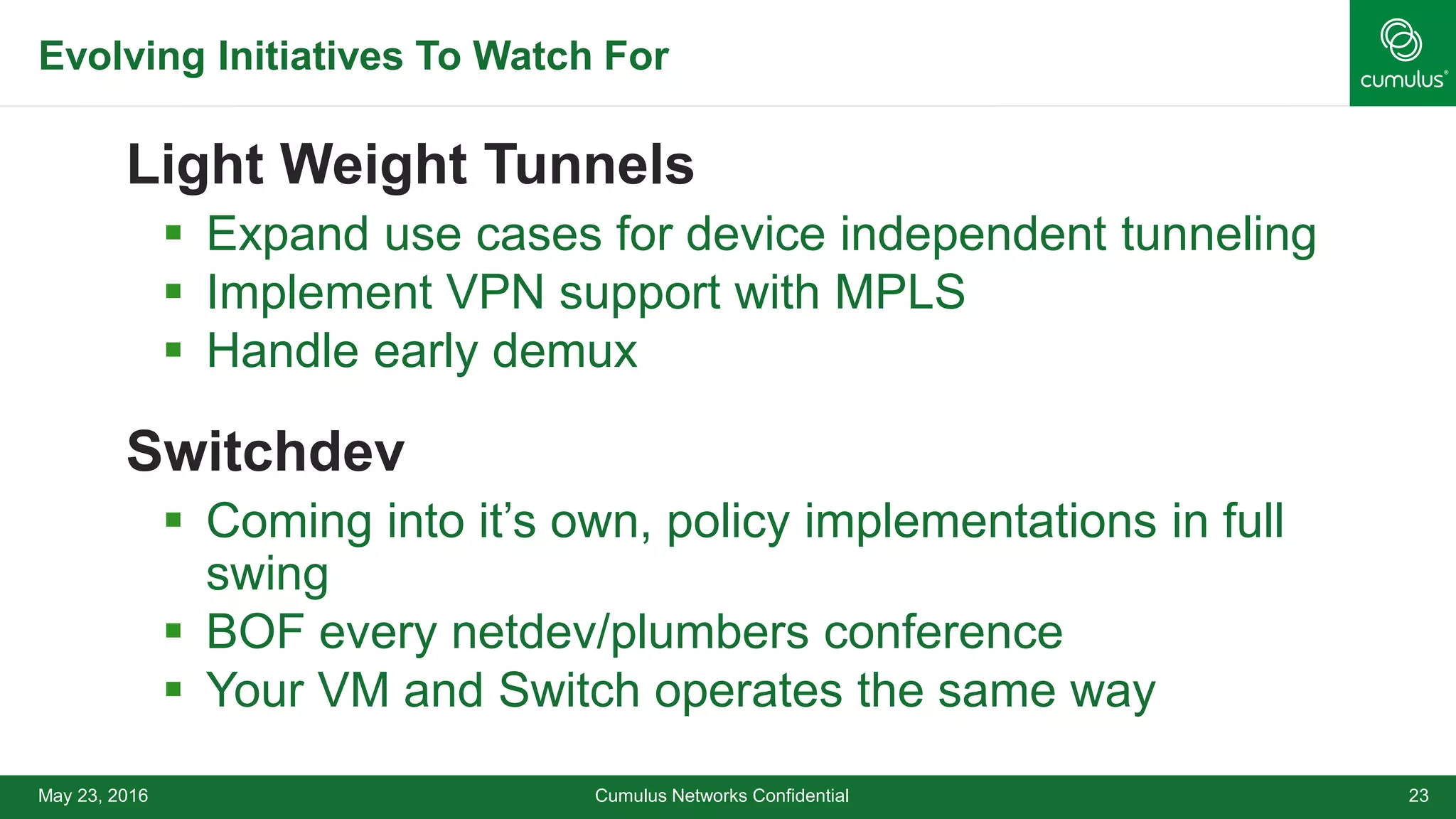

23. Evolving Initiatives To Watch For
Light Weight Tunnels
 Expand use cases for device independent tunneling
 Implement VPN support with MPLS
 Handle early demux
Switchdev
 Coming into it’s own, policy implementations in full
swing
 BOF every netdev/plumbers conference
 Your VM and Switch operates the same way
Cumulus Networks Confidential 23May 23, 2016

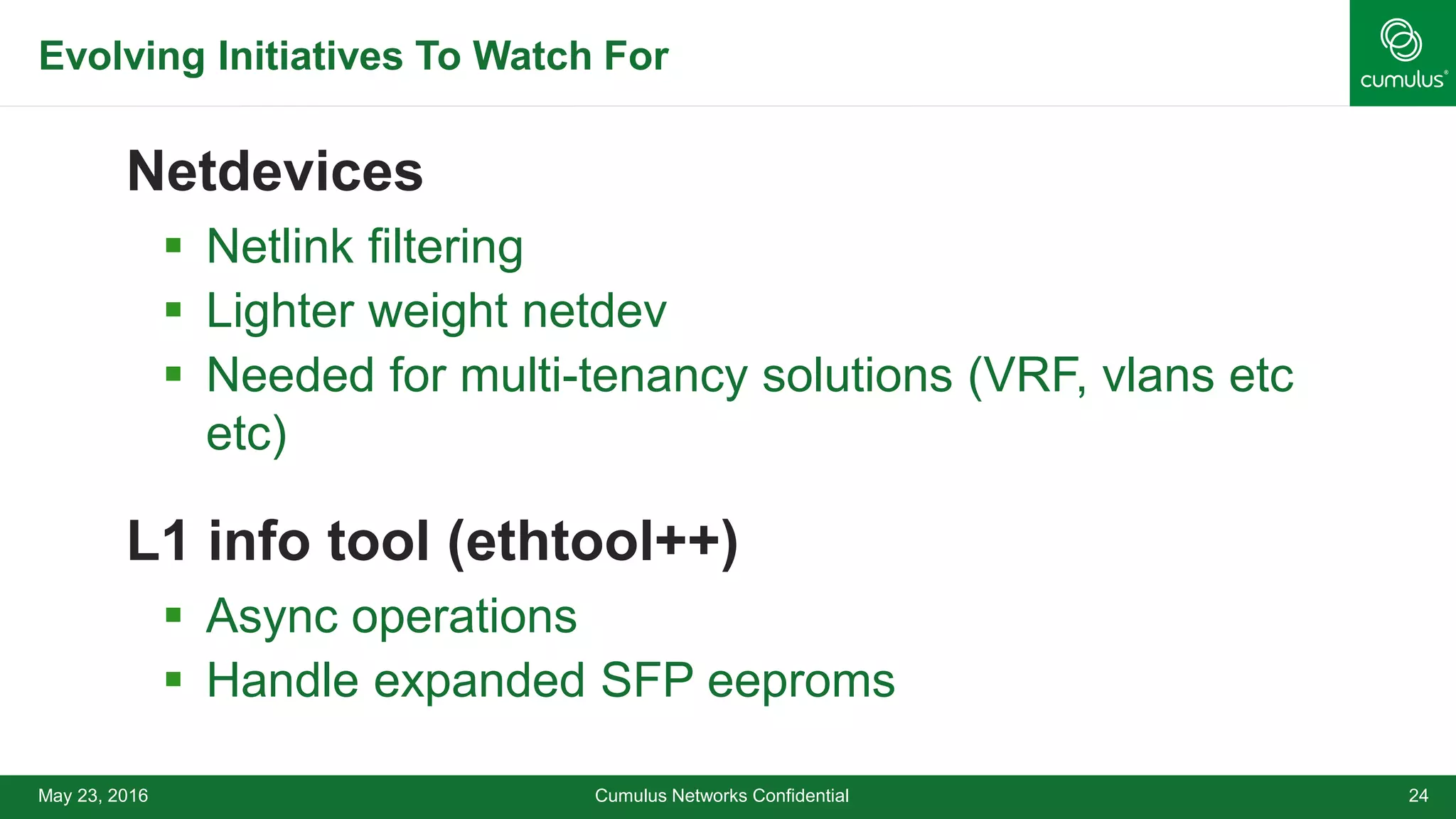

24. Evolving Initiatives To Watch For
Netdevices
 Netlink filtering
 Lighter weight netdev
 Needed for multi-tenancy solutions (VRF, vlans etc
etc)
L1 info tool (ethtool++)
 Async operations
 Handle expanded SFP eeproms
Cumulus Networks Confidential 24May 23, 2016

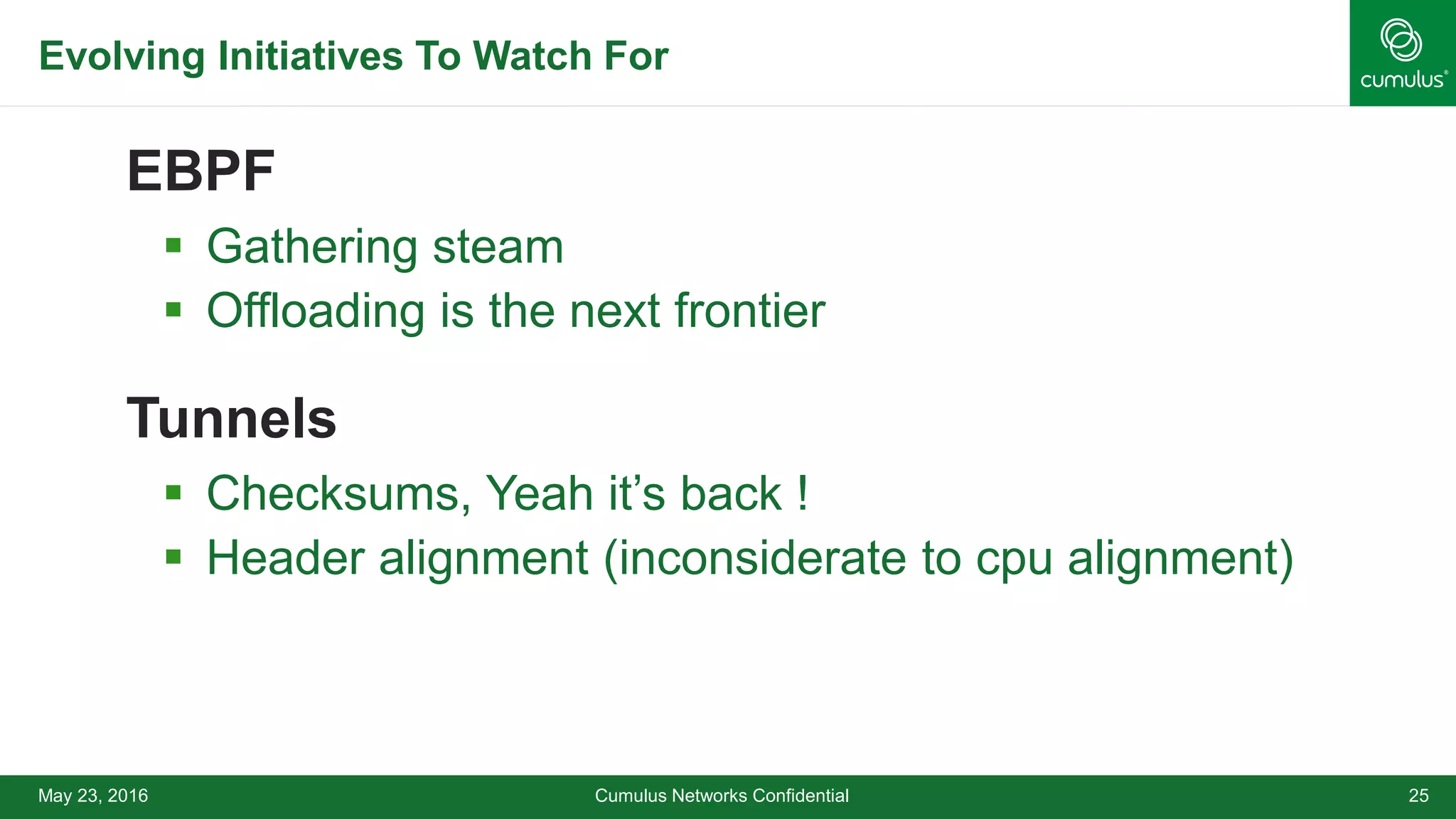

25. Evolving Initiatives To Watch For
EBPF
 Gathering steam
 Offloading is the next frontier
Tunnels
 Checksums, Yeah it’s back !
 Header alignment (inconsiderate to cpu alignment)
Cumulus Networks Confidential 25May 23, 2016

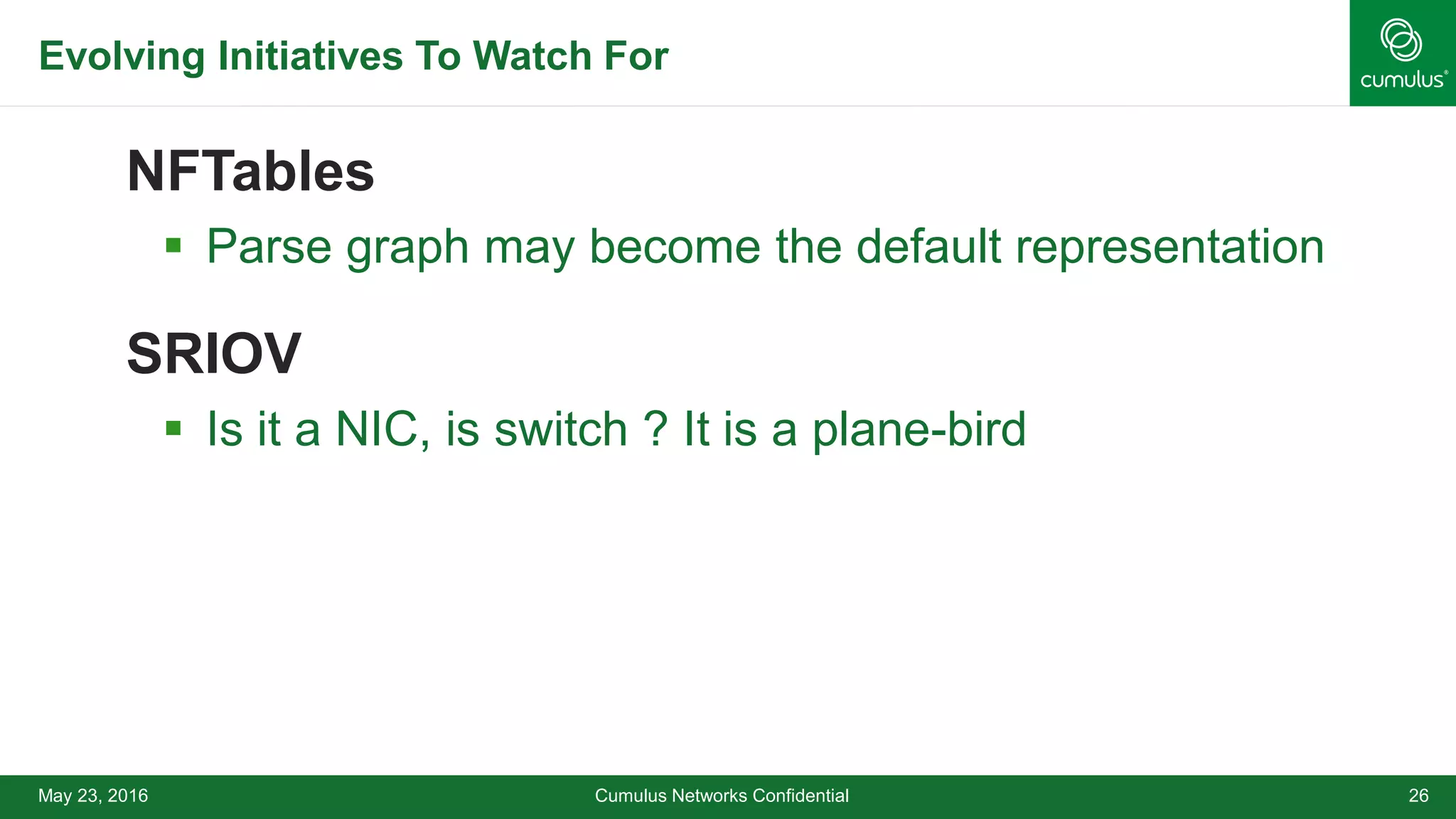

26. Evolving Initiatives To Watch For
NFTables
 Parse graph may become the default representation
SRIOV
 Is it a NIC, is switch ? It is a plane-bird
Cumulus Networks Confidential 26May 23, 2016

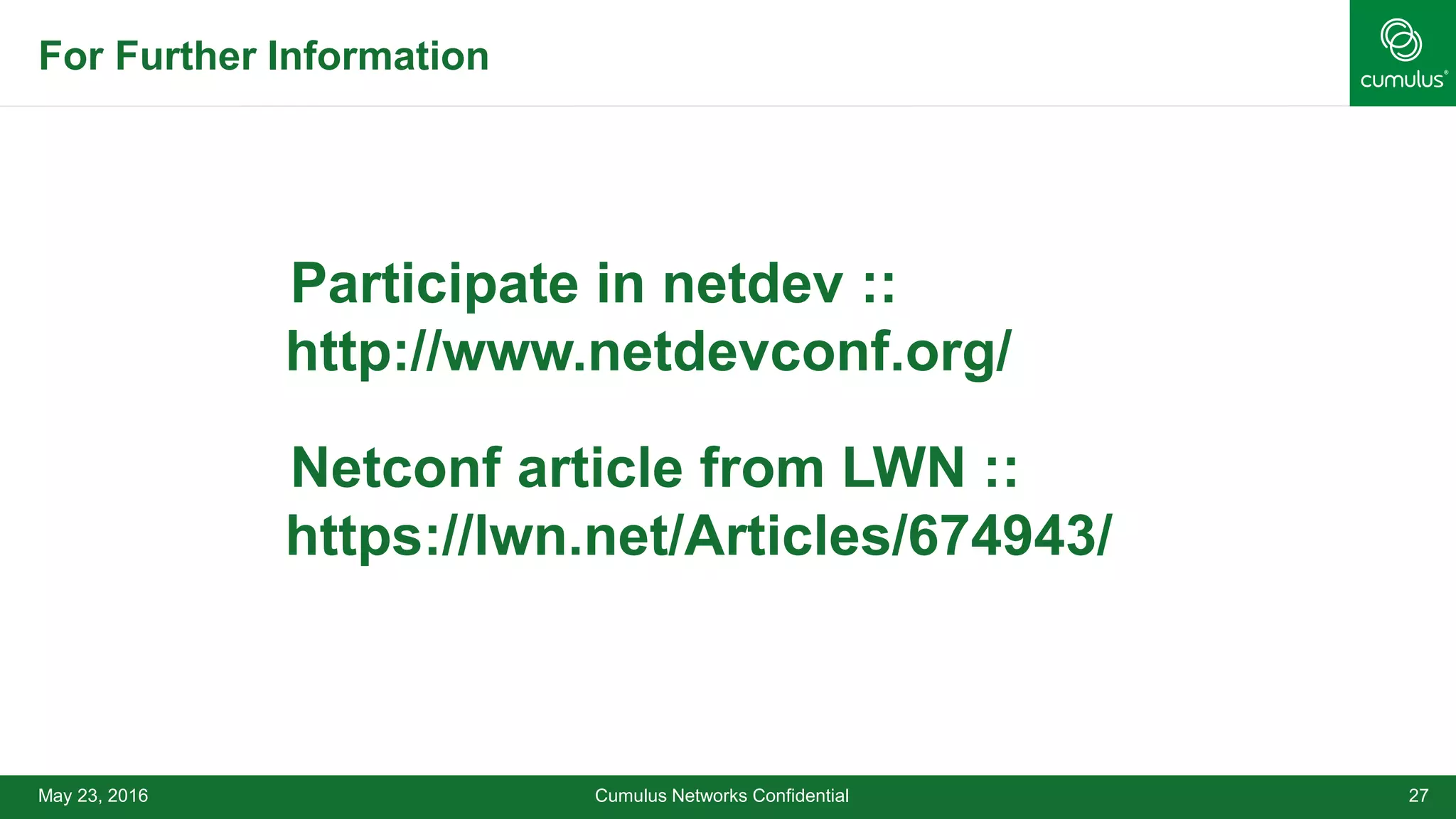

27. May 23, 2016 Cumulus Networks Confidential 27
•Participate in netdev ::
http://www.netdevconf.org/
•Netconf article from LWN ::
https://lwn.net/Articles/674943/
For Further Information

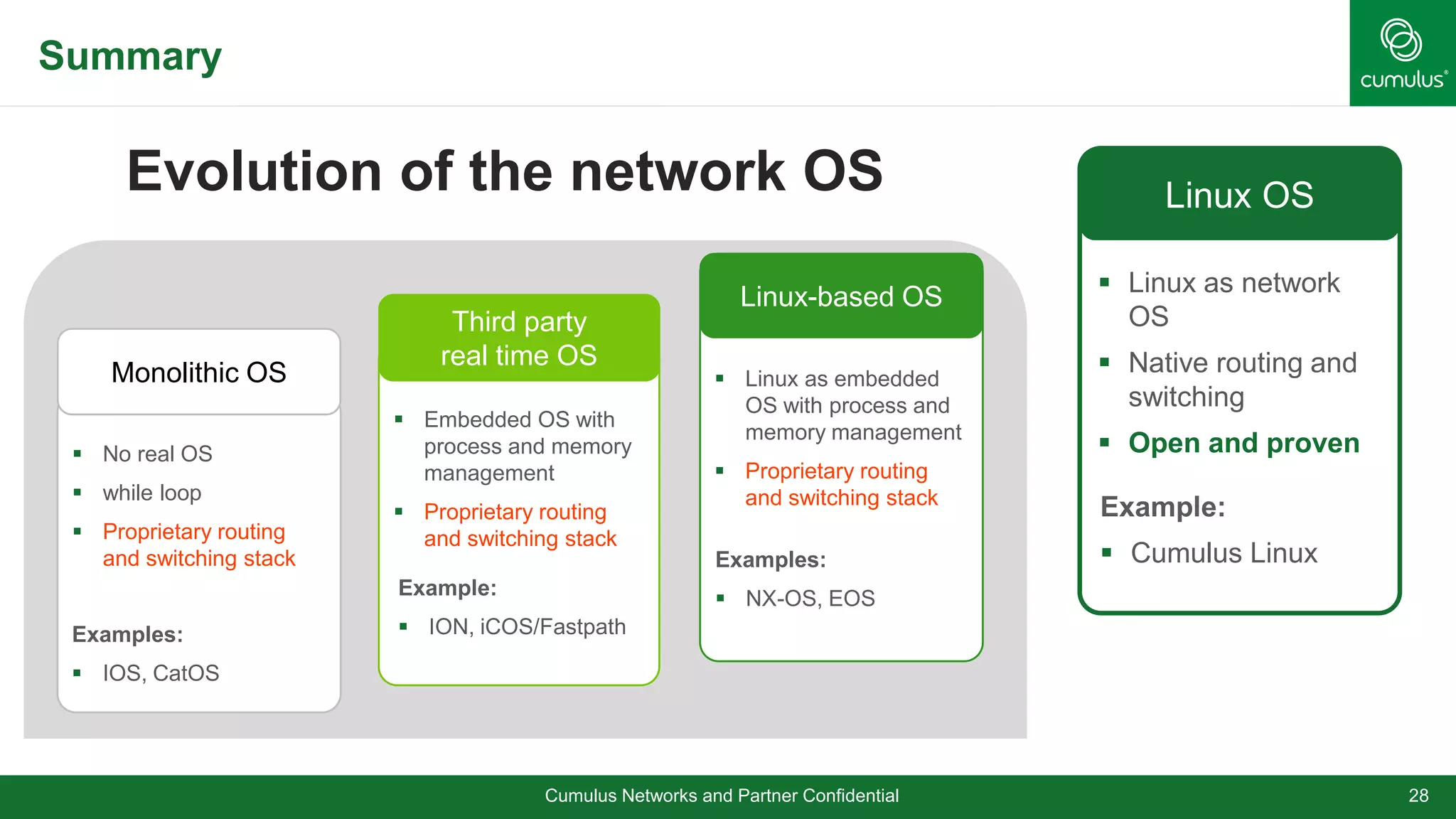

28. Summary
Evolution of the network OS
Cumulus Networks and Partner Confidential 28
Linux OS
 Linux as network
OS
 Native routing and
switching
 Open and proven
Linux-based OS
 Linux as embedded
OS with process and
memory management
 Proprietary routing
and switching stack
Monolithic OS
 No real OS
 while loop
 Proprietary routing
and switching stack
Examples:
 IOS, CatOS
Third party
real time OS
 Embedded OS with
process and memory
management
 Proprietary routing
and switching stack
Example:
 ION, iCOS/Fastpath
Examples:
 NX-OS, EOS
Example:
 Cumulus Linux

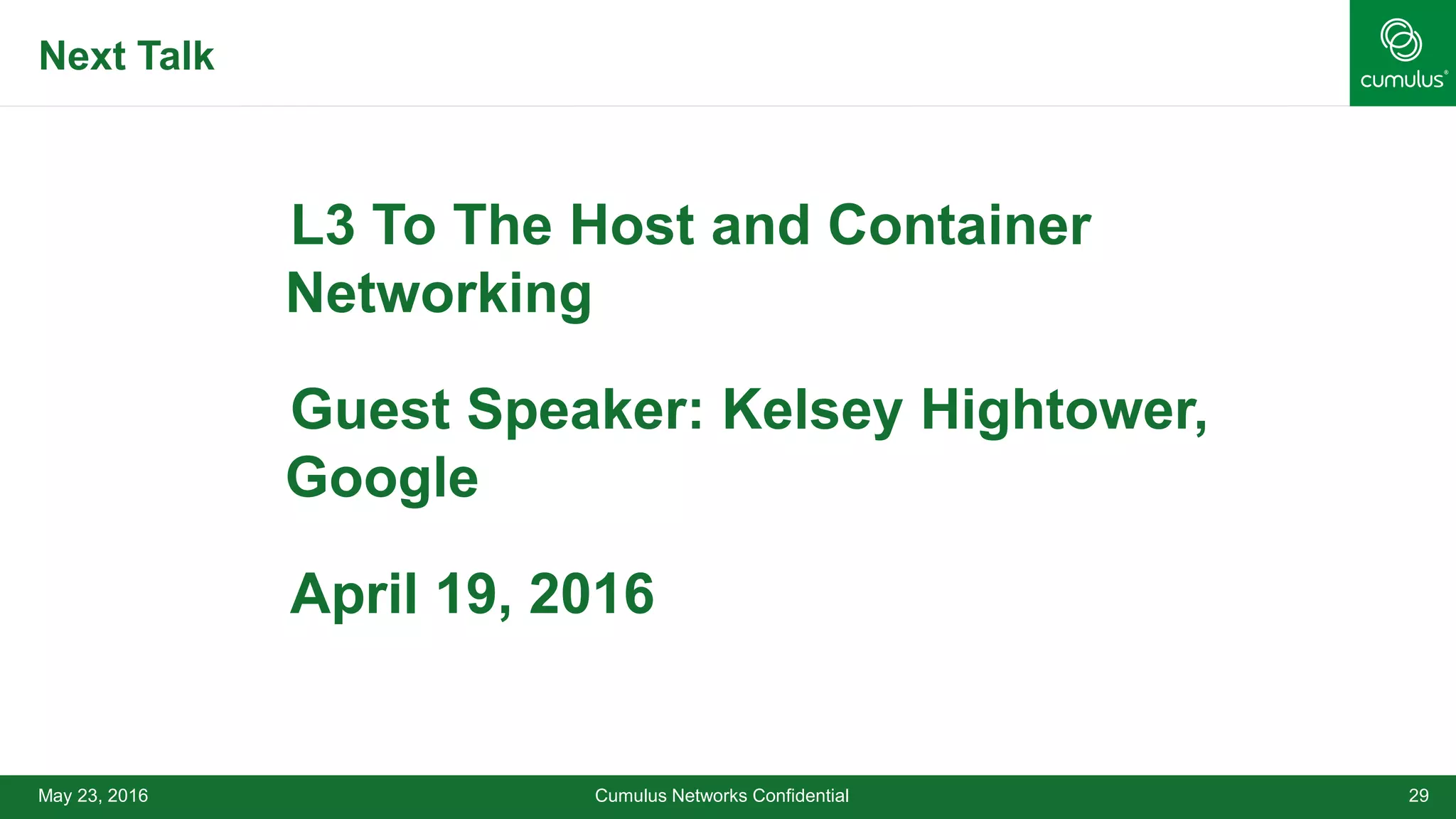

29. May 23, 2016 Cumulus Networks Confidential 29
•L3 To The Host and Container
Networking
•Guest Speaker: Kelsey Hightower,
Google
•April 19, 2016
Next Talk
