Zero Code Multi-Cloud Automation with Ansible and Terraform
The document discusses zero-code multi-cloud automation using Ansible and Terraform, highlighting the challenges in automation and the benefits of these tools in facilitating configuration management and infrastructure as code. It explains how Avi Networks integrates with Ansible and Terraform to streamline operations and improve multi-cloud environments through adaptive and intelligent automation. The document includes various demos and examples to illustrate the practical implementation of these automation tools for better resource management and operational efficiency.
More Related Content
Similar to Zero Code Multi-Cloud Automation with Ansible and Terraform
Zero Code Multi-Cloud Automation with Ansible and Terraform
- 1. Zero Code Multi-CloudAutomation with Ansible and Terraform Gaurav Rastogi, Architect – Avi Networks Lei Yang, Director of Product Marketing

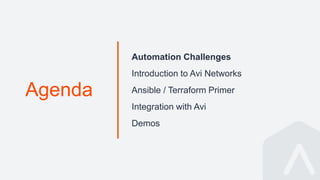

- 2. Agenda Automation Challenges Introduction toAvi Networks Ansible / Terraform Primer Integration with Avi Demos
- 3. Does your automationjourney feel like this?

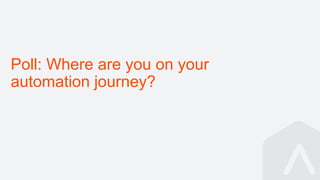

- 4. Poll: Where areyou on your automation journey?

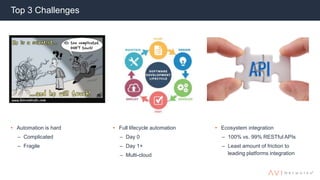

- 5. • Automation ishard – Complicated – Fragile • Full lifecycle automation – Day 0 – Day 1+ – Multi-cloud • Ecosystem integration – 100% vs. 99% RESTful APIs – Least amount of friction to leading platforms integration Top 3 Challenges
- 6. Agenda Automation Challenges Introduction toAvi Networks Ansible / Terraform Primer Integration with Avi Demos

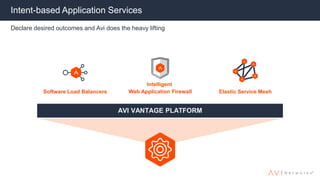

- 7. Intent-based Application Services Declaredesired outcomes and Avi does the heavy lifting AVI VANTAGE PLATFORM Software Load Balancers Intelligent Web Application Firewall Elastic Service Mesh

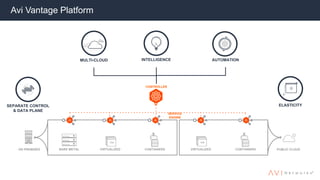

- 8. BARE METAL VIRTUALIZEDCONTAINERSON PREMISES PUBLIC CLOUDVIRTUALIZED CONTAINERS Avi Vantage Platform CONTROLLER SERVICE ENGINE SEPARATE CONTROL & DATA PLANE ELASTICITY INTELLIGENCE AUTOMATIONMULTI-CLOUD
- 9. Automation Operationalizes DigitalTransformation Day 1+ • Use case driven • Full lifecycle management • Recurring savings • Adaptive to changes Intent-based Adaptive and learning based Dynamic & continuous monitoring Automatically program network, cloud, and app environments CLI/Scripting /Excel GUI/Workflow/ Tools API/Orchestration Framework Day 0 • Configuration focused • Self-service provisioning • One time saving • Static

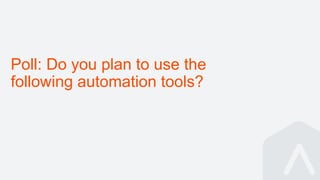

- 10. Poll: Do youplan to use the following automation tools?

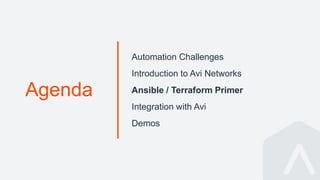

- 11. Agenda Automation Challenges Introduction toAvi Networks Ansible / Terraform Primer Integration with Avi Demos

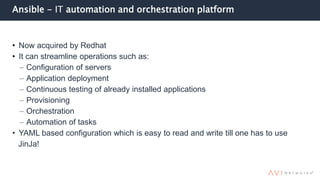

- 12. Ansible - ITautomation and orchestration platform • Now acquired by Redhat • It can streamline operations such as: – Configuration of servers – Application deployment – Continuous testing of already installed applications – Provisioning – Orchestration – Automation of tasks • YAML based configuration which is easy to read and write till one has to use JinJa!

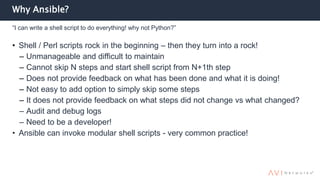

- 13. Why Ansible? • Shell/ Perl scripts rock in the beginning – then they turn into a rock! – Unmanageable and difficult to maintain – Cannot skip N steps and start shell script from N+1th step – Does not provide feedback on what has been done and what it is doing! – Not easy to add option to simply skip some steps – It does not provide feedback on what steps did not change vs what changed? – Audit and debug logs – Need to be a developer! • Ansible can invoke modular shell scripts - very common practice! “I can write a shell script to do everything! why not Python?”
- 14. Terraform - Write,Plan, and Create Infrastructure as Code • HashiCorp Terraform enables you to safely and predictably create, change, and improve infrastructure. It is an open source tool that codifies APIs into declarative configuration files that can be shared amongst team members, treated as code, edited, reviewed, and versioned. • Like Ansible it can be used for full application automation • It is declarative by design - Manages dependency of resources implicitly • HCL based “plans” for infrastructure

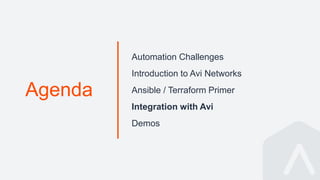

- 15. Agenda Automation Challenges Introduction toAvi Networks Ansible / Terraform Primer Integration with Avi Demos

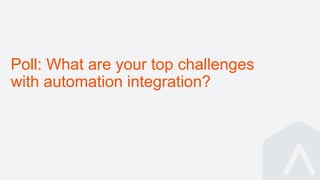

- 16. Poll: What areyour top challenges with automation integration?
- 17. Avi Ansible IntegrationLandscape Avi Controller / SE Roles avicontroller (linux server) avicontroller-csp avicontroller-azure avicontroller-vmware avicontroller-k8s Avi Ansible modules (Avi within top 50 contributors) avisdk role - packages all Avi Ansible modules avise-csp Ansible Modules (104) - one / REST resource + others Ansible Utilities Avi Migration output as Ansible Avi Config (JSON) to Ansible Converter aviconfig role - Declarative Model Avi Ansible Examples - Devops Github Avi Docker Role
- 18. Avi Ansible SpecialModules in addition to the REST modules • avi_api_session: Proxy to any AVI API • avi_useraccount: Module to change password on controller • avi_gslb_service_patch_member: Helper moule to do smart deep level PATCH not possible via API • avi_api_version (PaddyPower): Fetch controller version • avi_api_file_service: Fetch and upload files to Avi Controller: supports check mode and idempotency

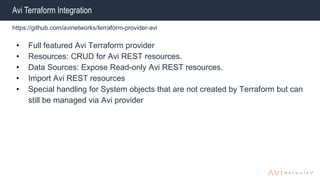

- 19. Avi Terraform Integration https://github.com/avinetworks/terraform-provider-avi •Full featured Avi Terraform provider • Resources: CRUD for Avi REST resources. • Data Sources: Expose Read-only Avi REST resources. • Import Avi REST resources • Special handling for System objects that are not created by Terraform but can still be managed via Avi provider
- 20. Goal – Pathto Zero Code Application Automation Automation with different levels of abstraction based on your preference API SDK JSON Swagger Spec Python Go, etc. Ansible Modules Ansible Role Playbook as Code Custom, in-house orchestration (Dev teams) Focus on automation, not code (DevOps, ITOps, NetOps) Terraform Provider ZeroCode YAM / HCL Config

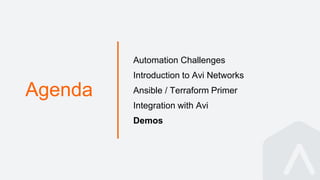

- 21. Agenda Automation Challenges Introduction toAvi Networks Ansible / Terraform Primer Integration with Avi Demos
- 22. Avi Ansible Modules- Proxy+ to REST API check mode, idempotent, single connection to Avi Controller across tasks... Avi Module Common Params ● name- Name of the object ● tenant- Tenant context for operation ● tenant_ref- tenant of object ● avi_credentials- API credentials ● state- present or absent ● cloud_ref- Reference to cloud when using non default cloud ● api_context- re-use existing login CSRFToken and sessionid ● avi_api_update_method- PUT vs PATCH ● avi_api_patch_op: Patch operation ● Mostly Auto-generated ● Documentation at Ansible --- - hosts: localhost connection: local vars: avi_credentials: controller: "{{ controller }}" username: admin password: "{{ password }}" api_version: 17.2.1 tenant: admin tasks: - name: Avi Pool avi_pool: name: test-pool avi_credentials: "{{avi_credentials}}" state: "{{ state | default('present')}}" health_monitor_refs: - '/api/healthmonitor?name=System-HTTP'

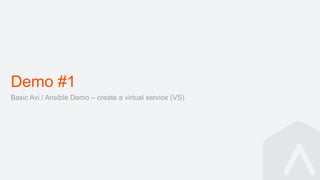

- 23. Demo #1 Basic Avi/ Ansible Demo – create a virtual service (VS)
- 24. Avi Ansible ConfigRole – Zero code! avi_config: pool: - name: app1-pool #state: absent lb_algorithm: LB_ALGORITHM_ROUND_ROBIN servers: - ip: addr: "{{ pool_server1 }}" type: 'V4' - ip: addr: "{{ pool_server2 }}" type: 'V4' virtualservice: - name: app1 services: - port: 80 pool_ref: '/api/pool?name=app1-pool' #pool_ref: # state: absent vip: - ip_address: addr: "{{ app1_vip }}" type: 'V4' vip_id: '1' YAML based declarative configuration Handles resource dependency internally Preserves all benefits of Ansible Modules Idempotent Check mode Audit trail Repeatability Easy iteration – pick where it stopped - name: Avi Application | Setup App1 include_role: name: avinetworks.aviconfig vars: avi_config_file: "avi_config.yml"
- 25. Demo #2 1. Createa new avi_config.yml 2. Perform deployment using Ansible 3. Confirm Deployment is successful 4. There should not be any change reported for second run
- 26. Demo #3 Basic Avi/ Terraform demo
- 27. Next Steps • FREEtrial – avinetworks.com/try • Avi Ansible Modules – https://docs.ansible.com/ansible/latest/modules/list_of_network_modules.html#avi • Avi / Ansible Modules examples – https://github.com/avinetworks/devops/tree/master/ansible • Avi Ansible Galaxy for all the roles - https://galaxy.ansible.com/avinetworks – Aviconfig – Avisdk – Avicontroller, avicontroller-csp, avicontroller-vmware • Avi /Terraform examples – https://github.com/avinetworks/terraform-provider-avi • Avi tools Docker – Docker pull avinetworks/avitools:latest
