July NYC Open Networking Meeup

BGP in the datacenter can provide routing at scale with improved stability and manageability compared to layer 2. The document discusses how BGP can be used within a datacenter topology with spines and leaves using private AS numbers. Configuration complexity is reduced through techniques like peer groups and BGP unnumbered. Troubleshooting is enhanced with improvements like reporting loopback IPs for traceroute and adding hostnames. BGP can also be run on servers to provide routing all the way to the end points.

Embed presentation

Downloaded 52 times
v BGP in the Datacenter Pete Lumbis – @PeteCCDE Datacenter Architect CCIE #28677, CCDE 2012::3 cumulusnetworks.com 1
Pete Who? CCIE R&S #28677, CCDE 2012::3 Former Cisco TAC Routing Escalation Current Cumulus Networks SE DC Automation and Architecture

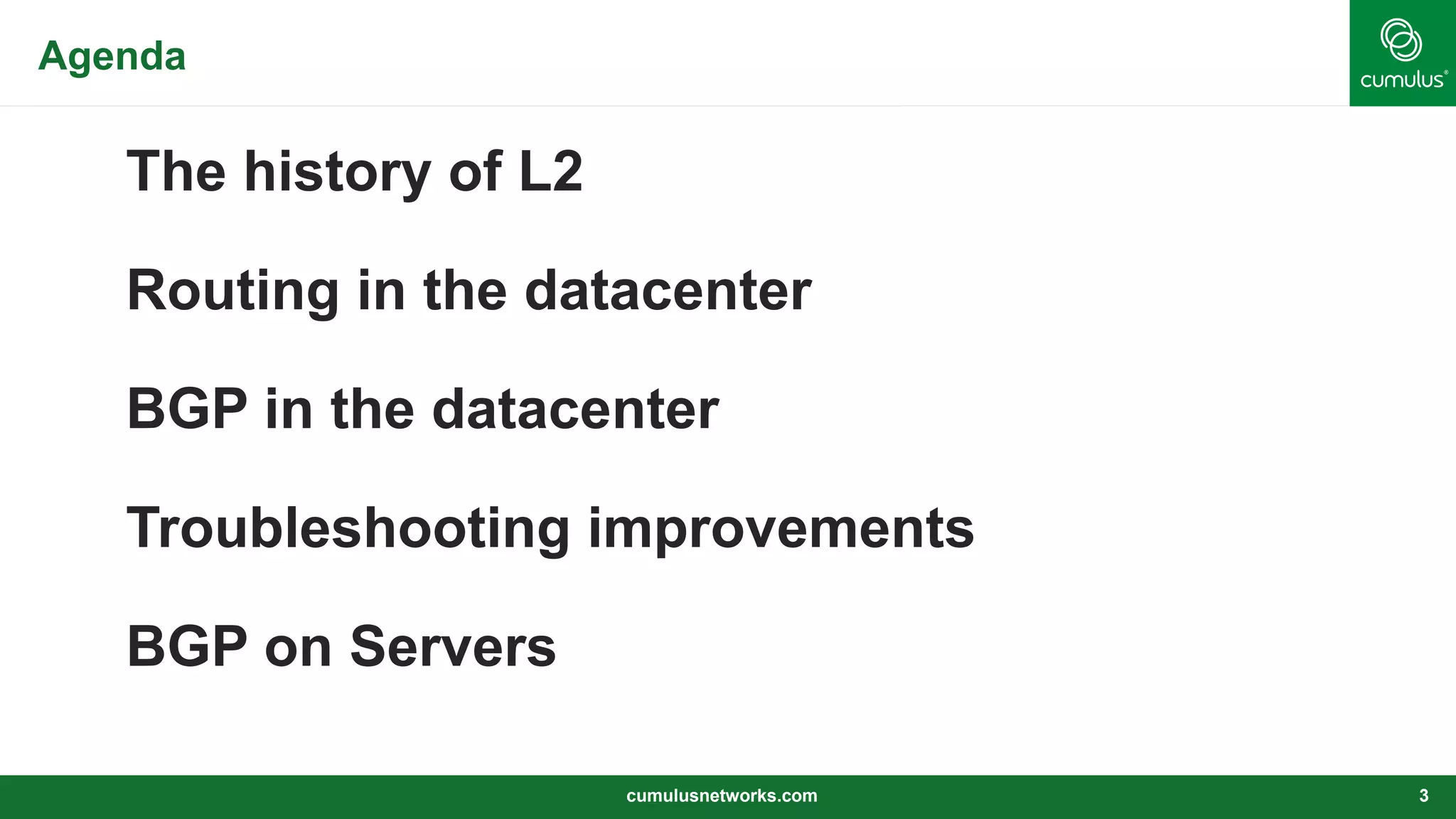

Agenda The history of L2 Routing in the datacenter BGP in the datacenter Troubleshooting improvements BGP on Servers cumulusnetworks.com 3

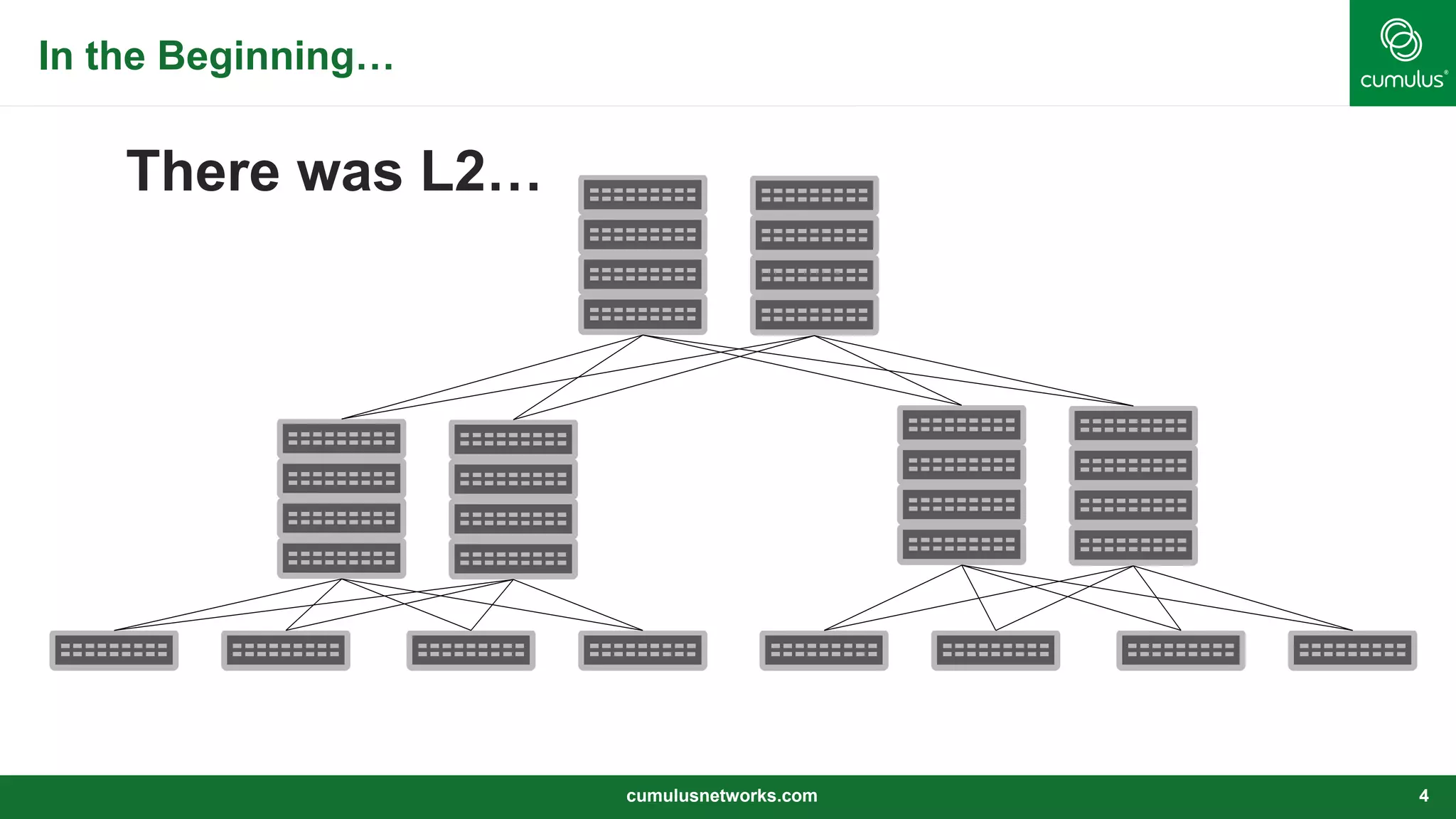

In the Beginning… There was L2… cumulusnetworks.com 4

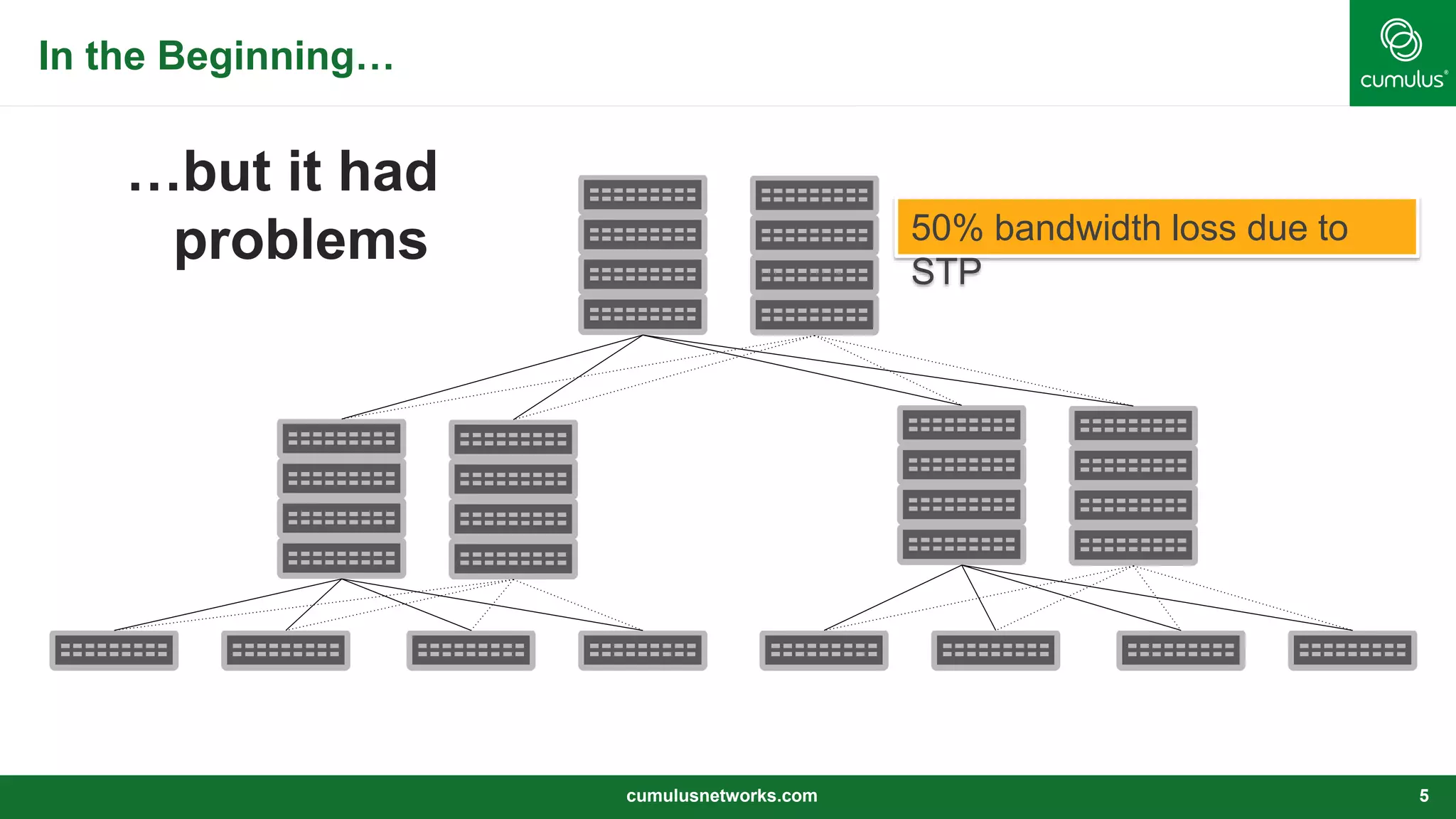

In the Beginning… …but it had problems cumulusnetworks.com 5 50% bandwidth loss due to STP

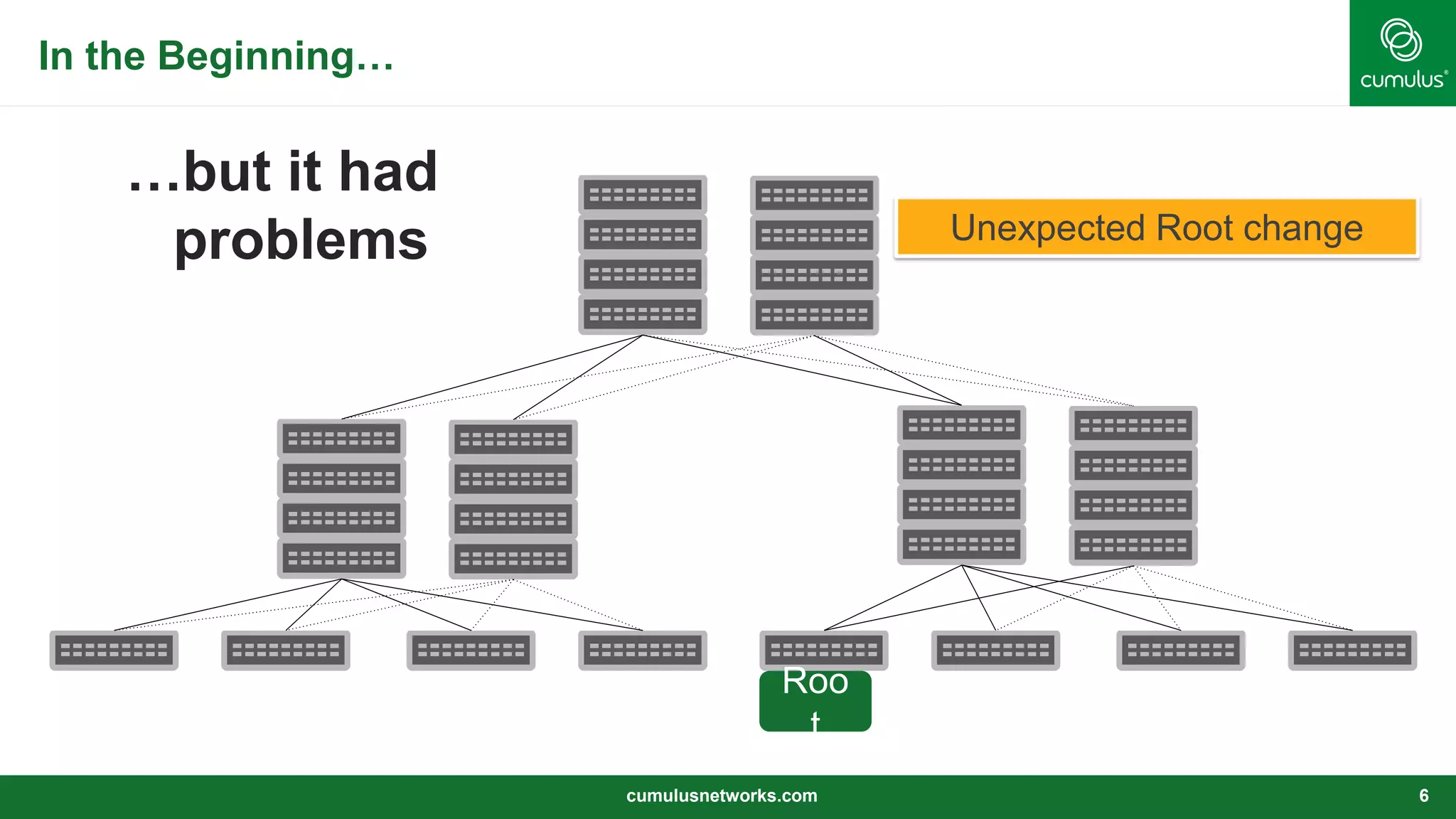

In the Beginning… …but it had problems cumulusnetworks.com 6 Unexpected Root change Roo t

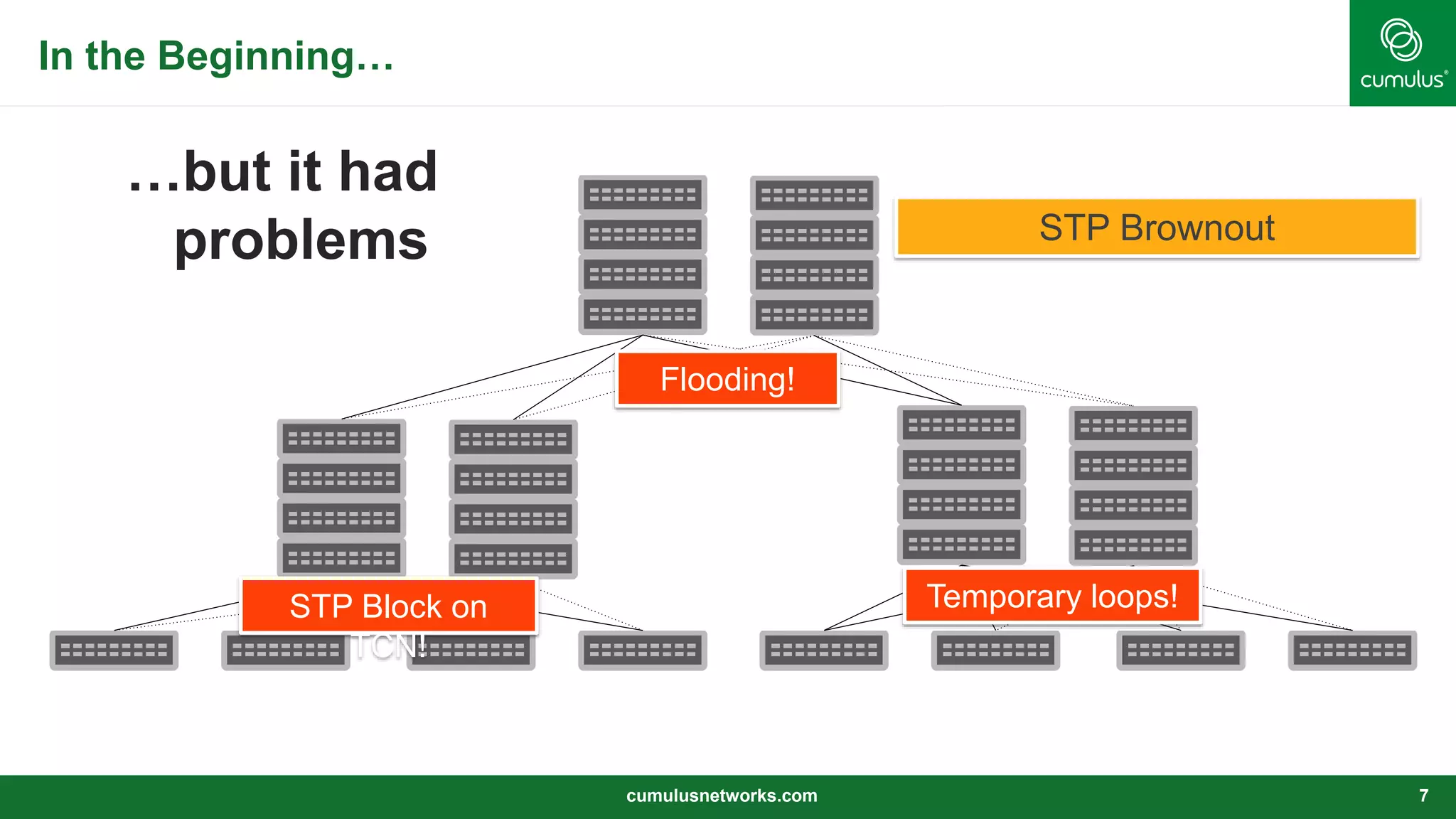

In the Beginning… …but it had problems cumulusnetworks.com 7 STP Brownout Flooding! Temporary loops!STP Block on TCN!
Agenda The history of L2 Routing in the datacenter BGP in the datacenter Troubleshooting improvements BGP on Servers cumulusnetworks.com 8

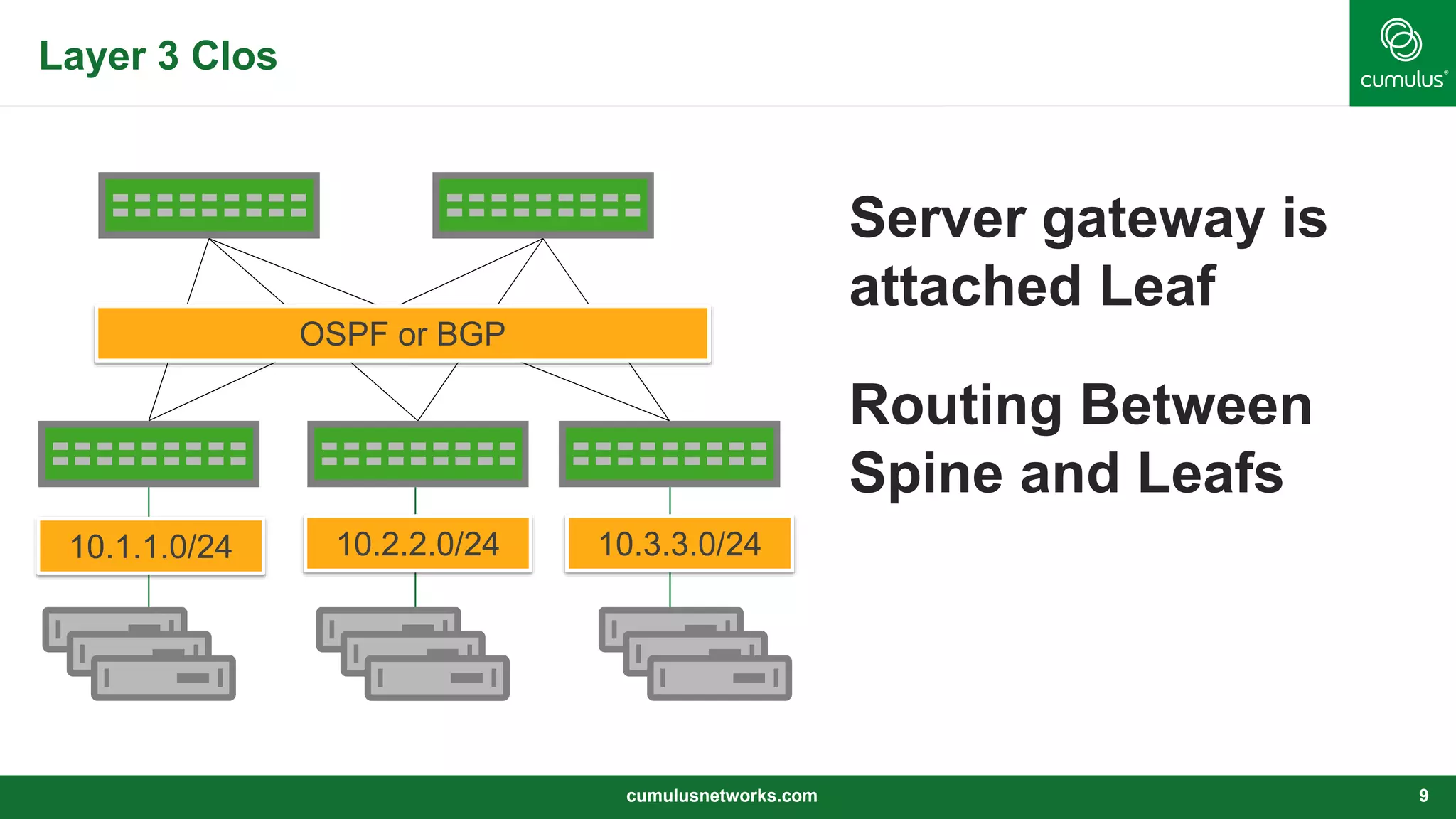

Layer 3 Clos cumulusnetworks.com 9 Server gateway is attached Leaf Routing Between Spine and Leafs 10.1.1.0/24 10.2.2.0/24 10.3.3.0/24 OSPF or BGP

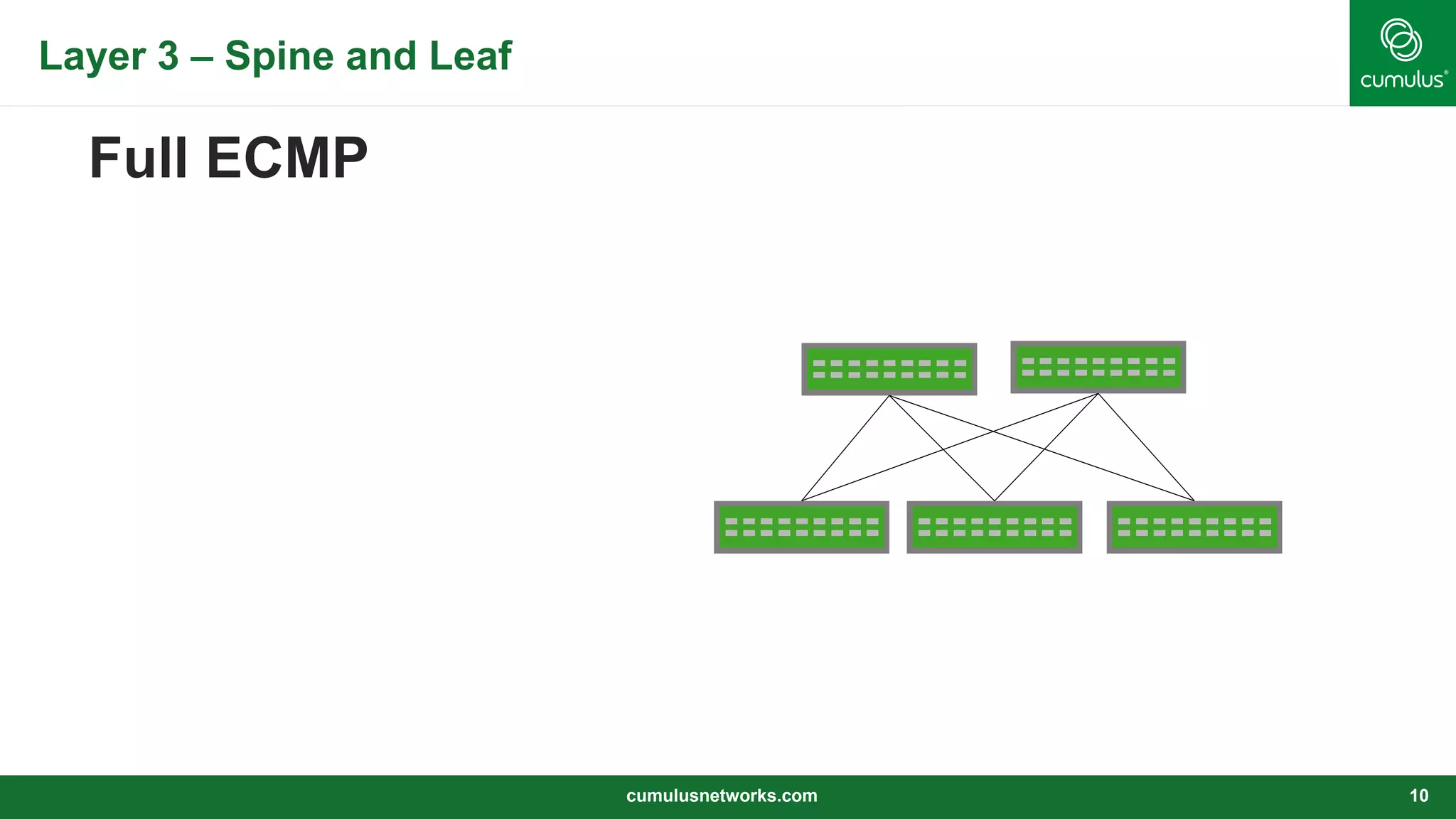

Layer 3 – Spine and Leaf cumulusnetworks.com 10 Full ECMP

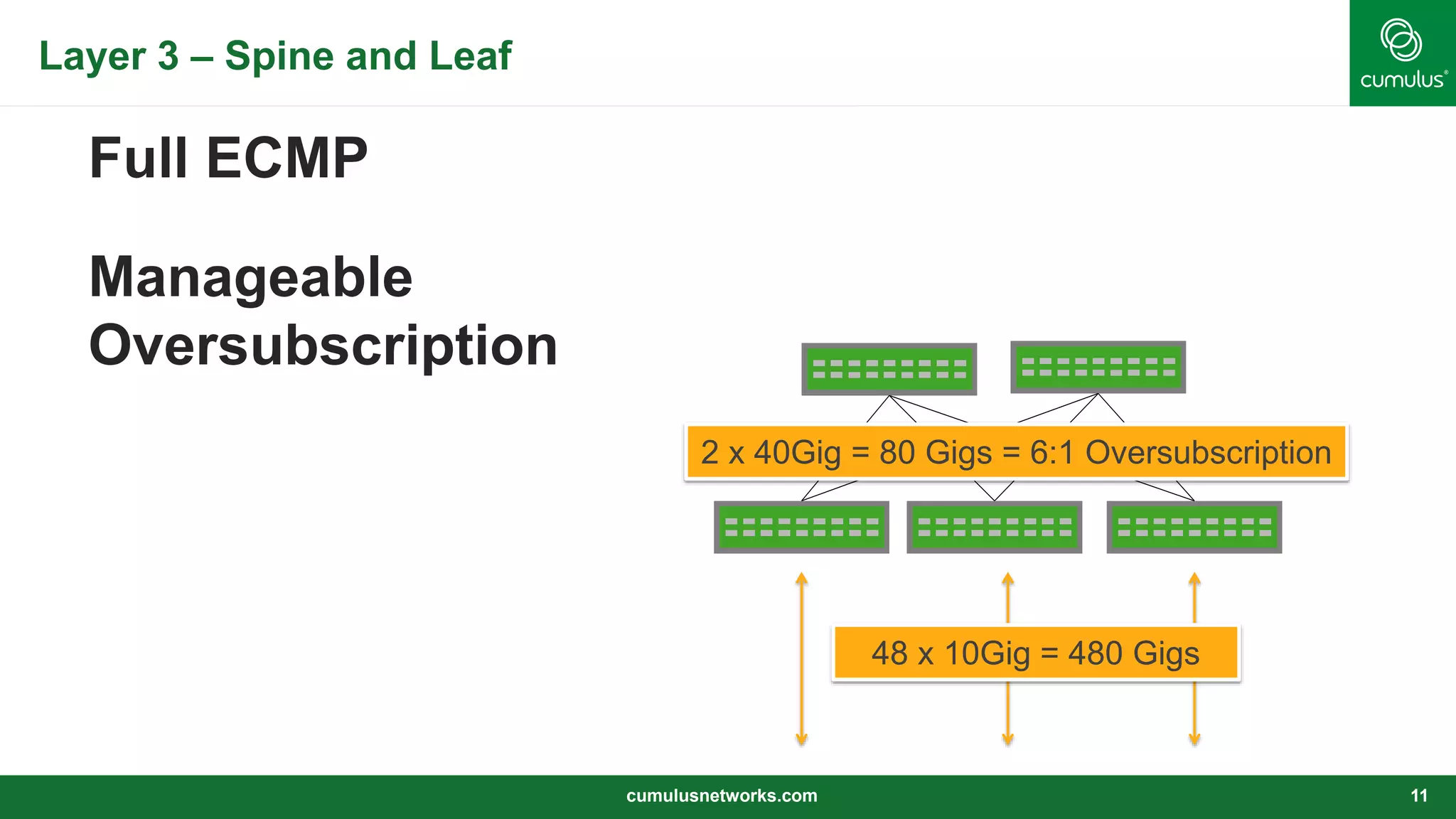

Layer 3 – Spine and Leaf cumulusnetworks.com 11 Full ECMP Manageable Oversubscription 48 x 10Gig = 480 Gigs 2 x 40Gig = 80 Gigs = 6:1 Oversubscription

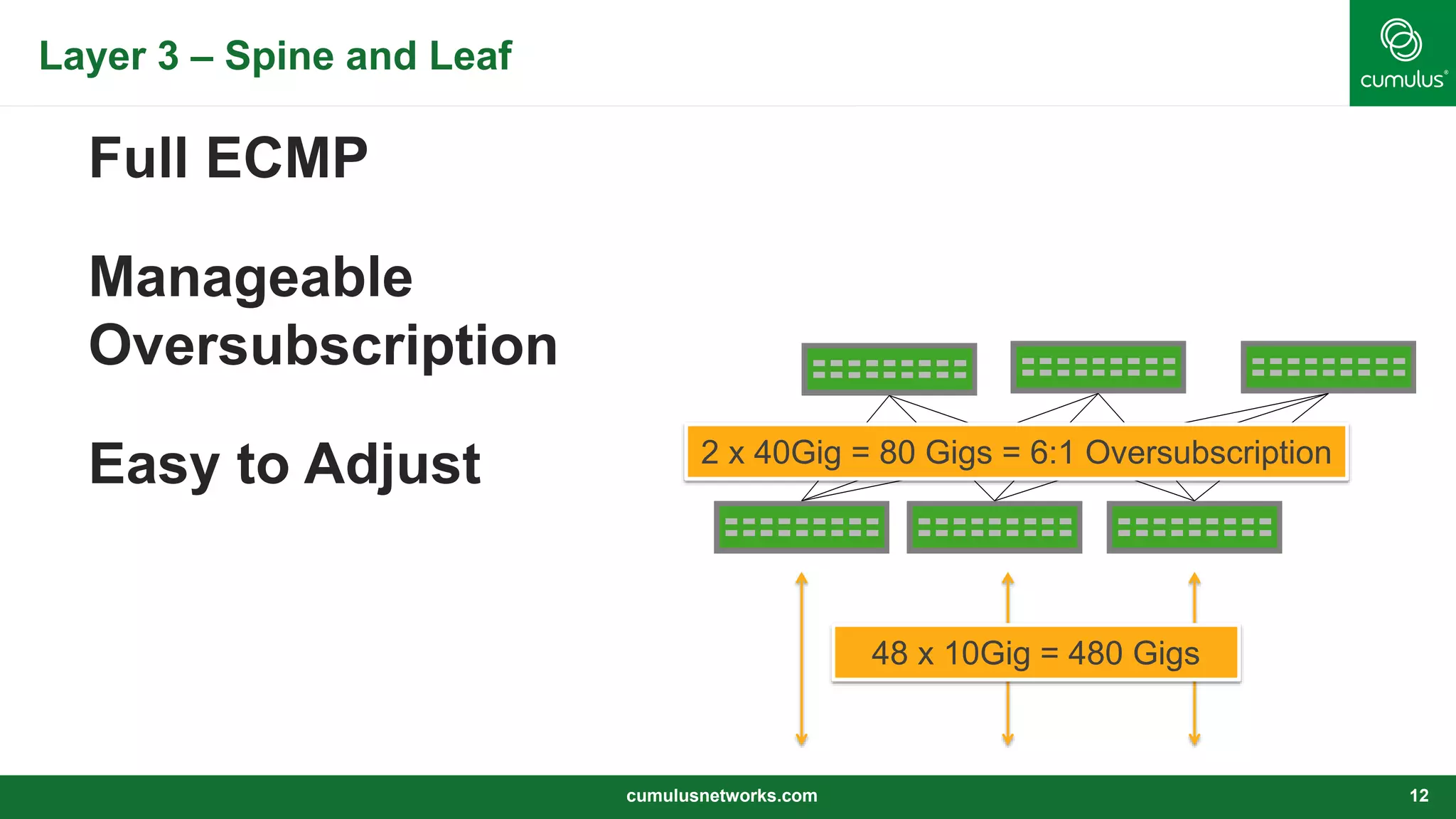

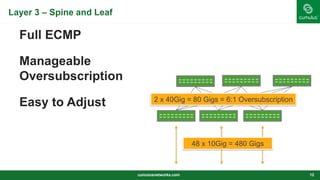

Layer 3 – Spine and Leaf cumulusnetworks.com 12 Full ECMP Manageable Oversubscription Easy to Adjust 48 x 10Gig = 480 Gigs 2 x 40Gig = 80 Gigs = 6:1 Oversubscription

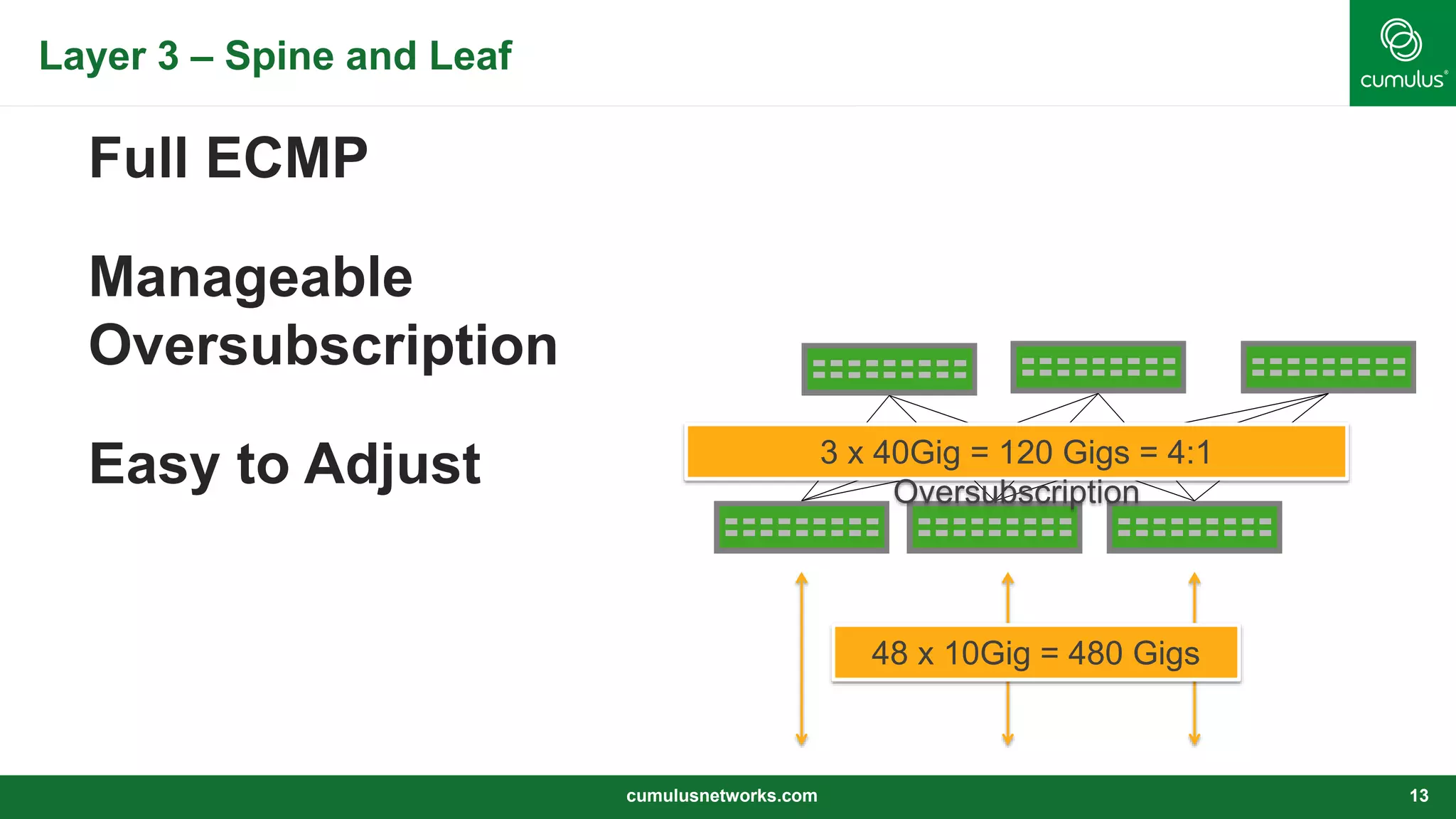

Layer 3 – Spine and Leaf cumulusnetworks.com 13 Full ECMP Manageable Oversubscription Easy to Adjust 48 x 10Gig = 480 Gigs 3 x 40Gig = 120 Gigs = 4:1 Oversubscription

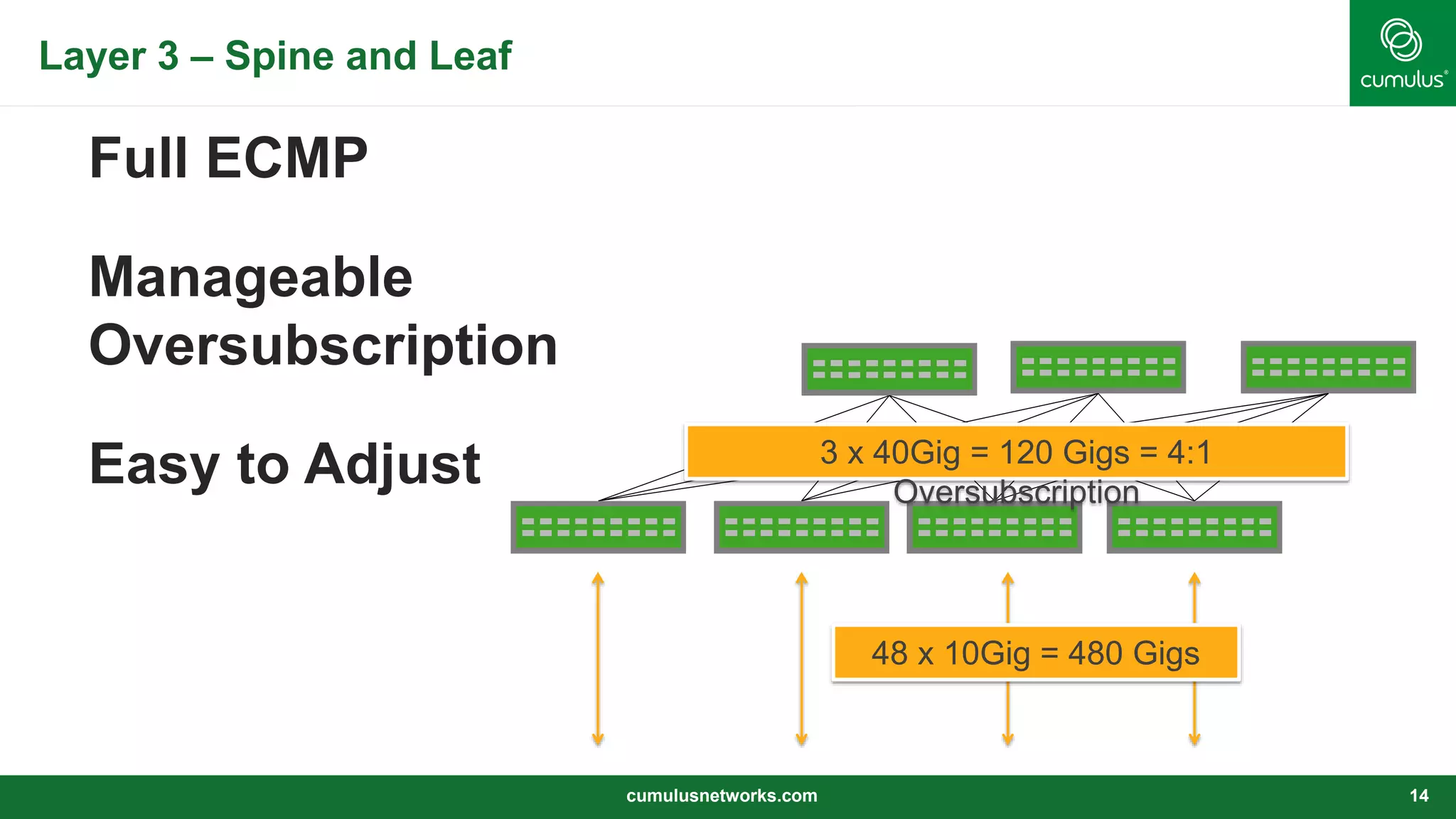

Layer 3 – Spine and Leaf cumulusnetworks.com 14 Full ECMP Manageable Oversubscription Easy to Adjust 48 x 10Gig = 480 Gigs 3 x 40Gig = 120 Gigs = 4:1 Oversubscription

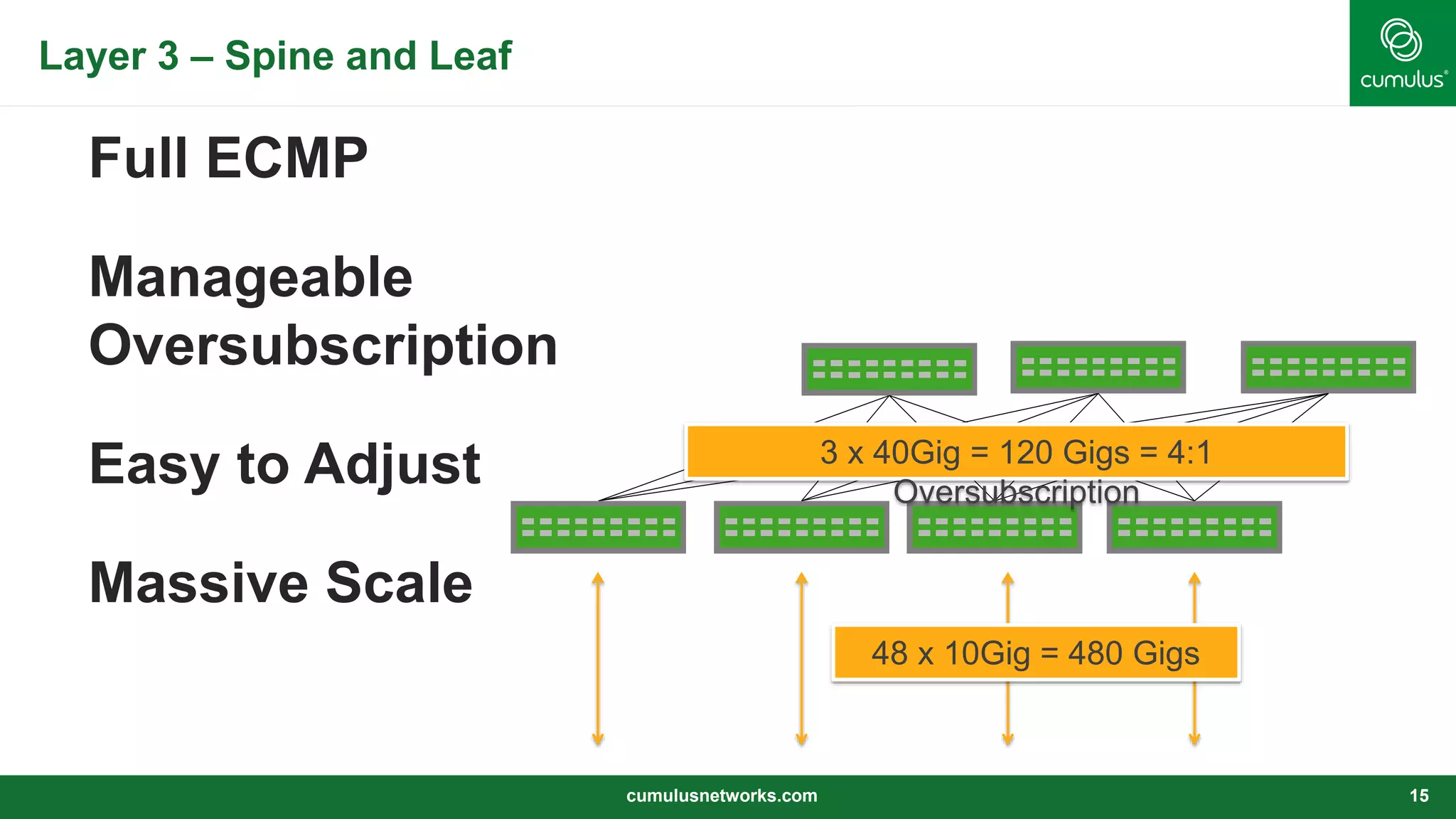

Layer 3 – Spine and Leaf cumulusnetworks.com 15 Full ECMP Manageable Oversubscription Easy to Adjust Massive Scale 48 x 10Gig = 480 Gigs 3 x 40Gig = 120 Gigs = 4:1 Oversubscription
Layer 3 – Spine and Leaf cumulusnetworks.com 16 Full ECMP Manageable Oversubscription Easy to Adjust Massive Scale Controlled Failures Leaf Failure Reduces Compute

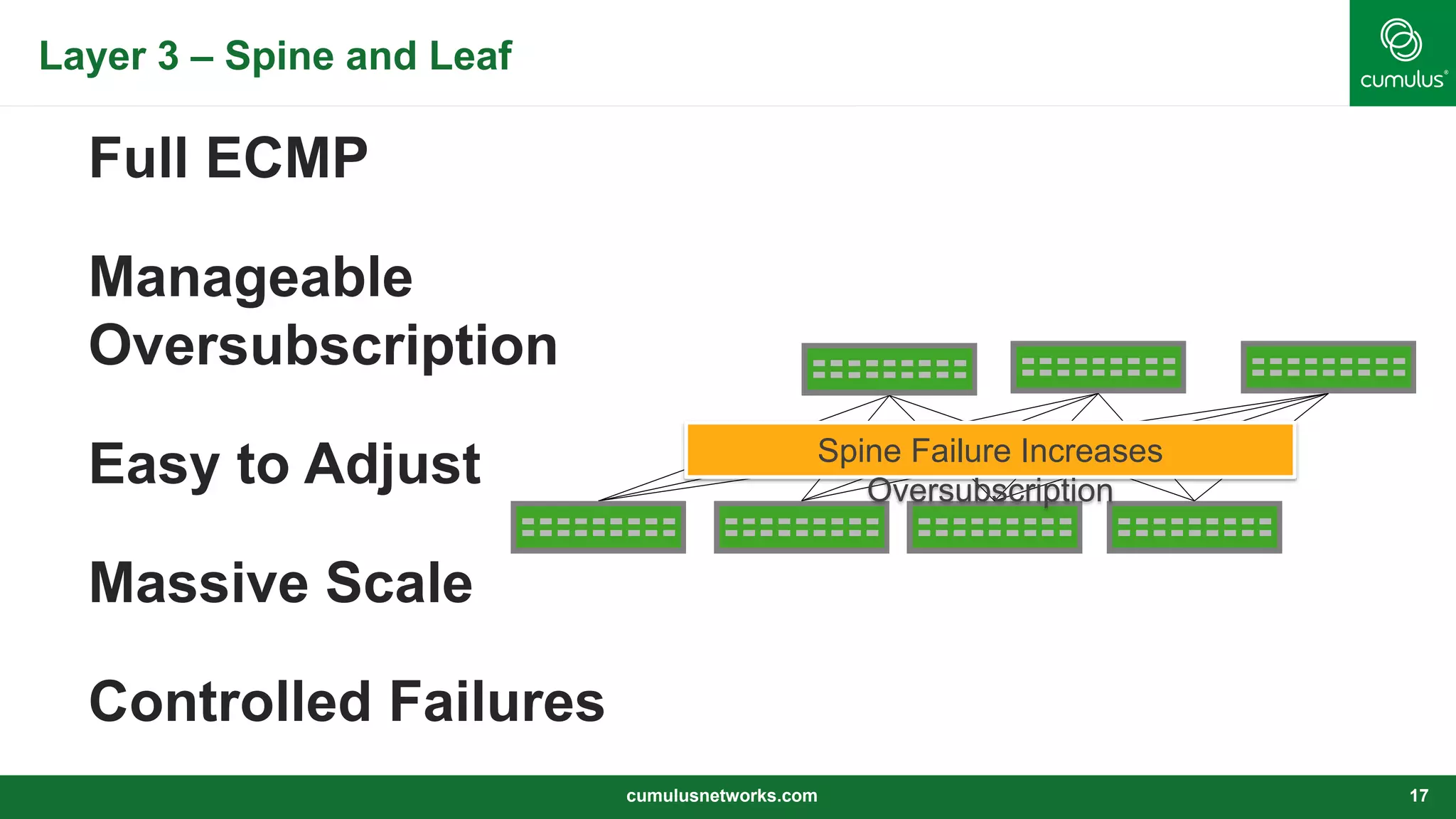

Layer 3 – Spine and Leaf cumulusnetworks.com 17 Full ECMP Manageable Oversubscription Easy to Adjust Massive Scale Controlled Failures Spine Failure Increases Oversubscription
Agenda The history of L2 Routing in the datacenter BGP in the datacenter Troubleshooting improvements BGP on Servers cumulusnetworks.com 18

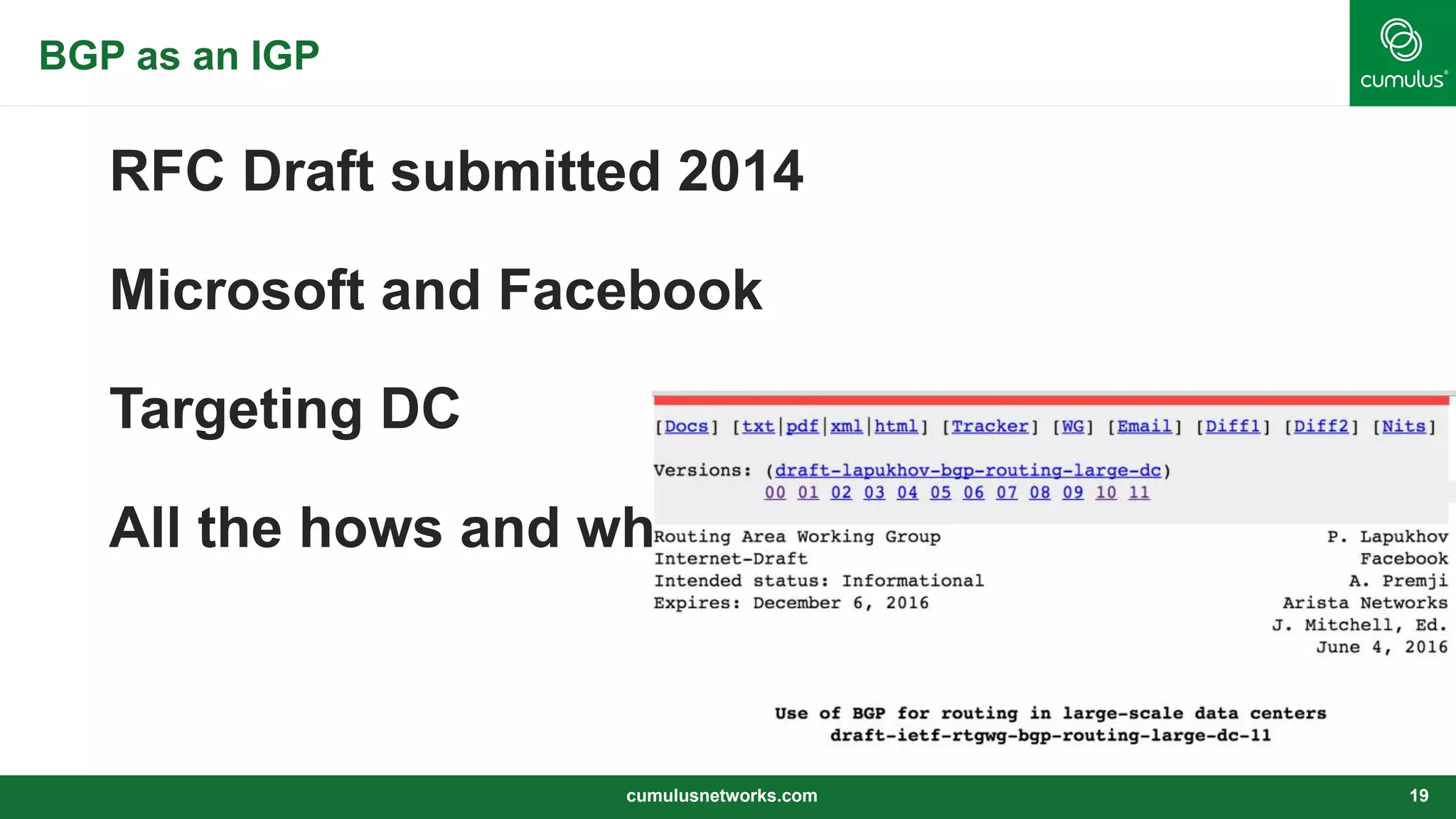

BGP as an IGP RFC Draft submitted 2014 Microsoft and Facebook Targeting DC All the hows and whys cumulusnetworks.com 19

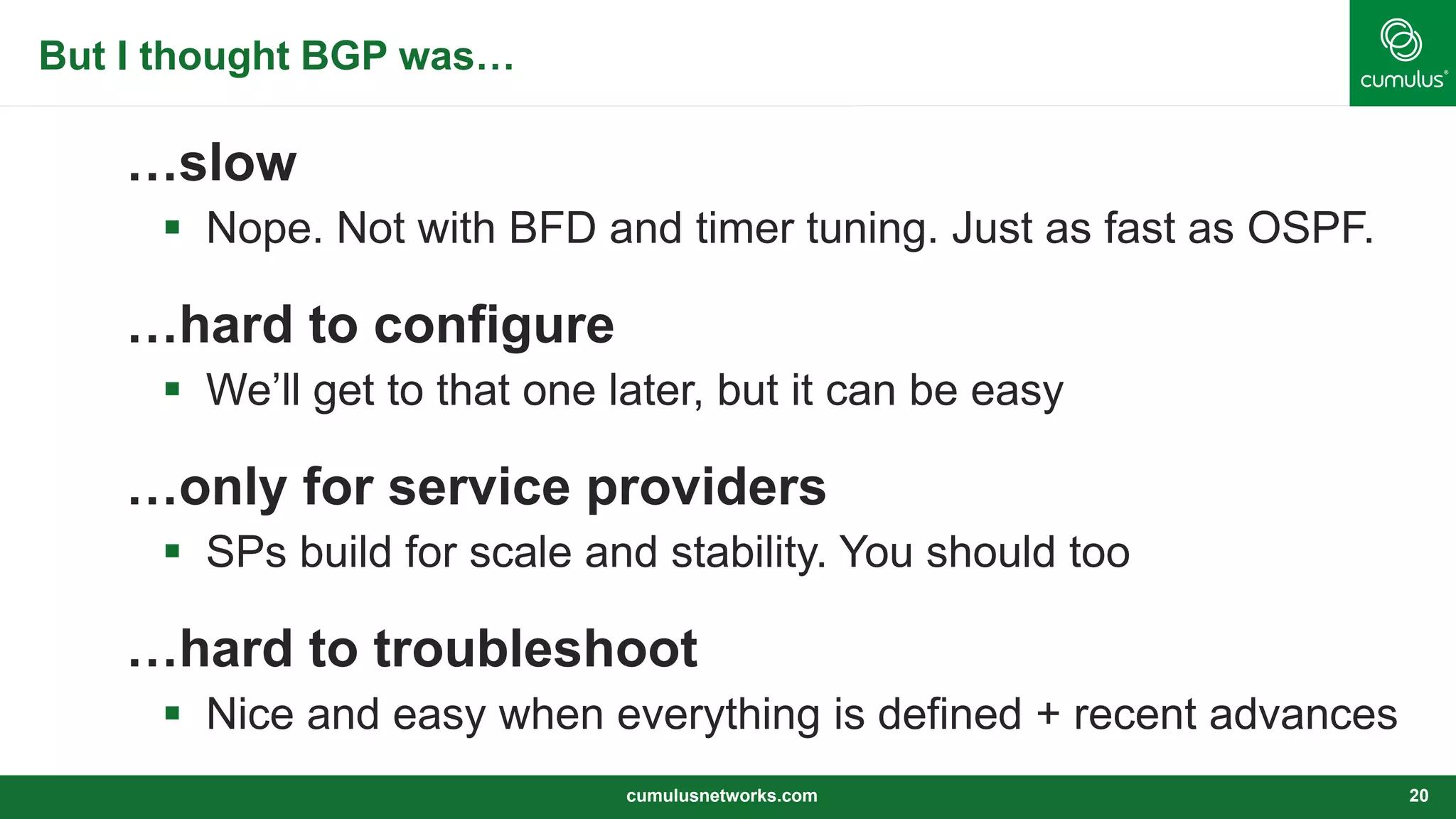

But I thought BGP was… …slow  Nope. Not with BFD and timer tuning. Just as fast as OSPF. …hard to configure  We’ll get to that one later, but it can be easy …only for service providers  SPs build for scale and stability. You should too …hard to troubleshoot  Nice and easy when everything is defined + recent advances cumulusnetworks.com 20

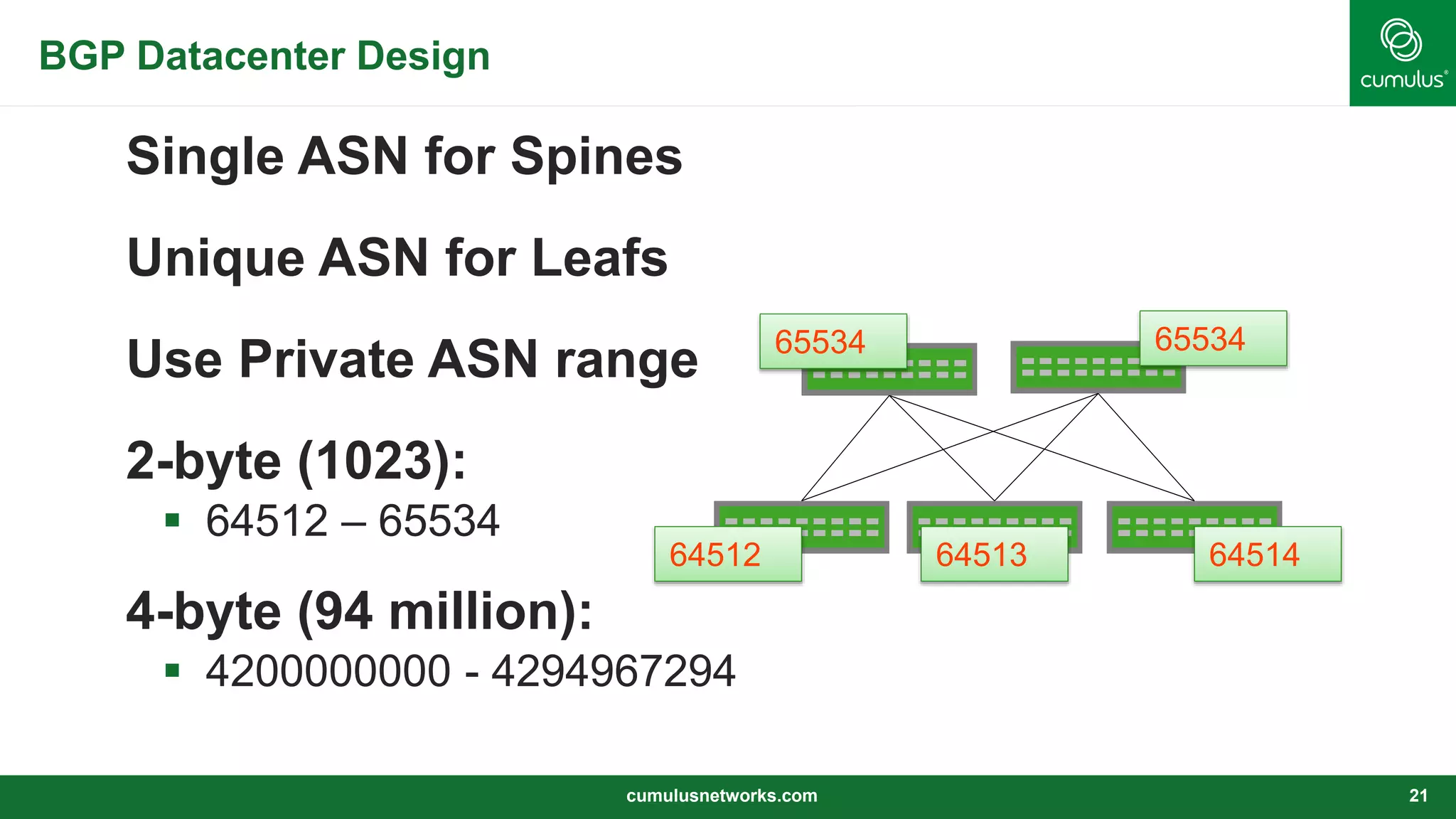

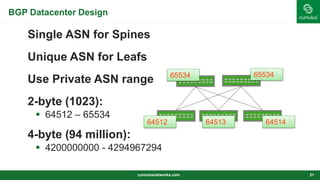

Single ASN for Spines Unique ASN for Leafs Use Private ASN range 2-byte (1023):  64512 – 65534 4-byte (94 million):  4200000000 - 4294967294 BGP Datacenter Design cumulusnetworks.com 21 65534 65534 64512 64513 64514

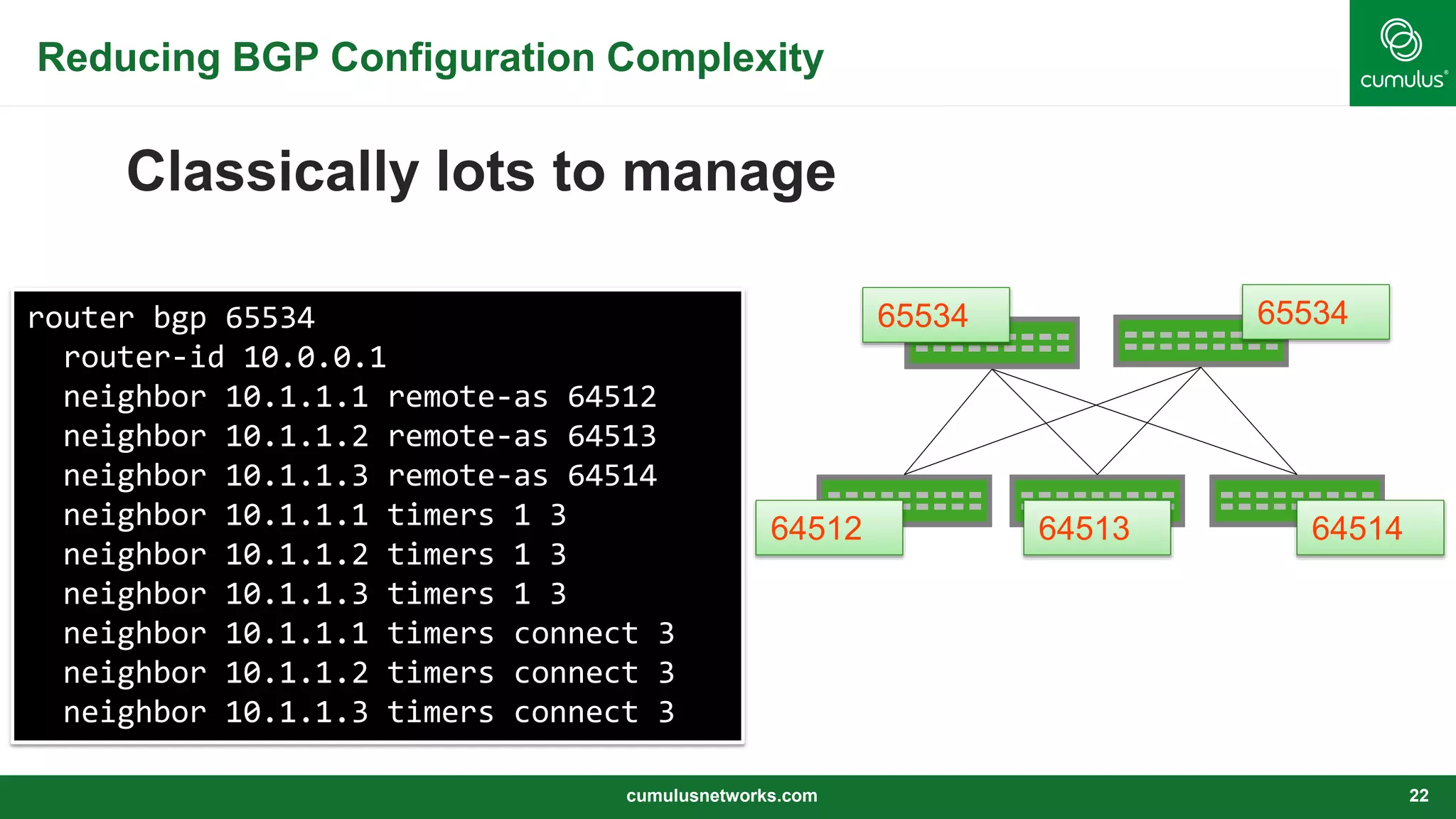

Reducing BGP Configuration Complexity Classically lots to manage cumulusnetworks.com 22 65534 65534 64512 64513 64514 router bgp 65534 router-id 10.0.0.1 neighbor 10.1.1.1 remote-as 64512 neighbor 10.1.1.2 remote-as 64513 neighbor 10.1.1.3 remote-as 64514 neighbor 10.1.1.1 timers 1 3 neighbor 10.1.1.2 timers 1 3 neighbor 10.1.1.3 timers 1 3 neighbor 10.1.1.1 timers connect 3 neighbor 10.1.1.2 timers connect 3 neighbor 10.1.1.3 timers connect 3

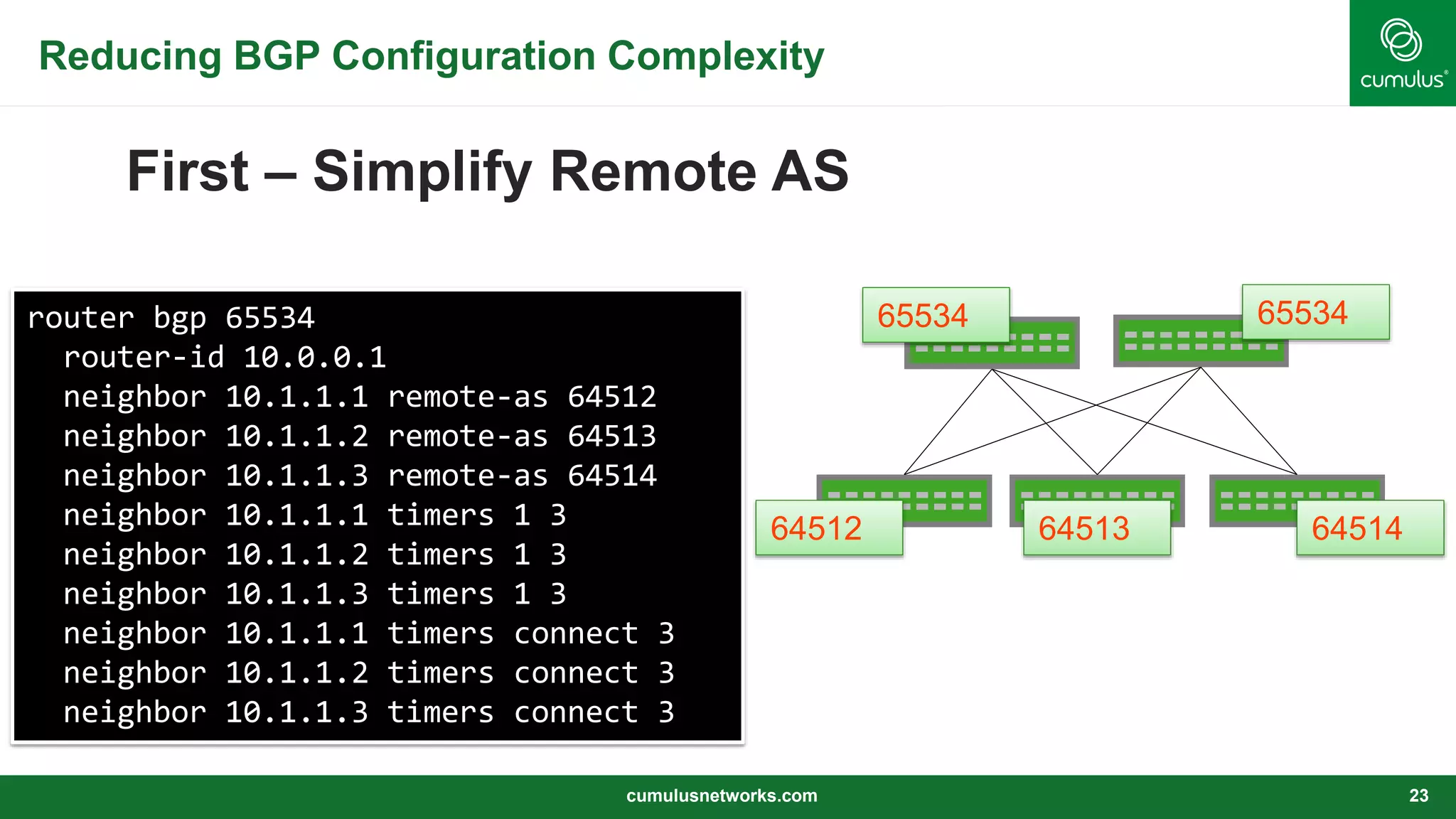

Reducing BGP Configuration Complexity First – Simplify Remote AS cumulusnetworks.com 23 65534 65534 64512 64513 64514 router bgp 65534 router-id 10.0.0.1 neighbor 10.1.1.1 remote-as 64512 neighbor 10.1.1.2 remote-as 64513 neighbor 10.1.1.3 remote-as 64514 neighbor 10.1.1.1 timers 1 3 neighbor 10.1.1.2 timers 1 3 neighbor 10.1.1.3 timers 1 3 neighbor 10.1.1.1 timers connect 3 neighbor 10.1.1.2 timers connect 3 neighbor 10.1.1.3 timers connect 3
Reducing BGP Configuration Complexity First – Simplify Remote AS cumulusnetworks.com 24 65534 65534 64512 64513 64514 router bgp 65534 router-id 10.0.0.1 neighbor 10.1.1.1 remote-as external neighbor 10.1.1.2 remote-as external neighbor 10.1.1.3 remote-as external neighbor 10.1.1.1 timers 1 3 neighbor 10.1.1.2 timers 1 3 neighbor 10.1.1.3 timers 1 3 neighbor 10.1.1.1 timers connect 3 neighbor 10.1.1.2 timers connect 3 neighbor 10.1.1.3 timers connect 3
Reducing BGP Configuration Complexity First – Simplify Remote AS cumulusnetworks.com 25 65534 65534 64512 64513 64514 router bgp 65534 router-id 10.0.0.1 neighbor 10.1.1.1 remote-as external neighbor 10.1.1.2 remote-as external neighbor 10.1.1.3 remote-as external neighbor 10.1.1.1 timers 1 3 neighbor 10.1.1.2 timers 1 3 neighbor 10.1.1.3 timers 1 3 neighbor 10.1.1.1 timers connect 3 neighbor 10.1.1.2 timers connect 3 neighbor 10.1.1.3 timers connect 3 remote-as internal as well

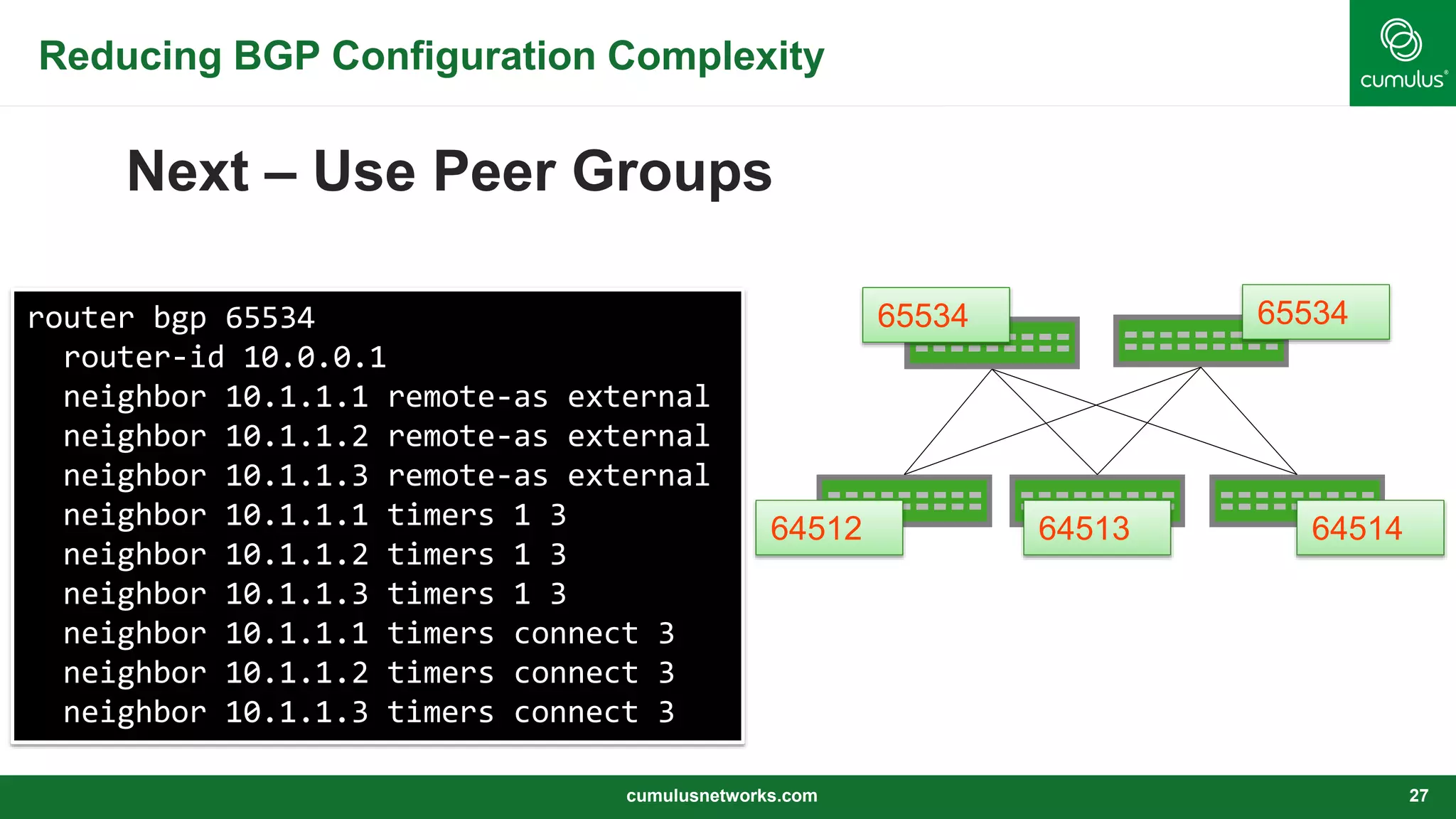

Reducing BGP Configuration Complexity Next – Use Peer Groups cumulusnetworks.com 27 65534 65534 64512 64513 64514 router bgp 65534 router-id 10.0.0.1 neighbor 10.1.1.1 remote-as external neighbor 10.1.1.2 remote-as external neighbor 10.1.1.3 remote-as external neighbor 10.1.1.1 timers 1 3 neighbor 10.1.1.2 timers 1 3 neighbor 10.1.1.3 timers 1 3 neighbor 10.1.1.1 timers connect 3 neighbor 10.1.1.2 timers connect 3 neighbor 10.1.1.3 timers connect 3
Reducing BGP Configuration Complexity Next – Use Peer Groups cumulusnetworks.com 28 65534 65534 64512 64513 64514 router bgp 65534 router-id 10.0.0.1 neighbor 10.1.1.1 peer-group leafs neighbor 10.1.1.2 peer-group leafs neighbor 10.1.1.3 peer-group leafs neighbor leafs remote-as external neighbor leafs timers 1 3 neighbor leafs timers connect 3

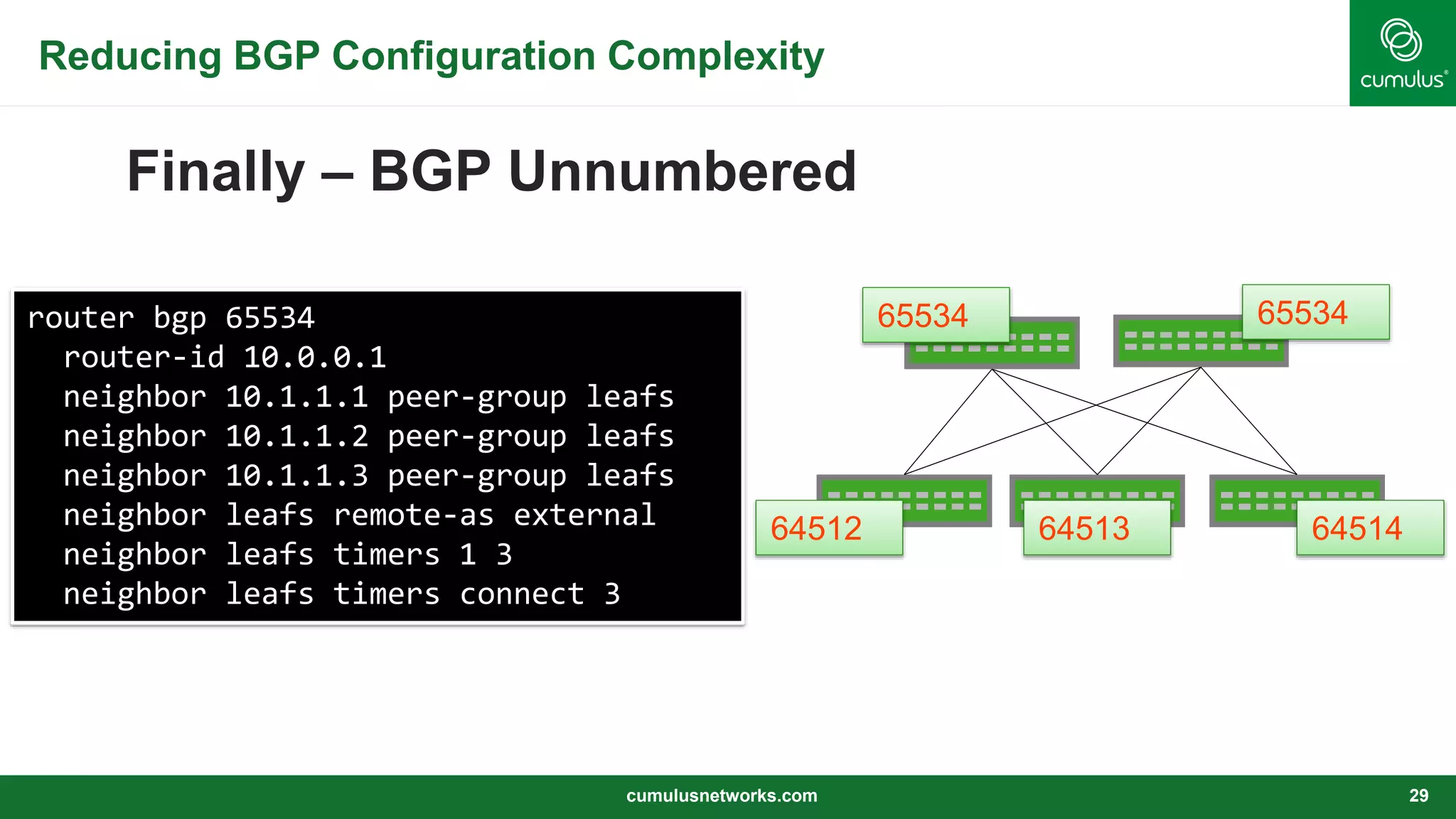

Reducing BGP Configuration Complexity Finally – BGP Unnumbered cumulusnetworks.com 29 65534 65534 64512 64513 64514 router bgp 65534 router-id 10.0.0.1 neighbor 10.1.1.1 peer-group leafs neighbor 10.1.1.2 peer-group leafs neighbor 10.1.1.3 peer-group leafs neighbor leafs remote-as external neighbor leafs timers 1 3 neighbor leafs timers connect 3
Reducing BGP Configuration Complexity Finally – BGP Unnumbered cumulusnetworks.com 30 65534 65534 64512 64513 64514 router bgp 65534 router-id 10.0.0.1 neighbor swp1 peer-group leafs neighbor swp2 peer-group leafs neighbor swp3 peer-group leafs neighbor leafs remote-as external neighbor leafs timers 1 3 neighbor leafs timers connect 3

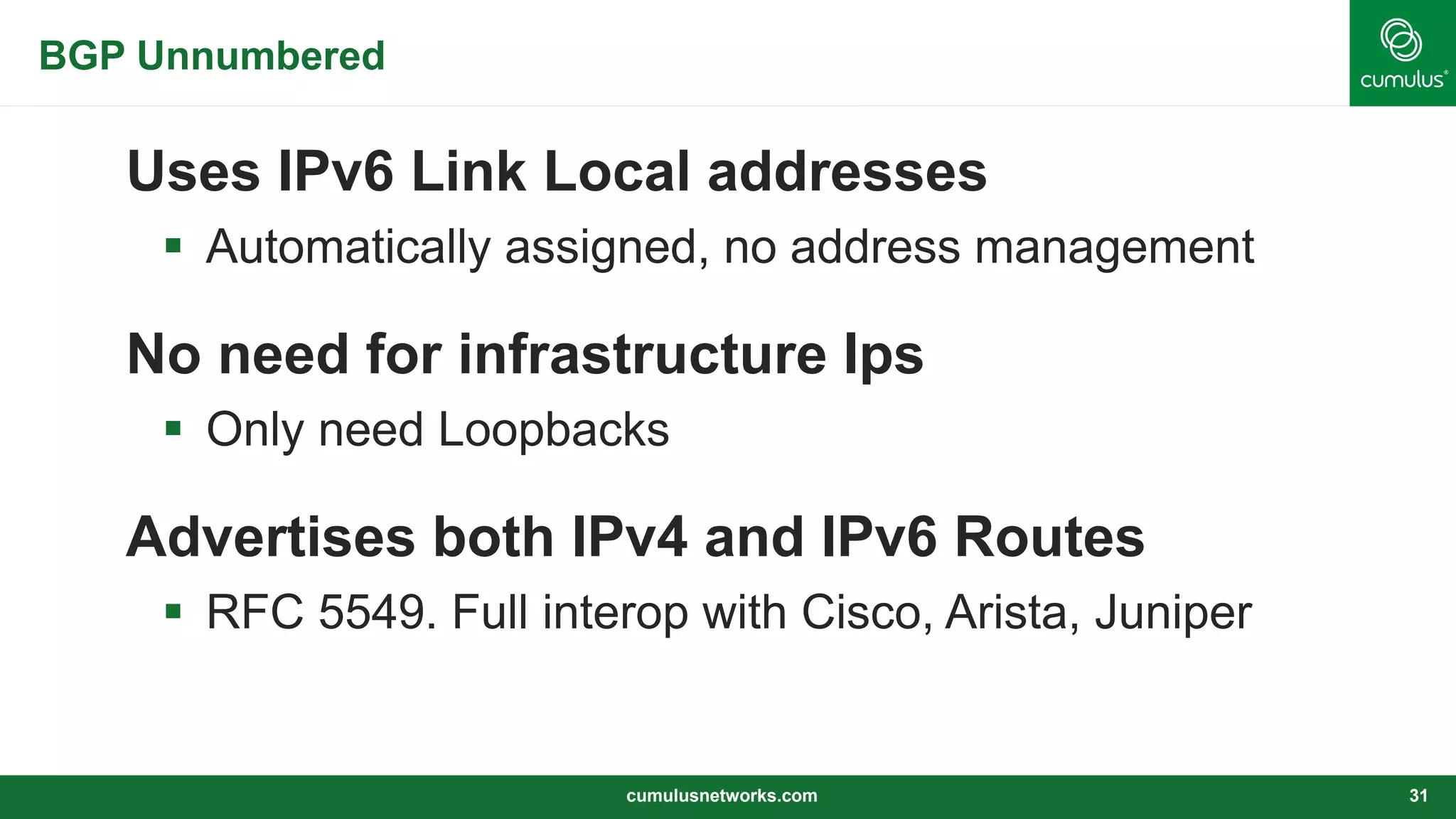

BGP Unnumbered Uses IPv6 Link Local addresses  Automatically assigned, no address management No need for infrastructure Ips  Only need Loopbacks Advertises both IPv4 and IPv6 Routes  RFC 5549. Full interop with Cisco, Arista, Juniper cumulusnetworks.com 31
Agenda The history of L2 Routing in the datacenter BGP in the datacenter Troubleshooting improvements BGP on Servers cumulusnetworks.com 34

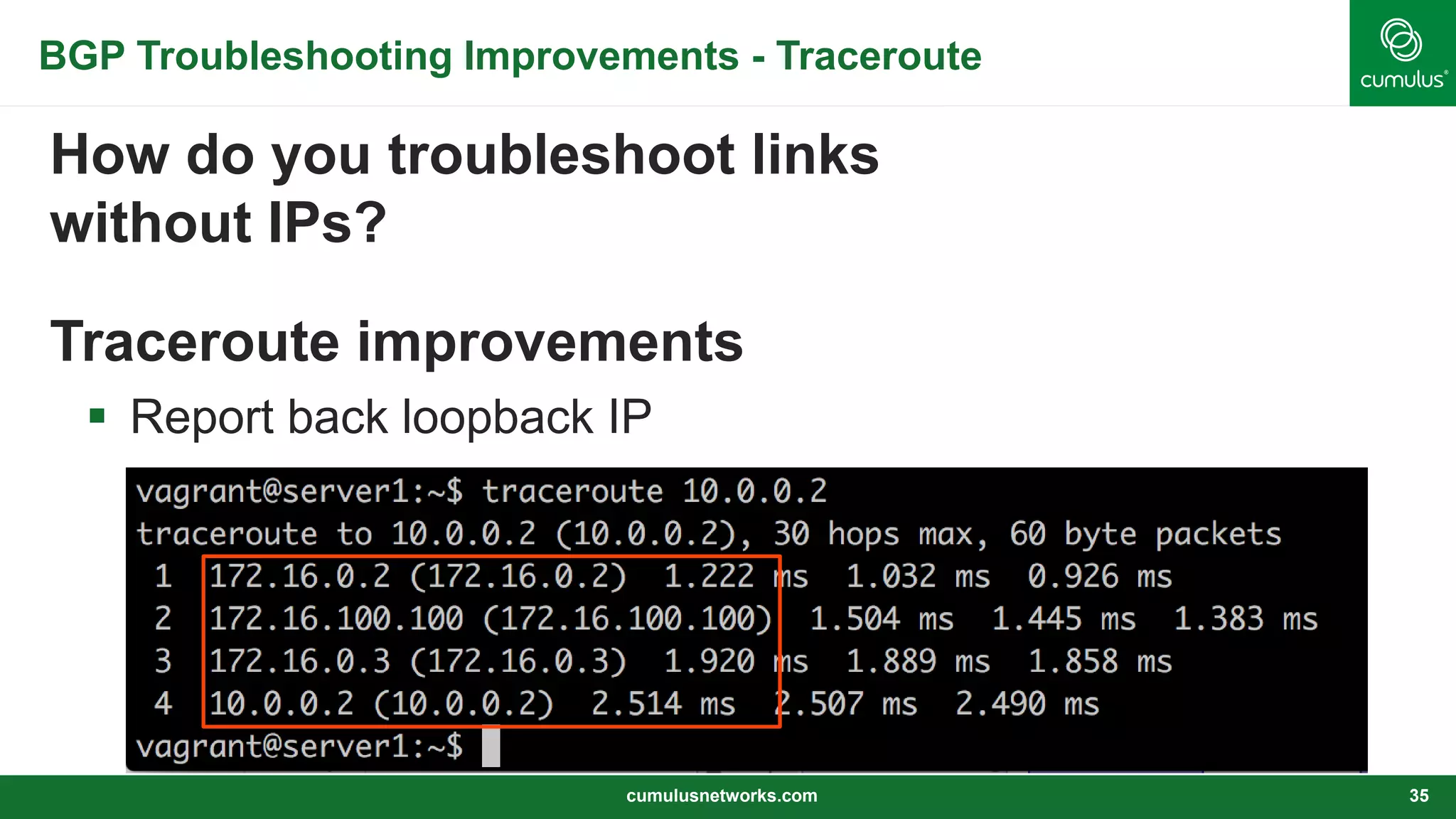

BGP Troubleshooting Improvements - Traceroute How do you troubleshoot links without IPs? Traceroute improvements  Report back loopback IP cumulusnetworks.com 35

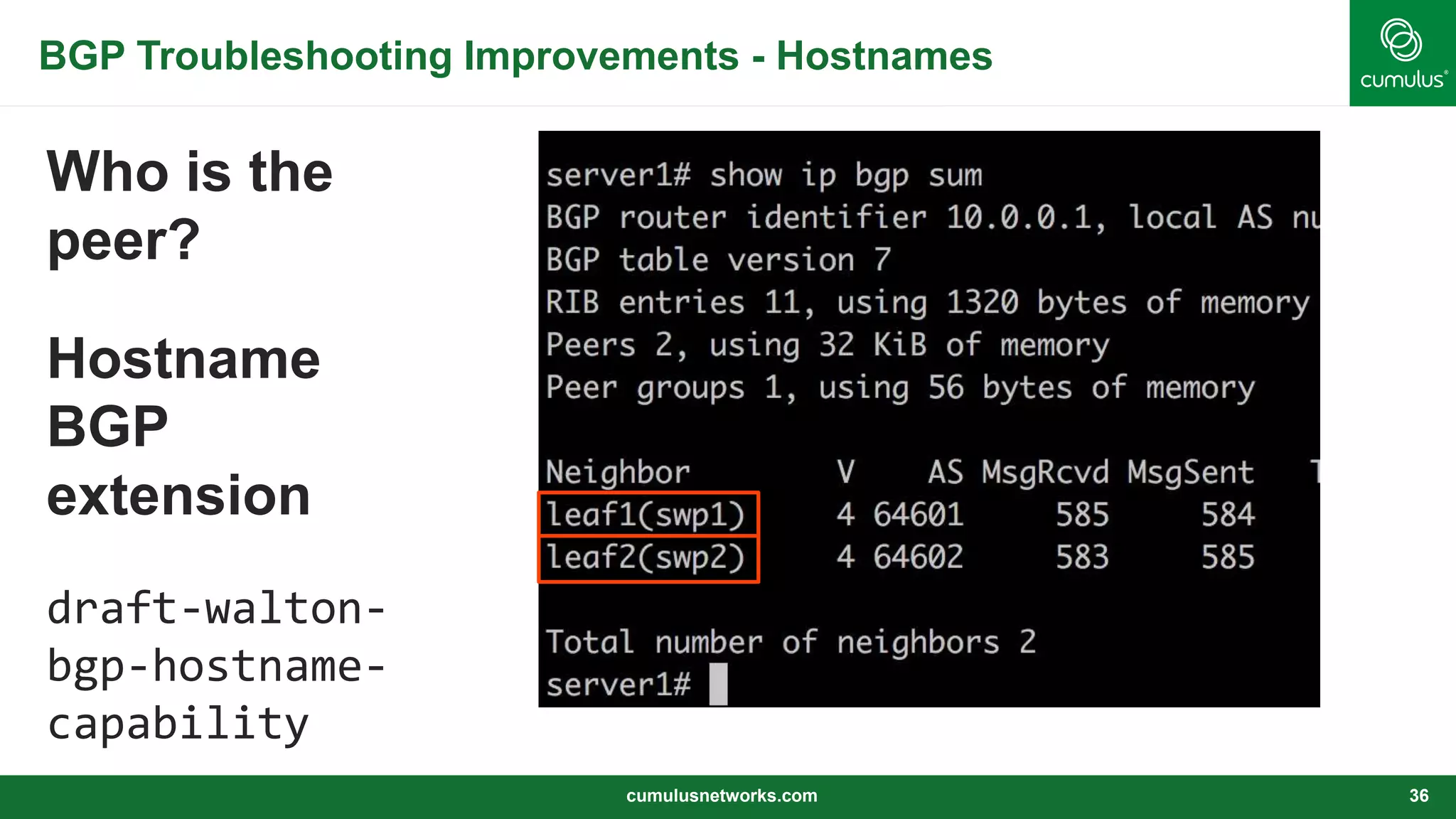

BGP Troubleshooting Improvements - Hostnames Who is the peer? Hostname BGP extension draft-walton- bgp-hostname- capability cumulusnetworks.com 36

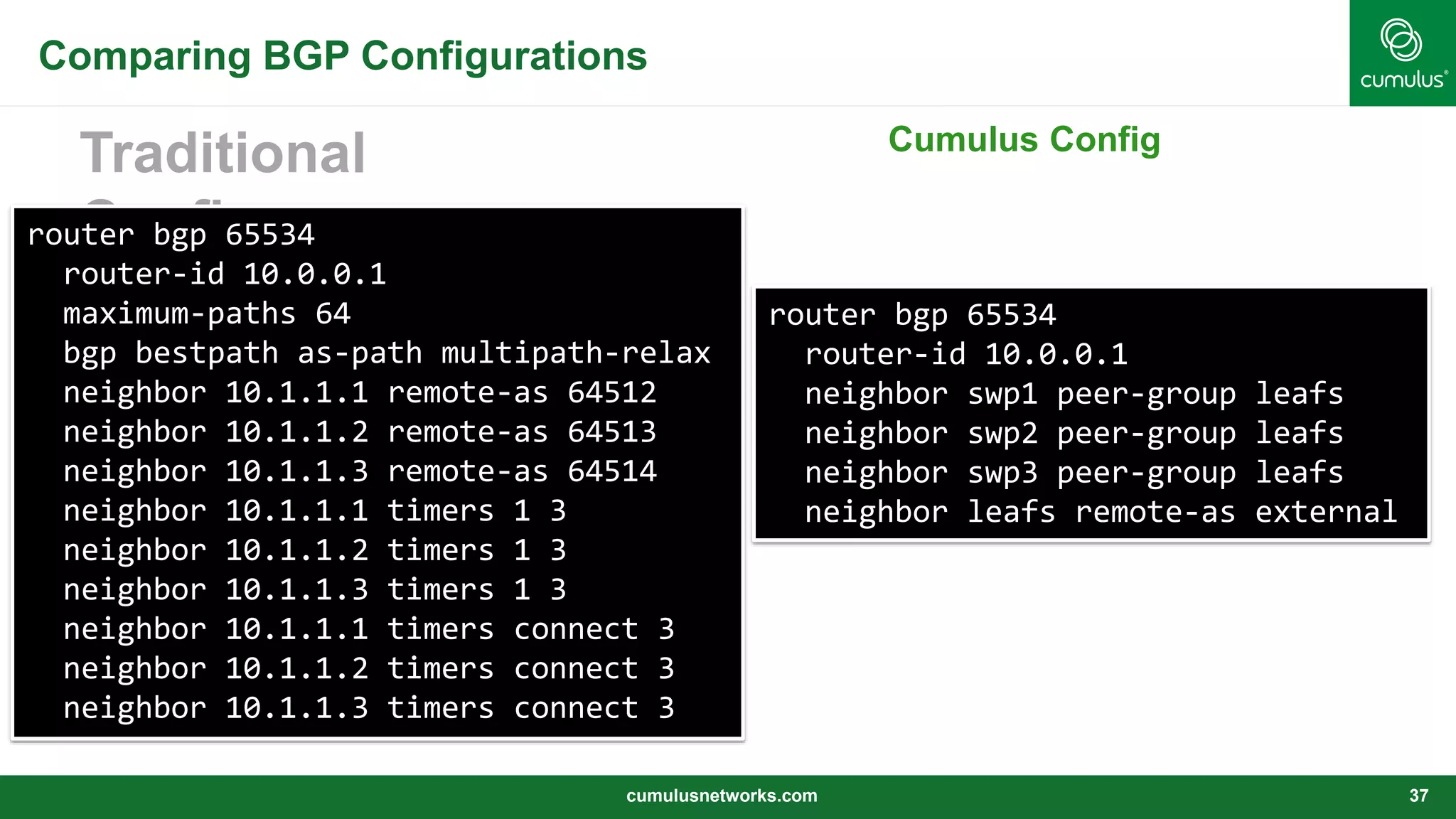

Comparing BGP Configurations Traditional Config cumulusnetworks.com 37 router bgp 65534 router-id 10.0.0.1 maximum-paths 64 bgp bestpath as-path multipath-relax neighbor 10.1.1.1 remote-as 64512 neighbor 10.1.1.2 remote-as 64513 neighbor 10.1.1.3 remote-as 64514 neighbor 10.1.1.1 timers 1 3 neighbor 10.1.1.2 timers 1 3 neighbor 10.1.1.3 timers 1 3 neighbor 10.1.1.1 timers connect 3 neighbor 10.1.1.2 timers connect 3 neighbor 10.1.1.3 timers connect 3 router bgp 65534 router-id 10.0.0.1 neighbor swp1 peer-group leafs neighbor swp2 peer-group leafs neighbor swp3 peer-group leafs neighbor leafs remote-as external Cumulus Config

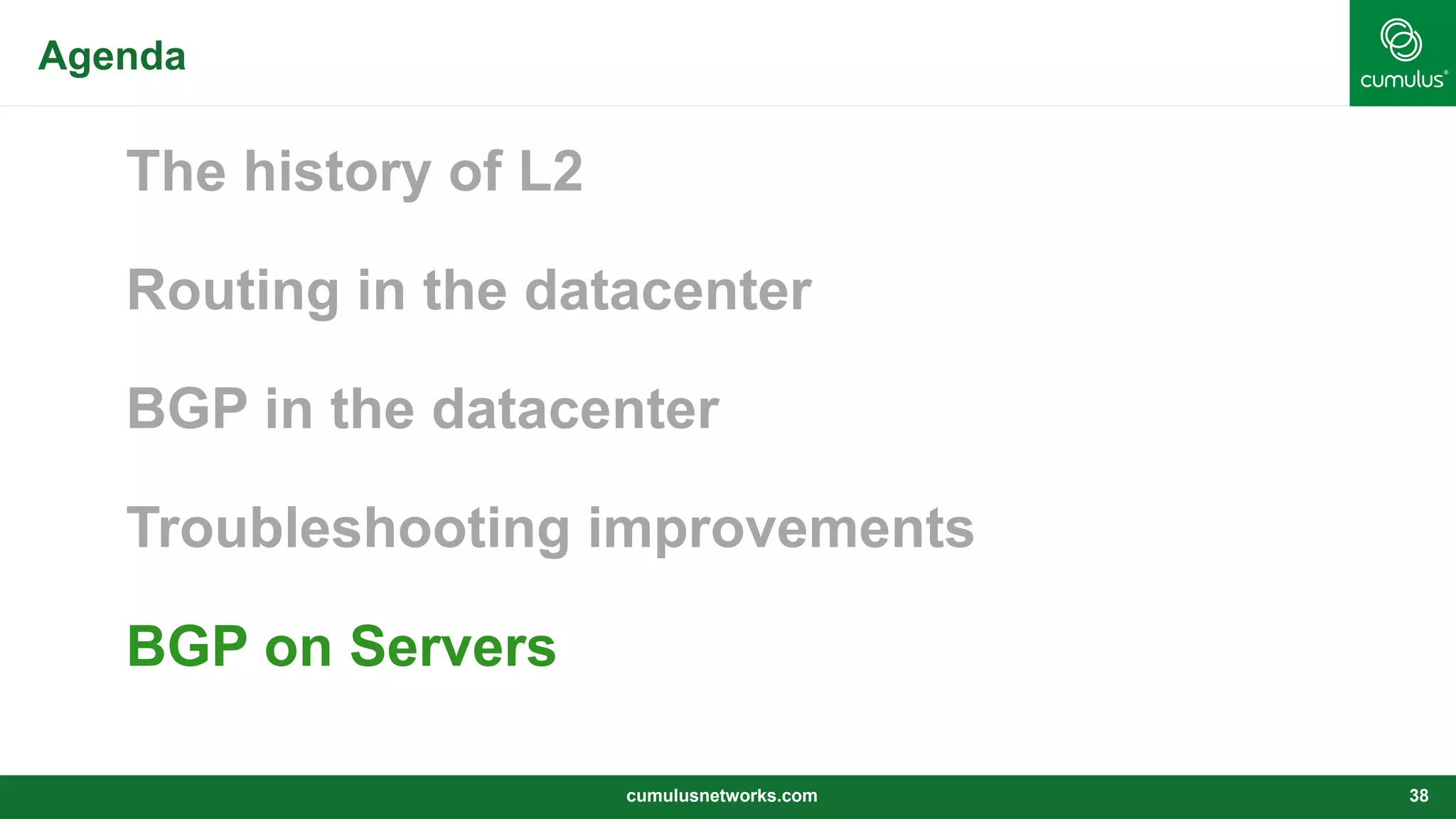

Agenda The history of L2 Routing in the datacenter BGP in the datacenter Troubleshooting improvements BGP on Servers cumulusnetworks.com 38

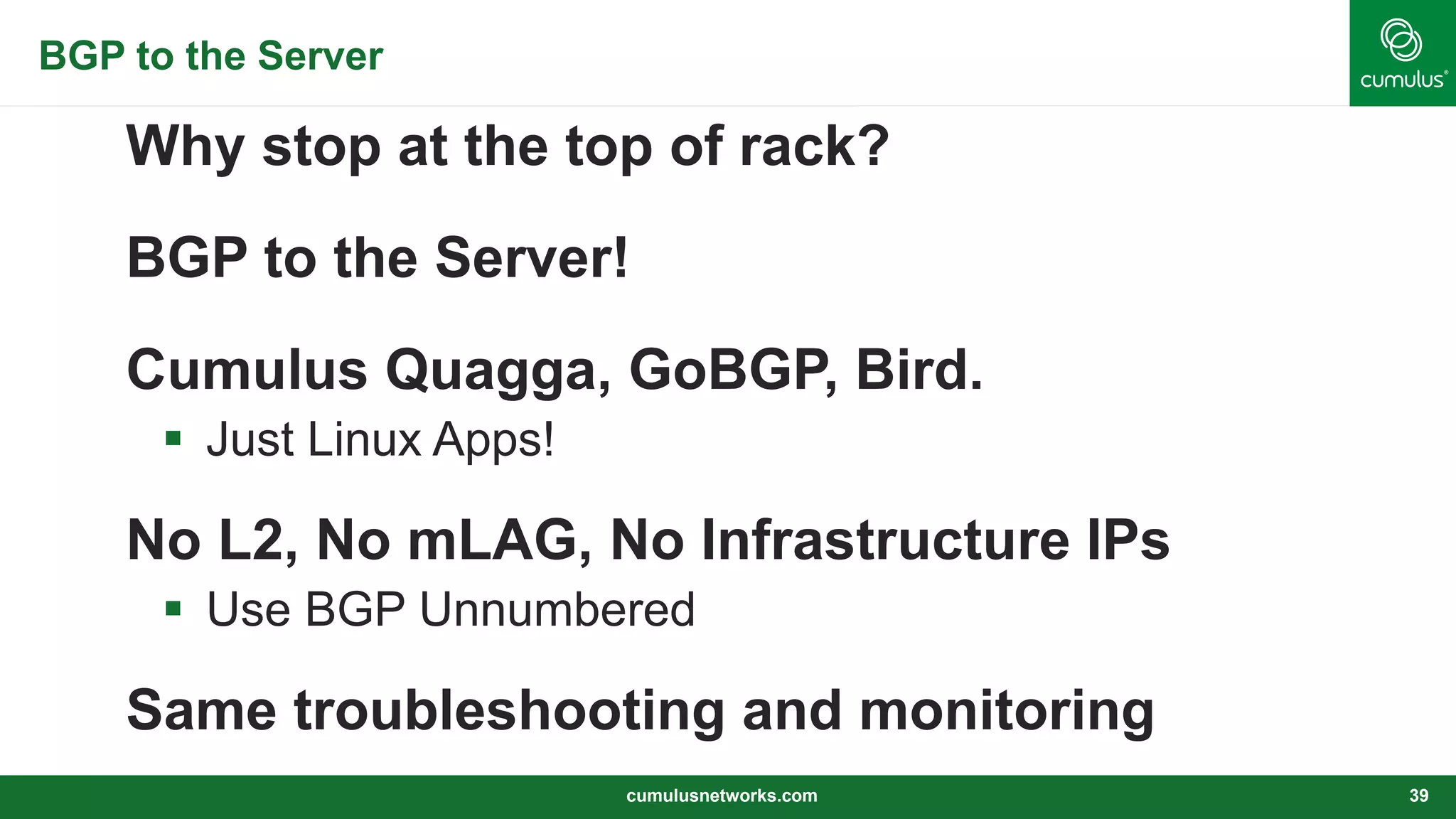

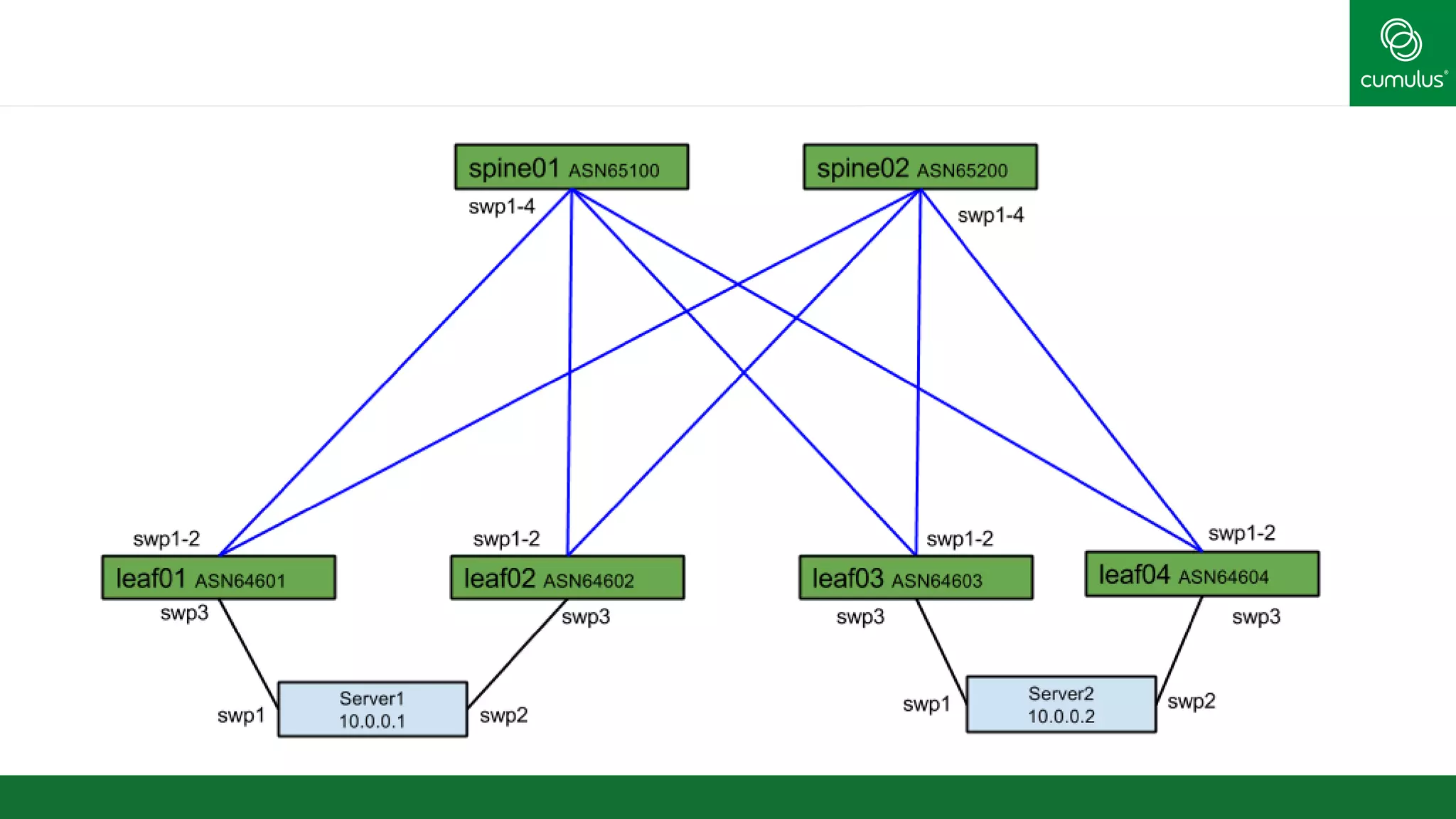

BGP to the Server Why stop at the top of rack? BGP to the Server! Cumulus Quagga, GoBGP, Bird.  Just Linux Apps! No L2, No mLAG, No Infrastructure IPs  Use BGP Unnumbered Same troubleshooting and monitoring cumulusnetworks.com 39

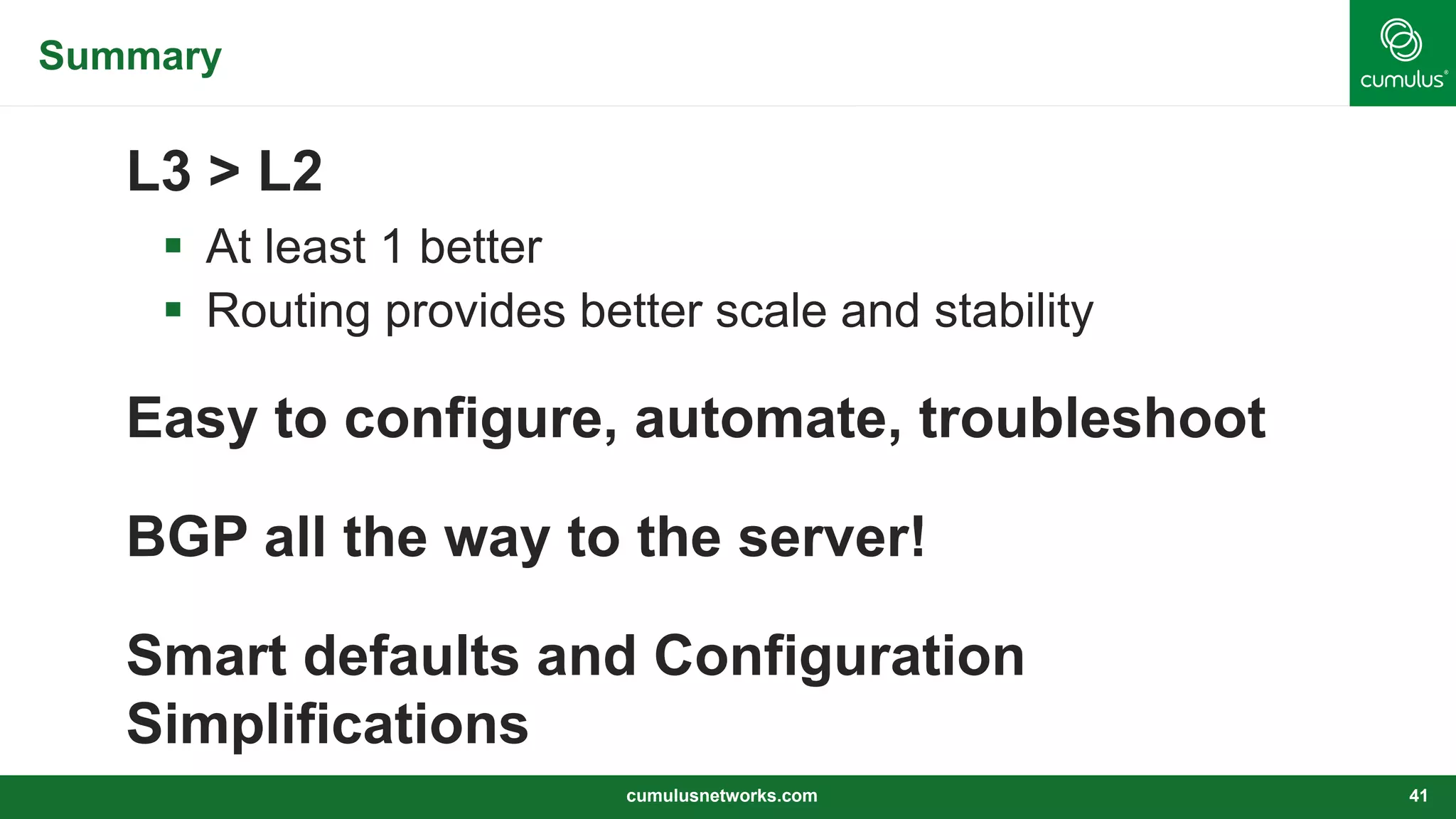

Summary L3 > L2  At least 1 better  Routing provides better scale and stability Easy to configure, automate, troubleshoot BGP all the way to the server! Smart defaults and Configuration Simplifications cumulusnetworks.com 41
© 2014Cumulus Networks. Cumulus Networks, the Cumulus Networks Logo, and Cumulus Linux are trademarks or registered trademarks of Cumulus Networks, Inc. or its affiliates in the U.S. and other countries. Other names may be trademarks of their respective owners.The registered trademark Linux® is used pursuant to a sublicense from LMI, the exclusive licensee of LinusTorvalds, owner of the mark on a world-wide basis. ThankYou! cumulusnetworks.com 42
Asaf Wachtel, Sr. Director Enterprise July 2016 25GbE Technology Update

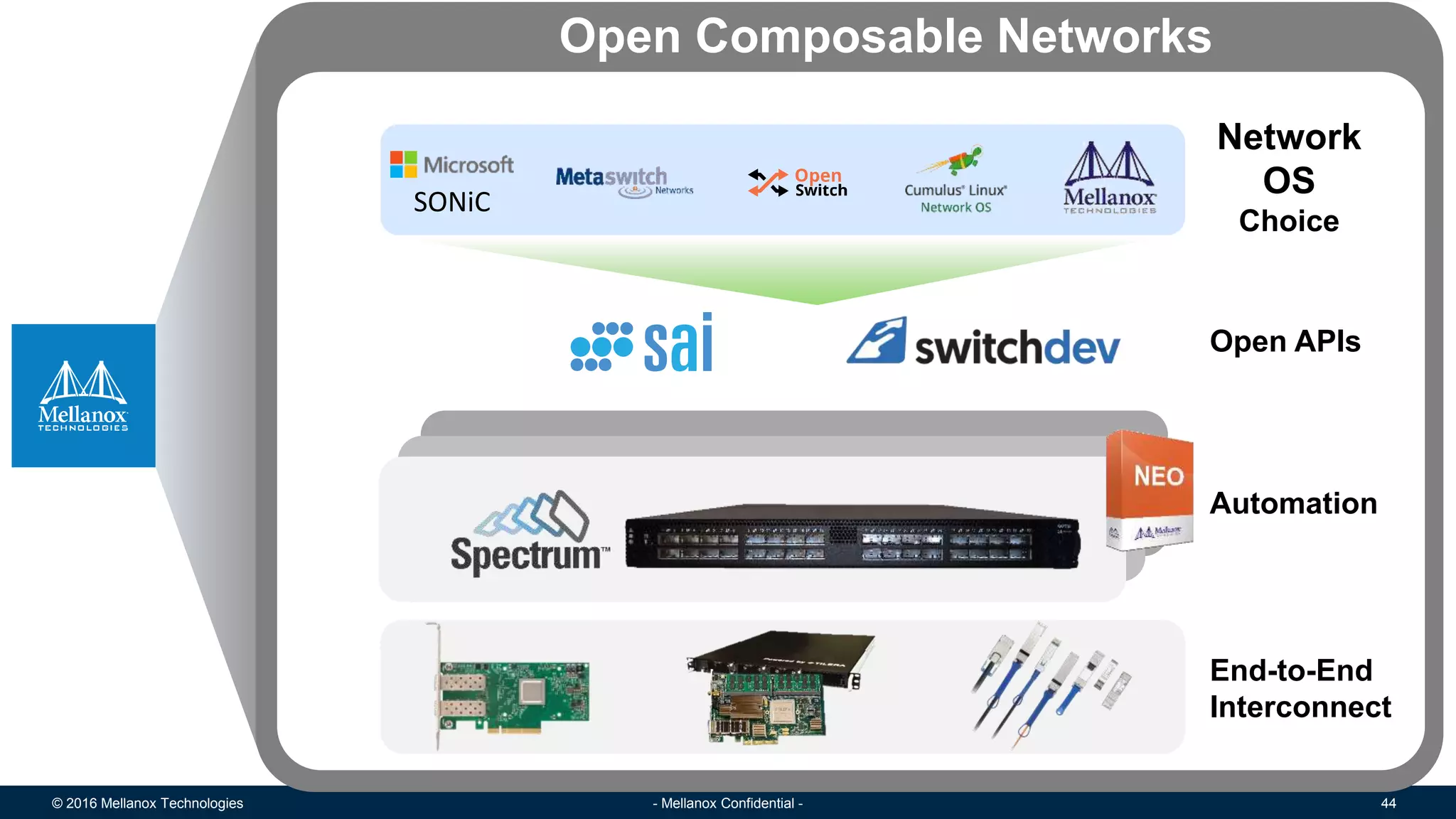

© 2016 Mellanox Technologies 44- Mellanox Confidential - Open APIs Open Composable Networks Automation End-to-End Interconnect Network OS Choice SONiC

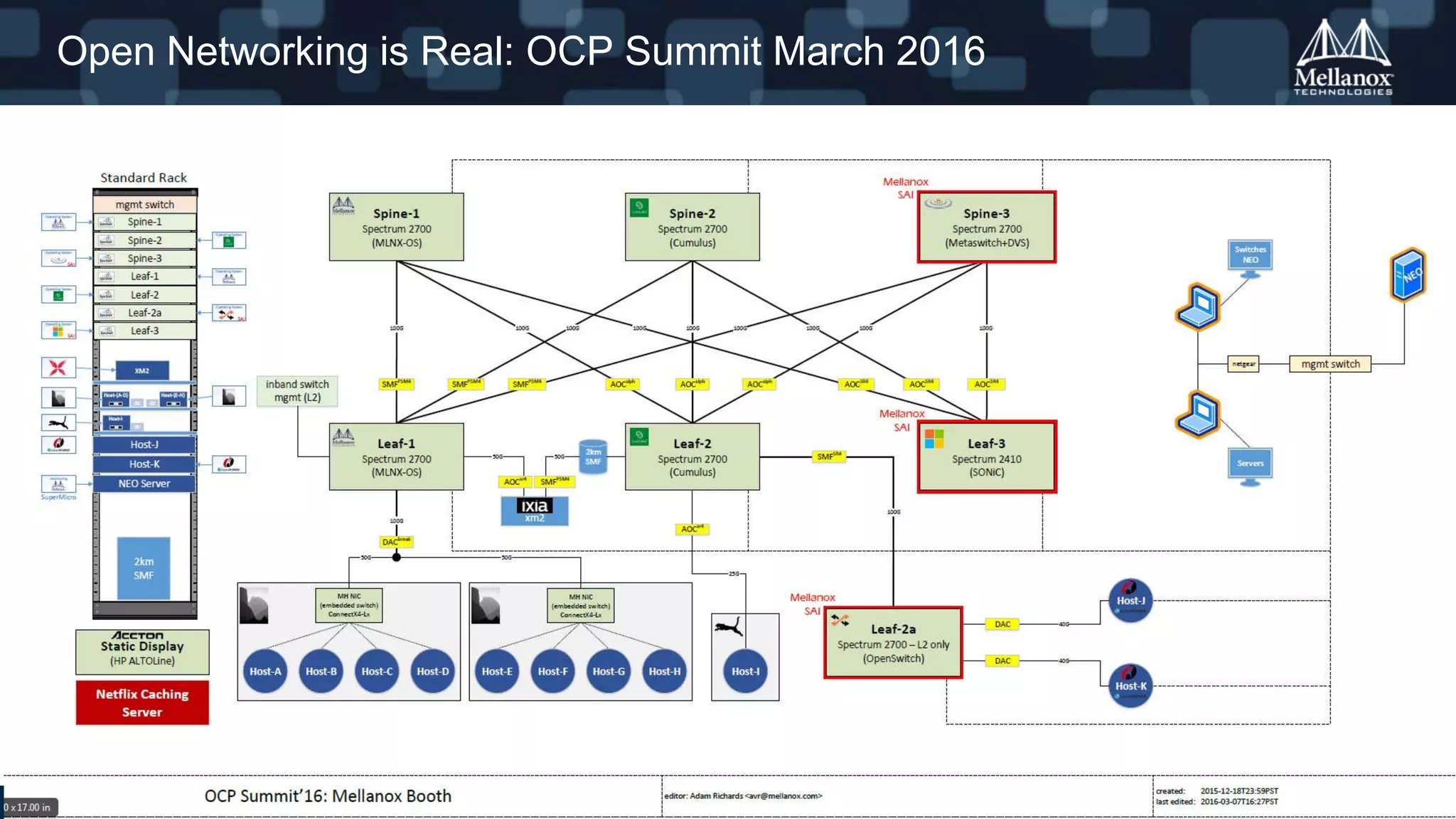

© 2016 Mellanox Technologies 45- Mellanox Confidential - Open Networking is Real: OCP Summit March 2016

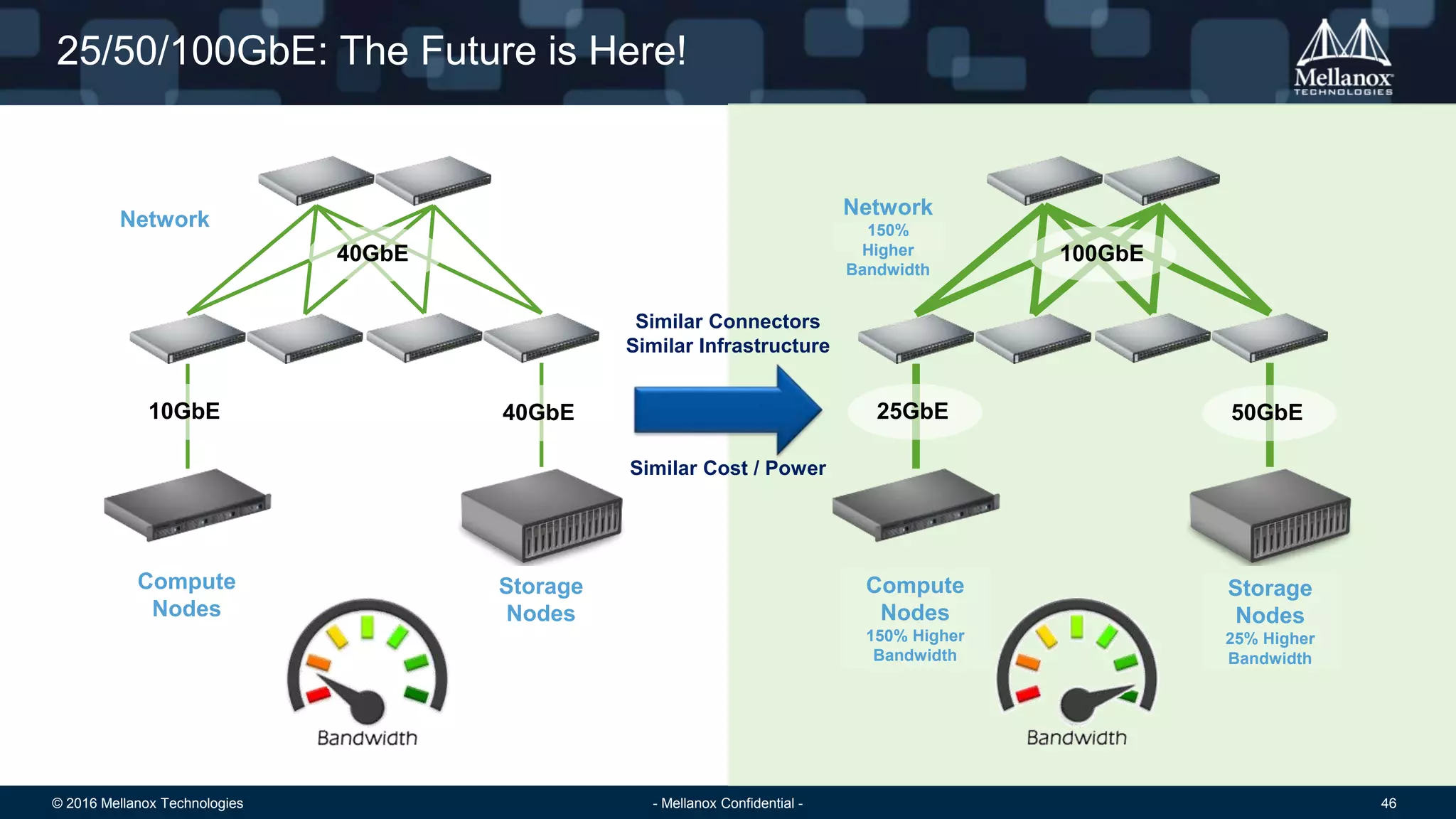

© 2016 Mellanox Technologies 46- Mellanox Confidential - 25/50/100GbE: The Future is Here! Compute Nodes Storage Nodes Network 40GbE 10GbE 40GbE Compute Nodes 150% Higher Bandwidth Storage Nodes 25% Higher Bandwidth Network 150% Higher Bandwidth 100GbE 25GbE 50GbE Similar Connectors Similar Infrastructure Similar Cost / Power
© 2016 Mellanox Technologies 47- Mellanox Confidential - Who needs more than 10GbE?  Latest multi-core Intel CPUs can easily drive more than 10Gb/s  Cloud (public or private) • Multi-tenancy • Need to deliver higher SLAs with lower predictability  Hyperconverged / Software Defined Storage / NVMe • Network & Storage on the same wire • Faster & Cheaper storage media  Database / Big Data • Increasing volumes • Moving from batch to real-time  Network Function Virtualization (NFV) • I/O intensive data plane

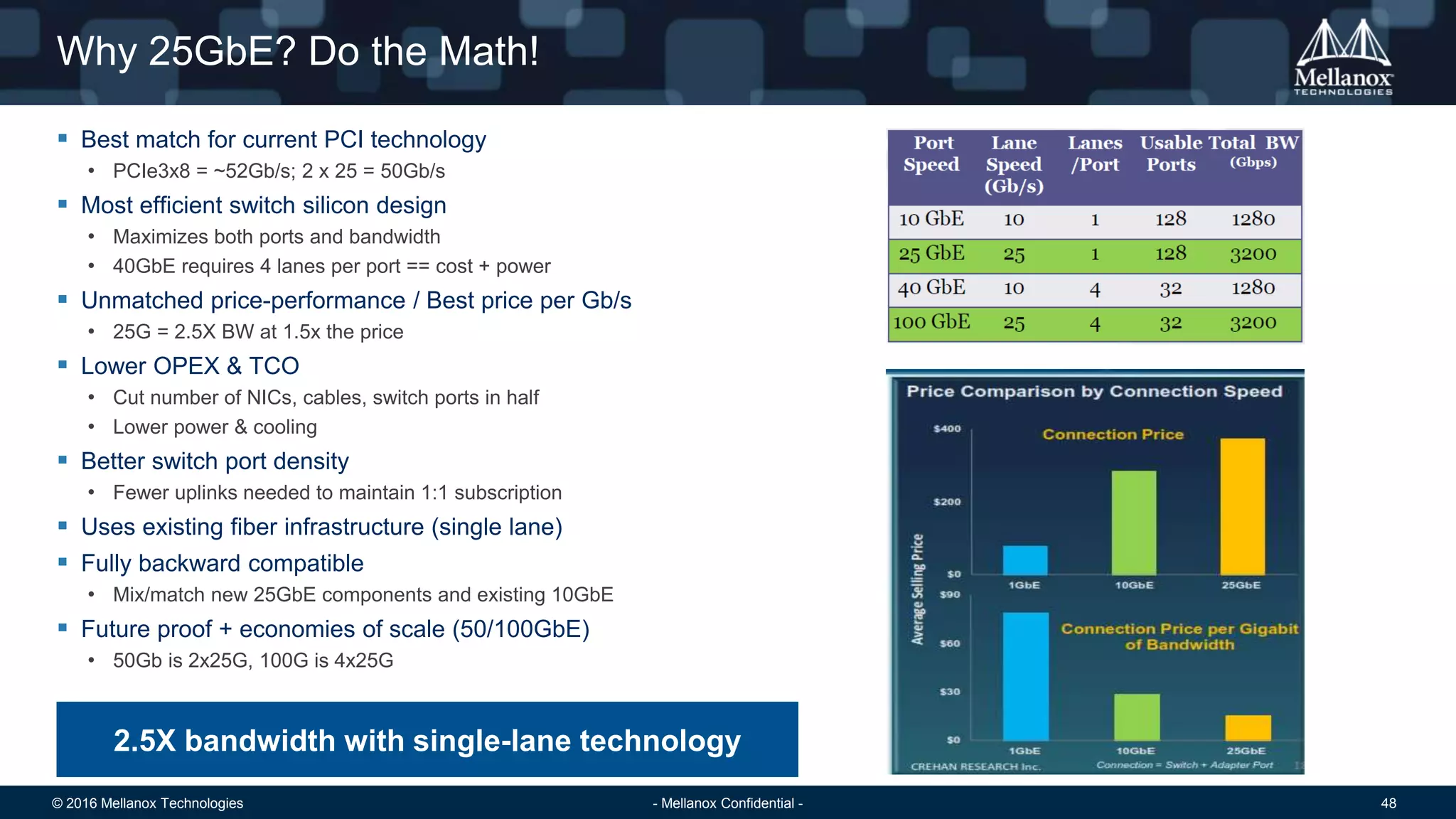

© 2016 Mellanox Technologies 48- Mellanox Confidential - Why 25GbE? Do the Math!  Best match for current PCI technology • PCIe3x8 = ~52Gb/s; 2 x 25 = 50Gb/s  Most efficient switch silicon design • Maximizes both ports and bandwidth • 40GbE requires 4 lanes per port == cost + power  Unmatched price-performance / Best price per Gb/s • 25G = 2.5X BW at 1.5x the price  Lower OPEX & TCO • Cut number of NICs, cables, switch ports in half • Lower power & cooling  Better switch port density • Fewer uplinks needed to maintain 1:1 subscription  Uses existing fiber infrastructure (single lane)  Fully backward compatible • Mix/match new 25GbE components and existing 10GbE  Future proof + economies of scale (50/100GbE) • 50Gb is 2x25G, 100G is 4x25G 2.5X bandwidth with single-lane technology
© 2016 Mellanox Technologies 49- Mellanox Confidential - 25GbE Industry Timeline  March 2014: Microsoft presents proposal for 25GbE to IEEE, leveraging existing activities, such as 25G PHY (100GbE) & SFP28 (32G FC)  July 2014: Open Industry Consortium to Bring 25 and 50 Gigabit Ethernet to Cloud-Scale Networks  August 2015: First products ship to end customers  September 2015: The 25G Ethernet Consortium specification draft completed  December 2015: Multi-vendor interoperability validated by multiple customers  Q4 2015 – Q2 2016: Ecosystem grows and matures  June 2016: IEEE 802.3by standard approved by The IEEE-SA Standards Board

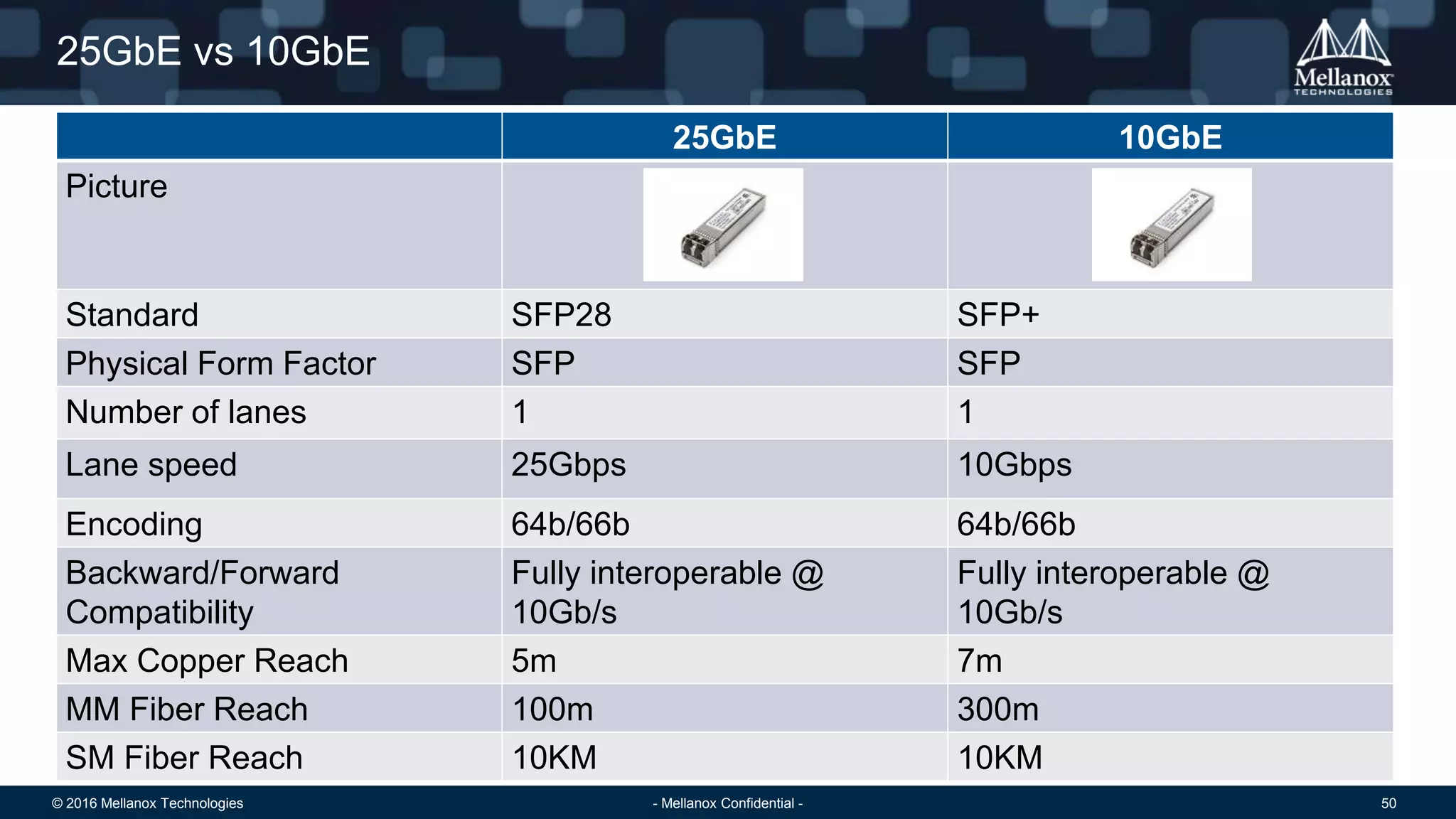

© 2016 Mellanox Technologies 50- Mellanox Confidential - 25GbE vs 10GbE 25GbE 10GbE Picture Standard SFP28 SFP+ Physical Form Factor SFP SFP Number of lanes 1 1 Lane speed 25Gbps 10Gbps Encoding 64b/66b 64b/66b Backward/Forward Compatibility Fully interoperable @ 10Gb/s Fully interoperable @ 10Gb/s Max Copper Reach 5m 7m MM Fiber Reach 100m 300m SM Fiber Reach 10KM 10KM

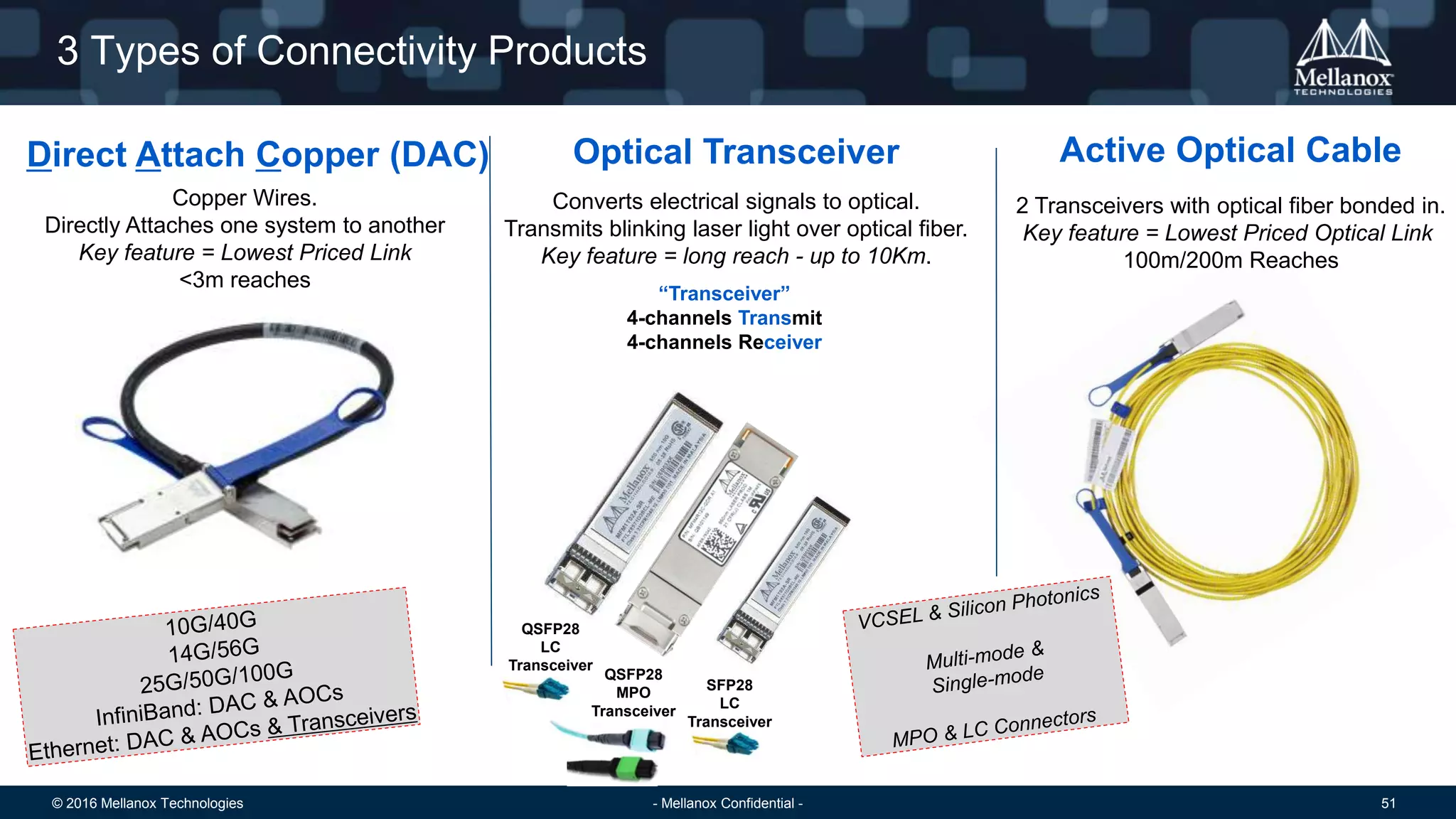

© 2016 Mellanox Technologies 51- Mellanox Confidential - 3 Types of Connectivity Products Direct Attach Copper (DAC) “Transceiver” 4-channels Transmit 4-channels Receiver Copper Wires. Directly Attaches one system to another Key feature = Lowest Priced Link <3m reaches Optical Transceiver Converts electrical signals to optical. Transmits blinking laser light over optical fiber. Key feature = long reach - up to 10Km. Active Optical Cable 2 Transceivers with optical fiber bonded in. Key feature = Lowest Priced Optical Link 100m/200m Reaches SFP28 LC Transceiver QSFP28 LC Transceiver QSFP28 MPO Transceiver

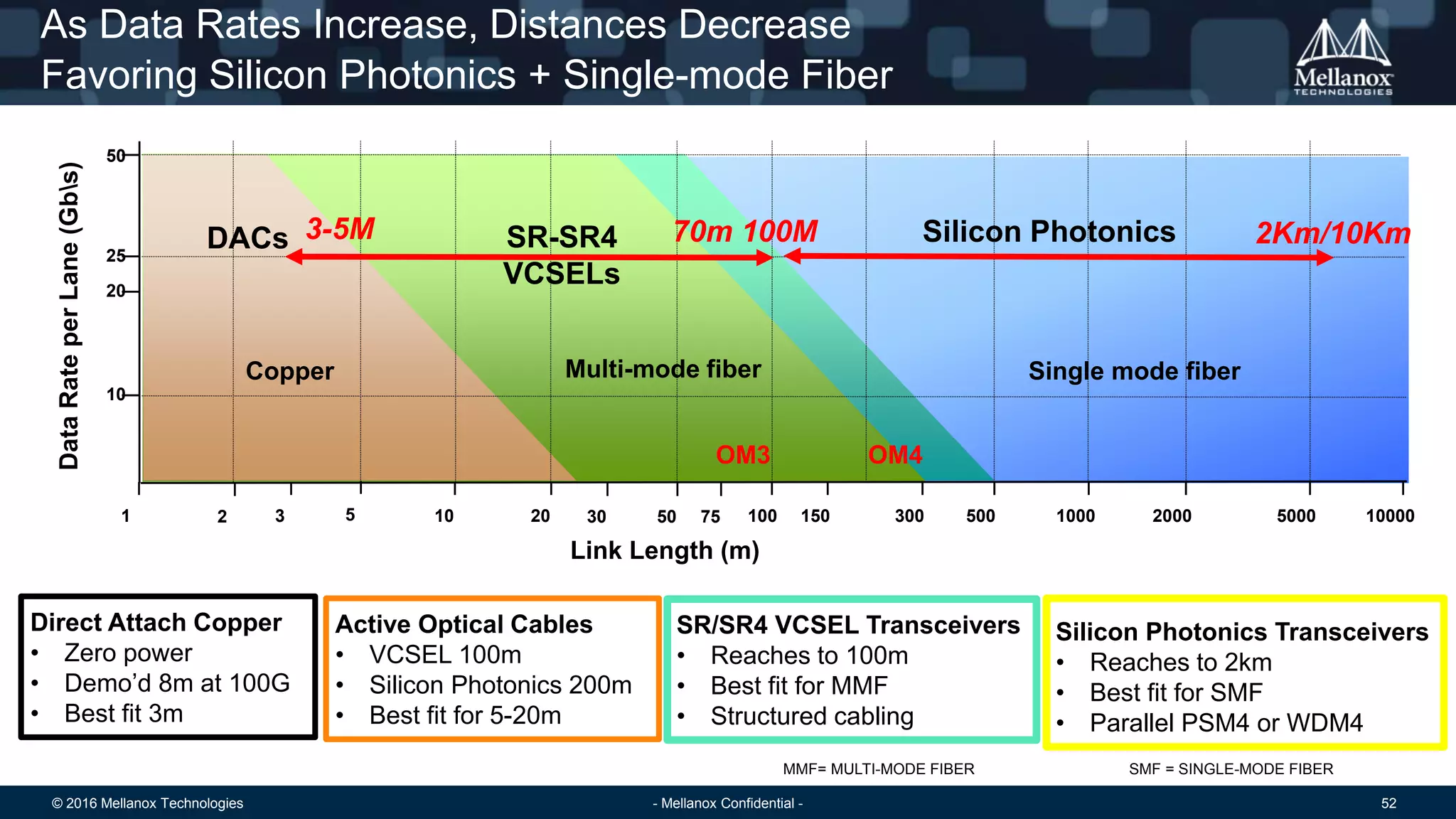

© 2016 Mellanox Technologies 52- Mellanox Confidential - As Data Rates Increase, Distances Decrease Favoring Silicon Photonics + Single-mode Fiber Link Length (m) 10 100 500150 300 1000 2000 10 25 50 3 51 20 DataRateperLane(Gbs) 10000500020 30 50 752 Single mode fiber OM4OM3 Copper Multi-mode fiber Silicon Photonics Direct Attach Copper • Zero power • Demo’d 8m at 100G • Best fit 3m DACs Active Optical Cables • VCSEL 100m • Silicon Photonics 200m • Best fit for 5-20m SR/SR4 VCSEL Transceivers • Reaches to 100m • Best fit for MMF • Structured cabling Silicon Photonics Transceivers • Reaches to 2km • Best fit for SMF • Parallel PSM4 or WDM4 3-5M 70m 100M MMF= MULTI-MODE FIBER SMF = SINGLE-MODE FIBER 2Km/10KmSR-SR4 VCSELs

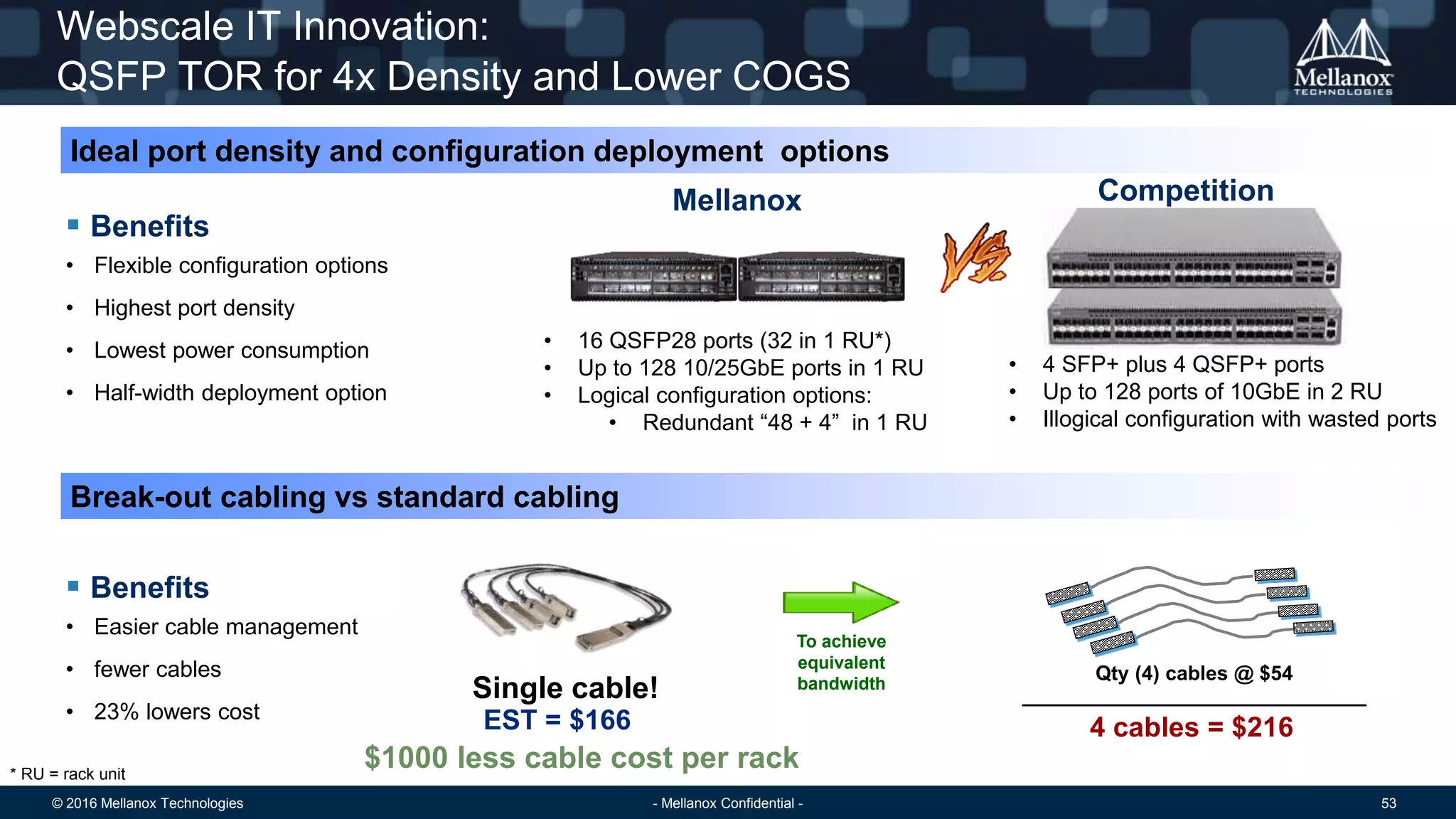

© 2016 Mellanox Technologies 53- Mellanox Confidential - Webscale IT Innovation: QSFP TOR for 4x Density and Lower COGS EST = $166 Single cable! Break-out cabling vs standard cabling Ideal port density and configuration deployment options 4 cables = $216 Qty (4) cables @ $54  Benefits • Easier cable management • fewer cables • 23% lowers cost  Benefits • Flexible configuration options • Highest port density • Lowest power consumption • Half-width deployment option • 4 SFP+ plus 4 QSFP+ ports • Up to 128 ports of 10GbE in 2 RU • Illogical configuration with wasted ports * RU = rack unit • 16 QSFP28 ports (32 in 1 RU*) • Up to 128 10/25GbE ports in 1 RU • Logical configuration options: • Redundant “48 + 4” in 1 RU Mellanox Competition To achieve equivalent bandwidth $1000 less cable cost per rack

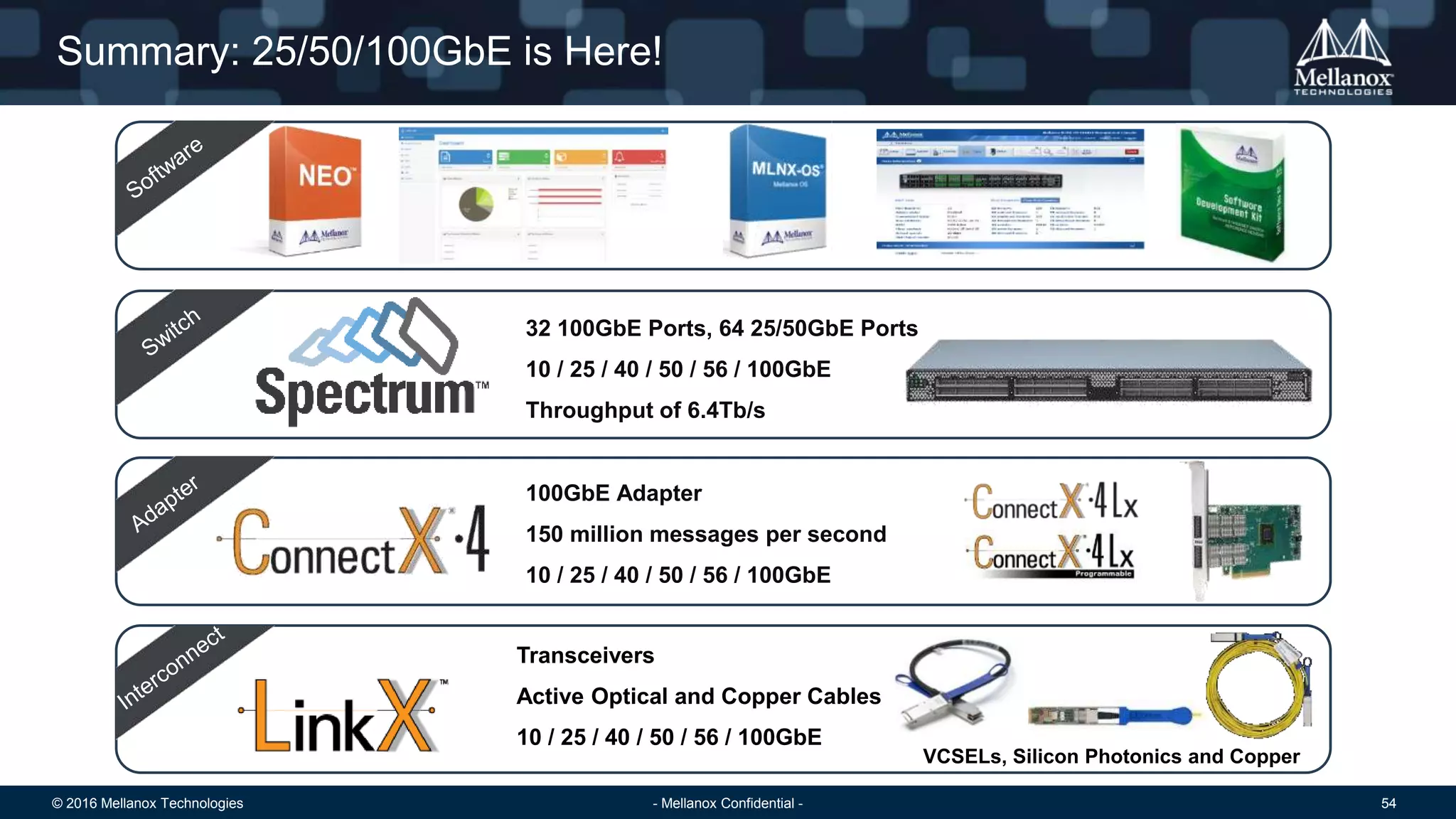

© 2016 Mellanox Technologies 54- Mellanox Confidential - Summary: 25/50/100GbE is Here! 100GbE Adapter 150 million messages per second 10 / 25 / 40 / 50 / 56 / 100GbE 32 100GbE Ports, 64 25/50GbE Ports 10 / 25 / 40 / 50 / 56 / 100GbE Throughput of 6.4Tb/s Transceivers Active Optical and Copper Cables 10 / 25 / 40 / 50 / 56 / 100GbE VCSELs, Silicon Photonics and Copper

More Related Content

PDF
NFD9 - Dinesh Dutt, Data Center Architectures
byCumulus Networks

PPTX
Demystifying Networking Webinar Series- Routing on the Host
byCumulus Networks

PDF
Operationalizing BGP in the SDDC
byCumulus Networks

PPTX
Building Scalable Data Center Networks
byCumulus Networks

PDF
Cumulus Linux 2.5.5 What's New
byCumulus Networks

PDF
Ifupdown2: Network Interface Manager
byCumulus Networks

PPTX
Linux networking is Awesome!
byCumulus Networks

PPTX
Morphology of Modern Data Center Networks - YaC 2013
byCumulus Networks

NFD9 - Dinesh Dutt, Data Center Architectures
byCumulus Networks

Demystifying Networking Webinar Series- Routing on the Host
byCumulus Networks

Operationalizing BGP in the SDDC
byCumulus Networks

Building Scalable Data Center Networks
byCumulus Networks

Cumulus Linux 2.5.5 What's New
byCumulus Networks

Ifupdown2: Network Interface Manager
byCumulus Networks

Linux networking is Awesome!
byCumulus Networks

Morphology of Modern Data Center Networks - YaC 2013
byCumulus Networks


What's hot

PDF
Building DataCenter networks with VXLAN BGP-EVPN
byCisco Canada

PPTX
Cumulus Linux 2.5.3
byCumulus Networks

PDF
NetDevOps 202: Life After Configuration
byCumulus Networks

PDF
OPNFV Service Function Chaining
byOPNFV

PPTX
Cumulus Networks: Automating Network Configuration
byCumulus Networks

PPTX
Vxlan deep dive session rev0.5 final
byKwonSun Bae

PDF
Intent driven, fully automated deployment of anycasted load balancers with ha...
byMaximilan Wilhelm

PPTX
Microservices Network Architecture 101
byCumulus Networks

PDF
Contemporary network configuration for linux - ifupdown-ng
byMaximilan Wilhelm

PDF
Runos OpenFlow Controller (eng)
byAlexander Shalimov

PDF
Layer 3 Tunnel Support for Open vSwitch
byNetronome

PPTX
IPv6 at Mythic Beasts - Networkshop44
byJisc

PPTX
20171010 multitenancy in openshift
bySmals

PPTX
VXLAN Practice Guide
byPrasenjit Sarkar

PDF
An Overview of Linux Networking Options
byScott Lowe

PPTX
Ipv6 deployment at the university of warwick - networkshop44
byJisc

PPTX
Webinar: Network Automation [Tips & Tricks]
byCumulus Networks

PDF
Dreamhost deploying dreamcompute at scale
byCumulus Networks

PPTX
Network Architecture for Containers
byCumulus Networks

PPTX
SoC Solutions Enabling Server-Based Networking
byNetronome

Building DataCenter networks with VXLAN BGP-EVPN
byCisco Canada

Cumulus Linux 2.5.3
byCumulus Networks

NetDevOps 202: Life After Configuration
byCumulus Networks

OPNFV Service Function Chaining
byOPNFV

Cumulus Networks: Automating Network Configuration
byCumulus Networks

Vxlan deep dive session rev0.5 final
byKwonSun Bae

Intent driven, fully automated deployment of anycasted load balancers with ha...
byMaximilan Wilhelm

Microservices Network Architecture 101
byCumulus Networks

Contemporary network configuration for linux - ifupdown-ng
byMaximilan Wilhelm

Runos OpenFlow Controller (eng)
byAlexander Shalimov

Layer 3 Tunnel Support for Open vSwitch
byNetronome

IPv6 at Mythic Beasts - Networkshop44
byJisc

20171010 multitenancy in openshift
bySmals

VXLAN Practice Guide
byPrasenjit Sarkar

An Overview of Linux Networking Options
byScott Lowe

Ipv6 deployment at the university of warwick - networkshop44
byJisc

Webinar: Network Automation [Tips & Tricks]
byCumulus Networks

Dreamhost deploying dreamcompute at scale
byCumulus Networks

Network Architecture for Containers
byCumulus Networks

SoC Solutions Enabling Server-Based Networking
byNetronome


Viewers also liked

PDF
Modern Data Center Network Architecture - The house that Clos built
byCumulus Networks

PDF
Cumulus Linux 2.5.4
byCumulus Networks

PDF
Unleash the Power of Open Networking
byCumulus Networks

PDF
How deep is your buffer – Demystifying buffers and application performance
byCumulus Networks

PDF
Manage your switches like servers
byCumulus Networks

PPTX
Operationalizing VRF in the Data Center
byCumulus Networks

PDF
Using linux to manage the entire rack
byCumulus Networks

PPTX
Demystifying Networking: Data Center Networking Trends 2017
byCumulus Networks

PDF
NFD9 - JR Rivers, Cumulus Networks Overview
byCumulus Networks

PPTX
Webinar-Linux Networking is Awesome
byCumulus Networks

PPTX
Big Data, Better Networks
byCumulus Networks

PDF
Big data, better networks
byCumulus Networks

PDF
Webinar- Tea for the Tillerman
byCumulus Networks

PDF
Open Hardware for All - Webinar March 25, 2015
byCumulus Networks

PDF
NFD9 - David Sinn, Real World Examples
byCumulus Networks

Modern Data Center Network Architecture - The house that Clos built
byCumulus Networks

Cumulus Linux 2.5.4
byCumulus Networks

Unleash the Power of Open Networking
byCumulus Networks

How deep is your buffer – Demystifying buffers and application performance
byCumulus Networks

Manage your switches like servers
byCumulus Networks

Operationalizing VRF in the Data Center
byCumulus Networks

Using linux to manage the entire rack
byCumulus Networks

Demystifying Networking: Data Center Networking Trends 2017
byCumulus Networks

NFD9 - JR Rivers, Cumulus Networks Overview
byCumulus Networks

Webinar-Linux Networking is Awesome
byCumulus Networks

Big Data, Better Networks
byCumulus Networks

Big data, better networks
byCumulus Networks

Webinar- Tea for the Tillerman
byCumulus Networks

Open Hardware for All - Webinar March 25, 2015
byCumulus Networks

NFD9 - David Sinn, Real World Examples
byCumulus Networks


Similar to July NYC Open Networking Meeup

PDF
Bgp tutorial for ISP
byWahyu Nasution

PDF
Configuration & Routing of Clos Networks
byCumulus Networks

PPT
Bgp For Presentation
byAlp isik

PDF
BGP evolution -from SDN perspective
byMiya Kohno

PDF
Large Scale Data center Solution Guide: eBGP based design
byDhiman Chowdhury

PDF
Demystifying EVPN in the data center: Part 1 in 2 episode series
byCumulus Networks

PPT
BSCI30S06 border gateway protocol BG ppt
byhodeve9961

PDF
BGP
byKHNOG

PPTX
bgp protocol
bySukanya Sanyal

PDF
Bgpeuro
bygigicaltea

PPT
BGP
byReza Farahani

PDF
08 ip oc304 2_e1_1 zxr10 m6000 bgp configuration 24
bylegasu zemene

DOCX
Surviving The Stump The Chump Interview Questions
byDuane Bodle

PPTX
AWS Hybrid Cloud Connectivity - VPN Solutions
byKent Plummer

PDF
BGP on mikrotik
byAchmad Mardiansyah

PDF
Bgp
byGolak Nayak

PDF
07.bgp
byJuan Carlos Añazco Millar

PDF
Bgp Toc
bybigb0206

PDF
Border Gateway Protocol BGP Info abot dynamic
byLakshmi101519

PDF
Halabi Bgp4 Case Studies Tutorial
byHussein Elmenshawy

Bgp tutorial for ISP
byWahyu Nasution

Configuration & Routing of Clos Networks
byCumulus Networks

Bgp For Presentation
byAlp isik

BGP evolution -from SDN perspective
byMiya Kohno

Large Scale Data center Solution Guide: eBGP based design
byDhiman Chowdhury

Demystifying EVPN in the data center: Part 1 in 2 episode series
byCumulus Networks

BSCI30S06 border gateway protocol BG ppt
byhodeve9961

BGP
byKHNOG

bgp protocol
bySukanya Sanyal

Bgpeuro
bygigicaltea

BGP
byReza Farahani

08 ip oc304 2_e1_1 zxr10 m6000 bgp configuration 24
bylegasu zemene

Surviving The Stump The Chump Interview Questions
byDuane Bodle

AWS Hybrid Cloud Connectivity - VPN Solutions
byKent Plummer

BGP on mikrotik
byAchmad Mardiansyah

Bgp
byGolak Nayak

07.bgp
byJuan Carlos Añazco Millar

Bgp Toc
bybigb0206

Border Gateway Protocol BGP Info abot dynamic
byLakshmi101519

Halabi Bgp4 Case Studies Tutorial
byHussein Elmenshawy


Recently uploaded

PDF
Guided Substation Engineering with CoMPAS: Simplifying IEC 61850
byDanBrown980551

PDF
TrustArc Webinar - Looking Ahead: The 2026 Privacy Landscape
byTrustArc

PDF
Generative AI in UiPath: Mastering the Generative Extractor for Intelligent D...
byDianaGray10

PDF
Vibe Coding vs. Spec-Driven Development [Free Meetup]
byHaim Michael

PDF
Igniting the Future: Copilot trends, agentic transformation and product roadm...
byUni Systems S.M.S.A.

PPTX
RISE with SAP for Automotive - S4 HANA Value.pptx
byAmira Jemi

PDF
API206-S: Transforming Supply Chains with Amazon Bedrock AgentCore - AWS re:I...
byChris Bingham

PPTX
THIS IS CYBER SECURITY NOTES USED IN CLASS ON VARIOUS TOPICS USED IN CYBERSEC...
byMelissaGblinwon

PPTX
Combining Induction and Transduction for Abstract Reasoning.pptx
byallen578468

PPTX
Ritesh_kumar_Aatmanirbhar Bharat: Make in India, Make for the World.pptx
byriteshrkgs2008

PDF
Agentic Automation for Testers – A Hands-On Deep Dive
byUiPathCommunity

PDF
Empowering Productivity with Clever Prompts and Intelligent Agents
byUni Systems S.M.S.A.

PDF
Incident Response Planning with a Foundation Model
byKim Hammar

PDF
TPPmark2025 Kenta Inoue's answer 12/04/2025
byKenta Inoue

PDF
Accelerating Responsible AI Adoption in Public Sector and Private Organizations.
byYasir Naveed Riaz

PDF
TrustArc Webinar - Assessing AI Risk with Confidence
byTrustArc

PDF
eResource Scheduler Enterprise Resource Management and Scheduling Software.pdf
byeResource Scheduler

PDF
Greetings All Students Update 3 by Mia Corp
by©LDMMIA, ©Reiki Yoga

PDF
Innovative AI Solutions for Business Growth.pdf
byVox Works

PDF
Top Cybersecurity Threats 2025 Guide by Sureshdas
byPrintersassist

Guided Substation Engineering with CoMPAS: Simplifying IEC 61850
byDanBrown980551

TrustArc Webinar - Looking Ahead: The 2026 Privacy Landscape
byTrustArc

Generative AI in UiPath: Mastering the Generative Extractor for Intelligent D...
byDianaGray10

Vibe Coding vs. Spec-Driven Development [Free Meetup]
byHaim Michael

Igniting the Future: Copilot trends, agentic transformation and product roadm...
byUni Systems S.M.S.A.

RISE with SAP for Automotive - S4 HANA Value.pptx
byAmira Jemi

API206-S: Transforming Supply Chains with Amazon Bedrock AgentCore - AWS re:I...
byChris Bingham

THIS IS CYBER SECURITY NOTES USED IN CLASS ON VARIOUS TOPICS USED IN CYBERSEC...
byMelissaGblinwon

Combining Induction and Transduction for Abstract Reasoning.pptx
byallen578468

Ritesh_kumar_Aatmanirbhar Bharat: Make in India, Make for the World.pptx
byriteshrkgs2008

Agentic Automation for Testers – A Hands-On Deep Dive
byUiPathCommunity

Empowering Productivity with Clever Prompts and Intelligent Agents
byUni Systems S.M.S.A.

Incident Response Planning with a Foundation Model
byKim Hammar

TPPmark2025 Kenta Inoue's answer 12/04/2025
byKenta Inoue

Accelerating Responsible AI Adoption in Public Sector and Private Organizations.
byYasir Naveed Riaz

TrustArc Webinar - Assessing AI Risk with Confidence
byTrustArc

eResource Scheduler Enterprise Resource Management and Scheduling Software.pdf
byeResource Scheduler

Greetings All Students Update 3 by Mia Corp
by©LDMMIA, ©Reiki Yoga

Innovative AI Solutions for Business Growth.pdf
byVox Works

Top Cybersecurity Threats 2025 Guide by Sureshdas
byPrintersassist


July NYC Open Networking Meeup

  • 1.
    v BGP in theDatacenter Pete Lumbis – @PeteCCDE Datacenter Architect CCIE #28677, CCDE 2012::3 cumulusnetworks.com 1
  • 2.
    Pete Who? CCIE R&S#28677, CCDE 2012::3 Former Cisco TAC Routing Escalation Current Cumulus Networks SE DC Automation and Architecture
  • 3.
    Agenda The history ofL2 Routing in the datacenter BGP in the datacenter Troubleshooting improvements BGP on Servers cumulusnetworks.com 3
  • 4.
    In the Beginning… Therewas L2… cumulusnetworks.com 4
  • 5.
    In the Beginning… …butit had problems cumulusnetworks.com 5 50% bandwidth loss due to STP
  • 6.
    In the Beginning… …butit had problems cumulusnetworks.com 6 Unexpected Root change Roo t
  • 7.
    In the Beginning… …butit had problems cumulusnetworks.com 7 STP Brownout Flooding! Temporary loops!STP Block on TCN!
  • 8.
    Agenda The history ofL2 Routing in the datacenter BGP in the datacenter Troubleshooting improvements BGP on Servers cumulusnetworks.com 8
  • 9.

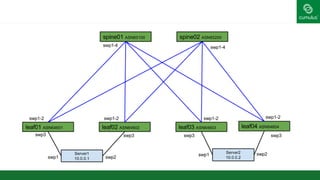

    Layer 3 Clos cumulusnetworks.com9 Server gateway is attached Leaf Routing Between Spine and Leafs 10.1.1.0/24 10.2.2.0/24 10.3.3.0/24 OSPF or BGP
  • 10.
    Layer 3 –Spine and Leaf cumulusnetworks.com 10 Full ECMP
  • 11.
    Layer 3 –Spine and Leaf cumulusnetworks.com 11 Full ECMP Manageable Oversubscription 48 x 10Gig = 480 Gigs 2 x 40Gig = 80 Gigs = 6:1 Oversubscription
  • 12.
    Layer 3 –Spine and Leaf cumulusnetworks.com 12 Full ECMP Manageable Oversubscription Easy to Adjust 48 x 10Gig = 480 Gigs 2 x 40Gig = 80 Gigs = 6:1 Oversubscription
  • 13.
    Layer 3 –Spine and Leaf cumulusnetworks.com 13 Full ECMP Manageable Oversubscription Easy to Adjust 48 x 10Gig = 480 Gigs 3 x 40Gig = 120 Gigs = 4:1 Oversubscription
  • 14.
    Layer 3 –Spine and Leaf cumulusnetworks.com 14 Full ECMP Manageable Oversubscription Easy to Adjust 48 x 10Gig = 480 Gigs 3 x 40Gig = 120 Gigs = 4:1 Oversubscription
  • 15.
    Layer 3 –Spine and Leaf cumulusnetworks.com 15 Full ECMP Manageable Oversubscription Easy to Adjust Massive Scale 48 x 10Gig = 480 Gigs 3 x 40Gig = 120 Gigs = 4:1 Oversubscription
  • 16.
    Layer 3 –Spine and Leaf cumulusnetworks.com 16 Full ECMP Manageable Oversubscription Easy to Adjust Massive Scale Controlled Failures Leaf Failure Reduces Compute
  • 17.
    Layer 3 –Spine and Leaf cumulusnetworks.com 17 Full ECMP Manageable Oversubscription Easy to Adjust Massive Scale Controlled Failures Spine Failure Increases Oversubscription
  • 18.
    Agenda The history ofL2 Routing in the datacenter BGP in the datacenter Troubleshooting improvements BGP on Servers cumulusnetworks.com 18
  • 19.
    BGP as anIGP RFC Draft submitted 2014 Microsoft and Facebook Targeting DC All the hows and whys cumulusnetworks.com 19
  • 20.
    But I thoughtBGP was… …slow  Nope. Not with BFD and timer tuning. Just as fast as OSPF. …hard to configure  We’ll get to that one later, but it can be easy …only for service providers  SPs build for scale and stability. You should too …hard to troubleshoot  Nice and easy when everything is defined + recent advances cumulusnetworks.com 20
  • 21.
    Single ASN forSpines Unique ASN for Leafs Use Private ASN range 2-byte (1023):  64512 – 65534 4-byte (94 million):  4200000000 - 4294967294 BGP Datacenter Design cumulusnetworks.com 21 65534 65534 64512 64513 64514
  • 22.
    Reducing BGP ConfigurationComplexity Classically lots to manage cumulusnetworks.com 22 65534 65534 64512 64513 64514 router bgp 65534 router-id 10.0.0.1 neighbor 10.1.1.1 remote-as 64512 neighbor 10.1.1.2 remote-as 64513 neighbor 10.1.1.3 remote-as 64514 neighbor 10.1.1.1 timers 1 3 neighbor 10.1.1.2 timers 1 3 neighbor 10.1.1.3 timers 1 3 neighbor 10.1.1.1 timers connect 3 neighbor 10.1.1.2 timers connect 3 neighbor 10.1.1.3 timers connect 3
  • 23.
    Reducing BGP ConfigurationComplexity First – Simplify Remote AS cumulusnetworks.com 23 65534 65534 64512 64513 64514 router bgp 65534 router-id 10.0.0.1 neighbor 10.1.1.1 remote-as 64512 neighbor 10.1.1.2 remote-as 64513 neighbor 10.1.1.3 remote-as 64514 neighbor 10.1.1.1 timers 1 3 neighbor 10.1.1.2 timers 1 3 neighbor 10.1.1.3 timers 1 3 neighbor 10.1.1.1 timers connect 3 neighbor 10.1.1.2 timers connect 3 neighbor 10.1.1.3 timers connect 3
  • 24.
    Reducing BGP ConfigurationComplexity First – Simplify Remote AS cumulusnetworks.com 24 65534 65534 64512 64513 64514 router bgp 65534 router-id 10.0.0.1 neighbor 10.1.1.1 remote-as external neighbor 10.1.1.2 remote-as external neighbor 10.1.1.3 remote-as external neighbor 10.1.1.1 timers 1 3 neighbor 10.1.1.2 timers 1 3 neighbor 10.1.1.3 timers 1 3 neighbor 10.1.1.1 timers connect 3 neighbor 10.1.1.2 timers connect 3 neighbor 10.1.1.3 timers connect 3
  • 25.
    Reducing BGP ConfigurationComplexity First – Simplify Remote AS cumulusnetworks.com 25 65534 65534 64512 64513 64514 router bgp 65534 router-id 10.0.0.1 neighbor 10.1.1.1 remote-as external neighbor 10.1.1.2 remote-as external neighbor 10.1.1.3 remote-as external neighbor 10.1.1.1 timers 1 3 neighbor 10.1.1.2 timers 1 3 neighbor 10.1.1.3 timers 1 3 neighbor 10.1.1.1 timers connect 3 neighbor 10.1.1.2 timers connect 3 neighbor 10.1.1.3 timers connect 3 remote-as internal as well
  • 26.
    Reducing BGP ConfigurationComplexity Next – Use Peer Groups cumulusnetworks.com 27 65534 65534 64512 64513 64514 router bgp 65534 router-id 10.0.0.1 neighbor 10.1.1.1 remote-as external neighbor 10.1.1.2 remote-as external neighbor 10.1.1.3 remote-as external neighbor 10.1.1.1 timers 1 3 neighbor 10.1.1.2 timers 1 3 neighbor 10.1.1.3 timers 1 3 neighbor 10.1.1.1 timers connect 3 neighbor 10.1.1.2 timers connect 3 neighbor 10.1.1.3 timers connect 3
  • 27.
    Reducing BGP ConfigurationComplexity Next – Use Peer Groups cumulusnetworks.com 28 65534 65534 64512 64513 64514 router bgp 65534 router-id 10.0.0.1 neighbor 10.1.1.1 peer-group leafs neighbor 10.1.1.2 peer-group leafs neighbor 10.1.1.3 peer-group leafs neighbor leafs remote-as external neighbor leafs timers 1 3 neighbor leafs timers connect 3
  • 28.
    Reducing BGP ConfigurationComplexity Finally – BGP Unnumbered cumulusnetworks.com 29 65534 65534 64512 64513 64514 router bgp 65534 router-id 10.0.0.1 neighbor 10.1.1.1 peer-group leafs neighbor 10.1.1.2 peer-group leafs neighbor 10.1.1.3 peer-group leafs neighbor leafs remote-as external neighbor leafs timers 1 3 neighbor leafs timers connect 3
  • 29.
    Reducing BGP ConfigurationComplexity Finally – BGP Unnumbered cumulusnetworks.com 30 65534 65534 64512 64513 64514 router bgp 65534 router-id 10.0.0.1 neighbor swp1 peer-group leafs neighbor swp2 peer-group leafs neighbor swp3 peer-group leafs neighbor leafs remote-as external neighbor leafs timers 1 3 neighbor leafs timers connect 3
  • 30.
    BGP Unnumbered Uses IPv6Link Local addresses  Automatically assigned, no address management No need for infrastructure Ips  Only need Loopbacks Advertises both IPv4 and IPv6 Routes  RFC 5549. Full interop with Cisco, Arista, Juniper cumulusnetworks.com 31
  • 31.
    Agenda The history ofL2 Routing in the datacenter BGP in the datacenter Troubleshooting improvements BGP on Servers cumulusnetworks.com 34
  • 32.
    BGP Troubleshooting Improvements- Traceroute How do you troubleshoot links without IPs? Traceroute improvements  Report back loopback IP cumulusnetworks.com 35
  • 33.
    BGP Troubleshooting Improvements- Hostnames Who is the peer? Hostname BGP extension draft-walton- bgp-hostname- capability cumulusnetworks.com 36
  • 34.
    Comparing BGP Configurations Traditional Config cumulusnetworks.com37 router bgp 65534 router-id 10.0.0.1 maximum-paths 64 bgp bestpath as-path multipath-relax neighbor 10.1.1.1 remote-as 64512 neighbor 10.1.1.2 remote-as 64513 neighbor 10.1.1.3 remote-as 64514 neighbor 10.1.1.1 timers 1 3 neighbor 10.1.1.2 timers 1 3 neighbor 10.1.1.3 timers 1 3 neighbor 10.1.1.1 timers connect 3 neighbor 10.1.1.2 timers connect 3 neighbor 10.1.1.3 timers connect 3 router bgp 65534 router-id 10.0.0.1 neighbor swp1 peer-group leafs neighbor swp2 peer-group leafs neighbor swp3 peer-group leafs neighbor leafs remote-as external Cumulus Config
  • 35.
    Agenda The history ofL2 Routing in the datacenter BGP in the datacenter Troubleshooting improvements BGP on Servers cumulusnetworks.com 38
  • 36.
    BGP to theServer Why stop at the top of rack? BGP to the Server! Cumulus Quagga, GoBGP, Bird.  Just Linux Apps! No L2, No mLAG, No Infrastructure IPs  Use BGP Unnumbered Same troubleshooting and monitoring cumulusnetworks.com 39
  • 38.
    Summary L3 > L2 At least 1 better  Routing provides better scale and stability Easy to configure, automate, troubleshoot BGP all the way to the server! Smart defaults and Configuration Simplifications cumulusnetworks.com 41
  • 39.
    © 2014Cumulus Networks.Cumulus Networks, the Cumulus Networks Logo, and Cumulus Linux are trademarks or registered trademarks of Cumulus Networks, Inc. or its affiliates in the U.S. and other countries. Other names may be trademarks of their respective owners.The registered trademark Linux® is used pursuant to a sublicense from LMI, the exclusive licensee of LinusTorvalds, owner of the mark on a world-wide basis. ThankYou! cumulusnetworks.com 42
  • 40.
    Asaf Wachtel, Sr.Director Enterprise July 2016 25GbE Technology Update
  • 41.
    © 2016 MellanoxTechnologies 44- Mellanox Confidential - Open APIs Open Composable Networks Automation End-to-End Interconnect Network OS Choice SONiC
  • 42.
    © 2016 MellanoxTechnologies 45- Mellanox Confidential - Open Networking is Real: OCP Summit March 2016
  • 43.
    © 2016 MellanoxTechnologies 46- Mellanox Confidential - 25/50/100GbE: The Future is Here! Compute Nodes Storage Nodes Network 40GbE 10GbE 40GbE Compute Nodes 150% Higher Bandwidth Storage Nodes 25% Higher Bandwidth Network 150% Higher Bandwidth 100GbE 25GbE 50GbE Similar Connectors Similar Infrastructure Similar Cost / Power
  • 44.
    © 2016 MellanoxTechnologies 47- Mellanox Confidential - Who needs more than 10GbE?  Latest multi-core Intel CPUs can easily drive more than 10Gb/s  Cloud (public or private) • Multi-tenancy • Need to deliver higher SLAs with lower predictability  Hyperconverged / Software Defined Storage / NVMe • Network & Storage on the same wire • Faster & Cheaper storage media  Database / Big Data • Increasing volumes • Moving from batch to real-time  Network Function Virtualization (NFV) • I/O intensive data plane
  • 45.
    © 2016 MellanoxTechnologies 48- Mellanox Confidential - Why 25GbE? Do the Math!  Best match for current PCI technology • PCIe3x8 = ~52Gb/s; 2 x 25 = 50Gb/s  Most efficient switch silicon design • Maximizes both ports and bandwidth • 40GbE requires 4 lanes per port == cost + power  Unmatched price-performance / Best price per Gb/s • 25G = 2.5X BW at 1.5x the price  Lower OPEX & TCO • Cut number of NICs, cables, switch ports in half • Lower power & cooling  Better switch port density • Fewer uplinks needed to maintain 1:1 subscription  Uses existing fiber infrastructure (single lane)  Fully backward compatible • Mix/match new 25GbE components and existing 10GbE  Future proof + economies of scale (50/100GbE) • 50Gb is 2x25G, 100G is 4x25G 2.5X bandwidth with single-lane technology
  • 46.
    © 2016 MellanoxTechnologies 49- Mellanox Confidential - 25GbE Industry Timeline  March 2014: Microsoft presents proposal for 25GbE to IEEE, leveraging existing activities, such as 25G PHY (100GbE) & SFP28 (32G FC)  July 2014: Open Industry Consortium to Bring 25 and 50 Gigabit Ethernet to Cloud-Scale Networks  August 2015: First products ship to end customers  September 2015: The 25G Ethernet Consortium specification draft completed  December 2015: Multi-vendor interoperability validated by multiple customers  Q4 2015 – Q2 2016: Ecosystem grows and matures  June 2016: IEEE 802.3by standard approved by The IEEE-SA Standards Board
  • 47.
    © 2016 MellanoxTechnologies 50- Mellanox Confidential - 25GbE vs 10GbE 25GbE 10GbE Picture Standard SFP28 SFP+ Physical Form Factor SFP SFP Number of lanes 1 1 Lane speed 25Gbps 10Gbps Encoding 64b/66b 64b/66b Backward/Forward Compatibility Fully interoperable @ 10Gb/s Fully interoperable @ 10Gb/s Max Copper Reach 5m 7m MM Fiber Reach 100m 300m SM Fiber Reach 10KM 10KM
  • 48.
    © 2016 MellanoxTechnologies 51- Mellanox Confidential - 3 Types of Connectivity Products Direct Attach Copper (DAC) “Transceiver” 4-channels Transmit 4-channels Receiver Copper Wires. Directly Attaches one system to another Key feature = Lowest Priced Link <3m reaches Optical Transceiver Converts electrical signals to optical. Transmits blinking laser light over optical fiber. Key feature = long reach - up to 10Km. Active Optical Cable 2 Transceivers with optical fiber bonded in. Key feature = Lowest Priced Optical Link 100m/200m Reaches SFP28 LC Transceiver QSFP28 LC Transceiver QSFP28 MPO Transceiver
  • 49.
    © 2016 MellanoxTechnologies 52- Mellanox Confidential - As Data Rates Increase, Distances Decrease Favoring Silicon Photonics + Single-mode Fiber Link Length (m) 10 100 500150 300 1000 2000 10 25 50 3 51 20 DataRateperLane(Gbs) 10000500020 30 50 752 Single mode fiber OM4OM3 Copper Multi-mode fiber Silicon Photonics Direct Attach Copper • Zero power • Demo’d 8m at 100G • Best fit 3m DACs Active Optical Cables • VCSEL 100m • Silicon Photonics 200m • Best fit for 5-20m SR/SR4 VCSEL Transceivers • Reaches to 100m • Best fit for MMF • Structured cabling Silicon Photonics Transceivers • Reaches to 2km • Best fit for SMF • Parallel PSM4 or WDM4 3-5M 70m 100M MMF= MULTI-MODE FIBER SMF = SINGLE-MODE FIBER 2Km/10KmSR-SR4 VCSELs
  • 50.
    © 2016 MellanoxTechnologies 53- Mellanox Confidential - Webscale IT Innovation: QSFP TOR for 4x Density and Lower COGS EST = $166 Single cable! Break-out cabling vs standard cabling Ideal port density and configuration deployment options 4 cables = $216 Qty (4) cables @ $54  Benefits • Easier cable management • fewer cables • 23% lowers cost  Benefits • Flexible configuration options • Highest port density • Lowest power consumption • Half-width deployment option • 4 SFP+ plus 4 QSFP+ ports • Up to 128 ports of 10GbE in 2 RU • Illogical configuration with wasted ports * RU = rack unit • 16 QSFP28 ports (32 in 1 RU*) • Up to 128 10/25GbE ports in 1 RU • Logical configuration options: • Redundant “48 + 4” in 1 RU Mellanox Competition To achieve equivalent bandwidth $1000 less cable cost per rack
  • 51.
    © 2016 MellanoxTechnologies 54- Mellanox Confidential - Summary: 25/50/100GbE is Here! 100GbE Adapter 150 million messages per second 10 / 25 / 40 / 50 / 56 / 100GbE 32 100GbE Ports, 64 25/50GbE Ports 10 / 25 / 40 / 50 / 56 / 100GbE Throughput of 6.4Tb/s Transceivers Active Optical and Copper Cables 10 / 25 / 40 / 50 / 56 / 100GbE VCSELs, Silicon Photonics and Copper

Editor's Notes

  • #16 Depends on oversubscription needs Given 2:1 as requirement: two-tier: 32-port 40 gig spine and 48-port 10 gig leaf supports ~1500 hosts three-tier: ~65,000 hosts
  • #17 Depends on oversubscription needs Given 2:1 as requirement: two-tier: 32-port 40 gig spine and 48-port 10 gig leaf supports ~1500 hosts three-tier: ~65,000 hosts
  • #18 Depends on oversubscription needs Given 2:1 as requirement: two-tier: 32-port 40 gig spine and 48-port 10 gig leaf supports ~1500 hosts three-tier: ~65,000 hosts
  • #20 This is important as it created an easy to read set of guidelines on what to build and how to do it as well as the justification of their choices.
  • #45 Now that you understand how the hyperscalers build their cloud network infrastructure, you might start thinking, OK,, that is great, but I don’t have the manpower and large number of software developers to follow this model. The good news is, Mellanox and our ecosystem partners make things easy for you. We have a solution called Open Composable Networks that can provide you a set of high-performance, highly programmable networking components including switches, server adapters, optical modules and cables, network processors, which support open APIs such as SAI and switchdev for Linux, and on top of these standard interfaces, you have a slew of network operating system and software application choices. As a matter of fact, in this year’s OCP Summit last month, we did a live demo of 5 different network operating systems running over our flagship Spectrum switches. We also provide the middleware that make it easy to compose your ideal cloud network infrastructure, and simple to monitor, manage and scale.
  • #55 Not only did we carve performance on our flag, we carved Mellanox on the performance flag as well by continuously providing leading technology to a variety of applications. What we are looking at here is just a glimpse of the latest capabilities provided by Mellanox demonstrating a complete set of solutions for highest performing Ethernet speeds. Each element leading its market as a standalone and obviously providing the complete experience when combined into an end to end solution. On today’s session, we will focus on the switch side but in our demo we will demonstrate Adapters and cables as well.
