This document presents a novel methodology for generating test scenarios from UML 2.x sequence diagrams. It proposes constructing an intermediate control flow graph called a Sequence Control Flow Graph (SCFG) by analyzing the control flow in UML sequence diagrams. It also proposes a test scenario generation algorithm called STSGA that systematically generates test scenarios from the SCFG to test software in the early design phase and help testers later in the development cycle. The approach aims to address the challenges of fragments like alt, loop, break, par, and opt in UML sequence diagrams.
UML2SAN: Toward A New Software Performance Engineering Approachijseajournal
Software Performance Engineering (SPE) has recently considered as an important issue in the software
development process. It consists on evaluate the performance of a system during the design phase. We have
recently proposed a new methodology to generate a Stochastic Automata Network (SAN) model from a
UML model, to consequently obtain performance predications from UML specifications. In this paper, we
expand our idea to cover more complex UML models taking in advantage the modularity of SAN in
modeling large systems. A formal description of the generation process is presented. The new extension
gives rise to a serious approach in SPE that we call UML2SAN.
In this Business Analysis Training, you will learn UML And Use Case Study. Topics covered in this session are:
• UML - Unified Modeling Language
• Modeling
• Why UML for Modeling
• Object Oriented Concepts
• Object Oriented Modeling
• Basic Building blocks -UML
• Overview of UML Diagrams
• UML Diagrams - Basic Notations
• UML Diagrams - Relationships
• UML Diagrams - Structural diagram
• UML Diagrams - Behavioral diagram
• UML Diagrams - Architectural
For more information, click on this link:
https://www.mindsmapped.com/courses/business-analysis/fundamentals-of-business-analysis/
Model Based Software Timing Analysis Using Sequence Diagram for Commercial Ap...iosrjce
IOSR Journal of Computer Engineering (IOSR-JCE) is a double blind peer reviewed International Journal that provides rapid publication (within a month) of articles in all areas of computer engineering and its applications. The journal welcomes publications of high quality papers on theoretical developments and practical applications in computer technology. Original research papers, state-of-the-art reviews, and high quality technical notes are invited for publications.
fUML-Driven Design and Performance Analysis of Software Agents for Wireless S...Luca Berardinelli
The growing request for high-quality applications for Wireless Sensor Network (WSN) demands model-driven approaches that facilitate the design and the early validation of extra-functional properties by combining design and analysis models. For this purpose, UML and several analysis-specific languages can be chosen and weaved through translational approaches. However, the complexity brought by the underlying technological spaces may hinder the adoption of UML-based approaches in the WSN domain. The recently introduced Foundational UML (fUML) standard provides a formal semantics to a strict UML subset, enabling the execution of UML models.
Leveraging fUML, we realize the Agilla Modeling Framework, an executable fUML model library, to conveniently design agent-based software applications for WSN and analyze their performance through the execution of the corresponding fUML model. A running case study is provided to show our framework at work.
Formalization of a Hospital Management Systemijcseit
The automation of the processing and activities of Hospital Management System (HMS) can invariably contribute greatly to the success, profitability and customer-based approach of such an organization. The use of formal specification creates a formal approach for specifying the underlying functions and properties of the system. This paper has attempted to give a formal description of the activities of a HMS system Using Zed notation. The interaction within the system is visualized using Unified Modeling
Language (UML) sequence diagrams
UML2SAN: Toward A New Software Performance Engineering Approachijseajournal
Software Performance Engineering (SPE) has recently considered as an important issue in the software
development process. It consists on evaluate the performance of a system during the design phase. We have
recently proposed a new methodology to generate a Stochastic Automata Network (SAN) model from a
UML model, to consequently obtain performance predications from UML specifications. In this paper, we
expand our idea to cover more complex UML models taking in advantage the modularity of SAN in
modeling large systems. A formal description of the generation process is presented. The new extension
gives rise to a serious approach in SPE that we call UML2SAN.
In this Business Analysis Training, you will learn UML And Use Case Study. Topics covered in this session are:
• UML - Unified Modeling Language
• Modeling
• Why UML for Modeling
• Object Oriented Concepts
• Object Oriented Modeling
• Basic Building blocks -UML
• Overview of UML Diagrams
• UML Diagrams - Basic Notations
• UML Diagrams - Relationships
• UML Diagrams - Structural diagram
• UML Diagrams - Behavioral diagram
• UML Diagrams - Architectural
For more information, click on this link:
https://www.mindsmapped.com/courses/business-analysis/fundamentals-of-business-analysis/
Model Based Software Timing Analysis Using Sequence Diagram for Commercial Ap...iosrjce
IOSR Journal of Computer Engineering (IOSR-JCE) is a double blind peer reviewed International Journal that provides rapid publication (within a month) of articles in all areas of computer engineering and its applications. The journal welcomes publications of high quality papers on theoretical developments and practical applications in computer technology. Original research papers, state-of-the-art reviews, and high quality technical notes are invited for publications.
fUML-Driven Design and Performance Analysis of Software Agents for Wireless S...Luca Berardinelli
The growing request for high-quality applications for Wireless Sensor Network (WSN) demands model-driven approaches that facilitate the design and the early validation of extra-functional properties by combining design and analysis models. For this purpose, UML and several analysis-specific languages can be chosen and weaved through translational approaches. However, the complexity brought by the underlying technological spaces may hinder the adoption of UML-based approaches in the WSN domain. The recently introduced Foundational UML (fUML) standard provides a formal semantics to a strict UML subset, enabling the execution of UML models.
Leveraging fUML, we realize the Agilla Modeling Framework, an executable fUML model library, to conveniently design agent-based software applications for WSN and analyze their performance through the execution of the corresponding fUML model. A running case study is provided to show our framework at work.
Formalization of a Hospital Management Systemijcseit
The automation of the processing and activities of Hospital Management System (HMS) can invariably contribute greatly to the success, profitability and customer-based approach of such an organization. The use of formal specification creates a formal approach for specifying the underlying functions and properties of the system. This paper has attempted to give a formal description of the activities of a HMS system Using Zed notation. The interaction within the system is visualized using Unified Modeling
Language (UML) sequence diagrams
Time Series Estimation of Gas Furnace Data in IMPL and CPLEX Industrial Model...Alkis Vazacopoulos
Presented in this short document is a description of how to estimate a deterministic and stochastic time-series transfer function models in IMPL using IBM’s CPLEX applied to industrial gas furnace data. The methodology of time-series analysis involves essentially three (3) stages (Box and Jenkins, 1976): (1) model structure identification, (2) model parameter estimation and (3) model checking and diagnostics. We do not address (1) which requires stationarity and seasonality assessment, auto-, cross- and partial-correlation, etc. to establish the transfer function polynomial degrees. Instead we focus only on the parameter estimation and diagnostics. These types of parameter estimation problems involve dynamic and nonlinear relationships shown below and we solve these using IMPL’s nonlinear programming algorithm SLPQPE which uses CPLEX 12.6 as the QP sub-solver.
A framework to performance analysis of software architectural stylesijfcstjournal
Growing and executable system architecture has a significant role in successful production of large and
distributed systems. Assessing the effect of different decisions in architecture design can decrease the time and cost of software production, especially when these decisions are related to non-functional properties of system. Performance is a non-functional property which relates to timing behaviour of system. In this paper
we propose an approach for modelling and analysis of performance in architecture level. To do this,we follow a general process which needs two formal notations for specifying architecture and performance models of system. In this paper we show how Stochastic Process Algebra (SPA) in the form of PEPA language can be used for performance modelling and analysis of software archi
tectures modelled using Graph Transformation System (GTS). To enable architecture model for performance analysis, equivalent PEPA model should be constructed with transformation. Transformed performance model of the
architecture has been analysed through PEPA toolkit for some properties like throughput, sensitivity analysis, response time and utilisation rate. The analysis results have been explained with regard to a realistic case study.
This is an introduction to UML (Unified Modeling Language) given to people whom has no background on business modeling using UML. This is based on UML version 2.
IOSR Journal of Electrical and Electronics Engineering(IOSR-JEEE) is an open access international journal that provides rapid publication (within a month) of articles in all areas of electrical and electronics engineering and its applications. The journal welcomes publications of high quality papers on theoretical developments and practical applications in electrical and electronics engineering. Original research papers, state-of-the-art reviews, and high quality technical notes are invited for publications.
This presentation was prepared by Ishara Amarasekera based on the paper, Model-Driven Testing with UML 2.0 by Zhen Ru Dai.
This presentation contains a summary of the content provided in this research paper and was presented as a paper discussion for the course, Software Quality in Computer Science.
Presented in this short document is a description of what is called Advanced Process Monitoring (APM) as described by Hedengren (2013). APM is the term given to the technique of estimating unmeasured but observable variables or "states" using statistical data reconciliation and regression (DRR) in an off-line or real-time environment and is also referred to as Moving Horizon Estimation (MHE) (Robertson et. al., 1996). Essentially, the model and data define a simultaneous nonlinear and dynamic DRR problem where the model is either engineering-based (first-principles, fundamental, mechanistic, causal, rigorous) or empirical-based (correlation, statistical data-based, observational, regressed) or some combination of both (hybrid).
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
Time Series Estimation of Gas Furnace Data in IMPL and CPLEX Industrial Model...Alkis Vazacopoulos
Presented in this short document is a description of how to estimate a deterministic and stochastic time-series transfer function models in IMPL using IBM’s CPLEX applied to industrial gas furnace data. The methodology of time-series analysis involves essentially three (3) stages (Box and Jenkins, 1976): (1) model structure identification, (2) model parameter estimation and (3) model checking and diagnostics. We do not address (1) which requires stationarity and seasonality assessment, auto-, cross- and partial-correlation, etc. to establish the transfer function polynomial degrees. Instead we focus only on the parameter estimation and diagnostics. These types of parameter estimation problems involve dynamic and nonlinear relationships shown below and we solve these using IMPL’s nonlinear programming algorithm SLPQPE which uses CPLEX 12.6 as the QP sub-solver.
A framework to performance analysis of software architectural stylesijfcstjournal
Growing and executable system architecture has a significant role in successful production of large and
distributed systems. Assessing the effect of different decisions in architecture design can decrease the time and cost of software production, especially when these decisions are related to non-functional properties of system. Performance is a non-functional property which relates to timing behaviour of system. In this paper
we propose an approach for modelling and analysis of performance in architecture level. To do this,we follow a general process which needs two formal notations for specifying architecture and performance models of system. In this paper we show how Stochastic Process Algebra (SPA) in the form of PEPA language can be used for performance modelling and analysis of software archi
tectures modelled using Graph Transformation System (GTS). To enable architecture model for performance analysis, equivalent PEPA model should be constructed with transformation. Transformed performance model of the
architecture has been analysed through PEPA toolkit for some properties like throughput, sensitivity analysis, response time and utilisation rate. The analysis results have been explained with regard to a realistic case study.
This is an introduction to UML (Unified Modeling Language) given to people whom has no background on business modeling using UML. This is based on UML version 2.
IOSR Journal of Electrical and Electronics Engineering(IOSR-JEEE) is an open access international journal that provides rapid publication (within a month) of articles in all areas of electrical and electronics engineering and its applications. The journal welcomes publications of high quality papers on theoretical developments and practical applications in electrical and electronics engineering. Original research papers, state-of-the-art reviews, and high quality technical notes are invited for publications.
This presentation was prepared by Ishara Amarasekera based on the paper, Model-Driven Testing with UML 2.0 by Zhen Ru Dai.
This presentation contains a summary of the content provided in this research paper and was presented as a paper discussion for the course, Software Quality in Computer Science.
Presented in this short document is a description of what is called Advanced Process Monitoring (APM) as described by Hedengren (2013). APM is the term given to the technique of estimating unmeasured but observable variables or "states" using statistical data reconciliation and regression (DRR) in an off-line or real-time environment and is also referred to as Moving Horizon Estimation (MHE) (Robertson et. al., 1996). Essentially, the model and data define a simultaneous nonlinear and dynamic DRR problem where the model is either engineering-based (first-principles, fundamental, mechanistic, causal, rigorous) or empirical-based (correlation, statistical data-based, observational, regressed) or some combination of both (hybrid).
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
Genetic programming for prediction of local scour at vertical bridge abutmenteSAT Publishing House
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology.
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
Stress analysis of stick reinforced granite periwinkle concrete slab under un...eSAT Publishing House
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology.
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology.
Loc, los and loes at speed testing methodologies for automatic test pattern g...eSAT Publishing House
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
Clustering of medline documents using semi supervised spectral clusteringeSAT Publishing House
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
Thermal, microstructure and dielectric behavior of la modified bismuth titana...eSAT Publishing House
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
MANAGING AND ANALYSING SOFTWARE PRODUCT LINE REQUIREMENTSijseajournal
Modelling software product line (SPL) features plays a crucial role to a successful development of SPL.
Feature diagram is one of the widely used notations to model SPL variants. However, there is a lack of
precisely defined formal notations for representing and verifying such models. This paper presents an
approach that we adopt to model SPL variants by using UML and subsequently verify them by using firstorder
logic. UML provides an overall modelling view of the system. First-order logic provides a precise
and rigorous interpretation of the feature diagrams. We model variants and their dependencies by using
propositional connectives and build logical expressions. These expressions are then validated by the Alloy
verification tool. The analysis and verification process is illustrated by using Computer Aided Dispatch
(CAD) system.
Minimal Testcase Generation for Object-Oriented Software with State Chartsijseajournal
Today statecharts are a de facto standard in industry for modeling system behavior. Test data generation is
one of the key issues in software testing. This paper proposes an reduction approach to test data generation
for the state-based software testing. In this paper, first state transition graph is derived from state chart
diagram. Then, all the required information are extracted from the state chart diagram. Then, test cases
are generated. Lastly, a set of test cases are minimized by calculating the node coverage for each test case.
It is also determined that which test cases are covered by other test cases. The advantage of our test
generation technique is that it optimizes test coverage by minimizing time and cost. The present test data
generation scheme generates test cases which satisfy transition path coverage criteria, path coverage
criteria and action coverage criteria. A case study on Railway Ticket Vending Machine (RTVM) has been
presented to illustrate our approach.
Application Of UML In Real-Time Embedded Systemsijseajournal
The UML was designed as a graphical notation for use with object-oriented systems and applications.
Because of its popularity, now it is emerging in the field of embedded systems design as a modeling
language. The UML notation is useful in capturing the requirements, documenting the structure,
decomposing into objects and defining relationships between objects. It is a notational language that is
very useful in modelling the real-time embedded systems. This paper presents the requirements and
analysis modelling of a real-time embedded system related to a control system application for platform
stabilization using COMET method of design with UML notation. These applications involve designing of
electromechanical systems that are controlled by multi-processors.
Generation and Optimization of Test cases for Object-Oriented Software Using ...cscpconf
The process of testing any software system is an enormous task which is time consuming and
costly. The time and required effort to do sufficient testing grow, as the size and complexity of
the software grows, which may cause overrun of the project budget, delay in the development of
software system or some test cases may not be covered. During SDLC (software development
life cycle), generally the software testing phase takes around 40-70% of the time and cost. Statebased
testing is frequently used in software testing. Test data generation is one of the key issues
in software testing. A properly generated test suite may not only locate the errors in a software
system, but also help in reducing the high cost associated with software testing. It is often
desired that test data in the form of test sequences within a test suite can be automatically generated to achieve required test coverage. This paper proposes an optimization approach to test data generation for the state-based software testing. In this paper, first state transition graph is derived from state chart diagram. Then, all the required information are extracted from the state chart diagram. Then, test cases are generated. Lastly, a set of test cases are minimized by calculating the node coverage for each test case. It is also determined that which test cases are covered by other test cases. The advantage of our test generation technique is that it optimizes test coverage by minimizing time and cost. The proposed test data generation scheme generates test cases which satisfy transition path coverage criteria, path coverage criteria and action coverage criteria. A case study on Automatic Ticket Machine ( ATM ) has been presented to illustrate our approach.
A Model of Local Area Network Based Application for Inter-office Communicationtheijes
In most organizations, information circulation within offices poses a problem because clerical officers and office messengers usually dispatch letters and memos from one office to another manually. Sequel to this circulation procedure, implementation of decisions is always difficult and slow. On one hand, clerical officers sometimes divulge confidential information during the process of receiving and sending of mails and other documents. On the other hand, money is wasted on the purchase of paper for printing. However, it is cheerful to learn that technology has made it possible for staff, structures and infrastructures to control and share organization resources; hardware; software and knowledge by means of modern electronic communication. One cannot deny the fact that the flow of information is very imperative in every organization as it determines the effectiveness of decision-making and implementation. This feat can be achieved using Object-Oriented System Analysis and Design Methodology (OSADM). This is structurally analyzed with Use Case Diagram (UCD), Class Diagram, Sequence Diagram, State Transition Diagram, and Activity Diagram. Moreover, the system is coded with Java 1.6 version, in a client-server network running on star topology in LAN environment. This is the concept of this paper. The system is designed to work in two parts – the control part that is installed on the server; and the messenger part that is installed in the clients. This research work integrates the utility and organization resources into a shared center for all users to have access to; and for free communication during office hours.
Modeling and Simulation of an Active Disturbance Rejection Controller Based o...IJRES Journal
Based on studying active disturbance rejection control technology, a user defined Active Disturbance Rejection Controller (ADRC) block library was established in MATLAB / SIMULINK, by the way of developing M-function files for special nonlinear function and the subsystem packaging technology of building system modules for Tracking Differentiator(TD), Extended State Observer(ESO) and Non Linear State Error Feedback(NLSEF). The simulation example shows that the ADRC simulation model can be built in graphic modeling method, and the block parameters are easy to modify by using the defined ADRC module. Furthermore, the way to create new ADRC block library is simple and the library is easy to extend. Meanwhile it is a useful tool for searching and simulation of active disturbance rejection control technology.
A Suite of Metrics for UML Behavioral Diagrams based on Complexity Perspectivessebastianku31
Submit your Research Articles!!
International Journal of Software Engineering & Applications(IJSEA)
ISSN:0975-3834 [Online]; 0975-4679 [Print]
ERA Indexed, H Index 31
Web Page URL : https://airccse.org/journal/ijsea/ijsea.html
Current Issue link: https://www.airccse.org/journal/ijsea/vol15.html
A Suite of Metrics for UML Behavioral Diagrams based on Complexity Perspectives
Ann Wambui King’ori, Geoffrey Muchiri Muketha and John Gichuki Ndia, Murang’a University of Technology, Kenya
Abstract URL :https://aircconline.com/abstract/ijsea/v15n2/15224ijsea01.html
Article URL :https://aircconline.com/ijsea/V15N2/15224ijsea01.pdf
#Softwarecomplexity #softwaremetrics #UMLbehavioraldiagrams #qualityanalysis, #theoreticalvalidations
Submission System: https://airccse.com/submissioncs/home.html
Contact Us : ijseajournal@airccse.org or ijsea@aircconline.com
Implementing an ATL Model Checker tool using Relational Algebra conceptsinfopapers
Florin Stoica, Laura Florentina Stoica, Implementing an ATL Model Checker tool using Relational Algebra concepts, Proceeding The 22th International Conference on Software, Telecommunications and Computer Networks (SoftCOM), Split-Primosten, Croatia, 2014
Generation of Testcases from UML Sequence Diagram and Detecting Deadlocks usi...KIIT
Abstract:In an environment where processes those execute concurrently, speeding up their computation is important. Deadlock
is a major issue that occurs during concurrent execution. In this paper, we present an approach to generate testcases from UML
sequence diagram for detecting deadlocks during the design phase. This will reduce the effort and cost involved to fix deadlocks
at a later stage. Our work begins with design of sequence diagram for the system, then converting it to intermediate graph where
deadlock points are marked and then traverse to get testcases. The testcases thus generated are suitable for detecting deadlocks.
SOFTWARE ENGINEERING FILE IN SLIDESHARE Khushboo Pal
Dia Diagram Editor is free Open Source drawing software for Windows, Mac OS X and Linux. Dia supports more than 30 different diagram types like flowcharts, network diagrams, database models.
The Unified Modeling Language (UML) is a general-purpose, developmental, modeling language in the field of software engineering, that is intended to provide a standard way to visualize the design of a system.
Unlock Your Future as a Software Architect: Master UML and Design Software with Ease
Don't Just Code—Command! I'll Transform You from Developer to Architect with UML Expertise. Make Software Design Your Second Nature."
AI in UML: Discover the power of generative AI in automating and enhancing UML diagram creation.
Are you a software developer looking to escalate your career and transition into software architecture? Look no further. This course is designed to bridge that gap, transforming you from a skilled developer into a visionary software architect.
Coding is Just the Start: Soar to Architect Status with UML Mastery! Design, Communicate, and Lead Projects with Unmatched Clarity
Why This Course Is Essential:
As software development evolves, there's an increasing need for professionals who can see the big picture, create robust system designs, and lead teams effectively. Understanding Unified Modeling Language (UML) is crucial for anyone aspiring to become a software architect. UML serves as the common language that fosters clear communication, collaboration, and a shared understanding among team members and stakeholders.
Skyrocket Your Career from Coder to Architect: Master UML and Design Systems that Wow Stakeholders. Be the Architect Everyone Needs!
What You'll Learn:
Master UML: Grasp the essential UML diagrams and how they contribute to a project’s success.
Transitioning Skills: Practical steps to shift from a software developer to a software architect role.
Team Leadership: How to communicate effectively with stakeholders and lead a development team.
Design Principles: Master the art of designing robust and scalable software architectures.
Course Highlights:
Hands-on UML projects
Real-world case studies
A special 15-minute video on leveraging generative AI for UML diagramming
Interactive quizzes and assignments
Expert-led video lectures
Peer discussions and network opportunities
Who This Course Is For:
This course is ideal for software developers, junior architects, project managers, technical leads, software analysts, and anyone interested in progressing into software architecture roles.
Elevate Your Code to Architecture: Master UML and Become the Software Architect You're Meant to Be! Cut Through Complexity and Design Like a Pro.
Prerequisites:
Basic to intermediate programming skills
Familiarity with software development lifecycles
A willing mind and eagerness to learn
Course Outcomes:
Proficient understanding of UML
Understanding of how AI can streamline and innovate UML diagram generation
Ability to design complex software systems
Enhanced leadership and communication skills
Certificate of Completion
Enroll today to transition from coding tasks to leading architectural visions and designing software with ease!
Unlock Architect-Level Design Skills: I Fast-Track Developers into Master Architects with UML—Turn Complex Systems into Child's Play!
Final project report on grocery store management system..pdfKamal Acharya
In today’s fast-changing business environment, it’s extremely important to be able to respond to client needs in the most effective and timely manner. If your customers wish to see your business online and have instant access to your products or services.
Online Grocery Store is an e-commerce website, which retails various grocery products. This project allows viewing various products available enables registered users to purchase desired products instantly using Paytm, UPI payment processor (Instant Pay) and also can place order by using Cash on Delivery (Pay Later) option. This project provides an easy access to Administrators and Managers to view orders placed using Pay Later and Instant Pay options.
In order to develop an e-commerce website, a number of Technologies must be studied and understood. These include multi-tiered architecture, server and client-side scripting techniques, implementation technologies, programming language (such as PHP, HTML, CSS, JavaScript) and MySQL relational databases. This is a project with the objective to develop a basic website where a consumer is provided with a shopping cart website and also to know about the technologies used to develop such a website.
This document will discuss each of the underlying technologies to create and implement an e- commerce website.
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Dr.Costas Sachpazis
Terzaghi's soil bearing capacity theory, developed by Karl Terzaghi, is a fundamental principle in geotechnical engineering used to determine the bearing capacity of shallow foundations. This theory provides a method to calculate the ultimate bearing capacity of soil, which is the maximum load per unit area that the soil can support without undergoing shear failure. The Calculation HTML Code included.
Overview of the fundamental roles in Hydropower generation and the components involved in wider Electrical Engineering.
This paper presents the design and construction of hydroelectric dams from the hydrologist’s survey of the valley before construction, all aspects and involved disciplines, fluid dynamics, structural engineering, generation and mains frequency regulation to the very transmission of power through the network in the United Kingdom.
Author: Robbie Edward Sayers
Collaborators and co editors: Charlie Sims and Connor Healey.
(C) 2024 Robbie E. Sayers
Cosmetic shop management system project report.pdfKamal Acharya
Buying new cosmetic products is difficult. It can even be scary for those who have sensitive skin and are prone to skin trouble. The information needed to alleviate this problem is on the back of each product, but it's thought to interpret those ingredient lists unless you have a background in chemistry.
Instead of buying and hoping for the best, we can use data science to help us predict which products may be good fits for us. It includes various function programs to do the above mentioned tasks.
Data file handling has been effectively used in the program.
The automated cosmetic shop management system should deal with the automation of general workflow and administration process of the shop. The main processes of the system focus on customer's request where the system is able to search the most appropriate products and deliver it to the customers. It should help the employees to quickly identify the list of cosmetic product that have reached the minimum quantity and also keep a track of expired date for each cosmetic product. It should help the employees to find the rack number in which the product is placed.It is also Faster and more efficient way.
NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...Amil Baba Dawood bangali
Contact with Dawood Bhai Just call on +92322-6382012 and we'll help you. We'll solve all your problems within 12 to 24 hours and with 101% guarantee and with astrology systematic. If you want to take any personal or professional advice then also you can call us on +92322-6382012 , ONLINE LOVE PROBLEM & Other all types of Daily Life Problem's.Then CALL or WHATSAPP us on +92322-6382012 and Get all these problems solutions here by Amil Baba DAWOOD BANGALI
#vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore#blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #blackmagicforlove #blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #Amilbabainuk #amilbabainspain #amilbabaindubai #Amilbabainnorway #amilbabainkrachi #amilbabainlahore #amilbabaingujranwalan #amilbabainislamabad
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
A novel methodology for test scenario generation based on control flow analysis of uml 2.x sequence diagrams
1. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
_______________________________________________________________________________________
Volume: 03 Special Issue: 15 | Dec-2014 | IWCPS-2014, Available @ http://www.ijret.org 113
A NOVEL METHODOLOGY FOR TEST SCENARIO GENERATION
BASED ON CONTROL FLOW ANALYSIS OF UML 2.X SEQUENCE
DIAGRAMS
Saroj Kanta Misra1
, Durga Prasad Mohapatra2
1
Assistant professor, Department of IT, GIET, Gunupur, Odisha, India
2
Associate Professor, Department of CSE, National Institute of Technology, Rourkela, Odisha, India
Abstract
Now a days UML is widely used for preparing design documents. It helps to specify, construct, visualize and document artifacts of
software systems. This paper presents an approach to test the software in the early stage (design phase) of software development
life cycle, so that it can help the software testers in the later stages. This paper focuses on generating test scenarios from UML 2.x
Sequence diagrams. The most challenging problem in generating test scenarios from UML 2.x sequence diagram is the presence
of fragments such as alt, loop, break, par, opt etc. We propose an intermediate control flow graph in a testable form named
Sequence Control Flow Graph (SCFG) resulting from the control flow analysis of UML 2.x sequence diagrams. We also propose
a systematic approach named Sequence Test Scenario Generation Algorithm (STSGA) for generating test scenarios from UML 2.x
Sequence diagrams. The test scenarios generated by our approach are suitable for detection of scenario faults, use case
dependency and system testing.
Key Words: Test scenarios, UML 2.x Sequence diagram, Sequence Control Flow Graph (SCFG), Test Scenario
Generation Algorithm (STSGA).
--------------------------------------------------------------------***----------------------------------------------------------------------
1. INTRODUCTION
Nowadays, due to rapid increase in size and complexity of
software applications, more emphasis is given towards
object-oriented design strategy, which helps to reduce
software cost and increase software reliability, and usability.
But, introduction of object-oriented design and
implementation approach brings out some new difficulties
for software testing. Several features of object-oriented
approach like polymorphism, dynamic binding, inheritance
etc. create certain difficulties in software testing process. To
test such object-oriented software from their implementation
code is a very a complex process due to the different
features of object oriented approach. Model Based Testing
of these object-oriented software can be beneficial to detect
the error in the design phase itself, so that these error do not
propagate to other stages of software development life cycle.
Control Flow Analysis (CFA) plays a vital role in
determining all possible alternative paths a program may
follow during execution. A Control Flow Graph (CFG) is a
static representation of a program that represents all
alternatives of control flow. For example, both choices for
If-else statement can be represented in CFG as different
control flow paths. A Loop can be represented as a cycle in
a CFG.
According to Garousi et al. [1] Control flow information can
be derived from two different sources: from software design
artifacts and code itself. In Code-based CFA(CBCFA),
control flow information is obtained from the available
source code, whereas in Model-based CFA(MBCFA),
control from information is obtained from design models
such as UML. The motivation of our work is to derive
control flow information and generate test cases in the early
stage of software development life cycle, after the UML
design models of a system become available.
2. BASIC CONCEPTS AND DEFINITIONS
UML behavioral diagrams such as interaction diagram,
activity diagram, and state machine diagram describe
different functionalities of the system and also capture
various dynamic behavior of the system. Interaction
diagrams illustrate the system functionalities using different
fragments such as alternative, loop, break, parallel, etc. In
this section we provide an overview of interaction diagram,
XMI and Sequence Control Flow Graph (SCFG), how to
obtain a SCFG.
2.1. UML 2.x Interaction Diagram
Interaction diagrams describe how a group of objects
collaborate in some behavior - typically a single use-case.
Interaction diagrams are of two types: Sequence diagram
and Communication diagram. The basic objective of both
the diagrams is same. Sequence diagrams accentuate on the
time sequence of messages passed between the
communicating objects, and the communication diagrams
accentuate on the structural organization of the
communicating objects that send and receive messages. In
our approach, we have used UML 2.x Sequence diagrams to
generate test scenarios.
2. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
_______________________________________________________________________________________
Volume: 03 Special Issue: 15 | Dec-2014 | IWCPS-2014, Available @ http://www.ijret.org 114
2.1.1 New Features of UML 2.x sequence diagram
List below describes some of the feature of UML 2.O
sequence diagrams
Interaction:
Series of messages that is passed between different
communicating objects to satisfy some task is called
interaction.
Interaction Occurrences:
When an interaction used within another interaction or
context, then it is called interaction occurrence.
Combined Fragments:
Combined fragment is an interaction fragment which is a
combination of multiple interaction fragments. Each
combined fragment has an interaction operator and
corresponding interaction operands.
Interaction Operand:
Interaction operand shows grouping of interactions within
the combined fragment.
Interaction Operator:
Interaction operator for combined fragments describes how
the interaction operands present inside the combined
fragments are going to be used. The followings are the list
of interaction operators defined.
Alternative (alt):
The interaction operator alt works like if-then-else structure.
At most one operand can be selected based on the guard
expression's true value. If there is no guard expression, then
an implicit true guard value is implied.
Option (opt):
The interaction operator opt is used, when the combined
fragment represents the operand as an option where the
operand either happens or may not happen. It works like an
alternative combined fragment where one operand is
nonempty and the other one is empty.
Loop (loop):
The interaction operator loop represents a loop structure.
The interaction operand present inside the loop combined
fragment will be repeated many times. The repetition of
loop can be controlled either or both by iteration bound and
guard. If a loop combined fragment has no bound specified,
then the loop will execute with infinite as upper bound and
zero as lower bound.
Break (break): The interaction operator break is
used to represent a breaking or exceptional scenario
to be performed instead of the remaining
interaction fragment.
Parallel (par): The interaction operator par
describes parallel execution of behaviors of the
interaction operands present inside a combined
fragment.
2.2 XMI
XMI (XML Metadata Interchange), is an extension of XML
that facilitates the standardized way for interchanging object
models and metadata. Specifically, XMI is useful to
programmers using the Unified Modeling Language (UML)
with various languages and development tools to exchange
their data models with each other.
2.3 Sequence Control Flow Graph (SCFG)
In order to examine and visualize the control flow
information present in the UML sequence diagram, we first
extract all the control flow information from the XMI
equivalent of the sequence diagram, then we construct an
intermediate control flow graph in a testable form called
Sequence Control Flow Graph (SCFG). As UML sequence
diagram contains information about objects of a system in
form of messages in a time sequence and we focus on
functional testing of the system, we will not give emphasis
on messages sent between internal objects. For each
message that is sent from internal objects to user object, our
goal is to generate test scenarios taking these messages as
end points. So, we will obtain SCFG, where nodes represent
messages in sequence diagram and edges represent path
between nodes. The messages sent from internal objects to
user object are colored gray. We have added some
additional nodes for the sake of simplicity in the process of
generating test scenarios.
The following are the type of nodes considered for
constructing Sequence Control Flow Graph (SCFG).
Definition: An Sequence Control Flow Graph is a tuple
R ={R, M, Fstart, Fend, Eoutput, C, E} where,
R is the root node of the Sequence Control Flow Graph
(SCFG).
M is a message node that represents a message from
UML sequence diagram.
Fstart (Fragment start) is a set of nodes representing the
starting of a fragment.
Fend (Fragment end) is a set of nodes representing the
End of a fragment.
Eoutput (Expected output) is the set of nodes that precedes
the message from internal object to user object in
Sequence Control Flow Graph(SCFG).
C (Condition node) is the set of nodes representing
conditions for the fragments.
E is the set of final nodes representing an exit of
Sequence Control Flow Graph (SCFG).
3. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
_______________________________________________________________________________________
Volume: 03 Special Issue: 15 | Dec-2014 | IWCPS-2014, Available @ http://www.ijret.org 115

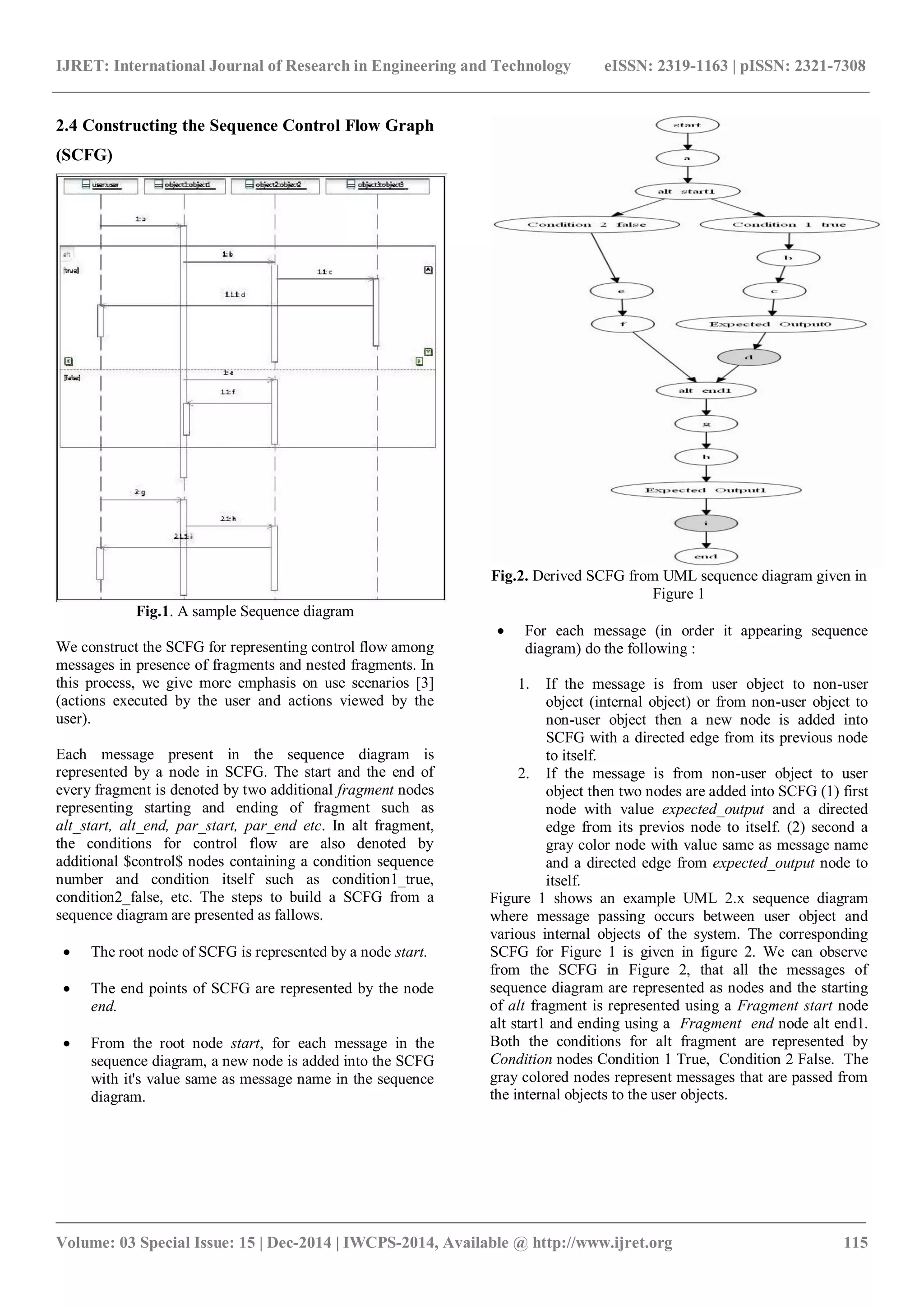

2.4 Constructing the Sequence Control Flow Graph
(SCFG)
Fig.1. A sample Sequence diagram
We construct the SCFG for representing control flow among
messages in presence of fragments and nested fragments. In
this process, we give more emphasis on use scenarios [3]
(actions executed by the user and actions viewed by the
user).
Each message present in the sequence diagram is
represented by a node in SCFG. The start and the end of
every fragment is denoted by two additional fragment nodes
representing starting and ending of fragment such as
alt_start, alt_end, par_start, par_end etc. In alt fragment,
the conditions for control flow are also denoted by
additional $control$ nodes containing a condition sequence
number and condition itself such as condition1_true,
condition2_false, etc. The steps to build a SCFG from a
sequence diagram are presented as fallows.
The root node of SCFG is represented by a node start.
The end points of SCFG are represented by the node
end.
From the root node start, for each message in the
sequence diagram, a new node is added into the SCFG
with it's value same as message name in the sequence
diagram.
Fig.2. Derived SCFG from UML sequence diagram given in
Figure 1
For each message (in order it appearing sequence
diagram) do the following :
1. If the message is from user object to non-user
object (internal object) or from non-user object to
non-user object then a new node is added into
SCFG with a directed edge from its previous node
to itself.
2. If the message is from non-user object to user
object then two nodes are added into SCFG (1) first
node with value expected_output and a directed
edge from its previos node to itself. (2) second a
gray color node with value same as message name
and a directed edge from expected_output node to
itself.
Figure 1 shows an example UML 2.x sequence diagram
where message passing occurs between user object and
various internal objects of the system. The corresponding
SCFG for Figure 1 is given in figure 2. We can observe
from the SCFG in Figure 2, that all the messages of
sequence diagram are represented as nodes and the starting
of alt fragment is represented using a Fragment start node
alt start1 and ending using a Fragment end node alt end1.
Both the conditions for alt fragment are represented by
Condition nodes Condition 1 True, Condition 2 False. The
gray colored nodes represent messages that are passed from
the internal objects to the user objects.
4. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
_______________________________________________________________________________________
Volume: 03 Special Issue: 15 | Dec-2014 | IWCPS-2014, Available @ http://www.ijret.org 116

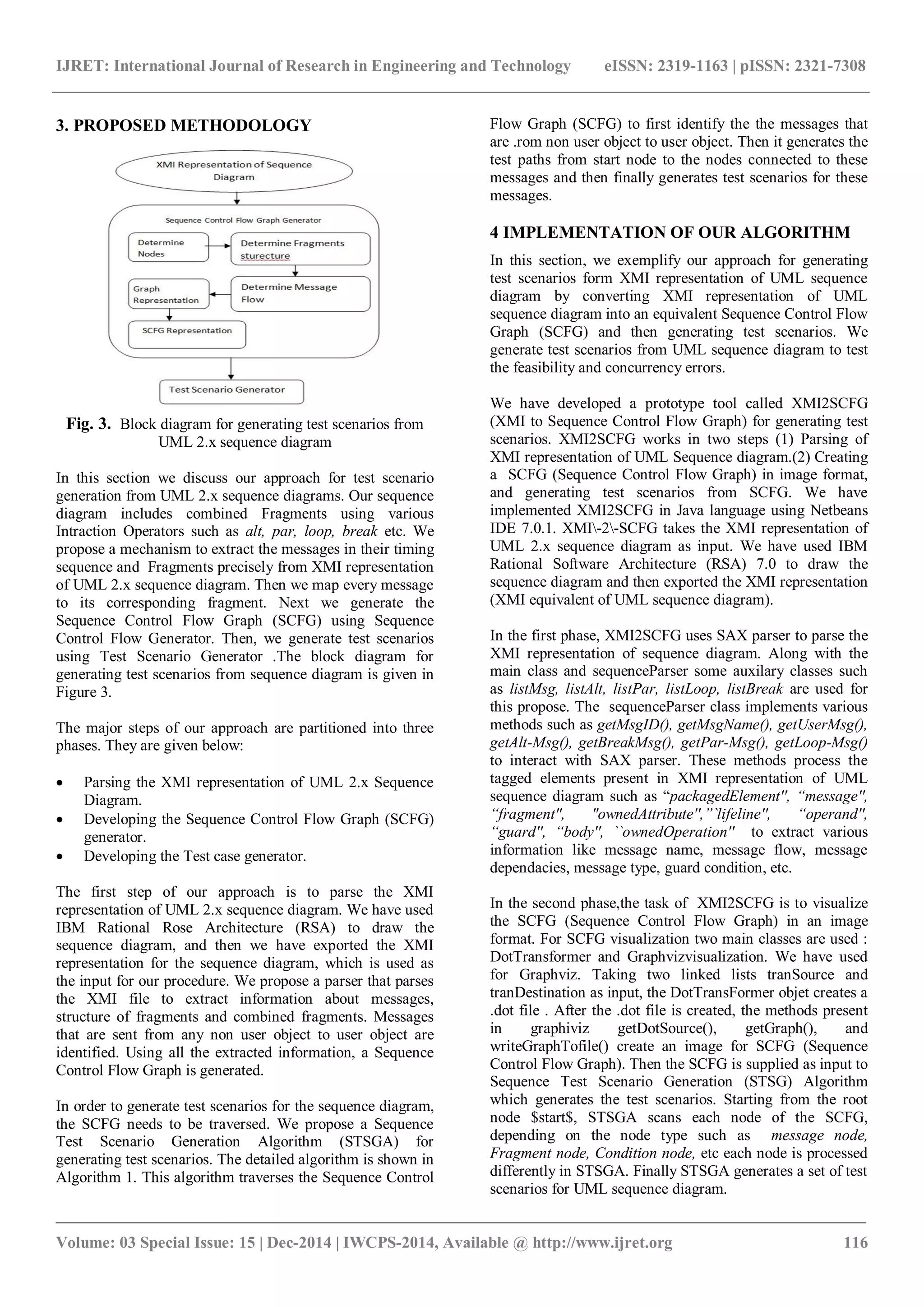

3. PROPOSED METHODOLOGY
Fig. 3. Block diagram for generating test scenarios from
UML 2.x sequence diagram
In this section we discuss our approach for test scenario
generation from UML 2.x sequence diagrams. Our sequence
diagram includes combined Fragments using various
Intraction Operators such as alt, par, loop, break etc. We
propose a mechanism to extract the messages in their timing
sequence and Fragments precisely from XMI representation
of UML 2.x sequence diagram. Then we map every message
to its corresponding fragment. Next we generate the
Sequence Control Flow Graph (SCFG) using Sequence
Control Flow Generator. Then, we generate test scenarios
using Test Scenario Generator .The block diagram for
generating test scenarios from sequence diagram is given in
Figure 3.
The major steps of our approach are partitioned into three
phases. They are given below:
Parsing the XMI representation of UML 2.x Sequence
Diagram.
Developing the Sequence Control Flow Graph (SCFG)
generator.
Developing the Test case generator.
The first step of our approach is to parse the XMI
representation of UML 2.x sequence diagram. We have used
IBM Rational Rose Architecture (RSA) to draw the
sequence diagram, and then we have exported the XMI
representation for the sequence diagram, which is used as
the input for our procedure. We propose a parser that parses
the XMI file to extract information about messages,
structure of fragments and combined fragments. Messages
that are sent from any non user object to user object are
identified. Using all the extracted information, a Sequence
Control Flow Graph is generated.
In order to generate test scenarios for the sequence diagram,
the SCFG needs to be traversed. We propose a Sequence
Test Scenario Generation Algorithm (STSGA) for
generating test scenarios. The detailed algorithm is shown in
Algorithm 1. This algorithm traverses the Sequence Control
Flow Graph (SCFG) to first identify the the messages that
are .rom non user object to user object. Then it generates the
test paths from start node to the nodes connected to these
messages and then finally generates test scenarios for these
messages.
4 IMPLEMENTATION OF OUR ALGORITHM
In this section, we exemplify our approach for generating
test scenarios form XMI representation of UML sequence
diagram by converting XMI representation of UML
sequence diagram into an equivalent Sequence Control Flow
Graph (SCFG) and then generating test scenarios. We
generate test scenarios from UML sequence diagram to test
the feasibility and concurrency errors.
We have developed a prototype tool called XMI2SCFG
(XMI to Sequence Control Flow Graph) for generating test
scenarios. XMI2SCFG works in two steps (1) Parsing of
XMI representation of UML Sequence diagram.(2) Creating
a SCFG (Sequence Control Flow Graph) in image format,
and generating test scenarios from SCFG. We have
implemented XMI2SCFG in Java language using Netbeans
IDE 7.0.1. XMI-2-SCFG takes the XMI representation of
UML 2.x sequence diagram as input. We have used IBM
Rational Software Architecture (RSA) 7.0 to draw the
sequence diagram and then exported the XMI representation
(XMI equivalent of UML sequence diagram).
In the first phase, XMI2SCFG uses SAX parser to parse the
XMI representation of sequence diagram. Along with the
main class and sequenceParser some auxilary classes such
as listMsg, listAlt, listPar, listLoop, listBreak are used for
this propose. The sequenceParser class implements various
methods such as getMsgID(), getMsgName(), getUserMsg(),
getAlt-Msg(), getBreakMsg(), getPar-Msg(), getLoop-Msg()
to interact with SAX parser. These methods process the
tagged elements present in XMI representation of UML
sequence diagram such as “packagedElement'', “message'',
“fragment'', "ownedAttribute'',”`lifeline'', “operand'',
“guard'', “body'', ``ownedOperation'' to extract various
information like message name, message flow, message
dependacies, message type, guard condition, etc.
In the second phase,the task of XMI2SCFG is to visualize
the SCFG (Sequence Control Flow Graph) in an image
format. For SCFG visualization two main classes are used :
DotTransformer and Graphvizvisualization. We have used
for Graphviz. Taking two linked lists tranSource and
tranDestination as input, the DotTransFormer objet creates a
.dot file . After the .dot file is created, the methods present
in graphiviz getDotSource(), getGraph(), and
writeGraphTofile() create an image for SCFG (Sequence
Control Flow Graph). Then the SCFG is supplied as input to
Sequence Test Scenario Generation (STSG) Algorithm
which generates the test scenarios. Starting from the root
node $start$, STSGA scans each node of the SCFG,
depending on the node type such as message node,
Fragment node, Condition node, etc each node is processed
differently in STSGA. Finally STSGA generates a set of test
scenarios for UML sequence diagram.
5. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
_______________________________________________________________________________________
Volume: 03 Special Issue: 15 | Dec-2014 | IWCPS-2014, Available @ http://www.ijret.org 117

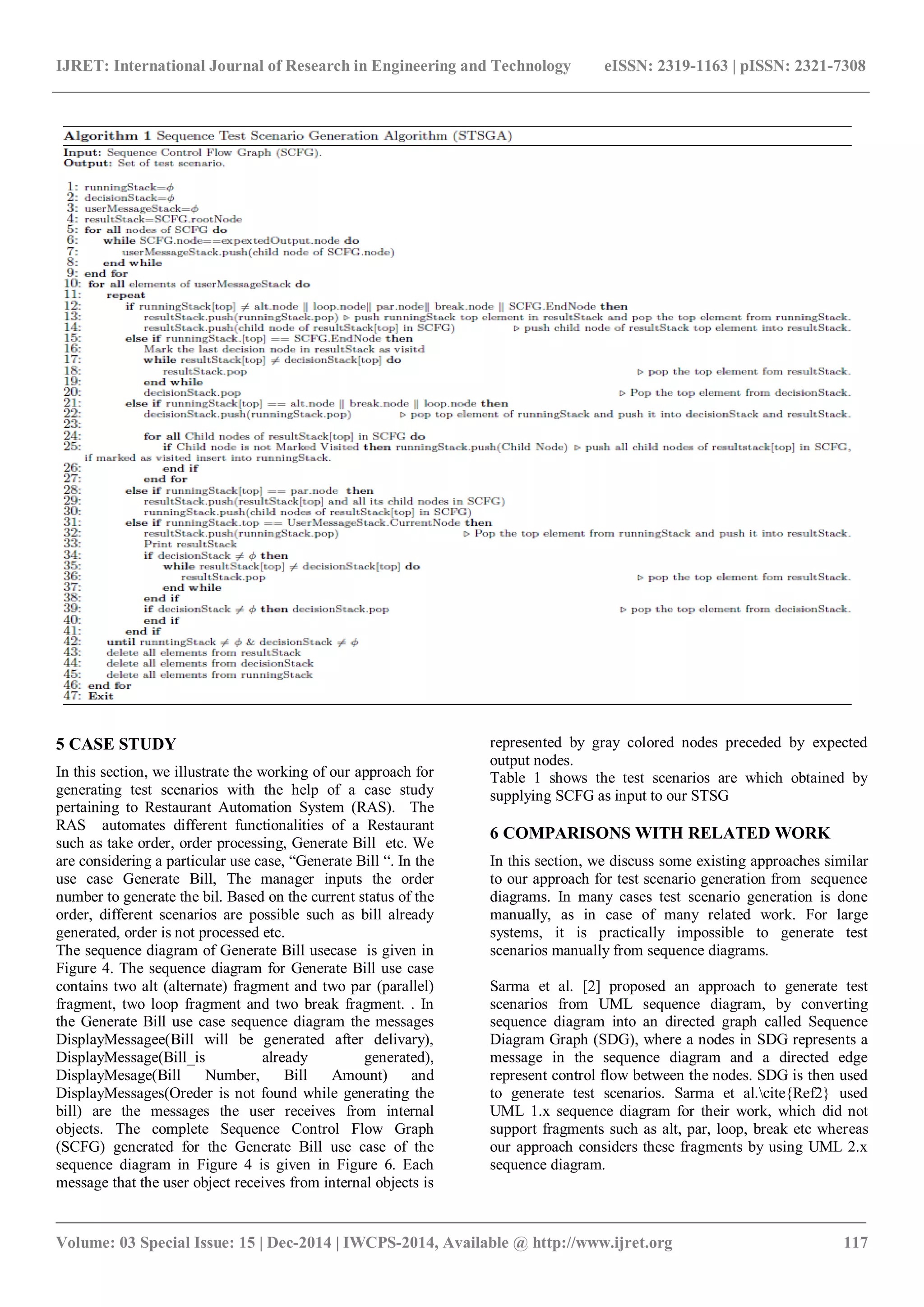

5 CASE STUDY
In this section, we illustrate the working of our approach for
generating test scenarios with the help of a case study
pertaining to Restaurant Automation System (RAS). The
RAS automates different functionalities of a Restaurant
such as take order, order processing, Generate Bill etc. We
are considering a particular use case, “Generate Bill “. In the
use case Generate Bill, The manager inputs the order
number to generate the bil. Based on the current status of the
order, different scenarios are possible such as bill already
generated, order is not processed etc.
The sequence diagram of Generate Bill usecase is given in
Figure 4. The sequence diagram for Generate Bill use case
contains two alt (alternate) fragment and two par (parallel)
fragment, two loop fragment and two break fragment. . In
the Generate Bill use case sequence diagram the messages
DisplayMessagee(Bill will be generated after delivary),
DisplayMessage(Bill_is already generated),
DisplayMesage(Bill Number, Bill Amount) and
DisplayMessages(Oreder is not found while generating the
bill) are the messages the user receives from internal

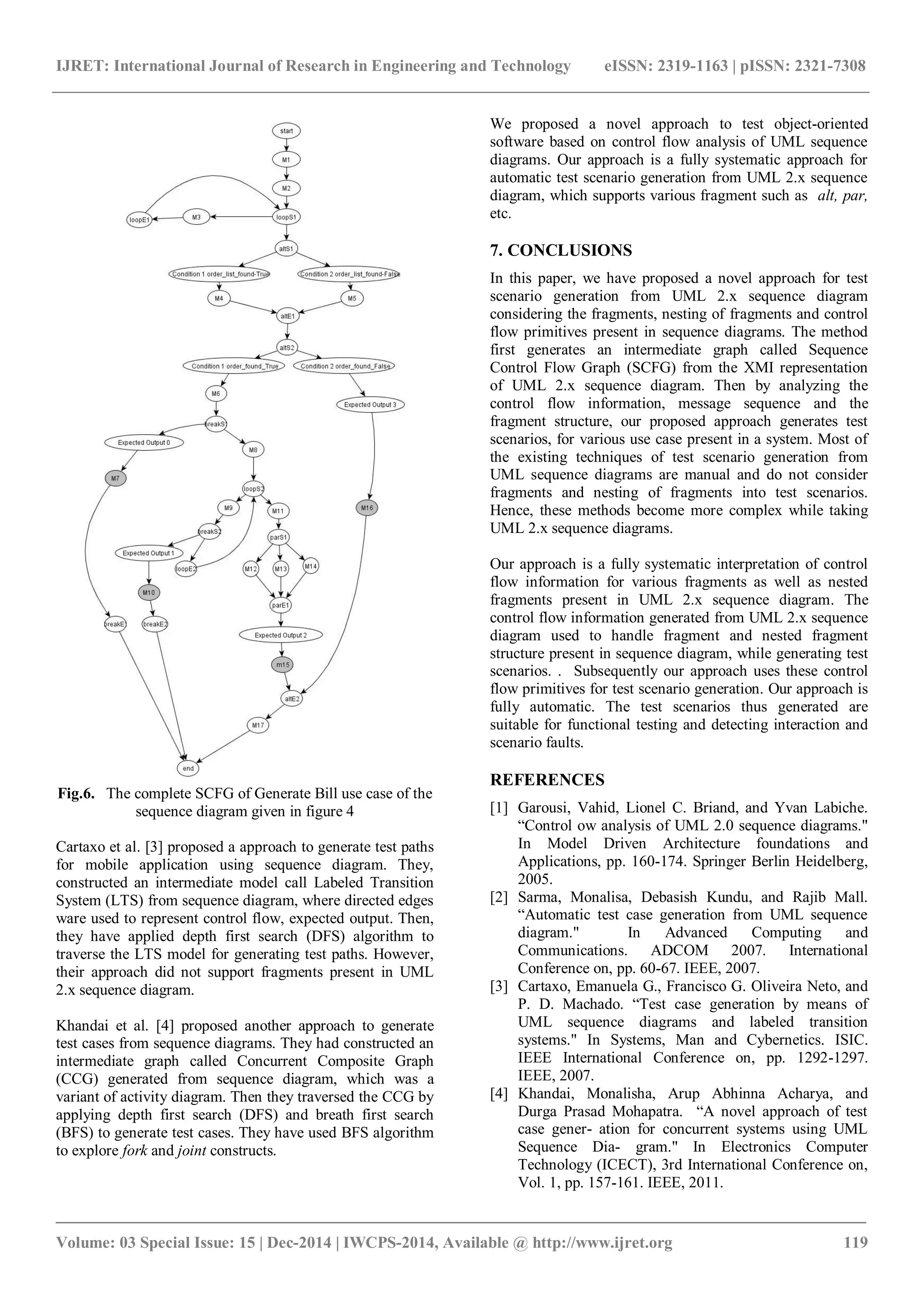

objects. The complete Sequence Control Flow Graph
(SCFG) generated for the Generate Bill use case of the
sequence diagram in Figure 4 is given in Figure 6. Each
message that the user object receives from internal objects is
represented by gray colored nodes preceded by expected
output nodes.

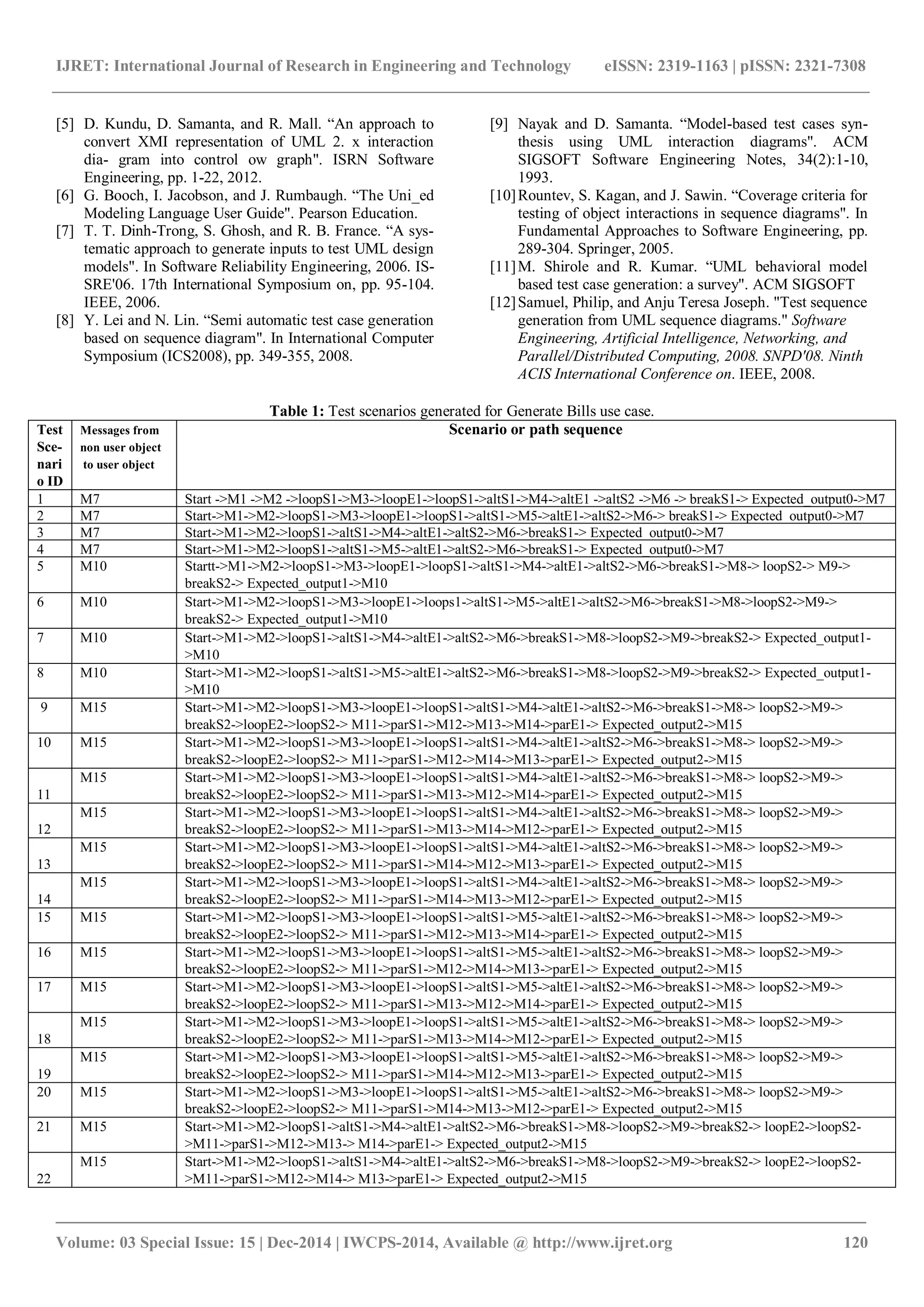

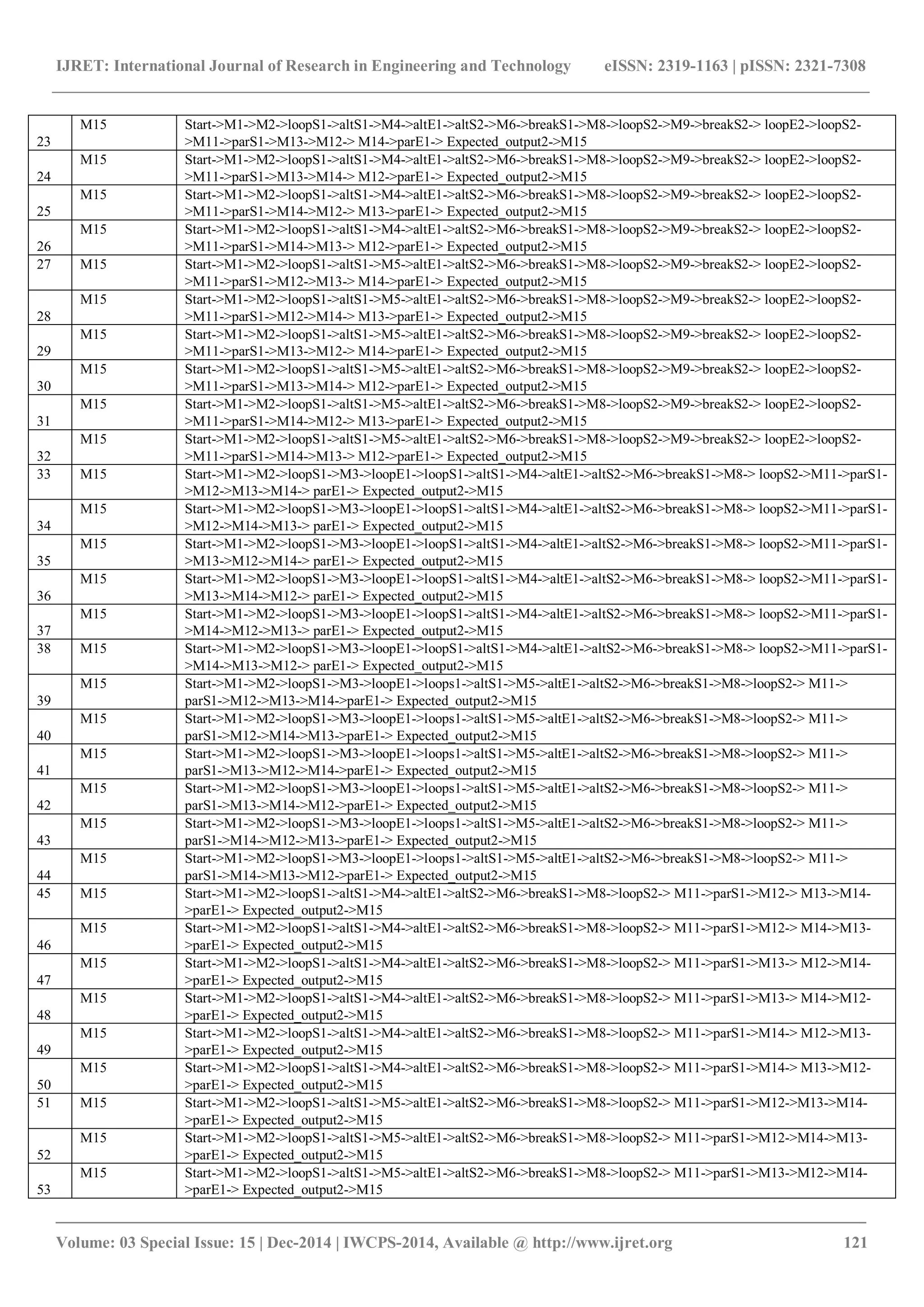

Table 1 shows the test scenarios are which obtained by
supplying SCFG as input to our STSG
6 COMPARISONS WITH RELATED WORK
In this section, we discuss some existing approaches similar
to our approach for test scenario generation from sequence
diagrams. In many cases test scenario generation is done
manually, as in case of many related work. For large
systems, it is practically impossible to generate test
scenarios manually from sequence diagrams.
Sarma et al. [2] proposed an approach to generate test
scenarios from UML sequence diagram, by converting
sequence diagram into an directed graph called Sequence
Diagram Graph (SDG), where a nodes in SDG represents a
message in the sequence diagram and a directed edge
represent control flow between the nodes. SDG is then used
to generate test scenarios. Sarma et al.cite{Ref2} used
UML 1.x sequence diagram for their work, which did not
support fragments such as alt, par, loop, break etc whereas
our approach considers these fragments by using UML 2.x
sequence diagram.
6. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
_______________________________________________________________________________________
Volume: 03 Special Issue: 15 | Dec-2014 | IWCPS-2014, Available @ http://www.ijret.org 118
Fig.4. Sequence Diagram of Generate Bill use case
Fig.5. A portion of the SCFG for Generate Bill uses case and test scenarios using XMI2SCFG
7. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
_______________________________________________________________________________________
Volume: 03 Special Issue: 15 | Dec-2014 | IWCPS-2014, Available @ http://www.ijret.org 119
Fig.6. The complete SCFG of Generate Bill use case of the
sequence diagram given in figure 4
Cartaxo et al. [3] proposed a approach to generate test paths
for mobile application using sequence diagram. They,
constructed an intermediate model call Labeled Transition
System (LTS) from sequence diagram, where directed edges
ware used to represent control flow, expected output. Then,
they have applied depth first search (DFS) algorithm to
traverse the LTS model for generating test paths. However,
their approach did not support fragments present in UML
2.x sequence diagram.
Khandai et al. [4] proposed another approach to generate
test cases from sequence diagrams. They had constructed an
intermediate graph called Concurrent Composite Graph
(CCG) generated from sequence diagram, which was a
variant of activity diagram. Then they traversed the CCG by
applying depth first search (DFS) and breath first search
(BFS) to generate test cases. They have used BFS algorithm
to explore fork and joint constructs.
We proposed a novel approach to test object-oriented
software based on control flow analysis of UML sequence
diagrams. Our approach is a fully systematic approach for
automatic test scenario generation from UML 2.x sequence
diagram, which supports various fragment such as alt, par,
etc.
7. CONCLUSIONS
In this paper, we have proposed a novel approach for test
scenario generation from UML 2.x sequence diagram
considering the fragments, nesting of fragments and control
flow primitives present in sequence diagrams. The method
first generates an intermediate graph called Sequence
Control Flow Graph (SCFG) from the XMI representation
of UML 2.x sequence diagram. Then by analyzing the
control flow information, message sequence and the
fragment structure, our proposed approach generates test
scenarios, for various use case present in a system. Most of
the existing techniques of test scenario generation from
UML sequence diagrams are manual and do not consider
fragments and nesting of fragments into test scenarios.
Hence, these methods become more complex while taking
UML 2.x sequence diagrams.
Our approach is a fully systematic interpretation of control
flow information for various fragments as well as nested
fragments present in UML 2.x sequence diagram. The
control flow information generated from UML 2.x sequence
diagram used to handle fragment and nested fragment
structure present in sequence diagram, while generating test
scenarios. . Subsequently our approach uses these control
flow primitives for test scenario generation. Our approach is
fully automatic. The test scenarios thus generated are
suitable for functional testing and detecting interaction and
scenario faults.
REFERENCES
[1] Garousi, Vahid, Lionel C. Briand, and Yvan Labiche.
“Control ow analysis of UML 2.0 sequence diagrams."
In Model Driven Architecture foundations and
Applications, pp. 160-174. Springer Berlin Heidelberg,
2005.
[2] Sarma, Monalisa, Debasish Kundu, and Rajib Mall.
“Automatic test case generation from UML sequence
diagram." In Advanced Computing and
Communications. ADCOM 2007. International
Conference on, pp. 60-67. IEEE, 2007.
[3] Cartaxo, Emanuela G., Francisco G. Oliveira Neto, and
P. D. Machado. “Test case generation by means of
UML sequence diagrams and labeled transition
systems." In Systems, Man and Cybernetics. ISIC.
IEEE International Conference on, pp. 1292-1297.
IEEE, 2007.
[4] Khandai, Monalisha, Arup Abhinna Acharya, and
Durga Prasad Mohapatra. “A novel approach of test
case gener- ation for concurrent systems using UML
Sequence Dia- gram." In Electronics Computer
Technology (ICECT), 3rd International Conference on,
Vol. 1, pp. 157-161. IEEE, 2011.
8. IJRET: International Journal of Research in Engineering and Technology eISSN: 2319-1163 | pISSN: 2321-7308
_______________________________________________________________________________________
Volume: 03 Special Issue: 15 | Dec-2014 | IWCPS-2014, Available @ http://www.ijret.org 120
[5] D. Kundu, D. Samanta, and R. Mall. “An approach to
convert XMI representation of UML 2. x interaction
dia- gram into control ow graph". ISRN Software
Engineering, pp. 1-22, 2012.
[6] G. Booch, I. Jacobson, and J. Rumbaugh. “The Uni_ed
Modeling Language User Guide". Pearson Education.
[7] T. T. Dinh-Trong, S. Ghosh, and R. B. France. “A sys-
tematic approach to generate inputs to test UML design
models". In Software Reliability Engineering, 2006. IS-
SRE'06. 17th International Symposium on, pp. 95-104.
IEEE, 2006.
[8] Y. Lei and N. Lin. “Semi automatic test case generation
based on sequence diagram". In International Computer
Symposium (ICS2008), pp. 349-355, 2008.
[9] Nayak and D. Samanta. “Model-based test cases syn-
thesis using UML interaction diagrams". ACM
SIGSOFT Software Engineering Notes, 34(2):1-10,
1993.
[10]Rountev, S. Kagan, and J. Sawin. “Coverage criteria for
testing of object interactions in sequence diagrams". In
Fundamental Approaches to Software Engineering, pp.
289-304. Springer, 2005.
[11]M. Shirole and R. Kumar. “UML behavioral model
based test case generation: a survey". ACM SIGSOFT
[12]Samuel, Philip, and Anju Teresa Joseph. "Test sequence
generation from UML sequence diagrams." Software
Engineering, Artificial Intelligence, Networking, and
Parallel/Distributed Computing, 2008. SNPD'08. Ninth
ACIS International Conference on. IEEE, 2008.
Table 1: Test scenarios generated for Generate Bills use case.
Test
Sce-
nari
o ID
Messages from
non user object
to user object
Scenario or path sequence
1 M7 Start ->M1 ->M2 ->loopS1->M3->loopE1->loopS1->altS1->M4->altE1 ->altS2 ->M6 -> breakS1-> Expected_output0->M7
2 M7 Start->M1->M2->loopS1->M3->loopE1->loopS1->altS1->M5->altE1->altS2->M6-> breakS1-> Expected_output0->M7
3 M7 Start->M1->M2->loopS1->altS1->M4->altE1->altS2->M6->breakS1-> Expected_output0->M7
4 M7 Start->M1->M2->loopS1->altS1->M5->altE1->altS2->M6->breakS1-> Expected_output0->M7
5 M10 Startt->M1->M2->loopS1->M3->loopE1->loopS1->altS1->M4->altE1->altS2->M6->breakS1->M8-> loopS2-> M9->
breakS2-> Expected_output1->M10
6 M10 Start->M1->M2->loopS1->M3->loopE1->loops1->altS1->M5->altE1->altS2->M6->breakS1->M8->loopS2->M9->
breakS2-> Expected_output1->M10
7 M10 Start->M1->M2->loopS1->altS1->M4->altE1->altS2->M6->breakS1->M8->loopS2->M9->breakS2-> Expected_output1-
>M10
8 M10 Start->M1->M2->loopS1->altS1->M5->altE1->altS2->M6->breakS1->M8->loopS2->M9->breakS2-> Expected_output1-
>M10
9 M15 Start->M1->M2->loopS1->M3->loopE1->loopS1->altS1->M4->altE1->altS2->M6->breakS1->M8-> loopS2->M9->
breakS2->loopE2->loopS2-> M11->parS1->M12->M13->M14->parE1-> Expected_output2->M15
10 M15 Start->M1->M2->loopS1->M3->loopE1->loopS1->altS1->M4->altE1->altS2->M6->breakS1->M8-> loopS2->M9->
breakS2->loopE2->loopS2-> M11->parS1->M12->M14->M13->parE1-> Expected_output2->M15
11
M15 Start->M1->M2->loopS1->M3->loopE1->loopS1->altS1->M4->altE1->altS2->M6->breakS1->M8-> loopS2->M9->
breakS2->loopE2->loopS2-> M11->parS1->M13->M12->M14->parE1-> Expected_output2->M15
12
M15 Start->M1->M2->loopS1->M3->loopE1->loopS1->altS1->M4->altE1->altS2->M6->breakS1->M8-> loopS2->M9->
breakS2->loopE2->loopS2-> M11->parS1->M13->M14->M12->parE1-> Expected_output2->M15
13
M15 Start->M1->M2->loopS1->M3->loopE1->loopS1->altS1->M4->altE1->altS2->M6->breakS1->M8-> loopS2->M9->
breakS2->loopE2->loopS2-> M11->parS1->M14->M12->M13->parE1-> Expected_output2->M15
14
M15 Start->M1->M2->loopS1->M3->loopE1->loopS1->altS1->M4->altE1->altS2->M6->breakS1->M8-> loopS2->M9->
breakS2->loopE2->loopS2-> M11->parS1->M14->M13->M12->parE1-> Expected_output2->M15
15 M15 Start->M1->M2->loopS1->M3->loopE1->loopS1->altS1->M5->altE1->altS2->M6->breakS1->M8-> loopS2->M9->
breakS2->loopE2->loopS2-> M11->parS1->M12->M13->M14->parE1-> Expected_output2->M15
16 M15 Start->M1->M2->loopS1->M3->loopE1->loopS1->altS1->M5->altE1->altS2->M6->breakS1->M8-> loopS2->M9->
breakS2->loopE2->loopS2-> M11->parS1->M12->M14->M13->parE1-> Expected_output2->M15
17 M15 Start->M1->M2->loopS1->M3->loopE1->loopS1->altS1->M5->altE1->altS2->M6->breakS1->M8-> loopS2->M9->
breakS2->loopE2->loopS2-> M11->parS1->M13->M12->M14->parE1-> Expected_output2->M15
18
M15 Start->M1->M2->loopS1->M3->loopE1->loopS1->altS1->M5->altE1->altS2->M6->breakS1->M8-> loopS2->M9->
breakS2->loopE2->loopS2-> M11->parS1->M13->M14->M12->parE1-> Expected_output2->M15
19
M15 Start->M1->M2->loopS1->M3->loopE1->loopS1->altS1->M5->altE1->altS2->M6->breakS1->M8-> loopS2->M9->
breakS2->loopE2->loopS2-> M11->parS1->M14->M12->M13->parE1-> Expected_output2->M15
20 M15 Start->M1->M2->loopS1->M3->loopE1->loopS1->altS1->M5->altE1->altS2->M6->breakS1->M8-> loopS2->M9->
breakS2->loopE2->loopS2-> M11->parS1->M14->M13->M12->parE1-> Expected_output2->M15
21 M15 Start->M1->M2->loopS1->altS1->M4->altE1->altS2->M6->breakS1->M8->loopS2->M9->breakS2-> loopE2->loopS2-
>M11->parS1->M12->M13-> M14->parE1-> Expected_output2->M15
22
M15 Start->M1->M2->loopS1->altS1->M4->altE1->altS2->M6->breakS1->M8->loopS2->M9->breakS2-> loopE2->loopS2-
>M11->parS1->M12->M14-> M13->parE1-> Expected_output2->M15
