1. Documentation in Software
Development and
Architecture
eleks.com

2. Agenda
• Documentation
• What is good documentation
• Tooling
• UML
• Other

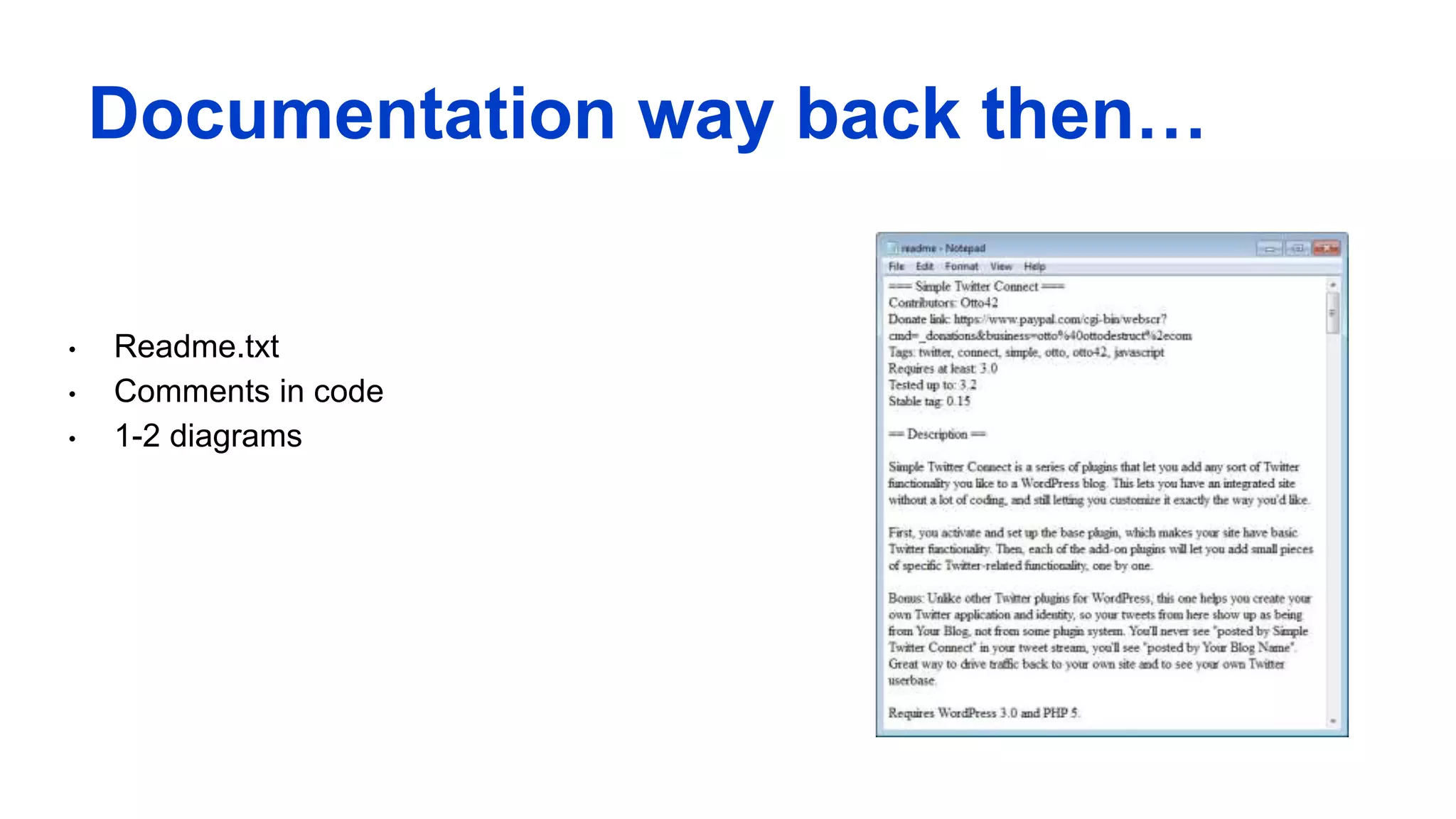

3. Documentation way back then…
• Readme.txt
• Comments in code
• 1-2 diagrams

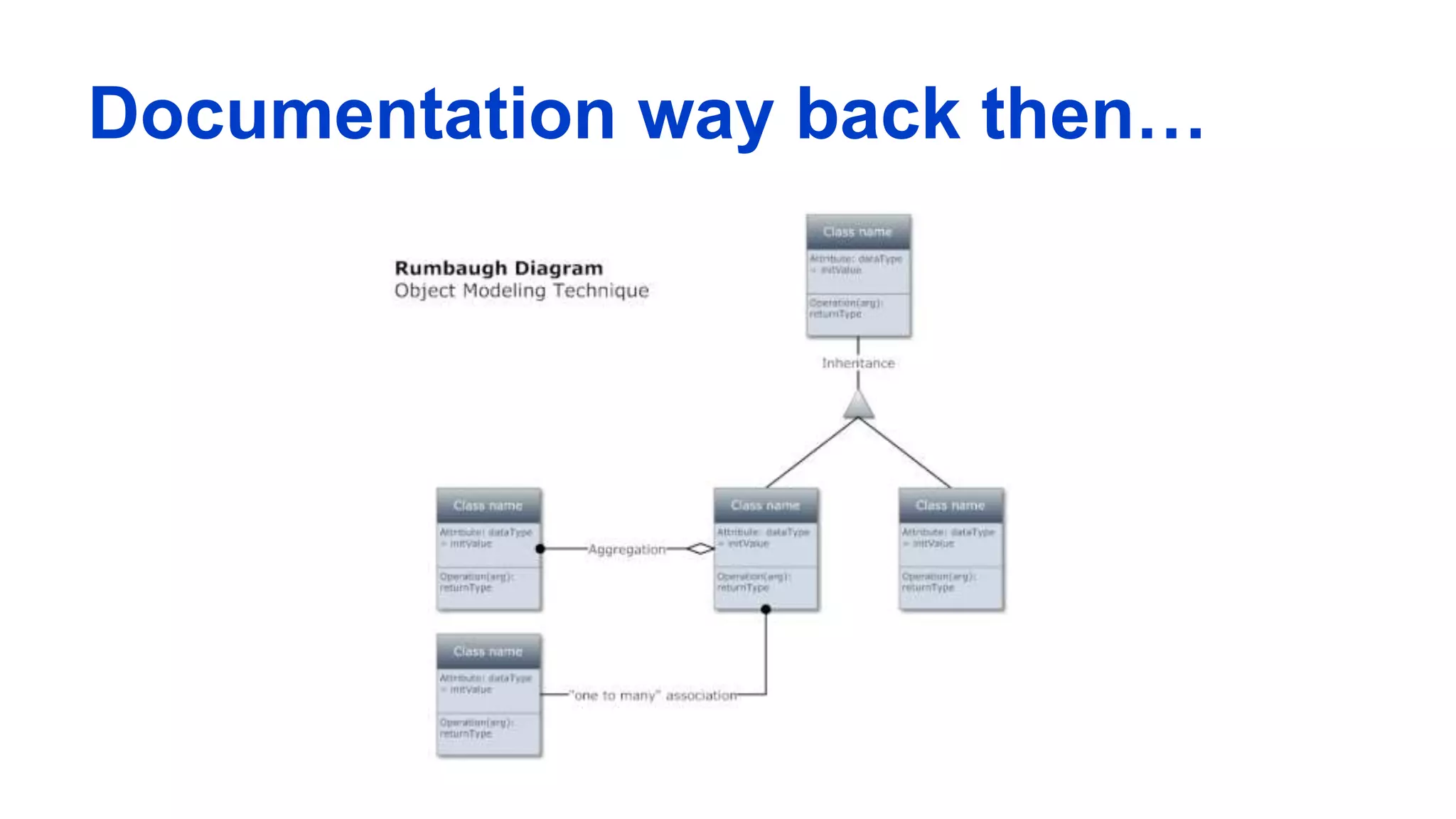

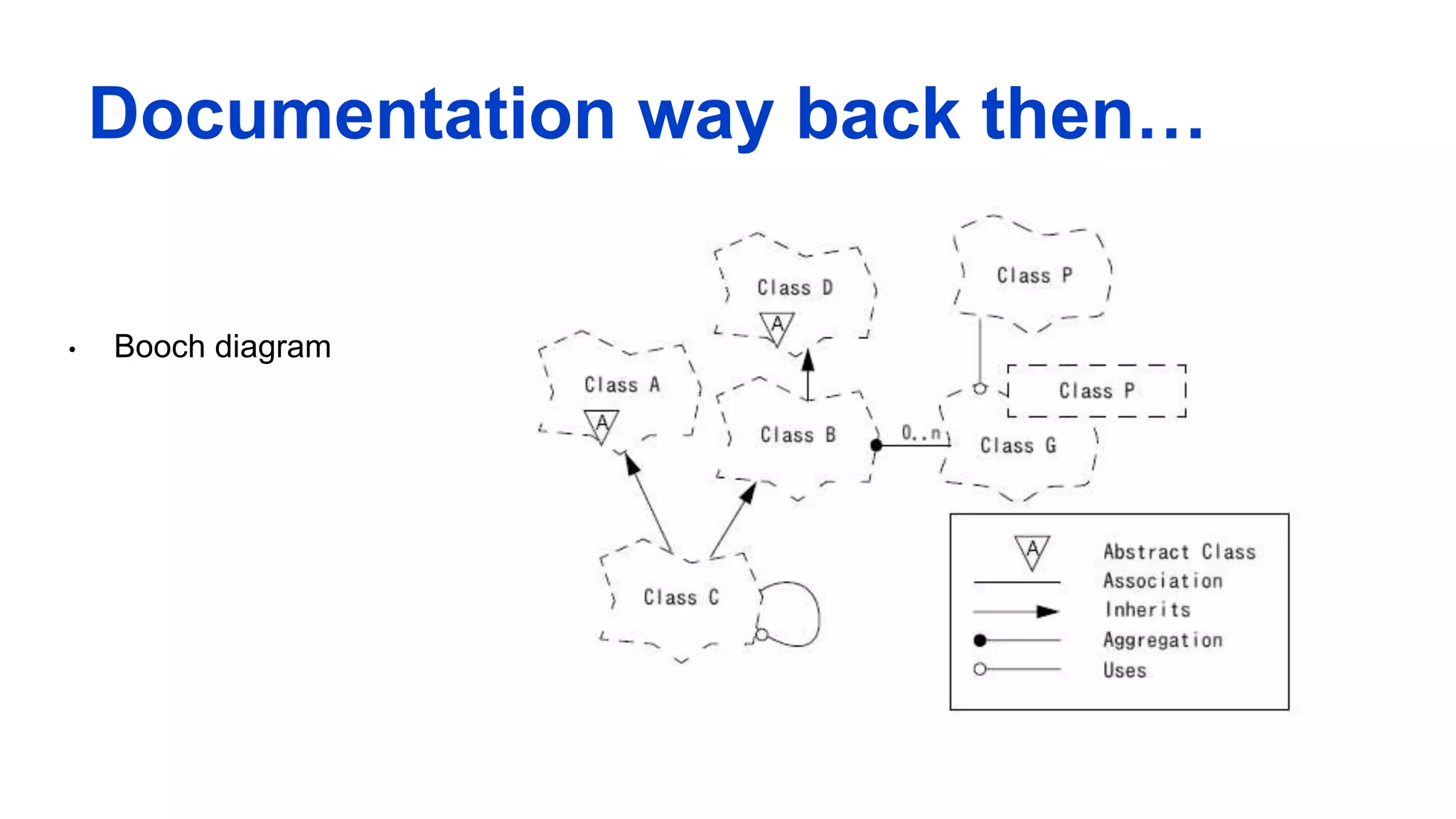

4. Documentation way back then…
• Booch diagram

5. Documentation way back then…

6. Documentation way back then…
• Jacobson use case

7. Why modelling
• Visualize the entire system
• Easier to communicate
• Understand roadmap
• Reduce risk

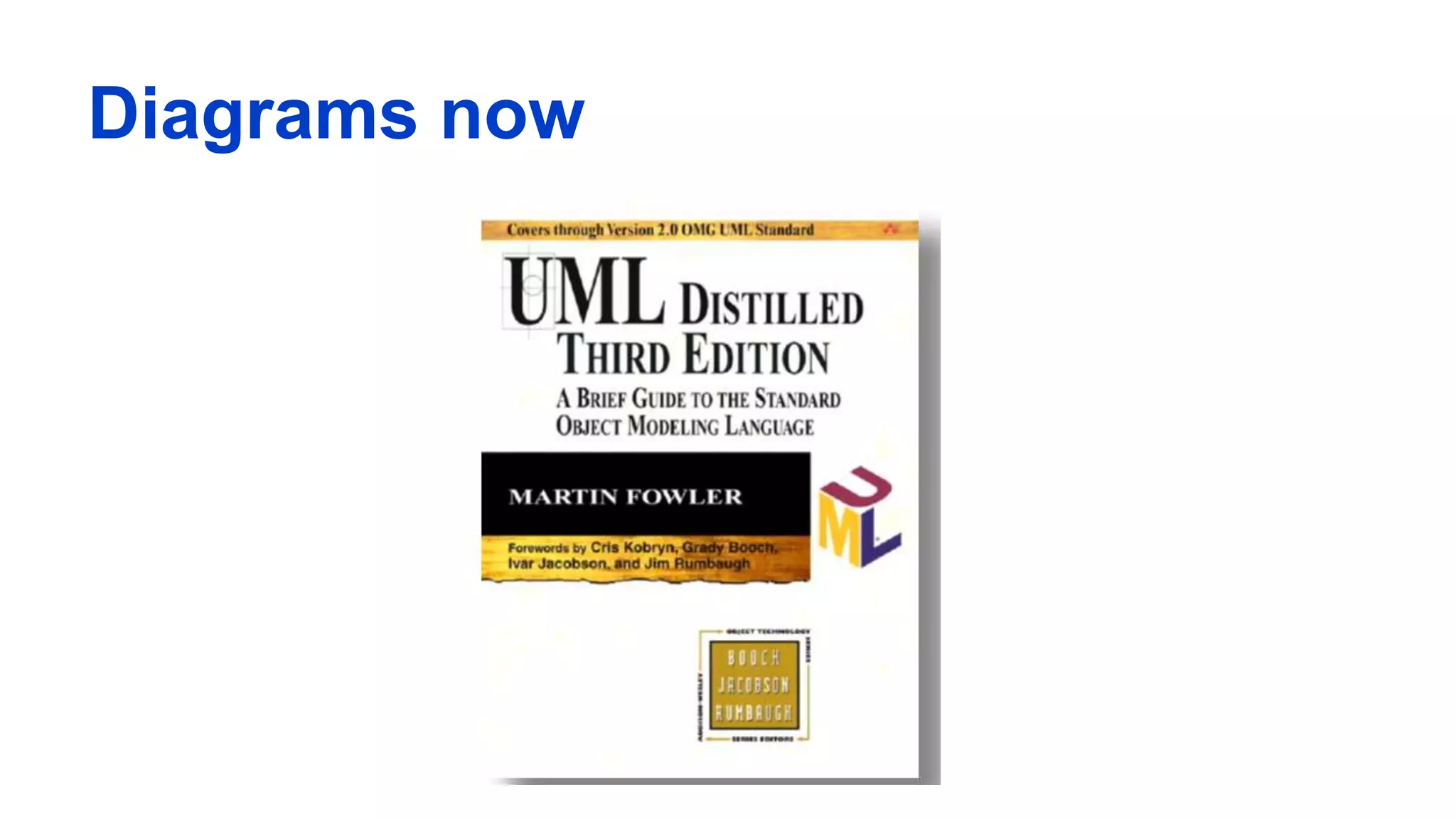

8. Diagrams now

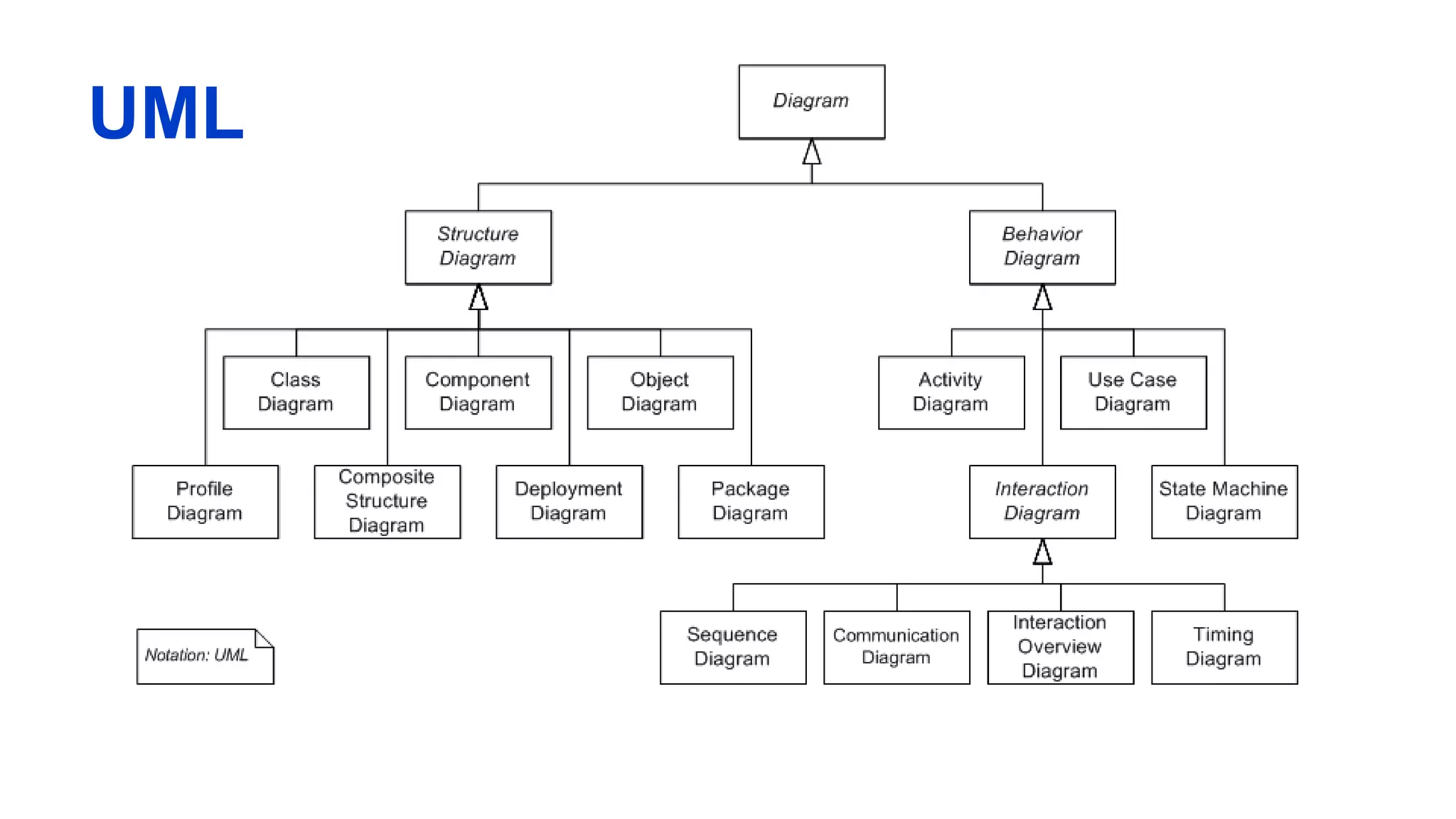

9. UML

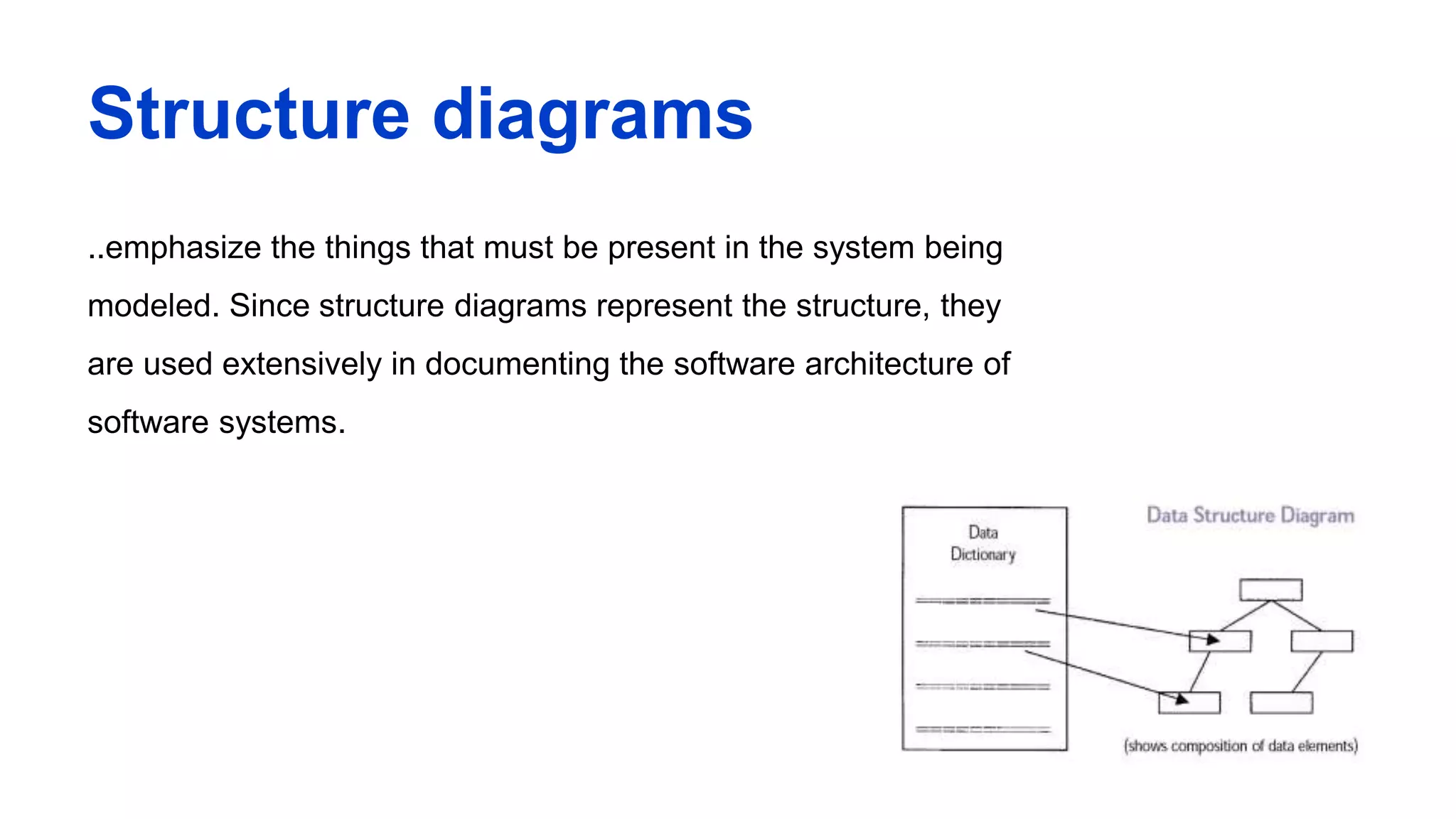

10. Structure diagrams
..emphasize the things that must be present in the system being
modeled. Since structure diagrams represent the structure, they
are used extensively in documenting the software architecture of
software systems.

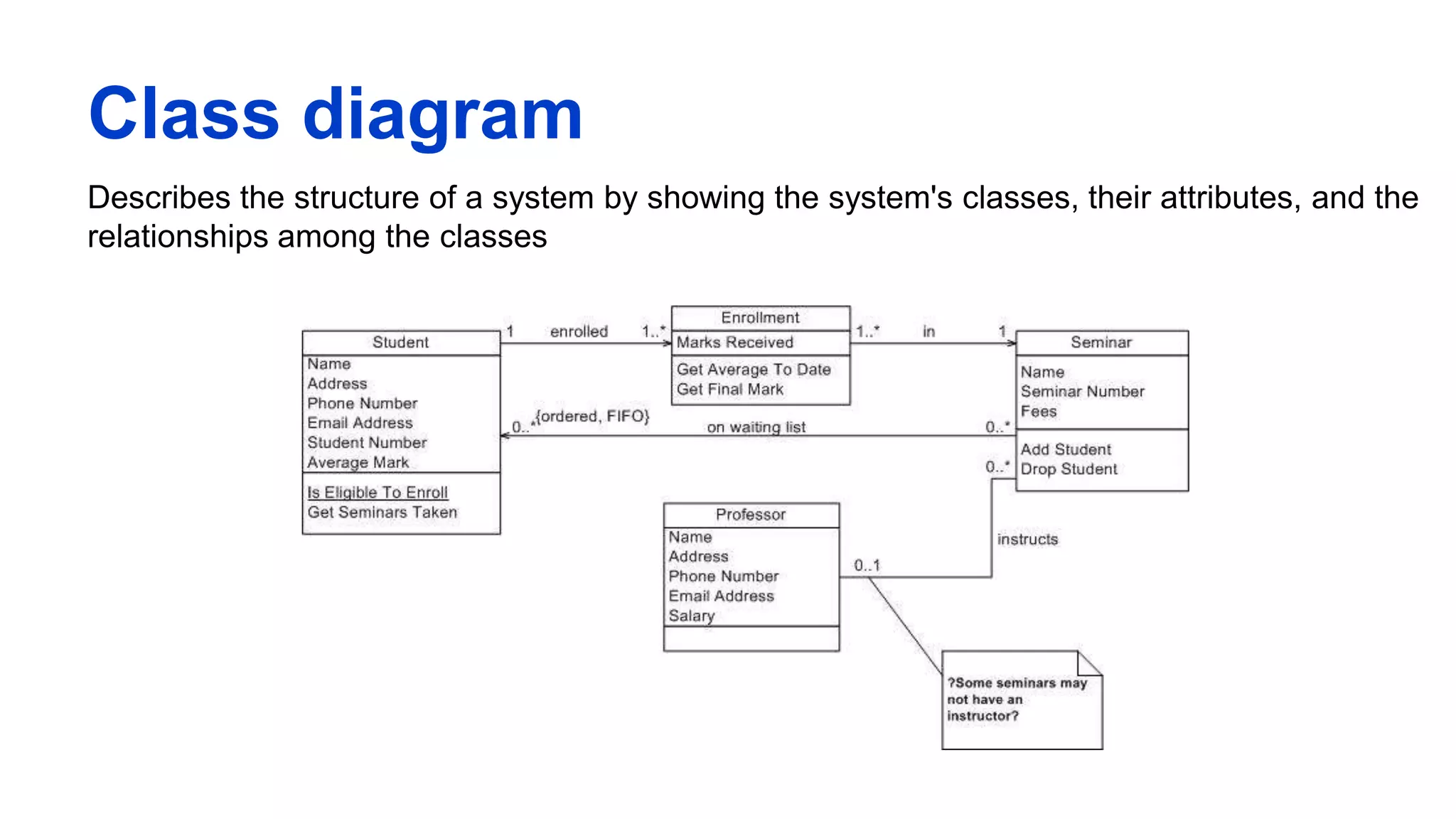

11. Class diagram
Describes the structure of a system by showing the system's classes, their attributes, and the
relationships among the classes

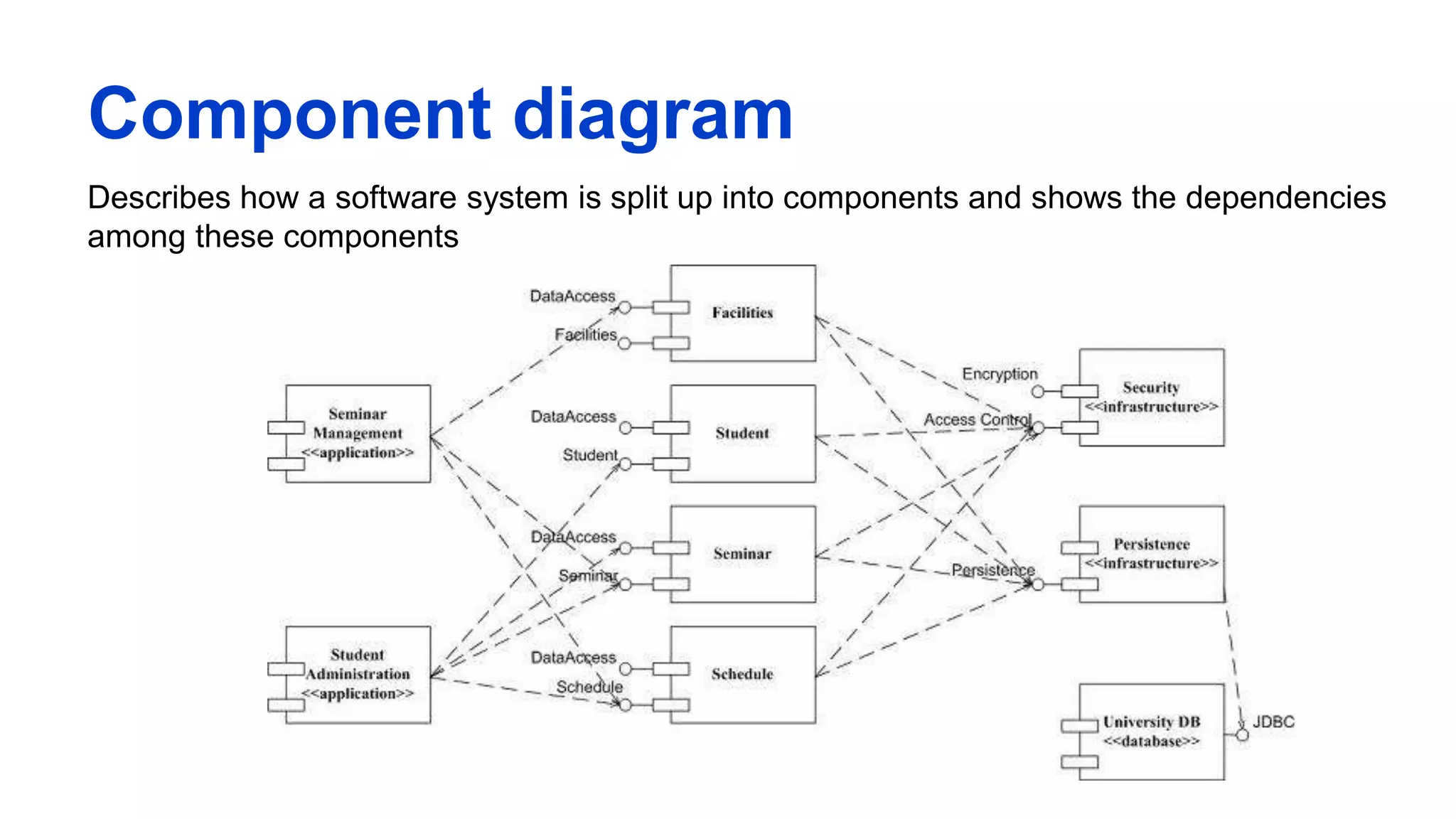

12. Component diagram
Describes how a software system is split up into components and shows the dependencies
among these components

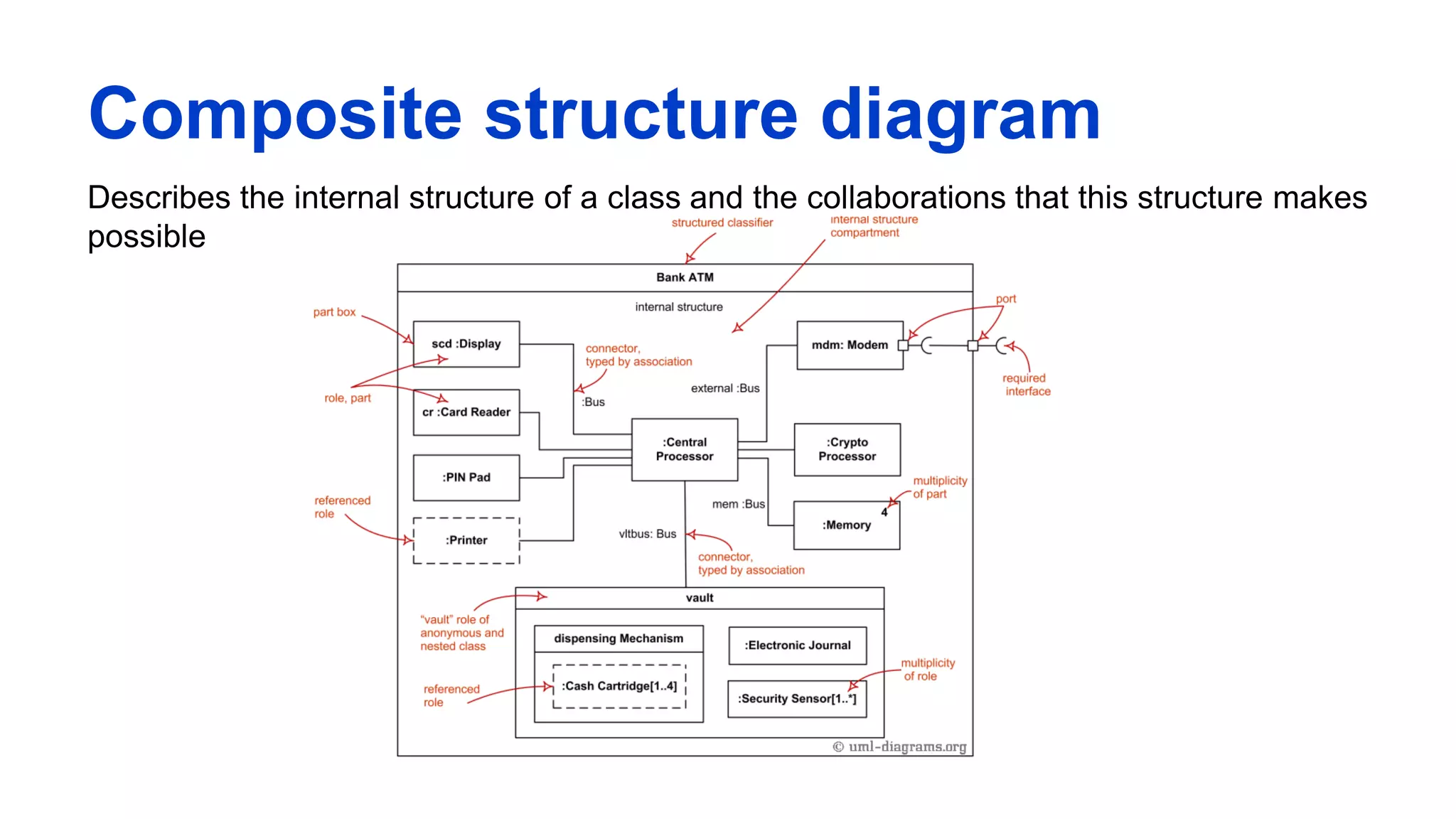

13. Composite structure diagram
Describes the internal structure of a class and the collaborations that this structure makes
possible

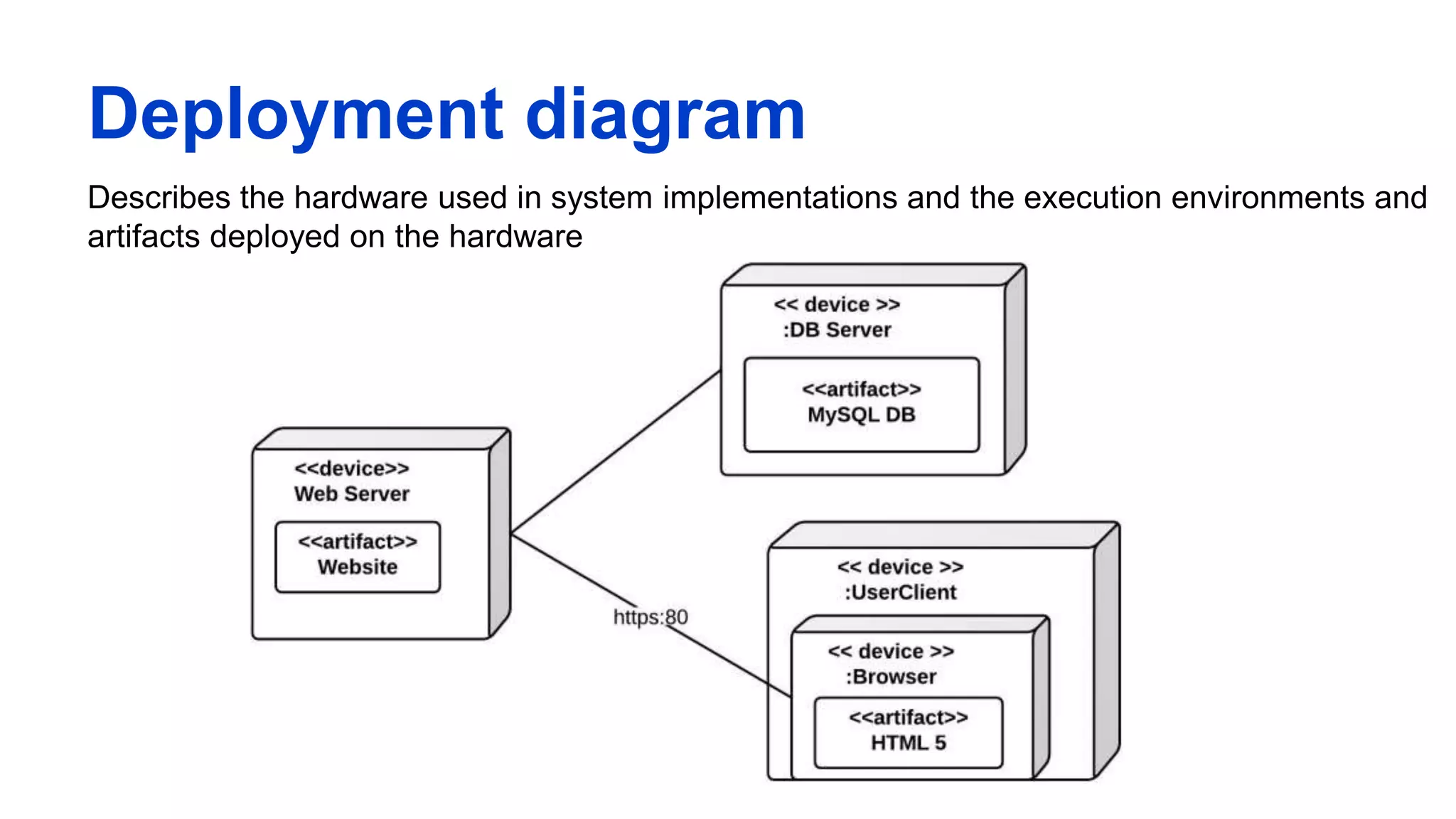

14. Deployment diagram
Describes the hardware used in system implementations and the execution environments and
artifacts deployed on the hardware

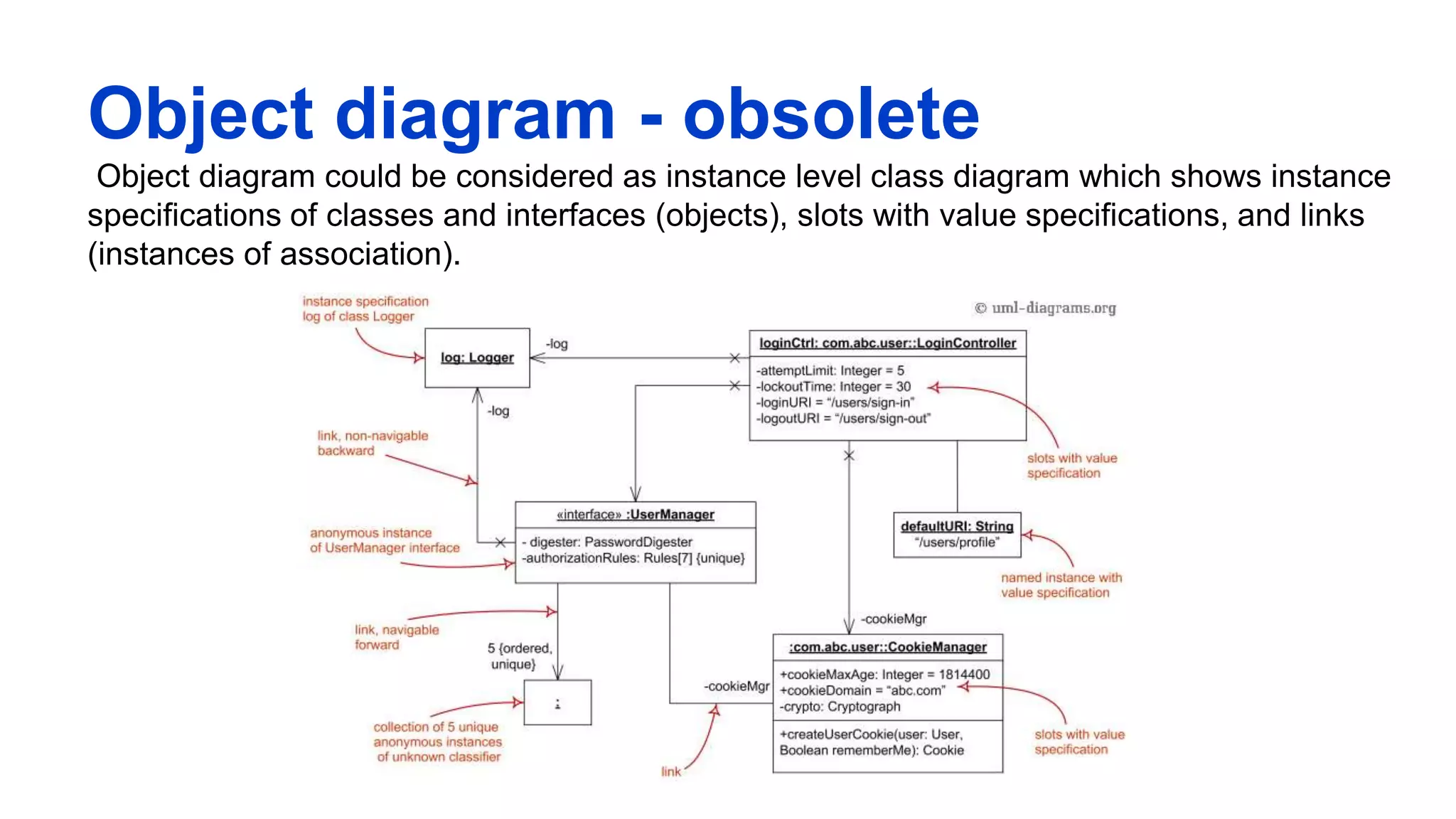

15. Object diagram - obsolete
Object diagram could be considered as instance level class diagram which shows instance
specifications of classes and interfaces (objects), slots with value specifications, and links
(instances of association).

16. Package diagram
Describes how a system is split up into logical groupings by showing the dependencies among
these groupings

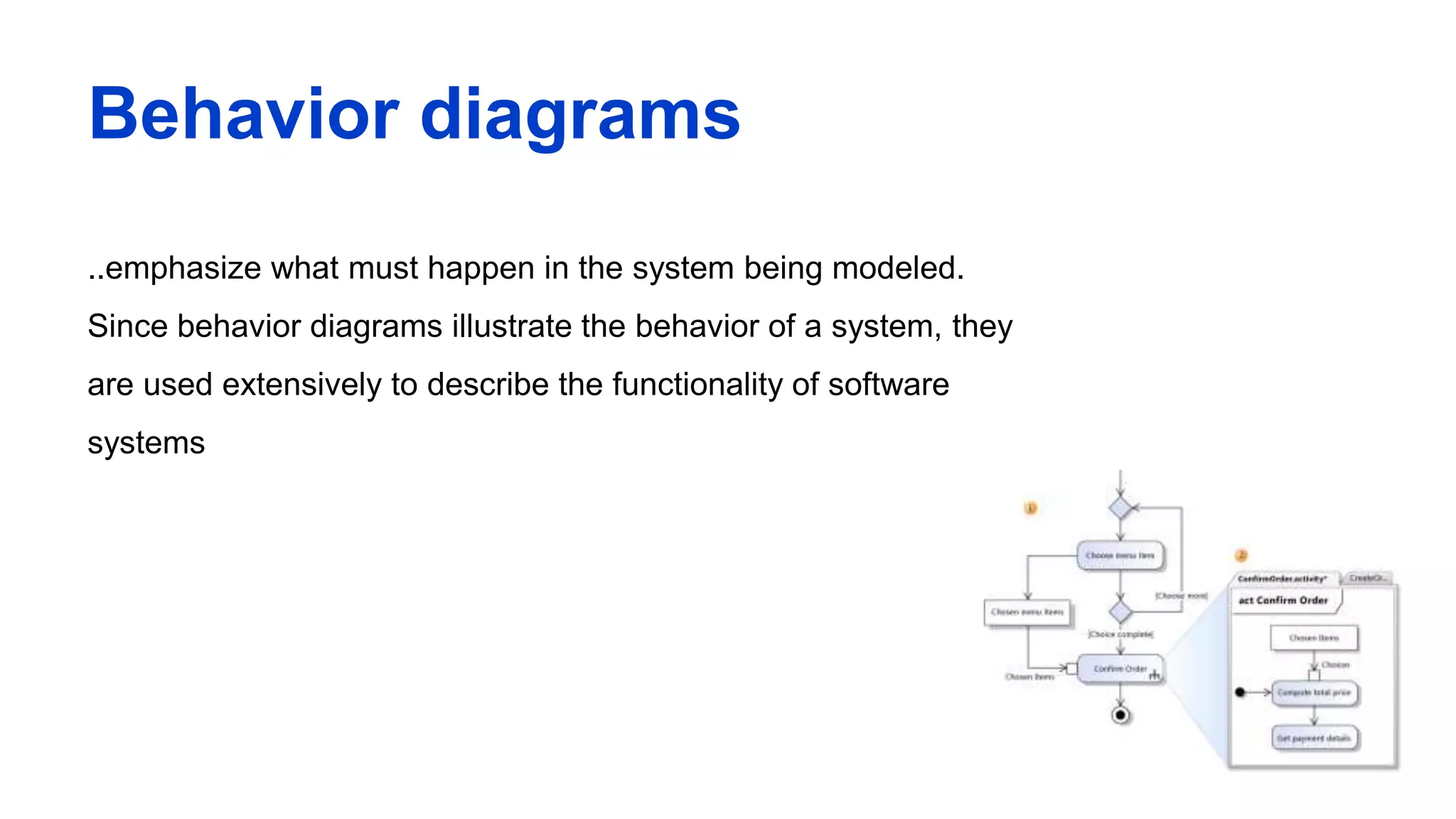

17. Behavior diagrams
..emphasize what must happen in the system being modeled.
Since behavior diagrams illustrate the behavior of a system, they
are used extensively to describe the functionality of software
systems

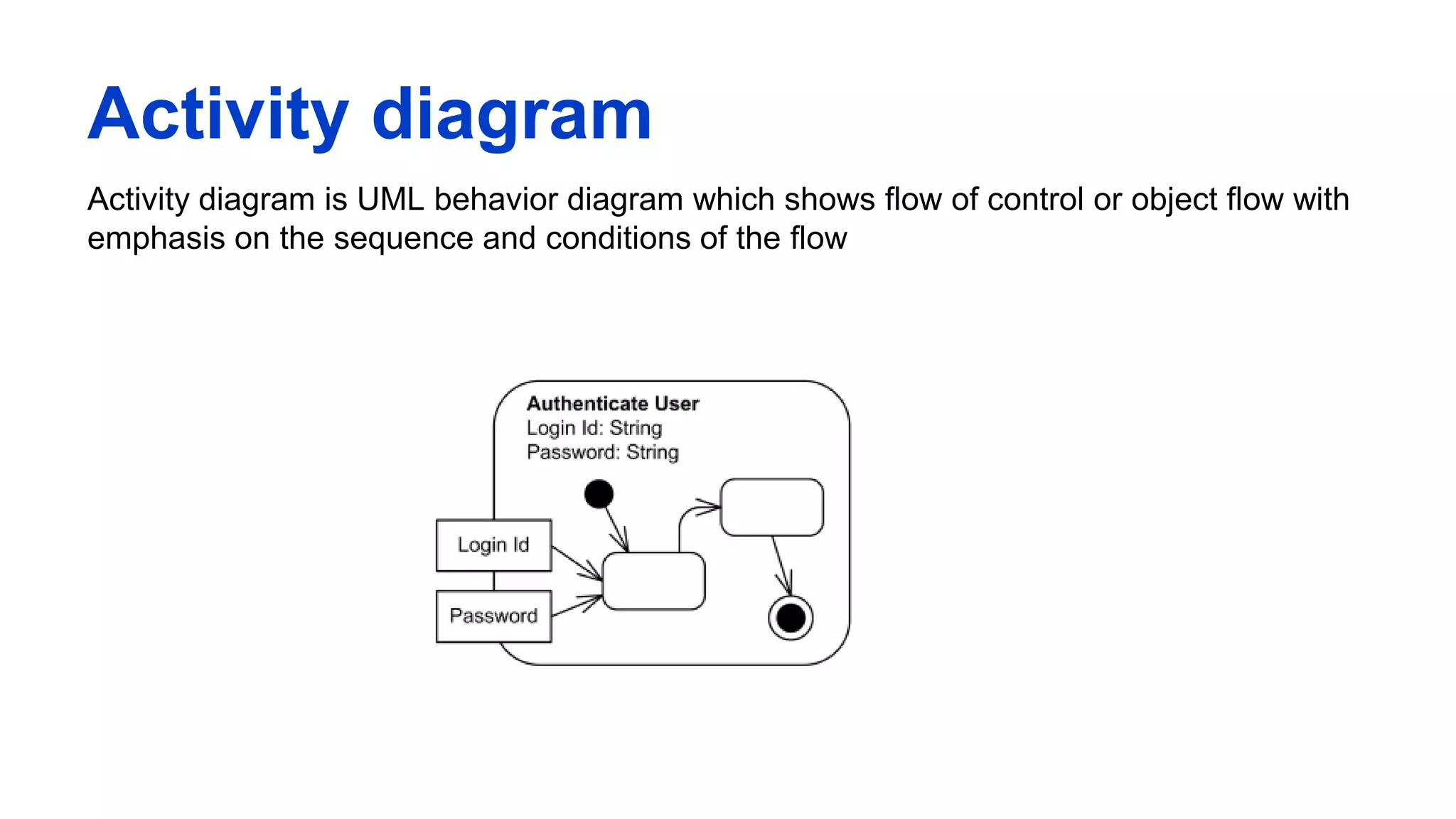

18. Activity diagram
Activity diagram is UML behavior diagram which shows flow of control or object flow with
emphasis on the sequence and conditions of the flow

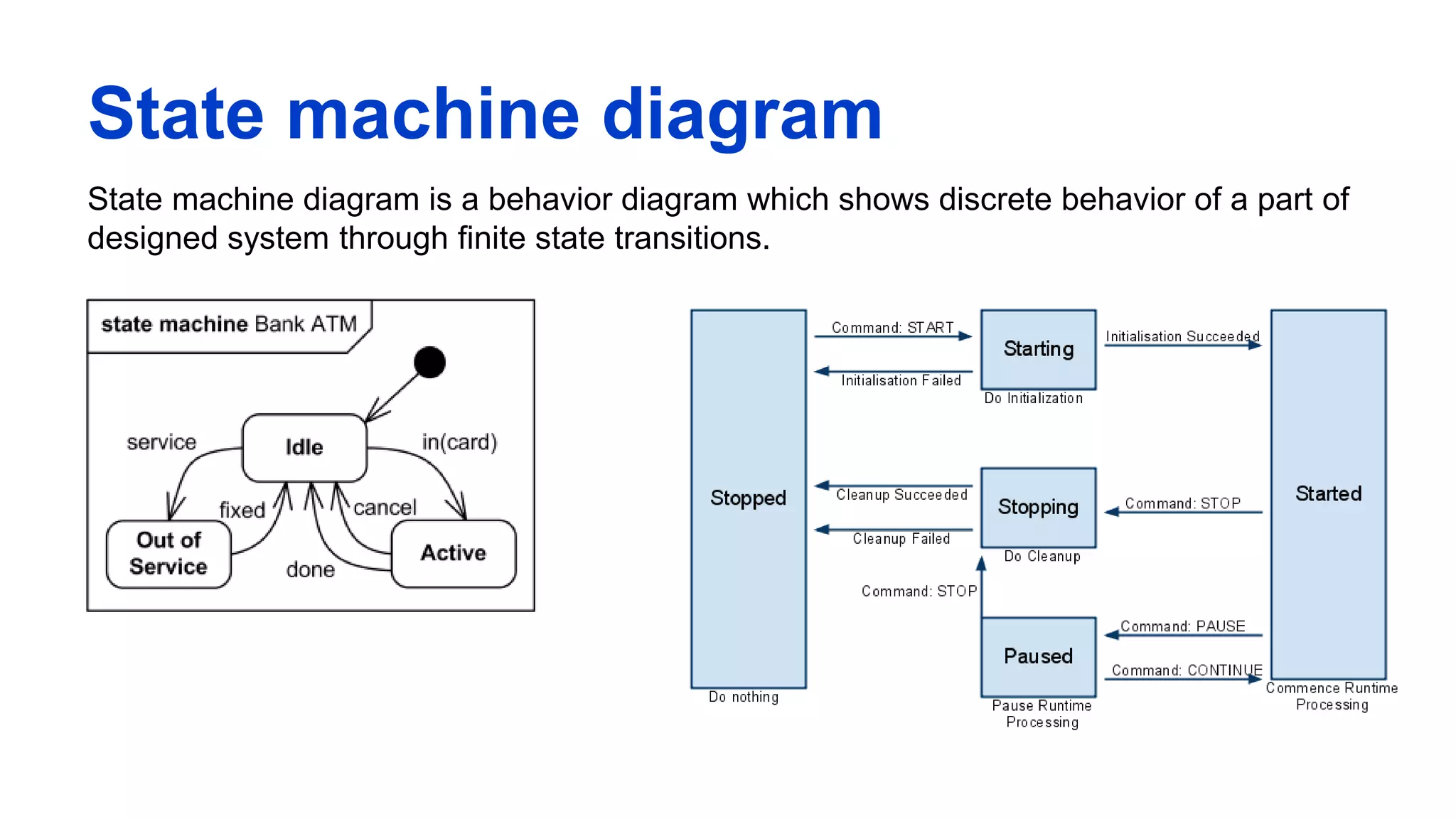

19. State machine diagram
State machine diagram is a behavior diagram which shows discrete behavior of a part of
designed system through finite state transitions.

20. Use case diagram
describes the functionality provided by a system in terms of actors, their goals represented as
use cases, and any dependencies among those use cases

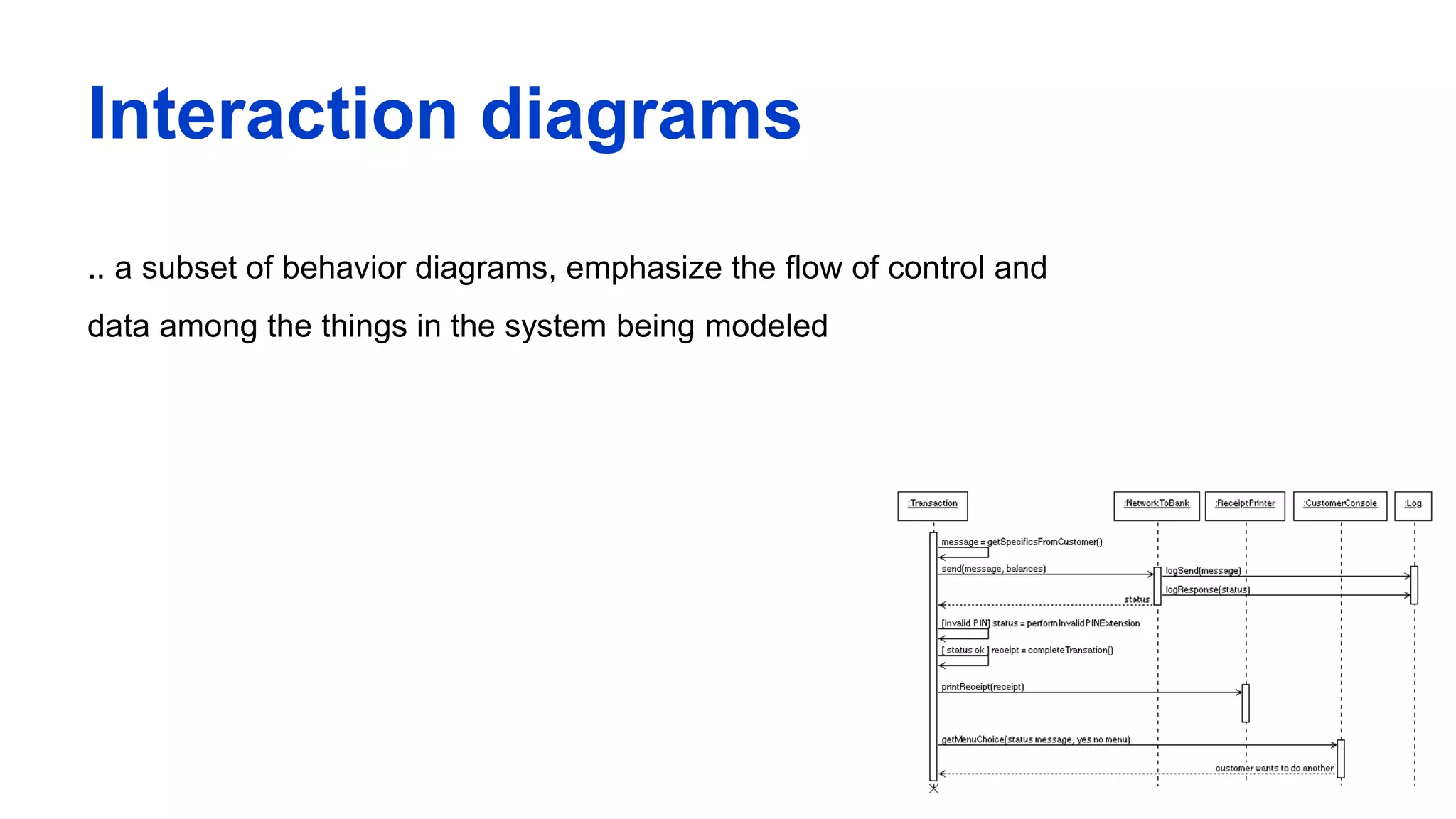

21. Interaction diagrams
.. a subset of behavior diagrams, emphasize the flow of control and
data among the things in the system being modeled

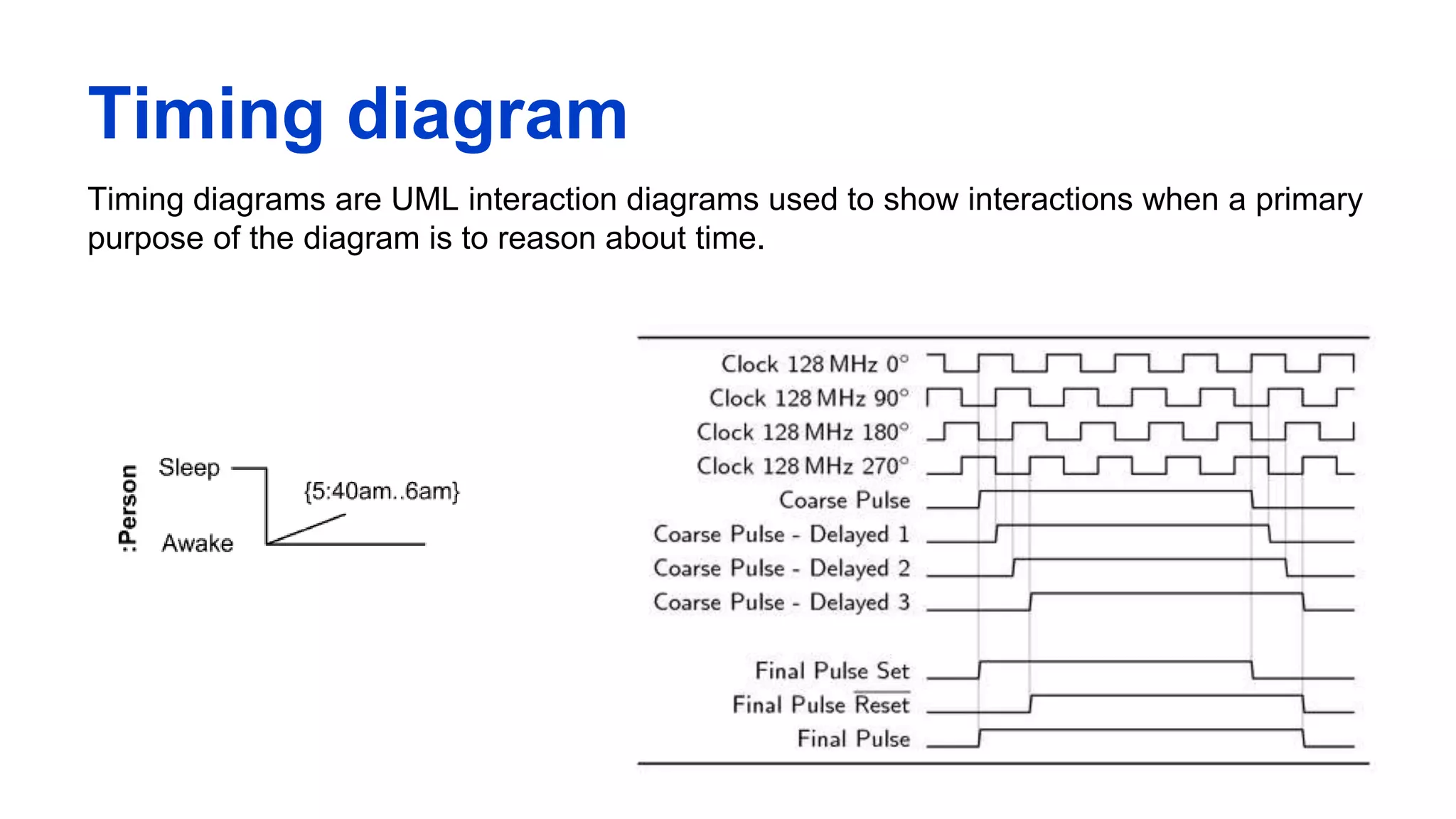

22. Timing diagram
Timing diagrams are UML interaction diagrams used to show interactions when a primary
purpose of the diagram is to reason about time.

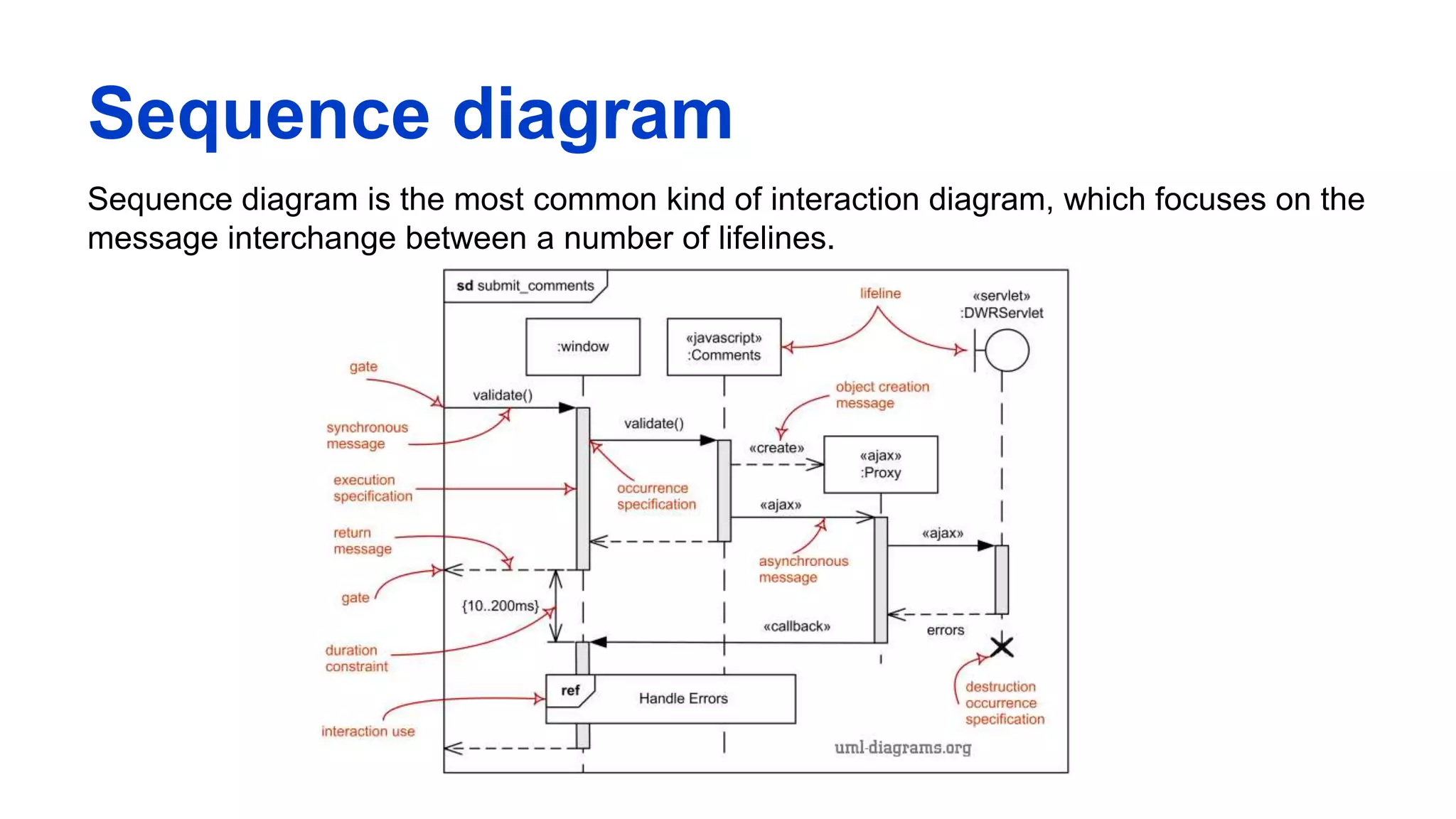

23. Sequence diagram
Sequence diagram is the most common kind of interaction diagram, which focuses on the
message interchange between a number of lifelines.

24. Communication diagram
Communication diagram is a kind of UML interaction diagram which shows interactions
between objects and/or parts (represented as lifelines) using sequenced messages in a free-
form arrangement.

25. Interaction overview diagram
Interaction overview diagrams provide overview of the flow of control where nodes of the flow
are interactions or interaction uses

26. UML Problem
UML is too technical for non-technical people but not technical enough for technical
people

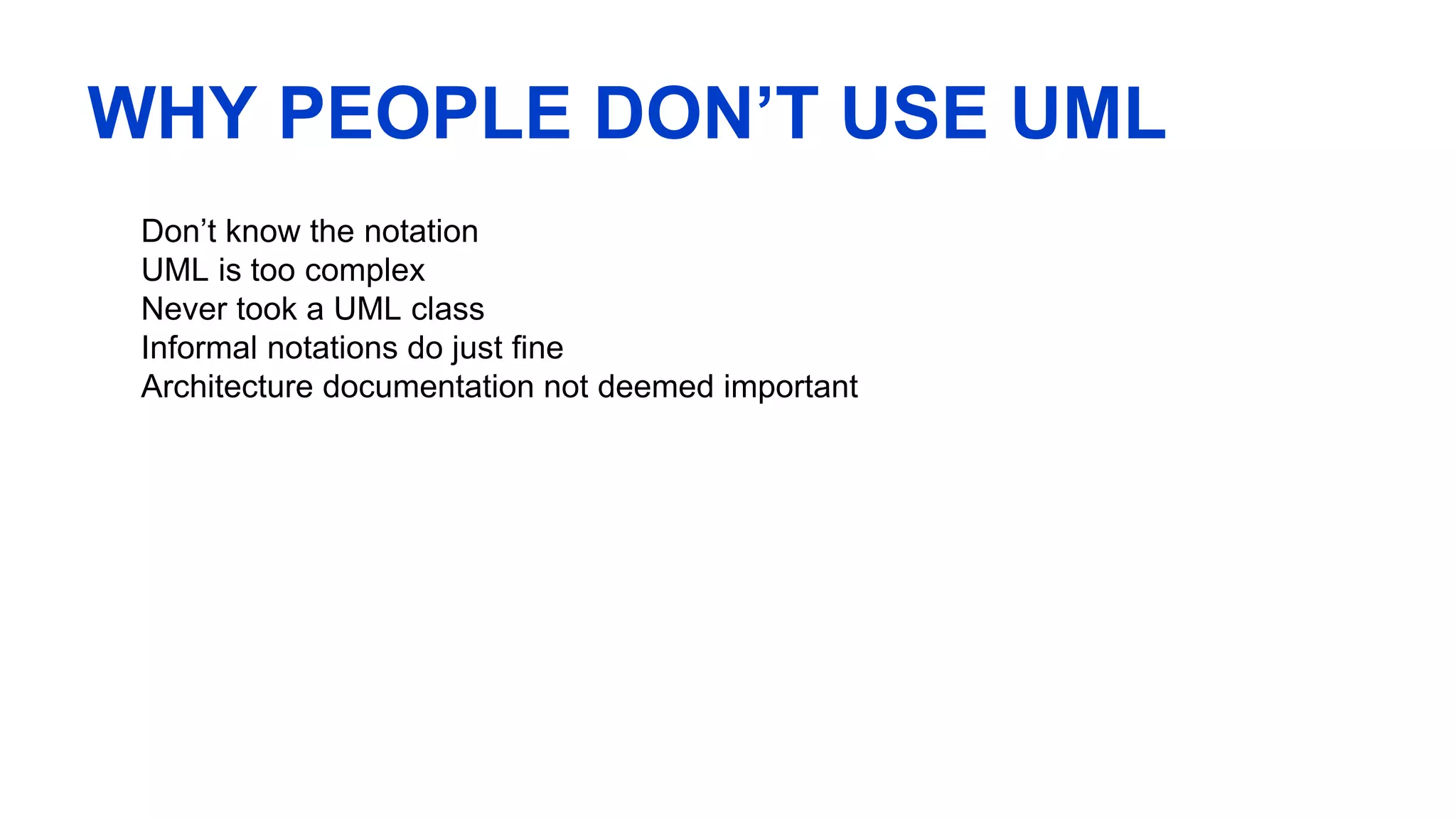

27. WHY PEOPLE DON’T USE UML
Don’t know the notation
UML is too complex
Never took a UML class
Informal notations do just fine
Architecture documentation not deemed important

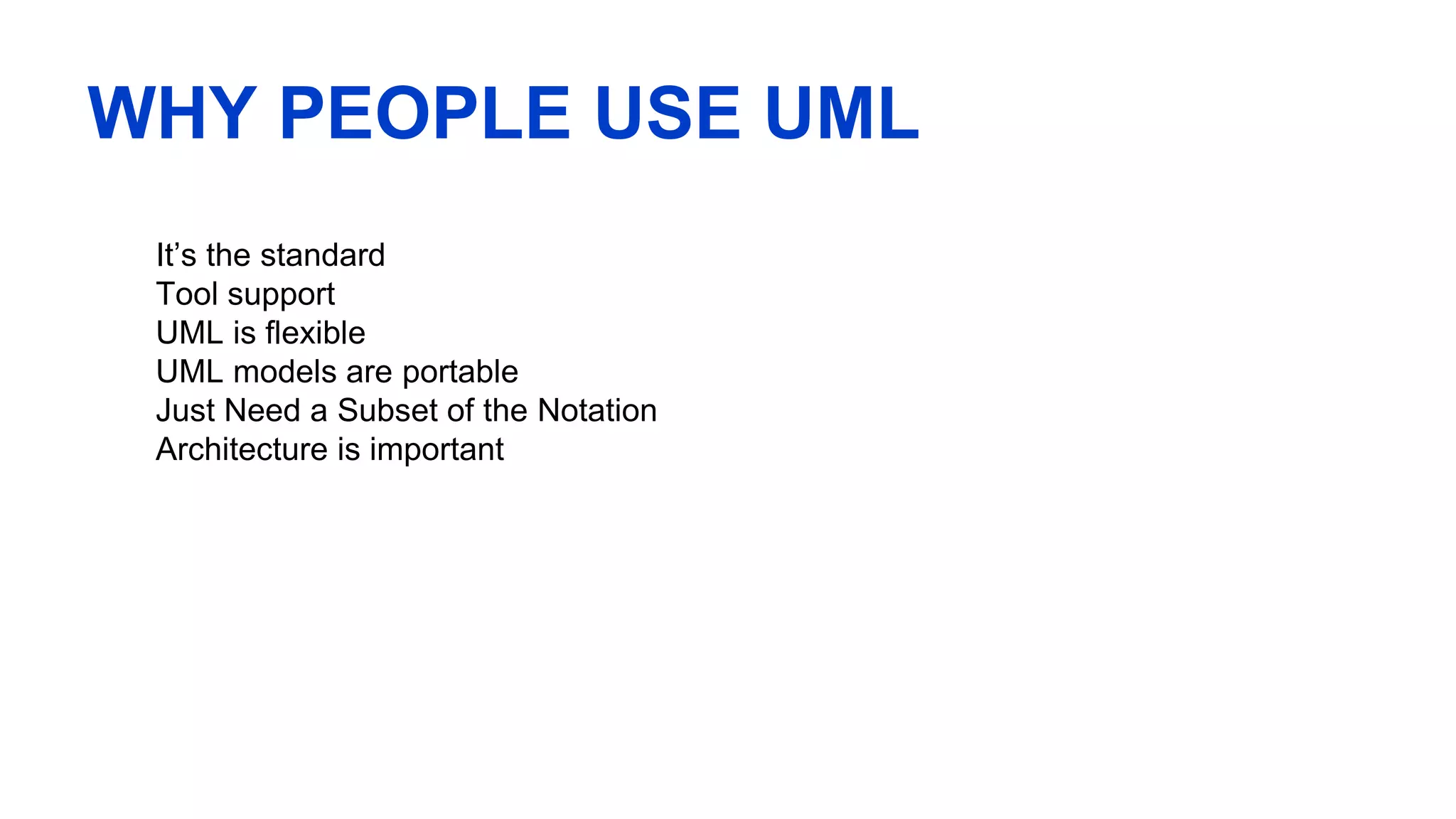

28. WHY PEOPLE USE UML
It’s the standard
Tool support
UML is flexible
UML models are portable
Just Need a Subset of the Notation
Architecture is important

29. Self-documenting code

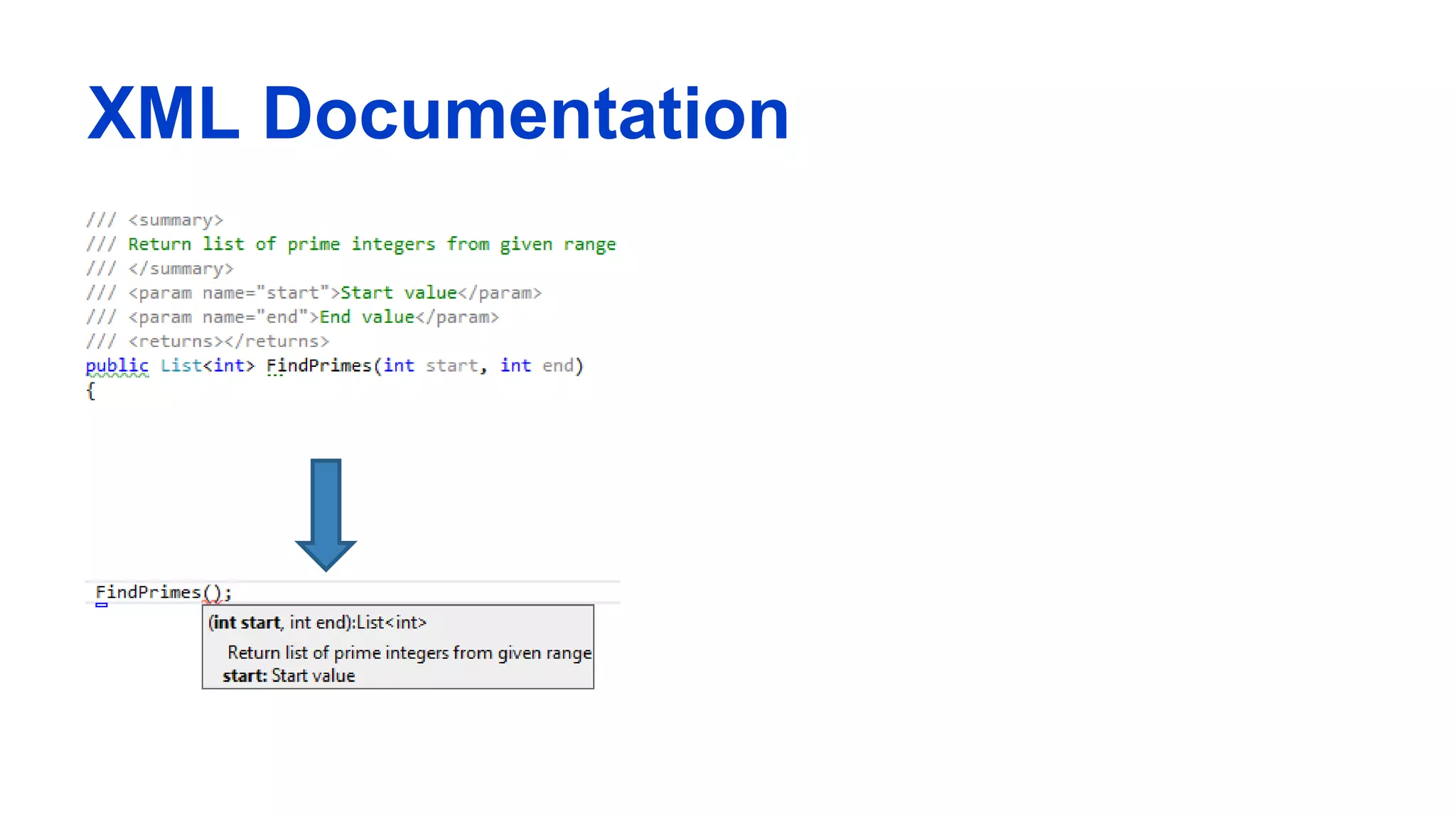

30. XML Documentation

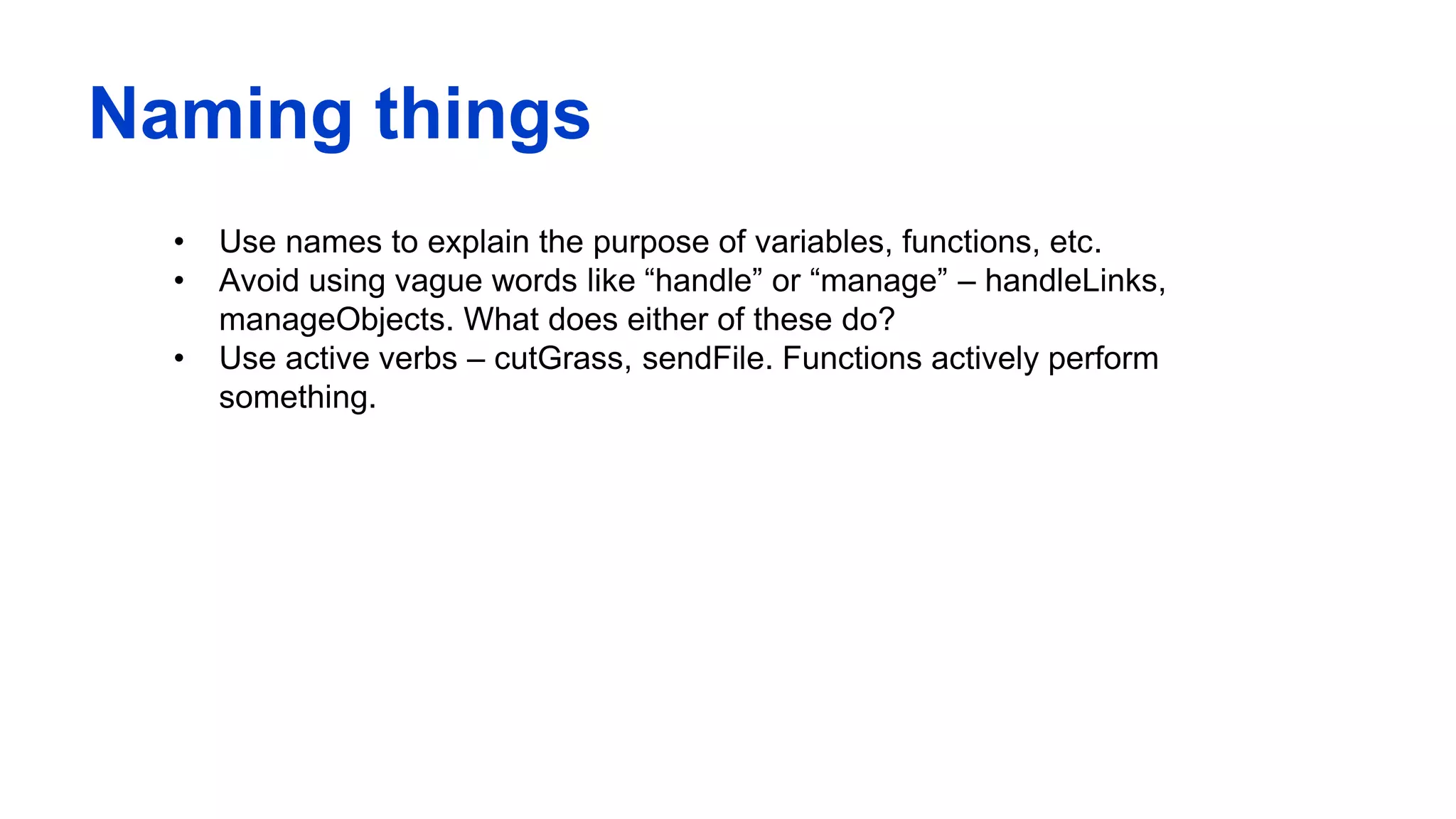

31. Naming things
• Use names to explain the purpose of variables, functions, etc.
• Avoid using vague words like “handle” or “manage” – handleLinks,
manageObjects. What does either of these do?
• Use active verbs – cutGrass, sendFile. Functions actively perform
something.

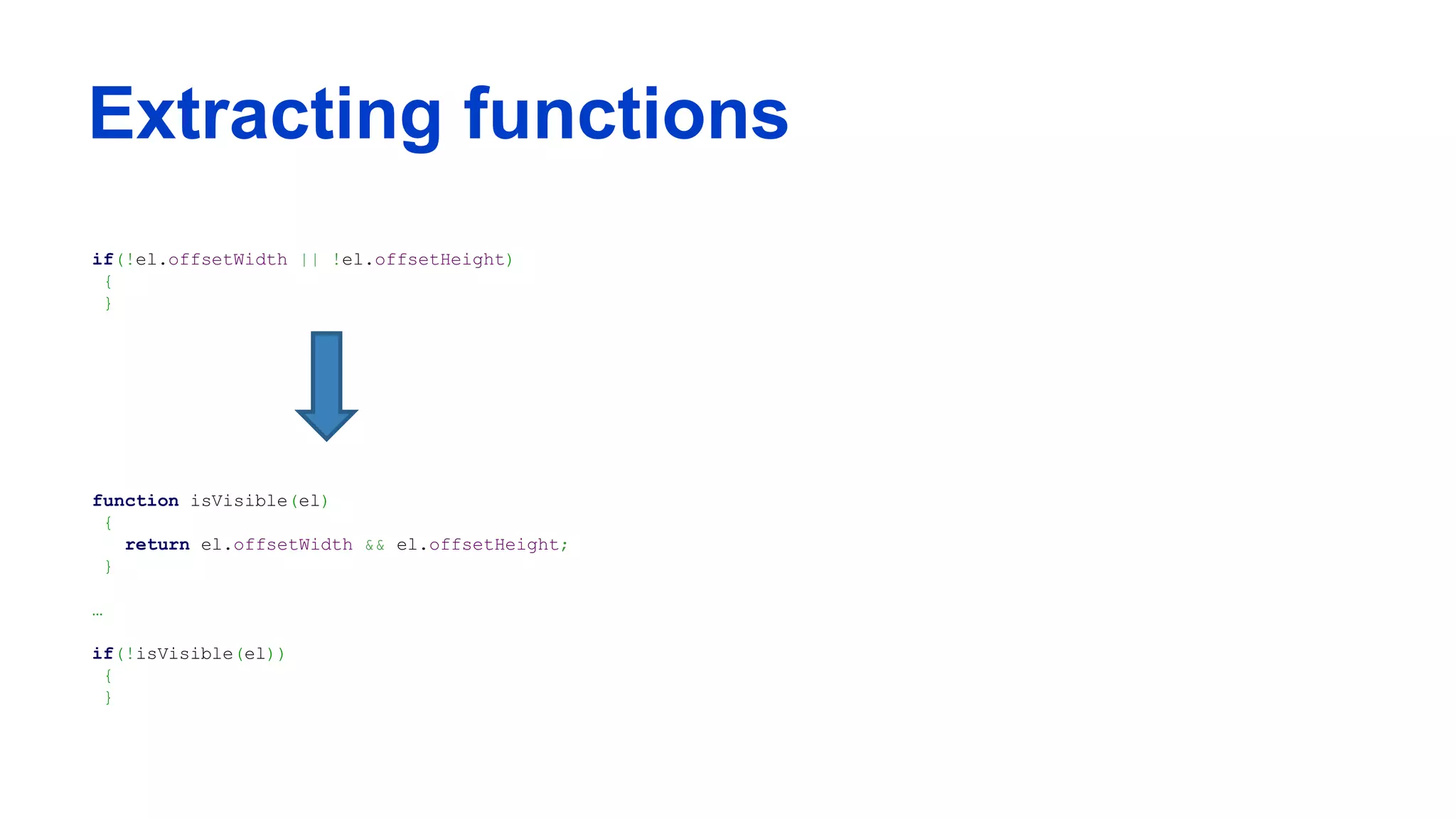

32. Extracting functions
if(!el.offsetWidth || !el.offsetHeight)
{
}
function isVisible(el)
{
return el.offsetWidth && el.offsetHeight;
}
…
if(!isVisible(el))
{
}

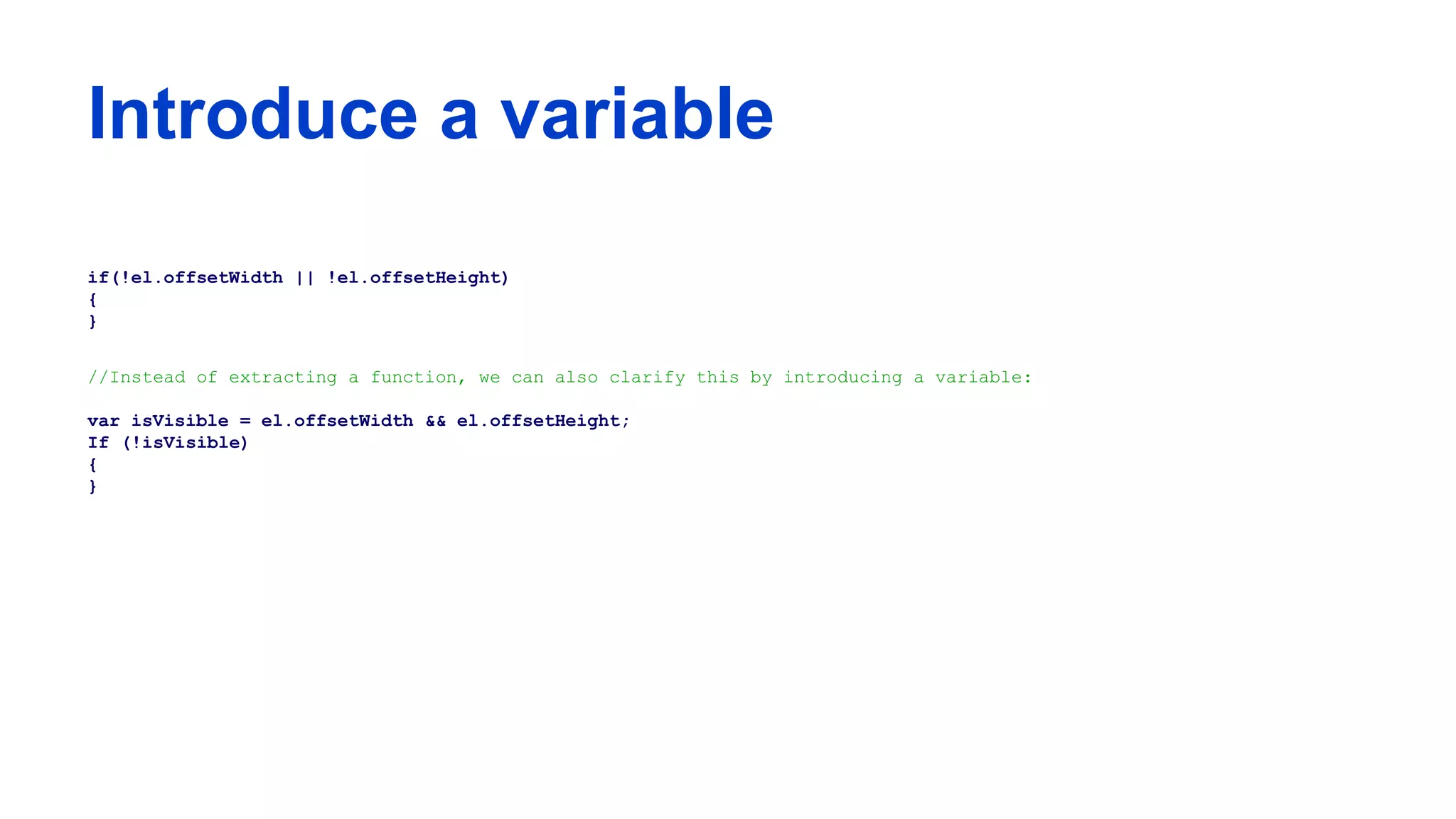

33. Introduce a variable
if(!el.offsetWidth || !el.offsetHeight)
{
}
//Instead of extracting a function, we can also clarify this by introducing a variable:
var isVisible = el.offsetWidth && el.offsetHeight;
If (!isVisible)
{
}

34. Tools available - Visio

35. Draw.io
• Cloud-based
• Rich integration
• Free

36. Gliffy.com
• Cloud-based
• Rich integration
• Free
• Commercial for full
experience

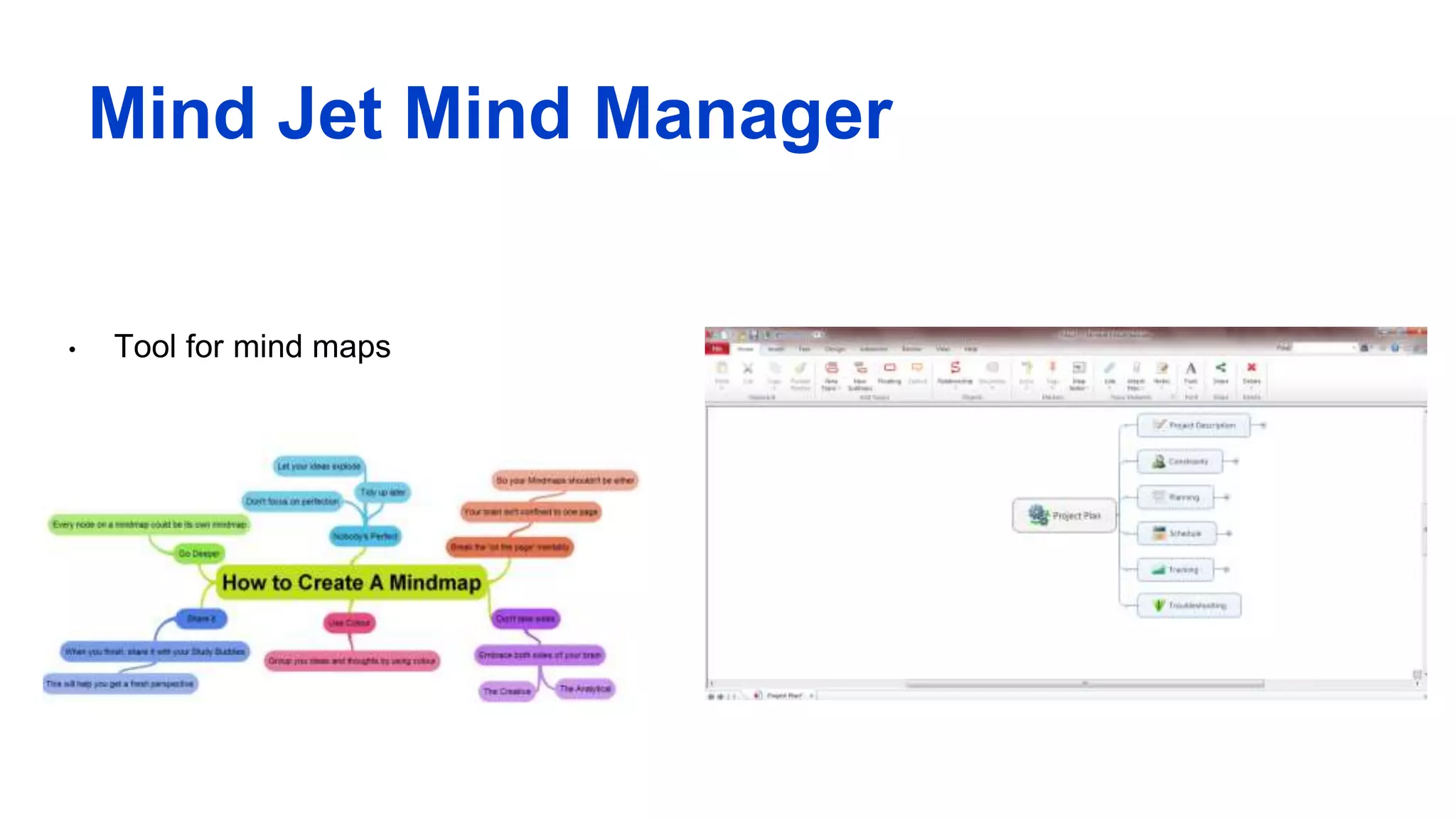

37. Mind Jet Mind Manager
• Tool for mind maps

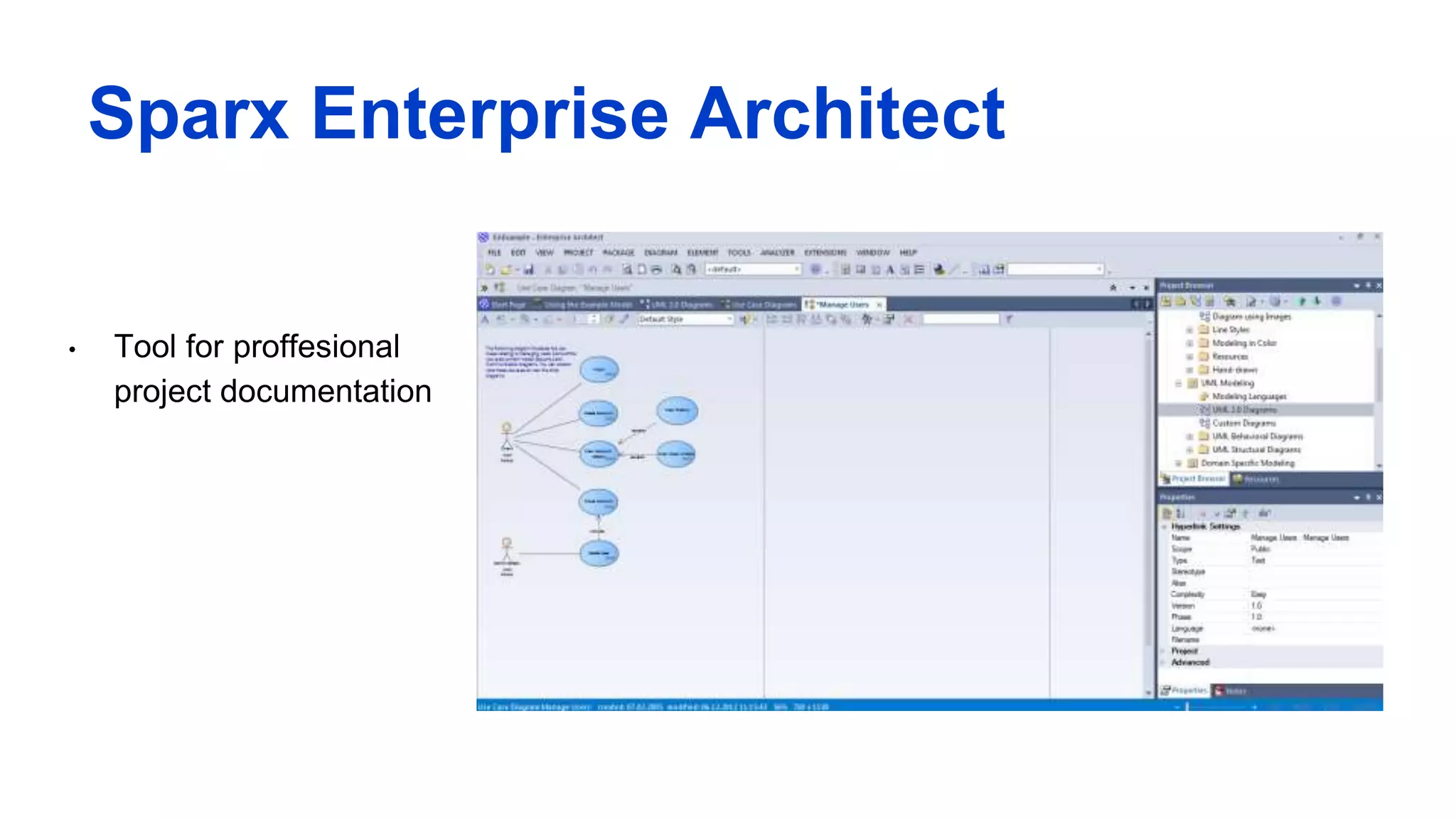

38. Sparx Enterprise Architect
• Tool for proffesional
project documentation
