802.11n Tutorial

The document provides a detailed overview of the IEEE 802.11n wireless networking standard, highlighting various technical aspects such as enhancements in the MAC and PHY layers, multicarrier modulation technologies like OFDM, and features like MIMO for improved capacity and coverage. It also discusses operational modes, modulation and coding schemes, as well as the significance of diversity and spatial multiplexing in transmission. Additionally, it covers specifics on block acknowledgment mechanisms and protection requirements for maintaining compatibility with legacy devices.

Embed presentation

Downloaded 2,724 times

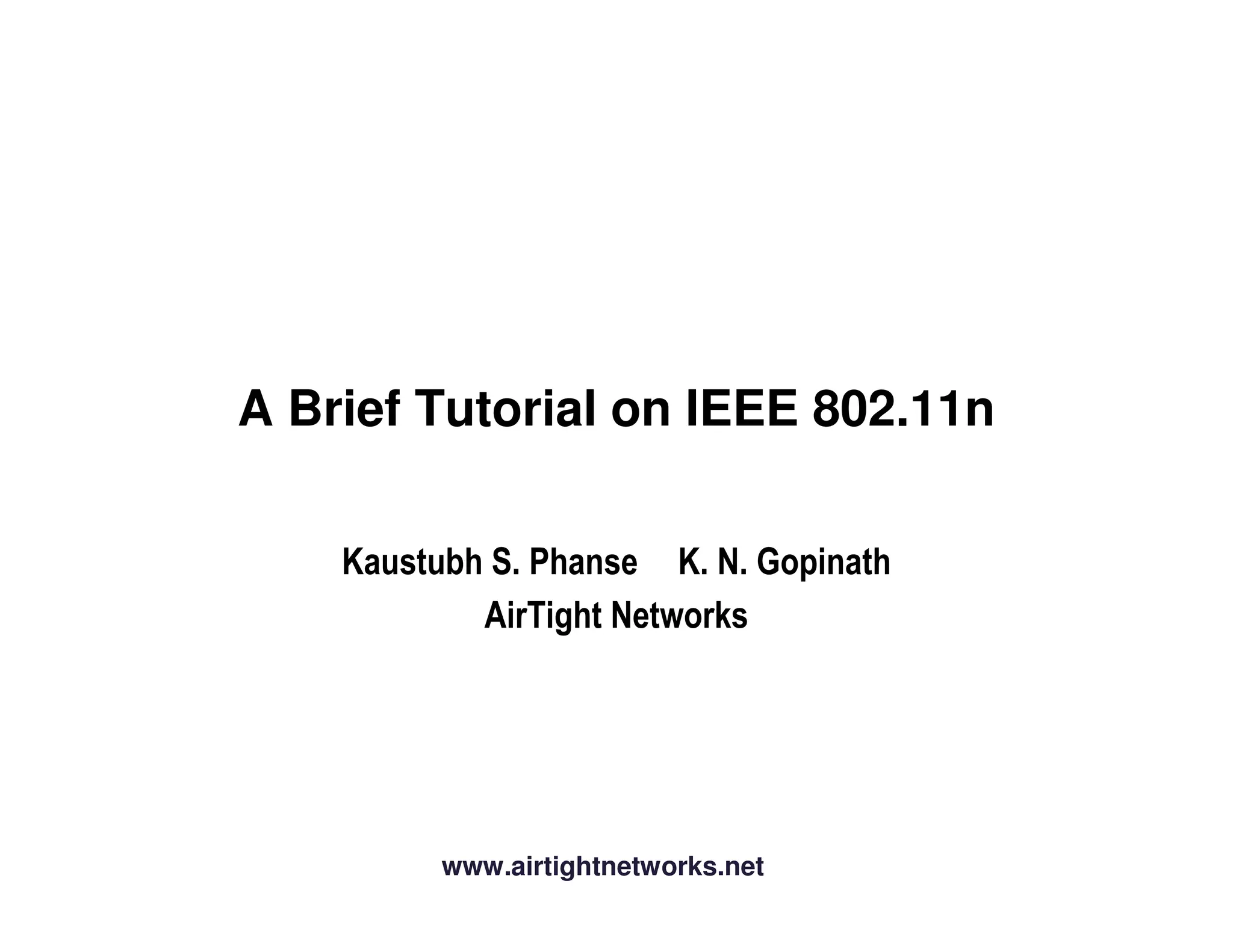

A Brief Tutorial on IEEE 802.11n www.airtightnetworks.net

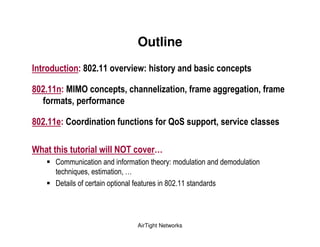

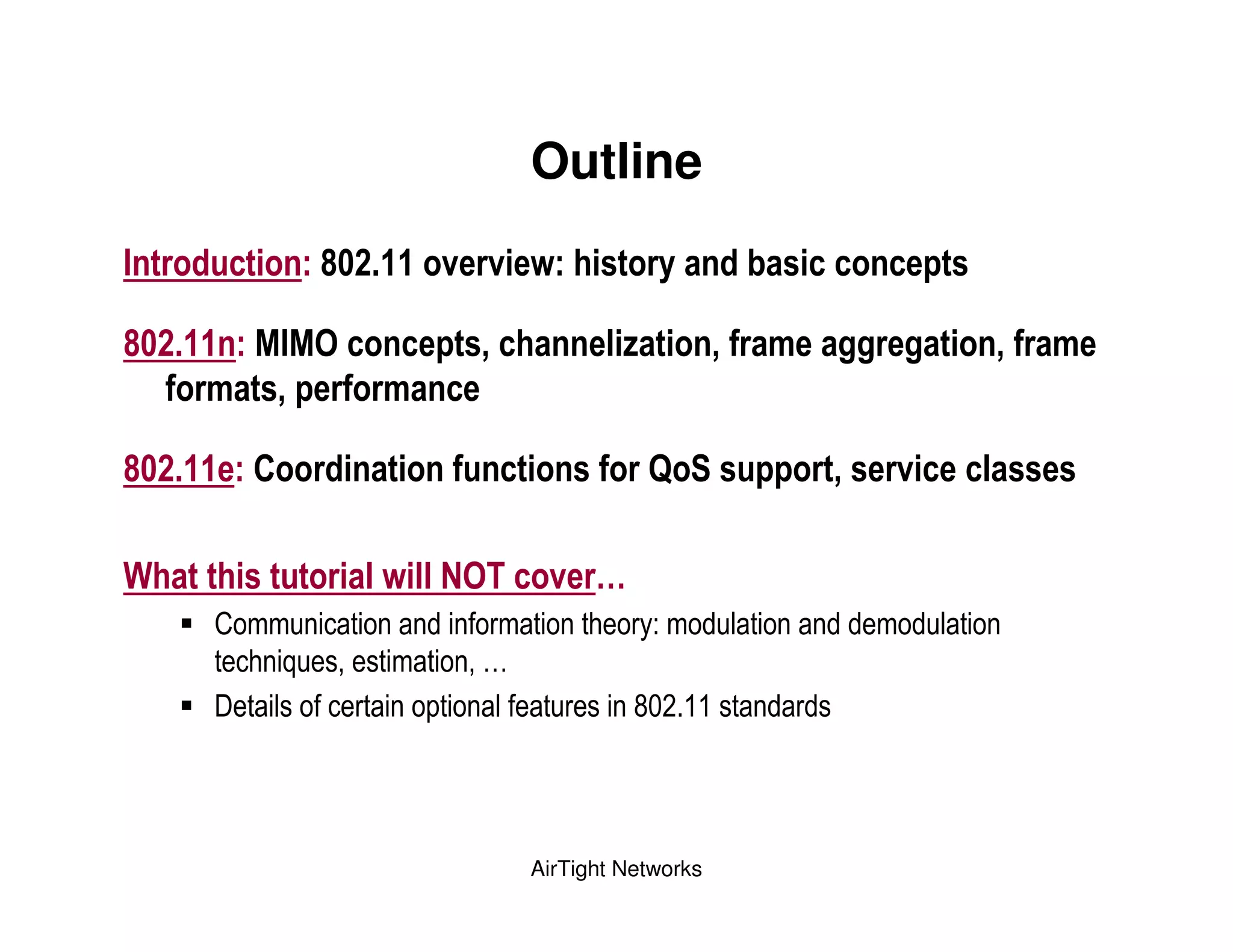

Outline ! ! " # # $ % &' %( ) %( ) ( ) % ( ) * ( ( + % ! & , & && $ ! - AirTight Networks

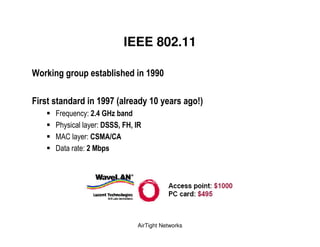

IEEE 802.11 , & .. / ..0 1 & " " 23 4 5' 6 %/5 % 7 ! * # 8* # AirTight Networks

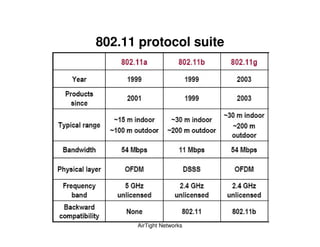

802.11 protocol suite AirTight Networks
802.11 MAC and PHY enhancements Security 802.11i 802.11e QoS Data link MAC 802.11w 802.11n Capacity & PLCP Coverage Physical 802.11n PMD AirTight Networks

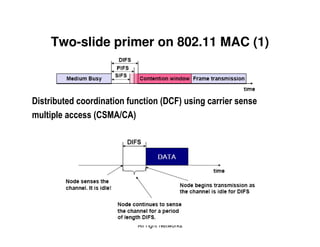

Two-slide primer on 802.11 MAC (1) 6 ( 16 * / 3 ) & & 1* # 8* 3 AirTight Networks

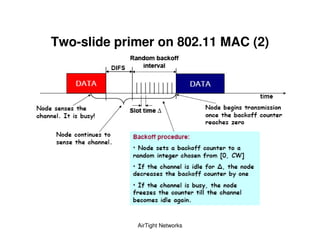

Two-slide primer on 802.11 MAC (2) AirTight Networks
Example of DCF CSMA/CA (1) AirTight Networks

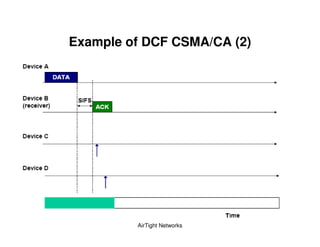

Example of DCF CSMA/CA (2) AirTight Networks

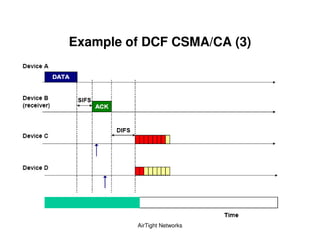

Example of DCF CSMA/CA (3) AirTight Networks
Example of DCF CSMA/CA (4) AirTight Networks

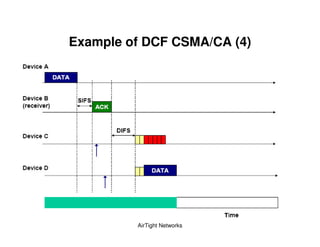

Example of DCF CSMA/CA (5) AirTight Networks
Example of DCF CSMA/CA (6) AirTight Networks

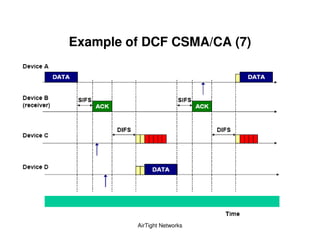

Example of DCF CSMA/CA (7) AirTight Networks
Motivation for multicarrier modulation 9 & " 1 ) & 3 ( : ") & ( 1 3 " # $ % & AirTight Networks

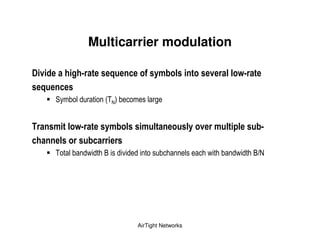

Multicarrier modulation 6 ! : ; ( ") & ! && : ; ' & () *+ & , ) & : ") & ) & &" ! ) & & : & ) & - " % & - & - " .* AirTight Networks

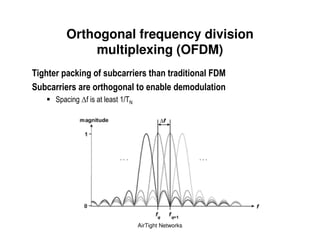

Orthogonal frequency division multiplexing (OFDM) ( &/6 # & & ) & ' , / .) * AirTight Networks

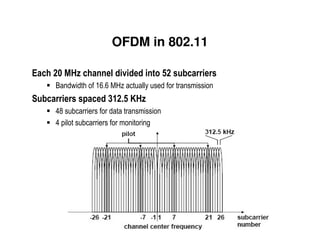

OFDM in 802.11 < # 5' & ! = " - 0 0 12 > = 5' 3 & 3 & , AirTight Networks

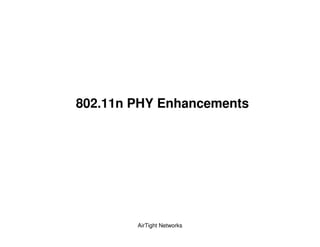

802.11n PHY Enhancements AirTight Networks
What is MIMO? $ & 1 ) 3 & $ 1 ! 3 Tx Rx # # $ # & & # & & $ ' % ( % + ' $ , Tx Rx # ? " ) 1 @ %# @ 3 AirTight Networks

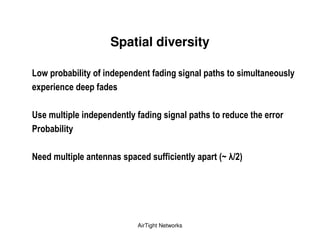

Spatial diversity 9 & " ( ( & ) & &" ? ( A ) & & &" ( & & " ) & & (( &" 1B C8 3 AirTight Networks

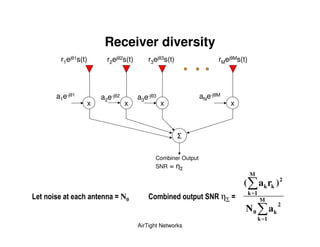

Receiver diversity r1ej 1s(t) r2ej 2s(t) r3ej 3s(t) rMej Ms(t) a1e-j 1 a2e-j 2 a3e-j 3 aNe-j M x x x x Combiner Output SNR = M ( a k rk ) 2 k =1 9 D N0 * ) 7 D M 2 N0 ak k =1 AirTight Networks

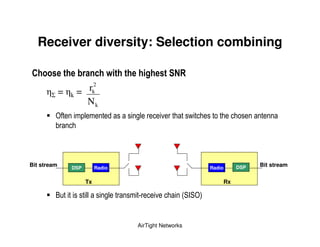

Receiver diversity: Selection combining * 7 = k= rk2 Nk 4 , % - & Bit stream DSP Radio Radio DSP Bit stream Tx Rx " , 5 % (' 6' 4 + AirTight Networks

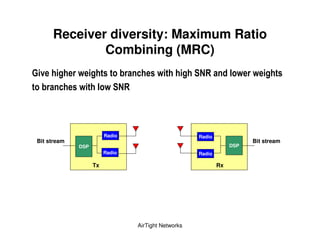

Receiver diversity: Maximum Ratio Combining (MRC) ! 7 & & 7 Radio Radio Bit stream Bit stream DSP DSP Radio Radio Tx Rx AirTight Networks

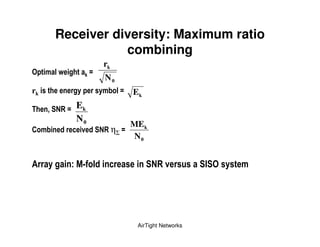

Receiver diversity: Maximum ratio combining rk $ ) & D N0 rk " ") &D Ek % 7 D Ek N0 ME k * ) ! 7 D N0 " # :( & 7 ! $ " ) AirTight Networks

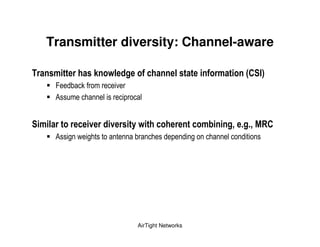

Transmitter diversity: Channel-aware ) & ( & ( ) 1* 3 & 7 % ! ) & ! ! " ) % %# 7 * ! , - , & , AirTight Networks

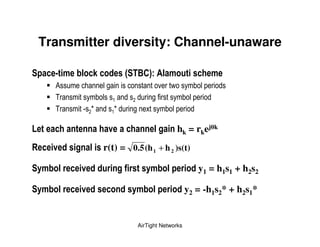

Transmitter diversity: Channel-unaware : ) & 1 E*3 & ) ) ! , % - & ) & , & ) 5 8 8 , $ & 9 ! & hk = rkej k 7 ! & r(t) = 0.5 (h 1 + h 2 )s(t) ") & ! ( ") & y1 = h1s1 + h2s2 ") & ! ") & y2 = -h1s2* + h2s1* AirTight Networks

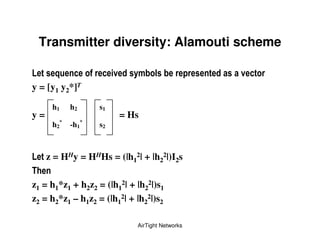

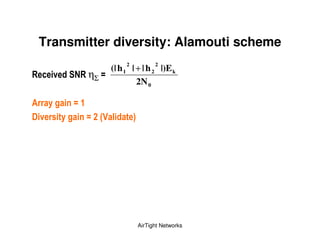

Transmitter diversity: Alamouti scheme 9 ; ( ! ") & ! y = [y1 y2*]T h1 h2 s1 y= = Hs h2* -h1 * s2 9 z = HHy = HHHs = (|h12| + |h22|)I2s z1 = h1*z1 + h2z2 = (|h12| + |h22|)s1 z2 = h2*z1 – h1z2 = (|h12| + |h22|)s2 AirTight Networks
Transmitter diversity: Alamouti scheme 2 2 (| h 1 | + | h 2 |)E k 7 ! 7 D 2N 0 " D 6 ! " D 1F & 3 AirTight Networks

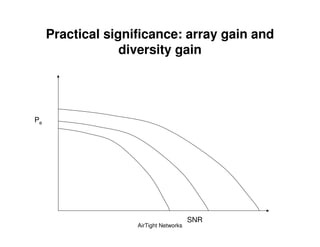

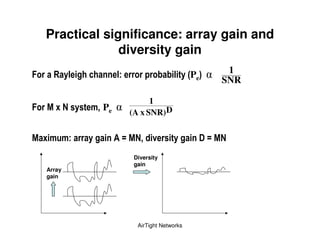

Practical significance: array gain and diversity gain / 7 "& & & " 1Pe3 1 SNR 1 / # ? " ) % Pe (A x SNR)D # ? ) ) " D# % ! " 6 D# Diversity gain Array gain AirTight Networks
Practical significance: array gain and diversity gain Pe SNR AirTight Networks

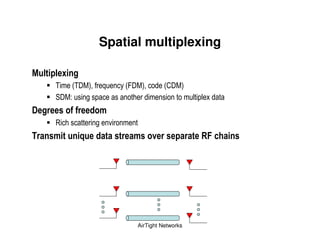

Spatial multiplexing # & & ? ) () + ( + ( + ' , $ 6 (( ) 9 , % ) ; ) ! 7/ AirTight Networks

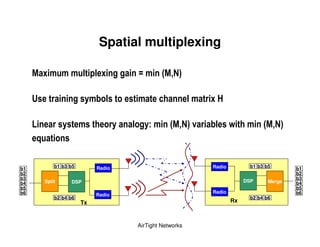

Spatial multiplexing # ? ) ) ) & & ? D) 1# % 3 A ") & ) &) ? 5 9 " ) " & " ) 1# % 3 ! & ) 1# % 3 ; b1 b1 b3 b5 Radio Radio b1 b3 b5 b1 b2 b2 b3 b3 b4 Split DSP DSP Merge b4 b5 b5 b6 Radio b6 Radio b2 b4 b6 b2 b4 b6 Tx Rx AirTight Networks

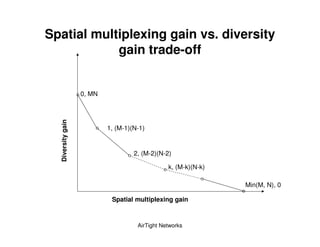

Spatial multiplexing gain vs. diversity gain trade-off 0, MN Diversity gain 1, (M-1)(N-1) 2, (M-2)(N-2) k, (M-k)(N-k) Min(M, N), 0 Spatial multiplexing gain AirTight Networks
802.11n channels 4 # 5' ( . - + , & 5 % 2 & , $ &" : ! & & 4 5' 6 , : #!* AirTight Networks

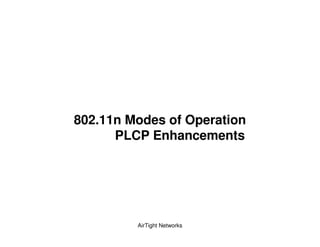

802.11n Modes of Operation PLCP Enhancements AirTight Networks
802.11n: Modes of Operation > # :5 % # ? % ( & 1 " 9* 3 # ? ( & , * & 7- & " - 2 ' ; # , * , % Detection of PPDU, 6 4 5#) % , timing & coarse freq acquisition ' ,, & ( , , 7 + ! For use of legacy devices also Signalling (See next slide) AirTight Networks

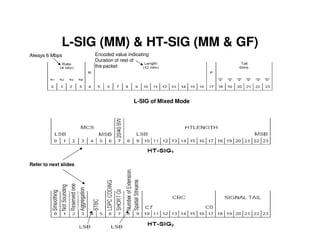

L-SIG (MM) & HT-SIG (MM & GF) Always 6 Mbps Encoded value indicating Duration of rest of the packet L-SIG of Mixed Mode Refer to next slides AirTight Networks

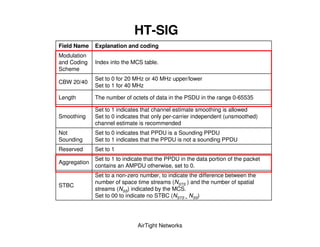

HT-SIG Field Name Explanation and coding Modulation and Coding Index into the MCS table. Scheme Set to 0 for 20 MHz or 40 MHz upper/lower CBW 20/40 Set to 1 for 40 MHz Length The number of octets of data in the PSDU in the range 0-65535 Set to 1 indicates that channel estimate smoothing is allowed Smoothing Set to 0 indicates that only per-carrier independent (unsmoothed) channel estimate is recommended Not Set to 0 indicates that PPDU is a Sounding PPDU Sounding Set to 1 indicates that the PPDU is not a sounding PPDU Reserved Set to 1 Set to 1 to indicate that the PPDU in the data portion of the packet Aggregation contains an AMPDU otherwise, set to 0. Set to a non-zero number, to indicate the difference between the number of space time streams (NSTS ) and the number of spatial STBC streams (NSS) indicated by the MCS. Set to 00 to indicate no STBC (NSTS = NSS) AirTight Networks
HT-SIG Field Name Explanation and coding LDPC Set to 1 for LDPC coding Set to 0 for BCC Set to 1 to indicate that the short GI is used after the HT training. Short GI Set to 0 otherwise Indicates the Number of extension spatial streams (NESS). Number of Set to 0 for no extension spatial stream extension Set to 1 for 1 extension spatial stream spatial Set to 2 for 2 extension spatial streams streams Set to 3 for 3 extension spatial streams CRC CRC of bits 0-23 in HT-SIG1 and bits 0-9 in HT-SIG2 AirTight Networks

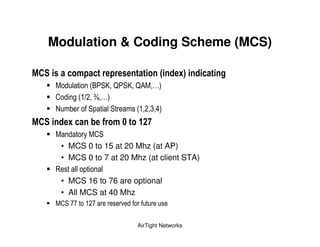

Modulation & Coding Scheme (MCS) # * ) 1 ?3 (" ' < = ' < = ! + , ( . > + * & ' ' ( ? 3+ # * ? ( ) 0 ' • MCS 0 to 15 at 20 Mhz (at AP) • MCS 0 to 7 at 20 Mhz (at client STA) 9 • MCS 16 to 76 are optional • All MCS at 40 Mhz ' @@ @ % AirTight Networks

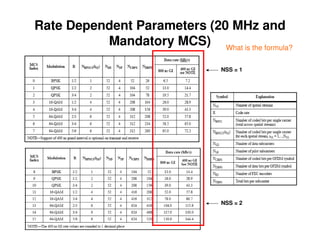

Rate Dependent Parameters (20 MHz and Mandatory MCS) What is the formula? NSS = 1 NSS = 2 AirTight Networks

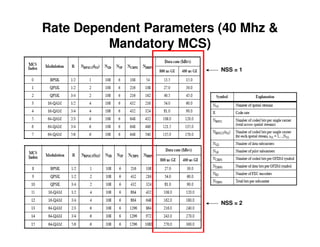

Rate Dependent Parameters (40 Mhz & Mandatory MCS) NSS = 1 NSS = 2 AirTight Networks

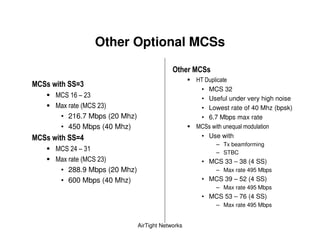

Other Optional MCSs $ # * 1) # * D> • MCS 32 ' 0 A ? • Useful under very high noise $ ( ' ?+ • Lowest rate of 40 Mhz (bpsk) • 216.7 Mbps (20 Mhz) • 6.7 Mbps max rate • 450 Mbps (40 Mhz) ' - # * D4 • Use with – Tx beamforming ' 3 A? – STBC $ ( ' ?+ • MCS 33 – 38 (4 SS) • 288.9 Mbps (20 Mhz) – Max rate 495 Mbps • 600 Mbps (40 Mhz) • MCS 39 – 52 (4 SS) – Max rate 495 Mbps • MCS 53 – 76 (4 SS) – Max rate 495 Mbps AirTight Networks
MAC Enhancements AirTight Networks

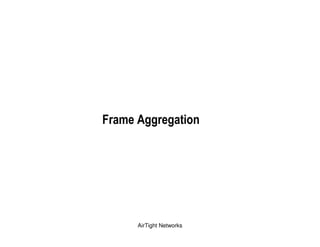

/ ) AirTight Networks

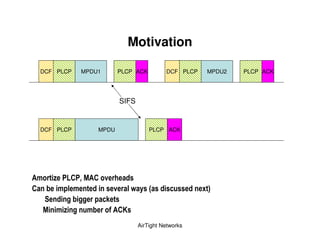

Motivation DCF PLCP MPDU1 PLCP ACK DCF PLCP MPDU2 PLCP ACK SIFS DCF PLCP MPDU PLCP ACK ) ' 9* %# * ! * ) & ) ! & " 1 ? 3 # ) ' ) ( * AirTight Networks

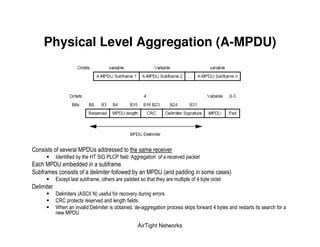

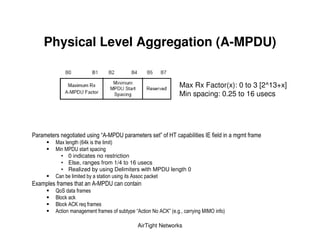

Physical Level Aggregation (A-MPDU) % B % 6 & 1 ) ' 6C # D!, , , E % 7 F B & & ' & - & B ( , + F$ & 3 & (!' 66 *+ % , 9 % , : % & 5 ,, , 7 - 3 & - B AirTight Networks
Physical Level Aggregation (A-MPDU) Max Rx Factor(x): 0 to 3 [2^13+x] Min spacing: 0.25 to 16 usecs , , G!5 B H 1) & 6F , $ , (0 3 7 + B , • 0 indicates no restriction • Else, ranges from 1/4 to 16 usecs • Realized by using Delimiters with MPDU length 0 & & , ! 7 F$ !5 B = ' " 7 7 " 7 ! < ! , & G! * ! < H( , , 6 4 + AirTight Networks

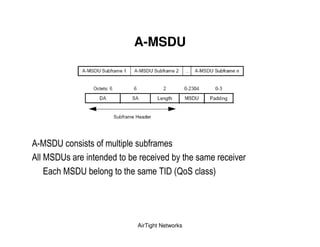

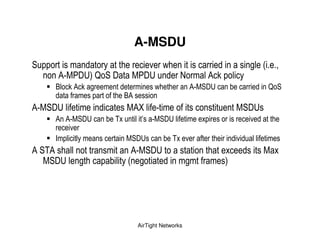

A-MSDU !5 ' B & ! ' B & % & % F ' B & , ) 6 (= ' + AirTight Networks
A-MSDU ' % - , ( !5 B += ' B * ! 7 " 7 ! 7 , - !5 ' B & = ' "! !5 ' B !I 5 ' B ! !5 ' B & )$ E 5 ' B $ % % 6 ' B & )$ % % !' )! !5 ' B $ $ ' B , & ( , , + AirTight Networks

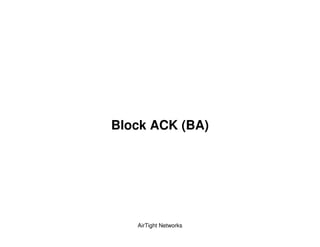

Block ACK (BA) AirTight Networks

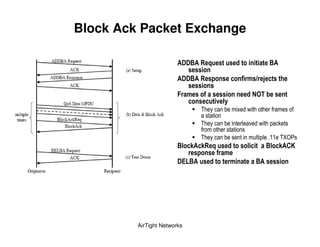

Block Ack Packet Exchange 66E 7 ; E 66E 7 ( ) 8 G / ) ( $ ! &" ) & $ - ) & % - 7 ) & )I4 E& 7 ; & E& * ( ) 6 <9E ) E AirTight Networks

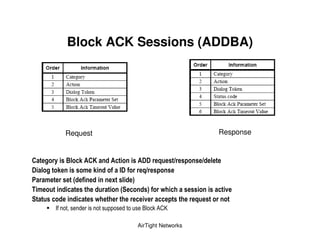

Block ACK Sessions (ADDBA) Request Response * " E& * 66 ; 8 8 & 6 & ) ( 6 ( ;8 ) 1 ( ? & 3 ) 1 3( ! ! ; 6 " 7 ! < AirTight Networks

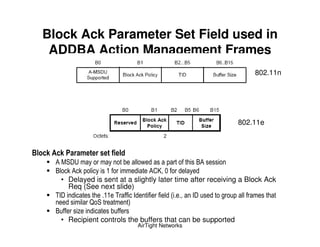

Block Ack Parameter Set Field used in ADDBA Action Management Frames 802.11n 802.11e E& ) ( & ! ' B & - "! " 7 ! 7 ! < • Delayed is sent at a slightly later time after receiving a Block Ack Req (See next slide) )6 ) 6 ( 6 , = ' + " 2 & • Recipient controls the buffers that can be supported AirTight Networks

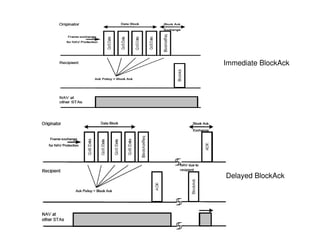

Immediate BlockAck Delayed BlockAck AirTight Networks

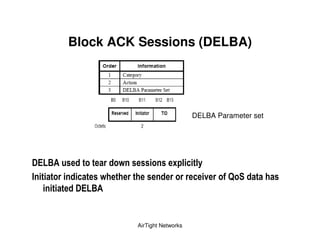

Block ACK Sessions (DELBA) DELBA Parameter set 6 <9E ? & &" ! (+ 6 <9E AirTight Networks

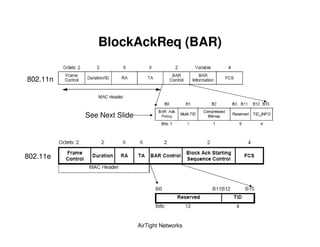

BlockAckReq (BAR) 802.11n See Next Slide 802.11e AirTight Networks

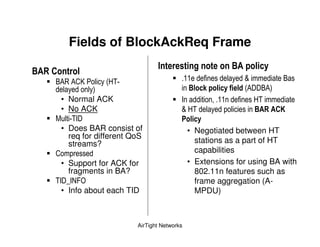

Fields of BlockAckReq Frame E & " E 7 * & " !9 ! < (1 ) 5 ; " + E& & " ( & (! " !+ • Normal ACK 6 1) • No ACK ; 1) E 7 * 5) 6 & " • Does BAR consist of • Negotiated between HT req for different QoS streams? stations as a part of HT capabilities • Support for ACK for • Extensions for using BA with fragments in BA? 802.11n features such as ) 6 J 6* 4 frame aggregation (A- • Info about each TID MPDU) AirTight Networks

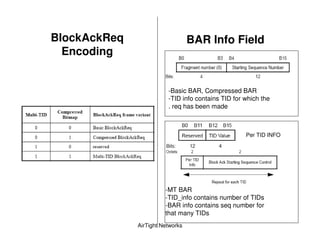

BlockAckReq BAR Info Field Encoding -Basic BAR, Compressed BAR -TID info contains TID for which the . req has been made Per TID INFO -MT BAR -TID_info contains number of TIDs -BAR info contains seq number for that many TIDs AirTight Networks

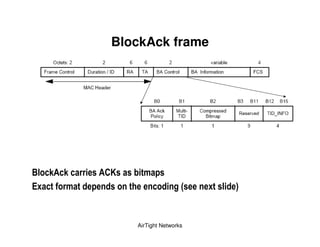

BlockAck frame E& * ) <? ( ) 1 ? & 3 AirTight Networks
BA Information for each BA encoding Basic BA 128 byte bitmap Compressed BA Mandatory 8 bit bitmap No support for fragments MTBA (repeated For each TID) AirTight Networks

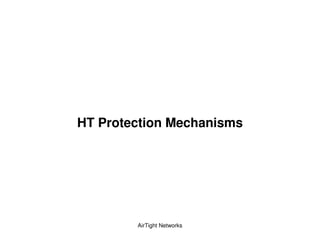

HT Protection Mechanisms AirTight Networks

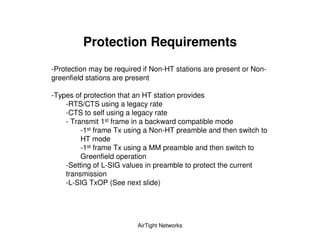

Protection Requirements -Protection may be required if Non-HT stations are present or Non- greenfield stations are present -Types of protection that an HT station provides -RTS/CTS using a legacy rate -CTS to self using a legacy rate - Transmit 1st frame in a backward compatible mode -1st frame Tx using a Non-HT preamble and then switch to HT mode -1st frame Tx using a MM preamble and then switch to Greenfield operation -Setting of L-SIG values in preamble to protect the current transmission -L-SIG TxOP (See next slide) AirTight Networks

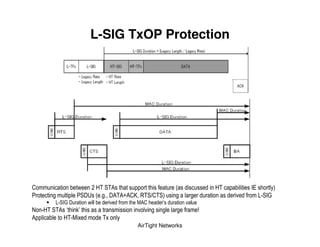

L-SIG TxOP Protection & - 1 ) ')! ( 1) & 6F + , ' B ( , !) !K ! < 9 ) ' . ) ' + , , % #5' 6C #5' 6C - & % ! E % * 51 ) ' ) ! D 7 E % % , , , L ! & 1 )5 $ )$ AirTight Networks

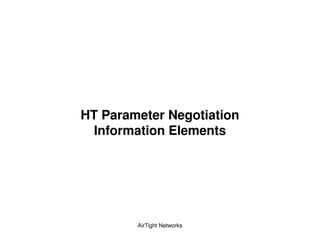

HT Parameter Negotiation Information Elements AirTight Networks

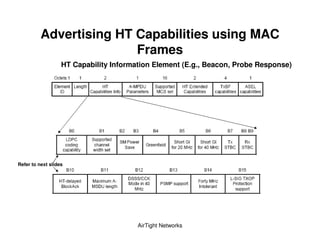

Advertising HT Capabilities using MAC Frames HT Capability Information Element (E.g., Beacon, Probe Response) Refer to next slides AirTight Networks

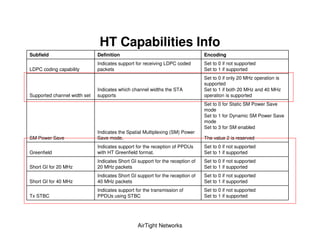

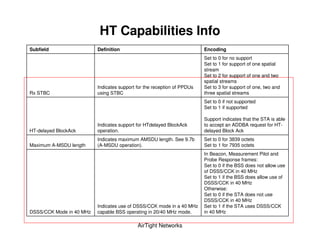

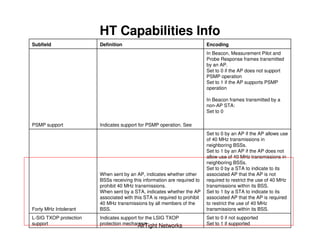

HT Capabilities Info Subfield Definition Encoding Indicates support for receiving LDPC coded Set to 0 if not supported LDPC coding capability packets Set to 1 if supported Set to 0 if only 20 MHz operation is supported Indicates which channel widths the STA Set to 1 if both 20 MHz and 40 MHz Supported channel width set supports operation is supported Set to 0 for Static SM Power Save mode Set to 1 for Dynamic SM Power Save mode Set to 3 for SM enabled Indicates the Spatial Multiplexing (SM) Power SM Power Save Save mode. The value 2 is reserved Indicates support for the reception of PPDUs Set to 0 if not supported Greenfield with HT Greenfield format. Set to 1 if supported Indicates Short GI support for the reception of Set to 0 if not supported Short GI for 20 MHz 20 MHz packets Set to 1 if supported Indicates Short GI support for the reception of Set to 0 if not supported Short GI for 40 MHz 40 MHz packets Set to 1 if supported Indicates support for the transmission of Set to 0 if not supported Tx STBC PPDUs using STBC Set to 1 if supported AirTight Networks
HT Capabilities Info Subfield Definition Encoding Set to 0 for no support Set to 1 for support of one spatial stream Set to 2 for support of one and two spatial streams Indicates support for the reception of PPDUs Set to 3 for support of one, two and Rx STBC using STBC three spatial streams Set to 0 if not supported Set to 1 if supported Support indicates that the STA is able Indicates support for HTdelayed BlockAck to accept an ADDBA request for HT- HT-delayed BlockAck operation. delayed Block Ack Indicates maximum AMSDU length. See 9.7b Set to 0 for 3839 octets Maximum A-MSDU length (A-MSDU operation). Set to 1 for 7935 octets In Beacon, Measurement Pilot and Probe Response frames: Set to 0 if the BSS does not allow use of DSSS/CCK in 40 MHz Set to 1 if the BSS does allow use of DSSS/CCK in 40 MHz Otherwise: Set to 0 if the STA does not use DSSS/CCK in 40 MHz Indicates use of DSSS/CCK mode in a 40 MHz Set to 1 if the STA uses DSSS/CCK DSSS/CCK Mode in 40 MHz capable BSS operating in 20/40 MHz mode. in 40 MHz AirTight Networks
HT Capabilities Info Subfield Definition Encoding In Beacon, Measurement Pilot and Probe Response frames transmitted by an AP. Set to 0 if the AP does not support PSMP operation Set to 1 if the AP supports PSMP operation In Beacon frames transmitted by a non-AP STA: Set to 0 PSMP support Indicates support for PSMP operation. See Set to 0 by an AP if the AP allows use of 40 MHz transmissions in neighboring BSSs. Set to 1 by an AP if the AP does not allow use of 40 MHz transmissions in neighboring BSSs. Set to 0 by a STA to indicate to its When sent by an AP, indicates whether other associated AP that the AP is not BSSs receiving this information are required to required to restrict the use of 40 MHz prohibit 40 MHz transmissions. transmissions within its BSS. When sent by a STA, indicates whether the AP Set to 1 by a STA to indicate to its associated with this STA is required to prohibit associated AP that the AP is required 40 MHz transmissions by all members of the to restrict the use of 40 MHz Forty MHz Intolerant BSS. transmissions within its BSS. L-SIG TXOP protection Indicates support for the LSIG TXOP Set to 0 if not supported support protection mechanism AirTight Networks Set to 1 if supported

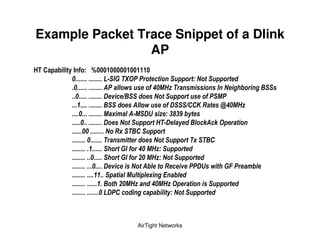

Example Packet Trace Snippet of a Dlink AP 5 * & " ( H !" # $& % $' () * ' + ' ( * ,,-. / !" 0# (1 " 2 2 & 34 5 ( ! ( 5 ' 6 6 .0 ', # 0 ', + % !" % 7 !" () & . ) (1 % 8 #& ++ 0 $9 & + ' %7 !" !" (, $ & 5 AirTight Networks

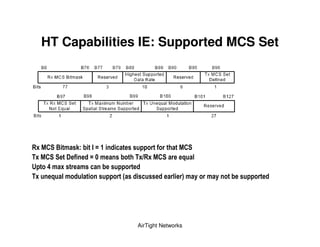

HT Capabilities IE: Supported MCS Set 7? # * E ) D ( # * ? # * 6 ( D ) ? 87 ? # * ; & A 4 ) ? ) ? ; &) & 1 & 3) " ) " AirTight Networks

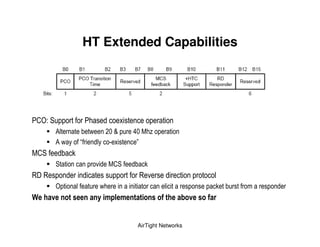

HT Extended Capabilities 4 ' $ ! & - ; 3 2 !- G 5 $ H ' & 7 ' % ' & 7 9 9 9 % 4 - 7 & , ! " ) & ) ( ! ( AirTight Networks

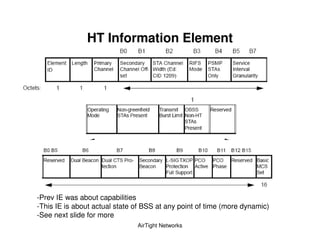

HT Information Element -Prev IE was about capabilities -This IE is about actual state of BSS at any point of time (more dynamic) -See next slide for more AirTight Networks

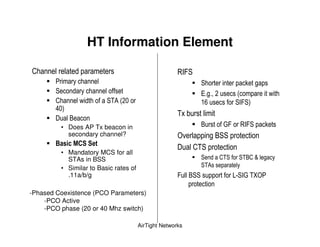

HT Information Element 96 ' ' 7 , ' F , ( - - ' )!( 0 '6 '+ 3 + )$ & " • Does AP Tx beacon in " C 96 ' 7 secondary channel? 4 % , "'' E # * )' • Mandatory MCS for all STAs in BSS ' )' ')" ; , • Similar to Basic rates of ')! .11a/b/g "'' #5' 6C ) I 4 -Phased Coexistence (PCO Parameters) -PCO Active -PCO phase (20 or 40 Mhz switch) AirTight Networks
HT Information element Operating mode -Set to 0 Protection -All STAs in BSS are 20/40 Mhz HT -All STAs in a 20 MHz HT BSS are 20 Mhz HT -Required for Operating mode 1 & 3 -Set to 1 (non-member protection) -Some members on the channel (maybe outside BSS) are non-HT -Protection mechanisms discussed -Set to 2 earlier can be used -At least one 20 Mhz only STA in a HT BSS - Set to 3 - Operating mode can also be -MM (at least one legacy STA is present in updated dynamically based on BSS BSS) constitution Non-GF STAs present -Set to 0 -All associated STAs in BSS are GF stations -Set to 1 -Some non-GF STAs present in a BSS AirTight Networks

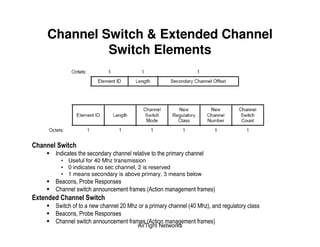

Channel Switch & Extended Channel Switch Elements * & 6 % • Useful for 40 Mhz transmission • 0 indicates no sec channel, 2 is reserved • 1 means secondary is above primary, 3 means below " & 9 - (! , + <? * & '- - 2 (3 2+ , " & 9 - (! , + AirTight Networks
Quick Overview of advanced .11n features Optional and/or not yet available today AirTight Networks

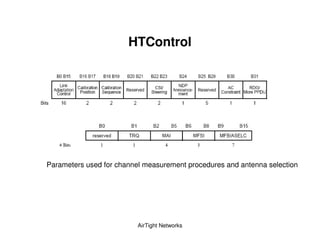

HTControl Parameters used for channel measurement procedures and antenna selection AirTight Networks
HT Control: Link adaptation Field Meaning Definition TRQ Sounding Request Set to 1 to request the responder to transmit a sounding PPDU. When set to 0, the responder is not requested to transmit a sounding PPDU. MAI MCS request or Antenna When set to 14, the MAI field contains an Antenna Selection Indication Selection Indication (ASELI). Otherwise the MAI field is interpreted MFSI MFB Sequence Identifier Set to the received value of MSI contained in the frame to which the MFB information refers. Set to 7 for unsolicited MFB MFB/ASELC MCS Feedback and When the MAI field is set to the value ASELI, this field Antenna Selection is interpreted as defined in Figure n4 (ASELC Command/Data subfield) and Table n3 (The ASEL Command and ASEL Data parts of the ASELC subfield). Otherwise, this field contains recommended MCS feedback. A value of 127 indicates that no feedback is present. AirTight Networks

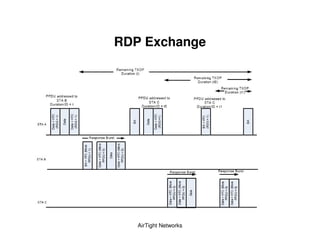

RDP Exchange AirTight Networks
Thank you I % JK AirTight Networks

More Related Content

PPT
Wifi
byJaydeep Palekar

PPTX
Wireless LAN
byKannanKrishnana

PPTX
Wireless Technologies and Standards
byRubal Sagwal

PPT
Wireless personal area networks(PAN)
bypunjab engineering college, chandigarh

PPTX
Wireless LANs(IEEE802.11) Architecture
byRaj vardhan

PPTX
Wireless LAN technologies
bybalasubramani p

PPT
Other Wireless Networks
byMeenakshi Paul

PPT
Wimax / ieee 802.16
byankita pandey

Wifi
byJaydeep Palekar

Wireless LAN
byKannanKrishnana

Wireless Technologies and Standards
byRubal Sagwal

Wireless personal area networks(PAN)
bypunjab engineering college, chandigarh

Wireless LANs(IEEE802.11) Architecture
byRaj vardhan

Wireless LAN technologies
bybalasubramani p

Other Wireless Networks
byMeenakshi Paul

Wimax / ieee 802.16
byankita pandey


What's hot

PPT
802 15-4 tutorial
bySHUBHAM MORGAONKAR

PPTX
Virtual LAN
byLilesh Pathe

PPT
OFDMA - Orthogonal Frequency Division Multiple Access PPT by PREM KAMAL
byprem kamal

PPT
Dsss final
byAJAL A J

PPTX
802.11ac Overview
byMichal Jarski

PDF
IEEE 802.11 and Bluetooth
byHitesh Mohapatra

PDF
Introduction to OFDM
byPei-Che Chang

PDF
IEEE 802.11 Architecture and Services
bySayed Chhattan Shah

PPTX
CCNA 200-301 Chapter 1-Introduction to TCP IP Networking.pptx
byBabarYunus1

PPTX
Windowing ofdm
bySreeram Reddy

PPTX
Wi-Fi Architecture
byArnab Ghosal

PDF
Multi Carrier Modulation OFDM & FBMC
byVetrivel Chelian

PPT
6lowpan
byDwarakanath Tulasi

PPTX
Gsm architecture
byNaveen Sihag

PPTX
FDM,OFDM,OFDMA,MIMO
byNadeem Rana

PPTX
Wi fi
byNaveen Sihag

PDF
5. 2 ray propagation model part 1
byJAIGANESH SEKAR

PPTX
Optical network and architecture
byRadha Mahalle

PPTX
Frequency hopping spread spectrum
byHarshit Gupta

PPT
MIMO in 15 minutes
byChaitanya Tata, PMP

802 15-4 tutorial
bySHUBHAM MORGAONKAR

Virtual LAN
byLilesh Pathe

OFDMA - Orthogonal Frequency Division Multiple Access PPT by PREM KAMAL
byprem kamal

Dsss final
byAJAL A J

802.11ac Overview
byMichal Jarski

IEEE 802.11 and Bluetooth
byHitesh Mohapatra

Introduction to OFDM
byPei-Che Chang

IEEE 802.11 Architecture and Services
bySayed Chhattan Shah

CCNA 200-301 Chapter 1-Introduction to TCP IP Networking.pptx
byBabarYunus1

Windowing ofdm
bySreeram Reddy

Wi-Fi Architecture
byArnab Ghosal

Multi Carrier Modulation OFDM & FBMC
byVetrivel Chelian

6lowpan
byDwarakanath Tulasi

Gsm architecture
byNaveen Sihag

FDM,OFDM,OFDMA,MIMO
byNadeem Rana

Wi fi
byNaveen Sihag

5. 2 ray propagation model part 1
byJAIGANESH SEKAR

Optical network and architecture
byRadha Mahalle

Frequency hopping spread spectrum
byHarshit Gupta

MIMO in 15 minutes
byChaitanya Tata, PMP


Viewers also liked

PDF
802.11ac WIFI Fundamentals
bycriterion123

PPT
Ieee 802.11.n
byHari Krishnan

PDF
802.11n - Increased Speed Increased Complexity
bySavvius, Inc

PPTX
802.11n Technology - Presented by Meru Networks and DTC
byDigitalTelecom

PPT
IEEE 802.11n
bySai Varrshini

PPTX
IEEE 802.11
byAbhishek Pachisia

PPTX
802.11r enhanced
byShashank Tadakamadla

PDF
802.11n The Good, The Bad, and The Ugly: Will You Be Ready?
byAirTight Networks

PPT
Lecture 13
byJoe Christensen

PDF
Aruba 802.11n Networks Validated Reference Design
byAruba, a Hewlett Packard Enterprise company

PPTX
wireless network IEEE 802.11
byShreejan Acharya

PPTX
Designing For Voice - #WLPC 10 talk
byMike Leibovitz

PPTX
PACE-IT: Introduction to Wireless Standards
byPace IT at Edmonds Community College

PPTX
802.11r Explained.
byAjay Gupta

PDF
802.11ac: What It Is and Why You Need It
byFast Lane Consulting and Education, Inc.

PPT
802.11n Wireless
byJack Chen

PPTX
802.11n: Platform vs. Point Solution
bySavvius, Inc

PPTX
Wi fi and wi-Max
byAnkit Gupta

PDF
Mimo systems & multi layer coding
byElber18

PDF
Wi-Fi 802.11n Based Access Network for IPTV Service Delivery in Pakistan
byIEEEP Karachi

802.11ac WIFI Fundamentals
bycriterion123

Ieee 802.11.n
byHari Krishnan

802.11n - Increased Speed Increased Complexity
bySavvius, Inc

802.11n Technology - Presented by Meru Networks and DTC
byDigitalTelecom

IEEE 802.11n
bySai Varrshini

IEEE 802.11
byAbhishek Pachisia

802.11r enhanced
byShashank Tadakamadla

802.11n The Good, The Bad, and The Ugly: Will You Be Ready?
byAirTight Networks

Lecture 13
byJoe Christensen

Aruba 802.11n Networks Validated Reference Design
byAruba, a Hewlett Packard Enterprise company

wireless network IEEE 802.11
byShreejan Acharya

Designing For Voice - #WLPC 10 talk
byMike Leibovitz

PACE-IT: Introduction to Wireless Standards
byPace IT at Edmonds Community College

802.11r Explained.
byAjay Gupta

802.11ac: What It Is and Why You Need It
byFast Lane Consulting and Education, Inc.

802.11n Wireless
byJack Chen

802.11n: Platform vs. Point Solution
bySavvius, Inc

Wi fi and wi-Max
byAnkit Gupta

Mimo systems & multi layer coding
byElber18

Wi-Fi 802.11n Based Access Network for IPTV Service Delivery in Pakistan
byIEEEP Karachi


Similar to 802.11n Tutorial

PPT
8 wlans
bykikkirana

PDF
Ieee circuits systems
byNeha Bhardwaj

PPTX
Wireless lan duver oquendo
byDuver Oquendo

PPTX
Fundamentals of Wimax
byAshmar Kalangottil

PPTX
MIMO.ppt (2) 2
byDeepak Kumar Dhal

PDF
Brokerage 2007 presentation wireless
byimec.archive

PPT
80211
bysuperfalcon

PPT
C07 wireless la-ns
byRio Nguyen

PDF
4G LTE Paper Group 9
byeel4514team9

PPT
Long term evolution (lte) technology
byGhanshyam Mishra

PDF
คู่มือการตั้งค่าLan
bynoismart

PDF
Communications Interoperability
byMike Beaton

PPT
Lecture 11 wifi security
byrajakhurram

PPT
Wlan 802.11n
byArun Namasivayam

PPTX
Ch3
byTong Thitipetchakul

PDF
An adaptive power controlled mac protocol for
byambitlick

PDF
Ip Networking Over Satelite Course Sampler
byJim Jenkins

PDF
clustering Algorithms for Mobile Ad Hoc Networking (Slides for my opening def...
byniminming

PPT
3 g 4g adv_chal 041406 ver1
byMohd Ehtesham Khan Afridi

PPT
3 g 4g adv_chal 041406 ver1
bysonalikiran

8 wlans
bykikkirana

Ieee circuits systems
byNeha Bhardwaj

Wireless lan duver oquendo
byDuver Oquendo

Fundamentals of Wimax
byAshmar Kalangottil

MIMO.ppt (2) 2
byDeepak Kumar Dhal

Brokerage 2007 presentation wireless
byimec.archive

80211
bysuperfalcon

C07 wireless la-ns
byRio Nguyen

4G LTE Paper Group 9
byeel4514team9

Long term evolution (lte) technology
byGhanshyam Mishra

คู่มือการตั้งค่าLan
bynoismart

Communications Interoperability
byMike Beaton

Lecture 11 wifi security
byrajakhurram

Wlan 802.11n
byArun Namasivayam

Ch3
byTong Thitipetchakul

An adaptive power controlled mac protocol for
byambitlick

Ip Networking Over Satelite Course Sampler
byJim Jenkins

clustering Algorithms for Mobile Ad Hoc Networking (Slides for my opening def...
byniminming

3 g 4g adv_chal 041406 ver1
byMohd Ehtesham Khan Afridi

3 g 4g adv_chal 041406 ver1
bysonalikiran


Recently uploaded

PDF
UiPath Automation Developer Associate Training Series 2026 - Session 3
byDianaGray10

PDF
BEP-20 Token on BNB Chain: From Concept to Deployment.pdf
byimoliviabennett

PDF
Safer’s Picks: The 5 FME Transformers You Didn’t Know You Needed
bySafe Software

PDF
Writing GPU-Ready AI Models in Pure Java with Babylon
byAna-Maria Mihalceanu

PDF
Self-Correction Failure Diagnostic: Detecting Drift in Complex Systems
bySystems Research Group

PDF
AI for Risk Management & Fraud Detection ppt.pdf
byalexmartincaneda

PDF
How does MES(Manufacturing Execution System) work?
byakipii ogaoga

PDF
Why Many Smart Device Platforms Fail to Scale?
byPromeraki Developments

PDF
Understanding Foldable 3-Wheel Electric Scooters for Everyday Use
byTopmate

PDF
Getting Started with Apache Spark: Big Data Made Simple [Free Meetup]
byHaim Michael

PPT
Introduction to Risk Based Inspection API-580 & 581
byumerfaiz99

PPTX
Beyond the Algorithm: Designing Human-Centric Public Service with AI
byAlan Dix

PDF
Explaining the flow of purpose-specific BOM
byakipii ogaoga

PDF
Explaining specific examples of purpose-specific BOM
byakipii ogaoga

PPTX
Computer architecture, Computer architecture ,Computer architecture
bywaheedqazi123

PPTX
NTG - Data Center Management System Software
byMustafa Kuğu

PPTX
Do You Control the AI, or Does the AI Control You?
bymedhateltoukhy

PDF
Making Search Less Taxing: Leveraging Semantics and Keywords in Hybrid Search
byEnterprise Knowledge

PDF
Poročilo odbora CIS (CH08873) za leto 2025 na letni skupščini IEEE Slovenija ...
byUniversity of Maribor

PDF
Post Quantum Cryptography for Dummies.pdf
byAde Ismail Isnan

UiPath Automation Developer Associate Training Series 2026 - Session 3
byDianaGray10

BEP-20 Token on BNB Chain: From Concept to Deployment.pdf
byimoliviabennett

Safer’s Picks: The 5 FME Transformers You Didn’t Know You Needed
bySafe Software

Writing GPU-Ready AI Models in Pure Java with Babylon
byAna-Maria Mihalceanu

Self-Correction Failure Diagnostic: Detecting Drift in Complex Systems
bySystems Research Group

AI for Risk Management & Fraud Detection ppt.pdf
byalexmartincaneda

How does MES(Manufacturing Execution System) work?
byakipii ogaoga

Why Many Smart Device Platforms Fail to Scale?
byPromeraki Developments

Understanding Foldable 3-Wheel Electric Scooters for Everyday Use
byTopmate

Getting Started with Apache Spark: Big Data Made Simple [Free Meetup]
byHaim Michael

Introduction to Risk Based Inspection API-580 & 581
byumerfaiz99

Beyond the Algorithm: Designing Human-Centric Public Service with AI
byAlan Dix

Explaining the flow of purpose-specific BOM
byakipii ogaoga

Explaining specific examples of purpose-specific BOM
byakipii ogaoga

Computer architecture, Computer architecture ,Computer architecture
bywaheedqazi123

NTG - Data Center Management System Software
byMustafa Kuğu

Do You Control the AI, or Does the AI Control You?
bymedhateltoukhy

Making Search Less Taxing: Leveraging Semantics and Keywords in Hybrid Search
byEnterprise Knowledge

Poročilo odbora CIS (CH08873) za leto 2025 na letni skupščini IEEE Slovenija ...
byUniversity of Maribor

Post Quantum Cryptography for Dummies.pdf
byAde Ismail Isnan


802.11n Tutorial

  • 1.
    A Brief Tutorialon IEEE 802.11n www.airtightnetworks.net
  • 2.
    Outline ! ! " # # $ % &' %( ) %( ) ( ) % ( ) * ( ( + % ! & , & && $ ! - AirTight Networks
  • 3.
    IEEE 802.11 , & .. / ..0 1 & " " 23 4 5' 6 %/5 % 7 ! * # 8* # AirTight Networks
  • 4.
    802.11 protocol suite AirTight Networks
  • 5.
    802.11 MAC andPHY enhancements Security 802.11i 802.11e QoS Data link MAC 802.11w 802.11n Capacity & PLCP Coverage Physical 802.11n PMD AirTight Networks
  • 6.
    Two-slide primer on802.11 MAC (1) 6 ( 16 * / 3 ) & & 1* # 8* 3 AirTight Networks
  • 7.
    Two-slide primer on802.11 MAC (2) AirTight Networks
  • 8.
    Example of DCFCSMA/CA (1) AirTight Networks
  • 9.
    Example of DCFCSMA/CA (2) AirTight Networks
  • 10.
    Example of DCFCSMA/CA (3) AirTight Networks
  • 11.
    Example of DCFCSMA/CA (4) AirTight Networks
  • 12.
    Example of DCFCSMA/CA (5) AirTight Networks
  • 13.
    Example of DCFCSMA/CA (6) AirTight Networks
  • 14.
    Example of DCFCSMA/CA (7) AirTight Networks
  • 15.
    Motivation for multicarriermodulation 9 & " 1 ) & 3 ( : ") & ( 1 3 " # $ % & AirTight Networks
  • 16.
    Multicarrier modulation 6 ! : ; ( ") & ! && : ; ' & () *+ & , ) & : ") & ) & &" ! ) & & : & ) & - " % & - & - " .* AirTight Networks
  • 17.
    Orthogonal frequency division multiplexing (OFDM) ( &/6 # & & ) & ' , / .) * AirTight Networks
  • 18.
    OFDM in 802.11 < # 5' & ! = " - 0 0 12 > = 5' 3 & 3 & , AirTight Networks
  • 19.
    802.11n PHY Enhancements AirTight Networks
  • 20.
    What is MIMO? $ & 1 ) 3 & $ 1 ! 3 Tx Rx # # $ # & & # & & $ ' % ( % + ' $ , Tx Rx # ? " ) 1 @ %# @ 3 AirTight Networks
  • 21.
    Spatial diversity 9 & " ( ( & ) & &" ? ( A ) & & &" ( & & " ) & & (( &" 1B C8 3 AirTight Networks
  • 22.
    Receiver diversity r1ej 1s(t) r2ej 2s(t) r3ej 3s(t) rMej Ms(t) a1e-j 1 a2e-j 2 a3e-j 3 aNe-j M x x x x Combiner Output SNR = M ( a k rk ) 2 k =1 9 D N0 * ) 7 D M 2 N0 ak k =1 AirTight Networks
  • 23.
    Receiver diversity: Selectioncombining * 7 = k= rk2 Nk 4 , % - & Bit stream DSP Radio Radio DSP Bit stream Tx Rx " , 5 % (' 6' 4 + AirTight Networks
  • 24.
    Receiver diversity: MaximumRatio Combining (MRC) ! 7 & & 7 Radio Radio Bit stream Bit stream DSP DSP Radio Radio Tx Rx AirTight Networks
  • 25.
    Receiver diversity: Maximumratio combining rk $ ) & D N0 rk " ") &D Ek % 7 D Ek N0 ME k * ) ! 7 D N0 " # :( & 7 ! $ " ) AirTight Networks
  • 26.
    Transmitter diversity: Channel-aware ) & ( & ( ) 1* 3 & 7 % ! ) & ! ! " ) % %# 7 * ! , - , & , AirTight Networks
  • 27.
    Transmitter diversity: Channel-unaware : ) & 1 E*3 & ) ) ! , % - & ) & , & ) 5 8 8 , $ & 9 ! & hk = rkej k 7 ! & r(t) = 0.5 (h 1 + h 2 )s(t) ") & ! ( ") & y1 = h1s1 + h2s2 ") & ! ") & y2 = -h1s2* + h2s1* AirTight Networks
  • 28.
    Transmitter diversity: Alamoutischeme 9 ; ( ! ") & ! y = [y1 y2*]T h1 h2 s1 y= = Hs h2* -h1 * s2 9 z = HHy = HHHs = (|h12| + |h22|)I2s z1 = h1*z1 + h2z2 = (|h12| + |h22|)s1 z2 = h2*z1 – h1z2 = (|h12| + |h22|)s2 AirTight Networks
  • 29.
    Transmitter diversity: Alamoutischeme 2 2 (| h 1 | + | h 2 |)E k 7 ! 7 D 2N 0 " D 6 ! " D 1F & 3 AirTight Networks
  • 30.
    Practical significance: arraygain and diversity gain / 7 "& & & " 1Pe3 1 SNR 1 / # ? " ) % Pe (A x SNR)D # ? ) ) " D# % ! " 6 D# Diversity gain Array gain AirTight Networks
  • 31.
    Practical significance: arraygain and diversity gain Pe SNR AirTight Networks
  • 32.
    Spatial multiplexing # & & ? ) () + ( + ( + ' , $ 6 (( ) 9 , % ) ; ) ! 7/ AirTight Networks
  • 33.
    Spatial multiplexing # ? ) ) ) & & ? D) 1# % 3 A ") & ) &) ? 5 9 " ) " & " ) 1# % 3 ! & ) 1# % 3 ; b1 b1 b3 b5 Radio Radio b1 b3 b5 b1 b2 b2 b3 b3 b4 Split DSP DSP Merge b4 b5 b5 b6 Radio b6 Radio b2 b4 b6 b2 b4 b6 Tx Rx AirTight Networks
  • 34.
    Spatial multiplexing gainvs. diversity gain trade-off 0, MN Diversity gain 1, (M-1)(N-1) 2, (M-2)(N-2) k, (M-k)(N-k) Min(M, N), 0 Spatial multiplexing gain AirTight Networks
  • 35.
    802.11n channels 4 #5' ( . - + , & 5 % 2 & , $ &" : ! & & 4 5' 6 , : #!* AirTight Networks
  • 36.
    802.11n Modes ofOperation PLCP Enhancements AirTight Networks
  • 37.
    802.11n: Modes ofOperation > # :5 % # ? % ( & 1 " 9* 3 # ? ( & , * & 7- & " - 2 ' ; # , * , % Detection of PPDU, 6 4 5#) % , timing & coarse freq acquisition ' ,, & ( , , 7 + ! For use of legacy devices also Signalling (See next slide) AirTight Networks
  • 38.
    L-SIG (MM) &HT-SIG (MM & GF) Always 6 Mbps Encoded value indicating Duration of rest of the packet L-SIG of Mixed Mode Refer to next slides AirTight Networks
  • 39.
    HT-SIG Field Name Explanation and coding Modulation and Coding Index into the MCS table. Scheme Set to 0 for 20 MHz or 40 MHz upper/lower CBW 20/40 Set to 1 for 40 MHz Length The number of octets of data in the PSDU in the range 0-65535 Set to 1 indicates that channel estimate smoothing is allowed Smoothing Set to 0 indicates that only per-carrier independent (unsmoothed) channel estimate is recommended Not Set to 0 indicates that PPDU is a Sounding PPDU Sounding Set to 1 indicates that the PPDU is not a sounding PPDU Reserved Set to 1 Set to 1 to indicate that the PPDU in the data portion of the packet Aggregation contains an AMPDU otherwise, set to 0. Set to a non-zero number, to indicate the difference between the number of space time streams (NSTS ) and the number of spatial STBC streams (NSS) indicated by the MCS. Set to 00 to indicate no STBC (NSTS = NSS) AirTight Networks
  • 40.
    HT-SIG Field Name Explanation and coding LDPC Set to 1 for LDPC coding Set to 0 for BCC Set to 1 to indicate that the short GI is used after the HT training. Short GI Set to 0 otherwise Indicates the Number of extension spatial streams (NESS). Number of Set to 0 for no extension spatial stream extension Set to 1 for 1 extension spatial stream spatial Set to 2 for 2 extension spatial streams streams Set to 3 for 3 extension spatial streams CRC CRC of bits 0-23 in HT-SIG1 and bits 0-9 in HT-SIG2 AirTight Networks
  • 41.
    Modulation & CodingScheme (MCS) # * ) 1 ?3 (" ' < = ' < = ! + , ( . > + * & ' ' ( ? 3+ # * ? ( ) 0 ' • MCS 0 to 15 at 20 Mhz (at AP) • MCS 0 to 7 at 20 Mhz (at client STA) 9 • MCS 16 to 76 are optional • All MCS at 40 Mhz ' @@ @ % AirTight Networks
  • 42.
    Rate Dependent Parameters(20 MHz and Mandatory MCS) What is the formula? NSS = 1 NSS = 2 AirTight Networks
  • 43.
    Rate Dependent Parameters(40 Mhz & Mandatory MCS) NSS = 1 NSS = 2 AirTight Networks
  • 44.
    Other Optional MCSs $ # * 1) # * D> • MCS 32 ' 0 A ? • Useful under very high noise $ ( ' ?+ • Lowest rate of 40 Mhz (bpsk) • 216.7 Mbps (20 Mhz) • 6.7 Mbps max rate • 450 Mbps (40 Mhz) ' - # * D4 • Use with – Tx beamforming ' 3 A? – STBC $ ( ' ?+ • MCS 33 – 38 (4 SS) • 288.9 Mbps (20 Mhz) – Max rate 495 Mbps • 600 Mbps (40 Mhz) • MCS 39 – 52 (4 SS) – Max rate 495 Mbps • MCS 53 – 76 (4 SS) – Max rate 495 Mbps AirTight Networks
  • 45.
    MAC Enhancements AirTight Networks
  • 46.
    / ) AirTight Networks
  • 47.
    Motivation DCF PLCP MPDU1 PLCP ACK DCF PLCP MPDU2 PLCP ACK SIFS DCF PLCP MPDU PLCP ACK ) ' 9* %# * ! * ) & ) ! & " 1 ? 3 # ) ' ) ( * AirTight Networks
  • 48.
    Physical Level Aggregation(A-MPDU) % B % 6 & 1 ) ' 6C # D!, , , E % 7 F B & & ' & - & B ( , + F$ & 3 & (!' 66 *+ % , 9 % , : % & 5 ,, , 7 - 3 & - B AirTight Networks
  • 49.
    Physical Level Aggregation(A-MPDU) Max Rx Factor(x): 0 to 3 [2^13+x] Min spacing: 0.25 to 16 usecs , , G!5 B H 1) & 6F , $ , (0 3 7 + B , • 0 indicates no restriction • Else, ranges from 1/4 to 16 usecs • Realized by using Delimiters with MPDU length 0 & & , ! 7 F$ !5 B = ' " 7 7 " 7 ! < ! , & G! * ! < H( , , 6 4 + AirTight Networks
  • 50.
    A-MSDU !5 ' B & ! ' B & % & % F ' B & , ) 6 (= ' + AirTight Networks
  • 51.
    A-MSDU ' % - , ( !5 B += ' B * ! 7 " 7 ! 7 , - !5 ' B & = ' "! !5 ' B !I 5 ' B ! !5 ' B & )$ E 5 ' B $ % % 6 ' B & )$ % % !' )! !5 ' B $ $ ' B , & ( , , + AirTight Networks
  • 52.
    Block ACK (BA) AirTight Networks
  • 53.
    Block Ack PacketExchange 66E 7 ; E 66E 7 ( ) 8 G / ) ( $ ! &" ) & $ - ) & % - 7 ) & )I4 E& 7 ; & E& * ( ) 6 <9E ) E AirTight Networks
  • 54.
    Block ACK Sessions(ADDBA) Request Response * " E& * 66 ; 8 8 & 6 & ) ( 6 ( ;8 ) 1 ( ? & 3 ) 1 3( ! ! ; 6 " 7 ! < AirTight Networks
  • 55.
    Block Ack ParameterSet Field used in ADDBA Action Management Frames 802.11n 802.11e E& ) ( & ! ' B & - "! " 7 ! 7 ! < • Delayed is sent at a slightly later time after receiving a Block Ack Req (See next slide) )6 ) 6 ( 6 , = ' + " 2 & • Recipient controls the buffers that can be supported AirTight Networks
  • 56.
    Immediate BlockAck Delayed BlockAck AirTight Networks
  • 57.
    Block ACK Sessions(DELBA) DELBA Parameter set 6 <9E ? & &" ! (+ 6 <9E AirTight Networks
  • 58.
    BlockAckReq (BAR) 802.11n See Next Slide 802.11e AirTight Networks
  • 59.
    Fields of BlockAckReqFrame E & " E 7 * & " !9 ! < (1 ) 5 ; " + E& & " ( & (! " !+ • Normal ACK 6 1) • No ACK ; 1) E 7 * 5) 6 & " • Does BAR consist of • Negotiated between HT req for different QoS streams? stations as a part of HT capabilities • Support for ACK for • Extensions for using BA with fragments in BA? 802.11n features such as ) 6 J 6* 4 frame aggregation (A- • Info about each TID MPDU) AirTight Networks
  • 60.
    BlockAckReq BAR Info Field Encoding -Basic BAR, Compressed BAR -TID info contains TID for which the . req has been made Per TID INFO -MT BAR -TID_info contains number of TIDs -BAR info contains seq number for that many TIDs AirTight Networks
  • 61.
    BlockAck frame E& * ) <? ( ) 1 ? & 3 AirTight Networks
  • 62.
    BA Information foreach BA encoding Basic BA 128 byte bitmap Compressed BA Mandatory 8 bit bitmap No support for fragments MTBA (repeated For each TID) AirTight Networks
  • 63.
    HT Protection Mechanisms AirTight Networks
  • 64.
    Protection Requirements -Protection maybe required if Non-HT stations are present or Non- greenfield stations are present -Types of protection that an HT station provides -RTS/CTS using a legacy rate -CTS to self using a legacy rate - Transmit 1st frame in a backward compatible mode -1st frame Tx using a Non-HT preamble and then switch to HT mode -1st frame Tx using a MM preamble and then switch to Greenfield operation -Setting of L-SIG values in preamble to protect the current transmission -L-SIG TxOP (See next slide) AirTight Networks
  • 65.
    L-SIG TxOP Protection & - 1 ) ')! ( 1) & 6F + , ' B ( , !) !K ! < 9 ) ' . ) ' + , , % #5' 6C #5' 6C - & % ! E % * 51 ) ' ) ! D 7 E % % , , , L ! & 1 )5 $ )$ AirTight Networks
  • 66.
    HT Parameter Negotiation Information Elements AirTight Networks
  • 67.
    Advertising HT Capabilitiesusing MAC Frames HT Capability Information Element (E.g., Beacon, Probe Response) Refer to next slides AirTight Networks
  • 68.
    HT Capabilities Info Subfield Definition Encoding Indicates support for receiving LDPC coded Set to 0 if not supported LDPC coding capability packets Set to 1 if supported Set to 0 if only 20 MHz operation is supported Indicates which channel widths the STA Set to 1 if both 20 MHz and 40 MHz Supported channel width set supports operation is supported Set to 0 for Static SM Power Save mode Set to 1 for Dynamic SM Power Save mode Set to 3 for SM enabled Indicates the Spatial Multiplexing (SM) Power SM Power Save Save mode. The value 2 is reserved Indicates support for the reception of PPDUs Set to 0 if not supported Greenfield with HT Greenfield format. Set to 1 if supported Indicates Short GI support for the reception of Set to 0 if not supported Short GI for 20 MHz 20 MHz packets Set to 1 if supported Indicates Short GI support for the reception of Set to 0 if not supported Short GI for 40 MHz 40 MHz packets Set to 1 if supported Indicates support for the transmission of Set to 0 if not supported Tx STBC PPDUs using STBC Set to 1 if supported AirTight Networks
  • 69.
    HT Capabilities Info Subfield Definition Encoding Set to 0 for no support Set to 1 for support of one spatial stream Set to 2 for support of one and two spatial streams Indicates support for the reception of PPDUs Set to 3 for support of one, two and Rx STBC using STBC three spatial streams Set to 0 if not supported Set to 1 if supported Support indicates that the STA is able Indicates support for HTdelayed BlockAck to accept an ADDBA request for HT- HT-delayed BlockAck operation. delayed Block Ack Indicates maximum AMSDU length. See 9.7b Set to 0 for 3839 octets Maximum A-MSDU length (A-MSDU operation). Set to 1 for 7935 octets In Beacon, Measurement Pilot and Probe Response frames: Set to 0 if the BSS does not allow use of DSSS/CCK in 40 MHz Set to 1 if the BSS does allow use of DSSS/CCK in 40 MHz Otherwise: Set to 0 if the STA does not use DSSS/CCK in 40 MHz Indicates use of DSSS/CCK mode in a 40 MHz Set to 1 if the STA uses DSSS/CCK DSSS/CCK Mode in 40 MHz capable BSS operating in 20/40 MHz mode. in 40 MHz AirTight Networks
  • 70.
    HT Capabilities Info Subfield Definition Encoding In Beacon, Measurement Pilot and Probe Response frames transmitted by an AP. Set to 0 if the AP does not support PSMP operation Set to 1 if the AP supports PSMP operation In Beacon frames transmitted by a non-AP STA: Set to 0 PSMP support Indicates support for PSMP operation. See Set to 0 by an AP if the AP allows use of 40 MHz transmissions in neighboring BSSs. Set to 1 by an AP if the AP does not allow use of 40 MHz transmissions in neighboring BSSs. Set to 0 by a STA to indicate to its When sent by an AP, indicates whether other associated AP that the AP is not BSSs receiving this information are required to required to restrict the use of 40 MHz prohibit 40 MHz transmissions. transmissions within its BSS. When sent by a STA, indicates whether the AP Set to 1 by a STA to indicate to its associated with this STA is required to prohibit associated AP that the AP is required 40 MHz transmissions by all members of the to restrict the use of 40 MHz Forty MHz Intolerant BSS. transmissions within its BSS. L-SIG TXOP protection Indicates support for the LSIG TXOP Set to 0 if not supported support protection mechanism AirTight Networks Set to 1 if supported
  • 71.
    Example Packet TraceSnippet of a Dlink AP 5 * & " ( H !" # $& % $' () * ' + ' ( * ,,-. / !" 0# (1 " 2 2 & 34 5 ( ! ( 5 ' 6 6 .0 ', # 0 ', + % !" % 7 !" () & . ) (1 % 8 #& ++ 0 $9 & + ' %7 !" !" (, $ & 5 AirTight Networks
  • 72.
    HT Capabilities IE:Supported MCS Set 7? # * E ) D ( # * ? # * 6 ( D ) ? 87 ? # * ; & A 4 ) ? ) ? ; &) & 1 & 3) " ) " AirTight Networks
  • 73.
    HT Extended Capabilities 4 ' $ ! & - ; 3 2 !- G 5 $ H ' & 7 ' % ' & 7 9 9 9 % 4 - 7 & , ! " ) & ) ( ! ( AirTight Networks
  • 74.
    HT Information Element -PrevIE was about capabilities -This IE is about actual state of BSS at any point of time (more dynamic) -See next slide for more AirTight Networks
  • 75.
    HT Information Element 96 ' ' 7 , ' F , ( - - ' )!( 0 '6 '+ 3 + )$ & " • Does AP Tx beacon in " C 96 ' 7 secondary channel? 4 % , "'' E # * )' • Mandatory MCS for all STAs in BSS ' )' ')" ; , • Similar to Basic rates of ')! .11a/b/g "'' #5' 6C ) I 4 -Phased Coexistence (PCO Parameters) -PCO Active -PCO phase (20 or 40 Mhz switch) AirTight Networks
  • 76.
    HT Information element Operating mode -Set to 0 Protection -All STAs in BSS are 20/40 Mhz HT -All STAs in a 20 MHz HT BSS are 20 Mhz HT -Required for Operating mode 1 & 3 -Set to 1 (non-member protection) -Some members on the channel (maybe outside BSS) are non-HT -Protection mechanisms discussed -Set to 2 earlier can be used -At least one 20 Mhz only STA in a HT BSS - Set to 3 - Operating mode can also be -MM (at least one legacy STA is present in updated dynamically based on BSS BSS) constitution Non-GF STAs present -Set to 0 -All associated STAs in BSS are GF stations -Set to 1 -Some non-GF STAs present in a BSS AirTight Networks
  • 77.
    Channel Switch &Extended Channel Switch Elements * & 6 % • Useful for 40 Mhz transmission • 0 indicates no sec channel, 2 is reserved • 1 means secondary is above primary, 3 means below " & 9 - (! , + <? * & '- - 2 (3 2+ , " & 9 - (! , + AirTight Networks
  • 78.
    Quick Overview ofadvanced .11n features Optional and/or not yet available today AirTight Networks
  • 79.
    HTControl Parameters used forchannel measurement procedures and antenna selection AirTight Networks
  • 80.
    HT Control: Linkadaptation Field Meaning Definition TRQ Sounding Request Set to 1 to request the responder to transmit a sounding PPDU. When set to 0, the responder is not requested to transmit a sounding PPDU. MAI MCS request or Antenna When set to 14, the MAI field contains an Antenna Selection Indication Selection Indication (ASELI). Otherwise the MAI field is interpreted MFSI MFB Sequence Identifier Set to the received value of MSI contained in the frame to which the MFB information refers. Set to 7 for unsolicited MFB MFB/ASELC MCS Feedback and When the MAI field is set to the value ASELI, this field Antenna Selection is interpreted as defined in Figure n4 (ASELC Command/Data subfield) and Table n3 (The ASEL Command and ASEL Data parts of the ASELC subfield). Otherwise, this field contains recommended MCS feedback. A value of 127 indicates that no feedback is present. AirTight Networks
  • 81.
    RDP Exchange AirTight Networks

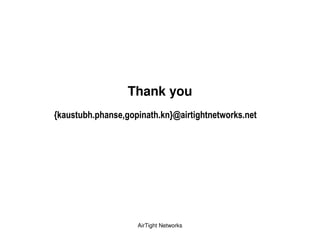

  • 82.
    Thank you I % JK AirTight Networks
