Design and Analysis of
Single Factor
Experiments

2. 7/1/2019 2
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Design and Analysis of Single Factor
Experiments:
A single factor experiment is a simple
experiment that consists of limited number of
treatment belonging to a certain factor.

3. 7/1/2019 3
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Examples of single factors:
 Different varieties of a crop:
 Different levels of a pesticide.
 Different genotypes of animals.
 Different strains of bacteria or fungi.
 Different types of harvesters or tractors.

4. 7/1/2019 4
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah

5. 7/1/2019 5
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Latin Square Design
(LSD)

6. 7/1/2019 6
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Latin square design is one of most
experimental design used in agricultural research,
particularly in field experiments.

7. 7/1/2019 7
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Experimental units are heterogeneous and the
heterogeneity is uniform and in two directions.
Experimental units are grouped or randomized
into blocks called rows and again vertically in
blocks called columns.
Rows are randomized separately and
independently.
columns are randomized separately and
independently.

8. 7/1/2019 8
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Each treatment is found once in each row and
once in each column.
The number of treatment equal number of rows
equal number of columns equal number of
replicates. T=R=C=r=T
The total number of experimental units=
T*T or R*R or C*C or r*r = r 2.
Treatments are represented by Latin letters (A,
B, …Z).
So, this design is called LSD.

9. 7/1/2019 9
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah

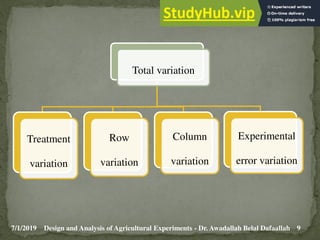

Total variation
Treatment
variation
Row
variation
Column
variation
Experimental
error variation

10. 7/1/2019 10
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Advantages of LSD:
 Simple to use.
 Easy statistical analysis.
 More efficient than RCBD.

11. 7/1/2019 11
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Disadvantages of LSD:
 It has to be used when the number of
treatments ranged between 4 and 8.

12. 7/1/2019 12
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Uses of LSD:
 Greenhouse experiments.
 Field experiments.

13. 7/1/2019 13
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Mathematical model of LSD:
Where:
Character measured
Grand mean
Row effect
Column effect
Treatment effect
Experimental error effect

14. 7/1/2019 14
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
An example:
Research problem:
 An agricultural engineer wanted to study the
efficiency of four combine harvesters of wheat
on header losses in the field in LSD.

15. 7/1/2019 15
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
 At harvest, the engineer thought that the speed
of the harvester (km/h) and the speed of the reel
(r/min) might affect the header losses (fed).
 So, the experimental units were divided into
row to correct the speed of the harvester and
into column to correct the speed of the reel.

16. 7/1/2019 16
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Objective of the experiment:
Efficiency of four combine harvesters of wheat on
header losses.

17. 7/1/2019 17
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah

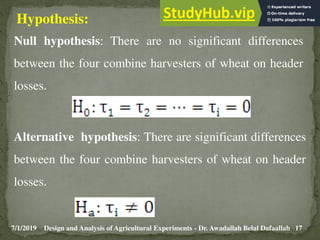

Hypothesis:
Null hypothesis: There are no significant differences
between the four combine harvesters of wheat on header
losses.
Alternative hypothesis: There are significant differences
between the four combine harvesters of wheat on header
losses.

18. 7/1/2019 18
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah

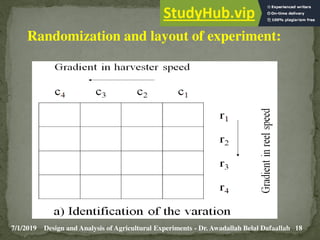

Randomization and layout of experiment:

19. 7/1/2019 19
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah

20. 7/1/2019 20
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah

21. 7/1/2019 21
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah

22. 7/1/2019 22
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Data collection and organization
Table of rows and column
Column (harvester speed) Total of
rows
5 km/h 6 km/h 7 km/h 8 km/h
Row
(Reel
speed)
5 r/min 6
A= 2
C= 3
D= 4
B= 15
10
r/min
2
D= 3
B= 4
C= 6
A= 15
15
r/min
3
B= 4
D= 7
A= 6
C= 20
20
r/min
4
C= 7
A= 6
B= 7
D= 24
Total of columns 15 16 20 23 74

23. 7/1/2019 23
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah

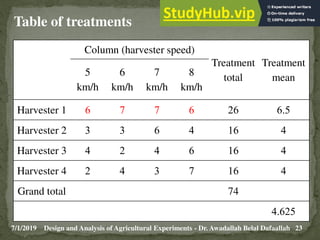

Table of treatments
Column (harvester speed)
Treatment
total
Treatment
mean
5
km/h
6
km/h
7
km/h
8
km/h
Harvester 1 6 7 7 6 26 6.5
Harvester 2 3 3 6 4 16 4
Harvester 3 4 2 4 6 16 4
Harvester 4 2 4 3 7 16 4
Grand total 74
4.625

24. 7/1/2019 24
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah

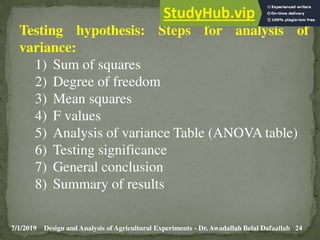

Testing hypothesis: Steps for analysis of
variance:
1) Sum of squares
2) Degree of freedom
3) Mean squares
4) F values
5) Analysis of variance Table (ANOVA table)
6) Testing significance
7) General conclusion
8) Summary of results

25. 7/1/2019 25
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah

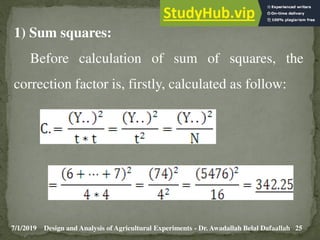

1) Sum squares:
Before calculation of sum of squares, the
correction factor is, firstly, calculated as follow:

26. 7/1/2019 26
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Sum of squares for total:

27. 7/1/2019 27
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Sum of squares for rows:

28. 7/1/2019 28
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Sum of squares for columns:

29. 7/1/2019 29
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah

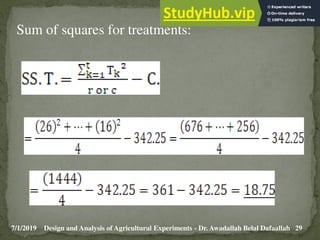

Sum of squares for treatments:

30. 7/1/2019 30
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah

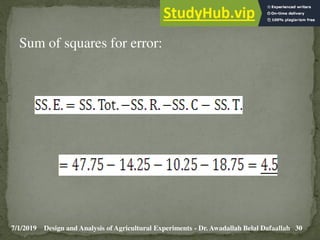

Sum of squares for error:

31. 7/1/2019 31
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
2) Degree of freedom:
Degree of freedom for total:
Degree of freedom for rows:
Degree of freedom for columns:

32. 7/1/2019 32
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah

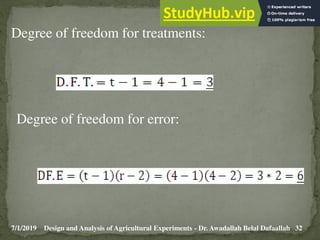

Degree of freedom for treatments:
Degree of freedom for error:

33. 7/1/2019 33
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
3) Mean squares:
Mean squares for rows:
Mean squares for columns:

34. 7/1/2019 34
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Mean squares for treatments:
Mean squares for error:

35. 7/1/2019 35
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
4) F values
Calculated F value for rows
Calculated F value for columns
Calculated F value for treatments

36. 7/1/2019 36
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah

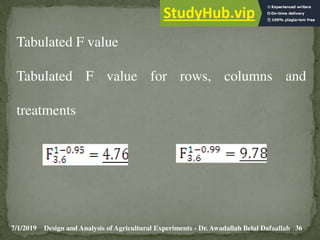

Tabulated F value
Tabulated F value for rows, columns and
treatments

37. 7/1/2019 37
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
5) ANOVA table:
SOV SS DF MS F-cal
F-tab
0.05 0.01
Rows 14.25 3 4.75 6.333 4.76 9.78
Columns 10.25 3 3.417 4.556Ns 4.76 9.78
Treatments 18.75 3 6.25 8.333 4.76 9.78
Experimental
error
4.5 6 0.75
Total 47.75 15

38. 7/1/2019 38
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
6) Testing significance
 Since the calculated f value for rows (6.333) is
greater than tabulated f value for rows at 0.05
(4.76) level of significance, null hypothesis is
rejected.

39. 7/1/2019 39
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah

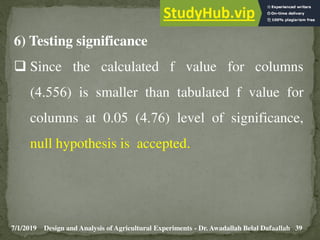

6) Testing significance
 Since the calculated f value for columns
(4.556) is smaller than tabulated f value for
columns at 0.05 (4.76) level of significance,
null hypothesis is accepted.

40. 7/1/2019 40
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
 Since the calculated f value for treatments
(8.333) is greater than tabulated f value for
treatments at 0.05 (4.76) level of significance,
null hypothesis is rejected.

41. 7/1/2019 41
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
7) General conclusion:
 Rows is efficient in removing the variation in
the experimental units due to harvester speed.
 Column is not efficient in removing the
variation in the experimental units due to reel
speed.

42. 7/1/2019 42
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
 There are significant differences between the
four combine harvesters of wheat on header
losses.

43. 7/1/2019 43
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah

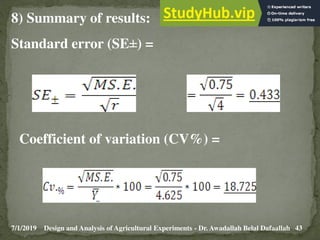

8) Summary of results:
Standard error (SE±) =
Coefficient of variation (CV%) =

44. 7/1/2019 44
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah

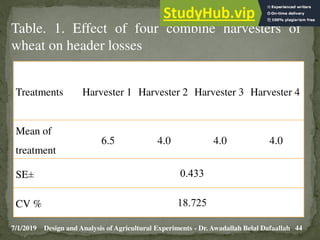

Table. 1. Effect of four combine harvesters of
wheat on header losses
Treatments Harvester 1 Harvester 2 Harvester 3 Harvester 4
Mean of
treatment
6.5 4.0 4.0 4.0
SE± 0.433
CV % 18.725

45. 7/1/2019 45
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Fig. 1. Effect of four combine harvesters of wheat
on header losses
0
1
2
3
4
5
6
7
Harvester
1
Harvester
2
Harvester
3
Harvester
4
Loss
(kg/fed)
Type of combine harvester

46. 7/1/2019 46
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Reference:
Dafaallah, A. B. (2017).Fundamentals of Design and
Analysis of Agricultural. Experiments
(Observation – Experimentation –Discussion), Part
One. First Edition. University of Gezira House for
Printing and Publishing, Wad Medani, Sudan. Pp
246.
Dafaallah, A. B. (2017). Fundamentals of Design and
Analysis of Agricultural Experiments (Observation
– Experimentation –Discussion), Part Two. First
Edition. University of Gezira House for Printing
and Publishing , Wad Medani, Sudan. Pp 204.

47. 7/1/2019 47
Design and Analysis of Agricultural Experiments - Dr. Awadallah Belal Dafaallah
Thanks
