LTE Frequently Asked Questions
 What is LTE?
 What is goal of LTE?
 What speed LTE offers?
 What is LTE Advanced?
 What is LTE architecture?
 What is EUTRAN?
 What are LTE Interfaces?
 What are LTE Network elements?
 What are LTE protocols & specifications?
 What is VoLGA?
 What is CS Fallback in LTE?
 How does LTE Security works?
 How does measurements work in LTE?
 What is Automatic Neighbour Relation?
 How does Intra E-UTRAN Handover is performed?
 What is SON & how does it work in LTE?
 How does Timing Advance (TA) works in LTE?
 How does LTE UE positioning works in E-UTRAN?
 How many operators have committed for LTE?
 How does Location Service (LCS) work in LTE network?
 How does Lawful Interception works in LTE Evolved Packet System?
 What is carrier aggregation in LTE-Advanced?
What is LTE?
LTEi (Long Term Evolution) is initiated by 3GPPi to improve the mobile phone standard to cope
with future technology evolutions and needs.
 Add new comment

What is goal of LTE?
The goals for LTE include improving spectral efficiency, lowering costs, improving services,
making use of new spectrum and reformed spectrum opportunities, and better integration with
other open standards.
 Add new comment

What speed LTE offers?
LTE provides downlink peak rates of at least 100Mbit/s, 50 Mbit/s in the uplink and RAN (Radio
Access Network) round-trip times of less than 10 ms.

2.  Add new comment

What is LTE Advanced?
LTE standards are in matured state now with release 8 frozen. While LTE Advanced is still under
works. Often the LTE standard is seen as 4G standard which is not true. 3.9G is more
acceptable for LTE. So why it is not 4G? Answer is quite simple - LTE does not fulfill all
requirements of ITU 4G definition.
Brief History of LTE Advanced: The ITU has introduced the term IMT Advanced to identify mobile
systems whose capabilities go beyond those of IMT 2000. The IMT Advanced systems shall
provide best-in-class performance attributes such as peak and sustained data rates and
corresponding spectral efficiencies, capacity, latency, overall network complexity and quality-
of-service management. The new capabilities of these IMT-Advanced systems are envisaged to
handle a wide range of supported data rates with target peak data rates of up to approximately
100 Mbit/s for high mobility and up to approximately 1 Gbit/s for low mobility.
See LTE Advanced: Evolution of LTE for more details.
 Add new comment


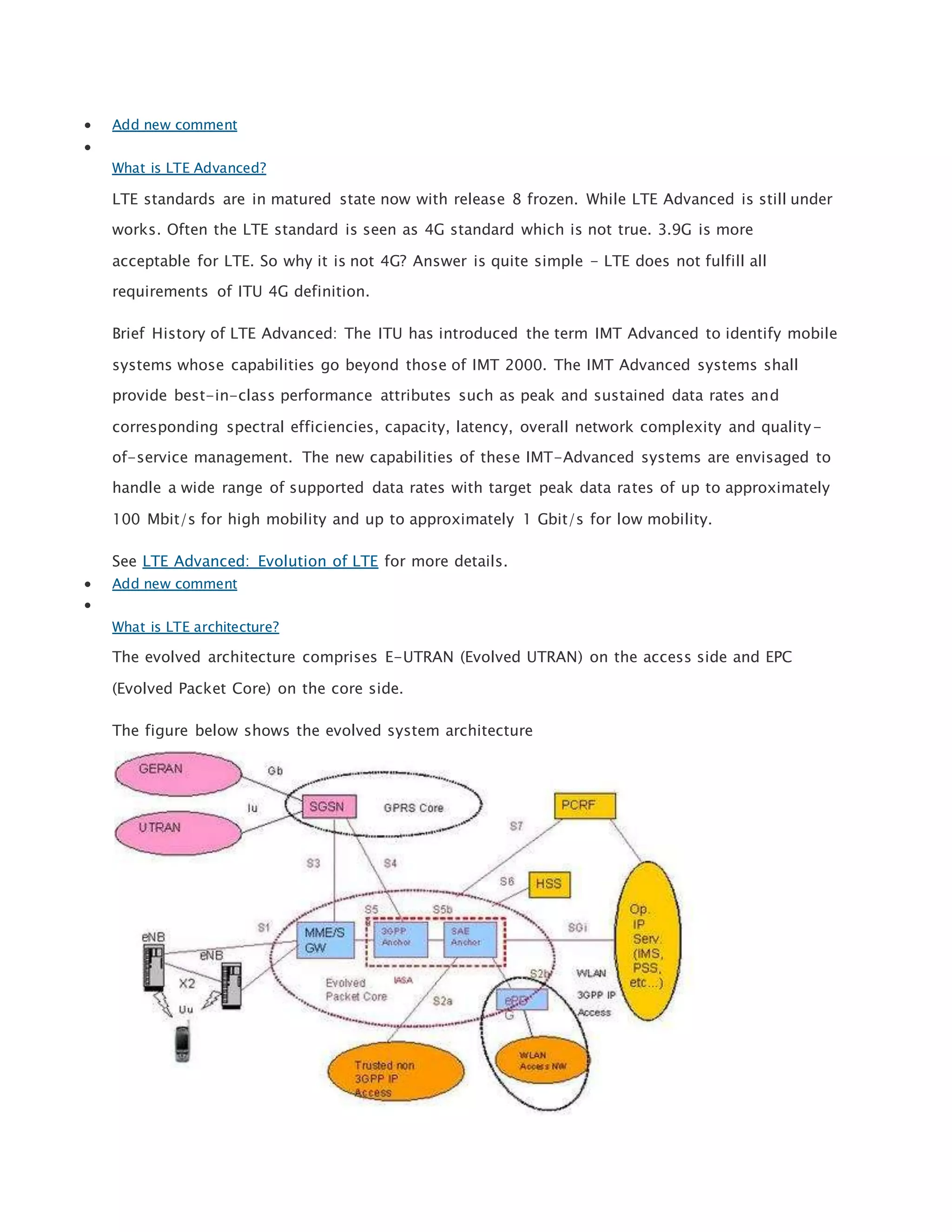

What is LTE architecture?
The evolved architecture comprises E-UTRAN (Evolved UTRAN) on the access side and EPC
(Evolved Packet Core) on the core side.
The figure below shows the evolved system architecture

3.  Add new comment


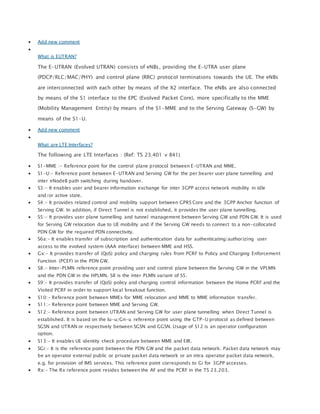

What is EUTRAN?
The E-UTRAN (Evolved UTRAN) consists of eNBs, providing the E-UTRA user plane
(PDCP/RLC/MAC/PHY) and control plane (RRC) protocol terminations towards the UE. The eNBs
are interconnected with each other by means of the X2 interface. The eNBs are also connected
by means of the S1 interface to the EPC (Evolved Packet Core), more specifically to the MME
(Mobility Management Entity) by means of the S1-MME and to the Serving Gateway (S-GW) by
means of the S1-U.
 Add new comment

What are LTE Interfaces?
The following are LTE Interfaces : (Ref: TS 23.401 v 841)
 S1-MME :- Reference point for the control plane protocol between E-UTRAN and MME.
 S1-U:- Reference point between E-UTRAN and Serving GW for the per bearer user plane tunnelling and
inter eNodeB path switching during handover.
 S3:- It enables user and bearer information exchange for inter 3GPP access network mobility in idle
and/or active state.
 S4:- It provides related control and mobility support between GPRS Core and the 3GPP Anchor function of
Serving GW. In addition, if Direct Tunnel is not established, it provides the user plane tunnelling.
 S5:- It provides user plane tunnelling and tunnel management between Serving GW and PDN GW. It is used
for Serving GW relocation due to UE mobility and if the Serving GW needs to connect to a non-collocated
PDN GW for the required PDN connectivity.
 S6a:- It enables transfer of subscription and authentication data for authenticating/authorizing user
access to the evolved system (AAA interface) between MME and HSS.
 Gx:- It provides transfer of (QoS) policy and charging rules from PCRF to Policy and Charging Enforcement
Function (PCEF) in the PDN GW.
 S8:- Inter-PLMN reference point providing user and control plane between the Serving GW in the VPLMN
and the PDN GW in the HPLMN. S8 is the inter PLMN variant of S5.
 S9:- It provides transfer of (QoS) policy and charging control information between the Home PCRF and the
Visited PCRF in order to support local breakout function.
 S10:- Reference point between MMEs for MME relocation and MME to MME information transfer.
 S11:- Reference point between MME and Serving GW.
 S12:- Reference point between UTRAN and Serving GW for user plane tunnelling when Direct Tunnel is
established. It is based on the Iu-u/Gn-u reference point using the GTP-U protocol as defined between
SGSN and UTRAN or respectively between SGSN and GGSN. Usage of S12 is an operator configuration
option.
 S13:- It enables UE identity check procedure between MME and EIR.
 SGi:- It is the reference point between the PDN GW and the packet data network. Packet data network may
be an operator external public or private packet data network or an intra operator packet data network,
e.g. for provision of IMS services. This reference point corresponds to Gi for 3GPP accesses.
 Rx:- The Rx reference point resides between the AF and the PCRF in the TS 23.203.

4.  SBc:- Reference point between CBC and MME for warning message delivery and control functions.
 Add new comment

What are LTE Network elements?
eNB
eNB interfaces with the UE and hosts the PHYsical (PHY), Medium Access
Control (MAC), Radio Link Control (RLC), and Packet Data Control
Protocol (PDCP) layers. It also hosts Radio Resource Control (RRC)
functionality corresponding to the control plane. It performs many
functions including radio resource management, admission control,
scheduling, enforcement of negotiated UL QoS, cell information
broadcast, ciphering/deciphering of user and control plane data, and
compression/decompression of DL/UL user plane packet headers.
Mobility Management Entity
manages and stores UE context (for idle state: UE/user identities, UE mobility state, user
security parameters). It generates temporary identities and allocates them to UEs. It checks the
authorization whether the UE may camp on the TA or on the PLMN. It also authenticates the
user.
Serving Gateway
The SGW routes and forwards user data packets, while also acting as the mobility anchor for the
user plane during inter-eNB handovers and as the anchor for mobility between LTE and other
3GPP technologies (terminating S4 interface and relaying the traffic between 2G/3G systems
and PDN GW).
Packet Data Network Gateway
The PDN GW provides connectivity to the UE to external packet data networks by being the
point of exit and entry of traffic for the UE. A UE may have simultaneous connectivity with more
than one PDN GW for accessing multiple PDNs. The PDN GW performs policy enforcement,
packet filtering for each user, charging support, lawful Interception
and packet screening.
 Add new comment

What are LTE protocols & specifications?

5. In LTE architecture, core network includes Mobility Management Entity (MME), Serving Gateway
(SGW), Packet Data Network Gateway (PDN GW) where as E-UTRAN has E-UTRAN NodeB (eNB).
See LTE protocols & specifications for specification mappings.
Protocol links are as below
 Air Interface Physical Layer
 GPRS Tunnelling Protocol User Plane (GTP-U)
 GTP-U Transport
 Medium Access Control (MAC)
 Non-Access-Stratum (NAS) Protocol
 Packet Data Convergence Protocol (PDCP)
 Radio Link Control (RLC)
 Radio Resource Control (RRC)
 S1 Application Protocol (S1AP)
 S1 layer 1
 S1 Signalling Transport
 X2 Application Protocol (X2AP)
 X2 layer 1
 X2 Signalling Transport
 Add new comment

What is VoLGA?
VoLGA stands for "Voice over LTE via Generic Access". The VoLGA service resembles the 3GPP
Generic Access Network (GAN). GAN provides a controller node - the GAN controller (GANC) -
inserted between the IP access network (i.e., the EPS) and the 3GPP core network.
The GAN provides an overlay access between the terminal and the CS core without requiring
specific enhancements or support in the network it traverses. This provides a terminal with a
'virtual' connection to the core network already deployed by an operator. The terminal and
network thus reuse most of the existing mechanisms, deployment and operational aspects.
see VoLGA - Voice over LTE via Generic Access for more details.
 Add new comment

What is CS Fallback in LTE?
LTE technology supports packet based services only, however 3GPP does specifies fallback for
circuit switched services as well. To achieve this LTE architecture and network nodes require
additional functionality, this blog is an attempt to provide overview for same.

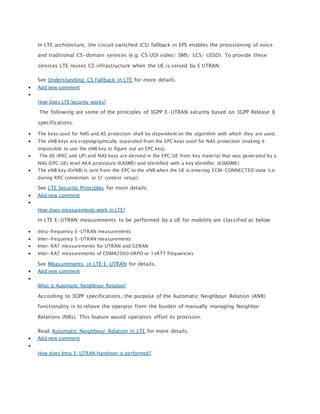

6. In LTE architecture, the circuit switched (CS) fallback in EPS enables the provisioning of voice
and traditional CS-domain services (e.g. CS UDI video/ SMS/ LCS/ USSD). To provide these
services LTE reuses CS infrastructure when the UE is served by E UTRAN.
See Understanding CS Fallback in LTE for more details.
 Add new comment

How does LTE Security works?
The following are some of the principles of 3GPP E-UTRAN security based on 3GPP Release 8
specifications:
 The keys used for NAS and AS protection shall be dependent on the algorithm with which they are used.
 The eNB keys are cryptographically separated from the EPC keys used for NAS protection (making it
impossible to use the eNB key to figure out an EPC key).
 The AS (RRC and UP) and NAS keys are derived in the EPC/UE from key material that was generated by a
NAS (EPC/UE) level AKA procedure (KASME) and identified with a key identifier (KSIASME).
 The eNB key (KeNB) is sent from the EPC to the eNB when the UE is entering ECM-CONNECTED state (i.e.
during RRC connection or S1 context setup).
See LTE Security Principles for more details.
 Add new comment

How does measurements work in LTE?
In LTE E-UTRAN measurements to be performed by a UE for mobility are classified as below
 Intra-frequency E-UTRAN measurements
 Inter-frequency E-UTRAN measurements
 Inter-RAT measurements for UTRAN and GERAN
 Inter-RAT measurements of CDMA2000 HRPD or 1xRTT frequencies
See Measurements in LTE E-UTRAN for details.
 Add new comment

What is Automatic Neighbour Relation?
According to 3GPP specifications, the purpose of the Automatic Neighbour Relation (ANR)
functionality is to relieve the operator from the burden of manually managing Neighbor
Relations (NRs). This feature would operators effort to provision.
Read Automatic Neighbour Relation in LTE for more details.
 Add new comment

How does Intra E-UTRAN Handover is performed?

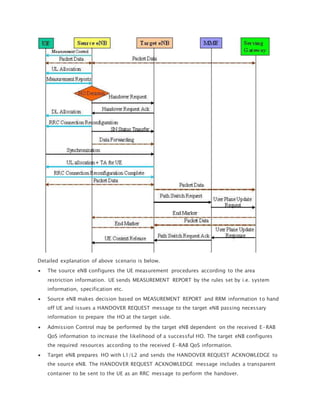

7. Intra E-UTRAN Handover is used to hand over a UE from a source eNodeB to a target eNodeB
using X2 when the MME is unchanged. In the scenario described here Serving GW is also
unchanged. The presence of IP connectivity between the Serving GW and the source eNodeB, as
well as between the Serving GW and the target eNodeB is assumed.
The intra E-UTRAN HO in RRC_CONNECTED state is UE assisted NW controlled HO, with HO
preparation signalling in E-UTRAN.
Read LTE Handovers - Intra E-UTRAN Handover for more details.
 Add new comment

What is SON & how does it work in LTE?

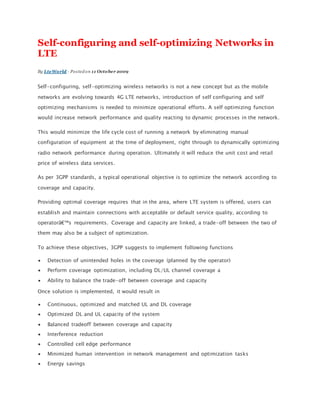

Self-configuring, self-optimizing wireless networks is not a new concept but as the mobile
networks are evolving towards 4G LTE networks, introduction of self configuring and self
optimizing mechanisms is needed to minimize operational efforts. A self optimizing function
would increase network performance and quality reacting to dynamic processes in the network.
This would minimize the life cycle cost of running a network by eliminating manual
configuration of equipment at the time of deployment, right through to dynamically optimizing
radio network performance during operation. Ultimately it will reduce the unit cost and retail
price of wireless data services.
See Self-configuring and self-optimizing Networks in LTE for details.
 Add new comment

How does Timing Advance (TA) works in LTE?
In LTE, when UE wish to establish RRC connection with eNB, it transmits a Random Access
Preamble, eNB estimates the transmission timing of the terminal based on this. Now eNB
transmits a Random Access Response which consists of timing advance command, based on
that UE adjusts the terminal transmit timing.
The timing advance is initiated from E-UTRAN with MAC message that implies and adjustment
of the timing advance.
See Timing Advance (TA) in LTE for further details.
 Add new comment

How does LTE UE positioning works in E-UTRAN?

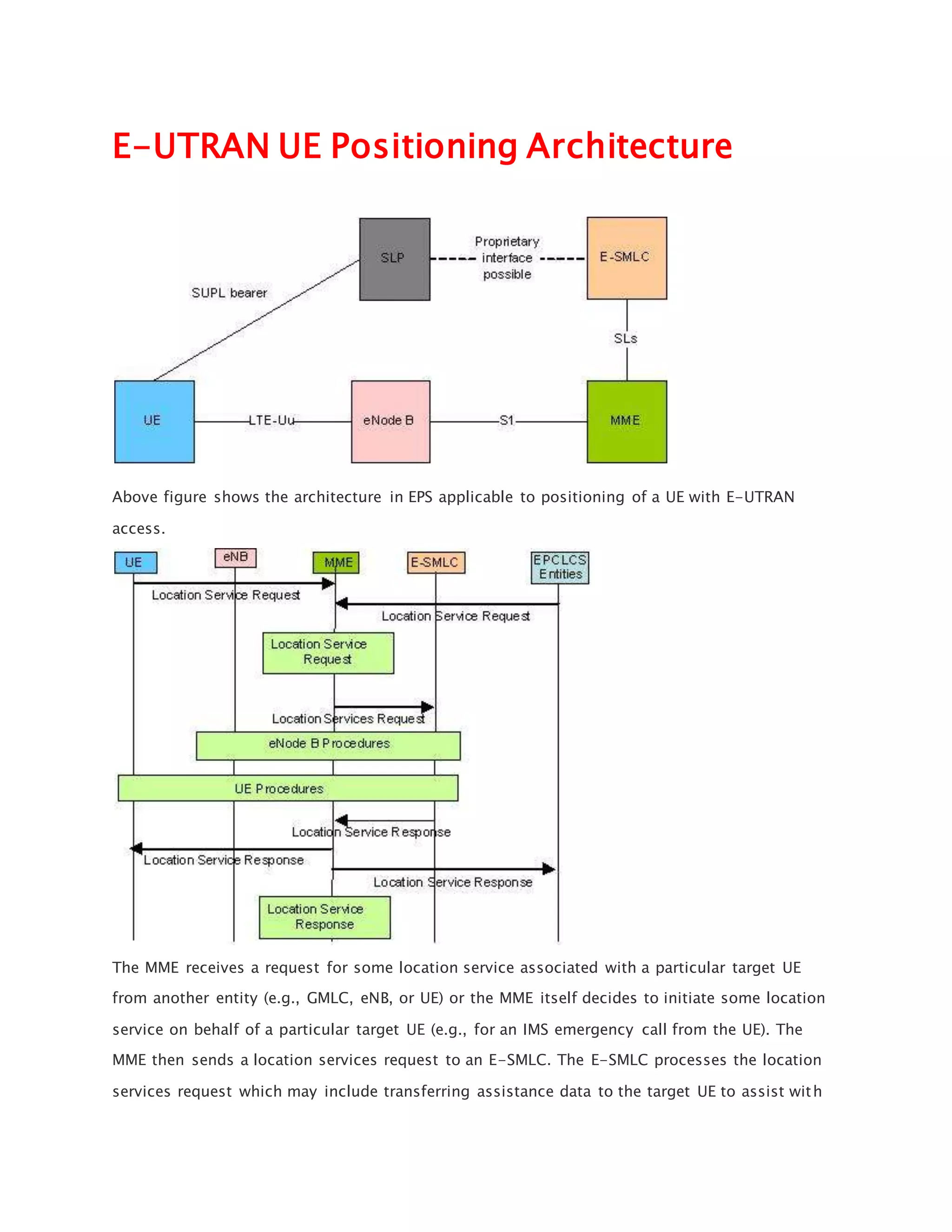

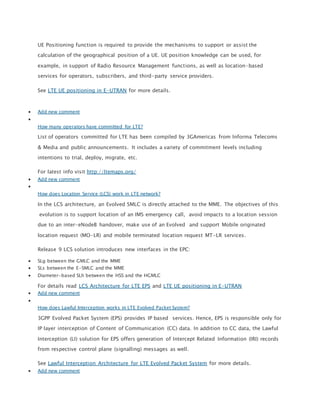

8. UE Positioning function is required to provide the mechanisms to support or assist the
calculation of the geographical position of a UE. UE position knowledge can be used, for
example, in support of Radio Resource Management functions, as well as location-based
services for operators, subscribers, and third-party service providers.
See LTE UE positioning in E-UTRAN for more details.
 Add new comment

How many operators have committed for LTE?
List of operators committed for LTE has been compiled by 3GAmericas from Informa Telecoms
& Media and public announcements. It includes a variety of commitment levels including
intentions to trial, deploy, migrate, etc.
For latest info visit http://ltemaps.org/
 Add new comment


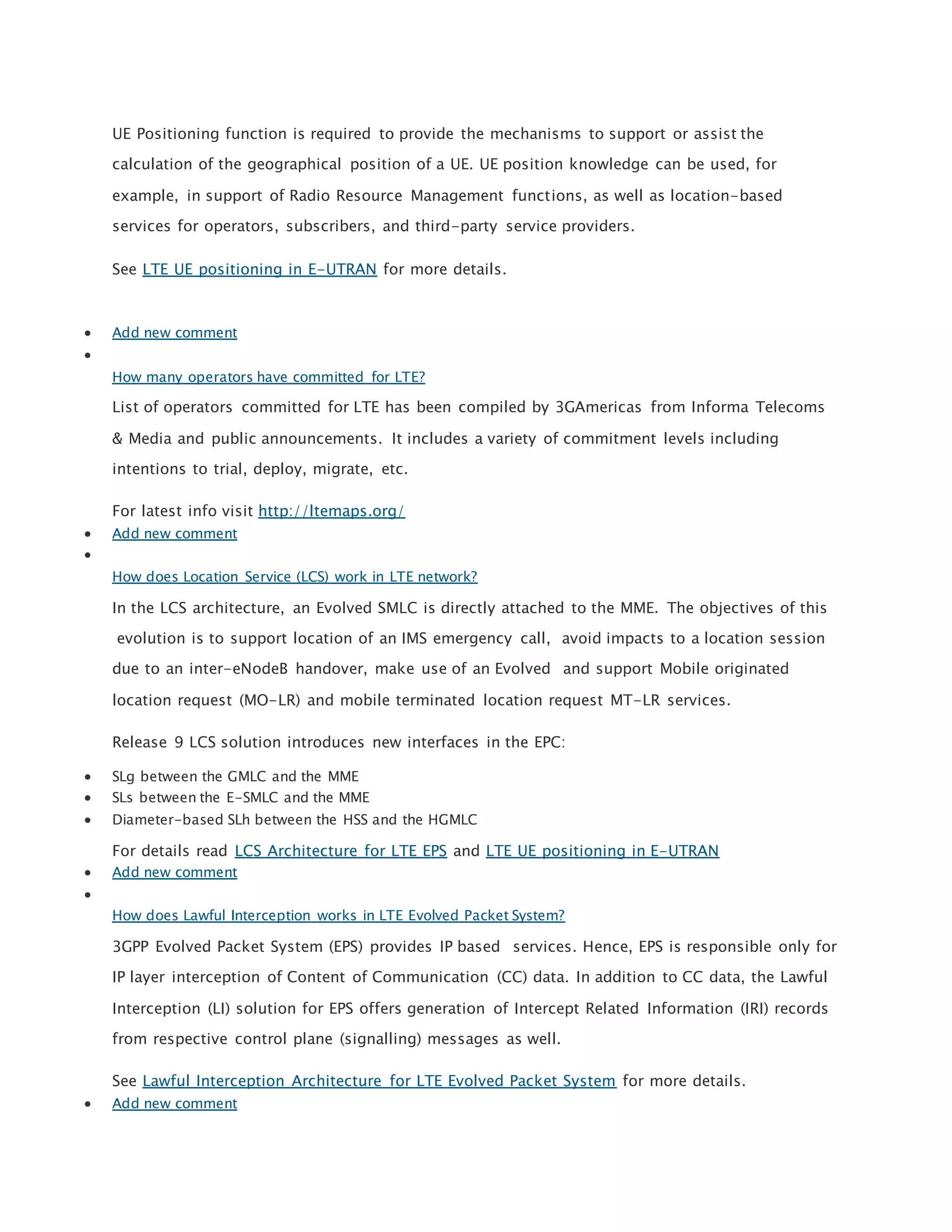

How does Location Service (LCS) work in LTE network?
In the LCS architecture, an Evolved SMLC is directly attached to the MME. The objectives of this
evolution is to support location of an IMS emergency call, avoid impacts to a location session
due to an inter-eNodeB handover, make use of an Evolved and support Mobile originated
location request (MO-LR) and mobile terminated location request MT-LR services.
Release 9 LCS solution introduces new interfaces in the EPC:
 SLg between the GMLC and the MME
 SLs between the E-SMLC and the MME
 Diameter-based SLh between the HSS and the HGMLC
For details read LCS Architecture for LTE EPS and LTE UE positioning in E-UTRAN
 Add new comment

How does Lawful Interception works in LTE Evolved Packet System?
3GPP Evolved Packet System (EPS) provides IP based services. Hence, EPS is responsible only for
IP layer interception of Content of Communication (CC) data. In addition to CC data, the Lawful
Interception (LI) solution for EPS offers generation of Intercept Related Information (IRI) records
from respective control plane (signalling) messages as well.
See Lawful Interception Architecture for LTE Evolved Packet System for more details.
 Add new comment

9. 
What is carrier aggregation in LTE-Advanced?
To meet LTE-Advanced requirements, support of wider transmission bandwidths is required
than the 20 MHz bandwidth specified in 3GPP Release 8/9. The preferred solution to this is
carrier aggregation.
It is of the most distinct features of 4G LTE-Advanced. Carrier aggregation allows expansion of
effective bandwidth delivered to a user terminal through concurrent utilization of radio
resources across multiple carriers. Multiple component carriers are aggregated to form a larger
overall transmission bandwidth.
LTE Handovers - Intra E-UTRAN Handover
By LteWorld - Posted on 10 April 2010

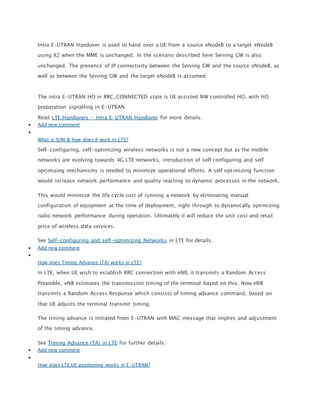

Intra E-UTRAN Handover is used to hand over a UE from a source eNodeB to a target eNodeB
using X2 when the MME is unchanged. In the scenario described here Serving GW is also
unchanged. The presence of IP connectivity between the Serving GW and the source eNodeB, as
well as between the Serving GW and the target eNodeB is assumed.
The intra E-UTRAN HO in RRC_CONNECTED state is UE assisted NW controlled HO, with HO
preparation signalling in E-UTRAN.
To prepare the HO, the source eNB passes all necessary information to the target eNB (e.g. E-
RAB attributes and RRC context) and UE accesses the target cell via RACH following a
contention-free procedure using a dedicated RACH preamble.
The HO procedure is performed without EPC involvement, i.e. preparation messages are directly
exchanged between the eNBs. The figure below shows the basic handover scenario where
neither MME nor Serving Gateway changes:

10. Detailed explanation of above scenario is below.
 The source eNB configures the UE measurement procedures according to the area
restriction information. UE sends MEASUREMENT REPORT by the rules set by i.e. system
information, specification etc.
 Source eNB makes decision based on MEASUREMENT REPORT and RRM information to hand
off UE and issues a HANDOVER REQUEST message to the target eNB passing necessary
information to prepare the HO at the target side.
 Admission Control may be performed by the target eNB dependent on the received E-RAB
QoS information to increase the likelihood of a successful HO. The target eNB configures
the required resources according to the received E-RAB QoS information.
 Target eNB prepares HO with L1/L2 and sends the HANDOVER REQUEST ACKNOWLEDGE to
the source eNB. The HANDOVER REQUEST ACKNOWLEDGE message includes a transparent
container to be sent to the UE as an RRC message to perform the handover.

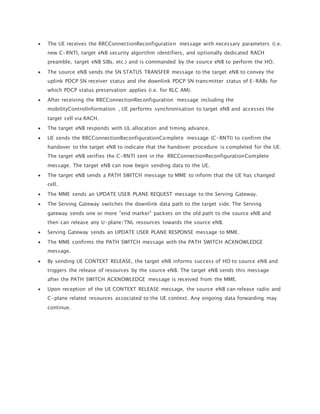

11.  The UE receives the RRCConnectionReconfiguration message with necessary parameters (i.e.
new C-RNTI, target eNB security algorithm identifiers, and optionally dedicated RACH
preamble, target eNB SIBs, etc.) and is commanded by the source eNB to perform the HO.
 The source eNB sends the SN STATUS TRANSFER message to the target eNB to convey the
uplink PDCP SN receiver status and the downlink PDCP SN transmitter status of E-RABs for
which PDCP status preservation applies (i.e. for RLC AM).
 After receiving the RRCConnectionReconfiguration message including the
mobilityControlInformation , UE performs synchronisation to target eNB and accesses the
target cell via RACH.
 The target eNB responds with UL allocation and timing advance.
 UE sends the RRCConnectionReconfigurationComplete message (C-RNTI) to confirm the
handover to the target eNB to indicate that the handover procedure is completed for the UE.
The target eNB verifies the C-RNTI sent in the RRCConnectionReconfigurationComplete
message. The target eNB can now begin sending data to the UE.
 The target eNB sends a PATH SWITCH message to MME to inform that the UE has changed
cell.
 The MME sends an UPDATE USER PLANE REQUEST message to the Serving Gateway.
 The Serving Gateway switches the downlink data path to the target side. The Serving
gateway sends one or more "end marker" packets on the old path to the source eNB and
then can release any U-plane/TNL resources towards the source eNB.
 Serving Gateway sends an UPDATE USER PLANE RESPONSE message to MME.
 The MME confirms the PATH SWITCH message with the PATH SWITCH ACKNOWLEDGE
message.
 By sending UE CONTEXT RELEASE, the target eNB informs success of HO to source eNB and
triggers the release of resources by the source eNB. The target eNB sends this message
after the PATH SWITCH ACKNOWLEDGE message is received from the MME.
 Upon reception of the UE CONTEXT RELEASE message, the source eNB can release radio and
C-plane related resources associated to the UE context. Any ongoing data forwarding may
continue.

12. Self-configuring and self-optimizing Networks in
LTE
By LteWorld - Posted on 11 October 2009
Self-configuring, self-optimizing wireless networks is not a new concept but as the mobile
networks are evolving towards 4G LTE networks, introduction of self configuring and self
optimizing mechanisms is needed to minimize operational efforts. A self optimizing function
would increase network performance and quality reacting to dynamic processes in the network.
This would minimize the life cycle cost of running a network by eliminating manual
configuration of equipment at the time of deployment, right through to dynamically optimizing
radio network performance during operation. Ultimately it will reduce the unit cost and retail
price of wireless data services.
As per 3GPP standards, a typical operational objective is to optimize the network according to
coverage and capacity.
Providing optimal coverage requires that in the area, where LTE system is offered, users can
establish and maintain connections with acceptable or default service quality, according to
operator’s requirements. Coverage and capacity are linked, a trade-off between the two of
them may also be a subject of optimization.
To achieve these objectives, 3GPP suggests to implement following functions
 Detection of unintended holes in the coverage (planned by the operator)
 Perform coverage optimization, including DL/UL channel coverage a
 Ability to balance the trade-off between coverage and capacity
Once solution is implemented, it would result in
 Continuous, optimized and matched UL and DL coverage
 Optimized DL and UL capacity of the system
 Balanced tradeoff between coverage and capacity
 Interference reduction
 Controlled cell edge performance
 Minimized human intervention in network management and optimization tasks
 Energy savings

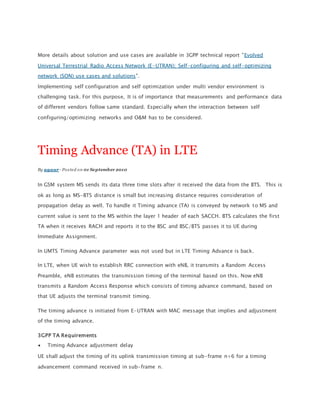

13. More details about solution and use cases are available in 3GPP technical report "Evolved
Universal Terrestrial Radio Access Network (E-UTRAN); Self-configuring and self-optimizing
network (SON) use cases and solutions".
Implementing self configuration and self optimization under multi vendor environment is
challenging task. For this purpose, It is of importance that measurements and performance data
of different vendors follow same standard. Especially when the interaction between self
configuring/optimizing networks and O&M has to be considered.
Timing Advance (TA) in LTE
By agaur - Posted on 01 September 2010
In GSM system MS sends its data three time slots after it received the data from the BTS. This is
ok as long as MS-BTS distance is small but increasing distance requires consideration of
propagation delay as well. To handle it Timing advance (TA) is conveyed by network to MS and
current value is sent to the MS within the layer 1 header of each SACCH. BTS calculates the first
TA when it receives RACH and reports it to the BSC and BSC/BTS passes it to UE during
Immediate Assignment.
In UMTS Timing Advance parameter was not used but in LTE Timing Advance is back.
In LTE, when UE wish to establish RRC connection with eNB, it transmits a Random Access
Preamble, eNB estimates the transmission timing of the terminal based on this. Now eNB
transmits a Random Access Response which consists of timing advance command, based on
that UE adjusts the terminal transmit timing.
The timing advance is initiated from E-UTRAN with MAC message that implies and adjustment
of the timing advance.
3GPP TA Requirements
 Timing Advance adjustment delay
UE shall adjust the timing of its uplink transmission timing at sub-frame n+6 for a timing
advancement command received in sub-frame n.

14.  Timing Advance adjustment accuracy
The UE shall adjust the timing of its transmissions with a relative accuracy better than or equal
to ±4* TS seconds to the signalled timing advance value compared to the timing of preceding
uplink transmission. The timing advance command is expressed in multiples of 16* TS and is
relative to the current uplink timing.
Maintenance of Uplink Time Alignment
The UE has a configurable timer timeAlignmentTimer which is used to control how long the UE
is considered uplink time aligned
 when a Timing Advance Command MAC control element is received then UE applies the
Timing Advance Command and start or restart timeAlignmentTimer.
 when a Timing Advance Command is received in a Random Access Response message then
one of following action is performed by UE
- if the Random Access Preamble was not selected by UE MAC then UE applies the Timing
Advance Command and starts or restarts timeAlignmentTimer.
- else if the timeAlignmentTimer is not running then UE applies the Timing Advance Command
starts timeAlignmentTimer; when the contention resolution is considered not successful then
UE stops timeAlignmentTimer.
- else ignore the received Timing Advance Command.
 when timeAlignmentTimer expires UE flushes all HARQ buffers, notifies RRC to release
PUCCH/SRS and clears any configured downlink assignments and uplink grants.
Timing Advance Command MAC Control Element
The Timing Advance Command MAC control element is identified by MAC PDU subheader with
LCID value = 11101 (Timing Advance Command) .
It has a fixed size and it consists of a single octet as show below.
Timing Advance Command MAC control element has following fields.
 R: reserved bit, set to "0"

15.  Timing Advance Command: This field indicates the index value TA (0, 1, 2… 63) used to
control the amount of timing adjustment that UE has to. The length of the field is 6 bits.
LTE UE positioning in E-UTRAN
By LteWorld - Posted on 03 January2010
UE Positioning function is required to provide the mechanisms to support or assist the
calculation of the geographical position of a UE. UE position knowledge can be used, for
example, in support of Radio Resource Management functions, as well as location-based
services for operators, subscribers, and third-party service providers.
Positioning functionality provides a means to determine the geographic position and/or velocity
of the UE based on measuring radio signals. The position information may be requested by and
reported to a client (e.g., an application) associated with the UE, or by a client within or
attached to the core network. The position information is reported in standard formats, such as
those for cell-based or geographical co-ordinates, together with the estimated errors
(uncertainty) of the position and velocity of the UE and, if available, the positioning method (or
the list of the methods) used to obtain the position estimate.
Several design options of the LTE E-UTRAN system (e.g., size of cell, adaptive antenna
technique, pathloss estimation, timing accuracy, eNode B surveys) would allow the network
operator to choose a suitable and cost-effective UE positioning method for their market.
Positioning the UE involves two main steps:
- signal measurements
- Position estimate and optional velocity computation based on the measurements.
The signal measurements may be made by the UE or the eNode B.
The standard positioning methods supported for E-UTRAN access are:
- network-assisted GNSS (Global Navigation Satellites Systems) methods
- downlink positioning
- enhanced cell ID method.
Hybrid positioning using multiple methods from the list of positioning methods above is also
supported.

16. E-UTRAN UE Positioning Architecture
Above figure shows the architecture in EPS applicable to positioning of a UE with E-UTRAN
access.
The MME receives a request for some location service associated with a particular target UE
from another entity (e.g., GMLC, eNB, or UE) or the MME itself decides to initiate some location
service on behalf of a particular target UE (e.g., for an IMS emergency call from the UE). The
MME then sends a location services request to an E-SMLC. The E-SMLC processes the location
services request which may include transferring assistance data to the target UE to assist with

17. UE-based and/or UE-assisted positioning and/or may include positioning of the target UE. The
E-SMLC then returns the result of the location service back to the MME (e.g., a position estimate
for the UE and/or an indication of any assistance data transferred to the UE). In the case of a
location service requested by an entity other than the MME (e.g., UE, eNB, or E-SMLC), the MME
returns the location service result to this entity.
The SLP is the SUPL entity responsible for positioning over the user plane.
source : 3GPP 3605-900
LTE Protocols & Specifications
In LTE architecture, core network includes Mobility Management Entity (MME), Serving Gateway
(SGW), Packet Data Network Gateway (PDN GW) where as E-UTRAN has E-UTRAN NodeB (eNB).
The figures shown below provide mapping of protocols to corresponding specifications. To
find 3GPP LTE specification, click at the corresponding protocol in the images below.

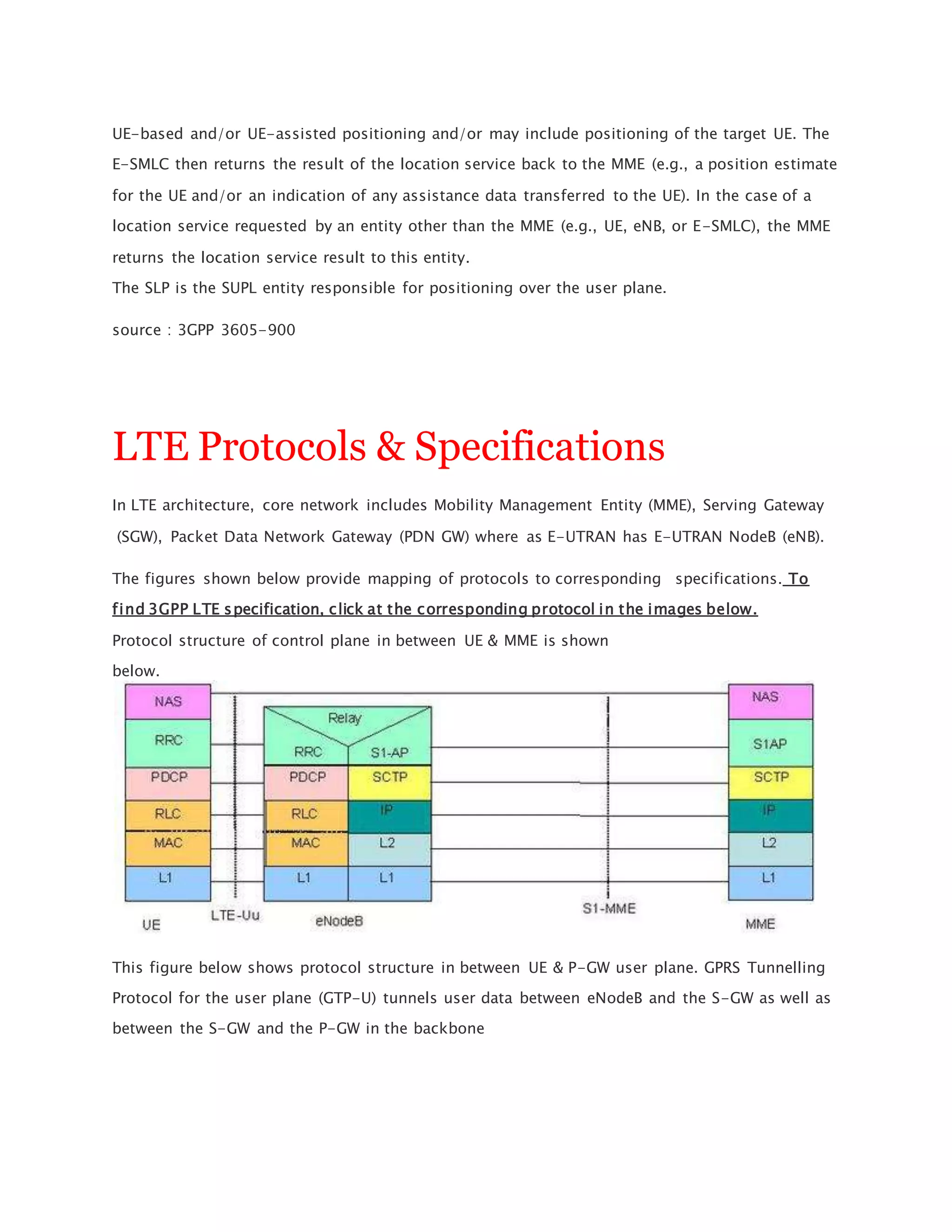

Protocol structure of control plane in between UE & MME is shown
below.
This figure below shows protocol structure in between UE & P-GW user plane. GPRS Tunnelling
Protocol for the user plane (GTP-U) tunnels user data between eNodeB and the S-GW as well as
between the S-GW and the P-GW in the backbone

18. network.

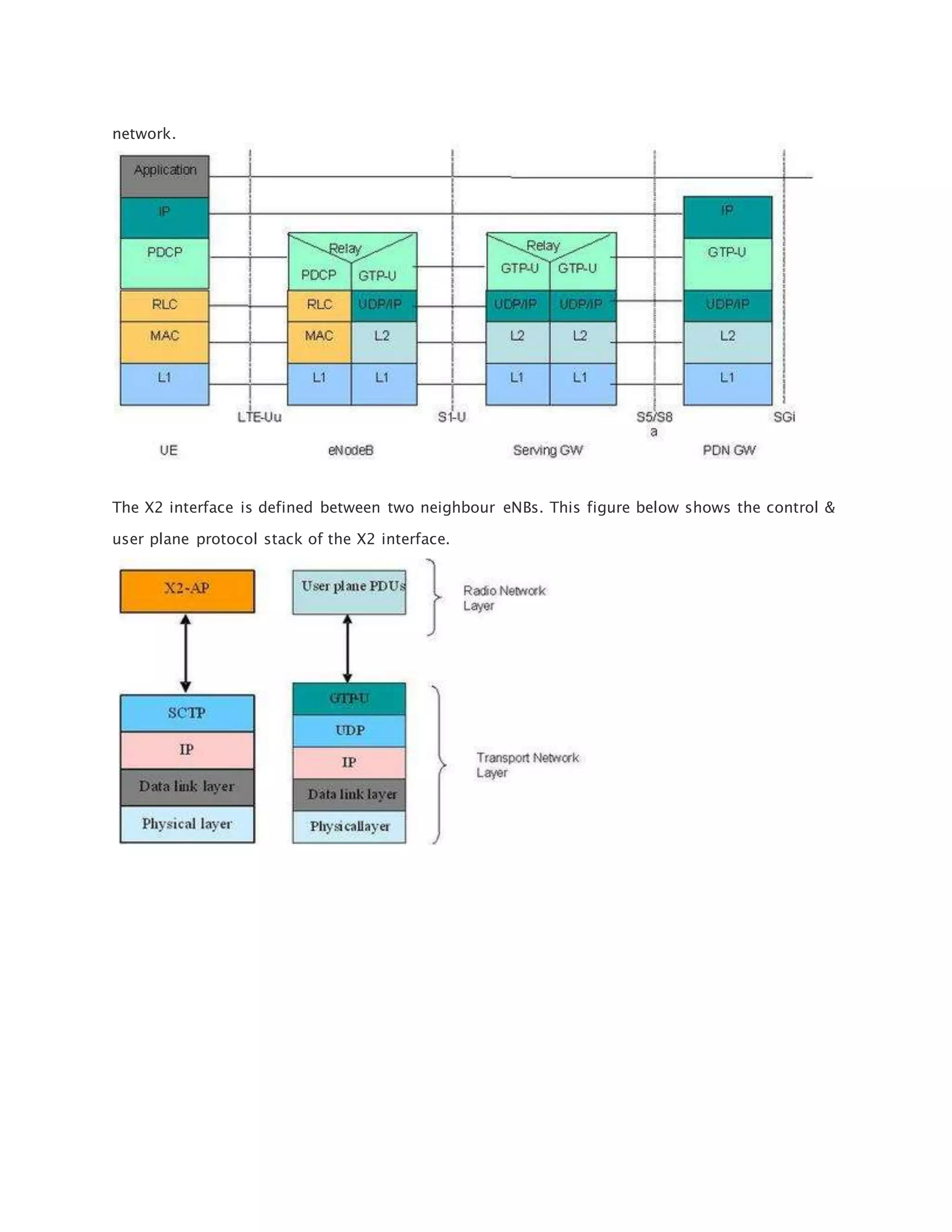

The X2 interface is defined between two neighbour eNBs. This figure below shows the control &
user plane protocol stack of the X2 interface.

19. Understanding CS Fallback in LTE
By LteWorld - Posted on 27 September 2009
LTE technology supports packet based services only, however 3GPP does specifies fallback for
circuit switched services as well. To achieve this LTE architecture and network nodes require
additional functionality, this blog is an attempt to provide overview for same.
In LTE architecture, the circuit switched (CS) fallback in EPS enables the provisioning of voice
and traditional CS-domain services (e.g. CS UDI video/ SMS/ LCS/ USSD). To provide these
services LTE reuses CS infrastructure when the UE is served by E UTRAN.
A CS fallback enabled terminal, connected to E UTRAN may use GERAN or UTRAN to connect to
the CS domain. This function is only available in case E UTRAN coverage is overlapped by either
GERAN coverage or UTRAN coverage.
The figure above provides architecture for CS fallback in EPS.
CS Fallback and IMS based services can co-exist in the same operator’s network. Although
its not very straight forward to support CS fallback, all participating elements i.e UE, MME, MSC
& E-UTRAN needs to support additional functionalities.
The support CS fallback in EPS a new interface SGs is added in LTE architecture. SGs interface is
the reference point between the MME and MSC server. SGs interface is used for the mobility
management and paging procedures between EPS and CS domain, and is based on the Gs
interface procedures.

20. The SGs reference point is also used for the delivery of both mobile originating and mobile
terminating SMS.
The CS fallback enabled network elements need to support the following additional functions:
UE
 supports access to E-UTRAN/EPC as well as access to the CS domain over GERAN and/or
UTRAN.
 Combined procedures for EPS/IMSI attach, update and detach.
 CS fallback and SMS procedures for using CS domain services.
MME
 Deriving a VLR number and LAI from the GUTI received from the UE or from a default LAI.
 Maintaining of SGs association towards MSC/VLR for EPS/IMSI attached UE.
 Initiating IMSI detach at EPS detach.
 Initiating paging procedure towards eNodeB when MSC pages the UE for CS services.
 Support of SMS procedures
 Rejecting CS Fallback call request (e.g. due to O&M reasons)
 Use of the LAI and a hash value from the IMSI to determine the VLR number when multiple
MSC/VLRs serve the same LAI.
MSC
 Maintaining SGs association towards MME for EPS/IMSI attached UE.
 Support of SMS procedures as provided in 3GPP specification
E-UTRAN
 Forwarding paging request and SMS to the UE.
 Directing the UE to the target CS capable cell.
At MME - MSC Server interface a new protcol SGsAP is being added to support CS fallback.
SGsAP protocol is based on the BSSAP+. Stream Control Transmission Protocol (SCTP) is used to
transport SGsAP signaling messages.
A CS Fallback and IMS capable UE would follow the procedures for domain selection for UE
originating session/calls according to 3GPP specification 23.221.
If a UE is configured to use SMS over IP services and it is registered to IMS then it would send
SMS over IMS, even if it is EPS/IMSI attached.

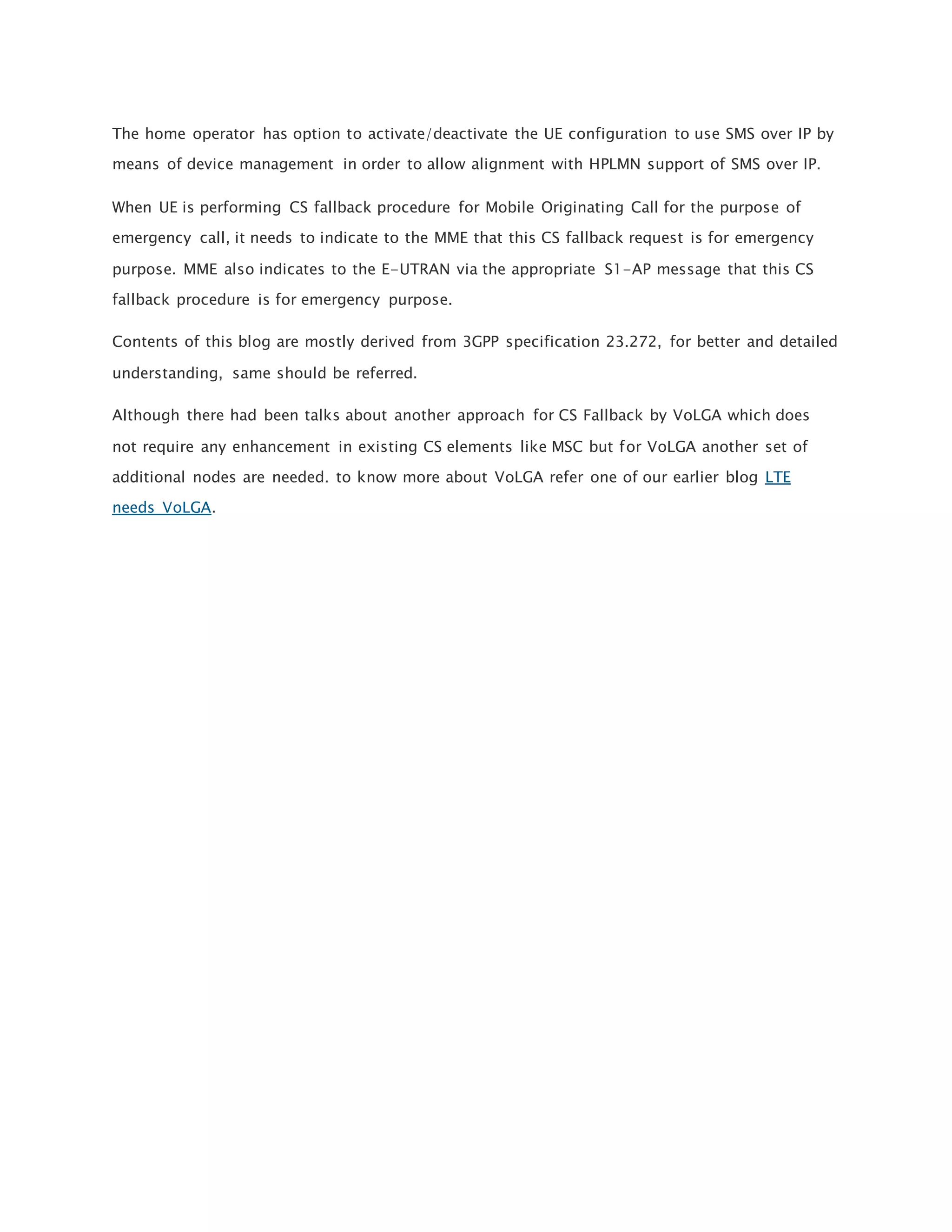

21. The home operator has option to activate/deactivate the UE configuration to use SMS over IP by
means of device management in order to allow alignment with HPLMN support of SMS over IP.
When UE is performing CS fallback procedure for Mobile Originating Call for the purpose of
emergency call, it needs to indicate to the MME that this CS fallback request is for emergency
purpose. MME also indicates to the E-UTRAN via the appropriate S1-AP message that this CS
fallback procedure is for emergency purpose.
Contents of this blog are mostly derived from 3GPP specification 23.272, for better and detailed
understanding, same should be referred.
Although there had been talks about another approach for CS Fallback by VoLGA which does
not require any enhancement in existing CS elements like MSC but for VoLGA another set of
additional nodes are needed. to know more about VoLGA refer one of our earlier blog LTE
needs VoLGA.
