- 1. Author : RayKhastur : http://www.linkedin.com/pub/ray-khastur/36/965/b7a 4G LTE Drive Test Introduction
- 2. 4G LTE DriveTest Introduction @ Floatway Learning Centre , slide number 2 Drive Test Peripheral Notebook GPS LTE Dongle
- 3.
- 4. 4G LTE DriveTest Introduction @ Floatway Learning Centre , slide number 4 LTE Main Radio Parameter PCI (0~503) RSRP (- 130 ~ -50) dBm SINR (-20 ~ 30) dB MIMO (TM1, TM2, TM3, TM7)
- 5. 4G LTE DriveTest Introduction @ Floatway Learning Centre , slide number 5 UE State Information

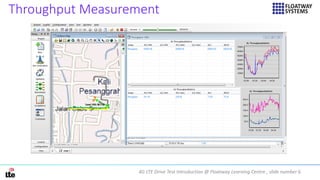

- 6. 4G LTE DriveTest Introduction @ Floatway Learning Centre , slide number 6 Throughput Measurement
- 7. 4G LTE DriveTest Introduction @ Floatway Learning Centre , slide number 7 DL RB Used on High Speed Throughput

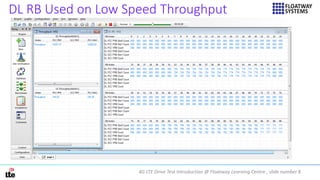

- 8. 4G LTE DriveTest Introduction @ Floatway Learning Centre , slide number 8 DL RB Used on Low Speed Throughput
- 9.
- 10. 4G LTE DriveTest Introduction @ Floatway Learning Centre , slide number 10 Attach Request Procedure – Event List
- 11. 4G LTE DriveTest Introduction @ Floatway Learning Centre , slide number 11 Attach Request Procedure – L3 Message
- 12. 4G LTE DriveTest Introduction @ Floatway Learning Centre , slide number 12 UE Attach Procedure RACH RRC Setup Authentication E-RAB
- 13. 4G LTE DriveTest Introduction @ Floatway Learning Centre , slide number 13 Access Failure Reasons Random access fail reasons: • Bad RF conditions ( SINR<-3 or RSRP<-120) • UE configuration parameter (Monitor the top-1 fail UE for analysis) • Enode-B configuration parameter (Parameter checking at the TOP-1 fail site) • Core-network configuration parameter (If all the site in one CN often fail) RRC Setup Fail reasons: • Case-1: often fail by One UE: trace the UE and get the RF signal performance. Maybe cause by the UE signal or UE configuration setting. • Case-2: Often fail in one site by different UEs: Trouble shooting the problem site. Authentication will happen between UE and MME, EnodeB just transfer the information. So we have to check the “S1 interface message” in core-M2000. Authentication fail in three reasons: • UE did not feedback all the information (4 messages). -----check the UE signal conditions. • Core-Network no reply “Initial UE context setup Req)-----UE and CN need to be check. • Core-Network release “S1 UE Context Rel_CMD”-----UE and CN need to be check. ERAB fail Reason: •Security mode negotiation problem (“RRC SEQUR Mode Fail” reply by UE)----UE problem •Security mode negotiation problem (No receive “RRC SECUR MODE CMP” from UE”---- UE RF conditions. •UE CAP enquiry fail.(No receive “RRC_UE_CAP_RSP”from UE”----UE RF conditions. •RECFM not complete (No receive” RRC CONN RECFG CMP” from UE)----UE RF conditions.
- 14.
- 15. 4G LTE DriveTest Introduction @ Floatway Learning Centre , slide number 15 Serving and Neighboring Cell Meas_RPRT S1AP_Handover_Required S1AP_Handover_CMD RRC_CONN_RECFG (HO_CMD) S1AP_eNB_Status_Transfer UE S_eNB T_eNB Core Network S1AP_Handover_Notify S1AP_UE_CONTEXT_REL_CMD RRC_CONN_RECFG_CMP (HO_CMP) RRC_CONN_RECFG RRC_CONN_RECFG_CMP UU_interface X2_interface S1_interface S1AP_Handover_REQ_ACK S1AP_MME_Status_Transfer S1AP_UE_CONTEXT_REL_CMP S1AP_Handover_Request
- 16. 4G LTE DriveTest Introduction @ Floatway Learning Centre , slide number 16 ANR vs UE capability : Inter-eNodeB 1. The source eNodeB delivers the intra-frequency measurement configuration to the UE, instructing the UE to measure neighboring cells that work on the frequencies specified in the measurement configuration. 2. The UE detects that the PCI of cell B meets the measurement requirements, and reports the PCI to the source eNodeB. 3. The source eNodeB checks whether its intra-RAT NCL includes the PCI of cell B. If so, the procedure ends. If not, the source eNodeB sends the measurement configuration to the UE, instructing the UE to read the ECGI, tracking area code (TAC), and PLMN ID list of cell B. 4. The source eNodeB allows the UE to read these parameters over the broadcast channel (BCH). 5. The UE reports the obtained parameter values to the source eNodeB. Notes: ANR features of an UE will effect the capability of the UE to read the ECGI, TAC and other information of the target cell. Thus, failure to do so the target cell information can’t be read.
