PL/CUDA allows running CUDA C code directly in PostgreSQL user-defined functions. This allows advanced analytics and machine learning algorithms to be run directly in the database. The gstore_fdw foreign data wrapper allows data to be stored directly in GPU memory, accessed via SQL, eliminating the overhead of copying data between CPU and GPU memory for each query. Integrating PostgreSQL with GPU computing and machine learning frameworks allows for fast data exploration and model training by combining flexible SQL queries with high-performance analytics directly on the data.

1. gstore_fdw - On GPU data exchange frame
for analytics & machine-learning
HeteroDB,Inc
Chief Architect & co-founder
KaiGai Kohei <kaigai@heterodb.com>

2. PGconf.ASIA 2016
PL/CUDA for Drug Discovery on PostgreSQL

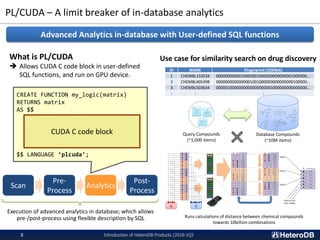

3. PL/CUDA – A limit breaker of in-database analytics
Introduction of HeteroDB Products (2018-1Q）3
Advanced Analytics in-database with User-defined SQL functions
What is PL/CUDA
 Allows CUDA C code block in user-defined
SQL functions, and run on GPU device.
Scan
Pre-
Process
Analytics
Post-
Process
CREATE FUNCTION my_logic(matrix)
RETURNS matrix
AS $$
$$ LANGUAGE ‘plcuda’;
CUDA C code block
Execution of advanced analytics in database; which allows
pre-/post-process using flexible description by SQL
ID NAME Fingerprint (1024bit)
1 CHEMBL153534 0000000000010000001000000000000001000000...
2 CHEMBL405398 0000000000000001001000000000000000100000...
3 CHEMBL503634 0000010000000000000000001000000000000000...
: : :
Database Compounds
(~10M items)
Query Compounds
(~1,000 items)
Use case for similarity search on drug discovery
Runs calculations of distance between chemical compounds
towards 10billion combinations

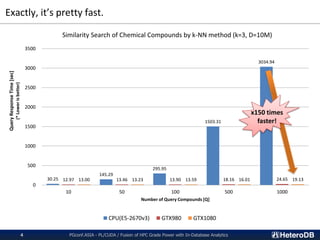

4. Exactly, it’s pretty fast.
PGconf.ASIA - PL/CUDA / Fusion of HPC Grade Power with In-Database Analytics4
30.25
145.29
295.95
1503.31
3034.94
12.97 13.46 13.90 18.16 24.6513.00 13.23 13.59 16.01 19.13
0
500
1000
1500
2000
2500
3000
3500
10 50 100 500 1000
QueryResponseTime[sec]
(*Lowerisbetter)
Number of Query Compounds [Q]
Similarity Search of Chemical Compounds by k-NN method (k=3, D=10M)
CPU(E5-2670v3) GTX980 GTX1080
x150 times
faster!

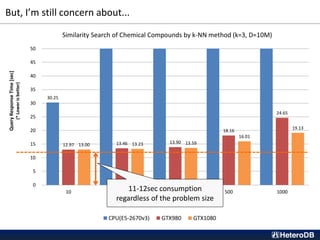

5. But, I’m still concern about...
30.25
12.97 13.46 13.90
18.16
24.65
13.00 13.23 13.59
16.01
19.13
0
5
10
15
20
25
30
35
40
45
50
10 50 100 500 1000
QueryResponseTime[sec]
(*Lowerisbetter)
Number of Query Compounds [Q]
Similarity Search of Chemical Compounds by k-NN method (k=3, D=10M)
CPU(E5-2670v3) GTX980 GTX1080
11-12sec consumption
regardless of the problem size

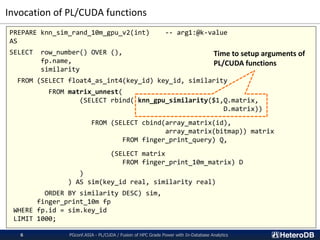

6. Invocation of PL/CUDA functions
PGconf.ASIA - PL/CUDA / Fusion of HPC Grade Power with In-Database Analytics6
PREPARE knn_sim_rand_10m_gpu_v2(int) -- arg1:@k-value
AS
SELECT row_number() OVER (),
fp.name,
similarity
FROM (SELECT float4_as_int4(key_id) key_id, similarity
FROM matrix_unnest(
(SELECT rbind( knn_gpu_similarity($1,Q.matrix,
D.matrix))
FROM (SELECT cbind(array_matrix(id),
array_matrix(bitmap)) matrix
FROM finger_print_query) Q,
(SELECT matrix
FROM finger_print_10m_matrix) D
)
) AS sim(key_id real, similarity real)
ORDER BY similarity DESC) sim,
finger_print_10m fp
WHERE fp.id = sim.key_id
LIMIT 1000;
Time to setup arguments of
PL/CUDA functions

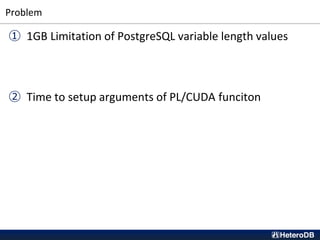

7. Problem
① 1GB Limitation of PostgreSQL variable length values
② Time to setup arguments of PL/CUDA funciton

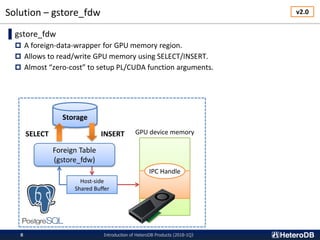

8. Storage
Host-side
Shared Buffer
Solution – gstore_fdw
Introduction of HeteroDB Products (2018-1Q）8
▌gstore_fdw
 A foreign-data-wrapper for GPU memory region.
 Allows to read/write GPU memory using SELECT/INSERT.
 Almost “zero-cost” to setup PL/CUDA function arguments.
Foreign Table
(gstore_fdw)
GPU device memoryINSERTSELECT
IPC Handle
v2.0

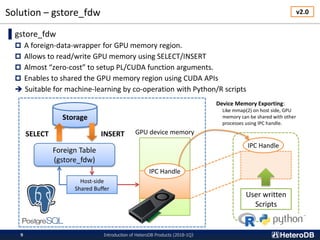

9. Storage
Host-side
Shared Buffer
Solution – gstore_fdw
Introduction of HeteroDB Products (2018-1Q）9
▌gstore_fdw
 A foreign-data-wrapper for GPU memory region.
 Allows to read/write GPU memory using SELECT/INSERT
 Almost “zero-cost” to setup PL/CUDA function arguments.
 Enables to shared the GPU memory region using CUDA APIs
 Suitable for machine-learning by co-operation with Python/R scripts
Foreign Table
(gstore_fdw)
GPU device memoryINSERTSELECT
IPC Handle
IPC Handle
Device Memory Exporting:
Like mmap(2) on host side, GPU
memory can be shared with other
processes using IPC handle.
User written
Scripts
v2.0

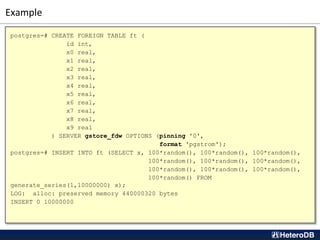

10. Example
postgres=# CREATE FOREIGN TABLE ft (
id int,
x0 real,
x1 real,
x2 real,
x3 real,
x4 real,
x5 real,
x6 real,
x7 real,
x8 real,
x9 real
) SERVER gstore_fdw OPTIONS (pinning '0',
format 'pgstrom');
postgres=# INSERT INTO ft (SELECT x, 100*random(), 100*random(), 100*random(),
100*random(), 100*random(), 100*random(),
100*random(), 100*random(), 100*random(),
100*random() FROM
generate_series(1,10000000) x);
LOG: alloc: preserved memory 440000320 bytes
INSERT 0 10000000

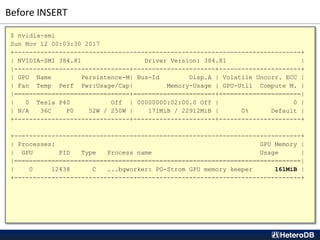

11. Before INSERT
$ nvidia-smi
Sun Nov 12 00:03:30 2017
+-----------------------------------------------------------------------------+
| NVIDIA-SMI 384.81 Driver Version: 384.81 |
|-------------------------------+----------------------+----------------------+
| GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. |
|===============================+======================+======================|
| 0 Tesla P40 Off | 00000000:02:00.0 Off | 0 |
| N/A 36C P0 52W / 250W | 171MiB / 22912MiB | 0% Default |
+-------------------------------+----------------------+----------------------+
+-----------------------------------------------------------------------------+
| Processes: GPU Memory |
| GPU PID Type Process name Usage |
|=============================================================================|
| 0 12438 C ...bgworker: PG-Strom GPU memory keeper 161MiB |
+-----------------------------------------------------------------------------+

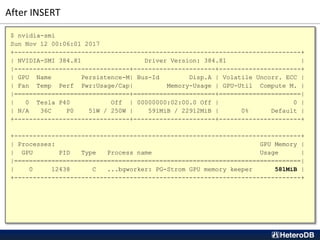

12. After INSERT
$ nvidia-smi
Sun Nov 12 00:06:01 2017
+-----------------------------------------------------------------------------+
| NVIDIA-SMI 384.81 Driver Version: 384.81 |
|-------------------------------+----------------------+----------------------+
| GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. |
|===============================+======================+======================|
| 0 Tesla P40 Off | 00000000:02:00.0 Off | 0 |
| N/A 36C P0 51W / 250W | 591MiB / 22912MiB | 0% Default |
+-------------------------------+----------------------+----------------------+
+-----------------------------------------------------------------------------+
| Processes: GPU Memory |
| GPU PID Type Process name Usage |
|=============================================================================|
| 0 12438 C ...bgworker: PG-Strom GPU memory keeper 581MiB |
+-----------------------------------------------------------------------------+

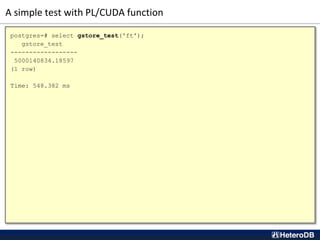

13. A simple test with PL/CUDA function
postgres=# select gstore_test('ft');
gstore_test
------------------
5000140834.18597
(1 row)
Time: 548.382 ms

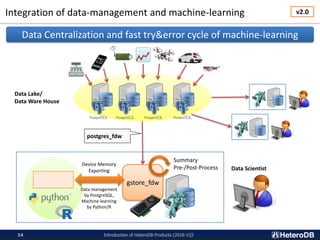

14. Integration of data-management and machine-learning
Introduction of HeteroDB Products (2018-1Q）14
gstore_fdw
Summary
Pre-/Post-Process
Device Memory
Exporting
v2.0
Data Centralization and fast try&error cycle of machine-learning
Data management
by PostgreSQL,
Machine-learning
by Python/R
postgres_fdw
Data Scientist
Data Lake/
Data Ware House

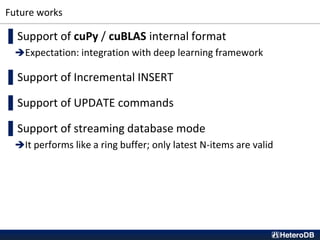

15. Future works
▌Support of cuPy / cuBLAS internal format
Expectation: integration with deep learning framework
▌Support of Incremental INSERT
▌Support of UPDATE commands
▌Support of streaming database mode
It performs like a ring buffer; only latest N-items are valid
