NVMEandGPUacceleratesPostgreSQLbeyondthelimitation 〜Our challenge to the 10GB/s for big-data query execution〜 HeteroDB,Inc Chief Architect & CEO KaiGai Kohei <kaigai@heterodb.com>

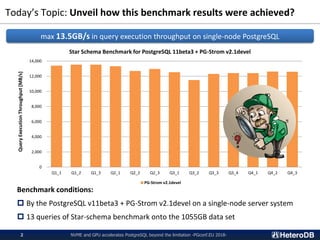

Today’s Topic: Unveil how this benchmark results were achieved? NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-2 Benchmark conditions:  By the PostgreSQL v11beta3 + PG-Strom v2.1devel on a single-node server system  13 queries of Star-schema benchmark onto the 1055GB data set 0 2,000 4,000 6,000 8,000 10,000 12,000 14,000 Q1_1 Q1_2 Q1_3 Q2_1 Q2_2 Q2_3 Q3_1 Q3_2 Q3_3 Q3_4 Q4_1 Q4_2 Q4_3 QueryExecutionThroughput[MB/s] Star Schema Benchmark for PostgreSQL 11beta3 + PG-Strom v2.1devel PG-Strom v2.1devel max 13.5GB/s in query execution throughput on single-node PostgreSQL
about HeteroDB NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-3 Corporate overview  Name HeteroDB,Inc  Established 4th-Jul-2017  Headcount 2 (KaiGai and Kashiwagi)  Location Shinagawa, Tokyo, Japan  Businesses Sales of accelerated database product Technical consulting on GPU&DB region By the heterogeneous-computing technology on the database area, we provides a useful, fast and cost-effective data analytics platform for all the people who need the power of analytics. CEO Profile  KaiGai Kohei – He has contributed for PostgreSQL and Linux kernel development in the OSS community more than ten years, especially, for security and database federation features of PostgreSQL.  Award of “Genius Programmer” by IPA MITOH program (2007)  The top-5 posters finalist at GPU Technology Conference 2017.

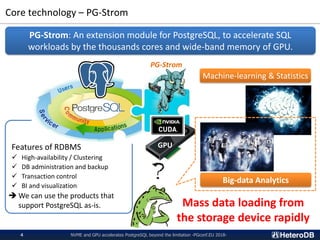

Features of RDBMS ✓ High-availability / Clustering ✓ DB administration and backup ✓ Transaction control ✓ BI and visualization ➔ We can use the products that support PostgreSQL as-is. Core technology – PG-Strom PG-Strom: An extension module for PostgreSQL, to accelerate SQL workloads by the thousands cores and wide-band memory of GPU. GPU Big-data Analytics PG-Strom NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-4 Mass data loading from the storage device rapidly Machine-learning & Statistics
GPU’s characteristics - mostly as a computing accelerator NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-5 Over 10years history in HPC, then massive popularization in Machine-Learning NVIDIA Tesla V100 Super Computer (TITEC; TSUBAME3.0) Computer Graphics Machine-Learning Today’s Topic How I/O workloads are accelerated by GPU that is a computing accelerator? Simulation
NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-6 How PostgreSQL utilizes GPU? 〜Architecture of PG-Strom〜

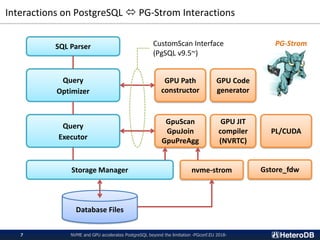

Interactions on PostgreSQL  PG-Strom Interactions NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-7 SQL Parser Query Optimizer Query Executor Storage Manager Database Files GPU Path constructor GPU Code generator GPU JIT compiler (NVRTC) GpuScan GpuJoin GpuPreAgg PL/CUDA nvme-strom Gstore_fdw CustomScan Interface (PgSQL v9.5~) PG-Strom

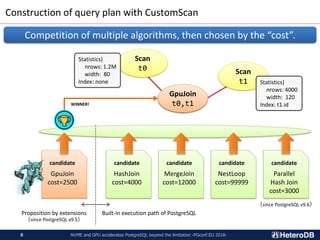

Construction of query plan with CustomScan Scan t0 Scan t1 Join t0,t1 Statistics) nrows: 1.2M width: 80 Index: none candidate HashJoin cost=4000 candidate MergeJoin cost=12000 candidate NestLoop cost=99999 candidate Parallel Hash Join cost=3000 candidate GpuJoin cost=2500 WINNER! Built-in execution path of PostgreSQLProposition by extensions （since PostgreSQL v9.5） （since PostgreSQL v9.6） GpuJoin t0,t1 Statistics) nrows: 4000 width: 120 Index: t1.id Competition of multiple algorithms, then chosen by the “cost”. NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-8

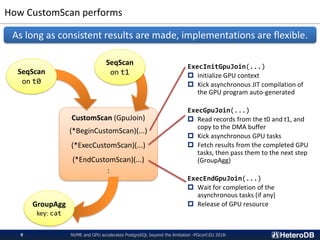

How CustomScan performs As long as consistent results are made, implementations are flexible. CustomScan (GpuJoin) (*BeginCustomScan)(...) (*ExecCustomScan)(...) (*EndCustomScan)(...) : SeqScan on t0 SeqScan on t1 GroupAgg key: cat ExecInitGpuJoin(...)  Initialize GPU context  Kick asynchronous JIT compilation of the GPU program auto-generated ExecGpuJoin(...)  Read records from the t0 and t1, and copy to the DMA buffer  Kick asynchronous GPU tasks  Fetch results from the completed GPU tasks, then pass them to the next step (GroupAgg) ExecEndGpuJoin(...)  Wait for completion of the asynchronous tasks (if any)  Release of GPU resource NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-9

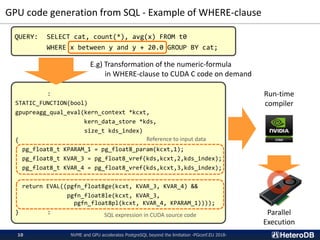

GPU code generation from SQL - Example of WHERE-clause NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-10 QUERY: SELECT cat, count(*), avg(x) FROM t0 WHERE x between y and y + 20.0 GROUP BY cat; : STATIC_FUNCTION(bool) gpupreagg_qual_eval(kern_context *kcxt, kern_data_store *kds, size_t kds_index) { pg_float8_t KPARAM_1 = pg_float8_param(kcxt,1); pg_float8_t KVAR_3 = pg_float8_vref(kds,kcxt,2,kds_index); pg_float8_t KVAR_4 = pg_float8_vref(kds,kcxt,3,kds_index); return EVAL((pgfn_float8ge(kcxt, KVAR_3, KVAR_4) && pgfn_float8le(kcxt, KVAR_3, pgfn_float8pl(kcxt, KVAR_4, KPARAM_1)))); } : E.g) Transformation of the numeric-formula in WHERE-clause to CUDA C code on demand Reference to input data SQL expression in CUDA source code Run-time compiler Parallel Execution

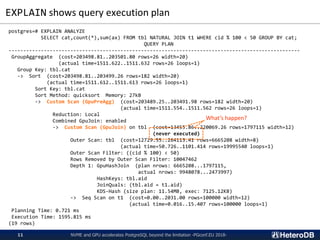

EXPLAIN shows query execution plan NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-11 postgres=# EXPLAIN ANALYZE SELECT cat,count(*),sum(ax) FROM tbl NATURAL JOIN t1 WHERE cid % 100 < 50 GROUP BY cat; QUERY PLAN --------------------------------------------------------------------------------------------------- GroupAggregate (cost=203498.81..203501.80 rows=26 width=20) (actual time=1511.622..1511.632 rows=26 loops=1) Group Key: tbl.cat -> Sort (cost=203498.81..203499.26 rows=182 width=20) (actual time=1511.612..1511.613 rows=26 loops=1) Sort Key: tbl.cat Sort Method: quicksort Memory: 27kB -> Custom Scan (GpuPreAgg) (cost=203489.25..203491.98 rows=182 width=20) (actual time=1511.554..1511.562 rows=26 loops=1) Reduction: Local Combined GpuJoin: enabled -> Custom Scan (GpuJoin) on tbl (cost=13455.86..220069.26 rows=1797115 width=12) (never executed) Outer Scan: tbl (cost=12729.55..264113.41 rows=6665208 width=8) (actual time=50.726..1101.414 rows=19995540 loops=1) Outer Scan Filter: ((cid % 100) < 50) Rows Removed by Outer Scan Filter: 10047462 Depth 1: GpuHashJoin (plan nrows: 6665208...1797115, actual nrows: 9948078...2473997) HashKeys: tbl.aid JoinQuals: (tbl.aid = t1.aid) KDS-Hash (size plan: 11.54MB, exec: 7125.12KB) -> Seq Scan on t1 (cost=0.00..2031.00 rows=100000 width=12) (actual time=0.016..15.407 rows=100000 loops=1) Planning Time: 0.721 ms Execution Time: 1595.815 ms (19 rows) What’s happen?

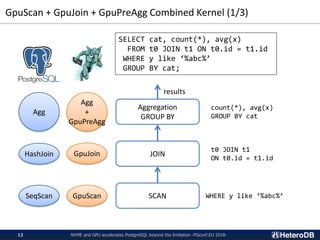

GpuScan + GpuJoin + GpuPreAgg Combined Kernel (1/3) Aggregation GROUP BY JOIN SCAN SELECT cat, count(*), avg(x) FROM t0 JOIN t1 ON t0.id = t1.id WHERE y like ‘%abc%’ GROUP BY cat; count(*), avg(x) GROUP BY cat t0 JOIN t1 ON t0.id = t1.id WHERE y like ‘%abc%’ results NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-12 GpuScan GpuJoin Agg + GpuPreAgg SeqScan HashJoin Agg

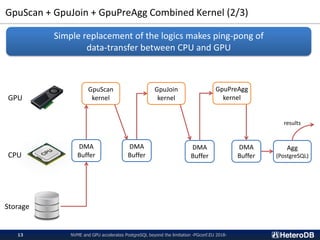

GpuScan + GpuJoin + GpuPreAgg Combined Kernel (2/3) GpuScan kernel GpuJoin kernel GpuPreAgg kernel DMA Buffer GPU CPU Storage Simple replacement of the logics makes ping-pong of data-transfer between CPU and GPU DMA Buffer DMA Buffer NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-13 DMA Buffer Agg (PostgreSQL) results

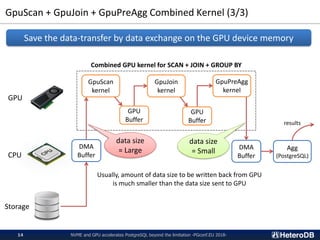

GpuScan + GpuJoin + GpuPreAgg Combined Kernel (3/3) GpuScan kernel GpuJoin kernel GpuPreAgg kernel DMA Buffer GPU CPU Storage Save the data-transfer by data exchange on the GPU device memory GPU Buffer GPU Buffer results NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-14 DMA Buffer Agg (PostgreSQL) Combined GPU kernel for SCAN + JOIN + GROUP BY data size = Large data size = Small Usually, amount of data size to be written back from GPU is much smaller than the data size sent to GPU

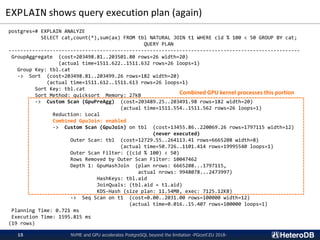

EXPLAIN shows query execution plan (again) NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-15 postgres=# EXPLAIN ANALYZE SELECT cat,count(*),sum(ax) FROM tbl NATURAL JOIN t1 WHERE cid % 100 < 50 GROUP BY cat; QUERY PLAN --------------------------------------------------------------------------------------------------- GroupAggregate (cost=203498.81..203501.80 rows=26 width=20) (actual time=1511.622..1511.632 rows=26 loops=1) Group Key: tbl.cat -> Sort (cost=203498.81..203499.26 rows=182 width=20) (actual time=1511.612..1511.613 rows=26 loops=1) Sort Key: tbl.cat Sort Method: quicksort Memory: 27kB -> Custom Scan (GpuPreAgg) (cost=203489.25..203491.98 rows=182 width=20) (actual time=1511.554..1511.562 rows=26 loops=1) Reduction: Local Combined GpuJoin: enabled -> Custom Scan (GpuJoin) on tbl (cost=13455.86..220069.26 rows=1797115 width=12) (never executed) Outer Scan: tbl (cost=12729.55..264113.41 rows=6665208 width=8) (actual time=50.726..1101.414 rows=19995540 loops=1) Outer Scan Filter: ((cid % 100) < 50) Rows Removed by Outer Scan Filter: 10047462 Depth 1: GpuHashJoin (plan nrows: 6665208...1797115, actual nrows: 9948078...2473997) HashKeys: tbl.aid JoinQuals: (tbl.aid = t1.aid) KDS-Hash (size plan: 11.54MB, exec: 7125.12KB) -> Seq Scan on t1 (cost=0.00..2031.00 rows=100000 width=12) (actual time=0.016..15.407 rows=100000 loops=1) Planning Time: 0.721 ms Execution Time: 1595.815 ms (19 rows) Combined GPU kernel processes this portion
NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-16 Re-definition of the GPU’s role 〜How GPU accelerates I/O workloads〜
A usual composition of x86_64 server GPUSSD CPU RAM HDD N/W NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-17

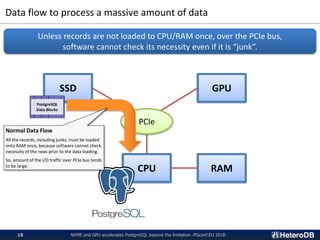

Data flow to process a massive amount of data CPU RAM SSD GPU PCIe PostgreSQL Data Blocks Normal Data Flow All the records, including junks, must be loaded onto RAM once, because software cannot check necessity of the rows prior to the data loading. So, amount of the I/O traffic over PCIe bus tends to be large. NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-18 Unless records are not loaded to CPU/RAM once, over the PCIe bus, software cannot check its necessity even if it is “junk”.

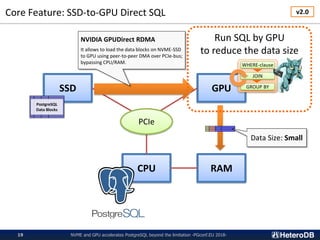

Core Feature: SSD-to-GPU Direct SQL CPU RAM SSD GPU PCIe PostgreSQL Data Blocks NVIDIA GPUDirect RDMA It allows to load the data blocks on NVME-SSD to GPU using peer-to-peer DMA over PCIe-bus; bypassing CPU/RAM. WHERE-clause JOIN GROUP BY Run SQL by GPU to reduce the data size Data Size: Small NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-19 v2.0

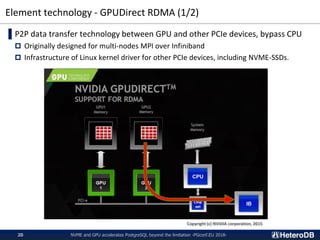

Element technology - GPUDirect RDMA (1/2) ▌P2P data transfer technology between GPU and other PCIe devices, bypass CPU  Originally designed for multi-nodes MPI over Infiniband  Infrastructure of Linux kernel driver for other PCIe devices, including NVME-SSDs. Copyright (c) NVIDIA corporation, 2015 NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-20

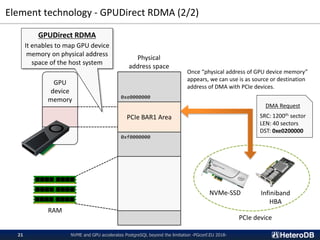

Element technology - GPUDirect RDMA (2/2) Physical address space PCIe BAR1 Area GPU device memory RAM NVMe-SSD Infiniband HBA PCIe device GPUDirect RDMA It enables to map GPU device memory on physical address space of the host system Once “physical address of GPU device memory” appears, we can use is as source or destination address of DMA with PCIe devices. NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-21 0xf0000000 0xe0000000 DMA Request SRC: 1200th sector LEN: 40 sectors DST: 0xe0200000

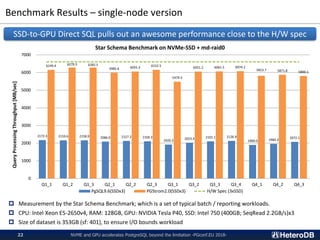

Benchmark Results – single-node version NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-22 2172.3 2159.6 2158.9 2086.0 2127.2 2104.3 1920.3 2023.4 2101.1 2126.9 1900.0 1960.3 2072.1 6149.4 6279.3 6282.5 5985.6 6055.3 6152.5 5479.3 6051.2 6061.5 6074.2 5813.7 5871.8 5800.1 0 1000 2000 3000 4000 5000 6000 7000 Q1_1 Q1_2 Q1_3 Q2_1 Q2_2 Q2_3 Q3_1 Q3_2 Q3_3 Q3_4 Q4_1 Q4_2 Q4_3 QueryProcessingThroughput[MB/sec] Star Schema Benchmark on NVMe-SSD + md-raid0 PgSQL9.6(SSDx3) PGStrom2.0(SSDx3) H/W Spec (3xSSD) SSD-to-GPU Direct SQL pulls out an awesome performance close to the H/W spec  Measurement by the Star Schema Benchmark; which is a set of typical batch / reporting workloads.  CPU: Intel Xeon E5-2650v4, RAM: 128GB, GPU: NVIDIA Tesla P40, SSD: Intel 750 (400GB; SeqRead 2.2GB/s)x3  Size of dataset is 353GB (sf: 401), to ensure I/O bounds workload

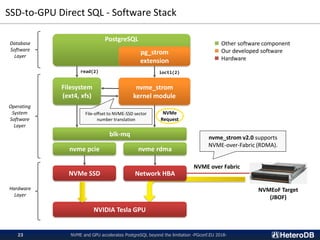

SSD-to-GPU Direct SQL - Software Stack NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-23 Filesystem (ext4, xfs) nvme_strom kernel module NVMe SSD NVIDIA Tesla GPU PostgreSQL pg_strom extension read(2) ioctl(2) Hardware Layer Operating System Software Layer Database Software Layer blk-mq nvme pcie nvme rdma Network HBA File-offset to NVME-SSD sector number translation NVMEoF Target (JBOF) NVMe Request ■ Other software component ■ Our developed software ■ Hardware NVME over Fabric nvme_strom v2.0 supports NVME-over-Fabric (RDMA).

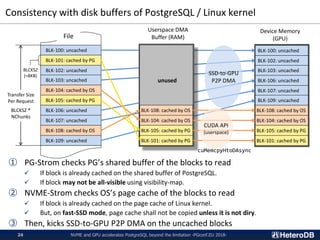

uninitialized File BLK-100: unknown BLK-101: unknown BLK-102: unknown BLK-103: unknown BLK-104: unknown BLK-105: unknown BLK-106: unknown BLK-107: unknown BLK-108: unknown BLK-109: unknown Consistency with disk buffers of PostgreSQL / Linux kernel NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-24 BLK-100: uncached BLK-101: cached by PG BLK-102: uncached BLK-103: uncached BLK-104: cached by OS BLK-105: cached by PG BLK-106: uncached BLK-107: uncached BLK-108: cached by OS BLK-109: uncached BLCKSZ (=8KB) Transfer Size Per Request BLCKSZ * NChunks BLK-108: cached by OS BLK-104: cached by OS BLK-105: cached by PG BLK-101: cached by PG BLK-100: uncached BLK-102: uncached BLK-103: uncached BLK-106: uncached BLK-107: uncached BLK-109: uncached unused SSD-to-GPU P2P DMA Userspace DMA Buffer (RAM) Device Memory (GPU) CUDA API (userspace) cuMemcpyHtoDAsync ① PG-Strom checks PG’s shared buffer of the blocks to read ✓ If block is already cached on the shared buffer of PostgreSQL. ✓ If block may not be all-visible using visibility-map. ② NVME-Strom checks OS’s page cache of the blocks to read ✓ If block is already cached on the page cache of Linux kernel. ✓ But, on fast-SSD mode, page cache shall not be copied unless it is not diry. ③ Then, kicks SSD-to-GPU P2P DMA on the uncached blocks BLK-108: cached by OS BLK-104: cached by OS BLK-105: cached by PG BLK-101: cached by PG

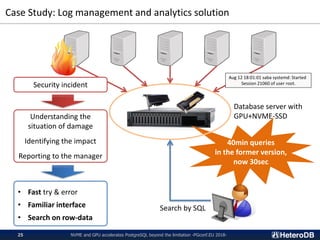

40min queries in the former version, now 30sec Case Study: Log management and analytics solution NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-25 Database server with GPU+NVME-SSD Search by SQL Security incident • Fast try & error • Familiar interface • Search on row-data Aug 12 18:01:01 saba systemd: Started Session 21060 of user root. Understanding the situation of damage Identifying the impact Reporting to the manager
Run faster, beyond the limitation

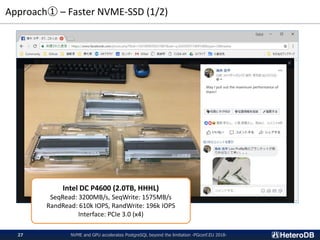

Approach① – Faster NVME-SSD (1/2) Intel DC P4600 (2.0TB, HHHL) SeqRead: 3200MB/s, SeqWrite: 1575MB/s RandRead: 610k IOPS, RandWrite: 196k IOPS Interface: PCIe 3.0 (x4) NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-27 May I pull out the maximum performance of them?

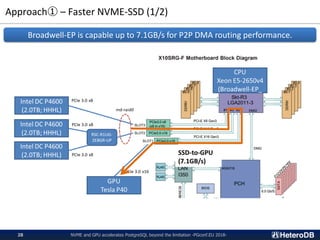

Approach① – Faster NVME-SSD (1/2) Broadwell-EP is capable up to 7.1GB/s for P2P DMA routing performance. NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-28

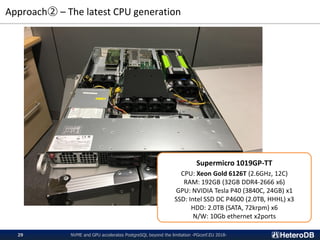

Approach② – The latest CPU generation NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-29 Supermicro 1019GP-TT CPU: Xeon Gold 6126T (2.6GHz, 12C) RAM: 192GB (32GB DDR4-2666 x6) GPU: NVIDIA Tesla P40 (3840C, 24GB) x1 SSD: Intel SSD DC P4600 (2.0TB, HHHL) x3 HDD: 2.0TB (SATA, 72krpm) x6 N/W: 10Gb ethernet x2ports

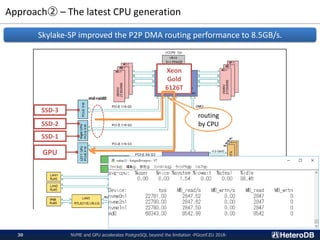

Approach② – The latest CPU generation NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-30 Skylake-SP improved the P2P DMA routing performance to 8.5GB/s. GPU SSD-1 SSD-2 SSD-3 md-raid0 Xeon Gold 6126T routing by CPU

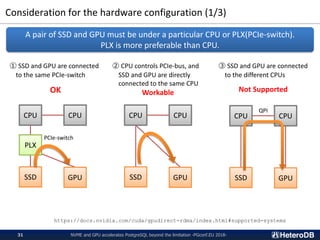

Consideration for the hardware configuration (1/3) NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-31 ① SSD and GPU are connected to the same PCIe-switch OK ② CPU controls PCIe-bus, and SSD and GPU are directly connected to the same CPU Workable ③ SSD and GPU are connected to the different CPUs Not Supported CPU CPU PLX SSD GPU PCIe-switch CPU CPU SSD GPU CPU CPU SSD GPU QPI A pair of SSD and GPU must be under a particular CPU or PLX(PCIe-switch). PLX is more preferable than CPU. https://docs.nvidia.com/cuda/gpudirect-rdma/index.html#supported-systems

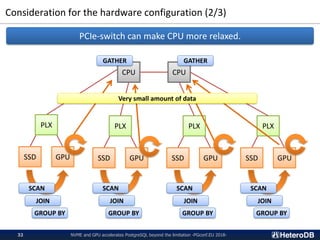

Consideration for the hardware configuration (2/3) NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-32 PCIe-switch can make CPU more relaxed. CPU CPU PLX SSD GPU PLX SSD GPU PLX SSD GPU PLX SSD GPU SCAN SCAN SCAN SCAN JOIN JOIN JOIN JOIN GROUP BY GROUP BY GROUP BY GROUP BY Very small amount of data GATHER GATHER

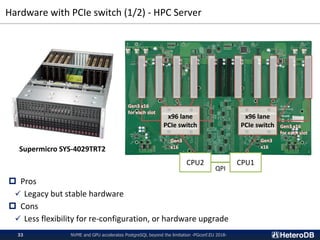

Hardware with PCIe switch (1/2) - HPC Server NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-33  Pros ✓ Legacy but stable hardware  Cons ✓ Less flexibility for re-configuration, or hardware upgrade Supermicro SYS-4029TRT2 x96 lane PCIe switch x96 lane PCIe switch CPU2 CPU1 QPI Gen3 x16 Gen3 x16 for each slot Gen3 x16 for each slot Gen3 x16

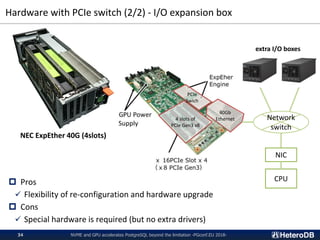

Hardware with PCIe switch (2/2) - I/O expansion box NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-34  Pros ✓ Flexibility of re-configuration and hardware upgrade  Cons ✓ Special hardware is required (but no extra drivers) NEC ExpEther 40G (4slots) 4 slots of PCIe Gen3 x8 PCIe Swich 40Gb Ethernet Network switch CPU NIC extra I/O boxes

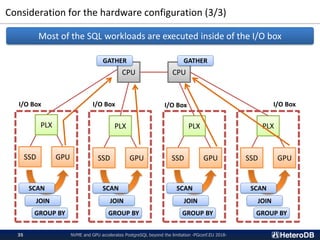

Consideration for the hardware configuration (3/3) NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-35 Most of the SQL workloads are executed inside of the I/O box CPU CPU PLX SSD GPU PLX SSD GPU PLX SSD GPU PLX SSD GPU SCAN SCAN SCAN SCAN JOIN JOIN JOIN JOIN GROUP BY GROUP BY GROUP BY GROUP BY GATHER GATHER I/O BoxI/O BoxI/O BoxI/O Box
NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-36 Optimization of the Storage Path with I/O Expansion Box

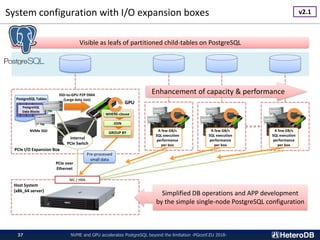

System configuration with I/O expansion boxes NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-37 PCIe I/O Expansion Box Host System (x86_64 server) NVMe SSD PostgreSQL Tables PostgreSQL Data Blocks Internal PCIe Switch SSD-to-GPU P2P DMA (Large data size) GPU WHERE-clause JOIN GROUP BY PCIe over Ethernet Pre-processed small data A few GB/s SQL execution performance per box A few GB/s SQL execution performance per box A few GB/s SQL execution performance per box NIC / HBA Simplified DB operations and APP development by the simple single-node PostgreSQL configuration Enhancement of capacity & performance Visible as leafs of partitioned child-tables on PostgreSQL v2.1

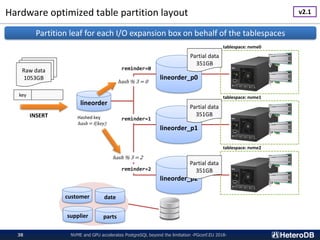

Hardware optimized table partition layout NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-38 lineorder lineorder_p0 lineorder_p1 lineorder_p2 reminder=0 reminder=1 reminder=2 customer date supplier parts tablespace: nvme0 tablespace: nvme1 tablespace: nvme2 key INSERT Hashed key hash = f(key) hash % 3 = 2 hash % 3 = 0 Raw data 1053GB Partial data 351GB Partial data 351GB Partial data 351GB v2.1 Partition leaf for each I/O expansion box on behalf of the tablespaces

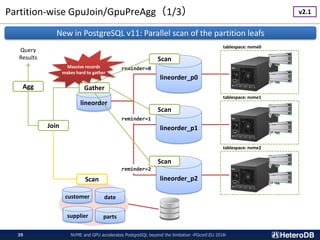

Partition-wise GpuJoin/GpuPreAgg（1/3） NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-39 lineorder lineorder_p0 lineorder_p1 lineorder_p2 reminder=0 reminder=1 reminder=2 customer date supplier parts tablespace: nvme0 tablespace: nvme1 tablespace: nvme2 New in PostgreSQL v11: Parallel scan of the partition leafs Scan Scan Scan Gather Join Agg Query Results Scan Massive records makes hard to gather v2.1

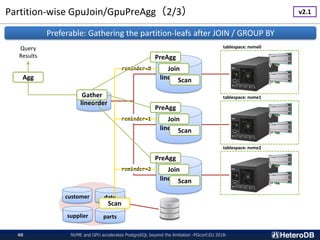

Partition-wise GpuJoin/GpuPreAgg（2/3） NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-40 lineorder lineorder_p0 lineorder_p1 lineorder_p2 reminder=0 reminder=1 reminder=2 customer date supplier parts tablespace: nvme0 tablespace: nvme1 tablespace: nvme2 Preferable: Gathering the partition-leafs after JOIN / GROUP BY Join Gather Agg Query Results Scan Scan PreAgg Join Scan PreAgg Join Scan PreAgg v2.1

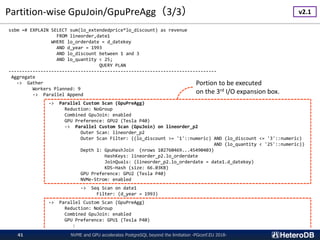

Partition-wise GpuJoin/GpuPreAgg（3/3） NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-41 ssbm =# EXPLAIN SELECT sum(lo_extendedprice*lo_discount) as revenue FROM lineorder,date1 WHERE lo_orderdate = d_datekey AND d_year = 1993 AND lo_discount between 1 and 3 AND lo_quantity < 25; QUERY PLAN ------------------------------------------------------------------------------ Aggregate -> Gather Workers Planned: 9 -> Parallel Append -> Parallel Custom Scan (GpuPreAgg) Reduction: NoGroup Combined GpuJoin: enabled GPU Preference: GPU2 (Tesla P40) -> Parallel Custom Scan (GpuJoin) on lineorder_p2 Outer Scan: lineorder_p2 Outer Scan Filter: ((lo_discount >= '1'::numeric) AND (lo_discount <= '3'::numeric) AND (lo_quantity < '25'::numeric)) Depth 1: GpuHashJoin (nrows 102760469...45490403) HashKeys: lineorder_p2.lo_orderdate JoinQuals: (lineorder_p2.lo_orderdate = date1.d_datekey) KDS-Hash (size: 66.03KB) GPU Preference: GPU2 (Tesla P40) NVMe-Strom: enabled -> Seq Scan on date1 Filter: (d_year = 1993) -> Parallel Custom Scan (GpuPreAgg) Reduction: NoGroup Combined GpuJoin: enabled GPU Preference: GPU1 (Tesla P40) : Portion to be executed on the 3rd I/O expansion box. v2.1

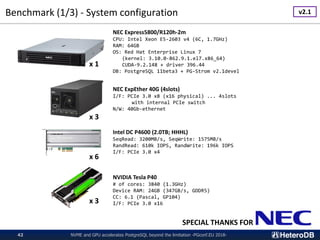

Benchmark (1/3) - System configuration NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-42 x 1 x 3 x 6 x 3 NEC Express5800/R120h-2m CPU: Intel Xeon E5-2603 v4 (6C, 1.7GHz) RAM: 64GB OS: Red Hat Enterprise Linux 7 (kernel: 3.10.0-862.9.1.el7.x86_64) CUDA-9.2.148 + driver 396.44 DB: PostgreSQL 11beta3 + PG-Strom v2.1devel NEC ExpEther 40G (4slots) I/F: PCIe 3.0 x8 (x16 physical) ... 4slots with internal PCIe switch N/W: 40Gb-ethernet Intel DC P4600 (2.0TB; HHHL) SeqRead: 3200MB/s, SeqWrite: 1575MB/s RandRead: 610k IOPS, RandWrite: 196k IOPS I/F: PCIe 3.0 x4 NVIDIA Tesla P40 # of cores: 3840 (1.3GHz) Device RAM: 24GB (347GB/s, GDDR5) CC: 6.1 (Pascal, GP104) I/F: PCIe 3.0 x16 SPECIAL THANKS FOR v2.1

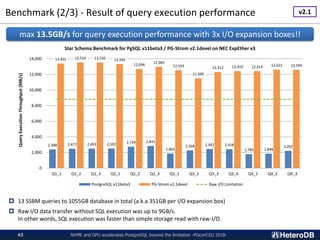

Benchmark (2/3) - Result of query execution performance NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-43  13 SSBM queries to 1055GB database in total (a.k.a 351GB per I/O expansion box)  Raw I/O data transfer without SQL execution was up to 9GB/s. In other words, SQL execution was faster than simple storage read with raw-I/O. 2,388 2,477 2,493 2,502 2,739 2,831 1,865 2,268 2,442 2,418 1,789 1,848 2,202 13,401 13,534 13,536 13,330 12,696 12,965 12,533 11,498 12,312 12,419 12,414 12,622 12,594 0 2,000 4,000 6,000 8,000 10,000 12,000 14,000 Q1_1 Q1_2 Q1_3 Q2_1 Q2_2 Q2_3 Q3_1 Q3_2 Q3_3 Q3_4 Q4_1 Q4_2 Q4_3 QueryExecutionThroughput[MB/s] Star Schema Benchmark for PgSQL v11beta3 / PG-Strom v2.1devel on NEC ExpEther x3 PostgreSQL v11beta3 PG-Strom v2.1devel Raw I/O Limitation max 13.5GB/s for query execution performance with 3x I/O expansion boxes!! v2.1

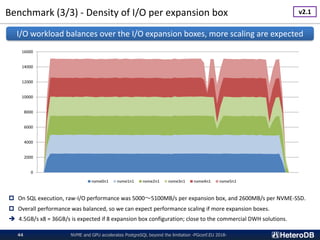

Benchmark (3/3) - Density of I/O per expansion box NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-44 0 2000 4000 6000 8000 10000 12000 14000 16000 nvme0n1 nvme1n1 nvme2n1 nvme3n1 nvme4n1 nvme5n1 I/O workload balances over the I/O expansion boxes, more scaling are expected  On SQL execution, raw-I/O performance was 5000〜5100MB/s per expansion box, and 2600MB/s per NVME-SSD.  Overall performance was balanced, so we can expect performance scaling if more expansion boxes. ➔ 4.5GB/s x8 = 36GB/s is expected if 8 expansion box configuration; close to the commercial DWH solutions. v2.1

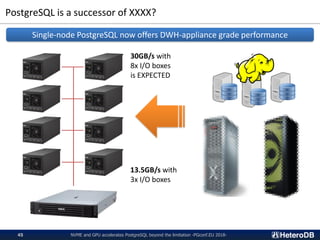

PostgreSQL is a successor of XXXX? NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-45 13.5GB/s with 3x I/O boxes 30GB/s with 8x I/O boxes is EXPECTED Single-node PostgreSQL now offers DWH-appliance grade performance
NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-46 Conclusion

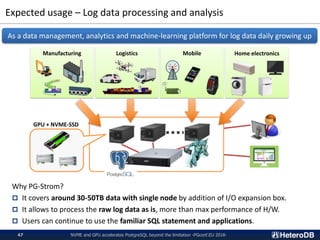

Expected usage – Log data processing and analysis NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-47 As a data management, analytics and machine-learning platform for log data daily growing up Manufacturing Logistics Mobile Home electronics GPU + NVME-SSD Why PG-Strom?  It covers around 30-50TB data with single node by addition of I/O expansion box.  It allows to process the raw log data as is, more than max performance of H/W.  Users can continue to use the familiar SQL statement and applications.

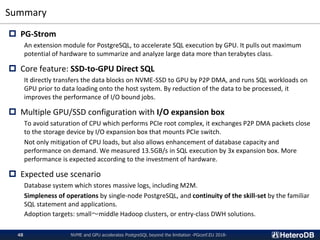

Summary NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-48  PG-Strom An extension module for PostgreSQL, to accelerate SQL execution by GPU. It pulls out maximum potential of hardware to summarize and analyze large data more than terabytes class.  Core feature: SSD-to-GPU Direct SQL It directly transfers the data blocks on NVME-SSD to GPU by P2P DMA, and runs SQL workloads on GPU prior to data loading onto the host system. By reduction of the data to be processed, it improves the performance of I/O bound jobs.  Multiple GPU/SSD configuration with I/O expansion box To avoid saturation of CPU which performs PCIe root complex, it exchanges P2P DMA packets close to the storage device by I/O expansion box that mounts PCIe switch. Not only mitigation of CPU loads, but also allows enhancement of database capacity and performance on demand. We measured 13.5GB/s in SQL execution by 3x expansion box. More performance is expected according to the investment of hardware.  Expected use scenario Database system which stores massive logs, including M2M. Simpleness of operations by single-node PostgreSQL, and continuity of the skill-set by the familiar SQL statement and applications. Adoption targets: small〜middle Hadoop clusters, or entry-class DWH solutions.

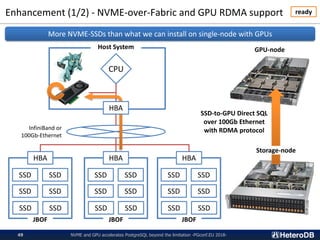

Enhancement (1/2) - NVME-over-Fabric and GPU RDMA support ready Host System SSD SSD SSD SSD SSD SSD HBA SSD SSD SSD SSD SSD SSD HBA SSD SSD SSD SSD SSD SSD HBA CPU HBA InfiniBand or 100Gb-Ethernet JBOF JBOF JBOF More NVME-SSDs than what we can install on single-node with GPUs GPU-node Storage-node SSD-to-GPU Direct SQL over 100Gb Ethernet with RDMA protocol NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-49

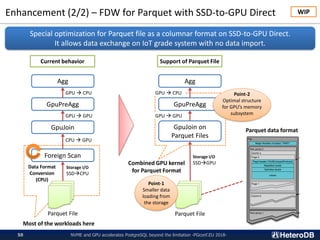

Enhancement (2/2) – FDW for Parquet with SSD-to-GPU Direct WIP Special optimization for Parquet file as a columnar format on SSD-to-GPU Direct. It allows data exchange on IoT grade system with no data import. Foreign Scan GpuJoin GpuPreAgg Agg Parquet File Storage I/O SSD→CPU CPU → GPU GPU → GPU GPU → CPU Data Format Conversion (CPU) Most of the workloads here GpuJoin on Parquet Files GpuPreAgg Agg Storage I/O SSD→GPU Point-1 Smaller data loading from the storage Point-2 Optimal structure for GPU’s memory subsystem Current behavior Support of Parquet File Parquet File Combined GPU kernel for Parquet Format GPU → GPU GPU → CPU Parquet data format NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-50
Resources NVME and GPU accelerates PostgreSQL beyond the limitation -PGconf.EU 2018-51 ▌Repository https://github.com/heterodb/pg-strom ▌Documentation http://heterodb.github.io/pg-strom/ ▌Software Distribution https://heterodb.github.io/swdc/ ▌Contact ML: pgstrom@heterodb.com e-mail: kaigai@heterodb.com twitter: @kkaigai
