Hadoop Operations - Best practices from the field
- 1. 2 Did someone justorder Hadoop? - Best practices from the field uweseiler
- 2. 2 About me Big DataNerd TravelpiratePhotography Enthusiast Hadoop Trainer NoSQL Fan Boy
- 3. 2 About us specializes on... BigData Nerds Agile Ninjas Continuous Delivery Gurus Enterprise Java Specialists Performance Geeks Join us!

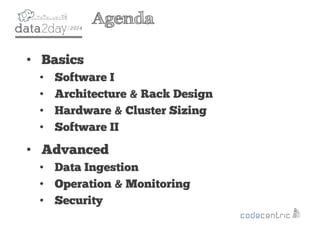

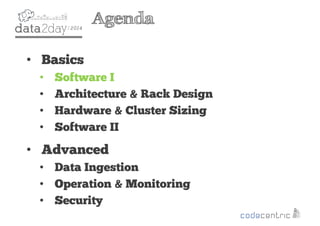

- 4. 2 Agenda • Basics • SoftwareI • Architecture & Rack Design • Hardware & Cluster Sizing • Software II • Advanced • Data Ingestion • Operation & Monitoring • Security
- 5. 2 Agenda • Basics • SoftwareI • Architecture & Rack Design • Hardware & Cluster Sizing • Software II • Advanced • Data Ingestion • Operation & Monitoring • Security

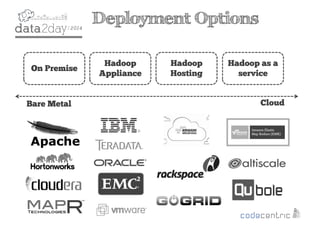

- 6. 2 Deployment Options On Premise Hadoop Appliance Hadoop Hosting Hadoopas a service Bare Metal Cloud
- 7.
- 8. 2 Cloudera vs. Hortonworks Guesswhat: Both will do the job!
- 9. 2 Cloudera vs. Hortonworks Whichideology do you prefer? “Closed“ Source Open Source

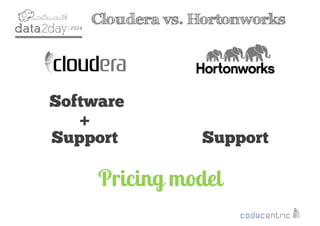

- 10. 2 Cloudera vs. Hortonworks Pricingmodel Software + Support Support
- 11. 2 Agenda • Basics • SoftwareI • Architecture & Rack Design • Hardware & Cluster Sizing • Software II • Advanced • Data Ingestion • Operation & Monitoring • Security

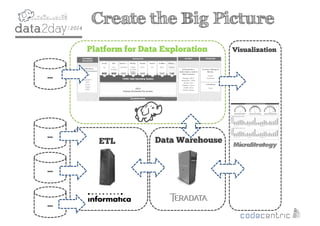

- 12. 2 … Platform for DataExploration … … … ETL Visualization Data Warehouse Create the Big Picture

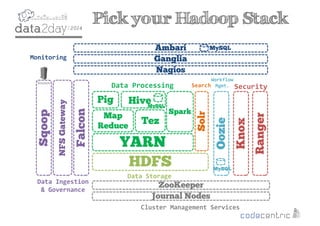

- 13. 2 HDFS Map Reduce Tez Spark Pig Hive YARN Solr Sqoop NFSGateway Falcon Ambari Oozie Knox Ranger Ganglia Nagios Monitoring ZooKeeper Journal Nodes ClusterManagement Services Data Ingestion & Governance Data Storage Data Processing Search Security Workflow Mgmt. MySQL MySQL MySQL Pick your Hadoop Stack

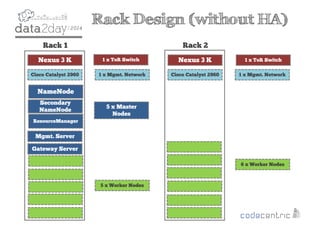

- 14. 2 Rack Design (withoutHA) Rack 1 Rack 2 NameNode ResourceManager Mgmt. Server 5 x Master Nodes 5 x Worker Nodes 6 x Worker Nodes Gateway Server Nexus 3 K Cisco Catalyst 2960 1 x ToR Switch Nexus 3 K 1 x ToR Switch 1 x Mgmt. Network Cisco Catalyst 2960 1 x Mgmt. Network Secondary NameNode

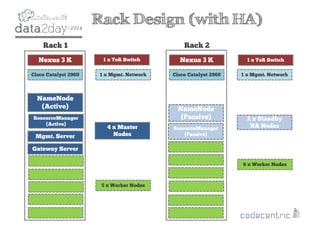

- 15. 2 Rack 1 Rack2 NameNode (Active) ResourceManager (Active) Mgmt. Server 4 x Master Nodes 5 x Worker Nodes 6 x Worker Nodes NameNode (Passive) ResourceManager (Passive) 2 x Standby HA Nodes Gateway Server Nexus 3 K Cisco Catalyst 2960 1 x ToR Switch Nexus 3 K 1 x ToR Switch 1 x Mgmt. Network Cisco Catalyst 2960 1 x Mgmt. Network Rack Design (with HA)
- 16. 2 HDFS DataNode YARN NodeManager HadoopClient Libraries Worker Nodes NameNode (Active) ZooKeeper Server Journal Node Hadoop Client Libraries HDFS NameNode (Active) NameNode (Passive) ZooKeeper Server Journal Node Hadoop Client Libraries HDFS NameNode (Passive) ResourceManager App Timeline Server MapReduce2 History Server ZooKeeper Server Journal Node Hadoop Client Libraries YARN ResourceManager (Active) MySQL Server • Hive MetaStore • Oozie • Ganglia HiveServer2 Oozie Server Ganglia Server Nagios Server Zookeeper Server Journal Node Kerberos Hadoop Client Libraries Management Server Hue Server Ambari Server NFS Gateway Server WebHCat Server WebHDFS Falcon Sqoop Solr Hadoop Client Libraries Gateway Server ResourceManager App Timeline Server MapReduce2 History Server ZooKeeper Server Journal Node Hadoop Client Libraries YARN ResourceManager (Passive) Service Mapping
- 17. 2 Agenda • Basics • SoftwareI • Architecture & Rack Design • Hardware & Cluster Sizing • Software II • Advanced • Data Ingestion • Operation & Monitoring • Security

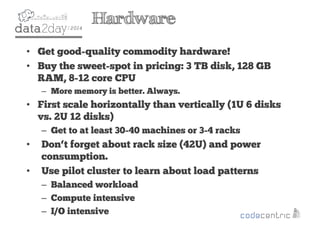

- 18. 2 Hardware • Get good-qualitycommodity hardware! • Buy the sweet-spot in pricing: 3 TB disk, 128 GB RAM, 8-12 core CPU – More memory is better. Always. • First scale horizontally than vertically (1U 6 disks vs. 2U 12 disks) – Get to at least 30-40 machines or 3-4 racks • Don‘t forget about rack size (42U) and power consumption. • Use pilot cluster to learn about load patterns – Balanced workload – Compute intensive – I/O intensive
- 19. 2 It’s about storage Total:3,00 TB Intermediate data: ~25% - 0,75 TB = 2,25 TB HDFS Replication: 3 = 0,75 TB x 12 disk x 11 Data Nodes = 99 TB Compression: …well, it depends…

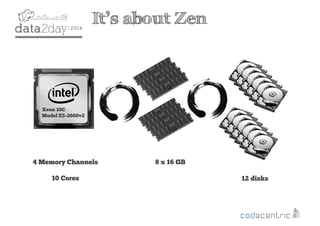

- 20. 2 It’s about Zen Xeon10C Model E5-2660v2 4 Memory Channels 10 Cores 8 x 16 GB 12 disks

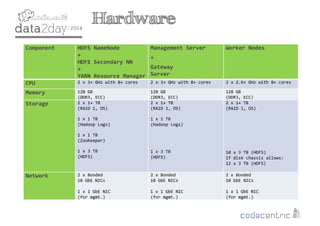

- 21. 2 Hardware Component HDFS NameNode + HDFSSecondary NN + YARN Resource Manager Management Server + Gateway Server Worker Nodes CPU 2 x 3+ GHz with 8+ cores 2 x 3+ GHz with 8+ cores 2 x 2.6+ GHz with 8+ cores Memory 128 GB (DDR3, ECC) 128 GB (DDR3, ECC) 128 GB (DDR3, ECC) Storage 2 x 1+ TB (RAID 1, OS) 1 x 1 TB (Hadoop Logs) 1 x 1 TB (ZooKeeper) 1 x 3 TB (HDFS) 2 x 1+ TB (RAID 1, OS) 1 x 1 TB (Hadoop Logs) 1 x 3 TB (HDFS) 2 x 1+ TB (RAID 1, OS) 10 x 3 TB (HDFS) If disk chassis allows: 12 x 3 TB (HDFS) Network 2 x Bonded 10 GbE NICs 1 x 1 GbE NIC (for mgmt.) 2 x Bonded 10 GbE NICs 1 x 1 GbE NIC (for mgmt.) 2 x Bonded 10 GbE NICs 1 x 1 GbE NIC (for mgmt.)
- 22. 2 Example: IBM x3650series Master Nodes Data Nodes
- 23. 2 Agenda • Basics • Architecture& Rack Design • Hardware • Software • Advanced • Data Ingestion • Operation & Monitoring • Security
- 24.

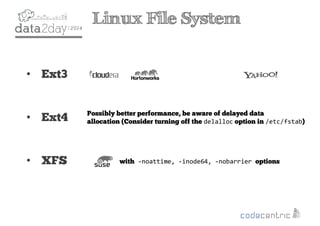

- 25. 2 Linux File System •Ext3 • Ext4 • XFS with -noattime, -inode64, -nobarrier options Possibly better performance, be aware of delayed data allocation (Consider turning off the delalloc option in /etc/fstab)

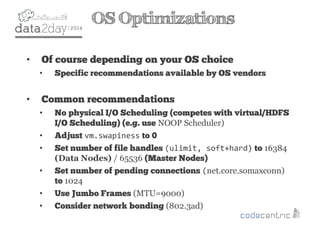

- 26. 2 OS Optimizations • Ofcourse depending on your OS choice • Specific recommendations available by OS vendors • Common recommendations • No physical I/O Scheduling (competes with virtual/HDFS I/O Scheduling) (e.g. use NOOP Scheduler) • Adjust vm.swapiness to 0 • Set number of file handles (ulimit, soft+hard) to 16384 (Data Nodes) / 65536 (Master Nodes) • Set number of pending connections (net.core.somaxconn) to 1024 • Use Jumbo Frames (MTU=9000) • Consider network bonding (802.3ad)

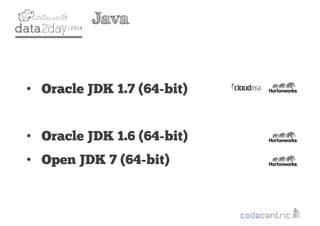

- 27. 2 Java • Oracle JDK1.7 (64-bit) • Oracle JDK 1.6 (64-bit) • Open JDK 7 (64-bit)

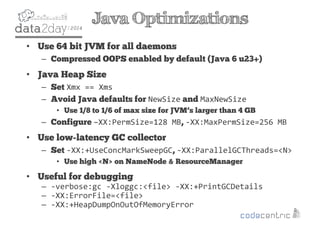

- 28. 2 Java Optimizations • Use64 bit JVM for all daemons – Compressed OOPS enabled by default (Java 6 u23+) • Java Heap Size – Set Xmx == Xms – Avoid Java defaults for NewSize and MaxNewSize • Use 1/8 to 1/6 of max size for JVM’s larger than 4 GB – Configure –XX:PermSize=128 MB, -XX:MaxPermSize=256 MB • Use low-latency GC collector – Set -XX:+UseConcMarkSweepGC, -XX:ParallelGCThreads=<N> • Use high <N> on NameNode & ResourceManager • Useful for debugging – -verbose:gc -Xloggc:<file> -XX:+PrintGCDetails – -XX:ErrorFile=<file> – -XX:+HeapDumpOnOutOfMemoryError
- 29. 2 Hadoop Configuration • Multipleredundant directories for NameNode metadata – One of dfs.namenode.name.dir should be on NFS – Softmount NFS with -tcp,soft,intr,timeo=20,retrans=5 • Take periodic backups of NameNode metadata – Make copies of the entire storage directory • Set dfs.datanode.failed.volumes.tolerated=true – Disk failure is no longer complete DataNode failure – Especially important for large density nodes • Set dfs.namenode.name.dir.restore=true • Restores NN storage directory during checkpointing • Reserve a lot of disk space for NameNode logs – Hadoop logging is verbose – set aside multiple GB’s – NameNode logs roll with in minutes – hard to debug issues • Use version control for configuration!
- 30. 2 Agenda • Basics • SoftwareI • Architecture & Rack Design • Hardware & Cluster Sizing • Software II • Advanced • Data Ingestion • Operation & Monitoring • Security

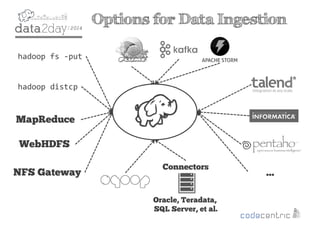

- 31. 2 Options for DataIngestion MapReduce WebHDFS hadoop fs -put NFS Gateway hadoop distcp Oracle, Teradata, SQL Server, et al. Connectors …

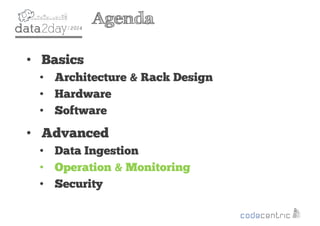

- 32. 2 Agenda • Basics • Architecture& Rack Design • Hardware • Software • Advanced • Data Ingestion • Operation & Monitoring • Security
- 33.

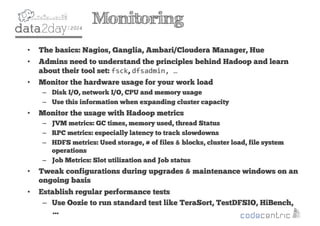

- 34. 2 Monitoring • The basics:Nagios, Ganglia, Ambari/Cloudera Manager, Hue • Admins need to understand the principles behind Hadoop and learn about their tool set: fsck, dfsadmin, … • Monitor the hardware usage for your work load – Disk I/O, network I/O, CPU and memory usage – Use this information when expanding cluster capacity • Monitor the usage with Hadoop metrics – JVM metrics: GC times, memory used, thread Status – RPC metrics: especially latency to track slowdowns – HDFS metrics: Used storage, # of files & blocks, cluster load, file system operations – Job Metrics: Slot utilization and Job status • Tweak configurations during upgrades & maintenance windows on an ongoing basis • Establish regular performance tests – Use Oozie to run standard test like TeraSort, TestDFSIO, HiBench, …
- 35. 2 Agenda • Basics • Architecture& Rack Design • Hardware • Software • Advanced • Data Ingestion • Operation & Monitoring • Security

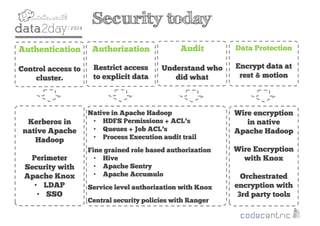

- 36. 2 Security today Kerberos in nativeApache Hadoop Perimeter Security with Apache Knox • LDAP • SSO Authentication Control access to cluster. Authorization Restrict access to explicit data Audit Understand who did what Data Protection Encrypt data at rest & motion Native in Apache Hadoop • HDFS Permissions + ACL’s • Queues + Job ACL’s • Process Execution audit trail Fine grained role based authorization • Hive • Apache Sentry • Apache Accumulo Service level authorization with Knox Central security policies with Ranger Wire encryption in native Apache Hadoop Wire Encryption with Knox Orchestrated encryption with 3rd party tools

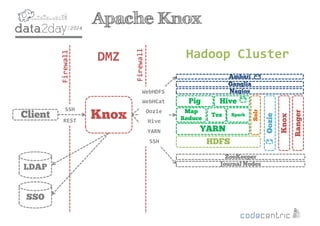

- 37. 2 Apache Knox Knox DMZ Client SSO HDFS Map Reduce Tez Spark PigHive YARN Solr Ambari Oozie Knox Ranger Ganglia Nagios ZooKeeper Journal Nodes Firewall Firewall Hadoop Cluster LDAP SSH REST WebHDFS WebHCat Oozie Hive YARN SSH

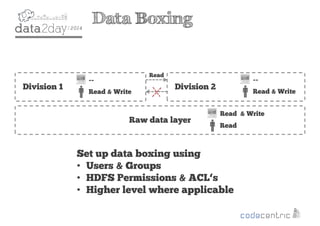

- 38. 2 Data Boxing Raw datalayer Read & Write Read Division 1 -- Read & Write Division 2 -- Read & Write Read Set up data boxing using • Users & Groups • HDFS Permissions & ACL‘s • Higher level where applicable

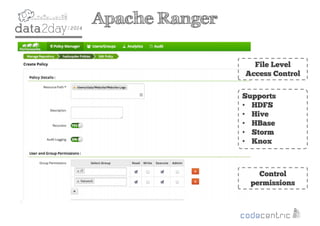

- 39. 2 Apache Ranger File Level AccessControl Control permissions Supports • HDFS • Hive • HBase • Storm • Knox
