Improving Hadoop Cluster Performance via Linux Configuration
- 1. Improving Hadoop Cluster Performancevia Linux Configuration 2014 Hadoop Summit – San Jose, California Alex Moundalexis alexm at clouderagovt.com @technmsg
- 2. 2 Tips from aFormer SA
- 3. Click to editMaster title style CC BY 2.0 / Richard Bumgardner Been there, done that.
- 4. 4 Tips from aFormer SA Field Guy
- 5. Click to editMaster title style CC BY 2.0 / Alex Moundalexis Home sweet home.
- 6. 6 Tips from aFormer SA Field Guy Easy steps to take…
- 7. 7 Tips from aFormer SA Field Guy Easy steps to take… that most people don’t.

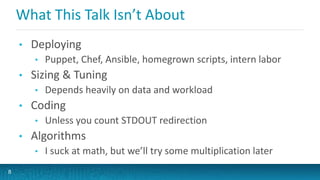

- 8. What This TalkIsn’t About • Deploying • Puppet, Chef, Ansible, homegrown scripts, intern labor • Sizing & Tuning • Depends heavily on data and workload • Coding • Unless you count STDOUT redirection • Algorithms • I suck at math, but we’ll try some multiplication later 8
- 9. 9 “ The answerto most Hadoop questions is it depends.”

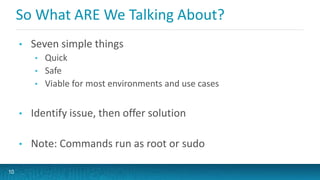

- 10. So What AREWe Talking About? • Seven simple things • Quick • Safe • Viable for most environments and use cases • Identify issue, then offer solution • Note: Commands run as root or sudo 10

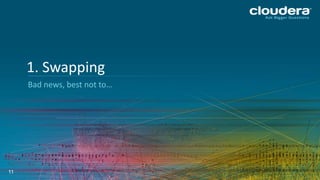

- 11. 11 Bad news, bestnot to… 1. Swapping

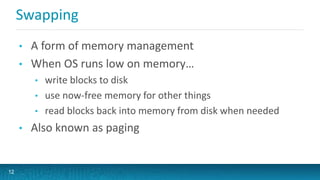

- 12. Swapping • A formof memory management • When OS runs low on memory… • write blocks to disk • use now-free memory for other things • read blocks back into memory from disk when needed • Also known as paging 12

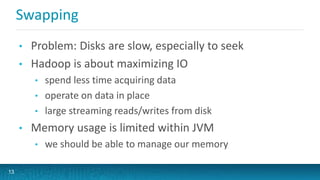

- 13. Swapping • Problem: Disksare slow, especially to seek • Hadoop is about maximizing IO • spend less time acquiring data • operate on data in place • large streaming reads/writes from disk • Memory usage is limited within JVM • we should be able to manage our memory 13

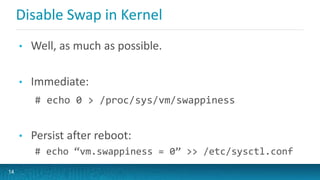

- 14. Disable Swap inKernel • Well, as much as possible. • Immediate: # echo 0 > /proc/sys/vm/swappiness • Persist after reboot: # echo “vm.swappiness = 0” >> /etc/sysctl.conf 14

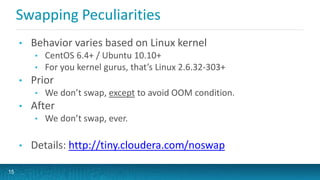

- 15. Swapping Peculiarities • Behaviorvaries based on Linux kernel • CentOS 6.4+ / Ubuntu 10.10+ • For you kernel gurus, that’s Linux 2.6.32-303+ • Prior • We don’t swap, except to avoid OOM condition. • After • We don’t swap, ever. • Details: http://tiny.cloudera.com/noswap 15
- 16. 16 Disable this too. 2.File Access Time

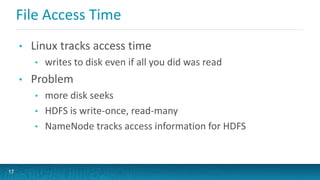

- 17. File Access Time •Linux tracks access time • writes to disk even if all you did was read • Problem • more disk seeks • HDFS is write-once, read-many • NameNode tracks access information for HDFS 17

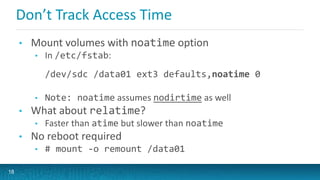

- 18. Don’t Track AccessTime • Mount volumes with noatime option • In /etc/fstab: /dev/sdc /data01 ext3 defaults,noatime 0 • Note: noatime assumes nodirtime as well • What about relatime? • Faster than atime but slower than noatime • No reboot required • # mount -o remount /data01 18
- 19. 19 Reclaim it, impressyour bosses! 3. Root Reserved Space
- 20. Root Reserved Space •EXT3/4 reserve 5% of disk for root-owned files • On an OS disk, sure • System logs, kernel panics, etc 20

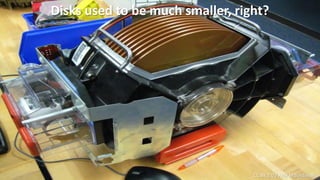

- 21. Click to editMaster title style CC BY 2.0 / Alex Moundalexis Disks used to be much smaller, right?

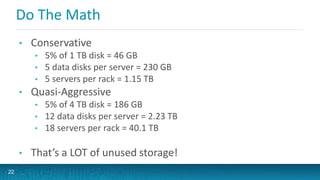

- 22. Do The Math •Conservative • 5% of 1 TB disk = 46 GB • 5 data disks per server = 230 GB • 5 servers per rack = 1.15 TB • Quasi-Aggressive • 5% of 4 TB disk = 186 GB • 12 data disks per server = 2.23 TB • 18 servers per rack = 40.1 TB • That’s a LOT of unused storage! 22

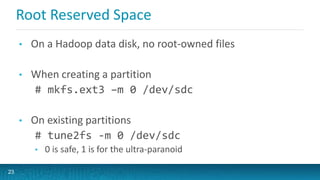

- 23. Root Reserved Space •On a Hadoop data disk, no root-owned files • When creating a partition # mkfs.ext3 –m 0 /dev/sdc • On existing partitions # tune2fs -m 0 /dev/sdc • 0 is safe, 1 is for the ultra-paranoid 23
- 24. 24 Turn it on,already! 4. Name Service Cache Daemon
- 25. Name Service CacheDaemon • Daemon that caches name service requests • Passwords • Groups • Hosts • Helps weather network hiccups • Helps more with high latency LDAP, NIS, NIS+ • Small footprint • Zero configuration required 25
- 26. Name Service CacheDaemon • Hadoop nodes • largely a network-based application • on the network constantly • issue lots of DNS lookups, especially HBase & distcp • can thrash DNS servers • Reducing latency of service requests? Smart. • Reducing impact on shared infrastructure? Smart. 26

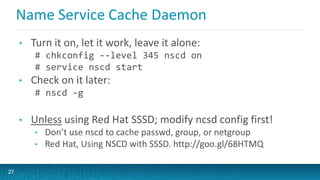

- 27. Name Service CacheDaemon • Turn it on, let it work, leave it alone: # chkconfig --level 345 nscd on # service nscd start • Check on it later: # nscd -g • Unless using Red Hat SSSD; modify ncsd config first! • Don’t use nscd to cache passwd, group, or netgroup • Red Hat, Using NSCD with SSSD. http://goo.gl/68HTMQ 27
- 28. 28 Not a problem,until they are. 5. File Handle Limits

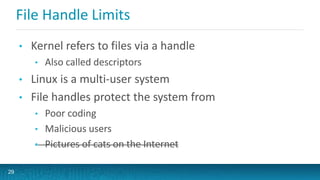

- 29. File Handle Limits •Kernel refers to files via a handle • Also called descriptors • Linux is a multi-user system • File handles protect the system from • Poor coding • Malicious users • Pictures of cats on the Internet 29
- 30. 30 Microsoft Office EULA.Really. java.io.FileNotFoundException: (Too many open files)

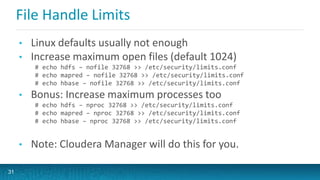

- 31. File Handle Limits •Linux defaults usually not enough • Increase maximum open files (default 1024) # echo hdfs – nofile 32768 >> /etc/security/limits.conf # echo mapred – nofile 32768 >> /etc/security/limits.conf # echo hbase – nofile 32768 >> /etc/security/limits.conf • Bonus: Increase maximum processes too # echo hdfs – nproc 32768 >> /etc/security/limits.conf # echo mapred – nproc 32768 >> /etc/security/limits.conf # echo hbase – nproc 32768 >> /etc/security/limits.conf • Note: Cloudera Manager will do this for you. 31
- 32. 32 Don’t be temptedto share, even on monster disks. 6. Dedicated Disk for OS and Logs

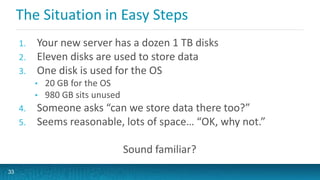

- 33. The Situation inEasy Steps 1. Your new server has a dozen 1 TB disks 2. Eleven disks are used to store data 3. One disk is used for the OS • 20 GB for the OS • 980 GB sits unused 4. Someone asks “can we store data there too?” 5. Seems reasonable, lots of space… “OK, why not.” Sound familiar? 33
- 34. 34 Microsoft Office EULA.Really. I don’t understand it, there’s no consistency to these run times!

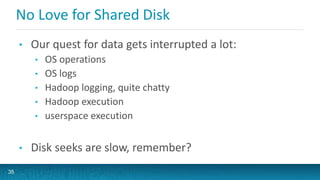

- 35. No Love forShared Disk • Our quest for data gets interrupted a lot: • OS operations • OS logs • Hadoop logging, quite chatty • Hadoop execution • userspace execution • Disk seeks are slow, remember? 35

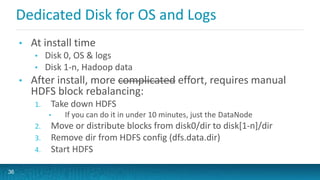

- 36. Dedicated Disk forOS and Logs • At install time • Disk 0, OS & logs • Disk 1-n, Hadoop data • After install, more complicated effort, requires manual HDFS block rebalancing: 1. Take down HDFS • If you can do it in under 10 minutes, just the DataNode 2. Move or distribute blocks from disk0/dir to disk[1-n]/dir 3. Remove dir from HDFS config (dfs.data.dir) 4. Start HDFS 36

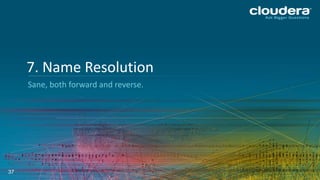

- 37. 37 Sane, both forwardand reverse. 7. Name Resolution

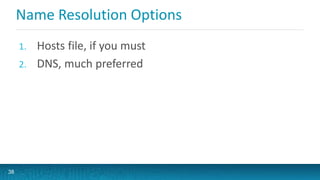

- 38. Name Resolution Options 1.Hosts file, if you must 2. DNS, much preferred 38

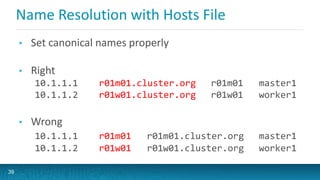

- 39. Name Resolution withHosts File • Set canonical names properly • Right 10.1.1.1 r01m01.cluster.org r01m01 master1 10.1.1.2 r01w01.cluster.org r01w01 worker1 • Wrong 10.1.1.1 r01m01 r01m01.cluster.org master1 10.1.1.2 r01w01 r01w01.cluster.org worker1 39

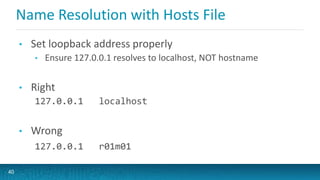

- 40. Name Resolution withHosts File • Set loopback address properly • Ensure 127.0.0.1 resolves to localhost, NOT hostname • Right 127.0.0.1 localhost • Wrong 127.0.0.1 r01m01 40
- 41. Name Resolution withDNS • Forward • Reverse • Hostname should MATCH the FQDN in DNS 41

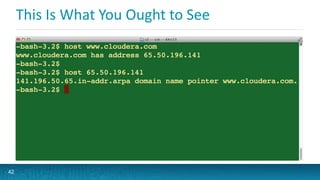

- 42. This Is WhatYou Ought to See 42
- 43. Name Resolution Errata •Mismatches? Expect odd results. • Problems starting DataNodes • Non-FQDN in Web UI links • Security features are extra sensitive to FQDN • Errors so common that link to FAQ is included in logs! • http://wiki.apache.org/hadoop/UnknownHost • Get name resolution working BEFORE enabling nscd! 43
- 44. 44 Time to takeout your camera phones… Summary

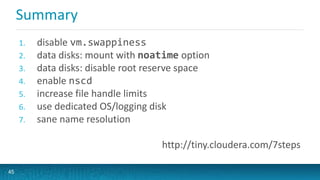

- 45. Summary 1. disable vm.swappiness 2.data disks: mount with noatime option 3. data disks: disable root reserve space 4. enable nscd 5. increase file handle limits 6. use dedicated OS/logging disk 7. sane name resolution http://tiny.cloudera.com/7steps 45
- 46. Recommended Reading • HadoopOperations http://amzn.to/1hDaN9B 46
- 47. 47 Preferably related tothe talk… Questions?
- 48. 48 Thank You! Alex Moundalexis alexmat clouderagovt.com @technmsg We’re hiring, kids! Well, not kids.
- 49. 49 Because we hadenough time… 8. Bonus Round

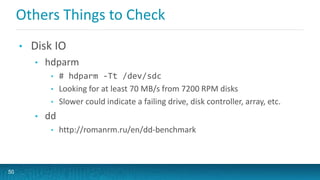

- 50. Others Things toCheck • Disk IO • hdparm • # hdparm -Tt /dev/sdc • Looking for at least 70 MB/s from 7200 RPM disks • Slower could indicate a failing drive, disk controller, array, etc. • dd • http://romanrm.ru/en/dd-benchmark 50

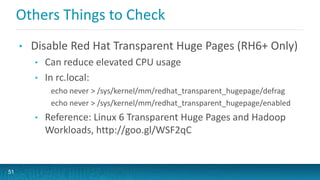

- 51. Others Things toCheck • Disable Red Hat Transparent Huge Pages (RH6+ Only) • Can reduce elevated CPU usage • In rc.local: echo never > /sys/kernel/mm/redhat_transparent_hugepage/defrag echo never > /sys/kernel/mm/redhat_transparent_hugepage/enabled • Reference: Linux 6 Transparent Huge Pages and Hadoop Workloads, http://goo.gl/WSF2qC 51

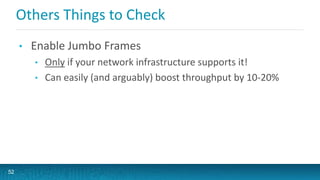

- 52. Others Things toCheck • Enable Jumbo Frames • Only if your network infrastructure supports it! • Can easily (and arguably) boost throughput by 10-20% 52

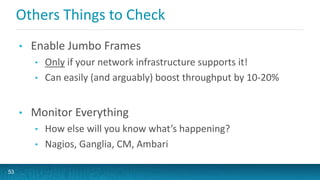

- 53. Others Things toCheck • Enable Jumbo Frames • Only if your network infrastructure supports it! • Can easily (and arguably) boost throughput by 10-20% • Monitor Everything • How else will you know what’s happening? • Nagios, Ganglia, CM, Ambari 53
- 54. 54 Thank You! Alex Moundalexis alexmat clouderagovt.com @technmsg We’re hiring, kids! Well, not kids.
Editor's Notes
- #2 If you’re in the audience and you’re reading this, the gods of multi-display haven’t been offered their tithe lately. Panic.
- #4 Then: Years racking, stacking, cabling, loading, scripting, tickets, etc.
- #5 Now: I deal with clusters. In customer spaces. Advising. Consulting. Guiding.
- #6 Now: I deal with clusters. In customer spaces. Advising. Consulting. Guiding.
- #7 Much of it isn’t hard. Well documented.
- #8 I see a lot of clusters. As simple as this stuff is, it’s rarely done. We get excited. We don’t sweat the small stuff. We forget.
- #10 Who said that? ME, to my customers, ALL THE TIME. There are many configuration options for Hadoop, BUT I choose these seven items because they’ll help no matter your environment.
- #13 If you remember the early days of Windows multitasking, you could hear your hard drive chunking along as it tried to switch windows. Page files, swap partitions.
- #15 You could also use sysctl for this if you’re more comfortable.
- #16 0 will swap only to avoid an out of memory condition, but then we have other issues On RHEL/CentOS kernels > 2.6.32-303, 0 actually means zero. http://www.mysqlperformanceblog.com/2014/04/28/oom-relation-vm-swappiness0-new-kernel/
- #18 More time we aren’t grabbing the data we want. Redundant.
- #19 relatime maintains atime data, but not for every time the file is accessed
- #21 5% of a disk wasn’t a lot back in the day Explain root owned files
- #22 30 years ago, hard drive space was far more limited…
- #24 5% of a disk wasn’t a lot back in the day # tune2fs -l /dev/sdc Look for “Reserved block count” Division is involved TODO
- #27 Hadoop has the tendency to BREAK things.
- #34 Inconsistent processing, disk seeks for OS writes
- #36 Inconsistent processing, disk seeks for OS writes
- #37 Inconsistent processing, disk seeks for OS writes By default, dfs.namenode.recheck-internal is set to 10.5 minutes… that’s how long you have until the NameNode thinks a DataNode is dead, after that it will start re-replicating blocks.
- #39 There IS a third option, which isn’t on the slide FOR A REASON. IP, all the time.
- #44 The way a DataNode determines its own hostname is particularly convoluted, and takes up three full pages of text in Hadoop Operations (ch 4). A DataNode reports its hostname to the NN, which then uses that hostname in msgs to other nodes. If it’s wrong/non-FQDN, things break.
- #45 If you haven’t understood any of what I just said, but have someone at the home office who would, the next slide is for you. Get your camera out.
- #46 Pause for pictures, water, laughter.
- #53 Jumbo frames are at point of contention between engineers, some swear there’s an impact, others say no.
- #54 Jumbo frames are at point of contention between engineers, some swear there’s an impact, others say no.
