1.FPGA for dummies: Basic FPGA architecture
1. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
FPGA for
Dummies
Basic FPGA architecture

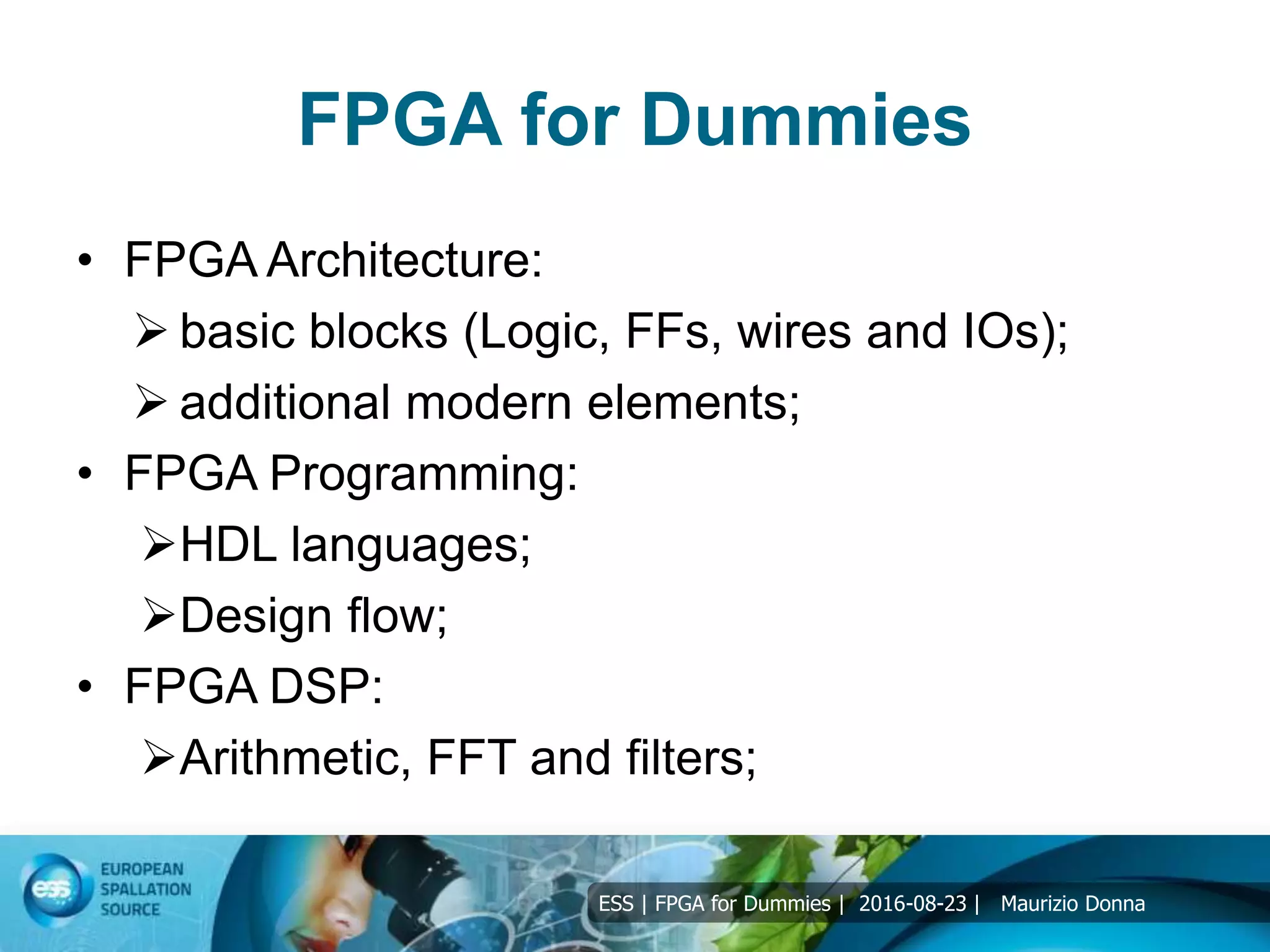

2. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
FPGA for Dummies
• FPGA Architecture:
basic blocks (Logic, FFs, wires and IOs);
additional modern elements;
• FPGA Programming:
HDL languages;
Design flow;
• FPGA DSP:
Arithmetic, FFT and filters;
3. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
FPGA for Dummies
• FPGA Architecture:
basic blocks (Logic, FFs, wires and IOs);
additional modern elements;
• FPGA Programming:
HDL languages;
Design flow;
• FPGA DSP:
Arithmetic, FFT and filters;
4. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
Particle Physics Electronics
Some special dedicated Logic Functions are not possible in CPUs, like
Ultra Fast Trigger Algorithms, or Massively Parallel Data Processing.
To do this you need custom designed Printed Circuit Boards (PCBs)
that uses commercial Programmable Logic Devices (PLDs).
• Glossary:
Integrated Circuit (IC) is a miniaturized electronic circuit consisting
of transistors, resistors and capacitors.
• LOGIC is one of the three major classes of ICs in most digital
electronic systems: microprocessor, memory, and logic. Logic is
used for data manipulation and control functions that require higher
speed than a microprocessor can provide.
5. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
Analog-to-Digital (ADC)
and Digital-to-Analog (DAC)
Converters
DACs and ADCs are important building blocks which interface sensors (e.g.
temperature, pressure, light, sound) to digital systems.
ADC takes an analog signal and
converts it into a binary one
DAC converts a binary signal into
an analog value.
SAMPLING is the reduction of a continuous signal to a discrete
signal: a SAMPLE is a value or set of values at a point in time
and/or space, a sampler is a subsystem or operation that
extracts samples from a continuous signal.
6. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
Analog-to-Digital (ADC)
and Digital-to-Analog (DAC)
Converters
The jitter on the rising edge of the clock signal
creates uncertainty on when/where the input
signal is sampled by the ADC (same for the
DAC to create an analog signal).
The clock signal is a key part for digital system
performance.
7. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
Complex Programmable Logic
Devices (CPLDs)
CPLD is an IC that perform
simple logic function, using
input signal and internal value.
The key resource in a CPLD is
the PROGRAMMABLE
INTERCONNECT
(Tradeoff between
SPACE FOR MACROCELLS
and
SPACE FOR
INTERCONNECTION)
8. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
Field Programmable Gate Arrays
(FPGAs)
FPGAs initially were Similar to CPLDs, so a function to be
implemented in FPGA is partitioned into modules (each
implemented in a logic block) and then the logic blocks are
connected with the programmable interconnection: ARRAY
of logic GATES is the G and A in FPGA.
By way of a configuration file or bit stream, an FPGA can be
configured to implement the user’s desired function: this
allows customization at the user’s electronics bench, or
even in the final end product.
This is why FPGAs are FIELD PROGRAMMABLE.
9. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
FPGA Architecture
The basic structure of an FPGA is
composed of the following elements:
Look-up table (LUT): This element
performs logic operations
Flip-Flop (FF): This register
element stores the result of the
LUT
Wires: These elements connect
elements to one another, both
Logic and clock
Input/Output (I/O) pads: These
physically available ports get
signals in and out of the FPGA.
10. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
FPGA Logic blocks
How can we implement any circuit in an FPGA?
Combinational logic is represented by a truth table
(e.g. full adder).
Implement truth table in small memories (LUTs).
A function is implemented by writing all possible
values that the function can take in the LUT
The inputs values are used to address the LUT
and retrieve the value of the function
corresponding to the input values
11. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
FPGA Logic blocks
A LUT is basically a multiplexer that
evaluates the truth table stored in the
configuration SRAM cells (can be seen as
a one bit wide ROM).
How to handle sequential logic?
Add a flip-flop to the output of LUT
(Clocked Storage element).
This is called Basic Logic Element (BLE):
circuit can now use output from LUT or
from FF.
12. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
Flip-Flop Capabilities
All flip-flops are D type
All flip-flops have a single clock input (CLK)
Clock can be inverted at the slice
boundary
All flip-flops have an active high chip enable (CE)
All flip-flops have an active high SR input
Input can be synchronous or
asynchronous, as determined by the
configuration bit stream
Sets the flip-flop value to a pre-
determined state, as determined by the
configuration bit stream
13. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
Flip-Flop Timing
Signal timing must satisfy
Setup & Hold times;
Propagation delay;
At the maximum required frequency
14. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
FPGA wires
Before FPGA is programmed, it doesn’t
know which Logic block will be connected:
connections are design dependent, so
there are wires everywhere (both for DATA
and CLOCK)!!!!!
Logic blocks are typically arranged in a
grid, with wires on all sides.
Logic
block
Logic
block
Logic
block
Logic
block
Logic
block
Logic
block
To connect Logic blocks to wires
some Connection box are used:
these devices allow inputs and
outputs of Logic block to connect to
different wires
Logic
block
Logic
block
15. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
FPGA Components: wires
Connection boxes allow Logic locks to connect to routing wires but
that only allows to move signals along a single wire; to connect wires
together Switch boxes (switch matrices) are used: these connect
horizontal and vertical routing channels. The flexibility defines how
many wires a single wire can connect into the box.
Logic
block
Logic
block
Logic
block
Logic
block
Switch box/matrix
ROUTABILITY is a measure of the
number of circuits that can be routed
HIGHER FLEXIBILITY
=
BETTER ROUTABILITY
16. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
FPGA Components: wires
FPGA layout is called a “FABRIC”: is a 2-dimensional array of Logic
blocks and programmable interconnections. Sometimes referred to as an
“island style” architecture. 16-bit SR
flip-flop
clock
mux
y
q
e
a
b
c
d
16x1 RAM
4-input
LUT
clock enable
set/reset
In the switch boxes there are short channels (useful for
connecting adjacent Logic blocks) and long channels
(useful for connecting Logic blocks that are separated, this
reduce routing delay for non-adjacent Logic blocks)
17. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
FPGA Components: memory
The FPGA fabric includes embedded memory
elements that can be used as random-access
memory (RAM), read-only memory (ROM), or
shift registers. These elements are block RAMs
(BRAMs), LUTs, and shift registers.
Using LUTs as SRAM, this is called
DISTRIBUTE RAM
Included dedicated RAM components in the FPGA fabric are called
BLOCKs RAM
18. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
FPGA Components: input/output
The IO PAD connect the signals from the
PCB to the internal logic.
The IOB are organized in banks (depending
on the technology and the producer the
number of IOB per bank change).
All the PAD in the same bank, share a
common supply voltage: not all the different
standard could be implemented at the same
time in the same bank!!!!
There are special PAD for ground (GND),
supplies (VCC, VCCINT, VCCAUX, etc…),
clocks and for programming (JTAG).
19. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
FPGA Components: input/output
The IO Blocks (IOB) support a wide range of commercial standard (LVTTL,
LVCMOS, LVDS, etc…) both single ended and differential (in that case
pair of contiguous pad are used). In the PAD are available FF that are use
to resynchronize the signal with the internal clock.
20. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
FPGA Architecture
21. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
FPGA for Dummies
Extra material
(XILINX, ALTERA, LATTICESEMI)
22. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
Xilinx Configurable Logic
Blocks (CLBs)
Xilinx Configurable Logic
Blocks (CLBs) usually
contain more than 1 BLE:
this is an efficient way of
handling common I/O
between adjacent LUTs and
saves routing resources
(eg. Ripple-carry adder).
3-in, 2-out
LUT
FF
2x1
FF
2x1
3-in, 2-out
LUT
FF
2x1
FF
2x1
2x1
23. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
Xilinx Configurable Logic
Blocks (CLBs)
The arithmetic logic provides a XOR-gate and
faster carry chain to build faster adder
without wasting too much LUT-resources.
24. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
Xilinx Configurable Logic
Blocks (CLBs)
The CLB is the modern Xilinx FPGA basic block: the number of CLB
varies from devices to devices:
Spartan 3, VirtexII, Virtex II-Pro
Virtex 4:
4 slices
2 basic blocks per slice
Virtex 5:
2 slices
4 basic blocks per slice
Virtex 6:
2 slices (split in 2
columns)
4 6-inputs LUT
8 FF (storing LUT
results)
Virtex 7:
2 pairs of slices (split in 2
columns arranged
symmetrically)
4 6-inputs LUT
8 FF (storing LUT results)
25. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
Altera FPGA Logic Array Blocks
Altera’s FPGAs (Cyclone, FLEX) basic unit of logic is the Logic Element
(LE) and is also LUT-based (4-LUT, flip flop, multiplexer and additional
logic for carry chain) similar to Xilinx: LEs can operate in different modes
each of which defines different usage of the LUT inputs. Altera LEs are
grouped into Logic Array Blocks (LAB)).
26. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
Altera FPGA Logic Array Blocks
Altera’s Stratix II FPGAs the basic computing unit is called Adaptive
Logic Module (ALM): each LAB contains 8 ALMs.
27. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
Altera FPGA Logic Array Blocks
ALM can be used to implement functions with variable number of
inputs. This ensures a backward compatibility to 4-input-based
designs. It is possible to implement module with up to 8 inputs.
28. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
LatticeSemiconductor FPGA Logic
Blocks
The Programmable Logic Cell (PLC) is the fundamental building
block of the FPGA Fabric.
The PLC consists of 2 components:
PFU – Programmable Function Unit (Very simple logic!)
Programmable Routing Block or Big Switch Box (Muxes)
29. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
FPGA Components: memory
XILINX 36K/18KALTERA Embedded Memory
30. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
Vendor comparison
31. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
XILINX 7 serie families
32. ESS | FPGA for Dummies | 2016-08-23 | Maurizio Donna
ALTERA 10/V serie families
Editor's Notes
An FPGA is a type of integrated circuit (IC) that can be programmed for different algorithms after fabrication.
Modern FPGA devices consist of up to two million logic cells that can be configured to implement a variety of software algorithms.
Although the traditional FPGA design flow is more similar to a regular IC than a processor,
an FPGA provides significant cost advantages in comparison to an IC development effort and offers the same level of performance in most cases.
Another advantage of the FPGA when compared to the IC is its ability to be dynamically reconfigured.
This process, which is the same as loading a program in a processor, can affect part or all of the resources available in the FPGA fabric.
The LUT is the basic building block of an FPGA and is capable of implementing any logic function of N Boolean variables.
The flip-flop is the basic storage unit within the FPGA fabric. This element is always paired with a LUT to assist in logic pipelining and data storage.
The basic structure of a flip-flop includes a data input, clock input, clock enable, reset, and data output.
During normal operation, any value at the data input port is latched and passed to the output on every pulse of the clock.
The purpose of the clock enable pin is to allow the flip-flop to hold a specific value for more than one clock pulse.
New data inputs are only latched and passed to the data output port when both clock and clock enable are equal to one.
The LUT is the basic building block of an FPGA and is capable of implementing any logic function of N Boolean variables.
The flip-flop is the basic storage unit within the FPGA fabric. This element is always paired with a LUT to assist in logic pipelining and data storage.
The basic structure of a flip-flop includes a data input, clock input, clock enable, reset, and data output.
During normal operation, any value at the data input port is latched and passed to the output on every pulse of the clock.
The purpose of the clock enable pin is to allow the flip-flop to hold a specific value for more than one clock pulse.
New data inputs are only latched and passed to the data output port when both clock and clock enable are equal to one.
In electronic design, wire routing, commonly called simply routing, is a step in the design of printed circuit boards (PCBs) and integrated circuits (ICs).
In electronic design, wire routing, commonly called simply routing, is a step in the design of printed circuit boards (PCBs) and integrated circuits (ICs).
An FPGA is a type of integrated circuit (IC) that can be programmed for different algorithms after fabrication.
Modern FPGA devices consist of up to two million logic cells that can be configured to implement a variety of software algorithms.
Although the traditional FPGA design flow is more similar to a regular IC than a processor,
an FPGA provides significant cost advantages in comparison to an IC development effort and offers the same level of performance in most cases.
Another advantage of the FPGA when compared to the IC is its ability to be dynamically reconfigured.
This process, which is the same as loading a program in a processor, can affect part or all of the resources available in the FPGA fabric.
