This document summarizes the mid-term review of Task 5.2 to develop a platform for near real-time control of forest operations. The task is on schedule and involves designing a module to integrate harvesting plan data with real-time data from an intelligent processing head to analyze harvested versus predicted timber and enable adjustments to storage and logistics. Key activities completed include defining the workflow and involved actors. Upcoming activities are agreeing the module architecture, developing the near real-time control platform, and testing it in a demonstration area.

1. Project SLOPE
1
WP 5 – Forest information system
development

2. Project SLOPE
WP5 T5.1 – Database to support novel
inventory data content
Brussels, 2nd July, 2015
Mid-term Review
2/Jul/15

3. Overview
Mid-term Review
2/Jul/2015
• Status: Completed (100%)
• Length: 10 Months (From M08 to M17)
• Involved Partners
• Leader: MHG
• Participants: GRAPHITECH, CNR, COAST, FLY, TRE, ITENE
• Aim: Design and implement database and web service interfaces
to support inventory and spatial data
• Output: D5.01 Inventory module of the FIS (Prototype)

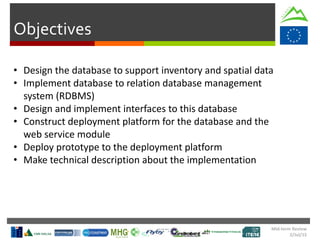

4. Objectives
• Design the database to support inventory and spatial data
• Implement database to relation database management
system (RDBMS)
• Design and implement interfaces to this database
• Construct deployment platform for the database and the
web service module
• Deploy prototype to the deployment platform
• Make technical description about the implementation
Mid-term Review
2/Jul/15

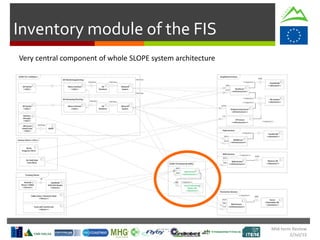

5. Inventory module of the FIS
Very central component of whole SLOPE system architecture
Mid-term Review
2/Jul/15

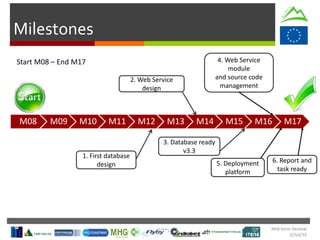

6. Milestones
M08 M09 M10 M11 M12 M13 M14 M15 M16 M17
Start M08 – End M17
1. First database
design
2. Web Service
design
3. Database ready
v3.3
4. Web Service
module
and source code
management
6. Report and
task ready
5. Deployment
platform
Mid-term Review
2/Jul/15

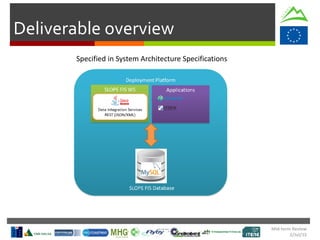

7. Deliverable overview
Specified in System Architecture Specifications
Mid-term Review
2/Jul/15

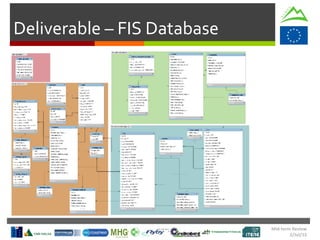

8. Deliverable – FIS Database
• Implemented on MySQL database engine
• MySQL Spatial Extensions for storing spatial data
• Database includes four logical sections:
• User management
• Real estate management
• Tree and product management
• Storage and logistics
• Integration of the logistic model by ITENE
Mid-term Review
2/Jul/15

9. Deliverable – FIS Database
Mid-term Review
2/Jul/15

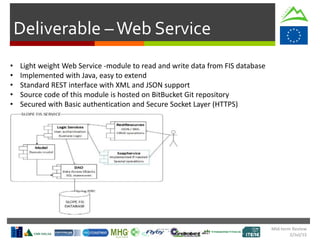

10. Deliverable –Web Service
• Light weight Web Service -module to read and write data from FIS database
• Implemented with Java, easy to extend
• Standard REST interface with XML and JSON support
• Source code of this module is hosted on BitBucket Git repository
• Secured with Basic authentication and Secure Socket Layer (HTTPS)
Mid-term Review
2/Jul/15

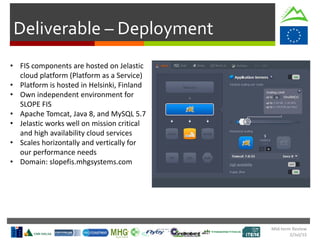

11. Deliverable – Deployment
• FIS components are hosted on Jelastic
cloud platform (Platform as a Service)
• Platform is hosted in Helsinki, Finland
• Own independent environment for
SLOPE FIS
• Apache Tomcat, Java 8, and MySQL 5.7
• Jelastic works well on mission critical
and high availability cloud services
• Scales horizontally and vertically for
our performance needs
• Domain: slopefis.mhgsystems.com
Mid-term Review
2/Jul/15

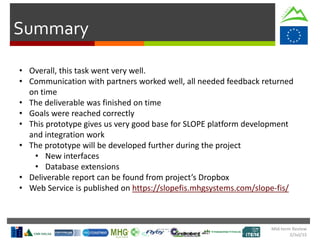

12. Summary
• Overall, this task went very well.
• Communication with partners worked well, all needed feedback returned
on time
• The deliverable was finished on time
• Goals were reached correctly
• This prototype gives us very good base for SLOPE platform development
and integration work
• The prototype will be developed further during the project
• New interfaces
• Database extensions
• Deliverable report can be found from project’s Dropbox
• Web Service is published on https://slopefis.mhgsystems.com/slope-fis/
Mid-term Review
2/Jul/15

13. Mid-term Review
2/Jul/2015
Contact info
Veli-Matti Plosila veli-matti.plosila@mhgsystems.com
Seppo Huurinainen seppo.huurinainen@mhgsystems.com
Thank you for your attention

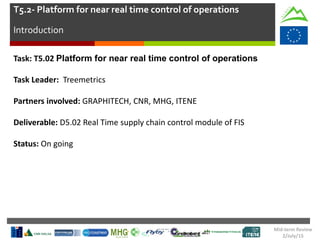

14. T5.2- Platform for near real time control of operations
Introduction
Task: T5.02 Platform for near real time control of operations
Task Leader: Treemetrics
Partners involved: GRAPHITECH, CNR, MHG, ITENE
Deliverable: D5.02 Real Time supply chain control module of FIS
Status: On going
Mid-term Review
2/July/15

15. PRESENTATION:
Part 1: Scope of work
Part 2: Definion of workflow
Part 3: Module achitecture
Part 4: Planned activities
T5.2- Platform for near real time control of operations
Introduction
Objective:
Develop a system that allows for the near real time control of operations .
Mid-term Review
2/July/15
Task: T5.02 Platform for near real time control of operations

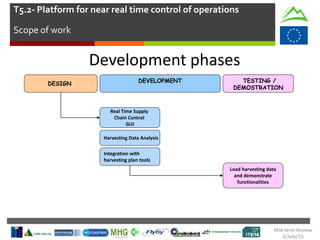

16. Development phases
DESIGN DEVELOPMENT TESTING /
DEMOSTRATION
Load harvesting data
and demonstrate
functionalities
Real Time Supply
Chain Control
GUI
Harvesting Data Analysis
Integration with
harvesting plan tools
T5.2- Platform for near real time control of operations
Scope of work
Mid-term Review
2/July/15

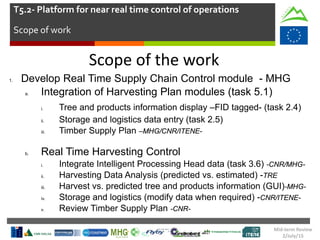

17. Scope of the work
1. Develop Real Time Supply Chain Control module - MHG
a. Integration of Harvesting Plan modules (task 5.1)
i. Tree and products information display –FID tagged- (task 2.4)
ii. Storage and logistics data entry (task 2.5)
iii. Timber Supply Plan –MHG/CNR/ITENE-
b. Real Time Harvesting Control
i. Integrate Intelligent Processing Head data (task 3.6) -CNR/MHG-
ii. Harvesting Data Analysis (predicted vs. estimated) -TRE
iii. Harvest vs. predicted tree and products information (GUI)-MHG-
iv. Storage and logistics (modify data when required) -CNR/ITENE-
v. Review Timber Supply Plan -CNR-
T5.2- Platform for near real time control of operations
Scope of work
Mid-term Review
2/July/15

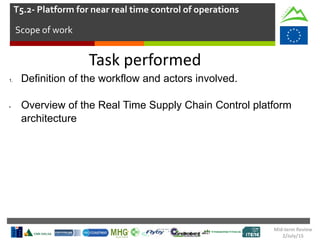

18. Task performed
1. Definition of the workflow and actors involved.
• Overview of the Real Time Supply Chain Control platform
architecture
T5.2- Platform for near real time control of operations
Scope of work
Mid-term Review
2/July/15

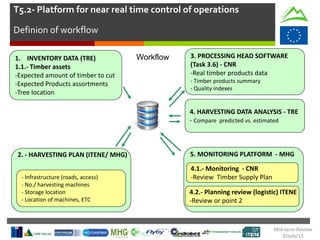

19. 2. - HARVESTING PLAN (ITENE/ MHG)
3. PROCESSING HEAD SOFTWARE
(Task 3.6) - CNR
-Real timber products data
- Timber products summary
- Quality indexes
5. MONITORING PLATFORM - MHG
4.2.- Planning review (logistic) ITENE
-Review or point 2
4.1.- Monitoring - CNR
-Review Timber Supply Plan
4. HARVESTING DATA ANALYSIS - TRE
- Compare predicted vs. estimated
- Infrastructure (roads, access)
- No./ harvesting machines
- Storage location
- Location of machines, ETC
1. INVENTORY DATA (TRE)
1.1.- Timber assets
-Expected amount of timber to cut
-Expected Products assortments
-Tree location
Workflow
T5.2- Platform for near real time control of operations
Definion of workflow
Mid-term Review
2/July/15

20. T5.2- Platform for near real time control of operations
Module achitecture
Mid-term Review
2/July/15

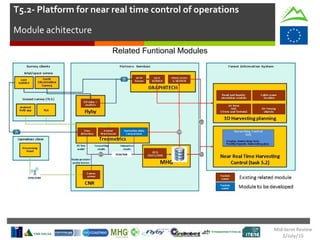

21. Related Funtional Modules
T5.2- Platform for near real time control of operations
Module achitecture
Mid-term Review
2/July/15

22. T5.2- Platform for near real time control of operations
Platform achitecture
• Integration of Processing Head
• GPRS/UMTS data transfer (Task 3.6)
• Decompression of data and storage in the database
• Access to the data from Harvesting Control platform
• Data comparison analysis
• Access to the Processing Head data (timber products and quality
indexes)
• Compare harvested vs. predicted timber products and quality
indexes information
• Real Time Harvesting Control platform
• Display predicted timber products and Processing Head data
• Display data comparison analysis (harvested vs. predicted)
• Facilitate modification of storage and logistics (when required)
Mid-term Review
2/July/15

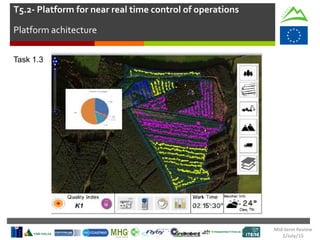

23. T5.2- Platform for near real time control of operations
Platform achitecture
Mid-term Review
2/July/15
Task 1.3

24. Planned Activities
1. Agree module architecture design with partners (next
weeks)
2. Develop for near real time control platform (M20)
3. Test near real time harvesting control in the demo area
(M22).
T5.2- Platform for near real time control of operations
Planned activities
Mid-term Review
2/July/15
