This document discusses innovations in cable yarding machinery developed through the SLOPE project, which received EU funding. It describes new automated machines like the TECNO self-propelled carriage, which can transport loads of up to 3.2 tons at 4.5 meters/second and automatically unload. An automatic chocker system and rope launcher are also presented, which aim to increase efficiency and safety in cable logging operations. The overall goal of these new technologies is to automate processes and facilitate communication within the logging workflow.

1. This project has received funding
from the European Union’s
Seventh Framework Programme
for research, technological
development and demostration
under grant agreement no 604129
www.slopeproject.eu

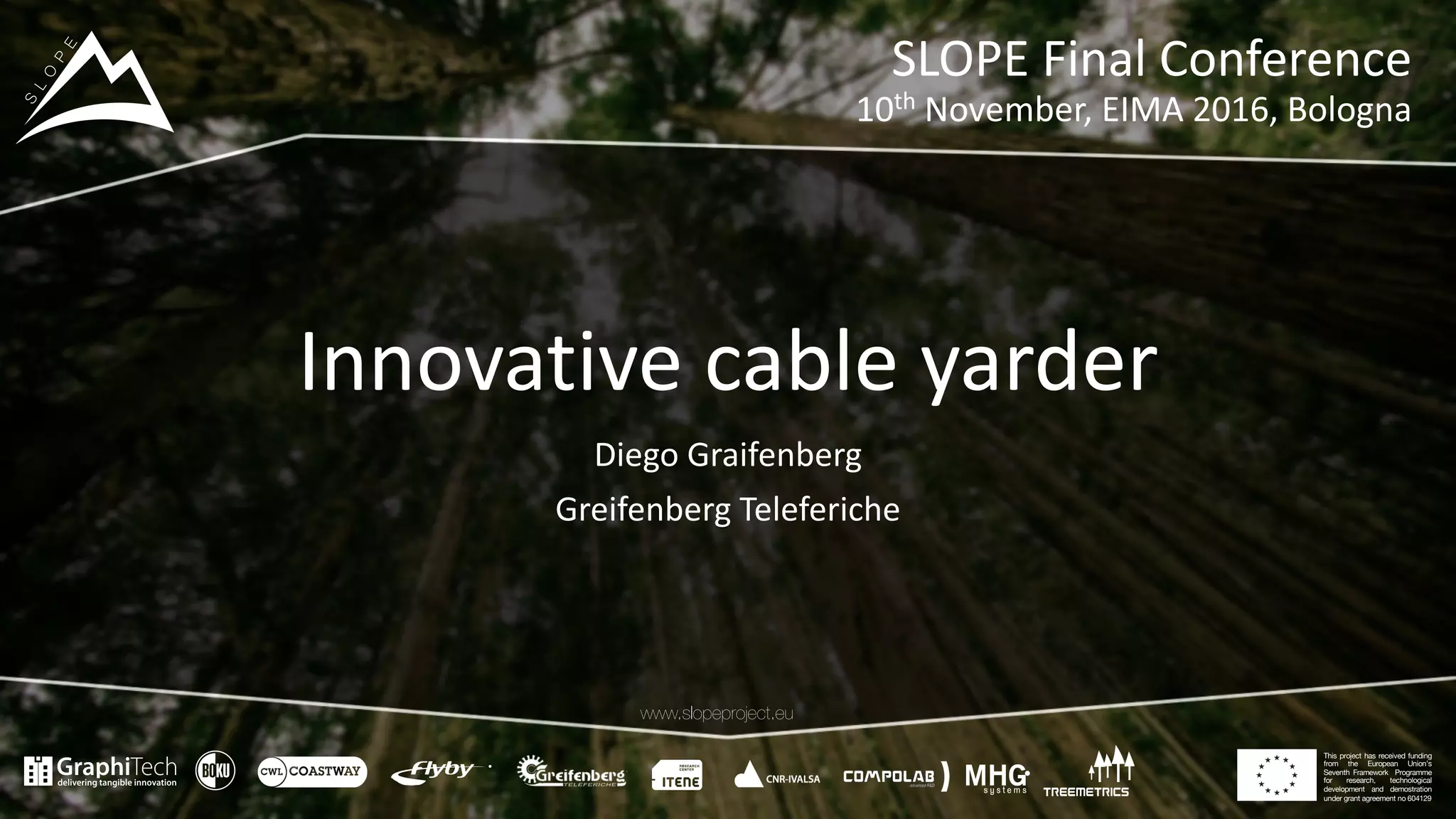

Innovative cable yarder
Diego Graifenberg
Greifenberg Teleferiche
SLOPE Final Conference
10th November, EIMA 2016, Bologna

2. This project has received funding
from the European Union’s
Seventh Framework Programme
for research, technological
development and demostration
under grant agreement no 604129

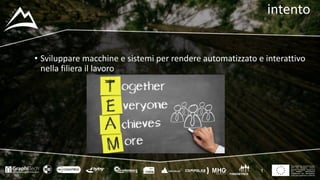

intento
• Sviluppare macchine e sistemi per rendere automatizzato e interattivo
nella filiera il lavoro
1

3. This project has received funding
from the European Union’s
Seventh Framework Programme
for research, technological
development and demostration
under grant agreement no 604129

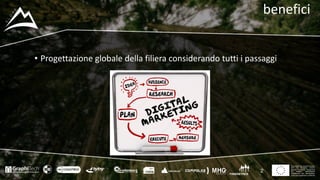

benefici
• Progettazione globale della filiera considerando tutti i passaggi
2

4. This project has received funding
from the European Union’s
Seventh Framework Programme
for research, technological
development and demostration
under grant agreement no 604129

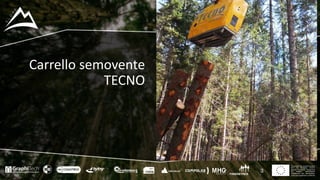

Carrello semovente
TECNO
3

5. This project has received funding
from the European Union’s
Seventh Framework Programme
for research, technological
development and demostration
under grant agreement no 604129

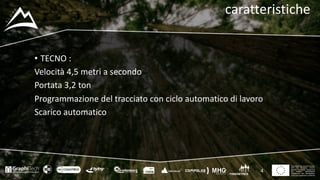

caratteristiche
• TECNO :
Velocità 4,5 metri a secondo
Portata 3,2 ton
Programmazione del tracciato con ciclo automatico di lavoro
Scarico automatico
4

6. This project has received funding
from the European Union’s
Seventh Framework Programme
for research, technological
development and demostration
under grant agreement no 604129

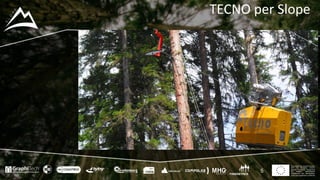

TECNO per Slope
5

7. This project has received funding
from the European Union’s
Seventh Framework Programme
for research, technological
development and demostration
under grant agreement no 604129

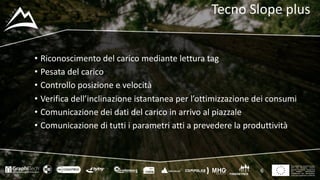

Tecno Slope plus
• Riconoscimento del carico mediante lettura tag
• Pesata del carico
• Controllo posizione e velocità
• Verifica dell’inclinazione istantanea per l’ottimizzazione dei consumi
• Comunicazione dei dati del carico in arrivo al piazzale
• Comunicazione di tutti i parametri atti a prevedere la produttività
6

8. This project has received funding
from the European Union’s
Seventh Framework Programme
for research, technological
development and demostration
under grant agreement no 604129
Chockers
7

9. This project has received funding
from the European Union’s
Seventh Framework Programme
for research, technological
development and demostration
under grant agreement no 604129

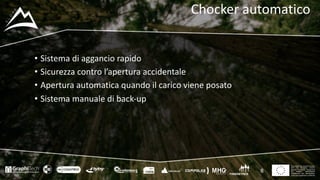

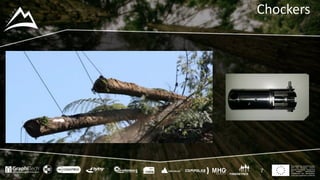

Chocker automatico
• Sistema di aggancio rapido
• Sicurezza contro l’apertura accidentale
• Apertura automatica quando il carico viene posato
• Sistema manuale di back-up
8

10. This project has received funding
from the European Union’s
Seventh Framework Programme
for research, technological
development and demostration
under grant agreement no 604129

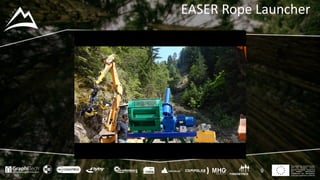

EASER Rope Launcher
9

11. This project has received funding
from the European Union’s
Seventh Framework Programme
for research, technological
development and demostration
under grant agreement no 604129

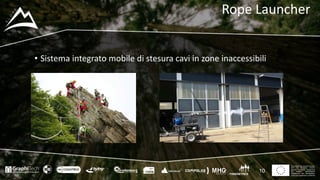

Rope Launcher
• Sistema integrato mobile di stesura cavi in zone inaccessibili
10

12. This project has received funding
from the European Union’s
Seventh Framework Programme
for research, technological
development and demostration
under grant agreement no 604129
Come funziona
Tubo di lancio con orientamento su coordinata geografica
Compressore di aria ad alta pressione
Proietto capacitativo per fune sintetica ad alta resistenza
Sistema di orientamento
Verricello di riavvolgimento e stesura
11

13. This project has received funding
from the European Union’s
Seventh Framework Programme
for research, technological
development and demostration
under grant agreement no 604129

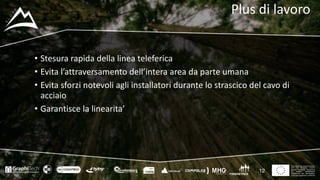

Plus di lavoro
• Stesura rapida della linea teleferica
• Evita l’attraversamento dell’intera area da parte umana
• Evita sforzi notevoli agli installatori durante lo strascico del cavo di
acciaio
• Garantisce la linearita’
12

14. This project has received funding
from the European Union’s
Seventh Framework Programme
for research, technological
development and demostration
under grant agreement no 604129

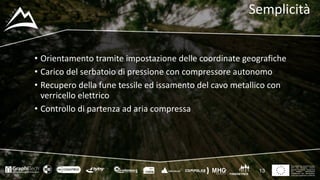

Semplicità
• Orientamento tramite impostazione delle coordinate geografiche
• Carico del serbatoio di pressione con compressore autonomo
• Recupero della fune tessile ed issamento del cavo metallico con
verricello elettrico
• Controllo di partenza ad aria compressa
13

15. This project has received funding
from the European Union’s
Seventh Framework Programme
for research, technological
development and demostration
under grant agreement no 604129

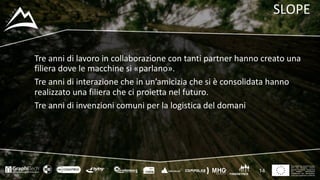

SLOPE
Tre anni di lavoro in collaborazione con tanti partner hanno creato una
filiera dove le macchine si «parlano».
Tre anni di interazione che in un’amicizia che si è consolidata hanno
realizzato una filiera che ci proietta nel futuro.
Tre anni di invenzioni comuni per la logistica del domani
14
