This document discusses the Z-transform and its inverse. It begins by defining the Z-transform as a mapping from a discrete-time signal to a power series. The region of convergence (ROC) is introduced as the set of values where the Z-transform has a finite value. Common properties of the ROC are described. Rational Z-transforms containing poles and zeros are covered. The inverse Z-transform is discussed using inspection and partial fraction expansion methods. The relationship between the Z-transform of a system's impulse response and its transfer function is explained. Finally, the four-step process for analyzing discrete-time linear time-invariant systems in the transform domain using the Z-transform is outlined.
Z Transform And Inverse Z Transform - Signal And SystemsMr. RahüL YøGi
The z-transform is the most general concept for the transformation of discrete-time series.
The Laplace transform is the more general concept for the transformation of continuous time processes.
For example, the Laplace transform allows you to transform a differential equation, and its corresponding initial and boundary value problems, into a space in which the equation can be solved by ordinary algebra.
The switching of spaces to transform calculus problems into algebraic operations on transforms is called operational calculus. The Laplace and z transforms are the most important methods for this purpose.
The z-Transform is often time more convenient to use
Definition:
Compare to DTFT definition:
z is a complex variable that can be represented as z=r ej
Substituting z=ej will reduce the z-transform to DTFT
Region of Convergence for a discrete time signal x[n] is defined as a continuous region in z plane where the Z-Transform converges.
The roots of the equation P(z) = 0 correspond to the ’zeros’ of X(z)
The roots of the equation Q(z) = 0 correspond to the ’poles’ of X(z)
The RoC of the Z-transform depends on the convergence of the polynomials P(z) and Q(z),
Uses to analysis of digital filters.
Used to simulate the continuous systems.
Analyze the linear discrete system.
Used to finding frequency response.
Z Transform And Inverse Z Transform - Signal And SystemsMr. RahüL YøGi
The z-transform is the most general concept for the transformation of discrete-time series.
The Laplace transform is the more general concept for the transformation of continuous time processes.
For example, the Laplace transform allows you to transform a differential equation, and its corresponding initial and boundary value problems, into a space in which the equation can be solved by ordinary algebra.
The switching of spaces to transform calculus problems into algebraic operations on transforms is called operational calculus. The Laplace and z transforms are the most important methods for this purpose.
The z-Transform is often time more convenient to use
Definition:
Compare to DTFT definition:
z is a complex variable that can be represented as z=r ej
Substituting z=ej will reduce the z-transform to DTFT
Region of Convergence for a discrete time signal x[n] is defined as a continuous region in z plane where the Z-Transform converges.
The roots of the equation P(z) = 0 correspond to the ’zeros’ of X(z)
The roots of the equation Q(z) = 0 correspond to the ’poles’ of X(z)
The RoC of the Z-transform depends on the convergence of the polynomials P(z) and Q(z),
Uses to analysis of digital filters.
Used to simulate the continuous systems.
Analyze the linear discrete system.
Used to finding frequency response.
z-Transform is for the analysis and synthesis of discrete-time control systems.The z transform in discrete-time systems play a similar role as the Laplace transform in continuous-time systems
Why Fourier Transform
General Properties & Symmetry relations
Formula and steps
magnitude and phase spectra
Convergence Condition
mean-square convergence
Gibbs phenomenon
Direct Delta
Energy Density Spectrum
I am Ahmed M. I am a Signals and Systems Assignment Expert at matlabassignmentexperts.com. I hold a Master's in Matlab, from New York University, Abu Dhabi. I have been helping students with their assignments for the past 10 years. I solve assignments related to Signals and Systems.
Visit matlabassignmentexperts.com or email info@matlabassignmentexperts.com.
You can also call on +1 678 648 4277 for any assistance with Signals and Systems Assignment.
z-Transform is for the analysis and synthesis of discrete-time control systems.The z transform in discrete-time systems play a similar role as the Laplace transform in continuous-time systems
Why Fourier Transform
General Properties & Symmetry relations
Formula and steps
magnitude and phase spectra
Convergence Condition
mean-square convergence
Gibbs phenomenon
Direct Delta
Energy Density Spectrum
I am Ahmed M. I am a Signals and Systems Assignment Expert at matlabassignmentexperts.com. I hold a Master's in Matlab, from New York University, Abu Dhabi. I have been helping students with their assignments for the past 10 years. I solve assignments related to Signals and Systems.
Visit matlabassignmentexperts.com or email info@matlabassignmentexperts.com.
You can also call on +1 678 648 4277 for any assistance with Signals and Systems Assignment.
Conversion of transfer function to canonical state variable modelsJyoti Singh
Realization of transfer function into state variable models is needed even if the control system design based on frequency-domain design method.
In these cases the need arises for the purpose of transient response simulation.
But there is not much software for the numerical inversion of Laplace transform.
So one ways is to convert transfer function of the system to state variable description and numerically integrating the resulting differential equations rather than attempting to compute the inverse Laplace transform by numerical method.
I am Simon M. I am a Signals and Systems Assignment Expert at matlabassignmentexperts.com. I hold a Master's in Matlab, from The University, of Houston, USA. I have been helping students with their assignments for the past 15 years. I solve assignments related to Signals and Systems.
Visit matlabassignmentexperts.com or email info@matlabassignmentexperts.com.
You can also call on +1 678 648 4277 for any assistance with Signals and Systems Assignment.
Saudi Arabia stands as a titan in the global energy landscape, renowned for its abundant oil and gas resources. It's the largest exporter of petroleum and holds some of the world's most significant reserves. Let's delve into the top 10 oil and gas projects shaping Saudi Arabia's energy future in 2024.
About
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Technical Specifications
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
Key Features
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface
• Compatible with MAFI CCR system
• Copatiable with IDM8000 CCR
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
Application
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Explore the innovative world of trenchless pipe repair with our comprehensive guide, "The Benefits and Techniques of Trenchless Pipe Repair." This document delves into the modern methods of repairing underground pipes without the need for extensive excavation, highlighting the numerous advantages and the latest techniques used in the industry.
Learn about the cost savings, reduced environmental impact, and minimal disruption associated with trenchless technology. Discover detailed explanations of popular techniques such as pipe bursting, cured-in-place pipe (CIPP) lining, and directional drilling. Understand how these methods can be applied to various types of infrastructure, from residential plumbing to large-scale municipal systems.
Ideal for homeowners, contractors, engineers, and anyone interested in modern plumbing solutions, this guide provides valuable insights into why trenchless pipe repair is becoming the preferred choice for pipe rehabilitation. Stay informed about the latest advancements and best practices in the field.
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxR&R Consult
CFD analysis is incredibly effective at solving mysteries and improving the performance of complex systems!
Here's a great example: At a large natural gas-fired power plant, where they use waste heat to generate steam and energy, they were puzzled that their boiler wasn't producing as much steam as expected.
R&R and Tetra Engineering Group Inc. were asked to solve the issue with reduced steam production.
An inspection had shown that a significant amount of hot flue gas was bypassing the boiler tubes, where the heat was supposed to be transferred.
R&R Consult conducted a CFD analysis, which revealed that 6.3% of the flue gas was bypassing the boiler tubes without transferring heat. The analysis also showed that the flue gas was instead being directed along the sides of the boiler and between the modules that were supposed to capture the heat. This was the cause of the reduced performance.
Based on our results, Tetra Engineering installed covering plates to reduce the bypass flow. This improved the boiler's performance and increased electricity production.
It is always satisfying when we can help solve complex challenges like this. Do your systems also need a check-up or optimization? Give us a call!
Work done in cooperation with James Malloy and David Moelling from Tetra Engineering.
More examples of our work https://www.r-r-consult.dk/en/cases-en/
Student information management system project report ii.pdfKamal Acharya
Our project explains about the student management. This project mainly explains the various actions related to student details. This project shows some ease in adding, editing and deleting the student details. It also provides a less time consuming process for viewing, adding, editing and deleting the marks of the students.

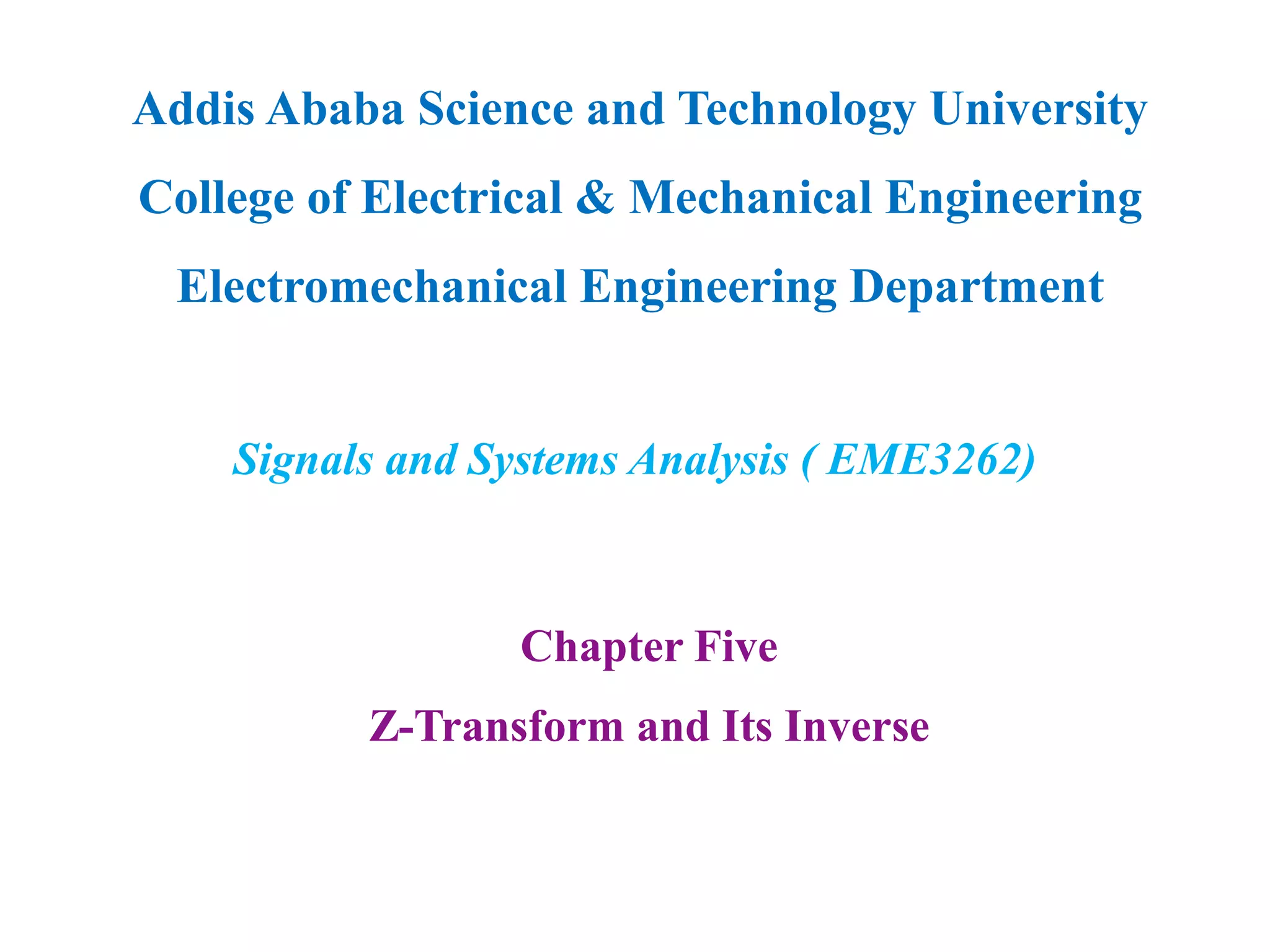

1. Chapter Five

Z-Transform and Its Inverse
Addis Ababa Science and Technology University
College of Electrical & Mechanical Engineering
Electromechanical Engineering Department
Signals and Systems Analysis ( EME3262)
2. Z-transform and Its Inverse
Outline
The Z-transform
Properties of the Z-transform
Transfer function of Discrete-time LTI Systems
Transform Domain Analysis using the Z-transform
1/1/2023 2
3. The Z-transform
The Z-transform of a discrete-time signal x(n), denoted by X(z),
is defined as:
The Z-transform is a mapping (transformation) from a sequence
to a power series.
We say that x(n) and X(z) are Z-transform pairs and denote this
relationship as:
3
1/1/2023
n
n
z
n
x
z
X )
(
)
(
)
certain
(with
)
(
)
( ROC
z
X
n
x Z
4. The Z-Plane
The variable z is complex and can be viewed in the z-plane.
The Z-transform of a discrete-time signal x(n) is a function X(z)
defined on the z-plane.
4
1/1/2023
5. Region of Convergence (ROC)
The region of convergence (ROC) is defined as the set of all
values of z for which X(z) has a finite values.
Every time we cite a Z-transform, we should indicate its ROC.
Example:
5
1/1/2023
6. Region of Convergence (ROC)……
Exercise:
1. Find the Z-transform of the following discrete-time signals and
state the ROC.
6
1/1/2023
)
(
)
(
.
)
1
(
)
(
.
)
(
)
(
.
)
1
(
)
(
.
)
(
)
(
.
n
u
a
n
x
c
n
u
a
n
x
e
n
u
n
x
b
n
u
a
n
x
d
n
n
x
a
n
n
n
7. Region of Convergence (ROC)……
2. Find the Z-transform of the following discrete-time signals and
state the ROC.
7
1/1/2023
)
1
(
3
)
(
.
)
(
3
)
1
(
2
)
(
.
)
(
)
2
(
)
(
.
)
1
(
3
)
(
2
)
(
.
)
(
2
)
(
.
n
u
n
x
c
n
u
n
u
n
x
e
n
u
n
x
b
n
u
n
u
n
x
d
n
u
n
x
a
n
n
n
n
n
n
n
11. Properties of the ROC……
In general, the ROC has the following properties.
i. The ROC can not contain any poles inside it.
ii. If x(n) is left-sided signal, then:
iii.If x(n) is right-sided signal, then:
11
1/1/2023
pole
outermost
the
is
:
,
: 2
2 r
r
z
ROC
pole
innermost
the
is
:
,
: 1
1 r
r
z
ROC
12. Properties of the ROC……
iv. If x(n) is two-sided signal, then:
v. If x(n) is a finite length signal, then ROC is the entire z-plane
except possibly at
vi. The DTFT of x(n) exists if and only if the ROC of x(n)
includes the unit circle.
12
1/1/2023
: 1
2 r
z
r
ROC
.
or
0
z
z
13. Properties of the ROC……
Exercise:
The Z-transform of a discrete-time signal x(n) is given by:
Determine:
a. all the possible ROCs
b. the corresponding discrete-time signal x(n) for each of the
above ROCs
13
1/1/2023
2
1
8
1
4
3
1
1
)
(
z
z
z
X
20. Rational Z-transforms
The most important and most commonly used Z-transforms are
those for which X(z) is a rational function of the form:
The roots of the numerator N(z) are known as the zeros of X(z).
The roots of the denominator D(z) are known as the poles of
X(z).
20
1/1/2023
N
M
M
M
N
k
k
k
M
k
k
k
z
a
z
a
a
z
b
z
b
b
z
a
z
b
z
D
z
N
z
X
.....
.....
)
(
)
(
)
( 1
1
0
1
1
0
0
0
21. Rational Z-transforms……
The above rational Z-transform contains:
M zeros at z1, z2, ……, zM
N poles at p1, p2, ……, pM
If M<N, then there are N-M additional zeros at the origin z=0.
If M>N, then there are M-N additional poles at the origin z=0.
If M=N, then X(z) has exactly the same number of poles and
zeros.
21
1/1/2023
22. Rational Z-transforms……
Exercise:
Find the Z-transform and sketch the pole-zero plots of the
following discrete-time signals.
22
1/1/2023
)
1
(
)
5
.
1
(
)
(
)
5
.
0
(
)
(
.
)
1
(
5
.
0
)
(
.
)
(
5
.
0
)
(
.
n
u
n
u
n
x
c
n
u
n
x
b
n
u
n
x
a
n
n
n
n
26. Inverse Z-transform
Inverting by Inspection:
The simplest inversion method is by inspection, or by comparing
with the table of common Z-transform pairs.
Exercise:
Find the inverse of the following Z-transforms by inspection.
26
1/1/2023
5
.
0
:
,
5
.
0
1
1
)
(
.
5
.
0
:
,
5
.
0
1
1
)
(
.
1
1
z
ROC
z
z
X
b
z
ROC
z
z
X
a
27. Inverse Z-transform……
Inverting by Partial Fractional Expansion:
This is a method of writing complex rational Z-transforms as a
sum of simple terms.
After expressing the complex rational Z-transform as a sum of
simple terms, each term can be inverted by inspection.
Exercise:
Find the inverse Z-transform by partial fractional expansion method.
27
1/1/2023
5
.
0
:
,
5
.
0
1
25
.
0
1
1
)
( 1
1
z
ROC
z
z
z
X
28. Transfer Function of Discrete-time LTI Systems
The Z-transform of the impulse response h(n) is known as the
transfer function of the system.
Mathematically:
We say that h(n) and H(z) are Z-transform pairs and denote this
relationship as:
28
1/1/2023
n
n
z
n
h
z
H )
(
)
(
)
(
)
( z
H
n
h Z
29. Transfer Function of Discrete-time LTI Systems……
The output y(n) of a discrete-time LTI system equals the
convolution of the input x(n) with the impulse response h(n),
i.e.,
Taking the Z-transform of both sides of the above equation by
applying the convolution property, we obtain:
29
1/1/2023
)
(
*
)
(
)
( n
h
n
x
n
y
)
(
)
(
)
(
)
(
)
(
)
(
z
X
z
Y
z
H
z
H
z
X
z
Y
30. Transfer Function of Discrete-time LTI Systems……
i. Causal LTI Systems
A discrete-time LTI system is causal if h(n)=0, n<0. In other
words, h(n) is right-sided signal.
Therefore, ROC of H(z) is an exterior region starting from the
outermost pole.
30
1/1/2023
31. Transfer Function of Discrete-time LTI Systems……
ii. Anti-causal LTI Systems
A discrete-time LTI system is anti-causal if h(n)=0, n>0. In
other words, h(n) is left-sided signal.
Therefore, ROC of H(z) is an interior region starting from the
innermost pole.
31
1/1/2023
32. Transfer Function of Discrete-time LTI Systems……
iii. BIBO Stable LTI Systems
A discrete-time LTI system is BIBO stable if h(n) is absolutely
summable, i.e. ,
Therefore, ROC of H(z) always contains the unit circle.
32
1/1/2023
n
n
h )
(
34. Transfer Function of Discrete-time LTI Systems……
iv. Causal & BIBO stable LTI Systems
The ROC of H(z) must be an exterior region starting from the
outermost pole and contains the unit circle.
In other words, all poles must be inside the unit circle.
34
1/1/2023
35. Transfer Function of Discrete-time LTI Systems……
Exercise:
1. The transfer function of a discrete-time LTI system is given by:
a. Find the poles and zeros of H(z).
b. Sketch the pole-zero plot.
c. Find the impulse response h(n) if the system is known to be:
i. causal iii. BIBO stable
ii. anti-causal
35
1/1/2023
2
1
1
5
.
2
1
3
3
)
(
z
z
z
z
H
36. Transfer Function of Discrete-time LTI Systems……
2. Plot the ROC of H(z) for discrete-time LTI systems that are:
a. causal & BIBO stable
b. causal & unstable
c. anti-causal & BIBO stable
d. anti-causal & unstable
36
1/1/2023
37. Transform Domain Analysis using the Z-transform
The procedure for evaluating the output y(n) of a discrete-time
LTI system using the Z-transform consists of the following four
steps.
1. Calculate the Z-transform X(z) of the input signal x(n).
2. Calculate the Z-transform H(z) of the impulse response h(n) of
the discrete-time LTI system.
37
1/1/2023
38. Transform Domain Analysis using the Z-transform….
3. Based on the convolution property, the Z-transform of the
output y(n) is given by Y(z) = H(z)X(z).
4. The output y(n) in the time domain is obtained by calculating
the inverse Z-transform of Y(z) obtained in step (3).
38
1/1/2023
39. Exercise
1. Find the Z-transform of the following discrete-time signals.
2. Find the inverse Z-transform of:
39
1/1/2023
)
1
(
2
1
)
(
3
1
)
(
.
)
(
3
1
)
(
2
1
)
(
.
n
u
n
u
n
x
b
n
u
n
u
n
x
a
n
n
n
n
2
1
:
,
2
1
1
4
1
1
1
)
(
1
1
z
ROC
z
z
z
X
40. Exercise……
3. The input to a causal discrete-time LTI system is given by:
The Z-transform of the output of this system is:
a. Determine the impulse response h(n) of the system.
b. Find the output y(n) of the system.
40
1/1/2023
)
(
2
1
)
1
(
)
( n
u
n
u
n
x
n
1
1
1
1
2
1
1
2
1
)
(
z
z
z
z
Y
