Shyamoli textile Engineering college
B.Sc In Textile Engineering
Level-1,Term-1(session:2018-2019)

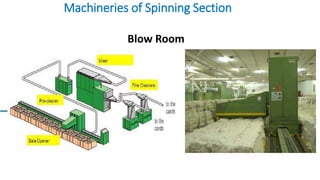

Machineries of Spinning Section
Blow Room

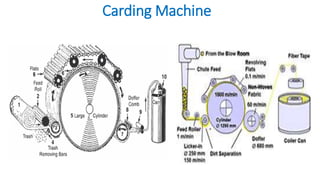

Carding Machine

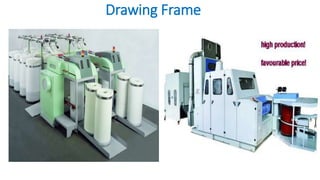

Drawing Frame
Yarn mnfg

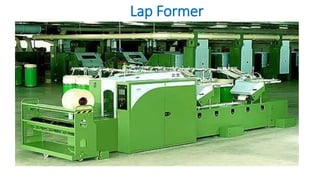

Lap Former
Comber

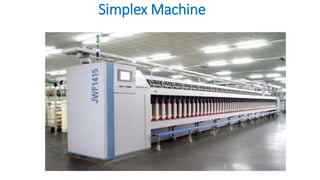

Simplex Machine

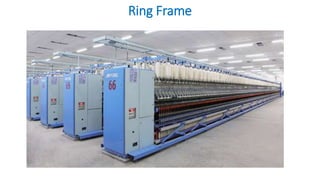

Ring Frame

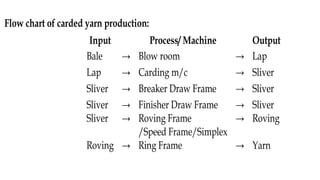

Flow chart of carded yarn production:
Input Process/ Machine Output
Bale → Blow room → Lap
Lap → Carding m/c → Sliver
Sliver → Breaker Draw Frame → Sliver
Sliver → Finisher Draw Frame → Sliver
Sliver → Roving Frame
/Speed Frame/Simplex
→ Roving
Roving → Ring Frame → Yarn
Flow chart of combed yarn production:
Input Process/ Machine Output
Bale management
↓
Fibre → Blow room → Lap
Lap → Carding m/c → Sliver
Sliver → Pre comb drawing → Sliver
Sliver → Lap former → Lap
Lap → Combing → Sliver
Sliver → Post comb drawing → Sliver
Sliver → Simplex → Roving
Roving → Ring Frame → Yarn

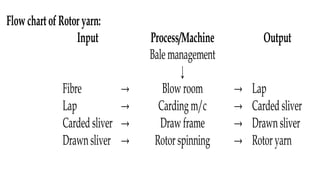

FlowchartofRotoryarn:
Input Process/Machine Output
Balemanagement
↓
Fibre → Blowroom → Lap
Lap → Cardingm/c → Cardedsliver
Cardedsliver → Drawframe → Drawn sliver
Drawn sliver → Rotorspinning → Rotoryarn

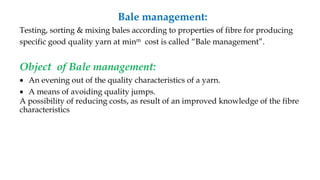

Bale management:
Testing, sorting & mixing bales according to properties of fibre for producing
specific good quality yarn at minm cost is called “Bale management”.
Object of Bale management:
 An evening out of the quality characteristics of a yarn.
 A means of avoiding quality jumps.
A possibility of reducing costs, as result of an improved knowledge of the fibre
characteristics
Yarn mnfg

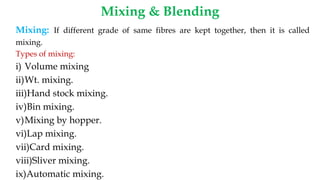

Mixing & Blending
Mixing: If different grade of same fibres are kept together, then it is called
mixing.
Types of mixing:
i) Volume mixing
ii)Wt. mixing.
iii)Hand stock mixing.
iv)Bin mixing.
v)Mixing by hopper.
vi)Lap mixing.
vii)Card mixing.
viii)Sliver mixing.
ix)Automatic mixing.

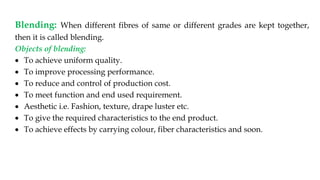

Blending: When different fibres of same or different grades are kept together,
then it is called blending.
Objects of blending:
 To achieve uniform quality.
 To improve processing performance.
 To reduce and control of production cost.
 To meet function and end used requirement.
 Aesthetic i.e. Fashion, texture, drape luster etc.
 To give the required characteristics to the end product.
 To achieve effects by carrying colour, fiber characteristics and soon.

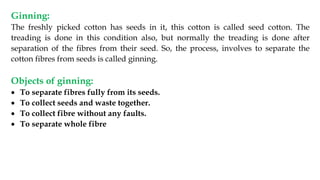

Ginning:
The freshly picked cotton has seeds in it, this cotton is called seed cotton. The
treading is done in this condition also, but normally the treading is done after
separation of the fibres from their seed. So, the process, involves to separate the
cotton fibres from seeds is called ginning.
Objects of ginning:
 To separate fibres fully from its seeds.
 To collect seeds and waste together.
 To collect fibre without any faults.
 To separate whole fibre

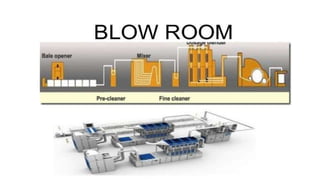

Blow Room:
Blow Room consists of a number of machines used in succession to open and
clean the cotton fiber to the required degree.
40 to 70% trash is removed in this section.
Blow Room Section:
A section in which the supplied compressed bales are opened, cleaned and
blending or mixing to form uniforms lap of specific length is called Blow Room
section. The cleaning efficiency of blow room is 60 to 65%. This is the first section
of spinning line for spgn wt cotton yarn.
Yarn mnfg
Operation in Blow Room:
I. Opening:
a. To open the compressed bales of fibers &
b. To make the cotton tuft a small size as for as possible.
II. Cleaning: To remove the dirt, dust, broken seeds broken leafs, stalks and another
foreign materials from the fibers.
III. Bending or Mixing: To make good value of yarn and to decrease the production
cost by mixing different grade of fibers.
IV.Lap forming:
a. To transfer the opened and cleaned fibers into a sheet form of definite width and uniform
unit length which is called lap.
b. To roll the lap of predetermined length in a cylindrical shape around a lap pin.
c. To transfer the lap from the lap pin to a rod to suitable handle and feed it to subsequence
processing carding m/c
Yarn mnfg

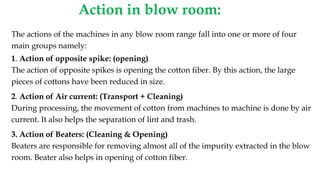

Action in blow room:
The actions of the machines in any blow room range fall into one or more of four
main groups namely:
1. Action of opposite spike: (opening)
The action of opposite spikes is opening the cotton fiber. By this action, the large
pieces of cottons have been reduced in size.
2. Action of Air current: (Transport + Cleaning)
During processing, the movement of cotton from machines to machine is done by air
current. It also helps the separation of lint and trash.
3. Action of Beaters: (Cleaning & Opening)
Beaters are responsible for removing almost all of the impurity extracted in the blow
room. Beater also helps in opening of cotton fiber.

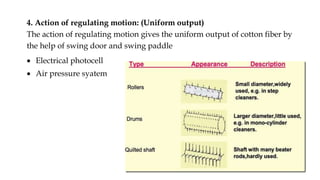

4. Action of regulating motion: (Uniform output)
The action of regulating motion gives the uniform output of cotton fiber by
the help of swing door and swing paddle
 Electrical photocell
 Air pressure syatem

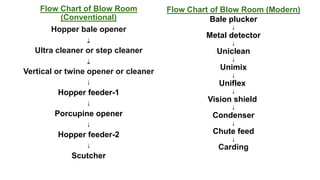

Flow Chart of Blow Room
(Conventional)
Hopper bale opener
↓

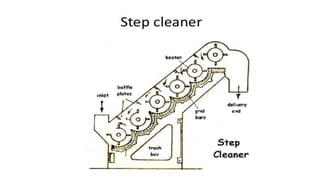

Ultra cleaner or step cleaner
↓
Vertical or twine opener or cleaner
↓
Hopper feeder-1
↓
Porcupine opener
↓
Hopper feeder-2
↓
Scutcher

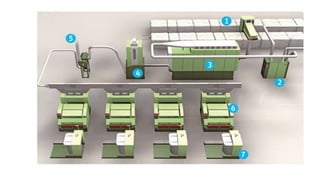

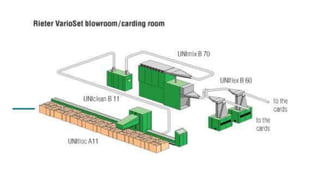

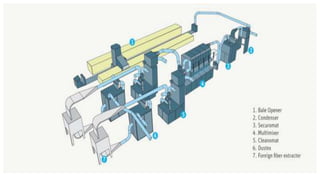

Flow Chart of Blow Room (Modern)
Bale plucker
↓
Metal detector
↓
Uniclean
↓
Unimix
↓
Uniflex
↓
Vision shield
↓
Condenser
↓
Chute feed
↓
Carding
Yarn mnfg
Yarn mnfg
Yarn mnfg

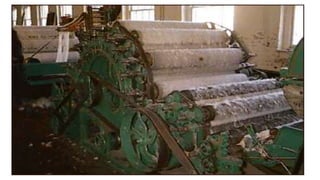

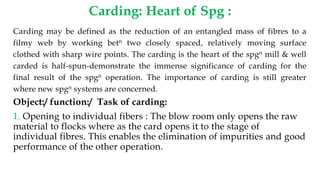

Carding: Heart of Spg :
Carding may be defined as the reduction of an entangled mass of fibres to a
filmy web by working betn two closely spaced, relatively moving surface
clothed with sharp wire points. The carding is the heart of the spgn mill & well
carded is half-spun-demonstrate the immense significance of carding for the
final result of the spgn operation. The importance of carding is still greater
where new spgn systems are concerned.
Object:/ function:/ Task of carding:
1. Opening to individual fibers : The blow room only opens the raw
material to flocks where as the card opens it to the stage of
individual fibres. This enables the elimination of impurities and good
performance of the other operation.
Yarn mnfg

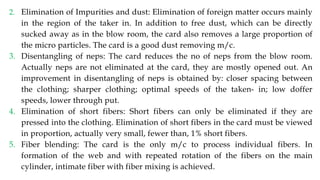

2. Elimination of Impurities and dust: Elimination of foreign matter occurs mainly
in the region of the taker in. In addition to free dust, which can be directly
sucked away as in the blow room, the card also removes a large proportion of
the micro particles. The card is a good dust removing m/c.
3. Disentangling of neps: The card reduces the no of neps from the blow room.
Actually neps are not eliminated at the card, they are mostly opened out. An
improvement in disentangling of neps is obtained by: closer spacing between
the clothing; sharper clothing; optimal speeds of the taken- in; low doffer
speeds, lower through put.
4. Elimination of short fibers: Short fibers can only be eliminated if they are
pressed into the clothing. Elimination of short fibers in the card must be viewed
in proportion, actually very small, fewer than, 1% short fibers.
5. Fiber blending: The card is the only m/c to process individual fibers. In
formation of the web and with repeated rotation of the fibers on the main
cylinder, intimate fiber with fiber mixing is achieved.

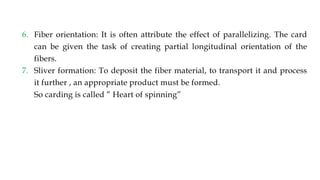

6. Fiber orientation: It is often attribute the effect of parallelizing. The card
can be given the task of creating partial longitudinal orientation of the
fibers.
7. Sliver formation: To deposit the fiber material, to transport it and process
it further , an appropriate product must be formed.
So carding is called ” Heart of spinning”

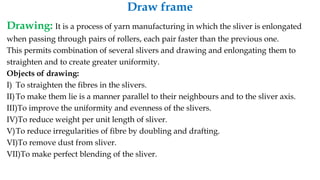

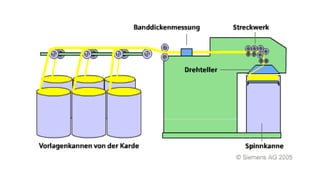

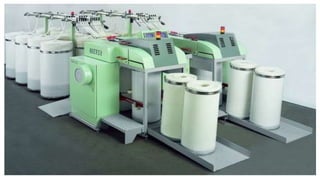

Draw frame
Drawing: It is a process of yarn manufacturing in which the sliver is enlongated
when passing through pairs of rollers, each pair faster than the previous one.
This permits combination of several slivers and drawing and enlongating them to
straighten and to create greater uniformity.
Objects of drawing:
I) To straighten the fibres in the slivers.
II)To make them lie is a manner parallel to their neighbours and to the sliver axis.
III)To improve the uniformity and evenness of the slivers.
IV)To reduce weight per unit length of sliver.
V)To reduce irregularities of fibre by doubling and drafting.
VI)To remove dust from sliver.
VII)To make perfect blending of the sliver.
Yarn mnfg

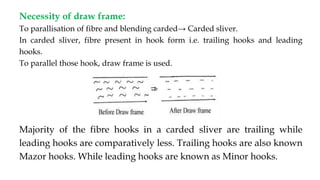

Necessity of draw frame:
To parallisation of fibre and blending carded→ Carded sliver.
In carded sliver, fibre present in hook form i.e. trailing hooks and leading
hooks.
To parallel those hook, draw frame is used.
Majority of the fibre hooks in a carded sliver are trailing while
leading hooks are comparatively less. Trailing hooks are also known
Mazor hooks. While leading hooks are known as Minor hooks.
Tasks of draw frame:
I) Equalizing.
II)Parallelizing.
III)Blending.
IV)Dust removal.
I) Equalizing: One of the main tasks of the draw frame is improving evenness
over short, medium and especially long terms. Carded slivers fed to the draw
frame have degree of unevenness that can not be tolerated in practice and
slivers from the comber contain the ‘infamous’ piecing. It is obscured by draw
frame.
Equalizing is always performed by a first process, namely doubling and can
optionally also be performed by a second process, namely autolevelling. The
draft and the doublings often have the same value and lie in the range of 6 to 8

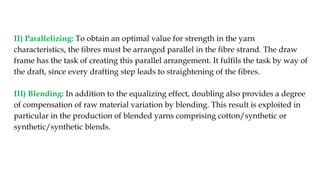

II) Parallelizing: To obtain an optimal value for strength in the yarn
characteristics, the fibres must be arranged parallel in the fibre strand. The draw
frame has the task of creating this parallel arrangement. It fulfils the task by way of
the draft, since every drafting step leads to straightening of the fibres.
III) Blending: In addition to the equalizing effect, doubling also provides a degree
of compensation of raw material variation by blending. This result is exploited in
particular in the production of blended yarns comprising cotton/synthetic or
synthetic/synthetic blends.

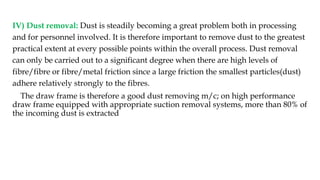

IV) Dust removal: Dust is steadily becoming a great problem both in processing
and for personnel involved. It is therefore important to remove dust to the greatest
practical extent at every possible points within the overall process. Dust removal
can only be carried out to a significant degree when there are high levels of
fibre/fibre or fibre/metal friction since a large friction the smallest particles(dust)
adhere relatively strongly to the fibres.
The draw frame is therefore a good dust removing m/c; on high performance
draw frame equipped with appropriate suction removal systems, more than 80% of
the incoming dust is extracted
Yarn mnfg
Yarn mnfg

More Related Content

What's hot

Yarn spining...
Yarn spining...Yarn spining...
Yarn spining...
Shalehur Rahman Samy

Element of Textile I Handloom I Parts of Looms & Accessories I Basic Weaves F...
Element of Textile I Handloom I Parts of Looms & Accessories I Basic Weaves F...Element of Textile I Handloom I Parts of Looms & Accessories I Basic Weaves F...
Element of Textile I Handloom I Parts of Looms & Accessories I Basic Weaves F...
Anil Kumar

fabric manufacturing
 fabric manufacturing fabric manufacturing
fabric manufacturing
Farhan ullah baig

Terry-a pile fabric
Terry-a pile fabricTerry-a pile fabric
Terry-a pile fabric
shivraj jaiswal

Technical Fabrics
Technical FabricsTechnical Fabrics
Technical Fabrics
José Carlos de Castro

Project 2. CONTEMPORARY ART OF WEAVING (Sem 2. 2016/2017)
Project 2. CONTEMPORARY ART OF WEAVING (Sem 2. 2016/2017)Project 2. CONTEMPORARY ART OF WEAVING (Sem 2. 2016/2017)
Project 2. CONTEMPORARY ART OF WEAVING (Sem 2. 2016/2017)
Nurul Aqila Ahamad Kamal

Terry Towel Production
Terry Towel ProductionTerry Towel Production
Terry Towel Production
Azmir Latif Beg

Introduction of weaving
Introduction of weavingIntroduction of weaving
Introduction of weaving
Amanuzzaman Aman

Fabric Structure and Design
Fabric Structure and DesignFabric Structure and Design
Fabric Structure and Design
Muktar Seid Hussen

Principles and machinery for yarn production
Principles and machinery for yarn productionPrinciples and machinery for yarn production
Principles and machinery for yarn production
Dr.S.Kathirvelu Subramanian

Weaving
WeavingWeaving
Special Fabrics
Special FabricsSpecial Fabrics
Special Fabrics
Azmir Latif Beg

Basics of Fabric Manufacturing
Basics of Fabric ManufacturingBasics of Fabric Manufacturing
Basics of Fabric Manufacturing
Md Nurunnabi

Textile training
Textile trainingTextile training
Textile training
Fergul Kuzucuoglu

Internship Raymond Mills
Internship Raymond Mills Internship Raymond Mills
Internship Raymond Mills
Naushad Zubair

Basic weaves and their characteristics
Basic weaves and their characteristicsBasic weaves and their characteristics
Basic weaves and their characteristics
Bannari Amman Institute of Technology

2 the effectsof tightness factor on spirality and seams displacement of tubul...
2 the effectsof tightness factor on spirality and seams displacement of tubul...2 the effectsof tightness factor on spirality and seams displacement of tubul...
2 the effectsof tightness factor on spirality and seams displacement of tubul...
Kentish Chintaram

weaves
weavesweaves
Ring spun yarn
Ring spun yarnRing spun yarn
Ring spun yarn
Azmir Latif Beg

Fabric Structure & Design
Fabric Structure & DesignFabric Structure & Design
Fabric Structure & Design
Md Nurunnabi


What's hot (20)

Yarn spining...
Yarn spining...Yarn spining...
Yarn spining...

Element of Textile I Handloom I Parts of Looms & Accessories I Basic Weaves F...
Element of Textile I Handloom I Parts of Looms & Accessories I Basic Weaves F...Element of Textile I Handloom I Parts of Looms & Accessories I Basic Weaves F...
Element of Textile I Handloom I Parts of Looms & Accessories I Basic Weaves F...

fabric manufacturing
 fabric manufacturing fabric manufacturing
fabric manufacturing

Terry-a pile fabric
Terry-a pile fabricTerry-a pile fabric
Terry-a pile fabric

Technical Fabrics
Technical FabricsTechnical Fabrics
Technical Fabrics

Project 2. CONTEMPORARY ART OF WEAVING (Sem 2. 2016/2017)
Project 2. CONTEMPORARY ART OF WEAVING (Sem 2. 2016/2017)Project 2. CONTEMPORARY ART OF WEAVING (Sem 2. 2016/2017)
Project 2. CONTEMPORARY ART OF WEAVING (Sem 2. 2016/2017)

Terry Towel Production
Terry Towel ProductionTerry Towel Production
Terry Towel Production

Introduction of weaving
Introduction of weavingIntroduction of weaving
Introduction of weaving

Fabric Structure and Design
Fabric Structure and DesignFabric Structure and Design
Fabric Structure and Design

Principles and machinery for yarn production
Principles and machinery for yarn productionPrinciples and machinery for yarn production
Principles and machinery for yarn production

Weaving
WeavingWeaving
Weaving

Special Fabrics
Special FabricsSpecial Fabrics
Special Fabrics

Basics of Fabric Manufacturing
Basics of Fabric ManufacturingBasics of Fabric Manufacturing
Basics of Fabric Manufacturing

Textile training
Textile trainingTextile training
Textile training

Internship Raymond Mills
Internship Raymond Mills Internship Raymond Mills
Internship Raymond Mills

Basic weaves and their characteristics
Basic weaves and their characteristicsBasic weaves and their characteristics
Basic weaves and their characteristics

2 the effectsof tightness factor on spirality and seams displacement of tubul...
2 the effectsof tightness factor on spirality and seams displacement of tubul...2 the effectsof tightness factor on spirality and seams displacement of tubul...
2 the effectsof tightness factor on spirality and seams displacement of tubul...

weaves
weavesweaves
weaves

Ring spun yarn
Ring spun yarnRing spun yarn
Ring spun yarn

Fabric Structure & Design
Fabric Structure & DesignFabric Structure & Design
Fabric Structure & Design


Similar to Yarn mnfg

class 2.ppt
class 2.pptclass 2.ppt
class 2.ppt
dejene1234567

spinning
spinningspinning
How jeans are made
How jeans are madeHow jeans are made
How jeans are made
Md. Mazadul Hasan Shishir

DRAWFRAME PRESENTATION
DRAWFRAME PRESENTATION DRAWFRAME PRESENTATION
DRAWFRAME PRESENTATION
R.C.Technical Institute

Draw Frame lecture 1.pptx
Draw Frame lecture 1.pptxDraw Frame lecture 1.pptx
Draw Frame lecture 1.pptx
ssuser94922c

Spinning [compatibility mode],Yarn types classification
Spinning [compatibility mode],Yarn types classificationSpinning [compatibility mode],Yarn types classification
Spinning [compatibility mode],Yarn types classification
BGMEA University of Fashion & Technology

Machineries Required for Spinning
Machineries Required for SpinningMachineries Required for Spinning
Machineries Required for Spinning
Zaki Mujahid

Weaving process in textile
Weaving process in textileWeaving process in textile
Weaving process in textile
Mdibrahimkhalil31

Tpm 1
Tpm   1Tpm   1
Opening, cleaning, mixing & blending
Opening, cleaning, mixing & blendingOpening, cleaning, mixing & blending
Opening, cleaning, mixing & blending
Yaba College of Technology, Lagos Nigeria.

Yarn Manufacturing Process : Comber Part I
Yarn Manufacturing Process : Comber Part IYarn Manufacturing Process : Comber Part I
Yarn Manufacturing Process : Comber Part I
SVKMs, NMIMS, MPSTME, CTF, Shirpur, Dist. Dhule

Fabric Forming Processes
Fabric Forming ProcessesFabric Forming Processes
Fabric Forming Processes
AlokPatel528726

Fibre to yarn
Fibre to yarnFibre to yarn
Fibre to yarn
Karcahi university

study on cotton draw frame
study on cotton draw framestudy on cotton draw frame
study on cotton draw frame
Nur Uddin

Maksons Spinning Mills Ltd. by Md.Mehedi Hassan Rifat
Maksons Spinning Mills Ltd. by Md.Mehedi Hassan RifatMaksons Spinning Mills Ltd. by Md.Mehedi Hassan Rifat
Maksons Spinning Mills Ltd. by Md.Mehedi Hassan Rifat
Md.Mehedi Hassan

Spinning technology
Spinning technology Spinning technology
Spinning technology
Shahriar Shovon

Blowroom.docx
Blowroom.docxBlowroom.docx
Blowroom.docx
rakib742251

textile manufacturing mohini create by rizwan qureshi
textile manufacturing mohini create by rizwan qureshitextile manufacturing mohini create by rizwan qureshi
textile manufacturing mohini create by rizwan qureshi
Multi Addiction

Draw frame (1)
Draw frame (1)Draw frame (1)
Draw frame (1)
Shahriar Shovon

Weaving (FME-1)
Weaving (FME-1)Weaving (FME-1)
Weaving (FME-1)
Mazharul Islam


Similar to Yarn mnfg (20)

class 2.ppt
class 2.pptclass 2.ppt
class 2.ppt

spinning
spinningspinning
spinning

How jeans are made
How jeans are madeHow jeans are made
How jeans are made

DRAWFRAME PRESENTATION
DRAWFRAME PRESENTATION DRAWFRAME PRESENTATION
DRAWFRAME PRESENTATION

Draw Frame lecture 1.pptx
Draw Frame lecture 1.pptxDraw Frame lecture 1.pptx
Draw Frame lecture 1.pptx

Spinning [compatibility mode],Yarn types classification
Spinning [compatibility mode],Yarn types classificationSpinning [compatibility mode],Yarn types classification
Spinning [compatibility mode],Yarn types classification

Machineries Required for Spinning
Machineries Required for SpinningMachineries Required for Spinning
Machineries Required for Spinning

Weaving process in textile
Weaving process in textileWeaving process in textile
Weaving process in textile

Tpm 1
Tpm   1Tpm   1
Tpm 1

Opening, cleaning, mixing & blending
Opening, cleaning, mixing & blendingOpening, cleaning, mixing & blending
Opening, cleaning, mixing & blending

Yarn Manufacturing Process : Comber Part I
Yarn Manufacturing Process : Comber Part IYarn Manufacturing Process : Comber Part I
Yarn Manufacturing Process : Comber Part I

Fabric Forming Processes
Fabric Forming ProcessesFabric Forming Processes
Fabric Forming Processes

Fibre to yarn
Fibre to yarnFibre to yarn
Fibre to yarn

study on cotton draw frame
study on cotton draw framestudy on cotton draw frame
study on cotton draw frame

Maksons Spinning Mills Ltd. by Md.Mehedi Hassan Rifat
Maksons Spinning Mills Ltd. by Md.Mehedi Hassan RifatMaksons Spinning Mills Ltd. by Md.Mehedi Hassan Rifat
Maksons Spinning Mills Ltd. by Md.Mehedi Hassan Rifat

Spinning technology
Spinning technology Spinning technology
Spinning technology

Blowroom.docx
Blowroom.docxBlowroom.docx
Blowroom.docx

textile manufacturing mohini create by rizwan qureshi
textile manufacturing mohini create by rizwan qureshitextile manufacturing mohini create by rizwan qureshi
textile manufacturing mohini create by rizwan qureshi

Draw frame (1)
Draw frame (1)Draw frame (1)
Draw frame (1)

Weaving (FME-1)
Weaving (FME-1)Weaving (FME-1)
Weaving (FME-1)


More from Zahidul Islam

Untit ds dsled(2)
Untit ds dsled(2)Untit ds dsled(2)
Untit ds dsled(2)
Zahidul Islam

Untitas ds aled(2)
Untitas ds aled(2)Untitas ds aled(2)
Untitas ds aled(2)
Zahidul Islam

Untidfsfsdftled(2)
Untidfsfsdftled(2)Untidfsfsdftled(2)
Untidfsfsdftled(2)
Zahidul Islam

Untdsadasitled(2)
Untdsadasitled(2)Untdsadasitled(2)
Untdsadasitled(2)
Zahidul Islam

Ugntitled(2)
Ugntitled(2)Ugntitled(2)
Ugntitled(2)
Zahidul Islam

Radius of-curvature
Radius of-curvatureRadius of-curvature
Radius of-curvature
Zahidul Islam

Physics 1
Physics 1Physics 1
Physics 1
Zahidul Islam

Asdasd untitled(2)
Asdasd untitled(2)Asdasd untitled(2)
Asdasd untitled(2)
Zahidul Islam

Viscosity
ViscosityViscosity
Viscosity
Zahidul Islam

Surface tension
Surface tensionSurface tension
Surface tension
Zahidul Islam

Physics verification of huygens prin. & young's mathematical analysis
Physics verification of huygens prin. & young's  mathematical analysisPhysics verification of huygens prin. & young's  mathematical analysis
Physics verification of huygens prin. & young's mathematical analysis
Zahidul Islam

Fluid mechanics
Fluid mechanicsFluid mechanics
Fluid mechanics
Zahidul Islam

Elasticity
ElasticityElasticity
Elasticity
Zahidul Islam

Dynamics of circular motion
Dynamics of circular motionDynamics of circular motion
Dynamics of circular motion
Zahidul Islam

Phydics assignment
Phydics assignmentPhydics assignment
Phydics assignment
Zahidul Islam

New doc 2019 07-25 12.12.58
New doc 2019 07-25 12.12.58New doc 2019 07-25 12.12.58
New doc 2019 07-25 12.12.58
Zahidul Islam

New doc 2019 07-24 20.50.24
New doc 2019 07-24 20.50.24New doc 2019 07-24 20.50.24
New doc 2019 07-24 20.50.24
Zahidul Islam

Series
SeriesSeries
Limit & maxima
Limit & maximaLimit & maxima
Limit & maxima
Zahidul Islam

Area, surface & volume
Area, surface & volumeArea, surface & volume
Area, surface & volume
Zahidul Islam


More from Zahidul Islam (20)

Untit ds dsled(2)
Untit ds dsled(2)Untit ds dsled(2)
Untit ds dsled(2)

Untitas ds aled(2)
Untitas ds aled(2)Untitas ds aled(2)
Untitas ds aled(2)

Untidfsfsdftled(2)
Untidfsfsdftled(2)Untidfsfsdftled(2)
Untidfsfsdftled(2)

Untdsadasitled(2)
Untdsadasitled(2)Untdsadasitled(2)
Untdsadasitled(2)

Ugntitled(2)
Ugntitled(2)Ugntitled(2)
Ugntitled(2)

Radius of-curvature
Radius of-curvatureRadius of-curvature
Radius of-curvature

Physics 1
Physics 1Physics 1
Physics 1

Asdasd untitled(2)
Asdasd untitled(2)Asdasd untitled(2)
Asdasd untitled(2)

Viscosity
ViscosityViscosity
Viscosity

Surface tension
Surface tensionSurface tension
Surface tension

Physics verification of huygens prin. & young's mathematical analysis
Physics verification of huygens prin. & young's  mathematical analysisPhysics verification of huygens prin. & young's  mathematical analysis
Physics verification of huygens prin. & young's mathematical analysis

Fluid mechanics
Fluid mechanicsFluid mechanics
Fluid mechanics

Elasticity
ElasticityElasticity
Elasticity

Dynamics of circular motion
Dynamics of circular motionDynamics of circular motion
Dynamics of circular motion

Phydics assignment
Phydics assignmentPhydics assignment
Phydics assignment

New doc 2019 07-25 12.12.58
New doc 2019 07-25 12.12.58New doc 2019 07-25 12.12.58
New doc 2019 07-25 12.12.58

New doc 2019 07-24 20.50.24
New doc 2019 07-24 20.50.24New doc 2019 07-24 20.50.24
New doc 2019 07-24 20.50.24

Series
SeriesSeries
Series

Limit & maxima
Limit & maximaLimit & maxima
Limit & maxima

Area, surface & volume
Area, surface & volumeArea, surface & volume
Area, surface & volume


Recently uploaded

Individual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docxIndividual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docx
monicaaringo1

How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17
Celine George

Principles of Roods Approach!!!!!!!.pptx
Principles of Roods Approach!!!!!!!.pptxPrinciples of Roods Approach!!!!!!!.pptx
Principles of Roods Approach!!!!!!!.pptx
ibtesaam huma

How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17
Celine George

How to Handle the Separate Discount Account on Invoice in Odoo 17
How to Handle the Separate Discount Account on Invoice in Odoo 17How to Handle the Separate Discount Account on Invoice in Odoo 17
How to Handle the Separate Discount Account on Invoice in Odoo 17
Celine George

NLC English 7 Consolidation Lesson plan for teacher
NLC English 7 Consolidation Lesson plan for teacherNLC English 7 Consolidation Lesson plan for teacher
NLC English 7 Consolidation Lesson plan for teacher
AngelicaLubrica

NAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource BookNAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource Book
lakitawilson

"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ..."DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
thanhluan21

Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptxKesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
artenzmartenkai

Unlocking Educational Synergy-DIKSHA & Google Classroom.pptx
Unlocking Educational Synergy-DIKSHA & Google Classroom.pptxUnlocking Educational Synergy-DIKSHA & Google Classroom.pptx
Unlocking Educational Synergy-DIKSHA & Google Classroom.pptx
bipin95

Chapter-2-Era-of-One-party-Dominance-Class-12-Political-Science-Notes-2 (1).pptx
Chapter-2-Era-of-One-party-Dominance-Class-12-Political-Science-Notes-2 (1).pptxChapter-2-Era-of-One-party-Dominance-Class-12-Political-Science-Notes-2 (1).pptx
Chapter-2-Era-of-One-party-Dominance-Class-12-Political-Science-Notes-2 (1).pptx
Brajeswar Paul

Is Email Marketing Really Effective In 2024?
Is Email Marketing Really Effective In 2024?Is Email Marketing Really Effective In 2024?
Is Email Marketing Really Effective In 2024?
Rakesh Jalan

Edukasyong Pantahanan at Pangkabuhayan 1: Personal Hygiene
Edukasyong Pantahanan at  Pangkabuhayan 1: Personal HygieneEdukasyong Pantahanan at  Pangkabuhayan 1: Personal Hygiene
Edukasyong Pantahanan at Pangkabuhayan 1: Personal Hygiene
MJDuyan

How to Create Sequence Numbers in Odoo 17
How to Create Sequence Numbers in Odoo 17How to Create Sequence Numbers in Odoo 17
How to Create Sequence Numbers in Odoo 17
Celine George

AI_in_HR_Presentation Part 1 2024 0703.pdf
AI_in_HR_Presentation Part 1 2024 0703.pdfAI_in_HR_Presentation Part 1 2024 0703.pdf
AI_in_HR_Presentation Part 1 2024 0703.pdf
SrimanigandanMadurai

How to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 WebsiteHow to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 Website
Celine George

Configuring Single Sign-On (SSO) via Identity Management | MuleSoft Mysore Me...
Configuring Single Sign-On (SSO) via Identity Management | MuleSoft Mysore Me...Configuring Single Sign-On (SSO) via Identity Management | MuleSoft Mysore Me...
Configuring Single Sign-On (SSO) via Identity Management | MuleSoft Mysore Me...
MysoreMuleSoftMeetup

How to Show Sample Data in Tree and Kanban View in Odoo 17
How to Show Sample Data in Tree and Kanban View in Odoo 17How to Show Sample Data in Tree and Kanban View in Odoo 17
How to Show Sample Data in Tree and Kanban View in Odoo 17
Celine George

How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17
Celine George

SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES  Lecture_Notes_Unit4_chapter11_sequenceSEQUNCES  Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
Murugan Solaiyappan


Recently uploaded (20)

Individual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docxIndividual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docx

How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17

Principles of Roods Approach!!!!!!!.pptx
Principles of Roods Approach!!!!!!!.pptxPrinciples of Roods Approach!!!!!!!.pptx
Principles of Roods Approach!!!!!!!.pptx

How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17

How to Handle the Separate Discount Account on Invoice in Odoo 17
How to Handle the Separate Discount Account on Invoice in Odoo 17How to Handle the Separate Discount Account on Invoice in Odoo 17
How to Handle the Separate Discount Account on Invoice in Odoo 17

NLC English 7 Consolidation Lesson plan for teacher
NLC English 7 Consolidation Lesson plan for teacherNLC English 7 Consolidation Lesson plan for teacher
NLC English 7 Consolidation Lesson plan for teacher

NAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource BookNAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource Book

"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ..."DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...

Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptxKesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx

Unlocking Educational Synergy-DIKSHA & Google Classroom.pptx
Unlocking Educational Synergy-DIKSHA & Google Classroom.pptxUnlocking Educational Synergy-DIKSHA & Google Classroom.pptx
Unlocking Educational Synergy-DIKSHA & Google Classroom.pptx

Chapter-2-Era-of-One-party-Dominance-Class-12-Political-Science-Notes-2 (1).pptx
Chapter-2-Era-of-One-party-Dominance-Class-12-Political-Science-Notes-2 (1).pptxChapter-2-Era-of-One-party-Dominance-Class-12-Political-Science-Notes-2 (1).pptx
Chapter-2-Era-of-One-party-Dominance-Class-12-Political-Science-Notes-2 (1).pptx

Is Email Marketing Really Effective In 2024?
Is Email Marketing Really Effective In 2024?Is Email Marketing Really Effective In 2024?
Is Email Marketing Really Effective In 2024?

Edukasyong Pantahanan at Pangkabuhayan 1: Personal Hygiene
Edukasyong Pantahanan at  Pangkabuhayan 1: Personal HygieneEdukasyong Pantahanan at  Pangkabuhayan 1: Personal Hygiene
Edukasyong Pantahanan at Pangkabuhayan 1: Personal Hygiene

How to Create Sequence Numbers in Odoo 17
How to Create Sequence Numbers in Odoo 17How to Create Sequence Numbers in Odoo 17
How to Create Sequence Numbers in Odoo 17

AI_in_HR_Presentation Part 1 2024 0703.pdf
AI_in_HR_Presentation Part 1 2024 0703.pdfAI_in_HR_Presentation Part 1 2024 0703.pdf
AI_in_HR_Presentation Part 1 2024 0703.pdf

How to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 WebsiteHow to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 Website

Configuring Single Sign-On (SSO) via Identity Management | MuleSoft Mysore Me...
Configuring Single Sign-On (SSO) via Identity Management | MuleSoft Mysore Me...Configuring Single Sign-On (SSO) via Identity Management | MuleSoft Mysore Me...
Configuring Single Sign-On (SSO) via Identity Management | MuleSoft Mysore Me...

How to Show Sample Data in Tree and Kanban View in Odoo 17
How to Show Sample Data in Tree and Kanban View in Odoo 17How to Show Sample Data in Tree and Kanban View in Odoo 17
How to Show Sample Data in Tree and Kanban View in Odoo 17

How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17

SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES  Lecture_Notes_Unit4_chapter11_sequenceSEQUNCES  Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES Lecture_Notes_Unit4_chapter11_sequence


Yarn mnfg

  • 1. Shyamoli textile Engineering college B.Sc In Textile Engineering Level-1,Term-1(session:2018-2019)
  • 2. Machineries of Spinning Section Blow Room
  • 10. Flow chart of carded yarn production: Input Process/ Machine Output Bale → Blow room → Lap Lap → Carding m/c → Sliver Sliver → Breaker Draw Frame → Sliver Sliver → Finisher Draw Frame → Sliver Sliver → Roving Frame /Speed Frame/Simplex → Roving Roving → Ring Frame → Yarn
  • 11. Flow chart of combed yarn production: Input Process/ Machine Output Bale management ↓ Fibre → Blow room → Lap Lap → Carding m/c → Sliver Sliver → Pre comb drawing → Sliver Sliver → Lap former → Lap Lap → Combing → Sliver Sliver → Post comb drawing → Sliver Sliver → Simplex → Roving Roving → Ring Frame → Yarn
  • 12. FlowchartofRotoryarn: Input Process/Machine Output Balemanagement ↓ Fibre → Blowroom → Lap Lap → Cardingm/c → Cardedsliver Cardedsliver → Drawframe → Drawn sliver Drawn sliver → Rotorspinning → Rotoryarn
  • 13. Bale management: Testing, sorting & mixing bales according to properties of fibre for producing specific good quality yarn at minm cost is called “Bale management”. Object of Bale management:  An evening out of the quality characteristics of a yarn.  A means of avoiding quality jumps. A possibility of reducing costs, as result of an improved knowledge of the fibre characteristics
  • 15. Mixing & Blending Mixing: If different grade of same fibres are kept together, then it is called mixing. Types of mixing: i) Volume mixing ii)Wt. mixing. iii)Hand stock mixing. iv)Bin mixing. v)Mixing by hopper. vi)Lap mixing. vii)Card mixing. viii)Sliver mixing. ix)Automatic mixing.
  • 16. Blending: When different fibres of same or different grades are kept together, then it is called blending. Objects of blending:  To achieve uniform quality.  To improve processing performance.  To reduce and control of production cost.  To meet function and end used requirement.  Aesthetic i.e. Fashion, texture, drape luster etc.  To give the required characteristics to the end product.  To achieve effects by carrying colour, fiber characteristics and soon.
  • 17. Ginning: The freshly picked cotton has seeds in it, this cotton is called seed cotton. The treading is done in this condition also, but normally the treading is done after separation of the fibres from their seed. So, the process, involves to separate the cotton fibres from seeds is called ginning. Objects of ginning:  To separate fibres fully from its seeds.  To collect seeds and waste together.  To collect fibre without any faults.  To separate whole fibre
  • 18. Blow Room: Blow Room consists of a number of machines used in succession to open and clean the cotton fiber to the required degree. 40 to 70% trash is removed in this section. Blow Room Section: A section in which the supplied compressed bales are opened, cleaned and blending or mixing to form uniforms lap of specific length is called Blow Room section. The cleaning efficiency of blow room is 60 to 65%. This is the first section of spinning line for spgn wt cotton yarn.
  • 20. Operation in Blow Room: I. Opening: a. To open the compressed bales of fibers & b. To make the cotton tuft a small size as for as possible. II. Cleaning: To remove the dirt, dust, broken seeds broken leafs, stalks and another foreign materials from the fibers. III. Bending or Mixing: To make good value of yarn and to decrease the production cost by mixing different grade of fibers. IV.Lap forming: a. To transfer the opened and cleaned fibers into a sheet form of definite width and uniform unit length which is called lap. b. To roll the lap of predetermined length in a cylindrical shape around a lap pin. c. To transfer the lap from the lap pin to a rod to suitable handle and feed it to subsequence processing carding m/c
  • 22. Action in blow room: The actions of the machines in any blow room range fall into one or more of four main groups namely: 1. Action of opposite spike: (opening) The action of opposite spikes is opening the cotton fiber. By this action, the large pieces of cottons have been reduced in size. 2. Action of Air current: (Transport + Cleaning) During processing, the movement of cotton from machines to machine is done by air current. It also helps the separation of lint and trash. 3. Action of Beaters: (Cleaning & Opening) Beaters are responsible for removing almost all of the impurity extracted in the blow room. Beater also helps in opening of cotton fiber.
  • 23. 4. Action of regulating motion: (Uniform output) The action of regulating motion gives the uniform output of cotton fiber by the help of swing door and swing paddle  Electrical photocell  Air pressure syatem
  • 24. Flow Chart of Blow Room (Conventional) Hopper bale opener ↓ Ultra cleaner or step cleaner ↓ Vertical or twine opener or cleaner ↓ Hopper feeder-1 ↓ Porcupine opener ↓ Hopper feeder-2 ↓ Scutcher Flow Chart of Blow Room (Modern) Bale plucker ↓ Metal detector ↓ Uniclean ↓ Unimix ↓ Uniflex ↓ Vision shield ↓ Condenser ↓ Chute feed ↓ Carding
  • 28. Carding: Heart of Spg : Carding may be defined as the reduction of an entangled mass of fibres to a filmy web by working betn two closely spaced, relatively moving surface clothed with sharp wire points. The carding is the heart of the spgn mill & well carded is half-spun-demonstrate the immense significance of carding for the final result of the spgn operation. The importance of carding is still greater where new spgn systems are concerned. Object:/ function:/ Task of carding: 1. Opening to individual fibers : The blow room only opens the raw material to flocks where as the card opens it to the stage of individual fibres. This enables the elimination of impurities and good performance of the other operation.
  • 30. 2. Elimination of Impurities and dust: Elimination of foreign matter occurs mainly in the region of the taker in. In addition to free dust, which can be directly sucked away as in the blow room, the card also removes a large proportion of the micro particles. The card is a good dust removing m/c. 3. Disentangling of neps: The card reduces the no of neps from the blow room. Actually neps are not eliminated at the card, they are mostly opened out. An improvement in disentangling of neps is obtained by: closer spacing between the clothing; sharper clothing; optimal speeds of the taken- in; low doffer speeds, lower through put. 4. Elimination of short fibers: Short fibers can only be eliminated if they are pressed into the clothing. Elimination of short fibers in the card must be viewed in proportion, actually very small, fewer than, 1% short fibers. 5. Fiber blending: The card is the only m/c to process individual fibers. In formation of the web and with repeated rotation of the fibers on the main cylinder, intimate fiber with fiber mixing is achieved.
  • 31. 6. Fiber orientation: It is often attribute the effect of parallelizing. The card can be given the task of creating partial longitudinal orientation of the fibers. 7. Sliver formation: To deposit the fiber material, to transport it and process it further , an appropriate product must be formed. So carding is called ” Heart of spinning”
  • 32. Draw frame Drawing: It is a process of yarn manufacturing in which the sliver is enlongated when passing through pairs of rollers, each pair faster than the previous one. This permits combination of several slivers and drawing and enlongating them to straighten and to create greater uniformity. Objects of drawing: I) To straighten the fibres in the slivers. II)To make them lie is a manner parallel to their neighbours and to the sliver axis. III)To improve the uniformity and evenness of the slivers. IV)To reduce weight per unit length of sliver. V)To reduce irregularities of fibre by doubling and drafting. VI)To remove dust from sliver. VII)To make perfect blending of the sliver.
  • 34. Necessity of draw frame: To parallisation of fibre and blending carded→ Carded sliver. In carded sliver, fibre present in hook form i.e. trailing hooks and leading hooks. To parallel those hook, draw frame is used. Majority of the fibre hooks in a carded sliver are trailing while leading hooks are comparatively less. Trailing hooks are also known Mazor hooks. While leading hooks are known as Minor hooks.
  • 35. Tasks of draw frame: I) Equalizing. II)Parallelizing. III)Blending. IV)Dust removal. I) Equalizing: One of the main tasks of the draw frame is improving evenness over short, medium and especially long terms. Carded slivers fed to the draw frame have degree of unevenness that can not be tolerated in practice and slivers from the comber contain the ‘infamous’ piecing. It is obscured by draw frame. Equalizing is always performed by a first process, namely doubling and can optionally also be performed by a second process, namely autolevelling. The draft and the doublings often have the same value and lie in the range of 6 to 8
  • 36. II) Parallelizing: To obtain an optimal value for strength in the yarn characteristics, the fibres must be arranged parallel in the fibre strand. The draw frame has the task of creating this parallel arrangement. It fulfils the task by way of the draft, since every drafting step leads to straightening of the fibres. III) Blending: In addition to the equalizing effect, doubling also provides a degree of compensation of raw material variation by blending. This result is exploited in particular in the production of blended yarns comprising cotton/synthetic or synthetic/synthetic blends.
  • 37. IV) Dust removal: Dust is steadily becoming a great problem both in processing and for personnel involved. It is therefore important to remove dust to the greatest practical extent at every possible points within the overall process. Dust removal can only be carried out to a significant degree when there are high levels of fibre/fibre or fibre/metal friction since a large friction the smallest particles(dust) adhere relatively strongly to the fibres. The draw frame is therefore a good dust removing m/c; on high performance draw frame equipped with appropriate suction removal systems, more than 80% of the incoming dust is extracted
