Xml p2 Lecture Notes

1
XML Part2
Mrs.C.Santhiya
Assistant Professor
TCE,Madurai

2

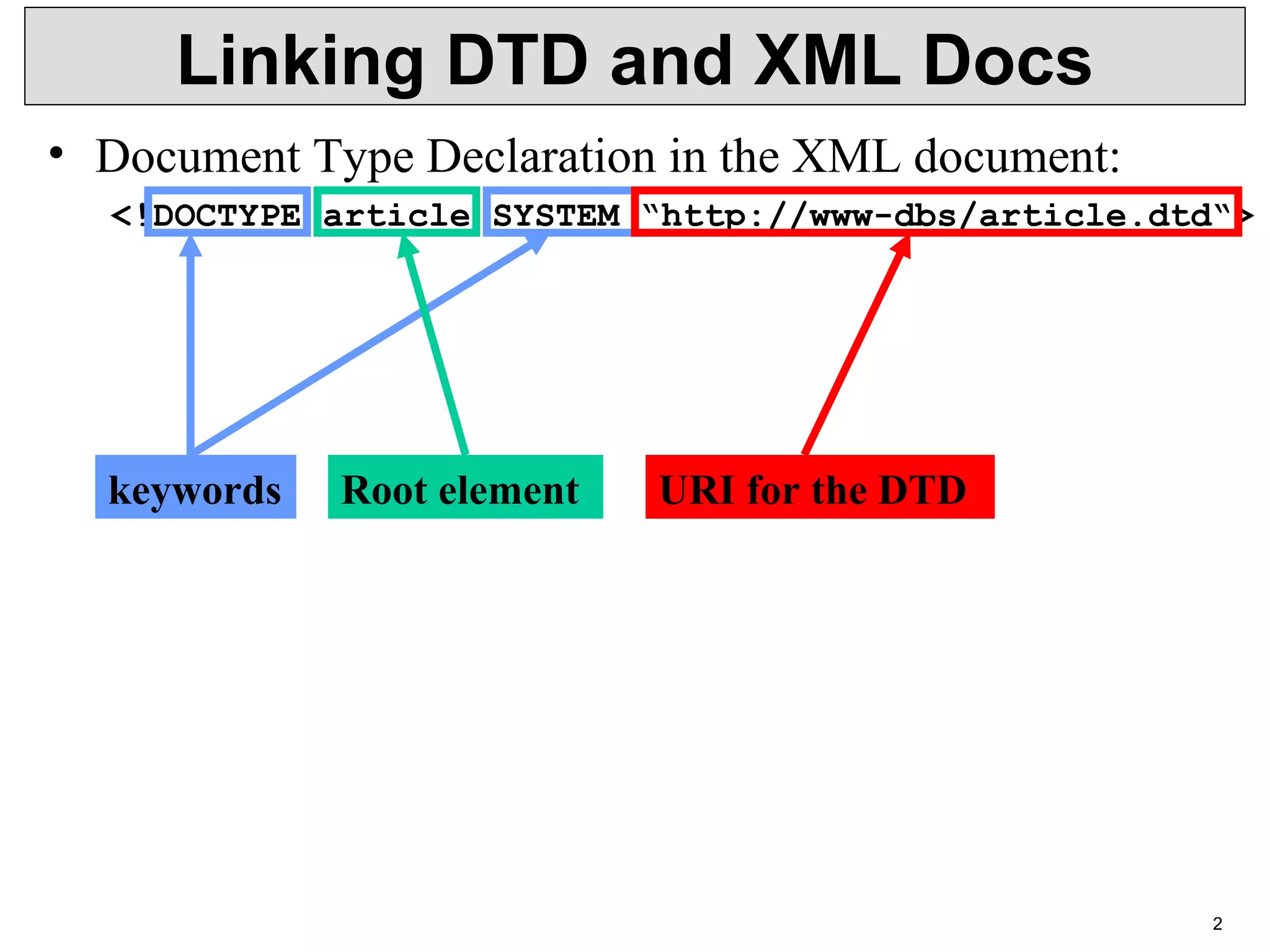

Linking DTD and XML Docs
• Document Type Declaration in the XML document:
<!DOCTYPE article SYSTEM “http://www-dbs/article.dtd“>
keywords Root element URI for the DTD

3
Linking DTD and XML Docs
• Internal DTD:
<?xml version=“1.0“?>
<!DOCTYPE article [
<!ELEMENT article (title,author+,text)>
...
<!ELEMENT index (#PCDATA)>
]>
<article>
...
</article>
• Both ways can be mixed, internal DTD overwrites
external entity information:
<!DOCTYPE article SYSTEM „article.dtd“ [
<!ENTITY % pub_content (title+,author*,text)
]>

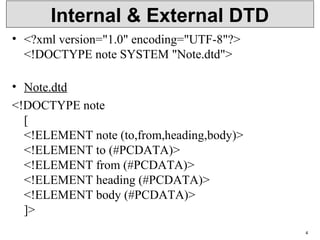

Internal & External DTD
• <?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE note SYSTEM "Note.dtd">
• Note.dtd
<!DOCTYPE note
[
<!ELEMENT note (to,from,heading,body)>
<!ELEMENT to (#PCDATA)>
<!ELEMENT from (#PCDATA)>
<!ELEMENT heading (#PCDATA)>
<!ELEMENT body (#PCDATA)>
]>
4

• <?xml version="1.0"?>
<!DOCTYPE note [
<!ELEMENT note (to,from,heading,body)>
<!ELEMENT to (#PCDATA)>
<!ELEMENT from (#PCDATA)>
<!ELEMENT heading (#PCDATA)>
<!ELEMENT body (#PCDATA)>
]>
<note>
<to>Tove</to>
<from>Jani</from>
<heading>Reminder</heading>
<body>Don't forget me this weekend</body>
</note>
5

Xml Display
• Displaying XML
Viewing XML Files
<?xml version="1.0" encoding="UTF-8"?>
- <note>
<to>Tove</to>
<from>Jani</from>
<heading>Reminder</heading>
<body>Don't forget me this weekend!</body>
</note>
6

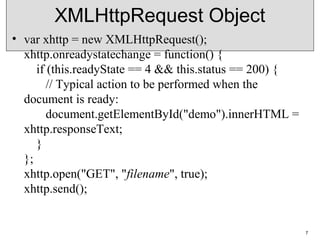

XMLHttpRequest Object
• var xhttp = new XMLHttpRequest();
xhttp.onreadystatechange = function() {
if (this.readyState == 4 && this.status == 200) {
// Typical action to be performed when the
document is ready:
document.getElementById("demo").innerHTML =
xhttp.responseText;
}
};
xhttp.open("GET", "filename", true);
xhttp.send();
7

• abort()
• getAllResponseHeaders()
• getResponseHeader()
• open(method,url,async,uname,pswd)
• send(string)
Properties
• Onreadystatechange
• readyState
• statusText
• Status
8

<html>
<body>
<h1>XMLHttpRequest</h1>
<p>The getAllResponseHeaders() function returns the header information of a resource, like length, server-type,
content-type, last-modified, etc:</p>
<p id="demo"></p>
<script>
var xmlhttp = new XMLHttpRequest();
xmlhttp.onreadystatechange=function() {
if (this.readyState == 4 && this.status == 200) {
this.getAllResponseHeaders();
}
};
xmlhttp.open("GET", "xmlhttp_info.txt", true);
xmlhttp.send();
</script>
</body>
</html>
9

Html DOM
<html>
<body>
<h1 id="demo">This is a Heading</h1>
<button type="button"
onclick="document.getElementById('demo').innerHTML = 'Hello World!'">Click
Me!
</button>
</body>
</html>
10

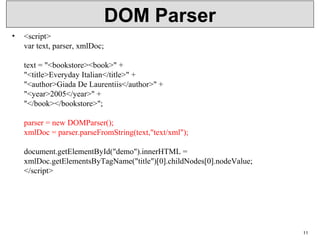

DOM Parser
• <script>
var text, parser, xmlDoc;
text = "<bookstore><book>" +
"<title>Everyday Italian</title>" +
"<author>Giada De Laurentiis</author>" +
"<year>2005</year>" +
"</book></bookstore>";
parser = new DOMParser();
xmlDoc = parser.parseFromString(text,"text/xml");
xmlDoc.getElementsByTagName("title")[0].childNodes[0].nodeValue;
</script>
11

Xml with CSS
CATALOG.xml
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<?xml-stylesheet type="text/css" href=“CATALOG.css"?>
<CATALOG>
<CD>
<TITLE>Empire Burlesque</TITLE>
<ARTIST>Bob Dylan</ARTIST>
<COUNTRY>USA</COUNTRY>
<COMPANY>Columbia</COMPANY>
<PRICE>10.90</PRICE>
<YEAR>1985</YEAR> </CD>
<CD>
<TITLE>Hide your heart</TITLE>
<ARTIST>Bonnie Tyler</ARTIST>
<COUNTRY>UK</COUNTRY>
<COMPANY>CBS Records</COMPANY>
<PRICE>9.90</PRICE>
<YEAR>1988</YEAR> </CD> </CATALOG>
12

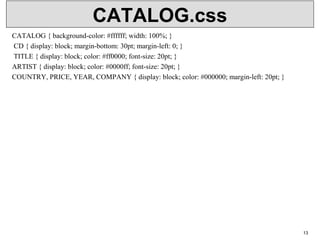

CATALOG.css
CATALOG { background-color: #ffffff; width: 100%; }
CD { display: block; margin-bottom: 30pt; margin-left: 0; }
TITLE { display: block; color: #ff0000; font-size: 20pt; }
ARTIST { display: block; color: #0000ff; font-size: 20pt; }
COUNTRY, PRICE, YEAR, COMPANY { display: block; color: #000000; margin-left: 20pt; }
13

Xml with xpath
<bookstore>
<book category="cooking">
<title lang="en">Everyday Italian</title>
<author>Giada De Laurentiis</author>
<year>2005</year>
<price>30.00</price>
</book>
<book category="children">
<title lang="en">Harry Potter</title>
<author>J K. Rowling</author>
<year>2005</year>
<price>29.99</price>
</book>
• </bookstore>
14

Xpath
/bookstore/book[1]
/bookstore/book[last()]
/bookstore/book[last()-1]
/bookstore/book[position()<3]
//title[@lang]
//title[@lang='en‘]
/bookstore/book[price>35.00]
/bookstore/book[price>35.00]/title
15

Xsl elements
• <xsl :apply-templates>
• <xsl :apply-templates match=“expression”>
• <xsl :template>
• <xsl: for-each select=“expression”>
• <xsl :sort select=“expression”>
• <xsl:output>
16

Xml file
<breakfast_menu>
<food>
<name>Belgian Waffles</name>
<price>$5.95</price>
<description>Two of our famous Belgian Waffles with
plenty of real maple syrup</description>
<calories>650</calories>
</food>
</ breakfast_menu>
17

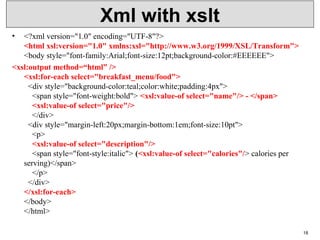

Xml with xslt
<html xsl:version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform">
<body style="font-family:Arial;font-size:12pt;background-color:#EEEEEE">
<xsl:output method=“html” />
<xsl:for-each select="breakfast_menu/food">
<div style="background-color:teal;color:white;padding:4px">
<span style="font-weight:bold"> <xsl:value-of select="name"/> - </span>
<xsl:value-of select="price"/>
</div>
<div style="margin-left:20px;margin-bottom:1em;font-size:10pt">
<p>
<xsl:value-of select="description"/>
<span style="font-style:italic"> (<xsl:value-of select="calories"/> calories per
serving)</span>
</p>
</div>
</xsl:for-each>
</body>
</html>
18

Xml Link
XLink Syntax
<homepages xmlns:xlink="http://www.w3.org/1999/xlink">
<homepage xlink:type="simple" xlink:href="http://www.w3sch
ools.com">Visit W3Schools</homepage>
<homepage xlink:type="simple" xlink:href="http://www.w3.org
">Visit W3C</homepage>
</homepages>
Specifications
•xlink:actuate
•xlink:href
•xlink:show
•xlink:type
20

Link
<bookstore xmlns:xlink="http://www.w3.org/1999/xlink">
<book title="Harry Potter">
<description
xlink:type="simple"
xlink:href="/images/HPotter.gif"
xlink:show="new">
As his fifth year at Hogwarts School of Witchcraft and
Wizardry approaches, 15-year-old Harry Potter is.......
</description>
</book>
• </bookstore>
21

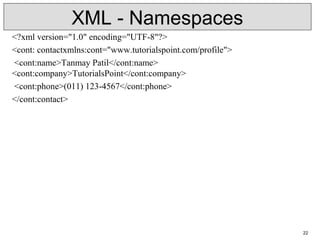

XML - Namespaces
<cont: contactxmlns:cont="www.tutorialspoint.com/profile">
<cont:name>Tanmay Patil</cont:name>
<cont:company>TutorialsPoint</cont:company>
<cont:phone>(011) 123-4567</cont:phone>
</cont:contact>
22

Xml with ids
<dogbreeds>
<dog breed="Rottweiler" id="Rottweiler">
<picture url="http://dog.com/rottweiler.gif" />
<history>The Rottweiler's ancestors were probably Roman
drover dogs.....</history>
<temperament>Confident, bold, alert and imposing, the Rottweiler
is a popular choice for its ability to protect....</temperament>
</dog>
• </dogbreeds>
23

Xml Schema
• Why Use an XML Schema?
• XML Schemas Support Data Types
• XML Schemas use XML Syntax
24

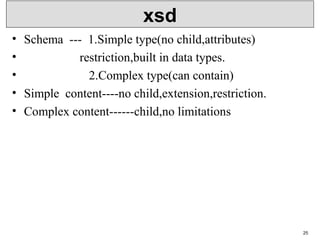

xsd
• Schema --- 1.Simple type(no child,attributes)
• restriction,built in data types.
• 2.Complex type(can contain)
• Simple content----no child,extension,restriction.
• Complex content------child,no limitations
25

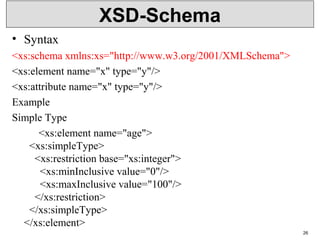

XSD-Schema
• Syntax
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema">
<xs:element name="x" type="y"/>
<xs:attribute name="x" type="y"/>
Example
Simple Type
<xs:element name="age">
<xs:simpleType>
<xs:restriction base="xs:integer">
<xs:minInclusive value="0"/>
<xs:maxInclusive value="100"/>
</xs:restriction>
</xs:simpleType>
</xs:element>
26

Complex type
• <xml version=“1.0”>
• <schema xmlns=http://www.w3.org/2001/XMLSchema
• xmlns:computer= “”
• targetnamespace=“ “>
• <simpleType name=“gigahertz”>
• <restriction base=“decimal”>
• <mininclusive value=“2.1”/>
• </restriction>
• </simpleType>
• <complexType name=“CPU”>
• <simpleContent>
• <extension base=“string”>
• <attribute name=“model” type=“string”/>
• </extension>
• </simpleContent>
• </complexType>
27

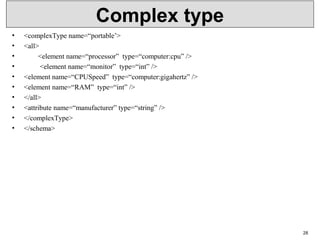

Complex type
• <complexType name=“portable’>
• <all>
• <element name=“processor” type=“computer:cpu” />
• <element name=“monitor” type=“int” />
• <element name=“CPUSpeed” type=“computer:gigahertz” />
• <element name=“RAM” type=“int” />
• </all>
• <attribute name=“manufacturer” type=“string” />
• </complexType>
• </schema>
28
