XHTML
The document discusses XHTML 1.0, which is an XML-based markup language that extends HTML. It defines XHTML as a family of current and future document types that reproduce, subset, and extend HTML 4. The document outlines the rules for XHTML documents, provides an example of valid XHTML code, and describes various elements and tags that can be used in XHTML such as links, images, lists, and tables.
More Related Content
XHTML
- 1. XHTML 1.0 Extensible HyperText Markup Language Jussi Pohjolainen Tampere University of Applied Sciences
- 2. What is XHTML? • XHTML™ 1.0 The Extensible HyperText Markup Language (Second EdiKon) – hMp://www.w3.org/TR/xhtml1/ • XHTML is a family of current and future document types and modules that reproduce, subset, and extend HTML 4 • XHTML family document types are XML based
- 3. Rules • XHTML document must follow the XML – rules (wellformed) • It must be valid against one of three DTDs – XHTML Strict • Use the strict DOCTYPE when you want really clean markup, free of presentaKonal cluMer. Use it together with CSS. – XHTML TransiKonal • Use the transiKonal DOCTYPE when you want to sKll use HTML's presentaKonal features. – XHTML Frameset • Use the frameset DOCTYPE when you want to use HTML frames. • Root element must be html – And it must contain xmlns namespace h7p://www.w3.org/ 1999/xhtml
- 4. XHTML Example <?xmlversion="1.0"?>! <!DOCTYPE html ! PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN"! "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">! <html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en" lang="en">! <head>! <title>Minimal XHTML 1.0 Document</title>! </head>! <body>! <p>This is a minimal <a href="http://www.w3.org/TR/ xhtml1/">XHTML 1.0</a> ! document.</p>! </body>! </html>!
- 5. The DTDs <!DOCTYPEhtml PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1- transitional.dtd"> <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Frameset//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1- frameset.dtd">
- 6. Mandatory XHTML Elements <?xml version="1.0"?>! <!DOCTYPE html ! PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN"! "http://www.w3.org/TR/xhtml1/DTD/xhtml1- strict.dtd">! <html xmlns="http://www.w3.org/1999/xhtml">! <head>! <title>Minimal XHTML 1.0 Document</title>! </head>! <body>! </body>! </html>!
- 7. Syntax: Elements • XHTML elements must be properly nested – <b><i>hello</i></b> • XHTML elements must always be closed – <br/> • XHTML elements must be in lowercase • XHTML documents must have one root element – <html>
- 8. Syntax: AMributes • AMribute names must be in lower case – <img src="picture.jpg"/> • AMribute values must be quoted – <img src="picture.jpg"/> • XHTML elements must be in lowercase • XHTML documents must have one root element – <html>
- 9. head -‐ element • One mandatory – element: Ktle – Very important: search engines, bookmarking • Meta-‐informaKon – hMp://www.w3schools.com/tags/tag_meta.asp • Linking to other files (CSS)
- 10. head – element, example <?xml version="1.0"?>! <!DOCTYPE html ! PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN"! "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">! <html xmlns="http://www.w3.org/1999/xhtml">! <head>! <title>Minimal XHTML 1.0 Document</title>! <meta name="description" content="Simple XHTML example" />! <meta name="keywords" content="XHTML" />! <meta name="author" content="Jussi Pohjolainen" />! </head>! <body>! </body>! </html>!
- 11. Element DescripHon <p> Defines paragraph <br/> Defines a single line break <blockquote> Defines a long quotaKon <pre> Defines preformaMed text <em> Defines emphasized text <strong> Defines strong text <code> Defines computer code text <tt> Defines teletype text <i> Defines italic text <b> Defines bold text <big> Defines big text <small> Defines small text <sub> Defines subscripted text <sup> Defines superscripted text

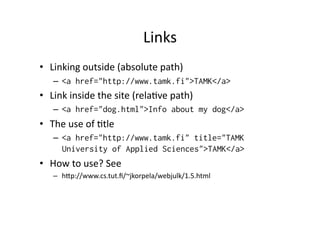

- 12. Links • Linking outside (absolute path) – <a href="http://www.tamk.fi">TAMK</a> • Link inside the site (relaKve path) – <a href="dog.html">Info about my dog</a> • The use of Ktle – <a href="http://www.tamk.fi" title="TAMK University of Applied Sciences">TAMK</a> • How to use? See – hMp://www.cs.tut.fi/~jkorpela/webjulk/1.5.html
- 13. Images • Linking to a image – <a href="face.jpg">My Face</a> • Adding an image to the page – <img src="face.jpg" alt="Picture of me" /> • Image as a link <a href="http://www.tamk.fi"> <img src="tamk.jpg" alt="TAMK Logo" /> </a> • Use PNGs, JPEGs or GIFs
- 14. Lists • <ul> – Unordered list • <ol> – Ordered list • <dl> – DefiniKon list – <dt> – Ktle – <dd> -‐ descripKon
- 15. List Examples <ul> <dl> <li>Some text</li> <dt>term</dt> <li>Some text</li> <dd>definition</dd> </ul> <dt>term</dt> <ol> <dd>definition</dd> <li>Some text</li> </dl> <li>Some text</li> </ol>
- 16.

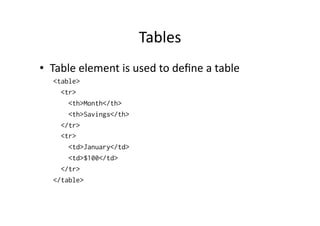

- 17. Tables • Table element is used to define a table <table> <tr> <th>Month</th> <th>Savings</th> </tr> <tr> <td>January</td> <td>$100</td> </tr> </table>
- 18. Table with Heading <table> <tr> <th>Name</th> <th>Telephone</th> <th>Mobile Phone</th> </tr> <tr> <td>Bill Gates</td> <td>555 77 854</td> <td>555 77 855</td> </tr> </table>

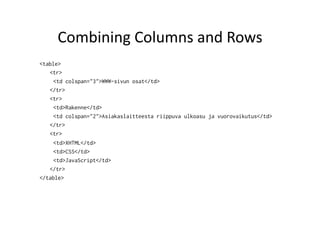

- 19. Combining Columns and Rows <table> <tr> <td colspan="3">WWW-sivun osat</td> </tr> <tr> <td>Rakenne</td> <td colspan="2">Asiakaslaitteesta riippuva ulkoasu ja vuorovaikutus</td> </tr> <tr> <td>XHTML</td> <td>CSS</td> <td>JavaScript</td> </tr> </table>
