Web Design-III IT.ppt
- 2. What the followingterm mean: 1. Web server: a system on the internet containing one or more web site 2. Web site: a collection of one or more web pages 3. Web pages: single disk file with a single file name 4 .Home pages: first page in website
- 3. HTML isa method where ordinary text can be converted into hypertext. HTML is not a Programming Language. It combines instructions within data to tell a display program called browser. Html is the character based method for describing and expressing the content like pictures, text, sound and video clips.
- 4. It deliversthe contents to multiple platforms. It links documents or components together to compose compound documents. Tim Berners-Lee developed HTML in early 1990 @ CERN. HTML is a public domain and not owned by anybody.

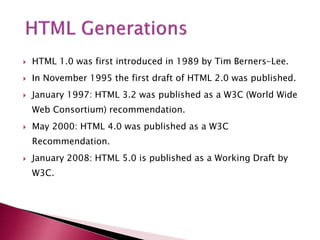

- 5. HTML 1.0was first introduced in 1989 by Tim Berners-Lee. In November 1995 the first draft of HTML 2.0 was published. January 1997: HTML 3.2 was published as a W3C (World Wide Web Consortium) recommendation. May 2000: HTML 4.0 was published as a W3C Recommendation. January 2008: HTML 5.0 is published as a Working Draft by W3C.
- 6. Creating a HTMLFile 1. Open Notepad 2. Click on File -> Save as… 3. In the File name pull-down box, type in webpage.html 4. Click on Save 5. Type in content for your file 6. Once you finished the content, click on File -> Save
- 7. Hyper TextMarkup Language A markup language designed for the creation of web pages and other information viewable in a browser The basic language used to write web pages File extension: .htm, .html

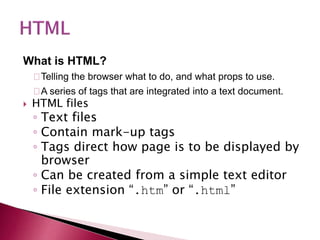

- 8. What is HTML? Tellingthe browser what to do, and what props to use. A series of tags that are integrated into a text document. HTML files ◦ Text files ◦ Contain mark-up tags ◦ Tags direct how page is to be displayed by browser ◦ Can be created from a simple text editor ◦ File extension “.htm” or “.html”
- 9. Notepad orWordpad (PC) or SimpleText (Mac) First tag: <html> ◦ Indicates that you are starting an HTML document Last tag: </html> ◦ Indicates that you are ending an HTML document ◦ *Note* the open & close structure to HTML ◦ Fictional example: <sleep> and </sleep> Save file as “index.html” ◦ This is a typical default title for home pages ◦ Windows may seem to prefer “.htm” but “.html” will also work just fine.
- 10.
- 11. <html> <head> <title> Page TitleGoes Here </title> </head> <body> content goes here </body> </html>
- 12. Header information ◦<head> to begin, and </head> to end ◦ Gives information about the page Page Title ◦ <title> to begin, and </title> to end ◦ Example: <title>Transcriptions Studio</title>

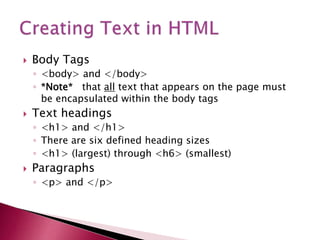

- 13. Body Tags ◦<body> and </body> ◦ *Note* that all text that appears on the page must be encapsulated within the body tags Text headings ◦ <h1> and </h1> ◦ There are six defined heading sizes ◦ <h1> (largest) through <h6> (smallest) Paragraphs ◦ <p> and </p>
- 14. <html> <header> <title>Transcriptions Studio</title> </header> <body> <h1>This isa big heading!</h1> <h2>This is a smaller heading</h2> <p>This is an example of a paragraph.</p> </body> </html>

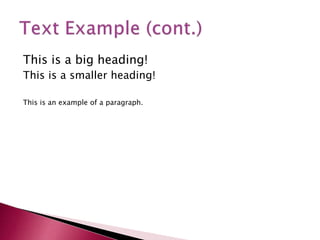

- 15. This is abig heading! This is a smaller heading! This is an example of a paragraph.
- 16. A Prologueis only a comment for preparing the document. Syntax : <! Doctype HTML 3.0>

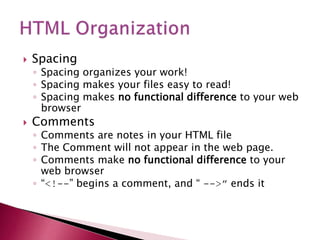

- 17. Spacing ◦ Spacingorganizes your work! ◦ Spacing makes your files easy to read! ◦ Spacing makes no functional difference to your web browser Comments ◦ Comments are notes in your HTML file ◦ The Comment will not appear in the web page. ◦ Comments make no functional difference to your web browser ◦ “<!--” begins a comment, and “ -->” ends it
- 18. <html> <header> <title>Transcriptions Studio</title> </header> <body> <h1>This isa big header!</h1> <h2>This is a smaller heading</h2> <p>This is an example of a paragraph.</p> </body> </html> <!-- This is an example of a comment.-->
- 19. For example:<b>, <font>,<title>, <p> etc. Tag usually goes with pair: an open tag (<b>) and an end tag (<b>) Single tag: <hr>,<br> Tags are NOT case sensitive Effect Code Code Used What It Does Bold B <B>Bold</B> Bold Italic I <I>Italic</I> Italic
- 20. Banner: - ABanner is a fixed part of the page that will stay on the screen when we scroll the text on the page. Ex: College logo <link REL=Banner href=“logo.html”> Base Element: -A Base element in the head section informs the browser the location where all the base documents are available. Ex: http://www.bonsecourscollege.org
- 21. Tag usually goeswith pair: an open tag (<b>) and an end tag (<b>) Single tag: <hr>,<br> Tags are NOT case sensitive
- 22. A source anchoris created in an HTML document (webpage) by adding an anchor element <a> with a hypertext reference href containing a uniform resource identifier (URI) Hyperlink Element Destination anchor code Source anchor code Page top <a> <a name="pagetop" ></a> <a href="#pagetop" > Page top </a> Content <a> <a name="content"> </a> <a href="#content"> Content </a> Destination anchors <h2> <h2 id="destination"> Destination anchors </h2> <a href="#destinatio n"> Destination anchors </a>
- 23. Eg : <ahref=“”> <li><a href="a001">Jump to a001</a></li> <li><a href="#a002">Jump to a002</a></li> <li><a href="#a003">Jump to a003</a></li>
- 24. A Webpage can also be made colorful by using three attributes in the <body> tag. They are, 1. background design 2. background color 3. text color
- 25. Bgcolor Specifiesa background- color for a HTML page. <body bgcolor="#000000"> <body bgcolor="rgb(0,0,0)"> <body bgcolor="black"> Background Specifies a background- image for a HTML page <body background="clouds.gif"> <body background="http://www.w 3schools.com/clouds.gif"> <body src=“hills.bmp"> In HTML, each colors has a degree from 00 to FF in the hexadecimal forms. So each permits 256 colors (0 to 255)
- 26. Put texton a webpage ◦ <p>Today is my first day at my new job, I’m so excited!</p> ◦ Output: Today is my first day at my new job, I’m so excited! Put text in center of a page ◦ <center>Hello</center> ◦ Output: Hello Put text on the right of a page ◦ <p align=“right”>Hello</p> ◦ Output: Hello

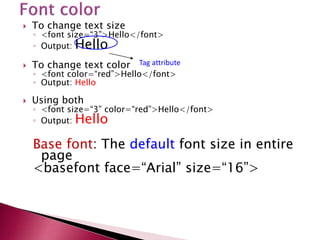

- 27. To changetext size ◦ <font size=“3”>Hello</font> ◦ Output: Hello To change text color ◦ <font color=“red”>Hello</font> ◦ Output: Hello Using both ◦ <font size=“3” color=“red”>Hello</font> ◦ Output: Hello Base font: The default font size in entire page <basefont face=“Arial” size=“16”> Tag attribute
- 28. The linkwill appear in a different color. When we open a web page several links may appear in a page. Ex: <body bgcolor=“#FF0000” text=“#00FF00” link=“#AAAA00” vlink=“#AA00AA” alink=“#FF0000”> Contains: The background color is # FF0000 The Text color is #00FF00 The link color is #AAAA00 The visited link color is #AA00AA The active link is #FF0000
- 29. Result Description EntityName Non-breaking space < Less than < > Greater than > & Ampersand & “ Quotation mark " © Copyright ©
- 30. There are6 heading commands. <H1>This is Heading 1</H1> <H2>This is Heading 2</H2> <H3>This is Heading 3</H3> <H4>This is Heading 4</H4> <H5>This is Heading 5</H5> <H6>This is Heading 6</H6>
- 31. There arefour types of Alignments. 1. Left 2. Right 3. Center 4. Justified
- 32. <b> Definesbold text <big> Defines big text <em> Defines emphasized text <i> Defines italic text <small> Defines small text <strong> Defines strong text <sub> Defines subscripted text <sup> Defines superscripted text <ins> Defines inserted text <del> Defines deleted text
- 34. A HorizontalRule can be created using the <hr> tag. Example <h1> Department of CA<h1> <hr> Output Department of CA ___________________________

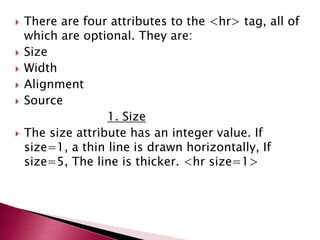

- 35. There arefour attributes to the <hr> tag, all of which are optional. They are: Size Width Alignment Source 1. Size The size attribute has an integer value. If size=1, a thin line is drawn horizontally, If size=5, The line is thicker. <hr size=1>
- 36. The widthattribute tells the width of the window in which the horizontal line has to be drawn. The default value of the width will be 100 percent. <hr width=50%> 3. Alignment The default alignment is always LEFT. There are three options for the align tag; 1. Left 2. right 3. center <hr size=5 width=25% align=right>
- 37. When wefilled with any design, available in a graphics file in GIF format. • <a href=“http://www.bdu.ac.in”> <img src=“image.gif”></a>
- 38. HTML automaticallyadjusts the intermediate spaces and aligns the test as per the given format. Such spaces are called soft spaces. soft spaces may go realigning the text. The space inserted by the user are called hard spaces
- 39. <h1> Bonsecours   college   for   women</h1>

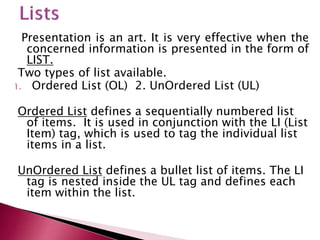

- 40. Presentation is anart. It is very effective when the concerned information is presented in the form of LIST. Two types of list available. 1. Ordered List (OL) 2. UnOrdered List (UL) Ordered List defines a sequentially numbered list of items. It is used in conjunction with the LI (List Item) tag, which is used to tag the individual list items in a list. UnOrdered List defines a bullet list of items. The LI tag is nested inside the UL tag and defines each item within the list.
- 41. Unordered list ◦Code: <ul> <li>Coffee</li> <li>Milk</li> </ul> ◦ Output: Coffee Milk Ordered list ◦ Code: <ol> <li>Coffee</li > <li>Milk</li> </ol> ◦ Output: 1. Coffee 2. Milk
- 42. <ol type=B> <li>Thisis item one. <li>This is item two. <li>This is item three. </ol> <ol start=“5”> <li>This is item one. <li>This is item two. <li>This is item three. </ol>
- 43. <ul type=“circle”> <li>Thisis item one. <li>This is item two. <li>This is item three. </ul> Plain attribute: if we do not have any bullets, we can use the plain attribute in the <ul> tag <ul type=“square”> <li>This is item one. <li>This is item two. <li>This is item three. </ul> Ex: <ul plain>

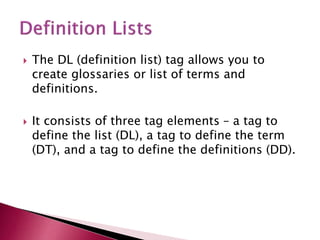

- 44. The DL(definition list) tag allows you to create glossaries or list of terms and definitions. It consists of three tag elements – a tag to define the list (DL), a tag to define the term (DT), and a tag to define the definitions (DD).
- 45. Example <html> <head> <title>DefinitionsLists</title> </head> <body> <dl> <dt>Hardware <dd>Is defined as physical or tangible equipments associated with computer systems. Examples of hardware are CPU,I/O devices and Secondary Storage Devices. <dt>Software <dd>Is a set of Programs. <dt>Peripherals <dd>Equipments connected around the CPU. </body> </html>
- 46. A List withinanother type of list is called nested list. Example: <ol> <li> BCA <li>MCA </ol> <ul> <li> This courses are the best and first course is IT Field. </ul>
- 47. Tables are veryefficient means of displaying information in a correct form. The TABLE tag needs to bracket your table. All other tags or text included in your table should nest inside the TABLE tag. <html> <head> <title>Tables</title> </head> <body> <table> ………… </table></body></html>
- 48. There are threefollowing components in a table 1. Table caption 2. table Heading row 3. Rows and columns The TR (table row) and TD (table data)tags are used to create a grid of rows and columns. <table> <tr> <td>1</td> <td>Aarthi</td> <td>Thanjai</td> </tr> <tr> <td>2</td> <td>Anandhi</td> <td>Thanjai</td> </tr> </table>
- 49. By default, the table does not contain a border, To include a border to the table, specify a BORDER attribute inside the Table tag. <table border=“3”> <tr> <td>1</td> <td>Aarthi</td> <td>Thanjai</td> </tr> <tr> <td>2</td> <td>Anandhi</td> <td>Thanjai</td> </tr> </table>

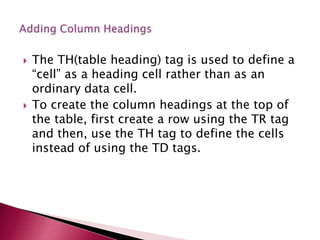

- 50. The TH(tableheading) tag is used to define a “cell” as a heading cell rather than as an ordinary data cell. To create the column headings at the top of the table, first create a row using the TR tag and then, use the TH tag to define the cells instead of using the TD tags.

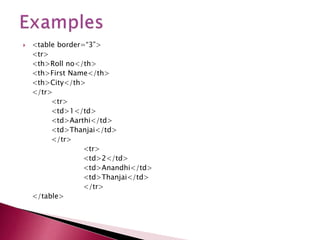

- 51. <table border=“3”> <tr> <th>Rollno</th> <th>First Name</th> <th>City</th> </tr> <tr> <td>1</td> <td>Aarthi</td> <td>Thanjai</td> </tr> <tr> <td>2</td> <td>Anandhi</td> <td>Thanjai</td> </tr> </table>
- 52. The Cellspacingattribute adds space between the cells, whereas the Cellpadding attribute adds space within each cell. <Table border=“1” cellspacing=“6” cellpadding=“6”> The cellspacing attribute increases the thickness of the border of each cell. The Caption tag is used to insert a caption for the table. <Table border=“1” cellspacing=“6” cellpadding=“6”> <caption>Student Table</caption>
- 53. It canbe used to specify the size of your table. You can use either absolute value(number of pixels) or relative values (Percentages). <Table border=“1” cellspacing=“6” cellpadding=“6” width=“80%”>

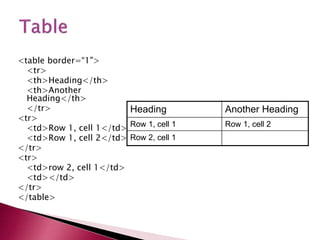

- 54. <table border=“1"> <tr> <th>Heading</th> <th>Another Heading</th> </tr> <tr> <td>Row 1,cell 1</td> <td>Row 1, cell 2</td> </tr> <tr> <td>row 2, cell 1</td> <td></td> </tr> </table> Heading Another Heading Row 1, cell 1 Row 1, cell 2 Row 2, cell 1

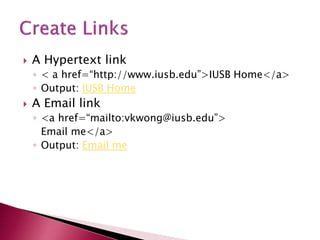

- 55. A Hypertextlink ◦ < a href=“http://www.iusb.edu”>IUSB Home</a> ◦ Output: IUSB Home A Email link ◦ <a href=“mailto:vkwong@iusb.edu”> Email me</a> ◦ Output: Email me
- 56. Image can bestored in any one these formats .gif ◦ Graphics Interchange Format .jpeg or .jpg ◦ Joint Photographic Experts Group .bmp ◦ bitmap
- 57. Place allimages in the same directory/folder where you web pages are <img src> is a single tag <img src=“image.gif”> ◦ Output: Turn an image into a hyerlink ◦ <a href=“http://www.iusb.edu”><img src=“image.gif”></a> ◦ Output:
- 58. Computer imagesare made up of “pixels” <IMG HEIGHT=“100" WIDTH=“150" SRC=“flag.gif"> Width Height
