The document discusses the benefits and features of using the 'EXPLAIN FORMAT=JSON' command in MySQL for query optimization, including its structured view that provides detailed insights into query execution, such as filtering information and index usage. It highlights specific use cases, examples, and innovations introduced in MySQL version 5.6, as well as troubleshooting techniques involving temporary tables. The content also emphasizes how the JSON format offers machine-readable output that aids in understanding complex queries and performance metrics.

1. EXPLAIN FORMAT=JSON
Why to use?
April, 19, 2016
Sveta Smirnova

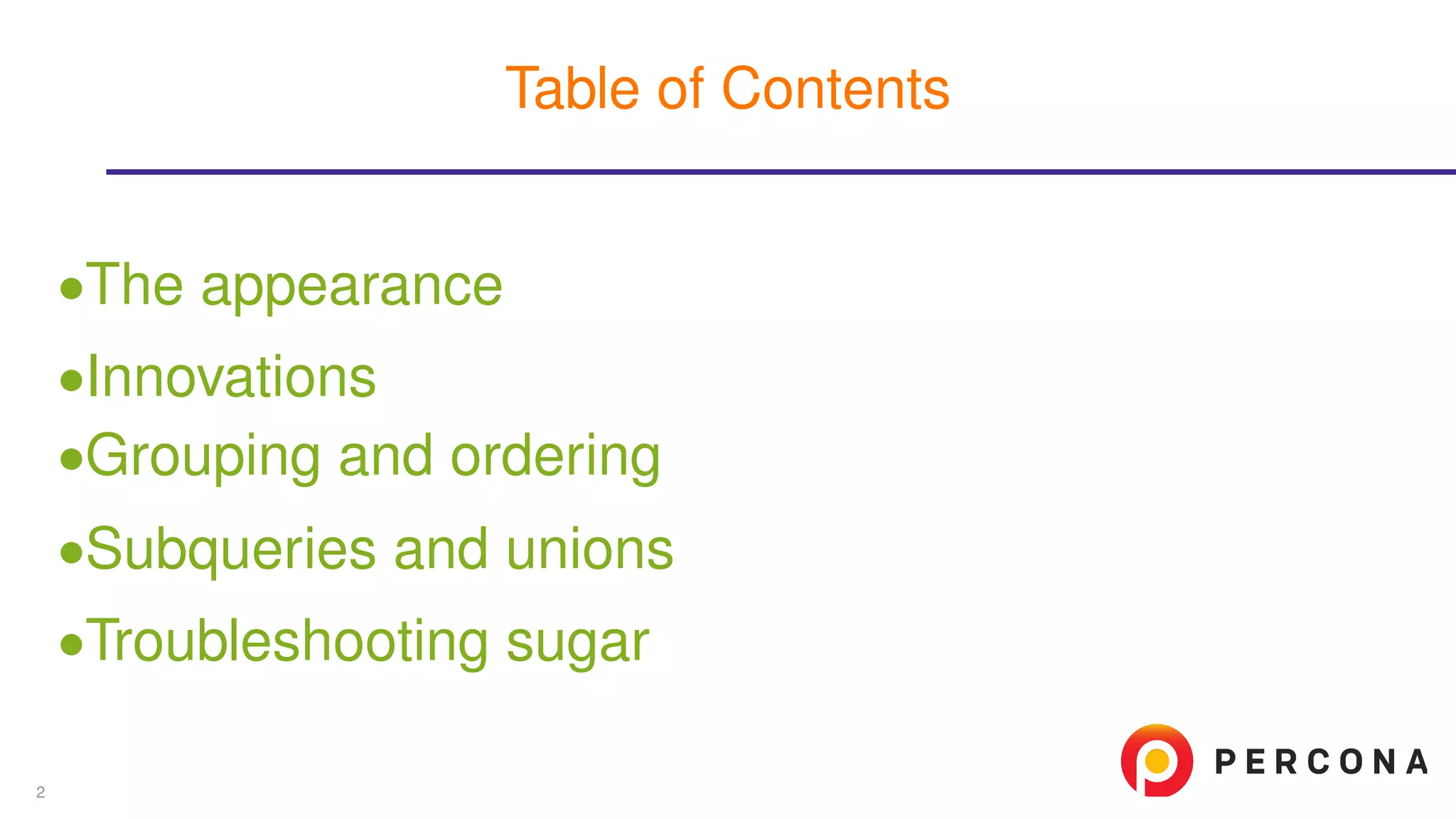

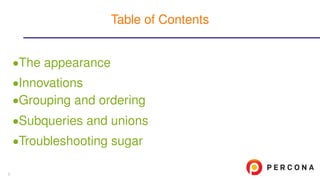

2. •The appearance
•Innovations
•Grouping and ordering
•Subqueries and unions
•Troubleshooting sugar
Table of Contents
2

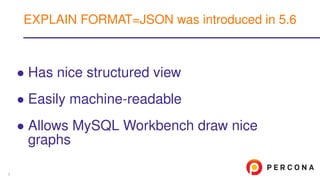

3. • Has nice structured view
• Easily machine-readable
• Allows MySQL Workbench draw nice
graphs
EXPLAIN FORMAT=JSON was introduced in 5.6
3

4. • It has more information than regular
EXPLAIN
• Can replace OPTIMIZER TRACE for some
cases
Trendy? - Not only!
4

5. Innovations
5

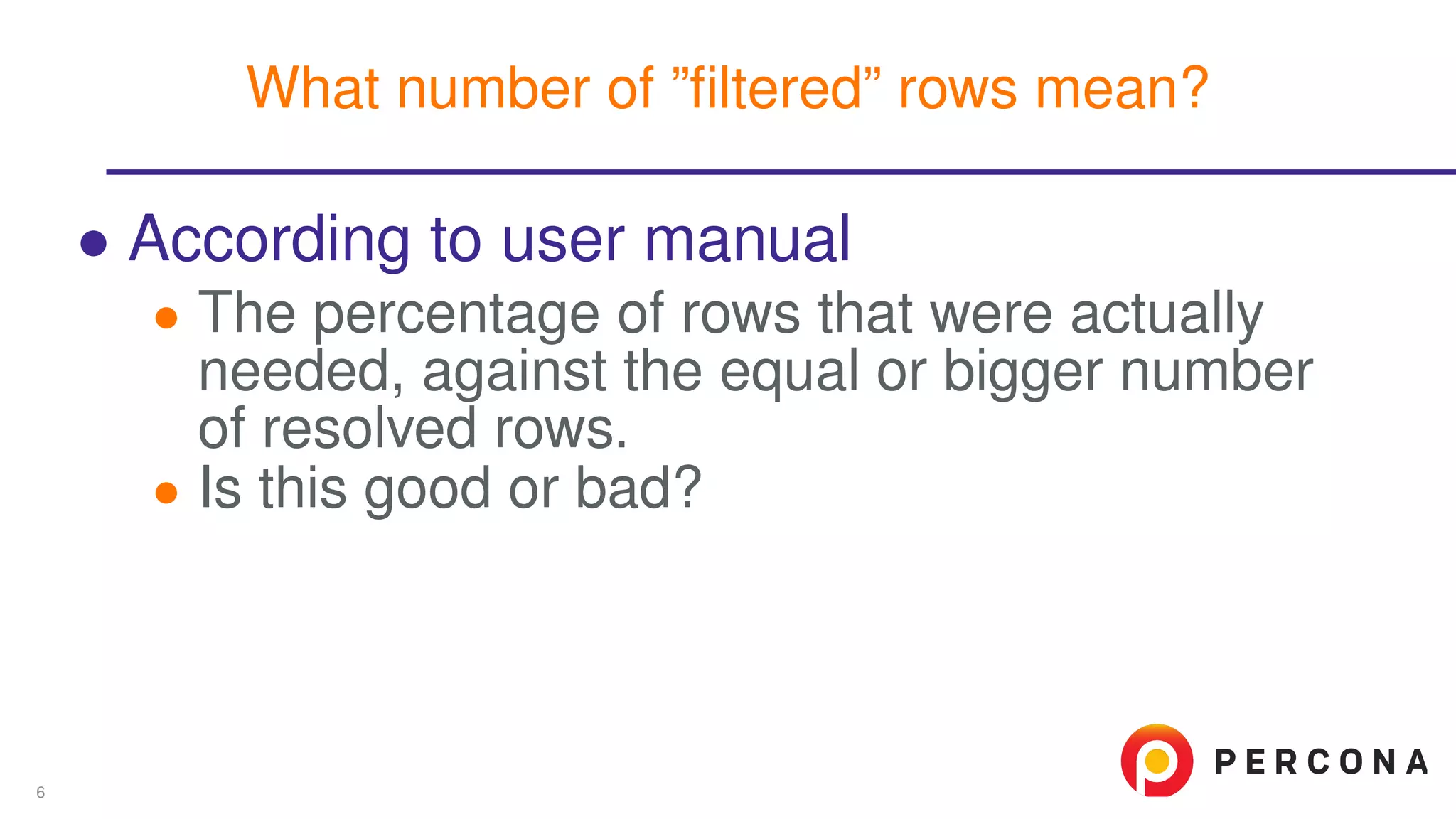

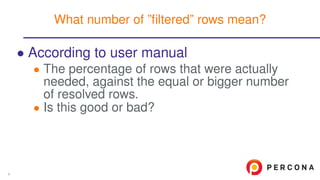

6. • According to user manual
• The percentage of rows that were actually
needed, against the equal or bigger number
of resolved rows.
• Is this good or bad?
What number of ”filtered” rows mean?
6

7. • According to user manual
• Example query
mysql> select * from Country where Name=’Russian Federation’G
*************************** 1. row ***************************
Code: RUS
Name: Russian Federation
Continent: Europe
...
HeadOfState: Vladimir Putin
Capital: 3580
Code2: RU
1 row in set (0.00 sec)
What number of ”filtered” rows mean?
6

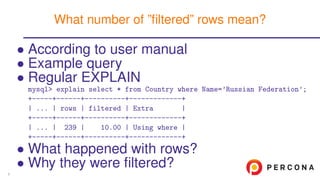

8. • According to user manual
• Example query
• Regular EXPLAIN
mysql> explain select * from Country where Name=’Russian Federation’;
+-----+------+----------+-------------+
| ... | rows | filtered | Extra |
+-----+------+----------+-------------+
| ... | 239 | 10.00 | Using where |
+-----+------+----------+-------------+
• What happened with rows?
• Why they were filtered?
What number of ”filtered” rows mean?
6

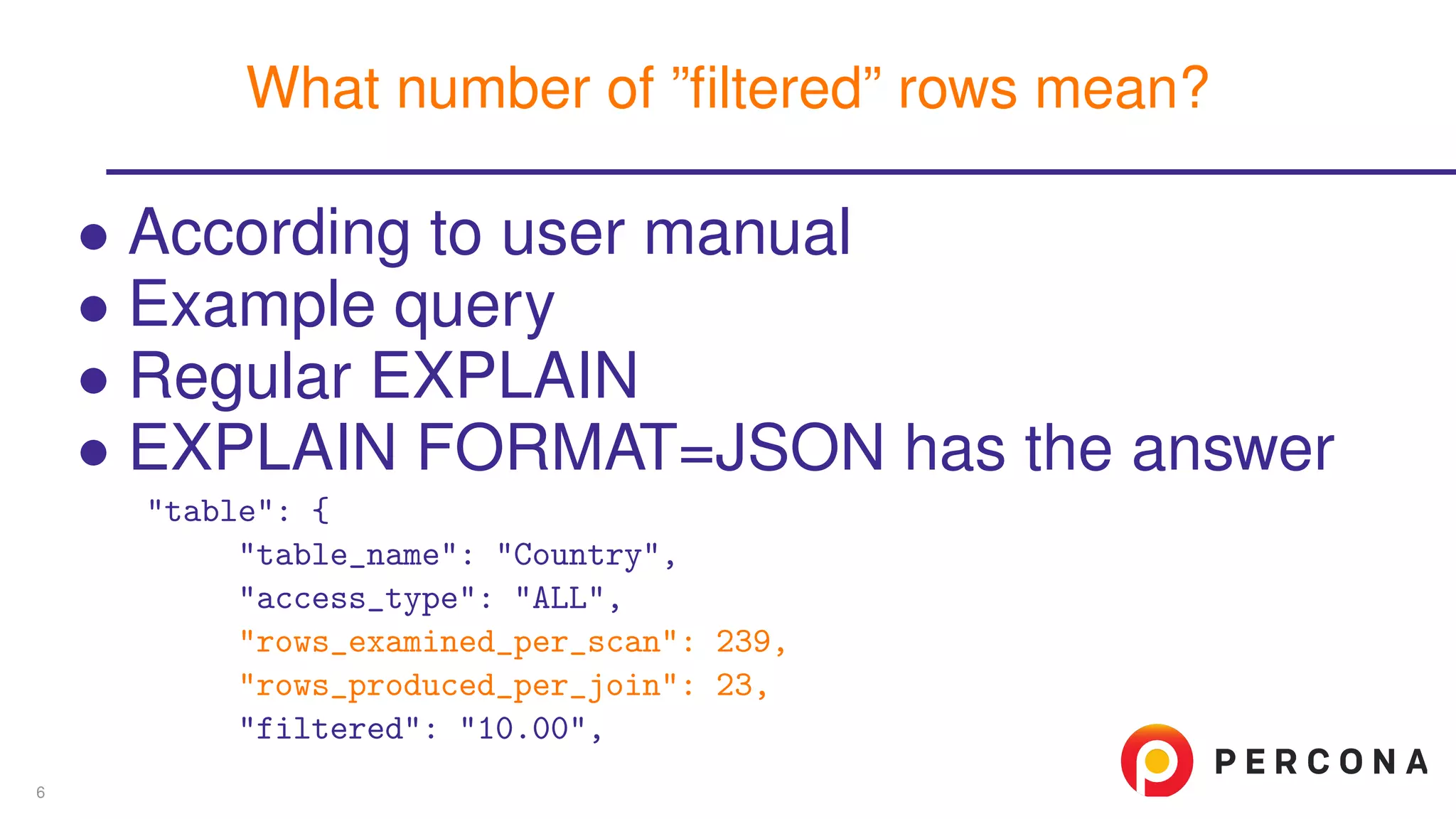

9. • According to user manual
• Example query
• Regular EXPLAIN
• EXPLAIN FORMAT=JSON has the answer
"table": {
"table_name": "Country",
"access_type": "ALL",
"rows_examined_per_scan": 239,
"rows_produced_per_join": 23,
"filtered": "10.00",
What number of ”filtered” rows mean?
6

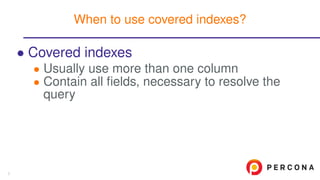

10. • Covered indexes
• Usually use more than one column
• Contain all fields, necessary to resolve the
query
When to use covered indexes?
7

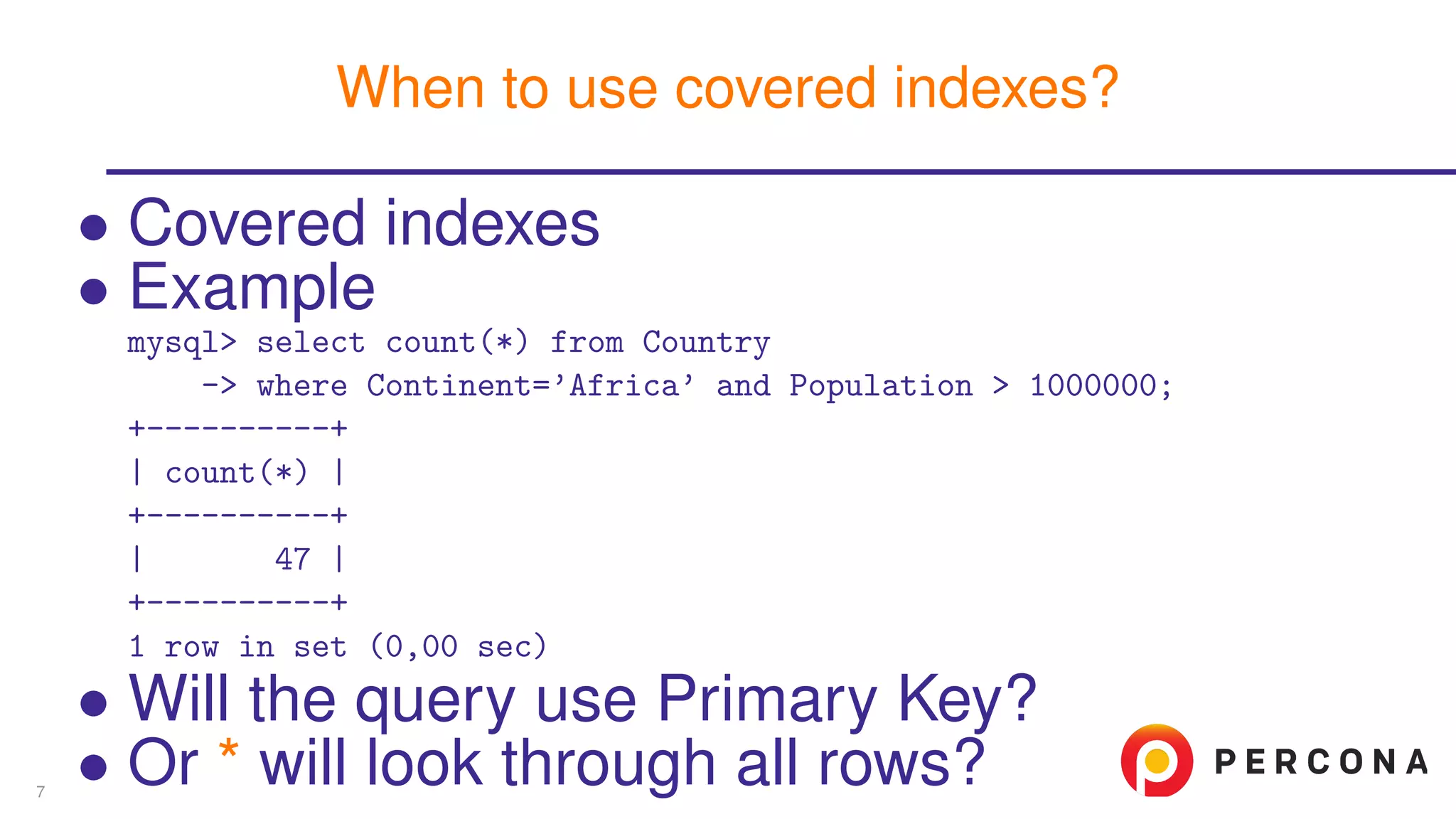

11. • Covered indexes
• Example
mysql> select count(*) from Country
-> where Continent=’Africa’ and Population > 1000000;
+----------+
| count(*) |
+----------+
| 47 |
+----------+
1 row in set (0,00 sec)
• Will the query use Primary Key?
• Or * will look through all rows?
When to use covered indexes?
7

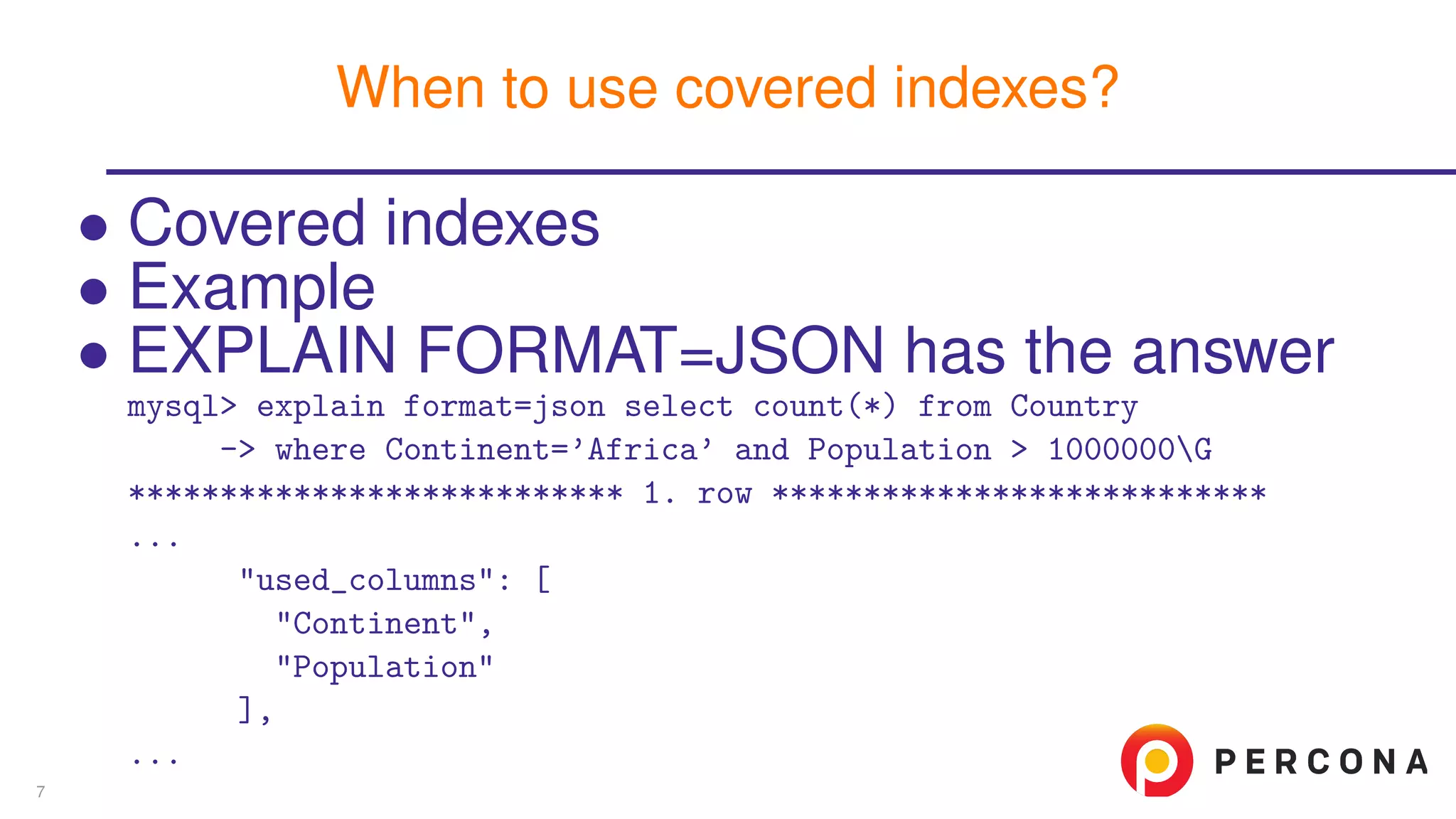

12. • Covered indexes
• Example
• EXPLAIN FORMAT=JSON has the answer
mysql> explain format=json select count(*) from Country
-> where Continent=’Africa’ and Population > 1000000G
*************************** 1. row ***************************
...
"used_columns": [
"Continent",
"Population"
],
...
When to use covered indexes?
7

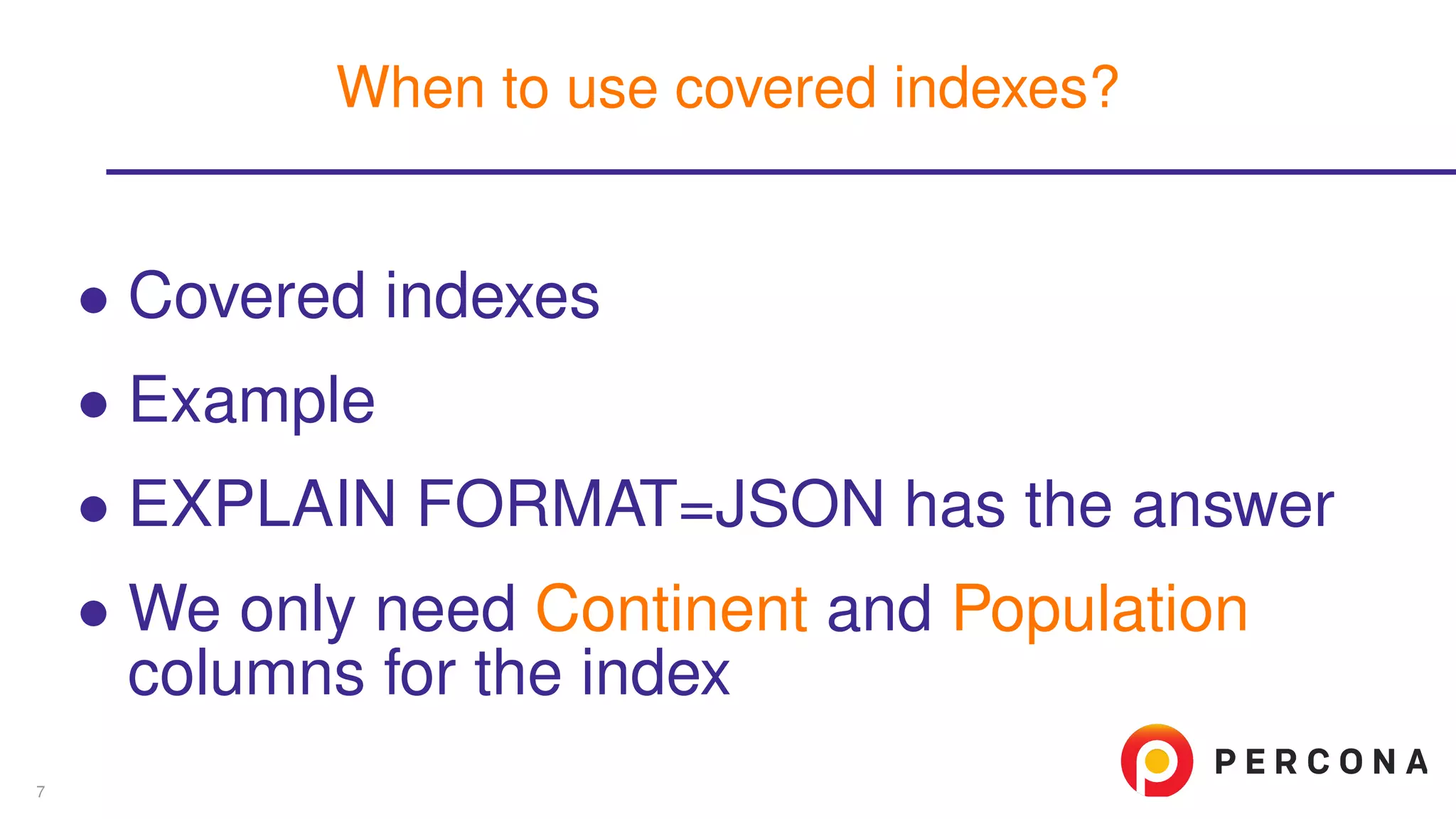

13. • Covered indexes
• Example
• EXPLAIN FORMAT=JSON has the answer
• We only need Continent and Population
columns for the index
When to use covered indexes?
7

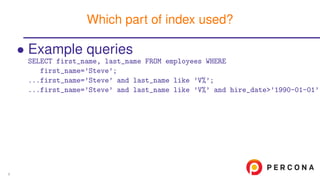

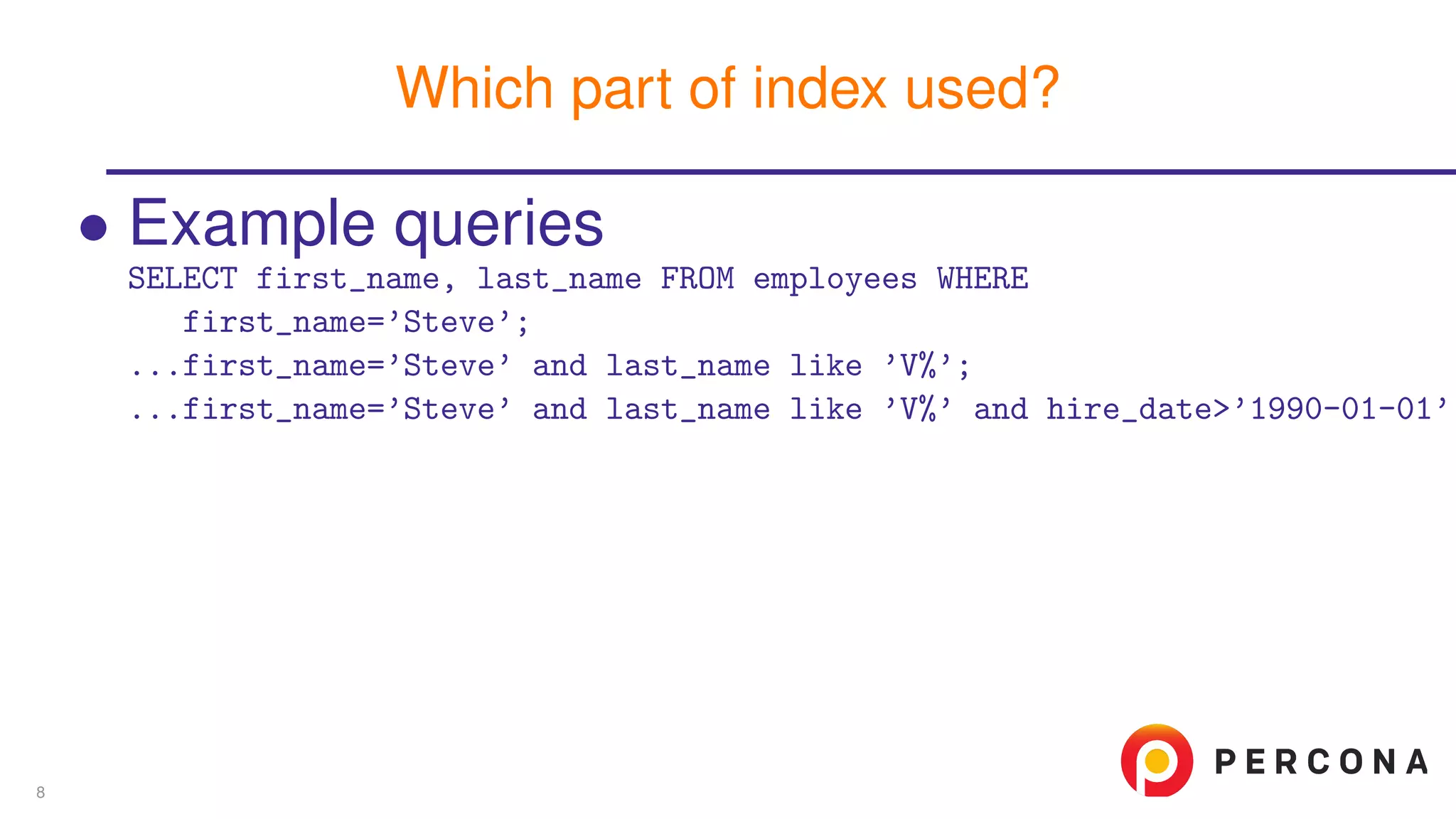

14. • Example queries
SELECT first_name, last_name FROM employees WHERE
first_name=’Steve’;
...first_name=’Steve’ and last_name like ’V%’;
...first_name=’Steve’ and last_name like ’V%’ and hire_date>’1990-01-01’;
Which part of index used?
8

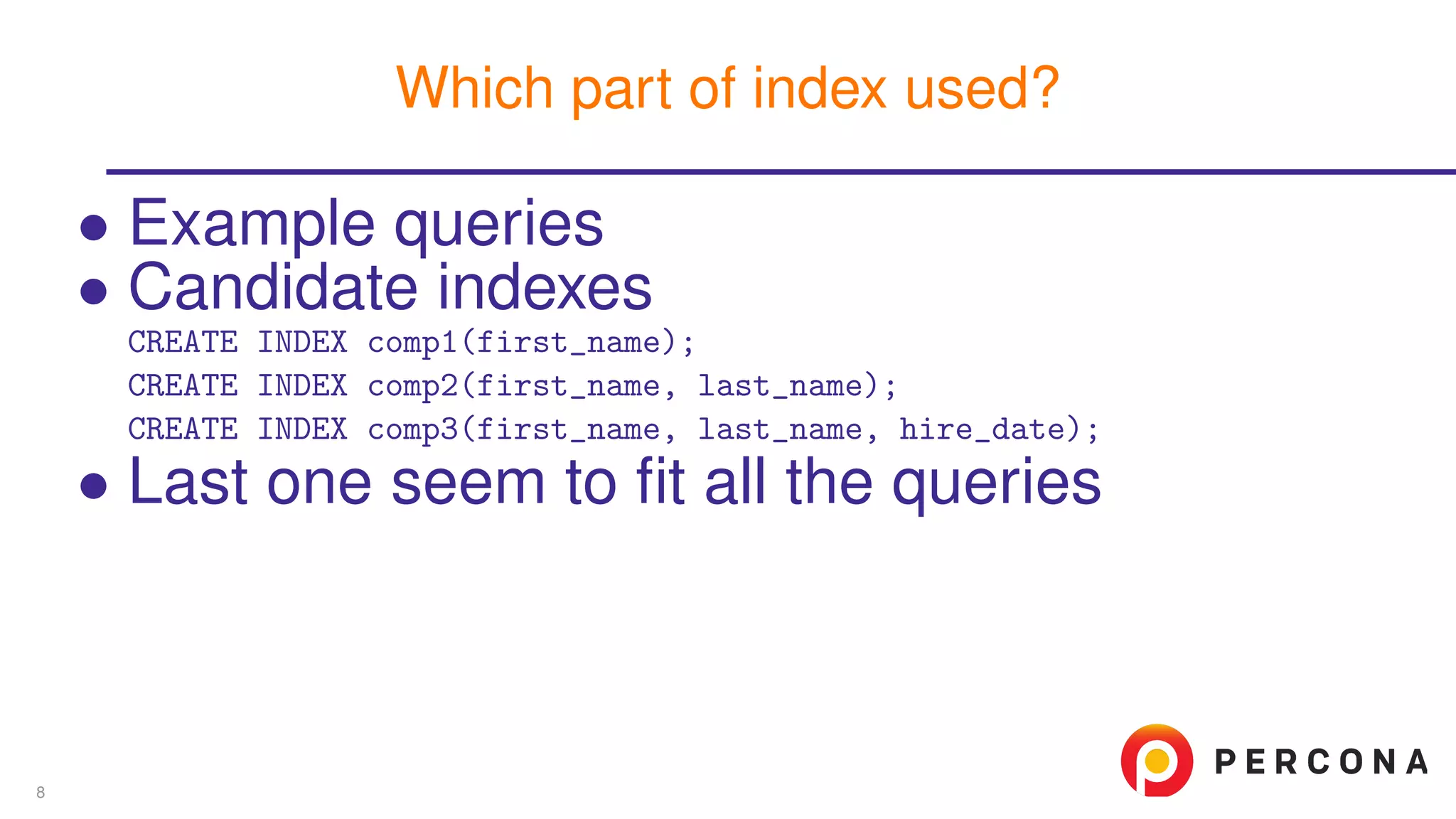

15. • Example queries
• Candidate indexes
CREATE INDEX comp1(first_name);
CREATE INDEX comp2(first_name, last_name);
CREATE INDEX comp3(first_name, last_name, hire_date);
• Last one seem to fit all the queries
Which part of index used?
8

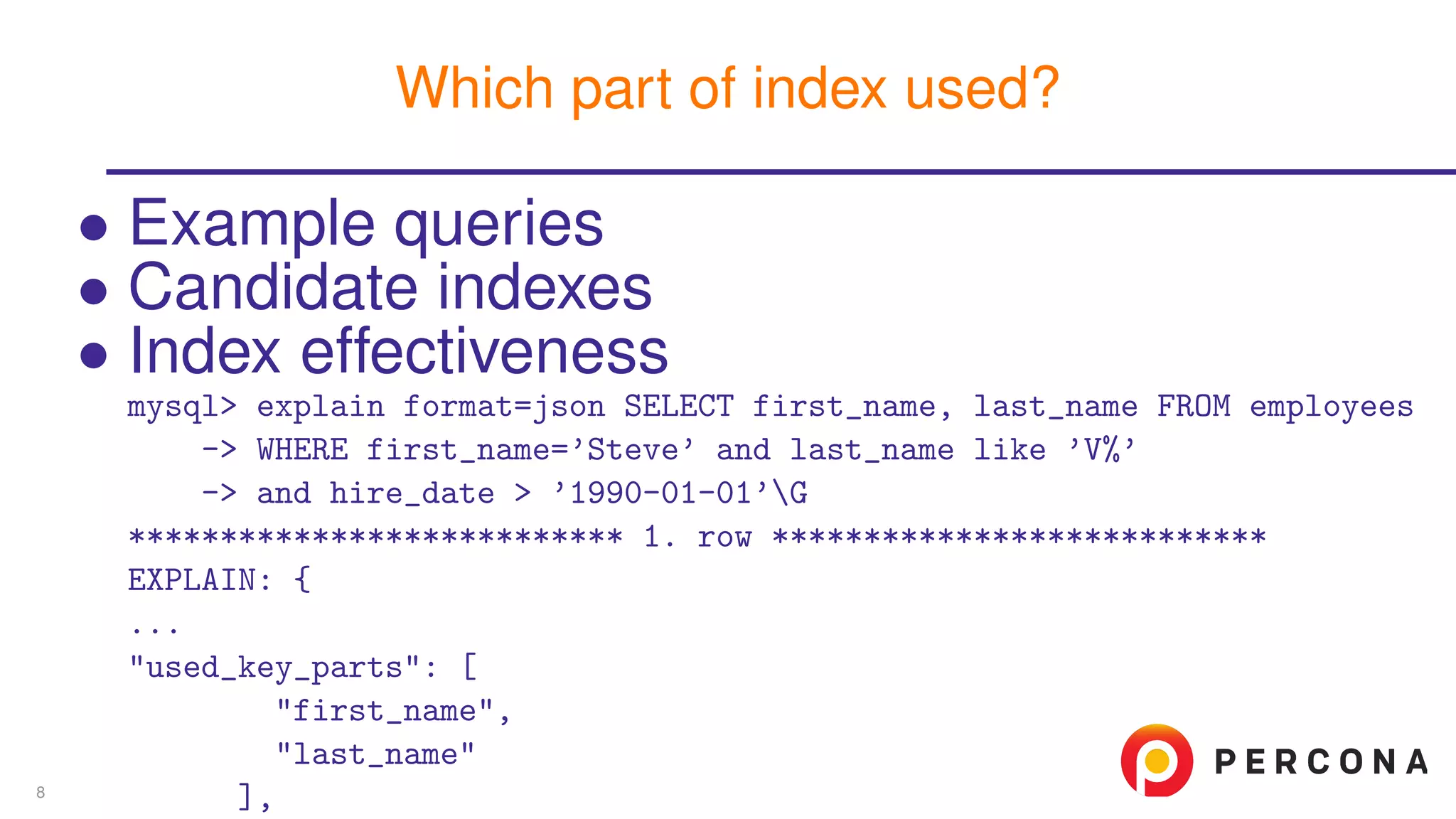

16. • Example queries
• Candidate indexes
• Index effectiveness
mysql> explain format=json SELECT first_name, last_name FROM employees
-> WHERE first_name=’Steve’ and last_name like ’V%’
-> and hire_date > ’1990-01-01’G
*************************** 1. row ***************************
EXPLAIN: {
...
"used_key_parts": [
"first_name",
"last_name"
],
Which part of index used?
8

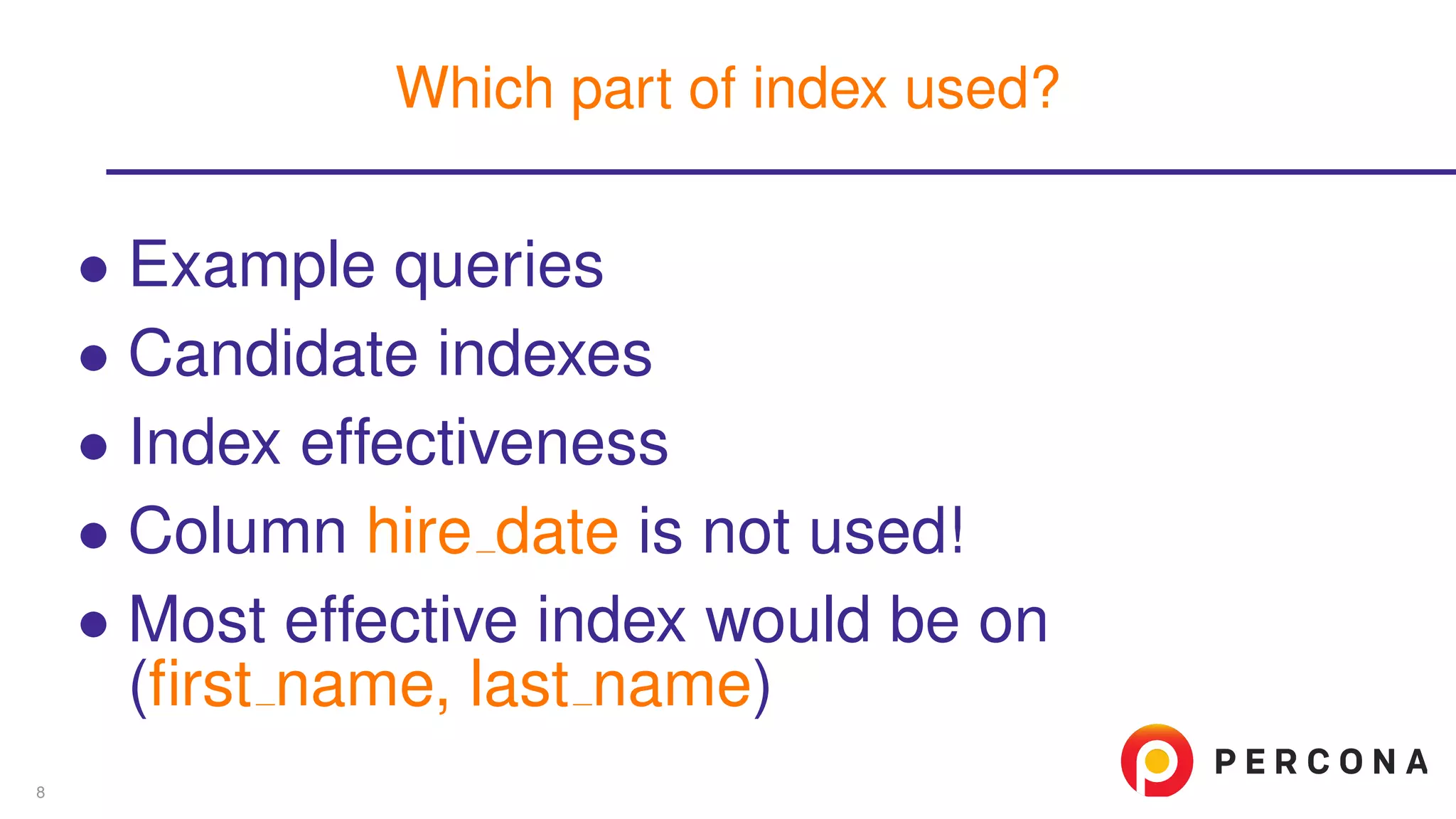

17. • Example queries
• Candidate indexes
• Index effectiveness
• Column hire date is not used!
• Most effective index would be on
(first name, last name)
Which part of index used?
8

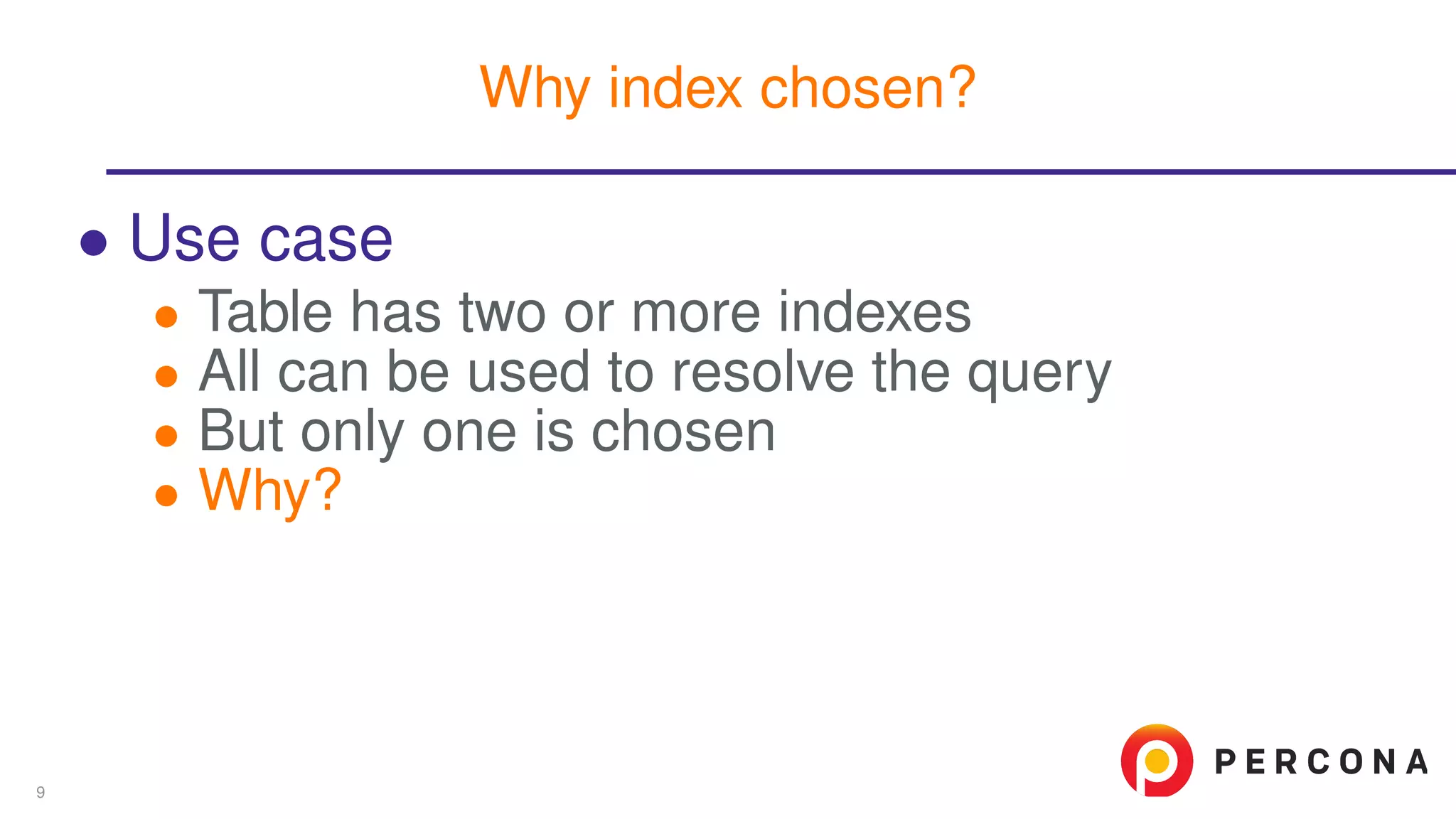

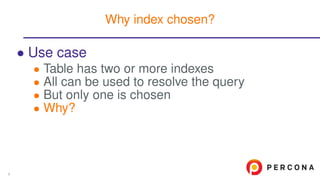

18. • Use case
• Table has two or more indexes
• All can be used to resolve the query
• But only one is chosen
• Why?
Why index chosen?
9

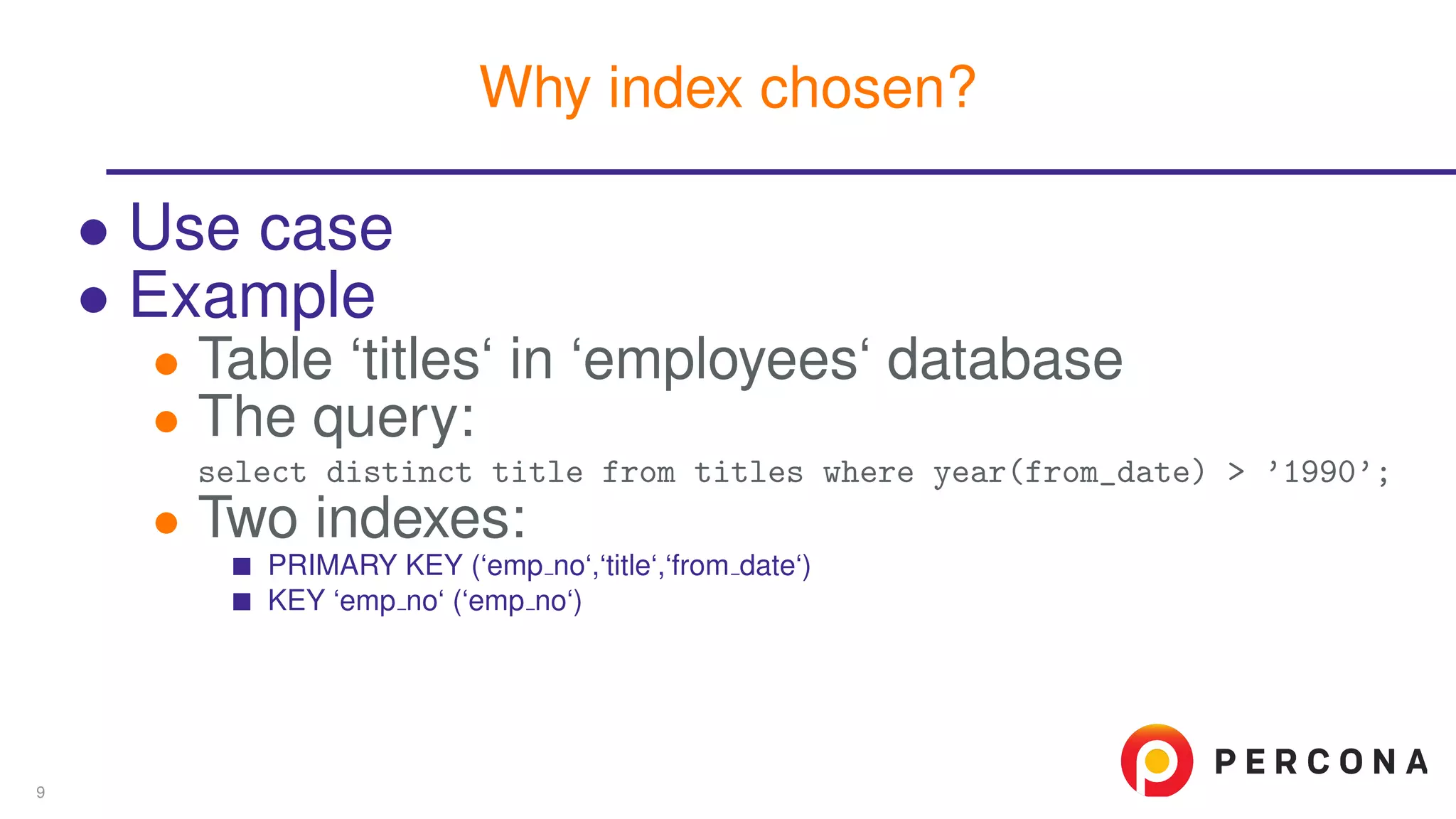

19. • Use case
• Example
• Table ‘titles‘ in ‘employees‘ database
• The query:
select distinct title from titles where year(from_date) > ’1990’;
• Two indexes:
PRIMARY KEY (‘emp no‘,‘title‘,‘from date‘)
KEY ‘emp no‘ (‘emp no‘)
Why index chosen?
9

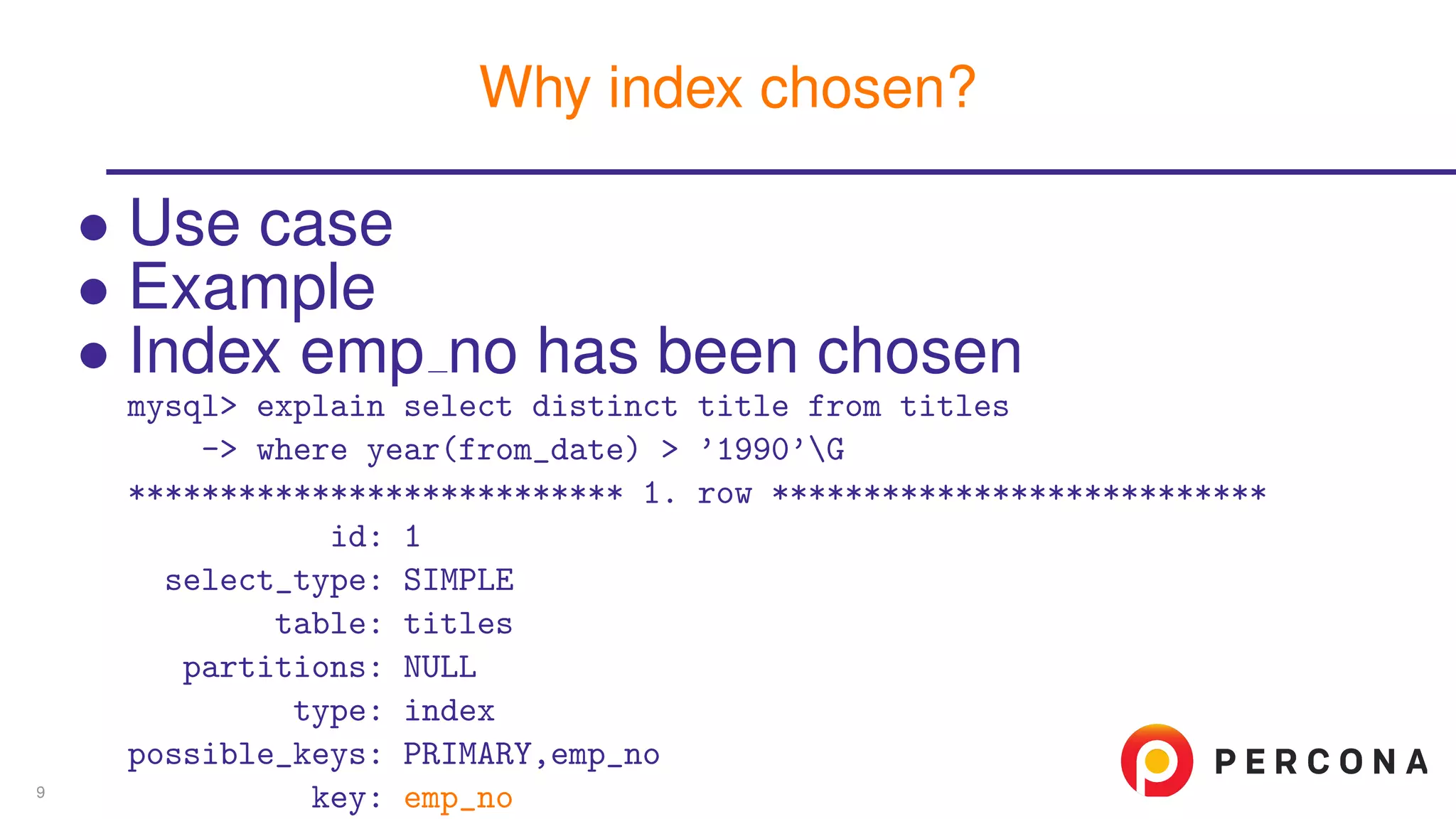

20. • Use case
• Example
• Index emp no has been chosen
mysql> explain select distinct title from titles
-> where year(from_date) > ’1990’G
*************************** 1. row ***************************
id: 1
select_type: SIMPLE
table: titles
partitions: NULL
type: index
possible_keys: PRIMARY,emp_no
key: emp_no
Why index chosen?
9

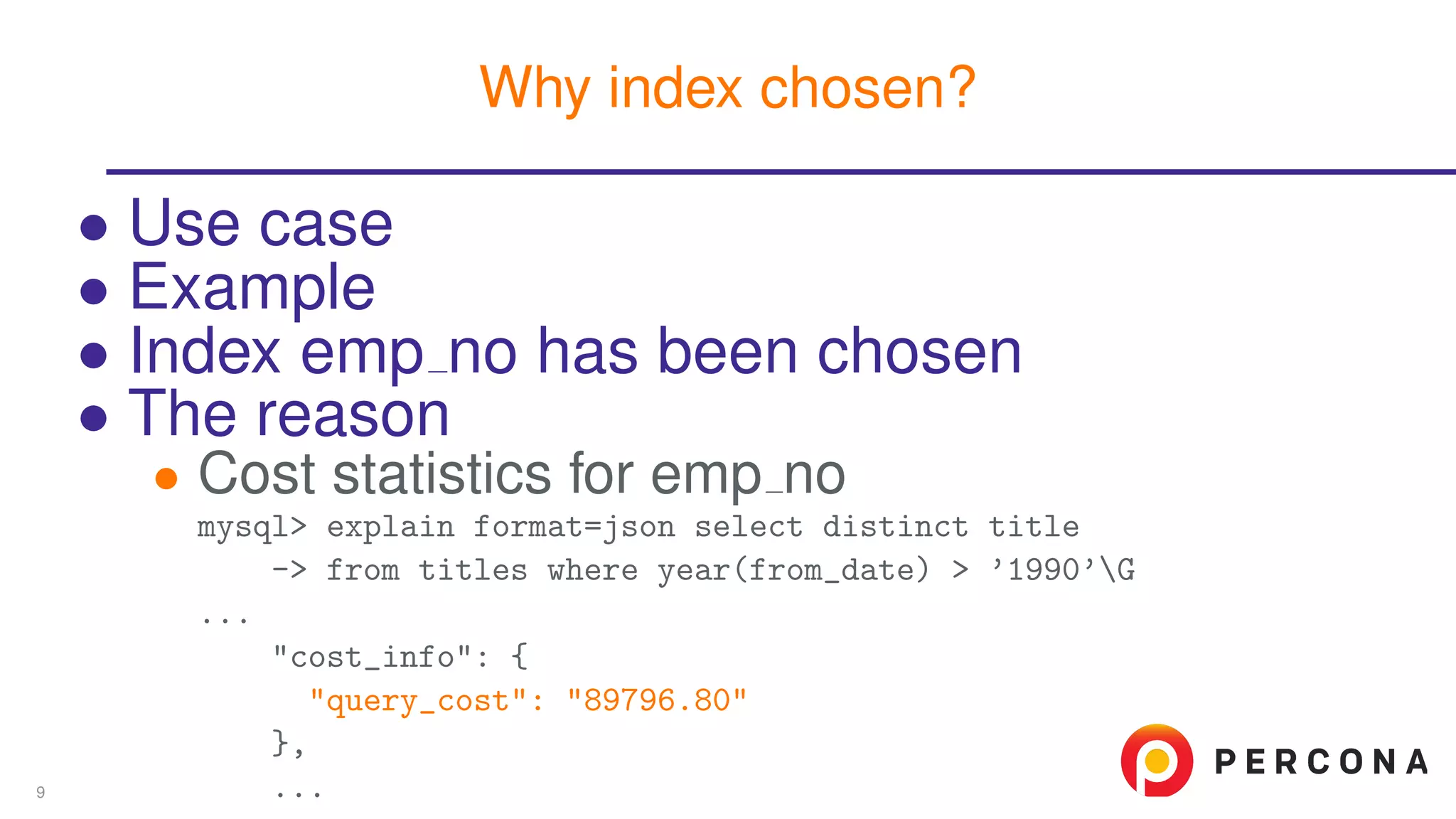

21. • Use case
• Example
• Index emp no has been chosen
• The reason
• Cost statistics for emp no
mysql> explain format=json select distinct title
-> from titles where year(from_date) > ’1990’G
...
"cost_info": {
"query_cost": "89796.80"
},
...
Why index chosen?
9

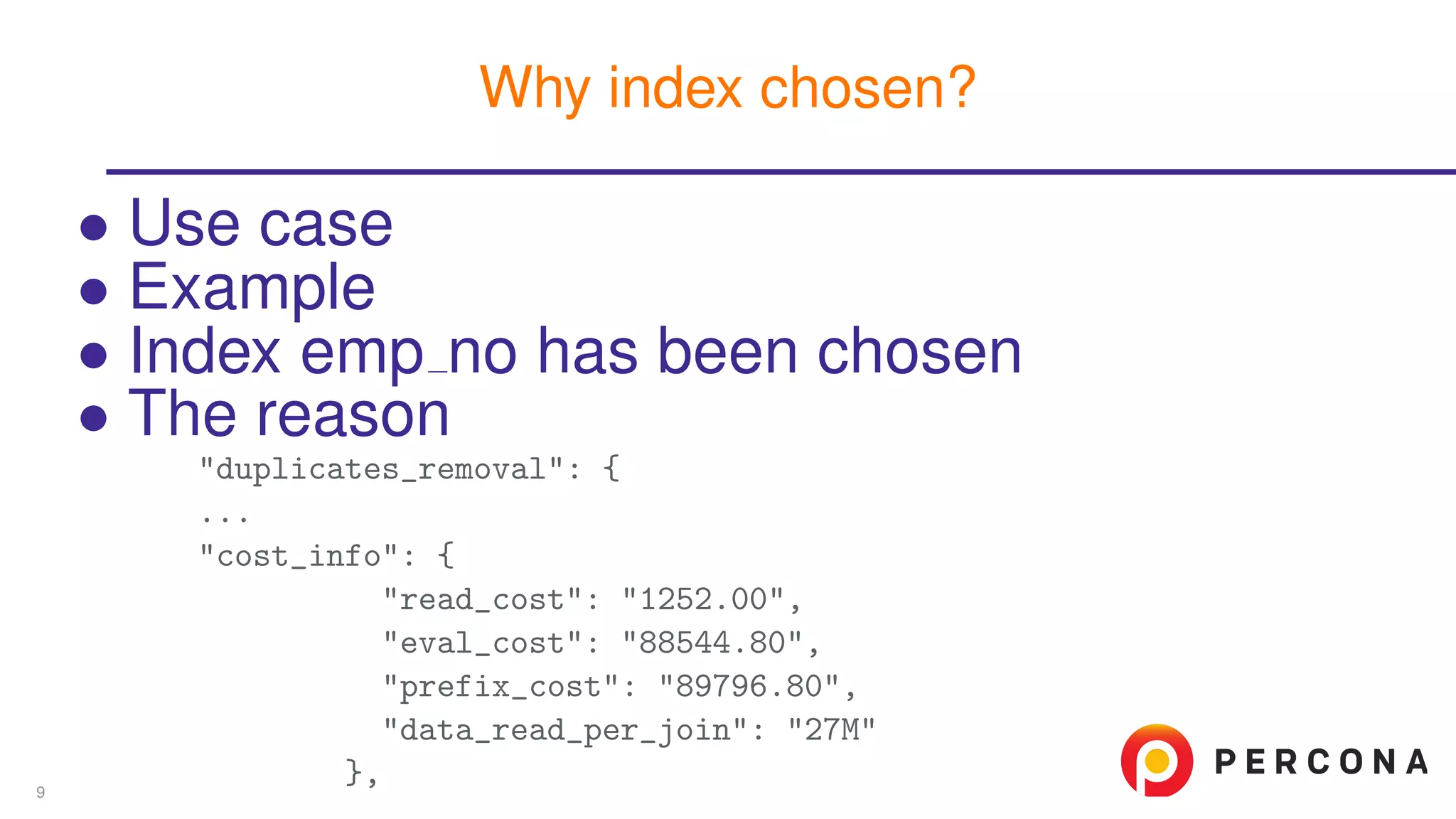

22. • Use case
• Example
• Index emp no has been chosen
• The reason
"duplicates_removal": {
...
"cost_info": {
"read_cost": "1252.00",
"eval_cost": "88544.80",
"prefix_cost": "89796.80",
"data_read_per_join": "27M"
},
Why index chosen?
9

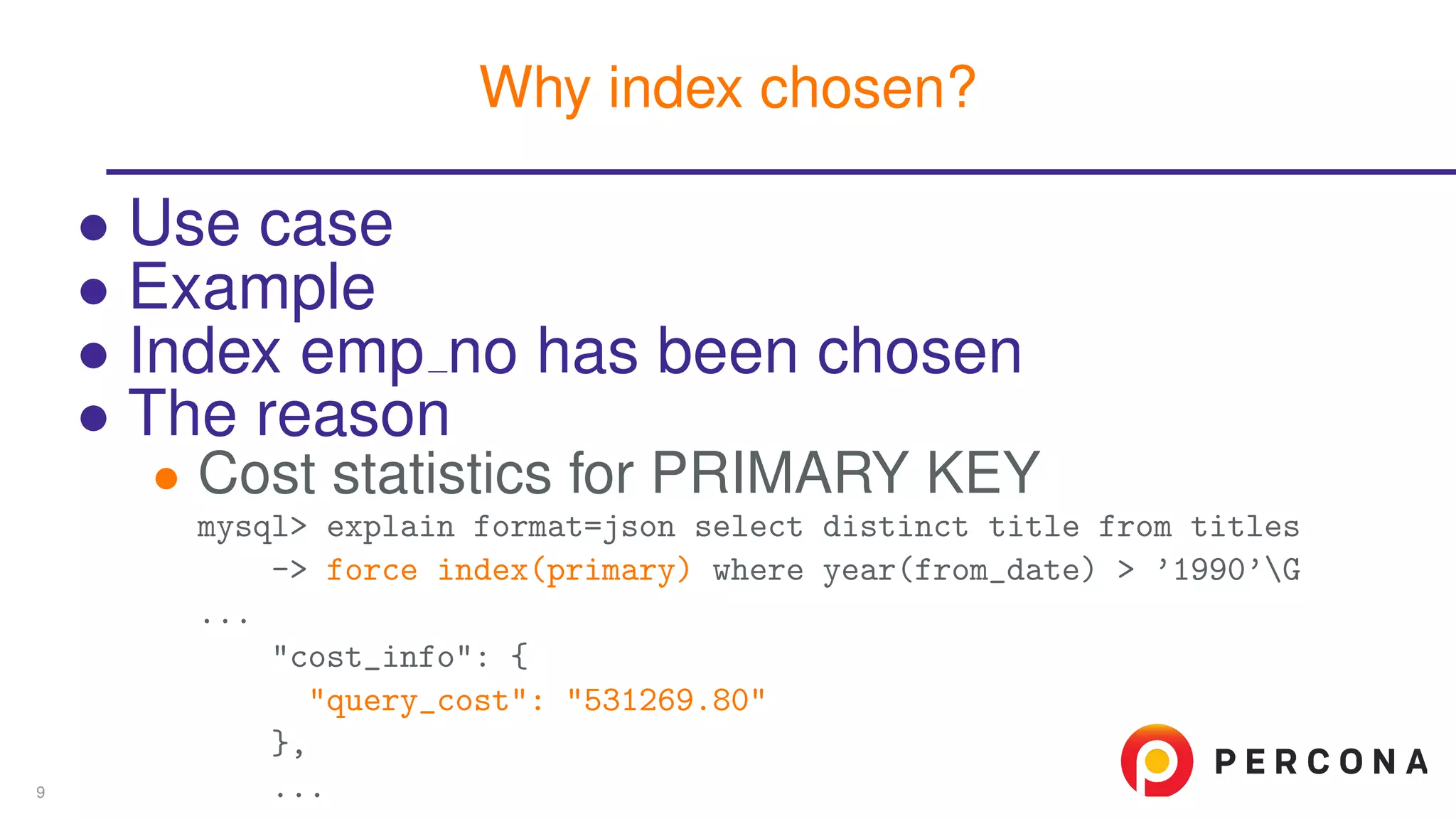

23. • Use case
• Example
• Index emp no has been chosen
• The reason
• Cost statistics for PRIMARY KEY
mysql> explain format=json select distinct title from titles
-> force index(primary) where year(from_date) > ’1990’G
...
"cost_info": {
"query_cost": "531269.80"
},
...
Why index chosen?
9

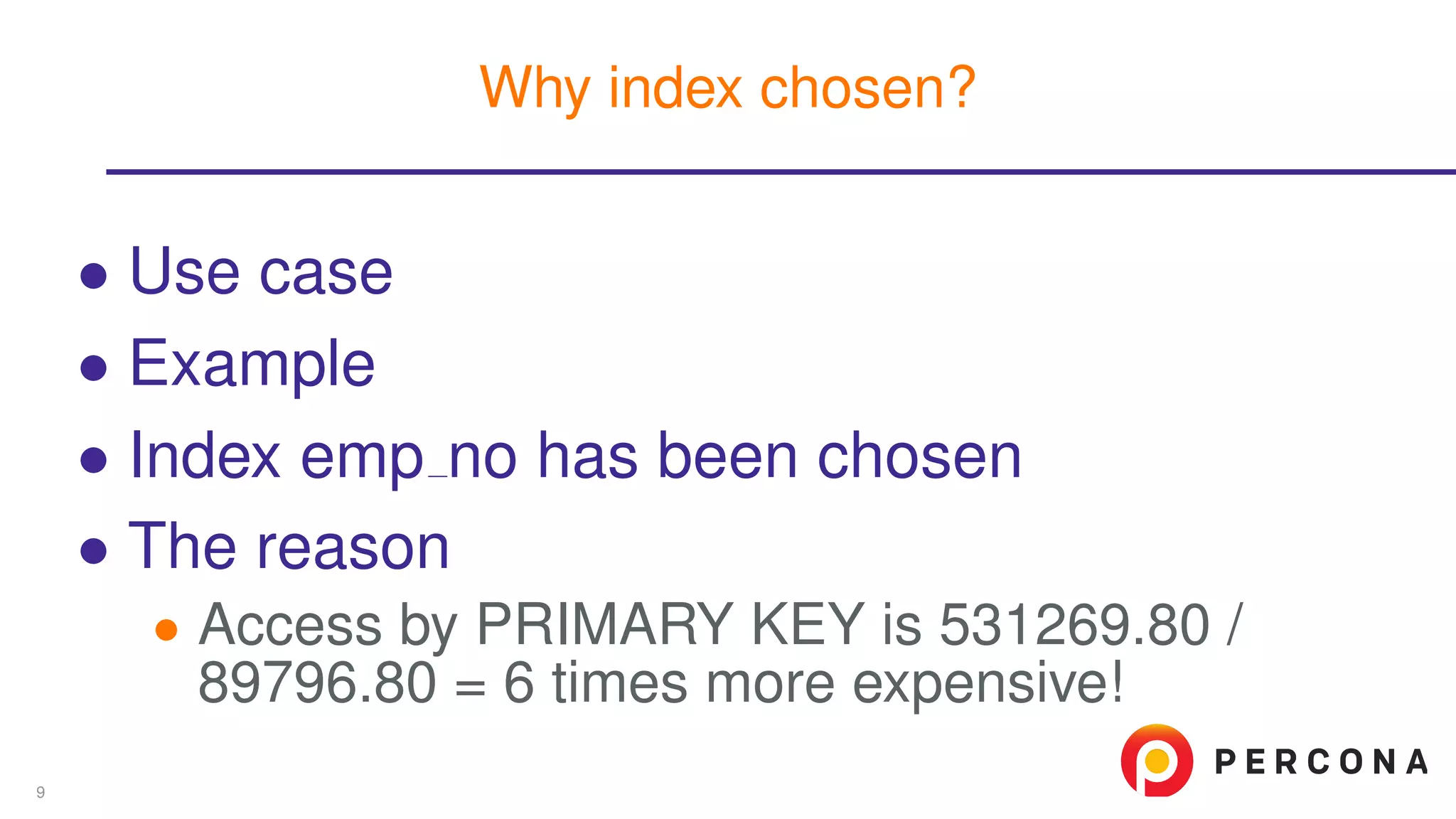

24. • Use case
• Example
• Index emp no has been chosen
• The reason
• Access by PRIMARY KEY is 531269.80 /
89796.80 = 6 times more expensive!
Why index chosen?
9

25. Grouping and ordering
10

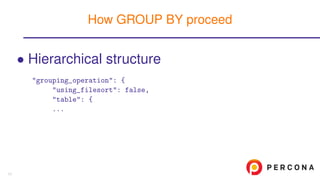

26. • Hierarchical structure
"grouping_operation": {
"using_filesort": false,
"table": {
...
How GROUP BY proceed
11

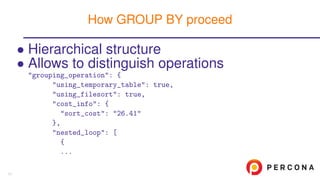

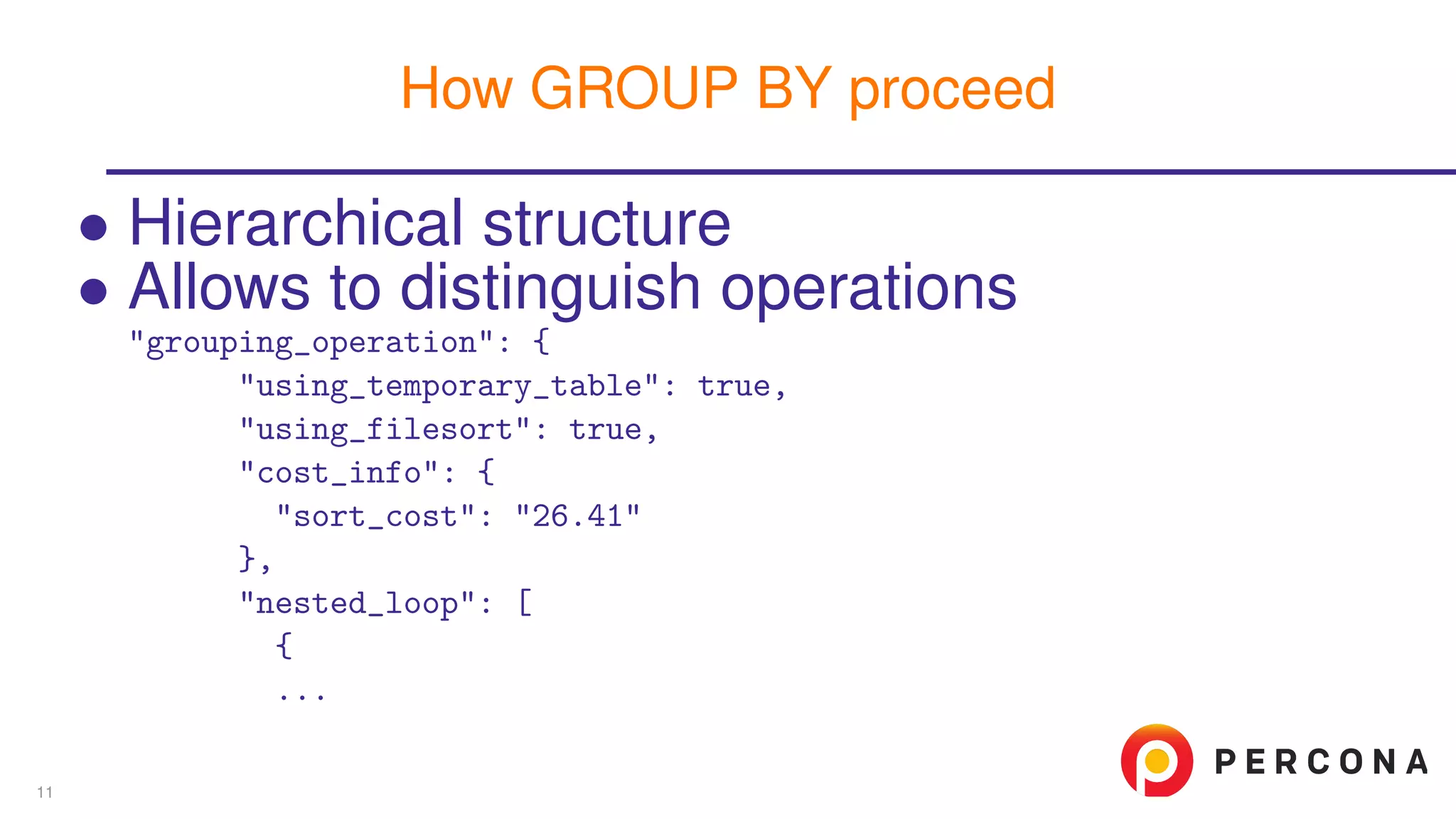

27. • Hierarchical structure
• Allows to distinguish operations
"grouping_operation": {
"using_temporary_table": true,
"using_filesort": true,
"cost_info": {
"sort_cost": "26.41"
},
"nested_loop": [
{
...
How GROUP BY proceed
11

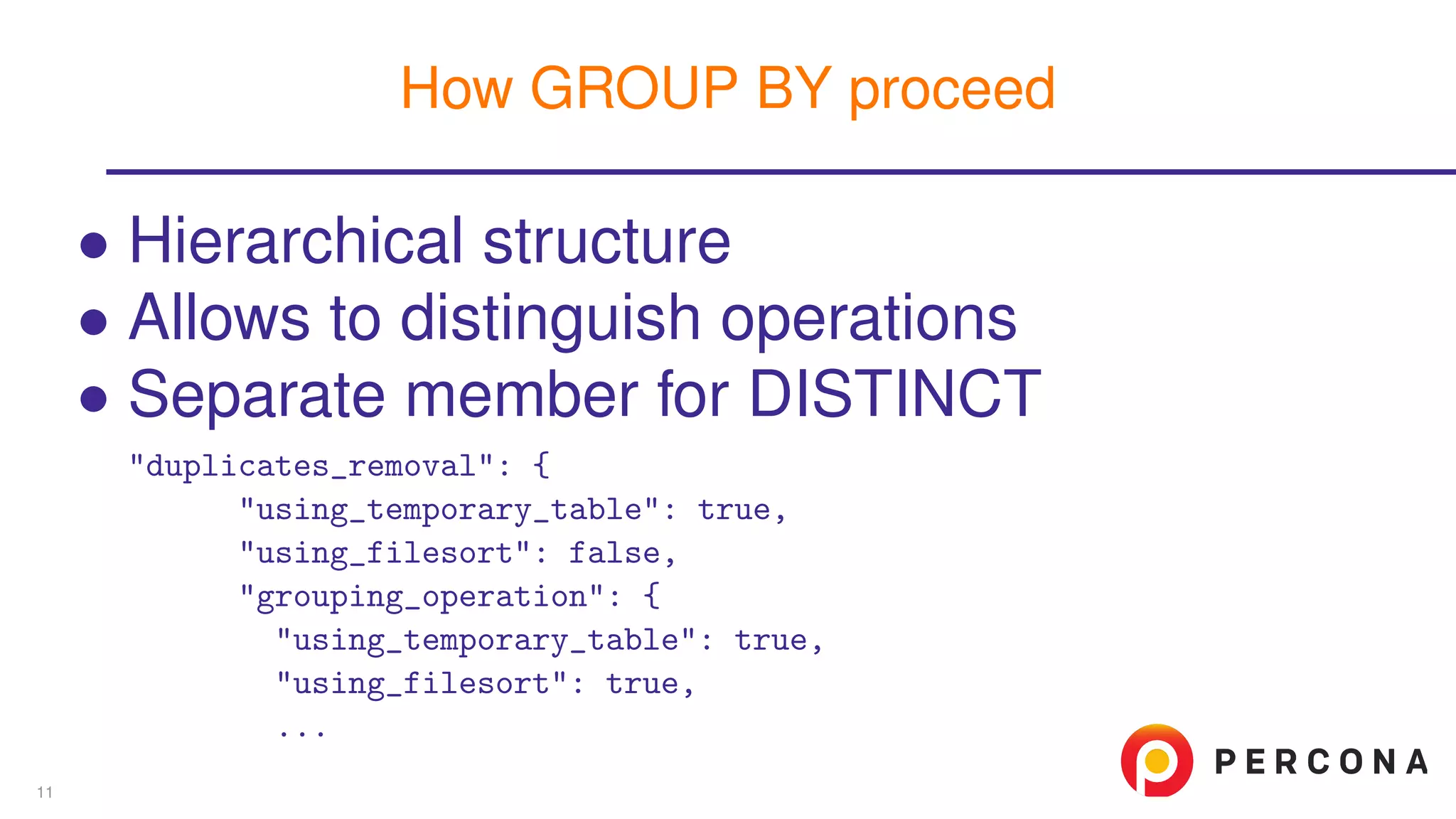

28. • Hierarchical structure
• Allows to distinguish operations
• Separate member for DISTINCT
"duplicates_removal": {
"using_temporary_table": true,
"using_filesort": false,
"grouping_operation": {
"using_temporary_table": true,
"using_filesort": true,
...
How GROUP BY proceed
11

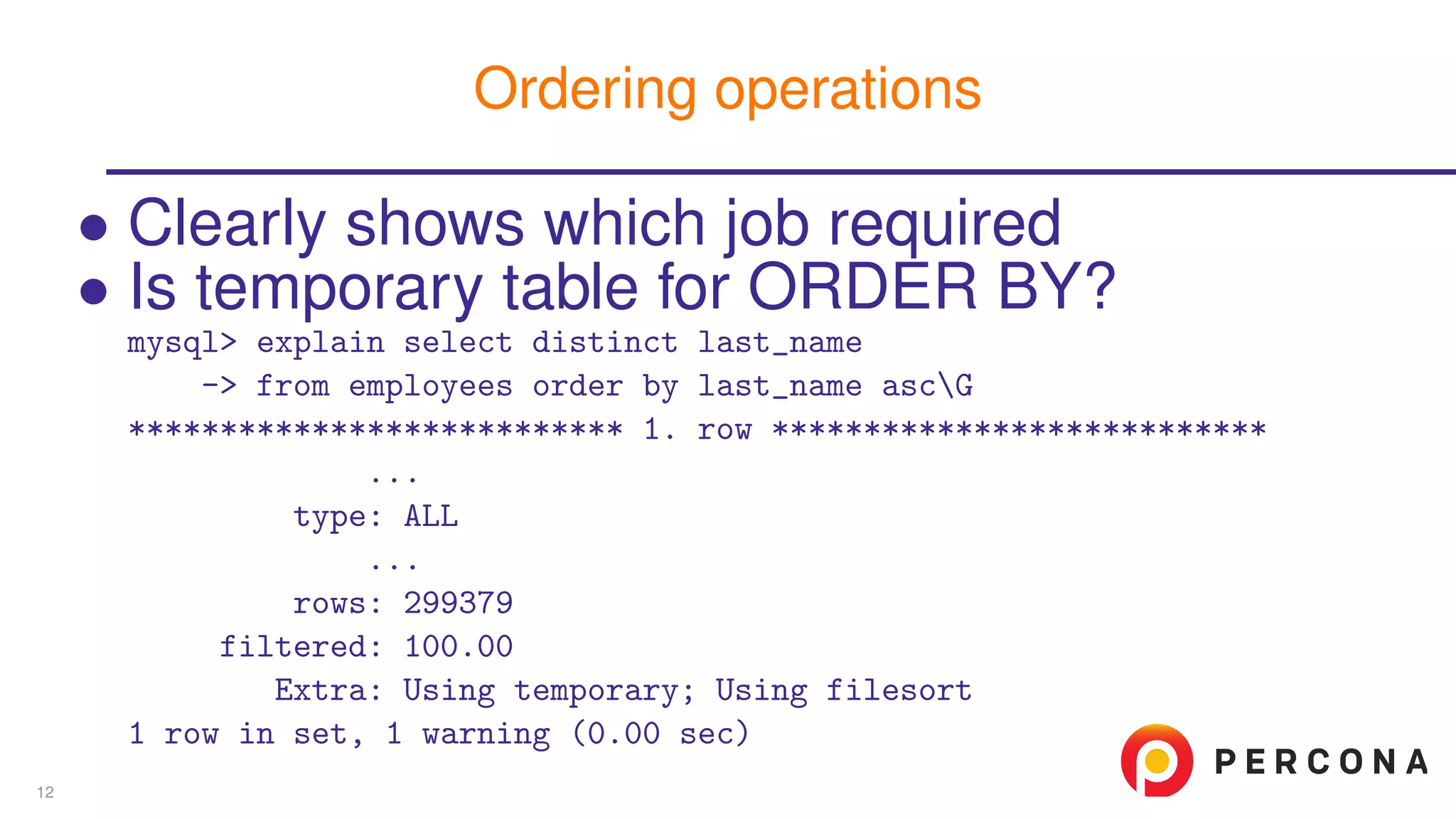

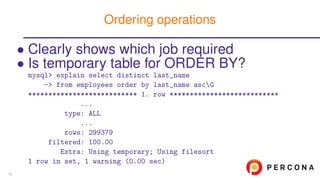

29. • Clearly shows which job required
• Is temporary table for ORDER BY?
mysql> explain select distinct last_name
-> from employees order by last_name ascG
*************************** 1. row ***************************
...
type: ALL
...
rows: 299379
filtered: 100.00
Extra: Using temporary; Using filesort
1 row in set, 1 warning (0.00 sec)
Ordering operations
12

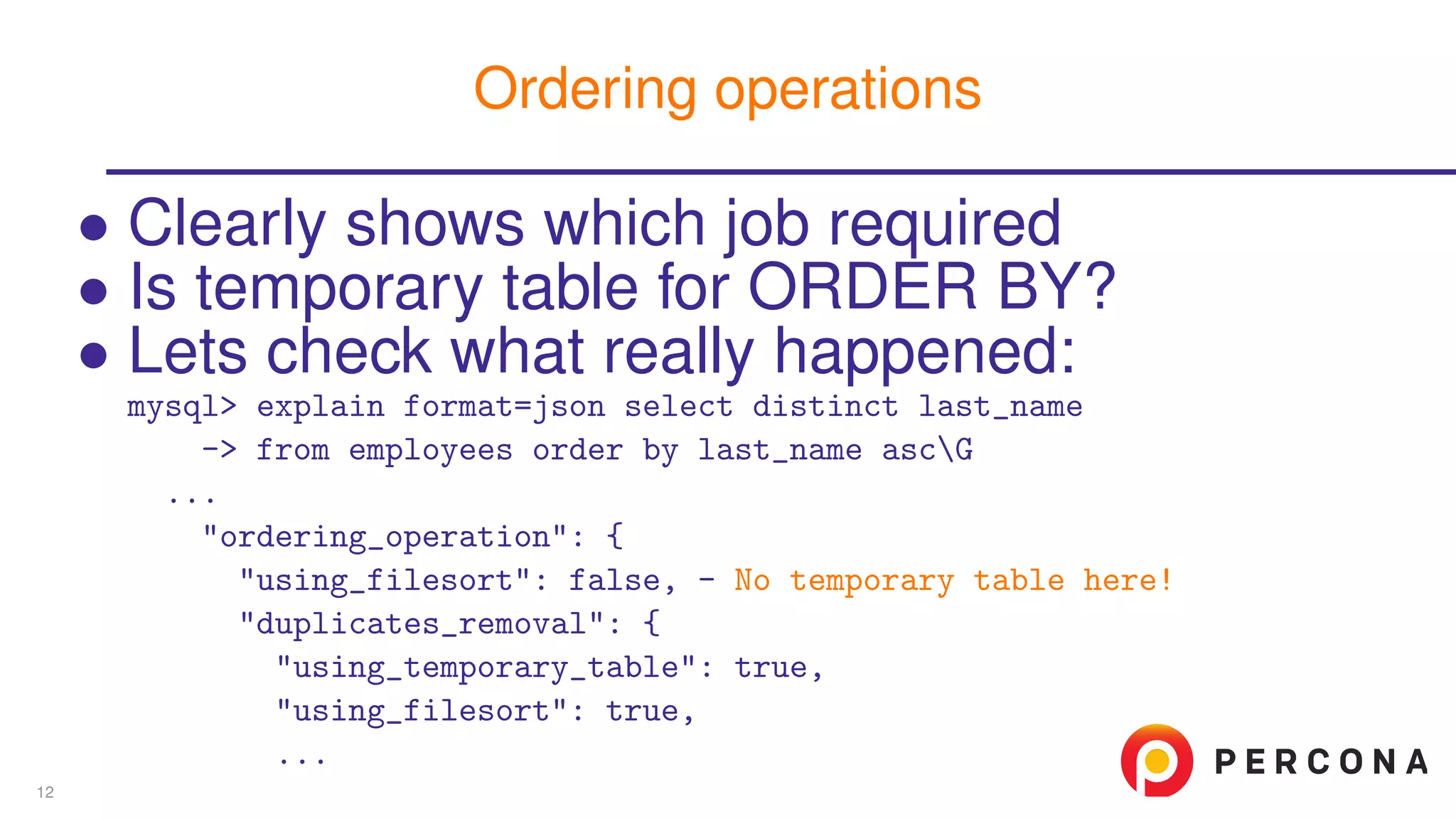

30. • Clearly shows which job required
• Is temporary table for ORDER BY?
• Lets check what really happened:
mysql> explain format=json select distinct last_name
-> from employees order by last_name ascG
...
"ordering_operation": {
"using_filesort": false, - No temporary table here!
"duplicates_removal": {
"using_temporary_table": true,
"using_filesort": true,
...
Ordering operations
12

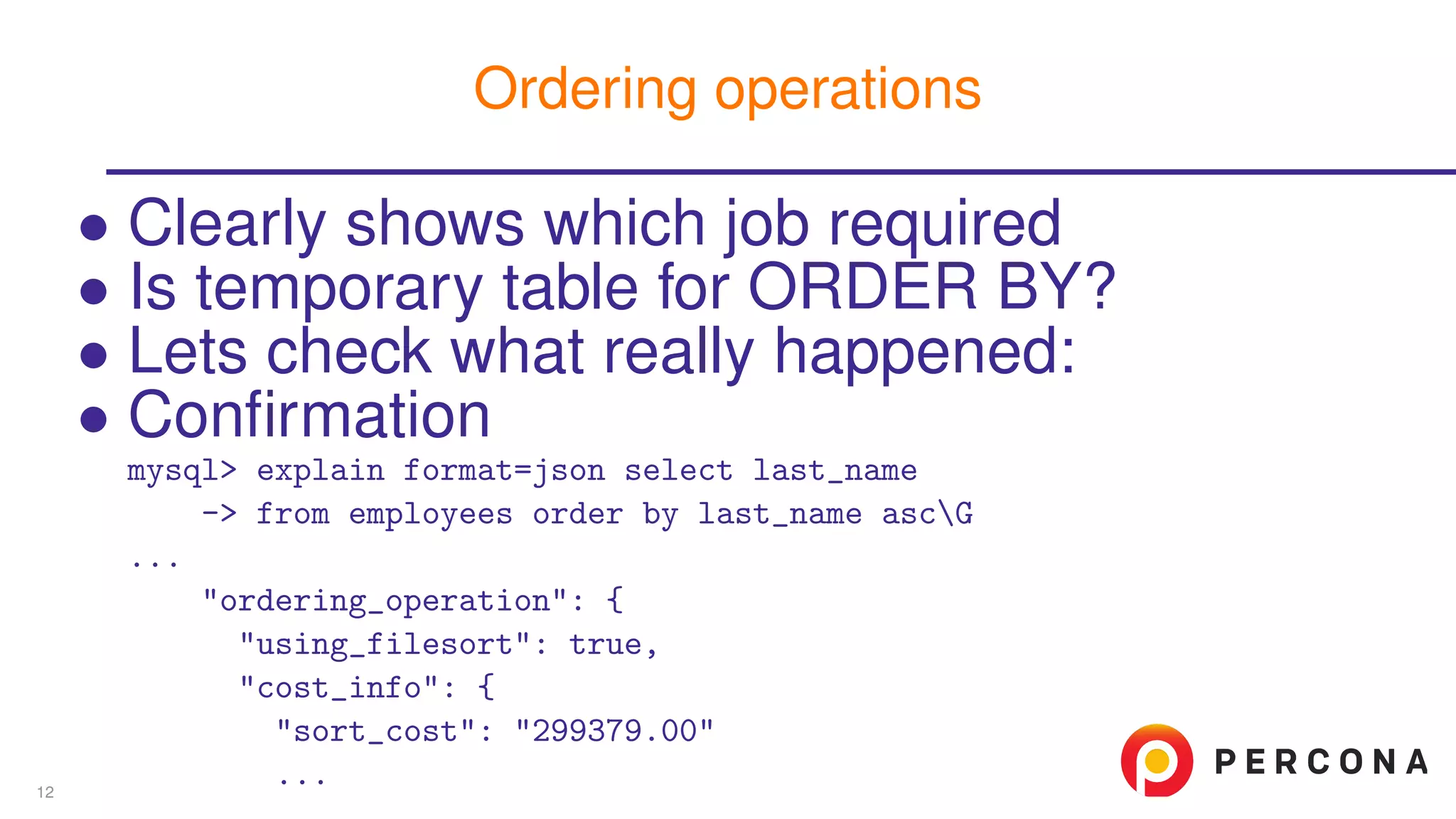

31. • Clearly shows which job required
• Is temporary table for ORDER BY?
• Lets check what really happened:
• Confirmation
mysql> explain format=json select last_name
-> from employees order by last_name ascG
...
"ordering_operation": {
"using_filesort": true,
"cost_info": {
"sort_cost": "299379.00"
...
Ordering operations
12

32. Subqueries and unions
13

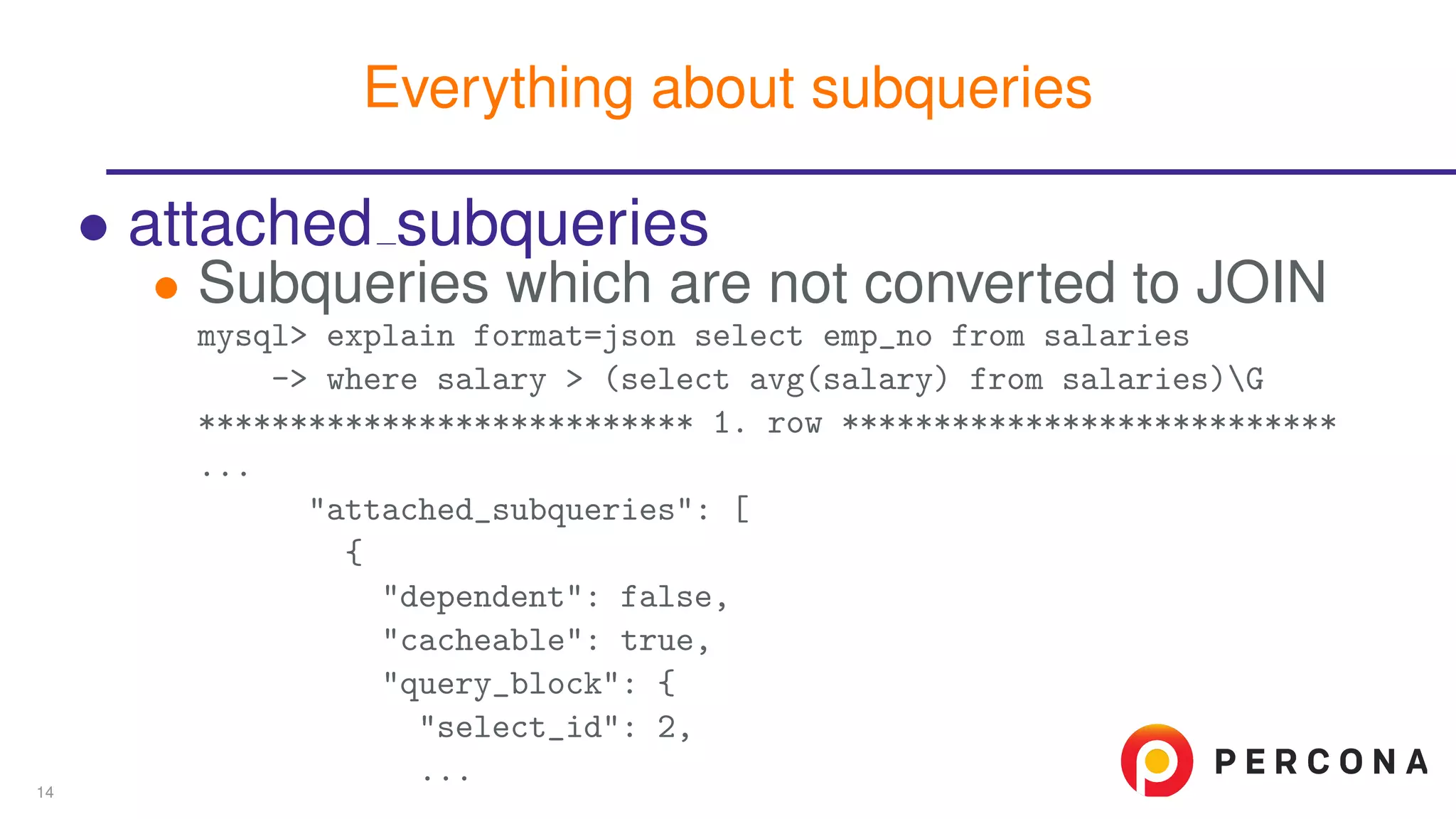

33. • attached subqueries
• Subqueries which are not converted to JOIN
mysql> explain format=json select emp_no from salaries
-> where salary > (select avg(salary) from salaries)G
*************************** 1. row ***************************
...
"attached_subqueries": [
{
"dependent": false,
"cacheable": true,
"query_block": {
"select_id": 2,
...
Everything about subqueries
14

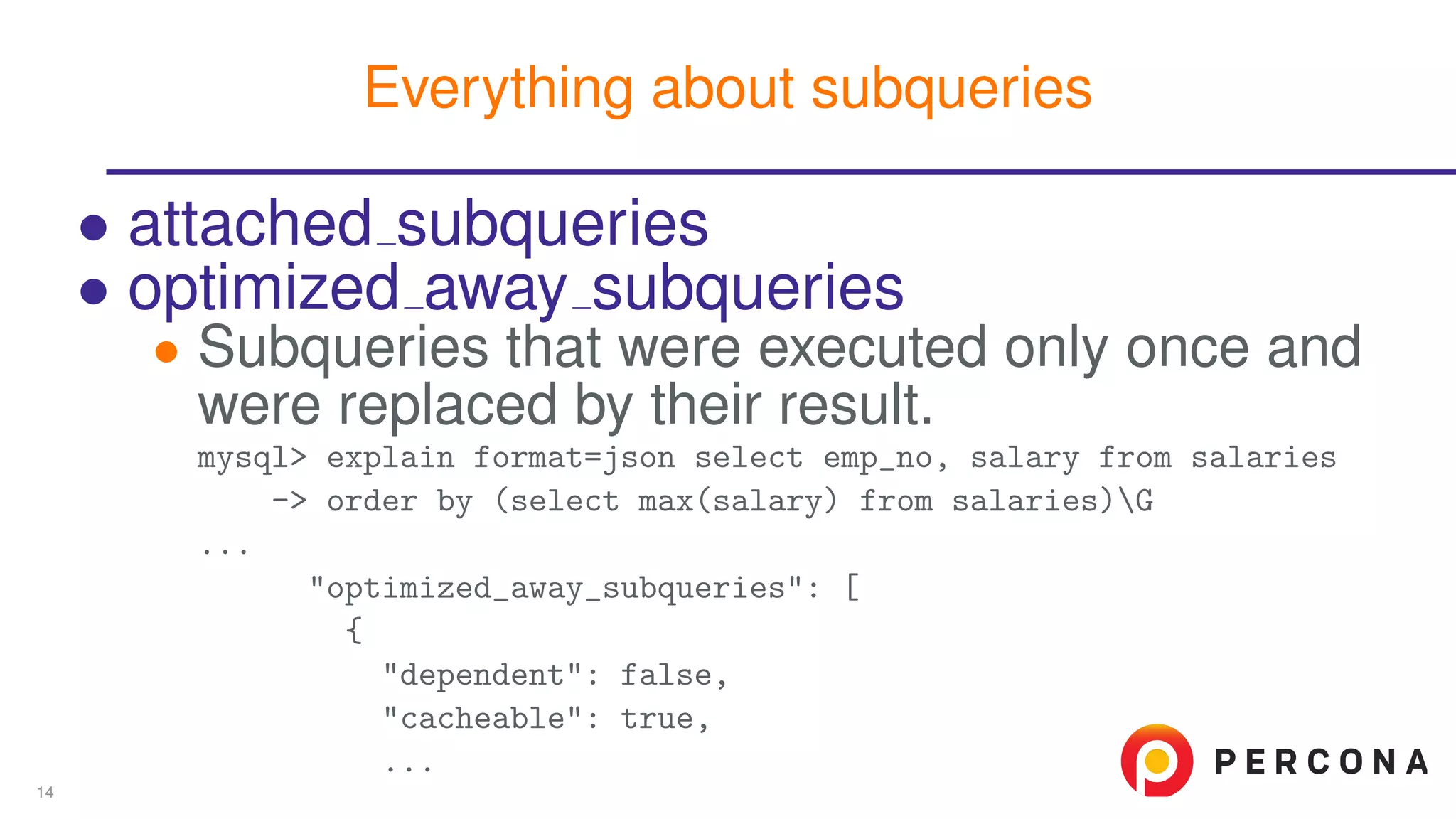

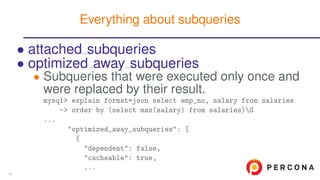

34. • attached subqueries
• optimized away subqueries
• Subqueries that were executed only once and
were replaced by their result.
mysql> explain format=json select emp_no, salary from salaries
-> order by (select max(salary) from salaries)G
...
"optimized_away_subqueries": [
{
"dependent": false,
"cacheable": true,
...
Everything about subqueries
14

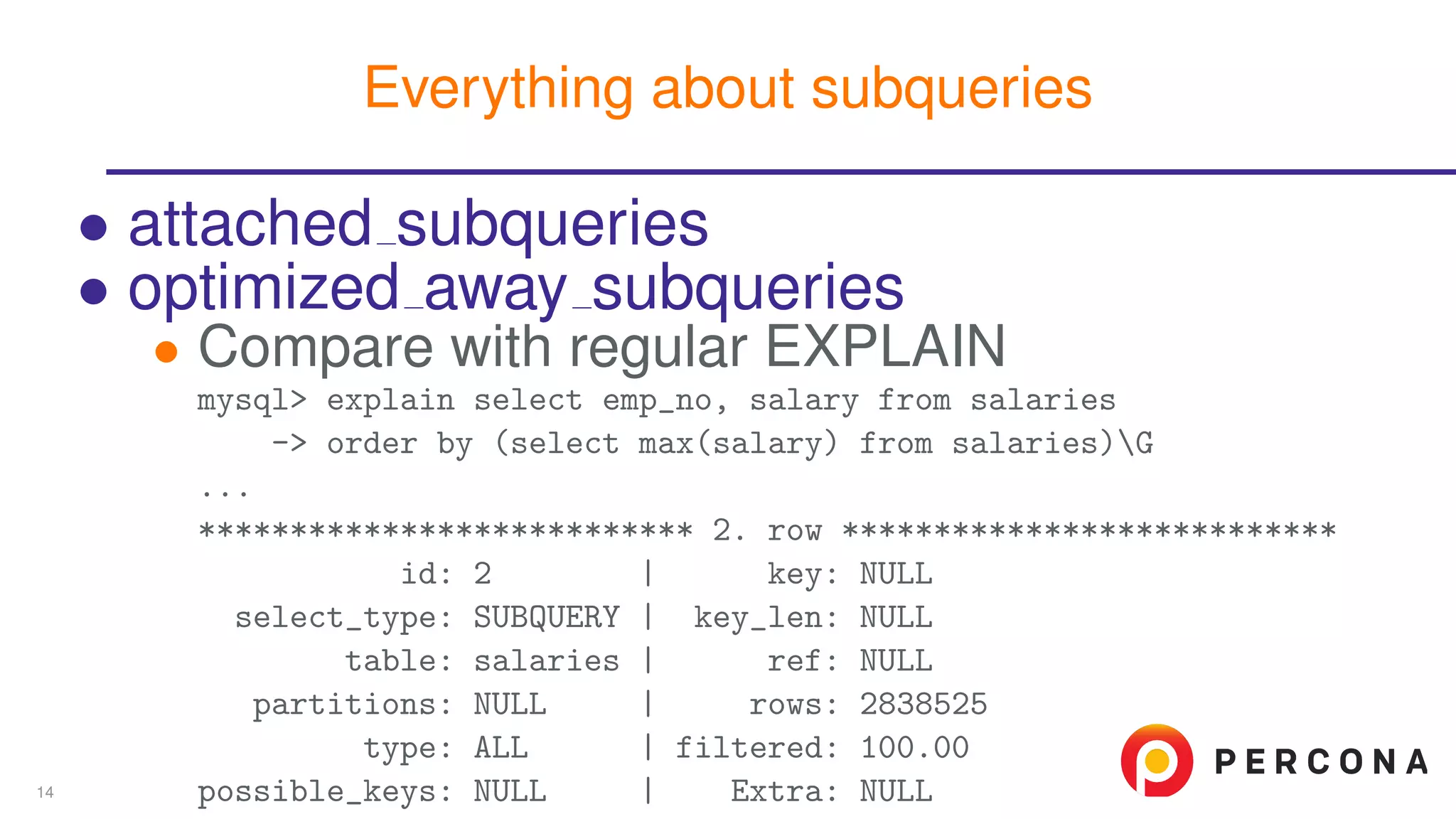

35. • attached subqueries
• optimized away subqueries
• Compare with regular EXPLAIN
mysql> explain select emp_no, salary from salaries
-> order by (select max(salary) from salaries)G
...
*************************** 2. row ***************************
id: 2 | key: NULL
select_type: SUBQUERY | key_len: NULL
table: salaries | ref: NULL
partitions: NULL | rows: 2838525
type: ALL | filtered: 100.00
possible_keys: NULL | Extra: NULL
Everything about subqueries
14

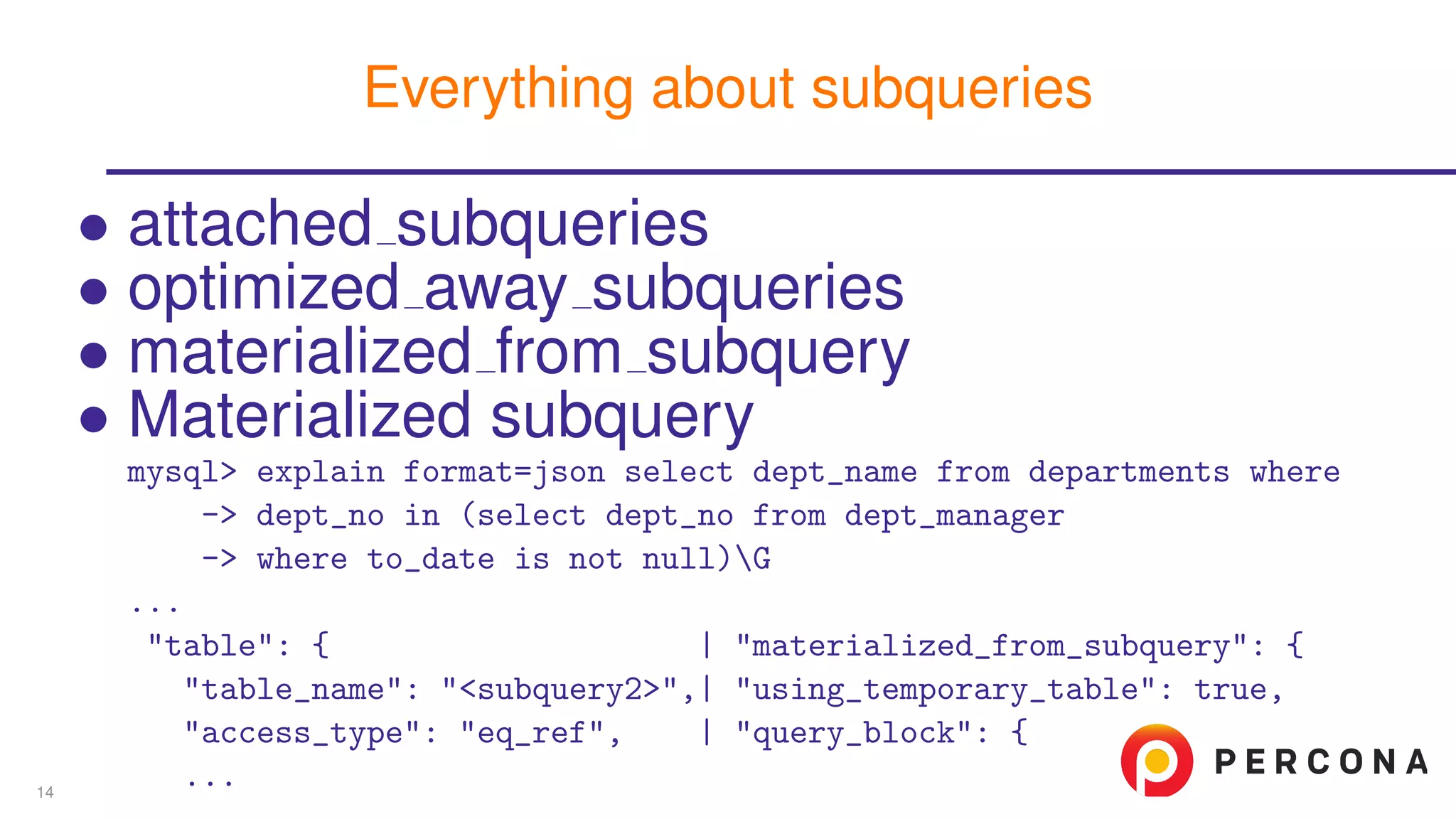

36. • attached subqueries
• optimized away subqueries
• materialized from subquery
• Materialized subquery
mysql> explain format=json select dept_name from departments where
-> dept_no in (select dept_no from dept_manager
-> where to_date is not null)G
...
"table": { | "materialized_from_subquery": {
"table_name": "<subquery2>",| "using_temporary_table": true,
"access_type": "eq_ref", | "query_block": {
...
Everything about subqueries
14

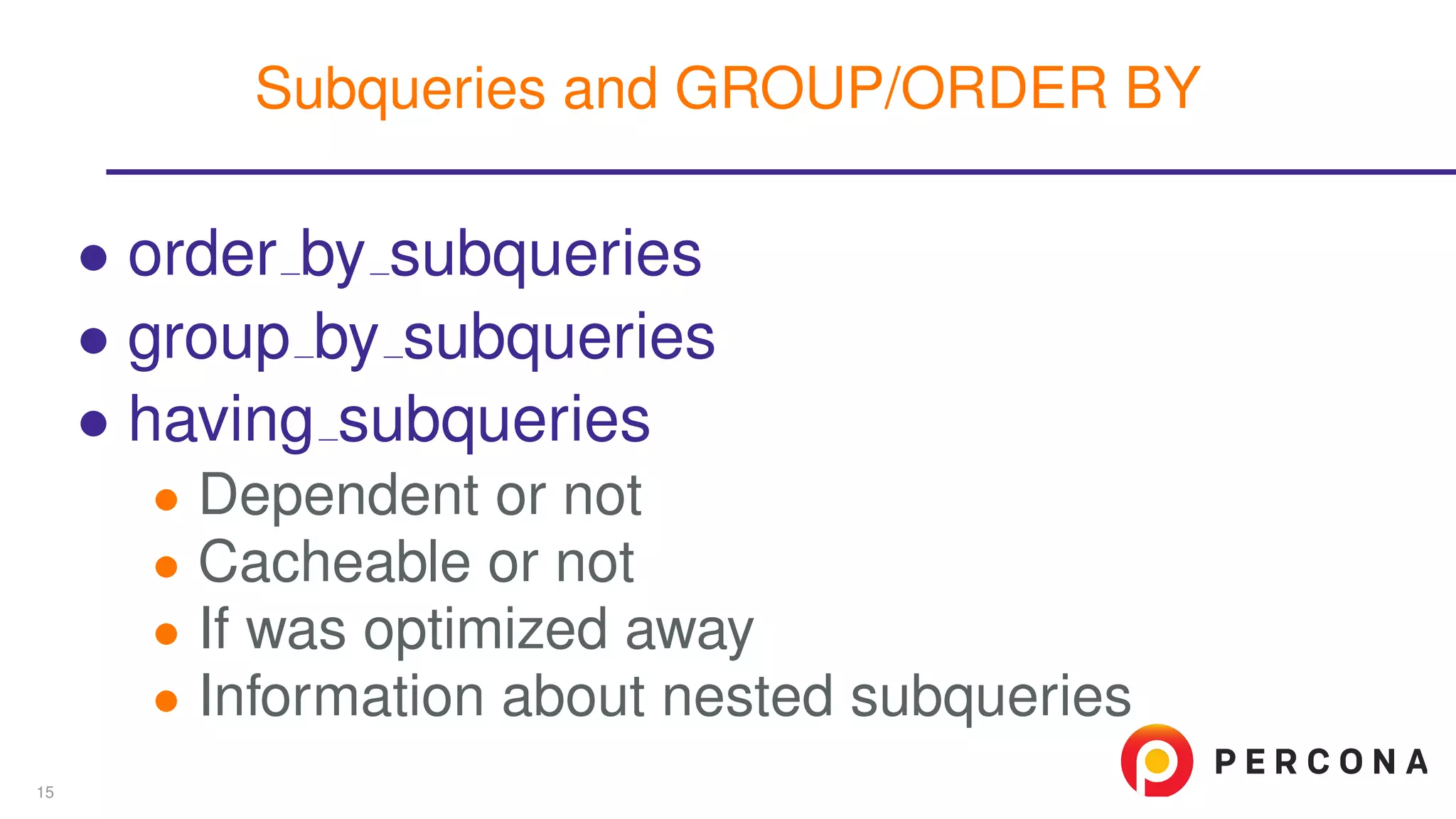

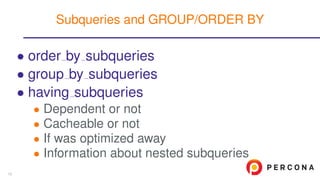

37. • order by subqueries
• group by subqueries
• having subqueries
• Dependent or not
• Cacheable or not
• If was optimized away
• Information about nested subqueries
Subqueries and GROUP/ORDER BY
15

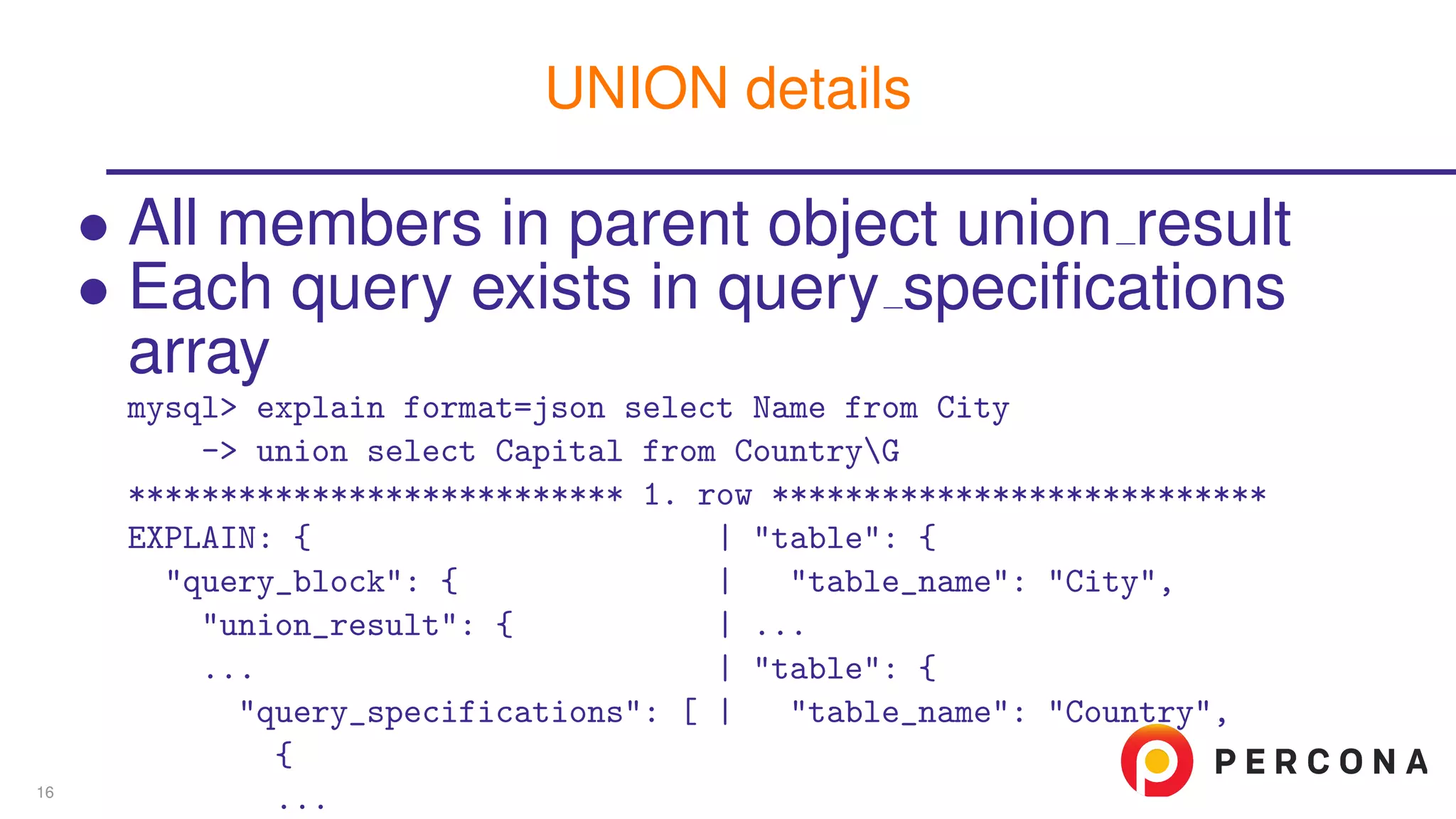

38. • All members in parent object union result
• Each query exists in query specifications
array
mysql> explain format=json select Name from City
-> union select Capital from CountryG
*************************** 1. row ***************************
EXPLAIN: { | "table": {
"query_block": { | "table_name": "City",
"union_result": { | ...
... | "table": {
"query_specifications": [ | "table_name": "Country",
{
...
UNION details
16

39. Troubleshooting sugar
17

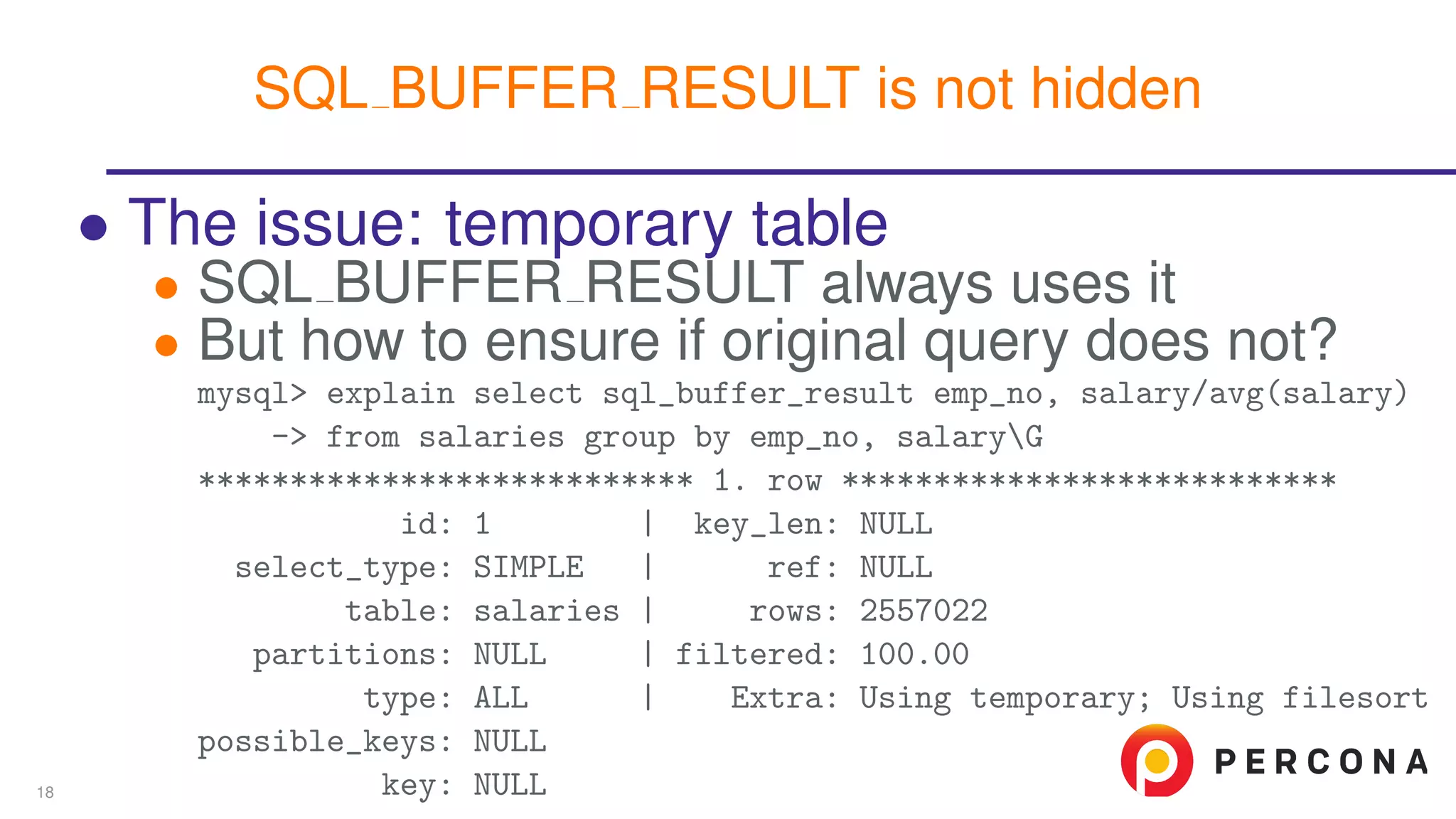

40. • The issue: temporary table
• SQL BUFFER RESULT always uses it
• But how to ensure if original query does not?
mysql> explain select sql_buffer_result emp_no, salary/avg(salary)
-> from salaries group by emp_no, salaryG
*************************** 1. row ***************************
id: 1 | key_len: NULL
select_type: SIMPLE | ref: NULL
table: salaries | rows: 2557022
partitions: NULL | filtered: 100.00
type: ALL | Extra: Using temporary; Using filesort
possible_keys: NULL
key: NULL
SQL BUFFER RESULT is not hidden
18

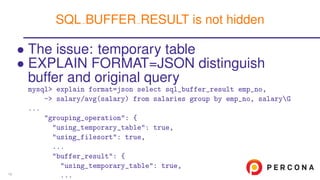

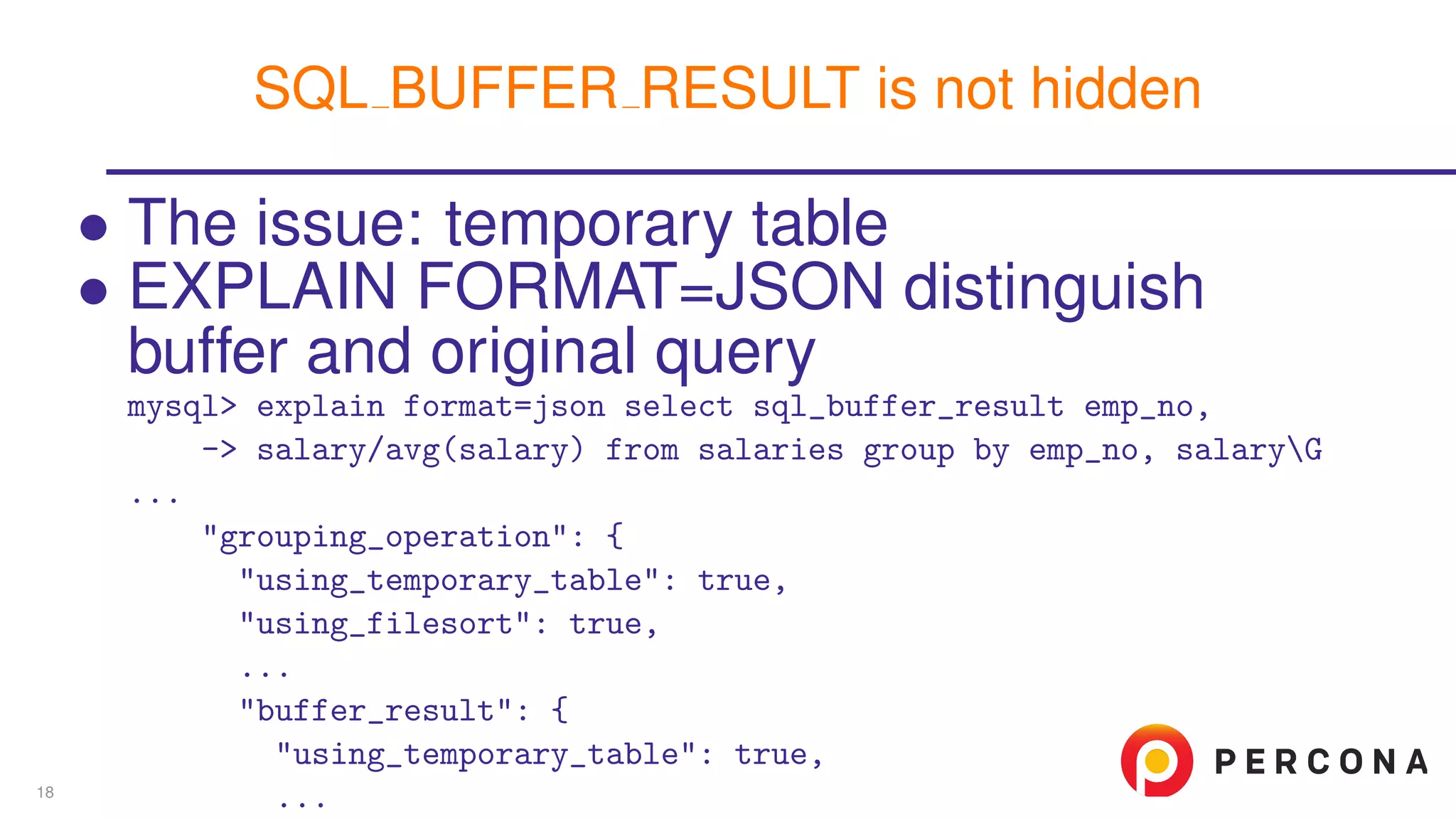

41. • The issue: temporary table
• EXPLAIN FORMAT=JSON distinguish
buffer and original query
mysql> explain format=json select sql_buffer_result emp_no,
-> salary/avg(salary) from salaries group by emp_no, salaryG
...
"grouping_operation": {
"using_temporary_table": true,
"using_filesort": true,
...
"buffer_result": {
"using_temporary_table": true,
...
SQL BUFFER RESULT is not hidden
18

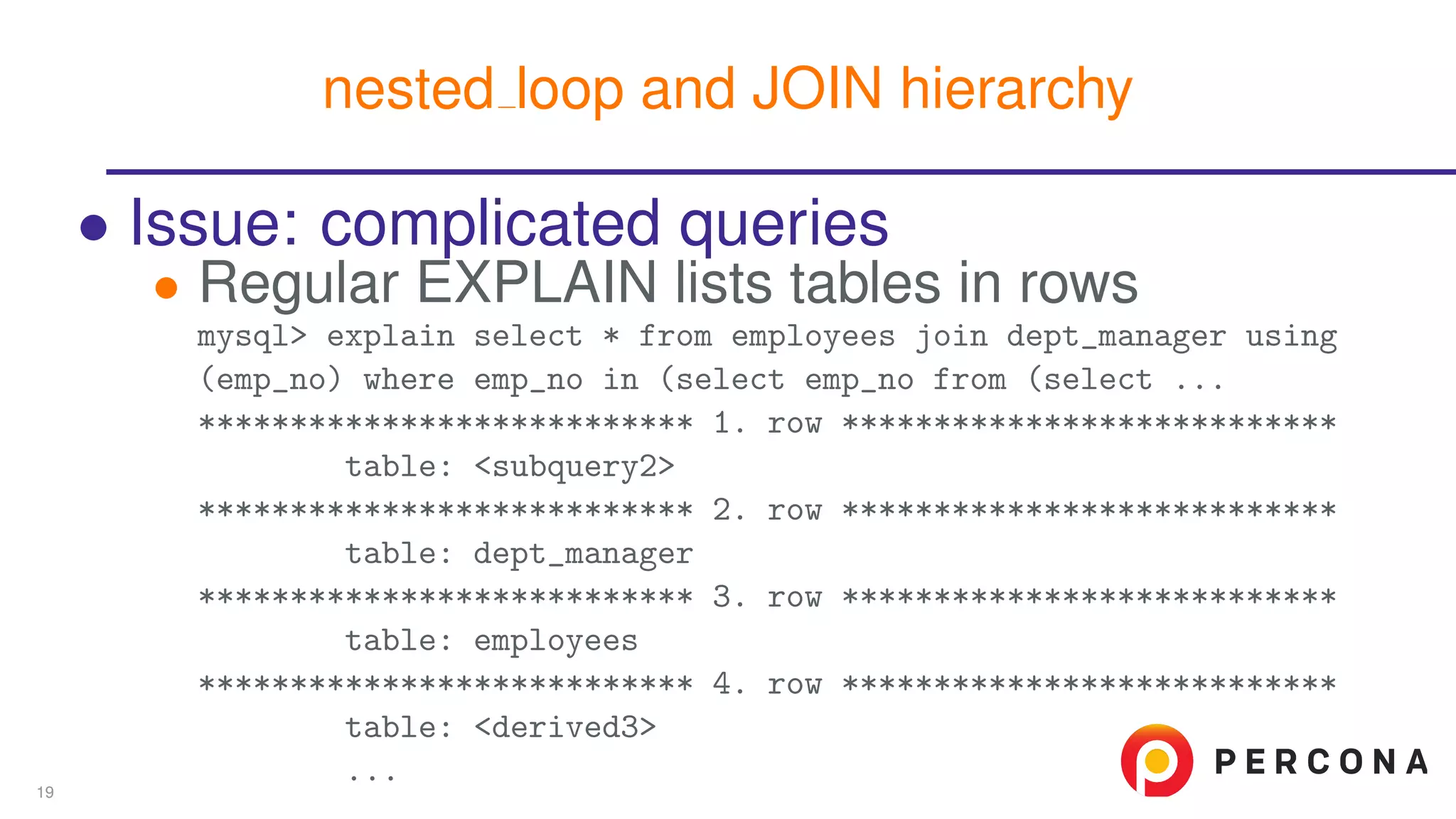

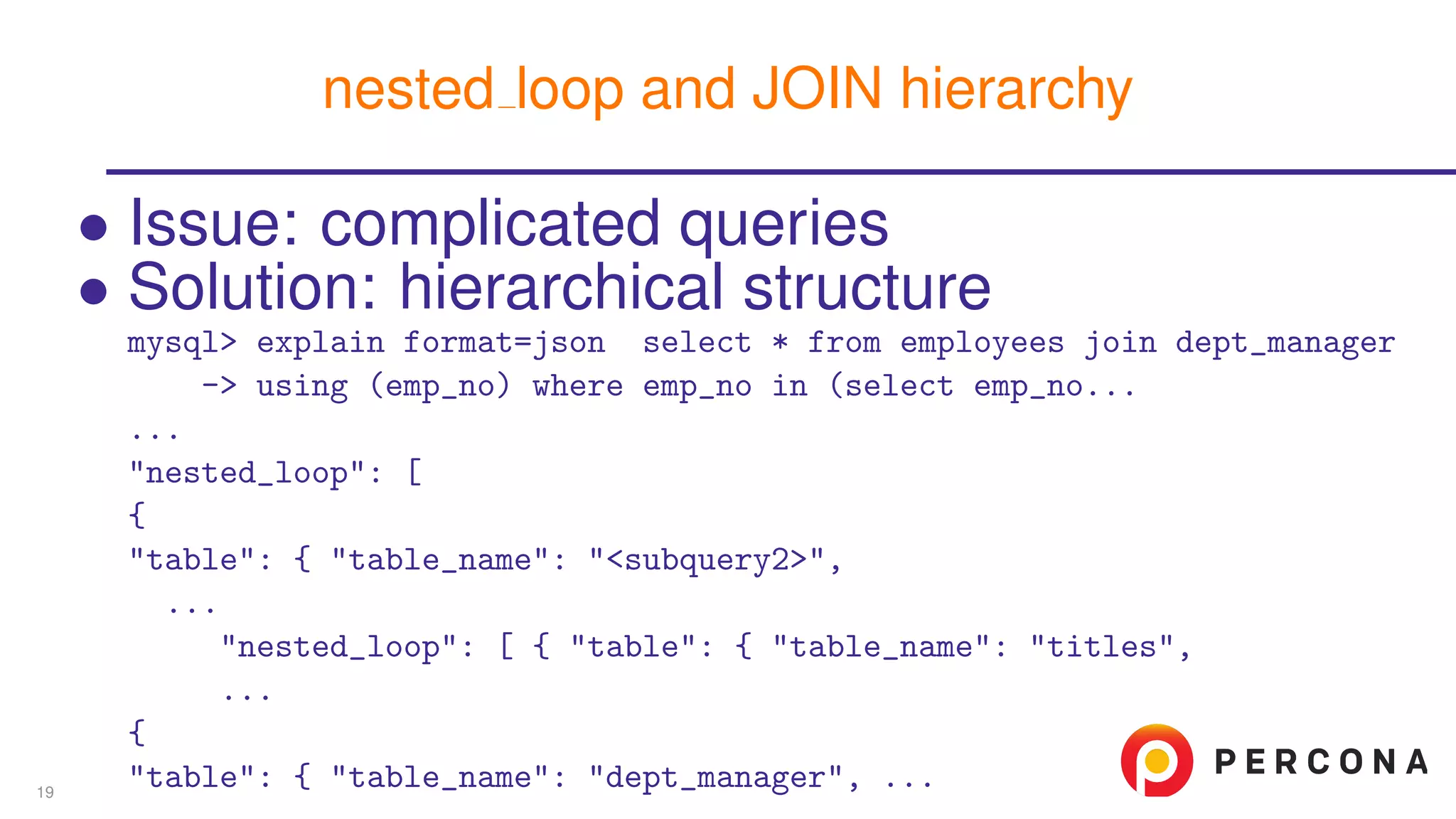

42. • Issue: complicated queries
• Regular EXPLAIN lists tables in rows
mysql> explain select * from employees join dept_manager using
(emp_no) where emp_no in (select emp_no from (select ...
*************************** 1. row ***************************
table: <subquery2>
*************************** 2. row ***************************
table: dept_manager
*************************** 3. row ***************************
table: employees
*************************** 4. row ***************************
table: <derived3>
...
nested loop and JOIN hierarchy
19

43. • Issue: complicated queries
• Solution: hierarchical structure
mysql> explain format=json select * from employees join dept_manager
-> using (emp_no) where emp_no in (select emp_no...
...
"nested_loop": [
{
"table": { "table_name": "<subquery2>",
...
"nested_loop": [ { "table": { "table_name": "titles",
...
{
"table": { "table_name": "dept_manager", ...
nested loop and JOIN hierarchy
19

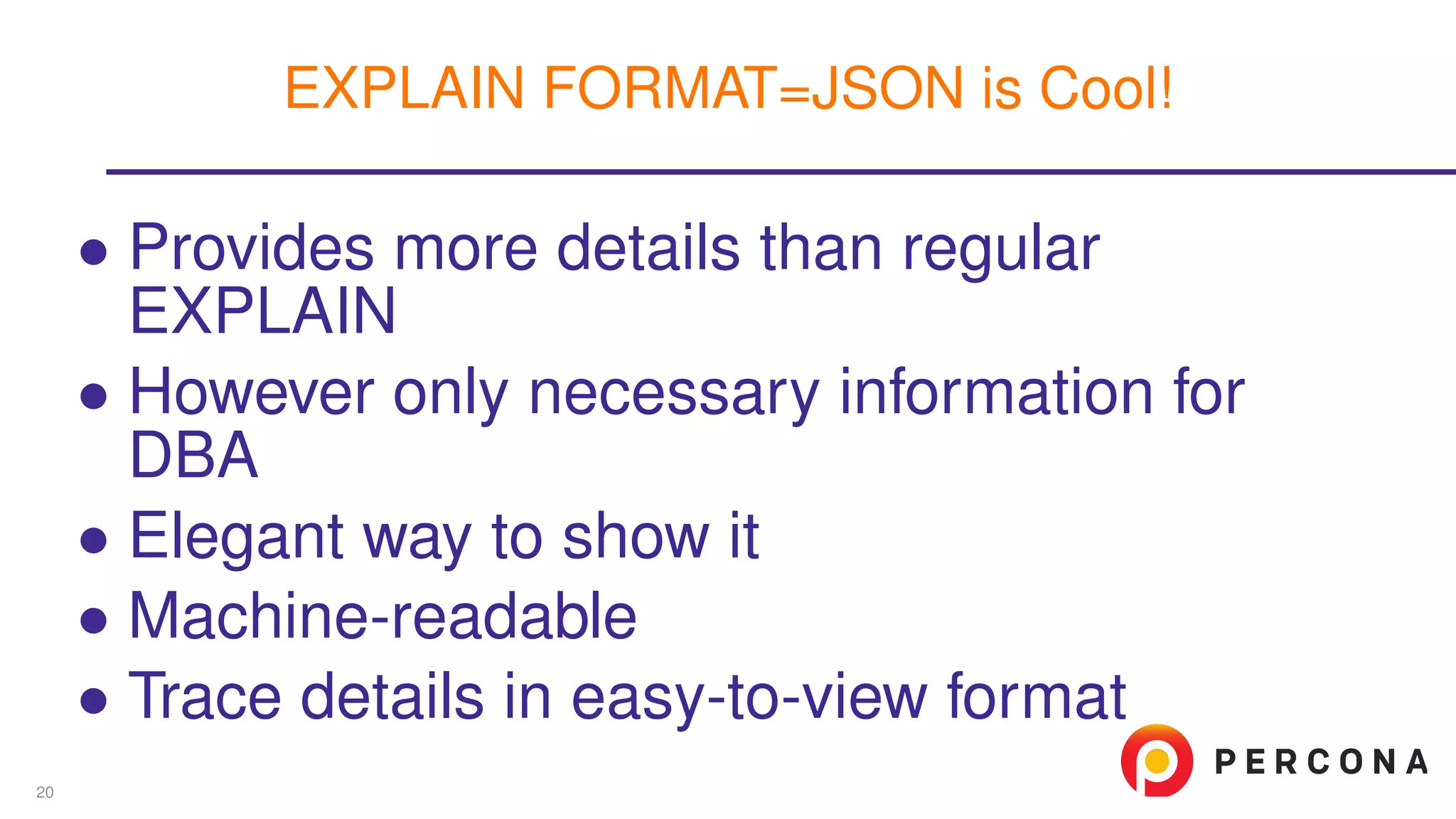

44. • Provides more details than regular
EXPLAIN
• However only necessary information for
DBA
• Elegant way to show it
• Machine-readable
• Trace details in easy-to-view format
EXPLAIN FORMAT=JSON is Cool!
20

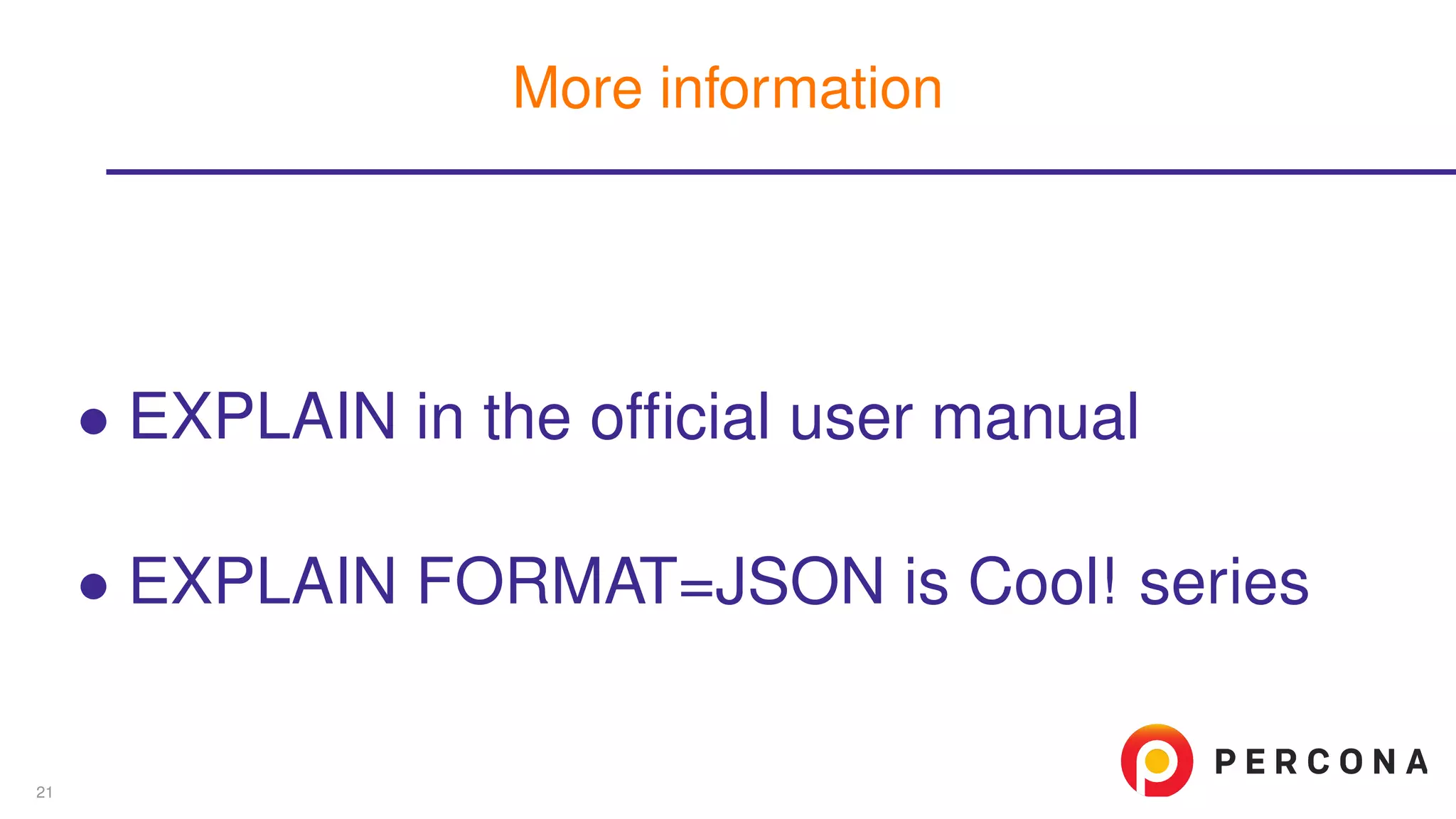

45. • EXPLAIN in the official user manual
• EXPLAIN FORMAT=JSON is Cool! series
More information
21

46. ???
Place for your questions
22

47. http://www.slideshare.net/SvetaSmirnova
https://twitter.com/svetsmirnova
Thank you!
23
