MySQL
Indexes,
Histograms,
And other ways
To Speed Up
Your Queries
David . Stokes @ Oracle.com
Slideshare.net/DavidMStokes @Stoker

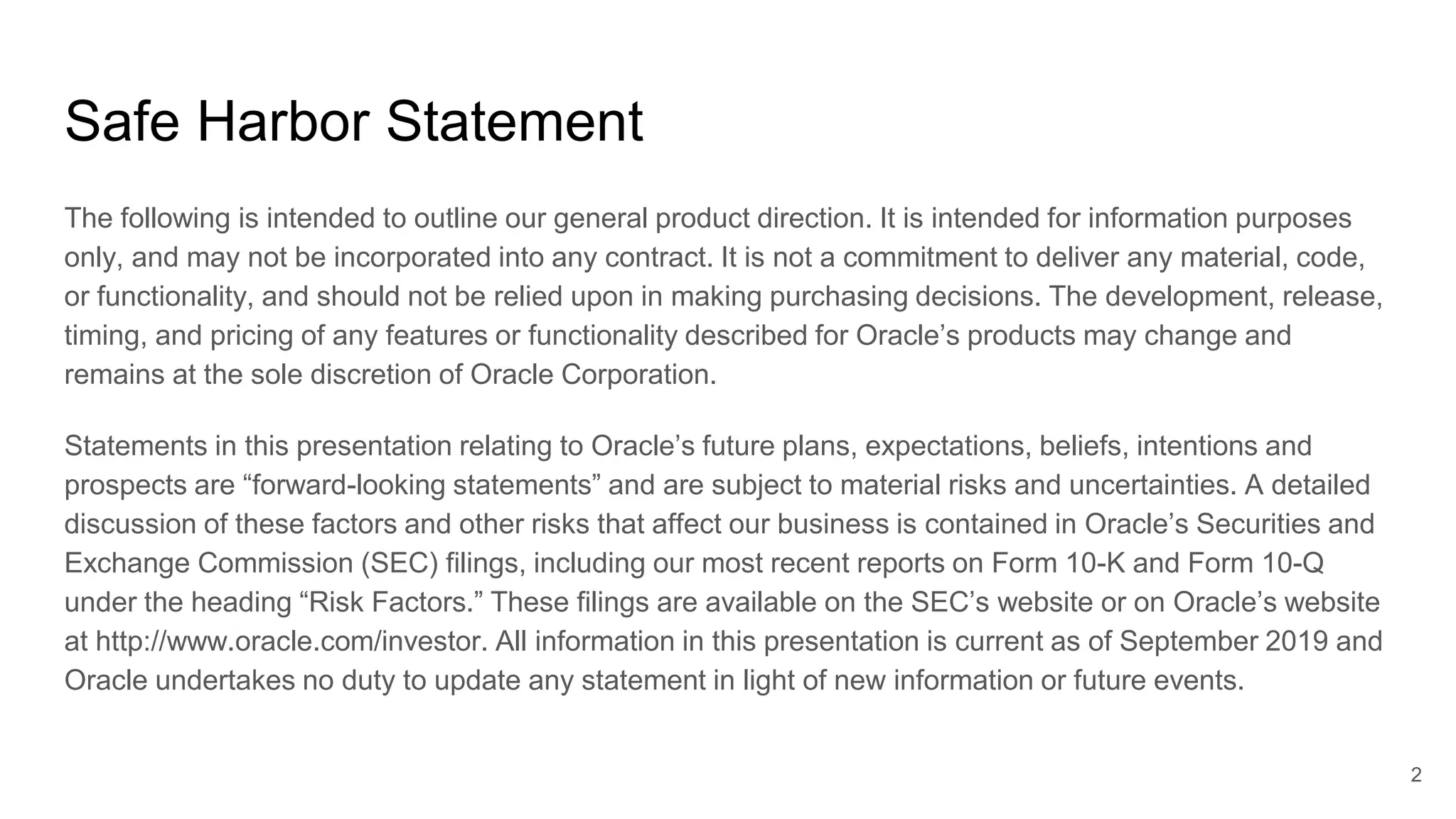

Safe Harbor Statement
The following is intended to outline our general product direction. It is intended for information purposes
only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code,
or functionality, and should not be relied upon in making purchasing decisions. The development, release,
timing, and pricing of any features or functionality described for Oracle’s products may change and
remains at the sole discretion of Oracle Corporation.
Statements in this presentation relating to Oracle’s future plans, expectations, beliefs, intentions and
prospects are “forward-looking statements” and are subject to material risks and uncertainties. A detailed
discussion of these factors and other risks that affect our business is contained in Oracle’s Securities and
Exchange Commission (SEC) filings, including our most recent reports on Form 10-K and Form 10-Q
under the heading “Risk Factors.” These filings are available on the SEC’s website or on Oracle’s website
at http://www.oracle.com/investor. All information in this presentation is current as of September 2019 and
Oracle undertakes no duty to update any statement in light of new information or future events.
2
Warning!
MySQL 5.6 End of Life is
February of 2021!! 3
Images Courtesy
● https://www.oldbookillustrations.com/
● These slides are available at
slideshare.net/davidmstokes
4

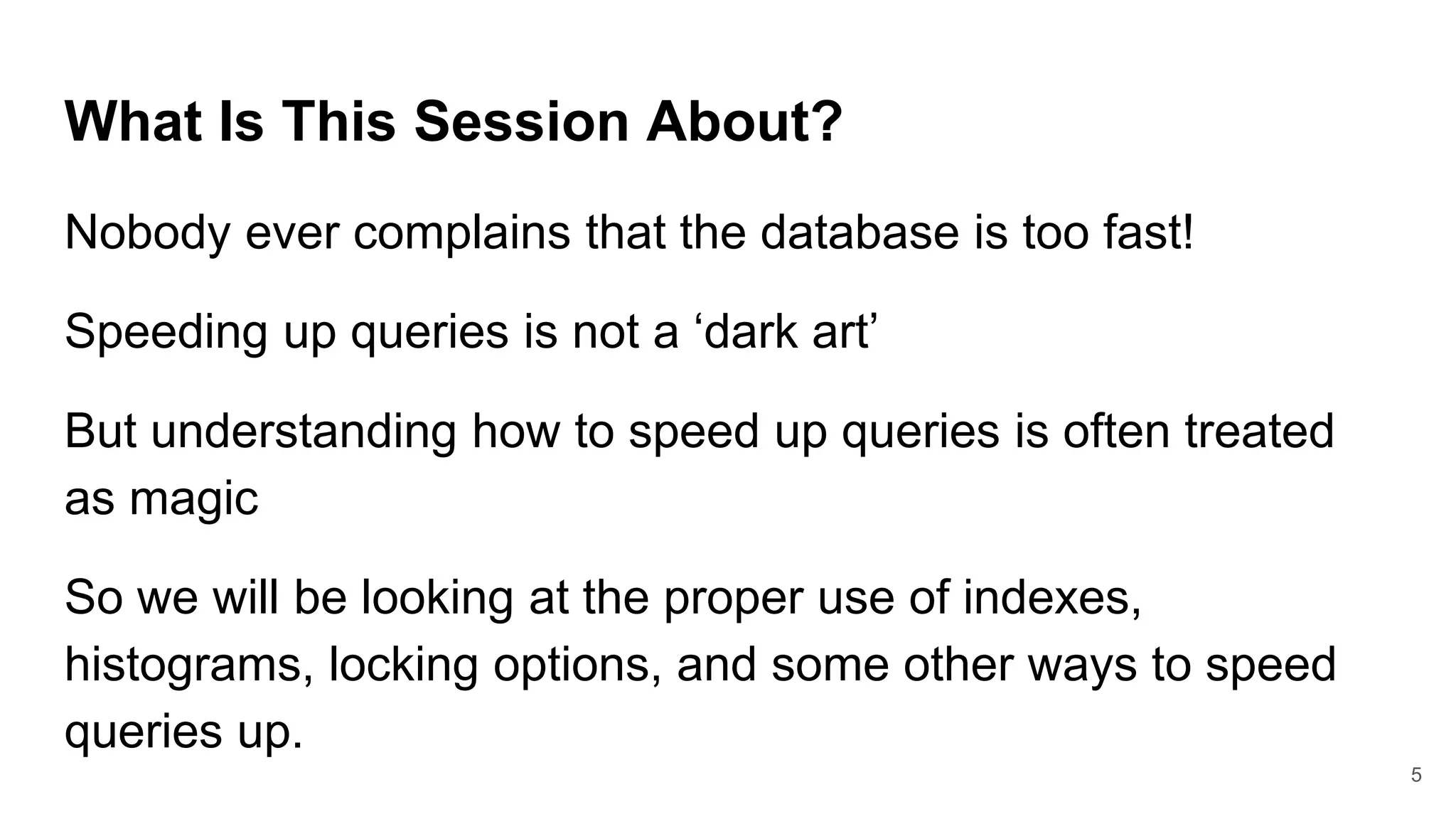

What Is This Session About?
Nobody ever complains that the database is too fast!
Speeding up queries is not a ‘dark art’
But understanding how to speed up queries is often treated
as magic
So we will be looking at the proper use of indexes,
histograms, locking options, and some other ways to speed
queries up.
5
Yes, this is a very dry subject!
● How dry?
6

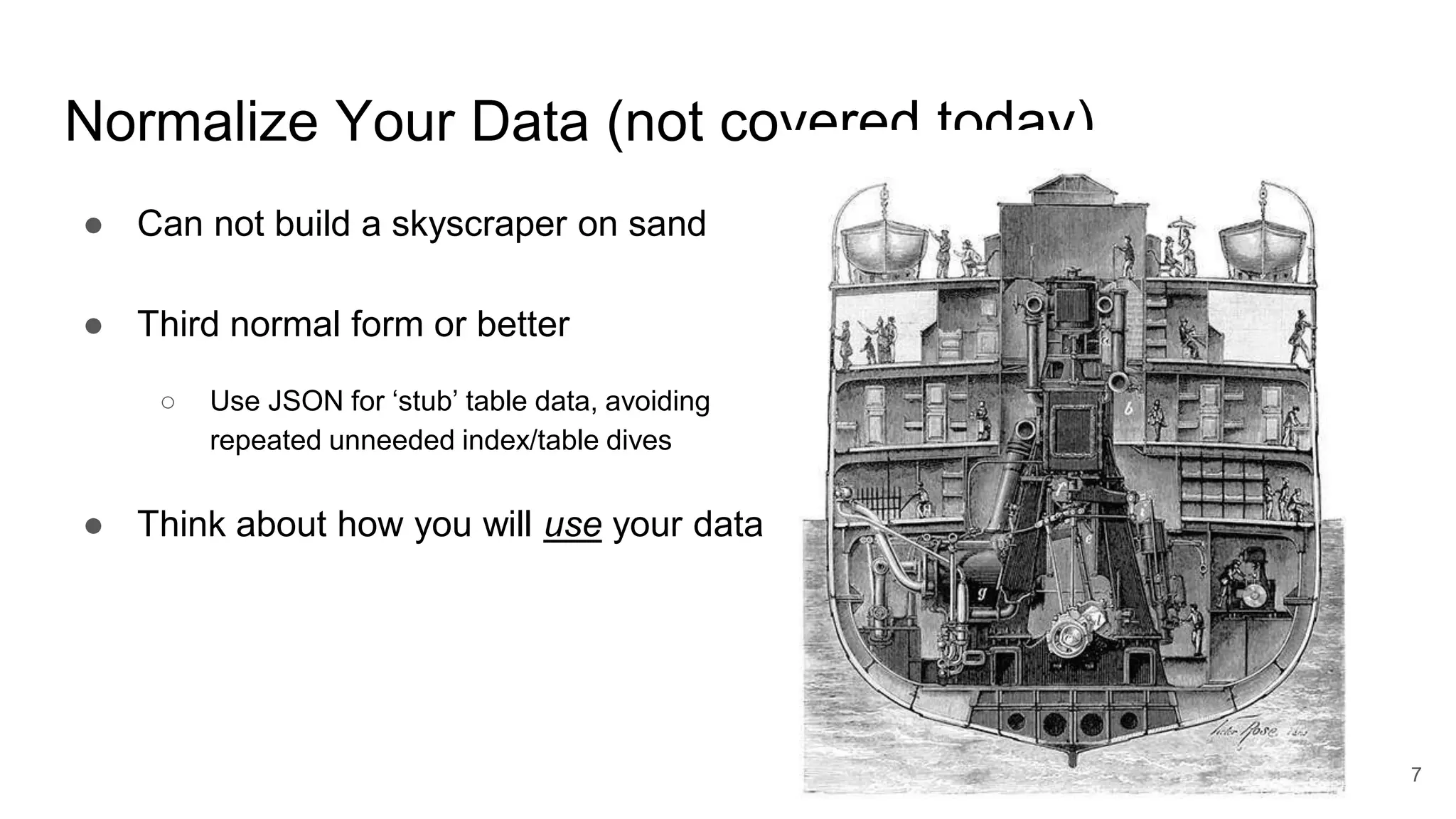

Normalize Your Data (not covered today)
● Can not build a skyscraper on sand
● Third normal form or better
○ Use JSON for ‘stub’ table data, avoiding
repeated unneeded index/table dives
● Think about how you will use your data
7

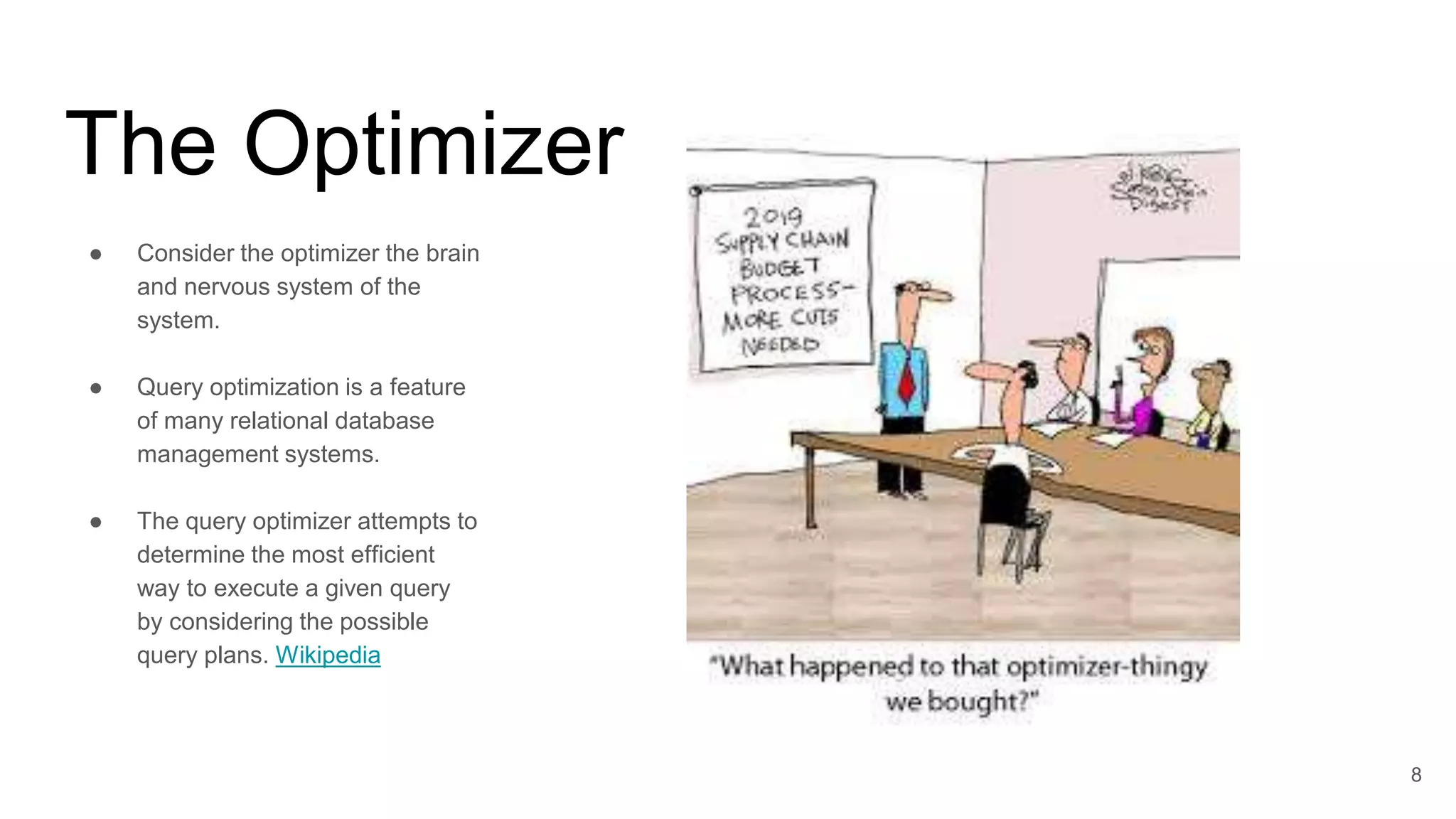

The Optimizer
● Consider the optimizer the brain
and nervous system of the
system.
● Query optimization is a feature
of many relational database
management systems.
● The query optimizer attempts to
determine the most efficient
way to execute a given query
by considering the possible
query plans. Wikipedia
8

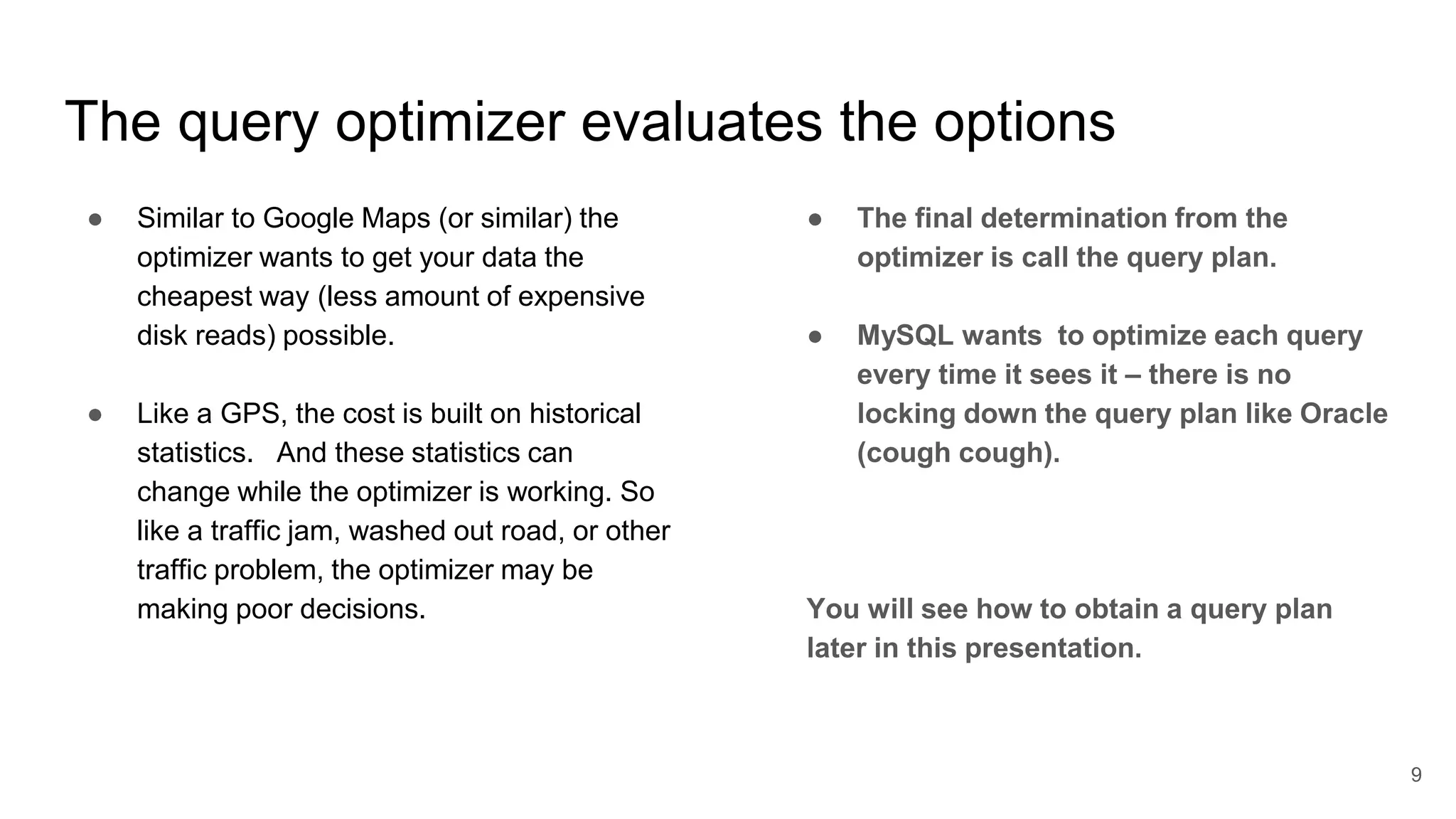

The query optimizer evaluates the options
● Similar to Google Maps (or similar) the
optimizer wants to get your data the
cheapest way (less amount of expensive
disk reads) possible.
● Like a GPS, the cost is built on historical
statistics. And these statistics can
change while the optimizer is working. So
like a traffic jam, washed out road, or other
traffic problem, the optimizer may be
making poor decisions.
● The final determination from the
optimizer is call the query plan.
● MySQL wants to optimize each query
every time it sees it – there is no
locking down the query plan like Oracle
(cough cough).
You will see how to obtain a query plan
later in this presentation.
9

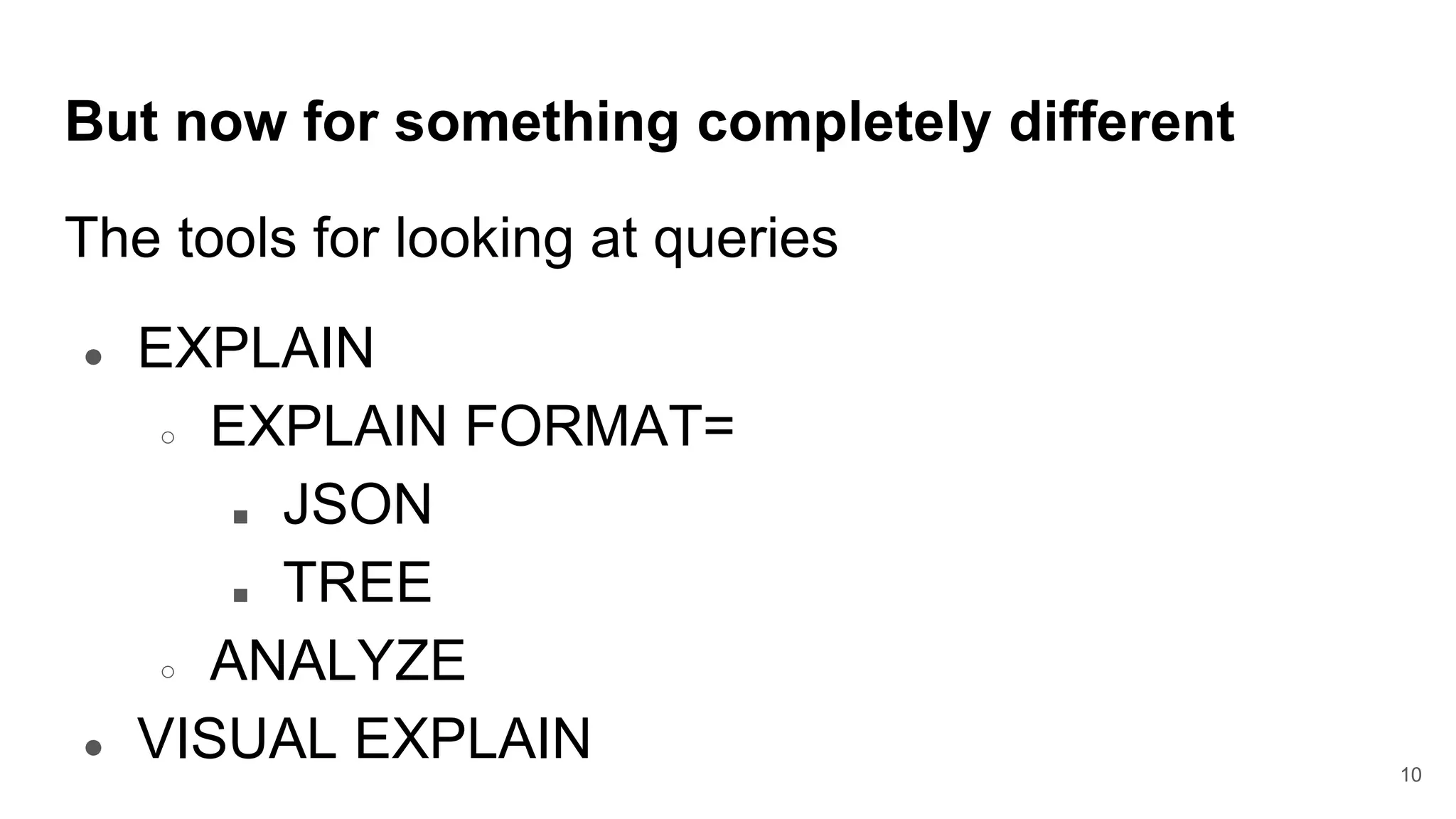

But now for something completely different
The tools for looking at queries
● EXPLAIN
○ EXPLAIN FORMAT=
■ JSON
■ TREE
○ ANALYZE
● VISUAL EXPLAIN 10

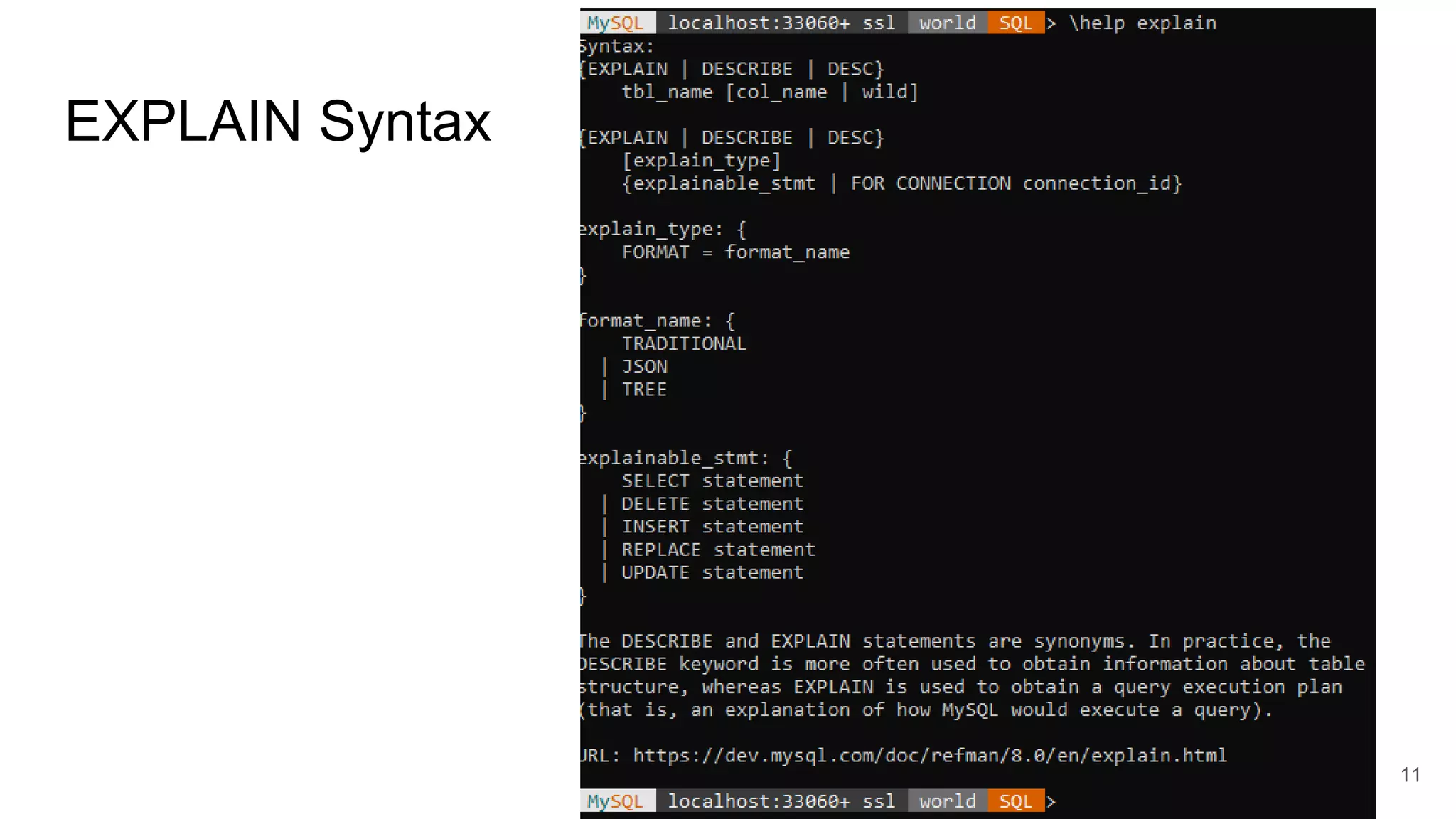

EXPLAIN Syntax
11

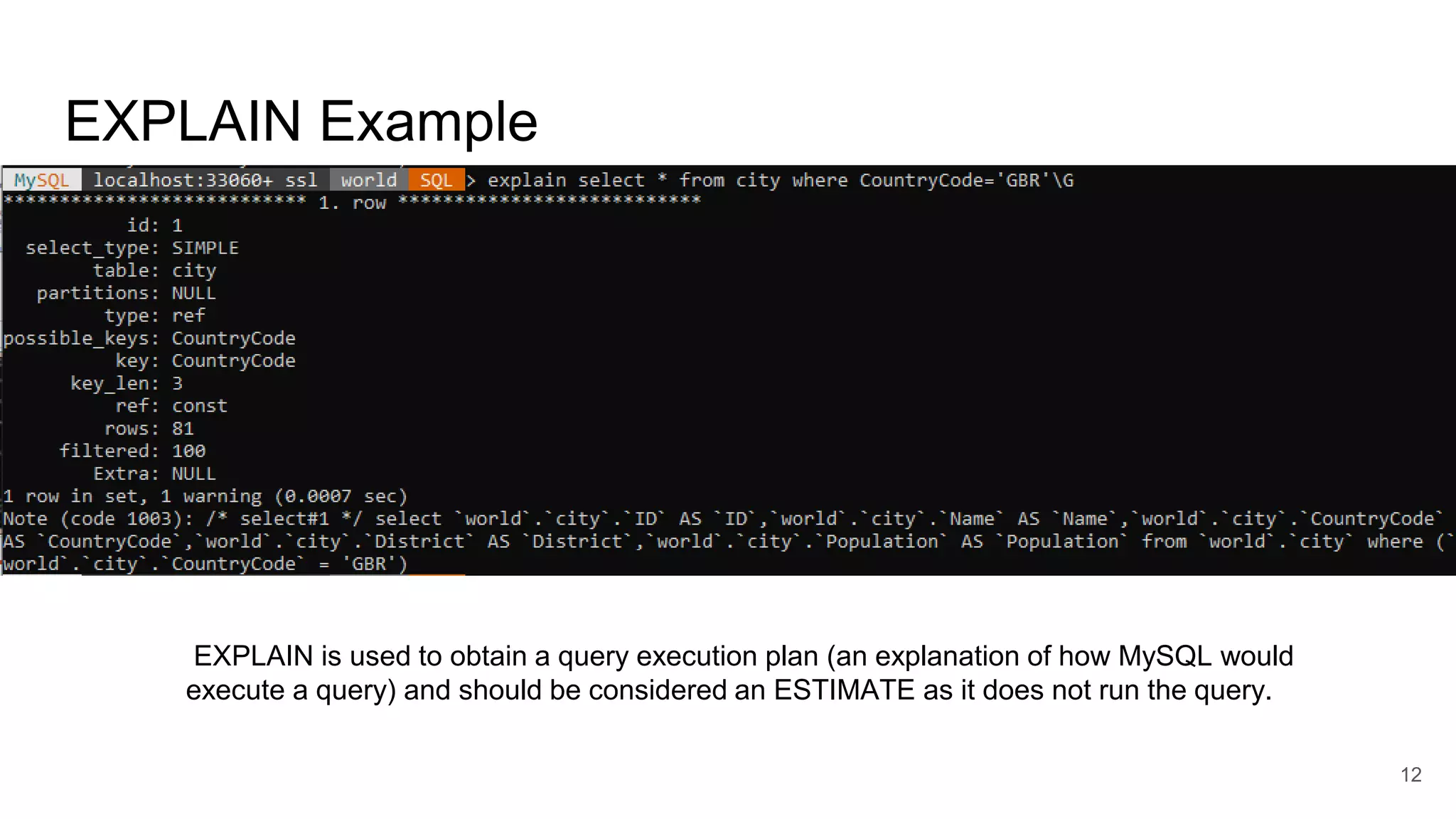

EXPLAIN Example
12
EXPLAIN is used to obtain a query execution plan (an explanation of how MySQL would
execute a query) and should be considered an ESTIMATE as it does not run the query.

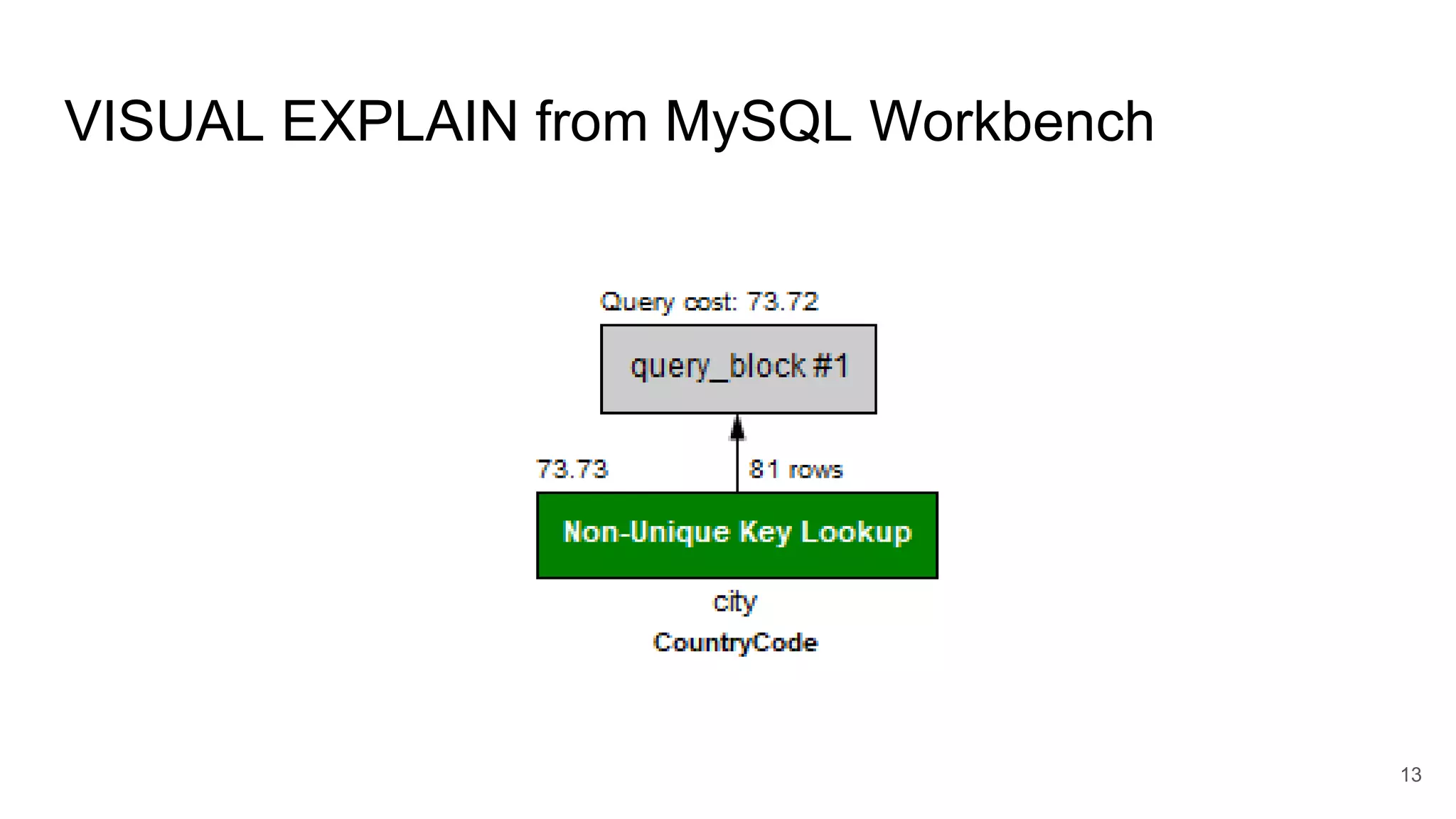

VISUAL EXPLAIN from MySQL Workbench
13

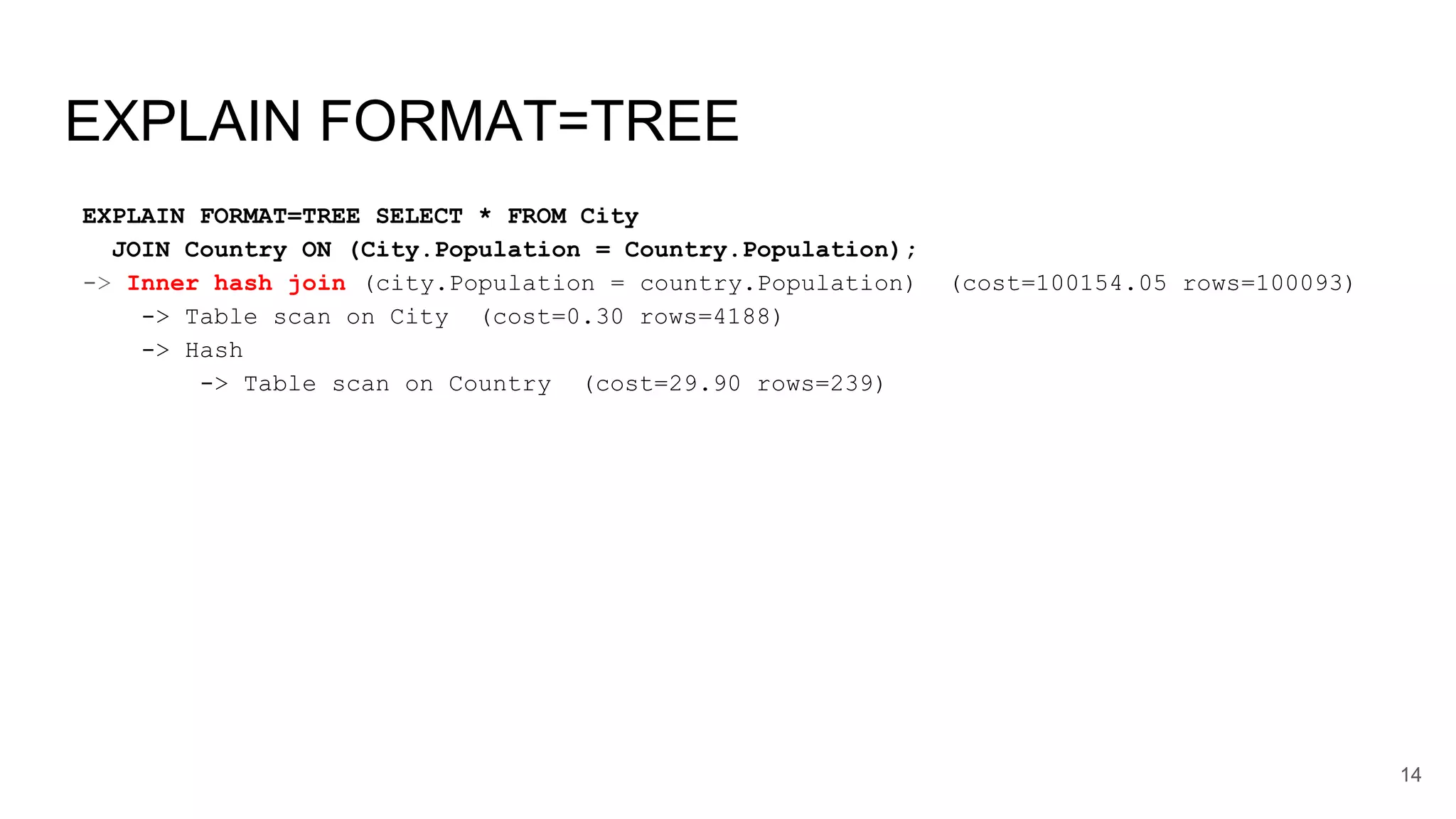

EXPLAIN FORMAT=TREE
EXPLAIN FORMAT=TREE SELECT * FROM City
JOIN Country ON (City.Population = Country.Population);
-> Inner hash join (city.Population = country.Population) (cost=100154.05 rows=100093)
-> Table scan on City (cost=0.30 rows=4188)
-> Hash
-> Table scan on Country (cost=29.90 rows=239)
14

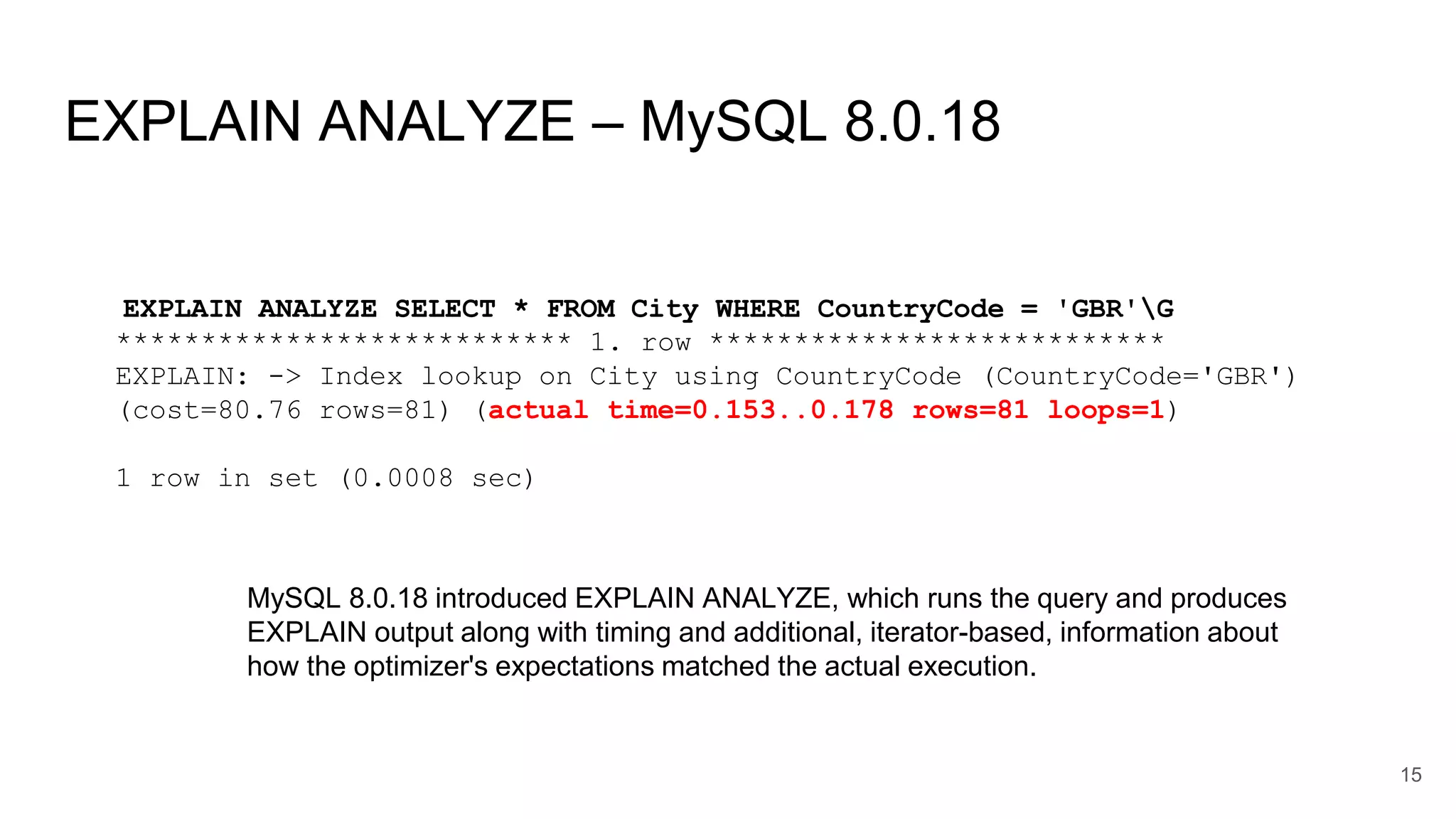

EXPLAIN ANALYZE – MySQL 8.0.18
15
EXPLAIN ANALYZE SELECT * FROM City WHERE CountryCode = 'GBR'G
*************************** 1. row ***************************
EXPLAIN: -> Index lookup on City using CountryCode (CountryCode='GBR')
(cost=80.76 rows=81) (actual time=0.153..0.178 rows=81 loops=1)
1 row in set (0.0008 sec)
MySQL 8.0.18 introduced EXPLAIN ANALYZE, which runs the query and produces
EXPLAIN output along with timing and additional, iterator-based, information about
how the optimizer's expectations matched the actual execution.
More on using
EXPLAIN …
later 16
Indexes
17

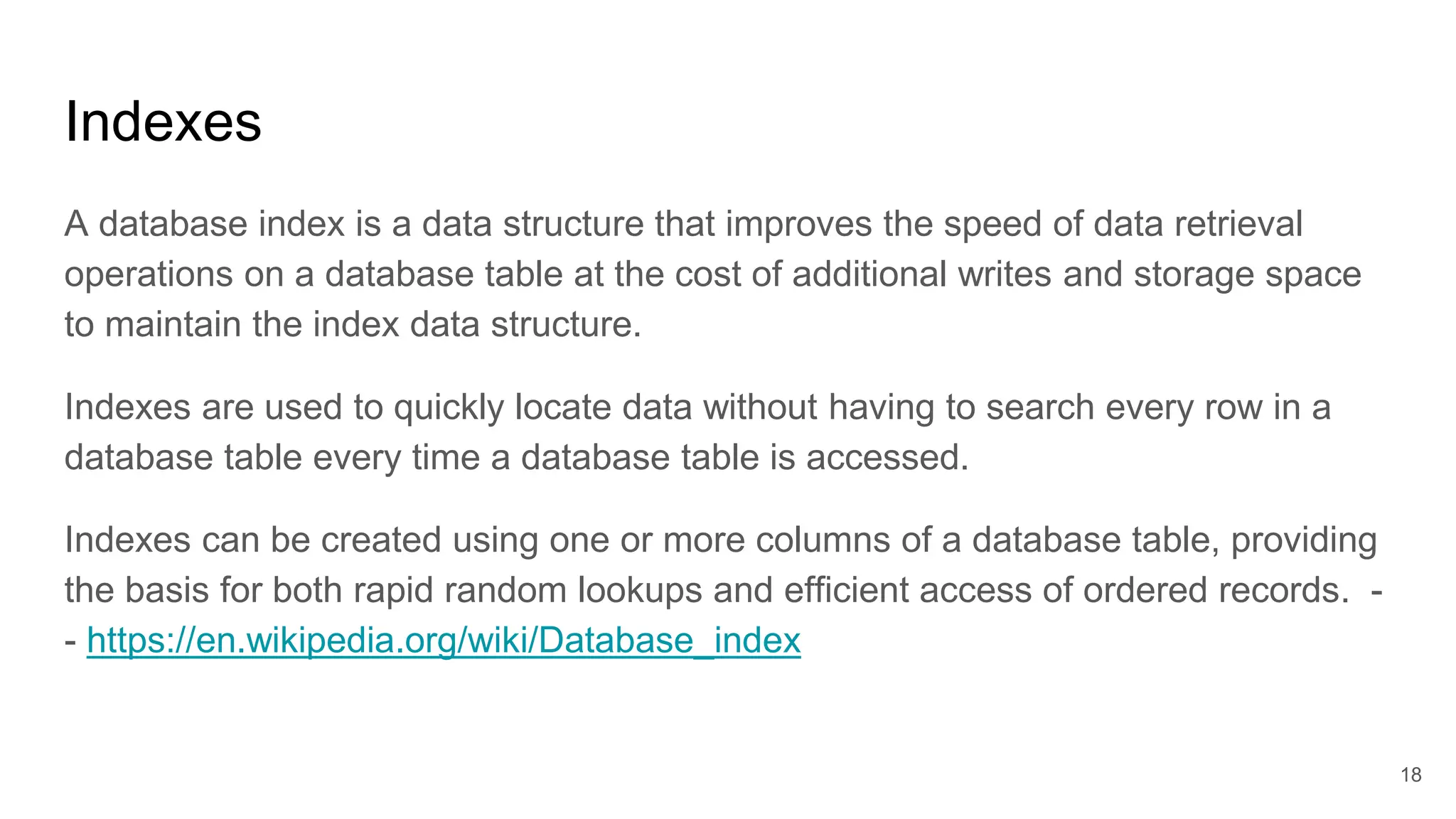

Indexes
A database index is a data structure that improves the speed of data retrieval
operations on a database table at the cost of additional writes and storage space
to maintain the index data structure.
Indexes are used to quickly locate data without having to search every row in a
database table every time a database table is accessed.
Indexes can be created using one or more columns of a database table, providing
the basis for both rapid random lookups and efficient access of ordered records. -
- https://en.wikipedia.org/wiki/Database_index
18

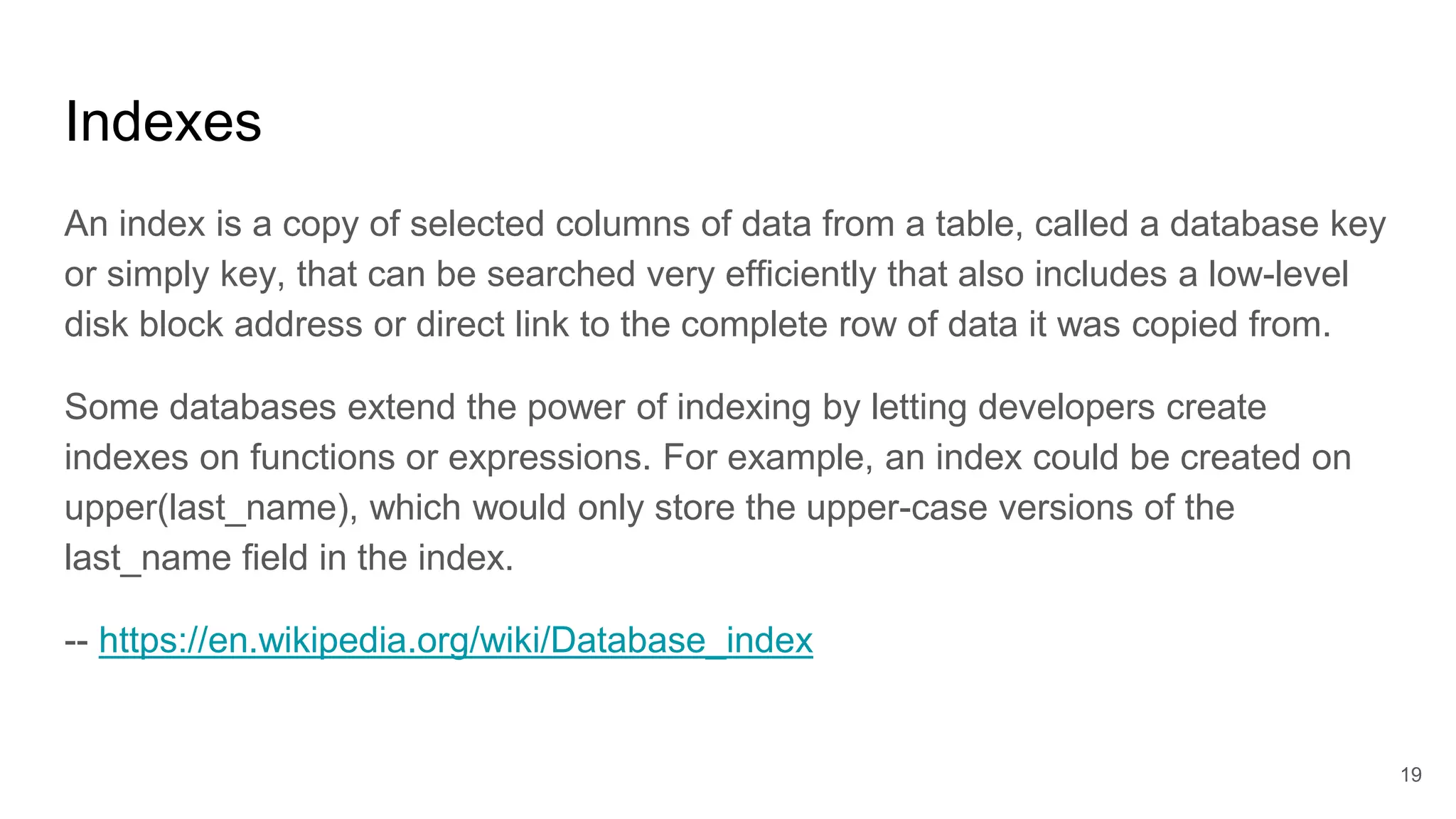

Indexes
An index is a copy of selected columns of data from a table, called a database key
or simply key, that can be searched very efficiently that also includes a low-level
disk block address or direct link to the complete row of data it was copied from.
Some databases extend the power of indexing by letting developers create
indexes on functions or expressions. For example, an index could be created on
upper(last_name), which would only store the upper-case versions of the
last_name field in the index.
-- https://en.wikipedia.org/wiki/Database_index
19

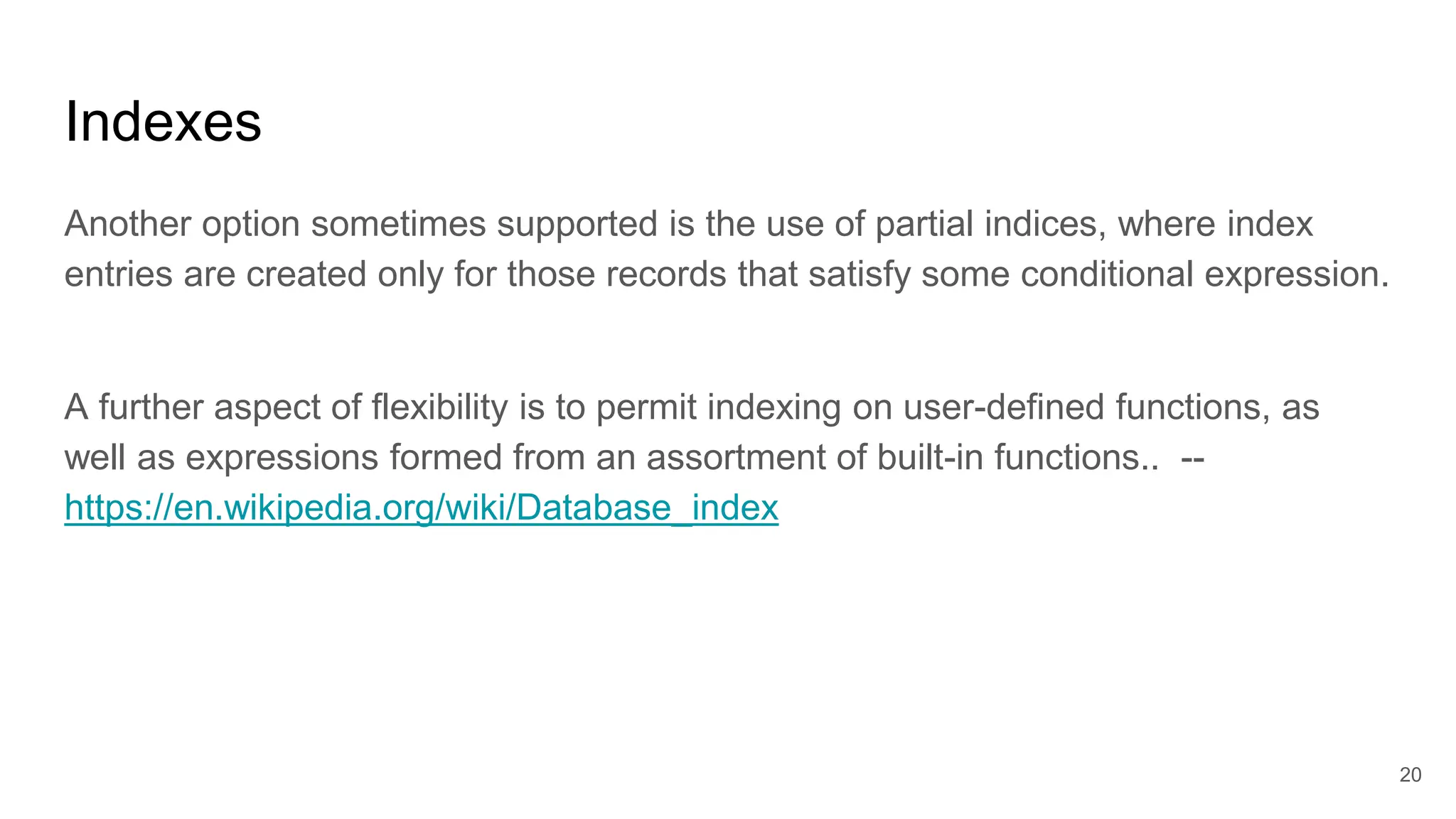

Indexes
Another option sometimes supported is the use of partial indices, where index
entries are created only for those records that satisfy some conditional expression.
A further aspect of flexibility is to permit indexing on user-defined functions, as
well as expressions formed from an assortment of built-in functions.. --
https://en.wikipedia.org/wiki/Database_index
20

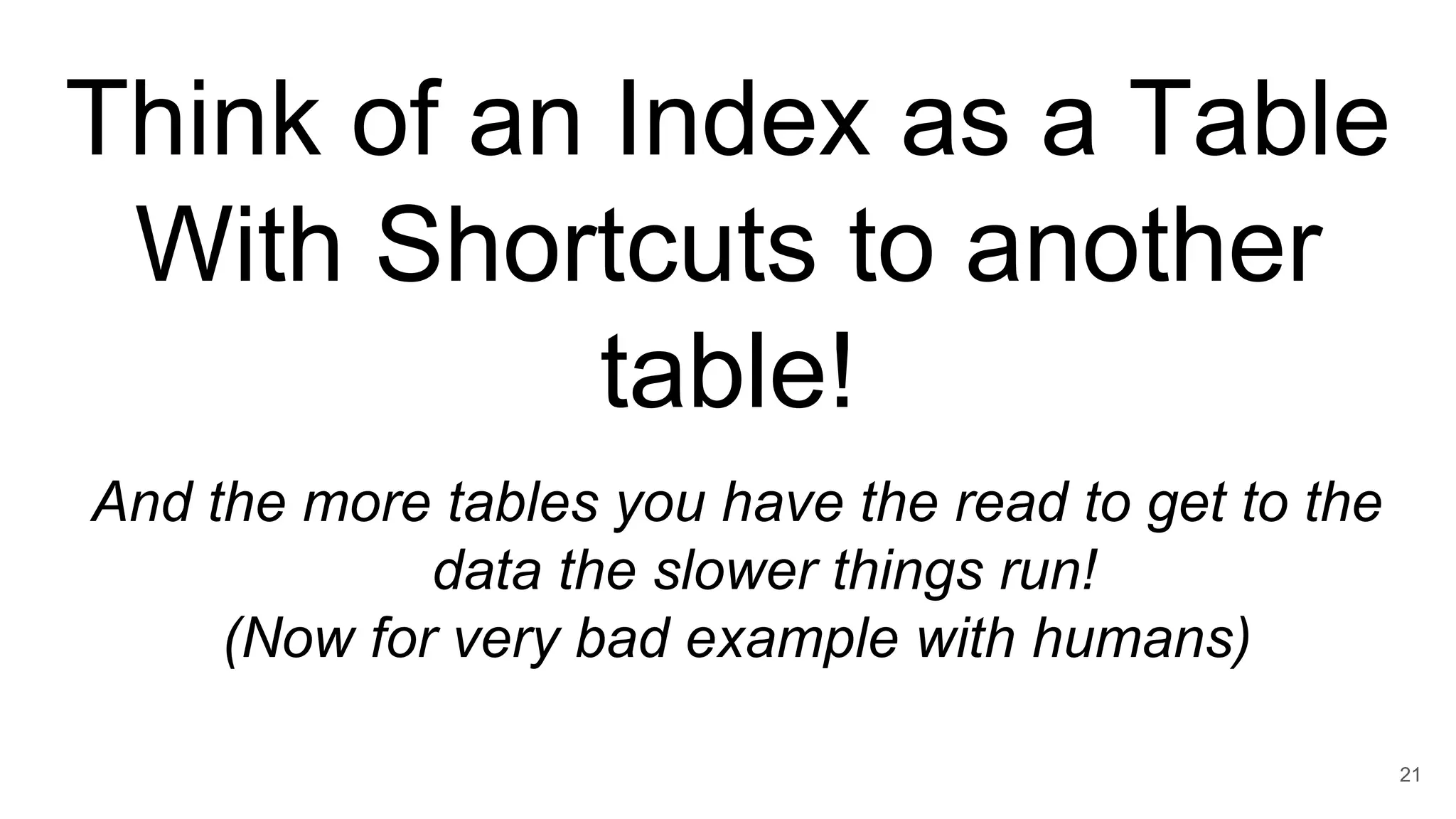

Think of an Index as a Table
With Shortcuts to another
table!
And the more tables you have the read to get to the
data the slower things run!
(Now for very bad example with humans)
21

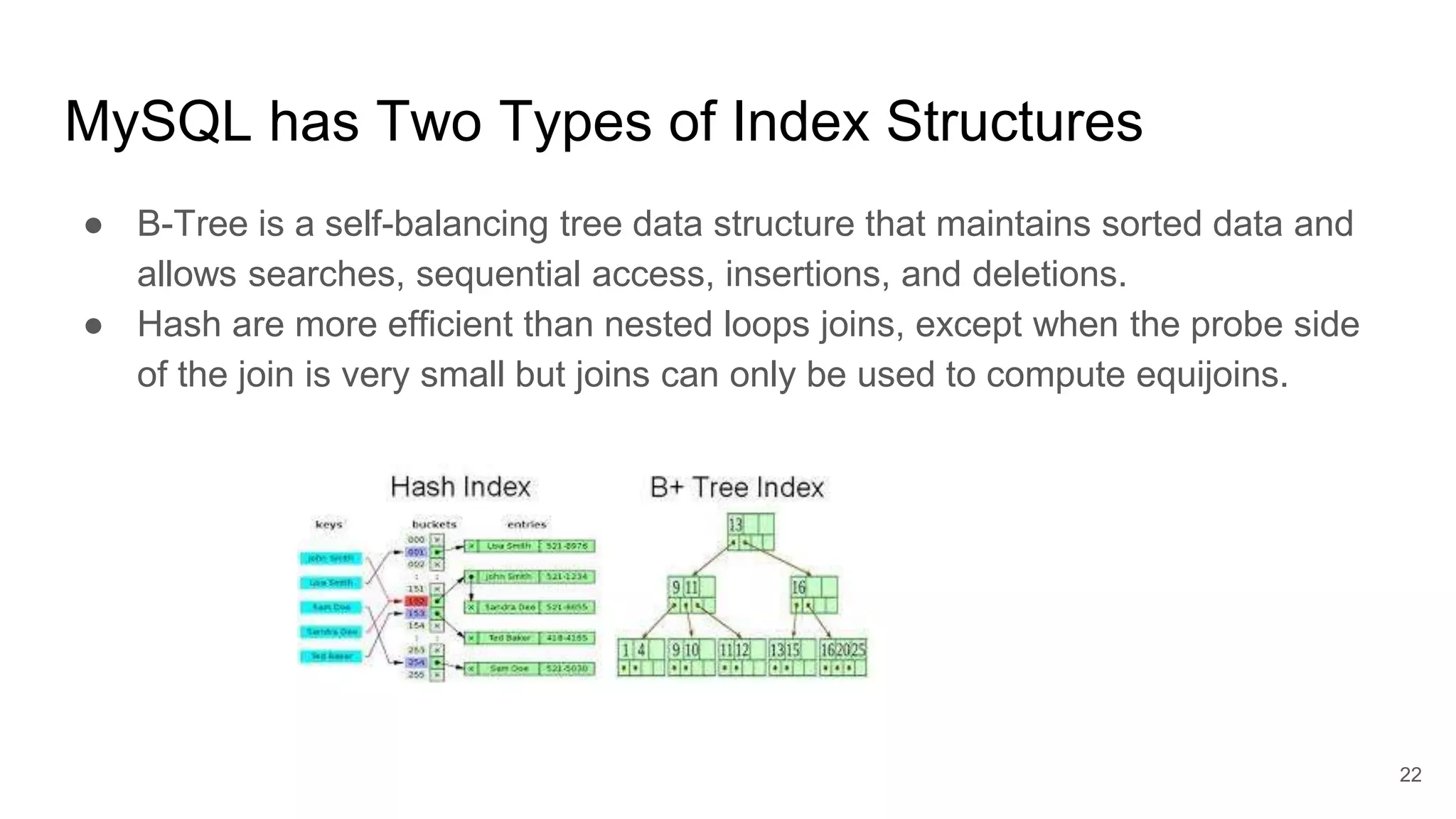

MySQL has Two Types of Index Structures
● B-Tree is a self-balancing tree data structure that maintains sorted data and
allows searches, sequential access, insertions, and deletions.
● Hash are more efficient than nested loops joins, except when the probe side
of the join is very small but joins can only be used to compute equijoins.
22
NULL
● NULL is used to designate a
LACK of data.
False 0
True 1
Don’t know NULL
23
Why Avoid NULL
● Image you have a nice column
of numbers with high cardinality
and then some rows with
NULLs as values. And your
optimizer has to pick through
the well ordered data and then
muck through the NULLs.
● https://dev.mysql.com/doc/refm
an/8.0/en/problems-with-
null.html
24

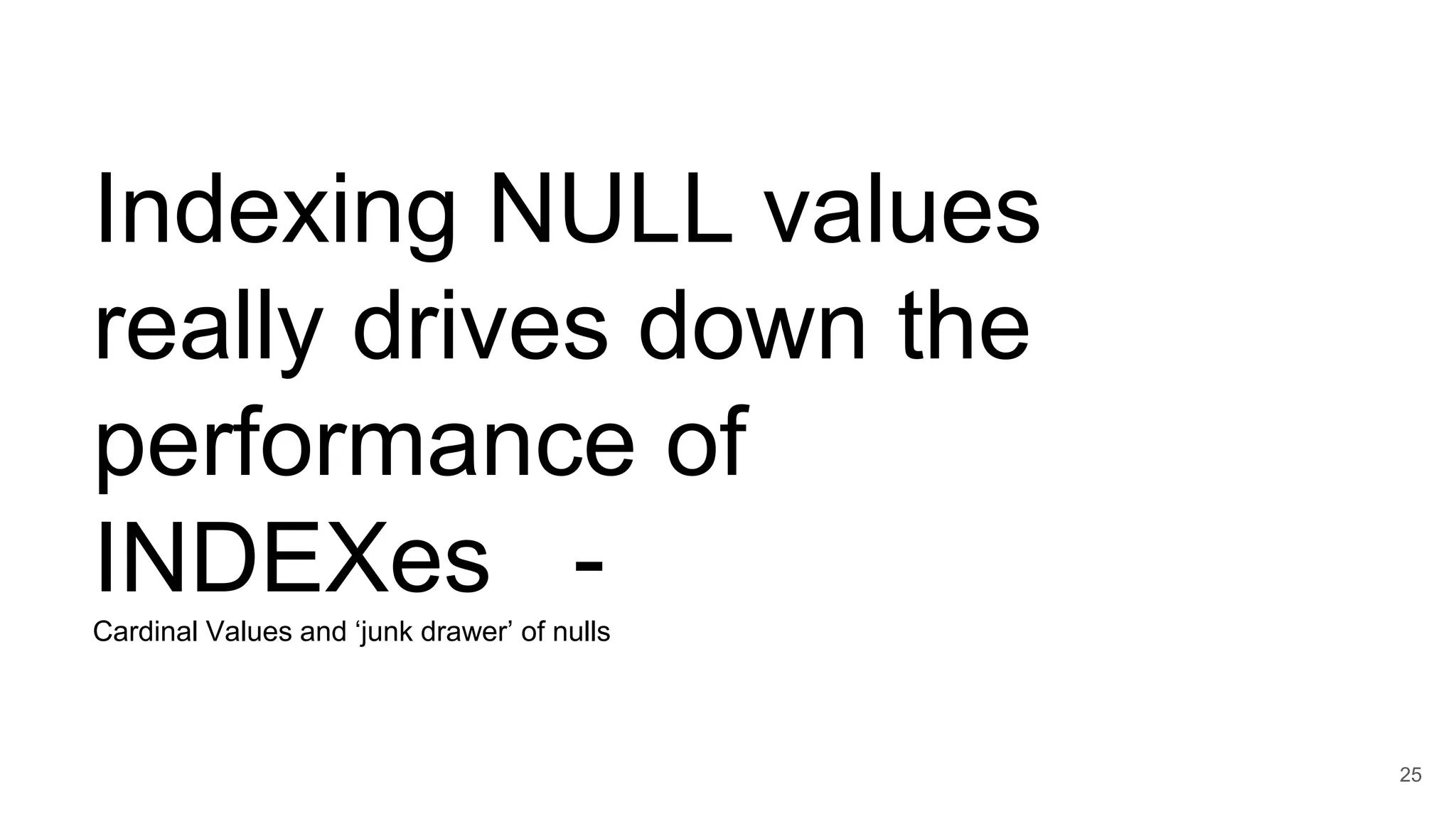

Indexing NULL values
really drives down the
performance of
INDEXes -
Cardinal Values and ‘junk drawer’ of nulls
25
Invisible
Indexes
26

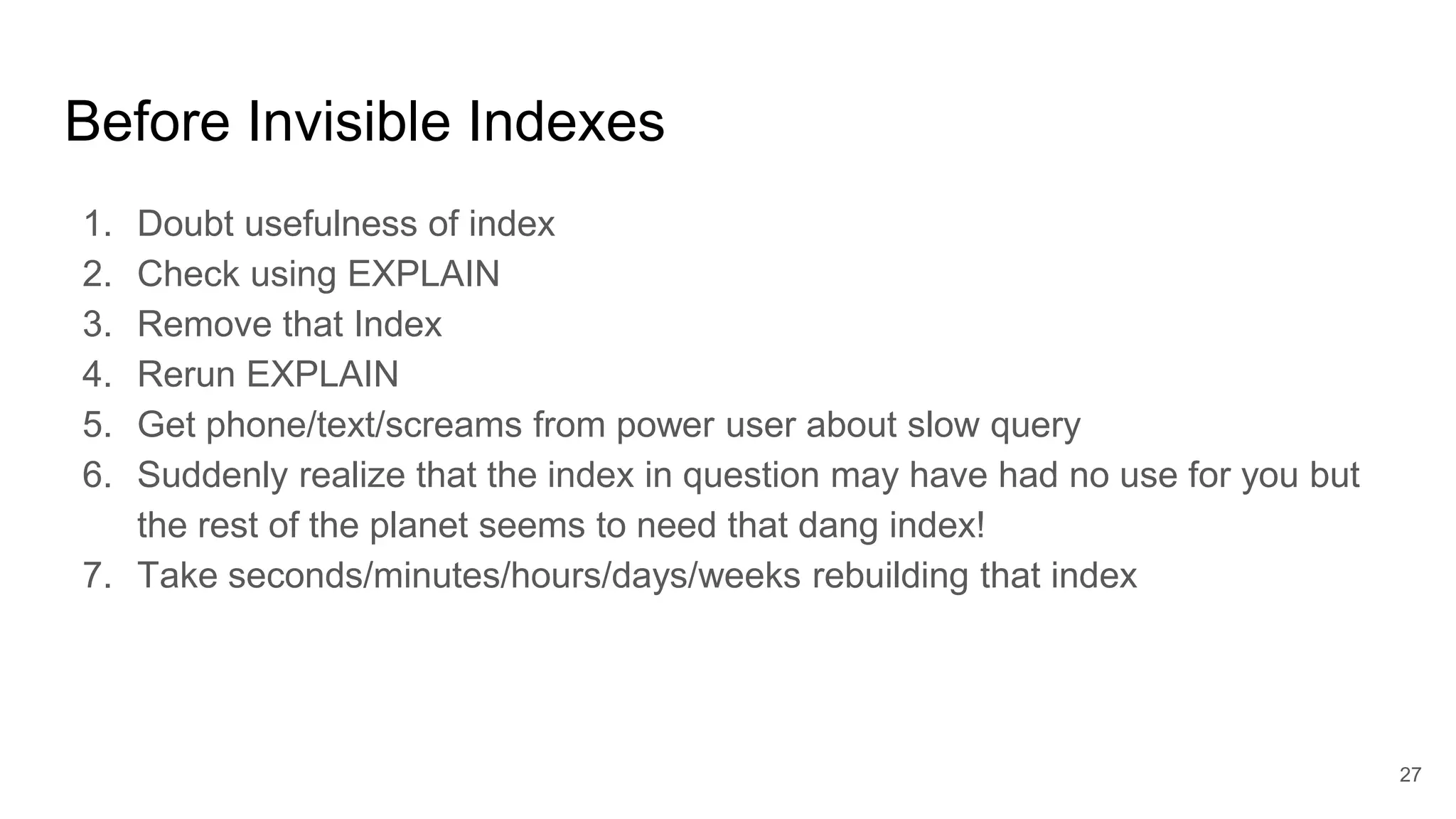

Before Invisible Indexes
1. Doubt usefulness of index
2. Check using EXPLAIN
3. Remove that Index
4. Rerun EXPLAIN
5. Get phone/text/screams from power user about slow query
6. Suddenly realize that the index in question may have had no use for you but
the rest of the planet seems to need that dang index!
7. Take seconds/minutes/hours/days/weeks rebuilding that index
27

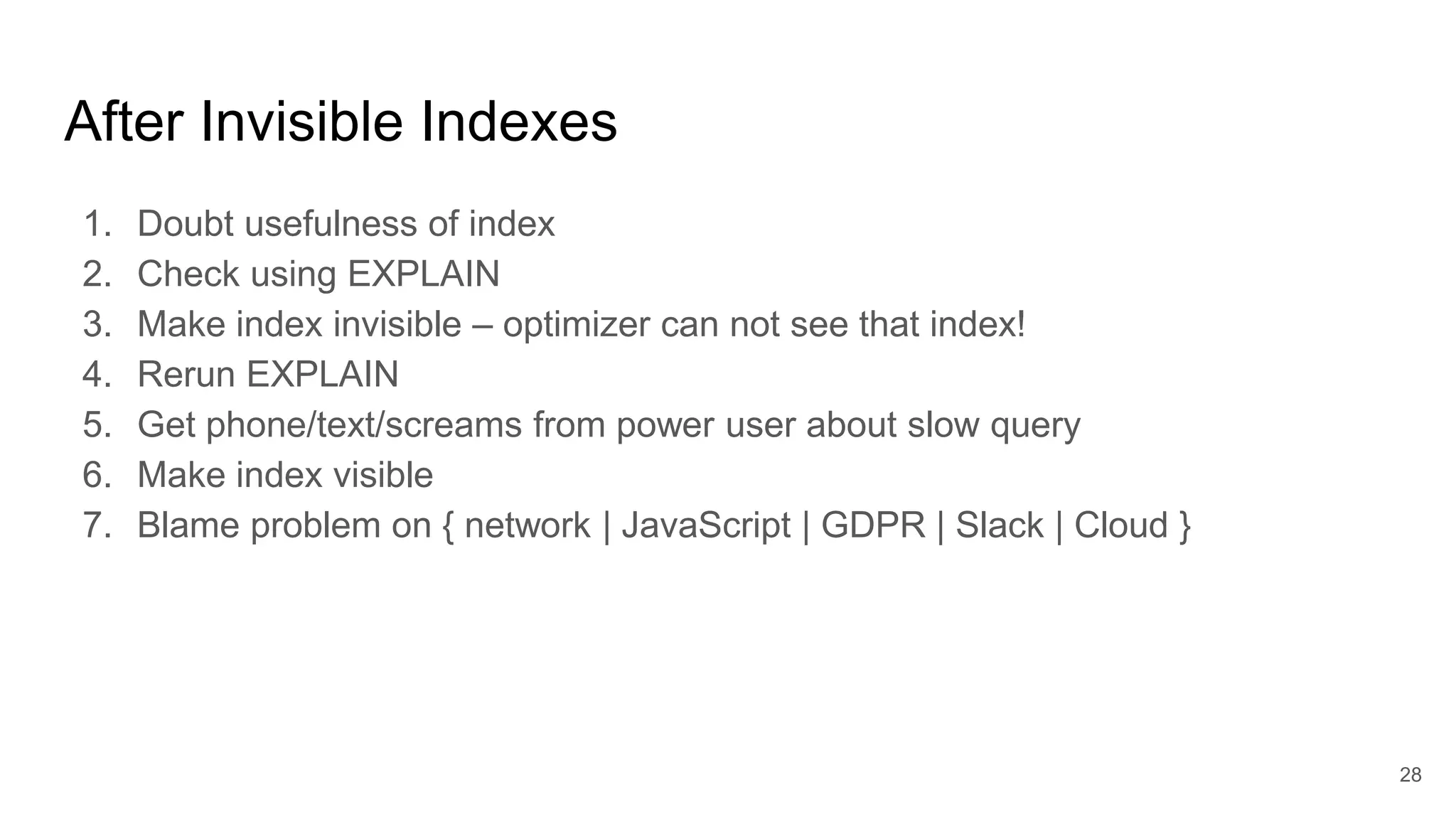

After Invisible Indexes
1. Doubt usefulness of index
2. Check using EXPLAIN
3. Make index invisible – optimizer can not see that index!
4. Rerun EXPLAIN
5. Get phone/text/screams from power user about slow query
6. Make index visible
7. Blame problem on { network | JavaScript | GDPR | Slack | Cloud }
28

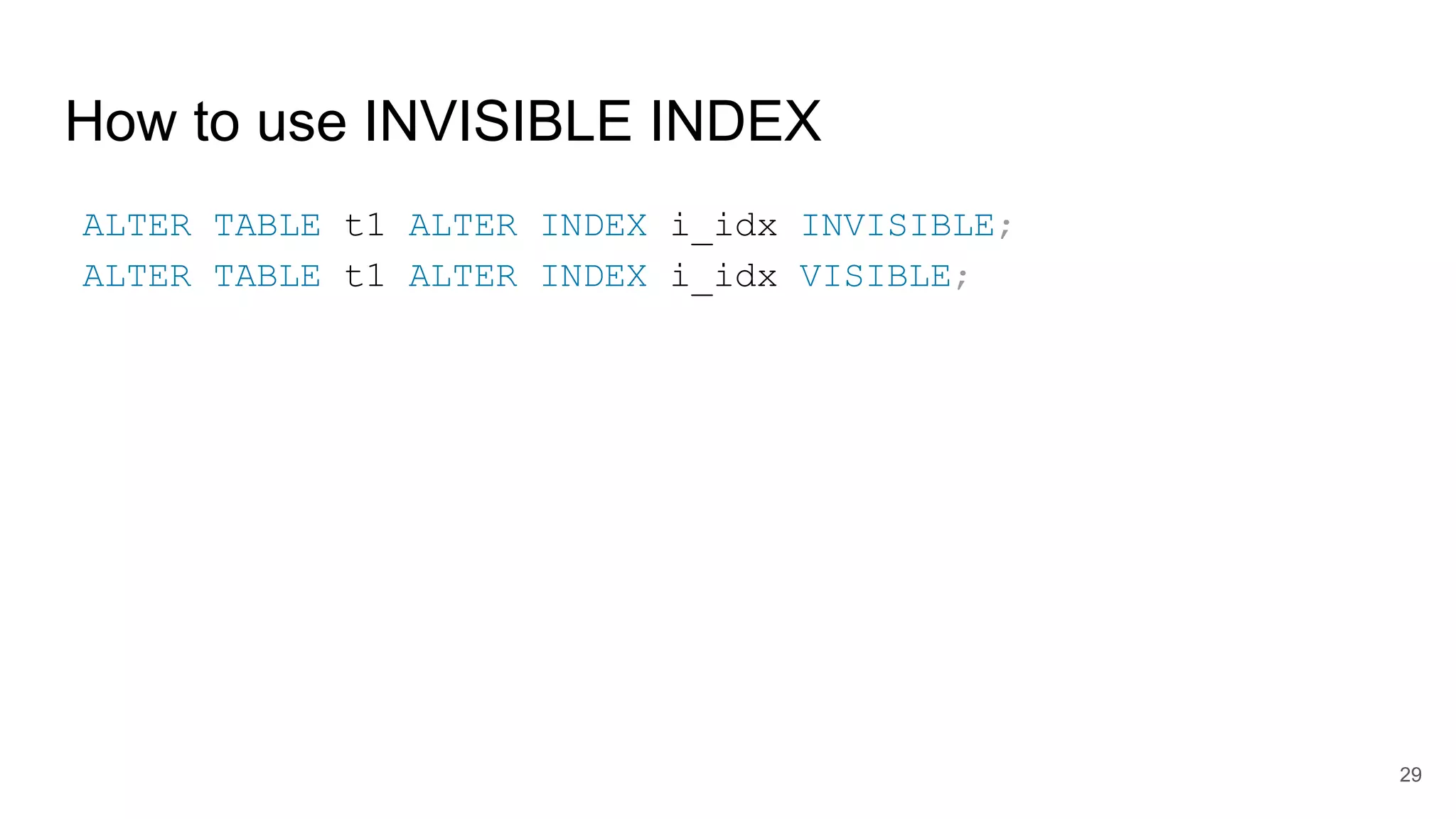

How to use INVISIBLE INDEX
ALTER TABLE t1 ALTER INDEX i_idx INVISIBLE;
ALTER TABLE t1 ALTER INDEX i_idx VISIBLE;
29
Histograms
What is a histogram?
It is not a gluten free, keto friendly biscuit.
30

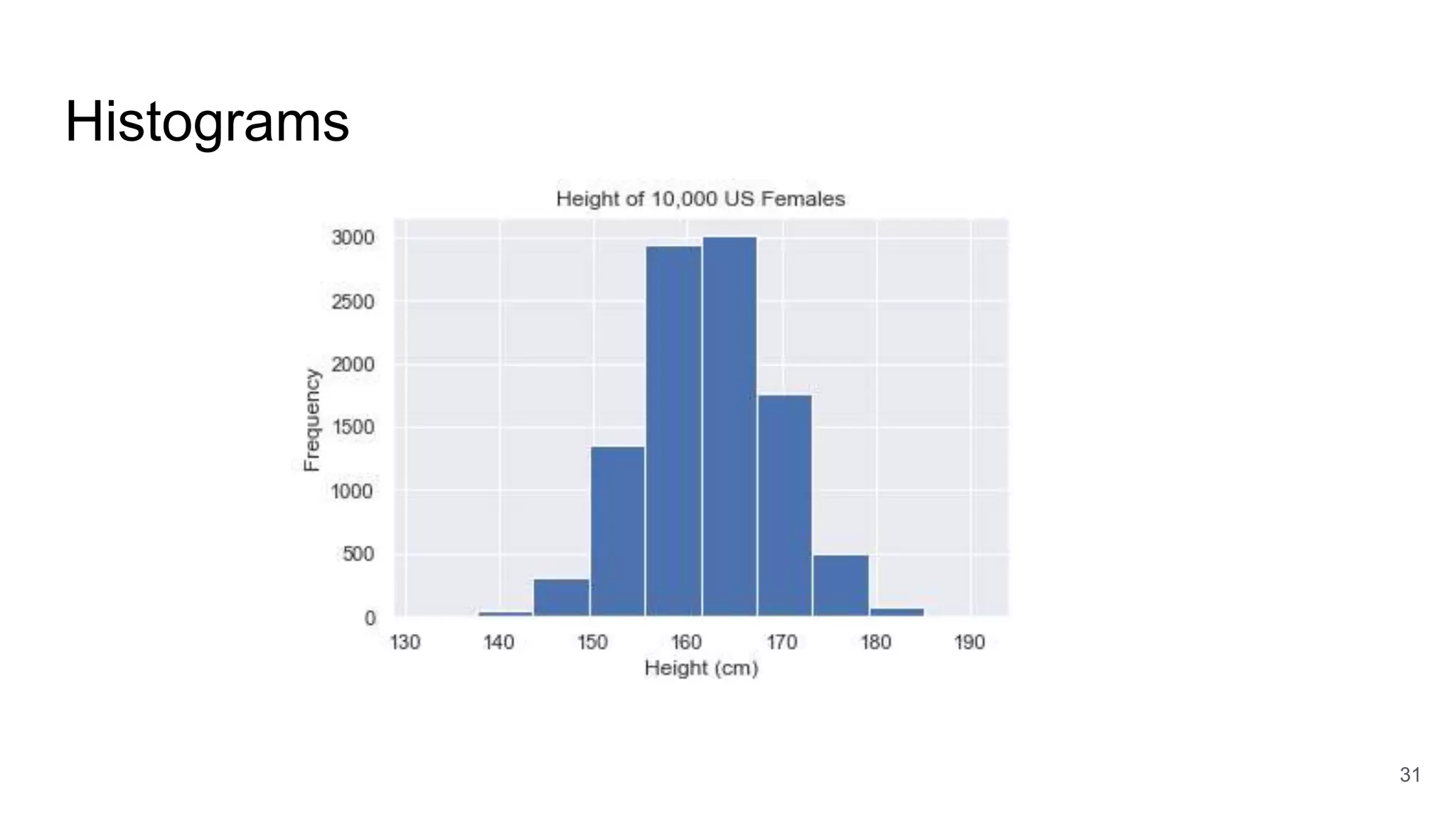

Histograms
31

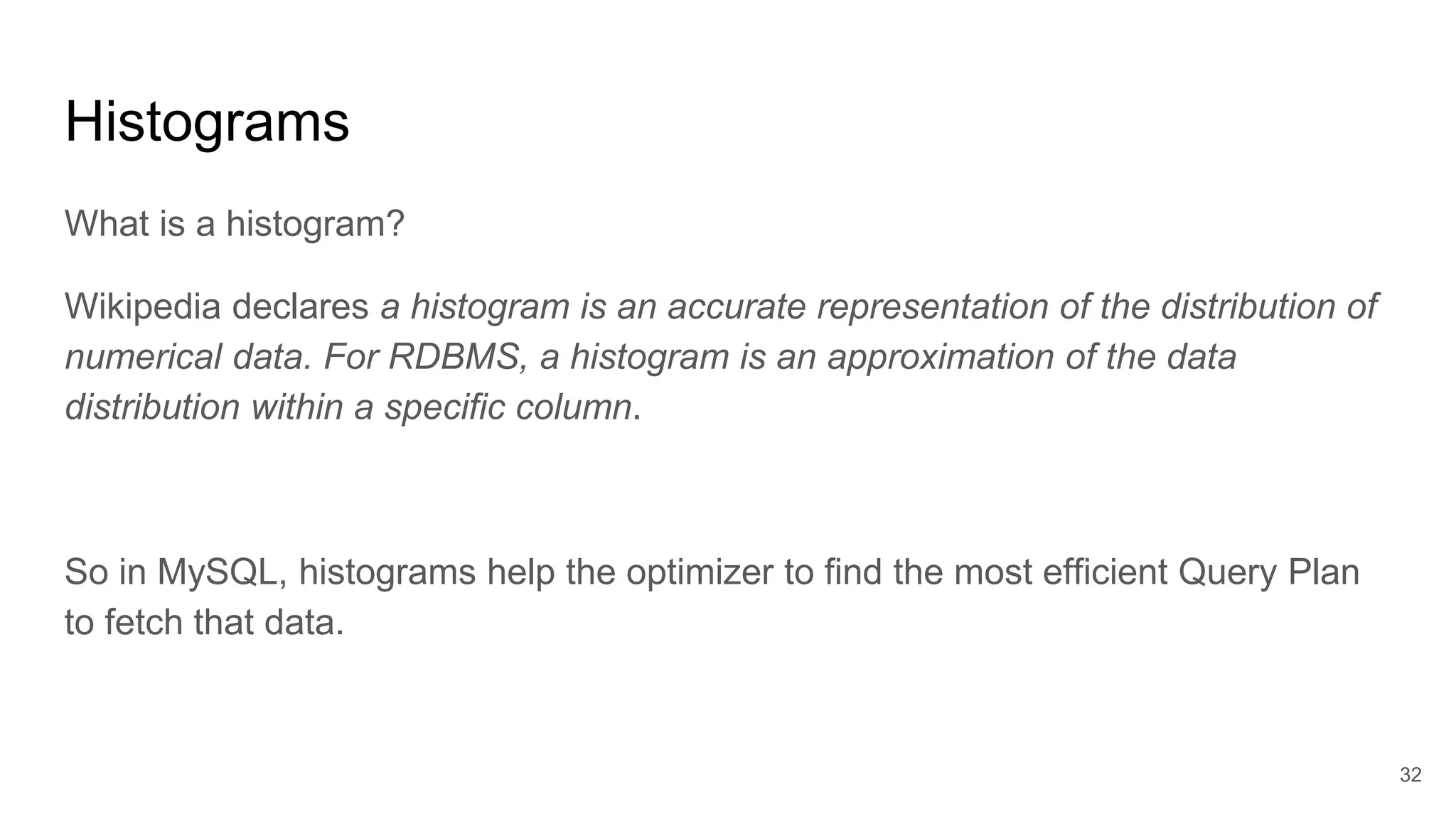

Histograms
What is a histogram?
Wikipedia declares a histogram is an accurate representation of the distribution of
numerical data. For RDBMS, a histogram is an approximation of the data
distribution within a specific column.
So in MySQL, histograms help the optimizer to find the most efficient Query Plan
to fetch that data.
32

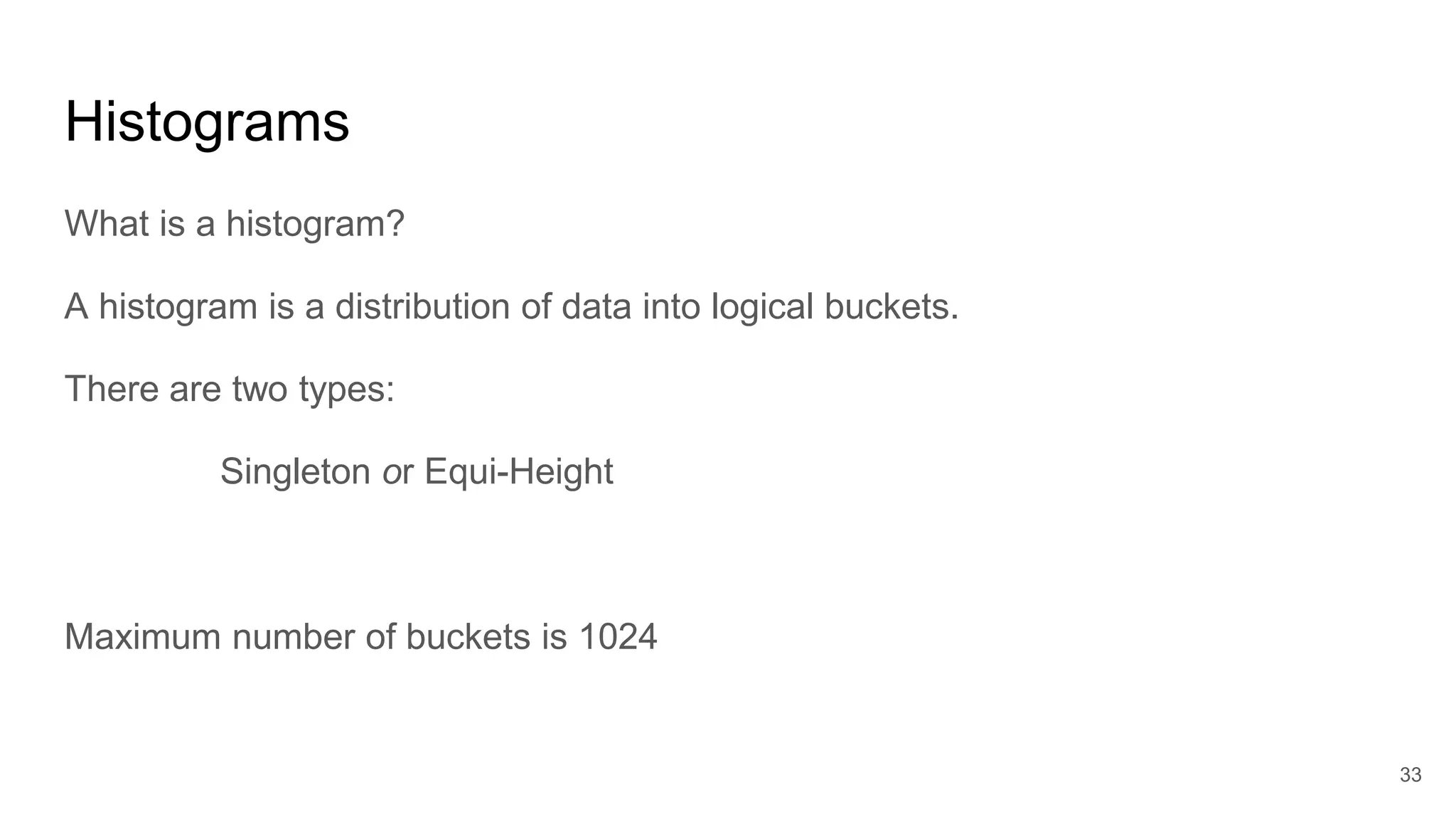

Histograms
What is a histogram?
A histogram is a distribution of data into logical buckets.
There are two types:
Singleton or Equi-Height
Maximum number of buckets is 1024
33

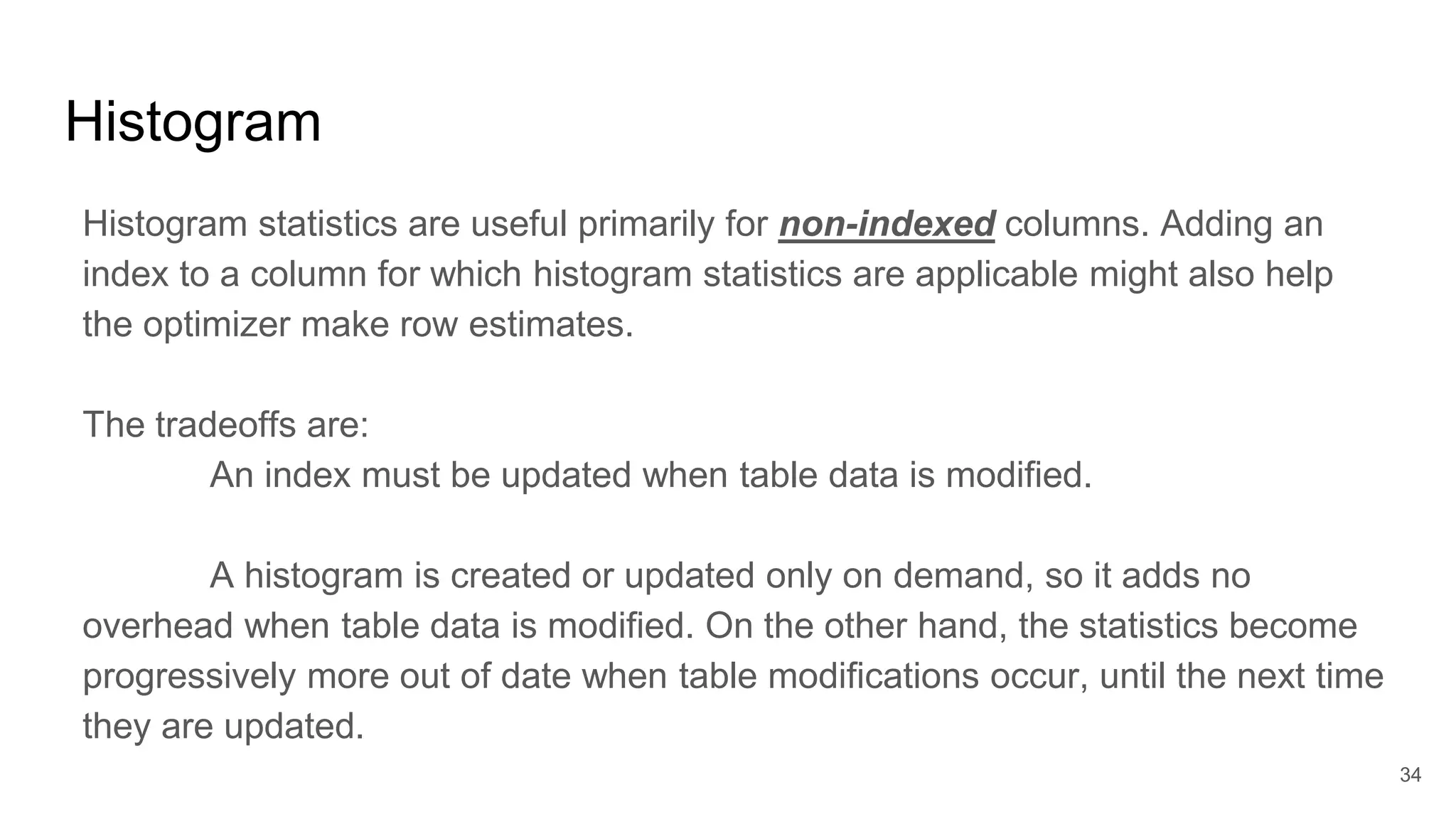

Histogram
Histogram statistics are useful primarily for non-indexed columns. Adding an
index to a column for which histogram statistics are applicable might also help
the optimizer make row estimates.
The tradeoffs are:
An index must be updated when table data is modified.
A histogram is created or updated only on demand, so it adds no
overhead when table data is modified. On the other hand, the statistics become
progressively more out of date when table modifications occur, until the next time
they are updated.
34

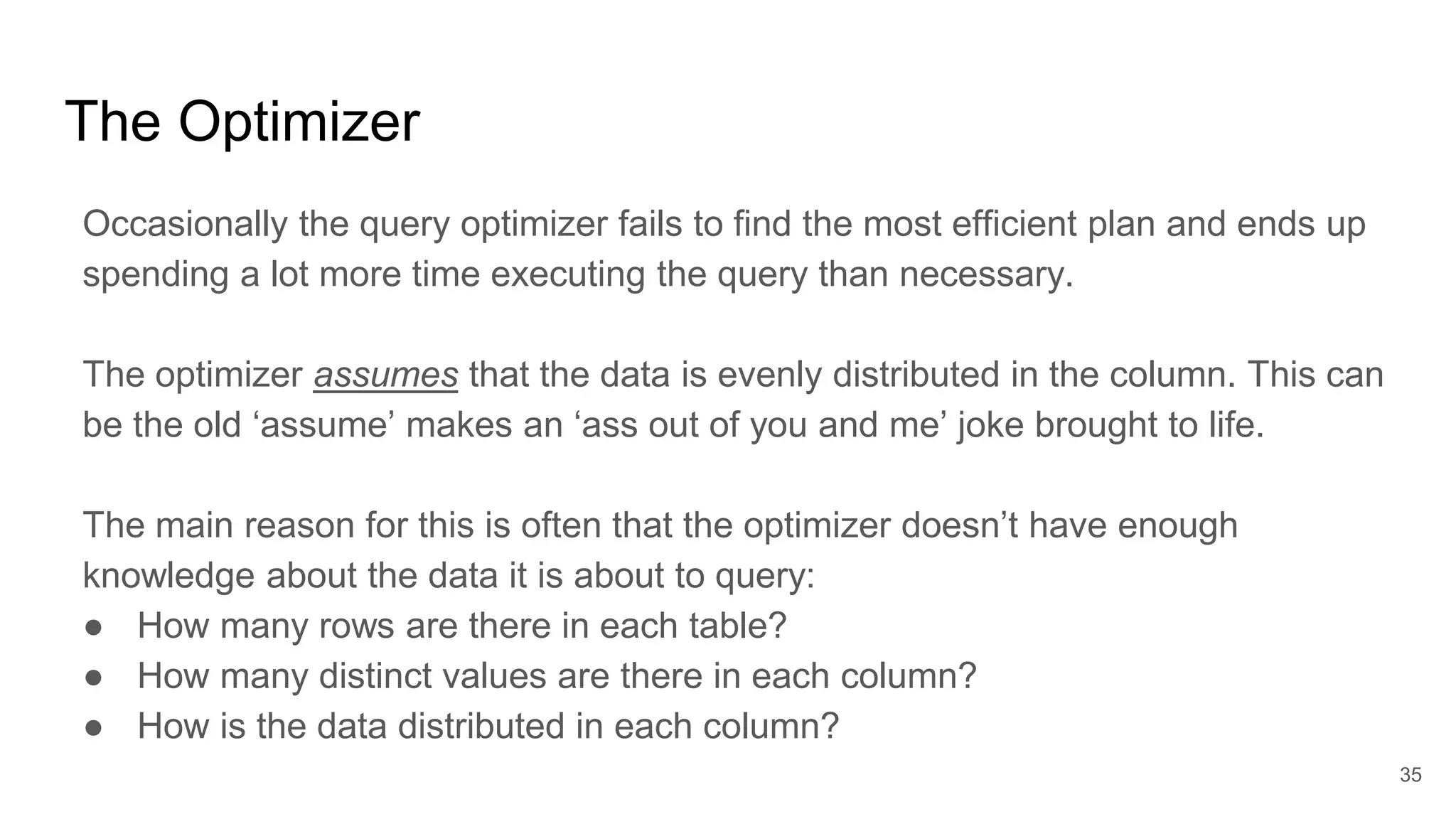

The Optimizer
Occasionally the query optimizer fails to find the most efficient plan and ends up
spending a lot more time executing the query than necessary.
The optimizer assumes that the data is evenly distributed in the column. This can
be the old ‘assume’ makes an ‘ass out of you and me’ joke brought to life.
The main reason for this is often that the optimizer doesn’t have enough
knowledge about the data it is about to query:
● How many rows are there in each table?
● How many distinct values are there in each column?
● How is the data distributed in each column?
35
Frequency
Histogram
Each distinct value has its own
bucket.
Because this is a frequency
histogram, the endpoint number is
the cumulative frequency of
endpoints.
For 52793, the endpoint number 6
indicates that the value appears 5
times (6 - 1).
For 52794, the endpoint number 8
indicates that the value appears 2
times (8 - 6).
36

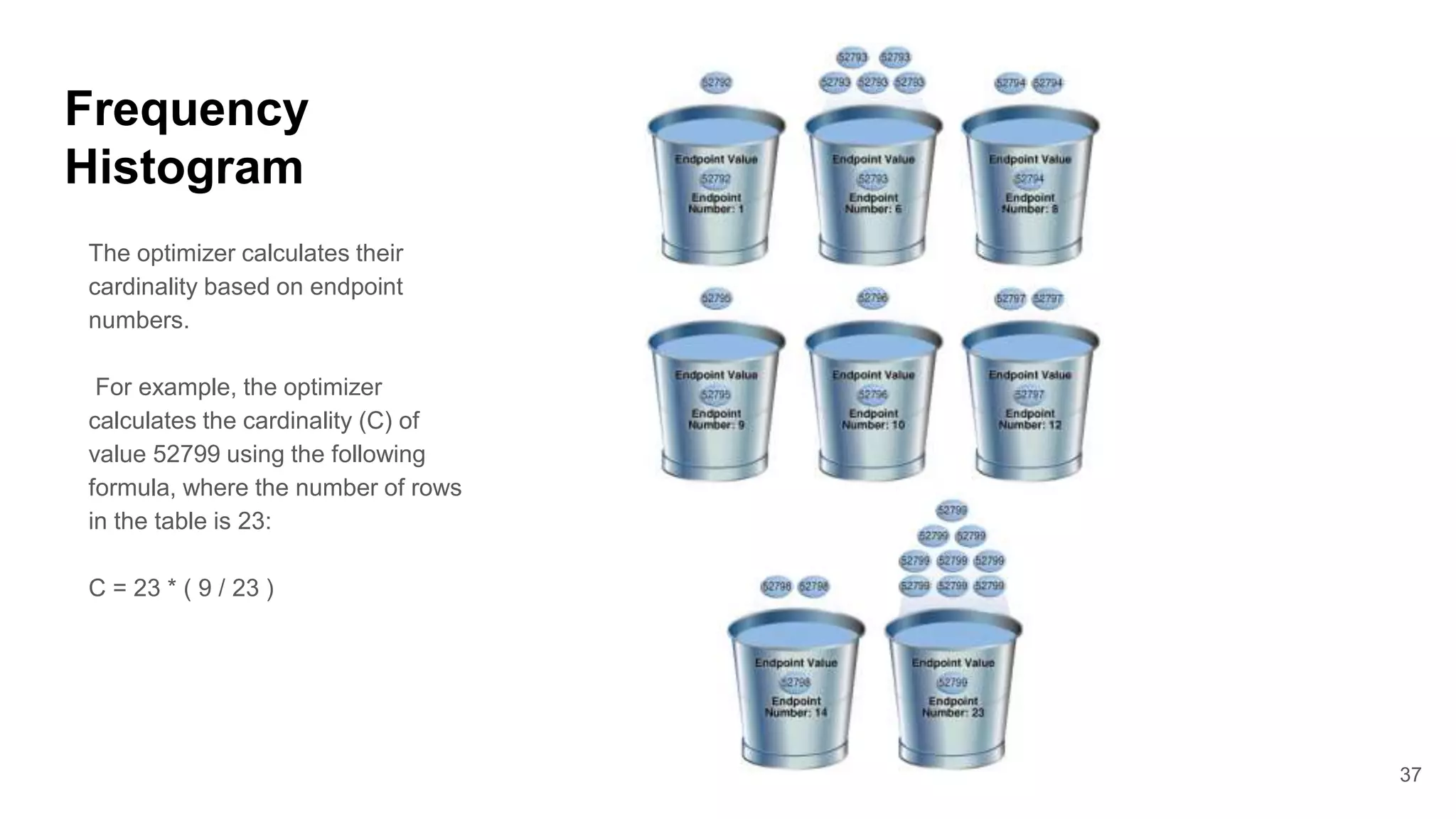

Frequency
Histogram
The optimizer calculates their
cardinality based on endpoint
numbers.
For example, the optimizer
calculates the cardinality (C) of
value 52799 using the following
formula, where the number of rows
in the table is 23:
C = 23 * ( 9 / 23 )
37

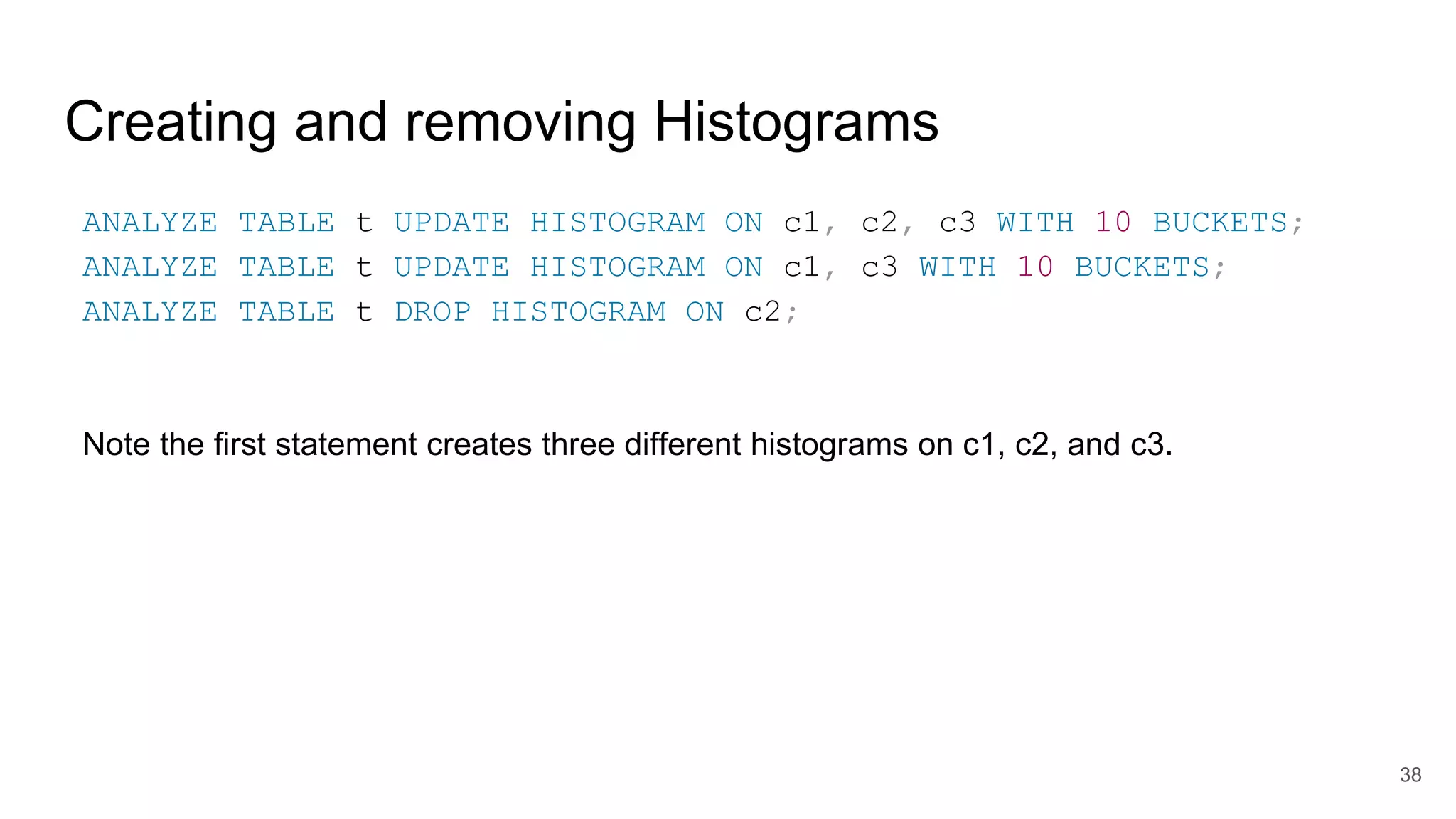

Creating and removing Histograms
ANALYZE TABLE t UPDATE HISTOGRAM ON c1, c2, c3 WITH 10 BUCKETS;
ANALYZE TABLE t UPDATE HISTOGRAM ON c1, c3 WITH 10 BUCKETS;
ANALYZE TABLE t DROP HISTOGRAM ON c2;
Note the first statement creates three different histograms on c1, c2, and c3.
38

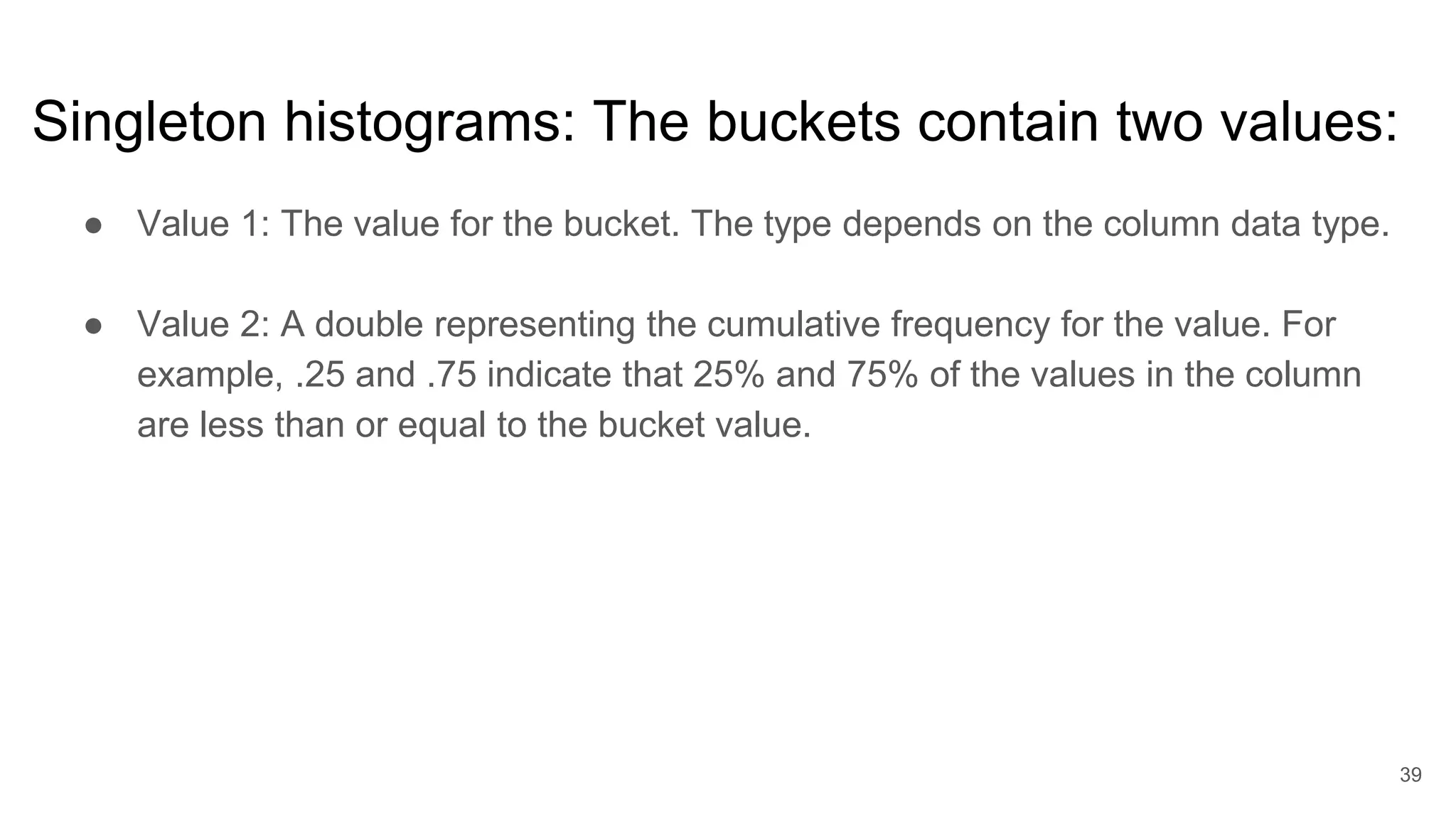

Singleton histograms: The buckets contain two values:
● Value 1: The value for the bucket. The type depends on the column data type.
● Value 2: A double representing the cumulative frequency for the value. For
example, .25 and .75 indicate that 25% and 75% of the values in the column
are less than or equal to the bucket value.
39

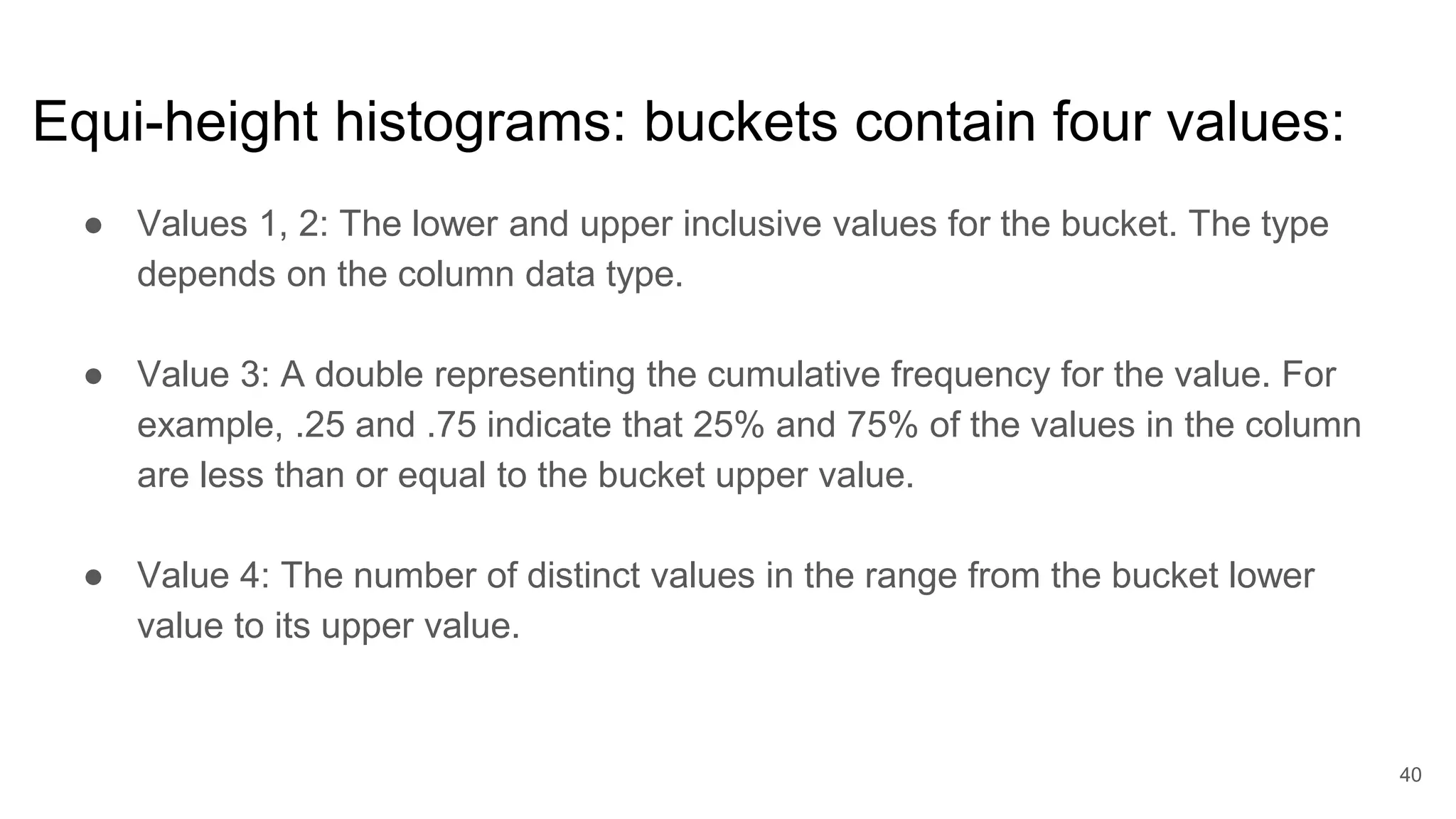

Equi-height histograms: buckets contain four values:
● Values 1, 2: The lower and upper inclusive values for the bucket. The type
depends on the column data type.
● Value 3: A double representing the cumulative frequency for the value. For
example, .25 and .75 indicate that 25% and 75% of the values in the column
are less than or equal to the bucket upper value.
● Value 4: The number of distinct values in the range from the bucket lower
value to its upper value.
40

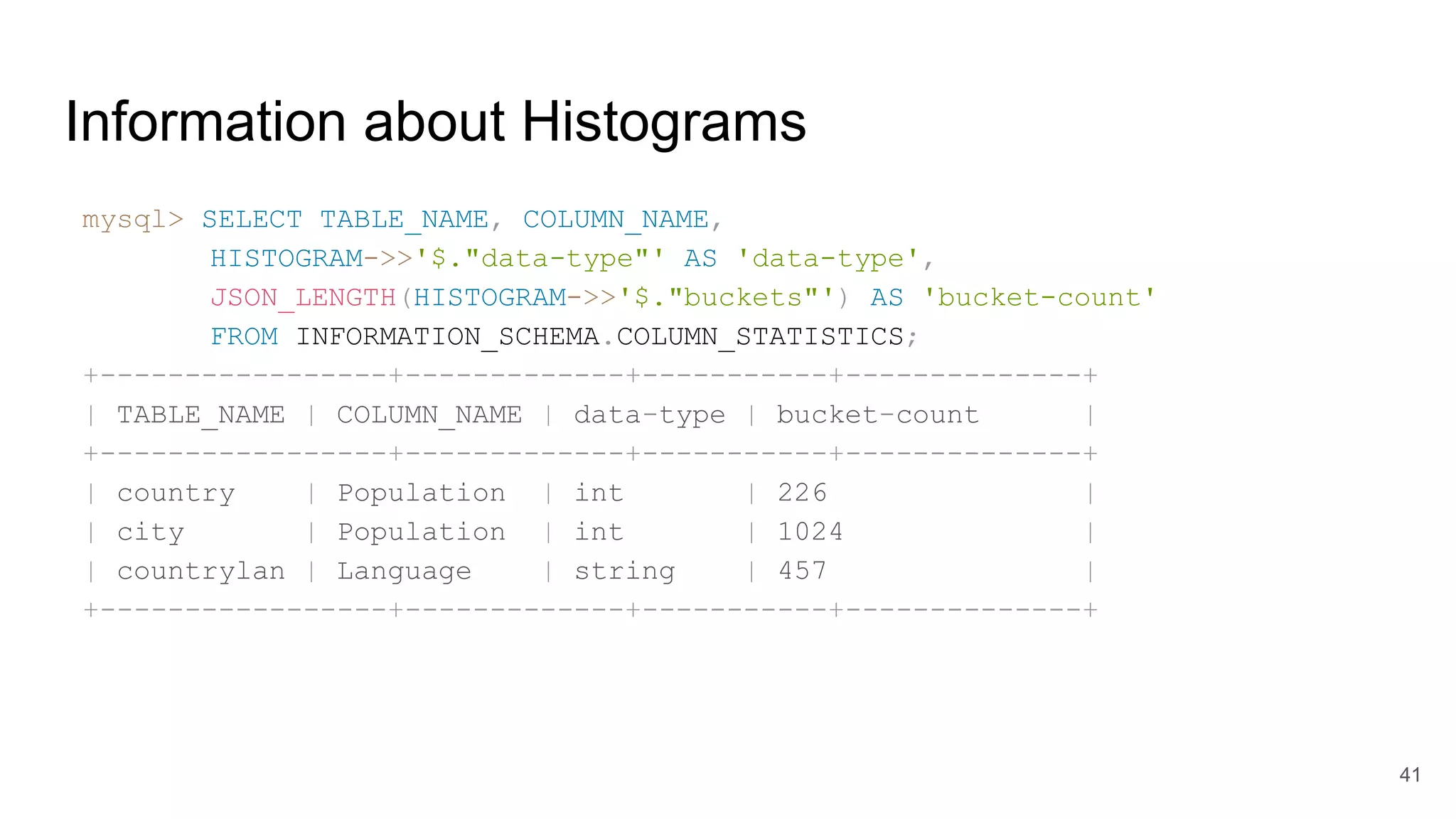

Information about Histograms
mysql> SELECT TABLE_NAME, COLUMN_NAME,
HISTOGRAM->>'$."data-type"' AS 'data-type',
JSON_LENGTH(HISTOGRAM->>'$."buckets"') AS 'bucket-count'
FROM INFORMATION_SCHEMA.COLUMN_STATISTICS;
+-----------------+-------------+-----------+--------------+
| TABLE_NAME | COLUMN_NAME | data-type | bucket-count |
+-----------------+-------------+-----------+--------------+
| country | Population | int | 226 |
| city | Population | int | 1024 |
| countrylan | Language | string | 457 |
+-----------------+-------------+-----------+--------------+
41

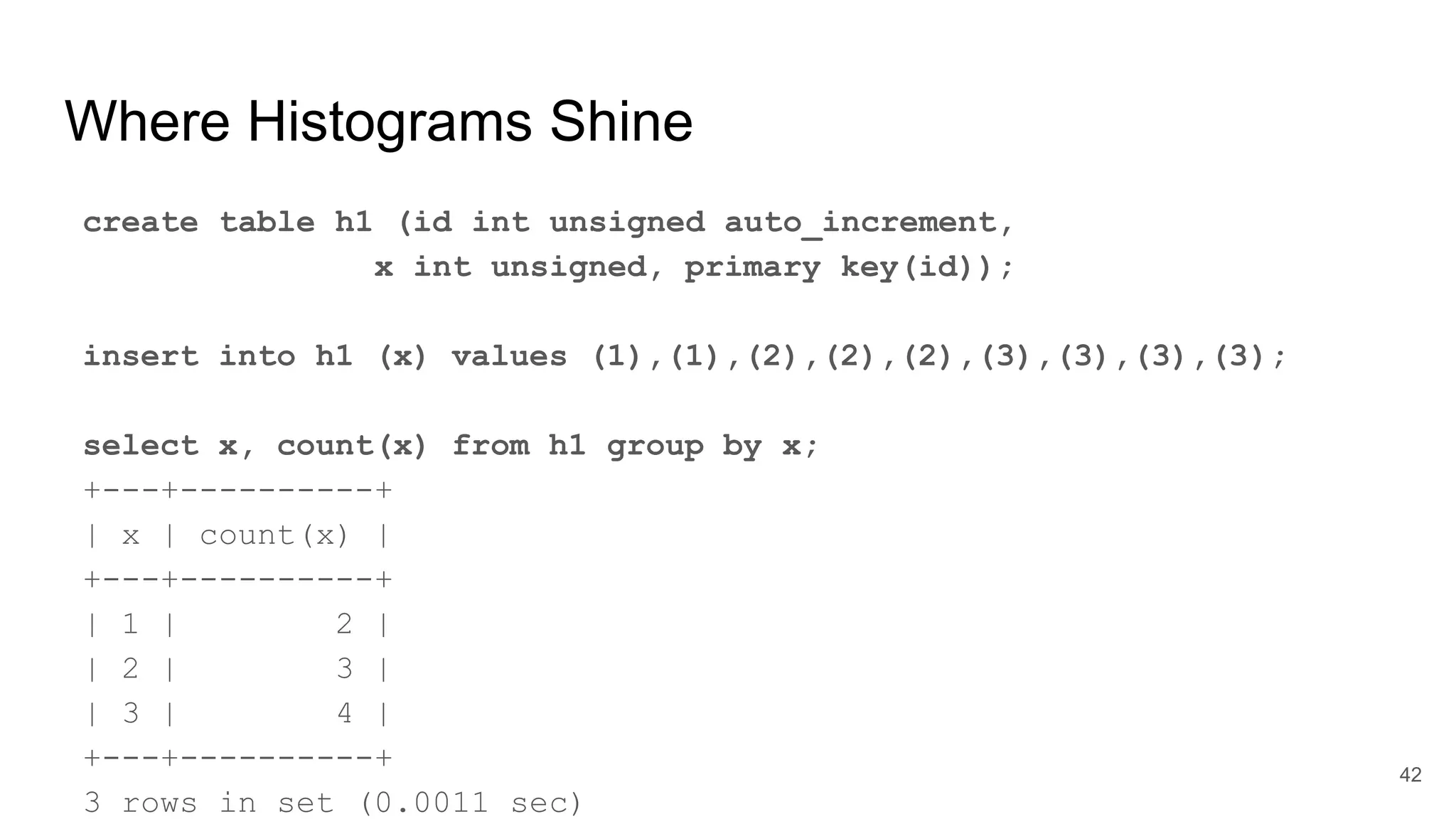

Where Histograms Shine
create table h1 (id int unsigned auto_increment,
x int unsigned, primary key(id));
insert into h1 (x) values (1),(1),(2),(2),(2),(3),(3),(3),(3);
select x, count(x) from h1 group by x;
+---+----------+
| x | count(x) |
+---+----------+
| 1 | 2 |
| 2 | 3 |
| 3 | 4 |
+---+----------+
3 rows in set (0.0011 sec)
42
Where Histograms Shine
EXPLAIN SELECT * FROM h1 WHERE x > 0G
*************************** 1. row ***************************
id: 1
select_type: SIMPLE
table: h1
partitions: NULL
type: ALL
possible_keys: NULL
key: NULL
key_len: NULL
ref: NULL
rows: 9
filtered: 33.32999801635742 – The optimizer knows about 1/3 of the data
Extra: Using where
1 row in set, 1 warning (0.0007 sec) 43
Where Histograms Shine
ANALYZE TABLE h1 UPDATE HISTOGRAM ON x WITH 3 BUCKETSG
*************************** 1. row ***************************
Table: demox.h1
Op: histogram
Msg_type: status
Msg_text: Histogram statistics created for column 'x'.
1 row in set (0.0819 sec)
44
Where Histograms Shine
EXPLAIN SELECT * FROM h1 WHERE x > 0G
*************************** 1. row ***************************
id: 1
select_type: SIMPLE
table: h1
partitions: NULL
type: ALL
possible_keys: NULL
key: NULL
key_len: NULL
ref: NULL
rows: 9
filtered: 100 – all rows!!!
Extra: Using where
1 row in set, 1 warning (0.0007 sec) 45

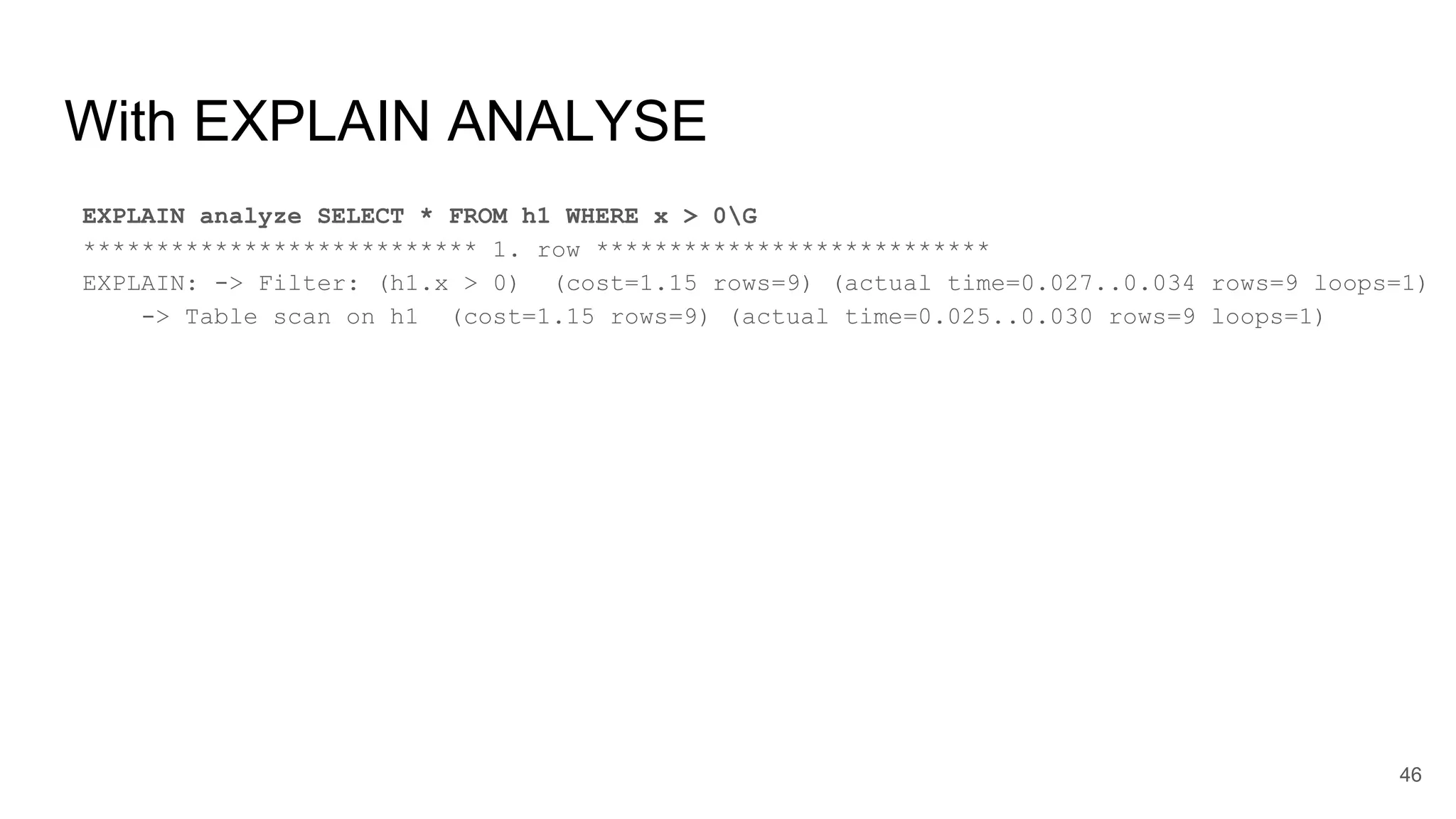

With EXPLAIN ANALYSE
EXPLAIN analyze SELECT * FROM h1 WHERE x > 0G
*************************** 1. row ***************************
EXPLAIN: -> Filter: (h1.x > 0) (cost=1.15 rows=9) (actual time=0.027..0.034 rows=9 loops=1)
-> Table scan on h1 (cost=1.15 rows=9) (actual time=0.025..0.030 rows=9 loops=1)
46

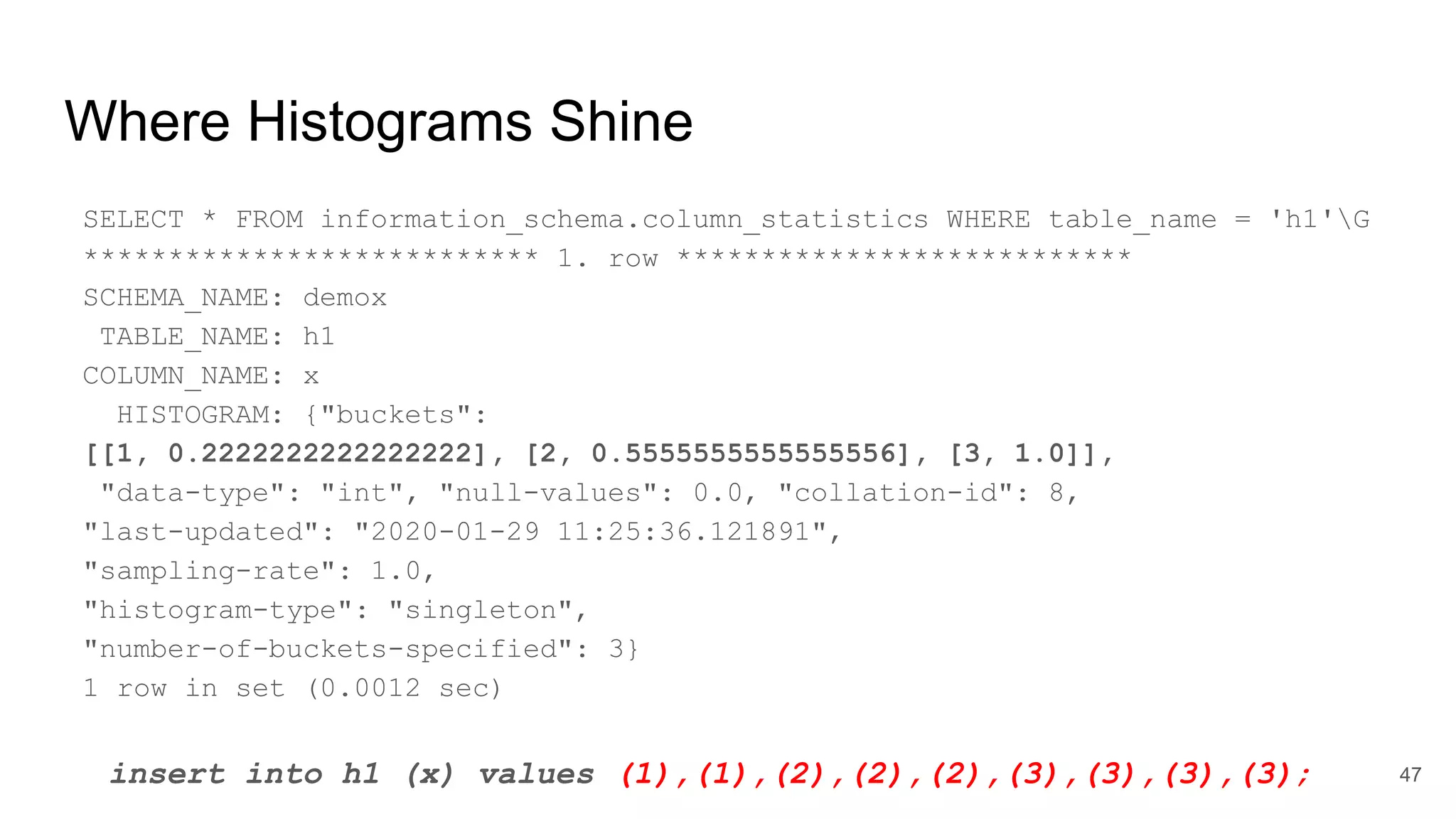

Where Histograms Shine
SELECT * FROM information_schema.column_statistics WHERE table_name = 'h1'G
*************************** 1. row ***************************
SCHEMA_NAME: demox
TABLE_NAME: h1
COLUMN_NAME: x
HISTOGRAM: {"buckets":
[[1, 0.2222222222222222], [2, 0.5555555555555556], [3, 1.0]],
"data-type": "int", "null-values": 0.0, "collation-id": 8,
"last-updated": "2020-01-29 11:25:36.121891",
"sampling-rate": 1.0,
"histogram-type": "singleton",
"number-of-buckets-specified": 3}
1 row in set (0.0012 sec)
47insert into h1 (x) values (1),(1),(2),(2),(2),(3),(3),(3),(3);
Think of a Histogram as
ordered buckets of your
data
But not exactly dynamic
48

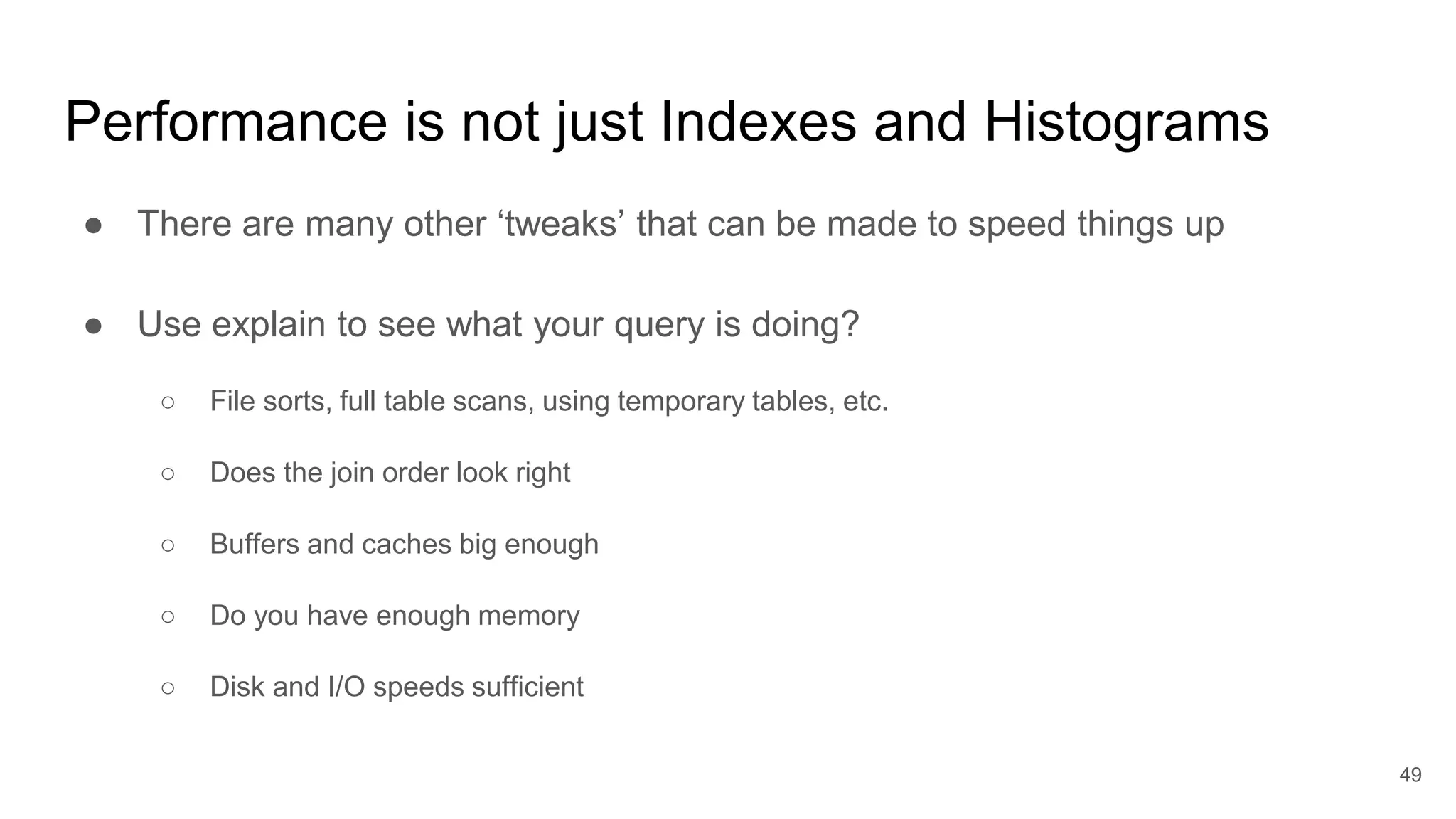

Performance is not just Indexes and Histograms
● There are many other ‘tweaks’ that can be made to speed things up
● Use explain to see what your query is doing?
○ File sorts, full table scans, using temporary tables, etc.
○ Does the join order look right
○ Buffers and caches big enough
○ Do you have enough memory
○ Disk and I/O speeds sufficient
49

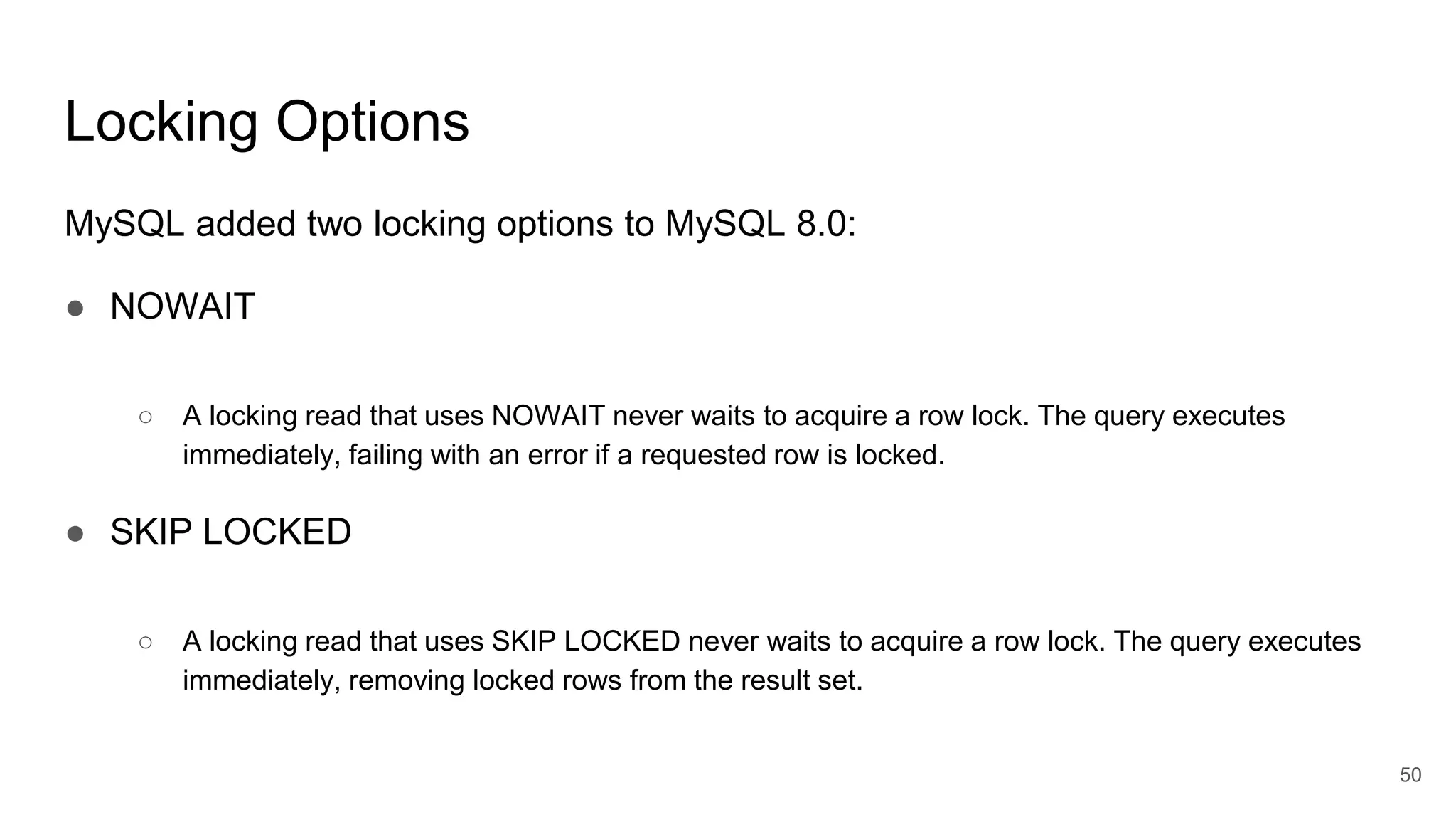

Locking Options
MySQL added two locking options to MySQL 8.0:
● NOWAIT
○ A locking read that uses NOWAIT never waits to acquire a row lock. The query executes
immediately, failing with an error if a requested row is locked.
● SKIP LOCKED
○ A locking read that uses SKIP LOCKED never waits to acquire a row lock. The query executes
immediately, removing locked rows from the result set.
50

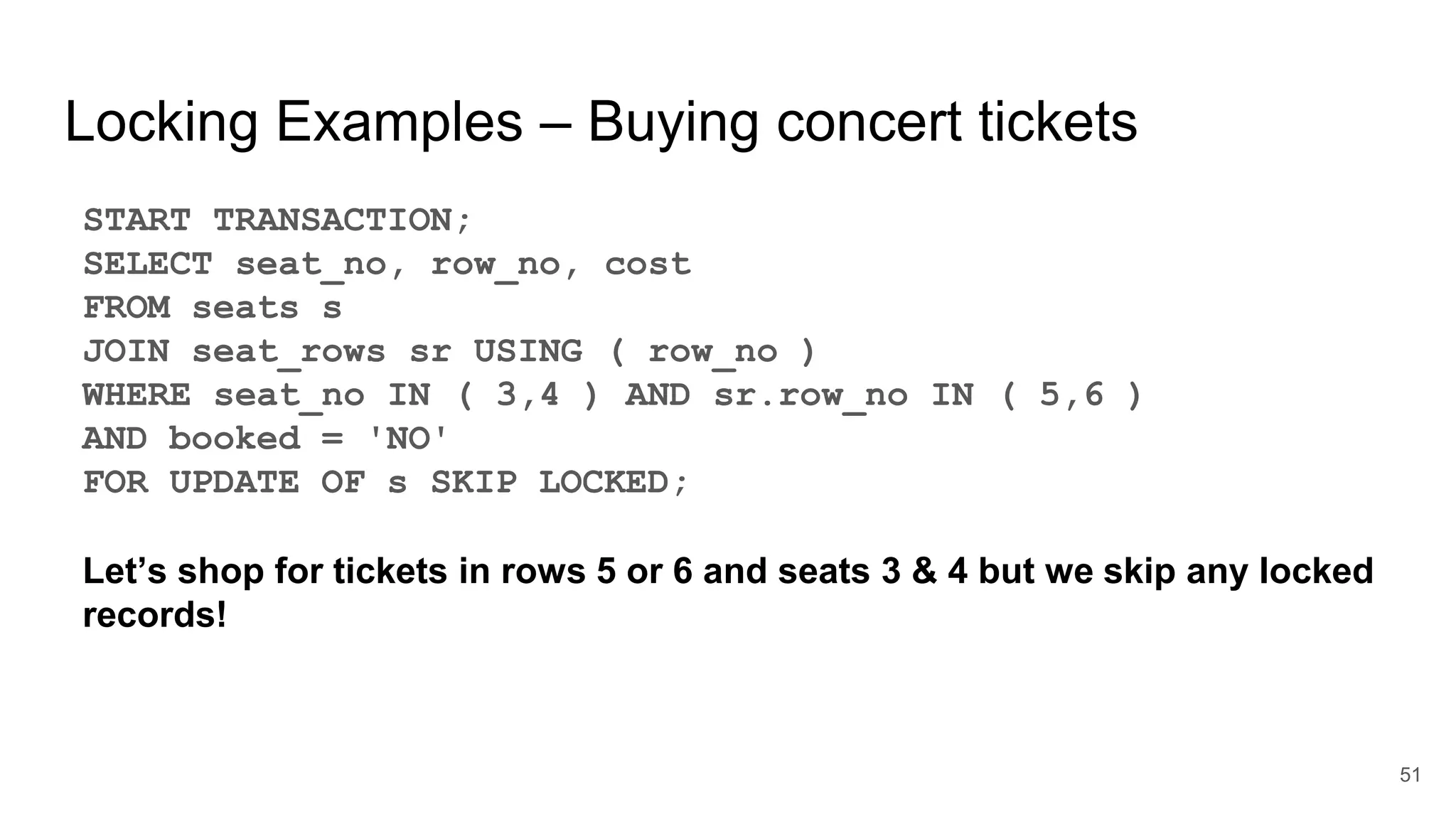

Locking Examples – Buying concert tickets
START TRANSACTION;
SELECT seat_no, row_no, cost
FROM seats s
JOIN seat_rows sr USING ( row_no )
WHERE seat_no IN ( 3,4 ) AND sr.row_no IN ( 5,6 )
AND booked = 'NO'
FOR UPDATE OF s SKIP LOCKED;
Let’s shop for tickets in rows 5 or 6 and seats 3 & 4 but we skip any locked
records!
51

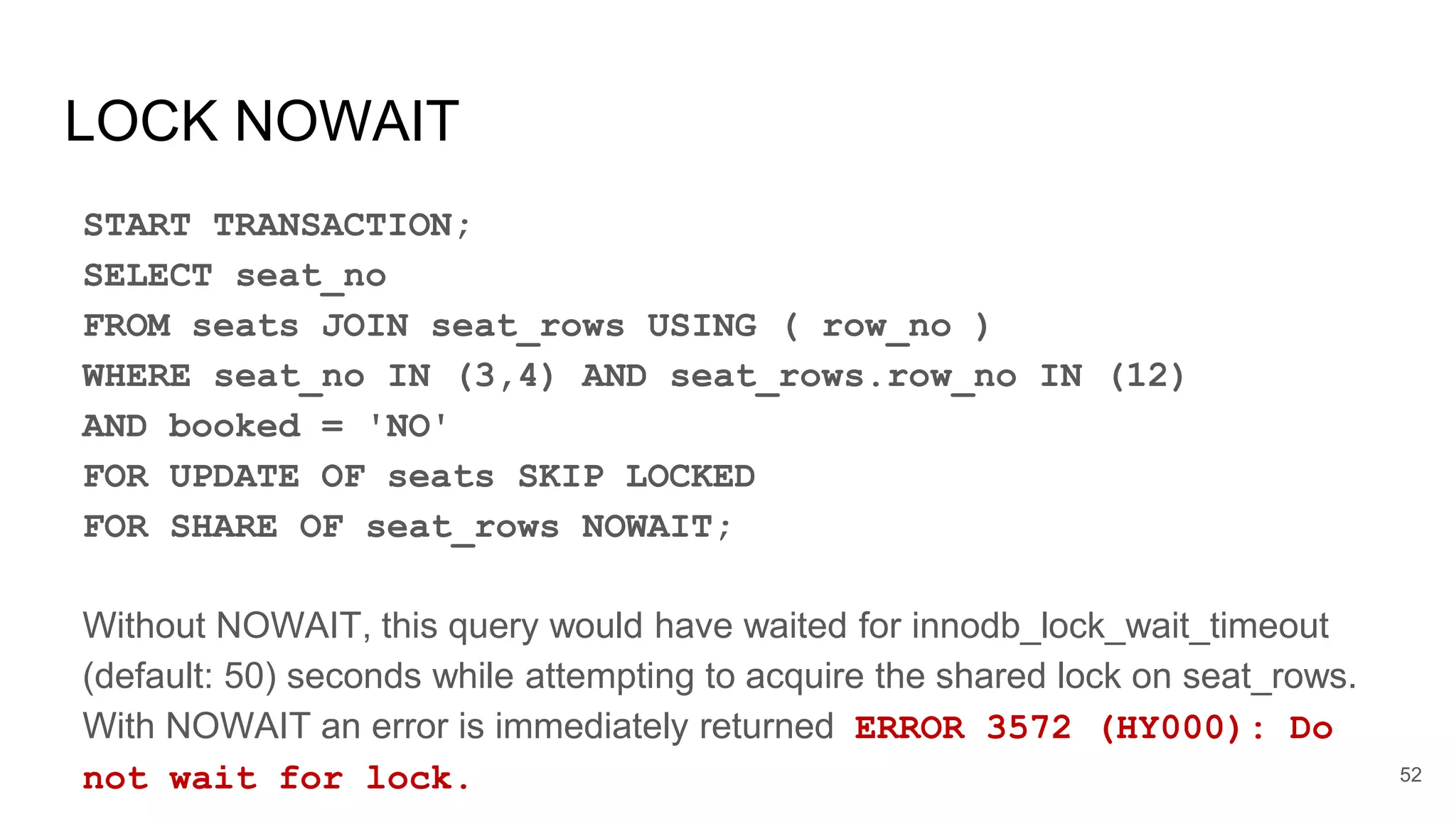

LOCK NOWAIT
START TRANSACTION;
SELECT seat_no
FROM seats JOIN seat_rows USING ( row_no )
WHERE seat_no IN (3,4) AND seat_rows.row_no IN (12)
AND booked = 'NO'
FOR UPDATE OF seats SKIP LOCKED
FOR SHARE OF seat_rows NOWAIT;
Without NOWAIT, this query would have waited for innodb_lock_wait_timeout
(default: 50) seconds while attempting to acquire the shared lock on seat_rows.
With NOWAIT an error is immediately returned ERROR 3572 (HY000): Do
not wait for lock. 52

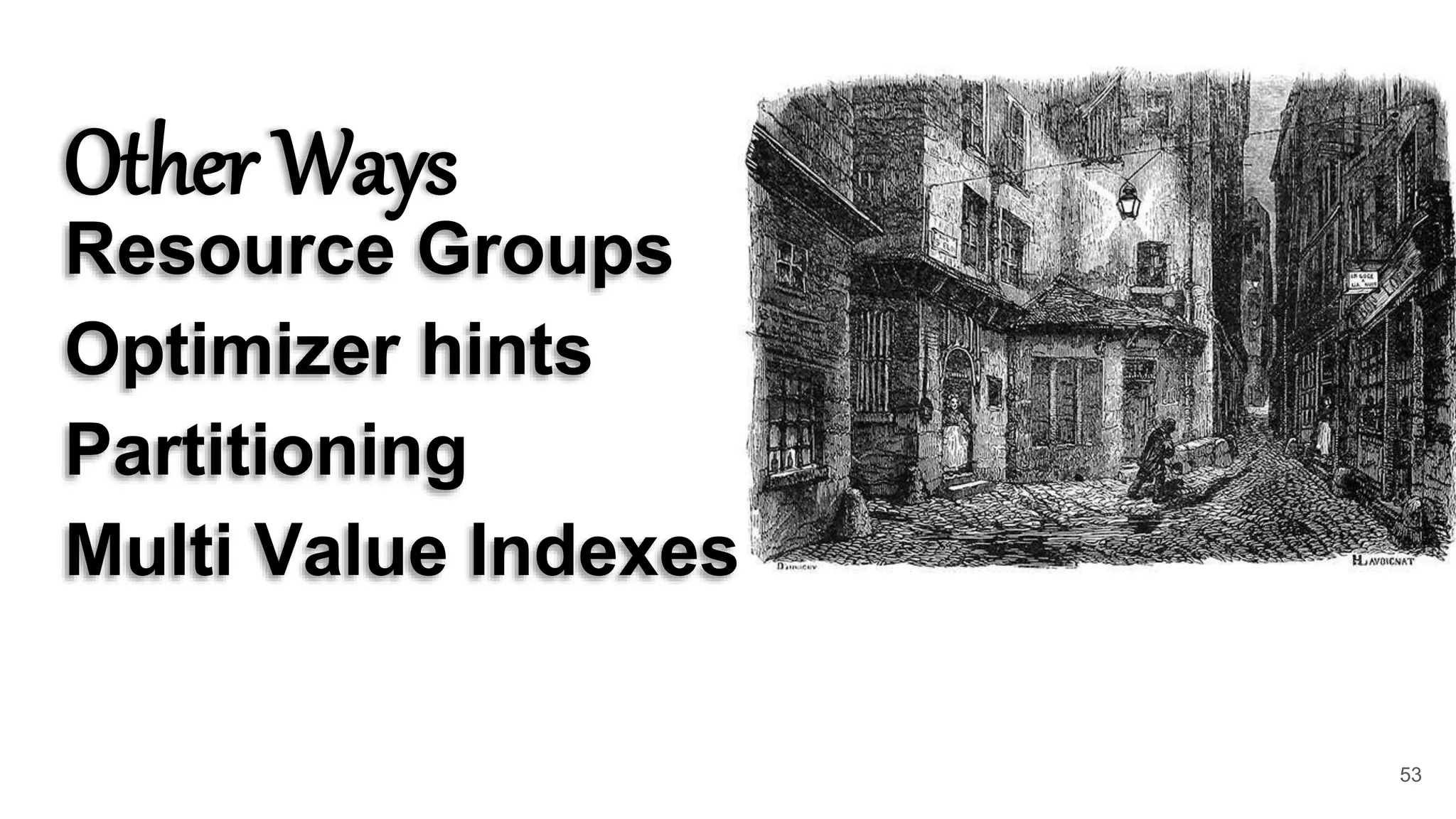

Other Ways
Resource Groups
Optimizer hints
Partitioning
Multi Value Indexes
53

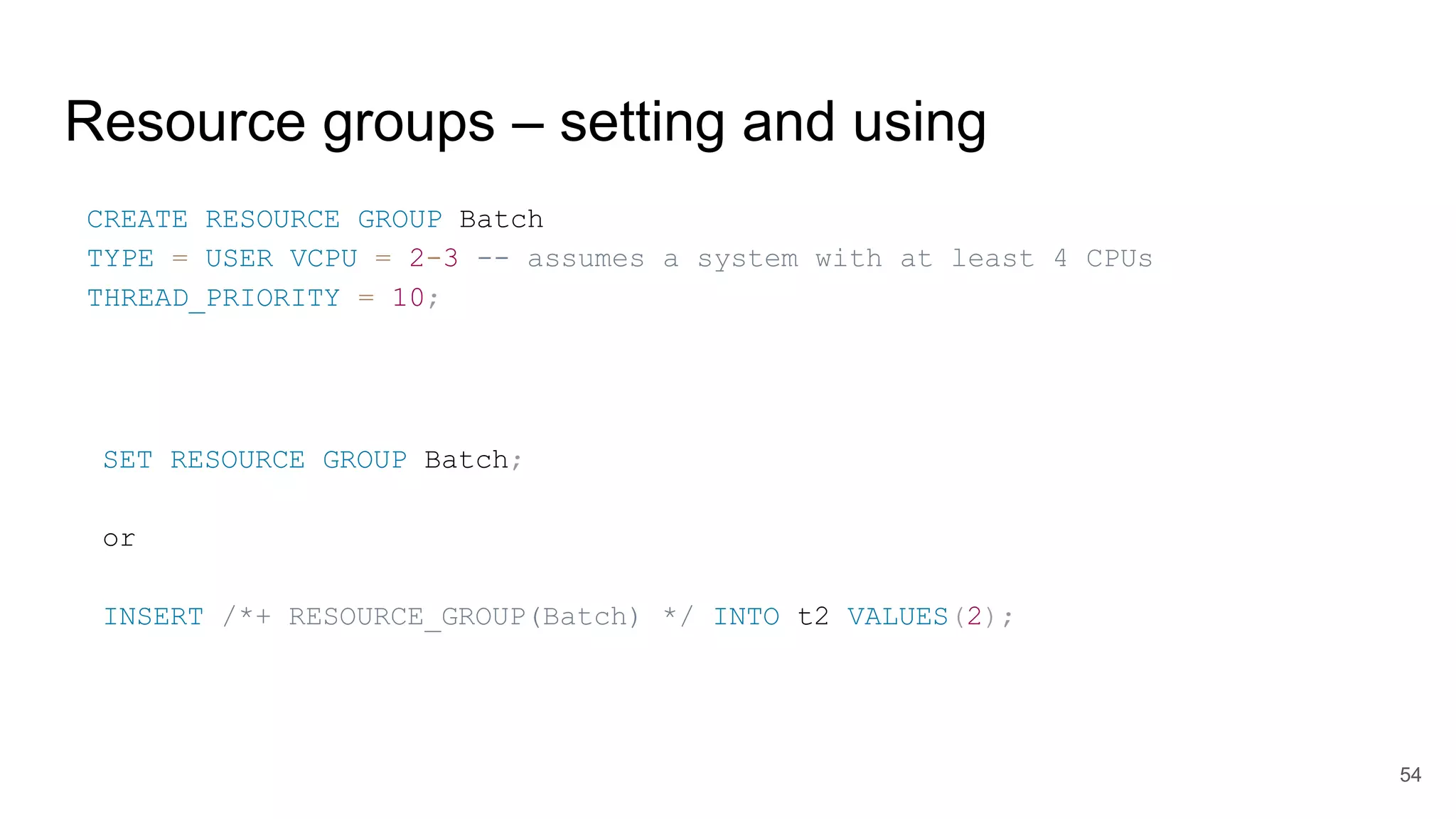

Resource groups – setting and using
CREATE RESOURCE GROUP Batch
TYPE = USER VCPU = 2-3 -- assumes a system with at least 4 CPUs
THREAD_PRIORITY = 10;
SET RESOURCE GROUP Batch;
or
INSERT /*+ RESOURCE_GROUP(Batch) */ INTO t2 VALUES(2);
54

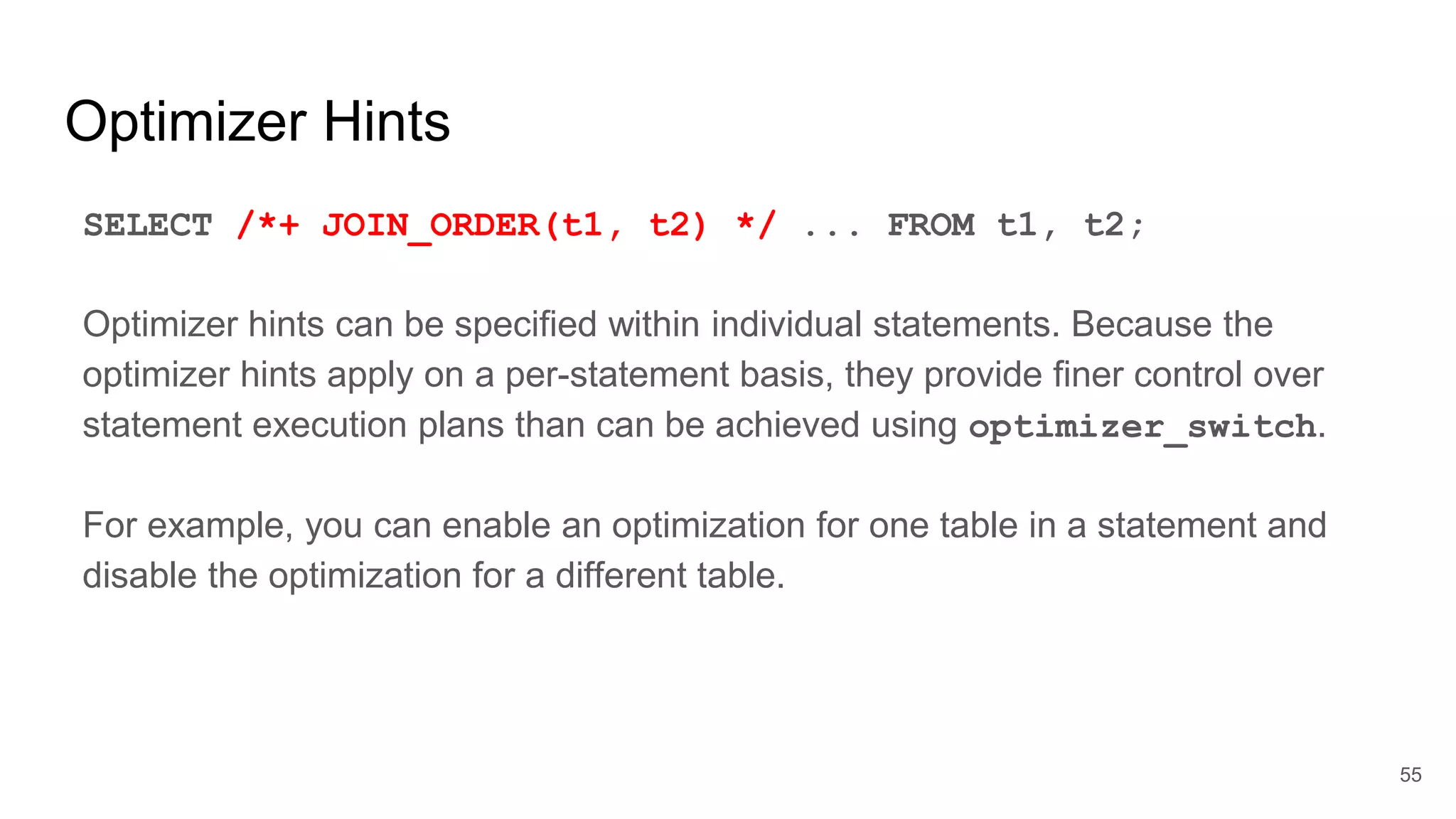

Optimizer Hints
SELECT /*+ JOIN_ORDER(t1, t2) */ ... FROM t1, t2;
Optimizer hints can be specified within individual statements. Because the
optimizer hints apply on a per-statement basis, they provide finer control over
statement execution plans than can be achieved using optimizer_switch.
For example, you can enable an optimization for one table in a statement and
disable the optimization for a different table.
55

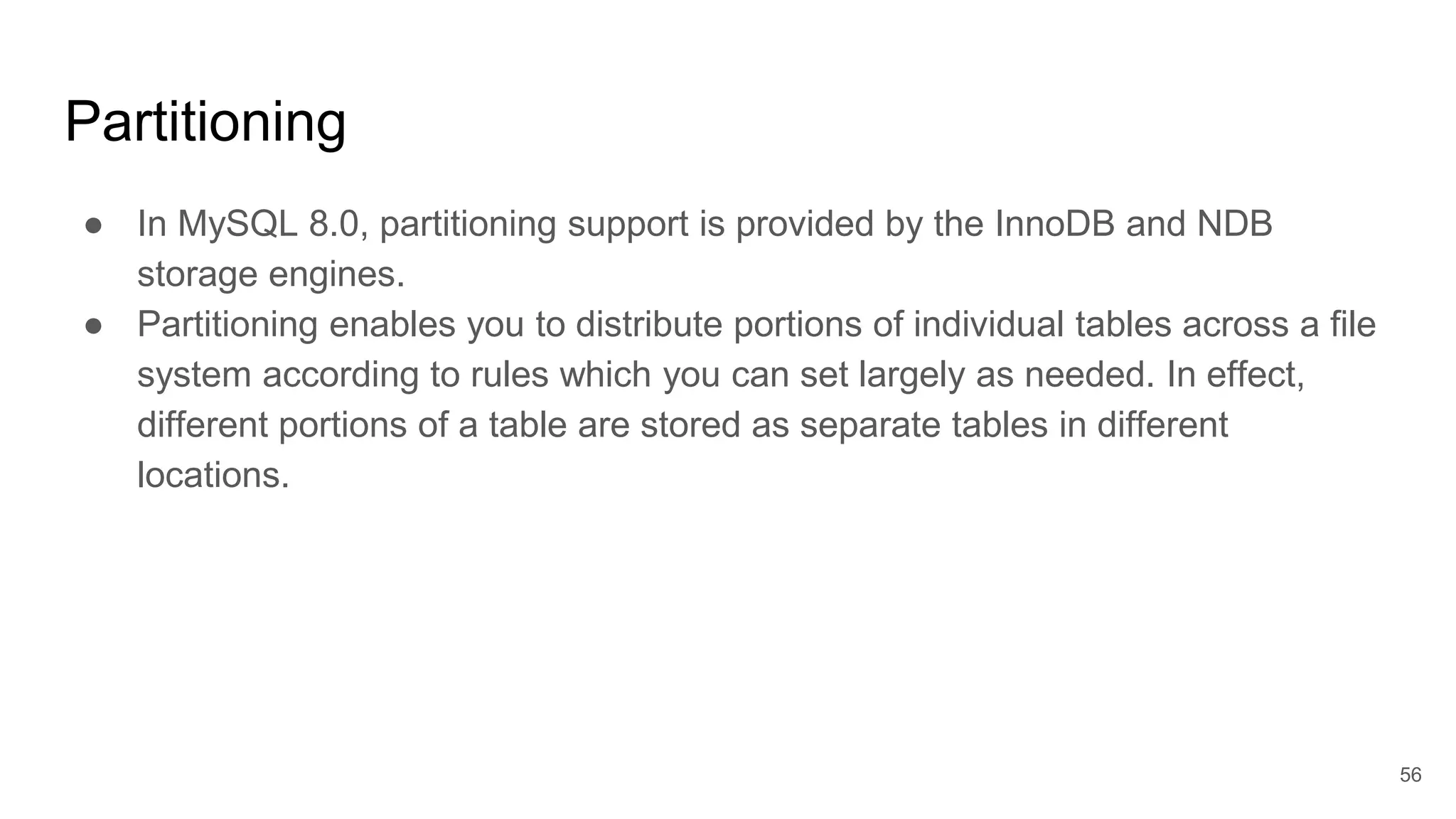

Partitioning
● In MySQL 8.0, partitioning support is provided by the InnoDB and NDB
storage engines.
● Partitioning enables you to distribute portions of individual tables across a file
system according to rules which you can set largely as needed. In effect,
different portions of a table are stored as separate tables in different
locations.
56

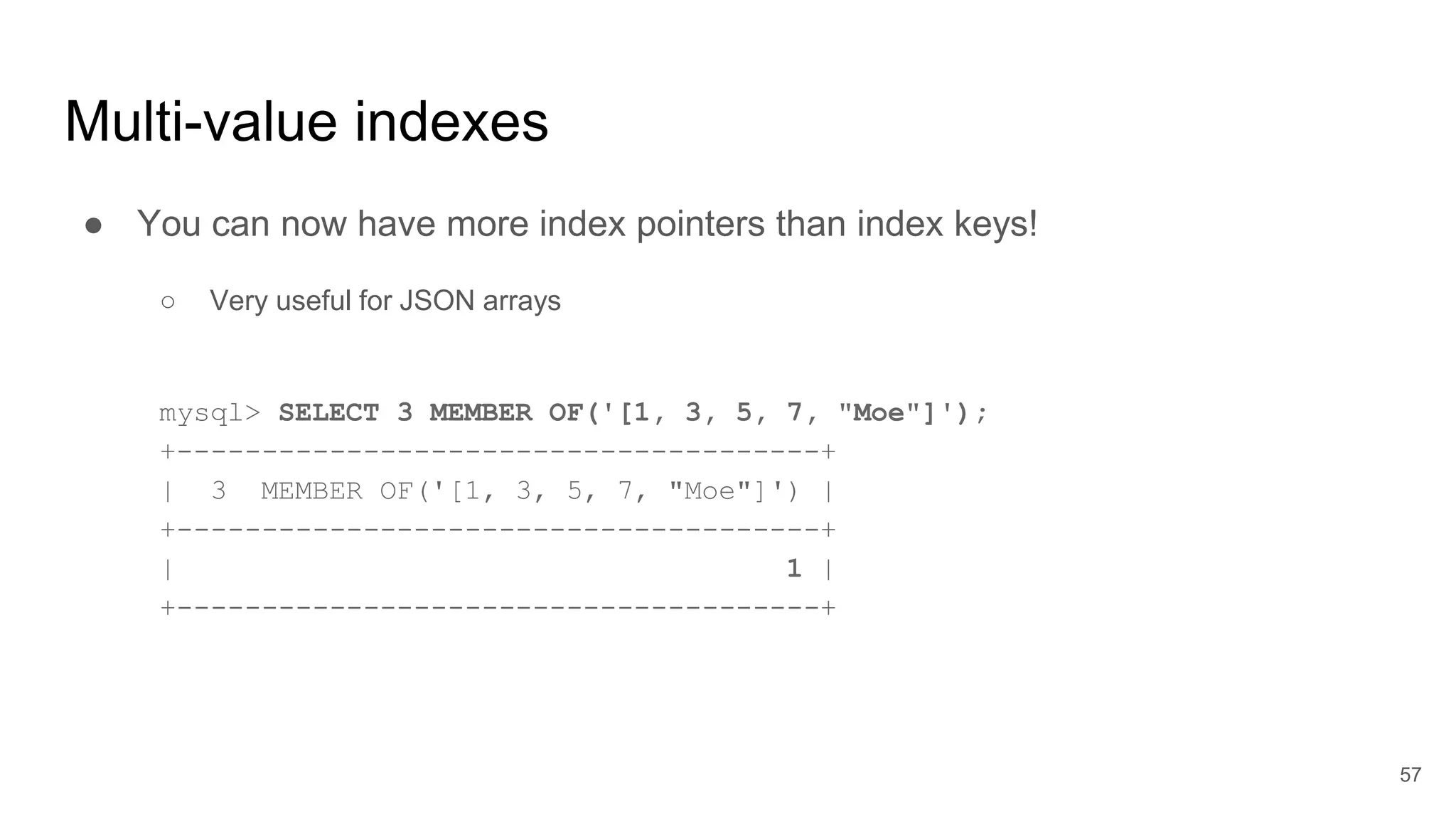

Multi-value indexes
● You can now have more index pointers than index keys!
○ Very useful for JSON arrays
mysql> SELECT 3 MEMBER OF('[1, 3, 5, 7, "Moe"]');
+--------------------------------------+
| 3 MEMBER OF('[1, 3, 5, 7, "Moe"]') |
+--------------------------------------+
| 1 |
+--------------------------------------+
57

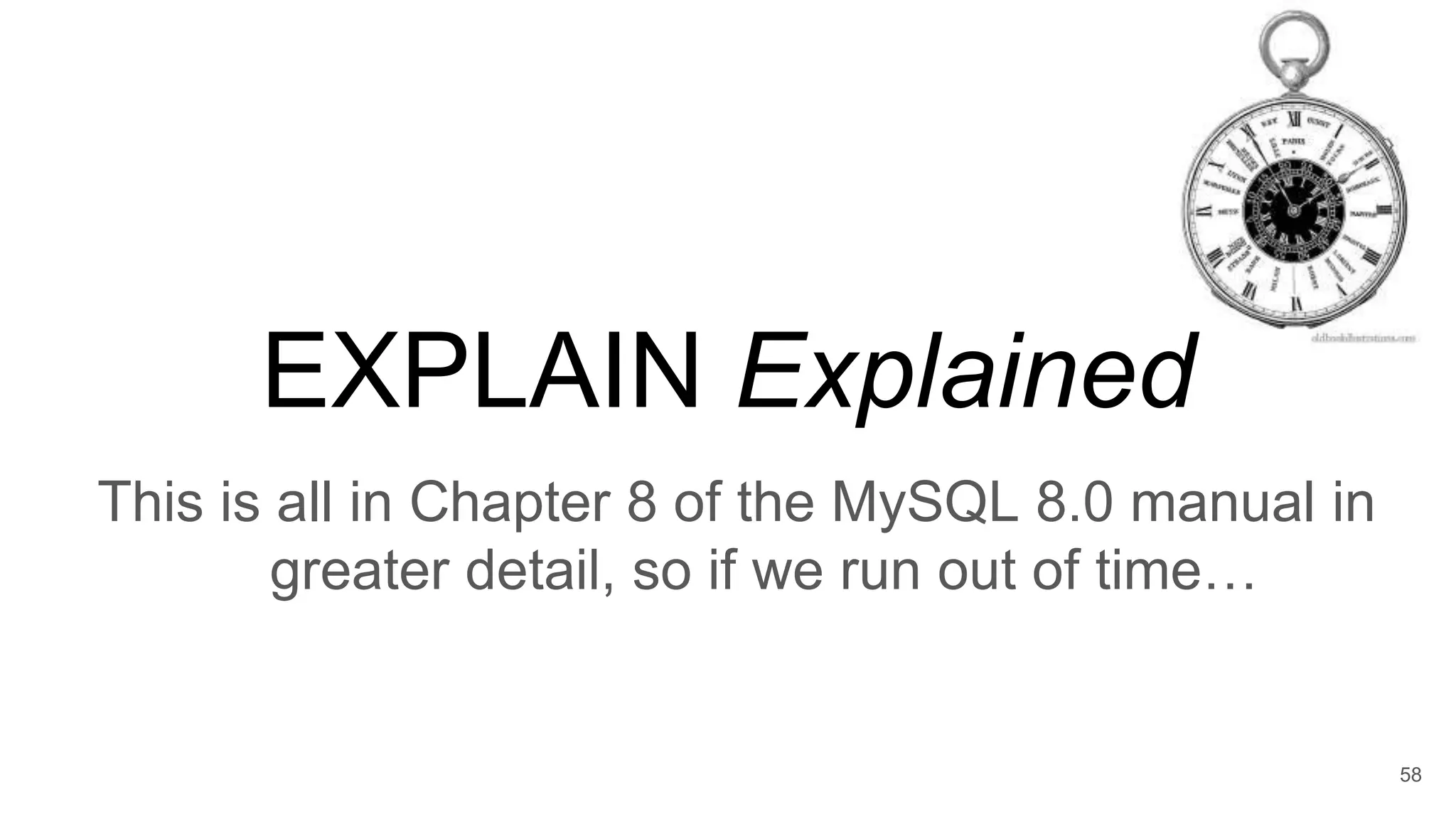

EXPLAIN Explained
This is all in Chapter 8 of the MySQL 8.0 manual in
greater detail, so if we run out of time…
58

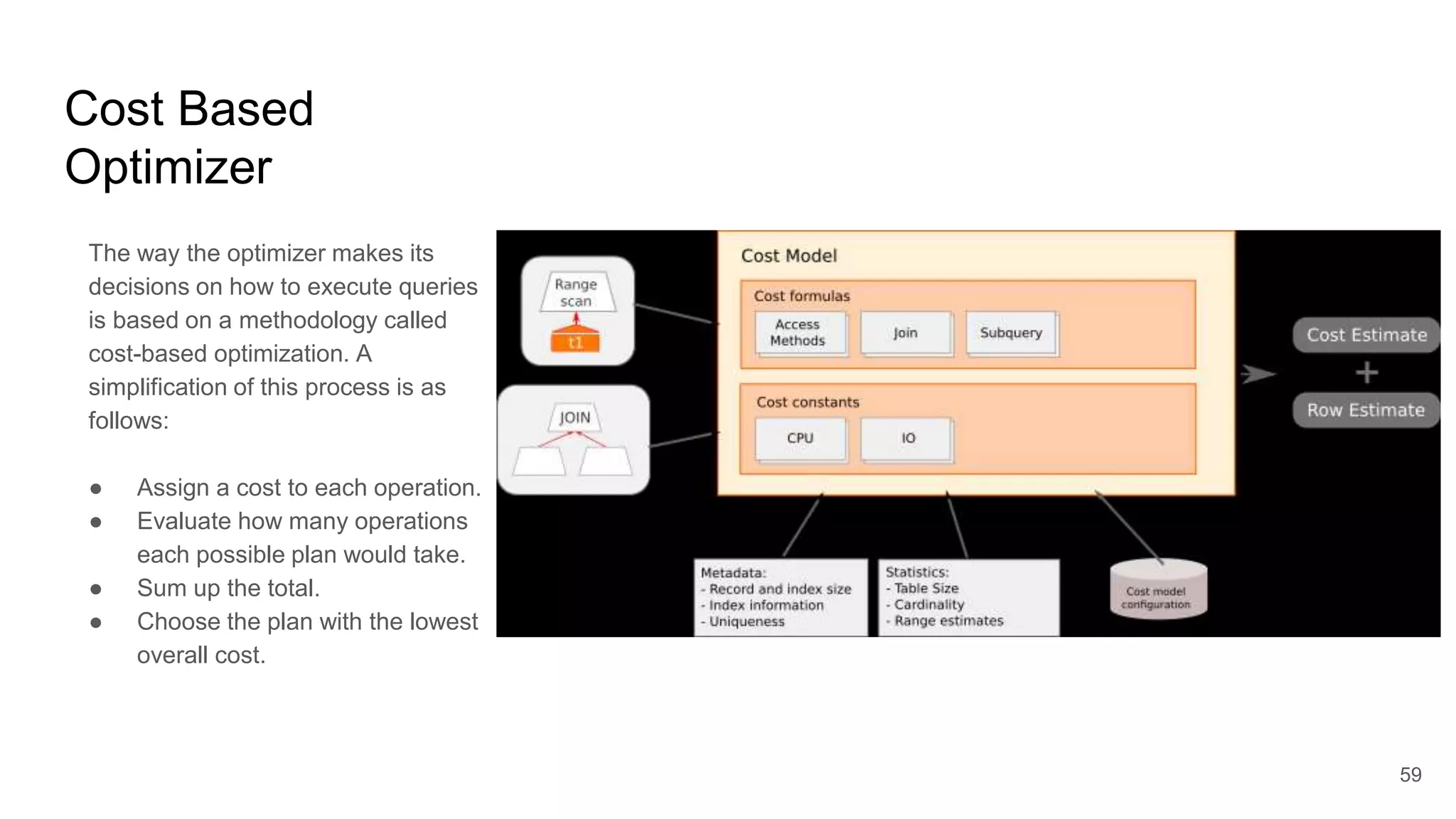

Cost Based
Optimizer
The way the optimizer makes its
decisions on how to execute queries
is based on a methodology called
cost-based optimization. A
simplification of this process is as
follows:
● Assign a cost to each operation.
● Evaluate how many operations
each possible plan would take.
● Sum up the total.
● Choose the plan with the lowest
overall cost.
59

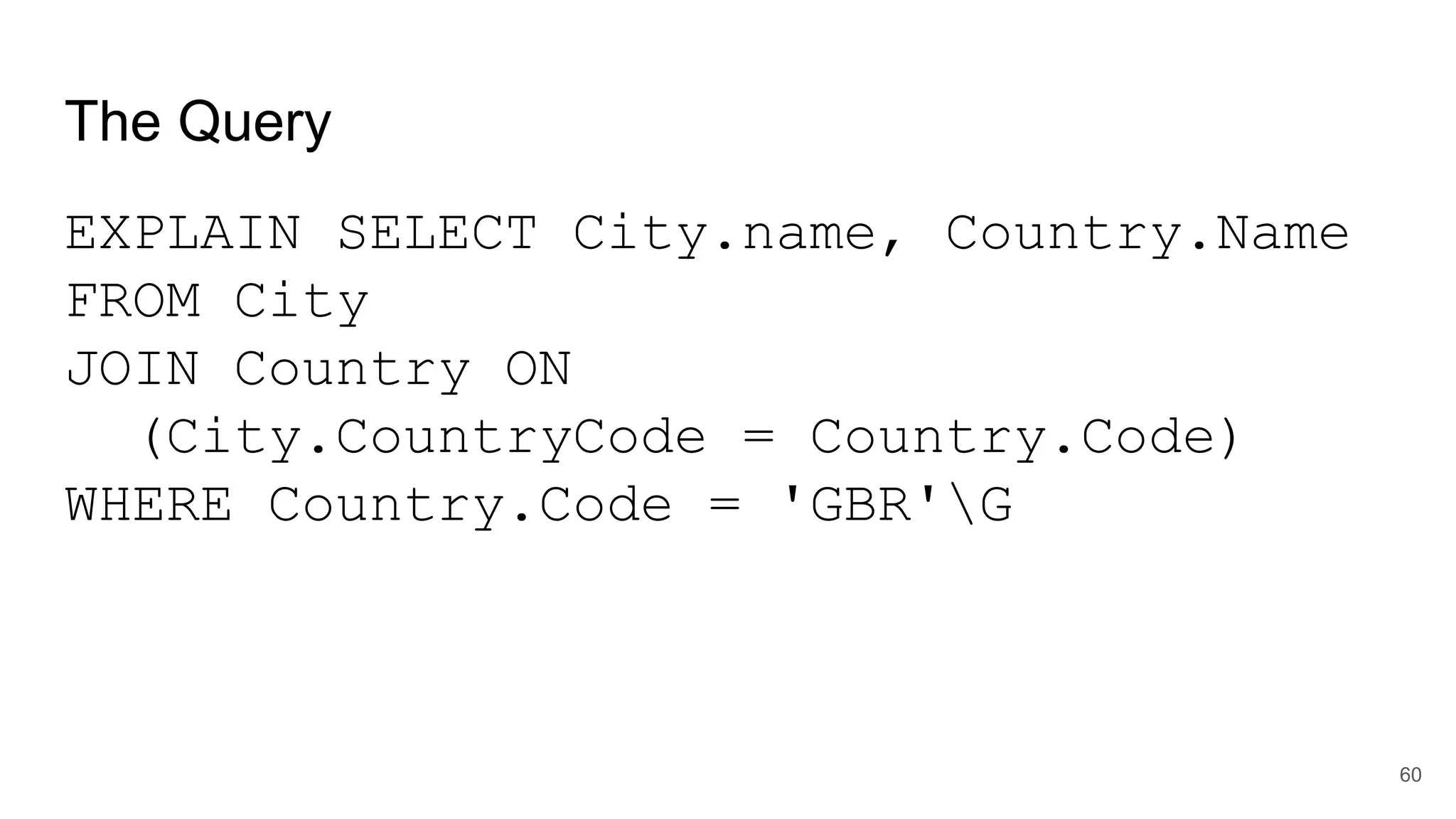

The Query
EXPLAIN SELECT City.name, Country.Name
FROM City
JOIN Country ON
(City.CountryCode = Country.Code)
WHERE Country.Code = 'GBR'G
60

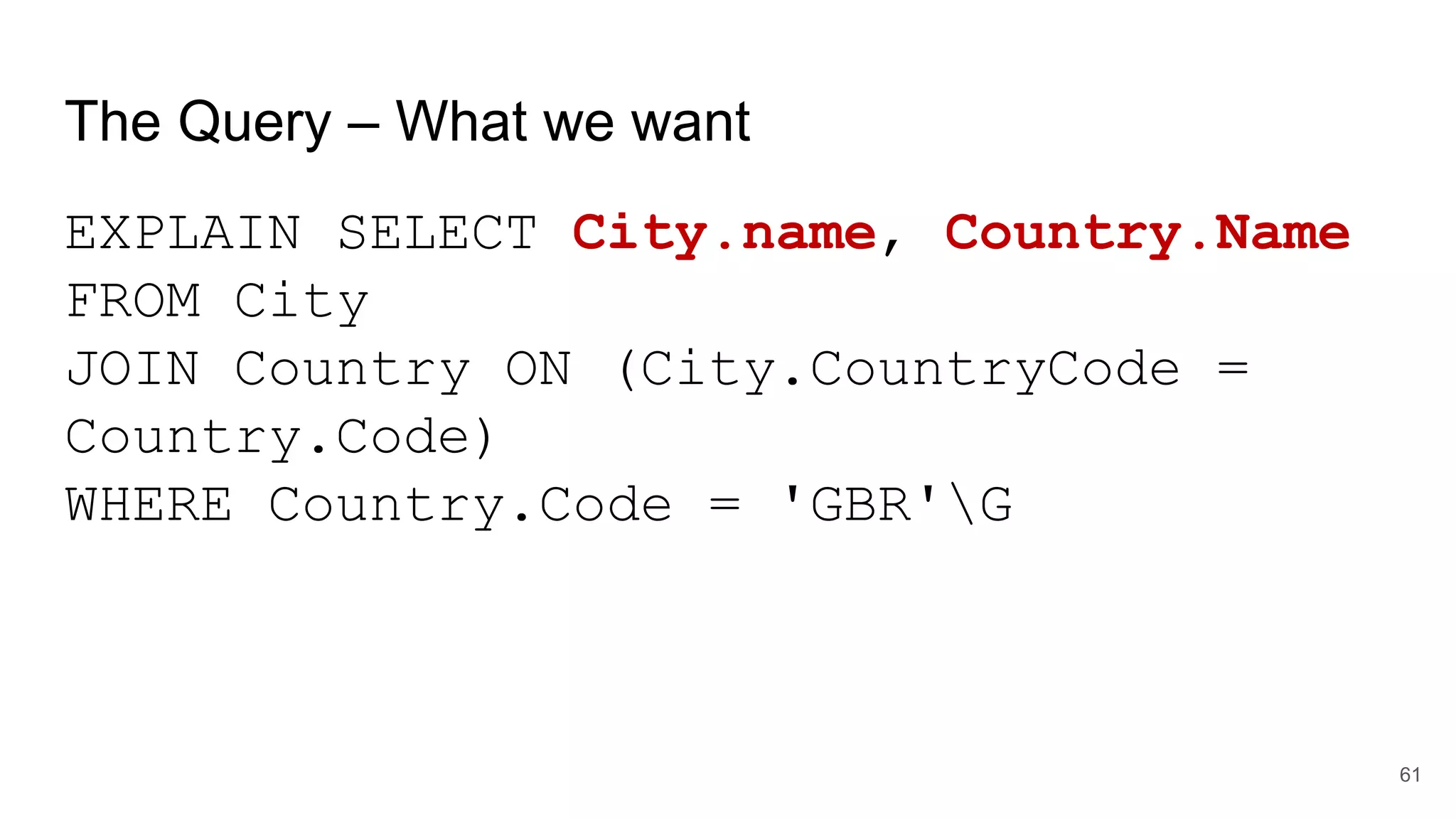

The Query – What we want
EXPLAIN SELECT City.name, Country.Name
FROM City
JOIN Country ON (City.CountryCode =
Country.Code)
WHERE Country.Code = 'GBR'G
61

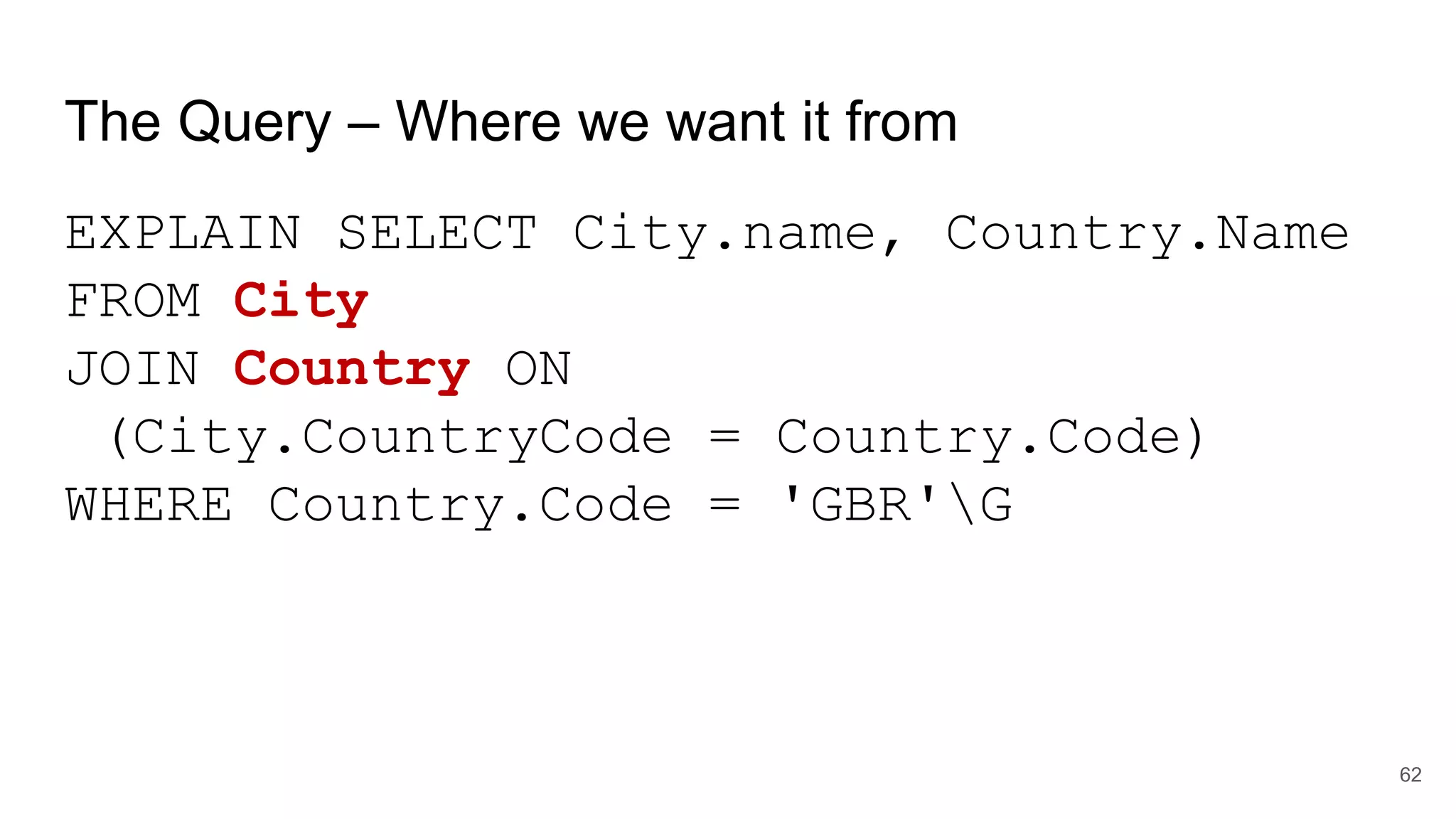

The Query – Where we want it from
EXPLAIN SELECT City.name, Country.Name
FROM City
JOIN Country ON
(City.CountryCode = Country.Code)
WHERE Country.Code = 'GBR'G
62

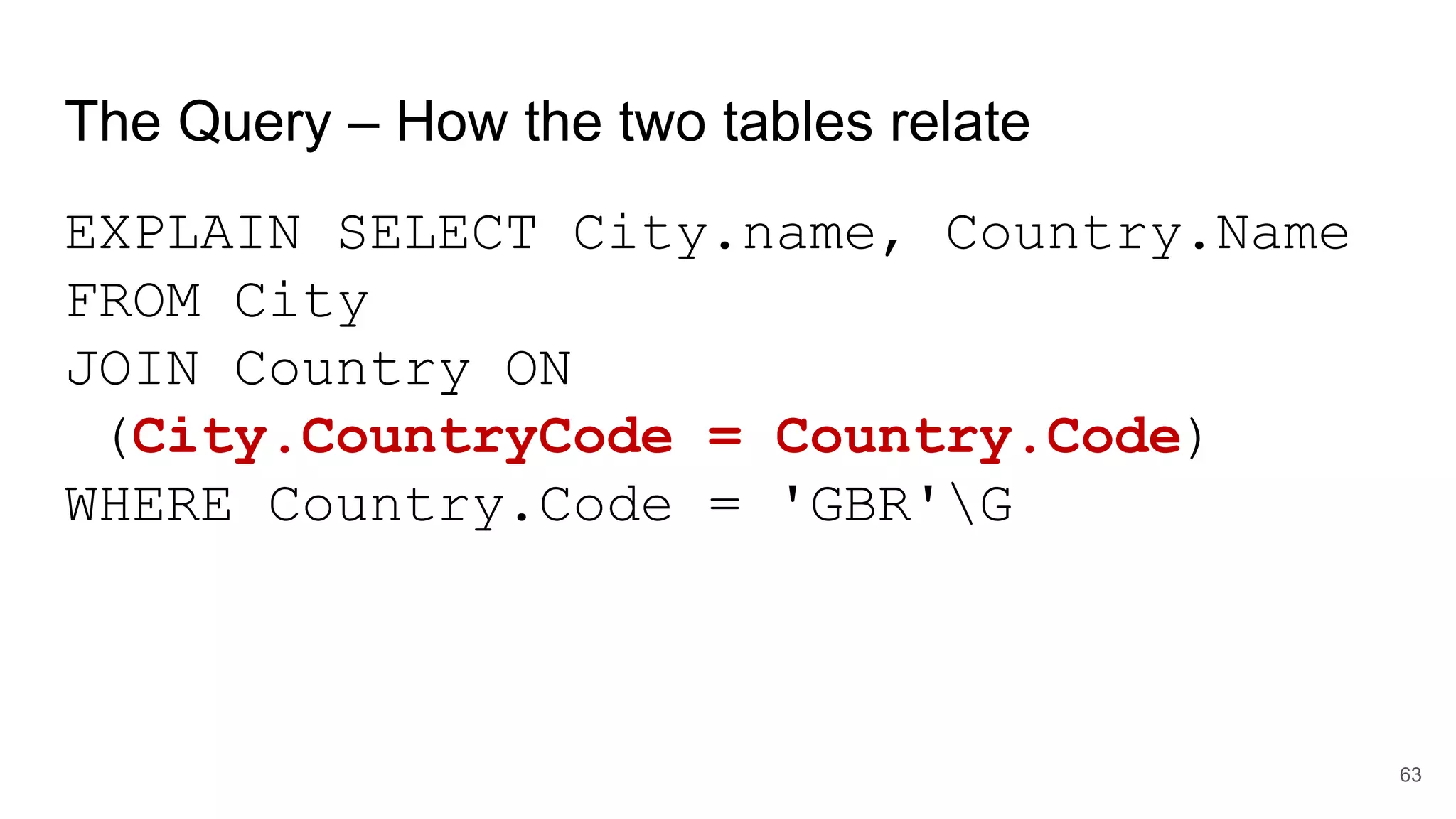

The Query – How the two tables relate
EXPLAIN SELECT City.name, Country.Name
FROM City
JOIN Country ON
(City.CountryCode = Country.Code)
WHERE Country.Code = 'GBR'G
63

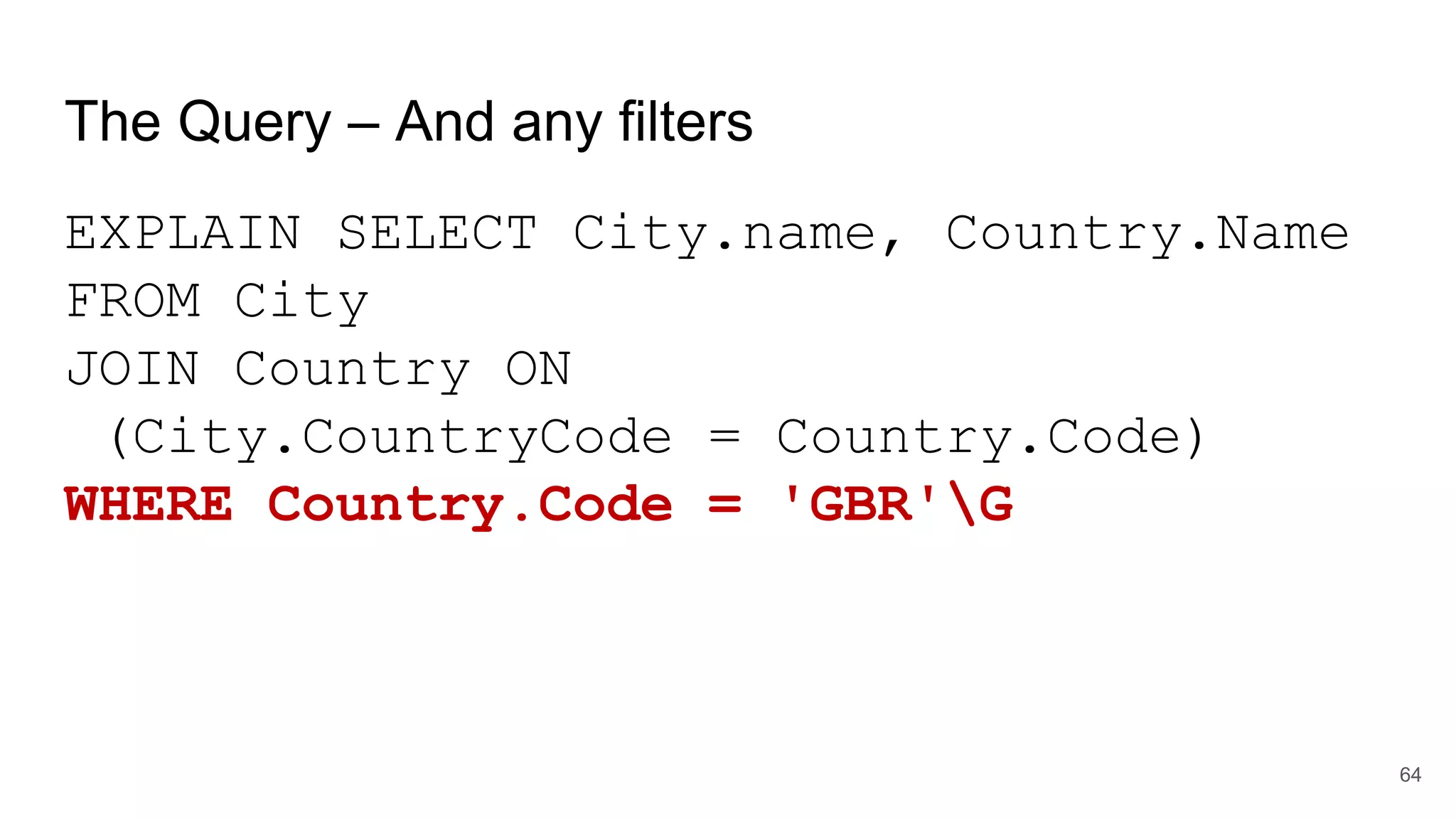

The Query – And any filters
EXPLAIN SELECT City.name, Country.Name
FROM City
JOIN Country ON
(City.CountryCode = Country.Code)
WHERE Country.Code = 'GBR'G
64
65

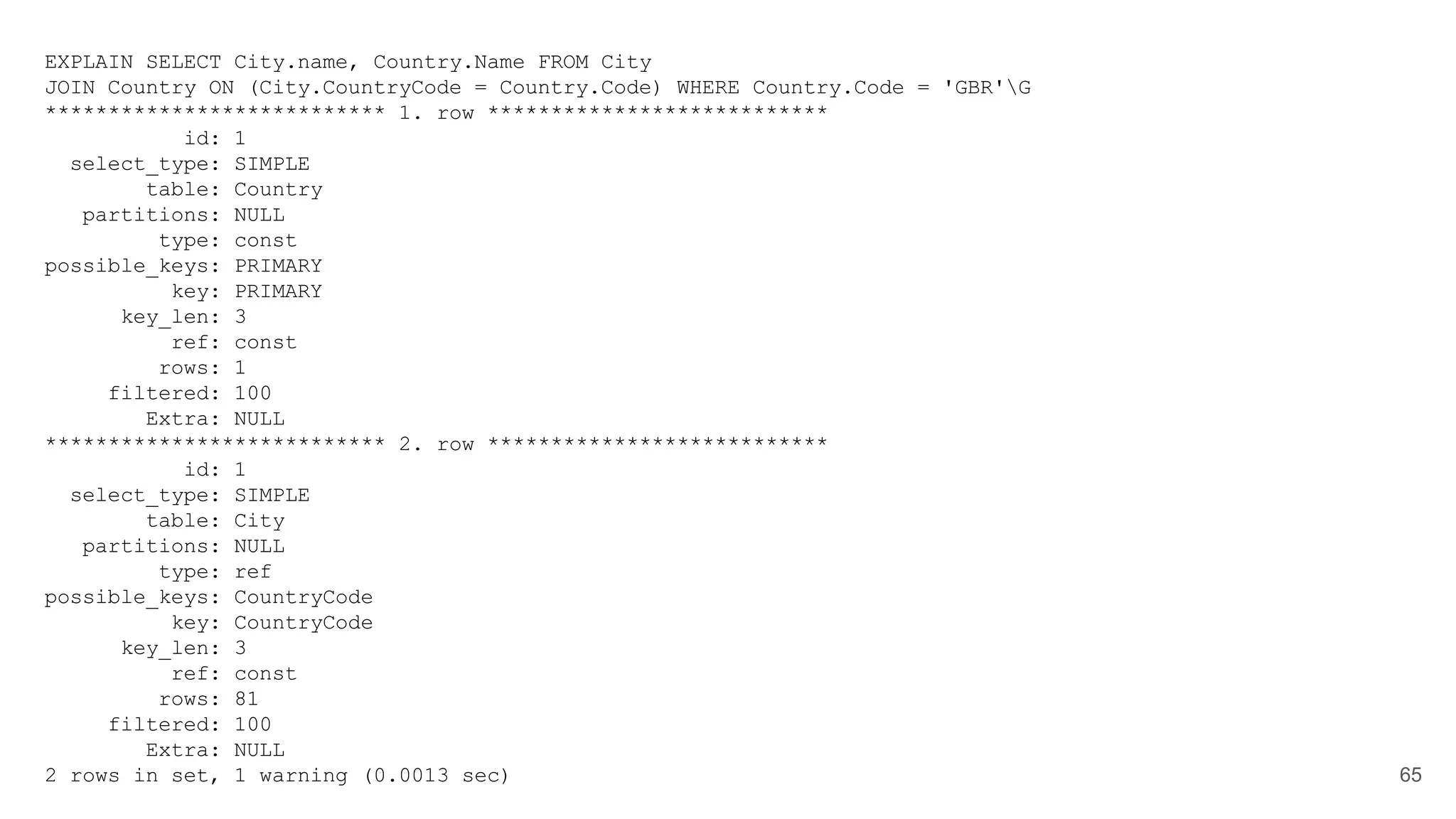

EXPLAIN SELECT City.name, Country.Name FROM City
JOIN Country ON (City.CountryCode = Country.Code) WHERE Country.Code = 'GBR'G
*************************** 1. row ***************************
id: 1
select_type: SIMPLE
table: Country
partitions: NULL
type: const
possible_keys: PRIMARY
key: PRIMARY
key_len: 3
ref: const
rows: 1
filtered: 100
Extra: NULL
*************************** 2. row ***************************
id: 1
select_type: SIMPLE
table: City
partitions: NULL
type: ref
possible_keys: CountryCode
key: CountryCode
key_len: 3
ref: const
rows: 81
filtered: 100
Extra: NULL
2 rows in set, 1 warning (0.0013 sec)

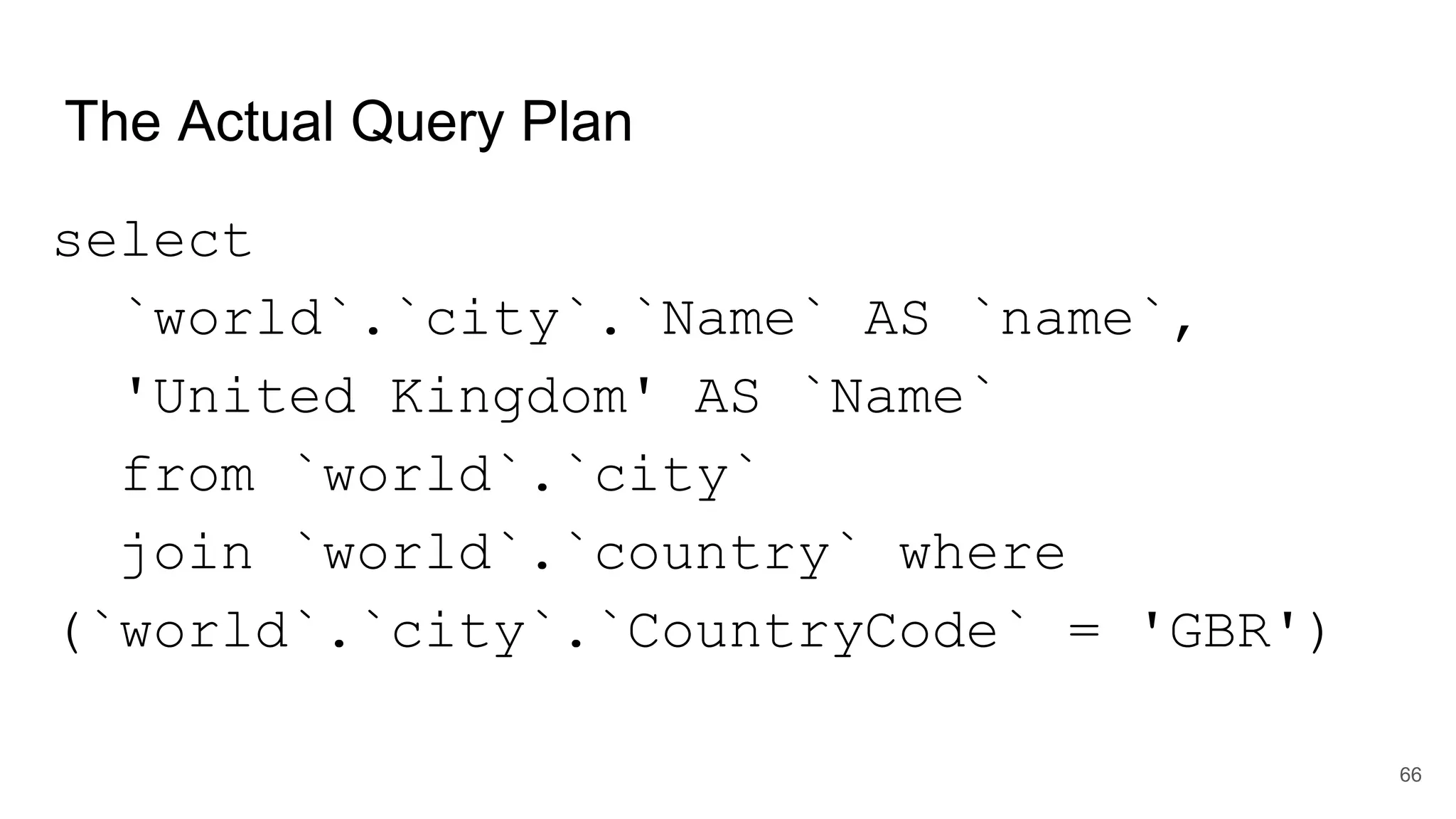

The Actual Query Plan
select
`world`.`city`.`Name` AS `name`,
'United Kingdom' AS `Name`
from `world`.`city`
join `world`.`country` where
(`world`.`city`.`CountryCode` = 'GBR')
66

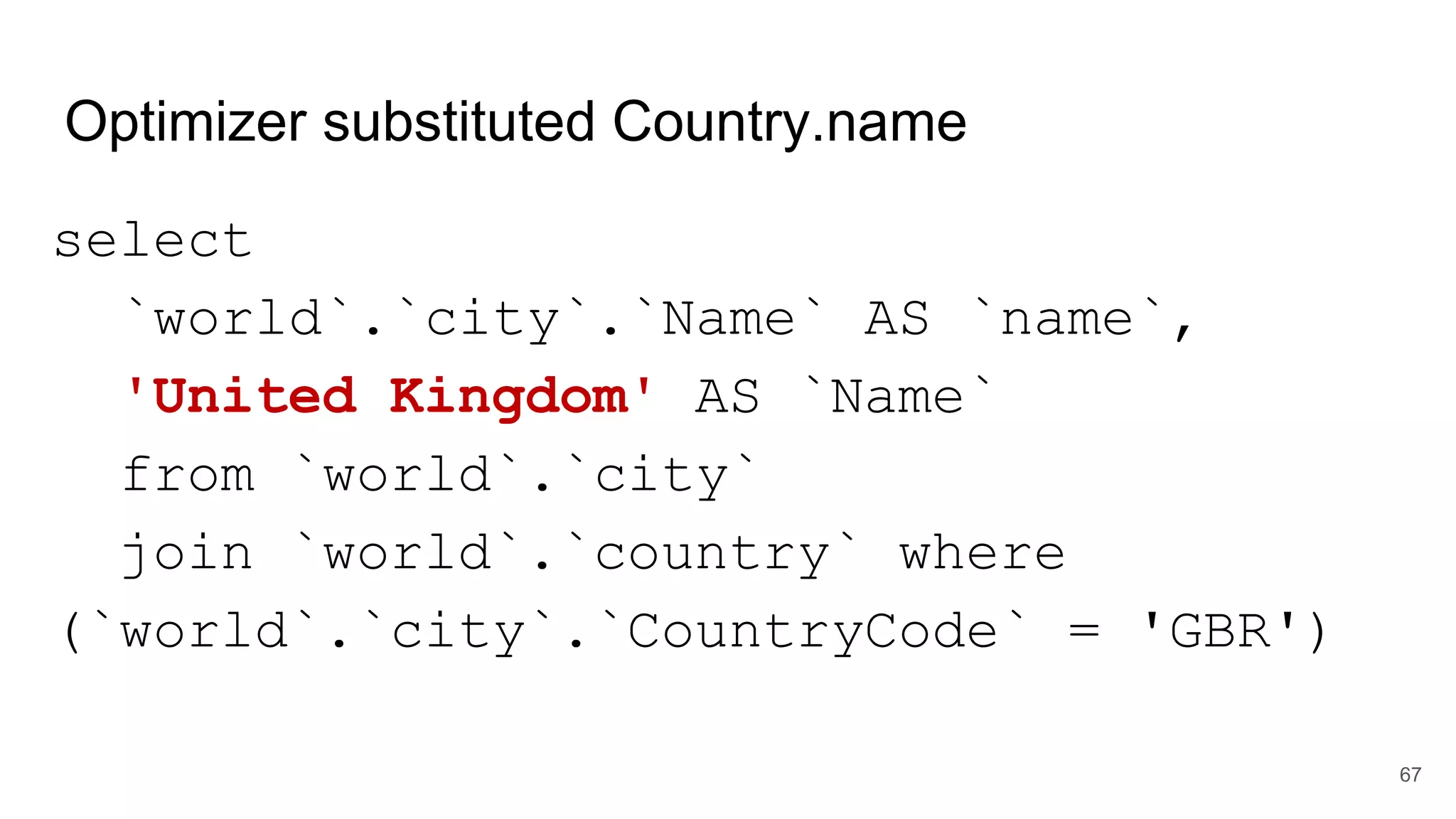

Optimizer substituted Country.name
select
`world`.`city`.`Name` AS `name`,
'United Kingdom' AS `Name`
from `world`.`city`
join `world`.`country` where
(`world`.`city`.`CountryCode` = 'GBR')
67

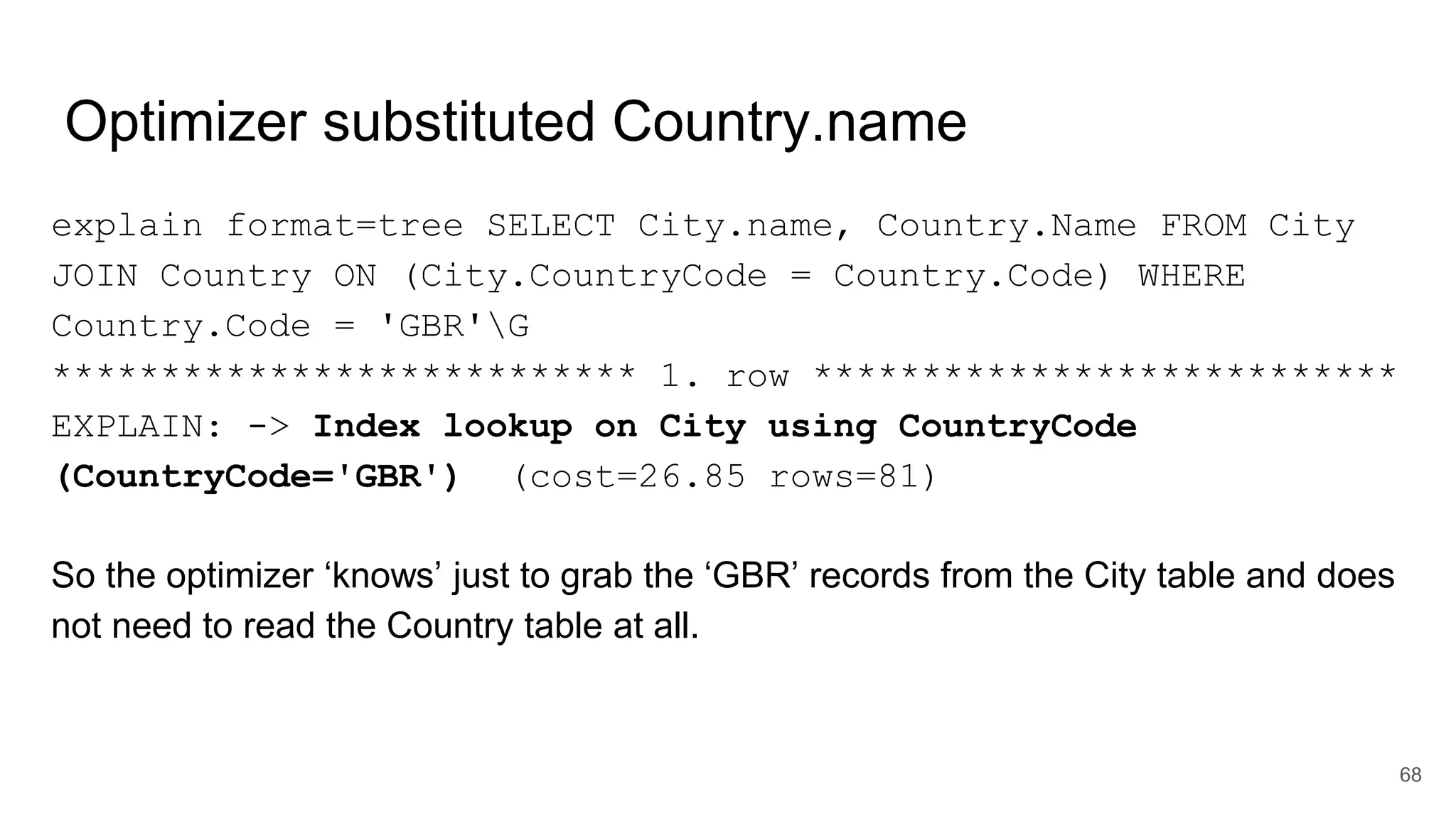

Optimizer substituted Country.name
explain format=tree SELECT City.name, Country.Name FROM City
JOIN Country ON (City.CountryCode = Country.Code) WHERE
Country.Code = 'GBR'G
*************************** 1. row ***************************
EXPLAIN: -> Index lookup on City using CountryCode
(CountryCode='GBR') (cost=26.85 rows=81)
So the optimizer ‘knows’ just to grab the ‘GBR’ records from the City table and does
not need to read the Country table at all.
68

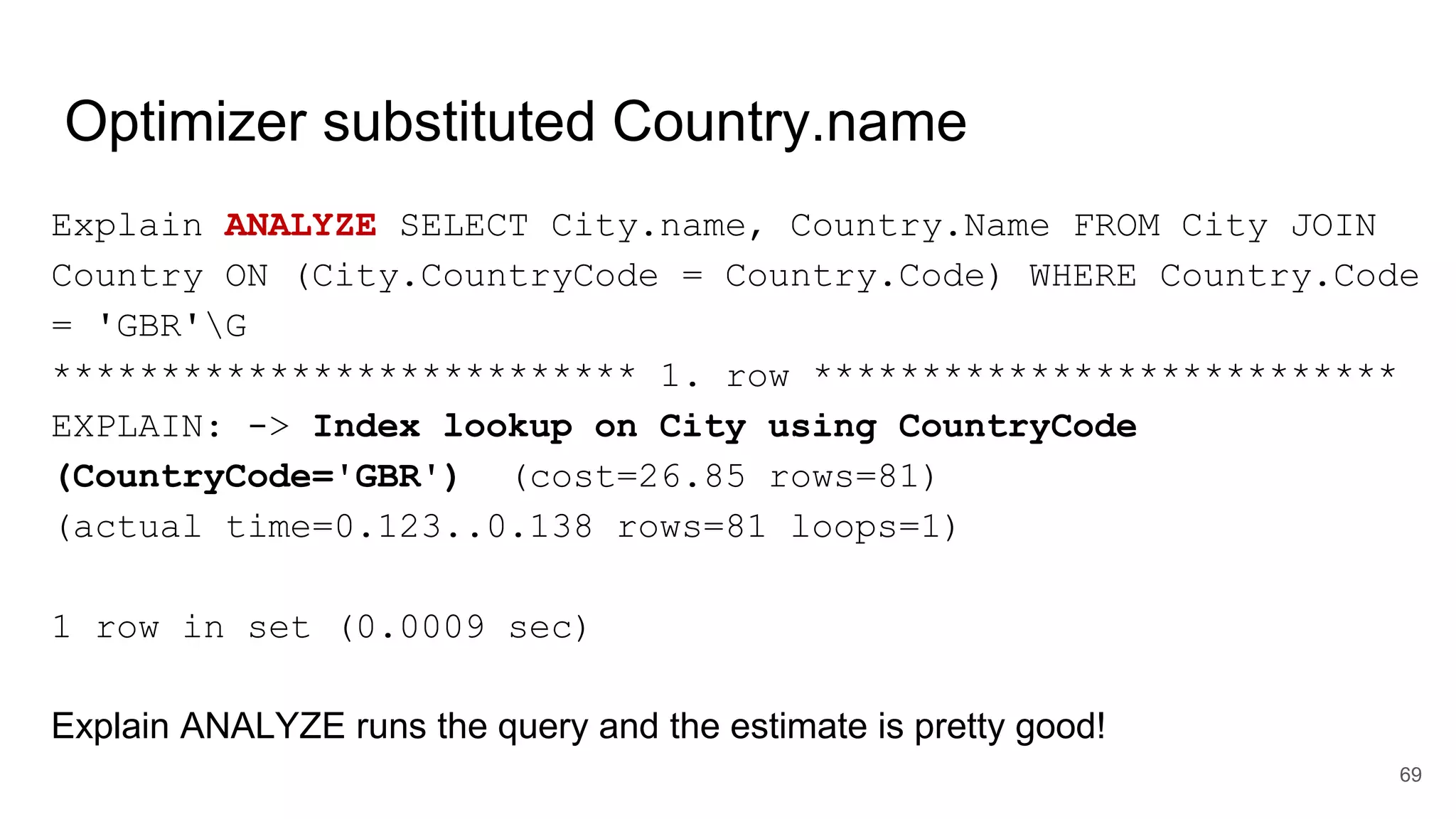

Optimizer substituted Country.name
Explain ANALYZE SELECT City.name, Country.Name FROM City JOIN
Country ON (City.CountryCode = Country.Code) WHERE Country.Code
= 'GBR'G
*************************** 1. row ***************************
EXPLAIN: -> Index lookup on City using CountryCode
(CountryCode='GBR') (cost=26.85 rows=81)
(actual time=0.123..0.138 rows=81 loops=1)
1 row in set (0.0009 sec)
Explain ANALYZE runs the query and the estimate is pretty good!
69
70

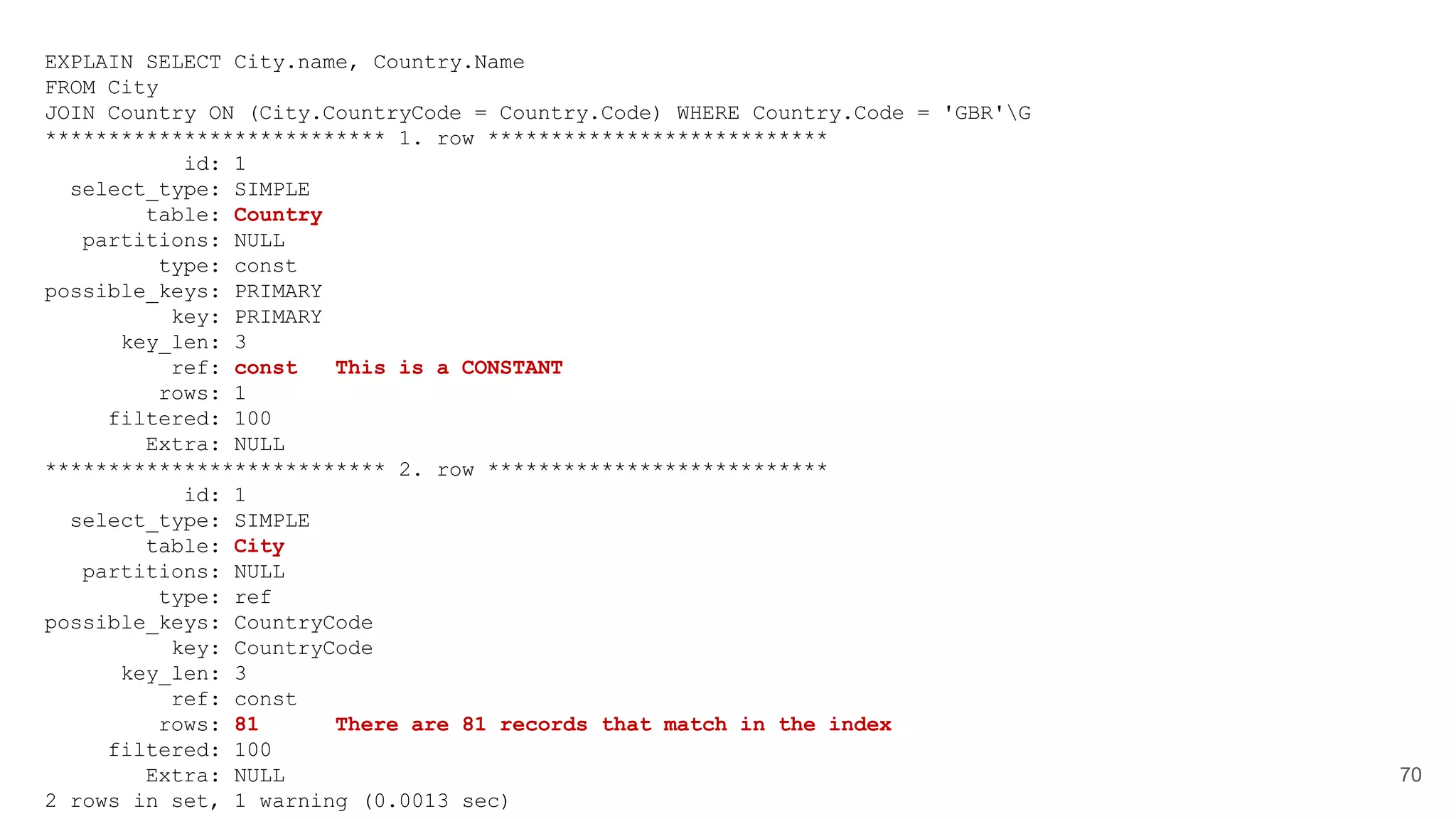

EXPLAIN SELECT City.name, Country.Name
FROM City
JOIN Country ON (City.CountryCode = Country.Code) WHERE Country.Code = 'GBR'G
*************************** 1. row ***************************
id: 1
select_type: SIMPLE
table: Country
partitions: NULL
type: const
possible_keys: PRIMARY
key: PRIMARY
key_len: 3
ref: const This is a CONSTANT
rows: 1
filtered: 100
Extra: NULL
*************************** 2. row ***************************
id: 1
select_type: SIMPLE
table: City
partitions: NULL
type: ref
possible_keys: CountryCode
key: CountryCode
key_len: 3
ref: const
rows: 81 There are 81 records that match in the index
filtered: 100
Extra: NULL
2 rows in set, 1 warning (0.0013 sec)
71

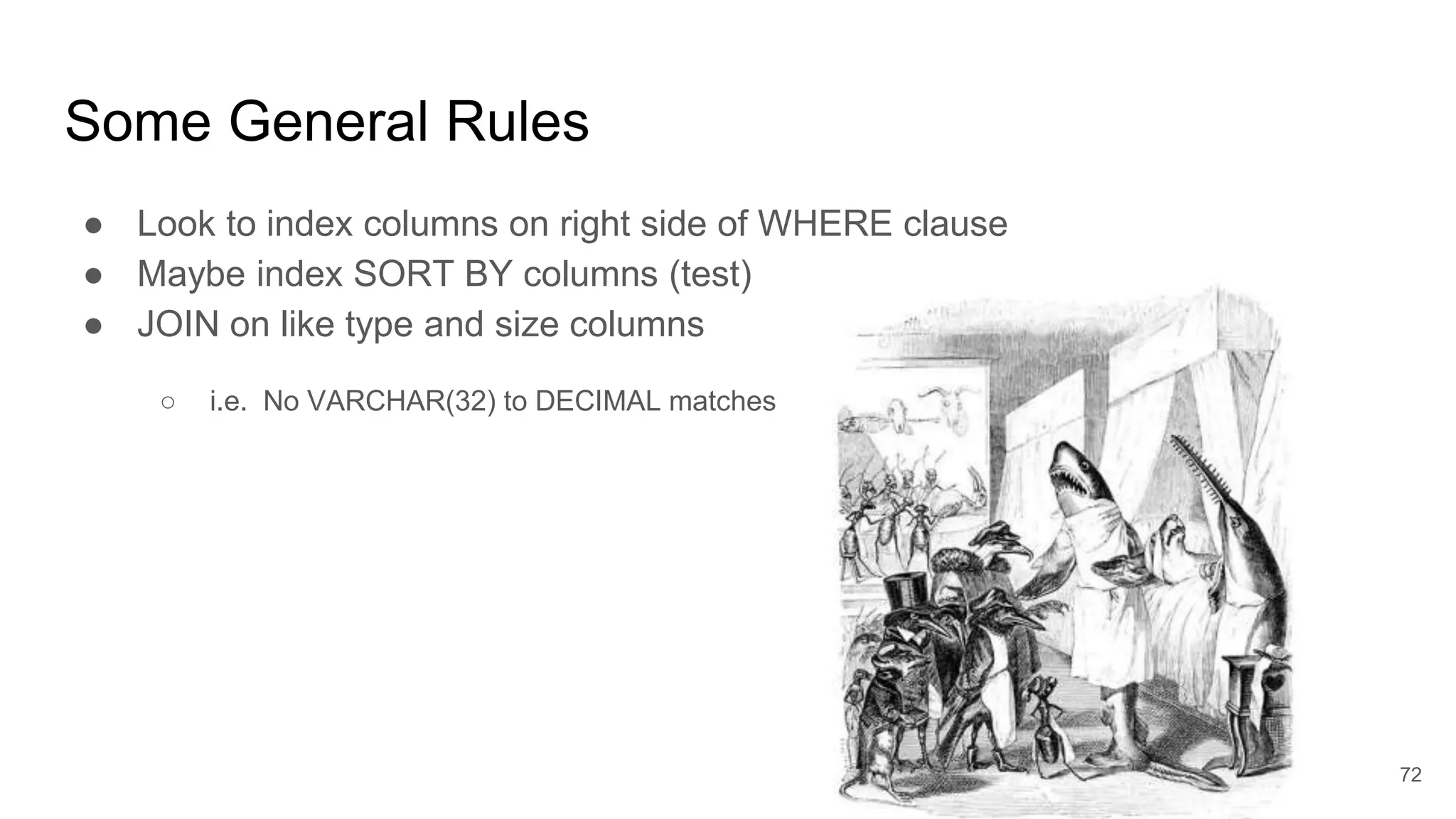

Some General Rules
● Look to index columns on right side of WHERE clause
● Maybe index SORT BY columns (test)
● JOIN on like type and size columns
○ i.e. No VARCHAR(32) to DECIMAL matches
72

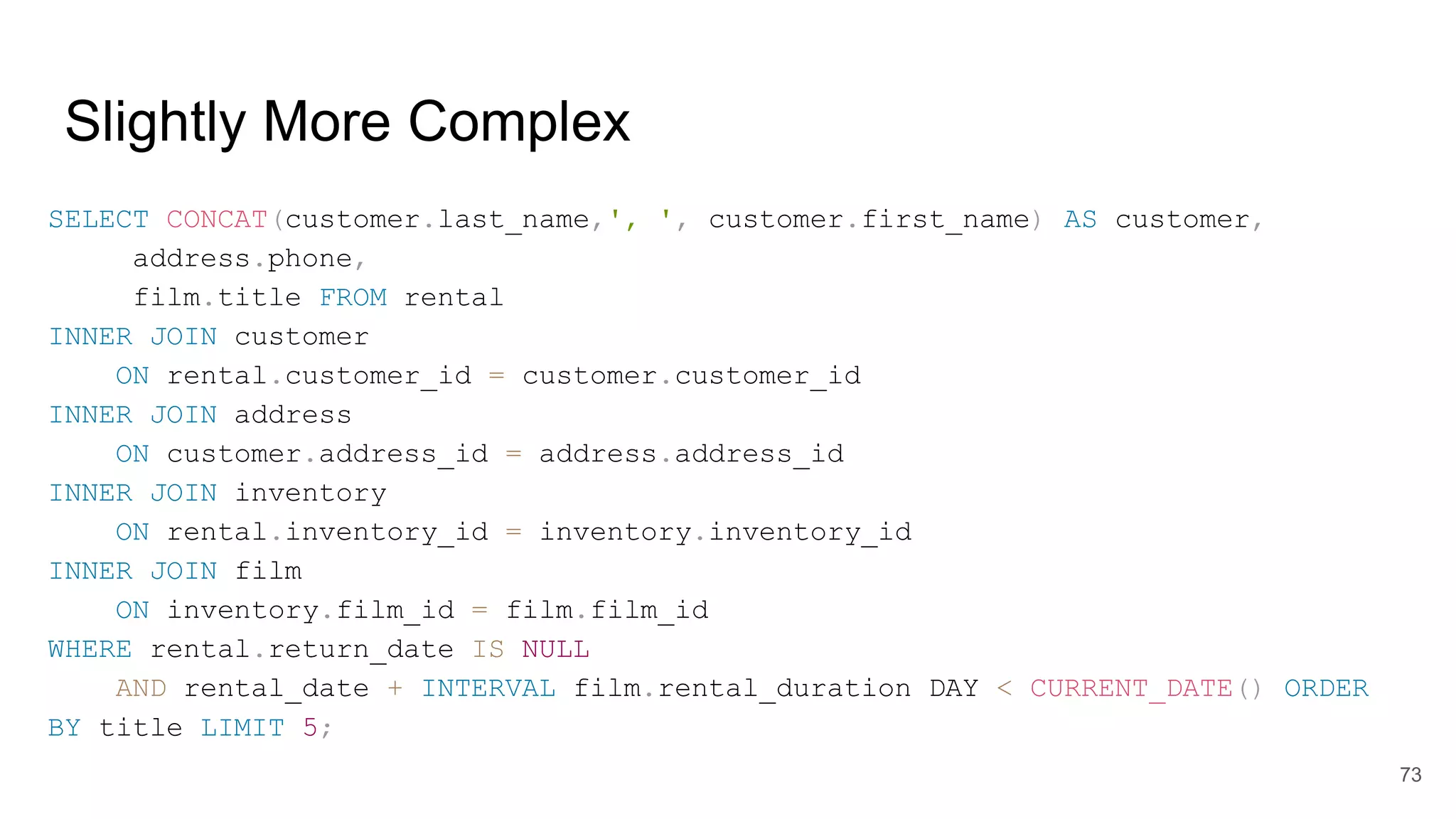

Slightly More Complex
SELECT CONCAT(customer.last_name,', ', customer.first_name) AS customer,
address.phone,
film.title FROM rental
INNER JOIN customer
ON rental.customer_id = customer.customer_id
INNER JOIN address
ON customer.address_id = address.address_id
INNER JOIN inventory
ON rental.inventory_id = inventory.inventory_id
INNER JOIN film
ON inventory.film_id = film.film_id
WHERE rental.return_date IS NULL
AND rental_date + INTERVAL film.rental_duration DAY < CURRENT_DATE() ORDER
BY title LIMIT 5;
73

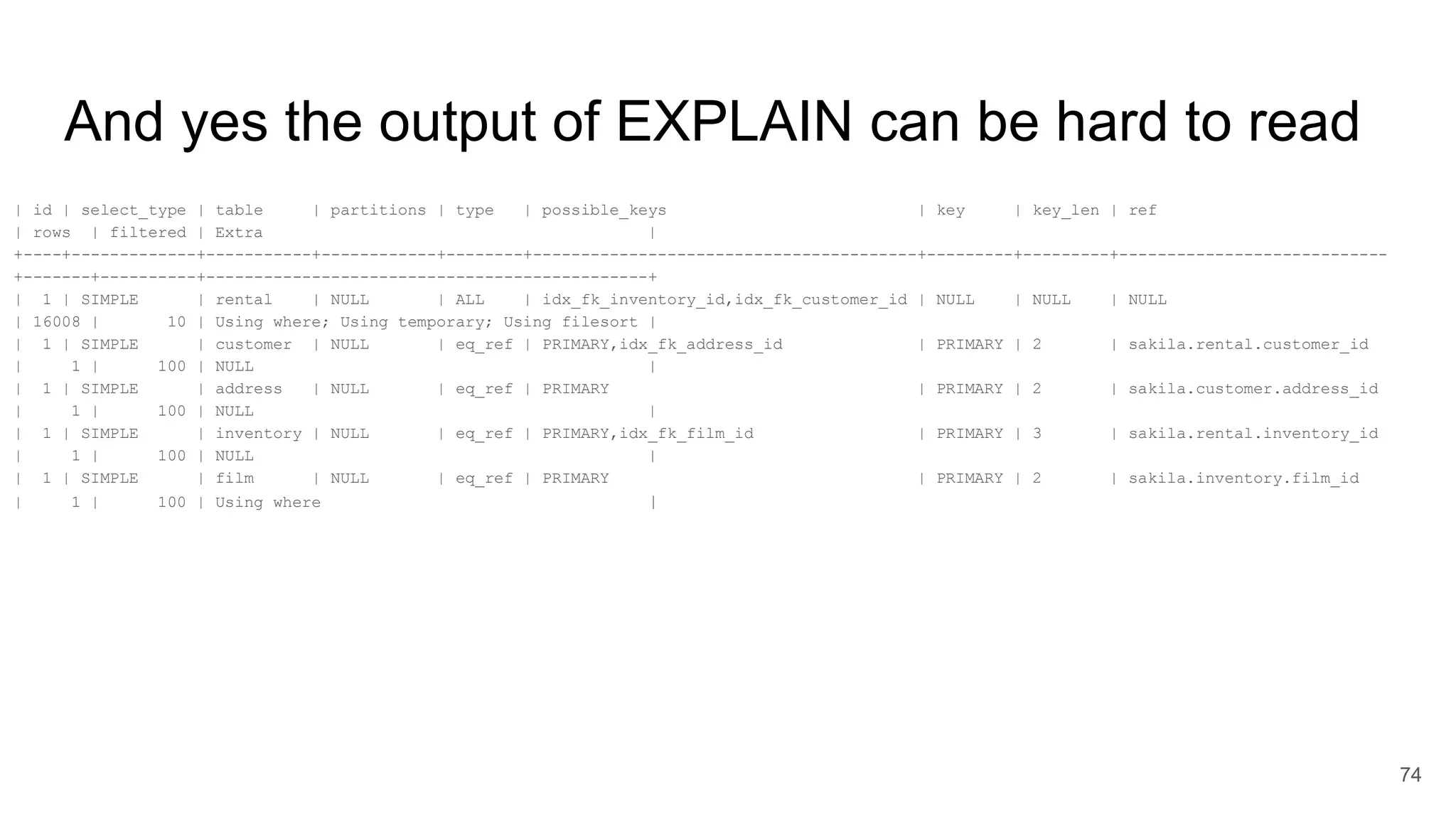

And yes the output of EXPLAIN can be hard to read
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref
| rows | filtered | Extra |
+----+-------------+-----------+------------+--------+----------------------------------------+---------+---------+----------------------------
+-------+----------+----------------------------------------------+
| 1 | SIMPLE | rental | NULL | ALL | idx_fk_inventory_id,idx_fk_customer_id | NULL | NULL | NULL
| 16008 | 10 | Using where; Using temporary; Using filesort |
| 1 | SIMPLE | customer | NULL | eq_ref | PRIMARY,idx_fk_address_id | PRIMARY | 2 | sakila.rental.customer_id
| 1 | 100 | NULL |
| 1 | SIMPLE | address | NULL | eq_ref | PRIMARY | PRIMARY | 2 | sakila.customer.address_id
| 1 | 100 | NULL |
| 1 | SIMPLE | inventory | NULL | eq_ref | PRIMARY,idx_fk_film_id | PRIMARY | 3 | sakila.rental.inventory_id
| 1 | 100 | NULL |
| 1 | SIMPLE | film | NULL | eq_ref | PRIMARY | PRIMARY | 2 | sakila.inventory.film_id
| 1 | 100 | Using where |
74
Visual Explain
75

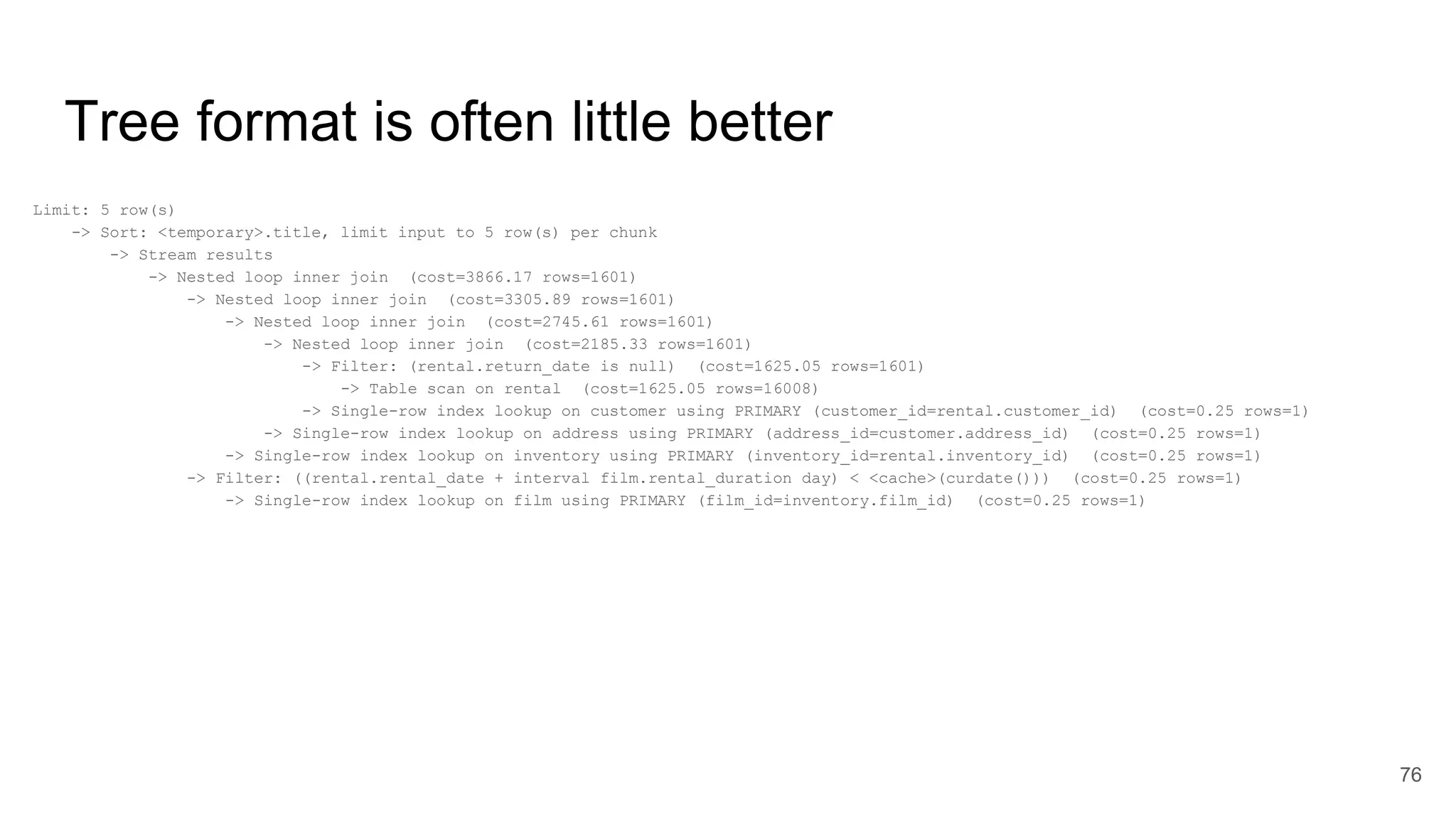

Tree format is often little better
Limit: 5 row(s)
-> Sort: <temporary>.title, limit input to 5 row(s) per chunk
-> Stream results
-> Nested loop inner join (cost=3866.17 rows=1601)
-> Nested loop inner join (cost=3305.89 rows=1601)
-> Nested loop inner join (cost=2745.61 rows=1601)
-> Nested loop inner join (cost=2185.33 rows=1601)
-> Filter: (rental.return_date is null) (cost=1625.05 rows=1601)
-> Table scan on rental (cost=1625.05 rows=16008)
-> Single-row index lookup on customer using PRIMARY (customer_id=rental.customer_id) (cost=0.25 rows=1)
-> Single-row index lookup on address using PRIMARY (address_id=customer.address_id) (cost=0.25 rows=1)
-> Single-row index lookup on inventory using PRIMARY (inventory_id=rental.inventory_id) (cost=0.25 rows=1)
-> Filter: ((rental.rental_date + interval film.rental_duration day) < <cache>(curdate())) (cost=0.25 rows=1)
-> Single-row index lookup on film using PRIMARY (film_id=inventory.film_id) (cost=0.25 rows=1)
76

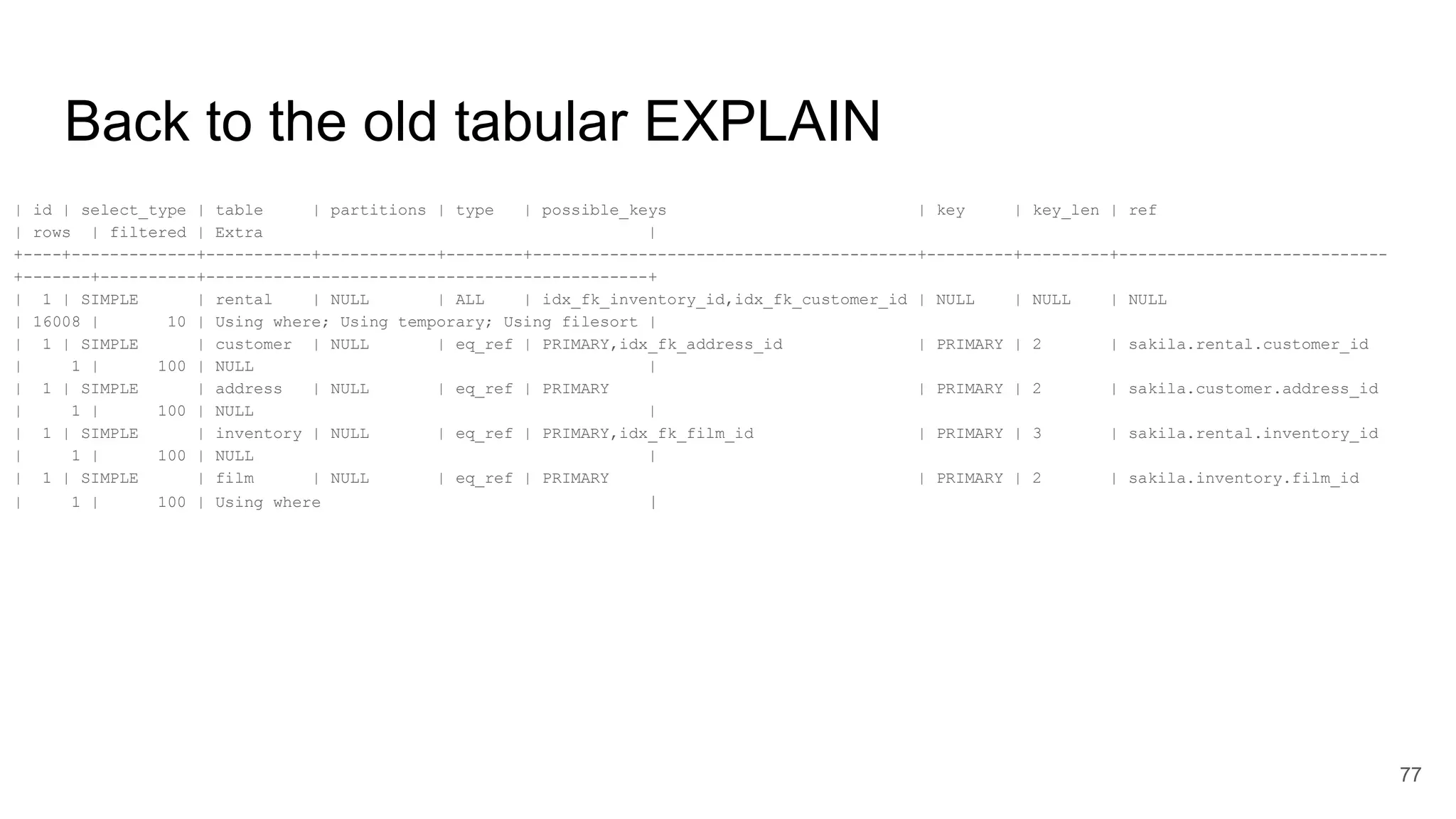

Back to the old tabular EXPLAIN
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref
| rows | filtered | Extra |
+----+-------------+-----------+------------+--------+----------------------------------------+---------+---------+----------------------------
+-------+----------+----------------------------------------------+
| 1 | SIMPLE | rental | NULL | ALL | idx_fk_inventory_id,idx_fk_customer_id | NULL | NULL | NULL
| 16008 | 10 | Using where; Using temporary; Using filesort |
| 1 | SIMPLE | customer | NULL | eq_ref | PRIMARY,idx_fk_address_id | PRIMARY | 2 | sakila.rental.customer_id
| 1 | 100 | NULL |
| 1 | SIMPLE | address | NULL | eq_ref | PRIMARY | PRIMARY | 2 | sakila.customer.address_id
| 1 | 100 | NULL |
| 1 | SIMPLE | inventory | NULL | eq_ref | PRIMARY,idx_fk_film_id | PRIMARY | 3 | sakila.rental.inventory_id
| 1 | 100 | NULL |
| 1 | SIMPLE | film | NULL | eq_ref | PRIMARY | PRIMARY | 2 | sakila.inventory.film_id
| 1 | 100 | Using where |
77

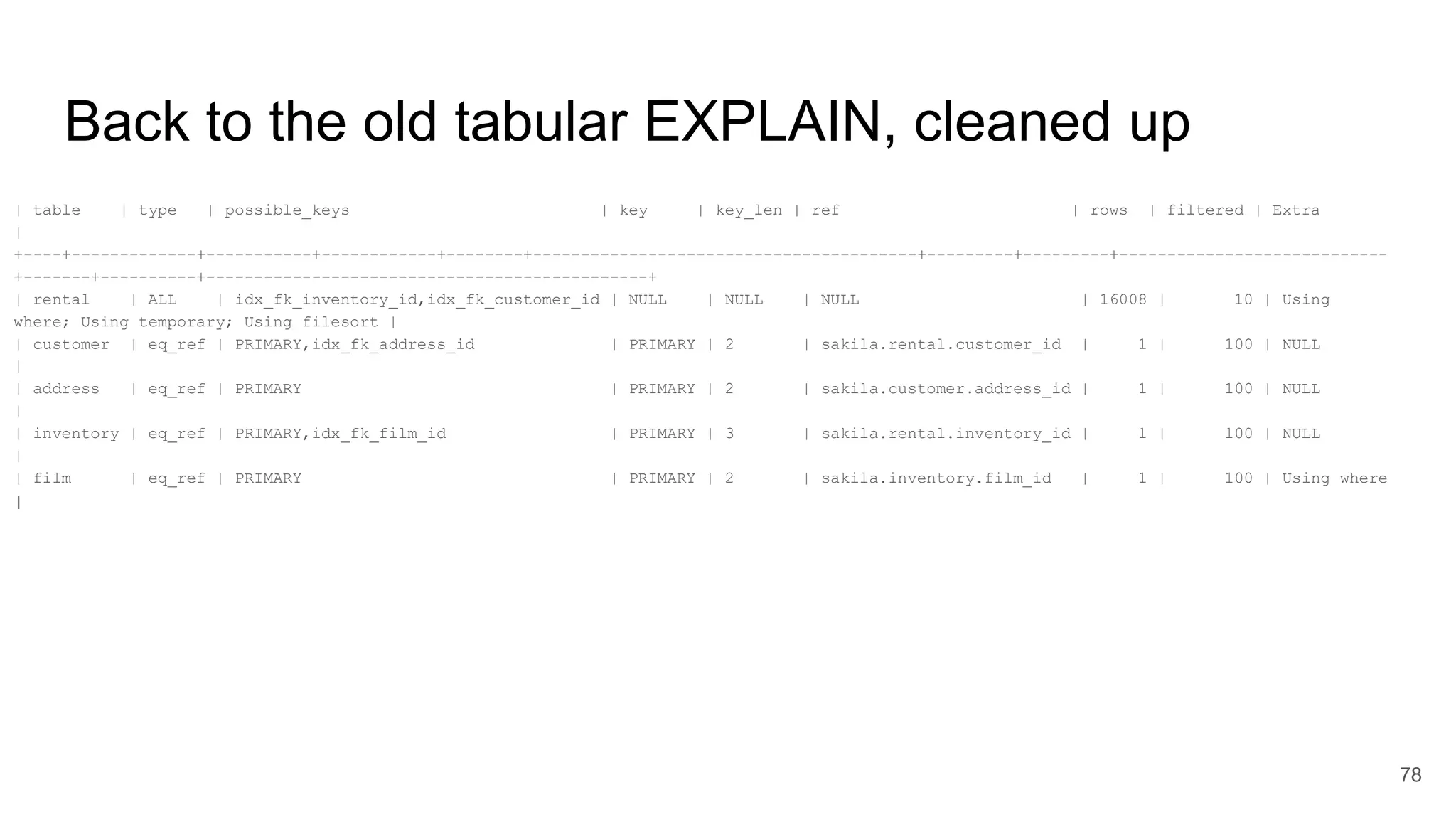

Back to the old tabular EXPLAIN, cleaned up
| table | type | possible_keys | key | key_len | ref | rows | filtered | Extra
|
+----+-------------+-----------+------------+--------+----------------------------------------+---------+---------+----------------------------
+-------+----------+----------------------------------------------+
| rental | ALL | idx_fk_inventory_id,idx_fk_customer_id | NULL | NULL | NULL | 16008 | 10 | Using
where; Using temporary; Using filesort |
| customer | eq_ref | PRIMARY,idx_fk_address_id | PRIMARY | 2 | sakila.rental.customer_id | 1 | 100 | NULL
|
| address | eq_ref | PRIMARY | PRIMARY | 2 | sakila.customer.address_id | 1 | 100 | NULL
|
| inventory | eq_ref | PRIMARY,idx_fk_film_id | PRIMARY | 3 | sakila.rental.inventory_id | 1 | 100 | NULL
|
| film | eq_ref | PRIMARY | PRIMARY | 2 | sakila.inventory.film_id | 1 | 100 | Using where
|
78

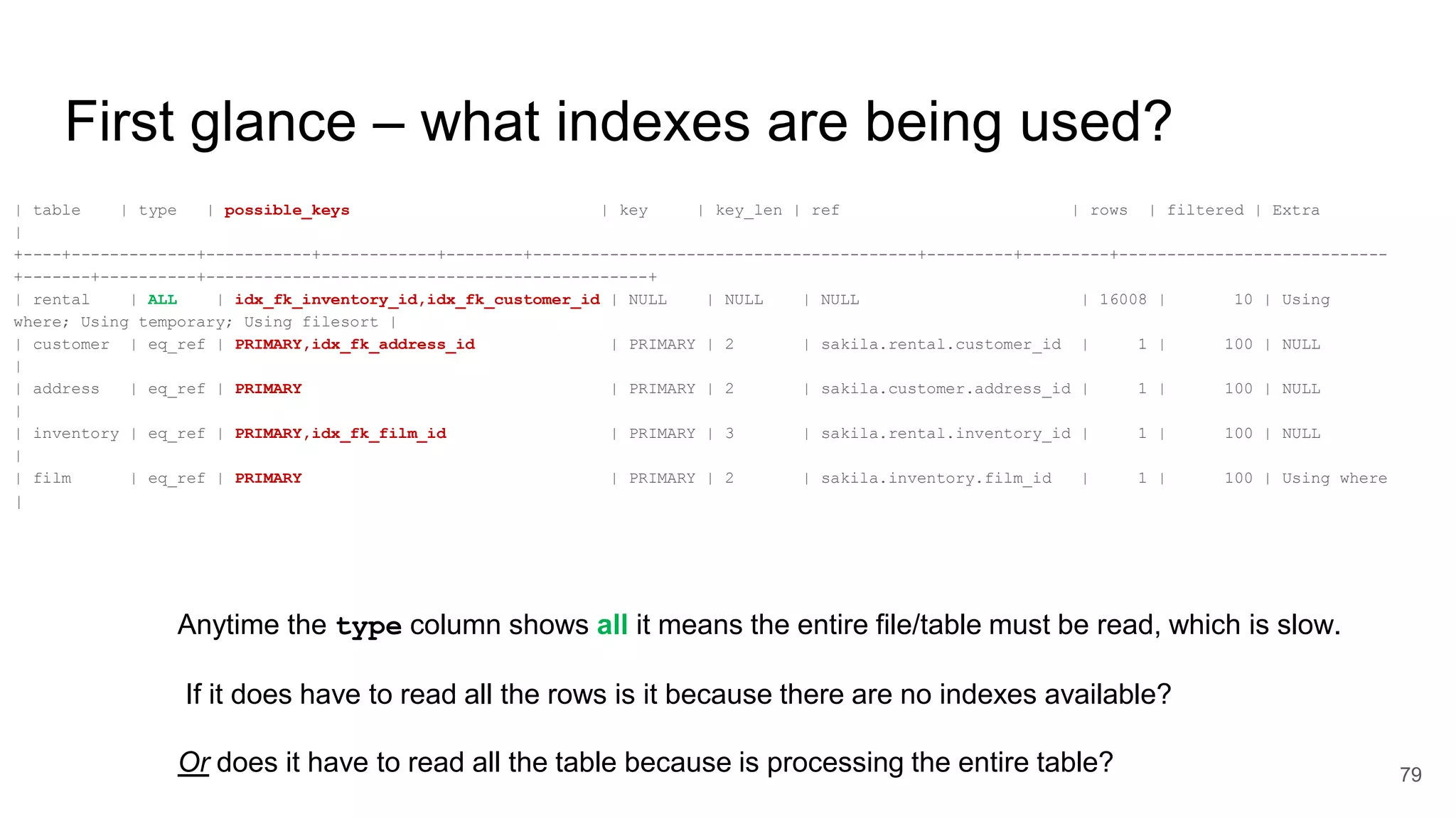

First glance – what indexes are being used?
| table | type | possible_keys | key | key_len | ref | rows | filtered | Extra
|
+----+-------------+-----------+------------+--------+----------------------------------------+---------+---------+----------------------------
+-------+----------+----------------------------------------------+
| rental | ALL | idx_fk_inventory_id,idx_fk_customer_id | NULL | NULL | NULL | 16008 | 10 | Using
where; Using temporary; Using filesort |
| customer | eq_ref | PRIMARY,idx_fk_address_id | PRIMARY | 2 | sakila.rental.customer_id | 1 | 100 | NULL
|
| address | eq_ref | PRIMARY | PRIMARY | 2 | sakila.customer.address_id | 1 | 100 | NULL
|
| inventory | eq_ref | PRIMARY,idx_fk_film_id | PRIMARY | 3 | sakila.rental.inventory_id | 1 | 100 | NULL
|
| film | eq_ref | PRIMARY | PRIMARY | 2 | sakila.inventory.film_id | 1 | 100 | Using where
|
79
Anytime the type column shows all it means the entire file/table must be read, which is slow.
If it does have to read all the rows is it because there are no indexes available?
Or does it have to read all the table because is processing the entire table?

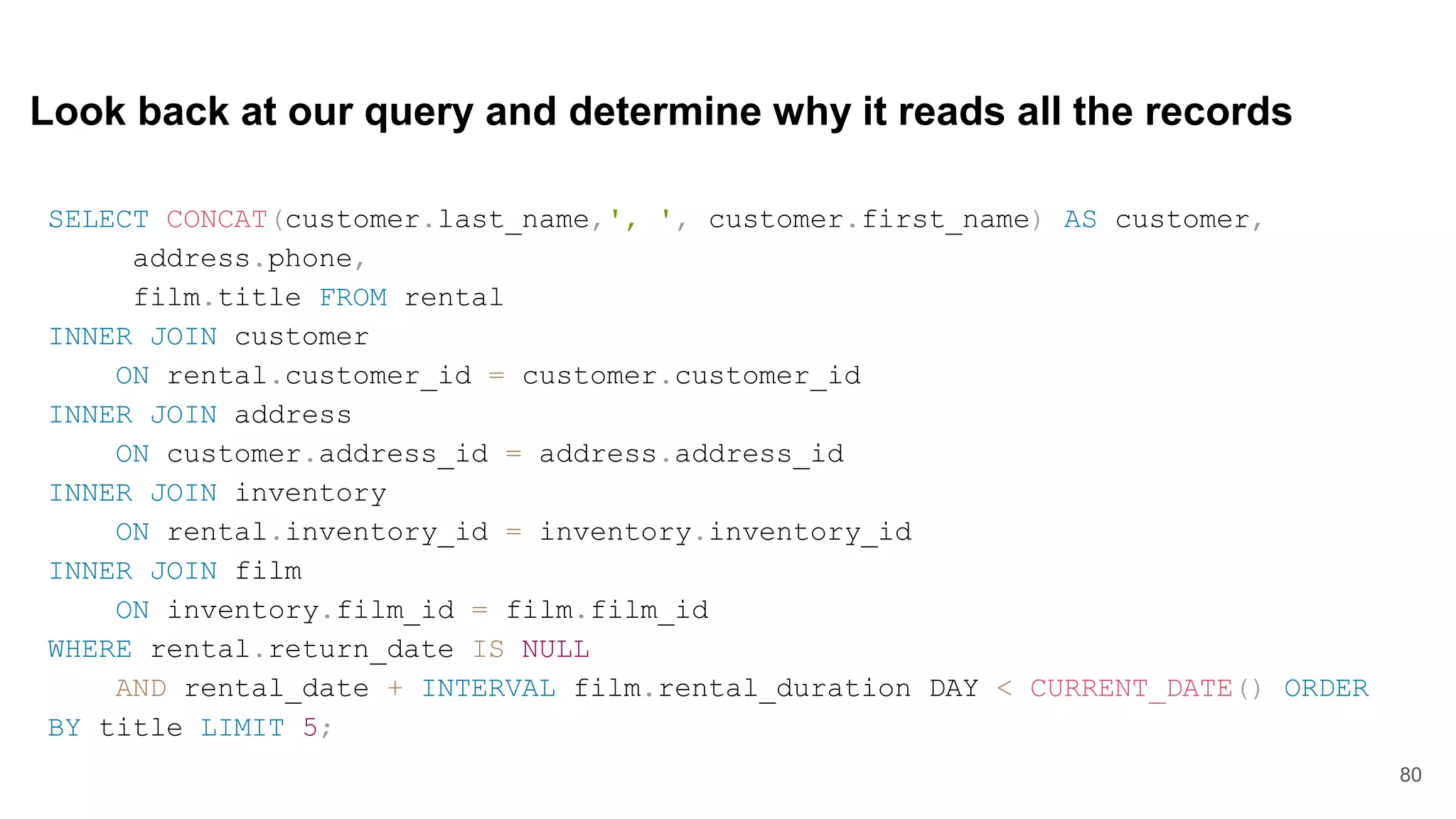

Look back at our query and determine why it reads all the records
SELECT CONCAT(customer.last_name,', ', customer.first_name) AS customer,
address.phone,
film.title FROM rental
INNER JOIN customer
ON rental.customer_id = customer.customer_id
INNER JOIN address
ON customer.address_id = address.address_id
INNER JOIN inventory
ON rental.inventory_id = inventory.inventory_id
INNER JOIN film
ON inventory.film_id = film.film_id
WHERE rental.return_date IS NULL
AND rental_date + INTERVAL film.rental_duration DAY < CURRENT_DATE() ORDER
BY title LIMIT 5;
80
Quiz: Why so slow if it only has to return FIVE RECORDS?!?!?!?!
SELECT CONCAT(customer.last_name,', ', customer.first_name) AS customer,
address.phone,
film.title FROM rental
INNER JOIN customer
ON rental.customer_id = customer.customer_id
INNER JOIN address
ON customer.address_id = address.address_id
INNER JOIN inventory
ON rental.inventory_id = inventory.inventory_id
INNER JOIN film
ON inventory.film_id = film.film_id
WHERE rental.return_date IS NULL
AND rental_date + INTERVAL film.rental_duration DAY < CURRENT_DATE() ORDER
BY title LIMIT 5; 81

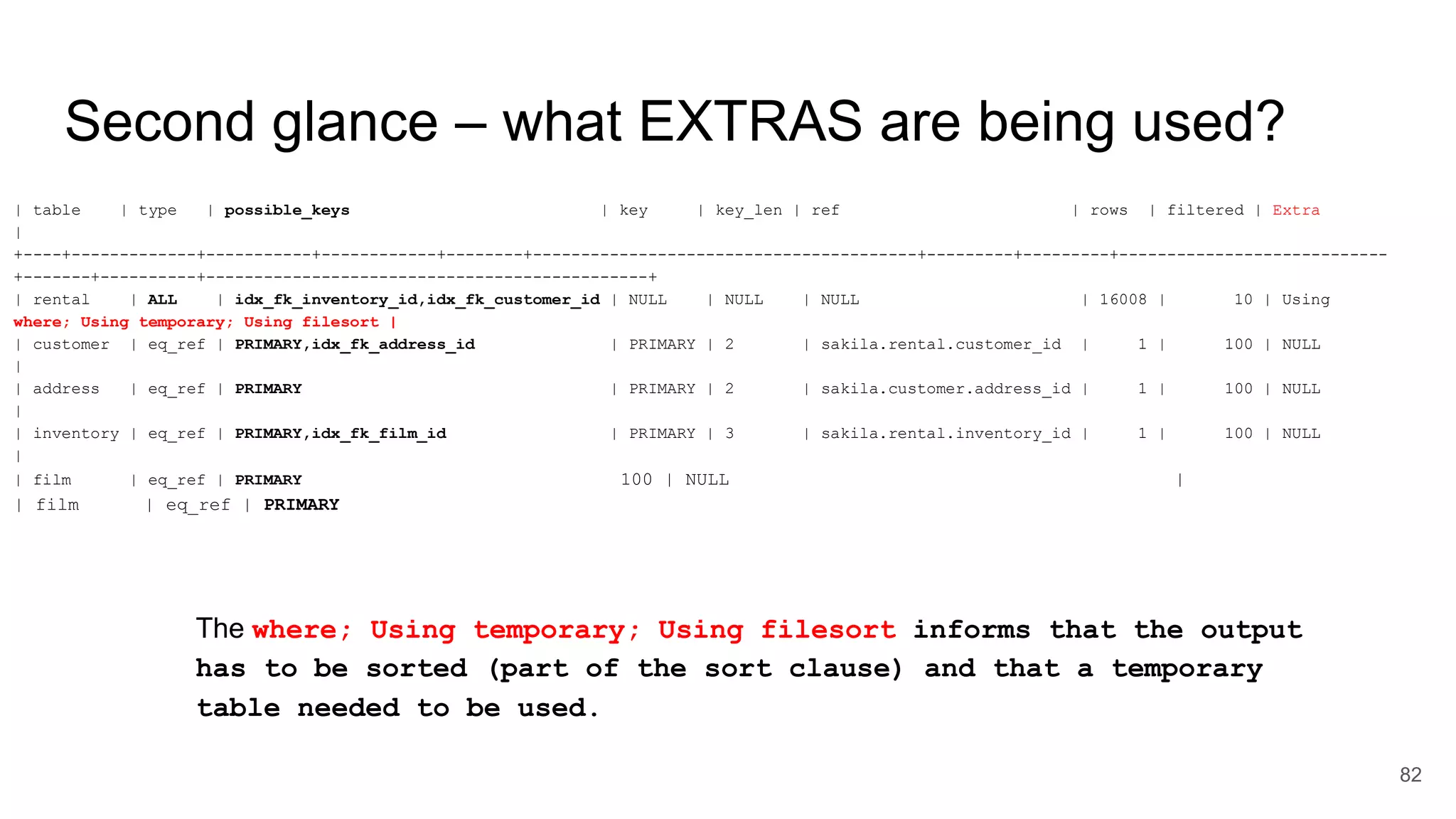

Second glance – what EXTRAS are being used?
| table | type | possible_keys | key | key_len | ref | rows | filtered | Extra
|
+----+-------------+-----------+------------+--------+----------------------------------------+---------+---------+----------------------------
+-------+----------+----------------------------------------------+
| rental | ALL | idx_fk_inventory_id,idx_fk_customer_id | NULL | NULL | NULL | 16008 | 10 | Using
where; Using temporary; Using filesort |
| customer | eq_ref | PRIMARY,idx_fk_address_id | PRIMARY | 2 | sakila.rental.customer_id | 1 | 100 | NULL
|
| address | eq_ref | PRIMARY | PRIMARY | 2 | sakila.customer.address_id | 1 | 100 | NULL
|
| inventory | eq_ref | PRIMARY,idx_fk_film_id | PRIMARY | 3 | sakila.rental.inventory_id | 1 | 100 | NULL
|
| film | eq_ref | PRIMARY 100 | NULL |
| film | eq_ref | PRIMARY
82
The where; Using temporary; Using filesort informs that the output
has to be sorted (part of the sort clause) and that a temporary
table needed to be used.

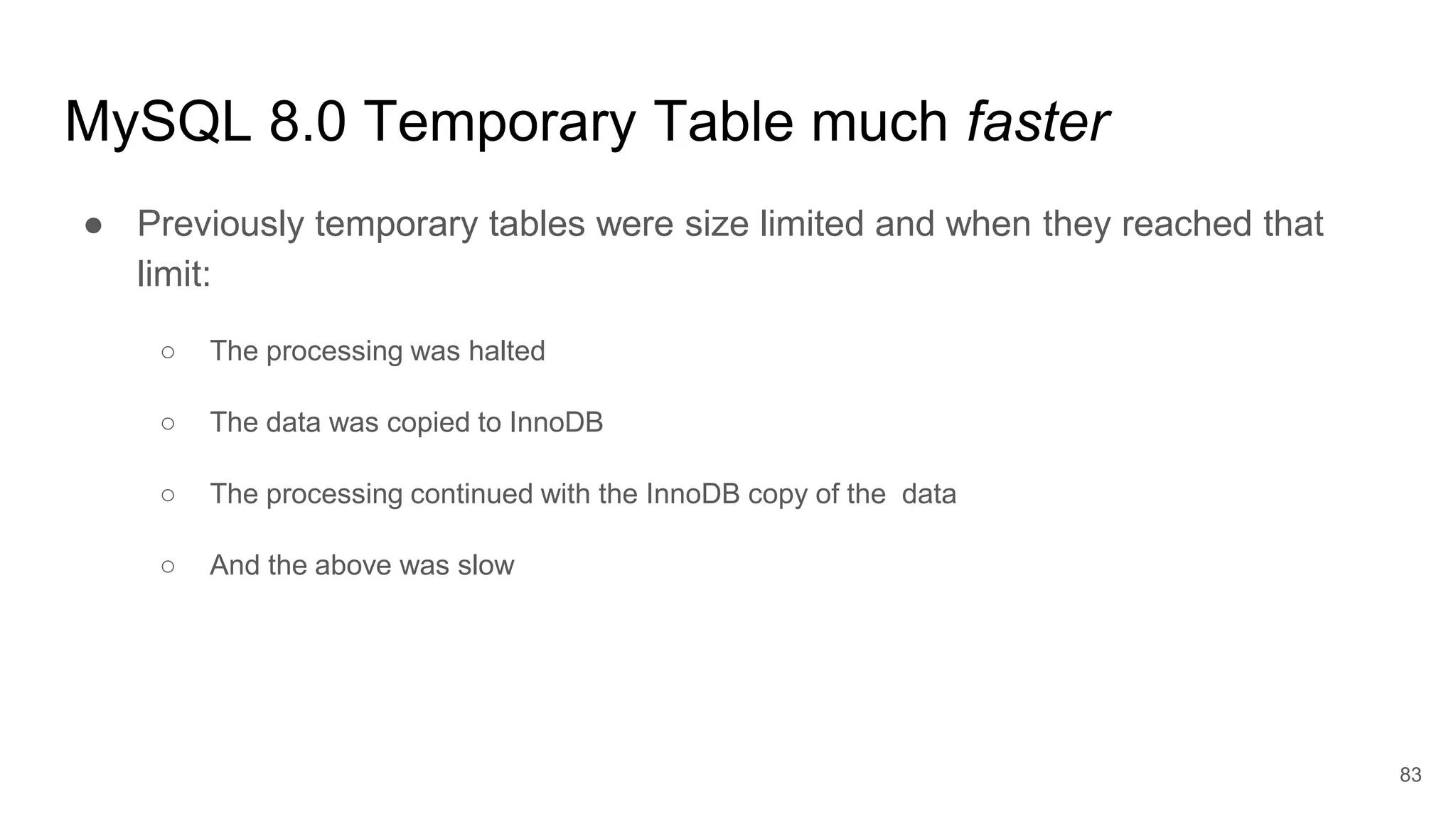

MySQL 8.0 Temporary Table much faster
● Previously temporary tables were size limited and when they reached that
limit:
○ The processing was halted
○ The data was copied to InnoDB
○ The processing continued with the InnoDB copy of the data
○ And the above was slow
83

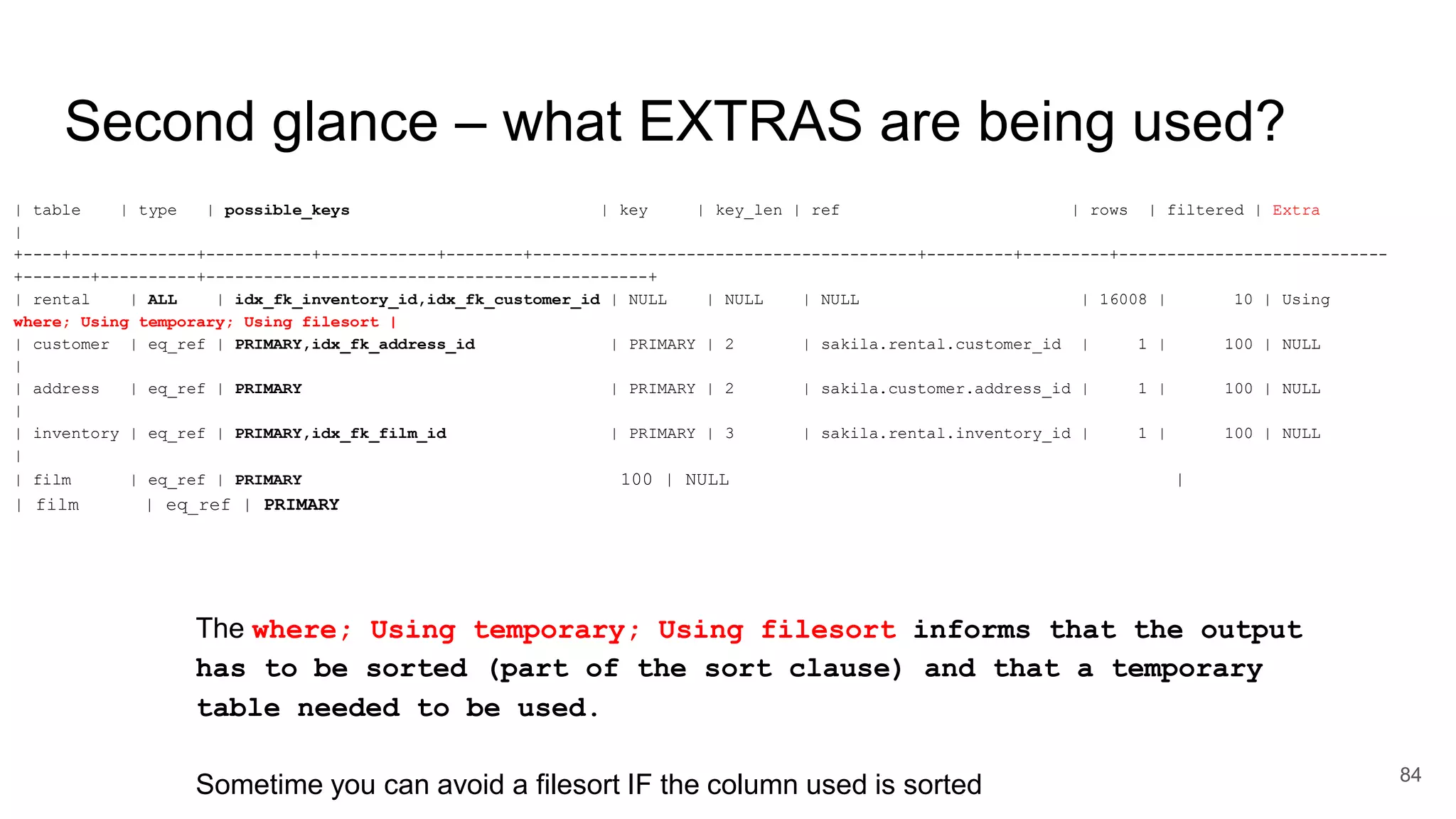

Second glance – what EXTRAS are being used?
| table | type | possible_keys | key | key_len | ref | rows | filtered | Extra
|
+----+-------------+-----------+------------+--------+----------------------------------------+---------+---------+----------------------------
+-------+----------+----------------------------------------------+
| rental | ALL | idx_fk_inventory_id,idx_fk_customer_id | NULL | NULL | NULL | 16008 | 10 | Using
where; Using temporary; Using filesort |
| customer | eq_ref | PRIMARY,idx_fk_address_id | PRIMARY | 2 | sakila.rental.customer_id | 1 | 100 | NULL
|
| address | eq_ref | PRIMARY | PRIMARY | 2 | sakila.customer.address_id | 1 | 100 | NULL
|
| inventory | eq_ref | PRIMARY,idx_fk_film_id | PRIMARY | 3 | sakila.rental.inventory_id | 1 | 100 | NULL
|
| film | eq_ref | PRIMARY 100 | NULL |
| film | eq_ref | PRIMARY
84
The where; Using temporary; Using filesort informs that the output
has to be sorted (part of the sort clause) and that a temporary
table needed to be used.
Sometime you can avoid a filesort IF the column used is sorted

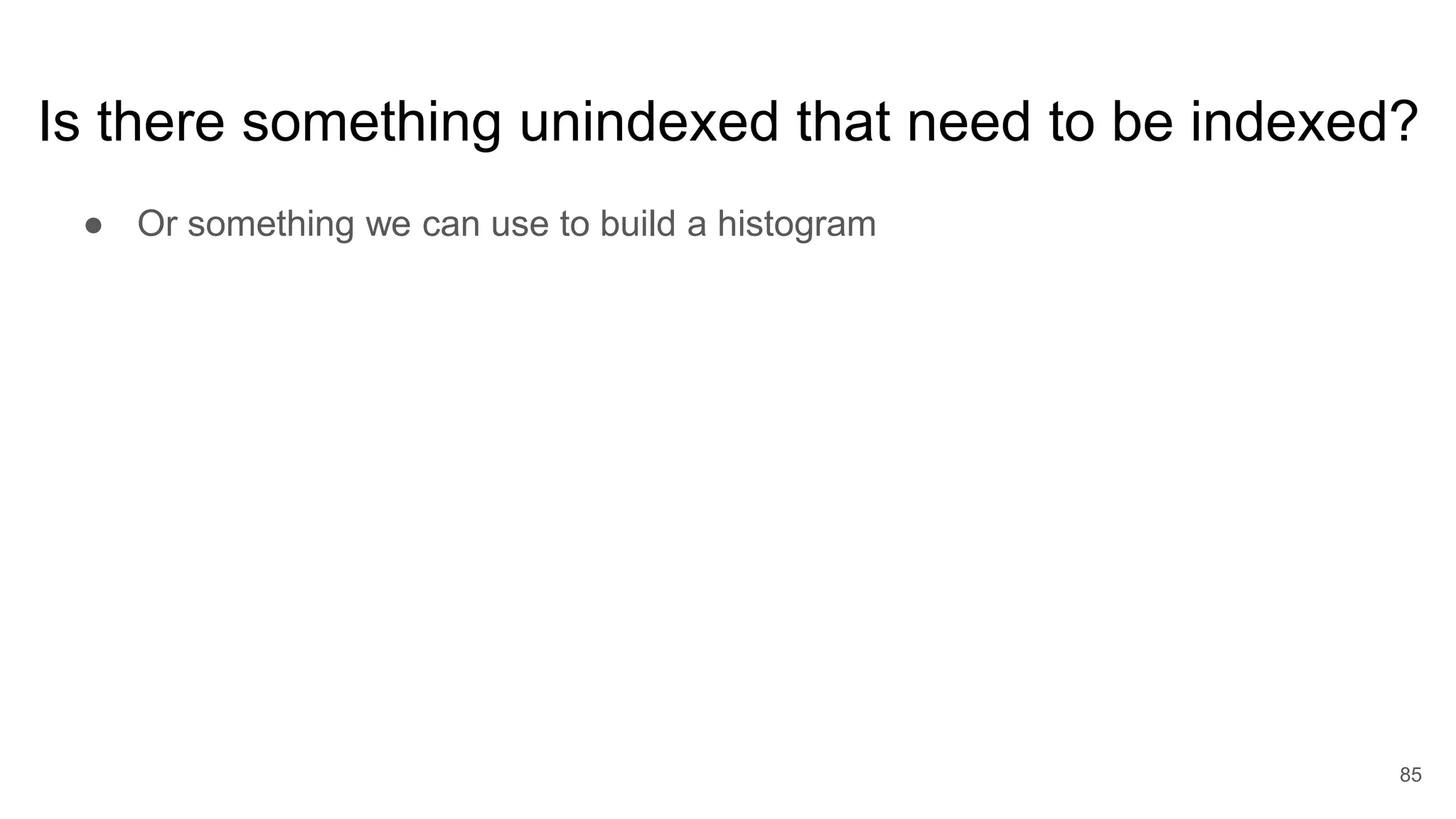

Is there something unindexed that need to be indexed?
● Or something we can use to build a histogram
85

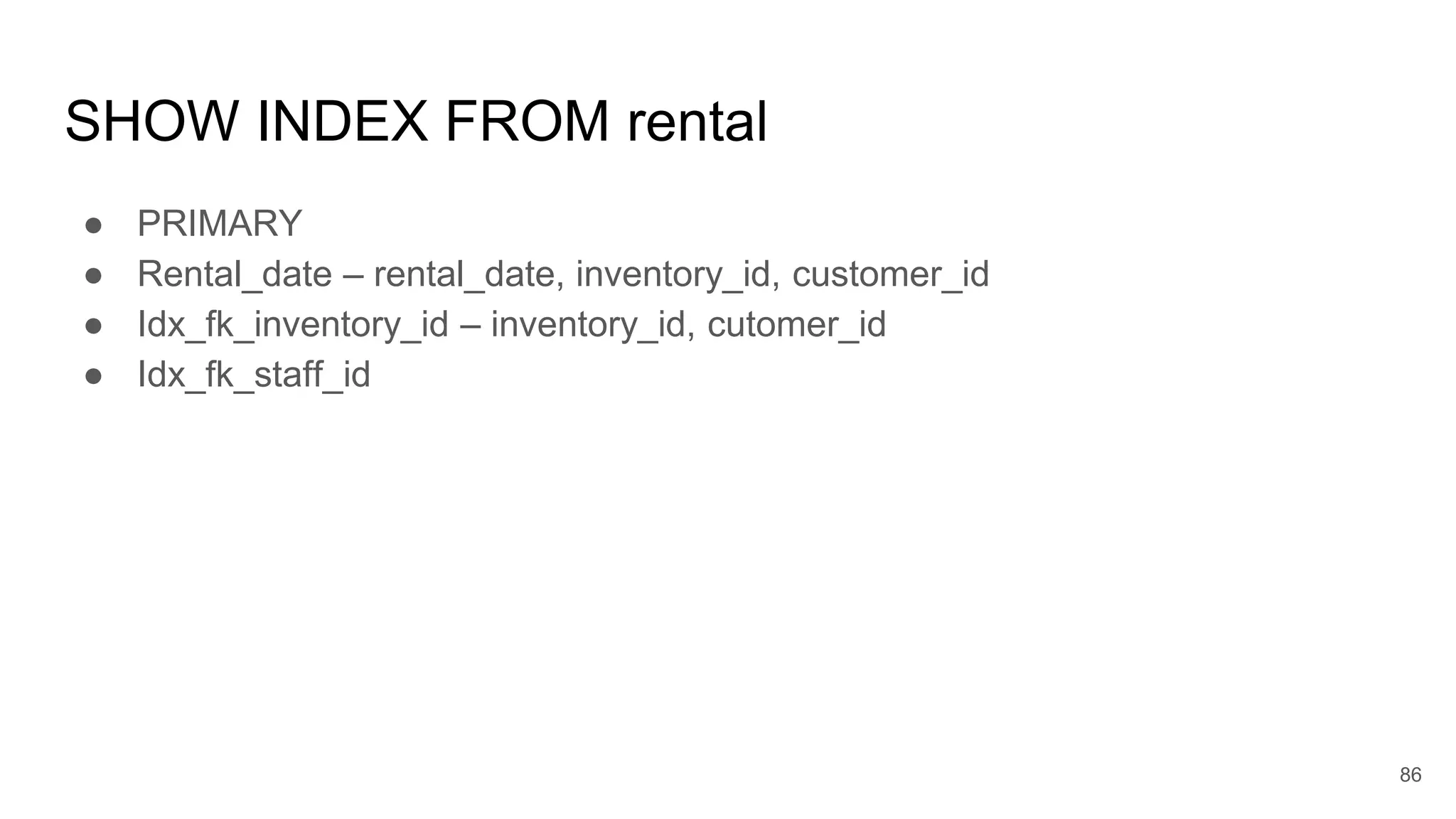

SHOW INDEX FROM rental
● PRIMARY
● Rental_date – rental_date, inventory_id, customer_id
● Idx_fk_inventory_id – inventory_id, cutomer_id
● Idx_fk_staff_id
86
SHOW INDEX FROM film
● PRIMARY
● Idx_title
● Idx_fk_language_id
● Idx_fk_original_language_id
87

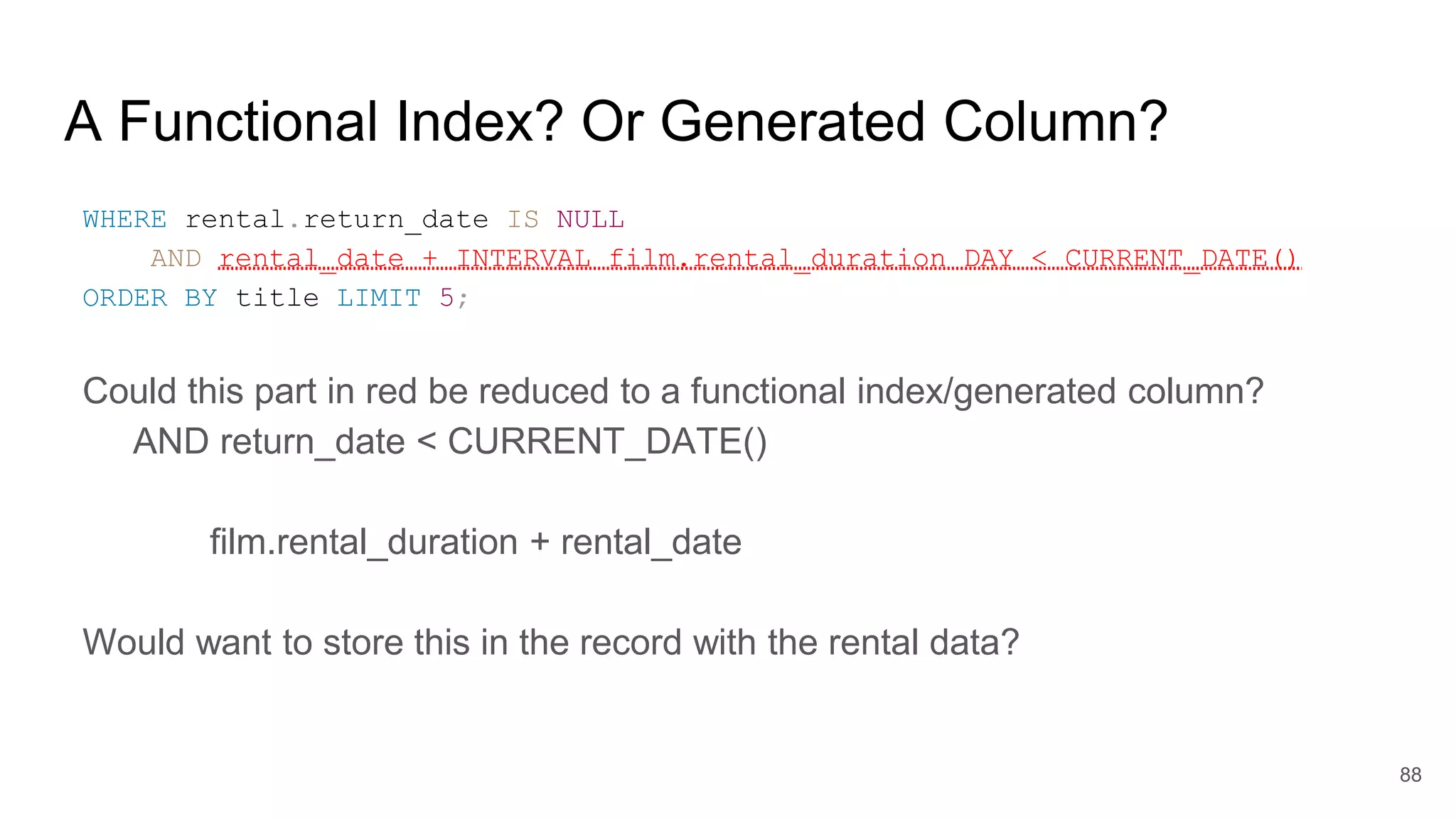

A Functional Index? Or Generated Column?
WHERE rental.return_date IS NULL
AND rental_date + INTERVAL film.rental_duration DAY < CURRENT_DATE()
ORDER BY title LIMIT 5;
Could this part in red be reduced to a functional index/generated column?
AND return_date < CURRENT_DATE()
film.rental_duration + rental_date
Would want to store this in the record with the rental data?
88

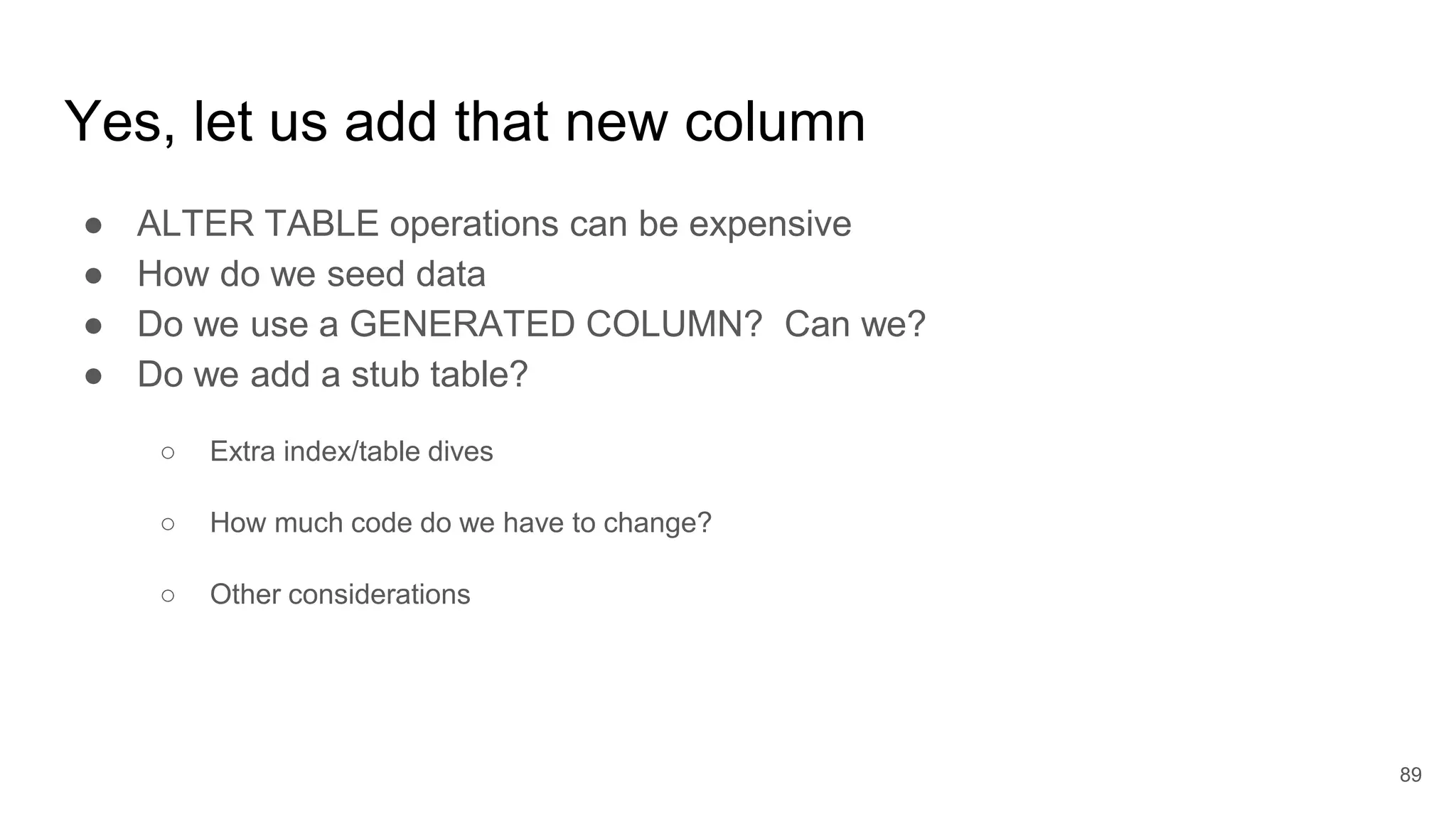

Yes, let us add that new column
● ALTER TABLE operations can be expensive
● How do we seed data
● Do we use a GENERATED COLUMN? Can we?
● Do we add a stub table?
○ Extra index/table dives
○ How much code do we have to change?
○ Other considerations
89
Where Else To Look
● MySQL Manual
● Forums.MySQL.com
● MySQLcommunity.slack.com
90
New Books
● Can be pre ordered
● Author’s others work are
outstanding and well written
91
Great Books
● Getting very dated
● Make sure you get 3rd edition
● Can be found in used book
stores
92
My Book
● A guide to using JSON and
MySQL
● Usually on Sale at Amazon
93

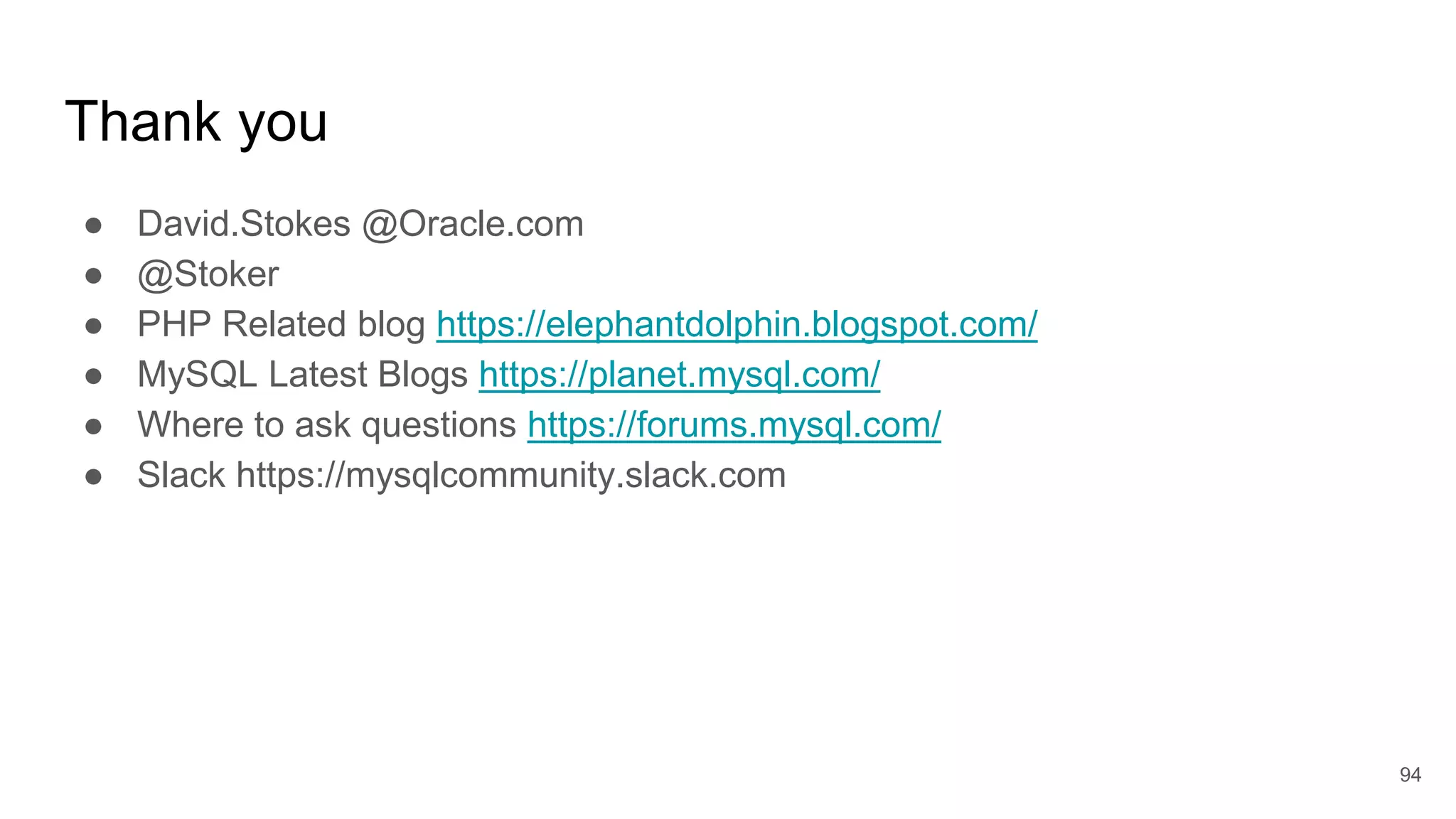

Thank you
● David.Stokes @Oracle.com
● @Stoker
● PHP Related blog https://elephantdolphin.blogspot.com/
● MySQL Latest Blogs https://planet.mysql.com/
● Where to ask questions https://forums.mysql.com/
● Slack https://mysqlcommunity.slack.com
94

More Related Content

What's hot

Discover the Power of the NoSQL + SQL with MySQL
Discover the Power of the NoSQL + SQL with MySQLDiscover the Power of the NoSQL + SQL with MySQL
Discover the Power of the NoSQL + SQL with MySQLDave Stokes

MySQL 8.0 New Features -- September 27th presentation for Open Source Summit
MySQL 8.0 New Features -- September 27th presentation for Open Source SummitMySQL 8.0 New Features -- September 27th presentation for Open Source Summit
MySQL 8.0 New Features -- September 27th presentation for Open Source SummitDave Stokes

MySQL Replication Update - DEbconf 2020 presentation
MySQL Replication Update - DEbconf 2020 presentationMySQL Replication Update - DEbconf 2020 presentation
MySQL Replication Update - DEbconf 2020 presentationDave Stokes

JavaScript and Friends August 20th, 20201 -- MySQL Shell and JavaScript
JavaScript and Friends August 20th, 20201 -- MySQL Shell and JavaScriptJavaScript and Friends August 20th, 20201 -- MySQL Shell and JavaScript
JavaScript and Friends August 20th, 20201 -- MySQL Shell and JavaScriptDave Stokes

Advanced MySQL Query Optimizations
Advanced MySQL Query OptimizationsAdvanced MySQL Query Optimizations
Advanced MySQL Query OptimizationsDave Stokes

Confoo 2021 -- MySQL New Features
Confoo 2021 -- MySQL New FeaturesConfoo 2021 -- MySQL New Features
Confoo 2021 -- MySQL New FeaturesDave Stokes

MySQL 8 -- A new beginning : Sunshine PHP/PHP UK (updated)
MySQL 8 -- A new beginning : Sunshine PHP/PHP UK (updated)MySQL 8 -- A new beginning : Sunshine PHP/PHP UK (updated)
MySQL 8 -- A new beginning : Sunshine PHP/PHP UK (updated)Dave Stokes

Open Source World June '21 -- JSON Within a Relational Database
Open Source World June '21 -- JSON Within a Relational DatabaseOpen Source World June '21 -- JSON Within a Relational Database
Open Source World June '21 -- JSON Within a Relational DatabaseDave Stokes

MySQL 8 Tips and Tricks from Symfony USA 2018, San Francisco
MySQL 8 Tips and Tricks from Symfony USA 2018, San FranciscoMySQL 8 Tips and Tricks from Symfony USA 2018, San Francisco
MySQL 8 Tips and Tricks from Symfony USA 2018, San FranciscoDave Stokes

MySQL Replication Evolution -- Confoo Montreal 2017
MySQL Replication Evolution -- Confoo Montreal 2017MySQL Replication Evolution -- Confoo Montreal 2017
MySQL Replication Evolution -- Confoo Montreal 2017Dave Stokes

Developers’ mDay 2021: Bogdan Kecman, Oracle – MySQL nekad i sad
Developers’ mDay 2021: Bogdan Kecman, Oracle – MySQL nekad i sadDevelopers’ mDay 2021: Bogdan Kecman, Oracle – MySQL nekad i sad
Developers’ mDay 2021: Bogdan Kecman, Oracle – MySQL nekad i sadmCloud

MySQL 8.0 Features -- Oracle CodeOne 2019, All Things Open 2019
MySQL 8.0 Features -- Oracle CodeOne 2019, All Things Open 2019MySQL 8.0 Features -- Oracle CodeOne 2019, All Things Open 2019
MySQL 8.0 Features -- Oracle CodeOne 2019, All Things Open 2019Dave Stokes

MySQL 8.0 Operational Changes
MySQL 8.0 Operational ChangesMySQL 8.0 Operational Changes
MySQL 8.0 Operational ChangesDave Stokes

MySQL Baics - Texas Linxufest beginners tutorial May 31st, 2019
MySQL Baics - Texas Linxufest beginners tutorial May 31st, 2019MySQL Baics - Texas Linxufest beginners tutorial May 31st, 2019
MySQL Baics - Texas Linxufest beginners tutorial May 31st, 2019Dave Stokes

OTN TOUR 2016 - DBA Commands and Concepts That Every Developer Should Know
OTN TOUR 2016 - DBA Commands and Concepts That Every Developer Should KnowOTN TOUR 2016 - DBA Commands and Concepts That Every Developer Should Know
OTN TOUR 2016 - DBA Commands and Concepts That Every Developer Should KnowAlex Zaballa

OOW16 - Oracle Database 12c - The Best Oracle Database 12c New Features for D...
OOW16 - Oracle Database 12c - The Best Oracle Database 12c New Features for D...OOW16 - Oracle Database 12c - The Best Oracle Database 12c New Features for D...
OOW16 - Oracle Database 12c - The Best Oracle Database 12c New Features for D...Alex Zaballa

Oracle Database 12c Release 2 - New Features On Oracle Database Exadata Expre...
Oracle Database 12c Release 2 - New Features On Oracle Database Exadata Expre...Oracle Database 12c Release 2 - New Features On Oracle Database Exadata Expre...
Oracle Database 12c Release 2 - New Features On Oracle Database Exadata Expre...Alex Zaballa

DBA Brasil 1.0 - DBA Commands and Concepts That Every Developer Should Know
DBA Brasil 1.0 - DBA Commands and Concepts That Every Developer Should KnowDBA Brasil 1.0 - DBA Commands and Concepts That Every Developer Should Know
DBA Brasil 1.0 - DBA Commands and Concepts That Every Developer Should KnowAlex Zaballa

MySQL Indexes and Histograms - RMOUG Training Days 2022
MySQL Indexes and Histograms - RMOUG Training Days 2022MySQL Indexes and Histograms - RMOUG Training Days 2022
MySQL Indexes and Histograms - RMOUG Training Days 2022Dave Stokes


What's hot (20)

Discover the Power of the NoSQL + SQL with MySQL
Discover the Power of the NoSQL + SQL with MySQLDiscover the Power of the NoSQL + SQL with MySQL
Discover the Power of the NoSQL + SQL with MySQL

MySQL 8.0 New Features -- September 27th presentation for Open Source Summit
MySQL 8.0 New Features -- September 27th presentation for Open Source SummitMySQL 8.0 New Features -- September 27th presentation for Open Source Summit
MySQL 8.0 New Features -- September 27th presentation for Open Source Summit

MySQL Replication Update - DEbconf 2020 presentation
MySQL Replication Update - DEbconf 2020 presentationMySQL Replication Update - DEbconf 2020 presentation
MySQL Replication Update - DEbconf 2020 presentation

JavaScript and Friends August 20th, 20201 -- MySQL Shell and JavaScript
JavaScript and Friends August 20th, 20201 -- MySQL Shell and JavaScriptJavaScript and Friends August 20th, 20201 -- MySQL Shell and JavaScript
JavaScript and Friends August 20th, 20201 -- MySQL Shell and JavaScript

Advanced MySQL Query Optimizations
Advanced MySQL Query OptimizationsAdvanced MySQL Query Optimizations
Advanced MySQL Query Optimizations

Confoo 2021 -- MySQL New Features
Confoo 2021 -- MySQL New FeaturesConfoo 2021 -- MySQL New Features
Confoo 2021 -- MySQL New Features

MySQL 8 -- A new beginning : Sunshine PHP/PHP UK (updated)
MySQL 8 -- A new beginning : Sunshine PHP/PHP UK (updated)MySQL 8 -- A new beginning : Sunshine PHP/PHP UK (updated)
MySQL 8 -- A new beginning : Sunshine PHP/PHP UK (updated)

Open Source World June '21 -- JSON Within a Relational Database
Open Source World June '21 -- JSON Within a Relational DatabaseOpen Source World June '21 -- JSON Within a Relational Database
Open Source World June '21 -- JSON Within a Relational Database

MySQL 8 Tips and Tricks from Symfony USA 2018, San Francisco
MySQL 8 Tips and Tricks from Symfony USA 2018, San FranciscoMySQL 8 Tips and Tricks from Symfony USA 2018, San Francisco
MySQL 8 Tips and Tricks from Symfony USA 2018, San Francisco

MySQL Replication Evolution -- Confoo Montreal 2017
MySQL Replication Evolution -- Confoo Montreal 2017MySQL Replication Evolution -- Confoo Montreal 2017
MySQL Replication Evolution -- Confoo Montreal 2017

Developers’ mDay 2021: Bogdan Kecman, Oracle – MySQL nekad i sad
Developers’ mDay 2021: Bogdan Kecman, Oracle – MySQL nekad i sadDevelopers’ mDay 2021: Bogdan Kecman, Oracle – MySQL nekad i sad
Developers’ mDay 2021: Bogdan Kecman, Oracle – MySQL nekad i sad

MySQL 8.0 Features -- Oracle CodeOne 2019, All Things Open 2019
MySQL 8.0 Features -- Oracle CodeOne 2019, All Things Open 2019MySQL 8.0 Features -- Oracle CodeOne 2019, All Things Open 2019
MySQL 8.0 Features -- Oracle CodeOne 2019, All Things Open 2019

MySQL 8.0 Operational Changes
MySQL 8.0 Operational ChangesMySQL 8.0 Operational Changes
MySQL 8.0 Operational Changes

MySQL Baics - Texas Linxufest beginners tutorial May 31st, 2019
MySQL Baics - Texas Linxufest beginners tutorial May 31st, 2019MySQL Baics - Texas Linxufest beginners tutorial May 31st, 2019
MySQL Baics - Texas Linxufest beginners tutorial May 31st, 2019

OTN TOUR 2016 - DBA Commands and Concepts That Every Developer Should Know
OTN TOUR 2016 - DBA Commands and Concepts That Every Developer Should KnowOTN TOUR 2016 - DBA Commands and Concepts That Every Developer Should Know
OTN TOUR 2016 - DBA Commands and Concepts That Every Developer Should Know

OOW16 - Oracle Database 12c - The Best Oracle Database 12c New Features for D...
OOW16 - Oracle Database 12c - The Best Oracle Database 12c New Features for D...OOW16 - Oracle Database 12c - The Best Oracle Database 12c New Features for D...
OOW16 - Oracle Database 12c - The Best Oracle Database 12c New Features for D...

Oracle Database 12c Release 2 - New Features On Oracle Database Exadata Expre...
Oracle Database 12c Release 2 - New Features On Oracle Database Exadata Expre...Oracle Database 12c Release 2 - New Features On Oracle Database Exadata Expre...
Oracle Database 12c Release 2 - New Features On Oracle Database Exadata Expre...

DBA Brasil 1.0 - DBA Commands and Concepts That Every Developer Should Know
DBA Brasil 1.0 - DBA Commands and Concepts That Every Developer Should KnowDBA Brasil 1.0 - DBA Commands and Concepts That Every Developer Should Know
DBA Brasil 1.0 - DBA Commands and Concepts That Every Developer Should Know

MySQL Indexes and Histograms - RMOUG Training Days 2022
MySQL Indexes and Histograms - RMOUG Training Days 2022MySQL Indexes and Histograms - RMOUG Training Days 2022
MySQL Indexes and Histograms - RMOUG Training Days 2022

Postgresql
PostgresqlPostgresql
Postgresql


Similar to PHP UK 2020 Tutorial: MySQL Indexes, Histograms And other ways To Speed Up Your Queries

PHP Detroit -- MySQL 8 A New Beginning (updated presentation)
PHP Detroit -- MySQL 8 A New Beginning (updated presentation)PHP Detroit -- MySQL 8 A New Beginning (updated presentation)
PHP Detroit -- MySQL 8 A New Beginning (updated presentation)Dave Stokes

MySQL 8.0 Featured for Developers
MySQL 8.0 Featured for DevelopersMySQL 8.0 Featured for Developers
MySQL 8.0 Featured for DevelopersDave Stokes

SQL Server 2008 Development for Programmers
SQL Server 2008 Development for ProgrammersSQL Server 2008 Development for Programmers
SQL Server 2008 Development for ProgrammersAdam Hutson

Presentación Oracle Database Migración consideraciones 10g/11g/12c
Presentación Oracle Database Migración consideraciones 10g/11g/12cPresentación Oracle Database Migración consideraciones 10g/11g/12c
Presentación Oracle Database Migración consideraciones 10g/11g/12cRonald Francisco Vargas Quesada

MySQL 8 - UKOUG Techfest Brighton December 2nd, 2019
MySQL 8 - UKOUG Techfest Brighton December 2nd, 2019MySQL 8 - UKOUG Techfest Brighton December 2nd, 2019
MySQL 8 - UKOUG Techfest Brighton December 2nd, 2019Dave Stokes

Oracle Query Optimizer - An Introduction
Oracle Query Optimizer - An IntroductionOracle Query Optimizer - An Introduction
Oracle Query Optimizer - An Introductionadryanbub

At the core you will have KUSTO
At the core you will have KUSTOAt the core you will have KUSTO
At the core you will have KUSTORiccardo Zamana

Database Performance Tuning
Database Performance Tuning Database Performance Tuning
Database Performance Tuning Arno Huetter

What Your Database Query is Really Doing
What Your Database Query is Really DoingWhat Your Database Query is Really Doing
What Your Database Query is Really DoingDave Stokes

High Performance SSRS
High Performance SSRSHigh Performance SSRS
High Performance SSRSBert Wagner

05_DP_300T00A_Optimize.pptx
05_DP_300T00A_Optimize.pptx05_DP_300T00A_Optimize.pptx
05_DP_300T00A_Optimize.pptxKareemBullard1

Brad McGehee Intepreting Execution Plans Mar09
Brad McGehee Intepreting Execution Plans Mar09Brad McGehee Intepreting Execution Plans Mar09
Brad McGehee Intepreting Execution Plans Mar09guest9d79e073

Brad McGehee Intepreting Execution Plans Mar09
Brad McGehee Intepreting Execution Plans Mar09Brad McGehee Intepreting Execution Plans Mar09
Brad McGehee Intepreting Execution Plans Mar09Mark Ginnebaugh

Presentation interpreting execution plans for sql statements
Presentation    interpreting execution plans for sql statementsPresentation    interpreting execution plans for sql statements
Presentation interpreting execution plans for sql statementsxKinAnx

Query Optimization in SQL Server
Query Optimization in SQL ServerQuery Optimization in SQL Server
Query Optimization in SQL ServerRajesh Gunasundaram

Crystal xcelsius best practices and workflows for building enterprise solut...
Crystal xcelsius   best practices and workflows for building enterprise solut...Crystal xcelsius   best practices and workflows for building enterprise solut...
Crystal xcelsius best practices and workflows for building enterprise solut...Yogeeswar Reddy

15 Ways to Kill Your Mysql Application Performance
15 Ways to Kill Your Mysql Application Performance15 Ways to Kill Your Mysql Application Performance
15 Ways to Kill Your Mysql Application Performanceguest9912e5

MySQL 8 Server Optimization Swanseacon 2018
MySQL 8 Server Optimization Swanseacon 2018MySQL 8 Server Optimization Swanseacon 2018
MySQL 8 Server Optimization Swanseacon 2018Dave Stokes

The thinking persons guide to data warehouse design
The thinking persons guide to data warehouse designThe thinking persons guide to data warehouse design
The thinking persons guide to data warehouse designCalpont


Similar to PHP UK 2020 Tutorial: MySQL Indexes, Histograms And other ways To Speed Up Your Queries (20)

PHP Detroit -- MySQL 8 A New Beginning (updated presentation)
PHP Detroit -- MySQL 8 A New Beginning (updated presentation)PHP Detroit -- MySQL 8 A New Beginning (updated presentation)
PHP Detroit -- MySQL 8 A New Beginning (updated presentation)

MySQL 8.0 Featured for Developers
MySQL 8.0 Featured for DevelopersMySQL 8.0 Featured for Developers
MySQL 8.0 Featured for Developers

SQL Server 2008 Development for Programmers
SQL Server 2008 Development for ProgrammersSQL Server 2008 Development for Programmers
SQL Server 2008 Development for Programmers

Presentación Oracle Database Migración consideraciones 10g/11g/12c
Presentación Oracle Database Migración consideraciones 10g/11g/12cPresentación Oracle Database Migración consideraciones 10g/11g/12c
Presentación Oracle Database Migración consideraciones 10g/11g/12c

MySQL 8 - UKOUG Techfest Brighton December 2nd, 2019
MySQL 8 - UKOUG Techfest Brighton December 2nd, 2019MySQL 8 - UKOUG Techfest Brighton December 2nd, 2019
MySQL 8 - UKOUG Techfest Brighton December 2nd, 2019

Oracle Query Optimizer - An Introduction
Oracle Query Optimizer - An IntroductionOracle Query Optimizer - An Introduction
Oracle Query Optimizer - An Introduction

At the core you will have KUSTO
At the core you will have KUSTOAt the core you will have KUSTO
At the core you will have KUSTO

Database Performance Tuning
Database Performance Tuning Database Performance Tuning
Database Performance Tuning

What Your Database Query is Really Doing
What Your Database Query is Really DoingWhat Your Database Query is Really Doing
What Your Database Query is Really Doing

High Performance SSRS
High Performance SSRSHigh Performance SSRS
High Performance SSRS

05_DP_300T00A_Optimize.pptx
05_DP_300T00A_Optimize.pptx05_DP_300T00A_Optimize.pptx
05_DP_300T00A_Optimize.pptx

Brad McGehee Intepreting Execution Plans Mar09
Brad McGehee Intepreting Execution Plans Mar09Brad McGehee Intepreting Execution Plans Mar09
Brad McGehee Intepreting Execution Plans Mar09

Brad McGehee Intepreting Execution Plans Mar09
Brad McGehee Intepreting Execution Plans Mar09Brad McGehee Intepreting Execution Plans Mar09
Brad McGehee Intepreting Execution Plans Mar09

Presentation interpreting execution plans for sql statements
Presentation    interpreting execution plans for sql statementsPresentation    interpreting execution plans for sql statements
Presentation interpreting execution plans for sql statements

Query Optimization in SQL Server
Query Optimization in SQL ServerQuery Optimization in SQL Server
Query Optimization in SQL Server

Crystal xcelsius best practices and workflows for building enterprise solut...
Crystal xcelsius   best practices and workflows for building enterprise solut...Crystal xcelsius   best practices and workflows for building enterprise solut...
Crystal xcelsius best practices and workflows for building enterprise solut...

15 Ways to Kill Your Mysql Application Performance
15 Ways to Kill Your Mysql Application Performance15 Ways to Kill Your Mysql Application Performance
15 Ways to Kill Your Mysql Application Performance

mod 2.pdf
mod 2.pdfmod 2.pdf
mod 2.pdf

MySQL 8 Server Optimization Swanseacon 2018
MySQL 8 Server Optimization Swanseacon 2018MySQL 8 Server Optimization Swanseacon 2018
MySQL 8 Server Optimization Swanseacon 2018

The thinking persons guide to data warehouse design
The thinking persons guide to data warehouse designThe thinking persons guide to data warehouse design
The thinking persons guide to data warehouse design


More from Dave Stokes

Database basics for new-ish developers -- All Things Open October 18th 2021
Database basics for new-ish developers  -- All Things Open October 18th 2021Database basics for new-ish developers  -- All Things Open October 18th 2021
Database basics for new-ish developers -- All Things Open October 18th 2021Dave Stokes

Php &amp; my sql - how do pdo, mysq-li, and x devapi do what they do
Php &amp; my sql  - how do pdo, mysq-li, and x devapi do what they doPhp &amp; my sql  - how do pdo, mysq-li, and x devapi do what they do
Php &amp; my sql - how do pdo, mysq-li, and x devapi do what they doDave Stokes

Validating JSON -- Percona Live 2021 presentation
Validating JSON -- Percona Live 2021 presentationValidating JSON -- Percona Live 2021 presentation
Validating JSON -- Percona Live 2021 presentationDave Stokes

Midwest PHP Presentation - New MSQL Features
Midwest PHP Presentation - New MSQL FeaturesMidwest PHP Presentation - New MSQL Features
Midwest PHP Presentation - New MSQL FeaturesDave Stokes

Data Love Conference - Window Functions for Database Analytics
Data Love Conference - Window Functions for Database AnalyticsData Love Conference - Window Functions for Database Analytics
Data Love Conference - Window Functions for Database AnalyticsDave Stokes

Discover The Power of NoSQL + MySQL with MySQL
Discover The Power of NoSQL + MySQL with MySQLDiscover The Power of NoSQL + MySQL with MySQL
Discover The Power of NoSQL + MySQL with MySQLDave Stokes

Confoo 202 - MySQL Group Replication and ReplicaSet
Confoo 202 - MySQL Group Replication and ReplicaSetConfoo 202 - MySQL Group Replication and ReplicaSet
Confoo 202 - MySQL Group Replication and ReplicaSetDave Stokes

MySQL New Features -- Sunshine PHP 2020 Presentation
MySQL New Features -- Sunshine PHP 2020 PresentationMySQL New Features -- Sunshine PHP 2020 Presentation
MySQL New Features -- Sunshine PHP 2020 PresentationDave Stokes

MySQL 8.0 from December London Open Source Database Meetup
MySQL 8.0 from December London Open Source Database MeetupMySQL 8.0 from December London Open Source Database Meetup
MySQL 8.0 from December London Open Source Database MeetupDave Stokes

Upgrading to MySQL 8.0 webinar slides November 27th, 2019
Upgrading to MySQL 8.0 webinar slides November 27th, 2019Upgrading to MySQL 8.0 webinar slides November 27th, 2019
Upgrading to MySQL 8.0 webinar slides November 27th, 2019Dave Stokes

Windowing Functions - Little Rock Tech Fest 2019
Windowing Functions - Little Rock Tech Fest 2019Windowing Functions - Little Rock Tech Fest 2019
Windowing Functions - Little Rock Tech Fest 2019Dave Stokes

Oracle CodeOne Foreign Keys Support in MySQL 8.0
Oracle CodeOne Foreign Keys Support in MySQL 8.0Oracle CodeOne Foreign Keys Support in MySQL 8.0
Oracle CodeOne Foreign Keys Support in MySQL 8.0Dave Stokes

MySQL Without the SQL - Oh My! August 2nd presentation at Mid Atlantic Develo...
MySQL Without the SQL - Oh My! August 2nd presentation at Mid Atlantic Develo...MySQL Without the SQL - Oh My! August 2nd presentation at Mid Atlantic Develo...
MySQL Without the SQL - Oh My! August 2nd presentation at Mid Atlantic Develo...Dave Stokes

MySQL 8.0 Graphical Information System - Mid Atlantic Developers Conference
MySQL 8.0 Graphical Information System - Mid Atlantic Developers ConferenceMySQL 8.0 Graphical Information System - Mid Atlantic Developers Conference
MySQL 8.0 Graphical Information System - Mid Atlantic Developers ConferenceDave Stokes


More from Dave Stokes (14)

Database basics for new-ish developers -- All Things Open October 18th 2021
Database basics for new-ish developers  -- All Things Open October 18th 2021Database basics for new-ish developers  -- All Things Open October 18th 2021
Database basics for new-ish developers -- All Things Open October 18th 2021

Php &amp; my sql - how do pdo, mysq-li, and x devapi do what they do
Php &amp; my sql  - how do pdo, mysq-li, and x devapi do what they doPhp &amp; my sql  - how do pdo, mysq-li, and x devapi do what they do
Php &amp; my sql - how do pdo, mysq-li, and x devapi do what they do

Validating JSON -- Percona Live 2021 presentation
Validating JSON -- Percona Live 2021 presentationValidating JSON -- Percona Live 2021 presentation
Validating JSON -- Percona Live 2021 presentation

Midwest PHP Presentation - New MSQL Features
Midwest PHP Presentation - New MSQL FeaturesMidwest PHP Presentation - New MSQL Features
Midwest PHP Presentation - New MSQL Features

Data Love Conference - Window Functions for Database Analytics
Data Love Conference - Window Functions for Database AnalyticsData Love Conference - Window Functions for Database Analytics
Data Love Conference - Window Functions for Database Analytics

Discover The Power of NoSQL + MySQL with MySQL
Discover The Power of NoSQL + MySQL with MySQLDiscover The Power of NoSQL + MySQL with MySQL
Discover The Power of NoSQL + MySQL with MySQL

Confoo 202 - MySQL Group Replication and ReplicaSet
Confoo 202 - MySQL Group Replication and ReplicaSetConfoo 202 - MySQL Group Replication and ReplicaSet
Confoo 202 - MySQL Group Replication and ReplicaSet

MySQL New Features -- Sunshine PHP 2020 Presentation
MySQL New Features -- Sunshine PHP 2020 PresentationMySQL New Features -- Sunshine PHP 2020 Presentation
MySQL New Features -- Sunshine PHP 2020 Presentation

MySQL 8.0 from December London Open Source Database Meetup
MySQL 8.0 from December London Open Source Database MeetupMySQL 8.0 from December London Open Source Database Meetup
MySQL 8.0 from December London Open Source Database Meetup

Upgrading to MySQL 8.0 webinar slides November 27th, 2019
Upgrading to MySQL 8.0 webinar slides November 27th, 2019Upgrading to MySQL 8.0 webinar slides November 27th, 2019
Upgrading to MySQL 8.0 webinar slides November 27th, 2019

Windowing Functions - Little Rock Tech Fest 2019
Windowing Functions - Little Rock Tech Fest 2019Windowing Functions - Little Rock Tech Fest 2019
Windowing Functions - Little Rock Tech Fest 2019

Oracle CodeOne Foreign Keys Support in MySQL 8.0
Oracle CodeOne Foreign Keys Support in MySQL 8.0Oracle CodeOne Foreign Keys Support in MySQL 8.0
Oracle CodeOne Foreign Keys Support in MySQL 8.0

MySQL Without the SQL - Oh My! August 2nd presentation at Mid Atlantic Develo...
MySQL Without the SQL - Oh My! August 2nd presentation at Mid Atlantic Develo...MySQL Without the SQL - Oh My! August 2nd presentation at Mid Atlantic Develo...
MySQL Without the SQL - Oh My! August 2nd presentation at Mid Atlantic Develo...

MySQL 8.0 Graphical Information System - Mid Atlantic Developers Conference
MySQL 8.0 Graphical Information System - Mid Atlantic Developers ConferenceMySQL 8.0 Graphical Information System - Mid Atlantic Developers Conference
MySQL 8.0 Graphical Information System - Mid Atlantic Developers Conference


Recently uploaded

Challengers I Told Ya ShirtChallengers I Told Ya Shirt
Challengers I Told Ya ShirtChallengers I Told Ya ShirtChallengers I Told Ya ShirtChallengers I Told Ya Shirt
Challengers I Told Ya ShirtChallengers I Told Ya Shirtrahman018755

Moving Beyond Twitter/X and Facebook - Social Media for local news providers
Moving Beyond Twitter/X and Facebook - Social Media for local news providersMoving Beyond Twitter/X and Facebook - Social Media for local news providers
Moving Beyond Twitter/X and Facebook - Social Media for local news providersDamian Radcliffe

Call Girls in Uttam Nagar Delhi 💯Call Us 🔝8264348440🔝
Call Girls in Uttam Nagar Delhi 💯Call Us 🔝8264348440🔝Call Girls in Uttam Nagar Delhi 💯Call Us 🔝8264348440🔝
Call Girls in Uttam Nagar Delhi 💯Call Us 🔝8264348440🔝soniya singh

Chennai Call Girls Porur Phone 🍆 8250192130 👅 celebrity escorts service
Chennai Call Girls Porur Phone 🍆 8250192130 👅 celebrity escorts serviceChennai Call Girls Porur Phone 🍆 8250192130 👅 celebrity escorts service
Chennai Call Girls Porur Phone 🍆 8250192130 👅 celebrity escorts servicesonalikaur4

Networking in the Penumbra presented by Geoff Huston at NZNOG
Networking in the Penumbra presented by Geoff Huston at NZNOGNetworking in the Penumbra presented by Geoff Huston at NZNOG
Networking in the Penumbra presented by Geoff Huston at NZNOGAPNIC

Call Girls In Model Towh Delhi 💯Call Us 🔝8264348440🔝
Call Girls In Model Towh Delhi 💯Call Us 🔝8264348440🔝Call Girls In Model Towh Delhi 💯Call Us 🔝8264348440🔝
Call Girls In Model Towh Delhi 💯Call Us 🔝8264348440🔝soniya singh

VIP 7001035870 Find & Meet Hyderabad Call Girls LB Nagar high-profile Call Girl
VIP 7001035870 Find & Meet Hyderabad Call Girls LB Nagar high-profile Call GirlVIP 7001035870 Find & Meet Hyderabad Call Girls LB Nagar high-profile Call Girl
VIP 7001035870 Find & Meet Hyderabad Call Girls LB Nagar high-profile Call Girladitipandeya

Packaging the Monolith - PHP Tek 2024 (Breaking it down one bite at a time)
Packaging the Monolith - PHP Tek 2024 (Breaking it down one bite at a time)Packaging the Monolith - PHP Tek 2024 (Breaking it down one bite at a time)
Packaging the Monolith - PHP Tek 2024 (Breaking it down one bite at a time)Dana Luther

Low Rate Call Girls Kolkata Avani 🤌 8250192130 🚀 Vip Call Girls Kolkata
Low Rate Call Girls Kolkata Avani 🤌  8250192130 🚀 Vip Call Girls KolkataLow Rate Call Girls Kolkata Avani 🤌  8250192130 🚀 Vip Call Girls Kolkata
Low Rate Call Girls Kolkata Avani 🤌 8250192130 🚀 Vip Call Girls Kolkataanamikaraghav4

Gram Darshan PPT cyber rural in villages of india
Gram Darshan PPT cyber rural  in villages of indiaGram Darshan PPT cyber rural  in villages of india
Gram Darshan PPT cyber rural in villages of indiaimessage0108

Chennai Call Girls Alwarpet Phone 🍆 8250192130 👅 celebrity escorts service
Chennai Call Girls Alwarpet Phone 🍆 8250192130 👅 celebrity escorts serviceChennai Call Girls Alwarpet Phone 🍆 8250192130 👅 celebrity escorts service
Chennai Call Girls Alwarpet Phone 🍆 8250192130 👅 celebrity escorts servicevipmodelshub1

Russian Call girls in Dubai +971563133746 Dubai Call girls
Russian  Call girls in Dubai +971563133746 Dubai  Call girlsRussian  Call girls in Dubai +971563133746 Dubai  Call girls
Russian Call girls in Dubai +971563133746 Dubai Call girlsstephieert

Russian Call Girls Thane Swara 8617697112 Independent Escort Service Thane
Russian Call Girls Thane Swara 8617697112 Independent Escort Service ThaneRussian Call Girls Thane Swara 8617697112 Independent Escort Service Thane
Russian Call Girls Thane Swara 8617697112 Independent Escort Service ThaneCall girls in Ahmedabad High profile

VIP Call Girls Pune Madhuri 8617697112 Independent Escort Service Pune
VIP Call Girls Pune Madhuri 8617697112 Independent Escort Service PuneVIP Call Girls Pune Madhuri 8617697112 Independent Escort Service Pune
VIP Call Girls Pune Madhuri 8617697112 Independent Escort Service PuneCall girls in Ahmedabad High profile

Call Girls South Delhi Delhi reach out to us at ☎ 9711199012
Call Girls South Delhi Delhi reach out to us at ☎ 9711199012Call Girls South Delhi Delhi reach out to us at ☎ 9711199012
Call Girls South Delhi Delhi reach out to us at ☎ 9711199012rehmti665

₹5.5k {Cash Payment}New Friends Colony Call Girls In [Delhi NIHARIKA] 🔝|97111...
₹5.5k {Cash Payment}New Friends Colony Call Girls In [Delhi NIHARIKA] 🔝|97111...₹5.5k {Cash Payment}New Friends Colony Call Girls In [Delhi NIHARIKA] 🔝|97111...
₹5.5k {Cash Payment}New Friends Colony Call Girls In [Delhi NIHARIKA] 🔝|97111...Diya Sharma

Russian Call Girls in Kolkata Samaira 🤌 8250192130 🚀 Vip Call Girls Kolkata
Russian Call Girls in Kolkata Samaira 🤌  8250192130 🚀 Vip Call Girls KolkataRussian Call Girls in Kolkata Samaira 🤌  8250192130 🚀 Vip Call Girls Kolkata
Russian Call Girls in Kolkata Samaira 🤌 8250192130 🚀 Vip Call Girls Kolkataanamikaraghav4

AlbaniaDreamin24 - How to easily use an API with Flows
AlbaniaDreamin24 - How to easily use an API with FlowsAlbaniaDreamin24 - How to easily use an API with Flows
AlbaniaDreamin24 - How to easily use an API with FlowsThierry TROUIN ☁


Recently uploaded (20)

Challengers I Told Ya ShirtChallengers I Told Ya Shirt
Challengers I Told Ya ShirtChallengers I Told Ya ShirtChallengers I Told Ya ShirtChallengers I Told Ya Shirt
Challengers I Told Ya ShirtChallengers I Told Ya Shirt

Rohini Sector 22 Call Girls Delhi 9999965857 @Sabina Saikh No Advance
Rohini Sector 22 Call Girls Delhi 9999965857 @Sabina Saikh No AdvanceRohini Sector 22 Call Girls Delhi 9999965857 @Sabina Saikh No Advance
Rohini Sector 22 Call Girls Delhi 9999965857 @Sabina Saikh No Advance

Moving Beyond Twitter/X and Facebook - Social Media for local news providers
Moving Beyond Twitter/X and Facebook - Social Media for local news providersMoving Beyond Twitter/X and Facebook - Social Media for local news providers
Moving Beyond Twitter/X and Facebook - Social Media for local news providers

Rohini Sector 26 Call Girls Delhi 9999965857 @Sabina Saikh No Advance
Rohini Sector 26 Call Girls Delhi 9999965857 @Sabina Saikh No AdvanceRohini Sector 26 Call Girls Delhi 9999965857 @Sabina Saikh No Advance
Rohini Sector 26 Call Girls Delhi 9999965857 @Sabina Saikh No Advance

Call Girls in Uttam Nagar Delhi 💯Call Us 🔝8264348440🔝
Call Girls in Uttam Nagar Delhi 💯Call Us 🔝8264348440🔝Call Girls in Uttam Nagar Delhi 💯Call Us 🔝8264348440🔝
Call Girls in Uttam Nagar Delhi 💯Call Us 🔝8264348440🔝

Chennai Call Girls Porur Phone 🍆 8250192130 👅 celebrity escorts service
Chennai Call Girls Porur Phone 🍆 8250192130 👅 celebrity escorts serviceChennai Call Girls Porur Phone 🍆 8250192130 👅 celebrity escorts service
Chennai Call Girls Porur Phone 🍆 8250192130 👅 celebrity escorts service

Networking in the Penumbra presented by Geoff Huston at NZNOG
Networking in the Penumbra presented by Geoff Huston at NZNOGNetworking in the Penumbra presented by Geoff Huston at NZNOG
Networking in the Penumbra presented by Geoff Huston at NZNOG

Call Girls In Model Towh Delhi 💯Call Us 🔝8264348440🔝
Call Girls In Model Towh Delhi 💯Call Us 🔝8264348440🔝Call Girls In Model Towh Delhi 💯Call Us 🔝8264348440🔝
Call Girls In Model Towh Delhi 💯Call Us 🔝8264348440🔝

VIP 7001035870 Find & Meet Hyderabad Call Girls LB Nagar high-profile Call Girl
VIP 7001035870 Find & Meet Hyderabad Call Girls LB Nagar high-profile Call GirlVIP 7001035870 Find & Meet Hyderabad Call Girls LB Nagar high-profile Call Girl
VIP 7001035870 Find & Meet Hyderabad Call Girls LB Nagar high-profile Call Girl

Packaging the Monolith - PHP Tek 2024 (Breaking it down one bite at a time)
Packaging the Monolith - PHP Tek 2024 (Breaking it down one bite at a time)Packaging the Monolith - PHP Tek 2024 (Breaking it down one bite at a time)
Packaging the Monolith - PHP Tek 2024 (Breaking it down one bite at a time)

Low Rate Call Girls Kolkata Avani 🤌 8250192130 🚀 Vip Call Girls Kolkata
Low Rate Call Girls Kolkata Avani 🤌  8250192130 🚀 Vip Call Girls KolkataLow Rate Call Girls Kolkata Avani 🤌  8250192130 🚀 Vip Call Girls Kolkata
Low Rate Call Girls Kolkata Avani 🤌 8250192130 🚀 Vip Call Girls Kolkata

Gram Darshan PPT cyber rural in villages of india
Gram Darshan PPT cyber rural  in villages of indiaGram Darshan PPT cyber rural  in villages of india
Gram Darshan PPT cyber rural in villages of india

Chennai Call Girls Alwarpet Phone 🍆 8250192130 👅 celebrity escorts service
Chennai Call Girls Alwarpet Phone 🍆 8250192130 👅 celebrity escorts serviceChennai Call Girls Alwarpet Phone 🍆 8250192130 👅 celebrity escorts service
Chennai Call Girls Alwarpet Phone 🍆 8250192130 👅 celebrity escorts service

Russian Call girls in Dubai +971563133746 Dubai Call girls
Russian  Call girls in Dubai +971563133746 Dubai  Call girlsRussian  Call girls in Dubai +971563133746 Dubai  Call girls
Russian Call girls in Dubai +971563133746 Dubai Call girls

Russian Call Girls Thane Swara 8617697112 Independent Escort Service Thane
Russian Call Girls Thane Swara 8617697112 Independent Escort Service ThaneRussian Call Girls Thane Swara 8617697112 Independent Escort Service Thane
Russian Call Girls Thane Swara 8617697112 Independent Escort Service Thane

VIP Call Girls Pune Madhuri 8617697112 Independent Escort Service Pune
VIP Call Girls Pune Madhuri 8617697112 Independent Escort Service PuneVIP Call Girls Pune Madhuri 8617697112 Independent Escort Service Pune
VIP Call Girls Pune Madhuri 8617697112 Independent Escort Service Pune

Call Girls South Delhi Delhi reach out to us at ☎ 9711199012
Call Girls South Delhi Delhi reach out to us at ☎ 9711199012Call Girls South Delhi Delhi reach out to us at ☎ 9711199012
Call Girls South Delhi Delhi reach out to us at ☎ 9711199012

₹5.5k {Cash Payment}New Friends Colony Call Girls In [Delhi NIHARIKA] 🔝|97111...
₹5.5k {Cash Payment}New Friends Colony Call Girls In [Delhi NIHARIKA] 🔝|97111...₹5.5k {Cash Payment}New Friends Colony Call Girls In [Delhi NIHARIKA] 🔝|97111...
₹5.5k {Cash Payment}New Friends Colony Call Girls In [Delhi NIHARIKA] 🔝|97111...

Russian Call Girls in Kolkata Samaira 🤌 8250192130 🚀 Vip Call Girls Kolkata
Russian Call Girls in Kolkata Samaira 🤌  8250192130 🚀 Vip Call Girls KolkataRussian Call Girls in Kolkata Samaira 🤌  8250192130 🚀 Vip Call Girls Kolkata
Russian Call Girls in Kolkata Samaira 🤌 8250192130 🚀 Vip Call Girls Kolkata

AlbaniaDreamin24 - How to easily use an API with Flows
AlbaniaDreamin24 - How to easily use an API with FlowsAlbaniaDreamin24 - How to easily use an API with Flows
AlbaniaDreamin24 - How to easily use an API with Flows


PHP UK 2020 Tutorial: MySQL Indexes, Histograms And other ways To Speed Up Your Queries

  • 1. MySQL Indexes, Histograms, And other ways To Speed Up Your Queries David . Stokes @ Oracle.com Slideshare.net/DavidMStokes @Stoker
  • 2. Safe Harbor Statement The following is intended to outline our general product direction. It is intended for information purposes only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. The development, release, timing, and pricing of any features or functionality described for Oracle’s products may change and remains at the sole discretion of Oracle Corporation. Statements in this presentation relating to Oracle’s future plans, expectations, beliefs, intentions and prospects are “forward-looking statements” and are subject to material risks and uncertainties. A detailed discussion of these factors and other risks that affect our business is contained in Oracle’s Securities and Exchange Commission (SEC) filings, including our most recent reports on Form 10-K and Form 10-Q under the heading “Risk Factors.” These filings are available on the SEC’s website or on Oracle’s website at http://www.oracle.com/investor. All information in this presentation is current as of September 2019 and Oracle undertakes no duty to update any statement in light of new information or future events. 2
  • 3. Warning! MySQL 5.6 End of Life is February of 2021!! 3
  • 4. Images Courtesy ● https://www.oldbookillustrations.com/ ● These slides are available at slideshare.net/davidmstokes 4
  • 5. What Is This Session About? Nobody ever complains that the database is too fast! Speeding up queries is not a ‘dark art’ But understanding how to speed up queries is often treated as magic So we will be looking at the proper use of indexes, histograms, locking options, and some other ways to speed queries up. 5
  • 6. Yes, this is a very dry subject! ● How dry? 6
  • 7. Normalize Your Data (not covered today) ● Can not build a skyscraper on sand ● Third normal form or better ○ Use JSON for ‘stub’ table data, avoiding repeated unneeded index/table dives ● Think about how you will use your data 7
  • 8. The Optimizer ● Consider the optimizer the brain and nervous system of the system. ● Query optimization is a feature of many relational database management systems. ● The query optimizer attempts to determine the most efficient way to execute a given query by considering the possible query plans. Wikipedia 8
  • 9. The query optimizer evaluates the options ● Similar to Google Maps (or similar) the optimizer wants to get your data the cheapest way (less amount of expensive disk reads) possible. ● Like a GPS, the cost is built on historical statistics. And these statistics can change while the optimizer is working. So like a traffic jam, washed out road, or other traffic problem, the optimizer may be making poor decisions. ● The final determination from the optimizer is call the query plan. ● MySQL wants to optimize each query every time it sees it – there is no locking down the query plan like Oracle (cough cough). You will see how to obtain a query plan later in this presentation. 9
  • 10. But now for something completely different The tools for looking at queries ● EXPLAIN ○ EXPLAIN FORMAT= ■ JSON ■ TREE ○ ANALYZE ● VISUAL EXPLAIN 10
  • 12. EXPLAIN Example 12 EXPLAIN is used to obtain a query execution plan (an explanation of how MySQL would execute a query) and should be considered an ESTIMATE as it does not run the query.
  • 13. VISUAL EXPLAIN from MySQL Workbench 13
  • 14. EXPLAIN FORMAT=TREE EXPLAIN FORMAT=TREE SELECT * FROM City JOIN Country ON (City.Population = Country.Population); -> Inner hash join (city.Population = country.Population) (cost=100154.05 rows=100093) -> Table scan on City (cost=0.30 rows=4188) -> Hash -> Table scan on Country (cost=29.90 rows=239) 14
  • 15. EXPLAIN ANALYZE – MySQL 8.0.18 15 EXPLAIN ANALYZE SELECT * FROM City WHERE CountryCode = 'GBR'G *************************** 1. row *************************** EXPLAIN: -> Index lookup on City using CountryCode (CountryCode='GBR') (cost=80.76 rows=81) (actual time=0.153..0.178 rows=81 loops=1) 1 row in set (0.0008 sec) MySQL 8.0.18 introduced EXPLAIN ANALYZE, which runs the query and produces EXPLAIN output along with timing and additional, iterator-based, information about how the optimizer's expectations matched the actual execution.
  • 16. More on using EXPLAIN … later 16
  • 18. Indexes A database index is a data structure that improves the speed of data retrieval operations on a database table at the cost of additional writes and storage space to maintain the index data structure. Indexes are used to quickly locate data without having to search every row in a database table every time a database table is accessed. Indexes can be created using one or more columns of a database table, providing the basis for both rapid random lookups and efficient access of ordered records. - - https://en.wikipedia.org/wiki/Database_index 18
  • 19. Indexes An index is a copy of selected columns of data from a table, called a database key or simply key, that can be searched very efficiently that also includes a low-level disk block address or direct link to the complete row of data it was copied from. Some databases extend the power of indexing by letting developers create indexes on functions or expressions. For example, an index could be created on upper(last_name), which would only store the upper-case versions of the last_name field in the index. -- https://en.wikipedia.org/wiki/Database_index 19
  • 20. Indexes Another option sometimes supported is the use of partial indices, where index entries are created only for those records that satisfy some conditional expression. A further aspect of flexibility is to permit indexing on user-defined functions, as well as expressions formed from an assortment of built-in functions.. -- https://en.wikipedia.org/wiki/Database_index 20
  • 21. Think of an Index as a Table With Shortcuts to another table! And the more tables you have the read to get to the data the slower things run! (Now for very bad example with humans) 21
  • 22. MySQL has Two Types of Index Structures ● B-Tree is a self-balancing tree data structure that maintains sorted data and allows searches, sequential access, insertions, and deletions. ● Hash are more efficient than nested loops joins, except when the probe side of the join is very small but joins can only be used to compute equijoins. 22
  • 23. NULL ● NULL is used to designate a LACK of data. False 0 True 1 Don’t know NULL 23
  • 24. Why Avoid NULL ● Image you have a nice column of numbers with high cardinality and then some rows with NULLs as values. And your optimizer has to pick through the well ordered data and then muck through the NULLs. ● https://dev.mysql.com/doc/refm an/8.0/en/problems-with- null.html 24
  • 25. Indexing NULL values really drives down the performance of INDEXes - Cardinal Values and ‘junk drawer’ of nulls 25
  • 27. Before Invisible Indexes 1. Doubt usefulness of index 2. Check using EXPLAIN 3. Remove that Index 4. Rerun EXPLAIN 5. Get phone/text/screams from power user about slow query 6. Suddenly realize that the index in question may have had no use for you but the rest of the planet seems to need that dang index! 7. Take seconds/minutes/hours/days/weeks rebuilding that index 27
  • 28. After Invisible Indexes 1. Doubt usefulness of index 2. Check using EXPLAIN 3. Make index invisible – optimizer can not see that index! 4. Rerun EXPLAIN 5. Get phone/text/screams from power user about slow query 6. Make index visible 7. Blame problem on { network | JavaScript | GDPR | Slack | Cloud } 28
  • 29. How to use INVISIBLE INDEX ALTER TABLE t1 ALTER INDEX i_idx INVISIBLE; ALTER TABLE t1 ALTER INDEX i_idx VISIBLE; 29
  • 30. Histograms What is a histogram? It is not a gluten free, keto friendly biscuit. 30
  • 32. Histograms What is a histogram? Wikipedia declares a histogram is an accurate representation of the distribution of numerical data. For RDBMS, a histogram is an approximation of the data distribution within a specific column. So in MySQL, histograms help the optimizer to find the most efficient Query Plan to fetch that data. 32
  • 33. Histograms What is a histogram? A histogram is a distribution of data into logical buckets. There are two types: Singleton or Equi-Height Maximum number of buckets is 1024 33
  • 34. Histogram Histogram statistics are useful primarily for non-indexed columns. Adding an index to a column for which histogram statistics are applicable might also help the optimizer make row estimates. The tradeoffs are: An index must be updated when table data is modified. A histogram is created or updated only on demand, so it adds no overhead when table data is modified. On the other hand, the statistics become progressively more out of date when table modifications occur, until the next time they are updated. 34
  • 35. The Optimizer Occasionally the query optimizer fails to find the most efficient plan and ends up spending a lot more time executing the query than necessary. The optimizer assumes that the data is evenly distributed in the column. This can be the old ‘assume’ makes an ‘ass out of you and me’ joke brought to life. The main reason for this is often that the optimizer doesn’t have enough knowledge about the data it is about to query: ● How many rows are there in each table? ● How many distinct values are there in each column? ● How is the data distributed in each column? 35
  • 36. Frequency Histogram Each distinct value has its own bucket. Because this is a frequency histogram, the endpoint number is the cumulative frequency of endpoints. For 52793, the endpoint number 6 indicates that the value appears 5 times (6 - 1). For 52794, the endpoint number 8 indicates that the value appears 2 times (8 - 6). 36
  • 37. Frequency Histogram The optimizer calculates their cardinality based on endpoint numbers. For example, the optimizer calculates the cardinality (C) of value 52799 using the following formula, where the number of rows in the table is 23: C = 23 * ( 9 / 23 ) 37
  • 38. Creating and removing Histograms ANALYZE TABLE t UPDATE HISTOGRAM ON c1, c2, c3 WITH 10 BUCKETS; ANALYZE TABLE t UPDATE HISTOGRAM ON c1, c3 WITH 10 BUCKETS; ANALYZE TABLE t DROP HISTOGRAM ON c2; Note the first statement creates three different histograms on c1, c2, and c3. 38
  • 39. Singleton histograms: The buckets contain two values: ● Value 1: The value for the bucket. The type depends on the column data type. ● Value 2: A double representing the cumulative frequency for the value. For example, .25 and .75 indicate that 25% and 75% of the values in the column are less than or equal to the bucket value. 39
  • 40. Equi-height histograms: buckets contain four values: ● Values 1, 2: The lower and upper inclusive values for the bucket. The type depends on the column data type. ● Value 3: A double representing the cumulative frequency for the value. For example, .25 and .75 indicate that 25% and 75% of the values in the column are less than or equal to the bucket upper value. ● Value 4: The number of distinct values in the range from the bucket lower value to its upper value. 40
  • 41. Information about Histograms mysql> SELECT TABLE_NAME, COLUMN_NAME, HISTOGRAM->>'$."data-type"' AS 'data-type', JSON_LENGTH(HISTOGRAM->>'$."buckets"') AS 'bucket-count' FROM INFORMATION_SCHEMA.COLUMN_STATISTICS; +-----------------+-------------+-----------+--------------+ | TABLE_NAME | COLUMN_NAME | data-type | bucket-count | +-----------------+-------------+-----------+--------------+ | country | Population | int | 226 | | city | Population | int | 1024 | | countrylan | Language | string | 457 | +-----------------+-------------+-----------+--------------+ 41
  • 42. Where Histograms Shine create table h1 (id int unsigned auto_increment, x int unsigned, primary key(id)); insert into h1 (x) values (1),(1),(2),(2),(2),(3),(3),(3),(3); select x, count(x) from h1 group by x; +---+----------+ | x | count(x) | +---+----------+ | 1 | 2 | | 2 | 3 | | 3 | 4 | +---+----------+ 3 rows in set (0.0011 sec) 42
  • 43. Where Histograms Shine EXPLAIN SELECT * FROM h1 WHERE x > 0G *************************** 1. row *************************** id: 1 select_type: SIMPLE table: h1 partitions: NULL type: ALL possible_keys: NULL key: NULL key_len: NULL ref: NULL rows: 9 filtered: 33.32999801635742 – The optimizer knows about 1/3 of the data Extra: Using where 1 row in set, 1 warning (0.0007 sec) 43
  • 44. Where Histograms Shine ANALYZE TABLE h1 UPDATE HISTOGRAM ON x WITH 3 BUCKETSG *************************** 1. row *************************** Table: demox.h1 Op: histogram Msg_type: status Msg_text: Histogram statistics created for column 'x'. 1 row in set (0.0819 sec) 44
  • 45. Where Histograms Shine EXPLAIN SELECT * FROM h1 WHERE x > 0G *************************** 1. row *************************** id: 1 select_type: SIMPLE table: h1 partitions: NULL type: ALL possible_keys: NULL key: NULL key_len: NULL ref: NULL rows: 9 filtered: 100 – all rows!!! Extra: Using where 1 row in set, 1 warning (0.0007 sec) 45
  • 46. With EXPLAIN ANALYSE EXPLAIN analyze SELECT * FROM h1 WHERE x > 0G *************************** 1. row *************************** EXPLAIN: -> Filter: (h1.x > 0) (cost=1.15 rows=9) (actual time=0.027..0.034 rows=9 loops=1) -> Table scan on h1 (cost=1.15 rows=9) (actual time=0.025..0.030 rows=9 loops=1) 46
  • 47. Where Histograms Shine SELECT * FROM information_schema.column_statistics WHERE table_name = 'h1'G *************************** 1. row *************************** SCHEMA_NAME: demox TABLE_NAME: h1 COLUMN_NAME: x HISTOGRAM: {"buckets": [[1, 0.2222222222222222], [2, 0.5555555555555556], [3, 1.0]], "data-type": "int", "null-values": 0.0, "collation-id": 8, "last-updated": "2020-01-29 11:25:36.121891", "sampling-rate": 1.0, "histogram-type": "singleton", "number-of-buckets-specified": 3} 1 row in set (0.0012 sec) 47insert into h1 (x) values (1),(1),(2),(2),(2),(3),(3),(3),(3);
  • 48. Think of a Histogram as ordered buckets of your data But not exactly dynamic 48
  • 49. Performance is not just Indexes and Histograms ● There are many other ‘tweaks’ that can be made to speed things up ● Use explain to see what your query is doing? ○ File sorts, full table scans, using temporary tables, etc. ○ Does the join order look right ○ Buffers and caches big enough ○ Do you have enough memory ○ Disk and I/O speeds sufficient 49
  • 50. Locking Options MySQL added two locking options to MySQL 8.0: ● NOWAIT ○ A locking read that uses NOWAIT never waits to acquire a row lock. The query executes immediately, failing with an error if a requested row is locked. ● SKIP LOCKED ○ A locking read that uses SKIP LOCKED never waits to acquire a row lock. The query executes immediately, removing locked rows from the result set. 50
  • 51. Locking Examples – Buying concert tickets START TRANSACTION; SELECT seat_no, row_no, cost FROM seats s JOIN seat_rows sr USING ( row_no ) WHERE seat_no IN ( 3,4 ) AND sr.row_no IN ( 5,6 ) AND booked = 'NO' FOR UPDATE OF s SKIP LOCKED; Let’s shop for tickets in rows 5 or 6 and seats 3 & 4 but we skip any locked records! 51
  • 52. LOCK NOWAIT START TRANSACTION; SELECT seat_no FROM seats JOIN seat_rows USING ( row_no ) WHERE seat_no IN (3,4) AND seat_rows.row_no IN (12) AND booked = 'NO' FOR UPDATE OF seats SKIP LOCKED FOR SHARE OF seat_rows NOWAIT; Without NOWAIT, this query would have waited for innodb_lock_wait_timeout (default: 50) seconds while attempting to acquire the shared lock on seat_rows. With NOWAIT an error is immediately returned ERROR 3572 (HY000): Do not wait for lock. 52
  • 53. Other Ways Resource Groups Optimizer hints Partitioning Multi Value Indexes 53
  • 54. Resource groups – setting and using CREATE RESOURCE GROUP Batch TYPE = USER VCPU = 2-3 -- assumes a system with at least 4 CPUs THREAD_PRIORITY = 10; SET RESOURCE GROUP Batch; or INSERT /*+ RESOURCE_GROUP(Batch) */ INTO t2 VALUES(2); 54
  • 55. Optimizer Hints SELECT /*+ JOIN_ORDER(t1, t2) */ ... FROM t1, t2; Optimizer hints can be specified within individual statements. Because the optimizer hints apply on a per-statement basis, they provide finer control over statement execution plans than can be achieved using optimizer_switch. For example, you can enable an optimization for one table in a statement and disable the optimization for a different table. 55
  • 56. Partitioning ● In MySQL 8.0, partitioning support is provided by the InnoDB and NDB storage engines. ● Partitioning enables you to distribute portions of individual tables across a file system according to rules which you can set largely as needed. In effect, different portions of a table are stored as separate tables in different locations. 56
  • 57. Multi-value indexes ● You can now have more index pointers than index keys! ○ Very useful for JSON arrays mysql> SELECT 3 MEMBER OF('[1, 3, 5, 7, "Moe"]'); +--------------------------------------+ | 3 MEMBER OF('[1, 3, 5, 7, "Moe"]') | +--------------------------------------+ | 1 | +--------------------------------------+ 57
  • 58. EXPLAIN Explained This is all in Chapter 8 of the MySQL 8.0 manual in greater detail, so if we run out of time… 58
  • 59. Cost Based Optimizer The way the optimizer makes its decisions on how to execute queries is based on a methodology called cost-based optimization. A simplification of this process is as follows: ● Assign a cost to each operation. ● Evaluate how many operations each possible plan would take. ● Sum up the total. ● Choose the plan with the lowest overall cost. 59
  • 60. The Query EXPLAIN SELECT City.name, Country.Name FROM City JOIN Country ON (City.CountryCode = Country.Code) WHERE Country.Code = 'GBR'G 60
  • 61. The Query – What we want EXPLAIN SELECT City.name, Country.Name FROM City JOIN Country ON (City.CountryCode = Country.Code) WHERE Country.Code = 'GBR'G 61
  • 62. The Query – Where we want it from EXPLAIN SELECT City.name, Country.Name FROM City JOIN Country ON (City.CountryCode = Country.Code) WHERE Country.Code = 'GBR'G 62
  • 63. The Query – How the two tables relate EXPLAIN SELECT City.name, Country.Name FROM City JOIN Country ON (City.CountryCode = Country.Code) WHERE Country.Code = 'GBR'G 63
  • 64. The Query – And any filters EXPLAIN SELECT City.name, Country.Name FROM City JOIN Country ON (City.CountryCode = Country.Code) WHERE Country.Code = 'GBR'G 64
  • 65. 65 EXPLAIN SELECT City.name, Country.Name FROM City JOIN Country ON (City.CountryCode = Country.Code) WHERE Country.Code = 'GBR'G *************************** 1. row *************************** id: 1 select_type: SIMPLE table: Country partitions: NULL type: const possible_keys: PRIMARY key: PRIMARY key_len: 3 ref: const rows: 1 filtered: 100 Extra: NULL *************************** 2. row *************************** id: 1 select_type: SIMPLE table: City partitions: NULL type: ref possible_keys: CountryCode key: CountryCode key_len: 3 ref: const rows: 81 filtered: 100 Extra: NULL 2 rows in set, 1 warning (0.0013 sec)
  • 66. The Actual Query Plan select `world`.`city`.`Name` AS `name`, 'United Kingdom' AS `Name` from `world`.`city` join `world`.`country` where (`world`.`city`.`CountryCode` = 'GBR') 66
  • 67. Optimizer substituted Country.name select `world`.`city`.`Name` AS `name`, 'United Kingdom' AS `Name` from `world`.`city` join `world`.`country` where (`world`.`city`.`CountryCode` = 'GBR') 67
  • 68. Optimizer substituted Country.name explain format=tree SELECT City.name, Country.Name FROM City JOIN Country ON (City.CountryCode = Country.Code) WHERE Country.Code = 'GBR'G *************************** 1. row *************************** EXPLAIN: -> Index lookup on City using CountryCode (CountryCode='GBR') (cost=26.85 rows=81) So the optimizer ‘knows’ just to grab the ‘GBR’ records from the City table and does not need to read the Country table at all. 68
  • 69. Optimizer substituted Country.name Explain ANALYZE SELECT City.name, Country.Name FROM City JOIN Country ON (City.CountryCode = Country.Code) WHERE Country.Code = 'GBR'G *************************** 1. row *************************** EXPLAIN: -> Index lookup on City using CountryCode (CountryCode='GBR') (cost=26.85 rows=81) (actual time=0.123..0.138 rows=81 loops=1) 1 row in set (0.0009 sec) Explain ANALYZE runs the query and the estimate is pretty good! 69
  • 70. 70 EXPLAIN SELECT City.name, Country.Name FROM City JOIN Country ON (City.CountryCode = Country.Code) WHERE Country.Code = 'GBR'G *************************** 1. row *************************** id: 1 select_type: SIMPLE table: Country partitions: NULL type: const possible_keys: PRIMARY key: PRIMARY key_len: 3 ref: const This is a CONSTANT rows: 1 filtered: 100 Extra: NULL *************************** 2. row *************************** id: 1 select_type: SIMPLE table: City partitions: NULL type: ref possible_keys: CountryCode key: CountryCode key_len: 3 ref: const rows: 81 There are 81 records that match in the index filtered: 100 Extra: NULL 2 rows in set, 1 warning (0.0013 sec)
  • 71. 71
  • 72. Some General Rules ● Look to index columns on right side of WHERE clause ● Maybe index SORT BY columns (test) ● JOIN on like type and size columns ○ i.e. No VARCHAR(32) to DECIMAL matches 72
  • 73. Slightly More Complex SELECT CONCAT(customer.last_name,', ', customer.first_name) AS customer, address.phone, film.title FROM rental INNER JOIN customer ON rental.customer_id = customer.customer_id INNER JOIN address ON customer.address_id = address.address_id INNER JOIN inventory ON rental.inventory_id = inventory.inventory_id INNER JOIN film ON inventory.film_id = film.film_id WHERE rental.return_date IS NULL AND rental_date + INTERVAL film.rental_duration DAY < CURRENT_DATE() ORDER BY title LIMIT 5; 73
  • 74. And yes the output of EXPLAIN can be hard to read | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+--------+----------------------------------------+---------+---------+---------------------------- +-------+----------+----------------------------------------------+ | 1 | SIMPLE | rental | NULL | ALL | idx_fk_inventory_id,idx_fk_customer_id | NULL | NULL | NULL | 16008 | 10 | Using where; Using temporary; Using filesort | | 1 | SIMPLE | customer | NULL | eq_ref | PRIMARY,idx_fk_address_id | PRIMARY | 2 | sakila.rental.customer_id | 1 | 100 | NULL | | 1 | SIMPLE | address | NULL | eq_ref | PRIMARY | PRIMARY | 2 | sakila.customer.address_id | 1 | 100 | NULL | | 1 | SIMPLE | inventory | NULL | eq_ref | PRIMARY,idx_fk_film_id | PRIMARY | 3 | sakila.rental.inventory_id | 1 | 100 | NULL | | 1 | SIMPLE | film | NULL | eq_ref | PRIMARY | PRIMARY | 2 | sakila.inventory.film_id | 1 | 100 | Using where | 74
  • 76. Tree format is often little better Limit: 5 row(s) -> Sort: <temporary>.title, limit input to 5 row(s) per chunk -> Stream results -> Nested loop inner join (cost=3866.17 rows=1601) -> Nested loop inner join (cost=3305.89 rows=1601) -> Nested loop inner join (cost=2745.61 rows=1601) -> Nested loop inner join (cost=2185.33 rows=1601) -> Filter: (rental.return_date is null) (cost=1625.05 rows=1601) -> Table scan on rental (cost=1625.05 rows=16008) -> Single-row index lookup on customer using PRIMARY (customer_id=rental.customer_id) (cost=0.25 rows=1) -> Single-row index lookup on address using PRIMARY (address_id=customer.address_id) (cost=0.25 rows=1) -> Single-row index lookup on inventory using PRIMARY (inventory_id=rental.inventory_id) (cost=0.25 rows=1) -> Filter: ((rental.rental_date + interval film.rental_duration day) < <cache>(curdate())) (cost=0.25 rows=1) -> Single-row index lookup on film using PRIMARY (film_id=inventory.film_id) (cost=0.25 rows=1) 76
  • 77. Back to the old tabular EXPLAIN | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+--------+----------------------------------------+---------+---------+---------------------------- +-------+----------+----------------------------------------------+ | 1 | SIMPLE | rental | NULL | ALL | idx_fk_inventory_id,idx_fk_customer_id | NULL | NULL | NULL | 16008 | 10 | Using where; Using temporary; Using filesort | | 1 | SIMPLE | customer | NULL | eq_ref | PRIMARY,idx_fk_address_id | PRIMARY | 2 | sakila.rental.customer_id | 1 | 100 | NULL | | 1 | SIMPLE | address | NULL | eq_ref | PRIMARY | PRIMARY | 2 | sakila.customer.address_id | 1 | 100 | NULL | | 1 | SIMPLE | inventory | NULL | eq_ref | PRIMARY,idx_fk_film_id | PRIMARY | 3 | sakila.rental.inventory_id | 1 | 100 | NULL | | 1 | SIMPLE | film | NULL | eq_ref | PRIMARY | PRIMARY | 2 | sakila.inventory.film_id | 1 | 100 | Using where | 77
  • 78. Back to the old tabular EXPLAIN, cleaned up | table | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+--------+----------------------------------------+---------+---------+---------------------------- +-------+----------+----------------------------------------------+ | rental | ALL | idx_fk_inventory_id,idx_fk_customer_id | NULL | NULL | NULL | 16008 | 10 | Using where; Using temporary; Using filesort | | customer | eq_ref | PRIMARY,idx_fk_address_id | PRIMARY | 2 | sakila.rental.customer_id | 1 | 100 | NULL | | address | eq_ref | PRIMARY | PRIMARY | 2 | sakila.customer.address_id | 1 | 100 | NULL | | inventory | eq_ref | PRIMARY,idx_fk_film_id | PRIMARY | 3 | sakila.rental.inventory_id | 1 | 100 | NULL | | film | eq_ref | PRIMARY | PRIMARY | 2 | sakila.inventory.film_id | 1 | 100 | Using where | 78
  • 79. First glance – what indexes are being used? | table | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+--------+----------------------------------------+---------+---------+---------------------------- +-------+----------+----------------------------------------------+ | rental | ALL | idx_fk_inventory_id,idx_fk_customer_id | NULL | NULL | NULL | 16008 | 10 | Using where; Using temporary; Using filesort | | customer | eq_ref | PRIMARY,idx_fk_address_id | PRIMARY | 2 | sakila.rental.customer_id | 1 | 100 | NULL | | address | eq_ref | PRIMARY | PRIMARY | 2 | sakila.customer.address_id | 1 | 100 | NULL | | inventory | eq_ref | PRIMARY,idx_fk_film_id | PRIMARY | 3 | sakila.rental.inventory_id | 1 | 100 | NULL | | film | eq_ref | PRIMARY | PRIMARY | 2 | sakila.inventory.film_id | 1 | 100 | Using where | 79 Anytime the type column shows all it means the entire file/table must be read, which is slow. If it does have to read all the rows is it because there are no indexes available? Or does it have to read all the table because is processing the entire table?
  • 80. Look back at our query and determine why it reads all the records SELECT CONCAT(customer.last_name,', ', customer.first_name) AS customer, address.phone, film.title FROM rental INNER JOIN customer ON rental.customer_id = customer.customer_id INNER JOIN address ON customer.address_id = address.address_id INNER JOIN inventory ON rental.inventory_id = inventory.inventory_id INNER JOIN film ON inventory.film_id = film.film_id WHERE rental.return_date IS NULL AND rental_date + INTERVAL film.rental_duration DAY < CURRENT_DATE() ORDER BY title LIMIT 5; 80
  • 81. Quiz: Why so slow if it only has to return FIVE RECORDS?!?!?!?! SELECT CONCAT(customer.last_name,', ', customer.first_name) AS customer, address.phone, film.title FROM rental INNER JOIN customer ON rental.customer_id = customer.customer_id INNER JOIN address ON customer.address_id = address.address_id INNER JOIN inventory ON rental.inventory_id = inventory.inventory_id INNER JOIN film ON inventory.film_id = film.film_id WHERE rental.return_date IS NULL AND rental_date + INTERVAL film.rental_duration DAY < CURRENT_DATE() ORDER BY title LIMIT 5; 81
  • 82. Second glance – what EXTRAS are being used? | table | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+--------+----------------------------------------+---------+---------+---------------------------- +-------+----------+----------------------------------------------+ | rental | ALL | idx_fk_inventory_id,idx_fk_customer_id | NULL | NULL | NULL | 16008 | 10 | Using where; Using temporary; Using filesort | | customer | eq_ref | PRIMARY,idx_fk_address_id | PRIMARY | 2 | sakila.rental.customer_id | 1 | 100 | NULL | | address | eq_ref | PRIMARY | PRIMARY | 2 | sakila.customer.address_id | 1 | 100 | NULL | | inventory | eq_ref | PRIMARY,idx_fk_film_id | PRIMARY | 3 | sakila.rental.inventory_id | 1 | 100 | NULL | | film | eq_ref | PRIMARY 100 | NULL | | film | eq_ref | PRIMARY 82 The where; Using temporary; Using filesort informs that the output has to be sorted (part of the sort clause) and that a temporary table needed to be used.
  • 83. MySQL 8.0 Temporary Table much faster ● Previously temporary tables were size limited and when they reached that limit: ○ The processing was halted ○ The data was copied to InnoDB ○ The processing continued with the InnoDB copy of the data ○ And the above was slow 83
  • 84. Second glance – what EXTRAS are being used? | table | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+--------+----------------------------------------+---------+---------+---------------------------- +-------+----------+----------------------------------------------+ | rental | ALL | idx_fk_inventory_id,idx_fk_customer_id | NULL | NULL | NULL | 16008 | 10 | Using where; Using temporary; Using filesort | | customer | eq_ref | PRIMARY,idx_fk_address_id | PRIMARY | 2 | sakila.rental.customer_id | 1 | 100 | NULL | | address | eq_ref | PRIMARY | PRIMARY | 2 | sakila.customer.address_id | 1 | 100 | NULL | | inventory | eq_ref | PRIMARY,idx_fk_film_id | PRIMARY | 3 | sakila.rental.inventory_id | 1 | 100 | NULL | | film | eq_ref | PRIMARY 100 | NULL | | film | eq_ref | PRIMARY 84 The where; Using temporary; Using filesort informs that the output has to be sorted (part of the sort clause) and that a temporary table needed to be used. Sometime you can avoid a filesort IF the column used is sorted
  • 85. Is there something unindexed that need to be indexed? ● Or something we can use to build a histogram 85
  • 86. SHOW INDEX FROM rental ● PRIMARY ● Rental_date – rental_date, inventory_id, customer_id ● Idx_fk_inventory_id – inventory_id, cutomer_id ● Idx_fk_staff_id 86
  • 87. SHOW INDEX FROM film ● PRIMARY ● Idx_title ● Idx_fk_language_id ● Idx_fk_original_language_id 87
  • 88. A Functional Index? Or Generated Column? WHERE rental.return_date IS NULL AND rental_date + INTERVAL film.rental_duration DAY < CURRENT_DATE() ORDER BY title LIMIT 5; Could this part in red be reduced to a functional index/generated column? AND return_date < CURRENT_DATE() film.rental_duration + rental_date Would want to store this in the record with the rental data? 88
  • 89. Yes, let us add that new column ● ALTER TABLE operations can be expensive ● How do we seed data ● Do we use a GENERATED COLUMN? Can we? ● Do we add a stub table? ○ Extra index/table dives ○ How much code do we have to change? ○ Other considerations 89
  • 90. Where Else To Look ● MySQL Manual ● Forums.MySQL.com ● MySQLcommunity.slack.com 90
  • 91. New Books ● Can be pre ordered ● Author’s others work are outstanding and well written 91
  • 92. Great Books ● Getting very dated ● Make sure you get 3rd edition ● Can be found in used book stores 92
  • 93. My Book ● A guide to using JSON and MySQL ● Usually on Sale at Amazon 93
  • 94. Thank you ● David.Stokes @Oracle.com ● @Stoker ● PHP Related blog https://elephantdolphin.blogspot.com/ ● MySQL Latest Blogs https://planet.mysql.com/ ● Where to ask questions https://forums.mysql.com/ ● Slack https://mysqlcommunity.slack.com 94
